Development and Evaluation of a Software Requirements Ontology

He Tan

, Muhammad Ismail

, Vladimir Tarasov

, Anders Adlemo

and Mats Johansson

Department of Computer Science and Informatics, School of Engineering, J

onk

oping University, J

onk

oping, Sweden

Saab Avionics Systems, J

onk

oping, Sweden

Keywords:

Ontology, Software Requirements, Ontology Development, Ontology Evaluation, Avionics Software Devel-

opment.

Abstract:

This paper presents an ontology which has been developed to represent the requirements of a software compo-

nent pertaining to an embedded system in the avionics industry. The ontology was built based on the software

requirements documents and was used to support advanced methods in the subsequent stages of the software

development process. In this paper it is described the process that was used to build the ontology. Two perti-

nent quality measures that were applied to the ontology, i.e. usability and applicability, are also described, as

well as the methods used to evaluate the quality measures and the result of these evaluations.

1 INTRODUCTION

One commonly cited deﬁnition of ontology is: ”an

ontology is a formal explicit speciﬁcation of a

shared conceptualization” (Studer et al., 1998), which

merges the two deﬁnitions from Gruber (Gruber,

1995) and Borst (Borst, 1997). By explicitly mod-

elling domain knowledge in a machine readable for-

mat, ontologies provide the possibility for represent-

ing, organizing and reasoning over the knowledge of

a domain of interest, and can serve as a basis for dif-

ferent purposes.

Requirements engineering (RE) is an area con-

cerned with elicitation, speciﬁcation and validation

of the requirements of software systems (Nuseibeh

and Easterbrook, 2000). The use of ontologies in RE

can date back to the 1990s, e.g. (Mylopoulos et al.,

1990; Greenspan et al., 1994; Uschold and Gruninger,

1996). There exists a clear synergy between the onto-

logical modelling of domain knowledge and the mod-

elling of requirements performed by requirement en-

gineers (Dobson and Sawyer, 2006). Recently, the

interest in utilizing ontologies in RE, as well as soft-

ware engineering in general, has been renewed due to

the emergency of semantic web technologies (Dobson

and Sawyer, 2006; Happel and Seedorf, 2006).

In this paper we present an ontology which has

been developed to represent the software require-

ments of an application from the avionics industry.

In the avionics industry, many of the systems are re-

quired to be highly safety-critical. For these systems,

the software development process must comply with

several industry standards, like DO-178B (RTCA,

1992). The requirements of the entire system, or units

making up the system, must be analyzed, speciﬁed

and validated before initiating the design and imple-

mentation phases. In our work an ontology was de-

veloped representing the requirements of a software

component pertaining to an embedded system. The

requirements are provided in natural language docu-

ments and have been manually validated by domain

experts within the avionic industry. The requirements

ontology developed based on these requirements is to

be used in the subsequent stages of the software de-

velopment process in order to support advanced ap-

proaches. To be more speciﬁc, the ontology is used

to automate a part of the testing process in our work,

namely the creation of test cases generation.

The evaluation of an ontology is very important

to demonstrate its correctness and usefulness and

many publications have been presented over the years

within this area of ontology research. The focus of

the evaluation in this work is on the usefulness of the

requirements ontology. This is due to the fact that,

in most cases, the users of an ontology are normally

not the people who developed the ontology. This is

also true for the requirements ontology presented in

this paper where the users can be quality engineers or

testers within the avionic industry. In our work, even

a program can take the ontology as input to automate

a part of the testing process. The evaluation results

presented in this paper are focused on the evaluation

Tan, H., Ismail, M., Tarasov, V., Adlemo, A. and Johansson, M.

Development and Evaluation of a Software Requirements Ontology.

DOI: 10.5220/0006079300110018

In Proceedings of the 7th International Workshop on Software Knowledge (SKY 2016), pages 11-18

ISBN: 978-989-758-202-8

of the user experiences when using the requirements

ontology and, in particular, we consider the usability

and applicability of the ontology.

The rest of the paper is organised as follows. Sec-

tion 2 presents related work in the ﬁeld of require-

ments ontologies, ontology development methods and

ontology evaluations. In section 3 we present the de-

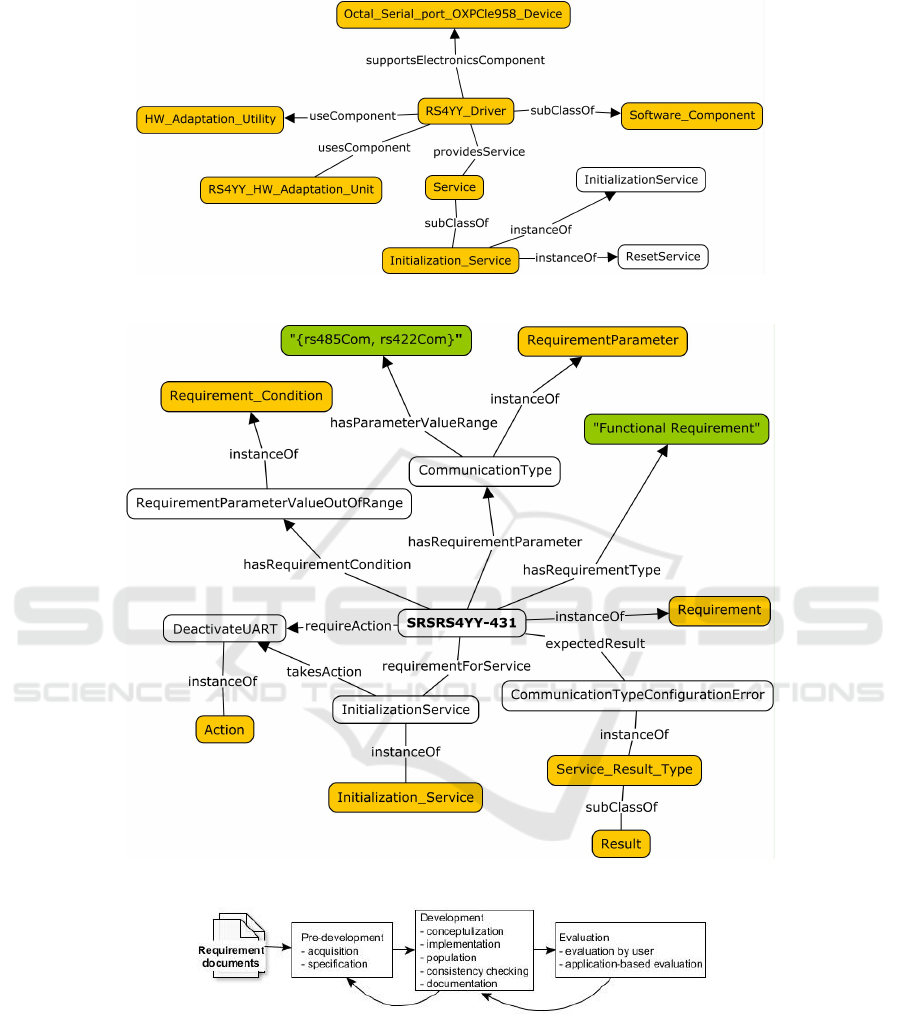

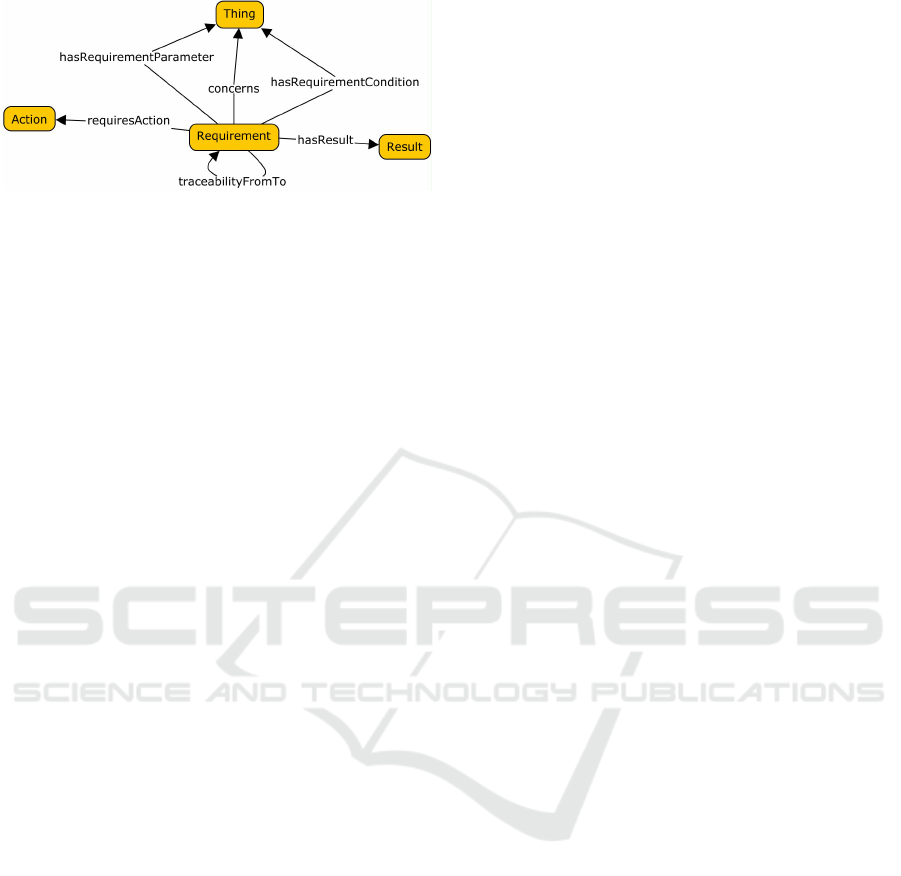

veloped requirements ontology. In section 4 we de-

scribe the ontology development method used. The

evaluation of the ontology from a user perspective as

well as the validation of the output when applying in-

ference rules on the ontology are presented and dis-

cussed in section 5. Section 6 presents our conclu-

sions and discussions on future work.

2 RELATED WORK

In this section we present pertinent references to re-

lated work, speciﬁcally in the areas of requirements

ontologies, ontology development methods and ontol-

ogy evaluation.

2.1 Requirements Ontologies

A lot of research has been done on the application

of ontologies in RE (e.g. (Lin et al., 1996; Mayank

et al., 2004; Siegemund et al., 2011)). Much of the

research deals with inconsistency and incompleteness

problems in requirement speciﬁcations. For exam-

ple, in (Lin et al., 1996), an ontology is proposed

to support the cooperation between requirements en-

gineers. The ontology provides a formal represen-

tation of the engineering design knowledge that can

be shared among engineers, such that the ambiguity,

inconsistency, incompleteness and redundancy can

be reduced when engineers concurrently develop re-

quirements for sub-systems of a complex artifact.

In other related work, such as described

in (Greenspan et al., 1994; Mayank et al., 2004),

ontologies are proposed to provide a framework for

the requirements modeling in order to support the re-

quirements engineering process. Such a framework

can help mitigating the difﬁculties encountered in re-

quirements engineering, such as negotiating a com-

mon understanding of concepts, dealing with ambi-

guity, and clarifying desires, needs and constraints.

Another direction of the application of ontologies

in RE is to represent requirements in formal ontol-

ogy languages in order to support consistency check-

ing, question answering, or inferring propositions

(e.g.(Mylopoulos et al., 1990; Moroi et al., 2012)).

Most of the work within this direction is focused on

analysis of consistency, completeness and correctness

of requirements through reasoning over requirements

ontologies. The work presented in this paper is also

concerned with representing requirements in an on-

tology, but the ontology is mainly employed to sup-

port advanced methods in the subsequent stages of the

software development process.

2.2 Ontology Development Methods

A number of methods have been put forward

for building ontologies. Ontology 101 (Noy and

McGuinness, 2001) proposes a very simple but prac-

tical guide for building an ontology using an ontology

editing environment, such as Prot

ege (Gennari et al.,

2003). Another famous method in ontology develop-

ment is METHONTOLOGY (Fern

andez-L

opez et al.,

1997). METHONTOLOGY contributes with a gen-

eral framework for ontology development, which de-

ﬁnes the main activities that people need to carry out

when building an ontology, and outlines three differ-

ent processes: management, technical, and support-

ing. The OTK Methodology (Fensel et al., 2000) is

focused on application-driven ontology development.

According to this method, engineering and industrial

experts should actively be involved in the develop-

ment of an ontology, in particular during the early

stages of ontology engineering. There exist also other

methods, e.g. (Presutti et al., 2009), that introduce Ex-

treme programming, which initially was a software

development method, to ontology engineering. These

methods focus on a collaborative, incremental, and it-

erative process of ontology development.

Unfortunately, no one single ontology develop-

ment method was sufﬁcient to guide us in our on-

tology development process. In section 4 we brieﬂy

present the development process used in our research,

a process that combines features from the methods de-

scribed above.

2.3 Ontology Evaluation

The challenge in ontology evaluation is to determine

the quality features that are to be evaluated as well as

the evaluation method. Many different evaluation cri-

teria have been discussed in literature (e.g. (G

omez-

erez, 2004; Gangemi et al., 2006; Vrande

c, 2009)).

Which quality features to evaluate depend on vari-

ous factors, such as the type of ontology, the focus of

an evaluation and who is performing the evaluation.

Burton-Jones et al. argue that different types of on-

tologies require different evaluation criteria (Burton-

Jones et al., 2005). For example, for an application or

domain ontology it is enough to evaluate the features

important to the application or domain. Gangemi et

SKY 2016 - 7th International Workshop on Software Knowledge

al. (Gangemi et al., 2006) propose that the feature of

ontology quality can be considered in three main di-

mensions: the structural dimension focusing on syn-

tax and formal semantics, the functional dimension

related to the intended use of an ontology and the

usability-proﬁling dimension focusing on the commu-

nication context of an ontology.

Most ontology evaluation methods can fall into

one of the following categories (Brank et al., 2005;

Tan and Lambrix, 2009; Hlomani and Stacey, 2014):

1) Gathering statistics about the nature of ontologies.

For example, in (Gangemi et al., 2006) the authors

propose a set of metrics to measure the cohesion in an

ontology, such as the depth, width, fan-out of an on-

tology, etc. However, it is often hard to validate how

these statistics are capable of indicating the quality of

an ontology. 2) Comparing an ontology to a gold stan-

dard. The limitation of this method is that it is difﬁ-

cult to establish the gold standard and furthermore the

gold standard itself needs to be evaluated. 3) Com-

paring an ontology against a source of data stemming

from the domain that the ontology strives to model.

The assumption behind this method is that the domain

knowledge is constant. However, the domain knowl-

edge can at times be dynamic. 4) Evaluation per-

formed by a human evaluator. The evaluation can be

performed by an ontology expert, a domain expert, or

a user of an ontology. The measurement of ontology

quality is based on a set of predeﬁned criteria, stan-

dards, or requirements. As a consequence, the evalu-

ation results can be subjective because of the back-

ground of the evaluator. 5) Application-dependent

evaluations. For example, in (Clarke et al., 2013) the

quality of the gene ontology is evaluated regarding

the effectiveness of the ontology and its annotations

performed in the gene-set enrichment analysis exper-

iment. The results from application-dependent evalu-

ations are applicable to at least one context, but they

cannot be generalized to other contexts. It is also ex-

pensive to perform application-dependent evaluations

on many ontologies.

The ontology developed in this work is a domain

ontology that has been used to support a particular

application. In section 5 we will present the quality

features we consider pertinent to evaluate as well as

the evaluation methods used.

3 A REQUIREMENTS

ONTOLOGY IN AVIONICS

INDUSTRY

In the research project undertaken, an ontology repre-

senting the requirements of a telecommunication soft-

ware component pertaining to an embedded system

used in an avionics system has been developed. The

software component is fully developed in compliance

with DO-178B standard. As deﬁned in DO-178B, the

requirements of the software component have been

prepared, reviewed and validated. The requirements

ontology for the software component has been devel-

oped to support the automation of a part of the soft-

ware development process.

The ontology includes three pieces of knowledge:

1) a meta model of the software requirements, 2) the

domain knowledge of the application, e.g. general

knowledge of the hardware and software, the elec-

tronic communication standards etc., and 3) each sys-

tem requirements speciﬁcations.

The current version of the ontology contains 42

classes, 34 object properties, 13 datatype properties,

and 147 instances in total. Figure 1 presents the

meta model of the software requirements. As indi-

cated in the ﬁgure, each requirement is concerned

with certain functionalities of the software compo-

nent. For example, a requirement may be concerned

with data transfer. Each requirement consists of at

least requirement parameters, which are inputs of a re-

quirement, requirement conditions, and results, which

are usually outputs of a requirement, and exception

messages. Some requirements require the system to

take actions. Furthermore, there exists traceability

between different requirements, e.g. traceability be-

tween an interface requirement and a system require-

ment. Figure 2 illustrates an ontology fragment of

the domain knowledge about the telecommunication

software component. Figure 3 shows the ontology

fragment for one particular functional requirement,

i.e. SRSRS4YY-431. The ontology fragments for all

the other individual requirements are similar to this

one. The functional requirement deﬁnes that if the

communication type is out of its valid range, the ini-

tialization service shall deactivate the UART (Univer-

sal Asynchronous Receiver/Transmitter), and return

the result ”comTypeCfgError”. In ﬁgures 1 to 3, the

orange boxes represent the concepts of the ontology;

the white boxes represent the instances; and the green

boxes provide the data values of the datatype property

for instances.

4 THE ONTOLOGY

DEVELOPMENT METHOD

The general development process applied during the

creation of the requirements ontology is illustrated

in Figure 4. During the development of the ontol-

Development and Evaluation of a Software Requirements Ontology

Figure 1: The meta model of the software requirements in

the ontology.

ogy, the developers worked as a pair and followed

an iterative and incremental process. In each itera-

tion, the developers basically followed the steps sug-

gested in Ontology 101, and considered the activi-

ties described in the supporting process in METHON-

TOLOGY. Lightweight competence questions (CQs)

were used as a guidance to build the ontology. These

CQs are simple and quickly prepared. In each itera-

tion the developers had an opportunity to meet with

the industry experts and discuss the issues they had

encountered during the acquisition and speciﬁcation

steps. The developers also received feedback from

the users of the ontology, and modiﬁed the ontology

when needed.

The development tool used was the Prot

e. Her-

miT reasoner (Shearer et al., 2008) was used to check

the consistency of the ontology. Finally, the ontology

was written in OWL (Bechhofer, 2009).

5 EVALUATION OF THE

ONTOLOGY

Any type of application domain model has to be eval-

uated, to demonstrate its appropriateness for what it

was contemplated. As described in section 2, there

exist a great number of different principles for the

evaluation of the quality of an ontology. However, the

focus in this paper is on two speciﬁc principles, the

usability and the applicability of an ontology. The on-

tology that has been developed in the research project

can be considered as being both a domain ontology

and an application ontology, as illustrated in Figure 2

and 3. In this paper we deﬁne usability as a set of at-

tributes that describe the effort needed by a human to

make use of the ontology. The evaluation of the us-

ability is performed by humans, i.e. typical potential

users of the ontology. We deﬁne applicability as the

quality of the ontology being correct or appropriate

for a particular application domain or purpose. The

evaluation of the applicability of the ontology is car-

ried out by a developer of a software component that

uses the ontology to implement its functionality.

5.1 Evaluation of Usability

The evaluation of the usability of a product or system

is something that goes back in time. In 1986, Brooke

developed a questionnaire, the System Usability Scale

(SUS) (Brooke, 1996). During the years since then,

it has been demonstrated that the SUS is applicable

over a wide range of systems and types of technol-

ogy and that it produces similar results as more ex-

tensive attitude scales that are intended to provide

deeper insights into a users attitude to the usability

of a systems. SUS also has a good ability to discrimi-

nate and identify systems with good and poor usabil-

ity (Brooke, 2013). In this work we make use of the

version of SUS introduced in (Casellas, 2009). The

scale, including its ten questions and the result, is pre-

sented in Table 1. The texts in the ten questions have

only been slightly modiﬁed to adjust to the domain of

ontologies.

The evaluation of the usability of an ontology is

especially important when the ontology is going to be

used by domain experts who are normally not ontol-

ogy experts. Hence, the ontology was evaluated by

two persons, one being an application domain expert

(in software testing) and the other being an ontology

expert, in order to compare their different views on

the usability of the ontology. An evaluation of only

two persons will only provide an indication of the

usability of the ontology. However, Tullis and Stet-

son (Tullis and Stetson, 2004) has shown that it is

possible to get reliable results with a smaple of 8-12

users. As a consequence, we are planning a more ex-

tensive evaluation in the near future.

The statements at odd numbered positions in Ta-

ble 1 are all in positive form and the even numbered

positions are all in negative form, as deﬁned in SUS.

The reason for this alternation is to avoid response bi-

ases, especially as the questionnaire invites rapid re-

sponses by being short; by alternating positive and

negative statements, the goal is to have respondents

read each statement and make an effort to reﬂect

whether they agree or disagree with it.

The scoring is calculated as described in (Brooke,

1996). When applying the scoring procedure on the

result presented in the table, the SUS scores indicate

that the usability result for the application domain ex-

pert was 70 while the ontology expert had a result of

87.5. This implies that the usability of the ontology

from the application domain expert’s point of view

was in the 57 percentile rank (i.e. seen as being ”ac-

ceptable” (see the red line in Fig 5)) while the usabil-

ity of the ontology from the ontology expert’s point of

SKY 2016 - 7th International Workshop on Software Knowledge

Figure 2: Ontology fragment for the domain knowledge.

Figure 3: Ontology fragment for a requirement speciﬁcation SRSRS4YY-431.

Figure 4: The ontology development process.

view was in the 97 percentile rank (i.e. seen as being

close to ”the best imaginable” (see the blue line in the

ﬁgure)) . A closer analysis of the answers from the

two experts indicate the following.

Application domain expert: Due to inexperience

in reading and using ontologies in testing activities

at ﬁrst it was not obvious how to apply the require-

ment ontology. However, after a reasonable amount

of time, the almost one-to-one correspondence be-

tween the requirements identiﬁed in the software re-

quirements speciﬁcation and the corresponding parts

found in the ontology, made it quite straightforward

to understand their interrelationship. Thus, the com-

plexity of the ontology was not considered to be over-

whelming. To overcome the initial problems in under-

standing some of the technicalities within the ontol-

Development and Evaluation of a Software Requirements Ontology

Table 1: Ontology usability evaluation. (AE:Application Domain Expert, OE:Ontology Expert, score: 1=strongly disagree,

2=disagree, 3=no preference, 4=agree, 5=strongly agree).

Statements to evaluate the usability of the requirement ontology AE OE

1 I think that I could contribute to this ontology 3 5

2 I found the ontology unnecessarily complex 3 2

3 I ﬁnd the ontology easy to understand 4 4

4 I think that I would need further theoretical support to be able to understand

this ontology

2 1

5 I found that various concepts in this system were well integrated 4 4

6 I thought there was too much inconsistency in this ontology 2 1

7 I would imagine that most domain experts would understand this ontology very

quickly

4 3

8 I ﬁnd the ontology very cumbersome to understand 2 1

9 I am conﬁdent I understand the conceptualization of the ontology 4 5

10 I needed to ask a lot of questions before I could understand the conceptualiza-

tion of the ontology

2 1

Figure 5: Percentile rankings of SUS scores (Sauro, 2011).

(Red line: AE evaluation result, blue line: OE evaluation

result).

ogy, several questions had to be posed to the ontology

experts. As a consequence, some extra capacitation

in the ﬁeld of ontologies would have been helpful. To

sum up; ”it is my strong belief that I have a fairly good

understanding of the conceptualization of the require-

ment ontology”.

Ontology expert: By using the ontology in the ap-

plication, it was easy to determine changes that would

improve the usability of the ontology for software

testing. These changes were mostly about adding new

instances and object and datatype properties. In gen-

eral, it was easy to understand the ontology by explor-

ing it in Prot

e. But some parts required extra explo-

rations by using visualization tools or even looking

at the OWL functional serialization. As soon as the

evaluator is an experienced ontology/knowledge en-

gineer, no extra theoretical support is required. But it

could be different for a less experienced ontology en-

gineer. Most concepts were well integrated but some

of them needed an extra integration, mainly through

object properties. No inconsistencies were found, just

some entities missing from the application viewpoint.

Most ontology engineers would understand the on-

tology quickly but, still, they would need some extra

time because the domain represented by the ontology

is complex. The evaluator did not have to ask a lot of

questions because the documentation was available in

addition to the ontology itself. However, questions

were needed to ask to understand how the ontology

could be improved from an application viewpoint.

5.2 Evaluation through Application

According to our deﬁnition of applicability, the on-

tology should exhibit the quality of correctness or ap-

propriateness when used for a particular application

domain or purpose. To evaluate the applicability of

the requirements ontology, it has been used for auto-

matic generation of software test cases based on the

requirements. The generation of test cases has been

done by application of inference rules to the ontol-

ogy. Each inference rule represents a part of a strategy

for test case generation, and is formulated in terms of

the entities in the requirements ontology. The entities

are retrieved from the ontology to check conditions

of the rules as well as to construct different test case

parts. A test case is generated by applying several

inference rules that traverse different ontology paths

starting from the instance that represents the software

requirement.

The inference rules were implemented in the Pro-

log language. To make it work, the requirements on-

tology was ﬁrst saved in the OWL functional syn-

SKY 2016 - 7th International Workshop on Software Knowledge

tax (Motik et al., 2015). Then it was translated into

the Prolog syntax(Bratko, 2001). As a result, OWL

statements from the requirements ontology could be

directly used in the inference rules. During the ﬁrst

experiment, 40 inference rules were used to generate

18 test cases for 15 requirements. 66 distinct entities

form the ontology were used for the test case con-

struction. The test cases were generated as plain text

in English. The experiment showed an almost one-

to-one correspondence between the texts in the gen-

erated test cases and the texts provided by one of our

industrial partners.

The evaluation showed that the developed require-

ments ontology can fulﬁl its purpose, that is to sup-

port different stages of a software development pro-

cess. The ontology has been used for automation of a

part of the testing process and allowed for successful

generation of test cases. The test cases generated by

application of the inference rules to the ontology were

almost the same as the ones manually constructed by

the testers. The ontology allowed for a straightfor-

ward way of formulating inference rules. It was fairly

easy to integrate the ontology in the OWL functional

syntax in the Prolog program containing the inference

rules. The OWL expressions were directly employed

in the inference rules (after small syntactic changes

in the translation phase) thanks to the availability of

instances in the ontology. Exploring the ontology

paths allowed to capture strategies for test case gen-

eration. The minor deﬁciencies in the ontology that

were discovered during the development of inference

rules were addressed in the following iterations.

6 CONCLUSION AND FUTURE

WORK

In this paper we have presented an ontology which

was developed to represent the software requirements

found in an embedded system in the avionics industry.

The ontology was built from software requirements

documents. From an ontology development perspec-

tive, we propose a method which combines features

from several different ontology development meth-

ods. The combined method is very practical and pro-

vides the necessary guidance for developing a require-

ments ontology from requirements documents for a

particular application or purpose. One direction of

the future work is to evaluate and improve the method

through similar ontology development tasks.

Until now, very little work has been performed on

the evaluation of an ontology from a user or an ap-

plication’s point of view. In this work we deﬁne two

quality features pertinent to the evaluation of an on-

tology, i.e. usability and applicability, along with the

evaluation method used. In the future we will con-

tinue the investigation of possible methods for evalu-

ating the usability and applicability of ontologies. We

would also like to develop guidelines to facilitate the

evaluation of the quality of ontologies in connection

with usability, applicability and other quality features

with a focus on user experiences.

The ontology created from the software require-

ments documents is intended to support the automa-

tion of the different tasks in the subsequent stages of

software development process, in order to reduce the

cost of the software development. However, the de-

velopment of an ontology itself is an expensive and

difﬁcult task. Hence, another direction in our future

work is the automation of building ontologies from

software requirements documents. Thus, when the

ontology-based approach for software engineering is

deployed in an industry environment, the real cost

of the software development activities can be signiﬁ-

cantly reduced.

ACKNOWLEDGEMENT

The research reported in this paper has been car-

ried out in the project ”Ontology-based Software Test

Case Generation”, which was ﬁnanced by grant KKS-

20140170 from the Knowledge Foundation in Swe-

den.

REFERENCES

Bechhofer, S. (2009). OWL: Web ontology language. In

Encyclopedia of Database Systems, pages 2008–2009.

Springer.

Borst, W. N. (1997). Construction of engineering ontolo-

gies for knowledge sharing and reuse. Universiteit

Twente.

Brank, J., Grobelnik, M., and Mladenic, D. (2005). A sur-

vey of ontology evaluation techniques. In Proceedings

of the conference on data mining and data warehouses

(SiKDD 2005), pages 166–170.

Bratko, I. (2001). Prolog Programming for Artiﬁcail Intel-

ligence. Pearson Education, 4th ed. edition.

Brooke, J. (1996). SUS-A quick and dirty usability scale.

Usability evaluation in industry, 189(194):4–7.

Brooke, J. (2013). SUS: a retrospective. Journal of usability

studies, 8(2):29–40.

Burton-Jones, A., Storey, V. C., Sugumaran, V., and

Ahluwalia, P. (2005). A semiotic metrics suite for as-

sessing the quality of ontologies. Data & Knowledge

Engineering, 55(1):84–102.

Development and Evaluation of a Software Requirements Ontology

Casellas, N. (2009). Ontology evaluation through usability

measures. In OTM Confederated International Con-

ferences” On the Move to Meaningful Internet Sys-

tems”, pages 594–603. Springer.

Clarke, E. L., Loguercio, S., Good, B. M., and Su, A. I.

(2013). A task-based approach for gene ontology eval-

uation. Journal of biomedical semantics, 4(1):1.

Dobson, G. and Sawyer, P. (2006). Revisiting ontology-

based requirements engineering in the age of the se-

mantic web. In Proceedings of the International

Seminar on Dependable Requirements Engineering of

Computerised Systems at NPPs, pages 27–29.

Fensel, D., Van Harmelen, F., Klein, M., Akkermans, H.,

Broekstra, J., Fluit, C., van der Meer, J., Schnurr,

H.-P., Studer, R., and Hughes, J. (2000). On-To-

Knowledge: Ontology-based tools for knowledge

management. In Proceedings of the eBusiness and

eWork, pages 18–20.

Fern

andez-L

opez, M., G

omez-P

erez, A., and Juristo, N.

(1997). METHONTOLOGY: from ontological art to-

wards ontological engineering.

Gangemi, A., Catenacci, C., Ciaramita, M., and Lehmann,

J. (2006). Modelling ontology evaluation and valida-

tion. In European Semantic Web Conference, pages

140–154. Springer.

Gennari, J. H., Musen, M. A., Fergerson, R. W., Grosso,

W. E., Crub

ezy, M., Eriksson, H., Noy, N. F., and

Tu, S. W. (2003). The evolution of prot

e: an

environment for knowledge-based systems develop-

ment. International Journal of Human-computer stud-

ies, 58(1):89–123.

omez-P

erez, A. (2004). Ontology evaluation. In Hand-

book on ontologies, pages 251–273. Springer.

Greenspan, S., Mylopoulos, J., and Borgida, A. (1994). On

formal requirements modeling languages: RML revis-

ited. In Proceedings of the 16th international confer-

ence on Software engineering, pages 135–147. IEEE

Computer Society Press.

Gruber, T. R. (1995). Toward principles for the design of

ontologies used for knowledge sharing? International

journal of human-computer studies, 43(5):907–928.

Happel, H.-J. and Seedorf, S. (2006). Applications of on-

tologies in software engineering. In Proc. of Work-

shop on Sematic Web Enabled Software Engineer-

ing”(SWESE) on the ISWC, pages 5–9. Citeseer.

Hlomani, H. and Stacey, D. (2014). Approaches, methods,

metrics, measures, and subjectivity in ontology evalu-

ation: A survey. Semantic Web Journal, pages 1–5.

Lin, J., Fox, M. S., and Bilgic, T. (1996). A requirement

ontology for engineering design. Concurrent Engi-

neering, 4(3):279–291.

Mayank, V., Kositsyna, N., and Austin, M. (2004). Re-

quirements engineering and the semantic web, part II.

representaion, management, and validation of require-

ments and system-level architectures.

Moroi, T., Yoshiura, N., and Suzuki, S. (2012). Conversion

of software speciﬁcations in natural languages into

ontologies for reasoning. In 8th International Work-

shop on Semantic Web Enabled Software Engineering

(SWESE’2012).

Motik, B., Patel-Schneider, P., and Parsia, B. (2015). OWL

2 web ontology language: Structural speciﬁcation and

functional-style syntax, 2nd edn.(2012).

Mylopoulos, J., Borgida, A., Jarke, M., and Koubarakis, M.

(1990). Telos: Representing knowledge about infor-

mation systems. ACM Transactions on Information

Systems (TOIS), 8(4):325–362.

Noy, N. F. and McGuinness, D. L. (2001). Ontology devel-

opment 101: A guide to creating your ﬁrst ontology.

Technical report, Stanford Knowledge Systems Labo-

ratory. KSL-01-05.

Nuseibeh, B. and Easterbrook, S. (2000). Requirements

engineering: a roadmap. In Proceedings of the Con-

ference on the Future of Software Engineering, pages

35–46. ACM.

Presutti, V., Daga, E., Gangemi, A., and Blomqvist, E.

(2009). extreme design with content ontology design

patterns. In Proceedings of the 2009 International

Conference on Ontology Patterns-Volume 516, pages

83–97. CEUR-WS. org.

RTCA (1992). Software Considerations in Airborne Sys-

tems and Equipment Certiﬁcation.

Sauro, J. (2011). A practical guide to the system usabil-

ity scale: Background, benchmarks & best practices.

Measuring Usability LLC.

Shearer, R., Motik, B., and Horrocks, I. (2008). HermiT:

A highly-efﬁcient owl reasoner. In OWLED, volume

432, page 91.

Siegemund, K., Thomas, E. J., Zhao, Y., Pan, J., and Ass-

mann, U. (2011). Towards ontology-driven require-

ments engineering. In Workshop semantic web en-

abled software engineering at 10th international se-

mantic web conference (ISWC), Bonn.

Studer, R., Benjamins, V. R., and Fensel, D. (1998). Knowl-

edge engineering: principles and methods. Data &

knowledge engineering, 25(1):161–197.

Tan, H. and Lambrix, P. (2009). Selecting an ontology for

biomedical text mining. In Proceedings of the Work-

shop on Current Trends in Biomedical Natural Lan-

guage Processing, pages 55–62. Association for Com-

putational Linguistics.

Tullis, T. S. and Stetson, J. N. (2004). A comparison of

questionnaires for assessing website usability. In Us-

ability Professional Association Conference, pages 1–

12. Citeseer.

Uschold, M. and Gruninger, M. (1996). Ontologies: Princi-

ples, methods and applications. The knowledge engi-

neering review, 11(02):93–136.

Vrande

c, D. (2009). Ontology evaluation. In Handbook

on Ontologies, pages 293–313. Springer.

SKY 2016 - 7th International Workshop on Software Knowledge
