OntoMetrics: Putting Metrics into Use for Ontology Evaluation

Birger Lantow

Institute of Computer Science, Rostock University, Albert-Einstein-Str. 22, 18051 Rostock, Germany

Keywords:

Ontology, Ontology Evaluation, Ontology Metrics, Ontology Quality.

Abstract:

Automatically calculated metrics are needed in order to evaluate ontology quality. Otherwise, major resources

are required in order to manually assess certain Quality Criteria of an ontology. While there is rule based

support for the detection modelling errors and the violation of ontology modelling guidelines, there is a lack

of support for calculating ontology metrics. However, metrics can serve as indicators for possible quality

problems that are not covered rule based ontology evaluation. Many metrics have been proposed that correlate

for example with ontology characteristics like Readability, Adaptability, and Reusability. However, there is

a lack of tool support. OntoMetrics provides free access to metric deﬁnition and calculation. Furthermore

it fosters the development of knowledge regarding the application of Ontology Metrics. This paper provides

theoretical background and usage scenarios for the OntoMetrics on-line platform.

1 INTRODUCTION

Ontology evaluation is a task that has been subject

to research for years. A strong focus has been laid on

the selection of appropriate ontologies for reuse in on-

tology engineering. Considering existing ontologies

as sources for the construction of new ones is part of

accepted ontology engineering methods. Frenandez

et al. for example have an explicit integration-step

in their METHONTOLOGY approach (Fern

andez-

opez et al., 1997) . With the increasing number

of existing ontologies and thus an increasing num-

ber of candidates for reuse in a certain domain, auto-

mated evaluation of ontologies is required. Swoogle

as a search engine for ontologies calculates an ontol-

ogy rank for the order of the presented search results

(Ding et al., 2004). Additionally, swoogle calculates

some basic ontology-metrics that become part of the

available ontology meta-data. Besides the reuse as-

pect, ontology quality should be monitored through-

out the ontology life-cycle. This includes the creation

of ontologies but also their maintenance. Again, there

is a need for automated evaluation due to the com-

plexity of ontologies and knowledgebases. A majority

of the approaches suggests metric calculation in order

to assess ontology characteristics (examples in (Alani

et al., 2006; Burton-Jones et al., 2005; Gangemi et al.,

2005; Guarino and Welty, 2009; Lozano-Tello and

omez-P

erez, 2004; Tartir et al., 2005)).

http://swoogle.umbc.edu/

Existing Ontology Development Environments

like Prot

e provide only basic support for ontology

evaluation. Plug-ins for ontology evaluation that have

been developed are bound to a certain ontology editor.

This comes with some disadvantages: (a) the user is

forced to use the editor the plug-in is developed for,

(b) plug-ins tend to be outdated if new editor versions

evolve (see also (Poveda-Villal

on et al., 2012)), and

plug-in unavailable for use. Furthermore, a number

of approaches remained in the status of prototypes or

just proposals (e.g. (Gavrilova et al., 2012)). As a

consequence, approaches to metric-based automated

ontology evaluation are rarely available for empirical

evaluation and practical use. So far, web based so-

lutions seem to be the best at hand because of their

public availability and their independence from on-

tology development environments. The OntoMetrics

on-line platform has been developed as a consequence

of this discussion by:

1. Providing a freely accessible web-based platform

for ontology metric calculation.

2. Supporting a standardized ontology format (OWL

2).

3. Collecting the theory behind the metrics and their

validation.

4. Providing machine-readable XML-output for fur-

ther analysis.

http://www.ontometrics.org

186

Lantow, B.

OntoMetrics: Putting Metrics into Use for Ontology Evaluation.

DOI: 10.5220/0006084601860191

In Proceedings of the 8th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2016) - Volume 2: KEOD, pages 186-191

ISBN: 978-989-758-203-5

In the following, section 2 provides the theoreti-

cal background for OntoMetrics. The discussion de-

scribes the context in which OntoMetrics is intended

to be used, why the on-line platform is needed, and

what limitations can be expected. Section 3 describes

the current status of OntoMetrics and how it can be

used. Finally, the future development roadmap is

drawn in section 4.

2 ONTOLOGY METRIC

CALCULATION

As mentioned in the introduction, there are many ap-

proaches to automated ontology metric calculation.

Basically three aspects need to be covered in order

to provide valid metrics:

1. A theory must be developed that explains the cor-

relation of a proposed metric with the degree of

fulﬁlment with a relevant Ontology Quality Crite-

ria.

2. A (automated) measurement procedure must be

formulated for the proposed metric.(Gangemi

et al., 2005)

3. The theory must be (empirically) validated.

Hence, the proposed correlation between Ontol-

ogy Metric and Ontology Quality Criteria fulﬁl-

ment must be proven.

Sometimes the ﬁrst step is omitted. However, the

last step is still an issue because of the small number

of cases or special domains used for validation. For

example, Gavrilova et al. (Gavrilova et al., 2012) as-

sess 10 ontologies with 3 experts and compare the ex-

perts ranks to calculated metrics. Alani et al. (Alani

et al., 2006) had 12 ontologies and 4 experts/users.

Fernandez at al. (Fern

andez et al., 2009) have 5 on-

tologies in their study. All studies are restricted to a

certain application domain each. The work of Lantow

and Sandkuhl (Lantow and Sandkuhl, 2015) considers

only a special type of ontologies – Ontology Design

Patterns (ODP). Tartir et al. (Tartir et al., 2005) only

demonstrate that their metrics seem to be plausible

applied to a set of 3 ontologies.

In order to have a better validation of the proposed

metrics, the metrics calculation needs to be made

available, reproducible, and analysable. A platform

like OntoMetrics addresses these issues. However, as

mentioned in the introduction, ontology evaluation is

worthwhile throughout the ontology life-cycle. Thus,

different evaluation situations cause distinct quality

requirements and distinct base data for evaluation.

Furthermore, the way of metric calculation can differ

signiﬁcantly. Ontology evaluation frameworks give

orientation here.

Pak and Zhou (Pak and Zhou, 2011) deﬁne ﬁve

dimensions in their framework for ontology evalua-

tion characterization: (I) Ontology Scope, (II) Ontol-

ogy Layers, (III) Ontology Life-cycle, (IV) Ontology

Quality Criteria (Principles), and (V) Ontology Eval-

uation Methods. Gavrilova et al. deﬁne in (Gavrilova

et al., 2012) 6 quite similar dimensions, which in ad-

dition include the nature of the analysis result (quan-

titative/qualitative) and the level of automation. How-

ever, in the case of OntoMetrics we only consider

fully automated methods that have quantitative re-

sults. Still, there is a broad variety of suggested eval-

uation methods and of those that may be developed in

future. Their suitability for integration in an on-line

platform like OntoMetrics depends on their charac-

teristics within the framework. The dimensions can

not be seen independently. For example, an Ontology

Evaluation Method is suitable for the assessment of a

certain Ontology Quality Criteria, and the relevance

of the criteria varies with the Ontology Scope.

In the following, these dependencies are described

taking possible dimension (I) Ontology Scope values

as a starting point. Typical general (IV) Ontology

Quality Criteria and (V) Evaluation Methods for the

scopes are named. Three aspects of ontologies can be

evaluated and thus set the scope (cf. (Pak and Zhou,

2011)):

How Well Does the Ontology Represent the Real

World? – Domain Scope. Pak and Zhou (Pak and

Zhou, 2011) name this aspect Domain Scope while

Hlomani and Stacey (Hlomani and Stacey, 2014) and

other authors speak of ontology correctness. Gener-

ally, data driven evaluation methods can be applied

here like presented by Alani et al. (Brewster et al.,

2004). These methods either use text corpora of

the represented domain or golden standard ontolo-

gies and compare the evaluated ontology to them.

Ontology Quality Criteria that are evaluated in the

Domain Scope (correctness of the ontology) are Ac-

curacy, Completeness, Conciseness, and Consistency

(Hlomani and Stacey, 2014).

What Is the Quality of the Ontology in Analogy to

Internal Software Quality Characteristics?– Con-

ceptual Scope. The second aspect for evaluation is

the internal quality of the ontology, it is called Con-

ceptual Scope (Pak and Zhou, 2011) or ontology qual-

ity(Hlomani and Stacey, 2014). Generally, ontology

structure based methods can be applied here. We di-

vide between schema metrics suggested for example

by Tartir et al. (Tartir et al., 2005) that consider the

OntoMetrics: Putting Metrics into Use for Ontology Evaluation

187

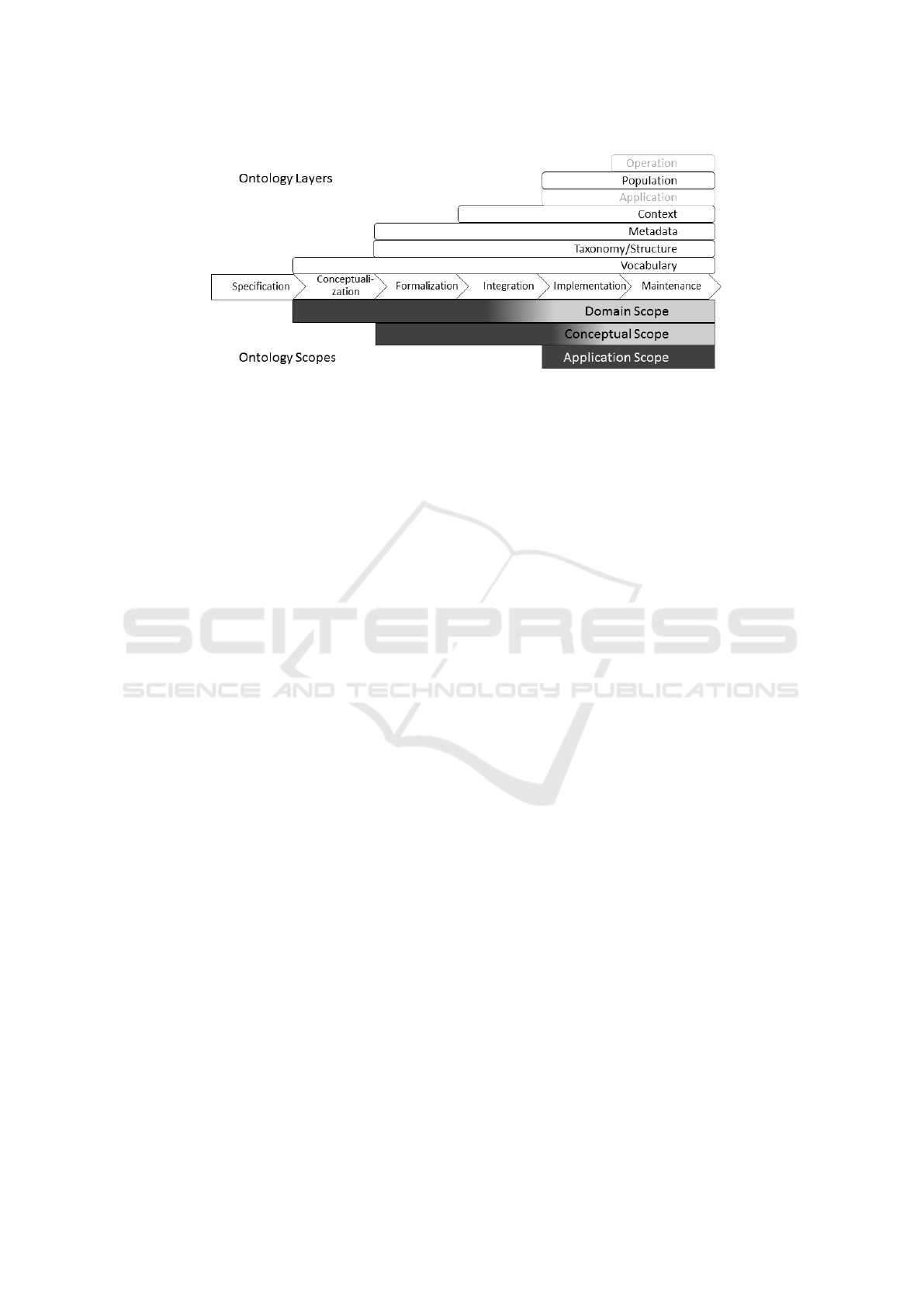

Figure 1: Ontology Layers and Scopes during Ontology Life-cycle.

special semantics of the ontology schema graph ele-

ments and graph-based metrics that calculate general

graph characteristics like size and breadth for the tax-

onomical part of the ontology (for example Gangemi

et al.(Gangemi et al., 2005)). Furthermore, Gangemi

et al. suggest metrics based on annotations within the

ontology. Ontology Quality Criteria that are evalu-

ated in the Conceptual Scope are for example Com-

putational Efﬁciency, Adaptability, Clarity (Hlomani

and Stacey, 2014), Reuseability (Lantow and Sand-

kuhl, 2015), and Readability (Tartir et al., 2005).

How Well Does the Ontology in Use as a Com-

ponent of an Ontology based Information System

(External Software Quality)? – Application Scope.

The third aspect of evaluation is the external quality of

an ontology in conjunction with an information sys-

tem – the Application Scope. Thus, the characteristics

of the used information system have an inﬂuence on

the on the measured quality. Task-based methods as

described by Porzel and Malaka (Porzel and Malaka,

2004) can be used here. Another possibility is the as-

sessment of usage statistics (Gavrilova et al., 2012).

However, little effort has been spent on the develop-

ment and validation of methods that evaluate ontolo-

gies within the Application Scope. A reason lies in

the effort of evaluating different ontologies for the use

within the same information system or vice versa to

evaluate the same ontology in different information

systems in order to exclude the information system’s

inﬂuence on the measurement. Nonetheless, moni-

toring changes in the metrics that are used to mea-

sure these criteria should provide information regard-

ing ontology maintenance. Ontology Quality Criteria

that can be evaluated in the Application Scope are Efﬁ-

ciency, Effectivity, Accuracy and general Value (mea-

sured by Popularity).

So far, the dimensions (I) Ontology Scope, (IV)

Quality Criteria, and (V) Evaluation Method have

been discussed in conjunction. In the following the

dimensions (II) Ontology Layer and (III) Ontology

Life-Cycle are added. Generally, there is an agree-

ment on the phases of the ontology life-cycle: (1)

Speciﬁcation, (2) Conceptualization, (3) Formaliza-

tion, (4) Integration, (5) Implementation, and (6)

Maintenance (taken from the MethOntology ontol-

ogy development method (Fern

andez-L

opez et al.,

1997)). There are only differences in the granular-

ity (Gavrilova et al. name just 3 phases in (Gavrilova

et al., 2012)) and in the order of the phases (Noy

and McGuinnes put the integration/reuse at an earlier

stage (Noy et al., 2001)).

Each step within the ontology-lifecycle adds some

sub-artefact to the overall artefact ‘ontology’. Such

a sub-artefact is usually called an Ontology Layer

(Pak and Zhou, 2011) or level (Hlomani and Stacey,

2014). Gavrilova et al. (Gavrilova et al., 2012) just

call them objects to analyse. Figure 1 shows the com-

mon view on Ontology Layers and their creation dur-

ing the Ontology Life-cycle in conjunction with the

Ontology Scope and their relevance during the Ontol-

ogy Life-cycle. While the Vocabulary of an ontology

is deﬁned during Conceptualization, formal Metadata

and ontology Taxonomy/Structure become available

for analysis during Formalization. With the Integra-

tion of other ontologies, the Context of the ontology is

set. Implementation then adds Population and the Ap-

plication within an information system that uses the

ontology. Operational data of the information system

becomes available when the system is in use and the

ontology is in the Maintenance phase.

Except for Operation and Application layer

(grayed in ﬁgure 1), data of all ontology layers is part

of the OWL 2 speciﬁcation and thus can be evalu-

ated by an on-line platform like OntoMetrics. For the

Ontology Scope it is depicted, when they can be ad-

dressed in the ontology life-cycle and at which phases

they are most important (dark areas in ﬁgure 1).

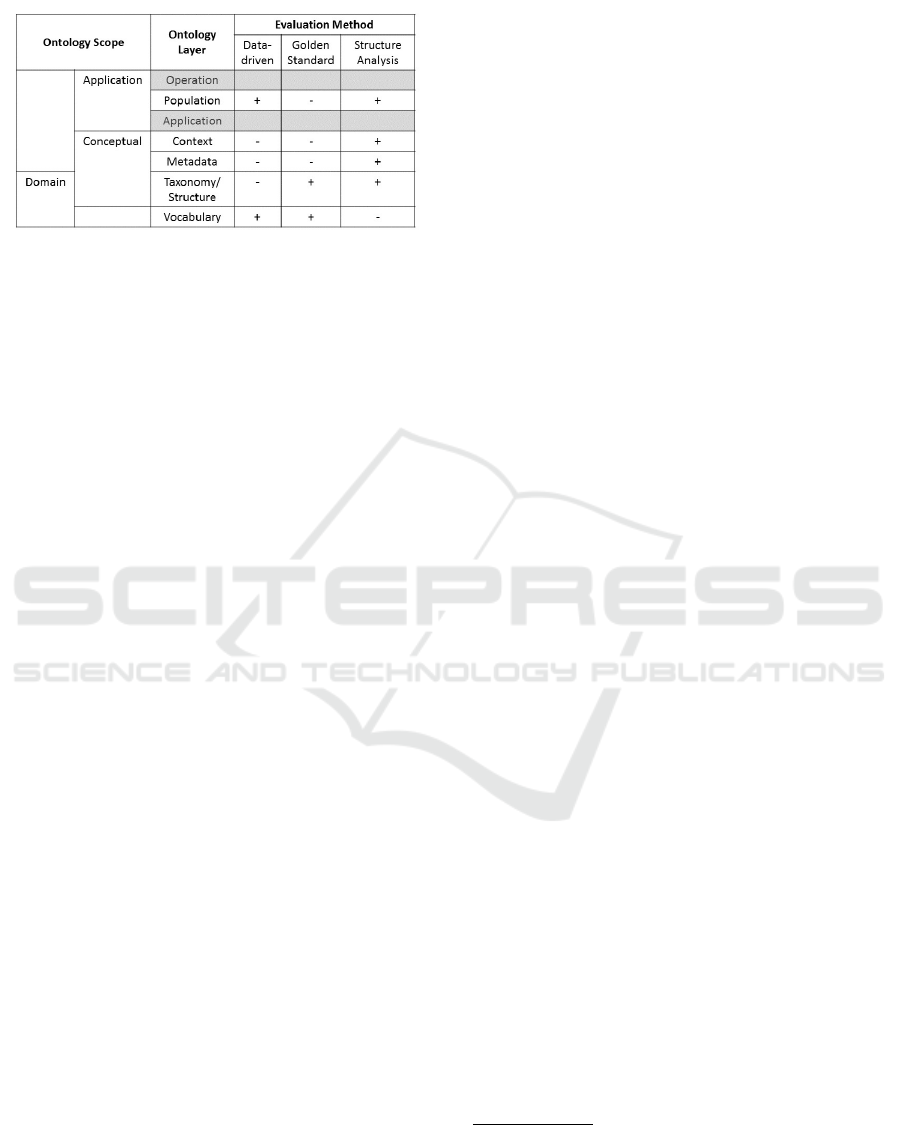

Table 1 shows the accessibility of Ontology

Layers to the Evaluation Methods. A + marks com-

KEOD 2016 - 8th International Conference on Knowledge Engineering and Ontology Development

188

Table 1: Evaluation Methods and Ontology Layers.

binations if there are Evaluation Methods that calcu-

late metrics for the respective Ontology Layer. In the

case of a -, there is no support. Operation and Ap-

plication layers are not considered. Data Driven and

Golden Standard based methods rely on additional

data – either provided by domain speciﬁc text cor-

pora or by domain speciﬁc best practice ontologies

(golden standard). In consequence, these methods

could be applied by a domain-speciﬁc non-universal

platform for ontology evaluation if there is an agree-

ment on appropriate text corpora or golden standard

ontologies. Vice versa, a platform like OntoMetrics

provides little coverage for the Domain Scope unless

the required additional data is accessible. Application

Scope is also poorly covered as stated before with re-

gards to the validation problem. Thus, the main focus

of OntoMetrics is on the Conceptual Scope and hence

on Conceptualisation, Formalization and Integration

phases of the ontology life-cycle.

3 OntoMetrics: STATUS AND

USAGE

At its current state, the OntoMetrics platform has the

following functional areas:

• A web-interface to upload OWL ontologies in

RDF-XML representation and to calculate a set

of Ontology Quality Metrics for them.

• An XML-download of calculated Ontology Qual-

ity Metrics.

• A wiki that explains the semantics and the calcu-

lation of the Ontology Quality Metrics.

Table 2 shows the metrics that can currently be cal-

culated using OntoMetrics in addition to the standard

OWL-API counting metrics. There are four general

types of metrics. Schema Metrics take the special

meaning of the OWL-Schema-deﬁnition constructs

into account for the calculation of metrics on the on-

tology structure. Graph Metrics are metrics that can

be generally applied to graphs (esp. trees). In the case

of ontology evaluation, they are calculated for the tax-

onomy tree of the ontology. Knowledgebase Metrics

do not only assess the type structure of an ontology

but also instances that populate the ontology. At last,

Class Metrics narrow the focus to single class evalua-

tion. The class metrics which have been adopted from

Tartir et al. (Tartir et al., 2005) cause a higher com-

putational effort. Thus, they can be excluded from

calculation if required.

For an explanation of the calculated metrics,

the reader can refer to the OntoMetrics-Wiki or to

the given sources in the table. Although mainly

two sources are given with Gangemi et al. (Aldo

Gangemi, Carola Catenacci, Massimiliano Ciaramita,

Jos Lehmann, ) and Tartir et al. (Tartir et al., 2005),

most of these metrics have also been proposed by

other authors or are basic graph metrics.

The table-head contains quality criteria as men-

tioned in section 2. For more comprehensive seman-

tics of the criteria, refer to (Pak and Zhou, 2011).

Those quality criteria have been selected, where a cor-

relation to the calculated metrics has been proposed in

the literature. Thus, for each of the quality criteria at

least one metric is available in conjunction with the

proposed direction of correlation. ’+’ means posi-

tive correlation and ’−’ negative correlation. As ex-

pected from the previous discussion, quality criteria

that are relevant within the Domain and the Applica-

tion Scope are under-represented. Furthermore, the

Metric-Criteria-Matrix provided by table 2 is sparsely

ﬁlled. Some of the metrics have just been proposed

as an indicator for good ontology quality without ex-

plicitly naming Quality Criteria (e.g. in (Tartir et al.,

2005)). In consequence, there is a lot of room for

further research on ontology metrics. The following

usage scenarios in research and practice are seen for

the OntoMetrics platform:

1. Empirical validation of proposed correlations

between metrics and quality criteria regarding

strength and signiﬁcance.

2. Determination of inﬂuences like the ontology us-

age context on these correlations.

3. Determination of of best practise metric proﬁles

and values for certain domains and usage con-

texts.

4. Analysis of Domain Speciﬁc Languages (DSL)

and Models formulated in these languages if an

OWL representation is available.

For example Archimate models from the En-

terprise Architecture Domain can be transformed

to OWL using the toolset provided by the Timbus

project: https://opensourceprojects.eu/p/timbus/context-

model/converters/wiki/Home/

OntoMetrics: Putting Metrics into Use for Ontology Evaluation

189

5. Practical ontology quality assessment by calculat-

ing validated metrics.

6. Practical ontology quality assessment by monitor-

ing anomalies in calculated metric values.

7. Proposal and validation of new metrics and their

application by providing them on OntoMetrics.

8. Internal collection of evaluated ontologies for

later calculation and validation of new metrics or

theories regarding ontologies.

OntoMetrics supports these usage scenarios by pro-

viding easy, reliable and repeatable access to metric

calculation. The XML-Representation of the calcula-

tion can be used for further automated processing of

the results. Additionally, the wiki gives orientation re-

garding the application of already implemented met-

rics and also room for the discussion of new ideas.

Researchers are invited to contribute to the platform

with their own proposals of quality metrics. This can

be done by presenting a metric proposal for discus-

sion in the wiki or by providing an implementation

that can be included in the platform and thus would

be available for validation and use on a broad scale.

4 CONCLUSION AND OUTLOOK

At its present state, OntoMetrics is a lightweight,

handy tool for comparable, metric based ontology

evaluation. In combination with the Quality-Metrics-

and-Criteria-Matrix (table 2) it can be used to assess

ontologies using already accepted and suggested met-

rics. The main focus lies on the Conceptual Scope.

However, Domain Scope and Application Scope are

partially covered as described in section 2. The wiki

provides information on the theoretical background

of the calculated metrics. For the future development

of the OntoMetrics platform three main directions are

planned:

Enhance the Knowledgebase of OntoMetrics.

The information in the wiki regarding the pro-

posed metrics is planned to be extended by addi-

tional sources, use case descriptions and systematiza-

tions. For example, the Quality-Metrics-and-Criteria-

Matrix (table 2) can be extended. Additionally, other

systematizations of ontology metrics compared to

Schema, Graph, Knowledgebase and Class Metrics

can be used. Sources for this additional knowledge

regarding ontology metrics are already existing and

new literature as well as validation and experience re-

ports based on metric calculation using OntoMetrics.

Furthermore, suggestions of new metrics are possible

within the wiki.

Table 2: Quality-Metrics-and-Criteria-Matrix.

Metric

Accuracy

Understandability

Cohesion

Comp. Efﬁciency

Conciseness

Schema Metrics

Att. Richness

Inh. Richness

Rel. Richness

Att. Class Ratio

Equiv. Ratio

Axiom/Class Ratio

Inv. Rel. Ratio

Class/Rel. Ratio

Graph Metrics

Abs. root card. +

Abs. leaf card. +

Abs. sibling card.

Abs. depth -

Av. depth +

Max. depth +

Abs. breadth -

Av. breadth +

Max. breadth +

Leaf fan-out ratio

Sibl. fan-out ratio

Tangledness -

Total no. of paths

Av. no. of paths

ADIT-LN +

Knowledgebase Metrics

Average Population +

Class Richness +

Class Metrics

Cl. connectivity

Cl. fulness

Cl. importance

Cl. inh. richness +

Cl. readability +

Cl. rel. richness +

Cl. children count +

Cl. instances count

Cl. properties count

(Gangemi et al., 2005),

(Tartir et al., 2005),

(Yao et al.,

2005),

(Lantow and Sandkuhl, 2015),

(Fern

andez et al.,

2009).

Provide Additional Quality Metrics. New metrics

of the known types can be added using the provided

API. Furthermore, a support of data driven ontology

metrics calculation could be implemented by allow-

ing the upload of text corpora or supposedly golden

standard ontologies on the platform. Furthermore, a

WordNet integration in order to assess the clarity of

KEOD 2016 - 8th International Conference on Knowledge Engineering and Ontology Development

190

labels used in the ontology as suggested by Burton

Jones et al.(Burton-Jones et al., 2005) could be im-

plemented

Extend the Base Functionality of OntoMetrics.

In order to allow tool integration of OntoMetrics, a

Web-Service that provides metric calculation func-

tionality is planned. Furthermore, the presentation

and analysis of the resulting metric values can be im-

proved. For example, classes can be ﬁltered or sorted

using criteria like class importance. Also, a special

treatment of imports and ontology modules would be

possible. Thus, a tool for the analysis of complex

ontologies would become available that might not be

used for ontology evaluation only, but also for explor-

ing ontology structures and deriving new theories re-

garding the evolution of ontologies.

OntoMetrics is open for contributions of new met-

ric suggestions and implementations as well as dis-

cussions of existing metrics.

ACKNOWLEDGEMENTS

Special thanks to Martin Lichtwark, Michael Poppe,

and Julian Heckmann for their efforts to make Onto-

Metrics available as an on-line platform.

REFERENCES

Alani, H., Brewster, C., and Shadbolt, N. (2006). Rank-

ing ontologies with AKTiveRank. In International Se-

mantic Web Conference, pages 1–15.

Aldo Gangemi, Carola Catenacci, Massimiliano Ciaramita,

Jos Lehmann. Ontology Evaluation and Validation:

An integrated formal nmodel for the quality diagnostc

task.

Brewster, C., Alani, H., Dasmahapatra, S., and Wilks, Y.

(2004). Data driven ontology evaluation.

Burton-Jones, A., Storey, V. C., Sugumaran, V., and

Ahluwalia, P. (2005). A semiotic metrics suite for as-

sessing the quality of ontologies. Data & Knowledge

Engineering, 55(1):84–102.

Ding, L., Finin, T., Joshi, A., Pan, R., Cost, R. S., Peng,

Y., Reddivari, P., Doshi, V. C., and Sachs, J. (2004).

Swoogle: A semantic web search and metadata en-

gine. In Proc. 13th ACM Conf. on Information and

Knowledge Management, volume 304.

Fern

andez, M., Overbeeke, C., Sabou, M., and Motta, E.

(2009). What makes a good ontology? A case-study

in ﬁne-grained knowledge reuse. In Asian Semantic

Web Conference, pages 61–75.

Fern

andez-L

opez, M., G

omez-P

erez, A., and Juristo, N.

(1997). Methontology: from ontological art towards

ontological engineering.

Gangemi, A., Catenacci, C., Ciaramita, M., and Lehmann,

J. (2005). A theoretical framework for ontology eval-

uation and validation. In SWAP, volume 166.

Gavrilova, T., Gorovoy, V., and Bolotnikova, E. (2012).

New Ergonomic Metrics for Educational Ontology

Design and Evaluation. In SoMeT, pages 361–378.

Guarino, N. and Welty, C. A. (2009). An overview of On-

toClean. In Handbook on ontologies, pages 201–220.

Springer.

Hlomani, H. and Stacey, D. (2014). Approaches, methods,

metrics, measures, and subjectivity in ontology evalu-

ation: A survey. Semantic Web Journal, pages 1–5.

Lantow, B. and Sandkuhl, K. (2015). An Analysis of Ap-

plicability using Quality Metrics for Ontologies on

Ontology Design Patterns. Intelligent Systems in Ac-

counting, Finance and Management, 22(1):81–99.

Lozano-Tello, A. and G

omez-P

erez, A. (2004). Ontometric:

A method to choose the appropriate ontology. Journal

of database management, 2(15):1–18.

Noy, N. F., McGuinness, D. L., et al. (2001). Ontology

development 101: A guide to creating your ﬁrst ontol-

ogy.

Pak, J. and Zhou, L. (2011). A Framework for Ontology

Evaluation. In Sharman, R., Rao, H., and Raghu,

T., editors, Exploring the Grand Challenges for Next

Generation E-Business, volume 52 of Lecture Notes

in Business Information Processing, pages 10–18.

Springer Berlin Heidelberg.

Porzel, R. and Malaka, R. (2004). A task-based approach

for ontology evaluation. In ECAI Workshop on Ontol-

ogy Learning and Population, Valencia, Spain.

Poveda-Villal

on, M., Su

arez-Figueroa, M. C., and G

omez-

erez, A. (2012). Validating ontologies with oops! In

International Conference on Knowledge Engineering

and Knowledge Management, pages 267–281.

Tartir, S., Arpinar, I. B., Moore, M., Sheth, A. P.,

and Aleman-Meza, B. (2005). OntoQA: Metric-

based ontology quality analysis. In IEEE Work-

shop on Knowledge Acquisition from Distributed,

Autonomous, Semantically Heterogeneous Data and

Knowledge Sources, volume 9.

Yao, H., Orme, A. M., and Etzkorn, L. (2005). Cohesion

metrics for ontology design and application. Journal

of Computer science, 1(1):107.

OntoMetrics: Putting Metrics into Use for Ontology Evaluation

191
