Reactive Collision Avoidance using Evolutionary Neural Networks

Hesham M. Eraqi

, Youssef Emad Eldin

and Mohamed N. Moustafa

Department of Computer Science and Engineering, The American University in Cairo, New Cairo 11835, Egypt

Department of Computer and Systems Engineering, Ain Shams University, Cairo, Egypt

Keywords: Collision Avoidance, Evolutionary Neural Networks, Genetic Algorithm, Lane Keeping.

Abstract: Collision avoidance systems can play a vital role in reducing the number of accidents and saving human lives.

In this paper, we introduce and validate a novel method for vehicles reactive collision avoidance using

evolutionary neural networks (ENN). A single front-facing rangefinder sensor is the only input required by

our method. The training process and the proposed method analysis and validation are carried out using

simulation. Extensive experiments are conducted to analyse the proposed method and evaluate its

performance. Firstly, we experiment the ability to learn collision avoidance in a static free track. Secondly,

we analyse the effect of the rangefinder sensor resolution on the learning process. Thirdly, we experiment the

ability of a vehicle to individually and simultaneously learn collision avoidance. Finally, we test the generality

of the proposed method. We used a more realistic and powerful simulation environment (CarMaker), a camera

as an alternative input sensor, and lane keeping as an extra feature to learn. The results are encouraging; the

proposed method successfully allows vehicles to learn collision avoidance in different scenarios that are

unseen during training. It also generalizes well if any of the input sensor, the simulator, or the task to be

learned is changed.

1 INTRODUCTION

The task of designing control software for a self-

driving car is a complex task. The software should

concurrently tolerate (model) infinite number of

scenarios and special cases, and maintain and meet

reasonable software complexity and resources

constrains. Evolutionary algorithms can be a good

alternate to abstraction from such control challenges

(Sipper, 2006).

Collision avoidance is a feature that allows a

vehicle to move without colliding with other vehicles.

Vehicles can be cars, trains, ships, airplanes,

Unmanned Aerial Vehicles (UAV), or various smart

robots that have been generally applied in modern

laboratories nowadays (Liu et al., 2013). In many

applications, collision avoidance systems play a vital

role in reducing the number of accidents and saving

human lives. Reactive collision avoidance controls

the motion of the vehicle directly based on the current

sensor data to react to unforeseen changes in

unknown and dynamic environments. The dynamic

objects and the static environment do not cooperate

with the ego-vehicle (vehicle that learns) to achieve

collision avoidance. Hence, reactive collision

avoidance has a good performance in real-time (Fu et

al., 2013).

We introduce a novel method for vehicles reactive

collision avoidance using evolutionary neural

networks (ENN). A single front-facing

rangefinder sensor is the only input required by our

method. The sensor provides the neural network with

spatial proximity readings measured at multiple

horizontal angles. The neural network learns how to

control the vehicle steering wheel angle by directing

the vehicle such that it does not collide with the

dynamic environment. The neural network guides the

vehicle around the environment and a genetic

algorithm is used to pick and breed generations of

more intelligent vehicles. The training process and

the proposed method analysis and validation are

carried out using simulation.

We conducted six experiments to validate the

proposed method, analyse evaluate its performance.

The results are encouraging; the proposed method

successfully allows vehicles to learn collision

avoidance in different scenarios that are unseen

during training. The scenarios include a vehicle that

learns how to safely navigate (without doing

collision) through a free static track and to achieve

collision avoidance among independent dynamic

vehicles. Also, a group of randomly moving vehicles

successfully learns how to achieve collision

avoidance simultaneously. Also, our method is

Eraqi, H., Eldin, Y. and Moustafa, M.

Reactive Collision Avoidance using Evolutionary Neural Networks.

DOI: 10.5220/0006084902510257

In Proceedings of the 8th International Joint Conference on Computational Intelligence (IJCCI 2016) - Volume 1: ECTA, pages 251-257

ISBN: 978-989-758-201-1

251

proven to generalize well, it successfully allows

vehicle to also learn lane keeping, and using different

simulation environment which is more realistic and

powerful: CarMaker (CarMaker open test platform

for virtual test driving website).

The disadvantage of traditional methods over our

method are mainly: 1) they either depend on defined

set of scenarios, which are not adapted to new

conditions not programmed in the algorithm or 2)

they rely on handcrafted features that do not well

represent the real scenarios where the vehicle is

deployed. This creates the need to new AI systems

that learn from data, and in the same time

automatically identify the best representations of this

environmental data. Neural networks are well known

for their ability to learn representations of the data.

2 RELATED WORK

(Shaffer et al.,1992) in “Combinations of Genetic

Algorithms and Neural Networks: A Survey of Art”

provided an overview of the literature of combining

Neural Networks and genetic Algorithms drawing out

the common themes and the emerging wisdom about

what seems to work and what does not.

(Montana and L. Davis, 1989) in “Training

feedforward neural networks using genetic

algorithms” has explained that multilayered

feedforward neural networks possess a number of

properties which make them particularly suited to

complex pattern classification problems and showed

that Genetic Algorithms are well suited to the

problem of training feedforward networks as they are

good at exploring a large and complex space in an

intelligent way to find values close to the global

optimum.

(Durand et al, 1996) in “collision avoidance using

neural networks learned by genetic algorithms”

handled the collision avoidance problem between two

aircrafts with reactive techniques using neural

networks which was built by genetic algorithms.

(Togelius and Lucas, 2006) in “Evolving robust

and specialized car racing skills” presented using

evolutionary algorithms how to create neural network

controllers for simulated car. They evolved

controllers that have robust performance over

different tracks and can be specialized to work better

on particular tracks.

(Mahajan and Kaur, 2013) in “Neural Networks

using Genetic Algorithms” introduced flexible

method for solving the travelling salesman problem

using genetic algorithms as they can be used to train

neural networks producing evolutionary artificial

neural networks.

(Fardin Ahmadizar et al, 2014) in “Artificial

neural network development by means of a novel

combination” developed a new evolutionary-based

algorithm to simultaneously evolve the topology and

the Connection weights of ANNs by means of a new

combination of grammatical evolution (GE) and

genetic algorithm (GA). GE is adopted to design the

network topology while GA is incorporated for better

weight adaptation.

3 SYSTEM OVERVIEW

A genetic algorithm (GA) (Vose, 1999) is an

evolutionnary algorithm that can solve optimization

problems. It starts from a pool of randomly chosen

candidate solutions of the optimization problem

called a “population”. Usually, a pre-knowledge

about the problem constrains the randomness of these

solutions. Each candidate solution is called a

“chromosome”. The algorithm repeatedly (over

generations) modifies the population hoping for a

new generation with a better population. For that, the

algorithm uses an application-dependant “fitness

function” that estimates the goodness of each

chromosome. At each step, the genetic algorithm

randomly selects individuals from the previous

generation’s population and uses them as parents to

produce the children for the new generation. The

concept of producing children from a set of selected

parents is based on a natural selection process that

mimics biological evolution. Hence, over successive

generations, the population "evolves" toward an

optimal solution.

Artificial neural networks can be looked at as an

optimization problem looking for the best weights

achieving some task. This is why a genetic algorithm

can be used to train a neural network (Schaffer et al.,

1992). Evolutionary Neural Networks,

Neuroevolution, or neuro-evolution, is a form of

machine learning that uses evolutionary algorithms to

train artificial neural networks, in other words,

estimating the weights of the neural network. It is

most commonly applied in the areas of artificial life

and intelligent computer games, and hence, has

potential contributions towards self-driving vehicles.

The chromosome format is chosen to be the vector of

real numbers with a sequence of all of the neural

network weights. The sequence is sorted layer by

layer. The weights of each layer are sorted such that

all of the weights coming out of a neuron are

consecutive. The bias node is considered the last node

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

252

in each layer. Figure 1 shows an example for a 2×3×2

neural network and its chromosome.

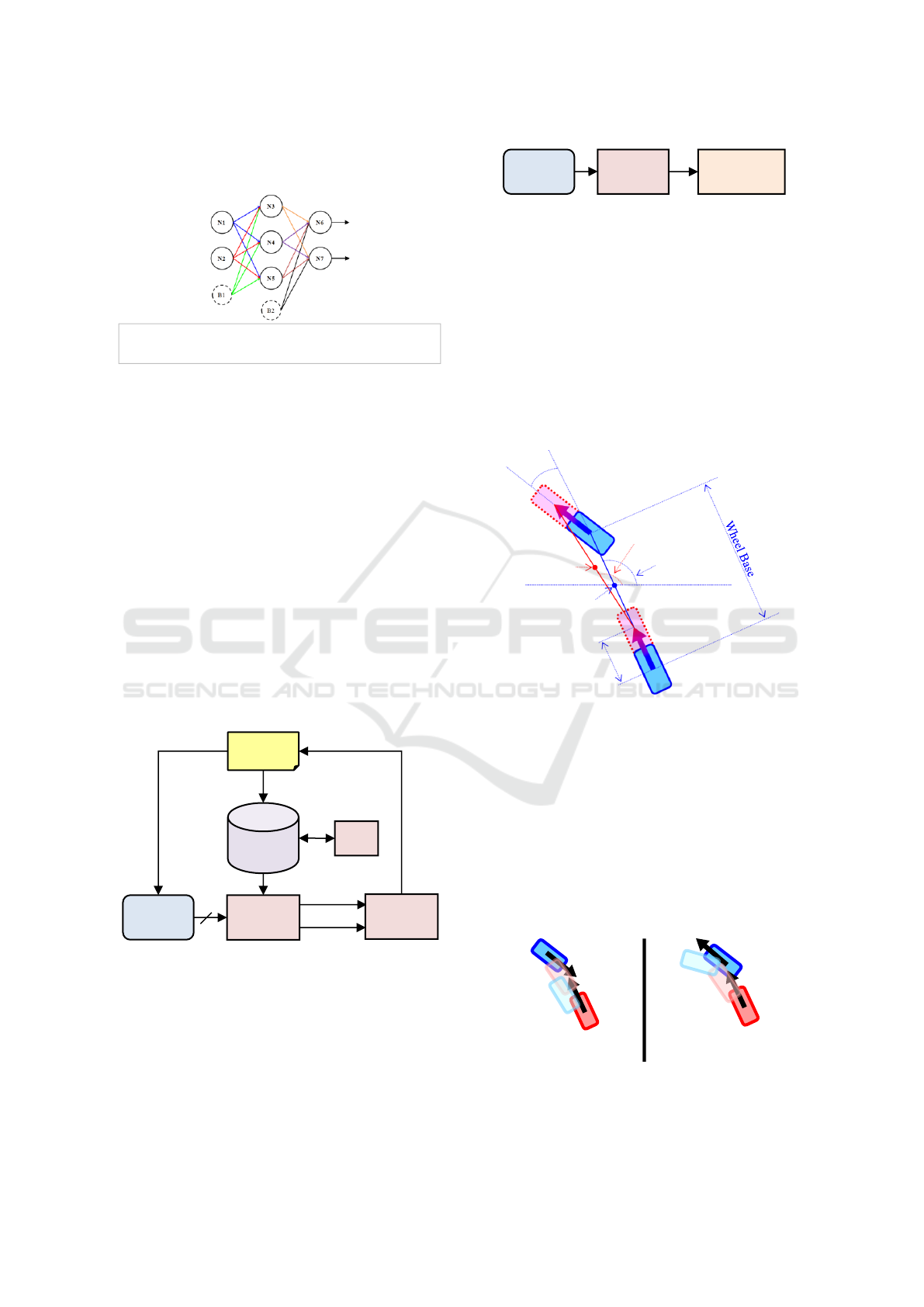

Figure 1: Example of a 2×3×2 neural network and its

chromosome. B1 and B2 represent the network biases.

We developed a simulation setup to evaluate the

fitness of each chromosome in a generation. For most

of experiments related to collision avoidance, the

vehicle lifetime before its first collision is a

reasonable metric for the fitness. Genetic algorithm is

used to pick and breed generations of more intelligent

vehicles. The vehicle uses a rangefinder sensor that

calculates N intersections depths with the

environment and then feeds these N values as inputs

to the neural network. The inputs are then passed

through a multi-layered neural network and finally to

an output layer of 2 neurons: a left and right steering

force. These forces are used to turn the vehicle by

deciding the vehicle steering angle. Figure 2 shows

the proposed system overview for our method during

the system training phase.

Figure 2: System overview during training phase.

Once trained, the neural network is able to

generate steering commands from the input

rangefinder sensor readings. Figure 3 shows this

configuration.

Figure 3: The trained network is used to generate steering

commands from a single front-facing proximity sensor.

4 SIMULATION SETUP

For all vehicles in our simulation environment, we

use a bicycle model as shown in figure 4. Given the

vehicle speed and simulation time tick Δt, the

travelled distance L per a time step is calculated.

Given wheel base, vehicle position P, heading θ, and

distance travelled per time step L, the new vehicle

position P

new

and heading θ

new

are calculated.

Figure 4: Simple 2D vehicle steering physics.

For simplicity, vehicles are chosen to move with

fixed speed and sensor noise is neglected. At

simulation start, the vehicles are positioned

equidistant from each other. At each collision

detected by the simulator, it’s important to identify

the vehicle responsible for the collision as shown in

figure 5. When a collision happens, the simulator tries

to answer the question: Would crash still happen if a

vehicle X is the only vehicle that moved at collision

time step? If the answer is yes, vehicle X is

determined as responsible for that collision.

Figure 5: Determining which vehicle caused collision to

happen. Two examples with two vehicles before and after

the collision time step.

Chromosome:

B1_3

B1_4

B2_5

B2_6

B2_7

Rangefinder

Sensor

Force to left

Force to right

Population

Simulator

Update Fitness

Neural

Network

Steering Angle

Calculator

Rangefinder

Sensor

ENN

Drive by wire

interface

Travelled Distance in Δt

Steering

Angle

new

Both vehicles are identified

as collision cause

Red vehicle is identified as

collision cause

Reactive Collision Avoidance using Evolutionary Neural Networks

253

5 EXPERIMENTAL WORK

Several experiments are conducted to evaluate our

learning method. The main objective is to inspect the

feasibility of achieving a reactive collision avoidance

system using our proposed method. Initially, an

elementary, and relatively easier, experiment is

conducted. The objective of this experiment is to

examine the capability of a vehicle to learn the task

of self-navigation through a static environment that

does not include any dynamic objects. We believe

that this task is less hard than the collision avoidance

task because the ego-vehicle does not have to deal

with the unknown movement of dynamic objects.

A three layer ANN, with sigmoid activations for

all neurons, is empirically chosen to be used for all of

our experiments. It’s noted that the experiments

results don’t change if the number of layers is

changed, but sometimes you obtain the same result

faster. The higher the number of hidden layers, the

better representation of the data the network can

achieve. But at the same time, this leads to a more

complex optimization problem that is harder and

slower for GA to solve. Our GA uses a population of

200 chromosomes where mutation probability is 0.1,

crossover probability is 1 and the crossover site

follows a normal distribution with a mean of 0.95 and

a standard deviation of 0.05. The selection is based on

tournaments of size 10 candidates and children of

next generations always replace their parents. The

fitness function is chosen to be the vehicle lifetime

navigating the environment (in time steps) before its

first collision with the static environment boundaries

or other dynamic vehicles.

The experimental work results are encouraging

and validate the effectiveness of the proposed

method.

5.1 Learning Navigation

The objective of this experiment is to validate the

ability of our method to achieve self-navigation. The

vehicle should learn how to travel from one position

to another without colliding with a static environment

that does not include any dynamic objects. The

environment is represented by a track that is formed

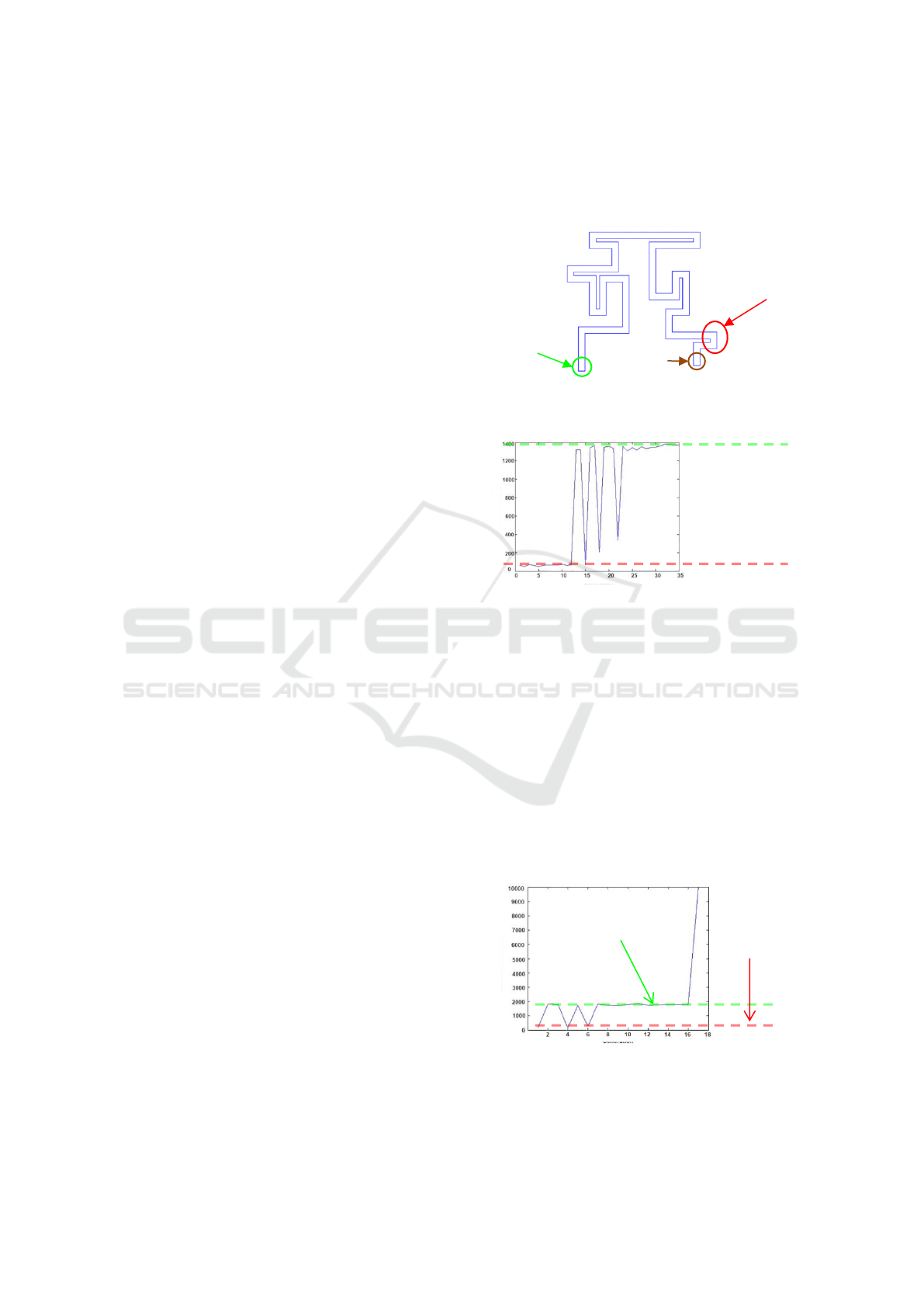

by horizontal and vertical edges. Figure 6 shows the

experiment track.

Our experimental results show that navigation is

learnt in less than 50 generations. One interesting

observation is that the vehicle took 12 generations to

learn how to successfully turn in the first critical

location A circled in red in figure 6. Once the vehicle

learns this manoeuvre, it achieves huge learning

progress represented by a significant increase in best

chromosome’s fitness. The vehicle implicitly learns

how to drive through all the following tricky turns in

the track. This fact is demonstrated in figure 7.

Figure 6: Experiment track.

Figure 7: Self-navigation learning curve in a narrow track.

We can observe that the fitness diminishes when

reaching critical location B circled in green in figure

6, the reason is that the vehicle modifies its behaviour

in order to learn the 180° turn (location B) but what it

learns negatively affect its ability to pass the previous

critical location A, so the fitness oscillates until the

vehicle learns to avoid such behaviour but it still

unable to make the 180° turn. In that experiment, the

track is too narrow, relative to the vehicle dimensions,

which makes such move very hard to learn. Widening

the track enables the vehicle learn how to turn by 180°

and still be able to pass critical location A at the same

time as demonstrated in figure 8.

Figure 8: Self-navigation learning curve in a wide track.

As shown in figure 8, a very high fitness is

reached as the vehicle learns to navigate back and

Vehicle start

location

Critical

Location A

Critical

Location B

Critical Location A

Critical Location B

Generation

Fitness [timestamps]

Critical Location A

Critical Location B

Generation

Fitness [timestamps]

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

254

forth through the track without any collisions for

hours. The vehicle also is able to navigate

successfully through other different tracks that are

unseen during training.

5.2 Sensor Resolution

The objective of this experiment is to inspect the

influence of the input rangefinder sensor resolution

on the learning process. The same previous

experiment is performed five times with different

numbers number of sensor beams. The angle between

adjacent beams is equal. The sensor horizontal range

is chosen 180° in our experiment.

As shown in figure 9, using a sensor of a single

front-facing beam prevents the vehicle from learning

and reaching an accepted fitness as the input data is

insufficient for learning. On the contrary, a higher

sensor resolution (three beams or more) enables the

vehicles to evolve and reach a satisfying fitness.

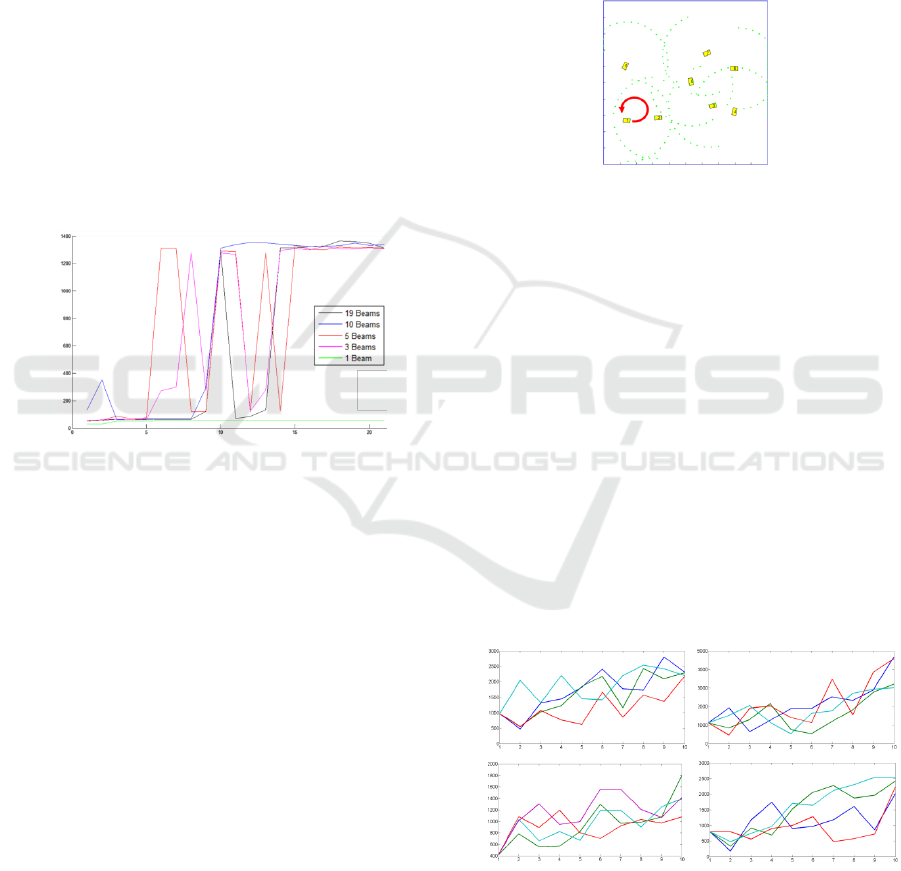

Figure 9: Self-navigation learning curve for different

number of sensor beams.

It’s observed that using a moderate number of

beams achieved almost the same fitness as when

using a larger number of beams but in a fewer number

of generations. As in figure 9, the five beams’

experiment is the fastest to reach an accepted fitness.

This occurred because reducing the number of

sensors produces shorter chromosomes and hence

having a fewer number of parameters and a less

complex optimization problem to solve.

5.3 Individual Collision Avoidance

among Dynamic Vehicles

In this experiment, we inspect the feasibility of our

method in enabling a vehicle to navigate collision-

freely among multiple different dynamic vehicles.

The environment is represented by a rectangular free

space area containing eight different vehicles moving

freely as shown in figure 10.

Each vehicle is initialized with random weights

for their ANN and random starting headings then the

learning process is applied on only a single vehicle to

learn avoiding collisions with the environment

boundaries and the other randomly moving vehicles.

We found that the learning vehicle (ego-vehicle)

has learned a deceptive behaviour for survival by

rotating around itself to avoid interactions with the

other vehicles. In order to learn a proper collision

avoidance behaviour, such rotation is detected by the

simulator and the responsible chromosome is

penalized by a zero fitness.

Figure 10: Ego-vehicle survives by rotating around itself.

After each collision occurs by the ego-vehicle, the

fitness of the chromosome driving the neural network

is estimated and a new chromosome is set to be

evaluated. In order to achieve fair evaluation for each

chromosome, not only the ego-vehicle should be reset

but the whole simulation. Ignoring the reset of the

simulation may position the ego-vehicle in tough

scenario for collision avoidance at the beginning of

evaluation. This may cause a good chromosome to be

assigned a low fitness.

Each plot in figure 11 shows the learning curve of

the ego-vehicle among uncontrolled dynamic

vehicles. In each figure, a different movement

strategy for the uncontrolled dynamic vehicles is

adopted, and four runs of the same experiment are

conducted. The x-axis represents the number of the

generation and the y-axis represents the fitness

achieved at each generation.

Figure 11: Each plot of the four represents a different

strategy. In each strategy, the same experiment is conducted

4 times starting from different random initial neural

network weights, each run is in a different color.

Generation

Fitness [timestamps]

Fitness

Generation

Fitness

Generation

Fitness

Reactive Collision Avoidance using Evolutionary Neural Networks

255

The learning curves demonstrate the ability of our

method to enable the vehicle to learn collision

avoidance individually among dynamic vehicles.

5.4 Individual Collision Avoidance

Knowledge Accumulation

The objective of the experiment is to examine the

knowledge accumulation ability of our method. In

other words, the capability of the ego-vehicle to learn

avoiding collisions in new strategies without

negatively affecting the performance achieved in

previously-learned strategies.

Firstly, as shown in Table 1, the ego-vehicle

doesn’t achieve efficient collision avoidance when

tested on an unseen strategy. Learning on a single

strategy is not sufficient for the ego-vehicle to learn

general collision avoidance behaviour.

Table 1: Individual collision avoidance performance tested

on unknown strategies compared to the performance tested

on the strategy seen during training. The numbers in the

table represents the best chromosome fitness.

Deployment

Strategy

Training

Strategy

2115

544

558

432

595

2305

136

931

159

351

3050

460

559

334

1080

2560

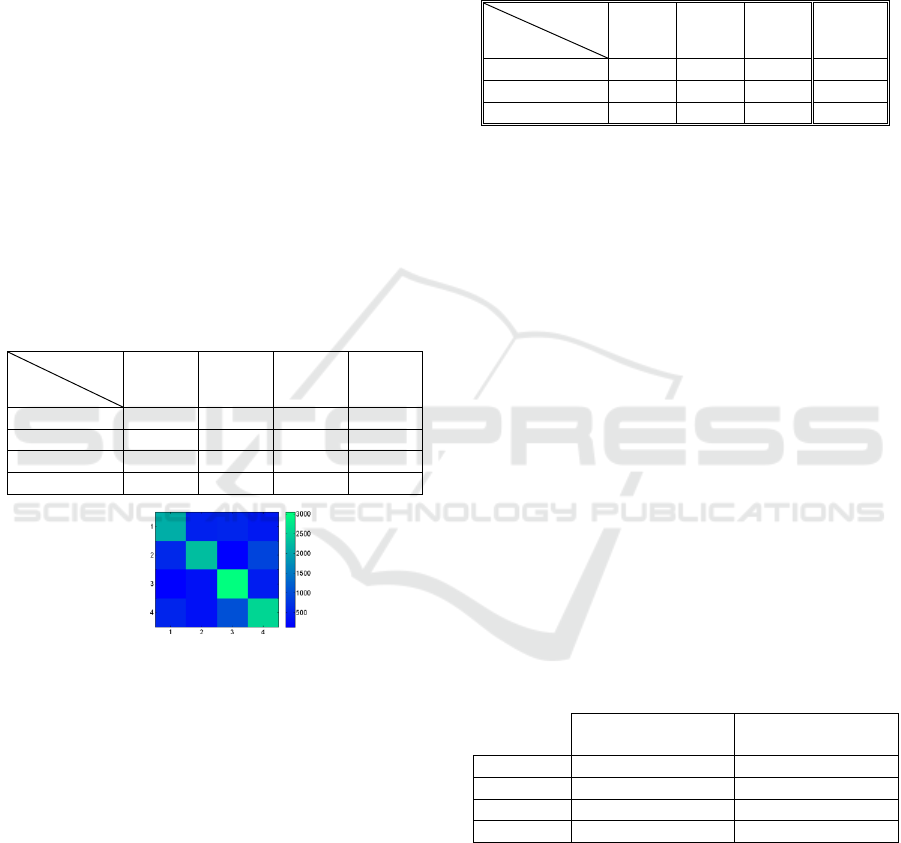

Figure 12: Color map visualization for fitness achieved in

different strategies.

5.4.1 Incremental Evolution

As a step towards achieving general collision

avoidance behaviour, the ego-vehicle should be

trained on more than one strategy. Learning in a new

strategy should not negatively affect the perfor-

mance achieved in previously-learned strategies.

In order to achieve this objective, incremental

evolution (Togelius and Lucas, 2006) is used. A

vehicle learns to avoid collisions in one strategy and

when it reaches an accepted fitness, a new strategy is

added to the learning process so that the proposed

solution is now evaluated on both strategies, then the

fitness is averaged. This process is then repeated with

new strategies added until the vehicle learns to

survive in all introduced strategies. Table 2 shows the

results of this experiment. The training stopping

criteria for each strategy is when its fitness exceeds

80% of a predefined threshold for accepted fitness.

Table 2: Fitness achieved by the ego-vehicle during

different incremental evolution iterations. A new strategy is

added to the learning process at each iteration.

Deployment

Strategies

Learning

Iteration

Average

Fitness

1936

2380

1452

1916

1970

2123

1467

1853.3

5.5 Simultaneous Collision Avoidance

The objective of this experiment is to achieve a

collision free environment, where all moving vehicles

simultaneously learn to avoid collisions with each

other and with static environment. An evolved

vehicle, that learned to navigate collision-freely, is

used to boost the behaviour of the other vehicles

through two different approaches as detailed in the

coming two subsections. The results are obtained by

running the simulator to train for 100 seconds in four

different strategies.

5.5.1 Broadcasting the Winning

Chromosome

In this approach, the evolved solution represented by

the winning chromosome is broadcasted to all the

vehicles to use. Table 3 compares the average number

of collisions per second for all the vehicles before

versus after learning.

Table 3: Comparison between the number of collisions per

second before versus after learning.

Initial Behaviour

[collisions/sec]

After Learning

[collisions/sec]

Strategy 1

16.33

3.90

Strategy 2

20.05

4.59

Strategy 3

16.82

8.00

Strategy 4

13.49

12.27

In reasonable simulation time, the collision avoidance

performance highly increases, but not for all the

strategies.

5.5.2 Broadcasting the Most Evolved

Generation

In order to achieve better collision avoidance

performance, learning process should not only be

Training Strategy

Deployment Strategy

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

256

applied on a single vehicle, but all vehicles should

simultaneously learn. Instead of assigning the

winning chromosome directly to each vehicle, we can

assign the evolved population to each vehicle to start

learning using it. This approach results in a

customized solution for each different vehicle and our

results are promising as the number of collisions is

reduced by around 90% on the average.

Table 4: Comparison between the number of collisions per

second before versus after learning.

Initial Behaviour

[collisions/sec]

After Learning

[collisions/sec]

Strategy 1

16.33

2.11

Strategy 2

20.05

1.58

Strategy 3

16.82

1.76

Strategy 4

13.49

1.90

5.6 Lane Keeping

The main objective of this experiment is to validate

the generality of our method. A more realistic

simulation environment is used. As shown in figure

13, the input is no longer readings from a proximity

sensor, but lane markings from a camera. The

objective is to achieve the lane keeping active safety

feature given the detected driving lanes.

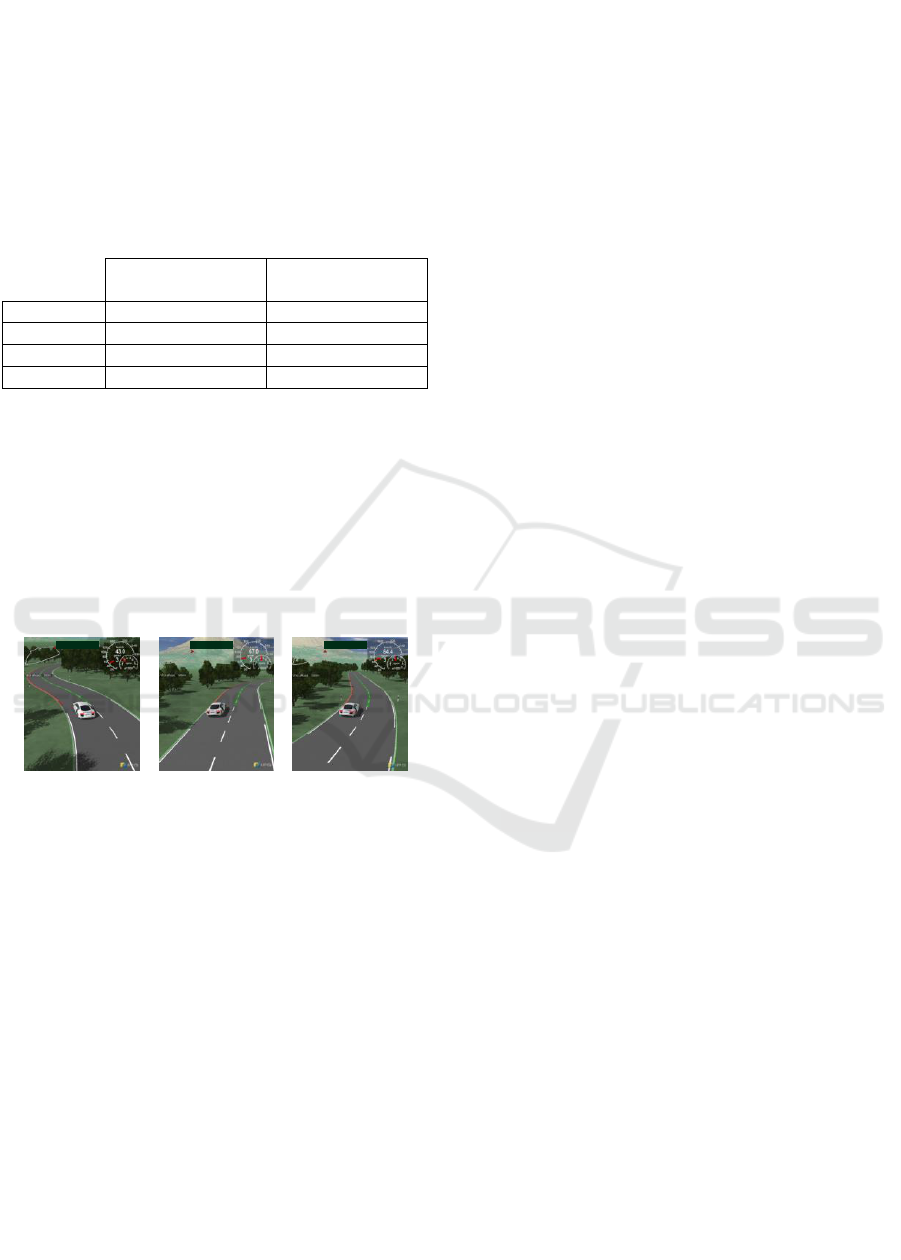

Figure 13: CarMaker simulation for lane keeping

experiment.

The results prove that our method generalizes

well. The vehicle is left to learn on simulated roads

for around 10 hours before it successfully learns to

keep in a lane for many hours. It implicitly learnt

many lane shape cases instead of memorizing a set of

hardcoded scenarios. Our method successfully allows

vehicle to learn different features other than collision

avoidance like lane keeping, and using more realistic

simulation environment.

6 CONCLUSIONS

This paper proposes and validates a novel method for

vehicles reactive collision avoidance using ENN. To

evaluate the proposed method, extensive experiments

of varying conditions and objectives are conducted.

The results demonstrated in the paper reflect the

potential for our proposed method. The vehicle learns

to drive collision freely in a static environment and

among dynamic objects. Promising progress is

achieved in developing general collision avoidance

behaviour. Moreover, our lane keeping experiment

shows the capability of our method to operate

efficiently in realistic simulation environments. The

future work should focus on deploying the conducted

experiments in more realistic and complex simulation

environments and to upgrade the GA operators to

further improve our method’s performance.

REFERENCES

Ahmadizar, Fardin, Soltanian, Khabat, AkhlaghianTab,

Fardin, Tsoulos, Loannis. 2015. Artificial neural

network development by means of a novel combination

of grammatical evolution and genetic algorithm. In

Engineering Applications of Artificial Intelligence 39.

CarMaker open test platform for virtual test driving

website: http://ipg.de/no_cache/simulation-software/

carmaker/

Durand, N., Alliot, J.M., Noailles, J., 1996. Collision

avoidance using neural networks learned by genetic

algorithms. In Ninth International Conference on

Industrial and Engineering Applications of Artificial

Intelligence and Expert Systems, Fukuoka.

Fu, W., Hadj-Abdelkader, H., Colle, E., 2013. Reactive

collision avoidance using B-spline representation:

Application for mobile robot navigation. In Mobile

Robots (ECMR), European Conference on, Barcelona.

Liu, H., Stoll, N., Junginger, S., Thurow, K., 2013. Mobile

robot for life science automation, In Int. J. Adv. Robot.

Syst., vol. 10, pp. 1-14.

Mahajan, Richa, Gaganpreet, Kaur, 2013. Neural networks

using genetic algorithms. In International Journal of

Computer Applications.

Montana, D., Davis, L., 1989. Training feedforward neural

networks using genetic algorithms. In IJCAI'89

Proceedings of the 11th international joint conference

on Artificial intelligence.

Schaffer, J. David, Whitley, Darrell, Eshelman, Larry J.,

1992. Combinations of genetic algorithms and neural

networks: A survey of the state of the art. In IEEE

Conference Proceedings.

Sipper, M., Azaria, Y., Hauptman, A., Shichel, Y, 2006.

Designing an evolutionary strategizing machine for

game playing and beyond. IEEE

Togelius, J., Lucas, S. M., 2006. Evolving robust and

specialized car racing skills in Proceedings of the IEEE

Congress on Evolutionary Computation.

Vose, M. D., 1999. The Simple Genetic Algorithm:

Foundations and Theory. In IEEE Transactions on

Systems, Man, and Cybernetics, Part C: Applications

and Reviews.

Speed: 67.0 km/h

Speed: 43.0 km/h

Speed: 64.4 km/h

Reactive Collision Avoidance using Evolutionary Neural Networks

257
