SPARQL Query Generation based on RDF Graph

Mohamed Kharrat, Anis Jedidi and Faiez Gargouri

MIRACL LAB, University of Sfax, Sfax, Tunisia

Keywords: SPARQL, Queries, RDF.

Abstract: Data retrieval is becoming more difficult due to the heterogeneity and the huge amount of Data flowing in

the Web. On the other hand, novice users could not handle querying languages (e.g., SPARQL) or

knowledge based techniques. To simplify querying process, we introduce in this paper, a proposal of

automatic SPARQL query generation based on user-supplied keywords. The construction of a SPARQL

query is based on the top relevant RDF sub-graph, selected from our RDF Triplestore. This latter rely on our

defined semantic network and on our Contextual Schema both published in two different papers of our

previous studies. We evaluate 50 queries by using three measures. Results show an F-Score of about 50%.

This proposal is already implemented as a web interface and the whole queries interpretation and processing

is performed over this interface.

1 INTRODUCTION

The huge amount of data flowing in the Web is

making research harder for end users. In the other

hand, existing query languages and data models,

both are hard to understand for novice users.

Therefore, it’s become a necessity to simplify

retrieval process. Keyword search is one of available

solutions enabling users expressing their

requirements. Expect that Keywords based queries

are usually ambiguous to interpret. On the contrary,

we can easily and clearly write a SPARQL queries.

We outline in this paper a procedure for

automatic SPARQL query generation based on user

keywords.

After a linguistic processing of keywords, we

create and select the more relevant query matching

the user keywords through the construction of a set

of suitable graphs acting like patterns for queries.

Our RDF TripleStore is the outcome of applying

the translation process from our XML dataset using

a small semantic network (Kharrat, 2015). All the

querying process is based on this latter.

This proposal, is part of our retrieval solution

composed by a unique search box which provides

access to the whole dataset. Each result is illustrated

by a node represented a physical resource (video,

image, text, audio) and are linked together with

other (semantically related) resources or related to

another matched triples. If the user clicks on one of

those nodes, a window appears, leading to details of

this latter (details are specific to the type of resource

result: description, playing video or audio….)

Triples are linked together, constructing a

connected graph with typed links. An RDF triple is

structured as SPO (Subject, Predicate, Object).

Subject and object can be a simple or component

noun. Theoretically, by using a keywords search, it

is not possible to make a complete mapping of

keywords query to a triple. Because the keywords

used un a query could be ambiguous or do not match

any of triples elements. In addition, there are hidden

relationships between resources that could not be

expressed explicitly by keywords. Keywords used in

search engine for retrieving information can match

to nodes or edges of a subgraph. However, many

other nodes and edges could be selected as result

since they have relationships with other results.

Selecting this type of results is called induction.

This paper is organized as follows: In section II

we present an overview of some studies along with

our proposed approach of SPARQL query

generation. The subsequent section III introduces the

first step of our approach. In section IV we describe

the process of automatic query generating based on

graph patterns. We described a brief evaluation of

this approach in section V. Conclusion will be

finally found in last section.

450

Kharrat, M., Jedidi, A. and Gargouri, F.

SPARQL Query Generation based on RDF Graph.

DOI: 10.5220/0006091904500455

In Proceedings of the 8th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2016) - Volume 1: KDIR, pages 450-455

ISBN: 978-989-758-203-5

2 RELATED WORK

Actual querying languages are largely used

nowadays. However, their biggest drawback is their

complexity of manipulation which make them

intended for experts only.

It is obvious that there are other alternatives for

novice users to manipulate RDF data. Automatic

query generation is one of them which has been

integrated many times in certain solutions. In the

following, we present recent works about SPARQL

query generation.

In (Shekarpour; 2013), author introduce a novel

approach of question answering system, which

transforms user keywords or sentences into

conjunctive SPARQL queries. For query generation

from user keywords, he employs a hidden Markov

model for resources disambiguation and he use

inference for the creation of a graph corresponding

to SPARQL query.

Authors of (Wollbrett, 2013) and (Lehmann,

2011) have creates and annotated RDF views that

enable automatic generation of SPARQL queries.

Another way to generate queries is proposed in the

work of Haag (Haag, 2015) who proposed a

graphical manner to construct a complex queries

using logical symbols. The proposed approach of

(Acosta, 2015) aims first to design a model for

estimating RDF completeness and then the creation

of a query planner able to decide which parts of a

SPARQL query will be executed. Finally, (Zhao,

2014) has presented a different approach for

SPARQL queries generation based on profiling

representing abstracts of heterogeneous data.

Our proposal is different from those approaches

since they could not interpret implicit meaning of

keywords and handle semantic relationships existing

between queried data resources. In fact, in our

proposal we consider two major elements: our

semantic network and our Contextual Schema

(Kharrat, 2015).

3 QUERYING PROCESS AND

PREPROCESSING

Currently, Keywords based research is the most used

for data retrieval. In the other hand, there is a huge

amount of available RDF data which are getting

more complex. Using SPARQL queries over them is

the most adequate solution but not for novice users.

Many studies for generating automatically this type

of queries have been carried out. However, this kind

of solutions is implying ambiguity when interpreting

user’s intention. To avoid as possible this problem

before generating SPARQL queries we process

user’s keywords as a first step of our proposal.

To make a disambiguation of keywords, we

compute a relatedness score of used terms to get the

shared context of research and the aim of each one

of them. We used Wordnet Web service which offer

free linguistic processing (Grammar detection,

Synonyms, proximity relations…) of any introduced

term.

Taking as example the keyword « Write »,

Wordnet, return all derived terms of this latter

(written, writing, ….). In addition, we detect Named

Entities (NE) to avoid treating composed NE as

separated terms and to avoid processing them as

verbs, nouns or adjectives.

∀ Keyword k ∈ Query q, we define a set of

derived terms of k as LE ={x1, …, xn}.

We then construct another representative set for

NE called “EE” to increase the chance to find closed

concept to seeking keywords.

“EE” set is more generic than ‘synsets’ (sets of

synonyms within dictionary-oriented terms). Except

that is not intended for all keywords. “EE” is a set of

derived concepts of keywords in DBpedia.

This set return APk= { r1,r2,…, rn } as APk ⊂

(C ∪ I ∪ P) where C, I and P, are respectively

Classes, Instances and Properties from DBpedia

containing k as label.

∀ r i ϵ APk , we derive resources semantically

related through these properties: rdfs:seeAlso,

owl:sameAs skos:narrower and skos:narrowMatch,

skos:closeMatch, skos:mappingRelation and

skos:exactMatch. Notice that in DBpedia, categories

are related to their top-level-categories through

skos:broader and support dcterms:subject rather than

skos:subject.

Taking the famous example of « Apple »,

returned terms from DBpedia could be : dbpedia-

owl:apple_(Company), dbpedia-owl:Apple_(Fruit),

dbpedia-owl:Apple_(Band)…

Using this set, we are able to eliminate ambiguity

of keywords and detect shared context of them by

computing relatedness score as follow:

(1, 2) =

((||,||))(|⌒|)

(||)((||,||))

(1)

Where k1 and k2 are two keywords, A and B are

sets of derived terms respectively of k1 and k2. W is

the set of all terms.

SPARQL Query Generation based on RDF Graph

451

4 QUERY GENERATION

PROCESS

4.1 Formal Representation

Answering a semantic query could be formulated as

retrieval of interconnected objects through relations

and restrictions. Figure 1 represent a view of a

sample set of RDF data under two different formats.

(a) triples and graphs(b). A query could be written in

the following formal representation.

The RDF data set is defined as: D: {C,I,L,R,t}

where C & R represent the set of Classes and

relationships. I and L are respectively the set of

Instances and literals.

A function T : {C ᴜ I} x{C ᴜ I ᴜ L}→R defines

all triples in D. in addition we define {e}: {C ᴜ R ᴜ I

ᴜ L} to represent all Classes, relationships, instances

and literals. A keyword K is a set of terms {t}.

Figure 1: Sample RDF set represented as triples (a) and as

a graph (b).

Formally, we represent a query as : RF : ‹C’, R’,

I’, L’, V, T’› under D, a set of variables gatherings

relationships and nodes.

R’:‹I’ ᴜ C’ ᴜ V› x ‹ I’ ᴜ C’ ᴜ V ᴜ L’› →R define

all triples in RF.

Considering this definition, the problem of

constructing a query could be designed as follow:

Taking a graph D, typing a keyword K, we

construct queries {RF}.

To do construct s a SPARQL query covering

user’s keywords, we have to apply a sequel of steps

to construct a graph acting as pattern. For every

keyword ki ∈ K, we look for all matched Ci inside

TripleStore. We then look for contexts cx inside

graph as cxi ⊂ {cx} ∈ Si. Contexts are already

defined inside our semantic network.

Moreover, we calculate all possible combination

W for matching Q of those keywords: W = Q1 × ...

× Qn = {w = (q1,...,qn)|qi ∈ Qi, ∀i = 1,...,n}. User

could type one or many keywords. In case of three

words for example, system may return results by

combining two of them. For every combination w =

(q1,...,qn) ∈ W which contains only one matched

element qi per keyword ki, we generate a graph D

letting us constructing it corresponding SPARQL

query. Furthermore, we eliminate from graph, all

elements which have low value in their uncertain

property: UN. Finally, we select automatically

Storylink triples: Sln ignoring contexts of the latter.

Those triples do not obviously represent information

seeked by user, however, they are certainly related

to the same storytelling forming part of the

chronological series of events. Those steps are

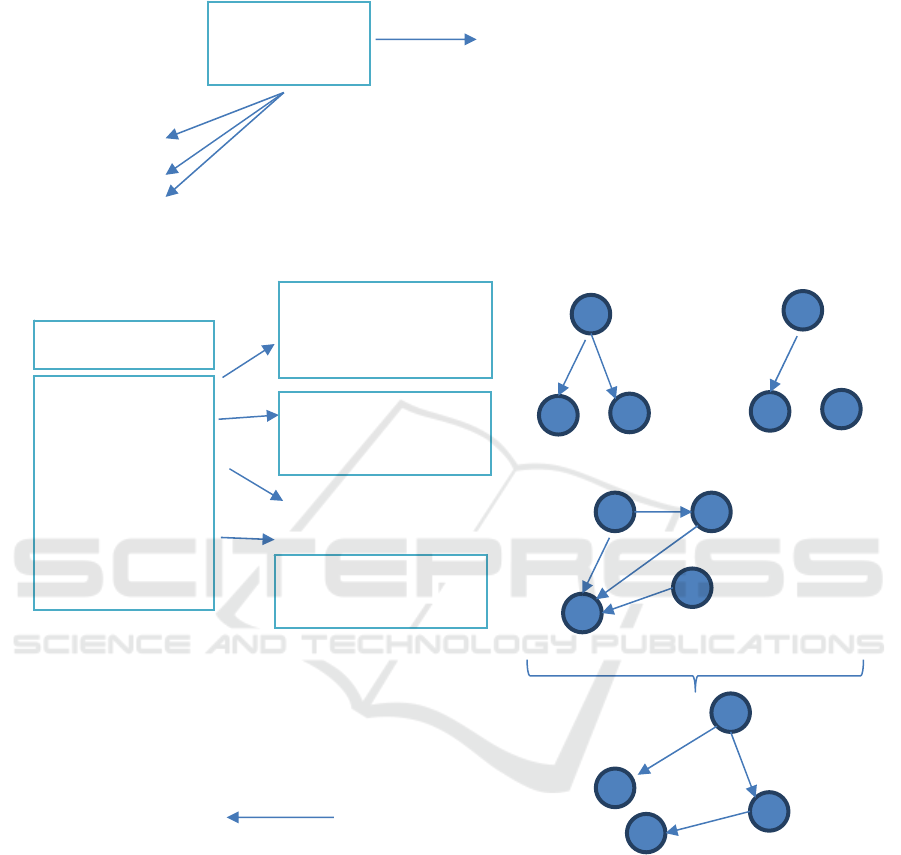

depicted in Figure 3.

The graph D, which acting like a pattern for

SPARQL query generation is defined as follow:

D=(S,A, Π) where S is a finite set of vertices

defined as Cartesian product of Se ∪ Sc ∪ Sl= ( {0}

x Ss) ∪ ( {0} x Sc) ∪ ( {0} x Sl ), where Ss is the set

of vertices representing entities, Sc is the set of

vertices representing classes and finally Sl is a set of

vertices representing literals.

- A ⊆ S × S is a set of finite pairs (s’,s’’) edges,

where s’, s’’ ∈ S

Π is the projection of a vertices on edge

- Π: {S U A} → α is a function which assign ∀s

∈ S and ∀ (s1,s2) ∈ A, a label of α alphabet defined

as Cartesian product Ee U Es U Ec U Er U Ei.

Where Ee is a set of labels for entities (applied only

if e ∈

Se), Es is the set of labels for literals (applied

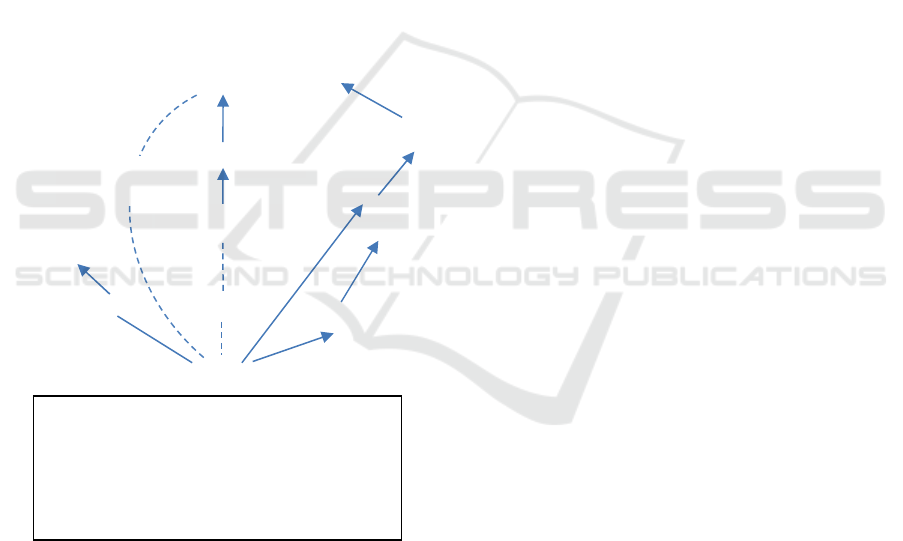

only if e ∈ Sl), Ec is a set of labels for classes

(applied only if e ∈ Sc), Er is a set of labels for

properties between entities (applied only if e1 e’ and

e’’ ∈ Se), finally, Ei is a set of labels for properties

between an attribute and an entity (applied only if e’

∈ Sa & e’’ ∈ Sl)

Let’s take the set ENS (q1,...,qn) ∈ W, graph is

constructed as following:

-if qi ∈ Es, add an edge (w, sqi) and a friend

vertice with D (sqi ) = qi. The latest inserted edge

(w, qi) will be related to the exact w ∈ Sc, labeled

:Zidane

(a)

{( :Zidane, :Origin, x)

(Zidane, :name, « Zineddine Zidane »)

(x, :name, « France »)

( :Trainer, rdfs :subClassOf, :Person

(:Zidane, rdf:type, :Trainer)

(:Zidane, rdf:type, :Person)

(

Zidane, :To

ic, « S

ort »

)}

« Sport »

:Person

:subClassOf

« France »

:Trainer

:Origin

:name

rdf :type

« Zineddine

Zidane »

rdf :type

:name

(b)

:To

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

452

D(w, sqi ) = Π(a), according to information given by

term index of wq.

-if qi ∈ ΠA then we add an edge (с,s) with an

edge s. Inserted edge will be related exactly to w ∈

Sc and labeled as D(w, s) = Π(w) ∈ Ei.

-if qi ∈ Er / Qi ∈ Ec then we verify if ∃ qi=Sln. If

yes, then we add an edge (w,s) with a vertice s and

labeled D (w,s) = Sln.

-∀qi ∈ Er, if ∃ property ∈ UN, then eliminate

triple from graph.

The graph which will be kept, is the less

connected of matched elements qi ∈ с with the

lowest score SCO. SCO is defined as average

distance between matched elements pairs qi. SCO =

∑ distance (qi, qj) ∀i, j = 1, ..., n and i ≠ j. To reduce

SCO, we look for the shortest path in graph D.

However, by calculating this shortest path, in some

cases, qi may be an edge, so the distance between

two matched elements is computed including edges

and vertices leading to qi. Finally, we combine all

shortest distances forming a connected sub-graph.

To find relevant graph, we keep only the lowest

scores.

We can, at this level, generate a SPARQL query

basing on the kept graph. Prior to this, we have to

apply preprocessing of keywords, as result of

preprocessing, we may add a derived terms to

originals ones. The entire terms and keywords will

be submitted for querying.

4.2 Query Construction

We generate SPARQL queries for every graph while

considering:

-if (s,o) ∈ A, where s & o ∈ Ss, L(o) ∈ Es &

Π(s,o) ∈ Ei, then we generate the skeleton of the

following triple: var(s) Π(s,o) var (o) FILTER

(var(o)=Sln) (For Storylink triples)

-∀ (s,o) ∈ A, where s & o ∈ Ss and Π(s,o)=cx,

then we generate the skeleton of the following triple:

var(s) Π(s,o) var (o) FILTER (var(o)= (cxi,.. cxn) ∈

{cx}) (For Context triples)

For all the 6 semantic relationships defined in

our Contextual Schema:

-if s ∈ Sc then we associate the vertice s with a

new variable var(s) and generate the skeleton of the

following triple: var(s) rdf :type Π(s) where E(s) ∈

Ec.

-if (s,o) ∈ A, from vertice s ∈ Sc to vertice o ∈

Sc (inter-entities property) where Π(s,o) ∈Er, then

we generate the skeleton of the following triple:

var(s) L(e) var(o)

-if (s,o) ∈ A, from vertice s ∈ Sc to vertice o ∈ Ss

(entity-attribute property) where L(o) ∈ Es & Π(s,o)

∈ Ei, then we generate the skeleton of the following

triple: var(s) Π(s,o) var (o) FILTER (var(o)=L(o)).

-if (s,o) ∈ A, from vertice s ∈ Sc to vertice o ∈ Ss

(entity-attribute property) where Π(s,o) ∈ Ei, then :

we generate the skeleton of the following triple:

var(s) Π(s,o) var (o).

Last step before query generation is adding more

restrictions about shared context of keywords and

about uncertainty property.

5 EVALUATION

We present in this section, a brief evaluation of this

work.

First of all, we have to make distinguish between

different results. In fact, they are divided into two

groups. Results including exact user’s terms and

results including and considering user intents. This

implies the existence of correct results and those

entirely relevant. For this reason, we distinct number

of keywords best matching to elements from

Triplestrore in order to find the best sub-graph

considering all user requirements. In addition, we

have to distinct correctness degree of results. For

this, we introduce a measures already used in this

kind of evaluation (Shekarpour; 2013).

Let’s take the same example described

previously. Generated query may return (correct,

partially correct, or wrong) results. User keywords

could match exactly with resources but those latter

may not be the intent of user in terms of meaning.

On that view, results may deviate towards resources

just talking about Hillary in other context.

We introduce those three measures:

Correctness Rate (CR) : This measure will let us

assign a score to results matching to the user's

expectations of his query q. CRq() is the fraction of

correct terms over all terms.





(



)





(2)

(Average CR): It represents arithmetic of CR of

their individual answers A for query q.





(



)





∗

∑





()

∈

(3)

Fuzzy precision (FP): The ACR is the basis of

this measure, which measures the overall correctness

of graphs matching answers Aq.

The ACR is the basis for the fuzzy precision

metric (FP), which measures the overall correctness

of a template’s corresponding answers Aq with

respect to a set of keyword queries Q.

SPARQL Query Generation based on RDF Graph

453

 =

∑





(



)

∈



 (4)

After computing the fuzzy precision, we can

evaluate the quality of the results achieved by graph

patterns. Afterwards, we compute the Recall

corresponding to fraction of queries which have got

results.

 =





(5)

Finally, we compute F-Score as follow:

=2∗

∗



(6)

We evaluate 50 queries by using these three

measures. Table 1 represents a small set of used

queries for evaluation.

Table1: Sample set of used queries for evaluation.

Queries

Q1:Hillary+Isis

Q2:Hillary+Isis+Iraq

Q3:Hillary+visit+Iraq

Q4:Hillary+meeting+G8

Q5:Hillary+meeting+Obama

Q6:europe+Isis+war

Q7:Europe+Goodluck Jonathan+boko haram

Q8:Hollande+Goodluck Jonathan+boko haram

Q9:Hollande+Iraq+war+decisions

Q10:Angela Merkel+G8+decisions

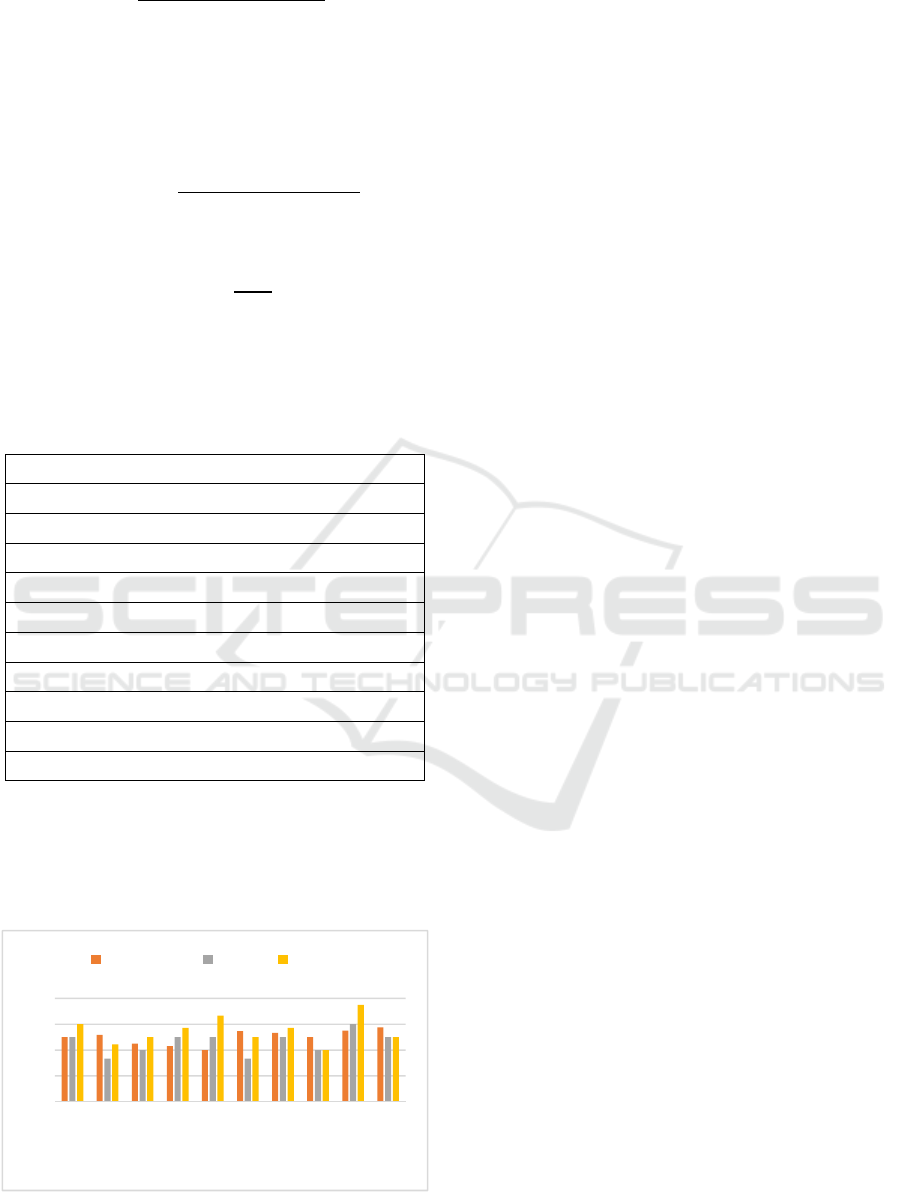

Figure 2 shows the accuracy of each query based

on these three metrics.

Basing on these three measures, overall F-

Precision and recall values as well as an overall F-

Score value were computed as the average mean of

Figure 2: Accuracy of each query in Table 1.

the F-Precision, recall and F-Score values for all

queries. This preliminary evaluation shows an

average of 0.52 of F-Score, 0.43 of Recall and 0.5 of

F-Precision.

6 CONCLUSION

In this research, we proposed an automated system

for SPARQL query generation from user keywords.

The process includes three main parts: Preprocessing

of keywords, detecting best graph matching to

keywords and finally the query generation. The aim

of this proposal is to simplify data retrieval for

novice users with respect of their intents, in fact of

ambiguous aspects of keywords based search. In the

last section we showed a brief evaluation of the

proposed approach. We aim to apply some

optimizations to our approach, since we currently

use a keywords based Web interface.

REFERENCES

Acosta, M., Simperl, E., Flöck, F., Vidal, M., Studer, R.,

2015. RDF-Hunter: Automatically Crowdsourcing the

Execution of Queries Against RDF Data Sets.

Journal: The Computing Research Repository (CoRR).

Haag, F., Lohmann, S., Siek, S., Ertl, T., 2015.

QueryVOWL: Visual Composition of SPARQL

Queries. In Proceedings of Extended Semantic Web

Conference-Satellite Events. Slovenia.

Kharrat, M., Jedidi, A., Gargouri, F., 2015. A semantic

approach for transforming XML data to RDF triples.

IEEE/ACIS 14th International Conference on

Computer and Information Science (ICIS). USA.

Kharrat, M., Jedidi, A., Gargouri, F., 2015. Defining

Semantic Relationships to Capitalize Content of

Multimedia Resources. IFIP Advances in Information

and Communication Technology, vol 456.

Lehmann, J., Buhmann, L., 2011. Autosparql: Let users

query your knowledge base. In Proceedings of

Extended Semantic Web Conference. Greece.

Shekarpour, S., et al., Generating SPARQL queries using

templates. 2013. Journal of Web Intelligence and

Agent Systems, vol 11, pp. 283-295.

Wollbrett, J., Larmande, P., De Lamotte, F., Ruiz, M.,

2013. Clever generation of rich SPARQL queries from

annotated relational schema: application to Semantic

Web Service creation for biological databases. Journal

Bmc Bioinformatics, vol 14.

Zhao, J., HongHan,W., Pan, JZ., 2014. Towards Query

Generation for PROV-O Data. In Proceedings of

Provenance Analytics at ProvWeek. Germany.

0,2

0,4

0,6

0,8

12345678910

Queries

F-precision Recall F-Score

KDIR 2016 - 8th International Conference on Knowledge Discovery and Information Retrieval

454

APPENDIX

Figure 3: Processing steps of generating SPARQL queries.

S P O

Hillary

Hillary daff

Hillary Clinton

Hollande

Hollandais

G8-Congress

Meet Meeting

Hillary

Hollande

Meeting

Hillary Hollande

Meeting G8

Hillary G8

Hollande

Meeting

Step4 : Creating candidates

Step5: Graphs candidates

Step6: Seeking for top relevant graph

Step7: Query generation

Step2 : Considering derived

terms

Step3 Filtering according

to contexts

Step1: Processing of keywords & shared

context detection

? X

meet

…

Hillary

…

? X

G8 meeting

Context

G8 negotiation

? X

Meet

Meeting

Discuss

Assembly

Confrontation

…

Appear_In

Concern

? Y

Hollande

Appear_In

Meet

? X

Concern

Hillary

Hollande

Meet

Matching

Hillary

Hollande

Meeting

Political context

SPARQL Query Generation based on RDF Graph

455
