Syntactic-Semantic Extraction of Patterns Applied to the US and

European Patents Domain

Anabel Fraga, Juan Llorens, Eugenio Parra, Leticia Arroyo and Valentín Moreno

Computer Science Department, Carlos III of Madrid University, Av. Universidad 30, Leganés, Madrid, Spain

Keywords: Indexing, Ontologies, Knowledge, Patterns, Reuse, Retrieval, Patents, US Patents, European Patents.

Abstract: Nowadays, there are many scientific inventions referring to any topic like medicine, technology, economics,

finance, banking, computer science, and so on. These inventions are suggested as patents to the agencies

working in US and Europe for the registration and revision of the patent applications. But, the job of

reviewing the patents might be complicated because every day the quantity of it is bigger and bigger. And

also, the amount of work dedicated writing a proper application might be intricate and needs several

revisions from investor and examiners. This revision job might have costs for the inventor because they

don’t know the proper language for writing the application in the formal mode used. As part of a solution,

one approach to minimize the impact of this fact and increase the success of the reviewing process is aid the

human reviewer and also inventors with a set of patterns created using Natural Language Processing

techniques that accelerate the review just looking in the massive set of registration any similar one already

patented and on the other hand aid the inventor writing in the formal manner the application.

1 INTRODUCTION

The process for applying to an Intellectual Property

protection, as patents, might be complex and

reviewing your invention is really patentable must

be approved and check by an examiner. Also, the

language used to specify the invention in the

application is specific to this domain.

If it could be possible to extract a set of patterns

aiding the inventor and examiner in the process of

construction of the application and also reviewing if

the inventions could be already patented, the process

of patenting could be improved in two different

viewpoints.

Christopher Manning states in his book that: “People

write and say lots of different things, but the way

people say things - even in drunken casual

conversation - has some structure and regulari-

ty.”(Manning, 1999)

The important aspect in here is to ask ourselves: how

do people write? Nowadays, researchers conduct

investigations using natural language processing

tools, generating indexing and semantic patterns that

help to understand the structure and relation of how

writers communicate through their papers.

This project will use a natural language processing

system which will analyze a corpus of patents

acquired from the open repository of the US patent

and European patent Agencies. The documents will

be processed by the system and will generate simple

and composed patterns. These patterns will give us

different results which we can analyze and conclude

the common aspects the documents have even

though they are created by different authors but are

related to the same topic. (Alonso et al., 2005) The

study uses as center of the study an ontology created

in a national founded project for Oncology and it has

been extended with general terms of public health.

The remainder of this paper is as follows: section 2

includes the state of the art and related work of the

main topics of research, section 3 includes the

summary of the methodology; section 4 summarizes

the results, and finally conclusions.

2 STATE OF THE ART AND

RELATED WORK

2.1 Information Reuse

Reuse in software engineering is present throughout

the project life cycle, from the conceptual level to

the definition and coding requirements. This concept

is feasible to improve the quality and optimization of

Fraga, A., Llorens, J., Parra, E., Arroyo, L. and Moreno, V.

Syntactic-Semantic Extraction of Patterns Applied to the US and European Patents Domain.

DOI: 10.5220/0006098600360043

In Proceedings of the 7th International Workshop on Software Knowledge (SKY 2016), pages 36-43

ISBN: 978-989-758-202-8

the project development, but it has difficulties in

standardization of components and combination of

features. Also, the software engineering discipline is

constantly changing and updating, which quickly

turns obsolete the reusable components (Llorens,

1996).

At the stage of system requirements reuse is

implemented in templates to manage knowledge in a

higher level of abstraction, providing advantages

over lower levels and improving the quality of the

project development. The patterns are fundamental

reuse components that identify common

characteristics between elements of a domain and

can be incorporated into models or defined

structures that can represent the knowledge in a

better way.

2.2 Natural Language Processing

The need for implementing Natural Language

Processing techniques arises in the field of the

human-machine interaction through many cases such

as text mining, information extraction, language

recognition, language translation, and text

generation, fields that requires a lexical, syntactic

and semantic analysis to be recognized by a

computer (Cowie et al., 2000). The natural language

processing consists of several stages which take into

account the different techniques of analysis and

classification supported by the current computer

systems (Dale, 2000).

1) Tokenization: The tokenization corresponds to

a previous step on the analysis of the natural

language processing, and its objective is to

demarcate words by their sequences of

characters grouped by their dependencies,

using separators such as spaces and

punctuation (Moreno, 2009). Tokens are items

that are standardized to improve their analysis

and to simplify ambiguities in vocabulary and

verbal tenses.

2) Lexical Analysis: Lexical analysis aims to

obtain standard tags for each word or token

through a study that identifies the turning of

vocabulary, such as gender, number and verbal

irregularities of the candidate words. An

efficient way to perform this analysis is by

using a finite automaton that takes a repository

of terms, relationships and equivalences

between terms to make a conversion of a token

to a standard format (Hopcroft et al., 1979).

There are several additional approaches that

use decision trees and unification of the

databases for the lexical analysis but this not

covered for this project implementation

(Trivino et al., 2000).

3) Syntactic Analysis: The goal of syntactic

analysis is to explain the syntactic relations of

texts to help a subsequent semantic

interpretation (Martí et al., 2002), and thus

using the relationships between terms in a

proper context for an adequate normalization

and standardization of terms. To incorporate

lexical and syntactic analysis, in this project

were used deductive techniques of

standardization of terms that convert texts from

a context defined by sentences through a

special function or finite automata.

4) Grammatical Tagging: Tagging is the process

of assigning grammatical categories to terms of

a text or corpus. Tags are defined into a

dictionary of standard terms linked to

grammatical categories (nouns, verbs, adverb,

etc.), so it is important to normalize the terms

before the tagging to avoid the use of non-

standard terms. The most common issues of

this process are about systems' poor

performance (based on large corpus size), the

identification of unknown terms for the

dictionary, and ambiguities of words (same

syntax but different meaning) (Weischedel et

al., 2006). Grammatical tagging is a key factor

in the identification and generation of semantic

index patterns, in where the patterns consist of

categories not the terms themselves. The

accuracy of this technique through the texts

depends on the completeness and richness of

the dictionary of grammatical tags.

5) Semantic and Pragmatic Analysis: Semantic

analysis aims to interpret the meaning of

expressions, after on the results of the lexical

and syntactic analysis. This analysis not only

considers the semantics of the analyzed term,

but also considers the semantics of the

contiguous terms within the same context.

Automatic generation of index patterns at this

stage and for this project does not consider the

pragmatic analysis.

2.3 RSHP Model

RSHP is a model of information representation

based on relationships that handles all types of

artifacts (models, texts, codes, databases, etc.) using

a same scheme. This model is used to store and link

generated pattern lists to subsequently analyze them

using specialized tools for knowledge representation

(Llorens et al., 2004). Within the Knowledge Reuse

Syntactic-Semantic Extraction of Patterns Applied to the US and European Patents Domain

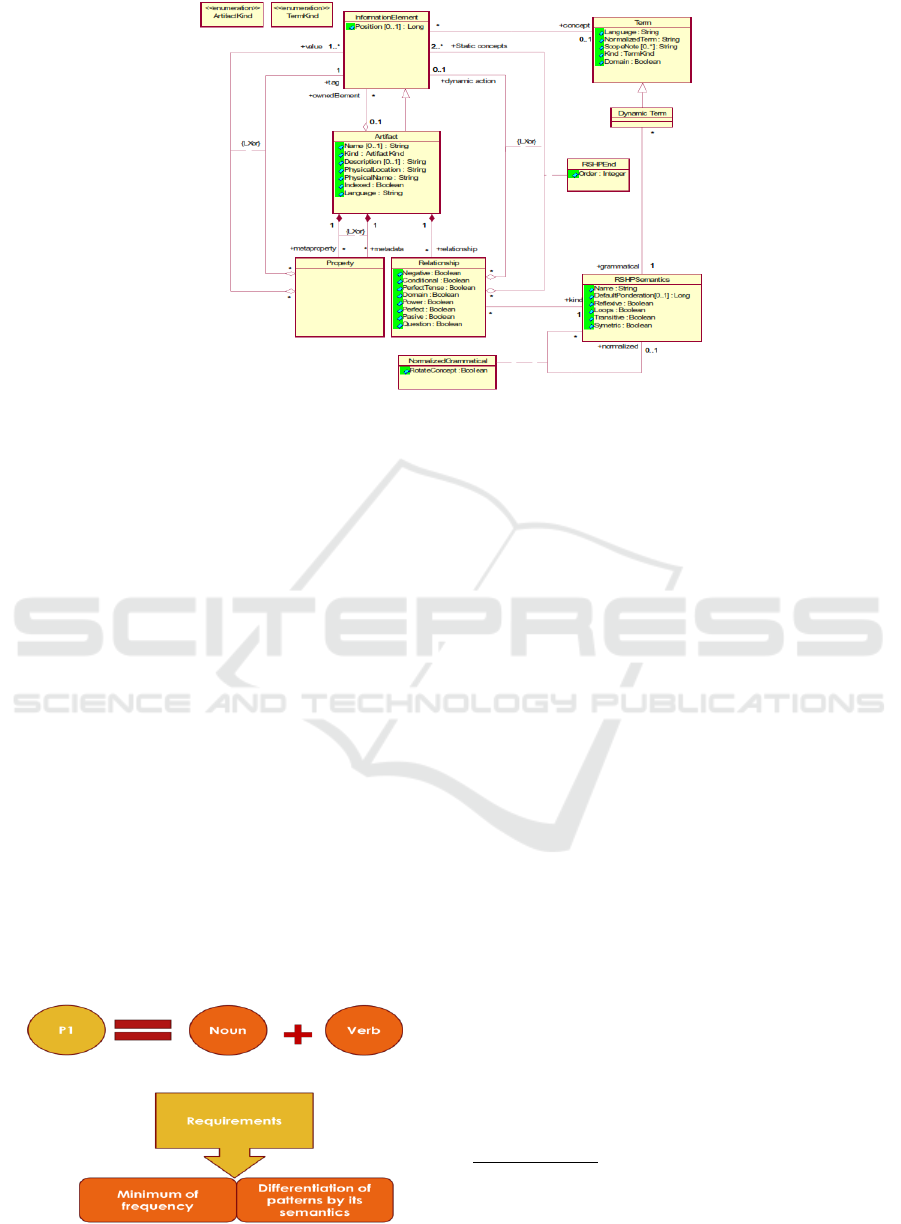

Figure 1: RSHP information representation model. (Alonso et al., 2005).

Group at the University Carlos III of Madrid RSHP

model is used for projects relevant to natural

language processing. (Gomez-Perez et al., 2004)

(Thomason, 2012) (Amsler, 1981) (Fraga, 2010)

(Suarez et al., 2013). The information model is

presented in Figure 1.

3 METHODOLOGY

The objective of this research is to perform the

extraction of syntactic-semantic patterns found

within documents on patents.

Patent documents are written by experts, therefore

we are saying that we will have very well written

documents and high quality grammatical.

When the investigation is complete, we have a list

sorted by frequency patterns (See Figure 2). We will

know the syntactic-semantic patterns that are most

used when writing a patent.

In addition to patterns, the most recurrent words are

known, we will identify the most common words in

the patterns documents.

Figure 2: Frequency of patterns.

The phases defined here are needed to meet the

objectives:

PHASE 1: Search for patent sources where they can

download patents documents public and registered

in PDF format. The documents must be converted to

TXT format using pdf2txt. Pdf2txt is a program

available in internet.

PHASE 2: Download at least about 500 documents.

PHASE 3: Convert the PDF documents to TXT

using the pdf2txt program.

PHASE 4: Get WordNet dictionary to form the

ontology. This phase can be performed in parallel to

steps 1, 2 and 3.

PHASE 5: Manage the ontology with a software for

managing ontologies in the industrial domain,

KnowledgeMANAGER. Adding vocabulary obtained

in phase 4.

PHASE 6: Add the new ontology in BoilerPlates

tool

, a tool for detecting patterns (Boilerplates in its

most initial form) in a set of documents.

PHASE 7: Define study scenarios and using

ontology created, generating patterns with the

BoilerPlates tool.

PHASE 8: TXT documents will be included one by

one on the BoilerPla tes tool, with this first step in

the tool will generate the basic patterns.

BoilerPlates Tool is a software developed in a PhD

Dissertation (Parra, 2016) in order to generate patterns

of text using Natural Language Processing solutions.

SKY 2016 - 7th International Workshop on Software Knowledge

PHASE 9: Representing one to one each scenario in

BoilerPlates tool and start pattern generation.

PHASE 10: Analyze the results obtained by

scenario.

PHASE 11: Analyze and compare the results of all

scenarios.

In this work a syntactic-semantic analysis is

performed, of a sample of registered patents and

made public, through an ontology based on natural

language words.

To get a larger sample of patent documents to

analyze them, it has decided to use English as the

language of analysis. Therefore all patents that are

used in this investigation will be written in the

English language.

All patents are search in Internet and document must

be PDF formats.

It does not establish any particular subject, and not

any particular area of investigation, the investigation

developed here is valid for all subjects.

We have two samples of patents, on one hand

analyze documents of the United States Patent and

Trademark Office, we have 359 documents, and

secondly analyze documents of the European Patent

Office, we have 379 documents Europeans different.

The study will be made with over 700 patent

documents, all documents be analyzed with the

BoilerPlates tool.

The ontology that includes the boilerplates tool, will

be managed with the Knowle dgeMANAGER tool of

REUSE Company. The vocabulary will form the

ontology is providing by WordNet.

WordNet is used as a basis for the ontology of data

recovery, we will have a language general controlled

(not specialized by subject) and to language English.

Into the WordNet we obtain nouns, verbs, adjectives

and adverbs.

The investigation done here is interesting because

we discover how the pattern of professional experts

document their investigations, findings and studies.

Here art to documentation is analyzed, so important

it is to have an idea as important is knowing it

registered.

The patterns that are obtained in the investigation

may be useful in the future to guide the new

professionals in the time of writing or searching for

similar patents.

4 RESULTS

The Scenarios followed in the experiments are:

Scenario 1:

 Sample USPTO (United States Patent and

Trademark Office) patents.

 All grammatical categories available are used

 Use a minimum frequency of 1 to create

patterns

 Differentiate patterns by their semantics is

disabled

Scenario 2:

 Sample USPTO patents.

 Use all grammatical categories.

 Use a minimum frequency of 1 to create

patterns.

 Differentiate patterns by their semantics is

enabled.

Scenario 3:

 Sample USPTO patents.

 Use all grammatical categories.

 Use a minimum frequency of 20 to create

patterns.

 Differentiate patterns by their semantics is

enabled.

Scenario 4:

 Sample EPO (European Patent Office) patents.

 Use all grammatical categories.

 Use a minimum frequency of 20 to create

patterns.

 Differentiate patterns by their semantics is

enabled.

Scenario 5:

 Sample USPTO patents

 Use all grammatical categories.

 Use a minimum frequency of 100 to create

patterns.

 Differentiate patterns by their semantics is

enabled.

Scenario 6:

 Sample EPO patents.

 Use all grammatical categories.

 Use a minimum frequency of 100 to create

patterns.

 Differentiate patterns by their semantics is

enabled.

Scenario 7:

 Sample USPTO patents.

 Use all grammatical categories.

 Use a minimum frequency of 100 to create

patterns.

 Differentiate patterns by their semantics is

disabled.

Syntactic-Semantic Extraction of Patterns Applied to the US and European Patents Domain

Scenario 8:

 Sample EPO patents

 Use all grammatical categories.

 Use a minimum frequency of 100 to create

patterns.

 Differentiate patterns by their semantics is

disabled.

In addition to analyzing each scenario separately,

comparisons between 1-2, 3-4, 5-6 and 7-8 pairs

were carried out to compare the two sources of

information used.

Comparative analysis - all in common scenarios will

also be made to draw general conclusions to all the

analyzed scenarios.

Basic patterns:

After the basic patterns were created, all the

sentences from the text documents were analyzed

and to each of the words (known in the database as

token text) a term tag or syntactic tag was assigned

with the help of the tables Rules Families and

Vocabulary in the Requirements Classification

database.

You may find the most repeated words in the

domain of documents in the Basic patterns table.

The most repeated words in grammatical categories

such as nouns, verbs and nouns coming from the

ontology we used.

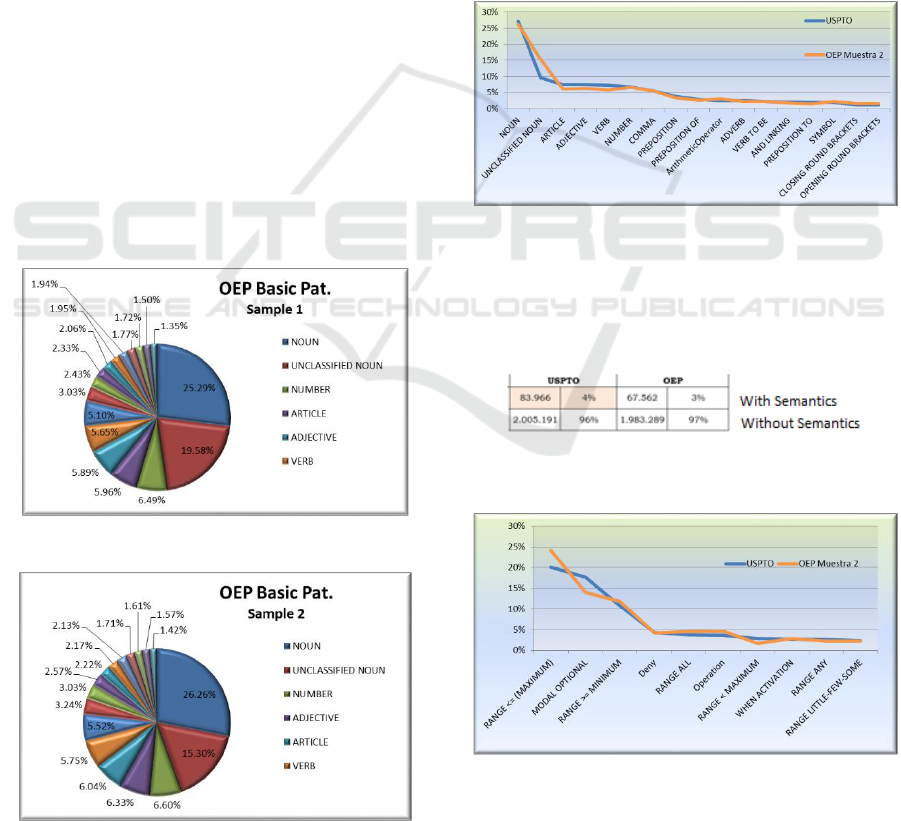

Figure 3: Basic pattern results. OEP Sample 1.

Figure 4: Basic pattern results. OEP Sample 2.

It can be seen that in both cases there is little

difference between the two samples , more number

of words in sample 1 than in sample 2, but not

shown in the percentage of appearance in each of the

grammatical categories.

USPTO vs OEP:

Comparing the two results, we see that the number

of grammatical categories exceeding 1 % is the same

in both, but with slight differences. In USPTO items

are the third most repeated grammatical category,

while EPO are the numbers in this position. In the

latter, the repetition of basic patterns is not rated

much higher.

We see in the figure below the comparative

representation of the 17 most repeated grammatical

categories.

Figure 5: USPTO vs OEP.

Semantics:

Semantics is present within the basic patterns but in

a very limited way. We met a little more than

semantics within American samples.

In the next chart you can see the semantics that more

appears in both samples:

Figure 6: Basic patterns: Semantics.

The stage 1, 2, 3, 5 and 7 are all made with

American patent documents.

SKY 2016 - 7th International Workshop on Software Knowledge

For the rest, we can conclude for the US shows the

following is true:

 A higher minimum frequency , fewer patterns

 A higher minimum frequency, the lower the

semantic obtained.

 Differentiate by semantic patterns is a better

practice to know the real semantics being

used when writing sentences. Otherwise, for

the same pattern, which can adopt semantics

could be anyone.

 Not differentiate by semantic results in

increased number of patterns, but with fewer

sub-patterns that form.

Scenarios 4, 6 and 8 are carried out with sample

documents of European patents.

We can conclude, for the European shows the

following is true:

 A higher minimum frequency , fewer patterns

 A higher minimum frequency, the lower the

semantic obtained.

 Differentiate by semantic patterns is a better

practice to know the real semantics being

used when writing sentences. Otherwise, for

the same pattern, which can adopt semantics

could be anyone.

 Not differ semantics resulting greater number

of patterns, and the number of sub patterns is

very similar.

After the analysis of the US patents documents and

European patents documents we can conclude the

following:

The basic patterns obtained are independent of the

frequency and the selection of grammatical

categories in the boilerplates tool. All basic patterns

are common within the same sample.

In the boilerplates tool, the higher the minimum

frequency used, is less the number of patterns

obtained and is shorter the time necessary to obtain

them.

Differentiation has been made by their semantic

patterns in the minimum frequencies of 1, 20 and

100 to US samples, and 20 and 100 for European

samples. For frequency 1 it has not been possible to

obtain results due to the high volume of information

that we have handled. More than 25 days after

running the tool, it has had to reject frequency 1 for

the study. About the other two frequencies, we can

say that the higher the frequency the number of

patterns obtained is less.

Patterns are calculated without differentiation of

semantics for the minimum frequencies of 1 and 100

with US sample. It is also calculated with the

European sample for the minimum frequency of

100, without differentiation patterns by their

semantics. It can be concluded that the same patterns

are obtained with different semantics.

With increasing frequency we lose patterns that have

longer decomposition. Because the number of

repetitions is less.

After using different frequencies to generate patterns

in boilerplates, we can say that the intermediate

frequency is what has given us the best results.

In both samples the unclassified words are very

present.

The patterns obtained in all scenarios can assist the

writing for any user who need to write a patent.

After the investigation, with the knowledge obtained

now, we can give some recommendations to people

who will do a similar study in the future.

The ontology can be improved, the ontology has 73

grammatical categories to define their vocabulary.

For this project has not been completed because all

the most important words are covered. The pending

grammar to define are the type of punctuation, dates,

email, arithmetic symbols, acronyms, etc. The

undefined categories are shown in Table 8.

For future projects, scenarios of using a minimum

frequency of 100 can be applied to search which is

the minimum frequency that will create zero

patterns.

It is possible create a new analysis with minimum

frequency greater than 100, because we obtained

patterns where their repetition frequency is greater

than 100. But before begin studies with a higher

minimum frequency, we recommend you should not

consider words that do not correspond to a grammar

of the ontology.

After ending all scenarios and analyzing results, we

can conclude that authors writing papers about a

same topic (in this case, genetic engineering) have

similarity in how they write. They use a similar

vocabulary and appropriate terms which makes the

reading easier. Some additional enterprises need

observation and intelligence.

5 CONCLUSION

After the analysis of documents of US patents and

European patents we can conclude the following:

 The basic patterns obtained are independent

of the frequency and the selection of

grammatical categories in the boilerplates

tool. All basic patterns are common within

the same sample.

Syntactic-Semantic Extraction of Patterns Applied to the US and European Patents Domain

 The higher the frequency used in the

boilerplates tool, the smaller the number of

patterns obtained and less time needed to

obtain them.

 Differentiation has been made by their

semantic patterns in the minimum

frequencies of 1, 20 and 100 for American

samples, and 20 and 100 for European

samples. To frequency 1 it has not been

possible to obtain results due to the large

volume of information we have handled.

After more than 25 days running the tool, it

has had to dismiss frequency 1 for the study.

On the other two frequencies, we can say that

the higher the frequency the number of

patterns obtained is lower.

 Patterns are calculated without differentiation

of semantics for the minimum frequencies of

1 to 100 with American shows. It is also

estimated with the European sample for the

minimum rate of 100, without differentiation

patterns by their semantics. It can be

concluded that the same patterns are obtained

with different semantics.

 By increasing the frequency lose patterns that

have greater depth of decomposition. Since

your number of repetitions is less.

 After using different frequencies to generate

patterns in boilerplates, we can say that the

intermediate frequency is what has given us

better results.

 In both samples not rated names is very

present.

 The patterns obtained in all scenarios may be

of assistance to those who need to write a

patent.

After the investigation, with the knowledge now

acquired, we can give some recommendations who

faces a future in a similar study.

 The ontology can be improved, it has 73

labels for outstanding grammatical categories

to define their vocabulary. For this project

has not been completed because all the most

important words are covered. The slopes are

grammars to define the type of punctuation,

dates, email, arithmetic symbols, acronyms,

etc. These categories may be undefined in

Table 8.

 There have been many token which are

classified under the label "UNCLASSIFIED

NOUN". For these cases we see three action

plans:

o Or they could analyze them and give them

all a grammatical category if possible, so

finding patterns would be more accurate.

o If it is not possible to assign a particular

category, you have to look at the

possibility of eliminating all words and

symbols are not classifiable.

o When generating patterns with

boilerplates tool not consider the label

"UNCLASSIFIED

 The documents have been used in this

analysis can be improved by converting PDF

to TXT performed in this process has been

lost information. Documents with images are

those that have lost more information.

It is possible to perform the analysis when frequency

is greater than 100, since we obtained patterns where

the repetition frequency is greater than 100. But

before studies with higher minimum frequency, it is

recommended not to consider if the terms do not

correspond to a grammar of the ontology.

ACKNOWLEDGEMENT

The research leading to these results has received

funding from the european union’s seventh

framework program (fp7/2007-2013) for crystal –

critical system engineering acceleration joint

undertaking under grant agreement n° 332830 and

from specific national programs and / or funding

authorities.

Also, the research leading to this paper has

received funding from the AMASS project (H2020-

ECSEL grant agreement no 692474; Spain’s

MINECO ref. PCIN-2015-262).

REFERENCES

Abney, Steven. Part-of-Speech Tagging and Partial

Parsing, S. young and G. Bloothooft (eds.) Corpus-

Based Methods in Language and Speech Processing.

An ELSNET book. Bluwey Academic Publishers,

Dordrecht. 1997.

Alonso, Laura. Herramientas Libres para Procesamiento

del Lenguaje Natural. Facultad de Matemática,

Astronomía y Física. UNC, Córdoba, Argentina. 5tas

Jornadas Regionales de Software Libre. 20 de

noviembre de 2005. Available in: http://www.cs.

famaf.unc.edu.ar/~laura/freeNLP

Amsler, R. A. A taxonomy for English nouns and verbs.

Proceedings of the 19th annual Meeting of the

Association for Computational Linguistic. Stanford,

SKY 2016 - 7th International Workshop on Software Knowledge

California, 1981. Pp. 133-138.

Carreras, Xavier. Márquez, Luis. Phrase recognition by

filtering and ranking with perceptrons. En

Proceedings of the 4th RANLP Conference, Borovets,

Bulgaria, September 2003.

Cowie, Jim. Wilks, Yorick. Information Extraction. En

DALE, R. (ed). Handbook of Natural Language

Processing. New York: Marcel Dekker, 2000. Pp.241-

260.

Dale, R. Symbolic Approaches to Natural Language

Processing. En DALE, R (ed). Handbook of Natural

Language Processing. New York: Marcel Dekker,

2000.

Fraga, Anabel. A methodology for reusing any kind of

knowledge: Universal Knowledge Reuse. PhD

Disertation. Universidad Carlos III de Madrid, 2010.

Gómez-Pérez, Asunción. Fernando-López, Mariano.

Corcho, Oscar. Ontological Engineering. London:

Springer, 2004.

Hopcroft, J. E. Ullman, J. D. Introduction to automata

theory, languages and computations. Addison-Wesley,

Reading, MA, United States. 1979.

Llorens, J., Morato, J., Genova, G. Rshp: An Information

Representation Model Based on Relationships. In

Ernesto Damiani, Lakhmi C. Jain, Mauro Madravio

(Eds.), Soft Computing in Software

Engineering (Studies in Fuzziness and Soft Computing

Series, Vol. 159), Springer 2004, pp. 221-253.

Llorens, Juan. Definición de una Metodología y una

Estructura de Repositorio orientadas a la

Reutilización: el Tesauro de Software. Universidad

Carlos III. 1996.

Manning Christopher, "Foundations of Statistic Natural

Language Processing", Cambridge University,

England, 1999, 81

Martí, M. A. Llisterri, J. Tratamiento Del Lenguaje

natural. Barcelona: Universitat de Barcelona, 2002. p.

207.

MORENO, Valentín. Representación del Conocimiento de

proyectos de software mediante técnicas automatiza-

das. Anteproyecto de Tesis Doctoral. Universidad

Carlos III de Madrid. Marzo 2009.

Parra, Eugenio. Metodología orientada a la optimización

automática de la calidad de los requisitos. PhD

Disertation. Universidad Carlos III de Madrid, 2016.

Poesio, M. Semantic Analysis. En DALE, R. (ed).

Handbook of Natural Language Processing. New

York: Marcel Dekker, 2000.

Rehberg, C. P. Automatic Pattern Generation in Natural

Language Processing. United States Patent. US

8,180,629 B2. May 15, 2012. January, 2010.

Riley, M. D. Some applications of tree-based modeling to

speech and language indexing. Proceedings of the

DARPA Speech and Natural Language Workshop.

California: Morgan Kaufmann, 1989. Pp. 339-352.

Suarez, P., Moreno, V., Fraga, A., Llorens, J. Automatic

Generation of Semantic Patterns using Techniques of

Natural Language Processing. SKY 2013: 34-44.

Thomason, Richmond H. What is Semantics? Version 2.

March 27, 2012. Available in: http://web.eecs.umich.

edu/~rthomaso/documents/general/what-is-semantics.

html

Triviño, J.L. Morales Bueno, R. A Spanish POS tagger

with variable memory. In Proceedings of the Sixth

International Workshop on Parsing Technologies

(IWPT-2000). ACL/SIGPARSE, Trento, Italia, 2000.

pp. 254-265.

Weischedel, R. Metter, M. Schwartz, R. Ramshaw, L.

Palmucci, J. Coping with ambiguity and unknown

through probabilistic models. Computational

Linguistics, vol. 19, pp. 359-382.

Syntactic-Semantic Extraction of Patterns Applied to the US and European Patents Domain
