Characteristics of Enterprise Architecture Analyses

Julia Rauscher, Melanie Langermeier and Bernhard Bauer

Software Methodologies for Distributed Systems, University Augsburg, Augsburg, Germany

{rauscher, langermeier, bauer}@ds-lab.org

Keywords:

Enterprise Architecture, Analysis, EA Analysis, Categorization, DSL.

Abstract:

Enterprise Architecture Management (EAM) deals with the assessment and development of business processes

and IT landscape of an organization. Analyses are an important mean in the EAM process. They support the

understanding of the architecture and evaluate the current situation as well as possible future ones. In current

literature exists various different approaches to EA analyses. Each pursues different goals and utilizes different

techniques. We evaluated current literature about EA analyses and identiﬁed possible categories. Therefore

we deﬁne requirements for an EA analysis and utilize them for a classiﬁcation of the various approaches.

We propose a two-dimensional classiﬁcation approach. Technical categories cluster analyses according their

procedure and utilized techniques. Functional categories cluster analyses according to their goals and outcome.

To validate our categorization and the analysis requirements we develop a domain speciﬁc language, which is

used to formalize the existing analysis approaches from literature.

1 INTRODUCTION

Analyses are one of the most important artifacts

integrated in Enterprise Architecture Management

(EAM) and are indispensable in the EAM cycle. The

EA process contains ﬁve phases (Niemann, 2006):

Document, Analyze, Plan, Act and Check. Thus,

analysis is an essential part in order to create and im-

plement future plans. It supports decision making

through an evaluation of the current architecture as

well as potential future scenarios (Sasa and Krisper,

2011). The result of analysis and planning actions

is ﬁnally the creation of a target architecture. Those

actions enable also planning, acting, controlling and

documenting through all layers.

The creation of an Enterprise Architecture (EA)

model is time and cost consuming. Therefore, sup-

port for decision making and planning generates value

and increases the acceptance of the EA initiative in an

organization (Lankhorst, 2013). Thus, analysis sup-

port is essential in order to generate value from an

EA model. The execution of an analysis decomposes

the analyzed object in its components. Those single

elements are examined and evaluated as well as the

relationships and interactions between them. Apply-

ing existing analysis on established models is expen-

sive, since the corresponding meta models typically

require some adaptions (Langermeier et al., 2014).

This makes reuse of existing solutions and research

ﬁndings hard.

In current literature a great variety of differ-

ent analysis possibilities are described. They rely

on different technologies, like probability networks

arman et al., 2008), ontologies (Sunkle et al., 2013)

or expert interviews (Kazienko et al., 2011), have dif-

ferent preconditions and provide different kind of re-

sults. E.g. preconditions can be required properties

for model elements or speciﬁc data structures. Typi-

cal results are quantitative ones like an overall metric

for the architecture, measures for speciﬁc architecture

elements, but also a determined set of elements. Ev-

ery analysis supports a different goal and thus, for a

sound evaluation of the architecture different kinds of

analyses are required.

In this paper we want to provide a categoriza-

tion of existing EA analyses from literature. The

main goal of the categorization is to create a possi-

bility to conduct analyses organized and controlled,

to create new analyses and to choose the best suited

analysis depending on the goal and requested tech-

nique. We study existing analyses regarding their re-

quirements for execution and their provided result.

This provides us a sound overview of analysis ap-

proaches in the context of EA and of the issues they

address. Based on the identiﬁed similarities we estab-

lish a categorization of the approaches. Once accord-

ing to their functional dimension, and once according

to their technical dimension. The resulting categories

with their characteristics are evaluated through the es-

tablishment of a Domain Speciﬁc Language (DSL).

104

Rauscher J., Langermeier M. and Bauer B.

Characteristics of Enterprise Architecture Analyses.

DOI: 10.5220/0006222701040113

In Proceedings of the Sixth International Symposium on Business Modeling and Software Design (BMSD 2016), pages 104-113

ISBN: 978-989-758-190-8

This allows us to formalize them and validate their

correctness by modeling existing analyses. Addition-

ally such a language allows us to make the require-

ments of an analysis visible in a structural way. The

calculated outcome as well as the preconditions in or-

der to execute the analysis are easily accessible.

The remaining paper is structured as followed.

First we introduce foundations of EA analysis (sec-

tion 2). Following we present in section 3 our ap-

proach for determining the analysis categories. The

categories itself are also presented shortly with their

main characteristics. The DSL to describe the anal-

yses is introduced in section 4.1. Its application is

shown exemplary for one category. Finally we dis-

cuss the categorization and the DSL (section 4.2).

2 ENTERPRISE ARCHITECTURE

ANALYSIS

Architectures are used to describe the elements of a

system and the relationships between them. The term

also comprises the process of creation and mainte-

nance, the architecture work (Lankhorst, 2013). Of-

ten used layers are the strategic layer to represent

the organization’s strategy with its goals, the business

layer describing the business processes and products,

the information layer with the information objects,

and the application layer as well as the infrastructure

layer describing the Soft- and Hardware components

(Lankhorst, 2013; Winter and Fischer, 2006). Despite

the examination of different layers the focus of an EA

are the dependencies between layers, i.e. how busi-

ness and IT relate to each other. Layers are dependent

according to the Align-Enable-Principle. The lower

layers are the foundation for the upper ones, and the

upper ones adjust the lower ones (Winter and Fischer,

2006; Krcmar, 2015).

The main reasons of analyzing EA is to receive

an overview of the whole architecture, its compo-

nents and connections, and to analyze the as-is state

(Langermeier et al., 2014). Furthermore weak points

can be revealed, new advantages be discovered and

various design alternatives be evaluated (Zia et al.,

2011). The result of analysis activities is the devel-

opment of a to-be architecture as well as improved

decision making. The focus of every analysis de-

pends on the analysis type. Additional the questions

of what is feasible and what is desirable are crucial

(Johnson et al., 2007). The process of analysis can be

segmented in different phases and activities (Wan and

Carlsson, 2012). We used the parts “system thinking”,

“modeling”, ”measuring”, “satisfying”, “comparing

with requirements” and “comparing alternatives” in

this work to identify characteristics of analysis cate-

gories.

To receive a basis for our work we conducted a de-

tailed literature research (Rauscher, 2013; Rauscher,

2015). We exclusively chose analyses, which purely

analyze EA and are not transferred from other topics.

Hereof a pure EA analysis has the focus on collect-

ing data and discovering the current state of an enter-

prise architecture in a quantitative or functional way

to create a summary, alter the state or control differ-

ent aspects. The goal of this selection was to create

an overview of current EAM analyses and to receive

approaches utilizable for a categorization (e.g. Della

Bordella et al., 2011; Johnson et al., 2007; Razavi et

al., 2011). We identiﬁed 105 EAM analyses which

are roughly grouped into 40 EA analysis types in pre-

vious work (Rauscher, 2013). An analysis type de-

scribes analyses which have the same rough scope

and are built independent on the realization method.

The goals of contained analyses can differ signiﬁ-

cant. Examples of these types are ‘Quality Analysis’

arman et al., 2008), Requirements Analysis’ (Aier

et al., 2009) and ‘Analysis of Costs’ (Niemann, 2006).

The different types of analyses which have been dis-

covered in the literature research can be treated as a

ﬁrst categorization. However this categorization only

makes raw statements about the rough purpose of the

contained analyses. Although analysis of the same

analysis type have the same ﬁeld of interest their indi-

vidual goals and implementations can differ. It’s not

detailed enough to derive characteristics and the cov-

ered analyses don’t have to share them. Quality anal-

yses, for example, can be conducted in various ways

and can target different goals from quality of a whole

system to maturity quality of a single artifact.

3 CATEGORIZATION

The huge amount of different approaches clariﬁes im-

portance of EA analyses and coherence of a success-

ful architecture. To ease the usage of analysis and

get an understanding about current work we catego-

rized them according their characteristics. We deﬁne

characteristics of an EA analysis as all necessary steps

and components of an analysis to accomplish its goal.

The characteristics are a main part of the categoriza-

tion because they are guaranteeing the accuracy of the

conducted analysis and the achievement of the target.

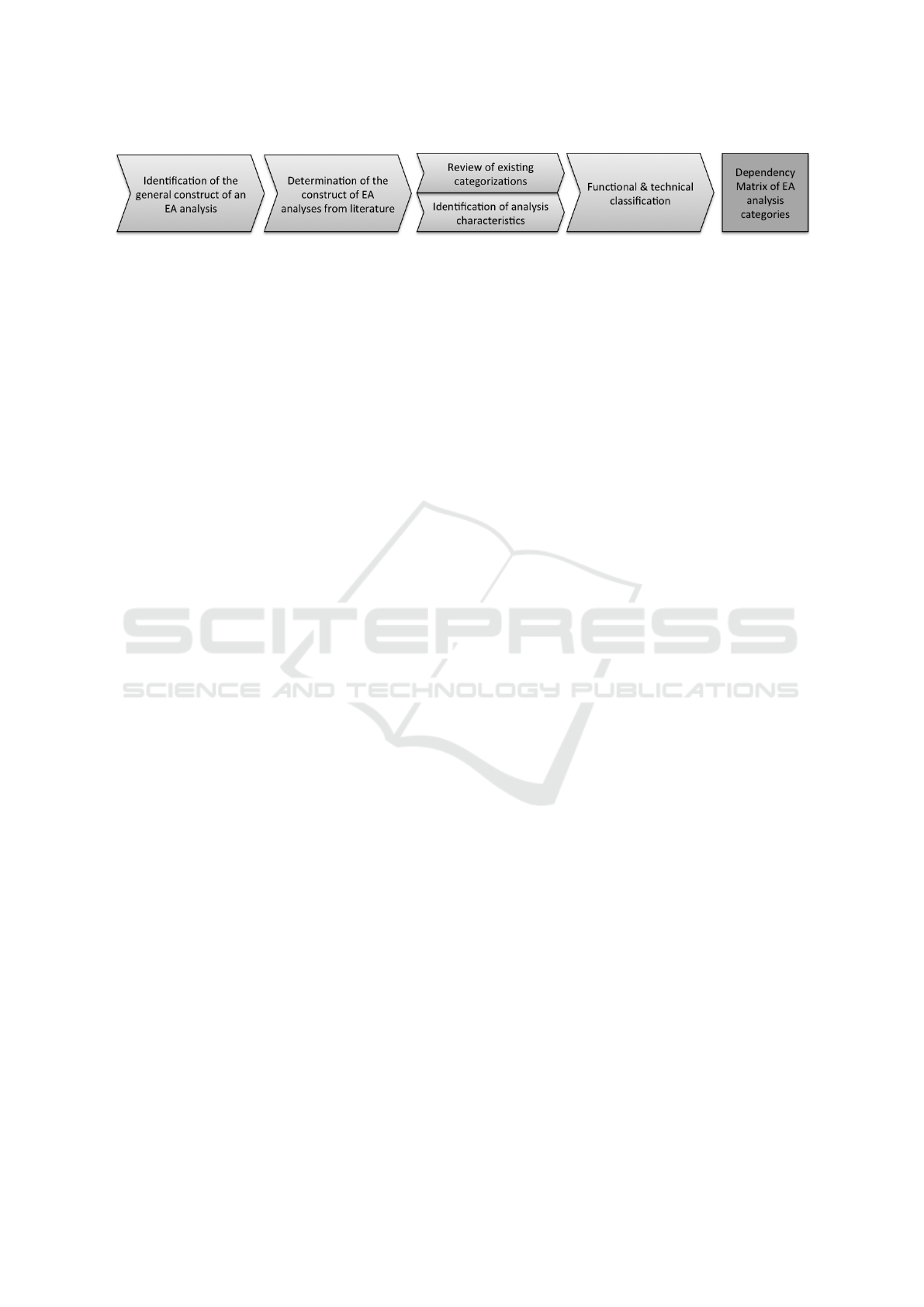

Figure 1 gives an overview over the categorization ap-

proach, which is described in detail in sub-section 3.1.

The resulting categories are presented in sub-sections

3.3 and 3.4.

Characteristics of Enterprise Architecture Analyses

105

Figure 1: Categorization approach

3.1 Categorization Approach

Preliminary work for the categorization includes the

deﬁnition of a general understanding of an analy-

sis to determine a general purpose construct. We

could identify three main constructs of an EA anal-

ysis, which are used as foundation for the categoriza-

tion and determination of characteristics. These are

data intake, processing and outcome. Other parts vary

per analysis. Based on these parts we determine the

meaning and boundaries of a category: Analyses can

be merged to a category if at least one of the three

parts given above is similar. In an optimal condition

all parts are equal, but this condition is usually not

given. Therefore we classify different analyses to the

same category if they have at least the same target or

same processing technique.

After deﬁning our basis we conduct literature re-

search of current EA analysis (procedure see section

2). We determined the construct for each of the iden-

tiﬁed EA analysis approaches. Thereby we ensured

that only paper with a high elaboration level are used.

Because of missing details it’s not possible to analyze

rough approaches and to identify their construct and

characteristics. For elaborated analyses with less de-

tailed parts, we made necessary assumptions. In the

case that an EA analysis approach is realized using

another non-EA related analysis approach, this non-

EA analysis is included too. This proceeding ensures

the construction of a data basis with categorize-able

analyses according to the general construct of intake,

processing and outcome.

Based on the experiences made while identifying

the construct of the EA analysis we can reﬁne our

categorization approach. Considering different exist-

ing kinds of categorization (Lankhorst, 2013; Buckl

et al., 2009b) we conducted our approach with two

main ﬁelds of categories: functional and technical.

This decision brought the most advantages in com-

parison with other approaches because of the division

in “How” (technical aspects) and “Why” (functional

purpose). The additional distinction in architecture

levels is not included in our approach because a plain

allocation wouldn’t be possible. Most analyses can be

conducted in many levels or can only be performed by

involving other levels. Through the new and detailed

knowledge from the ﬁrst evaluation of EA analysis

constructs we introduce characteristics to ensure ac-

curacy. As only properties and steps can show the

components responsible for classiﬁcation, we used

these characteristic kinds to analyze the approaches

again to receive detailed information of their single

categories.

After this step the ﬁnal categorization of the anal-

yses was received based on our main idea of dis-

tinction between functional and technical. The busi-

ness functions of every analysis are determined based

on the concepts purpose dependent division (‘Fun-

damental”, “Main” and “Decision-oriented”) and ac-

tivity dependent division (“System thinking”, “Mod-

eling”, “Measuring”, “Satisfying”, “Comparing with

requirements” and “Comparing alternatives”) (Wan

and Carlsson, 2012). We used these concepts to an-

alyze the identiﬁed analysis approaches according to

their goals and activities. Thereby the functional cate-

gories have been determined by using a prepared tem-

plate of aspects. This template consists of the analy-

sis activities, the intermediate objectives and the main

goal. After analyzing all approaches we identiﬁed

10 categories from classifying the various analyses

goals. Attention should be paid to the fact of multiple

classiﬁcation. For example, a security analysis is able

to analyze dependencies and requirements and there-

fore can be assigned to both functional categories.

After we completed the functional classiﬁcation,

we conducted the technical categories. This proce-

dure was more detailed and complex because of the

large variety of existing methods in EA analysis. Only

analyses with the same method and same steps of

goal attainment can form a technical category. This

constraint is necessary to enable discovery of shared

characteristics. The already mentioned template was

altered for creating technical categories. The new fo-

cus lies on the constructs, methods, techniques (in-

cluding single steps) and artifacts. First, rough techni-

cal categories have been determined based on the di-

mensions ”quantitative”, ”analytic”, ”simulation” and

”functional” (Lankhorst, 2013). After this prestage

detailed categories were created. Each identiﬁed anal-

ysis approach passed through this procedure. In con-

trast to functional categories every analysis was as-

signed to one speciﬁc technical category. As ﬁnal re-

sult we concluded with 17 technical categories.

Altogether 105 analysis approaches fulﬁlled our

Sixth International Symposium on Business Modeling and Software Design

106

criteria and have been incorporated. Only 9 of them

couldn’t be classiﬁed. These ones were to speciﬁc and

individual to create a category. For each analysis we

identiﬁed exactly one technical category and at least

one functional category. To create an overview of

all possible combinations of categories three matrices

were created. Two matrices represent the combination

of the analysis approaches and the categories. Here

we have to mention the features of both tables. The

functional matrix has more possible combinations be-

cause analyses can achieve more targets simultane-

ously. However the technical matrix has only one

combination per analysis. For example, N

arman et al.

(2008) is assigned to the functional categories System

Analyses, Attribute Analyses and Quality Analy-

ses and to the technical one Bayesian Networks. To

provide an overview of the functional and technical

combinations both matrices have been joint which re-

sulted in a shared matrix (see ﬁgure 2). Thus, we get

an overview of the realization techniques of a func-

tional category and also the other way round for anal-

yses and their used techniques. In the table an “x”

represents that there is at least one analysis in cur-

rent literature that was matched to both categories, the

functional and the technical one.

3.2 Identiﬁcation of Characteristics

As only properties and steps can show the com-

ponents responsible for classiﬁcation, we introduce

characteristics to ensure accuracy. We deﬁne a char-

acteristic as requirement, since an analysis can only

be conducted target-aimed with all indispensable ar-

tifacts. Requirements support the achievement of

goals and are used to identify hidden characteristics

(Van Lamsweerde, 2001). Whereas properties can

differ signiﬁcantly, on some spots we had to choose

the most elaborated one or to create a higher abstrac-

tion level. There are two types of characteristics: cat-

egory speciﬁc ones and general characteristics. The

second type includes a meta model and scenarios, de-

termined at the beginning of an analysis. Another uni-

versal characteristic is the main goal. These charac-

teristics have to be conducted for all analyses. To-

gether they provide a high level of abstraction.

For the speciﬁc characteristics we distinguished

ﬁve different kinds. The conducted kinds of charac-

teristics are important for the identiﬁcation of prop-

erties from technical analyses. Whereas functional

categories have rough properties, technical categories

have similar structure. We identiﬁed the following

kind of characteristics: Input, Conditions, Construct,

Measurement, and Output. The basis of an analysis

is always represented in terms of Input data. In every

case an architecture or scenarios, in form of an model,

are needed to conduct the following steps and ﬁnal

measurements. Before the main part of an analysis

can be performed, sometimes Conditions are needed.

For example the possibility of succeeding must be

given. Most of the Conditions are analysis indepen-

dent and therefore can be seen as generally valid. The

main part and procedure of an analysis is the Con-

struct, containing all details of the procedure. It’s re-

quired to conduct all details successfully to be able to

ﬁnish the analysis. Examples are detailed steps, math-

ematical algorithms, relationship types and weighting

of artifacts. To prove and measure the results and de-

velopment, every analysis needs some kind of Mea-

surement. This characteristic is responsible to wit-

ness the achievement of goals. Most of time a Mea-

surement is proceed with scales, KPIs and metrics to

control functional and non-functional goals (Davis,

1989). This characteristic can vary dependent on the

analysis and its goals. As last characteristic kind the

Output was identiﬁed. It includes the way of presen-

tation and type of outcome such as percentage, graph-

ics or matrices. This category is crucial because anal-

yses within the same category should have the same

Output. We used these characteristic kinds to analyze

the approaches again to receive detailed information.

Through the new and detailed knowledge we had to

rearrange the analysis categories on necessary points.

New identiﬁed characteristics have been veriﬁed on

correctness and necessity. After this step the ﬁnal cat-

egorization of the analyses was received.

3.3 Functional Categorization

In the following we present the categories of the func-

tional classiﬁcation. Therefore we will list them com-

bined with an example of a contained analysis ap-

proach. The assignment of all identiﬁed analyses to

the categories can be found in (Rauscher, 2015). Sys-

tem Analyses (e.g. (N

arman et al., 2008)) check par-

tial or holistic systems. Mostly time quality aspects

and their optimizations are in the main focus. Analy-

ses which are contained in this category are often also

part of other functional categories because of pos-

sible sub-goals. Speciﬁc attributes and their values

are analyzed by Attribute Analyses (e.g. (Razavi

et al., 2011)). The observation and management of

attributes is the focus such approaches. For instance

the different states of attributes with changing input

can be analyzed. Analyses which prove dependent

connections are classiﬁed as Dependencies Analy-

ses (e.g. (Saat, 2010)). The main goal of these

approaches is the identiﬁcation of dependencies in

EAs and connections of single components to receive

Characteristics of Enterprise Architecture Analyses

107

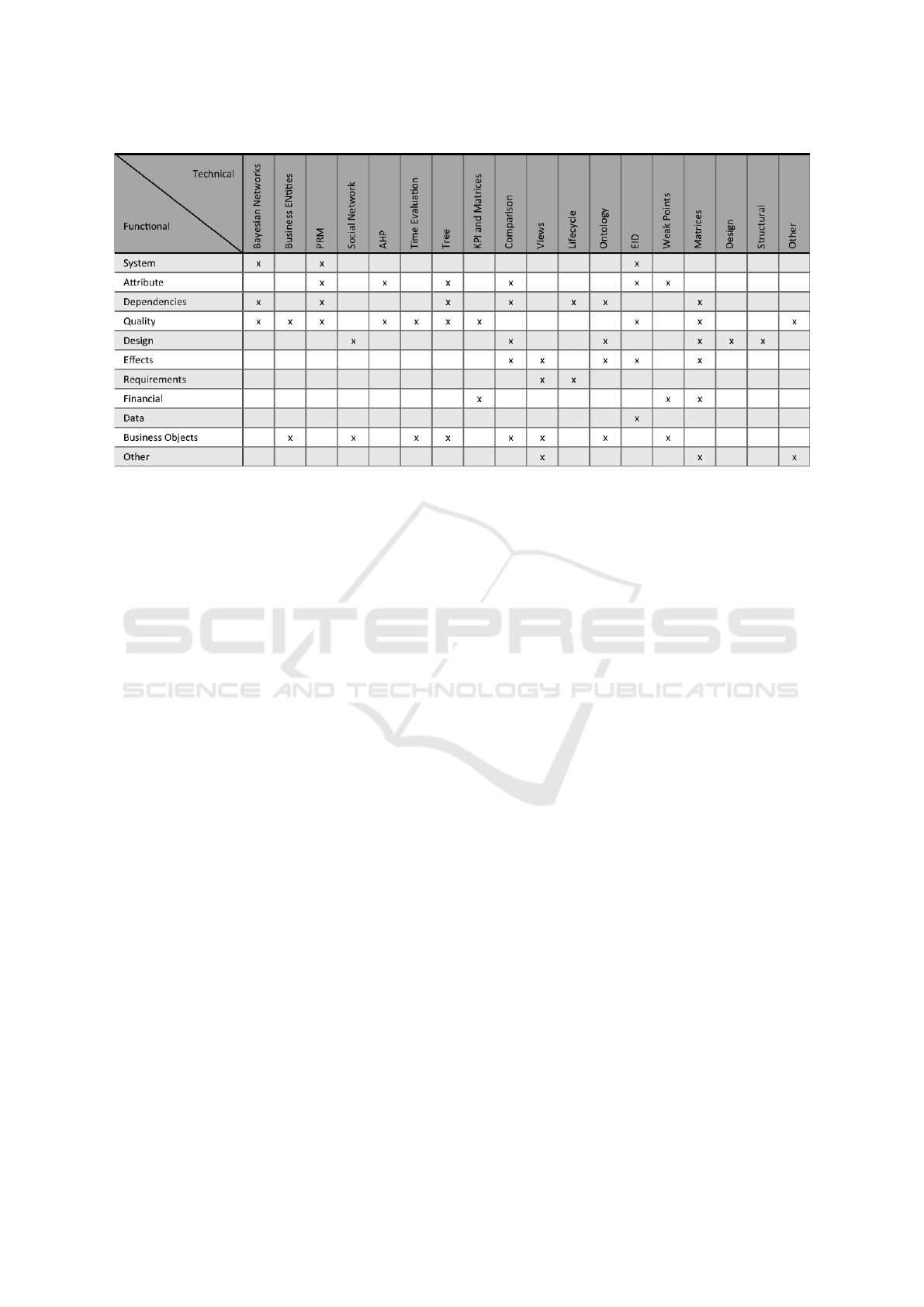

Figure 2: Dependency matrix of the functional and technical categories.

an understanding of the whole architecture. Qual-

ity Analyses have the main focus on various qual-

ity questions regarding attributes, systems, architec-

tures and other components and target subjective and

measurable goals (e.g. (N

arman et al., 2008)). This

category is based on ISO 9126 and analyzes, for in-

stance, maintainability, maturity and interoperability.

Another category represents the analysis of architec-

ture design (Design Analyses), examples are (Aier

et al., 2011; Kazienko et al., 2011). Through re-

ceiving an overview on the architecture construct all

possibilities of designs can be identiﬁed. Beside the

analysis of holistic or partial design, business entities,

procedures and components can be analyzed and used

to optimize the architecture. All approaches which

control impacts in architectures and actions are joint

in Effect Analyses (e.g. (de Boer et al., 2005)). In

contrast to Dependencies Analyses these approaches

observe the direct impact and effects of changes in

architecture elements. Requirements Analyses tar-

get all possible requirements to achieve states or goals

(e.g. (Aier et al., 2009)). To accomplish special goals,

different requirements are needed. Results are either

speciﬁed values or features and entities. To iden-

tify costs and beneﬁts Financial Analyses are used

(e.g. (Niemann, 2006)). On top ﬁnancial weak points

and possible impacts can be discovered. These analy-

ses present a measurement with mathematical calcu-

lations. Therefore key ﬁgures and metrics are able to

evaluate outcomes. However receiving affected enti-

ties is a side effect of the results. Consequently Fi-

nancial Analyses observe too high costs or uncer-

tainty and hence are an indicator of necessary archi-

tecture and procedure changes. However Data Anal-

yses cover all kinds of data (e.g. (N

arman et al.,

2009)). The focus lies on quality and accuracy, be-

cause data are crucial for successful EA operations.

Finally the category Business Object Analyses was

identiﬁed (e.g. (Della Bordella et al., 2011)). Busi-

ness objects of every kind, e.g. operations, artifacts

and entities, which are part of architecture procedures

and construct are addressed here.

3.4 Technical Categories

In the following we describe the 17 technical cate-

gories. For the description we chose the most impor-

tant and marked characteristic kinds (see section 3.2).

Since nearly all technical categories require an archi-

tecture model, scenarios and goals as Input we won’t

mention it below. The ﬁrst technical category rep-

resent analyses conducted with Bayesian Networks

(e.g. (N

arman et al., 2008)). Analyses of this cate-

gory use this technique to analyze the quality. It is

reused in other analyses as part of their procedures,

e.g. PRM analyses. Firstly a model with Bayesian

Networks is built in the main Construct, including all

nodes and connections of the architecture. A node

represents a variable with a conditional probability

distribution. Therefore in the next step probabili-

ties of attributes and the whole model can be cal-

culated while creating matrices with discrete ranges.

In conclusion this category has probability values as

Output and can answer questions about the probabil-

ity of an attribute’s status. Business Entities are a

method to receive artifacts and analyze quality (e.g.

(Della Bordella et al., 2011)). As Input and Con-

ditions the goal type, strategies and quality features

Sixth International Symposium on Business Modeling and Software Design

108

must be determined. First step of the Construct de-

tects advantages, operations and elements of strate-

gies. As a second step, inﬂuencer and strategies are

combined to observe the goals. For measurement the

goal is quantiﬁed and evaluated. The Output contains

valued strategies, quality values and identiﬁed oper-

ations and entities. Probabilistic Relational Models

(PRM) contains 14 analyses and is therewith the most

used technique (e.g. (Buschle et al., 2011)). For in-

stance dependency and quality analyses can be con-

ducted with PRM. Conditions require determinable

goals and controllable attributes. As a prestep of the

Construct connections are deﬁned and uncertainties

are formalized. Hereafter the PRM is used to calcu-

late the conditional probability of all scenarios and of

the dependencies and attributes. Therefore percent-

age of attributes, scenarios and uncertainty are in the

Output. Social Network analyses differ deeply from

the other categories (e.g. (Kazienko et al., 2011)). To

conduct the analysis questionnaires and all available

documents, like bills and connections are used. For

the Input all available nodes (= entities) and connec-

tions are required. As Construct clusters are built and

properties can be checked. Additional new entities

and connections are found. For the Measurement a

matrix with entities and factors is created for quanti-

tative evaluation with factors or for identiﬁcation of

weak points. An overview of the whole architecture

construct and its entities and connections on a social

basis is found in the Output. Analytic Hierarchy

Process (AHP) can be used for analyzing attributes

and quality aspects and is one of the most elaborated

EA analysis techniques (e.g. (Razavi et al., 2011)).

Conditions are experts knowledge used for weigh-

ing as well as deﬁnable quality attributes and level of

success. The Construct determines quality attributes,

their criteria, subcriteria, layers and level of impor-

tance. To evaluate the attributes, criteria and layers

pairwise comparisons are conducted by experts. For

every part which passes the comparison process a pri-

oritized vector is created. Afterwards the same pro-

ceeding is conducted for all scenarios. This results

in an Output with prioritized lists of quality attributes

and scenarios to determine the best scenario depen-

dent on the attribute. The method of Time Evalu-

ation (e.g. (Lankhorst, 2013)) calculates times and

observes the quality of business entities and opera-

tions. As additional information the trigger and ar-

rival times are required for the Input. Rules (Con-

dition) are necessary to cut the architecture in views

and receive ﬁve perspectives with single time mea-

surements. In this category Construct and Measure-

ment are combined. Within the views the speciﬁc

times are calculated. Examples are ‘Costumer View’

and ‘Process View’ with ‘Processing Time’ and ‘Re-

sponse Time’. In a last step, all calculated times are

summed up to a total time. Trees are used to ana-

lyze and identify dependencies, coherences and qual-

ity features. The Output of those analyses delivers the

probability of an occurring failure or speciﬁc qual-

ity, depending on the purpose. In the beginning of

the Construct the goals, entities and relations are de-

ﬁned. Afterwards a fault tree is built using Bayesian

Networks, containing all steps or events required for

the procedure of operation. For every component of

this tree a conditional probability matrix is created to

receive the probability of failures or quality property

arman et al., 2011). The usage of KPI (Key Perfor-

mance Indicator) is used in most analyses with quan-

titative measurement. Because of the high variety of

contained analyses, a high level of abstraction was

used. The goal has to be deﬁnable deﬁnite, measur-

able, agreed, realistic and time-bound. The Construct

starts with identifying all artifacts which should be an-

alyzed and determining the matching KPIs. The anal-

ysis evaluates the artifacts and compares the values

with metrics for Measurement. The result can present

achieved goals, unsatisﬁed quality issues and the ﬁ-

nancial situation (Niemann, 2006). Comparison is

a simple but powerful method (e.g. (de Boer et al.,

2005)). Next to whole alternatives, also single sce-

narios, processes, attributes and dependencies can be

compared to against each other. To choose the best

option, the as-is and to-be state should exist. As ﬁrst

step of the Construct a model is created containing all

components which should be analyzed. Afterwards

the models are compared with a previous state or with

another alternative. On this way all possible states

can be observed and the best alternative to achieve

the goals is identiﬁed. The technique Views is often

only a part of another analysis. However we iden-

tiﬁed analyses having highly elaborated approaches

with the main focus on views (e.g. (Sasa and Krisper,

2011)). For instance views analyze effects and re-

quirements. Therefore criteria and their desirable per-

spective have to be speciﬁed. After this the views

can be built with all required components. A deﬁnite

Measurement is not contained in this category. How-

ever, views can be evaluated with criteria to observe

whether the view can achieve its goals, for example

the processing time. A less popular methodology is

the observation of Lifecycle (e.g. (Saat, 2010; Aier

et al., 2009)). These analyses ascertain requirements

and dependencies through consideration of architec-

ture phases. In this way changes are identiﬁed and

it’s possible to determine whether an artifact presents

a speciﬁc state at an speciﬁc time. To conduct this,

lifecycle phases, attributes, times and states are nec-

Characteristics of Enterprise Architecture Analyses

109

essary as Input. The analysis Construct displays the

cycle on analyzed areas. Afterwards for every product

the state is checked at a special point. For Measure-

ment probabilities are calculated. These results, with

the changed cycle are displayed in the Output. On-

tology is a typical technique of EAM, however un-

common in analysis (e.g. (Sunkle et al., 2013)). A

special meta model created with ontologies and on-

tology rules is required for the Input and Conditions.

The Construct analyzes entities, resources, persons

and products, determines the ontology of entities and

deﬁnes connection types. Afterwards dependencies,

viewpoints and special factors can be evaluated for the

outcome. EID (Extended Inﬂuence Diagrams) are the

third most used technique to conduct analysis in EA

(e.g. (Johnson et al., 2007)). Possible results can be

statements about maintainability, security and avail-

ability. Therefore systems, attributes, quality, impacts

and data are analyzed. As Condition it has to be en-

sured that all contained components are able to be

built with EID. Afterwards all scenarios, goals and en-

tities are represented as EID nodes and connections.

For Measurement Bayesian Networks are used to cal-

culate the probabilities of attributes. Thus it’s possi-

ble to analyze dependencies by inferring changes and

altered values. Another identiﬁed technique is the us-

age of a Matrices (e.g. (Szyszka, 2009)). Matrices

can be used in various ways, mostly they are utilized

to present results. Therefore dimensions and the kind

of measurement are determined in order to built and

evaluate the matrix. The results can vary from quan-

titative outcomes to weak points, redundant artifacts

and functional dependencies. Analyses joint in the

category Design are only able to observe architecture

design in a speciﬁc way (e.g. (Aier et al., 2011)).

As Condition factors and expert knowledge is needed.

In the main Construct items and data are determined,

factors are checked with questionnaires and a cluster

analysis is conducted. As Measurement a matrix of

items and factors is built and evaluated. The results of

the evaluation represent the Output. For the identiﬁca-

tion of Weak Points (e.g. (Xie et al., 2008)) and their

costs the following procedure can be used. Resources

are needed to create a matrix of workﬂows, resources

and their availabilities. This matrix is ﬁlled with con-

nections and their values and is the basis for availabil-

ity calculations. Whenever the availability is higher as

the respective requirement, the condition is fulﬁlled.

In addition it’s possible to weight resources and re-

ceive alternatives with higher availability. The last

technical category contains analyses with Structural

procedure (e.g. (Buckl et al., 2009a)). This analysis

tries to observe design through displaying obstacles

of different architecture versions. Therefore a docu-

mentation is needed as Condition and the main part

of analysis consist of an observation of changes. The

Output type is unique and represents potential obsta-

cles caused by different versions.

4 EVALUATION

The identiﬁed requirements for the 10 functional cat-

egories and the 17 technical categories are formalized

using a domain speciﬁc language in order to validate

the categorization. Therewith we can elaborate the

integrity and correctness of the requirements, i.e. if

they are sufﬁcient to describe the analyses in an ad-

equate way. For each category we chose an analysis

approach from literature and formalized it using the

developed language. In the following we present the

DSL and illustrate its usage. Finally we provide a

short discussion about our results.

4.1 DSL for Analysis Description

For the language development we used Xtext

, a

framework that comprises a powerful language for

the description of textual languages. The model is

generated by the framework as well as an parser,

linker, type checker and compiler. The DSL was de-

veloped according to the meta model development

process for abstract syntax development in (Bram-

billa et al., 2012). This incremental and iterative pro-

cess consists of three phases: The ‘Modeling Domain

Analysis’ phase, elaborating the purpose and content,

the ‘Modeling Language Design’ phase, deﬁning the

meta model, and the ‘Modeling Language Validation’

phase, verifying the correctness and integrity. For

the last step we select representative EA analyses for

each category and formalize them using our modeling

language. Difﬁculties and mistakes during modeling

triggers a new iteration of the development process.

The concrete syntax is developed simultaneously with

the abstract syntax due to the nature of Xtext.

The developed DSL is structured in a general and

in a categorization speciﬁc part. Figure 3 shows the

main rule for the analysis language and the realiza-

tion of the dimensions. General requirements that oc-

cur in all categories are summarized at beginning in

the main rule. This is the name of the analysis, the

required meta model and possible scenarios to evalu-

ate. For description of the meta model and the scenar-

ios we developed a language construct that allows to

specify them similar to UML. The goal of an anal-

ysis can be modeled using a string and its type is

Xtext https://eclipse.org/Xtext/index.html

Sixth International Symposium on Business Modeling and Software Design

110

EAL.xtext

1 grammar una.smds.EAL with org.eclipse.xtext.common.Terminals

3 generate eAL "http://www.smds.una/EAL"

5 MetaLanguage:

6 'EAM Analysis Language' '{'

7 //Domain Definition: General Requirements

8 'Performing Analysis' analysis=STRING

9 'Metamodel' model+=UMLModel ('{'

10 'Scenarios:' scenarioName+=NameIdentifier (scenarioModel+=UMLModel)*

11 (";" scenarioName+=NameIdentifier (scenarioModel+=UMLModel)*)*

12 '}')?

13 'Goal' goal=STRING

14 'Goal Type'':' goalType+=GoalType ('&' goalType+=GoalType )*

15 '}'

16 //Choice of Dimensions

17 ('Category functional Dimension' ':' functional+=Functional)?

18 ('Category technical Dimension' ':' technical+=Technical)? ;

20 //----------Functional Categories---------------------------------------//

21 Functional:

22 SystemAnalysis | AttributeAnalysis |DataAnalysis| BusinessObjectAnalysis;

24 //----------Technical Categories---------------------------------------//

25 Technical:

26 BayesianNetworks | BusinessEntities | PRM | Structural ;

28 //Choice of a possible technique matching to the chosen functional Category

29 SystemAnalysis:

30 'System Analysis' (':')?

31 ('Technique' analysisTechnique+=SystemAnalysisTechnique)? ;

33 SystemAnalysisTechnique:

34 EID | PRM | BayesianNetworks ;

37 AttributeAnalysis:

38 'Attribute Analysis' (':')?

39 ('Technique' analysisTechnique+=AttributeAnalysisTechnique)?

40 ;

41 AttributeAnalysisTechnique:

42 PRM | AHP | Trees | Comparison | EID | WeakPoints

43 ;

45 DependenciesAnalysis:

46 'Dependencies Analysis' (':')?

47 ('Technique' analysisTechnique+=DependenciesAnalysisTechnique)?

48 ;

49 DependenciesAnalysisTechnique:

51 ;

53 QualityAnalysis:

54 'Quality Analysis' (':')?

55 ('Technique' analysisTechnique+=QualityAnalysisTechnique)?

56 ;

57 QualityAnalysisTechnique:

58 BayesianNetworks | BusinessEntities | PRM | AHP | TimeEvaluation | Trees | KPI |

59 EID | Matrix

60 ;

62 DesignAnalysis:

63 'Design Analysis' (':')?

64 ('Technique' analysisTechnique+=DesignAnalysisTechnique)?

65 ;

66 DesignAnalysisTechnique:

68 ;

Page 1

…

Figure 3: DSL for EA analyses - main rule.

deﬁned using an enumeration. Possible goal types

are: percentage, matrix, probability, dependency, ob-

ject, effect, scenario, number or boolean. The two-

dimensional categorization is realized as followed:

The user can either ﬁrst choose the functional dimen-

sion and then the technical, but also the other way

round. The rule system of the DSL restricts the sec-

ond dimension to those that are available. For exam-

ple the functional dimension System Analysis has re-

alizations with the technical dimensions EID, PRM

and Bayesian Networks. The rule SystemAnalysis-

Technique ensures the integrity of the selection ac-

cording to the matrix (ﬁgure 2).

EID_Evaluation.eal

/*Referring to: JOHNSON, Pontus ; L AGERSTR�M, Robert R.m ; N �RMAN, Per ; S I MONSSON,

Maarten: Enterprise architecture analysis with extended influence diagrams.

In: Information Systems Frontiers 9 (2007), Nr. 2-3, S. 163�180*/

EAM Analysis Language{

Performing Analysis "Information Security Analysis"

Metamodel Model"Architecture of Information Security"{

Class "Application"{ }

}

{Scenarios:

"Scenario 1" Model"UML Model Scenario 1"{Class "A"{}};

"Scenario 2" Model"UML Model Scenario 2"{Class "A"{}}

}

Goal"Probability of quality attributes for security"

Goal Type :Percentage

}

Category functional Dimension:Attribute Analysis:

Technique Extended Influence Diagram

INPUT{

Metamodel "Architecture of Information Security"{

Scenario"Scenario 1",

Scenario"Scenario 2"

}

}CONSTRUCT{

EID MODEL ELEMENTS{

Chosen Scenario "Scenario 1"

//Value assumptions

Scenario Node:

type: Decision Node "Scenario Selection" Value: 0."90"

Goal: type: Utility Node "Profit" Value: 0."0"

Attributes:

type: Chance Node"User Training Process" Value: 0."75"

Relations:

"Scenario Selection" as Causal Relation to "User Training Process"

}}

MEASUREMENT{

//Example calculation for one node for one scenario

Chance Node Selection:"Incident Management Process"

Scenario Name "Scenario 1"->"Present":Calculation of Section:

P("Incident Management Process")=P("Anti Virus Application")*

P("Incident Management Process"|"Anti Virus Application")+

P("Intrusion Detection App")*P("Incident Management Process"|"Intrusion Detection

App")

Result="0.95"

Goal Calculation: P(A|B)=P(B|A)P(A)/P(B)

Result: "Usage of Bayesian network analysis tool GeNIe"

}

OUTPUT{

Results:

Best Scenario "Scenario 1"

}

Page 1

…

Figure 4: Excerpt of the description of EID analysis using

the DSL.

For each technical category a rule is implemented

that satisﬁes the requirements speciﬁed in chapter 3.

The rules comprise statements for deﬁning the input,

the conditions and construct, the measurement and the

output. To illustrate the structure of a category deﬁ-

nition ﬁgure 4 shows an example description of the

Information Security Analysis from (Johnson et al.,

2007). This analysis evaluates the architecture by cal-

culating the probability of quality attributes for secu-

rity. Corresponding to the main rule the description

starts with the analysis name followed by a speci-

ﬁcation of the meta model and two scenarios. The

meta model describes the classes, relationships and

attributes that are necessary for the analysis. The two

scenarios represent different alternatives that should

be evaluated. The scenario description is followed by

the goal statement and the goal type, in this case per-

centage. Then the functional and technical dimension

are deﬁned. The functional dimension is Attribute

Analysis and the technical one is Extended Inﬂu-

ence Diagram. Following the remaining structure of

the analysis speciﬁcation is speciﬁc for analyses of

the category EID. The input of the analysis is here

straightforward the deﬁned meta model and both sce-

narios. The construct part deﬁnes the requirements

in order to create extended inﬂuence diagrams. First

the chosen scenario is set, then the nodes, goals and

attributes with their types and values are deﬁned. Fi-

nally the EID speciﬁc relations are speciﬁed.

4.2 Discussion

We were able to deﬁne and apply a domain speciﬁc

language for the description of EA analyses. The

identiﬁed categories, functional as well as technical,

are integrated. It was also possible to describe the

analysis approaches from literature using the DSL.

Additionally the language is easy extendable and

without special knowledge understand- and usable.

The language can be reused for the development of

new analyses, since it provides a sound foundation of

requirements that have to be extended. After further

development the language can also be used as an entry

point for the speciﬁcation and execution of analysis.

Most of the requirements for the technical categories

are realized. A few requirements are determined as

given and not further mentioned in the language, since

these requirements are obviously. Examples are the

possibility to raise data or whether data can be used

and be accessible. In addition requirements which are

not veriﬁable couldn’t be included. For instance, it

is not veriﬁable whether the meta model is usable to

achieve goals, whether artifacts are able to image with

EID components or used nodes are controllable. Ad-

ditionally the acceptance of an used technique or the

availability of experts knowledge is not veriﬁable and

Characteristics of Enterprise Architecture Analyses

111

thus not integrated in the language. Requirements that

are deﬁned in a graphical way, for example matrices,

are difﬁcult to realize in a textual language. Also the

deﬁnition of patterns is only speciﬁed with limitations

in the language.

The lower number of functional categories in con-

trast to the technical one can be explained with the fo-

cus on one ﬁeld of interest. Since we concentrate on

pure EA analyses the analysis goals were repetitive. A

problem during categorization was the issue that not

all aspects from the analysis are described in detail

in the available publications. At this point we were

only able to identify limited requirements or we had to

make assumptions to proceed. A interrelated problem

is the fact of the low amount of available descriptions

of conducted analyses to evaluate our language. Ad-

ditional some analyses use very speciﬁc techniques

or modeling approaches. Here, it was not possible to

consider all details in order to create a sound catego-

rization. We abstracted from some speciﬁcs in order

to deﬁne the general requirements for a category. We

received generally valid requirements by orienting on

the approach which is most elaborated and create a

higher level of abstraction. An example is the tech-

nical category KPI with a high abstraction level. The

contained analyses differ deeply in measuring values

with different formulas.

Encountered categorization approaches in related

work tried to work on a meta level after studying the

analyses. However, in contrast to our target they de-

signed an analysis framework meta model indepen-

dently (Langermeier et al., 2014), developed a cate-

gory independent meta language (Buckl et al., 2011)

and had the main focus on characteristics (Buckl

et al., 2010). Additional EA analyses can be distin-

guished between the point of execution time. There-

fore the analyses are sorted in ex-ante and ex-post

to determine whether an analysis will be conducted

before or after the adoption of an architecture. It is

also possible to separate the analyses according to

their execution technique: expert-based, rule-based

or indicator-based (Buckl et al., 2009b). However,

both classiﬁcations are not detailed enough to identify

characteristics and most of analyses can’t be strictly

classiﬁed within these divisions. Lankhorst (2013)

conducted an initial categorization with the already

mentioned four dimensions. Quantitative and func-

tional differ at the input and output data, whereas

functional can be distinguished in static or dynamic.

However this division is not detailed enough to iden-

tify the explicit requirements of classiﬁed analyses

and four categories is a rough classiﬁcation.

5 CONCLUSION

In this paper we presented a two-dimensional cate-

gorization of EA analyses, based on the characteris-

tics of the approaches found in literature. The ﬁrst

dimension addresses the functional aspect, the sec-

ond one the technical aspect. Altogether we iden-

tiﬁed 105 analyses, which are classiﬁed in 10 func-

tional categories and 17 technical categories. Using

this categorization we can identify 40 different anal-

ysis types used in EA. The dependencies between

the approaches of the functional and technical dimen-

sions are visualized in a matrix. The dependencies as

well as the characteristics of the analysis categories

are formalized with a domain speciﬁc language. The

language provides a structural way to represent the

preconditions of an analysis, the technical require-

ments for execution and also the outcome of it. Beside

evaluation purposes the language can also be used

by the enterprise architect to decide whether the out-

come of an analysis is from interest for his question,

if the analysis is applicable on his EA model and how

great the effort of adaption are, in order to execute

the analysis. The idea of such an EA analysis cat-

alog is the support of reuse of existing work in the

domain of EA. Therefore future work has to investi-

gate techniques for context independent execution of

those analysis. This could be the development of tool

support for the usage of the categories and the DSL.

Thus computations which need further tools can be

included, new analyses could be created easily and re-

quirements are checked automatically. Additionally a

higher abstraction level of the category characteristics

would be conceivable to make the requirements gen-

eral valid.

REFERENCES

Aier, S., Buckl, S., Franke, U., Gleichauf, B., Johnson, P.,

arman, P., Schweda, C. M., and Ullberg, J. (2009).

A survival analysis of application life spans based on

enterprise architecture models. In 3rd Workshop on

EMISA, pages 141–154.

Aier, S., Gleichauf, B., and Winter, R. (2011). Understand-

ing enterprise architecture management design-an em-

pirical analysis. In Proceedings of 10th Conference on

Wirtschaftsinformatik.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

driven software engineering in practice.

Buckl, S., Buschle, M., Johnson, P., Matthes, F., and

Schweda, C. M. (2011). A meta-language for enter-

prise architecture analysis. In Enterprise, Business-

Process and Information Systems Modeling, pages

511–525. Springer.

Sixth International Symposium on Business Modeling and Software Design

112

Buckl, S., Matthes, F., Neubert, C., and Schweda, C. M.

(2009a). A wiki-based approach to enterprise archi-

tecture documentation and analysis. In ECIS 2009

Proceedings, pages 1476–1487.

Buckl, S., Matthes, F., and Schweda, C. M. (2009b). Clas-

sifying enterprise architecture analysis approaches. In

Enterprise Interoperability, pages 66–79. Springer.

Buckl, S., Matthes, F., and Schweda, C. M. (2010). A Meta-

language for EA Information Modeling State-of-

the-Art and Requirements Elicitation. In Enterprise,

Business-Process and Information Systems Modeling,

pages 169–181. Springer.

Buschle, M., Ullberg, J., Franke, U., Lagerstr

om, R., and

Sommestad, T. (2011). A tool for enterprise architec-

ture analysis using the PRM formalism. In Informa-

tion Systems Evolution, pages 108–121. Springer.

Davis, F. D. (1989). Perceived usefulness, perceived ease of

use, and user acceptance of information technology.

MIS quarterly, 13(3):319–340.

de Boer, F. S., Bonsangue, M. M., Groenewegen, L., Stam,

A., Stevens, S., and Van Der Torre, L. (2005). Change

impact analysis of enterprise architectures. In IEEE

International Conf. on Information Reuse and Integra-

tion, pages 177–181.

Della Bordella, M., Liu, R., Ravarini, A., Wu, F. Y.,

and Nigam, A. (2011). Towards a method for real-

izing sustained competitive advantage through busi-

ness entity analysis. In Enterprise, Business-Process

and Information Systems Modeling, pages 216–230.

Springer.

Johnson, P., Lagerstr

om, R., N

arman, P., and Simonsson,

M. (2007). Enterprise architecture analysis with ex-

tended inﬂuence diagrams. Information Systems Fron-

tiers, 9(2):163–180.

Kazienko, P., Michalski, R., and Palus, S. (2011). Social

network analysis as a tool for improving enterprise ar-

chitecture. In Agent and Multi-Agent Systems: Tech-

nologies and Applications, pages 651–660. Springer.

Krcmar, H. (2015). Informationsmanagement. Gabler.

Langermeier, M., Saad, C., and Bauer, B. (2014). A uni-

ﬁed framework for enterprise architecture analysis.

In 18th IEEE International EDOC Conference Work-

shops, pages 227–236.

Lankhorst, M. (2013). Enterprise Architecture at Work:

Modelling, Communication and Analysis. Springer.

arman, P., Franke, U., K

onig, J., Buschle, M., and Ek-

stedt, M. (2011). Enterprise architecture availability

analysis using fault trees and stakeholder interviews.

Enterprise Information Systems, 8(1):1–25.

arman, P., Johnson, P., Ekstedt, M., Chenine, M., and

onig, J. (2009). Enterprise architecture analysis for

data accuracy assessments. In 13th IEEE Interna-

tional EDOC Conference, pages 24–33.

arman, P., Schonherr, M., Johnson, P., Ekstedt, M., and

Chenine, M. (2008). Using enterprise architecture

models for system quality analysis. In 12th IEEE In-

ternational EDOC Conference, pages 14–23.

Niemann, K. D. (2006). From enterprise architecture to IT

governance. Springer.

Rauscher, J. (2013). Analysen in Unternehmensarchitek-

turen - Ziele, Techniken, Anwendungsbereiche. Bach-

elor Thesis, University Augsburg.

Rauscher, J. (2015). Anforderungen an und Deﬁnition von

einer Analysesprache f

ur das Enterprise Architecture

Management. Bachelor Thesis, University Augsburg.

Razavi, M., Aliee, F. S., and Badie, K. (2011). An AHP-

based approach toward enterprise architecture analy-

sis based on enterprise architecture quality attributes.

Knowledge and information systems, 28(2):449–472.

Saat, J. (2010). Zeitbezogene Abh

angigkeitsanalysen der

Unternehmensarchitektur. In MKWI, pages 119–130.

Sasa, A. and Krisper, M. (2011). Enterprise architecture

patterns for business process support analysis. Journal

of Systems and Software, 84(9):1480–1506.

Sunkle, S., Kulkarni, V., and Roychoudhury, S. (2013). An-

alyzable enterprise models using ontology. In CAiSE

Forum, volume 998, pages 33–40.

Szyszka, B. (2009). Analysis and classiﬁcation of maturity

models in enterprise architecture management. Bach-

elor Thesis, Technical University Munich.

Van Lamsweerde, A. (2001). Goal-oriented requirements

engineering: A guided tour. In 5th IEEE International

Symp. on Requirements Engineering, pages 249–262.

Wan, H. and Carlsson, S. (2012). Towards an understand-

ing of enterprise architecture analysis activities. In

Proceedings of 6th ECIME.

Winter, R. and Fischer, R. (2006). Essential layers, artifacts,

and dependencies of enterprise architecture. In 10th

IEEE International EDOC Conference Workshops.

Xie, L., Luo, J., Qiu, J., Pershing, J., Li, Y., Chen, Y., et al.

(2008). Availability “weak point” analysis over an

SOA deployment framework. In IEEE Network Oper-

ations and Management Symposium, pages 473–480.

Zia, M. J., Azam, F., and Allauddin, M. (2011). A survey of

enterprise architecture analysis using multi criteria de-

cision making models. In Intelligent Computing and

Information Science, pages 631–637. Springer.

Characteristics of Enterprise Architecture Analyses

113
