Towards a Service-Oriented Architecture for eVoting

Boris Shishkov

1,2

and Marijn Janssen

Institute of Mathematics and Informatics, Bulgarian Academy of Sciences, Sofia, Bulgaria

IICREST, 53 Iv. Susanin Str., Sofia, Bulgaria

TBM – TU Delft, Jaffalaan 5, Delft, The Netherlands

b.b.shishkov@iicrest.org, M.F.W.H.A.Janssen@tudelft.nl

Keywords: eVoting, Conceptual Model, Requirements, Architecture.

Abstract: The latest advances in the Information and Communication Technology (ICT) are changing our society, but

have different implications on different domains. Some domains, such as the digital content –based

businesses, are enjoying (almost) full ICT utilization whereas other domains, assuming physical and/or

societal and/or “intuitive” inputs, are much less successful in terms of digitization. Voting using digital

technology (or “eVoting” for short) is in between those domains since: (i) the mere process of voting is a very

good “candidate” for digitization but at the same time (ii) the “surrounding” societal aspects are often difficult

to “frame” as Internet-based services. (i) can be seen from the “voting through computer” observed in several

European countries while (ii) can be seen from the lack (to date) of technology-enabled systems completely

supporting the voting process and its related aspects. Further, the conceptualization and implementation of

any voting system is to originate from legislation – this makes the goal of resolving (i) + (ii) even more

challenging. Hence, to benefit from ICT, the question remains what should be done and how it should be

done. The step from legislation to requirements and implementations taking into account socio-technical

aspects, is crucial for the successful realization of eVoting. Despite its relevance, this has been given hardly

sufficient attention in literature. This void is addressed by the current position paper; the contribution of the

paper is two-fold: we firstly propose a general technology-independent conceptual model on voting and on

this basis, we propose requirements for (partially) digitizing this process. Requirements are dependent on the

societal context and therefore we opted for focusing on one particular EU country where the transition to

eVoting is currently under discussion. We have planned as future research to reflect the identified

requirements into architectures and implementations, and to get experts’ feedback on this.

1 INTRODUCTION

Advances in the Information and Communication

Technology (ICT) are changing our society, and each

domain has its own “way” of utilizing computer /

Internet –based services. Some domains, such as the

digital content –based businesses, are enjoying

(almost) full ICT utilization. Other domains,

assuming physical and / or societal and / or “intuitive”

inputs, are less successful in terms of digitization.

Technology-enabled voting (referred to as “eVoting”

in the current paper) is in between those domains

since: (i) the mere process of voting is a very good

“candidate” for digitization but at the same time (ii)

the “surrounding” societal aspects are often difficult

to “frame” as Internet-based services. (i) can be seen

from the “voting through computer” observed in

several European countries while (ii) can be seen

from the lack (to date) of a technology-enabled

system completely supporting the voting process and

its related aspects (Scammell, 2016). Hence, the

eVoting domain should be conceptualized from a

socio-technical perspective. Further, the

conceptualization and implementation of any voting

system is to originate from legislation – this makes

the goal of resolving (i) + (ii) even more challenging.

Thus, the question remains what should be done and

how it should be done, in order to both benefit from

ICT advances and stay adequate in terms of societal

integrity. Meeting all requirements is crucial for e-

Voting, as failure in voting is not an option in a

democratic society. Still, the step from legislation to

requirements and implementations is essential for the

successful realization of eVoting. Nevertheless,

despite its relevance, this particular step has been

given hardly sufficient attention in literature. This

justifies our work, reported in the current position

paper – to conceptualize the voting process and derive

187

Shishkov B. and Janssen M.

Towards a Service-Oriented Architecture for eVoting.

DOI: 10.5220/0006223601870195

In Proceedings of the Sixth International Symposium on Business Modeling and Software Design (BMSD 2016), pages 187-195

ISBN: 978-989-758-190-8

requirements (and guidelines) for eVoting. Hence, the

contribution of the paper is two-fold: we firstly

propose a general technology-independent

conceptual model on voting (by “voting” we mean the

political voting for parliament, president, mayor, and

so on, taking place in different countries, as opposed

to for example corporate voting for board of directors

or other kinds of voting) and on this basis, we propose

requirements for (partially) digitizing this process.

Still, since those issues are inevitably based on a

particular societal context and because we need to be

“concrete” in our modeling activities, we have

decided to base our work on the situation in one

particular EU country where the transition to eVoting

is currently under discussion. We have planned as

future research to reflect the identified requirements

into architectures and implementations, and to get

experts’ feedback on this.

In the remaining of this paper: In Section 2 we

present theoretical background and in Section 3 we

present our research focus and propose a conceptual

model on voting accordingly. On this basis, we derive

requirements (Section 4). Then, in Section 5, we

discuss the next step, namely reflecting the identified

requirements in architectures and implementations,

and we propose some general guidelines in this

regard. Finally, we present the conclusions in Section

2 THEORETICAL

BACKGROUND

We propose a technology-independent model on

voting, based on the theories of LAP – Enterprise

Ontology (Dietz, 2006), Organizational Semiotics

(Liu, 2000), Workflow Management (Van der Aalst,

2011), Service-Oriented Computing (Papazoglou,

2012), and Conceptual Modeling (Insfran et al.,

2002). Those are briefly outlined in the current

section.

2.1 LAP – Enterprise Ontology

The Language-Action Perspective (“LAP”) theory

(Shishkov et al., 2006) emphasizes the importance of

interaction and communication, recognizing that

language is not only used for exchanging information,

as in reports (for example), but that language is used

also to perform actions, as in promises or orders (for

example). Such actions are claimed to represent the

foundation of communities and organizations /

enterprises. This relates to the white-box model of an

organization that is of key importance for building

valid enterprise ontologies – this model

acknowledges actors (the entities fulfilling

corresponding actor-roles) who may be involved not

only in production acts (for example: deliver a pizza)

but also in coordination acts (for example: promise a

delivery), and those acts may be of relevance to three

perspectives of an organization, namely: documental

(documents being created and used, for example),

informational (customer enters PIN in order to realize

a bank transaction, for example), and essential (the

bank transaction itself, for example). Finally,

Enterprise Ontology considers a generic interaction

atomic pattern, claiming that any complex interaction

can be decomposed in such pattern primitives and

there are always two roles, namely customer (the one

who initiates anything, for example – order

something) and producer. There is a request-promise-

execute-state-accept actions sequence between them

and it can be reflected in a success layer and also a

failure layer, as well as discussion layer, in between.

For more information on Enterprise Ontology,

interested readers are referred to (Dietz, 2006).

2.2 Organizational Semiotics

Organizational Semiotics (OS) addresses a number of

concepts, such as sign and affordance, as essentially

useful in modeling a (real-life) system and adequately

considering relationships and meanings. Often what

we observe goes beyond the primary “appearance” –

for example, one could hold a Rolex pen not only as

a means of writing but also as a way of demonstrating

wealth (this is a sign). As for the affordance concept,

it relates to potential abilities (for example: a book

affords to be borrowed). Those concepts and also

other OS concepts, allow for building complex

models that reflect both semantics and norms (rules),

and that is reflected in the widely popular OS norm

pattern:

whenever <condition>

if <state>

then <agent>

is <deontic operator>

to <action>

The OS norm pattern is considered useful in modeling

relationships among entities, in the context of a

business process (Shishkov et al., 2006). For more

information on OS, interested readers are referred to

(Liu, 2000).

2.3 Workflow Management

It is claimed that any business process can be viewed

Sixth International Symposium on Business Modeling and Software Design

188

as a collection of processes, where a process can be

described as “a set of identifiable, repeatable actions

which are some way ordered and contribute to the

fulfilment of an objective”; typical process patterns

are sequence, parallelism, split, and so on.

Workflows play useful role in modeling business

processes and those models can be enriched in terms

of OS norms and / or entities information. For more

information on Workflow Management, interested

readers are referred to (Van der Aalst, 2011).

2.4 Service-Oriented Computing

Web services appear at high-level to be (dynamically)

composed by users, hiding thus their underlying

technical complexity – this complexity is with the

software components who are implementing the

corresponding service(s). Composability,

traceability, and interoperability are hence of crucial

importance in web service provisioning. More

information on those issues can be found in

(Papazoglou, 2012).

2.5 Conceptual Models

We consider a conceptual model as an abstraction

with regard to the real world. As for information (IT)

systems being developed, they inevitably need to be

based on such abstractions because among other

things, an information system is about the automation

of real life processes. Nevertheless, the value of

conceptual modeling efforts often remains unclear

(Insfran et al., 2002) and often software engineers do

not know whether a conceptual model represents the

user’s requirements. Finally, we argue that in order to

be useful in such a context, a conceptual model is to

adequately capture the real life functionalities that

would be (partially) automated, as part of the

development of information systems. In order to

address this and taking especially an eVoting

perspective, we:

a. would not keep the conceptual model too abstract

(we would have it reflect a particular (voting)

context);

b. would separate the technology-independent

conceptual modeling from the IT-inspired

requirements identification and specification;

c. would make particular assumptions in order to

“take out” of consideration aspects with no

relevance to what could actually depend on the IT

system as such.

We argue that this would lead to establishing a more

explicit role of conceptual modeling with regard to

the development of information systems (particularly

in the eVoting context) and also to guaranteeing that

conceptual modeling is aligned to requirements

engineering.

For this reason, we will firstly outline (in Section

3) the “modeling context”, namely the situation

(regarding eVoting) in one EU country (Sub-Section

3.1), secondly, we make our assumptions – in line

with what was mentioned above (Sub-Section 3.2),

thirdly, we propose a technology-independent model

(Sub-Section 3.3), and we extend this, by identifying

and specifying requirements (Section 4).

3 THE VOTING MODEL

As already mentioned, in this section, we consider the

societal context, we present assumptions, and in the

end – the technology-independent model on voting.

3.1 Societal Context

For the sake of “grounding” our research to a

particular societal context / case, we went for

considering a concrete eVoting context, namely the

situation in Bulgaria (Konstantinov et al., 2009). The

latest developments in Bulgaria with regard to

eVoting are considered “representative” because they

reflect the current EU visions on that issue, trying to

balance between the scepticism (observed in

Germany and other countries) and the “success

stories” (observed in Estonia and other countries).

Moreover, the current legislation changes and

initiatives in Bulgaria reflect the latest ICT

developments which was not the case in the countries

who have introduced eVoting several years ago. For

this reason, it is not surprising that eVoting dominated

an October’15 referendum in Bulgaria (Plevneliev,

2016); then the majority of Bulgarians voted in

support of “IT-enabled voting” and the “pro”

campaign was backed by particular stated eVoting

public demands that may (eventually) be reflected in

corresponding legislation changes; some of those

demands are presented and briefly discussed below:

 secrecy of vote, possibly achieved through

anonymous credentials, such that not even the

system "knows" how a person has voted;

 cost adequacy, possibly achieved through smart

decisions rather than posh hardware that would

generate future “dependencies”;

 guarantee against violations with regard to the

way the system works;

 guarantee against manipulations of the final

Towards a Service-Oriented Architecture for eVoting

189

voting results;

 support of secure communication between the

computers and the servers that is to be possibly

cryptography-enriched.

 controllability - any third parties should be able to

"verify" that the system is working properly;

 guarantee that each vote has been counted and that

the person who had voted would not be allowed to

vote again;

 fault-reaction is to be established as guarantee

that even if the system (partially) crashes, it would

recover and this would not affect its storage and

processing functions;

 ease of use even by persons who are not of high

computer literacy;

 no need for extra qualification of the election

authorities.

Obviously, such a public demands list cannot be

exhaustive and it is also inevitably unstructured.

Moreover, those “demands” reflect a mixture of

things – from FUNCTIONAL to NON-

FUNCTIONAL, from CONCEPTUAL to

TECHNICAL, and so on. For this reason, we should

“extract” some information in support of our

technology-independent functional conceptual

model, and we should as well extract information in

support of the requirements' identification to be

addressed in Section 4. Hence, in the following list,

we refine the demands, to achieve input for our

conceptual model, abstracting from all non-functional

and technical aspects:

 secrecy of vote;

 fair reflection of votes;

 fair communication of inter-

mediary results;

 fair counting of votes;

 the voting – easy for all having

rights to vote.

Thus, in line with those demands, any person with

voting rights in Bulgaria should be able to vote. This

assumes that no special qualification / skills are

needed, in such a way that both his/her vote is fairly

reflected in the voting system and the secrecy of his /

her vote is guaranteed (this means that the vote should

be counted but it should not be linked in any way to

the person who has executed the voting). Finally, it

should be guaranteed that all intermediary results are

properly communicated to the voting “central” and in

the end – all votes are correctly counted, to guarantee

adequate political representativeness.

In Bulgaria, people vote for parliament, for presi-

dent, for local authorities, and also in referenda.

Voting is preceded by a campaign. During the

campaign, candidates / parties have the right to

promote their ideas. This is supposed to stimulate

people to analyse the current situation and the

(potential) impact of different political influences.

Then, the campaign stops and the day before the

elections is made free of campaigning – to avoid

pressure on voting in a certain direction. This is

followed by the voting “day” lasting 12 hours; during

this 12-hour period, people have the right to go and

vote (or not to do so), and once voting is done, it is

done – it is impossible to return back to the voting

station and claim changing mind and voting again.

Further, when the voting “day” is over, votes are

counted in each voting station and this would

generate the so called “raw” results, reflected in a list

of candidates and corresponding numbers. Finally, all

such lists are “brought together” as the source for

calculating the overall results per country and / or per

town and / or per county, and so on.

3.2 Assumptions

The above is the starting point for developing our

conceptual model. For this reason, we should know

what to keep “in” and what to leave “out”, and this

decision is inevitably technology-driven because we

leave out things that cannot be (at all) dependent on

what the technology can offer. For example, if Steve

is going to vote from home via computer and his

father is standing behind him, influencing his vote,

then we cannot do anything about this no matter how

advanced technology is – this is just matter of each

person’s observing and upholding the rights each of

us has. We thus make several assumptions: (i)

issues of societal relevance which

are nonetheless beyond the infor-

mation system control are outside

the scope of this research (consider the

above example of Steve’s voting). (ii) We assume

sufficient IT literacy among the

population, realizing nevertheless that there are

poorly developed regions where this is not yet the

case. (iii) We assume a democratic country in which

governments do not manipulate the

election process. The above assumptions

maybe (partially) IT-inspired but even so, the

assumptions have straightforward impact with regard

to the technology-independent conceptual model

because they lead us to what to leave out of the model.

Sixth International Symposium on Business Modeling and Software Design

190

3.3 The Voting Model

In order to keep (as promised) the model abstract

(thus simple) but also properly focused, we: (i) apply

only two concepts, namely actor-role and

relationship; (ii) take into account what was

presented in Sub-Section 3.1 and Sub-Section 3.2.

Our Actor-Role (AR) concept is consistent with

Enterprise Ontology (see Section 2), suggesting that

‘actor’ is the (human) entity executing a particular

task while ‘actor-role’ is about specifying the task

itself, abstracting from who exactly is fulfilling this.

For example, if a Professor is sending fax, then (s)he

is doing something that is part of what the Secretary

normally does and for this reason, determining the

‘actor-role’ here points to the label ‘SECRETARY’

(not ‘PROFESSOR’). Our Relationship (R) concept

is consistent with the SDBC approach (Shishkov,

2005) and is about whether or not collaboration is

needed between two ARs that is necessary for one or

both of them to deliver what they have to deliver.

Hence, we have identified the following ARs in

the context of what was presented in this section:

AR1 –

CAMPAIGNER: the one(s) campaigning in

favour of a particular policy / party / vision and

influencing the people in that way;

AR2 –

VOTER: the one(s) voting for parliament /

president / … and thus executing basic rights in the

country;

AR3 –

PRIMARY COUNTER: the one(s)

counting the votes in a particular voting station;

AR4 –

SECONDARY COUNTER: the one(s)

aggregating the final result, by putting together the

voting results from the voting stations;

AR5 –

ORGANIZER: the one(s) organizing the

voting process and supporting all above-mentioned

accordingly;

AR6 –

CONTROLLER: the one(s) controlling all

above-mentioned;

7 –

SYSTEM: even though this is not an actor-

role, we have to somehow model abstractly the “place

holder” where all voting “goes”.

Further, we have identified the following Rs:

AR1-AR2 suggesting that the CAMPAIGNER is

promoting political messages that are supposed to

influence the VOTER;

AR2-SYSTEM suggesting that the VOTER

provides essential input to the SYSTEM, namely the

vote;

SYSTEM-AR3 suggesting that the SYSTEM has

impact with regard to each voting station (said

otherwise, each voting station has its “own”

SYSTEM), by providing the information needed by

the PRIMARY COUNTER for calculating the station

results;

AR3-AR4 suggesting that the SECONDARY

COUNTER needs the PRIMARY CONTER’s

feedback from each voting station, in order to

aggregate the overall voting results;

AR5-ALL suggesting the ORGANIZER of the

elections has relationship with all above-mentioned

ARs and the SYSTEM as follows: creating conditions

for the CAMPAIGNER to do promotion adequately;

establishing that the rights of the VOTER are

guaranteed; establishing rules and mechanisms

according to which the PRIMARY COUNTER and

the SECONDARY COUNTER should fulfil their

corresponding tasks; establishing and running the

voting SYSTEM;

A6-ALL suggesting that the CONTROLLER

should execute effective control concerning all

above-mentioned ARs and the SYSTEM, as guarantee

that the voting is fair.

This is the basis for our conceptual model and as

mentioned before, we abstract from several issues (as

according to Sub-Section 3.2) and an example of this

is that we do not consider an AR pointing to the one(s)

(outside the CAMPAIGNER) who may be somehow

influencing the decision of the VOTER – this could

have been modeled as an AR by itself but we have not

done this because of the lack of technical relevance,

as explained above.

We present our conceptual model on Figure 1 and

we use simple and intuitive graphical notations: the

labels of the ARs are put inside boxes and the

SYSTEM is presented as oval, while the Rs are

represented as lines (the arrows indicate who is

ADDRESSED in the relationship – for example: if

the CAMPAIGNER is influencing the VOTER, then

the arrow should be at the VOTER end because the

VOTER is addressed by this).

S Y S T E M

CAMPAIGNER

OTER

PRIMARY COUNTER

SECONDARY COUNTER

ORGANIZER

CONTROLLER

influence

feed (by votin

)

enable

control

provide feedback

feed (by votin

output)

Figure 1: The Voting Conceptual Model.

As seen on the figure, we have not only drawn

arrows at each line (lines representing Rs) but we

Towards a Service-Oriented Architecture for eVoting

191

have also added labels there: the CAMPAIGNER

would influence the VOTER, the ORGANIZER

would enable the SYSTEM, and so on.

We claim that such an essential conceptual model

is a good basis for further elaborations in different

directions, such as structure (where we model entities

and their relations), behaviour (where we model all

activities in sequence, parallelism, and so on), data,

and so on. The model would stay as “guarantee” for

the inter-model consistency among structural,

behavioural, data, and other “sub”-models. For the

sake of brevity, we are not going in more details in

presenting and discussing those issues. Still, the

SDBC approach provides useful insight in this

direction (Shishkov, 2005).

In line with the goals of the current paper, as

mentioned in the Introduction, we go for extending

the conceptual model, by identifying (technology-

inspired) requirements, as part of the effort of

supporting the development of eVoting systems. This

will be addressed in the next section.

4 eVOTING REQUIREMENTS

In the current section, we will firstly elaborate the

public demands (see Sub-Section 3.1) and then we

will introduce our way of modeling requirements,

being certainly restricted by the conceptual model

(see Sub-Section 3.3).

4.1 Public Demands' Elaboration

In the current sub-section, we elaborate the

previously listed public demands towards eVoting,

taking into account that all those issues concern the

people and the technology (what the current

technological possibilities are), and the legislation.

The current demands’ elaboration would be useful as

basis for our reflecting the demands in corresponding

technical requirements.

With regard to the SECRECY OF VOTE demand,

there are two things: (i) it is to be guaranteed that

nobody can know how a person has

voted; (ii) it is to be ensured that the person has been

marked as “voted”, such that (s)he would not go

to vote again.

With regard to the COST ADEQUACY demand,

the only way of avoiding the “big expensive black

box” is to conceptualize the eVoting process such that

it is known what technology is

needed for what.

A way to guarantee against VIOLATIONS with

regard to the way the System is working, is to present

the user with a simple and exhaustive

list of options, with no possibilities to do

anything outside the presented options.

A way to guarantee agains MANIPULATIONS

OF THE FINAL RESULTS is to keep things at two

levels, such that the Primary Counters

generate the “raw” results based on

which the Secondary Counters generate

the final results and this all stays stored with

possibility to check in the future.

The COMPUTER-SERVER communication is to

be such that there is guarantee that a “packet”

sent by a computer is received by

the server and by noone else; this is a

matter of organization and also a matter of

networking protocols.

CONTROLLABILITY can be partially achieved

if all intermediary results get

transparent and then the only remaining

challenge is how are the “raw” results generated.

FAULT REACTION is a matter of

recoverability and this is a non-fuctional

concern that has to be addressed from a functional

perspective nevertheless.

EASE OF USE is a matter of design.

The issue on QUALIFICATIONS needed for

being involved in eVoting is a matter of legislation;

as it was mentioned before, sufficient IT literacy

among the population is assumed.

4.2 Way of Modeling Requirements

We consider OS norms (see Sub-Section 2.2) as

helpful in the process of specifying requirements in

this context not only because Organizational

Semiotics is well-known for its strengths with regard

to capturing societal aspects but also because OS

norms have been researched also as useful with

regard to requirements identification and

specification. In particular, it has been studied how

OS norms can help deriving use cases from business

processes (Shishkov, 2005).

OS norms determine the conditions and constrains

in controlling optional and conditional actions. They

govern the behaviour of actors (agents), normally to

decide when certain actions are performed. OS norms

define clearly the roles, functions, responsibilities and

authorities of the actors, for example:

whenever John is Customer of VISA

if VISA increase John’s credit card limit

then John

is allowed

to use more credit.

Sixth International Symposium on Business Modeling and Software Design

192

4.3 The eVoting Requirements

Starting from unstructured information – the public

demands presented in Sub-Section 3.1 (a mixture of

technology-independent and technical issues), we had

to firstly capture the functional gist (the conceptual

model), abstracting from technical details – see

Figure 1. Only on this basis, it was possible to

adequately elaborate the public demands (see Sub-

Section 4.1), making sure that each (technical) detail

properly fits in the “big picture”.

person is

asking to vote

person is voting

votin

hts?

person is marked

“voted”

vote counted,

person not associated

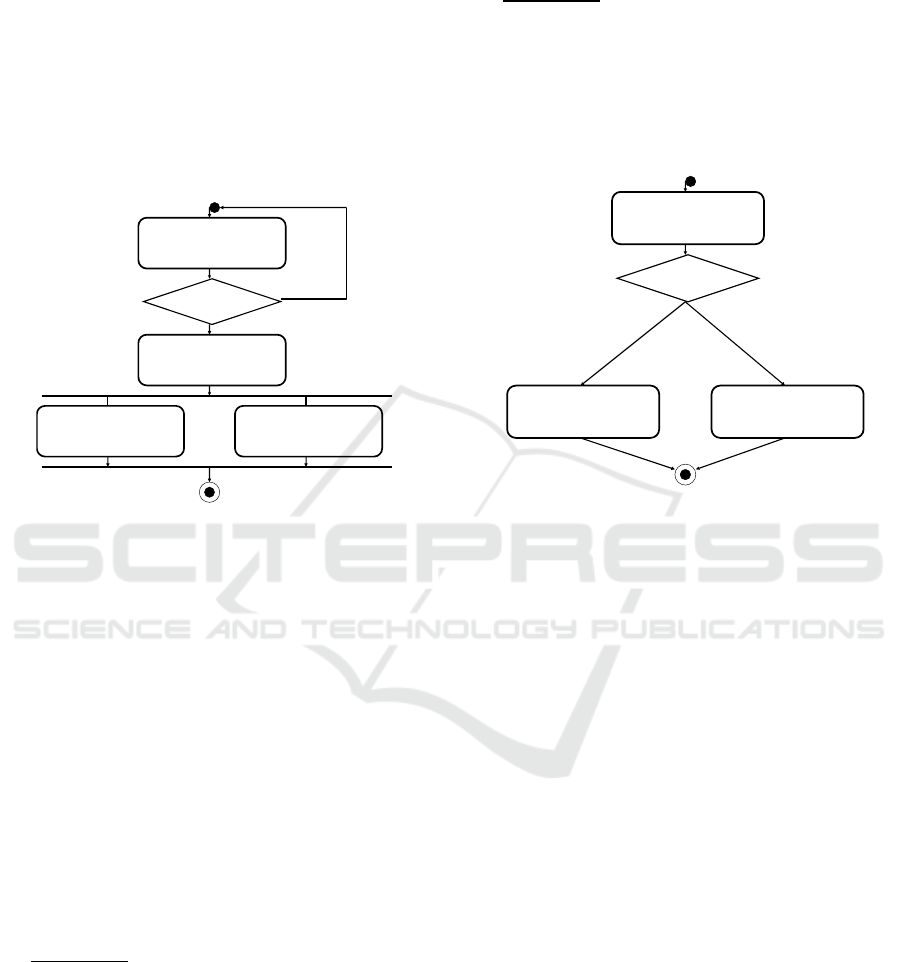

Figure 2: Workflow Pattern Corresponding to OS Norm 1.

Hence, inspired by Organizational Semiotics, we

can now specify eVoting requirements, by means of

OS norms, and in order to achieve better visualization

and possible good basis for simulation (it this may be

needed), we also reflect the OS norms in workflow,

as studied by Shishkov (2005). Further, the demands

being considered are many while the scope of the

current paper is limited; hence, for the sake of brevity,

we take only several of them (planning the rest as

future work) and reflect them in the specification of

requirements and in the next section, we briefly

discuss the next step: “requirements-to-architecture”.

We take in this section several eVoting public

demands and we reflect them in specified

requirements expressed in terms of OS norms. We

start from the SECRECY OF VOTE one:

OS Norm 1:

Whenever John has voting rights

if John is executing eVoting

then the eVoting system

is (i) obliged to mark John as “voted”

is (ii) prohibited from recording the way

John has voted.

Based on OS Norm 1, we derive a workflow pattern

expressed with the notations of UML Activity

Diagram (UML, 2016) – see Fig. 2.

With regard to the VIOLATION public demand,

we formulate the following norm:

OS Norm 2:

whenever John is executing eVoting

if John is attempting a not allowed action

then the eVoting system

is prohibited from taking any action.

Based on OS Norm 2, we derive a workflow pattern

– see Fig. 3.

person is attempting

an action

action allowed?

action is performed

action is blocked

es no

Figure 3: Workflow Pattern Corresponding to OS Norm 2.

5 TOWARDS A

SERVICE-ORIENTED

ARCHITECTURE

With regard to the “requirements-to-architecture”

step, we consider the SDBC Approach (Shishkov,

2005) allowing for a component-based alignment

between enterprise modeling and software design,

ending up in specified software components that fit in

the architecture. Those components we relate to web

services in a way that what we see as web service

“manifestation” is the functionality delivered by

corresponding underlying software component(s).

Further, we realize that in currently dealing with

distributed cloud applications, it would often be that

different software components have different origin

thus not belonging to the same software application.

Still, the SDBC Architecture is that needed

abstraction which establishes and keeps the overall

system “logic” no matter if a particular task is realized

by the software application –to-be or by

(dynamically) composed web services. Further

detailing is left for future research. What we present

in the current section is the SDBC-orientation we take

with regard to architecture, noting the useful relation

Towards a Service-Oriented Architecture for eVoting

193

to web services. For this reason, we briefly present

below the SDBC Approach, SDBC standing for:

‘Software Derived from Business

Components’.

Firstly, SDBC assumes 4 modeling perspectives,

namely: Structural Perspective that reflects entities

and their relationships; Dynamic Perspective that

reflects the overall business process and

corresponding to this – the states of each entity,

evolving accordingly; Data Perspective that reflects

the information flows across entities and within the

business process; Language-Action Perspective that

reflects real-life human communication and

expression of promises, commitments, etc. as also

relevant to soundly building an exhaustive enterprise

model.

Secondly, among SDBC’s underlying theories are

Enterprise Ontology and Organizational Semiotics

(Shishkov et al., 2006) - see Section 2, which makes

the approach siutable especially in the eVoting

context of the current paper.

Thirdly, among the main SDBC concepts are the

following:

 Component vs CoMponent: while components

represent part of the whole, coMponents reflect a

model of a component adequately elaborated in all

4 perspectives (see above), and we could thus

have business components (business sub-systems)

and software components (pieces of implemented

software) as well as business coMponents and

software coMponents, respectively;

 General vs Generic: those concepts are both

about re-use, still – general is about re-using an

abstract core (a general reservation engine, for

example) while generic is about parameterizing

something that is multi-specific (a car system to

be adjusted to automatic or gear regime, for

example);

 Software Specification Model – this is

a technology-independent functionality model of

the software system-to-be.

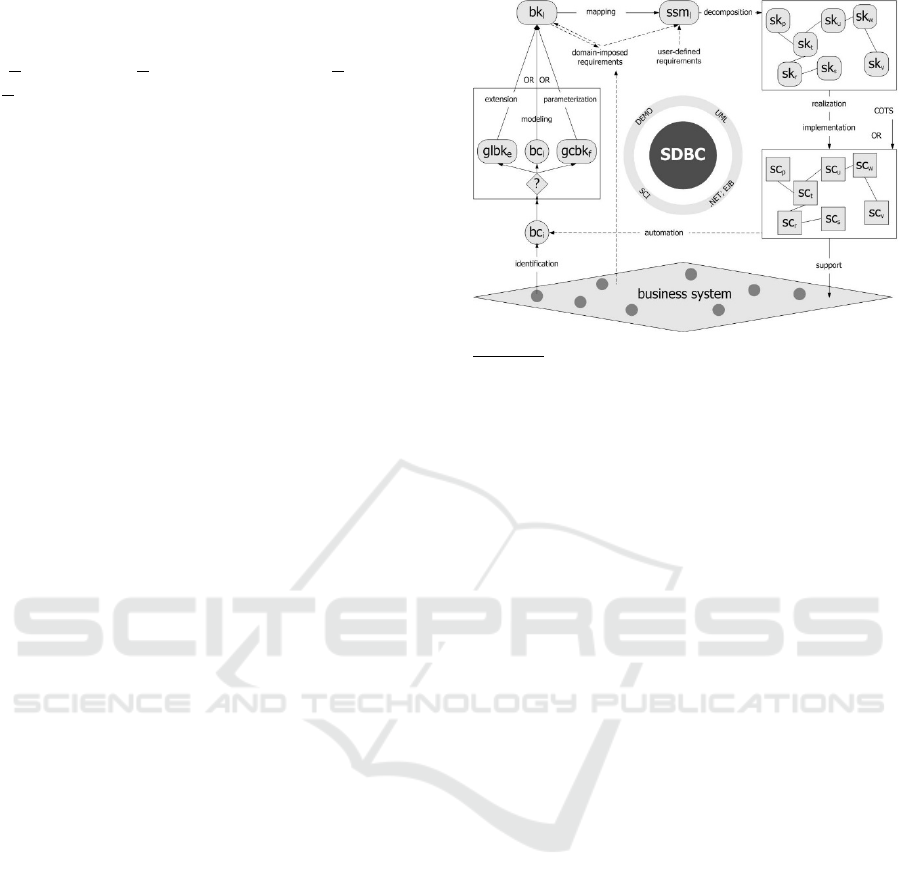

To summarize the SDBC outline, we use Fig. 4:

Abbreviations:

bc – Business Component ssm – Software specification model

bk – Business CoMponent sc – Software Component

glbk – General Business CoMponent sk – Software CoMponent

gcbk – Generic Business CoMponent

Figure 4: SDBC – Outline (Shishkov, 2005).

As seen from the figure, we consider a Business

System from which a Business Component(s) is to be

identified and then reflected in a relevant model – a

Business CoMponent. Another way for arriving at a

Business CoMponent is by applying re-use: either

extending a general Business CoMponent or

parameterizing a generic one. Then, the Business

CoMponent should be elaborated with the domain-

imposed requirements, in order to add

elicitation on the particular context in which its

corresponding Business Component exists within the

Business System. Then, a mapping towards a

software specification model should take place and

the user-defined requirements are to be

considered, since the derived software model should

reflect not only the original business features but also

the particular requirements towards the software

system-to-be. The software specification model in

turn needs a precise elaboration so that it provides

sufficient elicitation in terms of structure, dynamics,

data and language-action –related aspects. It needs

also to be decomposed into a number of Software

CoMponents reflecting functionality pieces. Those

CoMponents then are to undergo realization and

implementation, being reflected in this way in a set of

Software Components. Some Software Components

could also be purchased. The Software Components

are implemented using Software Component

technologies, such as .NET or EJB, for instance.

Finally, the (resulting) component-based ICT

application would support informationally the target

Business System, by automating anything that

Sixth International Symposium on Business Modeling and Software Design

194

concerns the considered Business Component

(identified from the mentioned system).

SDBC was just briefly introduced above. Still,

interested readers can find more information on

SDBC in (Shishkov, 2005).

As mentioned in the previous section, we just

briefly discuss our views on the “requirements-to-

architecture” step in the eVoting context, and we

leave it for future research to go in depth in this

direction, possibly adapting some SDBC features

accordingly, and of course validating our results by

means of case studies. Still, it becomes clear how we

proceed from requirements to

architecture and how we consider service-

orientation.

6 CONCLUSIONS

Understanding eVoting systems requires

understanding the legislative and societal context. In

this position paper we presented guidelines to come

from global to detailed requirements, and then – to

(service-oriented) architecture, based on Enterprise

Ontology, Organizational Semiotics, and the SDBC

Approach. The essence is that multiple theories need

to be employed to understand and elicit requirements.

Formal modeling should ensure that the requirements

are consistent and meet the societal expectations.

REFERENCES

Dietz, J.L.G., 2006. Enterprise Ontology, Theory and

Methodology. Springer-Verlag, Berlin Heidelberg.

Insfran, E., Pastor, O., Wieringa, R., 2002. Requirements

Engineering-Based Conceptual Modelling. In

Requirements Engineering journal, Vol. 7, Nr. 2, 2002.

Springer-Verlag.

Konstantinov, M., Pelova, G., Boneva, J., 2009.

Mathematics of the Bulgarian Electoral System. In

AMEE’09, 35th International Conference on

Applications of Mathematics in Engineering and

Economics. AIP.

Liu, K., 2000. Semiotics in Information Systems

Engineering. Cambridge University Press, Cambridge.

Papazoglou, M., 2012. Web Services and SOA: Principles

and Technology, Prentice Hall, 2

edition.

Plevneliev, R., 2016. Statement by President Rosen

Plevneliev at His 4th Annual Press Conference,

Published on the website of the President of the

Republic of Bulgaria: http://www.president.bg.

Scammell, R., 2016. Internet Voting a Success in Two

European Countries, Published on the European

University Institute website: http://www.eui.eu.

Shishkov, B., 2005. Software Specification Based on Re-

usable Business Components (PhD Thesis), TU Delft –

SIKS Publishing. Delft.

Shishkov, B., Dietz, J.L.G., Liu, K., 2006. Bridging the

Language-Action Perspective and Organizational

Semiotics in SDBC. In ICEIS’06, 8th International

Conference on Enterprise Information Systems.

SCITEPRESS.

UML, 2016, the website on the Unified Modeling

Language: http://www.uml.org.

Van der Aalst, W., 2011. Process Mining - Discovery,

Conformance and Enhancement of Business Processes.

Springer-Verlag, Berlin Heidelberg.

Towards a Service-Oriented Architecture for eVoting

195
