New Wavelet Based Spatiotemporal Fusion Method
Amal Ibnelhobyb
1
, Ayoub Mouak
1
, Amina Radgui
1
, Ahmed Tamtaoui
1
, Ahmed Er-Raji
2
,
Driss El Hadani
2
, Mohamed Merdas
2
and Faouzi Mohamed Smiej
2
1
STRS Lab, Institut National des Postes et Télécummunication-INPT, Rabat, Morocco
2
Centre Royal de Télédetection Spatiale-CRTS, Rabat, Morocco
{ibnelhobyb, mouak,radgui, tamtaoui}@inpt.ac.ma, {er-raji, elhadani, merdas, smiej}@crts.gov.ma
Keywords: Spatiotemporal fusion, Landsat, MODIS, NDVI, STARFM, ESTARFM, WSAD-FM, WESTARFM.
Abstract: Satellite image sensors are able to give images at high temporal resolution as the MODIS sensor that gives an
image every day but with low spatial resolution, or at high spatial resolution as the Landsat sensor that gives
images at 30m but with a revisit cycle of 16 days. Thus, this sensors are not able to give images with both
high spatial and high temporal resolution. This need has become more and more absolute for many
applications. Therefore spatiotemporal fusion methods were proposed. By applying these methods on images
from different sensors with different spatial and temporal resolution, we can take the advantage of the high
spatial and high temporal resolution of these sensors. As a result we get an image with both high spatial and
high temporal resolution. We introduce in this paper a new method, the Wavelet base Enhanced Spatial and
Temporal Adaptive Reflectance Fusion Model (WESTARFM), which is an improvement of the ESTARFM
method. It uses the principle of wavelet transform with the original ESTARFM method. We have applied our
method to predict daily NDVI in a study site in an irrigated zone in the region of TADLA in MOROCCO.
Results have been compared with other methods.
1 INTRODUCTION
Satellite images are more and more used in many
applications such as vegetation monitoring,
ecosystem disturbance and land cover mapping.
However, a tradeoff exists between spatial and
temporal resolution in available satellite data.
Satellite data obtained by moderate resolution sensors
like the Moderate resolution Imaging
Sptectroradiometer (MODIS) gives daily
observations of the entire earth but with a low spatial
resolution attending 1 km (Gao et al., 2014).
Whereas, data obtained by Landsat sensors gives
more spatial details with a spatial resolution of 30 m
but they have a long revisit cycle of 16 day and their
use is limited by the presence of clouds. In order to
get full use of advantageous characteristics of these
sensors, fusion methods were proposed to combine
satellite data from different sensors. By using
spatiotemporal fusion we can obtain satellite images
with both high spatial and high temporal resolution.
Many fusion methods have been proposed. They can
be classified into four categories(Chen, Huang, & Xu,
2015): i. Transformation based methods (Ghannam,
Awadallah, Abbott, & Wynne, 2014), ii. Learning
based methods (Huang & Song, 2012)-(Song &
Huang, 2013), iii. Reconstruction based
methods(Gao, Masek, Schwaller, & Hall, 2006)-
(Zhu, Chen, Gao, Chen, & Masek, 2010)-(Zhu et al.,
2016)-(Hilker, Wulder, Coops, Linke, et al., 2009)-
(Fu, Chen, Wang, Zhu, & Hilker, 2013), iv. Data
assimilation based methods (Chemin & Honda,
2006). Spatial and Temporal Adaptive Reflectance
Fusion Model (STARFM) (Gao et al., 2006) is one of
the most common methods widely used for
spatiotemporal fusion. It is a reconstruction based
method that was proposed by Feng Gao on 2006. This
method introduced the use of neighbouring pixels and
windowing to predict Landsat-like images. However
it was convenient only for homogenous regions.
Enhanced STARFM (ESTARFM) (Zhu et al., 2010)
25
Ibnelhobyb A., Mouak A., Radgui A., Tamtaoui A., Er-Raji A., El Hadani D., Merdas M. and Smiej F.
New Wavelet Based Spatiotemporal Fusion Method.
DOI: 10.5220/0006226800250032
In Proceedings of the Fifth International Conference on Telecommunications and Remote Sensing (ICTRS 2016), pages 25-32
ISBN: 978-989-758-200-4
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
was proposed after that to overcome the limitation of
STARFM and introduced a conversion coefficient
that makes it applicable for heterogeneous regions
using two pairs of Landsat and MODIS data. A
wavelet base method has been used with the
STARFM method (WSAD-FM) (Ghannam et al.,
2014) it decompose the Landsat image at high and
low frequencies and predict each part separately using
only Landsat image for high frequencies and Landsat
and MODIS images for low frequencies.
The paper presents a new fusion model based on
the same concept of the WSAD-FM(Ghannam et al.,
2014) but uses the wavelet transform with the
ESTARFM(Zhu et al., 2010) method. This fusion
method is applied on NDVI data in the region of
Tadla in Morocco. We have used actual Landat 8
NDVI and MODIS NDVI data for evaluation and
calculate commonly used statistic parameters RMSE,
AAD and R2 to compare the accuracy of our method
with the STARFM, ESTARFM and WSAD-FM
methods. First the theoretical basis and the proposed
method will be introduced, after, evaluation of our
method will be explained. At the end, the results of
this evaluation will be discussed.
2 THEORETICAL BASIS
2.1 ESTARFM
As an improvement of the STARFM method (Gao et
al., 2006), the Enhanced Spatial and Temporal
Adaptive Reflectance Fusion Model was proposed to
overcome its limitation in prediction on
heterogeneous and changing regions, this by using a
conversion coefficient that presents the heterogeneity
of coarse pixels (Chen et al., 2015). The STARFM
supposes the presence of one land cover type on
coarse pixels (pure pixels) which the case of
homogenous regions. But for heterogeneous regions
different land convers types are present on a coarse
pixel. Therefore the ESTARFM considers the
presence of mixed pixels and apply the linear mixture
model to calculate the reflectance change of each
present class. The sum of this changes is the change
of the coarse mixed pixel between two days. It
requires two pairs of Landsat and MODIS images and
a MODIS image from the predicted day. It is
described in the following steps:
For a fine central pixel of a moving window we
use thresholding or a classification map to find
spectrally similar pixels.
A weighting function W
i
is calculated for these
n similar pixels after being filtered. This
weighting function is based on spectral
similarity, temporal difference and spatial
distance.
Calculate the conversion coefficient v
k
presenting the ratio of reflectance change for a
class k represented by the fine pixel L
k
to the
reflectance change of the coarse pixel M
between two days t
m
and t
n
:
(1)
Predict the Landsat image L at time t
p
for the
central pixel (x
w⁄2
,y
w/2
) within the moving
window of size w, based on pair input L and M
from time t
m
to have L
m
and from time t
n
to
have L
n
:
/2 /2
/2 /2
1
( , , )
( , , )
,,
..
,,
m w w p
w w m
N
i i p
ii
i
i i m
L x y t
L x y t
M x y t
Wv
M x y t
(2)
/2 /2
/2 /2
1
( , , )
( , , )
,,
..
,,
n w w p
w w n
N
i i p
ii
i
i i n
L x y t
L x y t
M x y t
Wv
M x y t
(3)
The predictions at times t
m
and t
n
are summed
and temporally weighted to calculate the final
prediction. This temporal weight T presents the
contribution of each pair:
(4)
2.2 Wavelet-based ESTARFM
In this section we present our proposed method, the
Wavelet based Enhanced Spatial and Temporal
Adaptive Reflectance Fusion Model used to combine
data with different spatial resolution and different
temporal resolution in order to predict an image with
both high spatial and high temporal resolution.
Fifth International Conference on Telecommunications and Remote Sensing
26
Our method is based on the ESTARFM method
but it uses the wavelet transform to predict more
details on the image (Ghannam et al., 2014). In the
original ESTARFM the whole image is used for
prediction, but in our proposed method the Landsat
image is decomposed into high and low frequencies
using the wavelet transform. After that each
component is used for prediction separately. As the
ESTARFM our method requires two pairs of Landsat
and MODIS data and a MODIS image from the
prediction day. The WESTARFM is implemented
following these steps:
The two Landsat images from time t
m
and t
n
are
decomposed into high and low frequencies
using wavelet transform.
Predict approximation coefficients L
a
of
Landsat image at time t
p
using low frequency
components of Landsat images at time tm and
t
n
and MODIS images at time t
m
, t
n
and t
p
:
(5)
(6)
Predict detail coefficients L
d
of Landsat images
at time t
p
using only high frequency
components of Landsat images at time t
m
and
t
n
:
(7)
(8)
Calculate the final images at time t
m
and t
n
by
applying the inverse wavelet transform on the
predicted low frequency and high-frequency
components.
Estimate the final predicted image at time t
p
using temporal weight T (Zhu et al., 2010).
3 RESULTS AND DISCUSSION
3.1 Data and Pre-processing
High Spatial Resolution Landsat 8 images and High
Temporal Resolution MODIS images are required for
evaluating the accuracy of the proposed method. In
order to generate a daily prediction of NDVI, the
MODIS Surface Reflectance Daily 250m
(MOD09GQ bands 1,2) was selected. As shown in
Figure 1. Eight Landsat 8 and MODIS images
representing days: 05 June 2015(156), 21 June
2015(172), 07 July 2015(188), 23 July 2015(204), 08
August 2015(220), 24 August 2015(236), 09
September 2015(252) and 25 September 2015(268)
were selected for evaluation. The Landsat 8 images
were downloaded from the USGS GLOVIS website,
and the MODIS Surface Reflectance data were
downloaded from the Reverb ECHO website. This
Data cover an irrigated area of 800m x 800m in the
region of Tadla (32° 28 N, 5° 38 W) situated in central
Morocco.
Erdas imaging were used as a preprocessing tool
to calculate the Landsat 8 Surface Reflectance from
Landsat 8 data, and to generate the Landsat NDVI
images from Landsat 8 reflectance and MODIS
NDVI from MODIS Surface Reflectance. Landsat
and MODIS input data should have the same
projection and same pixel size, thus Erdas imaging
was used for UTM projection and ARCMAP was used
for resampling of MOD09 in order to have the same
resolution as Landsat images (30m).

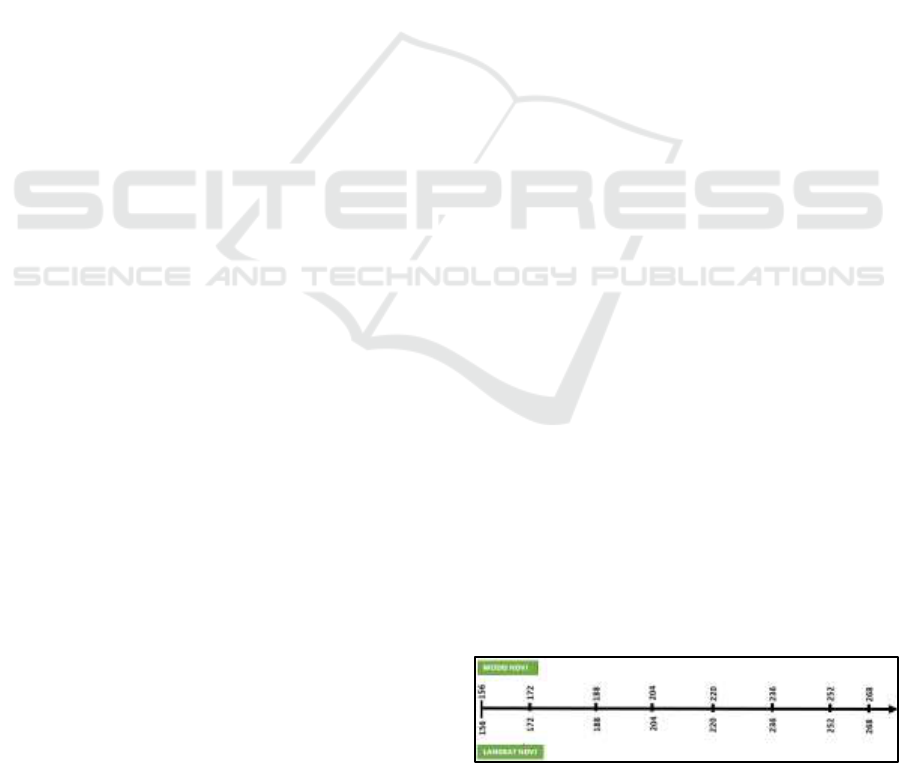

Figure 1: DOYs of Landsat 8 and MODIS Data used for
evaluation.
New Wavelet Based Spatiotemporal Fusion Method
27
3.2 Evaluation and Results
The proposed method was used for predicting
Landsat NDVI images. This method is applied on
NDVI images since it gives more accurate results and
less complexity than applying the fusion methods on
RED and NIR bands used for calculating NDVI
(Jarihani et al., 2014)
Two pairs of Landsat NDVI and MODIS NDVI
images are needed with the MODIS NDVI from the
prediction day, in the original method of ESTAFM
the author used the pairs of Landsat and MODIS from
the start and the end of the period as input of the
method, for our evaluation we have used the two pairs
from previous days. For WSDAFM method only one
pair of Landsat and MODIS NDVI is needed.
The prediction was performed using eight Landsat
and MODIS NDVI images in DOYs 156, 172, 188,
204, 220, 236, 252, 268 when Landsat NDVI images
are available in order to evaluate the accuracy of the
proposed method and compare it with STARFM,
ESTARFM and WSAD-FM methods.

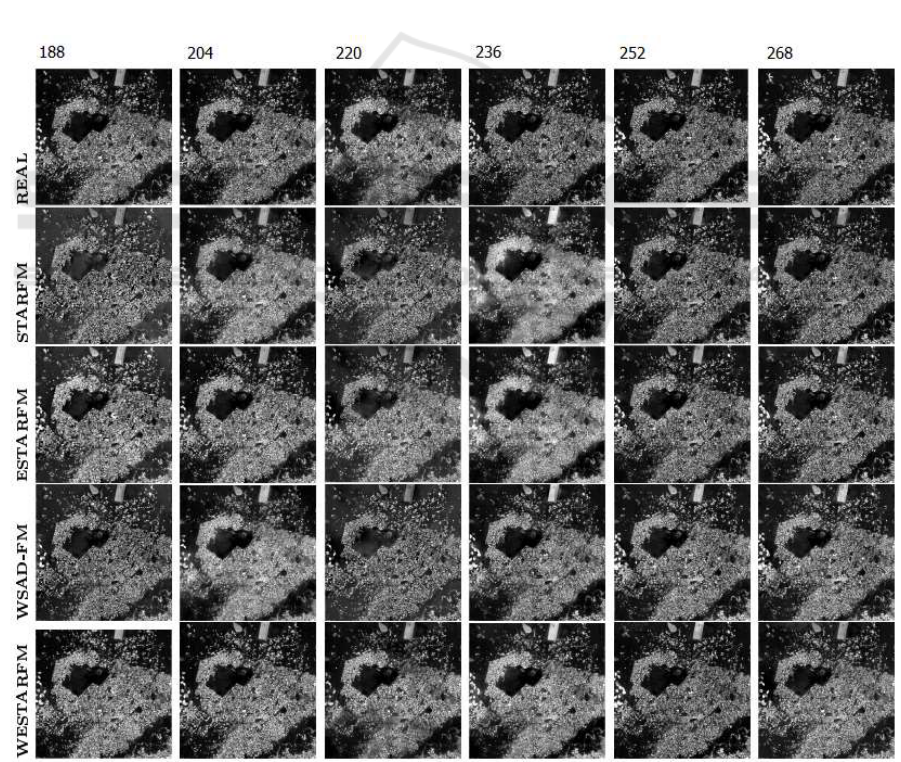

Figure 2 shows the prediction results of the
methods for the selected days compared with real
images. We have the results for all the days for
STARFM, ESTARFM, WSAD-FM and
WESTARFM except DOYs 156 and 172 since they
are used as first inputs to the fusion. Visually, we can
see that the Landsat-like images contain all the details
of the region. However, for some days, as an example
DOY 220, details of the image are lost in some zones
and the image is noisy as a result of clouds. The
quality of prediction depends on the quality of input
images(Hilker, Wulder, Coops, Seitz, et al., 2009),
good results can be obtained if Landsat and MODIS
NDVI input images are clean from clouds also results
are affected by the inconsistency existing between the
Landsat and MODIS sensors(Gevaert & García-Haro,
2015) .
Figure 2: NDVI prediction results using ESTAFM, WSADFM and WESTARM.
Fifth International Conference on Telecommunications and Remote Sensing
28
Figures 3, 4, 5, 6 show real Landsat NDVI and
predicted Landsat NDVI using our proposed method
WESTARFM for DOY 252. We can see that the
predicted image contains most of the details and
visually it is almost similar to the real image. If we
zoom in a particular zones like a citrus zone, a rainfed
zone and an irrigated zone, as it is illustrated on
figures (5,6,8,9,11,12), we notice, visually, that the
WESTARFM method was able to predict almost the
same NDVI information as the real image.
Figures 7, 10 and 13 show the correlation between
the real and predicted NDVI values using the
WESTARFM method for the 3 selected zones at time
252. Results show that the prediction is better for the
citrus zone. We can say that one of the parameters that
affect the performance of the prediction is the value
of input NDVI, more the value of NDVI is high more
the prediction is better. We assume also that the
prediction is better for citrus zone since it is more
stable between the input and the prediction days than
culture areas.

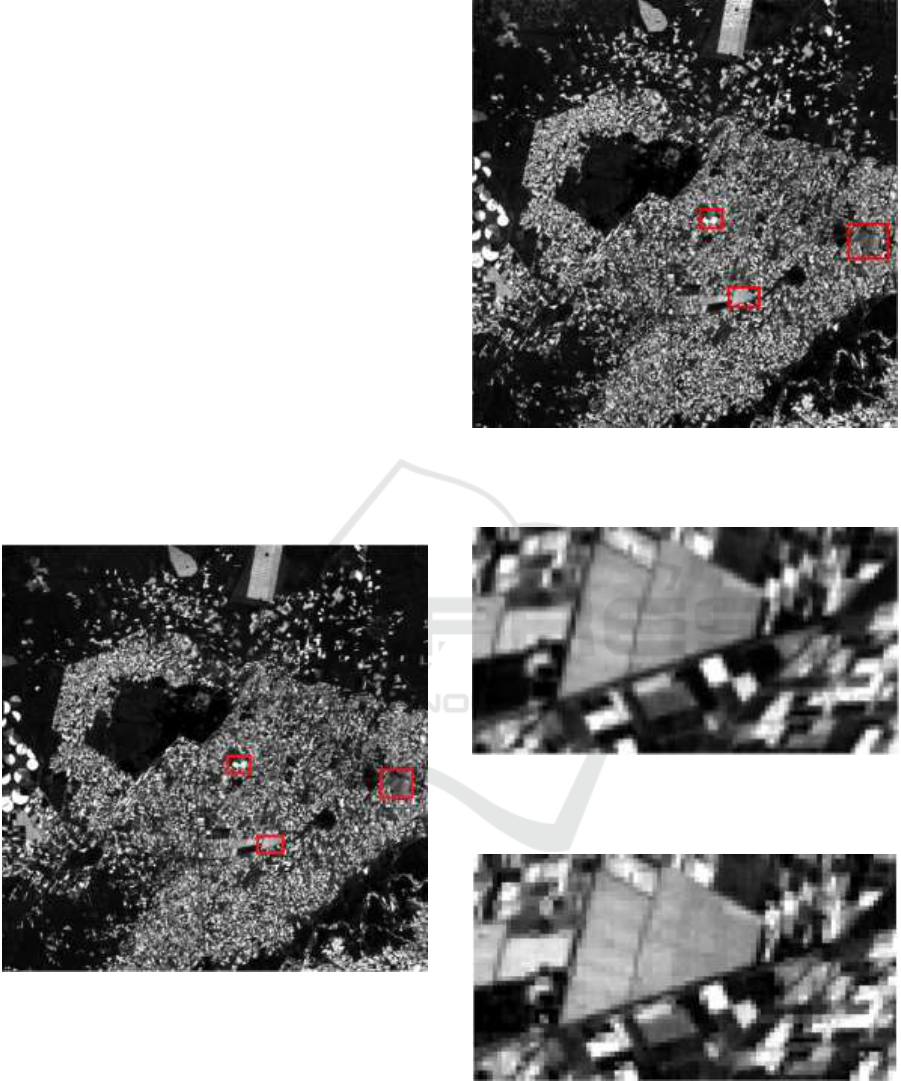

Figure 3: Real Landsat NDVI DOY 252.
Figure 4: Predicted Landsat NDVI DOY 252 using
WESTARFM.
Figure 5: Zoom in a citrus zone in real Landsat NDVI image
DOY 252.
Figure 6: Zoom in a citrus zone in predicted Landsat NDV
I image using WESTAFM DOY 252.
New Wavelet Based Spatiotemporal Fusion Method
29

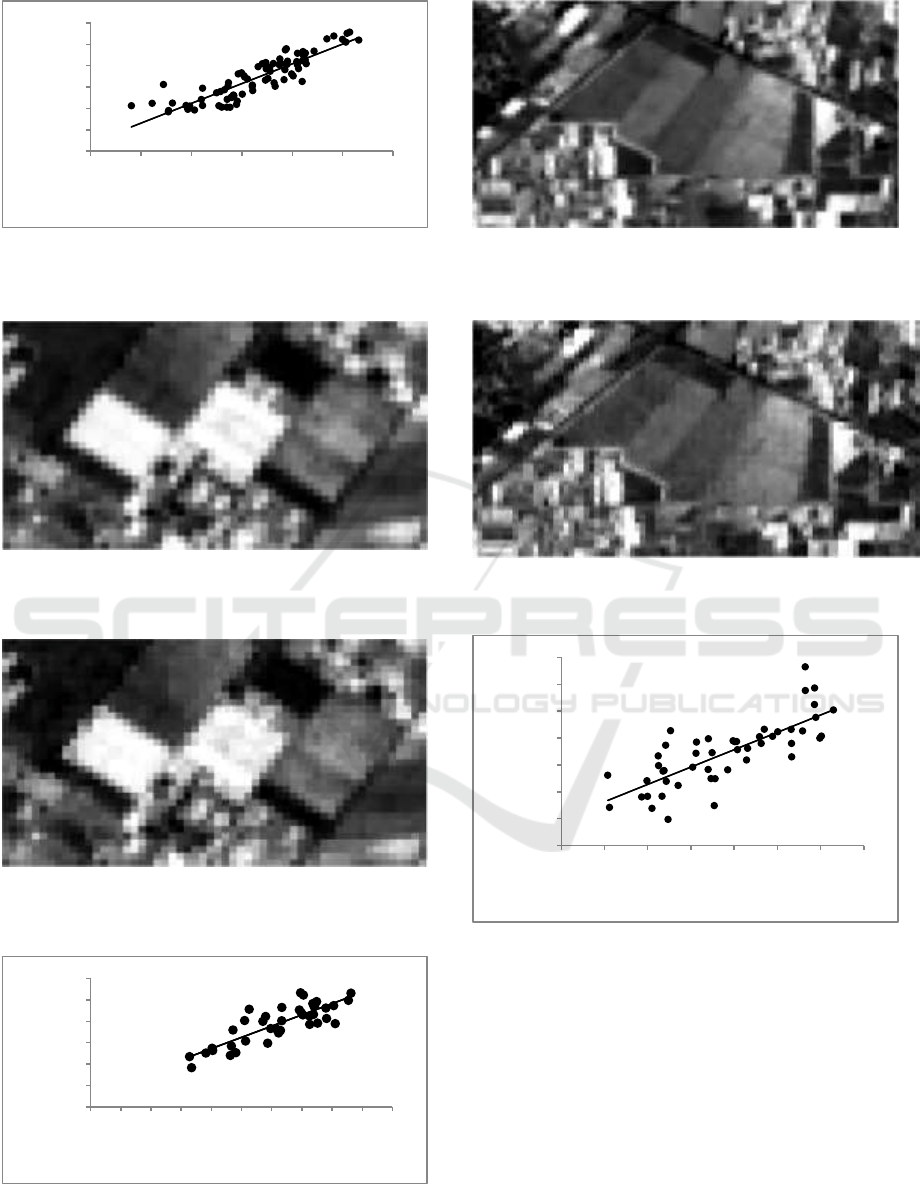

Figure 7: Correlation between real and predicted Landsat
NDVI in a citrus zone DOY 252
Figure 8: Zoom in an irrigated zone in real Landsat NDVI
image DOY.
Figure 9: Zoom in an irrigated zone in predicted Landsat
NDVI image using WESTARFM DOY 252.
Figure 10: Correlation between real and predicted Landsat
NDVI in an irrigated zone DOY 252.
Figure 11: Zoom in a rainfed zone in real Landsat NDVI
image DOY 252.
Figure 12: Zoom in a rainfed zone in predicted Landsat
NDVI image using WESTARFM DOY 252.
Figure 13: Correlation between real and predicted Landsat
NDVI in a rainfed zone DOY 252
We have calculated the Root Mean Square Error
(RMSE), the Absolute Average Difference (AAD)
and the Coefficient of Determination (R2) to validate
the prediction results of the three methods.
Results presented in table 1 have shown that the
WESTARFM method gives more accurate results
than the ESTARFM and WSAD-FM with a RMSE
attending 0.05, AAD of 0.02 and a R2 of 0.64
y = 0,9255x + 0,0449
R² = 0,7846
0,50
0,52
0,54
0,56
0,58
0,60
0,62
0,50 0,52 0,54 0,56 0,58 0,60 0,62
Real NDVI
Predicted NDVI
y = 0,5254x + 0,3384
R² = 0,6974
0,70
0,71
0,72
0,73
0,74
0,75
0,76
0,70 0,71 0,72 0,73 0,74 0,75 0,76 0,77 0,78 0,79 0,80
Real NDVI
Predicted NDVI
y = 0,6451x + 0,0986
R² = 0,5988
0,25
0,26
0,27
0,28
0,29
0,30
0,31
0,32
0,25 0,26 0,27 0,28 0,29 0,30 0,31 0,32
Real NDVI
Predicted NDVI
Fifth International Conference on Telecommunications and Remote Sensing
30
4 CONCLUSION
A new fusion model found on Wavelet transform and
ESTARFM method was presented (WESTARFM).
The model utilizes the Wavelet transform to
decompose the Landsat data into approximation and
detail coefficients. Each of these components is, after
that, predicted separately with the ESTARFM
method. Two pairs of Landsat and MODIS NDVI
from previous days and a MODIS NDVI from
prediction date were needed as inputs of the
WESTARFM to predict an unavailable Landsat
NDVI image. The WESTARFM was tested on NDVI
and compared with other methods. Results have
shown that the proposed method gives more accurate
results for most of evaluated dates. Therefor working
on frequency domain improves the prediction and
predicts more image details. This method was tested
on NDVI but it can be applicable also on Landsat and
MODIS bands.
Table 1: Statistic validation of prediction results using the four fusion methods.
DOY
STARFM
ESTARFM
WSAD-FM
WESTARFM
188
RMSE
0,11
0,09
0,08
0,06
AAD
0,08
0,07
0,06
0,05
R2
0,39
0,42
0,52
0,64
204
RMSE
0,08
0,06
0,09
0,06
AAD
0,06
0,03
0,06
0,03
R2
0,25
0,20
0,34
0,37
220
RMSE
0,07
0,06
0,09
0,08
AAD
0,05
0,03
0,06
0,06
R2
0,38
0,26
0,32
0,29
236
RMSE
0,12
0,08
0,11
0,06
AAD
0,02
0,06
0,08
0,05
R2
0,34
0,24
0,24
0,41
252
RMSE
0,08
0,07
0,09
0,05
AAD
0,04
0,04
0,07
0,02
R2
0,28
0,25
0,31
0,41
268
RMSE
0,07
0,06
0.1
0.09
AAD
0,03
0,03
0.06
0.05
R2
0,22
0,19
0.55
0.6
REFERENCES
Chemin, Y., & Honda, K. 2006. Spatiotemporal fusion of
rice actual evapotranspiration with genetic algorithms
and an agrohydrological model. IEEE Transactions on
Geoscience and Remote Sensing, 44(11), 3462–3469
Chen, B., Huang, B., & Xu, B. 2015. Comparison of
Spatiotemporal Fusion Models: A Review. Remote
Sensing, 7(2), 1798–1835.
Fu, D., Chen, B., Wang, J., Zhu, X., & Hilker, T. 2013. An
improved image fusion approach based on enhanced
spatial and temporal the adaptive reflectance fusion
model. Remote Sensing, 5(12), 6346–6360.
Gao, F., Hilker, T., Zhu, X., Anderson, M., Masek, J.,
Wang, P., & Yang, Y. 2014. Monitoring, Fusing
Landsat and MODIS data for vegetation, (september),
47–60.
Gao, F., Masek, J., Schwaller, M., & Hall, F. 2006. On the
Blending of the MODIS and Landsat ETM + Surface
Reflectance, 20771(2), 20794.
Gevaert, C. M., & García-Haro, F. J. 2015. A comparison
of STARFM and an unmixing-based algorithm for
Landsat and MODIS data fusion. Remote Sensing of
Environment, 156, 34–44.
Ghannam, S., Awadallah, M., Abbott, a. L., & Wynne, R.
H. 2014. Multisensensor Multitemporal Data Fusion
Using Wavelet Transform. ISPRS - International
Archives of the Photogrammetry, Remote Sensing and
Spatial Information Sciences, XL-1(November), 121–
128.
Hilker, T., Wulder, M. a., Coops, N. C., Linke, J.,
McDermid, G., Masek, J. G.,White, J. C., Gao, F. 2009.
A new data fusion model for high spatial- and temporal-
resolution mapping of forest disturbance based on
Landsat and MODIS. Remote Sensing of Environment,
113(8), 1613–1627.
New Wavelet Based Spatiotemporal Fusion Method
31
Hilker, T., Wulder, M. A., Coops, N. C., Seitz, N., White,
J. C., Gao, F., Masek, J. G.,Stenhouse, G. 2009.
Generation of dense time series synthetic Landsat data
through data blending with MODIS using a spatial and
temporal adaptive reflectance fusion model. Remote
Sensing of Environment, 113(9), 1988–1999.
Huang, B., & Song, H. 2012. Spatiotemporal reflectance
fusion via sparse representation. IEEE Transactions on
Geoscience and Remote Sensing, 50(10 PART1), 3707–
3716.
Jarihani, A. A., McVicar, T. R., van Niel, T. G.,
Emelyanova, I. V., Callow, J. N., & Johansen, K. 2014.
Blending landsat and MODIS data to generate
multispectral indices: A comparison of “index-then-
blend” and “Blend-Then-Index” approaches. Remote
Sensing, 6(10), 9213–9238.
Song, H., & Huang, B. 2013. Spatiotemporal satellite image
fusion through one-pair image learning. IEEE
Transactions on Geoscience and Remote Sensing,
51(4), 1883–1896.
Zhu, X., Chen, J., Gao, F., Chen, X., & Masek, J. G. 2010.
An enhanced spatial and temporal adaptive reflectance
fusion model for complex heterogeneous regions.
Remote Sensing of Environment, 114(11), 2610–2623.
Zhu, X., Helmer, E. H., Gao, F., Liu, D., Chen, J., & Lefsky,
M. A. 2016. A flexible spatiotemporal method for
fusing satellite images with different resolutions.
Remote Sensing of Environment, 172, 165–177.
Fifth International Conference on Telecommunications and Remote Sensing
32
