The Code-Map Metaphor

A Review of Its Use Within Software Visualisations

Ivan Bacher

, Brian Mac Namee

and John D. Kelleher

Dublin Institute of Technology, Dublin, Ireland

University College Dublin, Dublin, Ireland

Keywords:

Software Visualisation, Dense Pixel Representation, Review, Code-Map Metaphor, SeeSoft.

Abstract:

Software developers can use software visualisations employing the code-map metaphor to discover and cor-

relate facts spread over a large code base. This work presents an extensive review of the use of the code-map

metaphor for software visualisation. The review analyses a set of 29 publications, which together describe 21

software development tools that use visualisations employing the code-map metaphor. The review follows a

task oriented framework to guide the analysis of the literature in terms of the task, audience, target, medium,

representation, and evidence dimensions based on the code- map metaphor. Although the literature indicates

that software visualisations based on the code-map metaphor are perceived by the research community to be

helpful across all aspects of the software develop process, the main ﬁnding of our review is that there is a lack

of quantitative evidence to support this perception. Thus, the effectiveness of visualisations incorporating the

code-map metaphor is still unclear. The majority of the software visualisations analysed in this study, how-

ever, do provide qualitative observations regarding their usage in various scenarios. These are summarised

and presented in this review as we believe the observations can be used as motivation for future empirical

evaluations.

1 INTRODUCTION

Software visualisation (softvis), a sub-ﬁeld of infor-

mation visualisation, is “the art and science of gen-

erating visual representations of the various aspects

of software (e.g. source code) and its development

process” (Diehl, 2007). Moreover, the goal of softvis

is to help stakeholders to comprehend software sys-

tems and to improve the productivity of the software

development process (Diehl, 2007). Researchers in

softvis are concerned with visualising the structure,

behaviour, and evolution of software; where structure

refers to the static aspects of a software system, be-

haviour to the dynamic aspects of a software system,

and evolution to the development process of a soft-

ware system.

SeeSoft (Eick et al., 1992) is a prominent exam-

ple of a software visualisation. The original publica-

tion has over 800 citations. SeeSoft was pioneered

by Eick et al. in the 1990s to visualise the evolu-

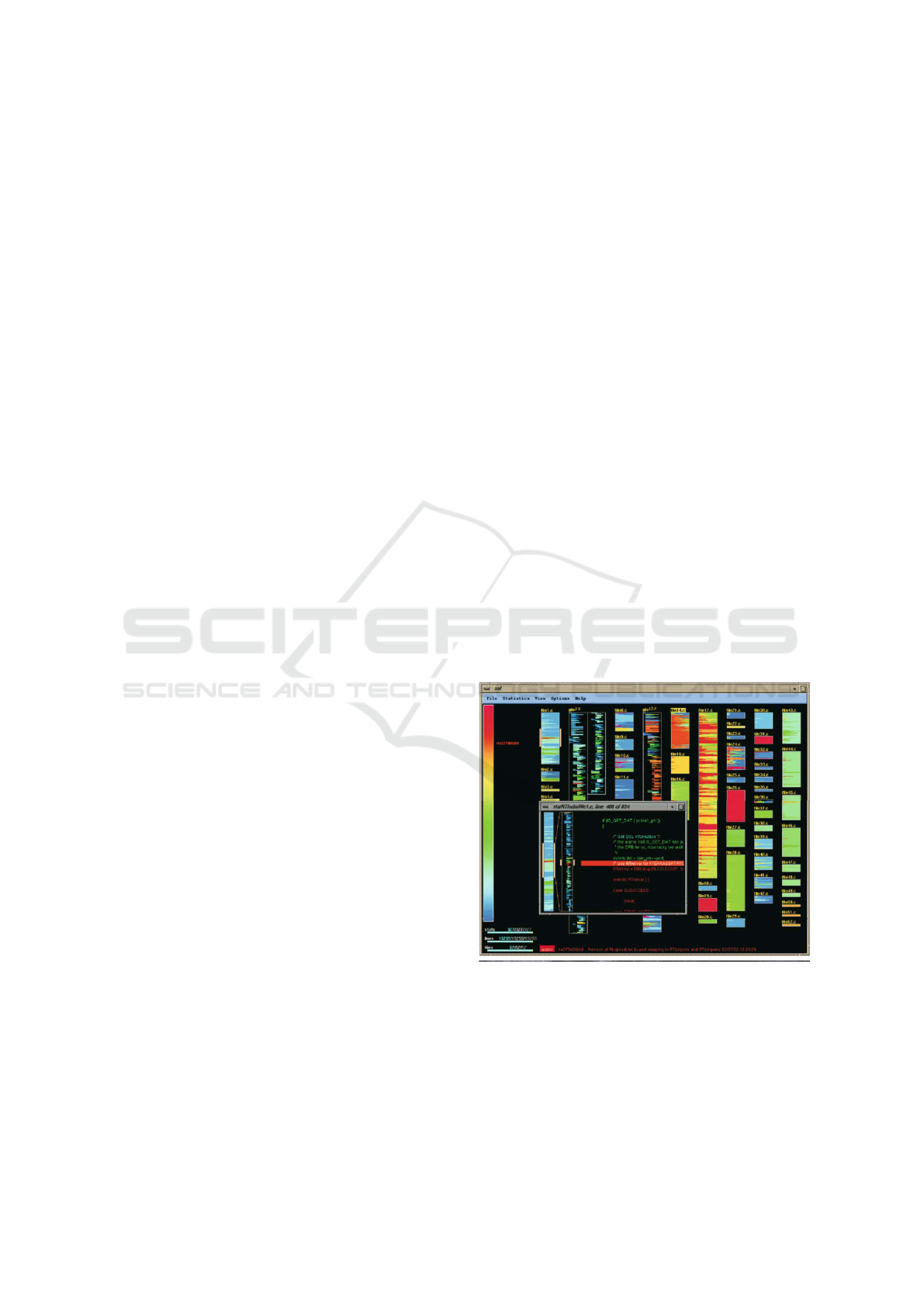

tion of large and complex software systems. Figure

1 shows a screenshot of the SeeSoft system, visualis-

ing several ﬁles containing over ﬁve thousand lines

of code. Colour is used to show code age, where

red depicts recently modiﬁed code and blue depicts

Figure 1: SeeSoft - Visualising program code changes.

code that has been unchanged for a long time. The

smaller window shows the source code correspond-

ing to the current region in focus. Several facts about

the code base are shown including an overview of the

relative sizes of all ﬁles in the code base as well as

their structure. Marcus et al. (Marcus et al., 2003a)

suggest that SeeSoft is so successfully because it in-

Bacher I., Mac Namee B. and Kelleher J.

The Code-Map Metaphor - A Review of Its Use Within Software Visualisations.

DOI: 10.5220/0006072300170028

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 17-28

ISBN: 978-989-758-228-8

corporates a natural and direct mapping from the vi-

sual metaphor to the source code and back, leading

to a natural navigation between the representations.

This makes the visual representation easy to under-

stand, yielding high levels of trust on the part of the

user.

Many visualisations have been developed that are

based on the SeeSoft representation and several terms

have been used to describe these types of visualisa-

tions, including dense layouts for text, pixel oriented

views, and zoomed out views. However, none of

the above terms are able to include all visualisations

based on the SeeSoft representation, therefore, we

will be using the term code-map metaphor. We de-

ﬁne the code-map metaphor as the mapping of source

code to a zoomed out representation, either by the use

of pixels, pixel lines, or a scaled down representation

of text, in order to allow stakeholders to comprehend

various statistics collected at the level of detail of in-

dividual lines of code. We feel that this term best de-

scribes the original intent of these software visualisa-

tions as they encode source code to a zoomed out rep-

resentation that maintains the spatial relationships be-

tween source code elements and visually encodes key

metrics describing the characteristics of these source

code elements.

To the best of our knowledge, there has been no

dedicated effort to identify and synthesise the softvis

literature relating to software visualisations employ-

ing the code-map metaphor. Therefore, to ﬁll this gap,

this work reports the design, execution, and ﬁndings

of a review that identiﬁes, selects, and summarises a

comprehensive set of literature on software visualisa-

tions, that employ the code-map metaphor. The pri-

mary research question this review aims to answer is:

How is the code-map metaphor employed by existing

software visualisations and what evidence exists of its

usefulness? The review follows a task oriented frame-

work to guide the analysis of the literature in terms

of the task, audience, target, medium, representation,

and evidence dimensions (Maletic et al., 2002; Schots

and Werner, 2014) of softvis. The main contribution

of this study is an extensive analysis of the code-map

metaphor, in terms of real world applicability, limi-

tations, and perceived usability. We believe that the

ﬁndings from this review can provide important ben-

eﬁts to researchers and practitioners from the softvis

community.

The remainder of this paper is structured as fol-

lows. Section 2 presents previous overviews, reviews,

surveys, and systematic mapping studies in the ﬁeld

of softvis. Section 3 describes the method used to

identify relevant literature corresponding to software

visualisations employing the code-map metaphor, as

well as the methodology used to extract data from the

literature. Section 4 presents a synthesis of the anal-

ysed software visualisations. Section 5 presents a dis-

cussion of the ﬁndings presented in Section 4. Finally,

Section 6 reiterates the most important aspects of this

study, as well as implications for future work.

2 RELATED WORK

This study presents a review of the code-map

metaphor and software visualisations that employ it.

We are interested in synthesising previous research

to provide insight into how various software visual-

isations have employed the code-map metaphor, as

well as investigating existing evidence in regards to

its usefulness and usability. To the best of our knowl-

edge, this is the ﬁrst review that focuses exclusively

on software visualisations employing the code-map

metaphor.

A large body of literature exists in the ﬁeld of

visualisation in order to guide researchers and tool

developers. For example (Munzner and Maguire,

2015; Ward et al., 2015; Telea, 2015) provide a syn-

thesis view of the infovis ﬁeld. Moreover, there

have been several review (M

uller and Zeckzer, 2015;

Shahin et al., 2014; Sharaﬁ, 2011), overview (Diehl,

2007; Teyseyre and Campo, 2009; Petre and Quincey,

2006), and survey (Ghanam and Carpendale, 2008;

Caserta and Zendra, 2011) studies in the ﬁeld of soft-

vis. These either focus on sofvis as a whole or spe-

ciﬁc areas, such as software architecture visualisation

(Shahin et al., 2014). In order to place this study into

the broader context of softvis literature, we present a

brief overview of a subset of these studies.

Petre and De Quincey (Petre and Quincey, 2006)

provide an overview of the softvis ﬁeld in regards

to what software development tasks are supported by

software visualisations and what aspects of a software

system are visualised. The overview study does not

mention the code-map metaphor. However, the au-

thors do state that one of the main challenges of soft-

ware visualisation is to identify the most appropriate

visualisation technique for a given software develop-

ment task. This claim is considered in our study by

the use of the task oriented framework (Maletic et al.,

2002), which is described further in Section 3.

Shahin et al. (Shahin et al., 2014) conducted a sys-

tematic review of software visualisation techniques

for software architecture. The authors analysed 57

studies and were able to categorise them based on

the type of visualisation technique that was employed.

Out of the 57 studies, 26 employed graph-based visu-

alisations, 22 employed notation based visualisations,

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

5 employed matrix based visualisations, and 4 em-

ployed metaphor based visualisations. The metaphor

based visualisations do not include any software visu-

alisation tools incorporating the code-map metaphor.

We believe that this supports the assumption that the

code-map metaphor is not suitable for software archi-

tecture visualisations, due to the fact that software ar-

chitecture visualisations typically do not include in-

formation at the source code level of detail and are

more tailored toward managers and system architects

rather than software developers.

The survey study on software architecture visu-

alisation by Carpendale and Ghanam (Ghanam and

Carpendale, 2008), emphasises the importance of

evaluation. They found that most software architec-

ture visualisation tools failed in evaluating how their

utilisation directly inﬂuenced the targeted audience.

Additionally, the authors state that it is not sufﬁ-

cient to rely on guesses to decide whether a speciﬁc

metaphor should be used or not, but that there is a

need to study how effective and expressive an abstract

or a real metaphor is. This claim is taken into account

in this review by the use of the extended task oriented

framework (Schots and Werner, 2014), which is de-

scribed further in Section 3.

Caserta and Zendra (Caserta and Zendra, 2011)

present a survey on 2D and 3D based visualization

techniques representing the static aspects of software.

The authors ﬁnd that visualisations of the static as-

pects of software can be split into two main cate-

gories: visualisations that show evolution and visuali-

sations that give a picture of the software at a speciﬁc

point in time. Additionally, visualisations belonging

to these categories can be further categorised based on

their level of abstraction: source code level, middle

level (consisting of package, class and method level),

and architectural level. Several tools included in the

survey are categorised as belonging to the source code

level of abstraction category, including SeeSoft (Eick

et al., 1992) and SV3D (Marcus et al., 2003a).

3 RESEARCH METHOD

A systematic literature review is a widely used re-

search method and is a means of identifying, evaluat-

ing, and interpreting all available research relevant to

a particular topic of interest. For this review, we fol-

lowed Kitchenham and Charters guidelines (Kitchen-

ham and Charters, 2007). These guidelines involve

three main phases: deﬁning a review protocol, con-

ducting the review, and reporting the review. The pro-

tocol used in this study was inspired by (Shahin et al.,

2014) and is composed of the following components:

research questions, literature search, and study selec-

tion. These steps are detailed in the following subsec-

tions.

3.1 Research Questions

To answer our main research question (how is the

code-map metaphor employed by existing software

visualisations and what evidence exists of its use-

fulness?), a task oriented framework was used to

guide our analysis of the literature we reviewed. The

task oriented framework was originally proposed by

Maletic et al. (Maletic et al., 2002) and is intended to

be used for the characterisation and classiﬁcation of

software visualisations. The framework makes use of

ﬁve dimensions which reﬂect the task, audience, tar-

get, medium, and representation of a software visual-

isation. However, the applicability of a software visu-

alisation to a speciﬁc task is not clearly emphasized

in the dimensions of the framework. The software vi-

sualisation literature (Ghanam and Carpendale, 2008;

Petre and Quincey, 2006) emphasises the importance

of evaluation in order to identify the most appropri-

ate visualisation technique for a given software de-

velopment task. In order to overcome this limita-

tion, Schots and Werner (Schots and Werner, 2014)

extended the task oriented framework to include a di-

mension capturing the evidence that a visualisation is

worthwhile for a speciﬁc task.

To improve support for mapping information to

each dimension, Schots and Werner (Schots and

Werner, 2014) include a comprehensive set of ques-

tions that relate to each dimension. These questions

were modiﬁed to ﬁt this study and are presented in Ta-

ble 1. The modiﬁed task oriented framework utilised

by this study makes use of the following 6 dimensions

and associated questions.

Task (why): This dimension is used to answer

the question of why a particular software visualisa-

tion is needed. More speciﬁcally, in this study the di-

mension is used to determine the main motivation for

employing the code-map metaphor (SQ:1.1) and the

main goal of a visualisation (SQ:1.2). Additionally,

we are also interested in which software engineering

activities the visualisations employing the code-map

metaphor support (SQ:1.3).

Audience (who): Software visualisations can

be tailored toward users with different skills and

different information needs. In order to extract

this information this dimension attempts to answer

which stakeholders the software visualisations target

(SQ:2.1).

Target (what): The target dimension deﬁnes

which aspects of a software system’s source code are

The Code-Map Metaphor - A Review of Its Use Within Software Visualisations

Table 1: Research questions derived from (Schots and Werner, 2014, Table 1).

Dimensions Research questions

Task

SQ1.1: What is the main motivation for using the metaphor?

SQ1.2: What is the main goal of using the metaphor?

SQ1.3: Which software engineering activities are supported?

Audience SQ2.1: For which users are the visualisations intended?

Target

SQ3.1: Which aspects of the source code are visually represented?

SQ3.2: Do these aspects represent the structure, behaviour, or evolution of a software system?

Representation

SQ4.1: How is source code mapped to the visual representation?

SQ4.2: How are the various properties of source code mapped to the metaphor?

Medium

SQ5.1: Which medium is used to display the visualisation?

SQ5.2: Which resources can be used to interact with the visualisation?

Evidence

SQ6.1: Which methods are used for assessing the quality of the visualisation(s) employing the metaphor?

SQ6.2: Which aspects of the visualisation(s) are evaluated?

SQ6.3: What are the results and outcomes of the conducted evaluation(s)?

visualised (SQ:3.1) and attempts to categorise these

aspects in regards to the structure, behaviour, and evo-

lution categories of softvis (SQ:3.2).

Representation (how): The effectiveness of a vi-

sualisation can be measured based on its ability to

clearly and accurately represent information. For this

study this dimension asks how source code (SQ:4.1)

and the various properties (SQ:4.2) of the code are

mapped to the visual representation of the metaphor.

Medium (where): The medium dimension aims

to extract what type of display medium is used by the

software visualisation (SQ:5.1), which can include

paper, single monitors, multiple monitors, virtual re-

ality headsets, and mobile devices. This dimension

also attempts to gain insight into which resources can

be used to interact with the software visualisations

(SQ:5.2).

Evidence (worthwhile): The evidence dimen-

sion is used to determine if the software visualisa-

tions employing the code-map metaphor are effective

in helping their target users. Moreover, the dimen-

sion aims to answer which evaluation methods were

used (SQ:6.1), which aspects of the visualisation were

evaluated (SQ:6.2), and what the outcomes of these

evaluations were (SQ:6.3).

3.2 Literature Search

The process of extracting relevant literature for this

review was composed of three steps. Step one con-

sisted of analysing the literature presented in Table 2,

in order to extract relevant publications related to the

code-map metaphor. Step two consisted of search-

ing the proceedings of the publication venues (known

for including softvis research) presented in Table 3

using the query term “SeeSoft”. This query term

was constructed after examining the publications ex-

tracted from step one. The reasoning behind the query

term was that many of the extracted publications used

the terms “SeeSoft like represented” or “a view simi-

lar to SeeSoft” when describing visualisation systems.

Finally, step three consisted of manually analysing re-

lated work sections from the publications extracted in

step one and step two in order to extract any further

publications related to the code-map metaphor.

Table 2: Literature search phase 1.

Reference Type Extracted

(Munzner and Maguire, 2015) Book 2

(Ward et al., 2015) Book 1

(Telea, 2015) Book 1

(Diehl, 2007) Book 9

uller and Zeckzer, 2015) Review 1

(Shahin et al., 2014) Review 0

(Sharaﬁ, 2011) Review 0

(Teyseyre and Campo, 2009) Overview 5

(Petre and Quincey, 2006) Overview 0

(Ghanam and Carpendale, 2008) Survey 1

(Caserta and Zendra, 2011) Survey 4

Table 3: Literature search phase 2.

Venue Years Papers Extracted

VISSOFT 02, 05, 07, 11, 13 - 15 161 16

SOFTVIS 03, 05, 06, 10 145 20

EuroVIs 2015 - 2016 130 0

InfoVis 2013 - 2016 136 0

ICPC 03, 11, 14, 15 153 1

3.3 Study Selection

The publications extracted from the literature search

were analysed in order to determine if these were rel-

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

evant for this work. For a publication to be included

in the review, the study had to be peer-reviewed and

present a visualisation which employed the code-map

metaphor. In total, 29 publications describing 21 soft-

ware visualisations were extracted and are listed in

Table 4. For the remainder of this study, the names of

the individual visualisations are used rather than ref-

erences to the publications, as several visualisations

are described in multiple publications. To the best of

our knowledge, we have included all software visual-

isations that employ the code-map metaphor.

Table 4: Extracted visualisations.

Name References

SeeSoft

(Eick et al., 1992)

(Ball and Eick, 1996)

SeeSlice

(Ball and Eick, 1994)

(Ball and Eick, 1996)

Almost (Reiss, 1999)

Aspect Browser

(Griswold et al., 2001)

(Shonle et al., 2004)

Aspect Miner (Hannemann and Kiczales, 2001)

Bee/Hive

(Reiss, 2001a)

(Reiss, 2001b)

Tarantula (Jones et al., 2002)

SV3D

(Xie et al., 2005)

(Maletic et al., 2003)

(Marcus et al., 2003a)

(Marcus et al., 2003b)

Augur (Froehlich and Dourish, 2004)

Gammatella (Orso et al., 2004)

MicroPrints

(Ducasse et al., 2005)

(Robbes et al., 2005)

Visual Code Navigator (Lommerse et al., 2005)

War Room Command Console (O’Reilly et al., 2005)

CVSscan (Voinea et al., 2005)

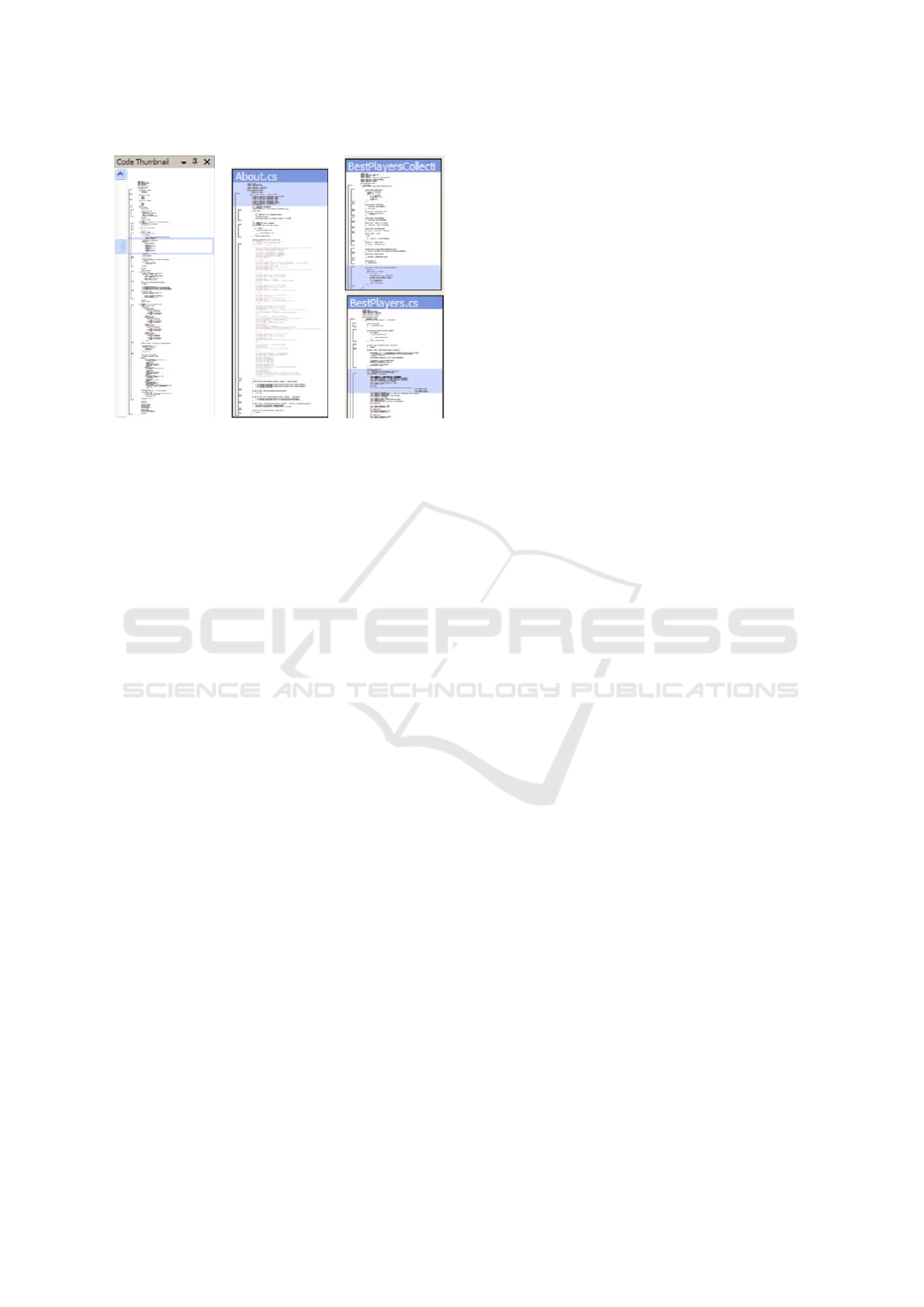

Code Thumbnails (De Line et al., 2006)

SOLIDFX (Telea and Voinea, 2008)

Code Bubbles

(Reiss and Tarvo, 2013)

(Bragdon et al., 2010)

Decluvi (Islam et al., 2010)

MosaiCode (Maletic et al., 2011)

Chronos (Servant and Jones, 2013)

SpiderSense (Reddy et al., 2015)

4 RESULTS

This section will describe the results of analysing the

21 selected visualisations using the extended task-

oriented framework. For each dimension of the task

oriented framework that this study uses, the selected

publications were the only sources of information.

Due to space constraints, only some of the analysed

visualisations are mentioned throughout the descrip-

tion of the ﬁndings.

4.1 Task

SQ1.1: What is the main motivation for using the

metaphor? Examining the source code of a software

system is often the only reliable method for gain-

ing insight into the system’s structure, behaviour, and

evolution. During the maintenance of a software sys-

tem, software developers can face several challenges.

One of the challenges consisting of making changes

to an existing code base, either to extend the func-

tionality of the system of simply just to remove a bug.

However, due to the volume of code that is present in

a typical software system, developers can ﬁnd it dif-

ﬁcult to relate aspects from the structure, behaviour,

or evolution of the corresponding system back to the

code.

In general, the main motivation for produc-

ing software visualisations employing the code-map

metaphor was the need for a direct mapping from a vi-

sual representation to the source code and back. The

direct mapping is needed in order to support the en-

coding of speciﬁc properties and relationship, in or-

der to make developers aware of promising locations

within the code to motivate further exploration.

SeeSoft, one of the ﬁrst tools employing the code-

map metaphor, was motivated by the fact that a new

scalable technique was needed for visualising pro-

gram text. SeeSlice, Almost, Aspect Browser, Au-

gur, Gammatella, and CSVscan were motivated by

the lack of adequate tools for a number of different

software development tasks including exploring pro-

gram slices, inspecting the behaviour of a system, pre-

senting search query results, and supporting the dis-

tributed process of software development. The moti-

vation of SV3D is described as overcoming the limita-

tions of SeeSoft by exploring new mediums and rep-

resentations to facilitate code understanding.

SQ1.2: What is the main goal of using the

metaphor? The main goal of using the code-map

metaphor is to provide developers with a “big picture”

view of a code base, while still being able to under-

stand information collected at the source code level of

detail. This information can include execution traces,

The Code-Map Metaphor - A Review of Its Use Within Software Visualisations

search query results, code ownership, and code age.

Keeping the main goal in mind, the analysed software

visualisations also support speciﬁc goals, depending

on which aspects of a system’s source code are repre-

sented. SeeSoft aims to allow developers, managers,

and testers to gain insight into the overall structure of

a software system. Almost aims to link the execution

history of a software system back to the correspond-

ing lines of code. Tarantula aims to help developers

in locating faults in a program by illuminating pos-

sible faulty statements. Augur aims to enrich source

code with information corresponding to development

activities in order to coordinate collaborative develop-

ment work.

SQ1.3: Which software engineering activities

are supported? All of the analysed software visu-

alisations employing the code-map metaphor support

the comprehension of one or more aspects of a soft-

ware system. This comprehension process in turn

supports a number of software development activities

including speciﬁcation, design, implementation, val-

idation, and maintenance (Laplante, 2007). In gen-

eral, software visualisations employing the code map

metaphor can support all presented activities, except

speciﬁcation. However, the visualisations are mainly

tailored towards supporting software maintenance.

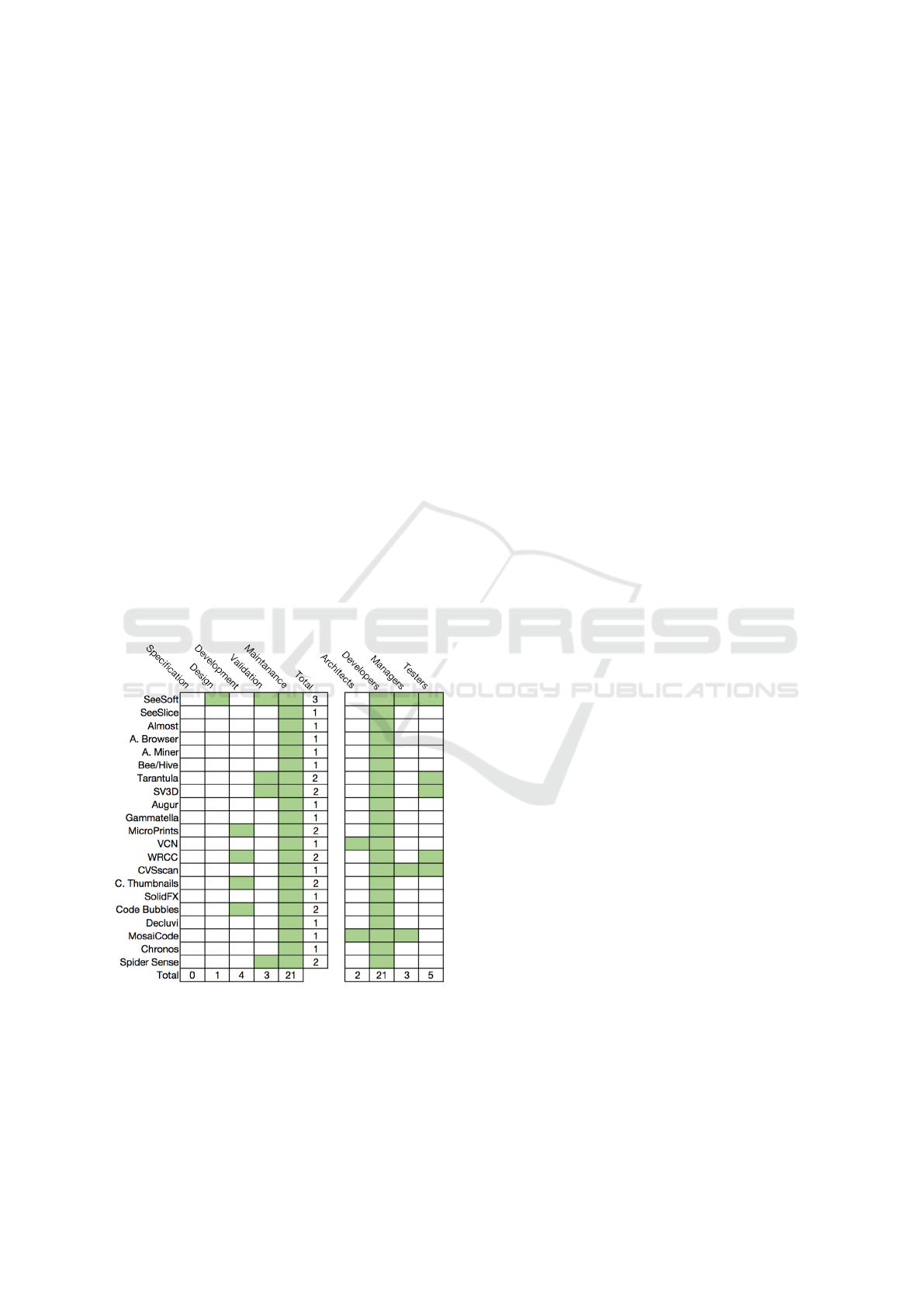

Table 5: SE activities & targeted stakeholders.

Table 5 depicts which of the software engineer-

ing activities are supported by the analysed software

visualisations. All visualisations address the main-

tenance activity, while only a minority address soft-

ware design, development, and validation. A num-

ber of the analysed visualisations, including WRCC,

Tarantula, and MicroPrints, aim to support multiple

actives. The authors of SeeSoft mention support for

designing code and describe how the the code-map

metaphor can be used to determine which subsystems

of a software system would beneﬁt most from an ob-

ject oriented design. The authors of Code Thumb-

nails mainly focus on using the code-map metaphor

to facilitate source code navigation. However, the

tool is incorporated into an integrated development

environment. Therefore, we assume that it supports

the tasks of writing code. Almost utilises the code-

map metaphor for linking execution history to the cor-

responding lines of code in order for developers to

quickly gather enough knowledge about the system

to make small to medium changes. Gammatella and

Tarantula address the activity of verifying code by us-

ing the code-map metaphor for visualising program

faults. This is done be examining the results of test

cases and encoding the corresponding lines of code

with the colour green (passing tests) or red (failing

tests).

4.2 Audience

SQ2.1: For which users are the visualisations in-

tended? The analysed visualisations are targeted to-

wards four types of users: software architects, devel-

opers, managers, and testers. Many of the visualisa-

tions including Tarantula, VCN, and CSVscan men-

tion that the targeted users are maintainers. We as-

sume these to be similar to developers, therefore, the

visualisations which target maintainers are included

in the developer category. Table 5 depicts the tar-

geted users for each of the analysed software visu-

alisations. All visualisations target software devel-

opers/maintainers, where only 2 mention support for

software architects, 3 mention support for software

project managers, and 5 mention support for soft-

ware testers. An interesting ﬁnding was that none

of the analysed visualisations were targeted towards

students and/or instructors. Furthermore, none of the

analysed visualisations mention if they are tailored

towards novice or experienced users. This is an im-

portant aspect, as experienced programmers will have

drastically different information needs compared to

novices.

4.3 Target

SQ3.1: Which aspects of the source code are visu-

ally represented? The main data represented is the

source code of a software system. However, visu-

alisations employing the code-map metaphor aim to

visually encode at least one other aspect within the

code, depending on the task at hand. These aspects

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

range from code-age to test execution data, to devel-

oper activity. For example, the authors of SeeSoft in-

clude several different examples where colour is used

to encode either execution traces, code structure, code

ownership, code age, code evolution or query results.

Augur displays code structure and developer activity

simultaneously. Aspect Miner and Aspect Browser

both use the code-map metaphor as a means of dis-

playing the results of queries on a global view of a

code base. These queries consist of regular expres-

sions used to locate speciﬁc code fragments.

SQ3.2: Do these aspects represent the struc-

ture, behaviour, or evolution of a software sys-

tem? To better understand the use of the code-map

metaphor we categorised the visualisations that were

analysed for this review according to whether they

visualised structure, behaviour, and evolution. The

code-map metaphor can be used to visualise all three,

byt many visualisations focus on a subset. Figure 2

depicts the result of our classiﬁcation. SeeSoft and

Sv3D correspond to the structure, behaviour, and evo-

lution of a software system. Aspect Browser, Aspect

Miner, and Code Thumbnails are mainly concerned

with visualising the static structure of a software sys-

tem. SeeSlice and MicroPrints visually represent as-

pects corresponding to the static structure and dy-

namic behaviour of a system.

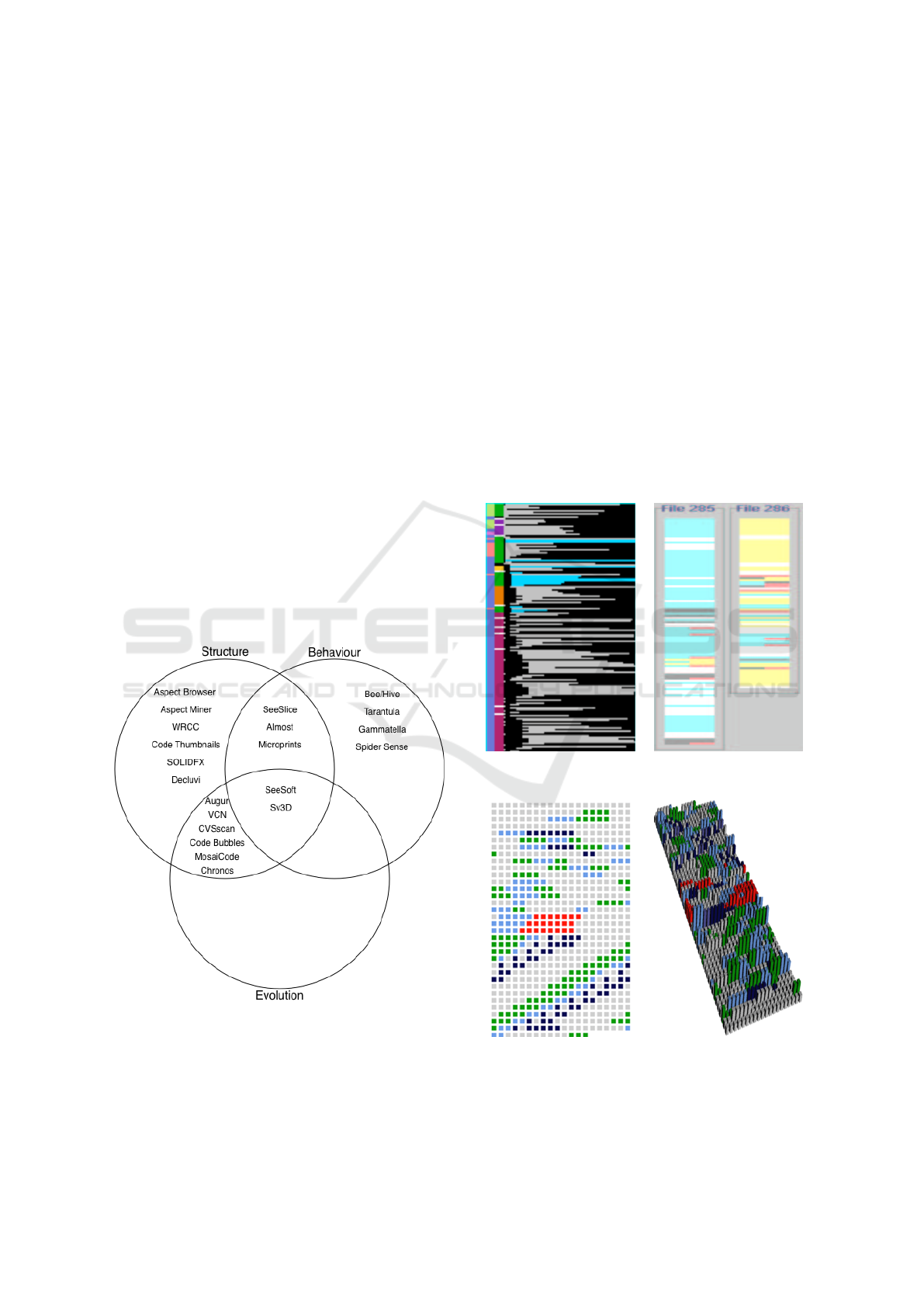

Figure 2: Classiﬁcation of analysed visualisations.

4.4 Representation

SQ4.1: How is source code mapped to the visual

representation? There are three main approaches to

mapping source code to a code-map representation.

The ﬁrst approach maps each line of code to a pixel

line, as seen in Figures 3 and 4 . Figure 3 uses the

actual layout of the code, including indentation and

spacing. Visualisations that utilise this mapping in-

clude SeeSoft, Augur, and Tarantula. Figure 4 ignores

the layout of the code and maps each line of code

to a new line in the visual representation, as seen in

Aspect Browser and Aspect Miner. The second ap-

proach (Figures 5 and 6) maps each line of code to a

pixel (2D) or cuboid (3D). Both the 2D and 3D rep-

resentation can be seen in SV3D. The third approach

(Figure 7) is similar to the ﬁrst approach, however,

it utilises a scaled down font representation instead

of pixel lines. This approach also takes the original

layout of the code into consideration and can be seen

in Code Thumbnails. The most commonly used ap-

proach for mapping lines of code to a display medium

is the pixel line approach depicted in Figure 3.

Figure 3: Pixel line 1. Figure 4: Pixel line 2.

Figure 5: Pixel (2D). Figure 6: Pixel (3D).

SQ4.2: How are the various properties of

source code mapped to the metaphor? Colour is

an important attribute and is used in most tools as a

The Code-Map Metaphor - A Review of Its Use Within Software Visualisations

Figure 7: Scaled font.

means for encoding additional information. Aspect

Browser and Aspect Miner use colour to encode the

results of queries in order to make developers aware

which lines of code correspond to the queries. Taran-

tula uses colour to show which lines of code contain

faults. Augur uses colour to depict developer activity

(Figure 3) and SeeSoft uses colour to encode code age

(Figure 1). Several of the analysed software visual-

isations use other means such as lines, shapes, and

annotations to display additional information. The

code-map display in Augur is annotated with informa-

tion in two extra columns that run down the left-hand

side of each module block (Figure 3). The leftmost

column indicates developer activity, while the other

shows code structure by indicating line type (block

comments, method deﬁnitions, and method separa-

tors). Juxtaposing these columns allows developers

to see at a glance whether recent activity has added

whole new methods or modiﬁed existing ones. Code

Thumbnails uses brackets drawn to the left of the

code-map to convey the nesting structure of the code

(Figure 7).

4.5 Medium

SQ5.1: Which medium is used to display the vi-

sualisation? The medium of choice used to display

visualisations employing the code-map metaphor is a

standard computer display (in cases where authors do

not explicitly state this we feel it is safe to assume).

Some authors (e.g SeeSoft) include additional infor-

mation regarding the display medium supported by

the visualisations, however, this information is mostly

limited to the make and model of the display and the

supported resolution. No approaches mentioned the

use of virtual reality or mobile devices, which is ex-

pected as most were created before these were widely

available.

SQ5.2: Which resources can be used to inter-

act with the visualisation? While most of the anal-

ysed software visualisations employing the code-map

metaphor include information regarding the interac-

tions the visualisations support (e.g zooming, scal-

ing), all fail to provide information in regards to

which interaction devices are supported. Therefore,

we assume that all analysed visualisations support

a standard computer mouse and keyboard. No ap-

proaches mention support for other devices such as

virtual reality headsets or motion capture devices.

4.6 Evidence

SQ6.1: Which methods are used for assessing

the quality of the visualisation(s) employing the

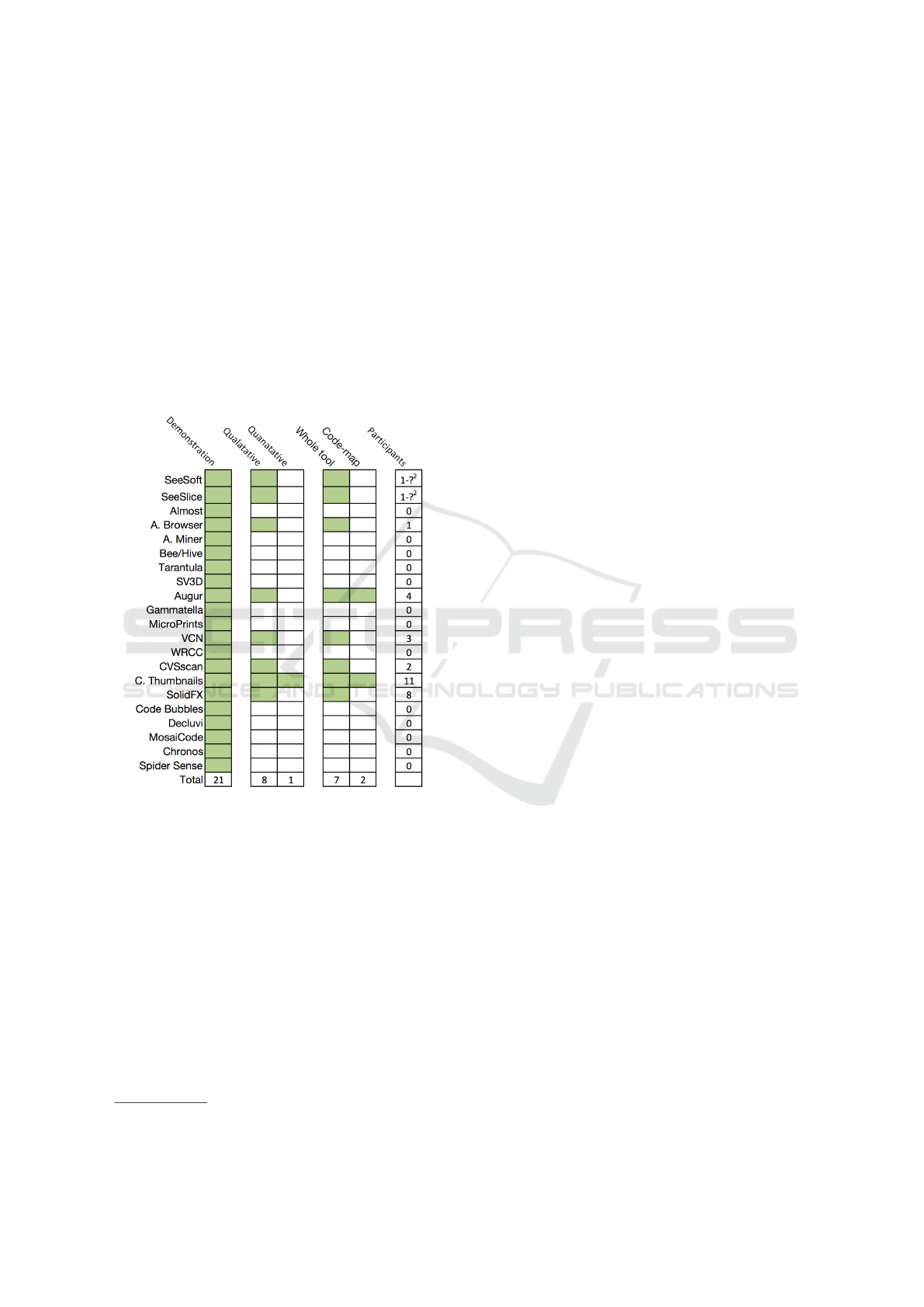

metaphor? Table 6 summarises the description of

evaluation for visualisation included in this study. 14

of the 21 analysed visualisations did not include any

information on whether some type of evaluation was

performed other than providing a simple use case

demonstrating how the visualisation can be used. The

authors of Tarantula, Code Bubbles, and SolidFX did

conduct a quantitative evaluation. However, the eval-

uations measured the effectiveness of an algorithm

rather than the effectiveness of the code-map visu-

alisation. Therefore, this information was excluded

in our study as we focus exclusively on the code-

map metaphor. The papers describing SeeSoft and

SeeSlice provide an informal evaluation, describing

user experiences posthoc. The papers describing As-

pect Browser, Augur, and CSVscan provide obser-

vational evaluations, which present observations the

authors gathered of users using their tools to com-

plete various software development tasks. The pa-

per describing Code Thumbnails provides a quanti-

tative evaluation regarding the usage of the code-map

metaphor in the context of using spatial memory to

navigate source code. Additionally, the authors of

Code Thumbnails include user feedback through a

formal satisfaction questionnaire.

SQ6.2: Which aspects of the visualisation(s)

are evaluated? Of the papers which provided infor-

mation regarding some form of evaluation, all except

Augur and Code Thumbnails were concerned with

observing and evaluating the usage of the tools as a

whole and not of the utilised code-map metaphor. Ta-

ble 6 includes information on which aspects of the vi-

sualisations, presented in Section 3, were evaluated.

The authors of SeeSoft provided informal usage ex-

perience of the tool in the context of exploring un-

familiar code, assigning code ownership to develop-

ers, changing the design of a code base, examining

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

developer activities, difﬁng versions of a code base,

and proﬁling a code base to ﬁnd execution hotspots.

The authors of SeeSlice provided an informal us-

age experience of the tools ability to present devel-

opers with dynamic code slices. Papers describing

Aspect Browser, Visual Code Navigator, and Code

Thumbnails provided insight to how each tool can

be used to explore, re-factor, and modify an existing

code base. Furthermore, the paper describing Code

Thumbnails was the only paper to present quantitative

results. These results correspond to how the code-

map metaphor can be used as a navigational aid to

facilitate between and within ﬁle navigation.

Table 6: Evaluation type information.

SQ6.3: What are the results and outcomes of

the conducted evaluation(s)? The authors of SeeSoft

and SeeSlice state that by being able to visually see the

structure and change history of a code base or multi-

ple ﬁles within the code base, developers are able to

use the tool to drive code discovery and exploration.

Additionally, when using the code-map metaphor to

encode developer activity, it can be used as a means

to assign the ownership of source code ﬁles or frag-

ments within a code base to the developers respon-

sible for the majority of changes. Moreover, the au-

thors of SeeSoft note that the reaction of developers

and managers using the tool had been enthusiastic and

many stated that they wished that it had been available

for recent work.

The authors of Aspect Browser observed that the

The number of participants was not explicitly stated.

code-map metaphor inﬂuenced and aided the comple-

tion of tasks in regards to software evolution. Also,

the processes and strategies developed around the use

of the metaphor were successful in minimising the

introduction of bugs and produced a running system

with a minimum of debugging. The authors of Au-

gur presented observations on how the tool allowed

developers to gain insight into the coding and devel-

opment practises of distributed team members. Addi-

tionally, developers using the tool were interested and

engaged, as a participant from the observational study

noted that an interesting aspect one can comprehend

from the code-map metaphor, in the context of soft-

ware evolution, is the growth of a project over time.

The literature describing Code Thumbnails presented

quantitative results regarding the usage of the code-

map metaphor for search and spatial memory tasks,

as well as for usage during code base re-factoring.

Although developers were able to use standard nav-

igational features in the quantitative evaluation study,

it was clear that all participants frequently used the

code-map features for navigation, searching, and se-

lection. Even under time pressure, participants found

that the code map was easy to learn and helpful.

In summary, the observations and results pre-

sented here suggest that the code-map metaphor is

useful for providing developers with an overview of

a code base or several ﬁles within a code base. De-

velopers are able to use software visualisations em-

ploying the metaphor for several tasks including code

discovery, tracking and gaining insight into devel-

oper activities, comparing different versions of a sys-

tem or ﬁles, and navigating a large code base. How-

ever, there is a lack of quantitative evidence to support

these claims. Therefore, the effectiveness of the code-

map metaphor remains in question.

5 DISCUSSION

In this section we discuss the limitations of the

evaluations carried out by the authors of the anal-

ysed software visualisations employing the code-

map metaphor. Additionally, shortcomings of the

metaphor, derived from the analysed literature, are

also presented.

5.1 Evaluation

The lack of empirical studies is a shortcoming not

only of software visualisation research, but also of

software engineering and computer science in general

(Diehl, 2007). Quantitative evaluations involving hu-

man participants are time consuming. The authors of

The Code-Map Metaphor - A Review of Its Use Within Software Visualisations

Augur support this claim by stating that effective eval-

uation cannot be conducted in a laboratory, as true

validation requires longer-term deployment and an

analysis of the impact of a system on software devel-

opment practises. Therefore, Diehl (Diehl, 2007) rec-

ommends that at least qualitative evaluations should

be performed during the design of visualisation tools

or posthoc. While the majority of software visuali-

sations analysed in this study do present some form

of qualitative evaluation (informal, formal, and ob-

servational), the evaluations have several limitations

in terms of the methodology used for evaluating the

usability code-map metaphor. These limitations are

discussed below.

An important aspect for evaluating the usability

of a software visualisation is the number of partici-

pants incorporated in the study, as well as the method

used to collect observations of the usability of the

tools. Figure 6 shows the number of participants each

analysed software visualisation used during qualita-

tive and quantitative evaluations. There is no con-

sensus among the evaluations on the number of par-

ticipants needed in order to provide reliable support.

The authors of SeeSoft and SeeSlice do not explicitly

state the number of users that took part in their stud-

ies, therefore, we assume there to have been at least

one. Aspect browser provides observations based on

one user, CSVscan provides observations based on 2

users, while the remaining tools provide results based

on at least 3 users. Nelson (Nielsen, 2000) consid-

ers that at least 15 participants are needed to discover

all usability issues. However, Nielson (Nielsen, 2000)

also proposes that the best results come from testing

no more than 5 users and running many small tests.

For quantitative studies Nielson (Nielsen, 2006) sug-

gests that 20 participants typically offer a reasonably

tight conﬁdence interval. Bridging these ﬁndings with

our study, the reader will ﬁnd that from all of the anal-

ysed software visualisation tools, none meet the re-

quirements speciﬁed by Nielson. Therefore, in order

to provide a consensus among the number of partic-

ipants future evaluations should consider incorporat-

ing, we suggest using the numbers provided by Niel-

son’s research.

Regarding the method used to collect observations

of the usability of a tool, the authors of SeeSoft and

SeeSlice present the experiences of developers and

managers using the tools, but it is unclear how these

experience reports were obtained. The authors of

CSVscan use a silent observer to record both user ac-

tions and ﬁndings during tool usage. The authors of

the paper on Aspect Browser use a method similar to

the think-aloud protocol (Nielsen, 2012). When us-

ing a think-aloud protocol, test participants are asked

to use a system while continuously verbalising their

thoughts as they move through the user interface. The

main beneﬁts of using the protocol include that there

is no special equipment needed, it can be used at any

stage in the development life-cycle, and the protocol

is easy to learn. While the authors of Aspect Browser

observe the activities of a single developer we believe,

however, that the method used to obtain these obser-

vations can be considered a step in the right direction.

Thus, for future evaluations we suggest using a think-

aloud protocol (Nielsen, 2012).

5.2 Limitations

Regarding the limitations of the code map metaphor,

publications corresponding to SV3D and SeeSoft in-

clude this information. We were able to extract 4

main limitations from these publications. The ﬁrst is

that the 2D line representation limits the number of

attributes that can be visualised, as well as the type

of relationships and hierarchies that can be shown.

SV3D tries to tackle this limitation by using 3D in-

stead of 2D. The second limitation mentioned in the

literature is that the metaphor includes little support

for multiple abstraction levels. This limitation is sup-

ported by the fact that most of the analysed tools for

this study include multiple views or multiple visuali-

sation in a single view. The third limitation is that the

metaphor limits the usage of the available 2D space,

as the space is used to depict multiple ﬁles using a

zoomed out representation. However we believe that

this aspect cannot be considered a limitation, as the

main goal of the code-map metaphor is to present as

many ﬁles as possible to provide developers with an

overview of a code base. There is a limit to the num-

ber of lines of code that can be visualised at a single

point in time, but this is due to the limitations of avail-

able screen real estate. Finally, the fourth limitation is

that there is a lack of mechanisms that offer ﬂexibility

to stakeholders in customising their visualisations.

6 CONCLUSION

In this work we provide an extensive review of the

code-map metaphor and analyse 21 software visual-

isations, all of which employ the metaphor. Using

an extended task oriented framework, we were able

to extract information regarding the task, audience,

target, medium, representation, and evidence dimen-

sions.

In summary the code-map metaphor, ﬁrst pro-

posed by Eick et al. (Eick et al., 1992) in the early

nineties in a tool named SeeSoft, is widely perceived

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

to be useful for software development. This is due

to the fact that the metaphor uses a natural and direct

mapping from the visual representation to the source

code and back, which leads to a natural navigation be-

tween multiple representations (Marcus et al., 2003a).

This yields high levels of trust on behalf of the user,

which is supported by qualitative observation from

several of the analysed tools. However, to date, lit-

tle to no quantitative data exists in the literature that

supports the claim that the use of the metaphor can

facilitate the process of software development.

The authors of Code Thumbnails provide quanti-

tative evidence that if present, a code-map visualisa-

tion feature will be used by developers for the tasks

of code exploration, navigation, and selection. Ad-

ditionally, developers using Code Thumbnails were

also starting to form a cognitive map of the code

base. We believe that this is an interesting and im-

portant ﬁnding as it provides initial evidence that the

code-map metaphor is useful for exploring and nav-

igating large code bases, as observations from the

usage of Aspect Browser support this claim. Using

these ﬁndings, we believe that a worthwhile direc-

tion for future work could be investigating the use

of the code-map metaphor in integrated development

environments, extending the work of Code Thumb-

nails. Furthermore, various source code editors, such

as Sublime Text

include a code-map of the currently

focused document. However, to date, no empirical

evidence, other than the results described in Code

Thumbnails, has been found to provide information

about the usefulness of this approach.

A large amount of information relating to soft-

ware developer activities and static characteristics of

source code can be obtained from source code repos-

itories, as it is already available in most revision con-

trol systems. We believe that visualisations employ-

ing the code-map metaphor should be able to provide

most of the above stated information to the user us-

ing a layering mechanism similar to that of an online

map (e.g. Google maps). Depending on the task at

hand, this would allow developers to switch between

viewing different types of information dynamically

and provide a way to tailor the visualisation to help

complete a speciﬁc task or answer a speciﬁc question.

REFERENCES

Ball, T. and Eick, S. (1996). Software visualization in the

large. Computer, 29(4).

Ball, T. and Eick, S. G. (1994). Visualizing program

https://www.sublimetext.com/

slices. Visual Languages, 1994. Proceedings., IEEE

. . . , (October):288–295.

Bragdon, A., Reiss, S. P., Zeleznik, R., Karumuri, S.,

Cheung, W., Kaplan, J., Coleman, C., Adeputra, F.,

and LaViola, J. J. (2010). Code bubbles: rethinking

the user interface paradigm of integrated development

environments. 2010 ACM/IEEE 32nd International

Conference on Software Engineering, 1:455–464.

Caserta, P. and Zendra, O. (2011). Visualization of the static

aspects of software: A survey. IEEE Transactions

on Visualization and Computer Graphics, 17(7):913–

933.

De Line, R., Czerwinski, M., Meyers, B., Venolia, G.,

Drucker, S., and Robertson, G. (2006). Code Thumb-

nails: Using spatial memory to navigate source code.

Proceedings - IEEE Symposium on Visual Languages

and Human-Centric Computing, VL/HCC 2006, pages

11–18.

Diehl, S. (2007). Software visualization: Visualizing the

structure, behaviour, and evolution of software.

Ducasse, S., Lanza, M., and Robbes, R. (2005). Multi-level

method understanding using microprints. In Proceed-

ings - VISSOFT 2005: 3rd IEEE International Work-

shop on Visualizing Software for Understanding and

Analysis, pages 33–38.

Eick, S. G., Steffen, J. L., and Sumner, E. E. J. (1992).

SeeSoft: A tool for visualizing line-oriented software

statistics. IEEE Transactions on Software Engineer-

ing, 18(11):957–968.

Froehlich, J. and Dourish, P. (2004). Unifying Artifacts and

Activities in a Visual Tool for Distributed Software

Development Teams. In Proceedings of the 26th Inter-

national Conference on Software Engineering, pages

387–396. IEEE Computer Society.

Ghanam, Y. and Carpendale, S. (2008). A survey paper

on software architecture visualization. University of

Calgary, Tech. Rep.

Griswold, W. G., Yuan, J. J., and Kato, Y. (2001). Exploit-

ing the map metaphor in a tool for software evolution.

Proceedings of the 23rd International Conference on

Software Engineering. ICSE 2001, (March):265–274.

Hannemann, J. and Kiczales, G. (2001). Overcoming the

Prevalent Decomposition of Legacy Code. In Work-

shop on Advanced Separation of Concerns, 167(May).

Islam, S. S., Krinke, J., and Binkley, D. (2010). Dependence

cluster visualization. In Proceedings of the 5th inter-

national symposium on Software visualization, pages

93–102.

Jones, J., Harrold, M. J., and Stasko, J. (2002). Visual-

ization of test information to assist fault localization.

Proceedings of 24th International Conference on Soft-

ware Engineering, pages 467–477.

Kitchenham, B. and Charters, S. (2007). Guidelines for

performing Systematic Literature reviews in Software

Engineering Version 2.3. Engineering, 45(4ve):1051.

Laplante, P. A. (2007). What every engineer should know

about software engineering.

Lommerse, G., Nossin, F., Voinea, L., and Telea, A. (2005).

The Visual Code Navigator: An interactive toolset for

The Code-Map Metaphor - A Review of Its Use Within Software Visualisations

source code investigation. Proceedings - IEEE Sympo-

sium on Information Visualization, INFO VIS, pages

25–32.

Maletic, J. I., Marcus, A., and Collard, M. L. (2002). A

Task Oriented View of Software Visualization. In Pro-

ceedings - 1st International Workshop on Visualizing

Software for Understanding and Analysis, VISSOFT

2002.

Maletic, J. I., Marcus, A., and Feng, L. (2003). Source

viewer 3D (sv3D): a framework for software visual-

ization. In Proceedings of the 25th International Con-

ference on Software Engineering, pages 812–813.

Maletic, J. I., Mosora, D. J., Newman, C. D., Collard, M. L.,

Sutton, A., and Robinson, B. P. (2011). MosaiCode:

Visualizing large scale software - A tool demonstra-

tion. In Proceedings of VISSOFT 2011 - 6th IEEE In-

ternational Workshop on Visualizing Software for Un-

derstanding and Analysis, pages 1–4.

Marcus, A., Feng, L., and Maletic, J. (2003a). 3D repre-

sentations for software visualization. In Proceedings

of the 1st ACM symposium on Software visuallization,

pages 27–36.

Marcus, A., Feng, L., and Maletic, J. I. (2003b). Com-

prehension of software analysis data using 3D visu-

alization. Program Comprehension, 2003. 11th IEEE

International Workshop on, pages 105–114.

uller, R. and Zeckzer, D. (2015). Past, Present, and Fu-

ture of 3D Software Visualization - A Systematic Lit-

erature Analysis. Proceedings of the 6th International

Conference on Information Visualization Theory and

Applications, pages 63–74.

Munzner, T. and Maguire, E. (2015). Visualization analysis

& design.

Nielsen, J. (2000). Why you only need to test with 5 users.

Nielsen, J. (2006). Quantitative studies: How many users to

test.

Nielsen, J. (2012). Thinking aloud: The # 1 usability tool.

O’Reilly, C., Bustard, D., and Morrow, P. (2005). The war

room command console: shared visualizations for in-

clusive team coordination. In Proceedings of the 2nd

ACM symposium on Software visuallization, volume

St. Louis,, pages 57–65.

Orso, A., Jones, J., Harrold, M. J., and Stasko, J. (2004).

GAMMATELLA: visualization of program-execution

data for deployed software. In Proceedings of the

1st ACM symposium on Software visuallization, pages

699–700.

Petre, M. and Quincey, E. D. (2006). A gentle overview of

software visualisation. PPIG News Letter, (Septem-

ber):1 – 10.

Reddy, N. H., Kim, J., Palepu, V. K., and Jones, J. A.

(2015). SPIDER SENSE: Software-engineering, net-

worked, system evaluation. In 2015 IEEE 3rd Working

Conference on Software Visualization, VISSOFT 2015

- Proceedings, number 1, pages 205–209.

Reiss, S. (2001a). Bee/hive: A software visualization back

end. IEEE Workshop on Software Visualization, pages

1–5.

Reiss, S. P. (1999). Almost : Exploring Program Traces. In

NPIVM, pages 70–77.

Reiss, S. P. (2001b). An overview of BLOOM. Proc. 2001

ACM SIGPLAN-SIGSOFT Work. Progr. Anal. Softw.

tools Eng. - PASTE ’01, pages 2–5.

Reiss, S. P. and Tarvo, A. (2013). Tool demonstration:

The visualizations of code bubbles. In 2013 1st IEEE

Working Conference on Software Visualization - Pro-

ceedings of VISSOFT 2013.

Robbes, R., Ducasse, S., and Lanza, M. (2005). Micro-

prints: A Pixel-based Semantically Rich Visualiza-

tion of Methods. In Proceedings of 13th International

Smalltalk Conference (ISC’05), number August 2005,

pages 131–157.

Schots, M. and Werner, C. (2014). Using a task-oriented

framework to characterize visualization approaches.

In Proceedings - 2nd IEEE Working Conference on

Software Visualization, VISSOFT 2014, pages 70–74.

Servant, F. and Jones, J. A. (2013). Chronos: Visualizing

slices of source-code history. In 2013 1st IEEE Work-

ing Conference on Software Visualization - Proceed-

ings of VISSOFT 2013.

Shahin, M., Liang, P., and Babar, M. A. (2014). A system-

atic review of software architecture visualization tech-

niques. Journal of Systems and Software, 94:161–185.

Sharaﬁ, Z. (2011). A Systematic Analysis of Software

Architecture Visualization Techniques. 2011 19th

IEEE International Conference on Program Compre-

hension, pages 254–257.

Shonle, M., Neddenriep, J., and Griswold, W. (2004). As-

pect Browser for Eclipse. Proceedings of the 2004

OOPSLA workshop on eclipse technology eXchange -

eclipse ’04, pages 78–82.

Telea, A. and Voinea, L. (2008). An interactive reverse en-

gineering environment for large-scale C++ code. In

Proceedings of the 4th ACM symposium on Software

visuallization, pages 67–76.

Telea, A. C. (2015). Data Visualization: Principles and

Practice.

Teyseyre, A. R. and Campo, M. R. (2009). An overview

of 3D software visualization. IEEE Transactions on

Visualization and Computer Graphics, 15(1):87–105.

Voinea, L., Telea, A., and van Wijk, J. J. (2005). CVSscan:

visualization of code evolution. In Proceedings of the

2nd ACM symposium on Software visuallization, vol-

ume 1, pages 47–56.

Ward, M., Grinstein, G., and Keim, D. (2015). Interactive

Data Visualization. Foundations, Techniques, and Ap-

plications.

Xie, X., Poshyvanyk, D., and Marcus, A. (2005). Support

for static concept location with sv3D. In Proceedings -

VISSOFT 2005: 3rd IEEE International Workshop on

Visualizing Software for Understanding and Analysis,

pages 102–107.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications
