An Anti-Phishing Kit Scheme for Secure Web Transactions

A. A. Orunsolu

and A. S. Sodiya

Department of Computer Science, Moshood Abiola Polytechnic, Ojere, Abeokuta South-West, Nigeria

Department of Computer Science, Federal University of Agriculture, Abeokuta, Nigeria

orunsolu.abdul@mapoly.edu.ng, sodiyaas@funaab.edu.ng

Keywords: Backdoor, Electronic Commerce, Malicious Site, Internet, Phishing Kit.

Abstract: In this work, an anti-phishing approach was proposed against phishing pages generated by phishing kits. The

architecture consists of a Sorter Module (SM) and Signature Detection Module (SDM). The SM is used to

separate pages with login attributes and obfuscated scripts from other pages within the system. These sorted

pages are fed into the SDM, where the signature of the suspicious page is generated. In SDM, a two-tier

classifier is employed to generate phishing label based on signature analysis. Experimental results of the

approach indicated a detection accuracy of 100% on specific phishing kit-generated sites and 98% on general

phishing/legitimate data. To determine the detection time of the approach, latency analysis of the system was

performed. The results indicated a latency 0.3s and standard deviation of 0.367s for the various operations

performed by the system during detection. Thus, the approach effectively detects phishing pages by using

‘fingerprints’ from phishing kits.

1 INTRODUCTION

Today, there is an enormous growth of digital

applications in both private and public domains.

Business services and relationships are redefined as

people’s reliance on the internet technology continues

to grow at an unprecedented rate. The proliferation of

Internet has created a lot of opportunities in terms of

automatic availability of services, global coverage,

efficiency, reliability, and zero-delay in service

delivery. Despite these noble contributions of the

internet technology, the security issues of the online

communication have become key concern to the

stakeholders.

In the recent times, hackers have continuously

managed a host of online black markets which

threaten stakeholders’ confidence in the usability of

internet technology (Ajaya et al., 2015). This range of

criminal enterprises includes spam-advertised

commerce, botnet attacks, and a vector for

propagating malware (Islam and Abawajy, 2013).

The incidence of internet black market climaxed with

the advent of phishing, in which both the service

providers and online business operators have suffered

consequences such as damaged reputation and huge

financial losses. Also, unwary users share their own

negative experiences at these malicious sites (Aparna

and Muniasamy, 2015).

Despite the existence of various anti-phishing

measures, the frequency of phishing incidences

continues to increase (Kathryn et al., 2015). For

instance, RSA’s online fraud report showed estimated

losses of over $5.9 billion by global organizations in

nearly 450,000 attacks in 2013 (RSA, 2014). Fig 1

presents the ominous illustration of unique phishing

sites detected from January to September 2015

(APWG, 2016). Generally, cyber criminals use

phishing predominantly as a technique for obtaining

identity related information employing both the social

engineering and technical subterfuge (Han et al.,

2012).

In the past, setting up a fake website with similar

feel like the benign site could be achieved by copying

HTML document of a website and modified them.

However, the rise in the number of phishing sites may

be unconnected with HTML approach as phishers

now prefer exploit kits/phishing kits to the latter

(RSA, 2014). These exploit kits simplify the creation

of fraudulent websites by stealing the source code of

legitimate web pages (Medvet et al., 2008).

According to RSA online report in 2014, abundant

tools and offerings have flooded the underground

markets, thereby making the lives of phishers and

would-be-phishers easier. While the creation of these

malicious sites continues to give phishers opportunity

to create fraudulent services, majority of internet

users remain ignorant, unconscious, or negligent of

Orunsolu, A. and Sodiya, A.

An Anti-Phishing Kit Scheme for Secure Web Transactions.

DOI: 10.5220/0006074900150024

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 15-24

ISBN: 978-989-758-209-7

the adverse effects of phishing (Kathryn et al., 2015).

Although a vast number of literatures identified the

unpopular consequences of phishing toolkits, there is

paucity of literature that concentrates on how to

counter phishing from exploit kits perspective.

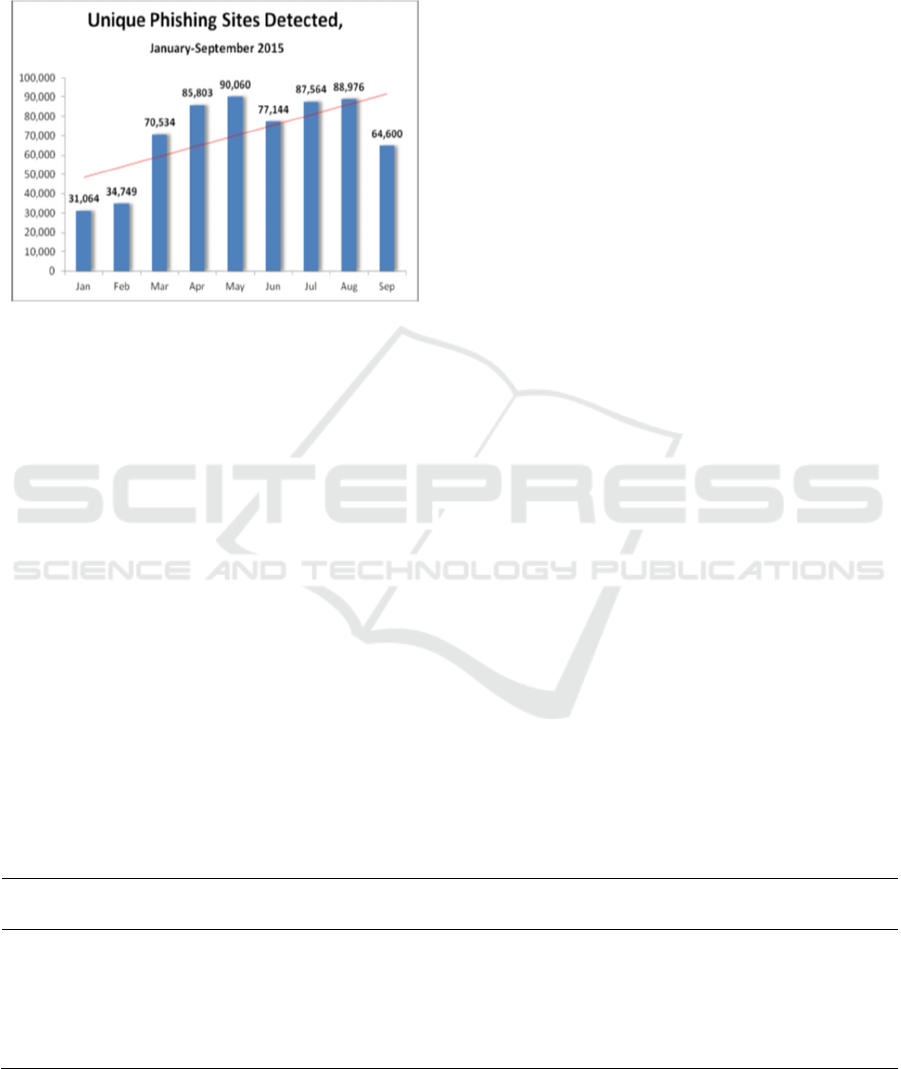

Figure 1: Phishing Volume from JAN-SEPT 2016 (APWG,

2016).

To this end, we report an anti-phishing technique

based on the features of phishing kits as reported in

some extant literature (McCalley et al., 2011; Cova et

al., 2008). The rationale behind the design is simple.

The proliferation of phishing campaign has been

attributed to the availability of phishing kit to hackers

who employ the tool with minimal efforts (Ajaya et

al., 2015). The proposed technique creates an arm

race between the hackers who employ the tool to

create phishing pages and the approach which

disrupts the efficacy of the tool by flagging such page

as fake. In addition, the approach will reduce the

degree of trust associated with phishing toolkits since

there is now a defense model that targets their

architecture. This will make hackers spend time

checking the efficiency of kit before their

deployment. Moreover, on the part of phishing kits

authors, our design presents an attacking model for

which they must consider defense during their design.

We affirm that this is an advantage since attack is the

best form of defense.

The rest of the paper is organized as follows:

Section 2 presents related works, where our approach

is compared with other existing anti-phishing

techniques. The overall architecture and design

details of our proposed methodology are discussed in

Section 3. In Section 4, the implementation and the

evaluation of the proposed method are presented.

Conclusions and future works are presented in

Section 5.

2 RELATED WORKS

Anti-phishing research has attracted a lot of interests

from security experts from both academics and IT

industries. Researchers have developed a plethora of

countermeasures such as list-based approaches (i.e.

Whitelist and Blacklist), heuristics approaches,

hybrid approaches or multifaceted mechanisms

(Gowtham and Krishnamurthi, 2014). Table 1

presents a summary of related works in comparison

with our proposed scheme with respect to the

following parameters: Kit defamation, drop email

discovery, Client independent (i.e. client-side

vulnerabilities) and search engine independence

A number of studies have examined the reasons

that people fall for phishing attacks. For instance,

Dhamija et al., 2006 identified lack of computer

system knowledge, lack of knowledge of security and

security indicators, visual deception and bounded

attention. The authors further showed that a large

number of people cannot differentiate between

legitimate and phishing web sites, even when they are

made aware that their ability to identify phishing

attacks are being tested. In a similar vein, Sheng et al.

investigated the demographic analysis of phishing

susceptibility. Their works showed that women were

more susceptible to phishing than men (Sheng et al.,

2010).

Table 1: Comparison of related works with our approach.

Work Kit Defamation Drop e-mail discovery Client independence Search Engine independence

Aparna et al.

No No Yes Yes

Shahriar et al.

No No No No

Han et al

No No Yes No

Olivo et al

No No No Yes

Gowtham et al

No No Yes No

Our work

Yes Yes Yes Yes

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

In a more recent study, Mohammed et al., 2015.

conducted user study with the use of eye tracker to

obtain objective quantitative data on user judgment of

phishing sites. Their results indicated that users

detected 53% of phishing sites even when primed to

identify them with little attention on security

indicators.

A new method based on hybrid approach which

depends on profiling phishing attacks has offered

significant progress in the quest against phishing.

Islam et al., 2013 investigated a three-tier

classification approach to detect phishing emails

where accuracy of detection is up to 97%. However,

this technique suffered from lengthy training time and

complex analysis. In a similar vein, Gowtham et al.,

studied the characteristics of legitimate and phishing

pages by proposing heuristics, which are

characteristics that are found to exist in phishing

attacks. The authors extracted 15 features as

heuristics for evaluating the phishiness of a webpage.

Before applying heuristics to the webpages, the

proposed system used two preliminary screening

modules to reduce superfluous computation in the

system. However, this approach suffered from client-

side exploits such as Java exploit attacks and high

categorization time (Gowtham and Krishnamurthi,

2014).

Cova et al., 2008 presented an interesting research on

analysis of phishing kits. The authors demonstrated

that there is no such thing as a free phishing kit in the

underground economy. This was based on the

analysis of a large number of kits. The authors found

that the kit authors developed backdoors in their kits

using obfuscated code. These backdoors were used to

send a copy of information collected by the

inexperienced kit users to third parties. In the same

vein, McCalley et al., 2011 analyzed a “back-doored”

phishing kits distributed by the infamous Mr-Brain

hacking group. The authors showed a number of

obfuscated codes used by the kit creator that allowed

a third party to access the credentials of internet

victims. In our work, we used the analysis of these

works to present a defense framework against

phishing kits.

Larcom et al., 2006 and Larson (2010) considered

the instrument of Law in the race against phishing.

Larcom et al., 2010 recommended that courts

should consider either large-scale damages against

individual phishers or secondary liability against

internet service providers (ISP) under the areas of

either intellectual property (IP) or unfair competition

law.

Our approach offers the following contributions

to anti-phishing research:

1. We propose an interesting angle to detect phishing

websites based on the analysis of phishing kits and

some other generalized features of a typical

phishing attacks.

2. We evaluate the proposed approach using

phishing pages created by a numbers of

individuals.

3. We evaluate the system for both accuracy and

performance

3 THE PROPOSED SYSTEM

The research reported in this paper is focused on

phishing detection using the analysis of phishing kits.

Phishing kits are usually distributed as .zip, .gz, .tar,

or .rar archives that contain two types of files. The

first file displays a copy of the targeted web site and

the second file contains the scripts used to save the

phished information and send it to phishers. Phishing

kits are distributed on websites with instructions for

the phishers to insert their email address in order to

receive the stolen information. One of the

distinguishing features of kit-weaved sites is drop

email address usually passed to the PHP ”action” file.

In certain cases, the drop email address is obfuscated

into a hexadecimal form (Cova et al., 2008; McCalley

et al., 2011). In general, majority of phishing kits

contains:

a. Resources to replicate target site using HTML

pages, JavaScript and CSS files, images and other

media files [3,11]

b. Automated email address field to obtain and

validate victim’s information e.g. PHP getmxrr ( )

function [3].

c. Obfuscation techniques for hiding drops and

backdoor within the phishing kit

From the foregoing, we present the overall system

design of the anti-phishing kit architecture. In order

to design an effective architecture, a two-stage anti-

phishing service is created into a single workflow.

These services consist of: (i) a Sorter Module (SM)

and (ii) a Signature Detection Module (SDM). The

SM retrieves the suspicious loading sites and checks

for presence of login form. This is because; the

primary motivation of phishing attacks is to

fraudulently obtained users’ credentials using

spoofed sites. The SM performs the second check for

obfuscation detection. Obfuscation is a technique use

to hide attacks from static detection by causing the

appearance of malicious string to change. In this way,

the code evades detection tools. If no login form or

obfuscated code is observed in the source code by

An Anti-Phishing Kit Scheme for Secure Web Transactions

SM, the loading page is allowed to continue its

session. However, if these traits are observed on the

site, the SM transferred the page to the SDM. In

SDM, the suspected page is processed further. Here,

the features of the pages are extracted and their

signatures are obtained. In this work, 18 heuristic

features are considered. From the viewpoint of

phishing kits, heuristics such as drops, hexadecimal

scripts etc. are referred to as Third party heuristics. To

improve the performance of signatures on general

phishing datasets, the URL characteristics and

keyword identity. Then, all these signatures are used

by hybrid classifier to generate appropriate label for

the loading sites. The hybrid classifier is optimized

using machine learning algorithms consisting of

Naïve Bayes and Support Vector Machine.

4 COMPONENTS OF ANTI-

PHISHING KIT SYSTEM

The proposed Anti-Phishing kit (APK) methodology

consists of the Sorter Module (SM) and Signature

Detection Module (SDM) as depicted in Figure 2.

These two components are used to analyze each

webpage visited and determine the status of the page

with phishing kit. To detect kit generated sites, the

APK loads the webpage, w, a user wants to visit, and

scan through the source file of w for various inherent

phishing kit signatures and the other relevant anti-

phishing signatures. We hope you find the

information in this template useful in the preparation

of your submission.

4.1 The Sorter Module

For a given webpage w, the SM component of APK

first identifies the presence of login fields. This is to

reduce superfluous computation on webpages

without login fields as most phishing websites are

meant to steal user credentials. Generally, the

presence of login form on a page is usually

characterized by presence of Form tags, Input fields,

and login keywords (e.g. password, PIN, ID,

username, social security number, account number

etc.). The Input fields usually hold user input and

other types of forms.

The SM employs Latent Dirichlet Allocation

(LDA) to manage the three login form properties.

This is due to the sensitivity of LDA to changes in

keywords usage which make it good for handling

synonyms. For instance, a phisher may replace the

word ‘password’ with ‘secret word or phrase’ to

circumvent login detection process. LDA posits that

one way of sorting the content of w is to look at the

set of words it uses. Because words carry very strong

semantic information, webpages that contain similar

content i.e. set of login words, will most likely use a

similar set of words. As such, mining an entire corpus

of webpage can expose sets of words that frequently

co-occur within webpages. These sets of word may be

interpreted as topics. The modeling process of LDA

can be described as finding a mixture of topics z for

each website w i.e. 









, with each topic described

by terms t following another probability distribution,

i.e.,









This formalization is given in equation 1









∑





j







P





j





(1)

Where 











is the probability of the ith term for a

given w and



is the latent topic. 















is the

probability of 



within topic j.













is the

probability of picking a term from topic j in the

webpage. The number of latent topics, in the case of

way, LDA estimates the topic-term distribution











and the webpage-topic distribution 









from an unlabeled corpus of documents using

Dirichlet priors for the distributions and a fixed

number of topics (Ralf et al., 2009).

The functionality of SM extends to detecting

presence of obfuscated code in the loading page. The

work of Cova et al and McCalley showed that most

phishing kits employed obfuscation to hide their

malicious activities. In the light of this, we adopt the

work of Xu et al., (2013) to perform the detection of

obfuscated by SM subsystem due to its lightweight

attribute.

4.2 The Signature Detection Module

To determine whether a sorted page is toolkit

generated or not, the Signature Detection Module is

invoked. The main heuristics used by SDM in

classifying a website are the signatures extracted from

the analysis of phishing kit code (called Third party

heuristics), URL characteristics and keyword

identity. Third party heuristics are extracted features

known of a typical phishing kit. For instance, drops

and hexadecimal code are used to hide detection of

kits features (Figure 3). These scripts are inserted by

phishers to obtain undue advantage from the users of

the kit. In addition, these features retain some

information about the kit used. The following section

provides discussion on these heuristics.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

Figure 2: Anti-Phishing Kit defense architecture.

1. Drop Attributes/Bad Forms: Phishing kits

creators usually include backdoors in their scripts.

These backdoors consists of hidden drops, which

covertly send victims’ information to addresses

different from that of kit users. Therefore, the

presence of hidden drops is an indication that a

page is kit-related.

2. Hexadecimal Character Codes/Address

Obfuscation: One distinguishing feature of

phishing kits is to obfuscate email addresses

within a message or website. Hexadecimal codes

are used to obfuscate the planted backdoors in the

kits (Cova et al., 2008). If a website contains

obfuscate address which is recover with

instrumentation or set of command, then the page

is phishing kit-related.

3. Name of Toolkit: Some toolkits usually add the

name of the tool used to fake a site in the source

code of the website as comment e.g. <!-- created

with -->. The name can be found at the top of the

HTML document or the copyright section at the

footer of the webpage as comment which is not

visible to users. Therefore, if a page contain a

name not related to its content, then it is kit-based.

4. Blank Redirection Page: Some phishing toolkits

create a blank page as the first page which will

redirects to the fake page. The blank page contains

some information belonging to the kit used in the

source code of the blank page. If a site contains a

black redirection page with information unrelated

to its content, then it is kit-based.

5. URL of Toolkit: Apart from the toolkit name that

can be found in faked sites, the URL of the toolkit

used can also be found. This is to link new users

to the toolkit in order for them to download it. The

URL is usually commented out so that it will not

be visible to web users. If a page contains out-of-

comment URL not related to the page, then it is

kit-based.

Keyword extraction heuristics are particularly

important in identifying target organization of a

phishing kit. The keyword identity set of a webpage

is usually extracted by considering Document Object

Model tree. The keyword extraction in SDM adopts

the Term Frequency-Inverse Document Frequency

(TF-IDF). The TF-IDF is a numerical statistic which

reflects how important a feature is to a document in a

corpus. It is often used as a weighting factor in

1. Load suspicious page

3. Invoke SDM

4. Check the page for

2. Invoke LDA to check

the web page

5. Classify Webpage

An Anti-Phishing Kit Scheme for Secure Web Transactions

information retrieval and text mining. The TF-IDF

value increases proportionally to the number of times

a feature appears in the document, but is offset by the

frequency of the feature in the corpus.

It is interesting to note that the base of the log

function does not matter and constitutes a constant

multiplicative factor toward the overall result. Thus,

a term t has a high TF-IDF weight by having a high

term frequency in a given document D (i.e. a feature

is common in a document) and a low document

frequency in the whole collection of documents (i.e.

is relatively uncommon in other documents).

The Keyword extraction heuristics used in our

proposed system are discussed as follows:

6. Domain Name Credibility: The domain name

credibility feature determines the genuineness of

the target organization by phishing kit creators

using Google’s PageRank system. If kit contains

file for one or more target organization, then the

rank of the hosting domain is compared with a

threshold value (usually 5 on 0 to 10 scale)

indicating the legitimacy of the site.

7. Domain Name Identity: Most of the website

domain names have relationship to their contents.

The keywords in this domain name are usually

part of the base domain URL. If the keyword

identity set of a page is not related to its contents,

then it is phishing. Otherwise, it is legitimate and

non-kit related.

8. Out-of-Position Brand Name: Legitimate sites

often put their brand name into their domain

name. On the other hand, phishing sites are always

hosted on compromised or newly registered

domains. If the domain keywords are not related

to its brand, then the page is suspicious.

9. Age of Domain: This feature checks the age of

the domain name. Many phishing pages claim the

identity of known brand which has relatively long

history. If the age of domain does not correspond

to the WHOIS lookups, then it is likely to be

deceptive.

The URL identity of a webpage is determined by

analyzing the patterns from its hyperlinks structure.

In a legitimate website most of the links points to its

own domain or associated domain, but in phishing

sites (including the kit-based phish sites) most of the

links point to foreign domain to imitate the behavior

of a legitimate page. For URL identity extraction, the

SDM consider the “href” and “src’ attributes of the

anchor links, particularly <a>, <area>, <link>,

<img>, and <script> tags from the DOM tree of a

webpage. For each anchor, the SDM extracts the base

domain portion from the URL, and then calculate the

number of times each base domain appears. The base

domain that has the highest frequency will be the

URL identity of the webpage. This step is necessary

in determining the behavior of the URL embedded in

a suspicious webpage. In the end, the following

features are considered from URL identity to

generalize the detection accuracy of the proposed

system:

$hostname = gethostbyaddr($ip);

$message = "Chase Bank Spam ReZulT\n"; ...

$message .= "User ID : $user\n";

$messege .= "hostip" $message .= "Full Name :

$fullname\n"; ...

$message .= "City : $city\n";

$messege .= "port";

$message .= "State : $state\n"; ...

$message .= "Mother Maiden Name : $mmn\n";

$messege .= "@"; ...

mail($to,$subject,$message,$headers);

mail($messege,$subject,$message,$headers);

Figure 3: Sample of Drop Email Code (Cova et al., 2008).

10. URL of Original Site: Most phish sites usually

put the URL of the original site faked as comment

at the top of the html page. This is to show where

the website was copied from. If such feature exists

on a page, then it is phishing and possibly kit-

based.

11. Presence of User-info in the Domain Name: In

this feature, the presence of @ or dash (-) is

checked for within the URL. If such feature is

found, then the page is a phish site.

12. IP Address Behavior (Either Irreversible or

Reversible): In this feature, the system checks

whether the URL address of a website is a

permanent IP address which does not have DNS

entries. In most phishing site, the practice is

usually an IP address-based URL because of its

low cost. Therefore, if such feature exists, then the

page is a phish site.

13. Number of Dots in the URL: This feature counts

the number of dots in the URL as most phishing

pages tend to use more dots in their URLs. If this

feature exist on a page, then it is a phish site.

14. Domain Name in the Path of the URL: This

feature checks for the presence of dot separated

domain or host name in the path part of the URL.

If this feature exists in a page, then it is a phish

site.

15. Presence of Foreign Anchors: This feature

examines of foreign anchors in a webpage. If a

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

page contains too many foreign anchors then it is

likely to be deceptive.

16. Cookie Domain: This feature checks the

transmission of text data by a web server to a web

client. This text data is called HTTP cookies

which are used for maintaining information about

client users. If a website has a domain cookie

which is in a foreign domain, then it may be

deceptive as most legitimate websites have their

own domain cookies or no cookies.

17. Port Number Behavior: This feature compares

the port number part of a domain name with the

stated protocol part of a URL. If the protocol does

not match the port number, then the page is a

phish site.

18. SSL Protected: Secure login pages of benign

sites often have an SSL certificate while most

phishing sites do not. This feature examines the

certificate of a webpage and whether is it issued

by trusted certificate authority. If the page’s

claimed identity does not appear in the attached

certificate, then the page is likely to be phishing

and kit-related.

The algorithm in Figure 4 presents the main structure

of the proposed system.

Input: Web page W, Anti-phishing signatures S

Output: Phishiness level of W

Begin

1. Load and parse page W

2. Generate the DOM from HTML of W

3. Check if W

∋

FORM input

4. Check if W

∋

Obfuscated JavaScript code

5. If (3) .OR. (4) ∈W, invoke SM for preprocessing

else Exit // .OR. is a disjoint relation

6. Else if (5) is present, extract signature of W

∋

preprocessed DOM (W)

7. Extract URL heuristics, Keyword extraction

heuristics and Third-party heuristics from W

8. Send the signature (W) to NB-SVM classifier

trained with dataset S

9. Display the status of W

10. End if

End

Figure 4: Anti-Phishing Kit Defense Algorithm.

To detect the status of the analyzed webpage, the

SDM uses a hybrid classifier consisting of Naïve

Bayes and Support Vector Machine based on the

extracted features. The SDM uses Naïve Bayes (NB)

as vectorizer and Support Vector Machine as

classifier. The main problem associated with using

SVM as classifier is the effort needed to transform

text data into numerical data which is sometimes

termed as “vectorization”. It is natural to use the NB

as the vectorizer for classifier based on the vector

space model, such as SVM, which typically requires

preprocessing to vectorize the raw text documents

into numerical values. In this way, NB is used as a

pre-processor for selected features in the front end of

the SVM to vectorize corpus before the actual

training and classification are carried out. The main

procedure of the proposed hybrid classifier is

described in Figure 5.

Algorithm: A hybrid classifier algorithm – create an

ensemble of classifiers using NB and SVM.

Input: 18-dimension feature vector space, Training

data of labeled examples S consisting of the signature

Output: Label (1: (Phished) PT related; 0: (Benign)

non-PT related)

Procedure:

1. For all signature i extracted from W

2. Compute the conditional probability of signatures

of analyzed phishing kit given the signature of W

3. Construct the probability as input into SVM

4. Find the optimal hyper plane for signature (W)

and signature S

5. Classify W

Figure 5: Two-Tier Classifier of SDM.

5 IMPLEMENTATION AND

EVALUATION

Our Anti-Phishing defense system is implemented in

Microsoft’s Visio Studio environment on a machine

with Windows 7 OS. The machine runs on an Intel

Core i5 processor with 4 GB RAM and 450 GB Hard

drive. We trained the algorithm using a set of web

pages consisting of toolkit-generated pages and

genuine pages. A preliminary test showed that this

implementation can accurately detect the absence of

a user wants to visit, and scans through the source file

using the attributes of its keyword extraction, URL

behavior and Third-party heuristics.

In order to evaluate the effectiveness of this

system, we recruited the service of ethical hackers

consisting of 100 students of a Computer Security

class and 4 external research collaborators to create

phishing pages using toolkits of their choice. In

addition, phishing and legitimate data were obtained

from openly available research database sources such

as PhishTank, Millersmiles, Alexa ranking and

An Anti-Phishing Kit Scheme for Secure Web Transactions

Cybercrime Archive to evaluate the performance of

the system on general phishing data corpus.

We conducted three experiments to evaluate the

performance of the proposed system. The first

experiment and the second experiment were used to

evaluate the accuracy of the proposed approach in

terms of True Positive, False Positive, False Negative

and True Negative. The True Positive means the

actual data and predicted categories are true. The True

Negative means actual and predicted categories are

negative. The False Positives means the predicted

should have been negative instead classified as

positive. The False Negatives means predicted should

have positive instead classified as negative. Accuracy

is a measure of how accurate the learned system

makes prediction on unseen test instances.

In the first experiment, 258 kits–generated sites

created by ethical hackers were subjected to the

prediction of APK. Exactly 208 of these cloned pages

were generated by students of Computer Security

class during a Security Lab assignment in March

2015. The remaining 50 were created by ethical

hackers collaborated into this study in December

2014. Table 2 presents the number of sites created by

each phishing toolkit used by the students during the

cloning process. These kits perfectly faked the

original sites with similar look and feel that can

deceive even an experienced web user (Fig. 6). One

of the phishing toolkits that are used by the ethical

hackers is the HTTRACK which is an easy to use

offline browser utility. This toolkit enables a phisher

to download a webpage from the internet to a local

directory and thereafter build recursively all

directories (e.g. html files, images, link structure and

other files) from the server to the phisher’s computer.

It is important to state that these two groups of

collaborators (i.e. the computer security students and

ethical hackers) did not have the knowledge of our

defense system.

Table 2: Distribution of kit-created pages.

Name of Kit Number of Webpages

Cyotek

Fresh Web

HTTRACK

Webclone Maker

Web2Disk

Total

208

In general, these toolkits always obfuscate the

links of the login-page. These toolkit-generated

websites were build offline and were later put online.

Then, the APK was used to download the source code

of these toolkit-generated sites and checked for

phishing signatures. In the end, the approach correctly

labeled the 258 websites as phishing. Figure 7

presents the graphical illustration of the first

experiment. APK was able to detect all the 258

websites due to the common weakness of redirection

to the real web page these phishing toolkits

mimicked.

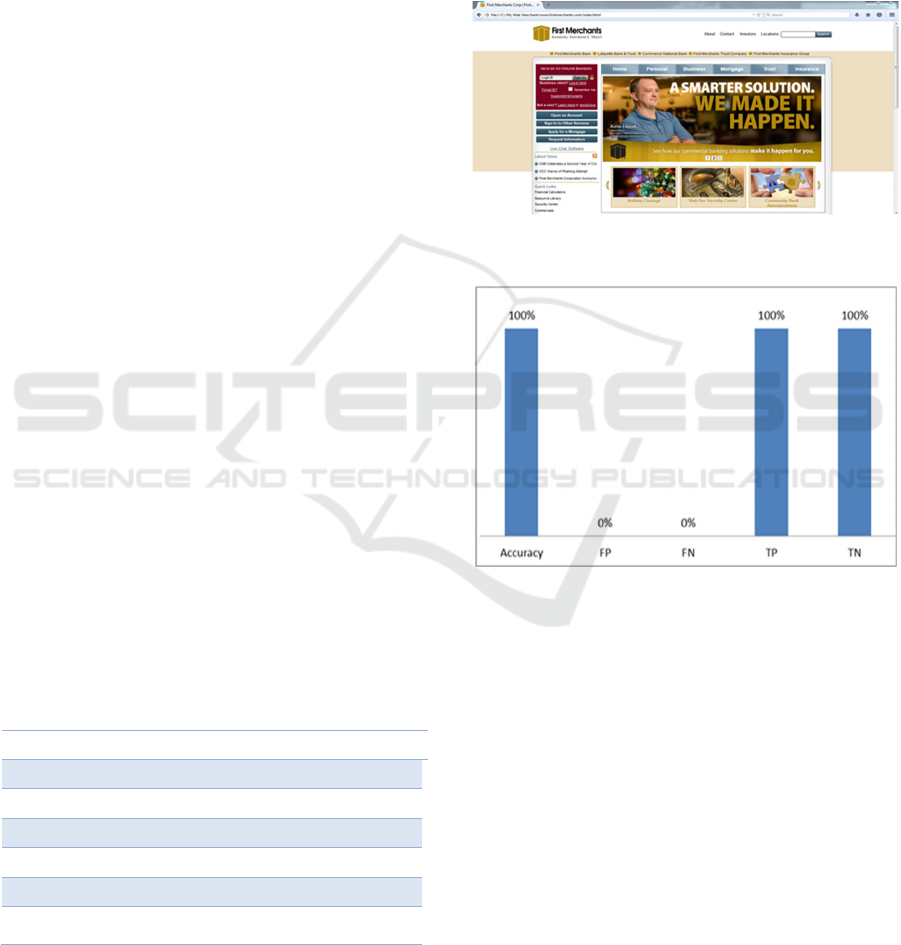

Figure 6: PT-Generated First Merchants Bank Home Page.

Figure 7: Experimental Results on PT-Generated Sites.

In the second experiment, the performance of the

system was tested on general phishing dataset corpus.

A total number of 200 phishing pages and legitimate

pages were compiled over the period of 4 months

from September 2014 to December 2014.

Specifically, our data consists of 100 phishing pages

from PhishTank (2014), Millersmiles and

CyberCrime Archive (http:// cybercrime-tracker.net).

On the other hand, the 100 legitimate pages were

obtained from Alexa Ranking Top List which

contains well-known websites with high ranking

(http://www. alexa.com). These legitimate sites are

popular sites which are usually target by phishers

because of their large numbers of subscribers. This is

easy as all the registered users of a website may not

all be security conscious and sometimes, changes to

operational issues of such websites may not get to all

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

these users on time. Figure 8 showed the

experimental results of the system accuracy using

confusion matrix for the 200 dataset.

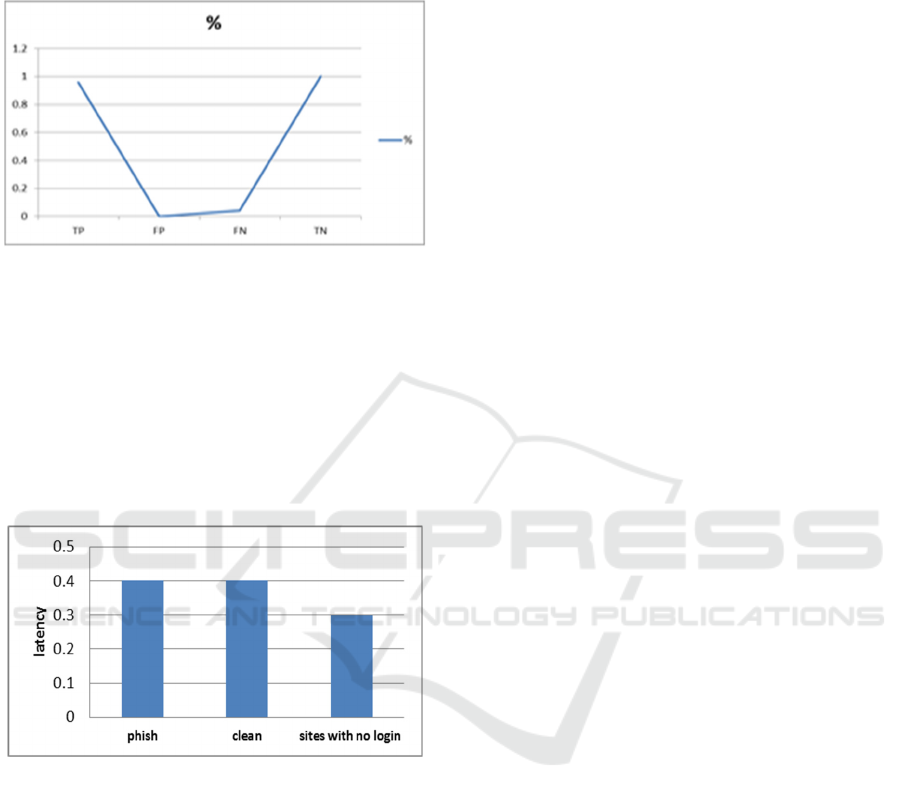

Figure 8: Experimental Results on General Data Corpus.

From the results, the system accuracy is 98% with

low false negatives of 0.04%. All the correctly

detected phishing sites exhibited features captured in

the approach while the incorrectly labeled sites were

developed with advanced features not available in

phishing toolkit technology. A closer examinations of

these undetected sites revealed that phishers built

those sites from the scratch to escape possible

detection by anti-phishing techniques.

Figure 9: Average Latency Analysis of APK.

In the third experiment, the runtime analysis of the

proposed system was evaluated to determine the

usability issue of delay that users may experience

during the detection process of APK. Using

standardized timing procedure; we run experiments

for different testing sites. In the process, we

calculated the time between the initiation of a

transaction (e.g. loading of suspicious page) to the

time when the system completes the detection

process. The average latency for the various

operations in APK is presented in Figure 9. In our

experimental analysis, we found that it took 0.3s for

APK to download and check the login status of a

website. The signature extraction and detection takes

0.4s and the system used 0.4s to check clean sites. The

standard deviation of the system is 0.367s.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, the concept of phishing detection based

on the analysis of phishing kit was presented and

discussed. This is achieved through the Sorter

Module and Signature Detection Module components

of the APK architecture. The Sorter Module detects

the presence of login fields and obfuscated code on a

suspicious page to prevent superfluous computation

in the Signature Detection Module. This is necessary

because most phishing pages are set up to have

access, and subsequently, steal users’ data. The sorted

pages with login fields and obfuscated code are sent

to Signature Detection Module. In SDM, signatures

are extracted from the sorted pages and its features

are subsequently generated. A hybrid classifier is

used to correctly label the extracted signatures. The

work is implemented and evaluated using dataset

from standard dataset from openly available research

data sources such as PhishTank. Three experiments

were conducted during the evaluation process. The

first experiment, in which the performance metrics

were evaluated, indicated that the accuracy of the

proposed system is 100% with no false positives for

specifically kit-generated sites. Whereas in the

second experiment, which determines the accuracy of

APK on general phishing dataset corpus from openly

available data sources indicated 98% accuracy with

low false positives. In the third experiment, the

associated latency with the proposed system was

evaluated. The evaluation results indicated a very low

latency with insignificant bandwidth overhead.

Future works we will determine the accuracy of the

system on large datasets from specifically phishing

toolkit-generated sites and open phishing dataset

corpus with adequate consideration for evasion

technique such as randomization in toolkits. We hope

to devise a method to have access to online black

market to obtain data for phishing toolkit-generated

sites from professional phishers to see if the

submissions of ethical hackers have any resemblance

with their antics.

REFERENCES

Ajaya, N., R Luthfor, M., Nitesh, S. & Leane, H., 2015. A

Multi-Modal Neuro-Physiological Study of Phishing

Detection and Malware Warning. Proceedings of CCS.

An Anti-Phishing Kit Scheme for Secure Web Transactions

Aparna, S. & Muniasamy, K., 2015. Phish Indicator: An

Indication for Phishing Sites. Artificial Intelligence and

Evolutionary Algorithms in Engineering Systems.

APWG, 2016. APWG Security Report, s.l.: s.n.

Cova, M., Kruegel, C. & Vigna, G., 2008. There is No Free

Phish: An Analysis of "Free" and Live Phishing Kits.

s.l., USENIX Workshop on Offensive Technologies.

Dhamija, R., Tygar, J. & Hearst, M., 2006. Anti-phishing

based on automated individual white-list. USA, ACM

Workshop on Digital Identity Management.

Gowtham, R. & Krishnamurthi, I., 2014. A Comprehensive

and efficacious architecture for detecting phishing

pages. Computers and Security.

Han, W., Cao, Y., Bertino, E. & Yong, J., 2012. Using

automated individual white-list to protect web digital

identities. Expert Systems with Applications.

Islam, R. & Abawajy, J., 2013. Multi-tier phishing

detection and filtering approach. Journal of Network

and Computer Applications.

Kathryn, P. et al., 2015. The design of phishing studies:

Challenges for researchers. Journal of Computers and

Security.

Larcom, G. & Elbirt, A., 2006. Gone phishing. IEEE

Technology and Society.

Larson, J., 2010. Enforcing Intellectual property rights to

deter phishing. Intellectual Property and Technology .

McCalley, H., Wardman, B. & Warner, G., 2011. Analyis

of Backdoored Phishing Kits. IFIP Open Digital

Library.

Medvet, E., Kirda, E. & Kruegel, C., 2008. Visual-

Similarity based phishing detection. Turkey,

Proceedings of 4th conference on Security and Privacy

in Communication Networks.

Mohammed, A., Furkan, A. & Sonia, C., 2015. Why

phishing still works: User strategies for combating

phishing attacks. International Journal of Human

Computer Studies, pp. 70-82.

Ralf, K., Peter, F. & Wolfgang, N., 2009. Latent Dirichlet

Allocation for Tag Recommendation. s.l., ACM RecSys.

RSA, 2014. Anti-Fraud Command Center, s.l.: RSA

monthly online fraud report.

Sheng, S. et al., 2010. Who falls for phish? A demographic

analysis of phishing susceptibility and effectivenessfor

interventions. USA, Conference on Human factors in

Computing Systems.

Xu, W., Zhang, F. & Zhu, S., 2013. JStill:Most Static

Detection of Obfuscated Malicious Javascript Code.

s.l., CODASPY.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy
