System for Executing Encrypted Java Programs

Michael Kiperberg

, Amit Resh

, Asaf Algawi

and Nezer J. Zaidenberg

Faculty of Sciences, Holon Institute of Technology, Holon, Israel

Department of Mathematical IT, University of Jyvaskyla, Jyvaskyla, Finland

School of Computer Science, The College of Management, Academic Studies, Rishon LeZion, Israel

{mikiperberg, amitr44, asaf.algawi}@gmail.com, nzaidenberg@me.com

Keywords:

Java, Trusted Computing, Hypervisor, Virtualization, Remote Attestation.

Abstract:

An important aspect of protecting software from attack, theft of algorithms, or illegal software use, is elim-

inating the possibility of performing reverse engineering. One common method to deal with these issues is

code obfuscation. However, it is proven to be ineffective. Code encryption is a much more effective means of

defying reverse engineering, but it requires managing a secret key available to none but the permissible users.

Adequate systems for managing secret keys in a protected trust-zone and supporting execution of encrypted

native code have been proposed in the past. Nevertheless, these systems are not suitable as is for protecting

managed code. In this paper we propose enhancements to these systems so they support execution of en-

crypted Java programs that are resistant to reverse engineering. The main difﬁculty underlying Java protection

with encryption is the interpretation that is performed by the JVM. The JVM will require the key to decrypt

the encrypted portions of Java code and there is no feasible way of securing the key inside the JVM. To solve

this, the authors propose implementing a Java bytecode interpreter inside a trust-zone, governed by a thin hy-

pervisor. This interpreter will run in parallel to the standard JVM, both cooperating to execute encrypted Java

programs.

1 INTRODUCTION

Digital content such as games, videos, and the like

may be susceptible to unlicensed usage, which has

a signiﬁcant adverse impact on the proﬁtability and

commercial viability of such products.

One way of preventing circumvention of the soft-

ware licensing program, may be using a method of

”obfuscation”. The term obfuscation refers to mak-

ing software instructions difﬁcult for humans to un-

derstand by deliberately cluttering the code with use-

less, confusing pieces of additional software syntax

or instructions. However, even when changing the

software code and making it obfuscated, the content

is still readable to the skilled hacker (Rolles, 2009;

Bohne, 2008).

Additionally, publishers may protect their digital

content product by encryption, using a unique key to

convert the software code to an unreadable format,

such that only the owner of the unique key may de-

crypt the software code. Such protection may only

be effective when the unique key is kept secured and

unreachable to an adversary. Hardware based meth-

ods for keeping the unique key secured are possi-

ble (Schellekens et al., 2008; Pearson, 2002; Eng-

land et al., 2003; Zaidenberg et al., 2015), but may

have signiﬁcant deﬁciencies, mainly due to an invest-

ment required in dedicated hardware on the user side,

making it costly, and, therefore, impractical. Further-

more, such hardware methods have been successfully

attacked by hackers (Tarnovsky, 2012).

We would like to stress the key difference between

native and managed execution environments. While

it is possible to guarantee that a sequence of native

instructions cannot be intercepted (read or modiﬁed)

during its execution by a CPU (Averbuch et al., 2011;

Averbuch et al., 2013), such a guarantee cannot be

made for a managed execution environment, since an

unexpected behavior can be introduced into the soft-

ware that implements the managed execution environ-

ment. There is, therefore, a need for a technique for

executing safely encrypted managed programs on the

available managed execution environments. In addi-

tion to protection of native code, we previously re-

searched the protecting of video streaming (Zaiden-

berg and David, 2013; Zaidenberg and David, 2014).

In this paper, we present a system that allows en-

crypting and executing programs written for the Java

Virtual Machine (JVM) (Lindholm et al., 2013). The

system execution engine is based on a thin hypervi-

Kiperberg, M., Resh, A., Algawi, A. and Zaidenberg, N.

System for Executing Encrypted Java Programs.

DOI: 10.5220/0006078902450252

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 245-252

ISBN: 978-989-758-209-7

245

sor and works in cooperation with the JVM through

the standardized JVM Tool Interface (JVM TI) and

the Java Native Interface (JNI). The hypervisor ac-

quires the decryption key during the initialization of

the JVM and is responsible for decrypting and execut-

ing the encrypted parts of the Java program.

2 JAVA BYTECODE

Java bytecode is the instruction set of the JVM (Lind-

holm et al., 2013). Programs written in Java are com-

piled to the Java bytecode and stored, together with

additional information, in class ﬁles.

JVM is a stack machine: the arguments of an in-

struction are pushed onto a stack, the instruction is

executed, which pops the arguments off the stack and

the result is pushed back onto the stack.

Each method has its own stack and its own area of

local variables (which also includes method’s parame-

ters). Any constants used in a method, e.g. numerical

constants, type names, or method names, are stored

in a constant pool belonging to the class in which the

method is deﬁned. The method references these con-

stants via their indices.

Many languages, Java among them, have intro-

duced a notion of exceptions. An exception is an

abnormal condition detected by the program, which

cannot be handled locally, i.e. in the method which

detected this condition. Most exceptions occur syn-

chronously as a result of an action by the thread in

which they occur. An asynchronous exception, by

contrast, can potentially occur at any point in the ex-

ecution of a program. Asynchronous exceptions are

not covered in our work. Synchronous exceptions can

occur as a result of execution of the athrow instruction

or any other instruction that speciﬁes an exception as

a possible result. For example, the idiv instruction,

which divides two integers, throws an ArithmeticEx-

ception if the value of the divisor is 0.

Each method may be associated with zero or more

exception handlers. An exception handler speciﬁes

the range of instructions for which the exception han-

dler is active, and describes the type of exception that

the exception handler is able to handle. When an ex-

ception is thrown, the JVM searches for a matching

exception handler in the current method. If a match-

ing exception handler is found, the system branches to

the exception handling code speciﬁed by the matched

handler.

3 JAVA FILE STRUCTURE

Java is an object-oriented programming language. All

code in a Java program is written in classes. The

source code is compiled into intermediate bytecode

that is stored in class ﬁles (Lindholm et al., 2013).

Each class ﬁle contains the compiled bytecode of a

class along with descriptions of its ﬁelds, interfaces

and methods.

Similarly to other instrumentation tools (Chander

et al., 2001; Lee and Zorn, 1997; Harkema et al.,

2002), our encryption tool (Algawi et al., 2014) an-

alyzes and modiﬁes each class ﬁle that was deﬁned to

be protected.

4 JNI/JVM TI

JVM TI is an application programming interface

(API) provided by the JVM that allows the inspec-

tion and the controlling of the state of the JVM and

the program it executes. This API is usually used by

performance proﬁlers and debuggers (Binder and Hu-

laas, 2006; Luedde, 2012). JVM TI is a two-way in-

terface. A client of JVM TI, an agent, can be notiﬁed

of interesting occurrences through events. An agent

can query the JVM through many functions, either in

response to events or independent of them. An agent

is realized in a dynamic library, a dynamic link library

on Windows or a shared object on Linux.

In addition to events interception, JVM TI allows

an agent to inspect and manipulate the state of the

JVM and the state of the program it executes. For ex-

ample, it allows to retrieve the methods of a particular

class, obtain the method’s name and bytecode. An-

other family of JVM TI functions allows inspection

of dynamic aspects of the execution. For example,

the GetLocalVariable functions retrieves the value of

method’s local variable (in Java parameters are also

variables). Finally, another family of JVM TI func-

tions allows modifying the state of the program. This

family includes functions such as SetLocalVariable,

which assigns a value to method’s local variable, Set-

BreakPoint, which sets a breakpoint at a speciﬁed lo-

cation of a speciﬁed method.

JNI is an API provided by the JVM that enables

Java programs to call and be called by native pro-

grams. JNI provides functions that can inspect and

manipulate Java objects. These functions can be sub-

divided to the following families: class operations,

exceptions, accessing ﬁelds, calling methods, etc.

The class operations family includes functions

such as FindClass, which loads a class by its name,

and IsAssignableFrom, which determines whether an

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

246

object of one class can be safely cast to another

class. The exceptions family includes functions such

as Throw and ThrowNew, that request to handle the

speciﬁed exception, and ExceptionOccurred, which

determines whether an exception is being handled.

The accessing ﬁelds family includes functions such

as GetObjectField, which retrieves the value of the

speciﬁed ﬁeld in the speciﬁed object, and SetObject-

Field, which assigns a value to the speciﬁed ﬁeld

in the speciﬁed object. The calling methods fam-

ily includes functions such as CallVoidMethod, which

calls the speciﬁed method of the speciﬁed object, and

CallNonvirtualVoidMethod, which calls the speciﬁed

method of the speciﬁed class (not necessarily object’s

class).

5 THIN HYPERVISOR

A hypervisor, also referred to as a Virtual Ma-

chine Monitor (VMM), is software, which may be

hardware-assisted, to manage multiple virtual ma-

chines on a single system (Popek and Goldberg,

1974). The hypervisor virtualizes the hardware envi-

ronment in a way that allows several virtual machines,

running under its supervision, to operate in parallel

over the same physical hardware platform, without

obstructing or impeding each other.

The authors propose the use of a type-1 hypervisor

environment for securing a single guest stack. Rather

than wholly virtualizing the hardware platform, a spe-

cial breed of hypervisor, called a thin-hypervisor, is

used (Chubachi et al., 2010). The thin-hypervisor is

conﬁgured to intercept only a small portion of the sys-

tem’s privileged events. All other privileged instruc-

tions are executed without interception, directly, by

the OS.

A thin-hypervisor is less susceptible to being

hacked as a result of vulnerabilities, since its code

and complexity are greatly reduced when compared

to a full-blown hypervisor.

In the proposed system, to execute encrypted

Java bytecode, the thin-hypervisor capabilities are ex-

ploited to decrypt the encrypted Java bytecode (us-

ing the secret key) into protected memory regions and

following up with interpretation and execution of the

decrypted instructions while in host mode. The hy-

pervisor obtains the secret key through a process of

remote attestation (Seshadri et al., 2004; Kiperberg

and Zaidenberg, 2013; Kiperberg et al., 2015) Fol-

lowing Attestation our hypervisor protects the keys.

(Resh and Zaidenberg, 2013).

6 SYSTEM DESIGN

The system we present comprises four main compo-

nents: (1) encryption tool, (2) JVM TI agent, (3) thin

hypervisor, (4) attestation server. Figure 1 depicts the

relationship between these components.

The encryption tool processes each class ﬁle by

ﬁrst de-serializing it into memory based structures.

The code bytes of each method are located and ze-

roed out to create a sequence of nop instructions ex-

cept for the very ﬁrst code byte and the last three

bytes. In the ﬁrst code-byte (offset 0) it always in-

serts an aconst null opcode (a single-byte instruction

that pushes a NULL on the operand stack). In the last

3 bytes it inserts a jump instruction that loops back to

the 1st nop instruction (offset 1). The reason for this

pattern is to allow a means to synchronize the JVM

processing of the decrypted bytecode, as will be de-

tailed later. The aconst null opcode at the beginning

of the method’s code is required to appease the Java

veriﬁer. Without the aconst null, the veriﬁer contem-

plates that in the event of exception handling, the loop

back to the method’s start may have a stack depth of

1, while during other loops, stack depth is 0. This

discrepancy is not allowed. With the aconst null op-

code, the stack depth is always 1 regardless, and thus

allowed by the veriﬁer. Methods that are smaller than

5 bytes and cannot accommodate this pattern are sim-

ply not encrypted.

The encryption tool extends the existing constant

pool to make room for encrypted versions of protected

methods’ bytecode. The original bytecodes of each

method are encrypted and inserted in a new record

appended at the end of the constant pool table.

After adding all the new encrypted entries, the en-

cryption tool adds a trailer record at the very end,

detailing the number of preceding encrypted entries.

When the Java class is loaded for execution, the run-

time decryption and execution engine can ﬁnd this in-

formation by looking up the trailer-record at the end

of the constant pool.

Once encryption is completed, the encryption tool

serializes the class structures back into a modiﬁed

class ﬁle, which replaces the original one in the jar

ﬁle.

During the initialization of the JVM TI agent, it

deploys the hypervisor and installs interception func-

tions for the following events (1) class loading, (2)

breakpoint, (3) exception catch. The class loading

event occurs whenever the JVM loads a class and be-

fore any of the class code is executed. Upon this event

the agent inspects the class and determines whether

it is encrypted. If so, the agent installs a breakpoint

at the ﬁrst instruction of each method. These break-

System for Executing Encrypted Java Programs

247

JVM

Agent (2)

Hypervisor

(3)

Attestation

Server (4)

Class B

Encrypted

Class A

Encryption

Tool (1)

Class A

JNI

JVMTI

Hypercall

Frame

TCP/IP

Remote

Server

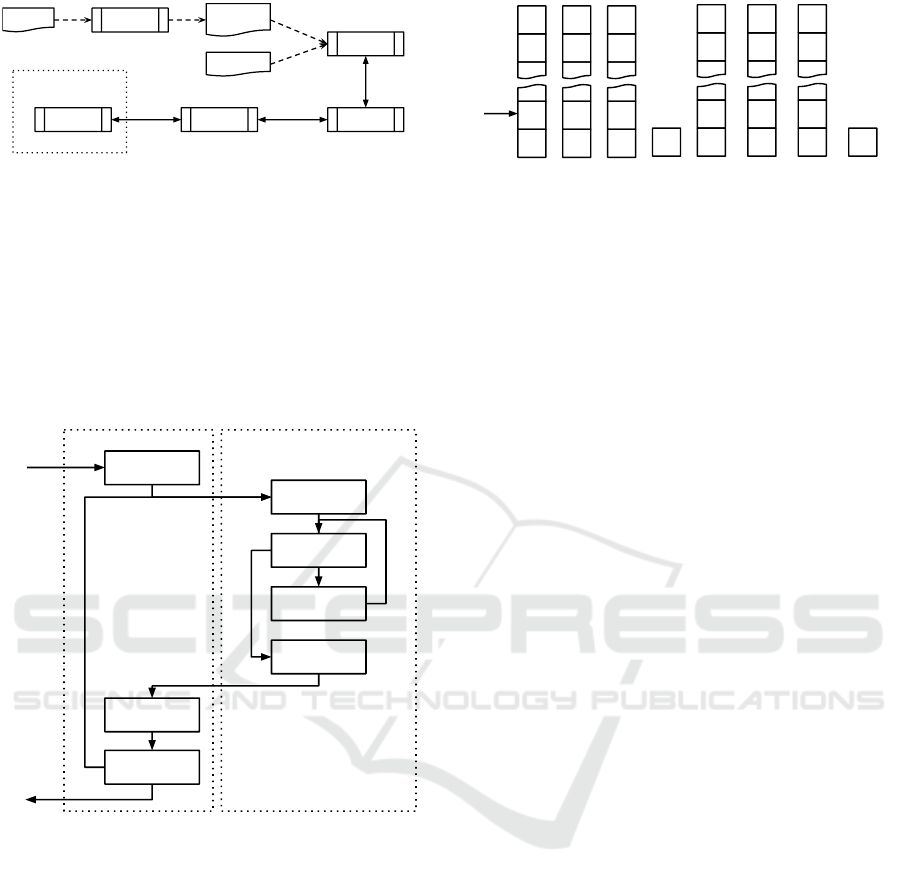

Figure 1: Relationship between the different components of

the described system. The encryption tool (1) transforms

regular Java classes into encrypted ones. Regular and en-

crypted Java classes are then loaded by the JVM. The JVM

loads a JVM TI agent (2) through a JVM TI interface. The

agent links the hypervisor to the JVM and assists in the

interpretation process. The agent communicates with the

JVM through JVM TI and JNI. The communication be-

tween the agent and the hypervisor is based on hypercalls

and execution frames. The hypervisor receives the decryp-

tion key from a remote server, which attests the validity of

the hypervisor and the hardware on which it executes.

Create

frame

Decrypt

instructions

Interpret next

instruction

Erase other

instructions

Interpret next

instruction

Yes

Agent Hypervisor

JVM

Is terminal

instruction?

Can interpret

next instr.?

Yes

Figure 2: A simpliﬁed control ﬂow during encrypted

method execution. The JVM reaches the breakpoint in-

stalled by the agent, and transfers the control to the JVM TI

agent. The agent creates a frame and transfers the control

to the hypervisor. The hypervisor decrypts the instructions,

and interprets them until an uninterpretable instruction is

reached. Then the hypervisor erases all the other instruc-

tions and returns control to the JVM TI agent, which inter-

prets the instruction and either transfers the control to the

hypervisor or returns control back to the JVM.

points induce a breakpoint event on each entry to the

encrypted methods. The agent intercepts the break-

point event, resolves the method that hosts the hit

breakpoint, and begins the interpretation process.

The interpreter constructs a frame, a data structure

which constitutes the execution environment of the

current method invocation (including the encrypted

bytecodes of the current method), and transfers con-

trol to the hypervisor. The hypervisor decrypts the

Stack

Top

Stack Locals Consts

PC Encrypted

Code

Decrypted

Code

Exception

Name

Exit

Reason

Figure 3: Frame’s structure. The frame contains the compu-

tation stack and a pointer to its top element. The frame in-

cludes copies of all the local variables and the constant pool.

The program counter contains the location of the next in-

struction to be executed. The ”encrypted code” buffer con-

tains the encrypted bytecode of the current method, which

is then decrypted and interpreted by the hypervisor. The

”decrypted code” buffer contains the last instruction that

could not be interpreted by the hypervisor. If the hypervi-

sor encountered an abnormal condition, it reports its nature

through the exception name buffer and sets the ”exit reason”

ﬁeld accordingly.

bytecodes and starts interpreting them one-by-one un-

til it reaches an opcode which requires cooperation

with the JVM. At this point, the hypervisor returns

control to the agent and provides it with the instruc-

tion, which it could not interpret, in decrypted form.

The agent proceeds by interpreting the instruction us-

ing JVM TI and JNI and then transfers control back

to the hypervisor. Figure 2 presents the control ﬂow

diagram of the system operation.

7 CO-INTERPRETATION

The interpretation is performed by two interpreters:

one is embedded in the JVM TI agent and the other is

embedded in the hypervisor (further reference to the

thin-hypervisor will be simply: ”hypervisor”). Each

opcode is interpreted by only one of the two inter-

preters. When one interpreter cannot continue inter-

pretation, it transfers the control to the other inter-

preter. The interpreters share a data structure, which

we call a frame, and in which they store the intermedi-

ate results of the interpretation as well as some addi-

tional information. The Frame’s structure is depicted

in Figure 3 and explained below.

We want to enable the interpreter, which is em-

bedded in the hypervisor, to interpret as many in-

structions as possible. Many instructions operate only

on the stack and the program counter (PC). These

instructions include the following groups of instruc-

tions: arithmetic/logic, type conversion, stack man-

agement, control transfer. These instructions require

the following information to be included in the stack:

(a) PC, (b) stack. The load and store group of instruc-

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

248

tions allow the pushing of the value of local variables

and constants onto the stack. In order to enable the

hypervisor to interpret instructions in these groups,

we include the (c) constant pool and the (d) local vari-

ables in the frame.

Instructions that belong to the following groups

are interpreted by the JVM TI agent: object creation

and manipulation, method invocation and return, and

others. These instructions require cooperation with

the JVM. For example, the getﬁeld instruction, which

pushes onto the stack the value of the speciﬁed ﬁeld

in the speciﬁed object, must inspect the internal rep-

resentation of the object as deﬁned by the JVM. An-

other example is the return instruction, which termi-

nates execution of the current method. This instruc-

tion must modify the internal representation of the

stack trace, which is managed by the JVM. There-

fore, all these instructions are interpreted by the JVM

TI agent via JNI and JVM TI functions.

In addition to the data structures which are used

during interpretation, the frame includes three data

structures which are used for communication between

the two interpreters: (a) encrypted code, (b) decrypted

code, (c) exit reason. Before transferring the control

to the hypervisor, the encrypted code buffer is ﬁlled

with the encrypted bytecodes of the current method

by the JVM TI agent. The hypervisor decrypts the

buffer and begins interpretation until it reaches an in-

struction, which cannot be interpreted (inside the hy-

pervisor). This instruction is written to the decrypted

code buffer and the exit reason is set to signify that

the interpretation was suspended due to an uninter-

pretable instruction. The JVM TI agent interprets this

single instruction and the process continues.

Exceptions are an essential part of Java; they

are embedded into the low level bytecode instruc-

tions. Our interpreter supports exceptions (actually

the support for asynchronous exceptions is partial)

both in instructions that are interpreted by the JVM TI

agent and those that are interpreted by the hypervisor.

Clearly, our interpreter must cooperate with the JVM

since it is possible that an encrypted method throws

an exception which is handled by a non-encrypted

method and vice-versa.

The implementation of exceptions in our inter-

preter can be divided into two parts: exception gen-

eration and exception handling. We begin our dis-

cussion with exception generation. The interpreter

should generate an exception when it executes an in-

struction which generates an exception either explic-

itly (by executing the athrow instruction) or implicitly

(e.g. by executing the idiv instruction with invalid ar-

guments). The JVM TI agent delivers an exception

to the JVM by calling the Throw or ThrowNew func-

tions of JNI.

Unfortunately, the hypervisor cannot call JNI

functions directly. Therefore, whenever the hypervi-

sor detects an abnormal condition, it transfers the con-

trol to the JVM TI agent. The nature of the exception

is delivered through the exception ﬁeld of the current

frame. The JVM TI agent then delivers the exception

on the hypervisor’s behalf.

In order to locate the correct exception handler,

the JVM traverses the call stack of the currently exe-

cuting methods. For each method, the JVM inspects

the location in which the execution of the method was

suspended and transferred to another method. These

locations are part of the internal state of the JVM. The

JVM updates these locations during program execu-

tion.

Our interpreters, however, cannot modify these

locations directly, leaving the locations at 0 in all

the encrypted methods. Whenever our interpreters

need to modify the location of the currently execut-

ing method, they install a breakpoint at a desired lo-

cation and return control to the JVM. The JVM exe-

cutes the instrumented bytecode of the method (gen-

erally NOPS and a jump to the beginning at the end),

as described in section 6, until it reaches the installed

breakpoint, and transfers the control back to the JVM

TI agent, which continues the interpretation process.

Since our interpreter can affect only the location of

the currently executing method, it must update the lo-

cation before calling other methods.

8 MEASUREMENTS

According to (Collberg et al., 2007), invokevirtual

is the second most popular instruction (appears with

8.9% frequency) and getﬁeld is the fourth most pop-

ular instruction (5.4%). Unfortunately, these instruc-

tion cannot be interpreted inside the hypervisor, and,

therefore, they are delivered in a decrypted form to

the JVM TI agent, which is not considered secure.

The hypervisor delivers about 38% of the instruc-

tions in a decrypted form back to the JVM TI. There-

fore, in practice, only about 60% of the instructions

in an encrypted class are actually hidden from an ad-

versary. To compare performance of protected-Java

vs. non-protected-Java, two empirical measurements

were conducted.

The purpose of the ﬁrst measurement was to com-

pare code interpretation of decrypted Java bytecode

in the hypervisor to regular, non-protected, JVM code

interpretation. Algorithm 1 presents the pseudo code

of a method that was run in protected and unprotected

mode.

System for Executing Encrypted Java Programs

249

Algorithm 1: Algorithm measuring the correlation between

instruction sequence length and its execution time.

for i = 1,10000 do

t = System.nanoTime()

baseTime += System.nanoTime() - t

end for

for all k ∈ {10, 20, ..., 190, 200, 400, ..., 10000} do

for i = 1,10000 do

t = System.nanoTime()

for i = 1,k do

nothing

end for

sumTime += System.nanoTime() - t

end for

Output: baseTime/10000, sumTime/10000

The ﬁrst repeat block measures the overhead as-

sociated with system time measurement during 10000

iterations. The second repeat block performs the ac-

tual timed measurement. The number of interpreted

instructions measured are a function of parameter k.

The Java bytecodes measured are an empty for loop

and include the instructions to manipulate the control

variable and to cycle the loop. The value of k governs

the number of instructions processed during each it-

eration. Measurements are performed for k assuming

values 10 to 200 at increments of 10 and then 200

to 1000 — at increments of 200. To cancel out ran-

dom measurement errors as a result of asynchronous

events, 10000 iterations are performed for each value

of k and the average value is output. The difference

between sumTime and baseTime, the overhead mea-

surement, is the net time duration of the instruction in-

terpretation process. When measuring protected Java

interpretation the baseTime of the non-protected java

is subtracted from the measured result, in order to in-

clude in the time measurement a hypervisor exit and a

hypervisor entry from/to the agent which is performed

in order to call the System.nanoTime() method.

We observed that baseTime is 55ns in a non-

protected program, and 28726 — when executed in

a protected program. Since the System.nanoTime()

method call is always executed by the JVM (it is

not protected), the overhead time difference (28671

nanoseconds) is attributed to the transitions between

the hypervisor and the agent.

The measurement result for the span of k values is

plotted in Figure 4 on a logarithmic scale. Note that

the transition overhead is signiﬁcant (as compared to

code interpretation) up until k = 1000. Since the size

of the empty for loop in bytecode is about 10 bytes,

it can be determined that the transition overhead is

0 0.2 0.4

0.6

0.8 1

·10

nanoseconds

Protected

Non-protected

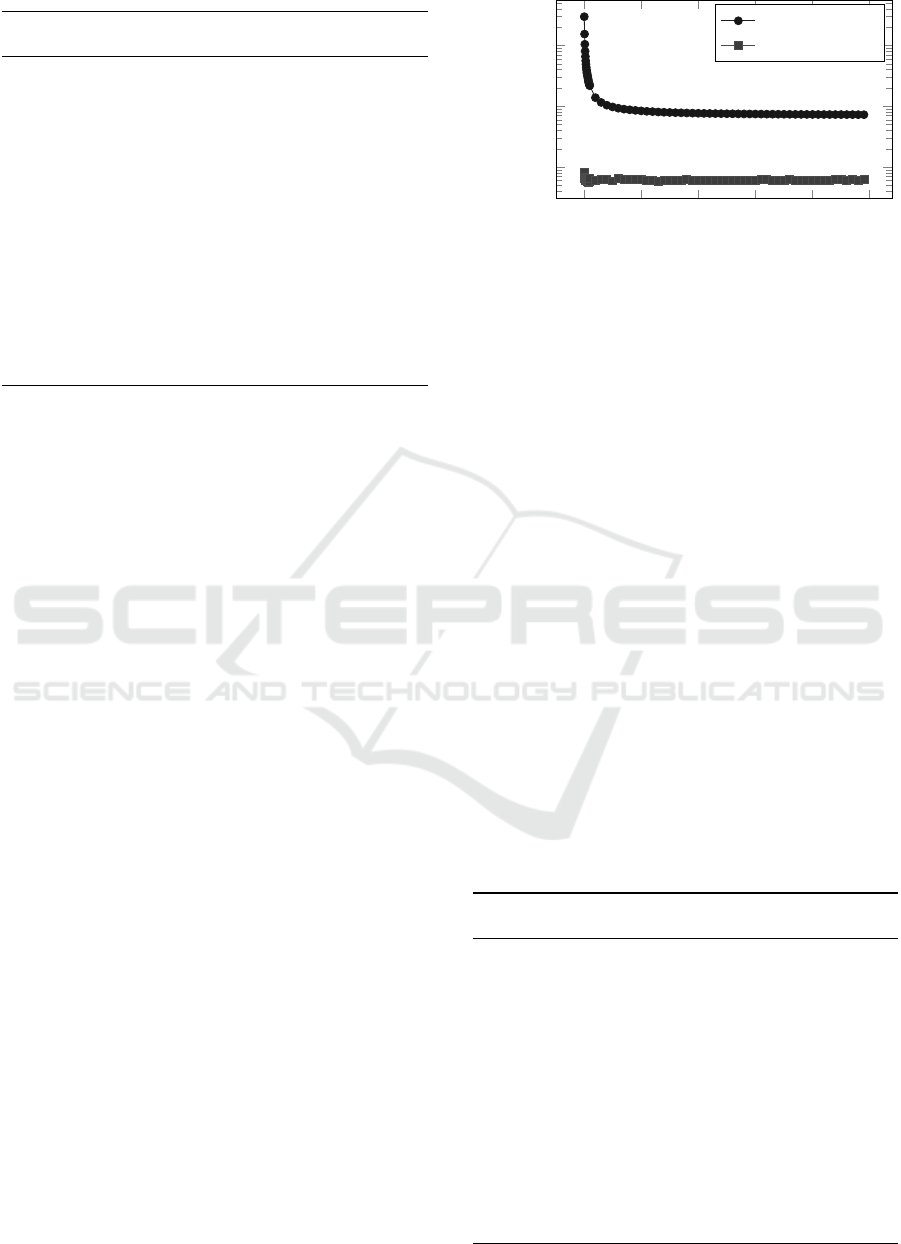

Figure 4: Execution time of Algorithm 1 in nanoseconds.

The ﬁgure presents two graphs that correspond to two ex-

ecution modes: (1) protected mode, in which the algo-

rithm is realized by an encrypted method, (2) non-protected

mode, in which the algorithm is realized by a regular, non-

encrypted method.

signiﬁcant for bytecode sizes of up to 10000 bytes.

For larger bytecodes the performance comparison is

stable at about a 1:10 factor.

While interpretation performance in the hypervi-

sor can be optimized to achieve a result better than

1:10, this measurement shows that for all practical

purposes the transition time will overshadow this.

Therefore, optimization efforts should be concen-

trated there.

The purpose of our second study was to measure

the overhead of calling a protected method as a func-

tion of the number of its parameters. When a pro-

tected method is called, the agent needs to construct

the frame context and transfer control to the hypervi-

sor (via a hypercall). The hypervisor needs to locate

the encrypted bytecode, decrypt it and perform the lo-

cal interpretation. When complete, it needs to return

control to the agent, which will adjust the JVM frame

context.

To measure this entire process, functions of a

Algorithm 2: Algorithm measuring the correlation between

function’s number of arguments and its invocation time.

baseTime = System.nanoTime()

for i = 1,40000 do

nothing

end for

baseTime = System.nanoTime() – baseTime

for all k=0,15 do

= System.nanoTime()

for i = 1,40000 do

Call f

(0, 1, ..., k)

end for

= (System.nanoTime() – T

) / 40000

end for

Output: baseTime, T

, T

, ..., T

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

250

nanoseconds

Callee Caller Non-encrypted

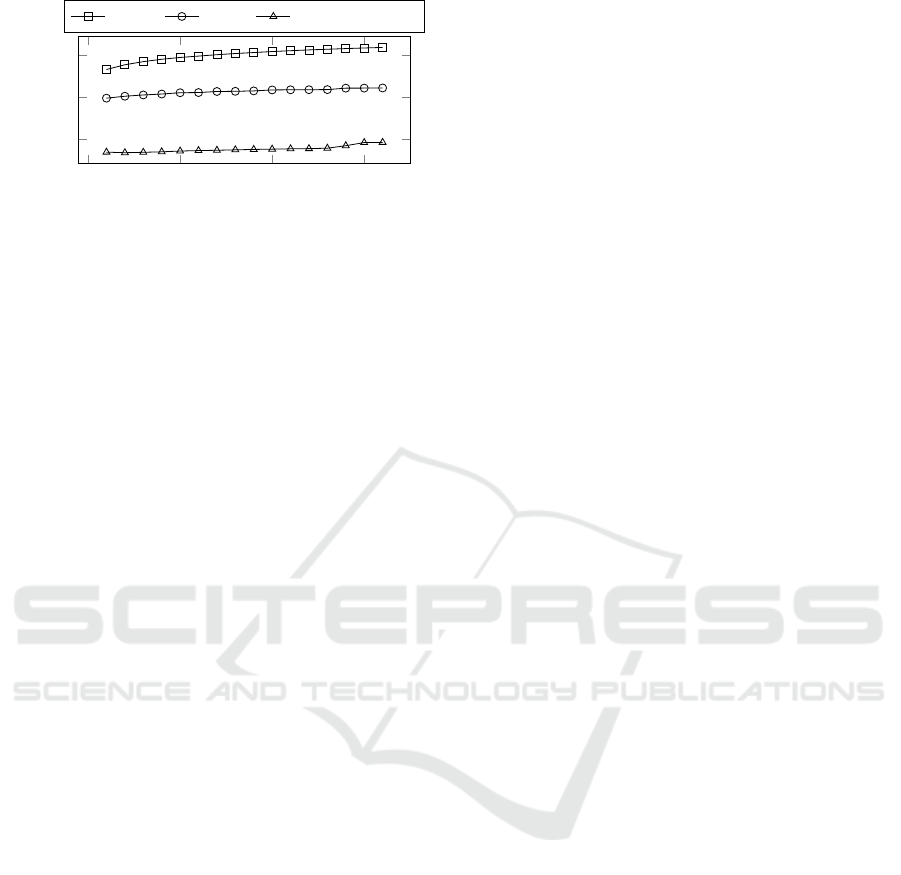

Figure 5: Execution time of Algorithm 2 in nanoseconds.

The ﬁgure presents three graphs that correspond to three

execution modes: (1) the callee, i.e. the function f

, is en-

crypted (2) the caller is encrypted (3) neither the caller nor

the callee are encrypted.

varying number of parameters were called and the

call procedure was timed. The function contents were

identical: f

(int p

, ..., int p

) {p

∗ = p

;} As in the

previous study, each measurement was carried out

multiple times (400000) to reduce error, and a base-

Time was calculated to reﬂect the overhead associated

with managing the loop process, as shown in Algo-

rithm 2.

The baseTime was subtracted from the function

call measurements results. Three types of measure-

ments were conducted, each for all values of k: (a)

non-protected program, (b) protected caller which

calls an non-protected callee, (c) non-protected caller

which calls a protected callee. Figure 5 plots these

measurements on a logarithmic scale.

The largest overhead was acquired when the

callees were encrypted, since this operation is the

most involved: requiring preparation of the environ-

ment, transferring to the hypervisor, decrypting, inter-

preting in hypervisor and restoring the environment.

It is roughly 1.5 to 2 orders of magnitude greater as

compared to the case where only the caller was pro-

tected, since this has moderate overhead, only requir-

ing the hypervisor to prepare the environment and

transfer control to the agent.

The number of parameters generally increase the

timing linearly, as can be expected. However, when

comparing the two protected cases, it can be seen that

the gap between the results increases with the num-

ber of parameters. This indicates that the overhead of

preparing and restoring the environment is more sig-

niﬁcant when the callee function is protected.

9 CONCLUSIONS

As has been shown, Java programs can be, at least par-

tially, protected from an adversary. We believe that

this degree of protection is sufﬁcient in cases where

traditionally obfuscation was used. In other cases,

which require a higher degree of protection, we sug-

gest either avoiding using uninterpretable (by the hy-

pervisor) instructions or use a tool which can reduce

the frequency of uninterpretable instruction (by inlin-

ing methods, for instance).

While the performance penalty can be signiﬁcant

(2-2.5 orders of magnitude) on frequent transitions

between the hypervisor and the JVM TI agent, the

performance improves when longer sequences of in-

structions can be interpreted in the hypervisor at once.

Obviously, sporadic execution of the protected parts

of a Java program has little effect on the overall per-

formance of the program.

REFERENCES

Algawi, A., Neittaanmaki, P., Zaidenberg, N. J., and Parisi-

nos, T. (2014). In kernel implementation of rsa rou-

tines. In ICCSM, pages 149–153.

Averbuch, A., Kiperberg, M., and Zaidenberg, N. J. (2011).

An efﬁcient vm-based software protection. In Net-

work and System Security (NSS), 2011 5th Interna-

tional Conference on, pages 121–128.

Averbuch, A., Kiperberg, M., and Zaidenberg, N. J. (2013).

Truly-Protect: An Efﬁcient VM-Based Software Pro-

tection. Systems Journal, IEEE, 7(3):455–466.

Binder, W. and Hulaas, J. (2006). Exact and portable pro-

ﬁling for the jvm using bytecode instruction count-

ing. Electronic Notes in Theoretical Computer Sci-

ence, 164(3):45–64.

Bohne, L. (2008). Pandora’s Bochs: Automated Unpacking

of Malware. In Pandora’s Bochs: Automated Unpack-

ing of Malware.

Chander, A., Mitchell, J. C., and Shin, I. (2001). Mobile

code security by Java bytecode instrumentation. In

DARPA Information Survivability Conference &

Exposition II, 2001. DISCEX’01. Proceedings, vol-

ume 2, pages 27–40. IEEE.

Chubachi, Y., Shinagawa, T., and Kato, K. (2010).

Hypervisor-based Prevention of Persistent Rootkits.

In Proceedings of the 2010 ACM Symposium on Ap-

plied Computing, SAC ’10, pages 214–220, New

York, NY, USA. ACM.

Collberg, C., Myles, G., and Stepp, M. (2007). An Empir-

ical Study of Java Bytecode Programs. Softw. Pract.

Exper., 37(6):581–641.

England, P., Lampson, B., Manferdelli, J., Peinado, M., and

Willman, B. (2003). A Trusted Open Platform. Com-

puter, 36(7):55–62.

Harkema, M., Quartel, D., Gijsen, B., and van der Mei,

R. D. (2002). Performance monitoring of Java appli-

cations. In Proceedings of the 3rd international work-

shop on Software and performance, pages 114–127.

ACM.

System for Executing Encrypted Java Programs

251

Kiperberg, M., Resh, A., and Zaidenberg, N. J. (2015).

Remote Attestation of Software and Execution-

Environment in Modern Machines. In CSCloud.

Kiperberg, M. and Zaidenberg, N. J. (2013). Efﬁcient Re-

mote Authentication. In The Journal of Information

Warfare, volume 12.

Lee, H. B. and Zorn, B. G. (1997). BIT: A Tool for Instru-

menting Java Bytecodes. In USENIX Symposium on

Internet technologies and Systems, pages 73–82.

Lindholm, T., Yellin, F., Bracha, G., and Buckley, A.

(2013). The Java Virtual Machine Speciﬁcation. Ora-

cle Corporation.

Luedde, M. (2012). Low impact debugging protocol. US

Patent 8,312,438.

Pearson, S. (2002). Trusted Computing Platforms: TCPA

Technology in Context. Prentice Hall PTR, Upper Sad-

dle River, NJ, USA.

Popek, G. J. and Goldberg, R. P. (1974). Formal Require-

ments for Virtualizable Third Generation Architec-

tures. Commun. ACM, 17(7):412–421.

Resh, A. and Zaidenberg, N. (2013). Can keys be hidden

inside the cpu on modern windows host. In European

Conference on Information Warfare, pages 231–235.

Rolles, R. (2009). Unpacking Virtualization Obfuscators.

In Proceedings of the 3rd USENIX Conference on Of-

fensive Technologies, WOOT’09, pages 1–1, Berke-

ley, CA, USA. USENIX Association.

Schellekens, D., Wyseur, B., and Preneel, B. (2008). Re-

mote Attestation on Legacy Operating Systems with

Trusted Platform Modules. Sci. Comput. Program.,

74(1-2):13–22.

Seshadri, A., Perrig, A., van Doorn, L., and Khosla, P.

(2004). SWATT: softWare-based attestation for em-

bedded devices. In Security and Privacy, 2004. Pro-

ceedings. 2004 IEEE Symposium on, pages 272–282.

Tarnovsky, C. (2012). Attacking TPM part two. In Defcon.

Zaidenberg, N. and David, A. (2013). Truly protect video

delivery. In European Conference on Information

Warfare, pages 405–407.

Zaidenberg, N. and David, A. (2014). Maintaining stream-

ing video drm. In ICCSM, pages 149–153.

Zaidenberg, N. J., Neittanmaki, P., Kiperberg, M., and

Resh, A. (2015). Trusted computing and drm. In

Martti Lehto, P. N., editor, Cyber Security: Analytics,

Technology and Automation, chapter 13, pages 205–

214. Springer, Springe.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

252
