Detection and Orientation Estimation for Cyclists by Max Pooled

Features

Wei Tian and Martin Lauer

Institute of Measurement and Control Systems,

Karlsruhe Institute of Technology, 76131 Karlsruhe, Germany

Keywords:

Cyclist Detection, Orientation Estimation, Max Pooled Features.

Abstract:

In this work we propose a new kind of HOG feature which is built by the max pooling operation over spatial

bins and orientation channels in multilevel and can efﬁciently deal with deformation of objects in images. We

demonstrate its invariance against both translation and rotation in feature levels. Experimental results show

a great precision gain on detection and orientation estimation for cyclists by applying this new feature on

classical cascaded detection frameworks. In combination of the geometric constraint, we also show that our

system can achieve a real time performance for simultaneous cyclist detection and its orientation estimation.

1 INTRODUCTION

Inﬂuenced by the environmental friendly and healthy

lifestyle, the number of people riding bicycles is in-

creasing nowadays (Pape, 2015). In the meanwhile,

the safety of cyclists is still a hot research topic due

to the even more complicated trafﬁc conditions (EU,

2015). To solve this problem technically, various de-

tection systems are developed, which can recognize

cyclists in critical scenarios and warn the other traf-

ﬁc participants to prevent probable accidents. Among

a great number of solutions provided in the market,

including radar, lidar, acoustic and inductive sensors

(Dharmaraju et al., 2002) (Krogmeier and Bullock,

2008), vision-based detection system has become a

favorite choice of industries because of its discrimi-

native power and installation ﬂexibility.

Despite a great success of vision-based detection

approaches achieved for other vulnerable road partic-

ipants such as pedestrians (Doll

ar et al., 2012) (Zhang

et al., 2016), the task for cyclist detection still remains

challenging. E.g. in the KITTI benchmark (Geiger

et al., 2012) the number of published detection meth-

ods for cyclists is less than half of that for pedestrians

(Table 1). One of the reasons is that the appearance

of cyclists is signiﬁcantly inﬂuenced by their view-

points, behaviors and the sensor setups. The appear-

ance variation not only results in different aspect ra-

tios but also leads to full or partial translation or rota-

tion of an object in the image (Figure 1). Such kind

of deformation is difﬁcult to deal with. Furthermore,

Table 1: Number of published detection methods for each

object class in the KITTI benchmark till August 2016. The

number of proposed methods for cyclists is less than half

of that for pedestrians, although both of them belong to the

weak trafﬁc participants.

Object

class

Car Pedestrian Cyclist

Number

of methods

25 29 14

in most cases, both the location and the orientation of

cyclists are required to estimate their trajectories and

further to predict probable accidents. This point is

rarely considered in most detection approaches. Last

but not least, the detection system should be able to

run in real time, which is important for most of the

on-road safety systems to react without delays.

To tackle these problems, in this work, we at ﬁrst

propose a new kind of HOG (Histogram of Oriented

Gradients) feature which is built by a max pooling

operation over spatial bins and orientation channels in

multilevel. To calculate this kind of feature efﬁciently,

we implement a framework utilizing a pipeline fash-

ion. The robustness of this new feature against both

translation and rotation of objects can be demon-

strated in feature levels. In addition to that, we present

a framework, which is in combination with this kind

of new feature and can achieve good performance on

simultaneous detection and orientation estimation for

cyclists. With the help of geometric constraints, we

show that our detector is capable for real time appli-

cations.

Tian W. and Lauer M.

Detection and Orientation Estimation for Cyclists by Max Pooled Features.

DOI: 10.5220/0006085500170026

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 17-26

ISBN: 978-989-758-226-4

(a) (b) (c) (d)

(e) (f) (g) (h)

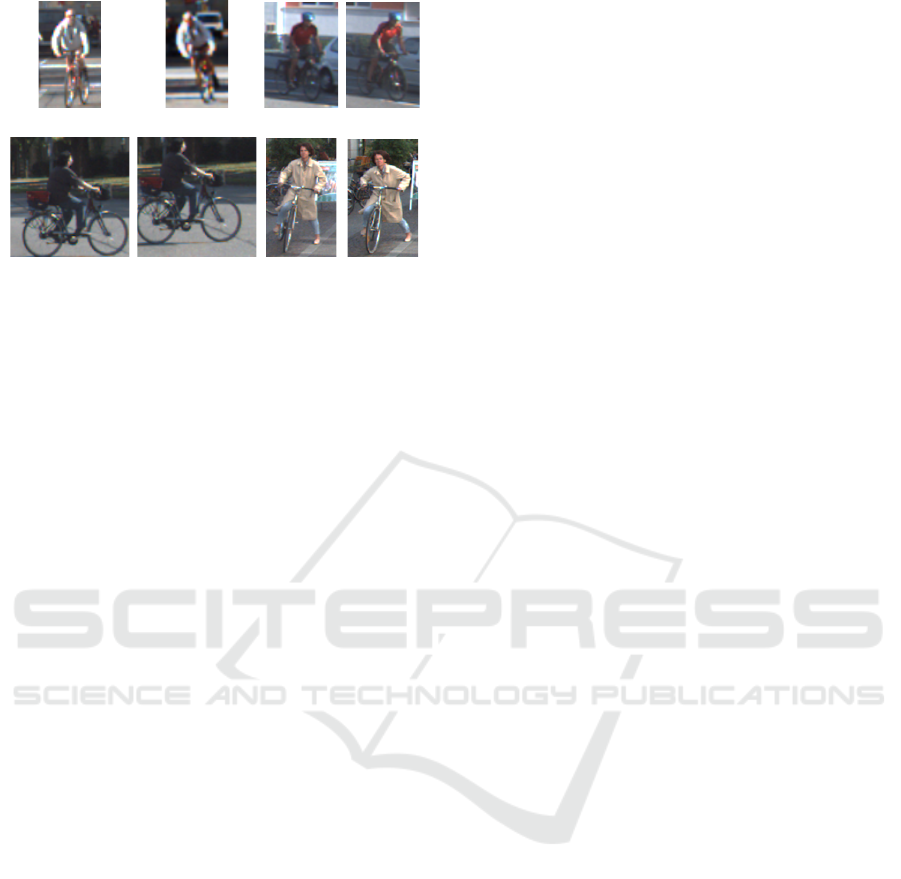

Figure 1: KITTI image samples. Image (b) represents a full

rotation of an object by 20

◦

in comparison with image (a).

The partial rotation of an object is presented by image pairs

(c)-(d), i.e. the torso of the cyclist in image (d) is rotated

by 15

◦

, comparing with image (c). Image pairs (e)-(f) show

the full translation of an object in the side view. Compared

to image (g), the head of the cyclist has a lower position in

image (h), which corresponds to a partial translation.

2 RELATED WORKS

In the last decade numerous research works have

been published about object detection. The feature

family meets an explosive growth of its members,

e.g. Haar (Viola and Jones, 2004), HOG (Dalal

and Triggs, 2005), LBP (Ojala et al., 2002), sp-Cov

(Paisitkriangkrai et al., 2015), deep features (Girshick

et al., 2015) and their extensions (Doll

ar et al., 2009)

(Zhang et al., 2015). The detector structure is also

becoming even more complicated, varying from cas-

cades (Benenson et al., 2012) to DPMs (Felzenszwalb

et al., 2008) and CNNs (Jia et al., 2014). While most

of the proposed methods are focused on detecting

pedestrians, cyclist detection also becomes an inter-

esting point among the research community.

In early works, several models are proposed to

represent bicycles, e.g. by wheel shapes (Rogers and

Papanikolopoulos, 2000), by edges and motion (Qui

et al., 2003) and even by DPMs (Cho et al., 2010).

Despite high detection rates achieved, without con-

sidering the bicycle riders, their classiﬁcation power

can be disturbed in scenarios like bicycle park sta-

tions. In comparison, Li et al. uses HOG-LP (Li et al.,

2010) and Takahashi et al. takes advantage of pedal-

ing movement (Takahashi et al., 2010) to detect cy-

clists mainly in crossing cases, with limited applica-

tions. For multi-view detection, an approach combin-

ing RGB image with lidar measurements is presented

by Gonzalez et al. in (Gonzlez et al., 2015), yet inap-

propriate for monocular camera systems. Xiang et al.

integrates subcategory detection into region proposals

(Xiang et al., 2016), still at a relative high computa-

tional cost. In our previous work (Tian and Lauer,

2015a) (Tian and Lauer, 2015b), we build viewpoint

speciﬁc models but the detection suffers from the ap-

pearance variation. To deal with object deformation,

Zou (Zou et al., 2014) and Paisitkriangkrai (Paisitkri-

angkrai et al., 2015) choose spatially pooled features

and Pepik (Pepik et al., 2015) introduces 3-D DPM.

Although they achieve high precision, their detec-

tors cannot run in real time and the rotation handling

is not included. As deep learning becomes a trend,

by applying CNN with region proposals, Chen et al.

achieves the best results both for cyclist detection and

orientation estimation at one time (Chen et al., 2015).

By integrating the cascade concept, the detection pre-

cision and speed are further improved in (Yang et al.,

2016). But the cost is still a high performance GPU.

Although such kind of GPUs can be facilitated with

more and more equipments nowadays and run much

faster than normal CPUs, the large consumption of

memory and even of power make themselves inap-

propriate for products with limited budgets.

In this paper we show that with the help of max

pooling, even low level visual features, i.e. HOG, can

efﬁciently deal with both translation and rotation of

objects in images. We also give a demonstration in

feature levels. Moreover, we integrate these new fea-

tures into our previous framework (Tian and Lauer,

2015b) and extend it with an orientation estimator,

which runs almost simultaneously with the object de-

tector. We conduct experiments on the KITTI dataset

and show that the max pooled features contribute to

a signiﬁcant performance gain both on detection and

orientation estimation for cyclists.

3 DEFORMATION INVARIANT

FEATURES BY MAX POOLING

The max pooling operation arises from the concept of

CNNs to construct the deep network layers. (Xiong

et al., 2015) (He et al., 2015) The principle is to ap-

ply a ﬁlter mask over a feature map and to search the

maximum value inside it. As long as the maximum

is not changed, the output value is not inﬂuenced by

its location within the mask. Inspired by that, we can

also apply max pooling on low level visual features

to obtain the deformation invariance. Here we choose

the HOG features from (Felzenszwalb et al., 2008) as

the base, not only due to their strong discriminative

power but also because both spatial and orientation

information are included. In fact, the original HOG

features are not translation or rotation invariant. Al-

though interpolation is recommended on both spatial

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

and orientation bins, it can only deal with small ap-

pearance variations. Regarding this, we introduce the

max pooling with different scales to build deforma-

tion invariant HOG features.

Note that max pooling is also applied in other fea-

tures such as the sp-Cov (Paisitkriangkrai et al., 2015)

and Regionlets (Zou et al., 2014), but our work differs

from them in 3 points.

• Unlike the covariance patterns utilized in

(Paisitkriangkrai et al., 2015), in this work,

we only focus on the HOG features and their

performance improvement by additional max

pooling procedure.

• Instead of random feature selection in (Zou et al.,

2014), we apply a dense max ﬁltering with differ-

ent scales.

• We additionally conduct max pooling on orienta-

tion histograms to handle object rotations, which

makes another signiﬁcant difference.

3.1 Translation Invariant HOG

Features

For translation invariance we follow the idea in

(Paisitkriangkrai et al., 2015) and apply the max ﬁl-

ters directly on each feature channel. Here we care-

fully choose 4 ﬁlter mask sizes: 1x1, 2x2, 3x3 and

4x4 pixels, so that none of them is greater than the

smallest dimension of our detector models. The strid-

ing step for each ﬁlter is set to 1 pixel and the input

channels are padded with an appropriate number of

border pixels so that the output feature channels will

have the same size as the inputs.

Instead of performing max ﬁltering in each scale

separately, here we use an iterative approach for com-

putational efﬁciency. The calculation is done in a

pipeline. Each stage is a max pooling operation with

a mask size of 2x2 pixels. The ﬁltered features from

the previous stage are reused as the inputs for the next

stage. This is equivalent to a decomposition of bigger

ﬁlters into several smaller ones. E.g. the output after

a two stage ﬁltering is the same as that ﬁltered by a

mask of 3x3 pixels (Figure 2). And this output can be

reused to obtain the ﬁltered feature map by the mask

of 4x4 pixels with the help of only one more stage ﬁl-

tering in the pipeline. In this way, the processing time

for each ﬁlter size is constant and only dependent on

the number of utilized ﬁlters.

To explore the translation invariance of ﬁltered

channels, we take the sample pair of full translation

from Figure 1 to execute experiments. As in Figure 2,

these two images have an overlap ratio of 0.7, which

can be resulted from an improper striding step of the

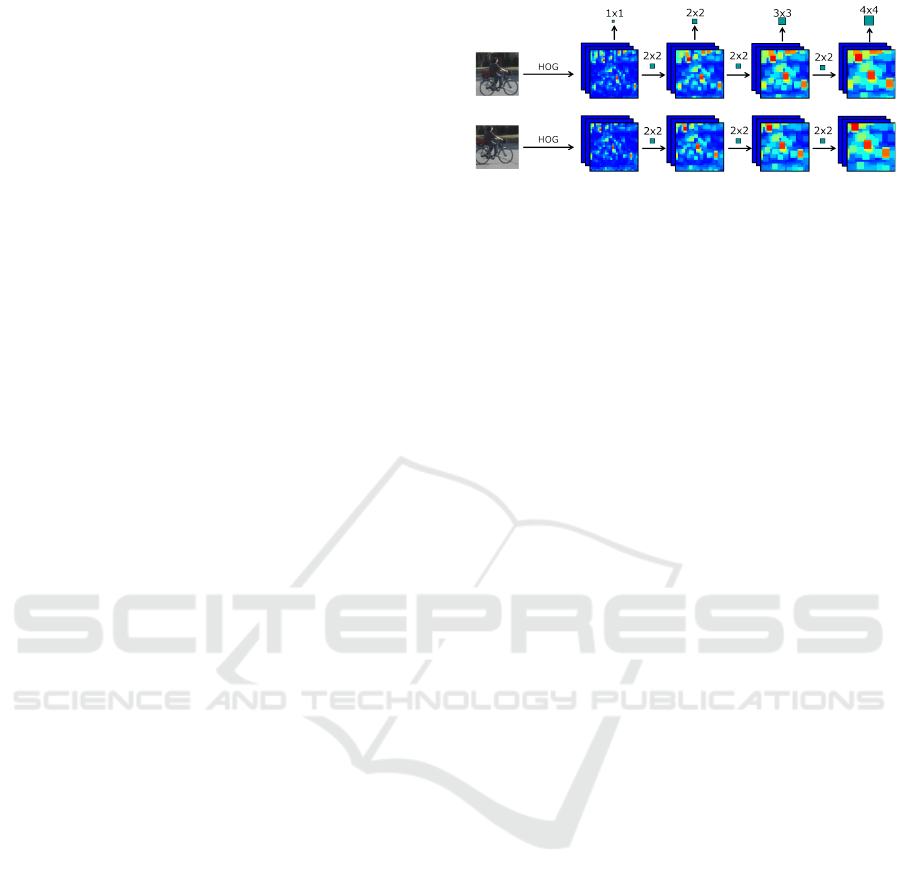

Figure 2: Calculating translation invariant HOG features.

On the top are max ﬁlters with 4 mask sizes: 1x1, 2x2, 3x3

and 4x4. The ﬁrst size corresponds to the naive HOG fea-

tures. On the left side are two samples with full translation

and an overlap ratio of 0.7. The HOG features are calculated

for each image and illustrated in temperature map. The max

ﬁlters are applied on each channel in a pipeline fashion.

detection window or from an inappropriate scaling

factor of the image. Here we also omit the discus-

sion about partial translation because it can be divided

into fully translated and unchanged parts. As for ex-

periment, we calculate the HOG features for each im-

age and ﬁlter them by max pooling in different scales

sequentially. To measure the similarity between the

features of both images, we calculate the correlation

coefﬁcient for each ﬁltered channel between the two

images and sort the results into 4 groups according

to the size of ﬁlter masks. Distributions of coefﬁcient

values for each ﬁlter size are illustrated by the boxplot

in Figure 3. As can be seen, the high values of cor-

relation coefﬁcients are obtained by big ﬁlters, which

means the HOG features of both images ﬁltered by

bigger masks are more similar to each other despite

that the same object is translated in the second im-

age. Thus, the spatially max pooled features become

more robust against translations, which is in accor-

dance with the conclusion from (Zou et al., 2014).

To model translations in different scales, we con-

catenate the ﬁltered channels by all the above masks

(including the ﬁlter mask 1x1) to each other as new

features. We do it in this way because of two points.

On one hand, we would like to keep the discrimina-

tive power of the naive HOG features and to avoid the

drop of detection accuracy by only using blurred fea-

tures from max ﬁltering. On the other hand, we expect

the improvement of detection on translated images,

especially with the help of the new features, which

are ﬁltered by bigger masks. In this case, the channel

number of HOG features is quadrupled. Here we call

the spatially pooled HOG features as maxHOG

3.2 Rotation Invariant HOG Features

As gradient orientations are discretized in equidistant

histogram bins, the rotation of an object has inﬂuence

mainly on their distribution not on the bin sums. Here

Detection and Orientation Estimation for Cyclists by Max Pooled Features

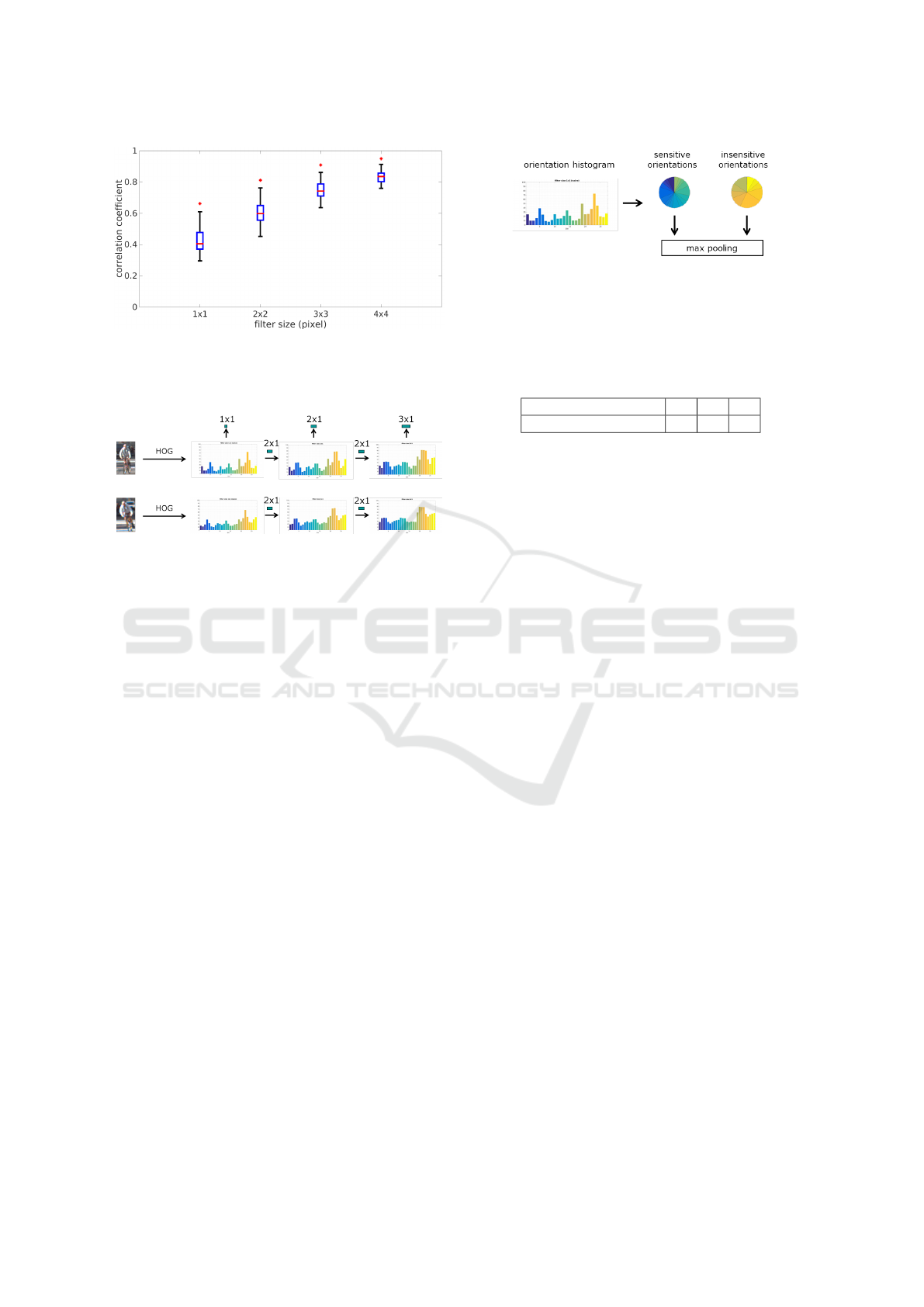

Figure 3: Correlation coefﬁcient values for each ﬁlter size

are illustrated by the boxplot. The median value is indicated

by a red short line. The blue box represents 50 percentile of

the data. The red point denotes the outlier.

Figure 4: Calculating rotation invariant HOG features. On

the top are max ﬁlters with 3 mask sizes: 1x1, 2x1 and 3x1.

The ﬁrst size corresponds to the naive HOG features. On

the left side are two samples with full rotation and the gap

of roll angle is 20

◦

. The HOG features are calculated for

each image. The max ﬁlters are applied on each histogram

in a pipeline.

we have totally 27 bins (18 sensitive and 9 insensitive

orientation bins, same as (Felzenszwalb et al., 2008)).

We also apply max ﬁltering on the histogram with 3

mask sizes: 1x1, 2x1 and 3x1. The striding step is

set to 1 orientation bin. As the last ﬁlter size corre-

sponds to a maximal rotation of 60

◦

, which is accept-

able for cyclists in most cases, we do not use even

bigger masks. The ﬁltered channels are also calcu-

lated in a pipeline fashion by decomposing the biggest

ﬁlter mask into two smaller ones, each with a size of

2x1 pixels, as illustrated in Figure 4.

Aware that the orientation bins are actually located

in a circular form, the max ﬁltering should also be

done in the same way. Here we divide the orientation

histogram into 2 groups, which represent the sensi-

tive and the insensitive orientations respectively. For

each of them we link the ﬁrst and the last orientation

bin to build a ring shape (Figure 5). These new his-

tograms will be processed by max pooling operation

separately.

To verify the rotation invariance of ﬁltered fea-

tures, we also take the sample pair of full rotation

from Figure 1. With the same reason, we omit the

discussion about partial rotations. We calculate the

orientation histograms for each image and perform

Figure 5: Orientation histogram is divided into 2 groups,

which represent the sensitive and the insensitive orienta-

tions respectively. For each of them we link the ﬁrst and

the last orientation bin to build a ring shape. These new

histograms will be processed by max pooling separately.

Table 2: Correlation coefﬁcient of each ﬁlter size applied

on orientation histograms.

Filter size 1x1 2x1 3x1

Correlation coefﬁcient 0.54 0.69 0.82

the max ﬁltering in 3 scales as in Figure 4. Then

we compute the correlation coefﬁcients for each ﬁl-

tered histogram between both images. The coefﬁcient

value of each ﬁlter size is registered in Table 2. Obvi-

ously, the similarity between histograms of both im-

ages increases with bigger ﬁlter masks, which infers

the HOG features become more robust against rota-

tions.

In the same way, we concatenate the ﬁltered

feature channels by different masks (including the

ﬁlter mask 1x1). This new kind of feature is

called as maxHOG

and utilized in combination with

maxHOG

for cyclist detection.

For an intuitive comparison of the classiﬁcation

power between the naive HOG features and the pro-

posed new ones, we conduct principal component

analysis (PCA) on both of them. Here we randomly

select 2000 positive and negative samples for the front

view of cyclists. We calculate HOG features for each

sample and perform max ﬁltering both on spatial and

orientation bins. We project the sample features onto

the ﬁrst two principal components from PCA and plot

them for each HOG feature type in Figure 6. Obvi-

ously, with the help of max ﬁltering either on spa-

tial or on orientation bins, the positive and negative

samples can be better distinguished form each other

than only with the naive HOG features, which is the

beneﬁt from dealing with object deformations. For

a quantitative analysis of the classiﬁcation power of

each HOG type, please refer to Section 5.

4 DETECTION FRAMEWORK

Here we reuse our previous framework from (Tian

and Lauer, 2015b) due to its capability for multi-view

detection and computational efﬁciency. The view-

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

(a) (b)

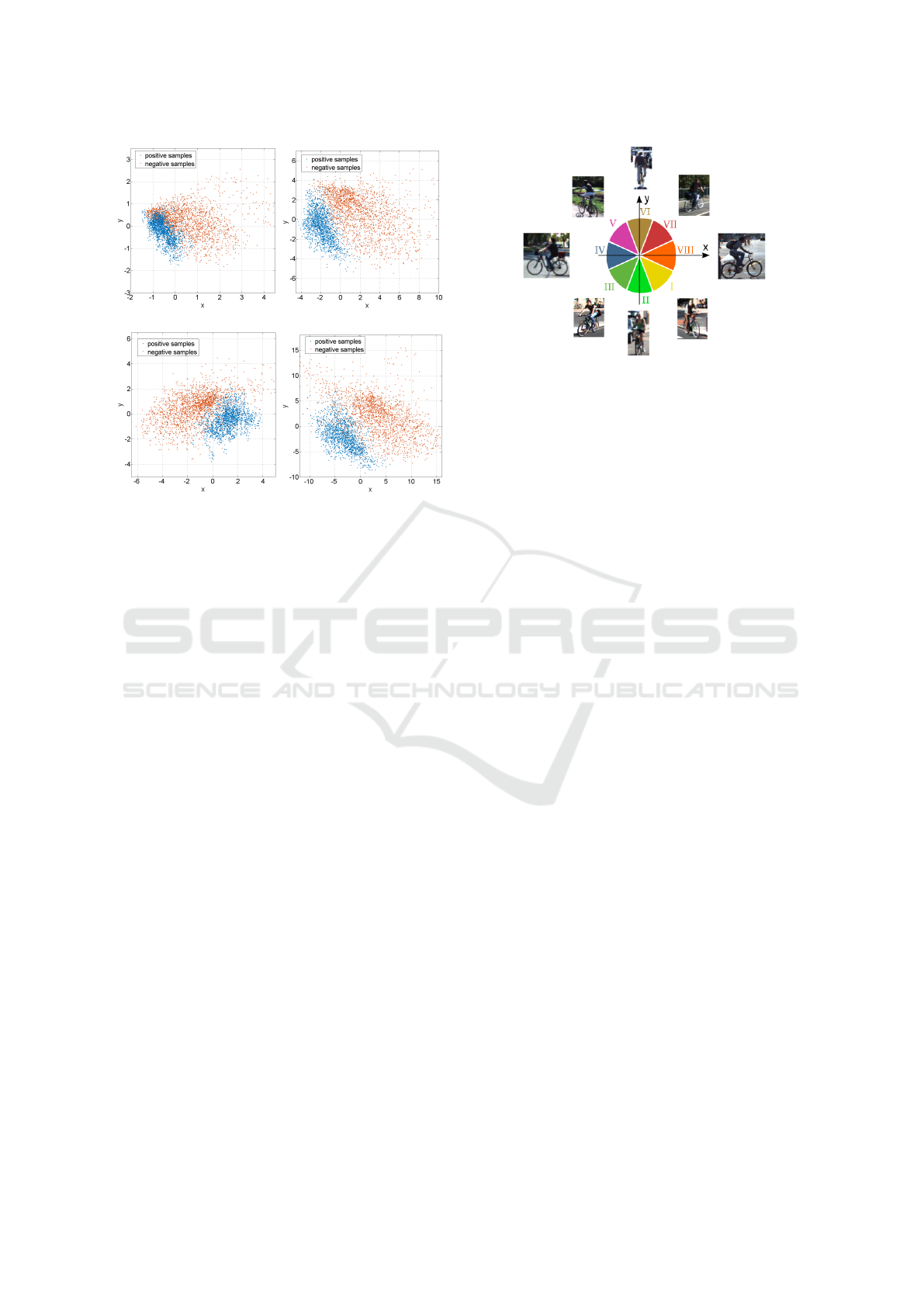

Figure 6: PCA for 2000 positive and negative samples,

which are represented in blue and red respectively. Totally

we calculate 4 different HOG feature types for each sample:

(a) the naive HOG, (b) the maxHOG

, (c) the maxHOG

and (d) the maxHOG (maxHOG

+ maxHOG

) features.

For each kind of feature, we project them onto the ﬁrst two

principal components of PCA.

points of cyclists are divided in 8 subcategories, each

with a range of 45

◦

(Figure 7). For each subcategory

a cascaded detector is built, consisting of n decision

forests (DF) and 1 support vector machine (SVM

) at

the last stage (Figure 8). The number of n is chosen

between 2 to 3, which is a trade-off between detec-

tion precision and processing time (Tian and Lauer,

2015b). The detectors are applied in sliding window

fashion with 3 aspect ratios: 0.5 for viewpoint II and

VI, 1.0 for IV and VIII, and 0.75 for the others. The

minimal window height is set to 80 pixels.

4.1 Feature Processing and Orientation

Estimation

The processing of HOG features is divided into two

steps: max pooling over spatial and orientation bins.

In the second step, we apply max ﬁlters not only on

the naive HOG features but also on the spatially ﬁl-

tered ones. By doing this, we are able to deal with

simultaneous translation and rotation of objects. Note

that there are 4 channels of summed gradients from

(Felzenszwalb et al., 2008), which do not contain the

orientation information, we only perform spatial max

ﬁltering on those channels. We call the processed

HOG features as maxHOG. Since only bitwise oper-

Figure 7: Viewpoints of cyclists are divided into 8 equidis-

tant subcategories I to VIII.

ations are performed, the whole max pooling proce-

dure can be done very fast. E.g. for an KITTI image,

it takes only about 0.02 seconds (Table 3). Such new

features are calculated for samples from the KITTI

dataset to train our detectors. The decision trees have

a depth of 2 and are trained by AdaBoost. The de-

tector from a previous cascade stage will be tested on

predeﬁned image set to gather false positives, which

are used as negative samples to train the classiﬁer

in the next stage. For further details about training

and implementation please refer to (Tian and Lauer,

2015b).

Since the orientation of cyclists are continuous

values, a direct approximation by the discrete view-

points can increase the estimation errors. Instead, we

add another support vector machine SVM

for regres-

sion. As shown in Figure 8, we reuse the detection

results of the cascaded detector as inputs for SVM

Regarding that the number of processed samples at

the last stage is small due to the strong ﬁltering of

frontal DFs, the additional computational cost for the

orientation estimation is also little, i.e. about 0.005

seconds per image (Table 3). Therefore, both the cy-

clist detection and orientation estimation can be done

almost simultaneously. To train the regression stage,

we use the same samples as for training the detectors.

For further improving processing efﬁciency, at the

beginning of the detection, we only apply the de-

tectors on the given image. The ﬁnal object hy-

potheses are obtained by performing non-maximum-

suppression on the outputs of all individual detectors.

The orientation estimation is only performed on the

detection results with the highest scores.

4.2 Selective Detection by Geometric

Constraints

Given a ﬁxed striding step, the number of searching

locations grows with the square of the image size and

Detection and Orientation Estimation for Cyclists by Max Pooled Features

Table 3: Average processing time for each step in the cascade. +ROI denotes integration of ROI extraction by geometric

constraint into the detection framework.

+ROI naive HOG max pooling detection orientation estimation

no 0.106 s 0.024 s 0.090 s 0.005 s

yes 0.036 s 0.008 s 0.031 s 0.002 s

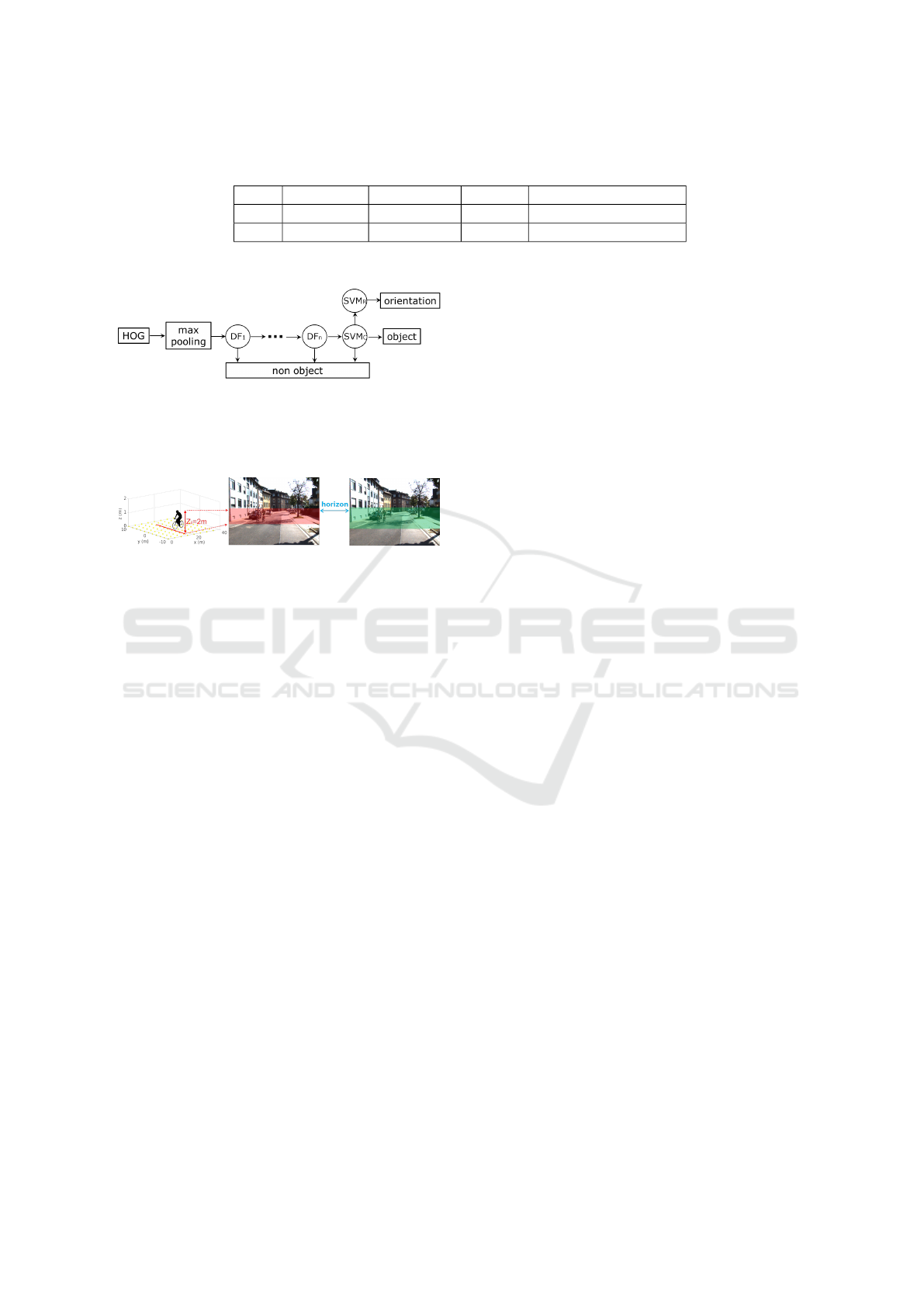

Figure 8: Cascaded detector, consisting of n decision forests

to DF

and one stage of support vector machine

SVM

. The additional SVM

is for orientation estimation.

The naive HOG features are preprocessed by max pooling

operation and then given into the detector.

(a) (b)

(c)

Figure 9: Geometric constraint. (a) illustrates an object with

a height of 2 meters in the real world. The corresponding

region in the camera image with an object height of 80 pix-

els is indicated in (b) by the color red. The green region

in (c) represents the region of objects with a varying height

from 1 to 2 meters. The blue arrow denotes the estimated

horizon position.

so is the processing time. This fact makes some appli-

cations with high resolution images inefﬁcient, if fur-

ther details on objects like head orientations or body

poses are interested. To solve this problem, one of

the common approaches is to extract region of inter-

est (ROI) in images, where objects can appear.

Here we prefer the geometric constraint (Tian

and Lauer, 2015b) (Sudowe and Leibe, 2011), which

does not require additional sensor information and the

computational burden is mere. The key idea of this

approach is to mathematically formulate the depen-

dence between the height h of an object and its ground

coordinates [u,v] in the image. This dependence is

called geometric constraint. As shown in Figure 9 (a)

and (b), given detectors with a height of 80 pixels and

assuming a real height of 2 meters, the objects can

only appear in a small image region between two hor-

izontal lines. For varying heights in the 3-D world,

e.g. from 1 meter to 2 meters, the corresponding ROI

will be vertically increased, but only by a few pixels,

as in Figure 9 (c). Since detection only takes place in

this small region, the processing time can be greatly

reduced, by about 2/3 in our case (Table 3).

5 EXPERIMENT RESULTS

In the following experiments, we explore the perfor-

mance of our detection system by evaluating it with

the KITTI dataset, which consists of 7518 test images

with a size of 1242 × 375 pixels. These images are

taken in various trafﬁc scenes including rich number

of objects, such as cars, pedestrians and cyclists. As

the smallest object evaluated by KITTI benchmark is

25 pixels high and our detector has a minimal height

of 80 pixels, we just scale the test images by a factor

of 3. For processing efﬁciency, we also apply the geo-

metric constraint with the help of provided calibration

data and turn on the multi-threading. Our test com-

puter is equipped with an Intel core of i7-3740QM

and a memory of 8 GB.

The ﬁrst experiment was carried out to reveal the

performance gain of the max pooling operation on

HOG features. Here we compare the test results with

3 feature types: the naive HOG features, the spatially

pooled maxHOG

and the maxHOG features, with

max ﬁltering both on spatial and orientation bins. The

corresponding precisions both on detection and ori-

entation estimation for cyclists are listed in Table 4

and 5. The precision-recall-curves are illustrated in

Figure 10. Apparently, with the help of spatial max

pooling in different scales, the average precision of

the approach with naive HOG features is increased

by about 10% for all difﬁculty levels, which beneﬁts

from a better handling of translation of objects. Addi-

tionally, it can be further pushed by about 6%, if the

max pooling is also applied on orientation histograms,

which proves the ability of our new features in dealing

with rotations.

Compared to that, a similar trend of precision gain

can also be seen with the orientation estimation for

cyclists. In fact, the test results of estimated orien-

tation may not be necessarily consistent with the re-

sults of detections. However, in our approach, both of

them are strongly correlated with each other. This fact

implies that our orientation estimator works well for

accurately detected cyclists. It also explains why the

average precision of orientation estimation is slightly

lower than that of detection, because both the detec-

tion and orientation approximation errors are accumu-

lated in this case.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Table 4: Average precision of cyclist detection with differ-

ent HOG features. +ROI denotes ROI extraction by geo-

metric constraint.

Method Moderate Easy Hard

naive HOG + ROI 27.32% 29.74% 25.47%

maxHOG

+ ROI 38.63% 41.88% 34.24%

maxHOG + ROI 43.58% 48.38% 38.73%

Table 5: Average precision of orientation estimation for cy-

clists with different HOG feature types.

Method Moderate Easy Hard

naive HOG + ROI 22.15% 24.71% 20.93%

maxHOG

+ ROI 32.97% 35.68% 29.11%

maxHOG + ROI 38.28% 41.82% 34.27%

In the next step, we conduct experiments with dif-

ferent scaling factors of KITTI images. Here we ap-

ply the max pooling operation both on spatial and ori-

entation bins of HOG features, as this conﬁguration

yields the best results. Corresponding detection pre-

cision and processing time are listed in Table 6. Obvi-

ously, both their values decrease if the scaling factor

shrinks. Note that both the geometric constraint and

multi-threading are utilized in our experiments, the

processing time is not exactly square proportional to

the image size. And for an image without scaling (i.e.

the scaling factor equals 1), the processing time is re-

duced to only 0.08 seconds, yet the precision is about

10% less than the best one. One point to be mentioned

is that the evaluation by KITTI is performed while a

lot of objects with small image sizes are considered

(Rajaram et al., 2015). If we are only interested in

objects within a small distance range, then no scaling

is necessary and our detector can also yield both a rea-

sonable precision value and a runtime speed of more

than 10 frames per second (fps), which is sufﬁcient

for most real time requirements.

In another experiment we analyze the perfor-

mance of our detection system in comparison with

(a) (b)

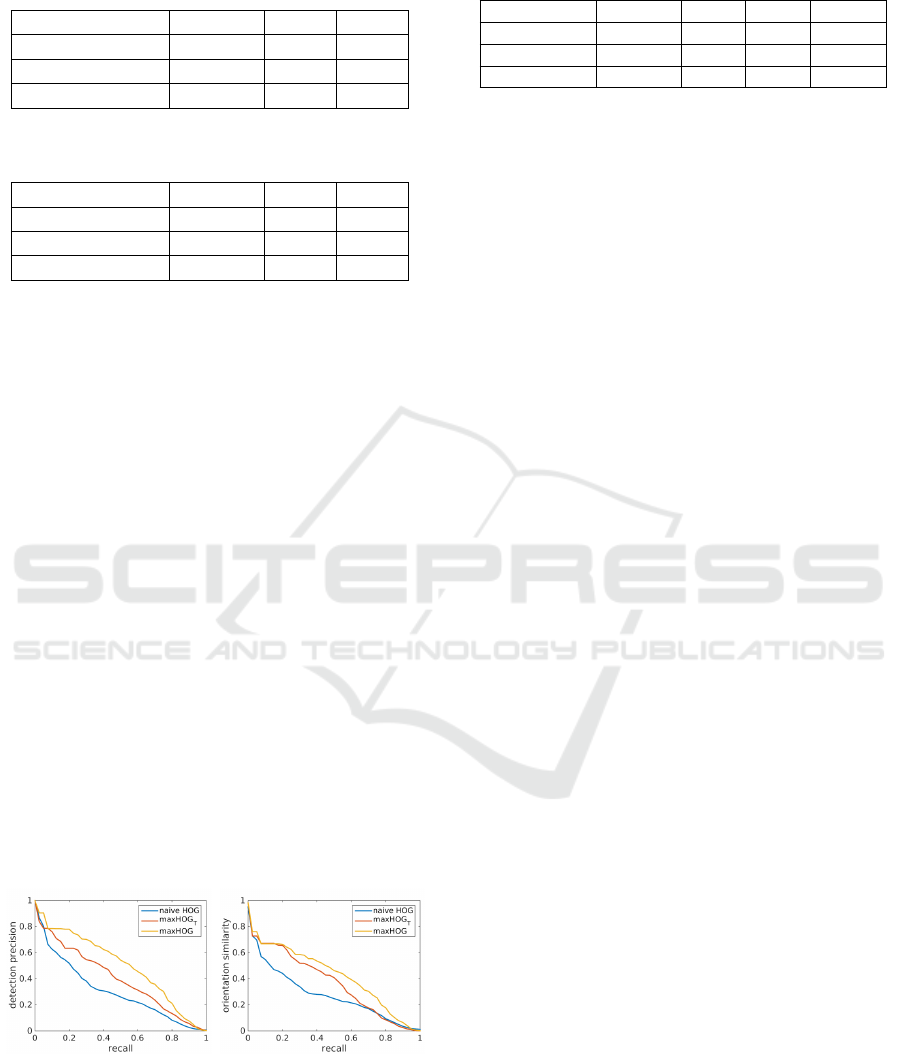

Figure 10: Precision-recall-curves of cyclist detection and

orientation estimation are respectively plotted in (a) and

(b). Here we present curves in easy level with 3 feature

types: the naive HOG, the spatially pooled maxHOG

and

the maxHOG features with max ﬁltering both on spatial and

orientation bins.

Table 6: Average detection precision and processing time

with different scaling factors of KITTI image.

Scaling factor Moderate Easy Hard Runtime

1 33.25% 37.88% 29.69% 0.08 s

2 39.17% 43.14% 34.98% 0.17 s

3 43.58% 48.38% 38.73% 0.25 s

other published methods in the KITTI benchmark.

For fairness, the average precision of cyclist detection

and orientation estimation are compared separately,

since not all the proposed methods take simultane-

ous detection and orientation estimation into count.

Their corresponding precision values are are listed

in Table 7 and 8 respectively. Additionally, we give

an overview about their processing time with respect

to the corresponding hardware environments. As can

be seen, our proposed method especially outperforms

the DPM-based approaches in the ranking list. One

reason is that, although the DPMs can also deal with

translation of objects, by including rotation invariant

features, our approach is more efﬁcient to handle ob-

ject deformation.

Nevertheless, there is still a gap of up to 30% in

accuracy between our proposed method and the top

performed ones (actually the top 5 in Table 7) . We

owe it to the classiﬁcation power of the feature itself.

As all of them use deep features, comparing with the

HOG features alone in our approach, they can capture

more information from the object and thus their detec-

tors are more discriminative. Therefore, the next step

in our future work may be to integrate these deep fea-

tures into our current framework to further improve

the detection performance. However, better accuracy

comes at the cost of large computation time and high

performance hardware (e.g. GPUs). In comparison,

our method yields a runtime performance of about 4

fps on a quad-core CPU. Considering that we have

scaled the test image by a factor of 3 to ﬁt the small

objects to our detectors, we can also promise an even

faster processing ability such as 12 fps (Table 6) in

use cases, in which only objects not far away from

the camera are considered, e.g. to monitor the cy-

clists, which are located in the nearby blind ﬁeld of a

truck.

6 CONCLUSION

Cyclist detection becomes an essential part of the

modern intelligent transportation systems, as their

safety draws even more attention from the publics.

Despite numerous vision-based methods proposed,

the state-of-the-art techniques either are troublesome

Detection and Orientation Estimation for Cyclists by Max Pooled Features

Table 7: Average precision on cyclist detection of published methods on KITTI benchmark till August 2016. Proposed method

of this work is marked in bold.

Method Moderate Easy Hard Runtime Environment

SDP+RPN (Yang et al., 2016) 73.74% 81.37% 65.31% 0.4 s GPU@2.5Ghz

SubCNN (Xiang et al., 2016) 71.06% 79.48% 62.68% 2 s GPU@2.5Ghz

3DOP (Chen et al., 2015) 68.94% 78.39% 61.37% 3 s GPU@2.5Ghz

Mono3D (Chen et al., 2016) 66.36% 76.04% 58.87% 4.2 s GPU@2.5Ghz

SDP+CRC (ft) (Yang et al., 2016) 61.31% 74.08% 53.97% 0.6 s GPU@2.5Ghz

Regionlets (Zou et al., 2014) 58.72% 70.41% 51.83% 1 s 12 cores@2.5Ghz

maxHOG+ROI 43.58% 48.38% 38.73% 0.25 s 4 cores@2.5Ghz

MV-RGBD-RF (Gonzlez et al., 2015) 42.61% 52.97% 37.42% 4 s 4 cores@2.5Ghz

pAUCEnsT (Paisitkriangkrai et al., 2015) 38.03% 51.62% 33.38% 60 s 1 core@2.5Ghz

Vote3D (Wang and Posner, 2015) 31.24% 41.43% 28.60% 0.5 s 4 cores@2.8Ghz

DPM-VOC+VP (Pepik et al., 2015) 31.08% 42.43% 28.23% 8 s 1 core@2.5Ghz

LSVM-DPM-us (Felzenszwalb et al., 2010) 29.88% 38.84% 27.31% 10 s 4 cores@3.0Ghz

DPM-C8B1 (Yebes et al., 2014) 29.04% 43.49% 26.20% 15 s 4 cores@2.5Ghz

LSVM-DPM-sv (Felzenszwalb et al., 2010) 27.50% 35.04% 26.21% 10 s 4 cores@3.0Ghz

mBoW (Behley et al., 2013) 21.62% 28.00% 20.93% 10 s 1 core@2.5Ghz

Table 8: Average precision on orientation estimation for cyclists of published methods on KITTI benchmark till August 2016.

Proposed method of this work is marked in bold.

Method Moderate Easy Hard Runtime Environment

SubCNN (Xiang et al., 2016) 63.65% 72.00% 56.32% 2 s GPU@2.5Ghz

3DOP (Chen et al., 2015) 58.68% 70.13% 52.35% 3 s GPU@2.5Ghz

Mono3D (Chen et al., 2016) 54.97% 65.56% 48.77% 4.2 s GPU@2.5Ghz

maxHOG+ROI 38.28% 41.82% 34.27% 0.25 s 4 cores@2.5Ghz

DPM-VOC+VP (Pepik et al., 2015) 23.17% 30.52% 21.58% 8 s 1 core@2.5Ghz

LSVM-DPM-sv (Felzenszwalb et al., 2010) 22.07% 27.54% 21.45% 10 s 4 cores@3.0Ghz

DPM-C8B1 (Yebes et al., 2014) 19.25% 27.25% 17.95% 15 s 1 core@2.5Ghz

to handle the appearance deformation of image ob-

jects or are difﬁcult to provide a real time perfor-

mance. The contribution of this work is based on two

key ideas: ﬁrstly, we propose a new kind of feature

which can efﬁciently deal with both translation and

rotation of objects in images, based on max pooling

over spatial and orientation histogram bins in multi-

level. In addition, we present a cascaded framework,

which is able to conduct cyclist detection and orien-

tation estimation simultaneously due to shared struc-

ture and visual features. The evaluation on the KITTI

benchmark demonstrates good accuracy of our ap-

proach at a comparable small computation cost. Ex-

periments also have shown that, leveraging the fast

implementation of feature preprocessing (i.e. multi-

scale max pooling of HOG features) and geometric

constraint, our system is able to run in real time (vary-

ing from about 4 to 12 fps according to conﬁgura-

tions), especially promising for applications on hard-

wares with limited performance.

REFERENCES

Behley, J., Steinhage, V., and Cremers, A. B. (2013). Laser-

based segment classiﬁcation using a mixture of bag-

of-words. In IEEE Conference on Intelligent Robots

and Systems.

Benenson, R., Mathias, M., Timofte, R., and Van Gool, L.

(2012). Pedestrian detection at 100 frames per second.

In IEEE Conference on Computer Vision and Pattern

Recognition (CVPR).

Chen, X., Kundu, K., Zhang, Z., Ma, H., Fidler, S., and Ur-

tasun, R. (2016). Monocular 3D Object Detection for

Autonomous Driving. In IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR).

Chen, X., Kundu, K., Zhu, Y., Berneshawi, A. G., Ma, H.,

Fidler, S., and Urtasun, R. (2015). 3D Object Propos-

als for Accurate Object Class Detection. In Advances

in Neural Information Processing Systems (NIPS).

Cho, H., Rybski, P., and Zhang, W. (2010). Vision-based

Bicycle Detection and Tracking using a Deformable

Part Model and an EKF Algorithm. In IEEE Confer-

ence on Intelligent Transportation Systems.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In IEEE Conference

on Computer Vision and Pattern Recognition (CVPR).

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Dharmaraju, R., Noyce, D. A., and Lehman, J. D. (2002).

An Evaluation of Technologies for Automated Detec-

tion and Classiﬁcation of Pedestrians and Bicyclists.

Doll

ar, P., Tu, Z., Perona, P., and Belongie, S. (2009). In-

tegral Channel Features. In British Machine Vision

Conference (BMVC).

Doll

ar, P., Wojek, C., Schiele, B., and Perona, P. (2012).

Pedestrian Detection: An Evaluation of the State of

the Art. IEEE Transactions on Pattern Analysis and

Machine Intelligence (PAMI), 34.

EU (2015). Trafﬁc Safety Basic Facts 2015. European Road

Safety Observatory.

Felzenszwalb, P., Girshick, R., McAllester, D., and Ra-

manan, D. (2010). Object Detection with Discrimina-

tively Trained Part-Based Models. IEEE Transactions

on Pattern Analysis and Machine Intelligence (PAMI),

32:1627–1645.

Felzenszwalb, P., McAllester, D., and Ramanan, D. (2008).

A discriminatively trained, multiscale, deformable

part model. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR).

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for Autonomous Driving? The KITTI Vision Bench-

mark Suite. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR).

Girshick, R., Iandola, F., Darrell, T., and Malik, J. (2015).

Deformable Part Models are Convolutional Neural

Networks. IEEE Conference on Computer Vision and

Pattern Recognition (CVPR).

Gonzlez, A., Villalonga, G., Xu, J., Vzquez, D., Amores, J.,

and Lpez, A. M. (2015). Multiview random forest of

local experts combining rgb and lidar data for pedes-

trian detection. In IEEE Intelligent Vehicles Sympo-

sium (IV).

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Spatial pyra-

mid pooling in deep convolutional networks for visual

recognition. IEEE Transactions on Pattern Analysis

and Machine Intelligence (PAMI).

Jia, Y., Shelhamer, E., Donahue, J., Karayev, S., Long, J.,

Girshick, R., Guadarrama, S., and Darrell, T. (2014).

Caffe: Convolutional Architecture for Fast Feature

Embedding. ACM international conference on Mul-

timedia.

Krogmeier, J. V. and Bullock, D. M. (2008). Inductive Loop

Detection of Bicycles and Inductive Loop Signature

Processing for Travel Time Estimation. Statewide

Wireless Communications Project, 2.

Li, T., Cao, X., and Xu, Y. (2010). An effective crossing cy-

clist detection on a moving vehicle. In World Congress

on Intelligent Control and Automation (WCICA).

Ojala, T., Pietikainen, M., and Maenpaa, T. (2002). Mul-

tiresolution gray-scale and rotation invariant texture

classiﬁcation with local binary patterns. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence

(PAMI).

Paisitkriangkrai, S., Shen, C., and van den Hengel, A.

(2015). Pedestrian Detection with Spatially Pooled

Features and Structured Ensemble Learning. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence (PAMI).

Pape, M. (2015). Cycling mobility in the EU. Members’

Research Service, 557013.

Pepik, B., Stark, M., Gehler, P., and Schiele, B. (2015).

Multi-View and 3D Deformable Part Models. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence (PAMI).

Qui, Z., Yao, D., Zhang, Y., Ma, D., and Liu, X. (2003). The

study of the detection of pedestrian and bicycle using

image processing. In IEEE Conference on Intelligent

Transportation Systems.

Rajaram, R. N., Ohn-Bar, E., and Trivedi, M. M. (2015). An

Exploration of Why and When Pedestrian Detection

Fails. In IEEE Conference on Intelligent Transporta-

tion Systems.

Rogers, S. and Papanikolopoulos, N. (2000). Counting bi-

cycles using computer vision. In IEEE Conference on

Intelligent Transportation Systems.

Sudowe, P. and Leibe, B. (2011). Efﬁcient Use of Geomet-

ric Constraints for Sliding-Window Object Detection

in Video. In Computer Vision Systems, volume 6962,

pages 11–20. Springer Berlin Heidelberg.

Takahashi, K., Kuriya, Y., and Morie, T. (2010). Bicycle

detection using pedaling movement by spatiotemporal

gabor ﬁltering. In TENCON 2010 - IEEE Region 10

Conference, pages 918–922.

Tian, W. and Lauer, M. (2015a). Fast and Robust Cyclist

Detection for Monocular Camera Systems. In Inter-

national joint Conference on Computer Vision, Imag-

ing and Computer Graphics Theory and Applications

(VISIGRAPP).

Tian, W. and Lauer, M. (2015b). Fast Cyclist Detection by

Cascaded Detector and Geometric Constraint. IEEE

Conference on Intelligent Transportation Systems.

Viola, P. and Jones, M. (2004). Robust Real-Time Face

Detection. International Journal of Computer Vision,

(2):137–154.

Wang, D. Z. and Posner, I. (2015). Voting for Voting in

Online Point Cloud Object Detection. In Robotics:

Science and Systems.

Xiang, Y., Choi, W., Lin, Y., and Savarese, S. (2016).

Subcategory-aware convolutional neural networks for

object proposals and detection. arXiv:1604.04693.

Xiong, W., Du, B., Zhang, L., Hu, R., Bian, W., Shen, J.,

and Tao, D. (2015). R2fp: Rich and robust feature

pooling for mining visual data. In 2015 IEEE Interna-

tional Conference on Data Mining (ICDM).

Yang, F., Choi, W., and Lin, Y. (2016). Exploit All

the Layers: Fast and Accurate CNN Object Detector

with Scale Dependent Pooling and Cascaded Rejec-

tion Classiﬁers. In IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Yebes, J. J., Bergasa, L. M., Arroyo, R., and Lzaro, A.

(2014). Supervised learning and evaluation of KITTI’s

cars detector with DPM. In IEEE Intelligent Vehicles

Symposium (IV).

Zhang, S., Benenson, R., Omran, M., Hosang, J. H., and

Schiele, B. (2016). How Far are We from Solving

Pedestrian Detection? Computer Vision and Pattern

Recognition (CVPR).

Detection and Orientation Estimation for Cyclists by Max Pooled Features

Zhang, S., Benenson, R., and Schiele, B. (2015). Filtered

channel features for pedestrian detection. In IEEE

Conference on Computer Vision and Pattern Recog-

nition (CVPR).

Zou, W., Wang, X., Sun, M., and Lin, Y. (2014). Generic

Object Detection with Dense Neural Patterns and

Regionlets. In British Machine Vision Conference

(BMVC).

VISAPP 2017 - International Conference on Computer Vision Theory and Applications
