Glassbox: Dynamic Analysis Platform for Malware Android

Applications on Real Devices

Paul Irolla and Eric Filiol

Laboratoire de Cryptologie et Virologie Op

erationnelles (CVO Lab),

Ecole d’Ing

enieurs du Monde Num

erique (ESIEA),

38 Rue des Docteurs Calmette et Gu

erin, 53000 Laval, France

Keywords:

Dynamic Analysis, Android, Malware Detection, Automatic Testing.

Abstract:

Android is the most widely used smartphone OS with 82.8% market share in 2015 (IDC, 2015). It is therefore

the most widely targeted system by malware authors. Researchers rely on dynamic analysis to extract malware

behaviors and often use emulators to do so. However, using emulators lead to new issues. Malware may detect

emulation and as a result it does not execute the payload to prevent the analysis. Dealing with virtual device

evasion is a never-ending war and comes with a non-negligible computation cost (Lindorfer et al., 2014). To

overcome this state of affairs, we propose a system that does not use virtual devices for analysing malware

behavior. Glassbox is a functional prototype for the dynamic analysis of malware applications. It executes

applications on real devices in a monitored and controlled environment. It is a fully automated system that

installs, tests and extracts features from the application for further analysis. We present the architecture of

the platform and we compare it with existing Android dynamic analysis platforms. Lastly, we evaluate the

capacity of Glassbox to trigger application behaviors by measuring the average coverage of basic blocks on

the AndroCoverage dataset (AndroCoverage, 2016). We show that it executes on average 13.52% more basic

blocks than the Monkey program.

1 INTRODUCTION

Google reacted to the rise of malware with a dy-

namic analysis platform, named Bouncer (Lock-

heimer, 2012), that analyzes applications before the

release on Google Play. This security model is cen-

tralized and acts before the distribution of applica-

tions. Whereas this system suffers from limitations —

like virtual device evasion — it has helped to reduce

the malware invasion by 40% (Lockheimer, 2012).

Android antivirus companies use another central-

ized security model which acts after the distribution

of applications. Because applications have access to

restricted resources and permissions, antivirus pro-

grams cannot perform their analysis — as it often

requires root permissions and extensive resources.

Hence, the static analysis is externalized onto the

company servers. As a result, it can give quick re-

sponses — each application being analyzed just once.

This is a shift of security model for the common user

toward centralization.

Users have been used to decentralized security

model, i.e. personal antivirus. This security model

does not allow much room for manoeuvre because

any antivirus needs to be quick enough for not both-

ering the user — otherwise another quicker antivirus

will be chosen. Whereas antivirus have implemented

heuristic algorithms, they are rather limited by the se-

curity model. Hence, the security model shifting is

an opportunity for building more complex systems

that require more resources to run. It enables secu-

rity systems to use advanced research techniques like

behavioral detection with dynamic analysis, or detec-

tion with features similarity from static analysis.

Malware authors made their strategy evolve with

the rise of Bouncer and other dynamic analysis sys-

tems. They have started to hide the payload execu-

tion with emulation detection or/and the requirement

of a user interaction. For example the reverse of the

sample (Dharmdasani, 2014) shows that malware are

currently using emulation evasion. Emulators settings

can be modiﬁed to mimic the appearance of a real de-

vice but there are lots of ways of detecting Android

emulation. Actually the tool Morpheus (Jing et al.,

2014) proves us this war is already lost as the authors

found around 10 000 heuristics to detect Android em-

ulation. So trying to modify the emulator to look real

is probably a waste of time. In such condition, we

610

Irolla, P. and Filiol, E.

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices.

DOI: 10.5220/0006094006100621

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 610-621

ISBN: 978-989-758-209-7

need to redeﬁne the problematic.

This is why we are presenting Glassbox, a dy-

namic analysis platform for Android malware appli-

cations on real devices. Glassbox is an environment

for the controlled execution of applications, where the

Android OS and the network are monitored and have

the capacity to block some actions of the analyzed ap-

plication. This environment is paired with a program

that automates the installation, the testing of applica-

tions and the cleaning of the environment afterwards.

We called this program Smart Monkey, as a reference

to Monkey, the Android tool for generating pseudo-

random UI event. The objective of Glassbox is to col-

lect features for machine learning algorithm, to clas-

sify applications as malware or as benign. In the fol-

lowing sections we will present the related work about

dynamic analysis systems, we will expose the archi-

tecture of both Glassbox and Smart Monkey. Finally,

we will present the average coverage of basic blocks

of Smart Monkey on the AndroCoverage Dataset (An-

droCoverage, 2016).

2 RELATED WORK

Such dynamic analysis systems started being de-

signed since 2010 (Bl

asing et al., 2010) by the aca-

demic research, to circumvent the limitations of static

analysis — namely, code morphism and obfuscation.

Since that time, many systems have been released.

For this study we have built a classiﬁcation of a part of

these systems, presented in Table 1 and Table 2. The

classiﬁcation takes into account three categories: the

dynamic features collected by the analysis, the strate-

gies set in order to automate application testing and

ﬁnally the use of real devices in dynamic analysis sys-

tems history. We discuss the results on the following

sub-sections.

2.1 Features Analyzed

Since the rise of Android dynamic analysis systems,

the use of system calls have been the leading ap-

proach. System calls are the functions of the kernel

space, available to the user space. It gives the capacity

to manipulate hard drive ﬁles or to control processes.

System calls can describe a program behaviors, from

a low level perspective. The retrieval of those calls

can be achieved in two ways, mainly:

• Virtual Machine Introspection — This is a tech-

nique available for emulators, which enables the

host to monitor the guest. It cannot be detected by

the guest since it is out of its reach and it is there-

fore convenient for security analysis. Andrubis

(Lindorfer et al., 2014), CopperDroid (Tam et al.,

2015) and DroidScope (Yan and Yin, 2012) take

advantage of VMI to retrieve, unseen by the tar-

get malware, all systems calls done by the guest

Android virtual machine.

• Strace/ptrace — Strace is a Linux utility for de-

bugging processes. It can monitor system calls,

signal deliveries and changes of process state.

Strace use the ptrace system call to monitor an-

other process memory and registers. This sec-

ond method is by far the simplest and the most

straightforward one as the only task here is the

automation of the strace execution. Moreover, it

targets directly the system calls of the application

we need to. That is why this method has been

adopted in most of the literature, namely Crow-

droid (Burguera et al., 2011), Maline (Dimja

sevi

et al., 2016), (Canfora et al., 2015) and (Afonso

et al., 2015). We have also chosen to use the

strace utility for system calls monitoring. Despite

the theoretical possibility of a malware to detect

that it is being debugged, we found no evidence

about this.

System calls seem to give great results for classiﬁca-

tion. Maline reported 96% accuracy rate, and (Can-

fora et al., 2015) reported 94.9% accuracy rate on un-

seen applications with syscalls frequencies only. Ac-

tually syscalls capture low level behaviors of both

Java code and native code.

The second most collected feature is taint track-

ing information as it reveals data leakage. It works

by the instrumentation of the Dalvik VM interpreter.

The information we do not want to leak is called a

source. Some source of personal data are tainted, like

the phone number or the contacts list. Each time a

tainted source or value is used in a method call, the

DVM interpreter taints the returned value. With this

simple mechanism, we can observe the propagation

of the tainted information regardless of its transfor-

mations. A function that enable to transmit an infor-

mation outside of the system is called a sink, like net-

work requests or SMS. If a tainted value is used in a

sink, it means data source has leaked. It enables to de-

tect data leakage even if this data have been ciphered

or encoded. An application that leaks data is not nec-

essarily a malware, as data leakage is the business of

both malware and user tracking frameworks in com-

mercial applications — which constitutes essentially

a large part of goodware applications. Whereas this

feature gives useful insights on the application behav-

iors for manual analysis, its utility for automatic mal-

ware detection needs to be proved. Moreover the im-

plementation and execution of taint tracking is costly,

which leads us not to choose this feature for now.

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices

611

Table 1: Comparative state of the art of dynamic analysis systems.

Reference Tool name Dynamic features used App testing strategies Objectives & comments

Thomas Bl

asing

et al. 2010

AASandbox System calls (name) Monkey

Data for malware/benign

classiﬁcation

# Virtual device

Iker Burguera

et al. 2011

Crowdroid System calls (name) Crowdsourced app interactions

Data for malware/benign

classiﬁcation

# Real device

Cong Zheng

et al. 2012

SmartDroid Taint tracking, +?

UI brute force

Restriction of execution

to targeted activities

Data for classiﬁcation

or manual analysis

# Virtual device

Lok Kwong Yan

et al. 2012

DroidScope

System call (all content)

Java calls (all content)

Taint tracking

Data for classiﬁcation

or manual analysis

# Virtual device

Vaibhav Rastogi

et al. 2013

AppsPlayground

Taint tracking

Targeted Android API Java calls

Monkey

UI brute force

Broadcast events

Text ﬁelds ﬁlling

Malware/benign classiﬁcation

# Virtual device

Martina Lindorfer

et al. 2014

Andrubis

App Java calls (all content)

System calls (name, +?)

Shared libraries targeted calls

(name, +?)

Taint tracking

DNS/HTTP/FTP/SMTP/IRC

(all content)

Monkey

Broadcast events

All possible app services

All possible app activities

Data for classiﬁcation

or manual analysis

# Virtual device

Mingyuan Xia

et al. 2015

AppAudit Taint tracking ∼

Malware/benign classiﬁcation

Data leaks detector

# Symbolic execution

Vitor Monte Afonso

et al. 2014

Targeted Android API Java calls

(name)

System calls (name)

Monkey

Broadcast events

Malware/benign classiﬁcation

96.66% accuracy

# Virtual device

Kimberly Tam

et al. 2015

CopperDroid

System calls (all content)

Binder data

Broadcast events

Text ﬁelds ﬁlling, +?

Data for classiﬁcation

or manual analysis

# Virtual device

Gerardo Canfora

et al. 2015

- System call (name) Monkey

Malware/benign classiﬁcation

94.9% accuracy (unseen applications)

# Virtual device

Marko Dimja

sevi

et al. 2016

Maline System call (name)

Monkey

Broadcast events

Malware/benign classiﬁcation

96% accuracy

# Virtual device

Michelle Y. Wong

et al. 2016

IntelliDroid Taint tracking

Targeted inputs leading to

suspicious Android API calls

Data for classiﬁcation

or manual analysis

# Virtual device

Gerardo Canfora

et al. 2016

Measures of resource consumption

(CPU, Network, Memory, Storage I/O)

Monkey

Malware/benign classiﬁcation

99.52% accuracy

# Virtual device

- Glassbox

Java calls (name)

System calls (name)

HTTP/HTTPS requests

(all content)

Monkey

UI brute force

Broadcast events

Real SMS/Call

Text ﬁelds ﬁlling

Data for malware/benign

classiﬁcation

# Real device

Table 2: Legend.

The paper is not clear enough on those details

and we cannot be sure that it is an exhaustive list

call (name) Only the name of the call is used, in order to get the appearance frequency

# Comment

- No data

∼ Data exists but is irrelevant for this study

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

612

Java calls is another feature of interest as it cap-

tures an explicit behavior of the application. There

are several ways to collect them:

• Application Instrumentation — This strategy

does not need any modiﬁcation of the Android

source code and is not dependent on Android ver-

sion. The application can be modiﬁed in or-

der to dump targeted method parameters and re-

turn values. APImonitor (pjlantz, 2012) is a tool

that enables the instrumentation of targeted Java

calls. It reverses the application into smali, a hu-

man friendly format equivalent to the Java byte-

code, with the baksmali (JesusFreke, 2009) utility.

Then, it adds monitor routines around the targeted

calls and it recompiles the code with the smali (Je-

susFreke, 2009) utility. This strategy is used by

the authors of (Afonso et al., 2015).

• DVM/ART Instrumentation — The DVM

(Dalvik Virtual Machine) or ART (Android Run-

Time, Android API version ≥ 4.4) is the sys-

tem that interprets and executes all the applica-

tion instructions. All Java calls converge to this

component. Hence, by hooking the execution of

DVM/ART, one can monitor and control all Java

calls, their arguments and their return values. That

implies the modiﬁcation of Android source code

and its compilation to a custom ROM. This is the

strategy we chose to use for collecting Java calls.

We prefer this method for keeping the application

behaviors pristine, and particularly not inducing

additional bugs. Andrubis (Lindorfer et al., 2014)

and DroidScope (Yan and Yin, 2012) use similar

approaches for tracing method calls.

For the last features, they are highly marginal.

Here, Andrubis reported the retrieval of targeted

shared library calls. Another data are the network

communications. Only Andrubis reported the utiliza-

tion of features from network communications, but

without any further details. Our system makes use of

Panoptes (Filiol and Irolla, 2015) for gathering plain

text and encrypted web communications. A recent

study, (Canfora et al., 2016), shows that the mea-

sures of resource consumption for malware detection

is a promissing trail. It reports 99.52% accuracy with

global measures of CPU usage, Network usage, RAM

usage and Storage I/O usage.

2.2 Automated Testing Strategies

Dynamic analysis does not consist of launching the

application and waiting the malware to show its ma-

licious behaviors off. Malware are using logic bombs

for hiding the payload. Logic bombs are a malicious

piece of code that is executed after a condition is trig-

gered. It means we need to test each application as a

real user could have done it. For achieving this objec-

tive, several strategies have been used in the past:

• Black Box Testing Strategies — This class of

strategies does not take the application source

code into account, it focuses on sending inputs

in the application without any prior information.

This is the commonly used strategy. Monkey

a dedicated tool created by Google for this task.

It generates random events in a fast pace. Events

range from system events (home/wiﬁ/bluetooth/-

sound volume etc.) to navigation events (mo-

tion, click). Because of its capacity to quickly

explore applications activities, it has been used

by most of dynamic analysis systems (AASandbox

(Bl

asing et al., 2010), AppsPlayground (Rastogi

et al., 2013), Andrubis (Lindorfer et al., 2014),

(Afonso et al., 2015), (Canfora and al., 2015 and

2016), Maline (Dimja

sevi

c et al., 2016)). Monkey

is sometimes confused with Monkey Runner

the literature, which is a python library for writing

Android test routines.

• White Box Testing Strategies — This class of

strategies takes the application source code into

account. It focuses on sending speciﬁc inputs in

the application for triggering targeted code paths.

It requires the information from the static analy-

sis of the application. Parsing the code is needed,

to ﬁnd the target methods and all their trigger-

ing conditions. SmartDroid (Zheng et al., 2012)

and IntelliDroid (Wong and Lie, 2016) determine

all paths to sensitive API calls, then execute one

of the paths to the target with dynamic analy-

sis. Another kind of White Box testing strategy

is symbolic execution where dynamic analysis is

done by simulating the execution of the applica-

tion static code. AppAudit (Xia et al., 2015) uses

this technique for ﬁnding data leaks with symbolic

taint tracking.

• Grey Box Testing Strategies — This class of

strategies partially takes the applications source

code into account. It focuses on testing all visible

inputs the application declares or displays (UI).

It usually takes the output of the application to

generate the next inputs. Andrubis uses a Grey

Box strategy when it tests all possible application

services and activities, because they get the infor-

mation from the application manifest. AppsPlay-

ground also uses Grey Box testing with its Intelli-

https://developer.android.com/studio/test/monkey.html

https://developer.android.com/studio/test/monkeyrunner/

index.html

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices

613

gent Execution where windows, widgets, and ob-

jects are uniquely identiﬁed to know when an ob-

ject has already been explored. Grey Box testing

have the advantages of using tests that the appli-

cations is suceptible to respond, contrary to Black

Box testing, without the requirement of process-

ing a Control Flow Graph, as White Box testing.

It is then the most efﬁcient way of testing applica-

tions. This is why we use strategy in Glassbox.

2.3 Real Devices

The use of real devices for dynamic analysis started

with Crowdroid (Burguera et al., 2011), a crowd-

sourced based analysis. Whereas this approach give

good results, one cannot ask users to execute real mal-

ware on their personal device. So this system can only

be an option, when we have already a trained machine

learning algorithm, to ﬁnd malware in the wild.

BareDroid is a system which manages real devices

in large scale for dynamical analysis. Whereas Bare-

Droid (Mutti et al., 2015) cannot be considered as a

dynamical analysis system, because it does not anal-

yse applications, it brought two major results for our

study. First, real devices for dynamic analysis sys-

tems are a scalable solution ﬁnancially and in excu-

tion time compared to virtual devices. Second, using

real devices drastically improves features detected for

malware families that often rely on emulator evasion

like Android.HeHe, Android Pincer, and OBAD.

3 ARCHITECTURE OVERVIEW

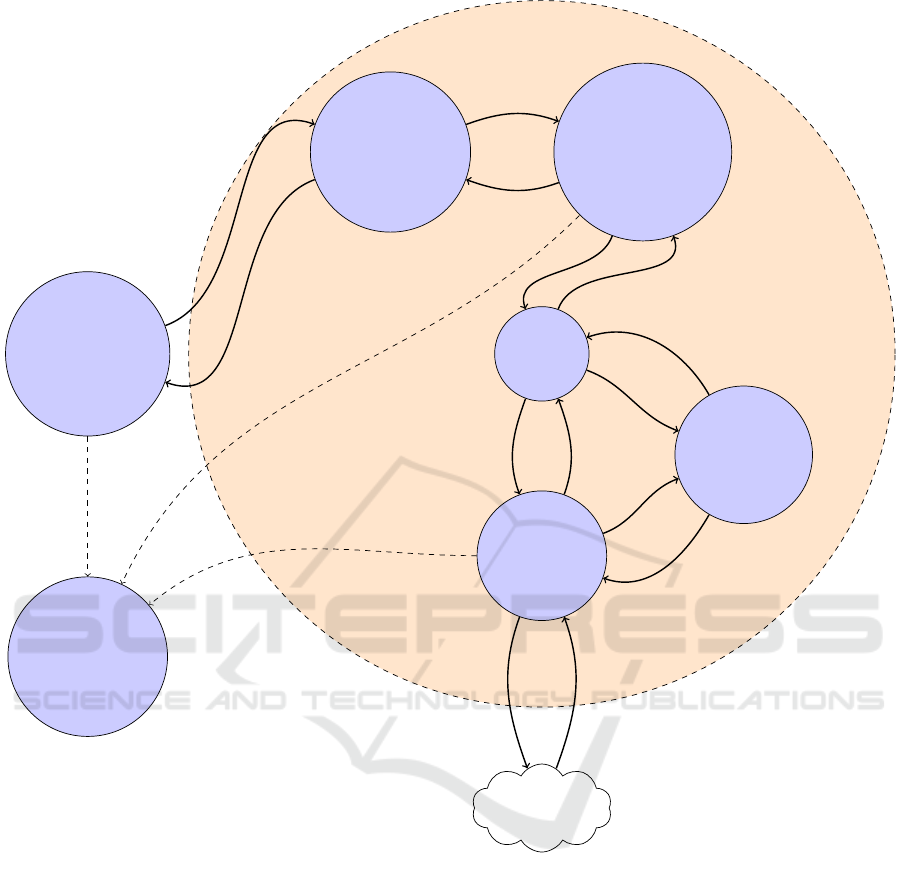

Glassbox (Figure 1) is a modular system distributed

among one or several phones and a computer. Each

part is detailed in the following sections.

3.1 Android Instrumentation

A custom Android OS has been made, based on the

Android Open Source Project (AOSP)

. The objec-

tive here is to log dynamically each Java call of a tar-

geted application. This involves hooking these calls,

at a point where all of them pass through. We instru-

mented ART (Android RunTime)

, the Android man-

aged runtime system that executes application instruc-

tions. With the default parameters, we found that ART

(at least until Android Marshmallow) have the follow-

ing important behaviors for our study:

https://source.android.com/

https://source.android.com/devices/tech/dalvik/index.html

• The ﬁrst time Android is launched, Java Android

API libraries and applications are optimized and

compiled to a native code format called OAT (Sa-

banal, 2015).

• Each time a new application is installed, it is opti-

mized and compiled to OAT format.

• Java methods can be executed in three ways: by

an OAT JUMP instruction to the method address,

by the ART interpreter for non-compiled methods

(debugging purposes mostly), or via the Binder

for invoking a method from another process or

with Java Reﬂection. Details on the Android

Binder can be found in (Schreiber, 2011) chapter

A straightforward way of hooking Java calls is to in-

strument the ART interpreter. Unfortunately only a

few calls are executed through it because most of the

code is compiled into OAT and therefore it is not in-

terpreted. We forced all calls to be interpreted by

disabling several optimizations. The ﬁrst one is the

disabling of the compilation to OAT. That leads calls

to be interpreted before executed. But others opti-

mizations mechanisms comes into play, namely direct

branching and inlining.

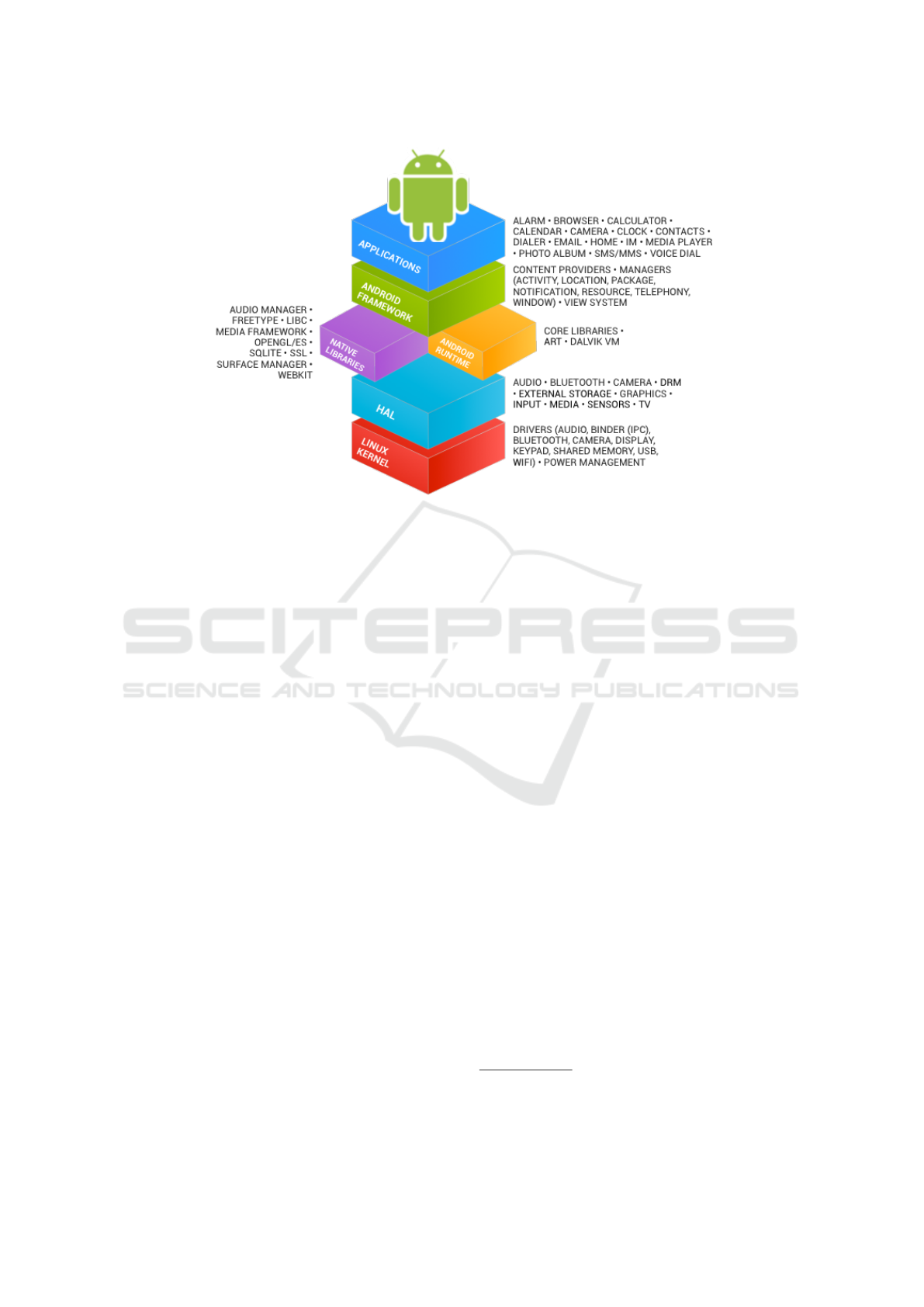

The boot classpath contains the Android frame-

work (Figure 2) and core libraries. They are always

compiled in OAT resulting in a boot.oat ﬁle. This ﬁle

is mapped into memory by the Zygote process, started

at the initialisation of Android. For launching an ap-

plication, the main activity is given at Zygote in pa-

rameters. When Zygote is called that way, it forks and

starts the given activity. It means that any application

has access to same instance of the Android frame-

work and core libraries. Direct branching is an op-

timisation that replaces framework/core method calls

by their actual address in memory. So the calls does

not pass through the interpreter. That optimisation is

disabled.

Then inlining is an optimisation that replaces short

and frequently used methods with their actual code.

Although, it slightly increases the application size in

memory, runtime performance are increased. As there

is no method any more, it cannot be hooked in the

ART interpreter. That optimisation is also disabled.

A monitoring routine is added to ART interpreter

that logs any method call from a targeted application

pid. A sample of a capture of Java calls is shown in

annexes. All these modiﬁcations overload the global

execution of Android. Whereas it is not noticeable for

most of the applications, on gaming applications are

visibly slow down by this approach.

Lastly the phone is shipped with a real SIM card

for luring malware payloads with SMS/MMS/Calls.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

614

Smart Monkey

Automated app testing

Logs

Collected app features

Panoptes

Wiﬁ access point

Http/Https interception

Phone

Instrumented Android

ClamAV

malware ?

WoT

trustworthy url ?

Inetsim

Network services

simulation

Internet

Glassbox

syscalls / javacalls

Figure 1: Glassbox — Architecture overview.

Many malware may use it for stealing money with

premium numbers, and because we use a real SIM

card it would actually cost us money. We modiﬁed

the telephony framework of the Android API to re-

ject all outgoing communications except for our own

phone number. When a forbidden call is made, the

calling UI pops and closes after one second around.

This way does not crash applications that rely on calls

and SMS.

3.2 Network Control & Monitoring

All communications of the instrumented phone pass

through a transparent SSL/TLS interception proxy be-

hind a wiﬁ access point. This is set by Panoptes (Fil-

iol and Irolla, 2015). To understand how it works we

need to describe a part of the TLS handshake. Here is

the regular behavior of a https request on Android:

Android have a keystore of all root certiﬁcates the

system trusts. When a SSL/TLS request is initialized,

the requested server send its certiﬁcate. It contains

identifying informations — like the domain name that

must verify the contacted domain name — and a sig-

nature that can only be decrypted with the right root

CA. The server certiﬁcate is tested with each trusted

root CA, and if one matches the communication is ac-

cepted. Extended information on the TLS handshake

can be found with the RFC 2246 memo (Dierks and

Allen, 1999).

For our interception system to work, a SSL/TLS

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices

615

Figure 2: Android architecture overview.

root certiﬁcate from a custom certiﬁcation authority

(CA) is implanted in the keystore of Android. When

the device requests a https web page, the request goes

through the proxy. It is parsed and a new one is ini-

tialised to be sent to the original recipient. The re-

sponse is encapsulated in a new SSL/TLS response

signed by our custom certiﬁcate. This custom certiﬁ-

cate is dynamically generated with the recipient iden-

tifying informations and our custom root CA private

key. As the communication is signed by an author-

ity of certiﬁcation that is known by the client, An-

droid accepts it without any warning. Finally, all

HTTP/HTTPS communications are logged and a re-

port can be generated which is convenient for manual

analysis if needed.

This system has been extended to support manipu-

lation of requests. The objective is to restrict the pro-

liferation of malware and the damage that it may pro-

duce. As Glassbox runs malware, it may have a neg-

ative impact on its environment. An extreme mean

could be to disconnect the system from internet but

we would see less or no malicious behavior at all for

numerous applications. Our design is a trade-off be-

tween safety and behavior detection:

• ClamAV (Kojm, 2004) is used to detect known

malware sent through network. If a malware is

detected, the payload is removed from the request

and is redirected to Inetsim (Hungenberg and Eck-

ert, 2013), a network services simulation server

that replies consistently to the requests. It forbids

the communication between the application and

internet without crashing it.

• For all other requests, we assess the reputation of

the domain name or IP address with the Web of

Trust (WoT)

API. WoT is a browser extension

that ﬁlters urls based on different reputation rat-

ing. These rating come mainly from the users. If

the request contacts a known address with a good

reputation, we forbid the application under test

to reach it, then it is redirected to Inetsim. The

advantages are twofold. The application cannot

damage a respectable website, and it pre-ﬁlters

behaviors for classiﬁcation.

Finally features from communications content are

collected and the WoT reputation scores as well. A

sample of a network capture is shown in the annexes.

3.3 Automated Application Testing

Smart Monkey is an automated testing program based

on Grey Box strategies. The context of the applica-

tion is determined at runtime for the automatic explo-

ration. We use UIautomator

, a tool that can dump

the hierarchy tree of the current UI elements present

on screen. It enable us to monitor variables of each UI

element at runtime. For a smart exploration, we need

to know if we have already processed an element. Un-

fortunately, elements do not carry such a unique iden-

tiﬁer. Nonetheless, we found that elements can be

identiﬁed to some degree:

https://www.mywot.com/wiki/API

https://stuff.mit.edu/afs/sipb/project/android/docs/tools/

help/uiautomator/index.html

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

616

• Strong Identiﬁcation — Elements can have an

associated ID string that developers set. Concate-

nated to the current activity name we have robust

identiﬁcation, but for most of the elements this

ﬁeld is empty. With the same method, a content

description is sometimes associated with the ele-

ment. We can also use this for strong identiﬁca-

tion.

• Partial Identiﬁcation — If we do not have ac-

cess to the previous values, which happens most

of the times, we can use lesser discriminative val-

ues. Textﬁelds can be set with an initial value, or a

printed text can be associated to it. With no better

available options we use the element dimensions

to identify it. Obviously, when an element is par-

tially identiﬁed, a risk of false positive is possible.

Moreover each element carries a list of actions it can

trigger. Our automatic exploration consists of system-

atically triggering all actions of all elements for all ac-

tivities. We do not try each combination of actions as

it would not scale and be mostly redundant. To this

basic general process we add targeted actions to trig-

ger more sophisticated behaviors:

• Some textﬁelds of interest are detected like phone

number, ﬁrst or last name, email address, IBAN,

country, city, street addresses, password or pin

code. These textﬁelds are ﬁlled with consis-

tent values accordingly. For this task, we use

databases of realistic data (samples can be found

in the annexes). Uncategorised textﬁelds are ﬁlled

with a pseudo-random string.

• The order of actions done matters. For example

validating. In the exploration, ﬁlling textﬁelds and

check-boxes takes precedence over the rest.

• An application can register a receiver for a broad-

cast Android event like the change of phone state

or wiﬁ state. It can be done statically in the ap-

plication manifest or dynamically. Those dynam-

ical receivers could be hidden from static analysis

with obfuscation. To trigger the receivers code,

we test applications with a list of broadcast events

that are often used by malware (a partial list is

given in annexes). Moreover, real SMS and phone

calls are sent to the real device own number.

We ﬁnally use the Monkey program during the analy-

sis. It can help to trigger behaviors requiring complex

inputs combination that Smart Monkey could miss. At

the end comes the cleaning phase. For our real device

we keep a white list of regular processes and installed

applications — regular, system and device admin-

istrator applications. Non-authorised processes are

killed and applications uninstalled. Important phone

conﬁgurations like wiﬁ, data network and sounds are

reset to a predeﬁned value.

4 EXPERIMENTATION

4.1 Performance Measure

We use the average coverage of basic blocks for quan-

tifying the performance of the application code cov-

erage. It is a measure of the performance of the Smart

Monkey component of Glassbox. Here are deﬁnitions

of the vocabulary used in the experimentation:

• A basic block is an uninterrupted section of in-

structions. A basic block begins at the start of the

program or at the target of a control transfert in-

struction (JUMP/CALL/RETURN). It ends at the

next control transfert instruction.

• The basic block coverage for an application is the

number of unique basic blocks executed at run-

time divided by the number of unique basic blocks

present in the source code.

• The average coverage of basic blocks is the sum

of the basic block coverage of all applications di-

vided by the number of applications.

4.2 Dataset

We use the AndroCoverage Dataset (AndroCoverage,

2016) for our experimentation. It contains 100 appli-

cations from F-Droid

, which is a repository of free

and open source (FOSS) applications. We have manu-

ally selected them with the following criteria for each

application:

• It does not depend on a third party library or ap-

plication as an automatic tool would be unable to

install it.

• It does not depend on root privilege. To meet the

requirement of a maximum of testing tools con-

ﬁguration, we stick with regular privilege.

• It does not depend on local or temporary remote

data. We want the application to be usable world-

wide and in the long-term. This category excludes

applications for a temporary event or a speciﬁc

country.

Our goal is to use applications which show a large

variety of different and steady behaviors. It is why

we predict that performance on the AndroCoverage

https://f-droid.org/

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices

617

Dataset will be overestimated compared to the aver-

age of real applications. This dataset is to be used to

compare the performance of different automated test-

ing tools on the same ground.

The AndroCoverage Dataset is supplied with tools

which instruments the application, adding monitoring

routines for code coverage. These tools are partially

founded on BBoxTester (Zhauniarovich et al., 2015),

a tool for measuring the code coverage for Black Box

testing of Android applications.

4.3 Methodology

Research community used different strategies for au-

tomated application testing, with different evaluation

methods and different datasets. To promote the suc-

cessful strategies for future researches on the domain,

we need a standard for the experimentation. Other-

wise, we cannot compare the results objectively. The

research titled Automated Test Input Generation for

Android: Are We There Yet? (Choudhary et al., 2015)

shows the re-evaluation on the same ground of 5 pub-

lished automated testing tools for Android. The ex-

perimental results found is far from what have been

claimed in the published papers. Moreover, accord-

ing to this study, the Monkey program have the best

performances above all at around 53% average cover-

age of statements on 68 selected applications. Either

all rechearches on Android automated testing are not

better than a random event generator or the evaluation

methodology lacks pertinence. Our opinion is that a

better methodology can highlight the contribution of

main researches to the ﬁeld.

To summarize, these observations reveal several

problems on the experimental results:

• (1) They are currently not reproductible.

• (2) They cannot be compared to each other.

• (3) They do not hightlight the contribution of

the evaluated testing method compared to Monkey

program.

To answer those problems, we propose the follow-

ing rules:

• (2)

A common performance measure. We pro-

pose the average coverage of basic blocks. State-

ment coverage (also called line coverage) is con-

sidered as the weakest code coverage measure by

specialists in software testing. This metric should

not be used when another one is available. For an

argued reﬂection about coverage metrics, we refer

to the paper What is Wrong with Statement Cov-

erage (Cornett, 1999).

This number and the following ones refers the problem

number it solves

• (1)(2) A common dataset and common tools for

instrumenting the applications. We propose the

AndroCoverage Dataset (AndroCoverage, 2016).

• (1)(2) A common conﬁguration — Monkey ar-

guments, a ﬁxed seed for every random number

generator used and application versions. These

information are either present in annexes of this

document or on the AndroCoverage Github web

page.

• (3) To assess the performance of the combination

of both Monkey and the evaluated testing method

(in our case it is Smart Monkey). Compared sep-

arately, the performance of Monkey and the eval-

uated method does not hightlight new code paths

that have been triggered by the evaluated method.

A complex method would not seem successful

whereas it would have triggered complex condi-

tions that Monkey could never ﬁnd. Moreover, the

Monkey program is embeded in every Android de-

vice (real and virtual), it interacts in a very fast

pace with the application and produces good re-

sults. Then, on an operational situation, it makes

sense to use it in addition to any research tool.

4.4 Results

Smart Monkey usually runs Monkey at the beginning

of the analysis. For a fair trial, we tested the perfor-

mance of its code coverage with and without Mon-

key. The conﬁguration of the Monkey tool has been

described in annexes. The results are presented on

Table 3.

The Monkey program tends to generate bugs with

the instrumentation process. For a signiﬁcant amount

of applications (16%) we are unable to get the cov-

erage rate. We note that the same applications crash

between Monkey and Smart Monkey so the crash rate

has no effect on the performance comparison between

both programs.

The raw results does not give enough insight of

the contribution of Smart Monkey. We are interested

in the new paths that have been triggered compared

to the Monkey program. Therefore we calculate the

increase of average coverage of basic blocks of Smart

Monkey compared to Monkey:

smartmonkey

monkey

= 1.1352

Where:

• smartmonkey

is the average coverage of basic

blocks of Smart Monkey.

• monkey

is the average coverage of basic blocks

of Monkey.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

618

Table 3: Code coverage results.

Method Classes average coverage Methods average coverage Blocks average coverage Crash rate

Monkey

32.93% 35.05% 36.32% 16%

Smart Monkey (w/o Monkey)

34.84% 36.68% 37.73% 0%

Smart Monkey (with Monkey)

37.12% 41.6% 41.23% 16%

It means that the testing strategy we have set up in

Smart Monkey leads to average increase of 13.52% of

basic blocks coverage.

5 LIMITATIONS

Dynamic analysis systems that allows internet com-

munications are vulnerable to ﬁngerprinting. Our

platform is not an exception. For example Bouncer

(Lockheimer, 2012) have been the target of remote

shell attacks (Percoco and Nicholas, 2012) that en-

abled the ﬁngerprinting of the system. The malware

gets some information on the system and sends it to

a command and control server. Hence, the malware

author can reshape the trigger conditions of the logic

bomb. We accepted this risk for now. A solution

halfway between shutting down all communications

and no ﬁltering at all could be to strip all outgoing

information — POST request contents/GET url vari-

ables/Cookies/Metadata ﬁelds. This could lead to a

loss of behaviors and the negative impact of such so-

lution needs to be measured. Anyway a smart mal-

ware author will eventually ﬁnd a way to leak remote

shell outputs.

The network monitoring has limitations. First, it

cannot currently handle all protocols like POP, IMAP

and FTP so these protocols are simply blocked. In

fact the communications are parsed, to get its con-

tent, the destination and the metadata. So this parsing

needs to be changed for each protocol. It is an im-

possible task of adding one by one all protocols, so

we would need to measure the protocol usage and im-

plement the most used ones. At last, there is a coun-

termeasure to our SSL/TLS interception, namely cer-

tiﬁcate pinning. The requipement of the interception

is the implantation of a custom root certiﬁcate in the

Android keystore of trusted certiﬁcates. An applica-

tion can choose to discard the Android keystore and

to embed its own. Therefore when a communication,

encrypted with our custom certiﬁcate, is checked, the

communication is rejected. This technique is used in

many banking applications (Filiol and Irolla, 2015).

In fact the point of view of the bank is: the user OS

cannot be trusted. Although we have no evidence that

it happens for malware, it may be used by an avant-

gardist malware and other would follow the trail. It

is inconvenient for malware authors to buy a certiﬁ-

cate signed by an authority of certiﬁcation, as a pay-

ment trace could identify them. Despite of that, it is

possible to get a valid certiﬁcate from Let’s Encrypt

, or to control a legtimate server via hacking and

use it as a relay for the C&C server. In these cases,

certiﬁcate pinning could be used for hiding commu-

nications from analysts or interception systems. A

counter to this technique is instrumentation. By mon-

itoring arguments of the SSL/TLS encryption method,

one can get the plaintext communications. We have

done it manually for some banking applications (Fil-

iol and Irolla, 2015) with APImonitor (pjlantz, 2012),

but doing it automatically is another issue. Appli-

cations that use certiﬁcate pinning generally embed

their own library for SSL/TLS encryption, so detect-

ing dynamically which call is the SSL/TLS encryption

method can be challenging.

Last, the cleaning phase of Glassbox ﬁts the secu-

rity needed for a prototype. However, to move to an

operational situation with malware that could execute

0-day root exploits, we need a real factory-reset of

the phone. This is why we plan to integrate the open

source project BareDroid as a part of Smart Monkey,

for its factory-reset capability on real device.

6 CONCLUSION & FUTURE

RESEARCH

This paper contributes to the domain of dynamic anal-

ysis system for Android in three ways. First, we pre-

sented Glassbox a functional prototype of a platform

that uses real devices, controls network and GSM

communications to some extends and monitors Java

calls, systems calls and network communication con-

tent. Second, we experimented Smart Monkey, an

automatic testing tool with a Grey Box testing strat-

egy. We showed that it enhances the application code

coverage compared to the common Black Box test-

ing tool called Monkey. Last, we presented a method

of evaluation of automated testing tools to research

community. This method covers the problems of re-

producibility, the comparison with other works and of

the contribution measurement of the tool. We made

https://letsencrypt.org/

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices

619

the dataset available on Github under the name An-

droCoverage.

The next step is to use Glassbox on malware/benign

applications and to use the features found on a ma-

chine learning algorithm. We are working on the clas-

siﬁcation of these data with a neural network.

REFERENCES

Afonso, V. M., de Amorim, M. F., Gr

egio, A. R. A., Jun-

quera, G. B., and de Geus, P. L. (2015). Identify-

ing android malware using dynamically obtained fea-

tures. Journal of Computer Virology and Hacking

Techniques, 11(1):9–17.

AndroCoverage (2016). Androcoverage dataset. [Online]

https://github.com/androcoverage/androcoverage.

asing, T., Batyuk, L., Schmidt, A. D., Camtepe, S. A.,

and Albayrak, S. (2010). An android application sand-

box system for suspicious software detection. In Ma-

licious and Unwanted Software (MALWARE), 5th In-

ternational Conference on, pages 55–62.

Burguera, I., Zurutuza, U., and Nadjm-Tehrani, S. (2011).

Crowdroid: behavior-based malware detection system

for android. In Proceedings of the 1st ACM workshop

on Security and privacy in smartphones and mobile

devices, pages 15–26. ACM.

Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.

(2015). Detecting android malware using sequences

of system calls. In Proceedings of the 3rd Interna-

tional Workshop on Software Development Lifecycle

for Mobile, pages 13–20. ACM.

Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.

(2016). Acquiring and analyzing app metrics for ef-

fective mobile malware detection. In Proceedings of

the 2016 ACM on International Workshop on Security

And Privacy Analytics, pages 50–57. ACM.

Choudhary, S. R., Gorla, A., and Orso, A. (2015). Auto-

mated test input generation for android: Are we there

yet?(e). In Automated Software Engineering (ASE),

2015 30th IEEE/ACM International Conference on,

pages 429–440. IEEE.

Cornett, S. (1999). What is wrong

with statement coverage. [Online]

http://www.bullseye.com/statementCoverage.html.

Dharmdasani, H. (2014). Android.hehe: Mal-

ware now disconnects phone calls. [On-

line] https://www.ﬁreeye.com/blog/threat-

research/2014/01/android-hehe-malware-now-

disconnects-phone-calls.html.

Dierks, T. and Allen, C. (1999). The tls protocol version

1.0. [Online] http://www.ietf.org/rfc/rfc2246.txt.

Dimja

sevi

c, M., Atzeni, S., Ugrina, I., and Rakamaric,

Z. (2016). Evaluation of android malware detection

based on system calls. In Proceedings of the 2016

ACM on International Workshop on Security And Pri-

vacy Analytics, pages 1–8. ACM.

Filiol, E. and Irolla, P. (Black Hat Asia 2015). (in)security

of mobile banking... and of other mobile apps.

Hungenberg, T. and Eckert, M. (2013). Inetsim: Internet

services simulation suite.

IDC (2015). Smartphone os market share, 2015 q2.

[Online] http://www.idc.com/prodserv/smartphone-

os-market-share.jsp.

JesusFreke (2009). Github - smali readme. [Online]

https://github.com/JesusFreke/smali.

Jing, Y., Zhao, Z., Ahn, G.-J., and Hu, H. (2014). Mor-

pheus: automatically generating heuristics to detect

android emulators. In Proceedings of the 30th Annual

Computer Security Applications Conference, pages

216–225. ACM.

Kojm, T. (2004). Clamav.

Lindorfer, M., Neugschwandtner, M., Weichselbaum, L.,

Fratantonio, Y., v. d. Veen, V., and Platzer, C. (2014).

Andrubis – 1,000,000 apps later: A view on cur-

rent android malware behaviors. In 2014 Third In-

ternational Workshop on Building Analysis Datasets

and Gathering Experience Returns for Security (BAD-

GERS), pages 3–17.

Lockheimer, H. (2012). Android and security. [Online]

http://googlemobile.blogspot.fr/2012/02/android-

and-security.html.

Mutti, S., Fratantonio, Y., Bianchi, A., Invernizzi, L., Cor-

betta, J., Kirat, D., Kruegel, C., and Vigna, G. (2015).

Baredroid: Large-scale analysis of android apps on

real devices. In Proceedings of the 31st Annual Com-

puter Security Applications Conference, pages 71–80.

ACM.

Percoco and Nicholas, J. (2012). Adventures in bouncer-

land.

pjlantz (2012). Droidbox - apimonitor.wiki. [Online]

https://code.google.com/archive/p/droidbox/wikis/

APIMonitor.wiki.

Rastogi, V., Chen, Y., and Enck, W. (2013). Appsplay-

ground: automatic security analysis of smartphone ap-

plications. In Proceedings of the third ACM confer-

ence on Data and application security and privacy,

pages 209–220. ACM.

Sabanal, P. (2015). Hiding behind art.

Schreiber, T. (2011). Android binder - android interprocess

communication.

Tam, K., Khan, S. J., Fattori, A., and Cavallaro, L. (2015).

Copperdroid: Automatic reconstruction of android

malware behaviors. In NDSS.

Wong, M. Y. and Lie, D. (2016). Intellidroid: A targeted

input generator for the dynamic analysis of android

malware.

Xia, M., Gong, L., Lyu, Y., Qi, Z., and Liu, X. (2015). Ef-

fective real-time android application auditing. In Se-

curity and Privacy (SP), 2015 IEEE Symposium on,

pages 899–914. IEEE.

Yan, L. K. and Yin, H. (2012). Droidscope: seamlessly re-

constructing the os and dalvik semantic views for dy-

namic android malware analysis. In Presented as part

of the 21st USENIX Security Symposium (USENIX Se-

curity 12), pages 569–584.

Zhauniarovich, Y., Philippov, A., Gadyatskaya, O., Crispo,

B., and Massacci, F. (2015). Towards black box test-

ing of android apps. In 2015 Tenth International

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

620

Conference on Availability, Reliability and Security

(ARES), pages 501–510.

Zheng, C., Zhu, S., Dai, S., Gu, G., Gong, X., Han, X., and

Zou, W. (2012). Smartdroid: an automatic system for

revealing ui-based trigger conditions in android appli-

cations. In Proceedings of the second ACM workshop

on Security and privacy in smartphones and mobile

devices, pages 93–104. ACM.

ANNEXES

Data Samples Used in Smart Monkey

$ > head random - i b a n . txt

AL 9 4 2 8 3 40 5 7 9 7 9 77 6 2 9 2 8 15 6 3 6 5 9

AL 6 0 7 2 6 12 2 3 5 0 0 56 7 5 6 4 5 79 9 9 4 4 7

AL 2 3 7 9 3 88 4 9 6 0 5 03 6 6 5 7 8 45 2 1 8 1 5

AL 9 1 0 8 1 26 4 7 6 3 5 46 2 5 0 8 5 96 7 2 8 8 4

$ > head b r o a d c a s t - e v e nts . txt

andr o i d . inten t . a c t i on . BO O T_ C OM P LE T ED

andr o i d . inten t . a c t i on . BA T T E RY _ CH A NG E D

andr o i d . n et . conn . C O N NE C TI VI T Y_ C H A NG E

andr o i d . inten t . a c t i on . US E R_ P RE S ENT

Sample of a Java Calls Capture

$ > logc a t

[...]

void j a v a . lang . St r in g Bui l de r . < init >

java . l ang . S t ri n gB u il d er j ava . lang .

St r in g Bu i lde r . appen d

java . l ang . S t ri n gB u il d er j ava . lang .

St r in g Bu i lde r . appen d

java . l ang . Str i n g java . lang .

St r in g Bu i lde r . toS t ring

void com . en e rgy s ou r ce . szj . a n d roid . Log .i

andr o i d . os . L o oper a n droi d . os . Loop e r .

ge t Ma i nL o ope r

[...]

Sample of a Network Capture

[...]

< h eader >

< m ethod >R0VU </ method >

< s cheme > aHR0c A == </ s cheme >

<path > L 0 d l d E lu Z m 8 u Y XN o e D 9 h cH Bp Z D 0 3Z

mZ jN 2 J l OT Jm M 2 M 0 Y Td mY T A 4 M z Ux ZT N k N T

Nm OT h k Y SZ hc H B 2 Z X I9 Mj c 2 J n Y 9M S4 w L j Q

mY 2x p Z W 50 PT I m c G 4 9Y 29 t L m d w Ln Nl Y X J j

aC Z1 c 2 V yd mV y P T I u MC Zh Z H R 5 c GU 9M i Z j b

3 V u d H J 5P WZ y J m 5 0 PT Im b W 5 vP TI w O D E 1 Jn

V1 aW Q 9 Z mZ mZ m Z m Z m Yt ZW I w O S 0 5N Dc w L T U

zY 2U t Y m Mx Yj A w M D A wM DA w J m 9 z PT Yu M C 4 x

Jm Ru P U F PU 1A r b 2 4 r SG Ft b W V y S GV hZ C Z z a

Xp lP T E w OD Aq M T c 3 N iZ jY z 0 0 J m Nt PT M 4 L j

Qw J n J hb T 0 x OD k 5 N TA 4 a2 I =

</ path >

< http _ v e rsion >

SF R UUC 8 xL j E =

</ h t tp_ve r s i on >

< Connection >

S2 V lc C 1B b Gl 2 ZQ ==

</ C o n n e ction >

QX Bh Y 2 h lL Uh 0 d H B D bG ll b n Q v V U5 BV k F J T

EF C T E Ug K G p hd m E g MS 4 0K Q ==

</ User - A gent >

</ heade r >

< con t e nt / >

[...]

NB: all ﬁeld values are encoded in base 64

Monkey Conﬁguration

monke y -s 0 -- pct - s yske y s 0 -- pct -

app s wit c h 0 -- t h rot t l e 50 -p <

pac k a ge - name > -v 500

-s 0: The seed of the r a ndom n u mber

gen e rat o r is f ixed to 0

--pct - sys k e ys 0: No s y stem key e v ents

are sent , s u c h as Home , Back , S t art

Call , End Call , or V o lume i n p uts .

--pct - ap p s wi t c h 0: No st a rt A ct i vi t y ()

are i s sued as c a l ling the

in s tr u me n ta t io n act i vit y an othe r

time break s it .

-- th r ott l e 5 0: The d e l a y betwee n ev ents

is fixe d to 50 m i ll i sec o nd s .

500: A total of 500 ev e n t s a re sent .

Glassbox: Dynamic Analysis Platform for Malware Android Applications on Real Devices

621
