DNN-based Models for Speaker Age and Gender Classification

Zakariya Qawaqneh

, Arafat Abu Mallouh

and

Buket D. Barkana

Computer Science and Engineering Department, University of Bridgeport, Bridgeport, CT, 06604, U.S.A.

Electrical Engineering Department, University of Bridgeport, Bridgeport, CT, 06604, U.S.A.

Keywords: Deep Neural Network, SDC, MFCCS, Speaker Age and Gender Classification.

Abstract: Automatic speaker age and gender classification is an active research field due to the continuous and rapid

development of applications related to humans’ life and health. In this paper, we propose a new method for

speaker age and gender classification, which utilizes deep neural networks (DNNs) as feature extractor and

classifier. The proposed method creates a model for each speaker. For each test speech utterance, the similarity

between the test model and the speaker class models are compared. Two feature sets have been used: Mel-

frequency cepstral coefficients (MFCCs) and shifted delta cepstral (SDC) coefficients. The proposed model

by using the SDC feature set achieved better classification results than that of MFCCs. The experimental

results showed that the proposed SDC speaker model + SDC class model outperformed all the other systems

by achieving 57.21% overall classification accuracy.

1 INTRODUCTION

As the computer technology has been developing,

human computer interaction (HCI) systems are

becoming more important every day. Speaker age and

gender information is used in some of HCI systems

such as speaker identification/verification, speech

recognition, tele-marketing, and security

applications. Overall classification accuracies for

speaker’s age are quite low compared to the speaker’s

gender information. Until now, different feature sets

have been developed and studied in the literature

(Barkana, 2015). MFCCs is one of the spectral feature

sets that is widely used and is able to model the vocal

tract filter in a short time power spectrum (Davis,

1980). SDC feature set is reported as an effective set

for language identification (LID) and speaker

recognition and verification (Richardson, 2015a).

SDC could be considered an extension of the delta-

cepstral features, which aim to gain a significant

performance over the derivative features in the

cepstral features.

DNN is considered one of the most successful

classifiers and feature extractors and it is used widely

in different fields and applications such as computer

vision (Nguyen, 2015; Zeiler, 2013), image

processing and classification (Ciregan, 2012;

Simonyan, 2014), and natural language recognition

(Richardson, 2015b; Yu, 2010). The essential power

of DNNs comes from its deep architecture which is

able to transform raw input features into rich and

strong internal representation (Hinton, 2012).

This paper examines and evaluates the usage of

SDC feature set and DNN-based speaker model in

speaker age and gender classification. Our work aims

to build a model for each speaker instead of using one

model for each class of speakers, whom belong to the

same class of age and gender. Introducing a speaker-

aware model is motivated by the fact that a speaker

model can capture the characteristics of the speaker

more effectively than a model that represents a group

of speakers. The possible benefit of a speaker-based

model is that the system can use all the features of

speakers who belong to the same class to improve the

classification accuracies.

The remainder of the paper is organized as

follows: A brief literature review is followed by the

proposed work. Then, experimental results and

discussion are reported. Finally, the conclusion of our

work is presented.

2 LITERATURE REVIEW

Li et al. (Li, 2013) proposed a system which combines

five classifiers: Gaussian mixture model (GMM)

based on MFCC features, GMM-SVM mean

supervector, GMM-SVM maximum likelihood linear

106

Qawaqneh Z., Abu Mallouh A. and Barkana B.

DNN-based Models for Speaker Age and Gender Classiﬁcation.

DOI: 10.5220/0006096401060111

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 106-111

ISBN: 978-989-758-212-7

regression (MLLR) supervector, GMM-SVM tandem

posterior probability (TPP) supervector, and SVM

baseline subsystems using 450-dimensional feature

vectors including prosodic features. In addition, they

combined two or more systems using fusion

technique to increase the accuracy. The combination

of the five systems achieved the best classification

results.

Metze et al. (Metze, 2007) examined multiple

classifiers for speaker age and gender classification

based on telephone applications. They also compared

the classification results with human performance.

Four automatic classification methods, a parallel

phone recognizer, dynamic Bayesian networks, linear

prediction analysis, and GMM based on MFCC

features are compared. Overall achieved accuracies

were reported as 54%, 40%, 27%, and 42%,

respectively.

Bocklet et al. (Bocklet, 2010) studied multiple

systems with different combinations. A combination

of several glottal, spectral, and prosodic feature sets

are used in their system. They achieved an overall

accuracy of 42.2% by their GMM-UBM classifier.

Dobry et al. (Dobry, 2011) proposed a speech

dimension reduction method for age-group

classification and precise age estimation. After

deploying SVM with RBF kernel, they noticed that

the classifier’s performance was improved by using

their dimension reduction method and the SVM was

faster and less affected by over-fitting problem.

Our work differs from the previous work in two

ways. First, it exploits the DNN architecture to build

speaker models and class models. Second, it depends

on the SDC as input feature set rather than MFCCs or

any other prosodic features.

Bahari et al. (Bahari, 2014) proposed i-vector

model for each utterance and utilized least squares

support vector regression (LSSVR) for speaker age

estimation. Their work was tested on telephone

conversation of national institute for standard and

technology (NIST, 2010). Our work also differs from

Bahari et al.’s work. While Bahari et al. attempted to

regress the age of the speaker regardless of the

speaker’s gender, we attempt to classify the speaker

age and gender at the same time. Moreover, their

work depends on i-vector to represent each speaker

utterance however our work uses the DNN to extract

the features and to build speaker models.

3 METHODOLOGY

Typically, representing each class in age and gender

classification relies on finding a general model that

can capture the common characteristics of all

speakers’ age and gender information. In this paper,

we build a model for each speaker in a class. The

purpose behind this idea is to find the specific identity

and concentrated characteristics of each speaker

separately in order to minimize any loss of unique

information related to any speaker. Since the core of

this work relies on creating a model for each speaker,

it is reasonable to work on a feature set that is proved

to be successful in the field of speaker recognition.

Motivated by the success of SDC in many speech

processing fields, especially in speaker recognition,

this work uses the SDC as the main feature set.

Age and gender classification problem consists of

M classes, where each class has N number of speakers

sharing the same age range and gender. The DNN is

trained with NxM labels. The settings for the training

process are given in the experimental section. After

the DNN is trained, NxM speaker models are

developed as shown in figure 1.

The number of labels

is NxM, where M is the number of classes and N is

the number of speakers/class.

Each model accumulates the output layer

posteriors. The accumulation of each model is done

by performing feedforward on the input set until the

posteriors are computed for each speaker. Then, the

accumulated posteriors of the output layer are

normalized (L2 normalization) and averaged for each

speaker as shown in figure 2. As a result, each class

will have N speaker models.

During the testing, a model will be created for the

corresponding utterance using the same steps applied

to build speaker models as shown in figure 2. The

cosine distance is calculated between the test

utterance model and every speaker model. The

similarity between the test utterance and each class is

computed by averaging the results of cosine similarity

(Sim) between the test utterance and the speaker

models belonging to the same class. Finally, the

maximum similarity between the test utterance and

each class is taken as the finale similarity score S as

in (1).

S=Max

Sim



=Avg

Sim



Spk



,Test





)

(1)

Where Avg is the statistical average function,





is the cosine similarity between the test

utterance and the class j,



Spk



is the speaker i model

of class j, and Test

utt

is the test utterance model.

DNN-based Models for Speaker Age and Gender Classiﬁcation

107

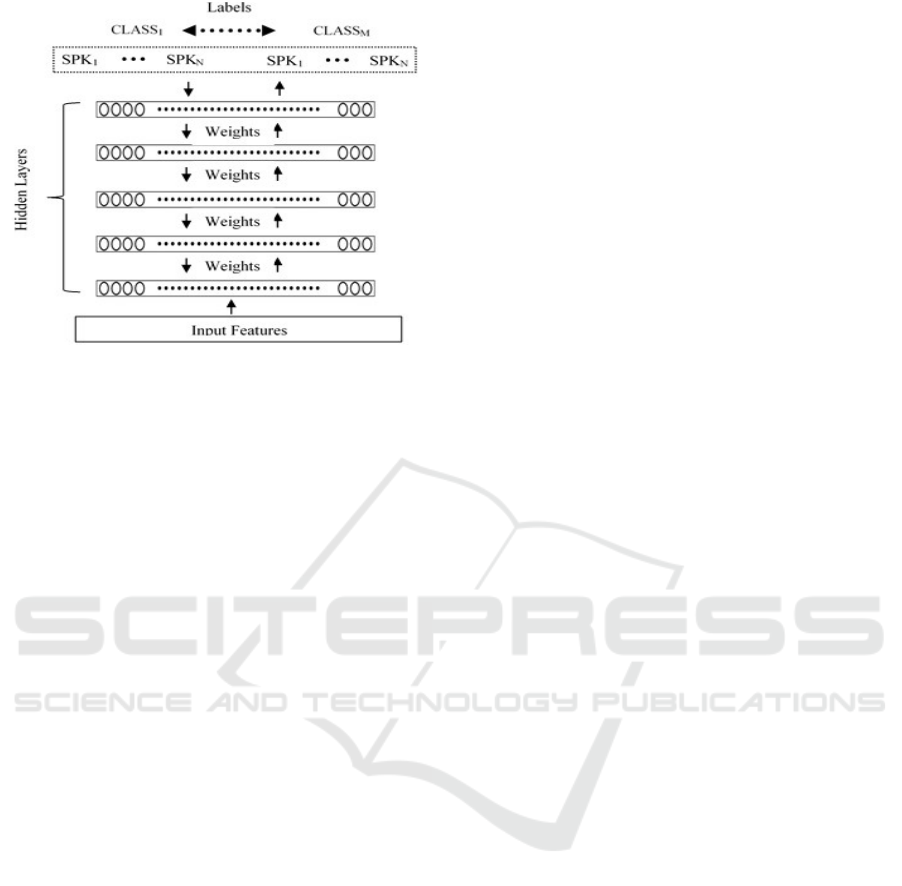

Figure 1: DNN architecture.

3.1 Score Level Fusion

The two output vectors for a given test utterance are

represented as p and q and they are fused based on

equation (2). p and q are the output posterior

probability of SDC speaker models (SSM) and SDC

class models (SCM) respectively.





=+

(

1−

)



(2)

The final scoring for the corresponding utterance

represents the index of the maximum value of the

vector S

. α is a parameter used to control the output

result of the two models, and its value is set based on

the performance of each model. The performance of

the fusion model  values is depicted in figure 5.

Several experiments are conducted to choose the

optimal value of theα. The best performance

occurred when  is 0.9.

3.2 Database

Age-Annotated Database of German Telephone

Speech Database is used to test the proposed work.

The database consists of 47 hours of prompted and

free text (Schuller, 2010). It includes seven

categories: Children (C, 7-14 years old), young-

female (YF, 15-24 years old), young-male (YM, 15-

24 years old), middle-female (MF, 25-54 years old),

middle-male (MM, 25-54 years old), senior-female

(SF, 55-80 years old), and senior-male (SM, 55-80

years old). One fourths of the database of random

speakers is chosen for testing, and the remaining is

used for training.

4 EXPERIMENTAL RESULTS

DNN architecture is used as a feature extractor and a

classifier. As mentioned earlier, we evaluate the

performance of our approach by using two feature

sets, MFCCs and SDC. For the MFCCs, a speech

utterance is divided into frames of 25 ms. In total, 39

features, one energy and 12- MFCCs with its first and

second derivatives, are extracted for each frame.

SDC features are extracted based on the MFCCs

features as in (Campbell, 2006). The number of nodes

in the input layer for both feature sets is equal to 39×n

features, where n represents the target frame

concatenated with the preceding and following (n-

1)/2 frames in the utterance. In the literature, n is

selected to be an odd number between 5 and 21. In

our work, n is chosen to be 11. 5 hidden layers are

used, and 1024 nodes in each layer. The number of

output labels equals the total number of speakers in

each class. Training data is divided into mini-batches.

Each mini-batch consists of 1024 random utterances.

In the training process, 12 epochs are used. The

learning rate is initially set to 0.1 for the first 6

epochs, and then it is decreased to one-half its initial

value for the remaining epochs.

The overall classification accuracies of the

MFCCs speakers models (MSM), MFCCs class

models (MCM), SSM, SCM, and fused SSM+SCM

are given in Table 1. The proposed SSM model

achieved the best results among the other models.

The confusion matrices for the SCM, SSM, and

fused SSM+SCM models are shown in Tables 2, 3,

and 4. The confusion tables show that the highest

misclassification rates occur between the same

gender classes. In figure 3 and 4, the performance of

the young (Y), middle-aged (M), and senior (S)

female and male classes for all models are compared,

separately. It can be seen that all models achieved

somehow poor results for MF and MM classes

without the score level fusion. The SSM achieved the

best result for these two classes as 38.5% and 36.3%.

As shown in figure 3, for the female classes, the

SSM achieved the best results except for the YF class

(56%), where SCM achieved slightly better result

(57.4%). This result supports the effectiveness of the

SDC feature set over MFCCs. The SSM

outperformed the other models in male classes (figure

4). In particular, SDC speaker and class models

generated better classification results in female and

male classes than MFCCs speaker and class models.

However, a significant improvement (57.21%) is

achieved when we fuse (SSM+SCM) models. As we

can see, the fused system outperformed other models

in all classes.

BIOSIGNALS 2017 - 10th International Conference on Bio-inspired Systems and Signal Processing

108

Figure 2: Flowchart of the proposed work.

Table 1: Classification accuracies (%).

MSM SSM MCM SCM

Fused

(SSM+SCM)

C 56.6 58.5 57.4 60.5 74.3

YF 55.4 56 45.7 57.4 70

YM 45.1 49.9 44.3 48.3 55.4

MF 32 38.5 35.4 30.7 39.3

MM 34.3 36.3 33.8 35 39.8

SF 43.7 45.8 35.7 44.2 55.3

SM 49.3 60 49.4 57.6 66.3

% 45.2 49.3 43.1 47.7 57.2

Table 2: Confusion matrix for SCM (%).

Actual

Pred

C YF YM MF MM SF SM

C 60.5 17.1 8.5 3.2 3.4 6.5 0.8

YF 23.8 57.4 0.6 8.8 0.1 8.9 0.4

YM 3.3 1.8 48.3 2.4 21.0 3.2 20.0

MF 12.2 23.4 1.1 30.8 0.8 30.4 1.3

MM 1.8 0.3 27.9 1.0 35.0 3.5 30.5

SF 14.5 17.7 0.8 19.3 0.4 34.3 3.0

SM 1.0 0.3 15.6 0.9 22.1 2.4 57.7

Table 3: Confusion matrix for SSM (%).

Actual

Pred

C YF YM MF MM SF SM

C 58.5 18.4 8.9 3.9 3.4 5.8 1.0

YF 22.0 56.1 0.4 11.3 0.2 9.8 0.3

YM 2.3 2.1 49.9 2.3 17.3 4.7 21.4

MF 9.3 21.4 1.0 38.6 0.8 27.5 1.5

MM 1.6 0.5 26.7 1.8 36.3 3.9 29.3

SF 11.0 17.4 1.1 20.5 0.3 45.8 3.8

SM 0.6 0.2 16.9 0.9 19.3 2.0 60.1

Table 4: Confusion matrix for fused SSM+SCM (%).

Actual

Pred

C YF YM MF MM SF SM

C 74.3 12.9 4.3 2.6 1.3 3.3 1.4

YF 11.8 70.0 0.3 12.1 0.1 5.6 0.1

YM 1.2 0.7 55.4 1.7 19.1 3.4 18.6

MF 8.2 24.3 0.8 39.3 0.3 26.4 0.7

MM 0.5 0.0 22.3 0.4 39.8 0.4 36.6

SF 8.5 11.6 0.6 22.3 0.9 55.3 0.8

SM 1.0 0.1 9.8 0.3 19.9 2.5 66.3

Figure 3: Classification accuracies between four methods

for female speakers.

Figure 4: Classification accuracies between four methods

for male speakers.

YF MF SF

Accuracy%

MSM SSM MCM SCM fused(SSM+SCM)

YM MM SM

Accuracy%

MSM SSM MCM SCM fused(SSM+SCM)

DNN-based Models for Speaker Age and Gender Classiﬁcation

109

Table 5: Comparison between the proposed work and the

previous works (%).

Work

System Accuracy

(Li,

2013)

GMM Base-1 43.1

Mean Super Vector-2 42.6

MLLR Super Vector-3 36.2

TPP Super Vector-4 37.8

SVM Base-5 44.6

MFuse-1+2+3+4+5 52.7

This

work

SDC Class Model-1 47.7

SDC Speakers Model-

49.3

Our fused model (1+2) 57.21

Figure 5: The performance of the fused (SSM+SCM)

system versus α.

Table 5 shows the classification accuracies of the

proposed models and the previous works. The best

result in Li’s work (Li, 2013) was achieved by fusing

all the systems together manually (MFuse-

1+2+3+4+5). Using our proposed models, the

accuracy of the speaker age and gender classification

is improved by approximately 5% when compared to

the (MFuse 1+2+3+4+5). In addition, SDC class and

SDC speaker models outperformed the baseline

systems for the fused systems.

5 CONCLUSIONS

In this paper, we proposed DNN-based speaker

models using the SDC feature set in order to improve

the classification accuracies in speaker age and

gender classification. The proposed speaker models

and the effectiveness of the SDC feature set are

compared to the class models and the MFCCs feature

set as a baseline system. Our experimental results

show that speaker models and the SDC feature set

outperforms the class models and the MFCC set. The

proposed speaker models show a better performance

while classifying challenging middle-aged female

and male classes where the other methods fail to

classify. We compared the proposed work with the

GMM Base, Mean Super Vector, MLLR Super

Vector, TPP Super Vector, SVM Base, and the fused

system of all these systems. The results showed that

the proposed SDC speaker model + SDC class model

outperformed all the other systems by achieving

57.21% overall classification accuracy.

REFERENCES

Bahari, M.H., McLaren, M. and van Leeuwen, D.A., 2014.

Speaker age estimation using i-vectors. Engineering

Applications of Artificial Intelligence, 34, pp.99-108.

Barkana, B., Zhou, J., 2015. A new pitch-range based

feature set for a speaker’s age and gender classification.

Applied Acoustics, vol.98, pp.52–61.

Bocklet, T., Stemmer, G., Zeissler, V. and Nöth, E., 2010,

September. Age and gender recognition based on

multiple systems-early vs. late fusion.

In INTERSPEECH, pp. 2830-2833.

Campbell, W.M., Campbell, J.P., Reynolds, D.A., Singer,

E. and Torres-Carrasquillo, P.A., 2006. Support vector

machines for speaker and language

recognition. Computer Speech & Language, 20(2),

pp.210-229.

Ciregan, D., Meier, U. and Schmidhuber, J., 2012. Multi-

column deep neural networks for image classification.

In Computer Vision and Pattern Recognition (CVPR),

2012 IEEE Conference on, pp. 3642-3649.

Davis, S. and Mermelstein, P., 1980. Comparison of

parametric representations for monosyllabic word

recognition in continuously spoken sentences. IEEE

Transactions on Acoustics, Speech, and Signal

Processing, 28(4), pp.357-366.

Dobry, G., Hecht, R. M., Avigal, M. & Zigel, Y., 2011.

Supervector Dimension Reduction for Efficient

Speaker Age Estimation Based on the Acoustic Speech

Signal. IEEE Transactions on Audio, Speech, and

Language Processing, 19, 1975-1985.

Hinton, G., Deng, L., Yu, D., Dahl, G. E., Mohamed, A.-

R., Jaitly, N., Senior, A., Vanhoucke, V., Nguyen, P. &

Sainath, T. N., 2012. Deep neural networks for acoustic

modeling in speech recognition: The shared views of

four research groups. Signal Processing Magazine,

IEEE, 29, 82-97.

Li, M., Han, K. J. & Narayanan, S., 2013. Automatic

speaker age and gender recognition using acoustic and

prosodic level information fusion. Computer Speech &

Language, 27, 151-167.

Metze, F., Ajmera, J., Englert, R., Bub, U., Burkhardt, F.,

Stegmann, J., Muller, C., Huber, R., Andrassy, B.,

Bauer, J.G. and Littel, B., 2007. Comparison of four

approaches to age and gender recognition for telephone

applications. In 2007 IEEE International Conference

0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9

Accuracy%

BIOSIGNALS 2017 - 10th International Conference on Bio-inspired Systems and Signal Processing

110

on Acoustics, Speech and Signal Processing-

ICASSP'07, vol. 4, pp. 1089-1092.

Nguyen, A., Yosinski, J. and Clune, J., 2015. Deep neural

networks are easily fooled: High confidence predictions

for unrecognizable images. In 2015 IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pp. 427-436.

NIST, The 2010 NIST Speaker Recognition Evaluation

(SRE10),

Link:http://www.itl.nist.gov/iad/mig/tests/sre/2010/,

Accessed on 8/24/2016.

Richardson, F., Reynolds, D. and Dehak, N., 2015a. Deep

neural network approaches to speaker and language

recognition. IEEE Signal Processing Letters, 22(10),

pp.1671-1675.

Richardson, F., Reynolds, D. and Dehak, N., 2015. A

unified deep neural network for speaker and language

recognition. In INTERSPEECH, vol. 2015, pp. 1146-

1150.

Schuller, B., Steidl, S., Batliner, A., Burkhardt, F.,

Devillers, L., Müller, C.A. and Narayanan, S.S., 2010.

The INTERSPEECH 2010 paralinguistic challenge.

In INTERSPEECH, vol. 2010, pp. 2795-2798.

Simonyan, K. & Zisserman, A., 2014. Very deep

convolutional networks for large-scale image

recognition. arXiv preprint arXiv:1409.1556.

Yu, D., Wang, S., Karam, Z. and Deng, L., 2010. Language

recognition using deep-structured conditional random

fields. In 2010 IEEE International Conference on

Acoustics, Speech and Signal Processing, pp. 5030-

5033).

Zeiler, M. D., 2013. Hierarchical convolutional deep

learning in computer vision. PhD thesis, Ch. 6, New

York University.

DNN-based Models for Speaker Age and Gender Classiﬁcation

111
