User Calibration-free Method using Corneal Surface Image

for Eye Tracking

Sara Suda

, Kenta Yamagishi

and Kentaro Takemura

1,2

Graduate School of Engineering, Tokai University, Hiratsuka, Japan

Department of Applied Computer Engineering, Tokai University, Hiratsuka, Japan

Keywords:

User Calibration-free, Corneal Surface Image, 3D Eye Model.

Abstract:

Various calibration methods to determine the point-of-regard have been proposed for eye tracking. Although

user calibration can be performed for experiments carried out in the laboratory, it is unsuitable when apply-

ing an eye-tracker in user interfaces and in public displays. Therefore, we propose a novel calibration-free

approach for users that is based on the use of the corneal surface image. As the environmental information is

reﬂected on the corneal surface, we extracted the unwarped image around the point-of-regard from the cornea.

The point-of-regard is estimated on the screen by using the unwarped image, and the regression formula is

solved using these points without user calibration. We implemented the framework of the algorithm, and we

conﬁrmed the feasibility of the proposed method through experiments.

1 INTRODUCTION

In recent years, eye-tracking technology has im-

proved to a remarkable extent; thus, the future use

of an eye-tracker for applications such as market-

ing and user interfaces can be expected. Various ap-

proaches have been proposed for estimating the point-

of-regard, and the eye-tracking method can roughly

be classiﬁed into two types. The conventional method

involves an approach based on regression, in which

the point-of-regard is calculated using the Purkinje

point and the center of the pupil. In contrast, the

visual axis is calculated for estimating the point-of-

regard when we employ the model-based approach.

Both of these methods require user calibration to be

performed before determining the point-of-regard,but

the calibration is a cumbersome process for the user.

Therefore, calibration-free methods have been

studied actively. Nagamatsu et al.(Nagamatsu et al.,

2009) developed a user calibration-free method for

calculating the two visual axes using the optical axes

of both eyes. The point-of-regard is estimated us-

ing the two visual axes on the display plane, and

high accuracy was achieved. However, it needs the

location of display and camera as hardware calibra-

tion. Additionally, Sugano et al.(Sugano and Bulling,

2015) proposed user calibration-free gaze tracking us-

ing a saliency map, whereby calibration is achieved

automatically when the user looks at the scene for

a while. In fully automatic calibration, gaze can be

estimated around 10 degrees without user-calibration

and hardware calibration. Khamis et al.(Khamis et al.,

2016) proposed an implicit calibration that correlates

users’ eye movements with moving on-screen targets

while the user is simply reading this text. We also

started to study a calibration-free method for users

based on this background, but our motivation is to

achieve the calibration without the geometrical re-

striction, and the point-of-regardis estimated immedi-

ately. Our aim is to solve these problems by focusing

on the corneal-imaging technique(Nishino and Na-

yar, 2006). This technique acquires the environmen-

tal information from the reﬂection of the surface of

the cornea. Nitschke et al.(Nitschke and Nakazawa,

2012) proposed to obtain a high-resolution image by

super-resolution, and Wang et al.(Wang et al., 2005)

succeeded in removing the texture of the iris from

the image. Additionally, Takemura et al.(Takemura

et al., 2014) the method for estimating the focused ob-

ject using corneal-imaging technique. Therefore, we

expect the corneal-imaging technique to be a break-

through for solving the calibration problem, and we

propose a calibration-free method for users for eye

tracking using the corneal surface image.

The remainder of this paper is organized as follows.

First, the 3D eye model is introduced in section 2,

after which model-based iris tracking is described in

section 3. Then, a method for generating the un-

Suda S., Yamagishi K. and Takemura K.

User Calibration-free Method using Corneal Surface Image for Eye Tracking.

DOI: 10.5220/0006100100670073

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 67-73

ISBN: 978-989-758-227-1

warped image from the corneal surface image is ex-

plained in section 4. A method that is calibration-free

for users is proposed, and we conﬁrm the feasibility

of the method in section 5 and 6, respectively. Fi-

nally, section 7 presents our conclusions and our fu-

ture work.

2 GENERATING THE 3D EYE

MODEL

A 3D model of the eye is used for tracking the iris and

extracting the corneal surface image. This model con-

sists of the corneal sphere and the eyeball as shown in

Figure 1, and four anatomical parameters are deﬁned

as in Table 1. The position of the 3D eye is deter-

mined by the size of the iris; therefore, the area of

the iris is detected using an elliptical approximation

as shown in Figure 2. The radii of the major and mi-

nor axes of the iris area are r

max

and r

min

, respectively,

and (i

, i

) is the center of the iris. When the edges

of the iris area are selected as the initial stage, the 3D

eye model is generated by the following equations.

The distance d from the image plane to the 3D limbus

center is deﬁned by

d = f

max

, (1)

and the 3D limbus center L is determined by the fol-

lowing equation:

L =



− cx

, d

− cy

, d



, (2)

where (cx, cy) and f are the center of the image and

the focal length, respectively. The 3D limbus is the

intersection of the eyeball and the corneal sphere, and

it is the border of the iris. The optical vector g is esti-

mated based on the 3D limbus center by the following

equation:

g = [sin(τ)sin(φ), −sin(τ)cos(φ), −cos(τ)]

, (3)

where φ is the rotation of the limbus ellipse, and τ is

the tilt of the iris on the 3D eye model and is computed

τ = ±cos

−1



min

max



. (4)

The center of the corneal sphere C and the center of

the eyeball E are deﬁned by the two following equa-

tions, respectively:

C = −d

kgk

+ L, (5)

E = −(r

− r

)

kgk

+ C. (6)

Finally, the position of the 3D eye model is computed

as shown in Figure 3.

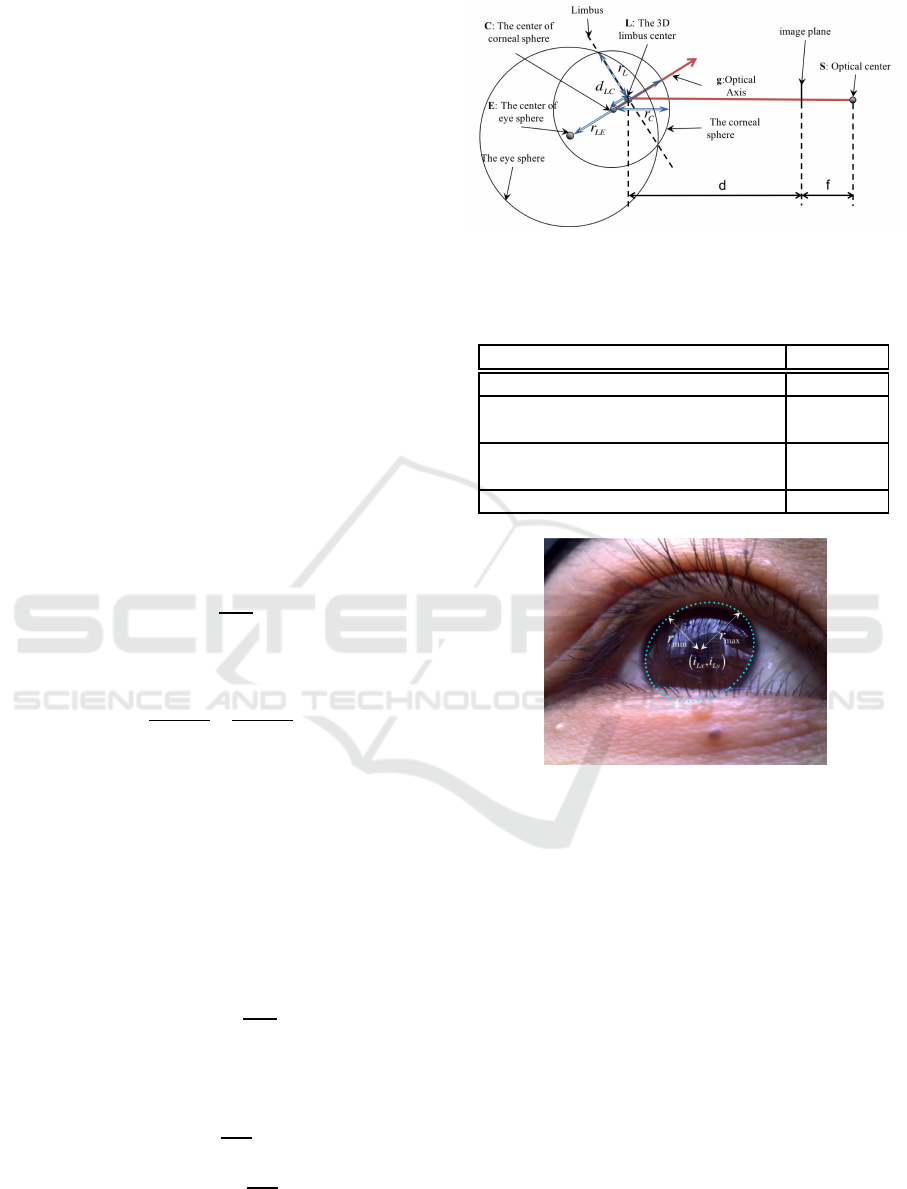

Figure 1: Geometric 3D eye model consisting of the eye

sphere and the corneal sphere.

Table 1: Parameters of the eyeball model as deﬁned by

anatomical data.

Eyeball parameters Size[mm]

Radius of corneal sphere(r

) 7.78

Distance between corneal surface

and eyeball center(r

)

13.00

Distance between center of corneal

sphere and center of iris (d

)

5.60

The radius of the iris (r

) 5.60

Figure 2: Area of the iris estimated using an elliptical ap-

proximation.

3 MODEL-BASED IRIS

TRACKING

We employed an RGB camera for extracting the

reﬂection of the cornea. Therefore, the iris is the

tracking object, and its area has to be detected contin-

uously. As mentioned above, the position of the 3D

eye model is computed; thus, the iris can be tracked

using the 3D eye model. The rotation center is equal

to the center of the eyeball generally, so we also as-

sumed that the generated eye model is rotated on the

center of eyeball by the yaw and pitch angle for de-

tecting the current pose. Our algorithm compares the

binary image B and the projected iris areas I from the

rotated 3D model as shown in Figure 4, and the cur-

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

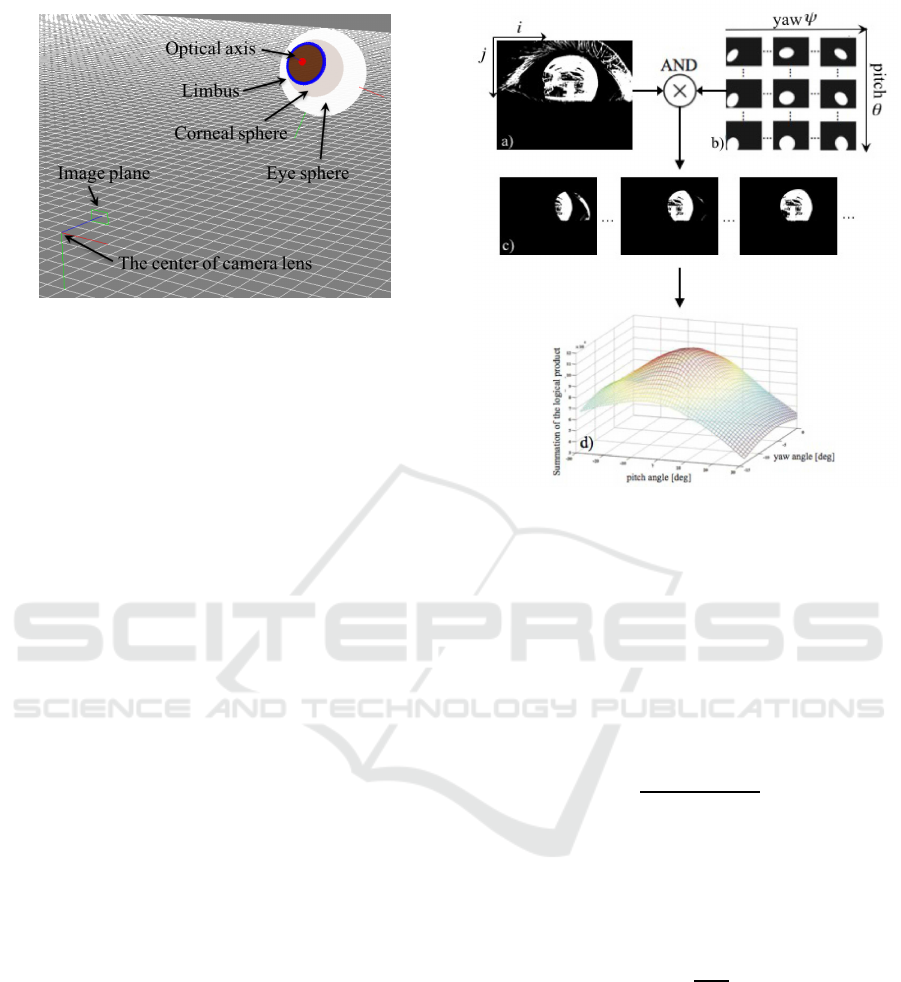

Figure 3: Generated 3D eye model consisting of the corneal

sphere and the eye sphere.

rent pose is estimated by the following evaluation

function:



θ,



= argmax

θ,ψ

∑

j=1

∑

i=1

θψij

, (7)

where i and j are the image coordinates, and m and

n are the size of the image. The maximum value is

searched by using the hill-climbing algorithm, and we

obtain the current pose as

θ and

ψ. However, the es-

timated area of the iris is inﬂuenced by the area cov-

ered by the eyelid area as shown Figure 5(a). As the

objective of this research is to conﬁrm the feasibil-

ity of a user calibration-free technique, we require a

good tracking result for consideration. Therefore, we

adjusted the estimated pose manually as shown in Fig-

ure 5(b).

4 GENERATING THE

UNWARPED CORNEAL

SURFACE IMAGE

The reﬂection image is distorted on the surface of

the cornea; hence, the unwarped image is generated

for estimating the point-of-regard. We assumed the

reﬂection on the cornea to be a specular reﬂection,

which is computed using the geometric relationship

between the eye model and the input image as shown

in Figure 6. The point P is the intersection of the

corneal sphere and the optical axis of the eye, and the

center of the tangent plane is located on P. When the

point on the tangent plane and the center of camera

lens are deﬁned as T and S, respectively, the normal

vector N is computed by the following equation:

N = xS+ yT, (8)

where x and y satisfy the following equations under

Figure 4: Algorithm for iris tracking using the 3D eye

model. An inverted binary image(a) and the simulated im-

ages of the iris area (b) are used to compute the logical prod-

uct of these images(c). In addition, the area of the iris is

detected when the maximum value is found in the summed

values of the logical product(d).

the constraint of the specular reﬂection:

4cdy

− 4dy

+ (a+ 2b+ c − 4ac)y

+ 2(a− b)y+ a − 1= 0,

(9)

x =

(−2y

+ y+ 1)

(2by+ 1)

, (10)

where a = S· S, b = S· T, c = T· T, d = |S× T|

are

deﬁned. When the biquadratic equation Equation 9 is

solved under the constraint x > 0 and y > 0, and the

vector N is computed. The reﬂection point R on the

surface of the corneal sphere is calculated by

R = r

kNk

. (11)

The unwarped image is created by the color infor-

mation obtained from the point R on the corneal sur-

face image. Actually, the color is extracted from the

input image using inverse ray tracking for estimating

the color of point R. For example, the unwarped im-

age is generated as shown in Figure 7, and the edge of

the basket is undistorted on the unwarped image.

User Calibration-free Method using Corneal Surface Image for Eye Tracking

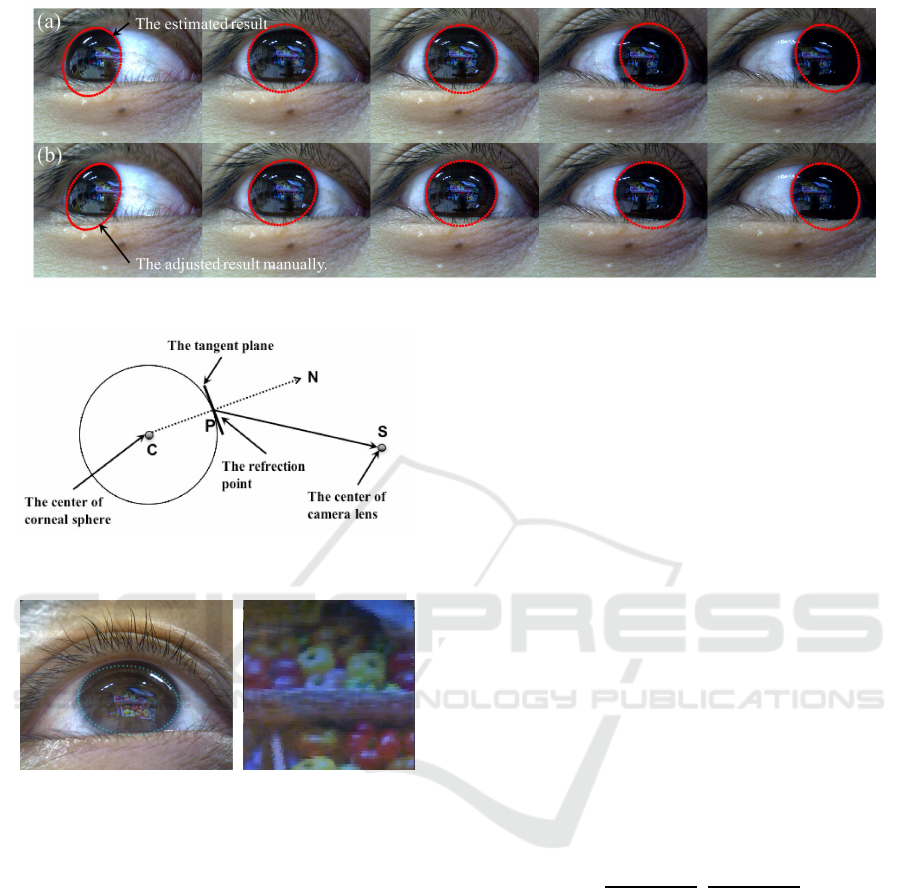

Figure 5: Area of the iris (a) estimated using model-based tracking, and (b) adjusted manually.

Figure 6: Relationship between the eyemodel and reﬂection

point.

(a) input image (b) unwarped image

Figure 7: Image of the cornea (a) input image, and (b) gen-

erated unwarped corneal surface image.

5 USER CALIBRATION-FREE

BASED ON CORNEAL

SURFACE IMAGE

In general, a user would have to look at several points

on a display for user calibration, because the visual

axis of the eye and the relationship between the eye

and the screen are determined to achieve high accu-

racy. In contrast, various methods have been pro-

posed as being user calibration-free, but there are var-

ious constraints. In the case of using a model-based

approach, the geometrical relationship between the

camera and the display is known in advance. In the

case of using regression-based approach, the user is

required to look at the display for a while, which is

why the point-of-regard cannot be estimated immedi-

ately. Therefore, we propose a user calibration-free

method without these constraints by using the corneal

surface image for providing high versatility.

5.1 Finding the Corresponding Area

between the Unwarped Corneal

Surface Image and the Display


In our method, it is necessary to search the corre-

sponding area between the unwarped image and the

display image. When the corresponding point is de-

cided, the point is employed as the point-of-regard.

Additionally, it is possible to collect the points and the

eye pose for solving the regression formula. However,

the scales of the unwarped image and the display im-

age are different; thus, the scale is adjusted manually.

When we select two matched points E

1,2

and D

1,2

the unwarped image and the display image, respec-

tively, then the scale s is calculated by the following

equations:

, s

] =



− D

− E

− D

− E



. (12)

The scale of the unwarped image is adjusted using s,

and the reﬂection point is searched on the display im-

age by template matching based on normalized cross

correlation. The image of the reﬂection area is huge

for detecting the corresponding area; thus, we ex-

tracted the image around the center of the unwarped

image as the template image. Figure 8(a) shows the

result of template matching when Figure 8(b) is em-

ployed as the template image.

The estimated corresponding area is the point-of-

regard; thus, we can estimate the point-of-regard im-

mediately. However, as the reﬂection on the cornea is

inﬂuenced by the illumination condition, it is difﬁcult

to use the corresponding area continuously. There-

fore, the regression formula is obtained for improving

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

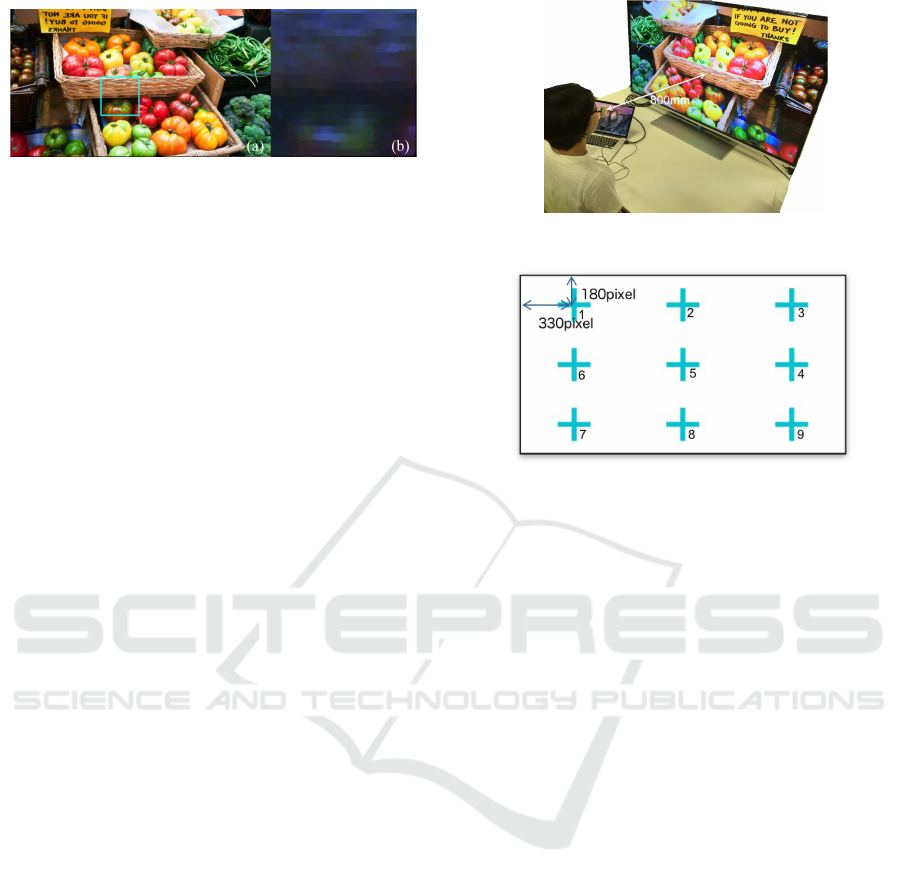

Figure 8: Result image of template matching (a), and tem-

plate image(b). The area within the square is the result of

template matching.

the robustness. Details of the regression formula are

described below.

5.2 Regression Formula Obtained using

the Collected Point-of-regard

In the general regression approach, the Purkinje

points and the pupil centers are collected to solve the

regression expression when a user looks at several

points. In contrast, in our approach the regression for-

mula is solved while the point-of-regard is estimated

using the unwarped image. After that, the point-of-

regard is estimated by the regression expression using

the pose of the eye.

The area of the display was divided into nine ar-

eas, and the regression expression was calculated by

the nine points with a high cross-correlation value in

each area. The poses of the 3D eye model are de-

ﬁned as (

1...9

), and the point-of-regard on the

display image is also deﬁned as (u

1...9

, v

1...9

). The re-

gression formula is calculated by the following equa-

tion:



, ··· , u

, ··· , v



= A





, ··· ,

1, ··· , 1





. (13)

The matrix of the coordinate values of the display

image are deﬁned as M, and the parameters of the re-

gression expression A is calculated using the pseudo-

inverse matrix M

by the following equation:

A =





, ··· ,

1, ··· ,1





. (14)

Finally, the regression formula is obtained without

the user calibration procedure, and when the current

eye pose (

) is determined, the point-of-regard

PoR can also be estimated using the regression ex-

pression by the following equation:

PoR = A









. (15)

Figure 9: Environmental setup for the user calibration-free

method.

Figure 10: Image used for evaluating the accuracy of the

estimated point-of-regard in the evaluation experiment.

6 COMPARATIVE

EXPERIMENTS BETWEEN

THE CONVENTIONAL

CALIBRATION AND THE USER

CALIBRATION-FREE METHOD

6.1 Experimental Condition

We performed comparative experiments between the

conventional calibration and the user calibration-free

method to evaluate the accuracy of the estimated

point-of-regard. The four trial subjects wore the in-

strumental device consisting of the eye camera, and

the subjects looked in every hole and corner of the dis-

play on which a still image is shown. Figure 9 shows

the experimental condition, and the distance between

the display screen and the trial subjects is 800 mm.

In this experiment, it is not possible to use the chin

rest as an experimental installation, but we requested

subjects not to move their head.

6.2 Experimental Results

We solved the two regression formulas of the user

calibration-free and the conventional methods, re-

spectively. In the case of the conventional method,

the calibration points, which are used for solving the

regression expression, are collected manually. Af-

ter solving two regression expressions, trail subjects

User Calibration-free Method using Corneal Surface Image for Eye Tracking

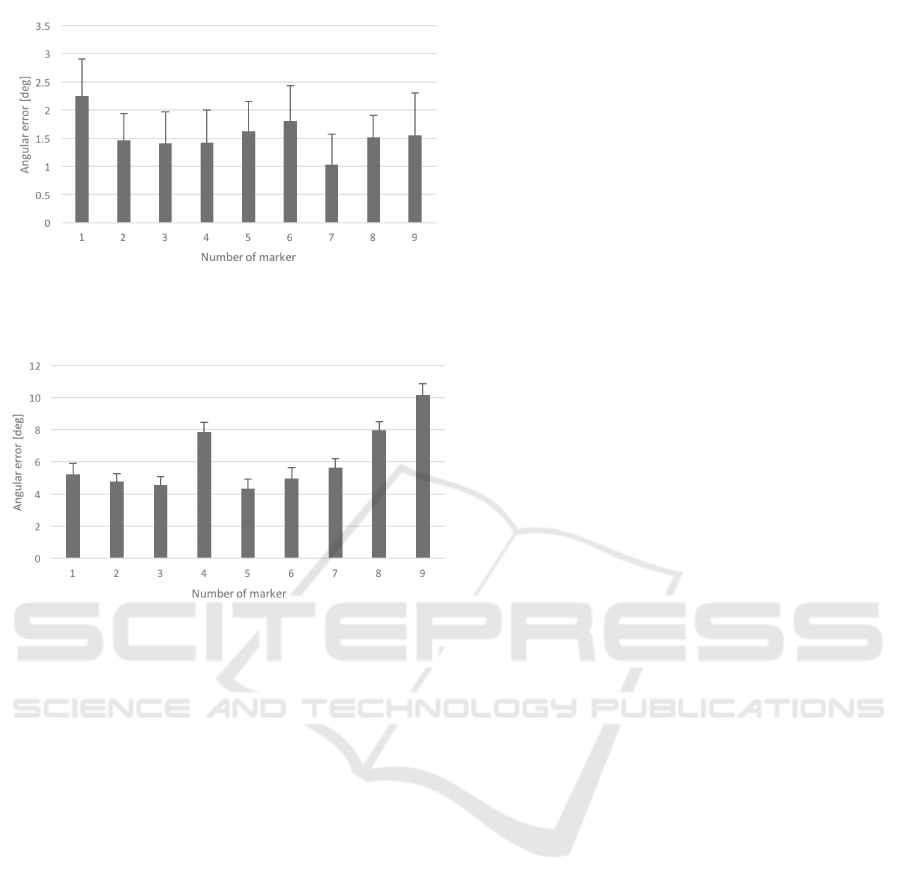

Figure 11: Angular error of the estimated PoR by the con-

ventional method.

Figure 12: Angular error of the estimated PoR by the user

calibration-free method.

were requested to look at an image on which nine

crosses are drawn (Figure 10) for evaluating the es-

timated the point-of-regard. The angular errors of the

conventional method and the proposed method were

computed as shown in Figure 11 and Figure 12, re-

spectively.

6.3 Consideration

Currently, the accuracy of the conventional method

exceeds that of the proposed method; thus, we con-

sidered the cause of error through the results. In the

case of using the conventional calibration method, the

average of the angular error is 1.56 degrees, and the

angular error of each marker is closed. On the other

hand, the average of the angular error is 6.15 degrees

in the case of using the proposed method, and there is

great variability among each marker. We understood

that the cause of difference depended on the perfor-

mance of template matching, and it is necessary to

improvethe performanceof extracting the image from

the corneal surface.

7 CONCLUSIONS

In this paper, we proposed the user calibration-free

technique based on the use of a corneal surface im-

age. The corneal surface image was extracted using

a 3D model of the eye, and the point-of-regard for

solving the regression formula is estimated by tem-

plate matching. We succeeded in solving the relation-

ship between the display image and the eye pose us-

ing the regression expression, and we conﬁrmed the

feasibility of the framework for the user calibration-

free based on the corneal surface image. The av-

erage of the angular error is around six degreesand

the modest performance was achieved without user-

calibration and hardware calibration. However, we

identiﬁed the need for some improvements through

the experiments. Currently, the accuracy is insufﬁ-

cient for using the point-of-regard in various applica-

tions; thus, the matching performance would have to

be improved in future. Additionally, the operator is

required to implement some manual settings; thus, it

is difﬁcult to achieve auto-calibration in the current

implementation. These problems would need to be

addressed to automate the calibration.

ACKNOWLEDGMENT

This work was supported by Grant Number

16H02860.

REFERENCES

Khamis, M., Saltuk, O., Hang, A., Stolz, K., Bulling,

A., and Alt, F. (2016). Textpursuits: Using text for

pursuits-based interaction and calibration on public

displays. In Proc. of the 2016 ACM Int. Joint Conf. on

Pervasive and Ubiquitous Computing, UbiComp ’16,

pages 274–285.

Nagamatsu, T., Kamahara, J., and Tanaka, N. (2009).

Calibration-free gaze tracking using a binocular 3d

eye model. In CHI ’09 Extended Abstracts on Human

Factors in Computing Systems, pages 3613–3618.

Nishino, K. and Nayar, S. K. (2006). Corneal imaging sys-

tem: Environment from eyes. Int. J. Comput. Vision,

70(1):23–40.

Nitschke, C. and Nakazawa, A. (2012). Super-resolution

from corneal images. In Proc. of the British Machine

Vision Conference, pages 22.1–22.12.

Sugano, Y. and Bulling, A. (2015). Self-calibrating head-

mounted eye trackers using egocentric visual saliency.

In Proc. of the 28th Annual ACM Symp. on User In-

terface Software & Technology, UIST ’15, pages 363–

372.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Takemura, K., Yamakawa, T., Takamatsu, J., and Oga-

sawara, T. (2014). Estimation of a focused object us-

ing a corneal surface image for eye-based interaction.

Journal of eye movement research, 7(3):4:1–9.

Wang, H., Lin, S., Liu, X., and Kang, S. B. (2005). Sep-

arating reﬂections in human iris images for illumina-

tion estimation. IEEE Int. Conf. on Computer Vision,

2:1691–1698.

User Calibration-free Method using Corneal Surface Image for Eye Tracking
