Extensible Multi-domain Generation of Virtual Worlds using

Blackboards

Gaetan Deglorie

, Rian Goossens

, Soﬁe Van Hoecke

and Peter Lambert

ELIS Department, IDLab, Ghent University-iMinds, Sint-Pietersnieuwstraat 41, B-9000, Ghent, Belgium

ELIS Department, Ghent University, Sint-Pietersnieuwstraat 41, B-9000, Ghent, Belgium

Keywords:

Procedural Modeling, Blackboard Architecture, Heterogeneous Modeling.

Abstract:

Procedural generation of large virtual worlds remains a challenge, because current procedural methods mainly

focus on generating assets for a single content domain, such as height maps, trees or buildings. Furthermore

current approaches for multi-domain content generation, i.e. generating complete virtual environments, are

often too ad-hoc to allow for varying design constraints from creatives industries such as the development of

video games. In this paper, we propose a multi-domain procedural generation method that uses modularized,

single-domain generation methods that interact on the data level while operating independently. Our method

uses a blackboard architecture specialized to ﬁt the needs of procedural content generation. We show that our

approach is extensible to a wide range of use cases of virtual world generation and that manual or procedural

editing of the generated content of one generator is automatically communicated to the other generators, which

ensures a consistent and coherent virtual world. Furthermore, the blackboard approach automatically reasons

about the generation process which allows 52% to 98% of the activations, i.e. executions of the single-domain

content generators, to be discarded without compromising the generated content, resulting in better performing

large world generation.

1 INTRODUCTION

As consumer expectations put increasing pressure on

the video game industry to improve the visual qual-

ity of games, game content production today focuses

on increasing the visual detail and quantity of game

assets used in virtual worlds. The creation of game

content, including but not limited to 2D art, 3D geom-

etry (trees, terrain, etc.) and sounds, largely remains a

manual process by human artists. Using more artists

to produce a larger but still coherent virtual world

becomes increasingly infeasible, not to mention the

associated increase in production costs. Procedural

content generation (PCG) is the generation of (game)

assets through the use of algorithms (Togelius et al.,

2013a). This allows for a large increase in the size

and diversity of produced content without an associ-

ated increase in cost.

However, previous work on PCG focuses primar-

ily on single-domain content generation, i.e. algo-

rithms that only generate one speciﬁc type of as-

set. Multi-domain content generation integrates these

methods but producing coherent content at a larger

scale remains challenging, and focuses mostly on ad-

hoc solutions for speciﬁc use cases (Smelik et al.,

2011; Dormans, 2010; Kelly and McCabe, 2007). Al-

though these methods generate varying types of con-

tent in an integrated manner, the generation process

targets a speciﬁc mixture of content and generates it

in a speciﬁc sequence and manner. This makes these

solutions less suitable for creativity industries, such as

game development, because each project comes with

highly varying design constraints and targeted con-

tent domains. Although the motivation for this work

stems from the game development domain, our work

is more broadly applicable to other domains such as

animation, movies, simulation, etc.

In this paper, we introduce a blackboard architec-

ture as a solution to this problem that allows PCG

methods to cooperate while manipulating highly het-

erogeneous data to create a coherent virtual world.

Our approach is extensible with any PCG method and

allows edits of the generated content to be automat-

ically communicated to other content and procedu-

ral generators. Furthermore, our approach supports

artists and designers by allowing the reuse of inte-

grated PCG methods across different use cases.

The remainder of this paper is as follows. In Sec-

Deglorie G., Goossens R., Van Hoecke S. and Lambert P.

Extensible Multi-domain Generation of Virtual Worlds using Blackboards.

DOI: 10.5220/0006102000820092

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 82-92

ISBN: 978-989-758-224-0

tion 2 we give an overview of previous approaches

for multi-domain content generation and the concepts

and extensions for blackboard systems. In Section 3

we elaborate upon our architecture. Then we show

several design considerations when using our ap-

proach to generate virtual worlds in Section 4. In Sec-

tion 5 we evaluate the extensibility of our approach,

as well as the editability of the generated content and

the generation performance. Finally, we present the

conclusions and future work in Section 6.

2 RELATED WORK

We introduce a multi-domain content generation ap-

proach based on blackboard systems. The discussion

of single-domain procedural methods lies beyond the

scope of this work, for an overview of procedural

methods we refer to a recent survey book (Shaker

et al., 2016).

2.1 Multi-Domain Content Generation

A prominent approach to multi-domain content gen-

eration is the waterfall model used in urban con-

texts (Parish and M

uller, 2001; Kelly and McCabe,

2007) and game level generation (Dormans, 2010;

Hartsook et al., 2011). Both the work by Parish and

Kelly integrate several procedural methods (road net-

work generation, plot subdivision and building gen-

eration) sequentially to create a complete and coher-

ent virtual city scene. Dormans combines the genera-

tive grammars to generate both mission and space of

game levels, where the mission is generated ﬁrst and

the space is mapped onto it. However, the rules used

in the system are game-speciﬁc and as such cannot be

easily reused. In a similar approach, Hartsook uses

procedurally generated or manually authored stories

or narratives to generate the spatial layout of a game

level. Waterfall model approaches, however, assume

a predeﬁned order between generators. This imposes

constraints from each layer to the next, which in turn

reduces the re-usability of the system. The sequen-

tial and tightly coupled nature of such systems makes

them hard to extend to new use cases with new gener-

ators. Furthermore, editing content at a certain level

requires that content at lower levels should be en-

tirely regenerated, although creating (non-extensible)

ad-hoc editing operations is still possible (e.g. the

work by Kelly).

Alternative approaches to multi-domain content

generation include data ﬂow systems (Silva et al.,

2015; Ganster and Klein, 2007), combining procedu-

ral models into a meta-procedural model (Gurin et al.,

2016a; Gurin et al., 2016b; Grosbellet et al., 2015;

Genevaux et al., 2015), declarative modelling (Sme-

lik et al., 2010; Smelik et al., 2011), answer set pro-

gramming (Smith and Mateas, 2011) and evolution-

ary algorithms (Togelius et al., 2013b). Silva aug-

ments generative grammars by representing them as

a data ﬂow graph. This allows them to add additional

content domains such as lights and textures as well

as new ﬁltering, grouping and aggregation features.

Although the data ﬂow approach splits the procedu-

ral generation process into separate nodes, an addi-

tional requirement for data ﬂow graphs is that ev-

ery node needs to know in advance how it will in-

teract with other nodes. This adds overhead to cre-

ating nodes as the designer potentially needs to re-

visit previous nodes. Furthermore, all editing opera-

tions need to be translated from the content domain

into the procedural graph domain which requires ad-

ditional expertise from the user. The work by Guerin,

Grosbellet and Genevaux on meta-procedural mod-

els focuses on two separate directions. Firstly, meta-

procedural modeling of geometric decoration details

involves generating details such as leaves, pebbles

and grass tufts for pre-authored environments. Sec-

ondly, meta-procedural modeling of terrains involves

generating terrain height maps, waterways, lakes and

roads in an integrated manner. This is achieved by

using a common geometric representation set, i.e. el-

evation functions, which allows these different terrain

features to be integrated. Both methods impose a spe-

ciﬁc ordering or structure on the generated content,

which means that they are incapable of handling dif-

ferent domains. Smelik combines the generation of

different aspects of a virtual world, including road

networks, vegetation and terrain. Instead of a water-

fall model, all generation occurs independently and

is subsequently combined using a conﬂict resolution

system. Their editor provides an intuitive way of edit-

ing for their speciﬁc content. However, adding new

generators to their system is difﬁcult. Smith deﬁnes

the design space of the procedural generation prob-

lem as an Answer Set Program (ASP). By formally

declaring the design space, they can deﬁne new pro-

cedural methods for a variety of content domains. To-

gelius formalizes the entire game level into a single

data model and use multi-objective evolution to gen-

erate balanced strategy game levels. Both the evolu-

tionary and ASP approach additionally require a for-

malization of the underlying data model. Changing

the underlying constraints or adding new procedural

methods also means updating the data model manu-

ally. Additionally edits to the generated content can-

not be communicated back to such systems.

Extensible Multi-domain Generation of Virtual Worlds using Blackboards

2.2 Blackboard Systems

The blackboard system is a technique from the do-

main of Artiﬁcial Intelligence (AI) used to model

and solve ill-deﬁned and complex problems (Corkill,

1991). Analogous to a real blackboard on which sev-

eral researchers work on a problem, the system uses

knowledge sources specialized in different tasks. A

control system ensures that the knowledge sources are

triggered at the right time to avoid conﬂicts.

Blackboard systems are a good solution for de-

sign problems as they can handle problems that have

to work on heterogeneous data. Blackboards are

therefore used in semantic problem solving (Ver-

borgh et al., 2012), game design (Treanor et al.,

2012; Mateas and Stern, 2002) and poetry genera-

tion (Misztal-Radecka and Indurkhya, 2016). Previ-

ous work does not include the use of blackboards for

procedural generation of virtual worlds.

3 BLACKBOARD SYSTEM FOR

PROCEDURAL GENERATION

Current multi-domain content generation approaches

are hard to extend, impose a predeﬁned order of gen-

eration procedures implicitly constraining the whole

generation process or regenerate large parts when

editing content at a certain level. To solve these prob-

lems, we introduce a blackboard architecture that al-

lows PCG methods to cooperate while manipulating

highly heterogeneous data to create coherent virtual

worlds.

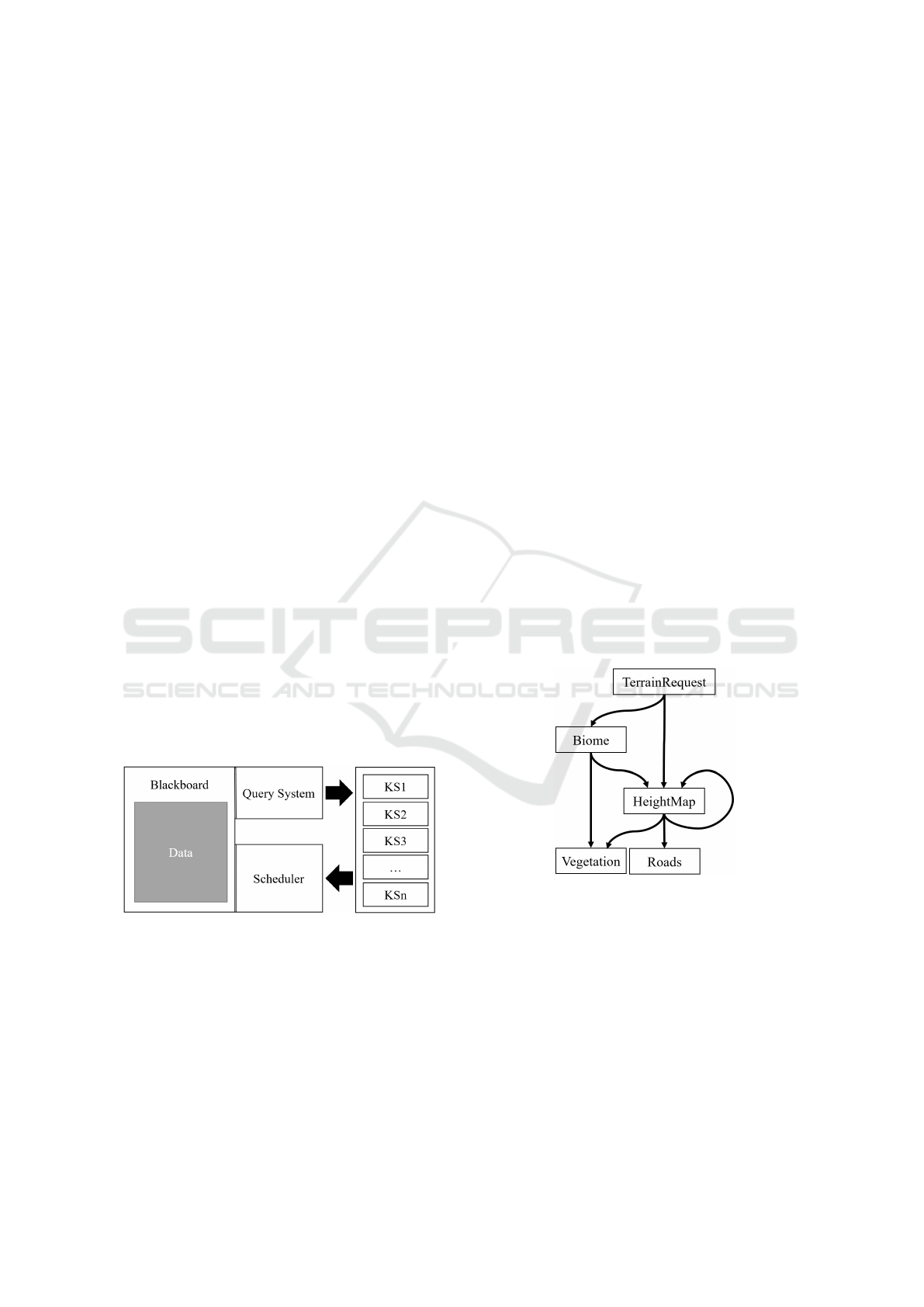

Figure 1: Overview of the blackboard system.

Figure 1 shows an overview of the proposed

method. Our system consists of four main compo-

nents: the blackboard, a query system, PCG knowl-

edge sources (KS) and a scheduler. The PCG knowl-

edge sources create new content based on existing

content or data on the blackboard. Using the query

system they can access this data and additional con-

textual information if needed. The execution of each

PCG knowledge source is triggered by the occurrence

of the necessary input data, i.e. the input type. Data

generation is not immediately executed however. In-

stead the execution of a PCG knowledge source is

temporarily buffered in an event called a knowledge

source activation. All knowledge source activations

are collected by the scheduler. The scheduler can then

process the order of execution of the events and ﬁlter

out unnecessary activations where needed. The re-

maining activations are executed and change the state

of the data on the blackboard. In the following sub-

sections, we will discuss each component in greater

detail.

3.1 Blackboard and Data Model

The blackboard stores all the data, i.e. all generated

content instances and additional input information. In

contrast to previous work using data models where

the designer needs to manually create and manage

them, we instead opt to automatically generate our

model based on the input and output data types of the

knowledge sources. The model is automatically cre-

ated, before the content generation process is started,

using the selected knowledge sources that were cho-

sen to generate the virtual world. This model is used

to structure the generated data and to help inform the

scheduler (which will be discussed in Section 3.4).

Figure 2 provides an example of our data model as it

was built for the evaluation.

Figure 2: Overview of the blackboard data model.

As each knowledge source will generate new con-

tent based on previous content from the blackboard,

this implies a dependency from one piece of content

to another. These dependencies are encoded as the

edges of a directed graph used to store the generated

data. For example, the placement of trees might de-

pend on the placement of the road network, to avoid

placing a tree on a road instead of next to it.

Our data model allows cyclical dependencies in

the resulting content. This increases the expressive-

ness of the overall system as content generated fur-

ther in the generation process can affect and improve

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

earlier generated content (Togelius et al., 2013a). Al-

though we support cyclical dependencies at all levels

of our system, our use cases do not extensively test

the robustness of including cycles, as cycles can intro-

duce potential deadlocks or inﬁnite knowledge source

activations that create an unstable virtual world. We

suggest careful design of the virtual world generator,

taking care to avoid these unstable situations. A de-

tailed exploration of cyclic dependencies will be ad-

dressed in future work.

3.2 Query System

The query system is used to access and retrieve infor-

mation from the blackboard. It supports direct queries

(e.g. retrieve terrain height map) or contextual queries

(e.g. retrieve terrain only from Arctic biomes). The

query system is currently implemented as a basic

database with basic select and where clauses. Queries

are executed based on data type, this means that a for-

mal model is needed for all PCG knowledge sources

to interact in a coherent manner.

The contextual queries are performed by search-

ing the directed graph for ancestors and children

based on the required information. Additionally, a

contextual query might encode a requirement for the

parameters of a piece of data instead of its relation to

other nodes inside the graph. For example, a terrain

data request could contain the added context of only

requiring data of a minimal elevation.

3.3 PCG Knowledge Sources

PCG knowledge sources encapsulate procedural

methods, preferably single-domain algorithms such

as L-systems or coherent noise generators as these im-

prove re-usability. Additionally, we distinguish three

types of PCG behaviour: (1) addition of new con-

tent instances, (2) modiﬁcation of existing content in-

stances and (3) deletion of existing content instances.

A PCG knowledge source is required to implement

one or more of these behaviours to be supported by

the blackboard system. As stated earlier, a knowl-

edge source does not immediately execute when it re-

trieves data from the scheduler, instead it produces a

knowledge source activation. Knowledge source ac-

tivations store their operation (i.e. addition, modiﬁca-

tion or deletion) in an event and send it to the sched-

uler for execution. The separation into three types al-

lows us to reason about what the generators plan to do

and optimize the order or even remove some unnec-

essary activations (see next section). However, this

requires the PCG knowledge sources to be stateless,

i.e. they should not remember what content instances

were previously generated by them, as manipulating

the order or occurrence of activations would create a

mismatch between the internal state of each knowl-

edge source and the state of the blackboard.

3.4 Scheduler

The scheduler controls the execution order of PCG

knowledge sources and handles the execution of

knowledge source activations. The execution order is

determined by automatically calculating a priority for

each knowledge source in the system. This priority is

derived from the blackboard data model. The priority

order can be determined by performing a topologi-

cal sort of the directed graph. However, topological

sorts only work on directed acyclic graphs (DAGs).

By condensing cycles in the graph into single vertices,

we can make any directed graph into a DAG.

Based on the determined priorities, the knowl-

edge source activations are collected in a priority

queue. This ensures that when a knowledge source

activates, all work resulting in its input type will be

ﬁnished. The next step is merging and removing un-

necessary knowledge source activations, done in ac-

cordance with two rules: (1) deletion cancels addi-

tions and modiﬁcations and (2) modiﬁcation can be

merged with an addition event to form a new altered

addition. Merging activations reduces the amount of

activations to be executed, without changing the re-

sults, thus increasing the generation performance of

the system. This will be evaluated in Section 5.4.

4 DESIGN CONSIDERATIONS

In this section, we will discuss the insights obtained

from the implementation of our use cases. As each

knowledge source encapsulates a procedural method

and only communicates through the data on the

blackboard, it provided ample opportunity to create

reusable modularized behaviours. The scope of our

work is virtual world generation. For this, we pro-

pose a set of reusable abstractions, that we dubbed

knowledge source design patterns. First we will dis-

cuss what considerations can be made in terms of

compartmentalizing generation processing to improve

modularity when designing knowledge sources. Next,

we will provide an overview of the knowledge source

design patterns that were useful when designing use

cases for virtual world generation.

Extensible Multi-domain Generation of Virtual Worlds using Blackboards

4.1 Modularity of PCG Knowledge

Sources

Each knowledge source encapsulates a procedural

method capable of generating a speciﬁc piece of con-

tent. One could encapsulate any stateless state-of-the-

art procedural method into one of these modules, e.g.

putting an entire L-system and turtle interpreter into a

single module. However, naively encapsulating algo-

rithms will negatively impact performance. The PCG

knowledge sources are only dependent on their in-

put and output data types. For example, a knowledge

source might produce one or more elements of type C

from an input of type A. This knowledge source can

be replaced by two (or more) knowledge sources, e.g.

one knowledge source that produces B from A and

another that produces C from B. As long as the inter-

mediate data type differs from the starting input and

output types no conﬂicts will arise within the genera-

tion process.

From a design perspective, we can modularize

knowledge sources in three different ways: (1) by out-

put type, (2) by input type and (3) by generation pro-

cess.

1. The output type can be made more generic. By

splitting a knowledge source in two, an intermedi-

ate data type can be created which contains more

generic information which can be reused for sub-

sequent processes. Figure 3 shows an example of

splitting a forest generator into an object distribu-

tion generator and a tree generator. We can then

reuse the locations produced by the object distri-

bution generator to place other objects.

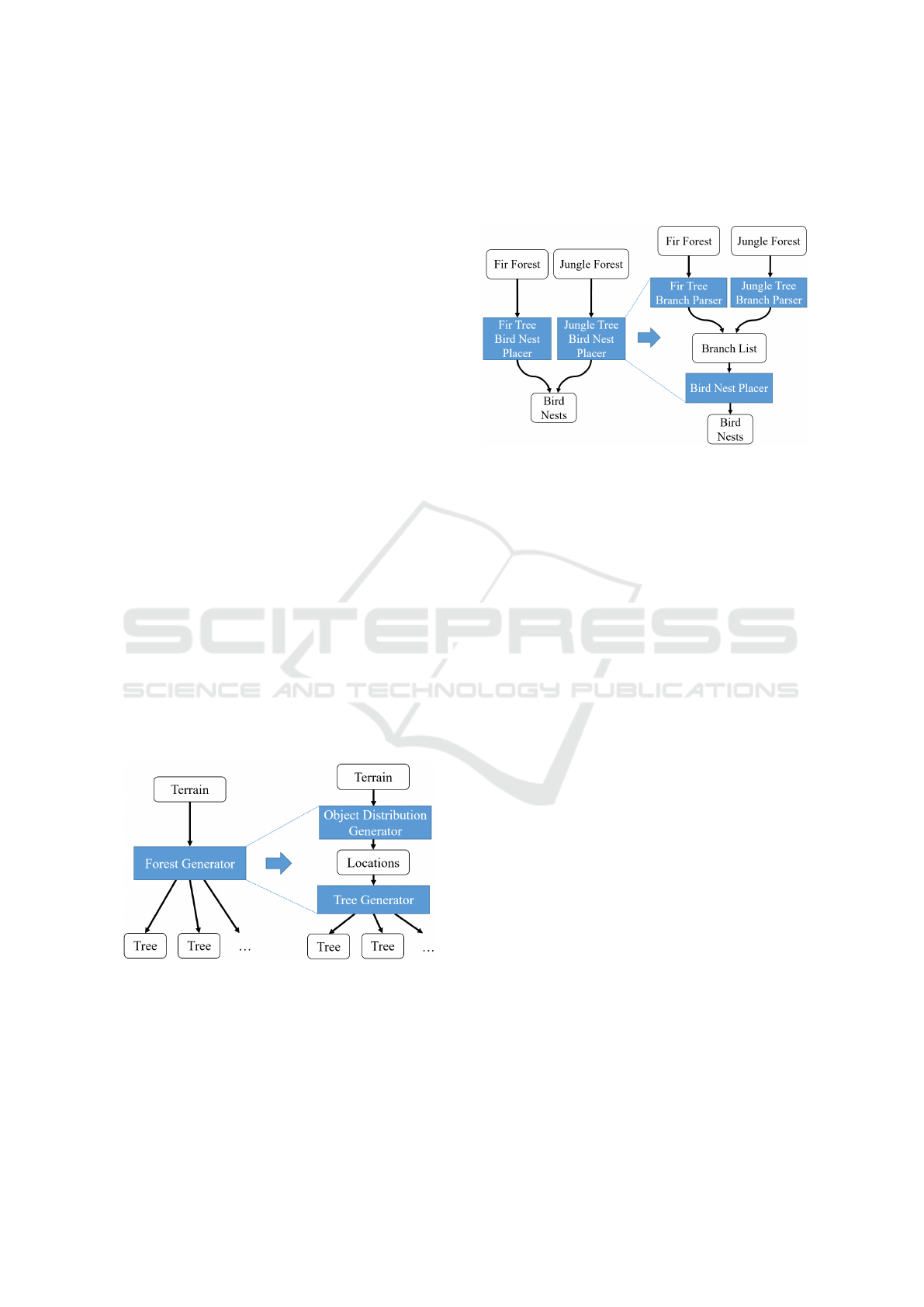

Figure 3: Example of modularization by output type.

2. The input type can also be made more generic.

Instead of making specialized processes for each

input type, it is more beneﬁcial to split these into a

specialized converter to an intermediary type and

create a more generic process for this type. Fig-

ure 4 shows an example of generating bird nests in

trees for both ﬁr and jungle type forests. We can

make a specialized parser that converts this tree

information into a more general tree model, such

as a branch list. From this list a generic bird nest

placer can be used.

Figure 4: Example of modularization by input type.

3. Given the same input and output data types, multi-

ple knowledge sources can be created that contain

different algorithms. For example, a knowledge

source calculating the minimal spanning tree us-

ing Kruskals algorithm, which is faster for sparse

graphs, could be switched out with another one

using Prims algorithm which is faster for denser

and larger graphs.

These three types of modularity should ideally be

used together, maximizing the reuse of modules

across different domains. As will be discussed in Sec-

tion 5.4, this will impact the performance of the entire

system.

4.2 Knowledge Source Design Patterns

The different design patterns obtained from the imple-

mentation of our example scenes for evaluation (see

Section 5.2) are:

• The converter simply converts data types from

one type to another. These are typically used to

convert speciﬁc types into generic types or vice-

versa (e.g. generic bird nest placer).

• The distributor generates a speciﬁc amount of in-

stances from an input type, according to a distri-

bution function. These are typically used for ob-

ject placement in a certain search space.

• The modiﬁer simply modiﬁes data of a certain

type, i.e. manipulating its parameters. For ex-

ample, modifying the height of a mountain at a

certain location.

• The constraint ensures that data has been pro-

duced in the right environment by allowing it to

modify or delete parent data if it does not adhere

to this constraint.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

• The collector collects instances of a speciﬁed data

type and puts them into a collection. This is useful

when you want to perform an operation on several

instances of the same data type.

Further identiﬁcation of these design patterns will

support the applicability of our approach in future

work.

5 EVALUATION

The evaluation of procedural generation methods re-

mains a challenge. Content representation has not

been standardized, i.e. a geometric object can be

represented in a variety of a ways (e.g. voxel repre-

sentation, triangle meshes or billboard images). This

means that comparing the resulting content is often

approximate at best. Furthermore, different procedu-

ral methods can focus on speciﬁc features, e.g. gener-

ation performance, content quality, extensibility, etc.

We chose to compare our approach to Esri’s

CityEngine, a state-of-the-art urban city generator, to

give the reader a general idea of what is currently

used in industry. CityEngine is also a good example

of a waterfall approach to multi-domain content gen-

eration; it is a well established commercial tool and

has an advantage over our approach in terms of de-

sign features, interface accessibility and performance.

However, comparing our proof-of-concept in terms of

design features or user interface is out of the scope

of our research. Instead, we aim to show that the

blackboard-based approach is highly extensible and

is more robust when editing generated content.

5.1 Test Cases

We created a number of test cases to evaluate the ex-

tensibility and the generation performance of our sys-

tem. These were created using custom modules for

procedural content generation of virtual worlds: (1)

a generic object placement module allows for objects

to be distributed randomly and allows meshes to be

placed in the scene; (2) a terrain system allows for

complex terrains with customizable and fully inde-

pendent biomes; (3) a vegetation module leverages

L-systems to produce vegetation meshes; and (4) a

road module allows for road networks to be built by

various sources and supports multiple road strategies,

similar to the technique used by Kelly et al. (Kelly and

McCabe, 2007). Covering all possible content gener-

ation algorithms to create virtual worlds would be out

of scope for this paper, however these examples form

a representative sample of virtual world generation in

general.

Example 1: Forest Scene

The forest scene features a generated height map with

variable amount of vegetation objects. By default, the

forest scene contains an equal amount of both trees

and bushes. We can however remove the bushes or

add a third object, e.g. plants. Varying the amount of

object types will be discussed further in Section 5.4.

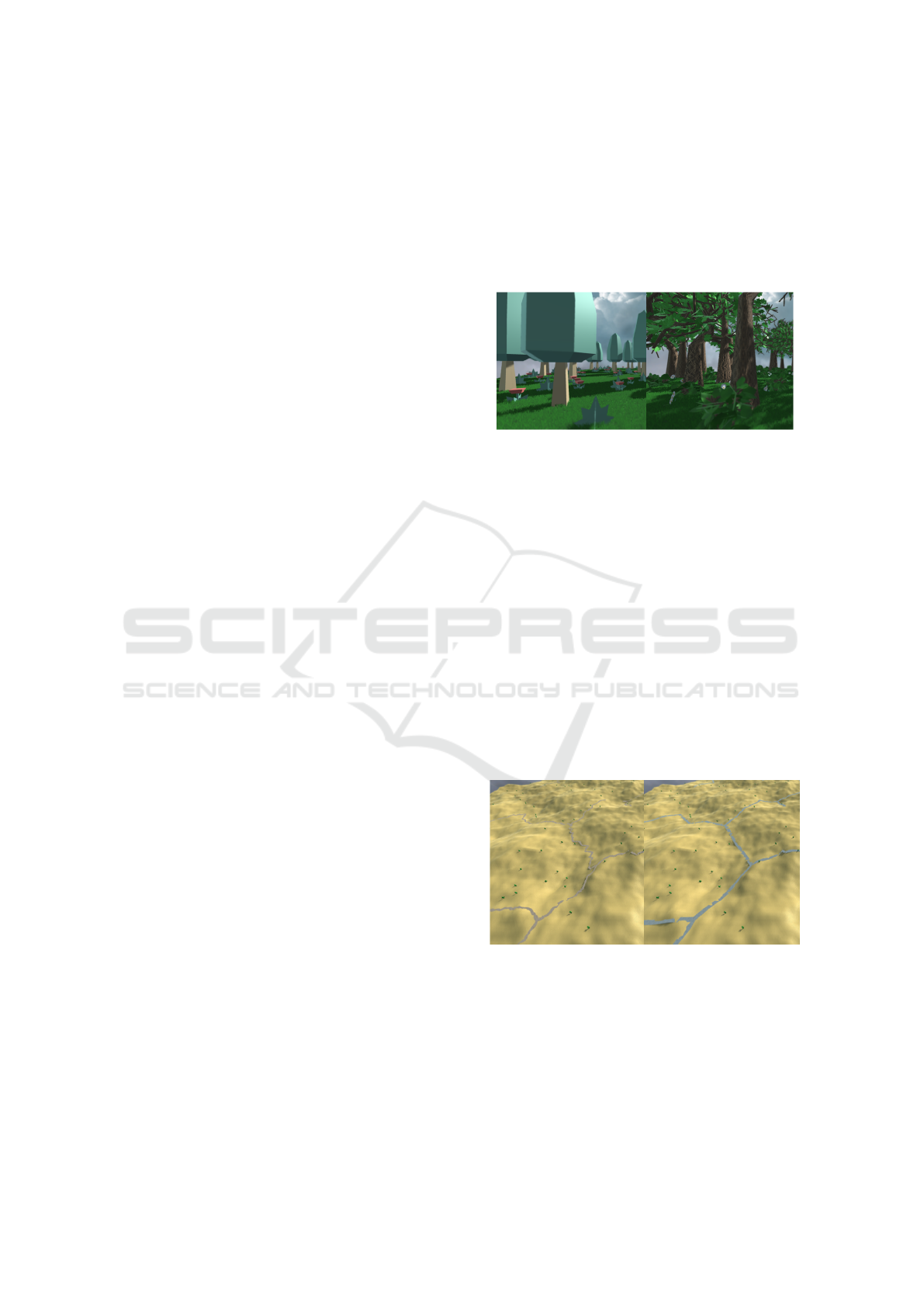

Figure 5: Forest scene using object placement (left) and L-

systems (right).

Figure 5 shows an example forest scene featuring

50 trees, 100 bushes and 100 plants. By swapping

out knowledge sources the vegetation can be either

created by placing predeﬁned objects, or by creating

meshes at runtime using an L-system.

Example 2: Road Scene

The road scene generates a height map for a desert

environment, with a variable amount of interest point

objects. The interest points are combined into a road

graph according to two strategies based on previous

work (Kelly and McCabe, 2007): (1) straight road,

connecting two points with the shortest possible road,

and (2) minimum elevation difference, roads with

lowest steepness within a maximum allowed exten-

sion versus straight roads.

Figure 6: Road scenes using minimum elevation difference

(left) and straight strategies (right).

Figure 6 shows an example road scene with the

two different strategies. The different road strategies

can be utilized by swapping out knowledge sources.

Example 3: Combined Scene

The combined scene is an example of combining

all of the aforementioned techniques. It features a

Extensible Multi-domain Generation of Virtual Worlds using Blackboards

generated height map, different biomes (e.g. arctic,

desert and forest), vegetation generation (e.g. using

L-systems) and placement and road network gener-

ation. This example serves as a “complete” virtual

world and a point of comparison with the content pro-

duced by CityEngine.

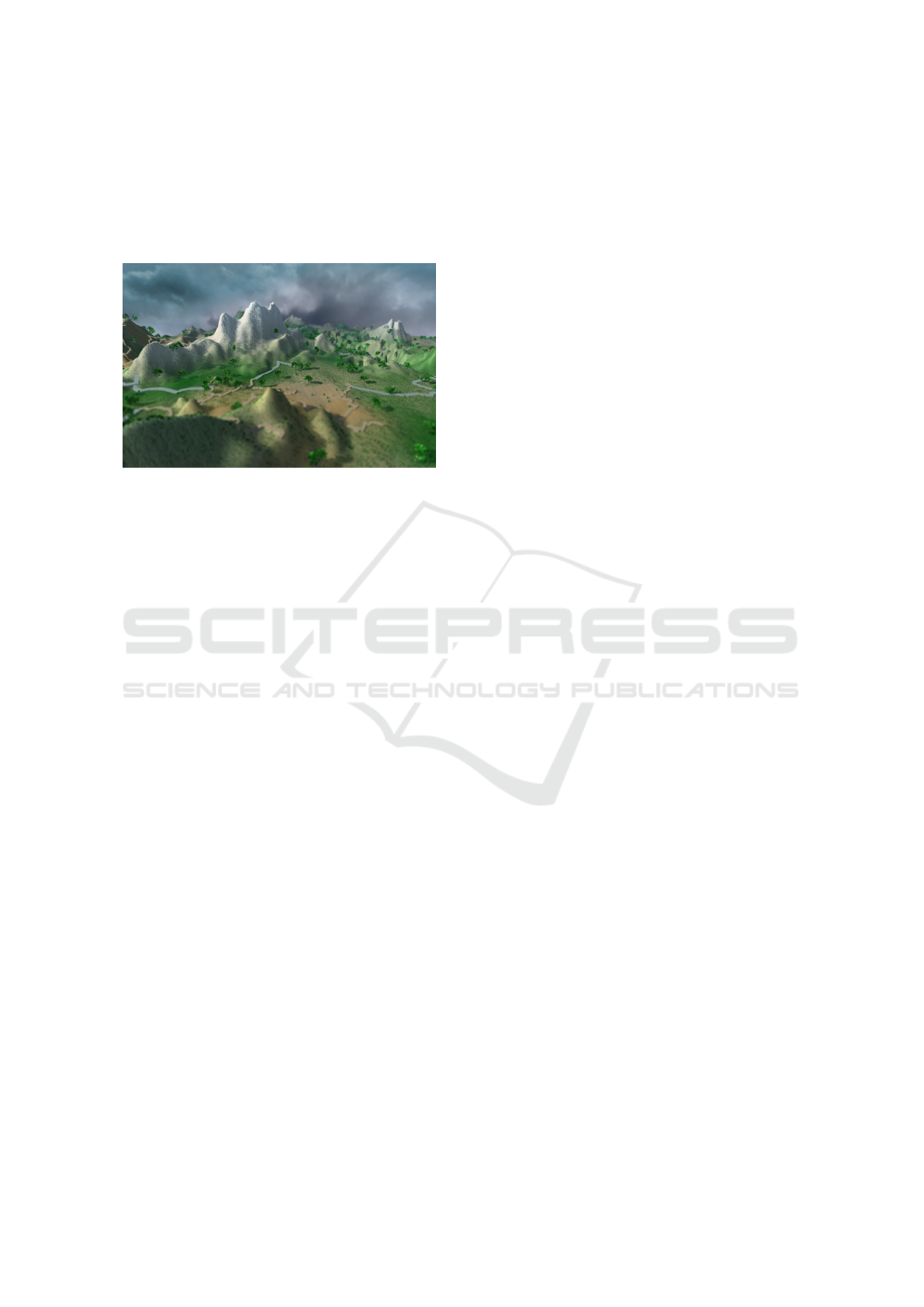

Figure 7: Example combined scene.

Figure 7 shows an example of the combined scene

with the placement of vegetation and the choice of

road strategy automatically adapting to the biome.

It can be noted that our prototype does not feature

building generation as is the case with CityEngine.

However, CityEngine’s tree representation uses pre-

authored billboards while we use L-systems to gen-

erate full 3D trees with leaves. Thus we argue that

these scenes have a similar scene complexity gener-

ally speaking.

5.2 Extensibility

Current approaches of multi-domain content genera-

tion have limited extensibility. They make choices on

what content should be generated, how and in what

order. This makes them less suitable for the creative

industries, as artists need (nearly) complete control

over their design tools. CityEngine, for example, gen-

erates the road networks ﬁrst, followed by plot subdi-

vision in the resulting street blocks and ﬁnally gen-

erating a building or open area on each plot. This

hampers the usability of such a system for different

domains or projects. For example, this implies that

an artist cannot place one or more buildings ﬁrst and

add a street connecting them to the street network, or

create a plot subdivision based on the placement of a

set of buildings and roads.

Our blackboard approach however allows a more

ﬂexible way of editing the content generation process

for any combination of content domains, e.g. extend-

ing the system with new generators or changing the

content dependencies, because our blackboard data

model is automatically generated based on the se-

lected knowledge sources. Furthermore, the scene

generation does not happen in concrete steps or in a

set order. Instead the scene is built in small incre-

ments and previously generated content can still be

affected by content that has yet to be generated. This

allows for more innovation than would normally be

possible in a system where rules cannot be depen-

dent on aspects that appear later in the generation or-

der (Togelius et al., 2013a).

Our architecture makes knowledge sources, and

consequently the procedural methods, independent

of each other where communication is handled im-

plicitly through the blackboard, or more speciﬁcally

through the data.

5.3 Editing Generated Content

Another key advantage of our approach over waterfall

approaches is that it allows newly generated content

to edit previously generated content without complete

regeneration. In a waterfall-based approach, editing

content in a certain layer causes all subsequent lay-

ers to regenerate as there is no way to communicate

what speciﬁcally has changed in that layer and what

parts of depending content should change accord-

ingly. This can be partly alleviated by implementing

ad-hoc solutions where necessary. For example, in

CityEngine, very small translational movements (less

than 1 meter) of a street intersection mostly does not

regenerate all surrounding building blocks but instead

resizes the building plots without having to regenerate

the building. However, even slightly increasing this

movement causes the subdivision to update, which in

turn regenerates the buildings. This means an apart-

ment building on the corner of the street might turn

into a small park.

Obviously when changing content in a scene all

dependent content should change, however the under-

lying problem is that content dependencies in a wa-

terfall model are over-generalized. Content naturally

depends on each other, but we need to model these

dependencies at a more granular level. In our ap-

proach, generation is segmented into several knowl-

edge sources which exposes these content dependen-

cies. This way, changes in the scene do not cause

complete regeneration, but instead allows a more lo-

calized effect where only the properties of the content

that should change do change.

Our generation process triggers knowledge

sources through changes in data on the blackboard,

i.e. additions, modiﬁcations and deletions. Thus

any modiﬁcation of data on the blackboard, i.e. the

generated virtual world, triggers knowledge sources

that depend on that content type and subsequent

knowledge sources, cfr. the data model. Figure 8

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

shows an example of the height map being displaced

and the nearby trees automatically updating their

vertical position and orientation (to follow the surface

normal). In this case, only the vertical position

logically depended on the height map, thus the

overall horizontal distribution is maintained and all

trees are still placed correctly on the surface of the

virtual world.

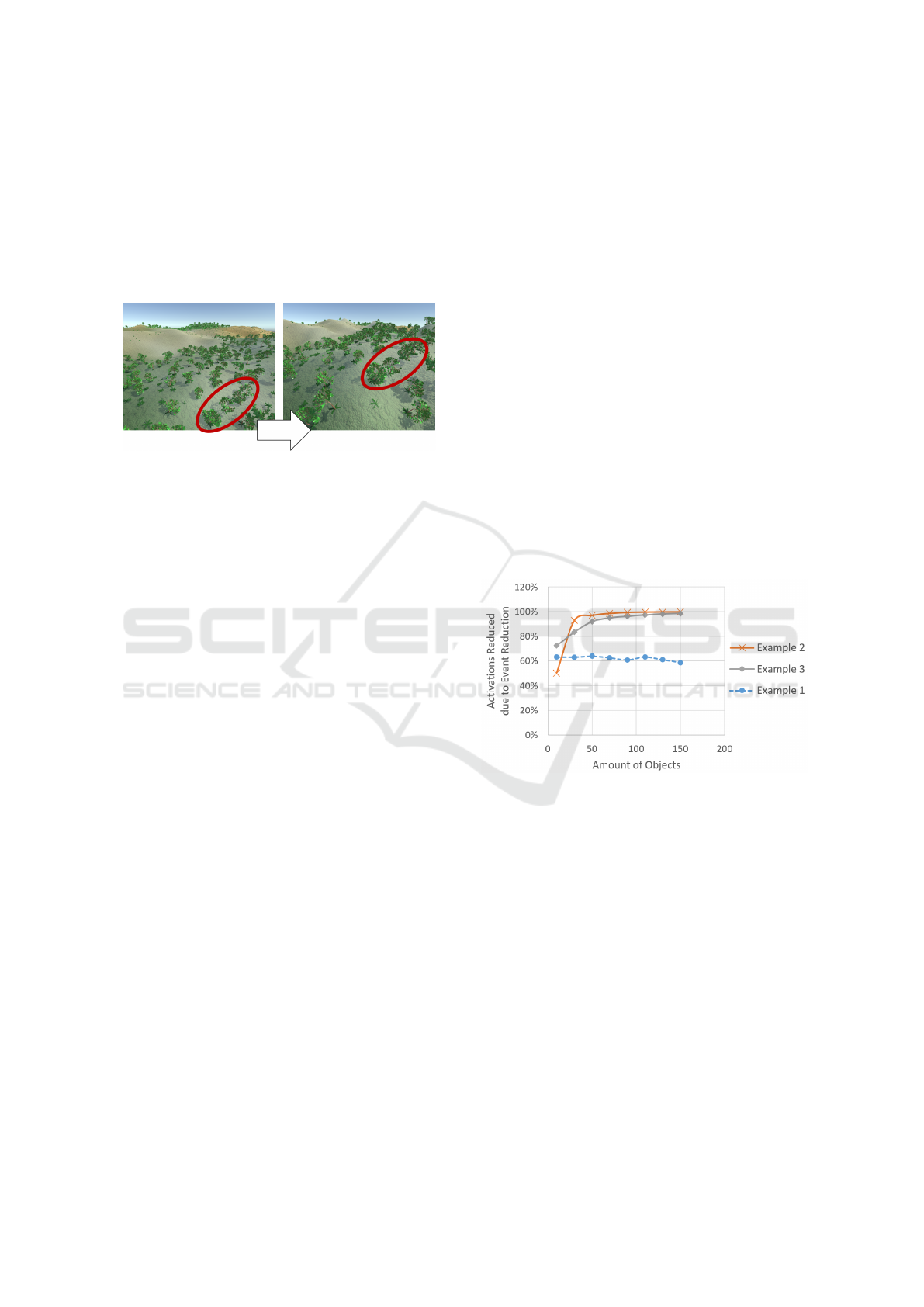

Figure 8: Displacing the height map locally updates the

height and orientation of nearby trees.

Important to note here is that this behaviour is ob-

served irrespective of whether the edit was procedu-

ral or manual. Because the generation process has

been split into different knowledge sources, manual

editing of the resulting content automatically causes

dependent knowledge sources to update their content.

The changes cannot be communicated to the knowl-

edge source that created said piece of content how-

ever. Consequently, if another change happens earlier

in the dependency graph, the ﬁrst change will be over-

written.

5.4 Generation Performance

To evaluate the generation performance, we will

broadly compare our system with CityEngine. Ex-

ample 3 from Section 5.2 will be used as a refer-

ence to CityEngine’s urban worlds. We generate a

virtual world of similar size and scene complexity

with both tools and compare the execution times. Our

framework has been implemented on the Unity En-

gine (UnityTechnologies, 2016), and all tests were

performed on an Intel Core i7-5960X 3.00GHz com-

puter with 32GB of RAM.

Esri’s CityEngine (Esri, 2016) creates cityscapes

with an approximate virtual size of 12 km

about 7500

to 9500 geometric objects in 15 to 30 seconds. Con-

versely, our approach creates a virtual world of ap-

prox. 12 km

with 8000 geometric objects in about

4 minutes. Although our system performs 10 times

slower than CityEngine, it should be noted that this

is for full regeneration in both cases and comparing a

commercial optimized solution versus a research pro-

totype. When editing the scene, the changes typically

take a couple of milliseconds to at most a couple of

seconds for our system, similar to CityEngine.

It should be noted that the resulting performance

of our system depends on the number of knowledge

source activations. The constant sorting and schedul-

ing of these events introduces an overhead into the

system, and furthermore the design choices, i.e. how

to split up the generation process into knowledge

sources, also impact performance. However, they do

not increase the runtime complexity of the underly-

ing algorithms, e.g. a road generation algorithm of

complexity O(n

) remains O(n

). For example 3, at

8000 geometric objects, we measured on average 6.7

seconds of overhead.

In the next Sections, we discuss the impact of

scheduling and modularization on the generation per-

formance of our blackboards architecture.

Impact of Scheduling on Performance

In order to evaluate the impact of scheduling, we gen-

erate each example scene (see Section 5.2) with and

without event reduction at varying scene complexi-

ties. Figure 9 shows the relative number of reduced

activations due to event reduction.

Figure 9: Reduced activation ratio with event reduction for

all use cases.

We can see that the activation reduction increases

signiﬁcantly over time for examples 2 and 3, while

example 1 remains fairly constant. This can be ex-

plained by the presence of the road network genera-

tion algorithm in both examples 2 and 3.

Creating a road network in our case involves rela-

tively more knowledge sources than for example for-

est generation, i.e. 6 steps instead of 3: (1) height map

to point cloud, (2) point cloud to interest point, (3)

interest point to point collection, (4) point collection

to abstract road graph, (5) abstract road graph to road

graph with strategy tags and (6) road graph to textured

mesh. Furthermore, the event deletion greatly reduces

vertically, i.e. generators using highly sequential or

a large amount of dependent steps beneﬁt most from

event deletion. In conclusion, the event reduction can

reduce the number of activations from 52% to 98%.

Extensible Multi-domain Generation of Virtual Worlds using Blackboards

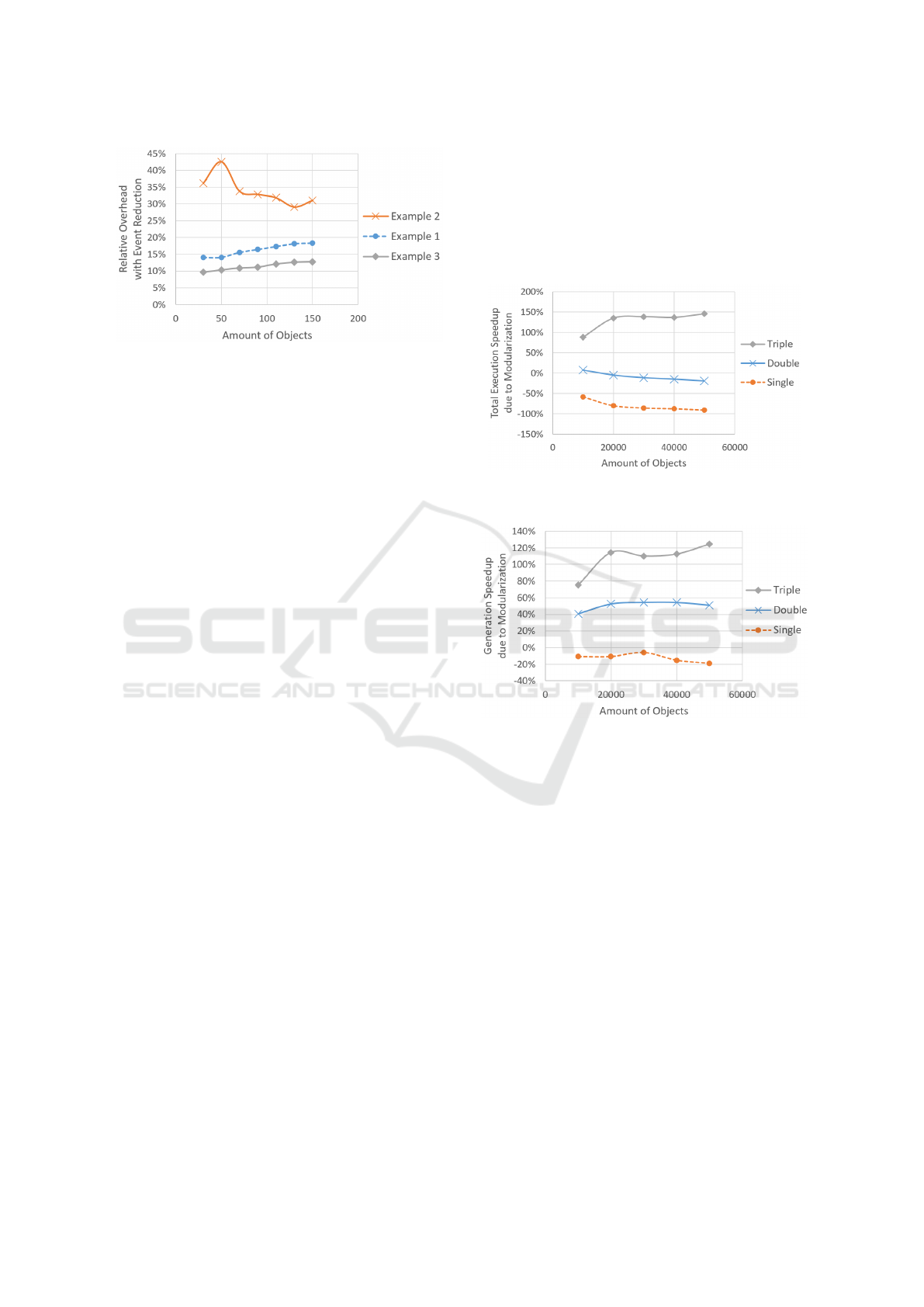

Figure 10: Overhead ratio with event reduction for all use

cases.

It is clear that event reduction is beneﬁcial for

large scale virtual world generation. However, event

reduction also introduces an overhead into the system.

Figure 10 shows the relative overhead (i.e. the per-

centage of time not spent on generation) for all ex-

ample scenes. We can see that the overhead is be-

tween 13% and 42%. Example 2 can be considered

highly vertical in terms of content generation, con-

versely example 1 and 3 are more horizontal, i.e. sub-

sequent knowledge sources mostly reuse content gen-

erated by a single knowledge source. For example,

the placement of road intersections and tree positions

are both derived from a point cloud generated based

on the height map. From this, we can infer that the

more horizontal, i.e. reusable, the generation process

the lower the overhead.

Impact of Modularization on Performance

One can argue however that modularizing PCG gen-

erators into several smaller modules will signiﬁcantly

increase the runtime complexity as more modules also

means more events. However, although more events

are indeed created we will show that the overall run-

time can decrease depending on the design.

This test uses example 1, as we stated in Sec-

tion 5.2 the forest scene can be designed with only

trees (single object type), trees and bushes (double

object types) or trees, bushes and plants (triple ob-

ject types). The modularization in all three cases is an

example of modularization by output type (see Sec-

tion 4.1). We will evaluate the performance of ex-

ample 1 for all three conﬁgurations (single, double

and triple) with and without the introduced modular-

ization by output type. The conﬁgurations are in-

troduced to show the impact of data and knowledge

source reuse facilitated by modularization.

First modularization increases the activation count

by 200% for the single conﬁguration, by 50% for the

double collection and stays about the same for the

triple conﬁguration. The highest increase is the sin-

gle conﬁguration, this is to be expected as we cut up

the generation process in more steps without having

more knowledge sources that take advantage of it (i.e.

reuse). Increasing the amount of object types in our

test case however decreases this disadvantage, with

an object type count of three almost nullifying the in-

crease in activation count from adding extra modules.

Figure 11: Total execution speed-up due to modularization

for different object type amounts.

Figure 12: Generation speed-up due to modularization for

different object type amounts.

Next we take a look at the execution times, both

total (Figure 11) and actual generation (Figure 12).

The results show that in the single conﬁguration the

generation process is considerably slower, although

the generation time does not decrease that much (by

about 20% at 50 000 objects) the total execution time

at least doubles. However when introducing more

object types (i.e. double and triple conﬁgurations),

the modularized knowledge sources can be reused by

other knowledge sources thus increasing the perfor-

mance.

Modularization moves work related to converting

from one data type to another into a separate knowl-

edge source. The result of this conversion can be used

by multiple knowledge sources which would other-

wise have to do this conversion themselves. Mov-

ing the conversion into its own knowledge source and

making the input and output as generic as possible

also allows various optimizations which are otherwise

not possible. This means that the extra overhead cre-

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

ated by modularization due to the extra activations is

less than the beneﬁt gained from it.

6 CONCLUSIONS AND FUTURE

WORK

To improve the usability of multi-domain content gen-

eration, the selected content domains for generation

as well as the order and manner in which it is gener-

ated should be conﬁgurable. We presented an exten-

sible framework for multi-domain content generation

of virtual worlds. We have introduced blackboards

to the domain of procedural generation to alleviate

the current limitations of multi-domain content gen-

eration. Encapsulating the different (single content-

domain) procedural methods into knowledge sources,

allows the system to reason about the generation pro-

cess which in turn allows optimization of the gener-

ation process by eliminating unnecessary generation

executions and ordering the remaining based on pri-

ority in terms of content dependencies.

We provided an overview of the design consider-

ations when using our method for virtual world gen-

eration: modularization and knowledge source design

patterns. We have shown the extensibility of our sys-

tem by implementing a set of 3 different use cases

(forest, road and combined environments) which form

a representative sample set of virtual world genera-

tion. Furthermore, our system facilitates a more sta-

ble way of editing generated content, as changes in

the data only trigger the speciﬁc procedural meth-

ods that depend on it. Finally, the generation perfor-

mance of the system depends on the scheduling sys-

tem (i.e. event reduction) and modularization design

paradigms. Event reduction reduced the number of

knowledge source activations by as much as 98% re-

sulting in better performing large world generation.

Although modularization increases the number of ac-

tivations, we proved that the overall runtime can be re-

duced by intelligent data and knowledge source reuse.

For paths for future research, we suggest ﬁve pos-

sible extensions. Firstly exploring the behaviour of

dependency cycles in the data model. Secondly, im-

proving the editing of generated content by automat-

ically communicating edits to the knowledge source

that created said changed content. Thirdly improving

the generation performance of the system by for ex-

ample automatic concurrency of the PCG blackboard

architecture. The separation of procedural modelling

methods into knowledge sources should provide op-

portunities for parallelization. Fourthly, data ontolo-

gies could be utilized to provide a formalized data for-

mat, allowing for more optimizations for scheduling

and overall improvement of the coherence of the re-

sulting content. Lastly recursive blackboards could

be used for PCG blackboards, where the knowledge

sources can contain blackboards themselves. This

could be used to enable scoping operations, where

certain knowledge sources are scoped within certain

regions of the virtual worlds. This would allow ﬁner-

grained control over the generation process and allow

different types of constraints in different regions.

REFERENCES

Corkill, D. D. (1991). Blackboard systems. AI expert,

6(9):40–47.

Dormans, J. (2010). Adventures in level design: generat-

ing missions and spaces for action adventure games.

In Proceedings of the 2010 workshop on procedural

content generation in games, page 1. ACM.

Esri (2016). Esri cityengine 3d modeling software for

urban environments. http://www.esri.com/software/

cityengine/. Consulted August 2016.

Ganster, B. and Klein, R. (2007). An integrated frame-

work for procedural modeling. In Proceedings of the

23rd Spring Conference on Computer Graphics, pages

123–130. ACM.

Genevaux, J.-D., Galin, E., Peytavie, A., Guerin, E., Bri-

quet, C., Grosbellet, F., and Benes, B. (2015). Terrain

modelling from feature primitives. Computer Graph-

ics Forum, 34(6):198–210.

Grosbellet, F., Peytavie, A., Gu

erin, E., Galin, E., M

erillou,

S., and Benes, B. (2015). Environmental Objects for

Authoring Procedural Scenes. Computer Graphics

Forum, 35(1):296–308.

Gurin, E., Digne, J., Galin, E., and Peytavie, A. (2016a).

Sparse representation of terrains for procedural mod-

eling. Computer Graphics Forum (Proceedings of Eu-

rographics 2016), 35(2).

Gurin, E., Galin, E., Grosbellet, F., Peytavie, A., and

Gnevaux, J.-D. (2016b). Efﬁcient modeling of entan-

gled details for natural scenes. Computer Graphics

Forum, 35(7):257–267.

Hartsook, K., Zook, A., Das, S., and Riedl, M. O. (2011).

Toward supporting stories with procedurally gener-

ated game worlds. In 2011 IEEE Conference on Com-

putational Intelligence and Games (CIG’11), pages

297–304. IEEE.

Kelly, G. and McCabe, H. (2007). Citygen: An interac-

tive system for procedural city generation. In Fifth

International Conference on Game Design and Tech-

nology, pages 8–16.

Mateas, M. and Stern, A. (2002). A behavior language for

story-based believable agents. IEEE Intelligent Sys-

tems, 17(4):39–47.

Misztal-Radecka, J. and Indurkhya, B. (2016). A black-

board system for generating poetry. Computer Sci-

ence, 17(2):265.

Extensible Multi-domain Generation of Virtual Worlds using Blackboards

Parish, Y. I. and M

uller, P. (2001). Procedural modeling

of cities. In Proceedings of the 28th annual con-

ference on Computer graphics and interactive tech-

niques, pages 301–308. ACM.

Shaker, N., Togelius, J., and Nelson, M. J. (2016). Proce-

dural Content Generation in Games: A Textbook and

an Overview of Current Research. Springer.

Silva, P. B., Eisemann, E., Bidarra, R., and Coelho, A.

(2015). Procedural content graphs for urban model-

ing. International Journal of Computer Games Tech-

nology, 2015:10.

Smelik, R., Tutenel, T., de Kraker, K. J., and Bidarra, R.

(2010). Integrating procedural generation and man-

ual editing of virtual worlds. In Proceedings of the

2010 Workshop on Procedural Content Generation in

Games, page 2. ACM.

Smelik, R. M., Tutenel, T., de Kraker, K. J., and Bidarra,

R. (2011). A declarative approach to procedural

modeling of virtual worlds. Computers & Graphics,

35(2):352–363.

Smith, A. M. and Mateas, M. (2011). Answer set pro-

gramming for procedural content generation: A de-

sign space approach. IEEE Transactions on Compu-

tational Intelligence and AI in Games, 3(3):187–200.

Togelius, J., Champandard, A. J., Lanzi, P. L., Mateas, M.,

Paiva, A., Preuss, M., and Stanley, K. O. (2013a). Pro-

cedural content generation: Goals, challenges and ac-

tionable steps. Dagstuhl Follow-Ups, 6.

Togelius, J., Preuss, M., Beume, N., Wessing, S.,

Hagelb

ack, J., Yannakakis, G. N., and Grappiolo, C.

(2013b). Controllable procedural map generation via

multiobjective evolution. Genetic Programming and

Evolvable Machines, 14(2):245–277.

Treanor, M., Blackford, B., Mateas, M., and Bogost, I.

(2012). Game-o-matic: Generating videogames that

represent ideas. In Procedural Content Generation

Workshop at the Foundations of Digital Games Con-

ference.

UnityTechnologies (2016). Unity game engine.

http://unity3d.com/unity. Consulted August 2016.

Verborgh, R., Van Deursen, D., Mannens, E., Poppe, C.,

and Van de Walle, R. (2012). Enabling context-aware

multimedia annotation by a novel generic semantic

problem-solving platform. Multimedia Tools and Ap-

plications, 61(1):105–129.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications
