Automatic Viseme Vocabulary Construction to Enhance

Continuous Lip-reading

Adriana Fernandez-Lopez and Federico M. Sukno

Department of Information and Communication Technologies, Pompeu Fabra University, Barcelona, Spain

Keywords:

Lip-reading, Speech Recognition, Visemes, Confusion Matrix.

Abstract:

Speech is the most common communication method between humans and involves the perception of both

auditory and visual channels. Automatic speech recognition focuses on interpreting the audio signals, but it

has been demonstrated that video can provide information that is complementary to the audio. Thus, the study

of automatic lip-reading is important and is still an open problem. One of the key challenges is the deﬁnition of

the visual elementary units (the visemes) and their vocabulary. Many researchers have analyzed the importance

of the phoneme to viseme mapping and have proposed viseme vocabularies with lengths between 11 and 15

visemes. These viseme vocabularies have usually been manually deﬁned by their linguistic properties and in

some cases using decision trees or clustering techniques. In this work, we focus on the automatic construction

of an optimal viseme vocabulary based on the association of phonemes with similar appearance. To this end,

we construct an automatic system that uses local appearance descriptors to extract the main characteristics

of the mouth region and HMMs to model the statistic relations of both viseme and phoneme sequences. To

compare the performance of the system different descriptors (PCA, DCT and SIFT) are analyzed. We test

our system in a Spanish corpus of continuous speech. Our results indicate that we are able to recognize

approximately 58% of the visemes, 47% of the phonemes and 23% of the words in a continuous speech

scenario and that the optimal viseme vocabulary for Spanish is composed by 20 visemes.

1 INTRODUCTION

Speech is the most used communication method be-

tween humans, and it is considered a multi-sensory

process that involves perception of both acoustic and

visual cues since McGurk demonstrated the inﬂuence

of vision in speech perception (McGurk and MacDon-

ald, 1976). Many authors have subsequently demon-

strated that the incorporation of visual information

into speech recognition systems improves robustness

(Potamianos et al., 2003). Much of the research in

automatic speech recognition (ASR) systems has fo-

cused on audio speech recognition, or on the com-

bination of both modalities using audiovisual speech

recognition (AV-ASR) systems to improve the recog-

nition rates, but visual automatic speech recognition

systems (VASR) are rarely analyzed alone (Dupont

and Luettin, 2000), (Neﬁan et al., 2002), (Zhou et al.,

2014b), (Yau et al., 2007).

Even though the audio is in general much more

informative than the video signal, human speech per-

ception relies on the visual information to help decod-

ing spoken words as auditory conditions are degraded

(Erber, 1975), (Sumby and Pollack, 1954), (Hilder

et al., 2009), (Ronquest et al., 2010). In addition

visual information provides complementary informa-

tion as speaker localization, articulation place, and the

visibility of the tongue, the teeth and the lips. Further-

more, for people with hearing impairments, the visual

channel is the only source of information if there is

no sign language interpreter (Seymour et al., 2008),

(Potamianos et al., 2003), (Antonakos et al., 2015).

The performance of audio only ASR systems is

very high if there is not much noise to degrade the

signal. However, in noisy environments AV-ASR

systems improve the recognition performance when

compared to their audio-only equivalents (Potami-

anos et al., 2003), (Dupont and Luettin, 2000). On

the contrary, in visual only ASR systems the recog-

nition rates are rather low. It is true that the access

to speech recognition through the visual channel is

subject to a series of limitations. One of the key

limitations relies on the ambiguities that arise when

trying to map visual information into the basic pho-

netic unit (the phonemes), i.e. not all the phonemes

that are heard can be distinguished by observing the

Fernandez-Lopez A. and M. Sukno F.

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading.

DOI: 10.5220/0006102100520063

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 52-63

ISBN: 978-989-758-226-4

 2017 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

lips. There are two types of ambiguities: i) there are

phonemes that are easily confused because they are

perceived visually similar to others. For example, the

phones /p/ and /b/ are visually indistinguishable be-

cause voicing occurs at the glottis, which is not visi-

ble. ii) there are phonemes whose visual appearance

can change (or even disappear) depending on the con-

text (co-articulated consonants). This is the case of

the velars, consonants articulated with the back part

of the tongue against the soft palate (e.g: /k/ or /g/),

because they change their position in the palate de-

pending on the previous or following phoneme (Moll

and Daniloff, 1971). In consequence of these limi-

tations, there is no one-to-one mapping between the

phonetic transcription of an utterance and their corre-

sponding visual transcription (Chit¸u and Rothkrantz,

2012). From the technical point of view lip-reading

depends on the distance between the speakers, on the

illumination conditions and on the visibility of the

mouth (Hilder et al., 2009), (Buchan et al., 2007),

(Ortiz, 2008).

The objective of ASR systems is to recognize

words. Words can be represented as strings of

phonemes, which can then be mapped to acoustic ob-

servations using pronunciation dictionaries that estab-

lish the mapping between words and phonemes. In

analogy to audio speech systems, where there is con-

sensus that the phoneme is the standard minimal unit

for speech recognition, when adding visual informa-

tion we aim at deﬁning visemes, namely the mini-

mum distinguishable speech unit in the video domain

(Fisher, 1968). As explained above, the mapping from

phonemes to visemes cannot be one-to-one, but apart

from this fact there is no much consensus on their def-

inition nor in their number. When designing VASR

systems, one of the most important challenges is the

viseme vocabulary deﬁnition. There are discrepan-

cies on whether there is more information in the po-

sition of the lips or in their movement (Luettin et al.,

1996), (Sahu and Sharma, 2013), (Cappelletta and

Harte, 2011) and if visemes are better deﬁned in terms

of articulatory gestures (such as lips closing together,

jaw movement, teeth exposure) or derived from the

grouping of phonemes having the same visual appear-

ance (Cappelletta and Harte, 2011), (Fisher, 1968).

From a modeling viewpoint, the use of viseme units is

essentially a form of model clustering that allows vi-

sually similar phonetic events to share a group model

(Hilder et al., 2009). Consequently several different

viseme vocabularies have been proposed in the litera-

ture typically with lengths between 11 and 15 visemes

(Bear et al., 2014), (Hazen et al., 2004), (Potami-

anos et al., 2003), (Neti et al., 2000). For instance,

Goldschen et al. (Goldschen et al., 1994) trained an

initial set of 56 phones and clustered them into 35

visemes using the Average Linkage hierarchical clus-

tering algorithm. Jeffers et al. (Jeffers and Barley,

1980) deﬁned a phoneme to viseme mapping from 50

phonemes to 11 visemes in the English language (11

visemes plus Silence). Neti et al. (Neti et al., 2000)

investigated the design of context questions based on

decision trees to reveal similar linguistic context be-

haviour between phonemes that belong to the same

viseme. For study, based on linguistic properties,

they determined seven consonant visemes (bilabial,

labio-dental, dental, palato-velar, palatal, velar, and

two alveolar), four vowel, an alveolar-semivowel and

one silence viseme (13 visemes in total). Bozkurt

et al. (Bozkurt et al., 2007) proposed a phoneme to

viseme mapping from 46 American English phones

to 16 visemes to achieve nature looking lip anima-

tion. They mapped phonetic sequences to viseme se-

quences before animating the lips of 3D head mod-

els. Ezzat et al. (Ezzat and Poggio, 1998) presented a

text-to-audiovisual speech synthesizer which converts

input text into an audiovisual speech stream. They

started grouping those phonemes which looked sim-

ilar by visually comparing the viseme images. To

obtain a photo-realistic talking face they proposed a

viseme vocabulary with 6 visemes that represent 24

consonant phonemes, 7 visemes that represent the

12 vowel phonemes, 2 diphthong visemes and one

viseme corresponding to the silence.

1.1 Contributions

In this work we investigate in the automatic construc-

tion of a viseme vocabulary from the association of

visually similar phonemes. In contrast to the related

literature, where visemes have been mainly deﬁned

manually (based on linguistic properties) or semi-

automatically (e.g. by trees or clustering) (Cappel-

letta and Harte, 2011) we explore the fully automatic

construction of an optimal viseme vocabulary based

on simple merging rules and the minimization of pair-

wise confusion. We focus on constructing a VASR

for Spanish language and explore the use of SIFT and

DCT as descriptors for the mouth region, encoding

both the spatial and temporal domains. We evalu-

ated our system in a Spanish corpus (AV@CAR) with

continuous speech from 20 speakers. Our results in-

dicate that we are able to recognize more than 47%

of the phonemes and 23% of the words correspond-

ing to continuous speech and that the optimal viseme

vocabulary for Spanish language is composed by 20

visemes.

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading

2 VASR SYSTEM

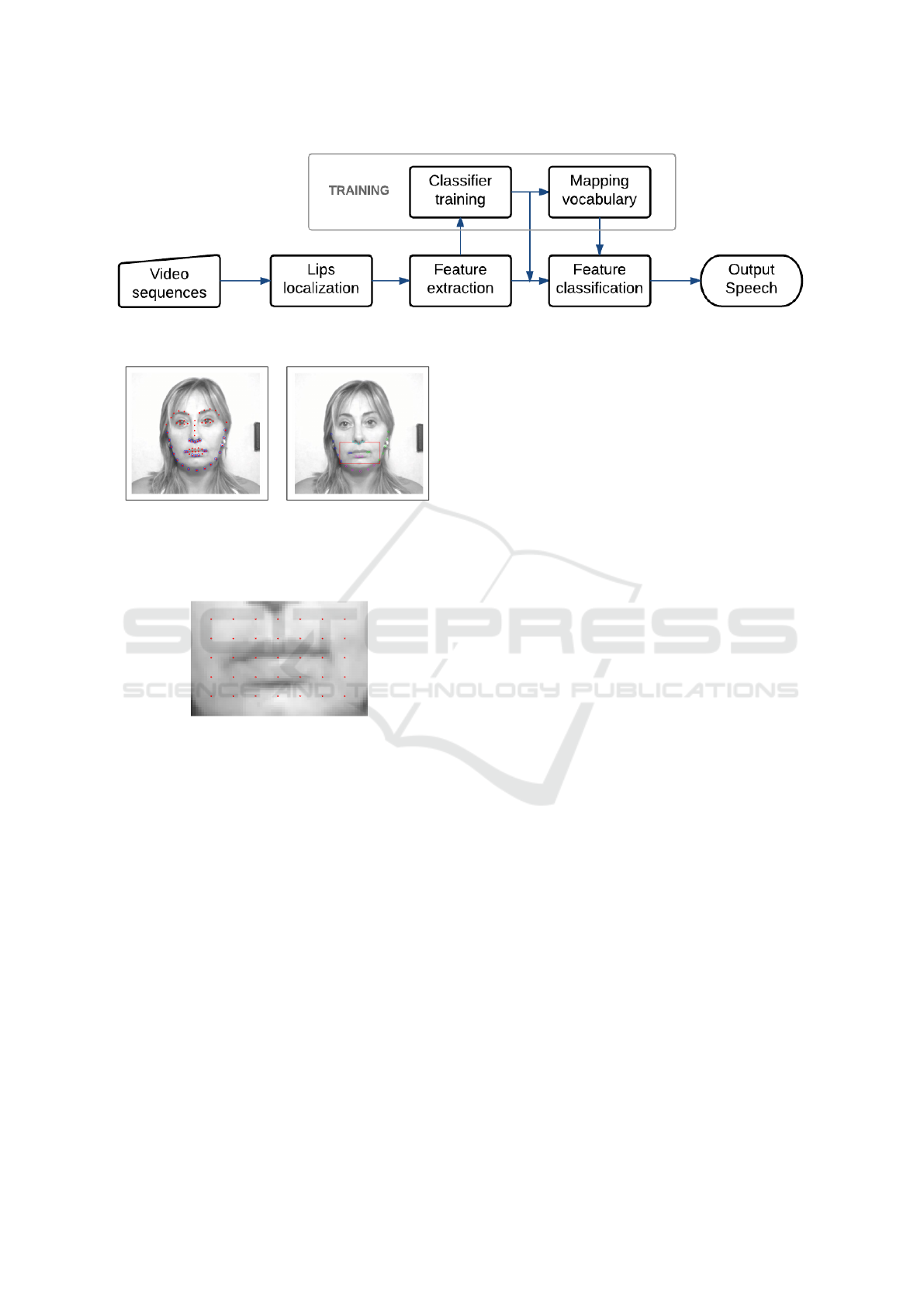

VASR systems typically aim at interpreting the video

signal in terms of visemes, and usually consist of 3

major steps: 1) Lips localization, 2) Extraction of vi-

sual features, 3) Classiﬁcation into viseme sequences.

In this section we start with a brief review of the re-

lated work and then provide a detailed explanation of

our method.

2.1 Related Work

Much of the research on VASR has focused on digit

recognition, isolated words and sentences, and only

more recently in continuous speech. Seymour et al.

(Seymour et al., 2008) centred their experiments in

comparing different image transforms (DCT, DWT,

FDCT) to achieve speaker-independent digit recogni-

tion. Sui et al. (Sui et al., 2015) presented a novel

feature learning method using Deep Boltzmann Ma-

chines that recognizes simple sequences of isolated

words and digit utterances. Their method used both

acoustic and visual information to learn features, ex-

cept for the test stage where only the visual informa-

tion was used. Lan et al. (Lan et al., 2009) used AAM

features to quantify the effect of shape and appearance

in lip reading and tried to recognize short sentences

using a constrained vocabulary for 15 speakers. Zhao

et al. (Zhao et al., 2009) proposed a spatiotemporal

version of LBP features and used a SVM classiﬁer

to recognize isolated phrase sequences. Zhou et al.

(Zhou et al., 2014a) used a latent variable model that

identiﬁes two different sources of variation in images,

those related to the appearance of the speaker and

those caused by the pronunciation, and tried to sep-

arate them to recognize short utterances (e.g. Excuse

me, Thank you,...). Pet et al. (Pei et al., 2013) pre-

sented a random forest manifold alignment method

(RFMA) and applied it to lip-reading in color and

depth videos. The lip-reading task was realized by

motion pattern matching based on the manifold align-

ment. Potamianos et al. (Potamianos et al., 2003) ap-

plied fast DCT to the region of interest (ROI) and re-

tained 100 coefﬁcients. To reduce the dimensionality

they used an intraframe linear discriminant analysis

and maximum likelihood linear transform (LDA and

MLLT), resulting in a 30-dimensional feature vector.

To capture dynamic speech information, 15 consecu-

tive feature vectors were concatenated, followed by an

interframe LDA/MLLT for dimensionality reduction

to obtain dynamic visual features of length 41. They

tested their system using IBM ViaVoice database and

reported 17.49% of recognition rate in continuous

speech recognition. Thangthai et al. (Thangthai

et al., 2015) explored the use of Deep Neural Net-

works (DNNs) in combination with HiLDA features

(LDA and MLLT). They reported very high accuracy

(≈ 85%) in recognizing continuous speech although

tests were on a corpus with a single speaker. Cap-

pelletta et al. (Cappelletta and Harte, 2011) used a

database with short balanced utterances and tried to

deﬁne a viseme vocabulary able to recognize contin-

uous speech. They based their feature extraction on

techniques as PCA or Optical ﬂow, taking into ac-

count both movement and appearance of the lips.

Although some attempts to compare between

methods have been made it is a quite difﬁcult task in

visual only ASR. Firstly, the recognition rates cannot

be compared directly among recognition tasks: it is

easier to recognize isolated digits trained with higher

number of repetitions and number of speakers or to

recognize shorts sentences trained in restricted vocab-

ularies than to recognize continuous speech. Addi-

tionally, even when dealing with the same recogni-

tion tasks, the use of substantially different databases

makes it difﬁcult the comparison between methods.

Concretely, results are often not comparable because

they are usually reported in different databases, with

variable number of speakers, vocabularies, language

and so on. Keeping in mind these limitations, some

studies have shown that most methods recognize au-

tomatically between 25% and 64% of short utterances

(Zhou et al., 2014a). As mentioned before we are

interested in continuous speech recognition because

it is the task that is closer to actual lip-reading as

done by humans. Continuous speech recognition has

been explored recently, and there is limited litera-

ture about it. The complexity of the task and the

few databases directly related to it have slowed its

development, achieving rather low recognition rates.

Because which technique use in each block of the

pipeline is still an open problem, we decided to con-

struct our own visual only ASR system based on in-

tensity descriptors and on HMMs to model the dy-

namics of the speech.

2.2 Our System

In this section each step of our VASR system is ex-

plained (Figure 1). We start by detecting the face and

extracting a region of interest (ROI) that comprises

the mouth and its surrounding area. Appearance fea-

tures are then extracted and used to estimate visemes,

which are ﬁnally mapped into phonemes with the help

of HMMs.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Figure 1: General process of a VASR system.

(a) (b)

Figure 2: (a) IOF-ASM detection, the marks in blue are

used to ﬁx the bounding box; (b) ROI detection, each color

ﬁx a lateral of the bounding box.

Figure 3: Keypoints distribution.

2.2.1 Lips Localization

The location of the face is obtained using invariant op-

timal features ASM (IOF-ASM) (Sukno et al., 2007)

that provides an accurate segmentation of the face in

frontal views. The face is tracked at every frame and

detected landmarks are used to ﬁx a bounding box

around the lips (ROI) (Figure 2). At this stage the

ROI can have a different size in each frame. Thus,

ROIs are normalized to a ﬁxed size of 48 × 64 pixels

to achieve a uniform representation.

2.2.2 Feature Extraction

After the ROI is detected a feature extraction stage

is performed. Nowadays, there is no universal fea-

ture for visual speech representation in contrast to

the Mel-frequency cepstral coefﬁcients (MFCC) for

acoustic speech. We look for an informative fea-

ture invariant to common video issues, such as noise

or illumination changes. We analyze three different

appearance-based techniques:

• SIFT: SIFT was selected as high level descrip-

tor to extract the features in both the spatial and

temporal domains because it is highly distinctive

and invariant to image scaling and rotation, and

partially invariant to illumination changes and 3D

camera viewpoint (Lowe, 2004). In the spatial do-

main, the SIFT descriptor was applied directly to

the ROI, while in the temporal domain it was ap-

plied to the centred gradient. SIFT keypoints are

distributed uniformly around the ROI (Figure 3).

The distance between keypoints was ﬁxed to half

of the neighbourhood covered by the descriptor

to gain robustness (by overlapping). As the di-

mension of the ﬁnal descriptor for both spatial

and temporal domains is very high, PCA was ap-

plied to reduce the dimensionality of the features.

Only statistically signiﬁcant components (deter-

mined by means of Parallel Analysis (Franklin

et al., 1995)) were retained.

• DCT: The 2D DCT is one of the most popular

techniques for feature extraction in visual speech

(Zhou et al., 2014b), (Lan et al., 2009). Its abil-

ity to compress the relevant information in a few

coefﬁcients results in a descriptor with small di-

mensionality. The 2D DCT was applied directly

to the ROI. To ﬁx the number of coefﬁcients, the

image error between the original ROI and the re-

constructed was used. Based on preliminary ex-

periments, we found that 121 coefﬁcients (corre-

sponding to 1% reconstruction error) for both the

spatial and temporal domains produced satisfac-

tory performance.

• PCA: Another popular technique is PCA, also

known as eigenlips (Zhou et al., 2014b), (Lan

et al., 2009), (Cappelletta and Harte, 2011). PCA,

as 2D DCT is applied directly to the ROI. To de-

cide the optimal number of dimensions the system

was trained and tested taking different percent-

ages of the total variance. Lower number of com-

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading

ponents would lead to a low quality reconstruc-

tion, but an excessive number of components will

be more affected by noise. In the end 90% of the

variance was found to be a good compromise and

was used in both spatial and temporal descriptors.

The early fusion of DCT-SIFT and PCA-SIFT has

been also explored to obtain a more robust descriptor

(see results in Section 3.3).

2.2.3 Feature Classiﬁcation and Interpretation

The ﬁnal goal of this block is to convert the extracted

features into phonemes or, if that is not possible, at

least into visemes. To this end we need: 1) classiﬁers

that will map features to (a ﬁrst estimate of) visemes;

2) a mapping between phonemes and visemes; 3) a

model that imposes temporal coherency to the esti-

mated sequences.

1. Classiﬁers: classiﬁcation of visemes is a chal-

lenging task, as it has to deal with issues such as

class imbalance and label noise. Several methods

have been proposed to deal with these problems,

the most common solutions being Bagging and

Boosting algorithms (Khoshgoftaar et al., 2011),

(Verbaeten and Van Assche, 2003), (Fr

enay and

Verleysen, 2014), (Nettleton et al., 2010). From

these, Bagging has been reported to perform bet-

ter in the presence of training noise and thus it was

selected for our experiments. Multiple LDA was

evaluated using cross validation. To add robust-

ness to the system, we trained classiﬁers to pro-

duce not just a class label but to estimate also a

class probability for each input sample.

For each bagging split, we train a multi-class LDA

classiﬁer and use the Mahalanobis distance d to

obtain a normalized projection of the data into

each class c:

(x) =

(x − ¯x

)

· Σ

−1

· (x − ¯x

) (1)

Then, for each class, we compute two cumulative

distributions based on these projections: one for

in-class samples Φ(

(x)−µ

), x ∈ c and another

one for out-of-class samples Φ(

(x)−µ

), x ∈

which we assume Gaussian with means µ

, µ

and

variances σ

, σ

, respectively. An indicative ex-

ample is provided in Figure 4. Notice that these

means and variances correspond to the projections

in (1) and are different from ¯x

and Σ

We compute a class-likelihood as the ratio be-

tween the in-class and the out-of-class distribu-

tions, as in (2) and normalize the results so that the

summation over all classes is 1, as in (3). When

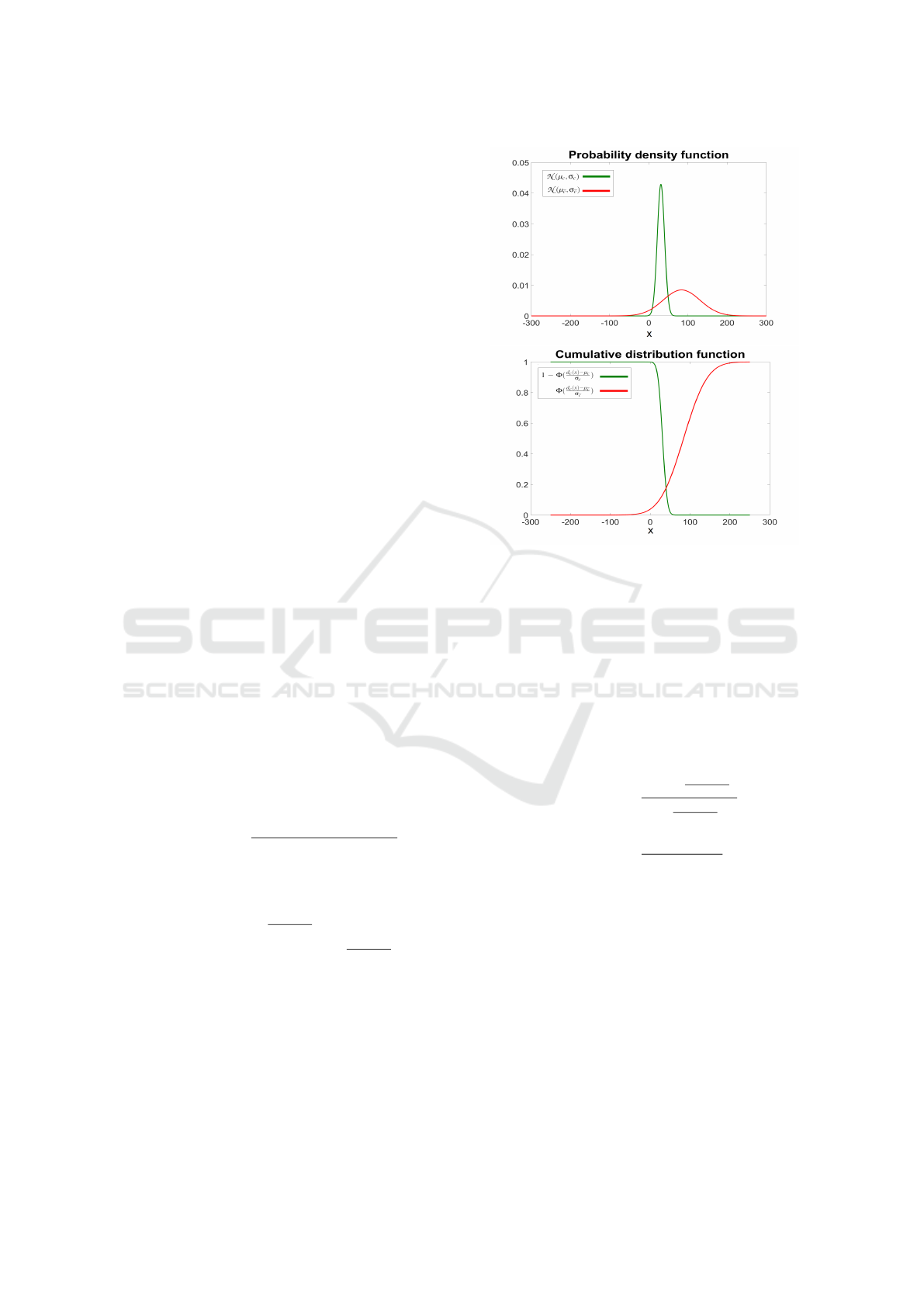

Figure 4: (Top) Probability density functions for in-class

(green) and out-of-class (red) samples; (Bottom) Cumula-

tive distributions corresponding to (Top). Notice than for

in-class samples we use the complement of the cumulative

distribution, since lower values should have higher proba-

bilities.

classifying a new sample, we use the cumulative

distributions to estimate the probability that the

unknown sample belongs to each of the viseme

classes (3). We assign the class with the highest

normalized likelihood L

F(c | x) =

1 − Φ(

(x)−µ

)

Φ(

(x)−µ

)

(2)

(x) =

F(c | x)

∑

c=1

F(c | x)

(3)

Once the classiﬁers are trained we could the-

oretically try to classify features directly into

phonemes, but as explained in Section 1, there are

phonemes that share the same visual appearance

and are therefore unlikely to be distinguishable

by a visual-only system. Thus, such phonemes

should be grouped into the same class (visemes).

In the next subsection we will present a map-

ping from phonemes to visemes based on group-

ing phonemes that are visually similar.

2. Phoneme to Viseme Mapping: to construct our

viseme to phoneme mapping we analyse the con-

fusion matrix resulting by comparing the ground

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

truth labels of the training set with the automatic

classiﬁcation obtained from the previous section.

We use an iterative process, starting with the same

number of visemes as phonemes, merging at each

step the visemes that show the highest ambigu-

ity. The method takes into account that vowels

cannot be grouped with consonants, because it

has been demonstrated that their aggregation pro-

duces worse results (Cappelletta and Harte, 2011),

(Bear et al., 2014).

The algorithm iterates until the desired vocabulary

length is achieved. However, there is no accepted

standard to ﬁx this value beforehand. Indeed,

several different viseme vocabularies have been

proposed in the literature typically with lengths

between 11 and 15 visemes. Hence, in Section

3.3 we will analyse the effect of the vocabulary

size on recognition accuracy. Once the vocabu-

lary construction is concluded, all classiﬁers are

retrained based on the resulting viseme classes.

3. HMM and Viterbi Algorithm: to improve the

performance obtained after feature classiﬁcation,

HMMs of one state per class are used to map: 1)

visemes to visemes; 2) visemes to phonemes.

An HMM λ = (A, B, π) is formed by N states

and M observations. Matrix A represents the

state transition probabilities, matrix B the emis-

sion probabilities, and vector π the initial state

probabilities. Given a sequence of observation O

and the model λ our aim is to ﬁnd the maximum

probability state path Q = q

, q

, ..., q

t−1

. This can

be done recursively using Viterbi algorithm (Ra-

biner, 1989), (Petrushin, 2000). Let δ

(t) be the

probability of the most probable state path ending

in state i at time t (4). Then δ

(t) can be com-

puted recursively using (5) with initialization (6)

and termination (7).

(t) = max

,...,q

t−1

P(q

...q

t−1

= i, O

, ..., O

|λ) (4)

(t) = max

1≤i≤N

[δ

(t − 1) · a

i, j

] · b

) (5)

(1) = π

· b

), 1 ≤ i ≤ N (6)

P = max

1≤i≤N

[δ

(T )] (7)

A shortage of the above is that it only considers a

single observation for each instant t. In our case

observations are the output from classiﬁers and

contain uncertainty. We have found that it is use-

ful to consider multiple possible observations for

each time step. We do this by adding to the Viterbi

algorithm the likelihoods obtained by the classi-

ﬁers for all classes (e.g. from equation (3)). As

a result, (5) is modiﬁed into (8), where the max-

imization is done across both the N states (as in

(5)) and also the M possible observations, each

weighted with its likelihood estimated by the clas-

siﬁers.

(t) = max

1≤O

≤M

max

1≤i≤N

[δ

(t − 1) · a

i, j

] ·

) (8)

) = b

) · L(O

) (9)

where the short-form L(O

) refers to the likeli-

hood L

(x) as deﬁned in (3). The Viterbi algo-

rithm modiﬁed as indicated in (8) is used to ob-

tain the ﬁnal phoneme sequence providing at the

same time temporal consistency and tolerance to

classiﬁcation uncertainties. Once this has been

achieved, visemes are mapped into phonemes us-

ing the traditional Viterbi algorithm (5).

3 EXPERIMENTS

3.1 Database

Ortega et al. (Ortega et al., 2004) introduced

AV@CAR as a free multichannel multi-modal

database for automatic audio-visual speech recogni-

tion in Spanish language, including both studio and

in-car recordings. The Audio-Visual-Lab data set of

AV@CAR contains sequences of 20 people recorded

under controlled conditions while repeating prede-

ﬁned phrases or sentences. There are 197 sequences

for each person, recorded in AVI format. The video

data has a spatial resolution of 768x576 pixels, 24-

bit pixel depth and 25 fps and is compressed at an

approximate rate of 50:1. The sequences are divided

into 9 sessions and were captured in a frontal view

under different illumination conditions and speech

tasks. Session 2 is composed by 25 videos/user with

phonetically-balanced phrases. We have used session

2 splitting the dataset in 380 sentences (19 users ×

20 sentences/user) for training and 95 sentences (19

users × 5 sentences/user) to test the system. In Table

1 it is shown the sentences of the ﬁrst speaker.

3.2 Phonetic Vocabulary

SAMPA is a phonetic alphabet developed in 1989

by an international group of phoneticians, and was

applied to European languages as Dutch, English,

French, Italian, Spanish, etc. We based our phonetic

vocabulary in SAMPA because it is the most used

standard in phonetic transcription (Wells et al., 1997),

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading

Table 1: Sentences for speaker 1.

Speaker 1

Francia, Suiza y Hungr

ıa ya hicieron causa

com

un.

Despu

es ya se hizo muy amiga nuestra.

Los yernos de Ismael no engordar

an los pollos con

hierba.

Despu

es de la mili ya me vine a Catalu

na.

Bajamos un d

ıa al mercadillo de Palma.

Existe un viento del norte que es un viento fr

ıo.

Me he tomado un caf

e con leche en un bar.

Yo he visto a gente expulsarla del colegio por fu-

mar.

Guadalajara no est

a colgada de las rocas.

Pas

e un a

no dando clase aqu

ı, en Bellaterra.

Pero t

u ahora elijes ya previamente.

Les dijeron que eligieran una casa all

a, en las mis-

mas condiciones.

Cuando me gir

e ya no ten

ıa la cartera.

Tendr

a unas siete u ocho islas alrededor.

Haciendo el primer campamento y el segundo

campamento.

Unas indemnizaciones no les iban del todo mal.

Rezando porque ten

ıa un miedo impresionante.

Es un apellido muy abundante en la zona de Pam-

plona.

No jug

abamos a b

asket, s

olo los mir

abamos a el-

los.

Aunque naturalmente hay un partido comunista.

Dio la casualidad que a la una y media estaban

all

ı.

Se alegraron mucho de vernos y ya nos quedamos

a cenar.

Ya empezamos a llorar bastante en el apartamento.

En una ladera del monte se ubica la iglesia.

Entonces lo

unico que hac

ıamos era ir a cenar.

(Llisterri and Mari

no, 1993). For the Spanish lan-

guage, the vocabulary is composed by the following

29 phonemes: /p/, /b/, /t/, /d/, /k/, /g/, /tS/, /jj/, /f/,

/B/, /T/, /D/, /s/, /x/, /G/, /m/, /n/, /J/, /l/, /L/, /r/, /rr/,

/j/, /w/, /a/, /e/, /i/, /o/, /u/. The phonemes /jj/ and

/G/ were removed from our experiments because our

database did not contain enough samples to consider

them.

3.3 Results

In this section we show the results of our experi-

ments. In particular, we show the comparison of the

performances between the different vocabularies, the

different features, and the improvement obtained by

adding the observation probabilities into the Viterbi

algorithm.

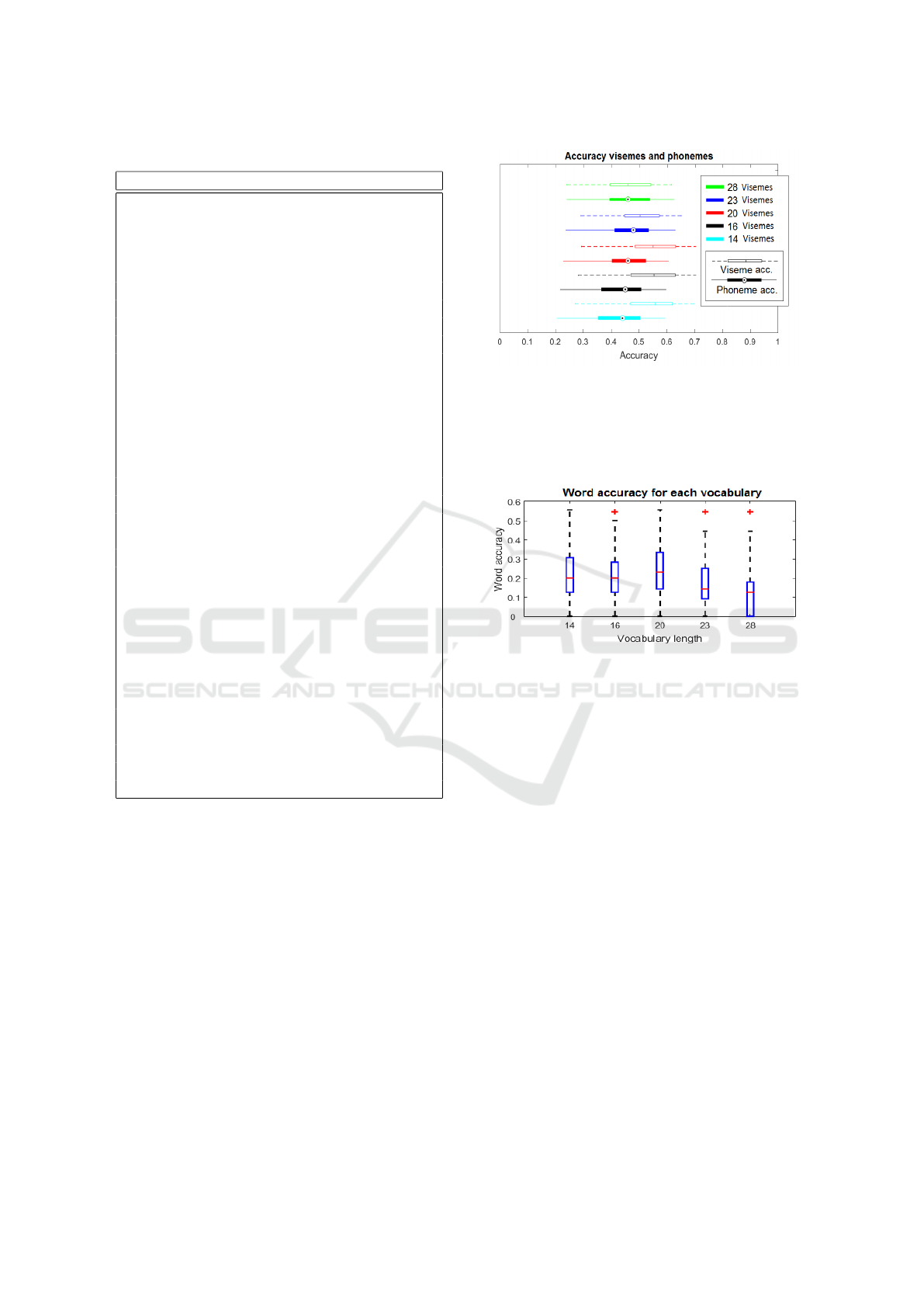

Figure 5: Boxplots of system performance in terms of

phoneme and viseme accuracy for different vocabularies.

We analyze the one-to-one mapping phoneme to viseme,

and the one-to-many phoneme to viseme mappings with 23,

20, 16 and 14 visemes. The phoneme accuracy is always

computed from the 28 phonemes.

Figure 6: Comparison of system performance in word

recognition rate for the different vocabularies.

3.3.1 Experimental Setup

We constructed an automatic system that uses local

appearance features based on early fusion of DCT

and SIFT descriptors (this combination produced the

best results in our tests, see below) to extract the main

characteristics of the mouth region in both spatial and

temporal domains. The classiﬁcation of the extracted

features into phonemes is done in two steps. Firstly,

100 LDA classiﬁers are trained using bagging se-

quences to be robust under label noise. Then, the clas-

siﬁer outputs are used to compute the global normal-

ized likelihood, as the summation over the normalized

likelihood computed by each classiﬁer divided by the

number of classiﬁers (as explained in Section 2). Sec-

ondly, at the ﬁnal step, one-state-per-class HMMs are

used to model the dynamic relations of the estimated

visemes and produce the ﬁnal phoneme sequences.

3.3.2 Comparison of Different Vocabularies

As we explained before one of the main challenges

of VASR systems is the deﬁnition of the phoneme-to-

viseme mapping. While our system aims to estimate

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Table 2: Optimal vocabulary obtained, composed of 20

visemes.

Viseme vocabulary

Silence T l rr

D ll d s, tS, t

k x j r

g m, p, b f n

B J a,e,i o,u,w

phoneme sequences, we know that there is no one-to-

one mapping between phonemes and visemes. Hence,

we try to ﬁnd the one-to-many mapping that will al-

low us to maximize the recognition of phonemes in

the spoken message.

To evaluate the inﬂuence of the different map-

pings, we have analysed the performance of the sys-

tem in terms of viseme- , phoneme-, and word recog-

nition rates using viseme vocabularies of different

lengths. Our ﬁrst observation, from Figure 5, is

that the viseme accuracy tends to grow as we re-

duce the vocabulary length. This is explained by

two factors: 1) the reduction in number of classes,

which makes the classiﬁcation problem a simpler one

to solve; 2) the fact that visually indistinguishable

units are combined into one. The latter helps ex-

plain the behaviour of the other metric in the ﬁg-

ure: phoneme accuracy. As we reduce the vocab-

ulary length, phoneme accuracy ﬁrstly increases be-

cause we eliminate some of the ambiguities by merg-

ing visually similar units. But if we continue to re-

duce the vocabulary, too many phonemes (even unre-

lated) are mixed together and their accuracy decreases

because, even if these visemas are better recognized,

their mapping into phonemes is more uncertain. Thus,

the optimal performance is obtained for intermediate

vocabulary lengths, because there is an optimum com-

promise between the visemes and the phonemes that

can be recognized.

The same effect can also be seen in Figure 6 in

terms of word recognition rates. We can observe how

the one-to-one phoneme to viseme mapping (using

the 28 phonemes classes) obtained the lowest word

recognition rates and how the highest word recogni-

tion rates were obtained for the intermediate vocabu-

lary lengths, supporting the view that the one-to-many

mapping from phonemes to visemes is necessary to

optimize the performance of visual speech systems.

In the experiments presented in this paper, a vocabu-

lary of 20 visemes (summarized in Table 2) produced

the best performance.

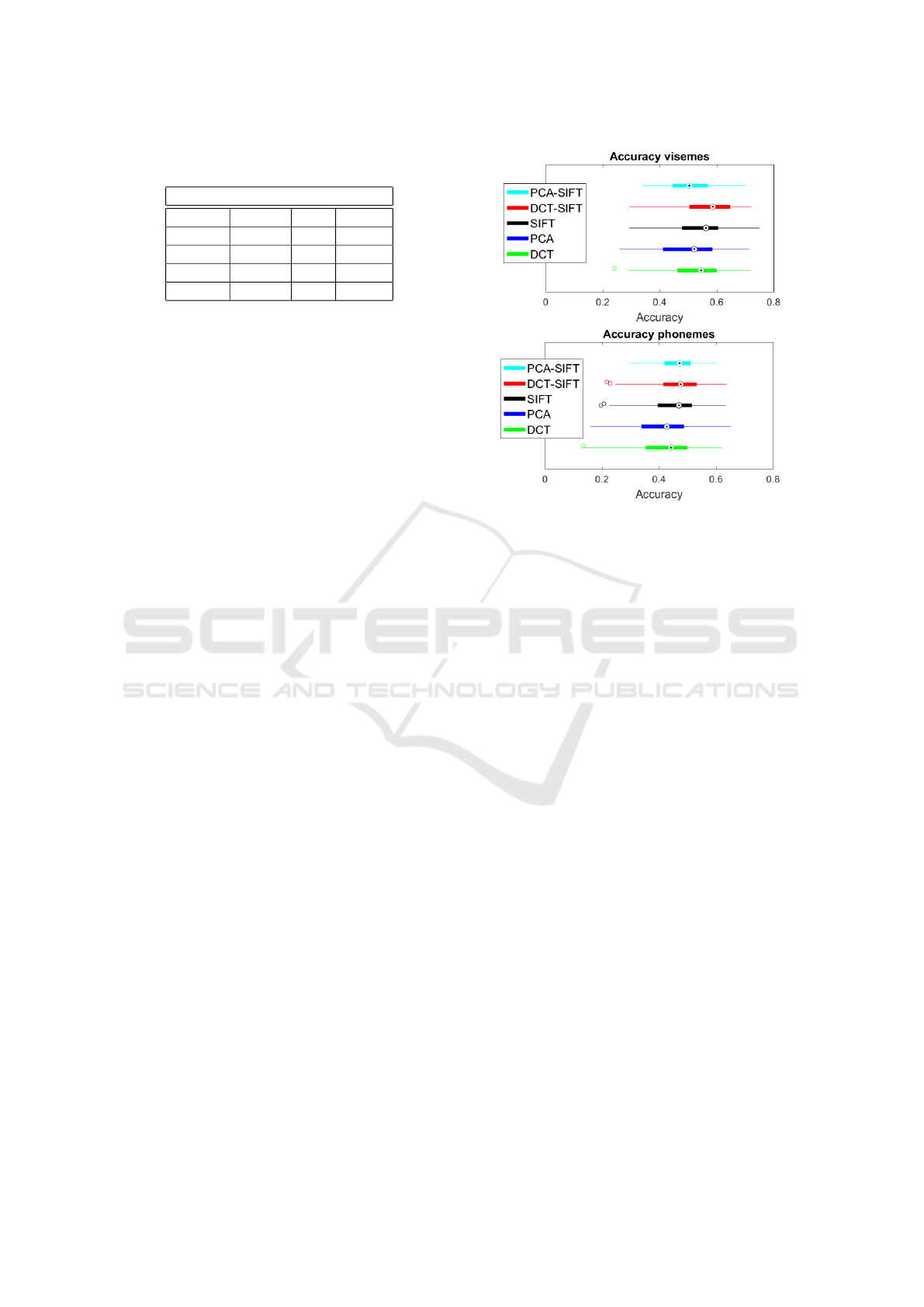

Figure 7: Comparison of features performance.

3.3.3 Feature Comparison

To analyse the performance of the different features

we have ﬁxed the viseme vocabulary as shown in Ta-

ble 2 and performed a 4-fold cross-validation on the

training set. We used 100 LDA classiﬁers per fold,

generated by means of a bagging strategy. Figure 7

displays the results. Visualizing the features indepen-

dently, DCT and SIFT give the best performances.

The fusion of both features produced an accuracy of

0.58 for visemes, 0.47 for phonemes.

3.3.4 Improvement by Adding Classiﬁcation

Likelihoods

Figure 8 shows how the accuracy varies when con-

sidering the classiﬁer likelihoods in the Viterbi algo-

rithm. The horizontal axis indicates the number of

classes that are considered (the rank), in decreasing

order of likelihood. The performance of the algorithm

without likelihoods (5) is also provided as a baseline

(rank 0). We see that the improvement obtained by

the inclusion of class likelihoods is up to 20%.

Finally, it is interesting to analyse how the sys-

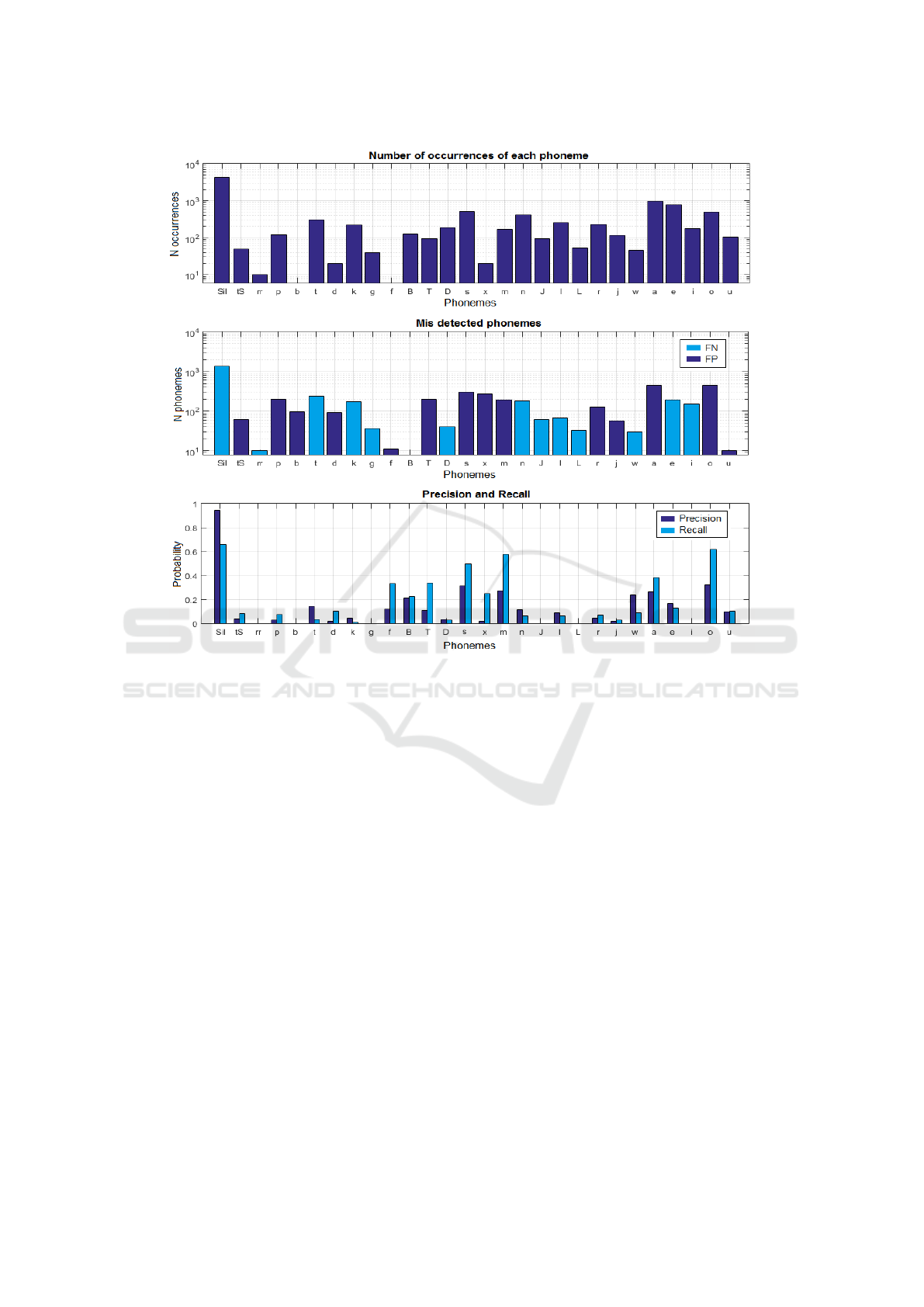

tem performs for each of the resulting phonemes. Fig-

ure 9 (a) shows the frequency of appearance of each

phoneme. In Figure 9 (b) we show the number of

phonemes that are wrongly detected. It can be seen

that the input data is highly unbalanced, biasing the

system toward the phonemes that appear more often.

For example, the silence appears 4 times more than

the vowels a,e,i and there are some phonemes with

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading

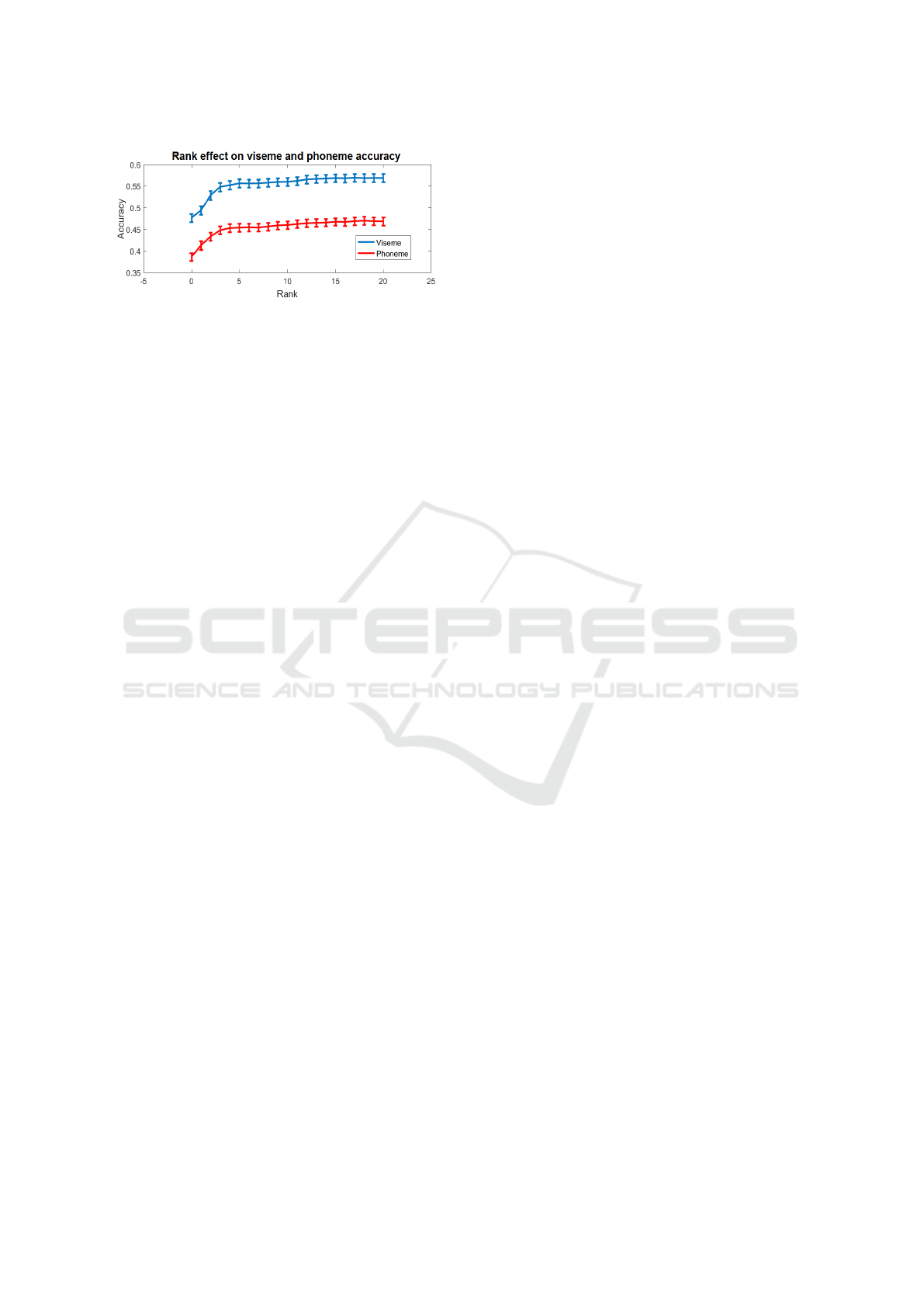

Figure 8: Accuracy for different ranks in the Viterbi algo-

rithm.

very few samples, such as rr, f or b. This has also

an impact in terms of precision and recall, as can be

observed in Figure 9 (c). In the precision and re-

call ﬁgure we can observe the effects of the many-

to-one viseme to phoneme mapping. For example,

there are phonemes with low precision and recall be-

cause have been confused with one of the phonemes

of their viseme group (e.g: vowel i have been con-

fused with a and e). Considering the three plots at

once, there is a big impact of the silence on the overall

performance of the system. In particular, the recogni-

tion of silences shows a very high precision but its

recall is only about 70%. By inspecting our data, we

found that this is easily explained by the fact that, nor-

mally, people start moving their lips before speaking,

in preparation for the upcoming utterance. Combina-

tion with audio would easily resolve this issue.

4 CONCLUSIONS

We investigate the automatic construction of op-

timal viseme vocabularies by iteratively combin-

ing phonemes with similar visual appearance into

visemes. We perform tests on the Spanish database

AV@CAR using a VASR system based on the com-

bination of DCT and SIFT descriptors in spatial and

temporal domains and HMMs to model both viseme

and phoneme dynamics. Using 19 different speakers

we reach a 58% of recognition accuracy in terms of

viseme units, 47% in terms of phoneme units and 23%

in terms of words units, which is remarkable for a

multi-speaker dataset of continuous speech as the one

used in our experiments. Comparing the performance

obtained by our viseme vocabulary with the perfor-

mance of other vocabularies, such as those analysed

by Cappelleta et al. in (Cappelletta and Harte, 2011),

we observe that the 4 vocabularies they propose have

lengths of 11, 12, 14 and 15 visemes and their maxi-

mum accuracy is between 41% and 60% (in terms of

viseme recognition).

Interestingly, while our results support the advan-

tage of combining multiple phonemes into visemes to

improve performance, the number of visemes that we

obtain are comparatively high with respect to previous

efforts. In our case, the optimal vocabulary length for

Spanish reduced from 28 phonemes to 20 visemes (in-

cluding Silence), i.e. a reduction rate of about 3 : 2. In

contrast, previous efforts reported for English started

from 40 to 50 phonemes and merged them into just

11 to 15 visemes (Cappelletta and Harte, 2011), with

reduction rates from 3 : 1 to 5 : 1. It is not clear,

however, if the higher compression of the vocabular-

ies obeys to a difference inherent to language or to

other technical aspects, such as the ways of deﬁning

the phoneme to viseme mapping.

Indeed, language differences make it difﬁcult to

make a fair comparison of our results with respect to

previous work. Firstly, it could be argued that our

viseme accuracy is comparable to values reported by

Cappelletta et al. (Cappelletta and Harte, 2011); how-

ever they used at most 15 visemes while we use 20

visemes and, as shown in Figure 5, when the num-

ber of visemes decreases, viseme recognition accu-

racy increases but phoneme accuracy might be re-

duced hence making more difﬁcult to recover the spo-

ken message. Unfortunately, Cappelletta et al. (Cap-

pelletta and Harte, 2011) did not report their phoneme

recognition rates.

Another option for comparison is word-

recognition rates, which are frequently reported

in automatic speech recognition systems. However,

in many cases recognition rates are reported only for

audio-visual systems without indicating visual-only

performance (Hazen et al., 2004), (Cooke et al.,

2006). Within systems reporting visual-only perfor-

mance, comparison is also difﬁcult given that they

are often centered on tasks such as digit or sentence

recognition (Seymour et al., 2008), (Sui et al., 2015),

(Zhao et al., 2009), (Saenko et al., 2005), which

are considerably simpler than the recognition of

continuous speech, as addressed here. Focusing on

continuous systems for visual speech, Cappelleta et

al. (Cappelletta and Harte, 2011) did not report word

recognition rates and Thangthai et al. (Thangthai

et al., 2015) reported tests just on a single user.

Finally, Potamianos et al. (Potamianos et al., 2003)

implemented a system comparable to ours based on

appearance features and tested it using the multi-

speaker IBM ViaVoice database, achieving 17.49%

of word recognition rate in continuous speech, which

is not far from the 23% of word recognition rate

achieved by our system.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Figure 9: (a) Number of occurrences of each viseme; (b) Visemes wrongly detected (actual - detected), light blue (false

negatives) and dark blue (false positives); (c) Precision and Recall of visemes.

ACKNOWLEDGEMENTS

This work is partly supported by the Spanish Ministry

of Economy and Competitiveness under the Ramon y

Cajal fellowships and the Maria de Maeztu Units of

Excellence Programme (MDM-2015-0502), and the

Kristina project funded by the European Union Hori-

zon 2020 research and innovation programme under

grant agreement No 645012.

REFERENCES

Antonakos, E., Roussos, A., and Zafeiriou, S. (2015). A sur-

vey on mouth modeling and analysis for sign language

recognition. In Automatic Face and Gesture Recogni-

tion (FG), 2015 11th IEEE International Conference

and Workshops on, volume 1, pages 1–7. IEEE.

Bear, H. L., Harvey, R. W., Theobald, B.-J., and Lan, Y.

(2014). Which phoneme-to-viseme maps best im-

prove visual-only computer lip-reading? In Interna-

tional Symposium on Visual Computing, pages 230–

239. Springer.

Bozkurt, E., Erdem, C. E., Erzin, E., Erdem, T., and Ozkan,

M. (2007). Comparison of phoneme and viseme based

acoustic units for speech driven realistic lip animation.

Proc. of Signal Proc. and Communications Applica-

tions, pages 1–4.

Buchan, J. N., Par

e, M., and Munhall, K. G. (2007). Spatial

statistics of gaze ﬁxations during dynamic face pro-

cessing. Social Neuroscience, 2(1):1–13.

Cappelletta, L. and Harte, N. (2011). Viseme deﬁnitions

comparison for visual-only speech recognition. In

Signal Processing Conference, 2011 19th European,

pages 2109–2113. IEEE.

Chit¸u, A. and Rothkrantz, L. J. (2012). Automatic vi-

sual speech recognition. Speech enhancement, Mod-

eling and Recognition–Algorithms and Applications,

page 95.

Cooke, M., Barker, J., Cunningham, S., and Shao, X.

(2006). An audio-visual corpus for speech perception

and automatic speech recognition. The Journal of the

Acoustical Society of America, 120(5):2421–2424.

Dupont, S. and Luettin, J. (2000). Audio-visual speech

modeling for continuous speech recognition. IEEE

transactions on multimedia, 2(3):141–151.

Erber, N. P. (1975). Auditory-visual perception of speech.

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading

Journal of Speech and Hearing Disorders, 40(4):481–

492.

Ezzat, T. and Poggio, T. (1998). Miketalk: A talking fa-

cial display based on morphing visemes. In Computer

Animation 98. Proceedings, pages 96–102. IEEE.

Fisher, C. G. (1968). Confusions among visually perceived

consonants. Journal of Speech, Language, and Hear-

ing Research, 11(4):796–804.

Franklin, S. B., Gibson, D. J., Robertson, P. A., Pohlmann,

J. T., and Fralish, J. S. (1995). Parallel analysis: a

method for determining signiﬁcant principal compo-

nents. Journal of Vegetation Science, 6(1):99–106.

enay, B. and Verleysen, M. (2014). Classiﬁcation in the

presence of label noise: a survey. IEEE transactions

on neural networks and learning systems, 25(5):845–

869.

Goldschen, A. J., Garcia, O. N., and Petajan, E. (1994).

Continuous optical automatic speech recognition by

lipreading. In Signals, Systems and Computers, 1994.

1994 Conference Record of the Twenty-Eighth Asilo-

mar Conference on, volume 1, pages 572–577. IEEE.

Hazen, T. J., Saenko, K., La, C.-H., and Glass, J. R.

(2004). A segment-based audio-visual speech recog-

nizer: Data collection, development, and initial exper-

iments. In Proceedings of the 6th international confer-

ence on Multimodal interfaces, pages 235–242. ACM.

Hilder, S., Harvey, R., and Theobald, B.-J. (2009). Com-

parison of human and machine-based lip-reading. In

AVSP, pages 86–89.

Jeffers, J. and Barley, M. (1980). Speechreading (lipread-

ing). Charles C. Thomas Publisher.

Khoshgoftaar, T. M., Van Hulse, J., and Napolitano, A.

(2011). Comparing boosting and bagging techniques

with noisy and imbalanced data. IEEE Transactions

on Systems, Man, and Cybernetics-Part A: Systems

and Humans, 41(3):552–568.

Lan, Y., Harvey, R., Theobald, B., Ong, E.-J., and Bow-

den, R. (2009). Comparing visual features for lipread-

ing. In International Conference on Auditory-Visual

Speech Processing 2009, pages 102–106.

Llisterri, J. and Mari

no, J. B. (1993). Spanish adaptation of

sampa and automatic phonetic transcription. Reporte

ecnico del ESPRIT PROJECT, 6819.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Luettin, J., Thacker, N. A., and Beet, S. W. (1996). Visual

speech recognition using active shape models and hid-

den markov models. In Acoustics, Speech, and Signal

Processing, 1996. ICASSP-96. Conference Proceed-

ings., 1996 IEEE International Conference on, vol-

ume 2, pages 817–820. IEEE.

McGurk, H. and MacDonald, J. (1976). Hearing lips and

seeing voices. Nature, 264:746–748.

Moll, K. L. and Daniloff, R. G. (1971). Investigation of the

timing of velar movements during speech. The Jour-

nal of the Acoustical Society of America, 50(2B):678–

684.

Neﬁan, A. V., Liang, L., Pi, X., Xiaoxiang, L., Mao, C.,

and Murphy, K. (2002). A coupled hmm for audio-

visual speech recognition. In Acoustics, Speech, and

Signal Processing (ICASSP), 2002 IEEE International

Conference on, volume 2, pages II–2013. IEEE.

Neti, C., Potamianos, G., Luettin, J., Matthews, I., Glotin,

H., Vergyri, D., Sison, J., and Mashari, A. (2000).

Audio visual speech recognition. Technical report,

IDIAP.

Nettleton, D. F., Orriols-Puig, A., and Fornells, A. (2010).

A study of the effect of different types of noise on the

precision of supervised learning techniques. Artiﬁcial

intelligence review, 33(4):275–306.

Ortega, A., Sukno, F., Lleida, E., Frangi, A. F., Miguel, A.,

Buera, L., and Zacur, E. (2004). Av@ car: A spanish

multichannel multimodal corpus for in-vehicle auto-

matic audio-visual speech recognition. In LREC.

Ortiz, I. d. l. R. R. (2008). Lipreading in the prelingually

deaf: what makes a skilled speechreader? The Spanish

journal of psychology, 11(02):488–502.

Pei, Y., Kim, T.-K., and Zha, H. (2013). Unsupervised

random forest manifold alignment for lipreading. In

Proceedings of the IEEE International Conference on

Computer Vision, pages 129–136.

Petrushin, V. A. (2000). Hidden markov models: Funda-

mentals and applications. In Online Symposium for

Electronics Engineer.

Potamianos, G., Neti, C., Gravier, G., Garg, A., and Se-

nior, A. W. (2003). Recent advances in the automatic

recognition of audiovisual speech. Proceedings of the

IEEE, 91(9):1306–1326.

Rabiner, L. R. (1989). A tutorial on hidden markov models

and selected applications in speech recognition. Pro-

ceedings of the IEEE, 77(2):257–286.

Ronquest, R. E., Levi, S. V., and Pisoni, D. B. (2010). Lan-

guage identiﬁcation from visual-only speech signals.

Attention, Perception, & Psychophysics, 72(6):1601–

1613.

Saenko, K., Livescu, K., Siracusa, M., Wilson, K., Glass,

J., and Darrell, T. (2005). Visual speech recognition

with loosely synchronized feature streams. In Tenth

IEEE International Conference on Computer Vision

(ICCV’05) Volume 1, volume 2, pages 1424–1431.

Sahu, V. and Sharma, M. (2013). Result based analysis

of various lip tracking systems. In Green High Per-

formance Computing (ICGHPC), 2013 IEEE Interna-

tional Conference on, pages 1–7. IEEE.

Seymour, R., Stewart, D., and Ming, J. (2008). Comparison

of image transform-based features for visual speech

recognition in clean and corrupted videos. Journal on

Image and Video Processing, 2008:14.

Sui, C., Bennamoun, M., and Togneri, R. (2015). Listen-

ing with your eyes: Towards a practical visual speech

recognition system using deep boltzmann machines.

In Proceedings of the IEEE International Conference

on Computer Vision, pages 154–162.

Sukno, F. M., Ordas, S., Butakoff, C., Cruz, S., and Frangi,

A. F. (2007). Active shape models with invariant op-

timal features: application to facial analysis. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 29(7):1105–1117.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

Sumby, W. H. and Pollack, I. (1954). Visual contribution

to speech intelligibility in noise. The journal of the

acoustical society of america, 26(2):212–215.

Thangthai, K., Harvey, R., Cox, S., and Theobald, B.-J.

(2015). Improving lip-reading performance for robust

audiovisual speech recognition using dnns. In Proc.

FAAVSP, 1St Joint Conference on Facial Analysis, An-

imation and Audio–Visual Speech Processing.

Verbaeten, S. and Van Assche, A. (2003). Ensemble meth-

ods for noise elimination in classiﬁcation problems.

In International Workshop on Multiple Classiﬁer Sys-

tems, pages 317–325. Springer.

Wells, J. C. et al. (1997). Sampa computer readable pho-

netic alphabet. Handbook of standards and resources

for spoken language systems, 4.

Yau, W. C., Kumar, D. K., and Weghorn, H. (2007). Visual

speech recognition using motion features and hidden

markov models. In International Conference on Com-

puter Analysis of Images and Patterns, pages 832–

839. Springer.

Zhao, G., Barnard, M., and Pietikainen, M. (2009). Lipread-

ing with local spatiotemporal descriptors. IEEE

Transactions on Multimedia, 11(7):1254–1265.

Zhou, Z., Hong, X., Zhao, G., and Pietik

ainen, M. (2014a).

A compact representation of visual speech data using

latent variables. IEEE transactions on pattern analy-

sis and machine intelligence, 36(1):1–1.

Zhou, Z., Zhao, G., Hong, X., and Pietik

ainen, M. (2014b).

A review of recent advances in visual speech decod-

ing. Image and vision computing, 32(9):590–605.

Automatic Viseme Vocabulary Construction to Enhance Continuous Lip-reading
