Deep Knowledge Representation based on Compositional Semantics

for Chinese Geography

Shengwu Xiong, Xiaodong Wang, Pengfei Duan*, Zhe Yu and Abdelghani Dahou

Computer Science and Technology, Wuhan University of Technology, 122 Luoshi Road, Wuhan, Hubei, China

*corresponding author

Keywords: DAG Deep Knowledge Representation, Combinatory Categorial Grammar (CCG), Semantic Analysis.

Abstract: Elementary education resources for geography contain a wealth of knowledge that is a collection of

information with various relationships. It is of vital importance to further develop human like intelligent

technology for extracting deep semantic information to effectively understand the questions. In this paper, we

propose a novel directed acyclic graph (DAG) deep knowledge representation built upon the theorem of

combinational semantics. Knowledge is decomposed into nodes and edges which are then inserted into the

ontology knowledge base. Experimental results demonstrate the superiority of the proposed method on

question answering, especially when the syntax of question is complex, and its representation is fuzzy.

1 INTRODUCTION

In recent years, human like intelligence has been

more pervasive worldwide, related research has

become the focus of all countries. Elementary

education resources represented by geography

contain a wealth of knowledge, which has various test

items and types, and put forward a huge challenge to

human like intelligent question answering system

understanding of the problem.

There are several discriminative methods that

have been applied for the knowledge representation.

For example, an analysis method CHILL based on

deterministic shift-reduce parser is proposed in Zelle

et al. (1993), that uses logical expression method of

knowledge representation. A new knowledge

representation method, dependency-based

compositional semantics (DCS) that is used in Percy

Liang et al. (2013), in which tree describes the

knowledge representation of problems. There are

some researches based on the automatic learning rules

and templates. Shizhu He et al. (2014) proposed a

learning-based method using Markov Logic Network.

Also, predicate logic knowledge representation which

uses first-order predicate in Bao. (2014) performs

great result in describing attributes of entities, but

exposes disadvantages that it has low accuracy and

efficiency with complex relationships, especially

with more entities.

Traditional semantic description methods mainly

use the logical expression for the representational

model with good computing properties, but in

practice the lack of a direct and effective means of

analysis and inferences. The existing systems use a

lot of surface layer of the semantic analysis method,

due to the lack of deep knowledge representation and

the deep semantic analysis.

After decades of exploration concerning

computational linguists, the four widely regarded

mature deep grammatical paradigms are

Combinatory Categorial Grammar (CCG), Lexical

Functional Grammar (LFG), Head-driven Phrase-

Structure Grammar (HPSG), and Lexicalized Tree

Adjoining Grammar (LTAG). We think that the CCG

proposed by Mark Steedman (2011) formally from

University of Edinburgh, is an effective method to

construct the semantic analysis of natural language.

The advantage of CCG is that it could match a related

combinatory semantic knowledge using logical

expression, such as the λ expression, for each

syntactic category of each entry. Therefore, results of

parsing reflect the ones of semantic analysis. In other

words, semantic knowledge would be stored on

lexical items only, and also suitable to solve word

sense disambiguation.

We aim to improve the performance of the DAG

Deep Knowledge Representation (DAG) in complex

fuzzy condition. In this paper, firstly, we analyse the

features of the geographical college entrance

examination questions. Then a pre-processing

method of test questions based on template is

proposed. And word2vec expands trigger words to

Xiong S., Wang X., Duan P., Yu Z. and Dahou A.

Deep Knowledge Representation based on Compositional Semantics for Chinese Geography.

DOI: 10.5220/0006108900170023

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 17-23

ISBN: 978-989-758-220-2

reflect templates. At last, we propose the DAG Deep

Knowledge Representation according to the

combinatorial semantics, and transform the exam text

successfully into the DAG Deep Knowledge

Representation combining with CCG and templates.

The remaining parts of this paper are organized as

follows: a DAG Deep Knowledge Representation

method is given in Section 3 which translates text into

DAG deep knowledge representation. Then in

Section 4, we demonstrate the effectiveness of our

theory by applying it to ontology knowledge base,

and evaluate the accuracy in the performance of

different sentence patterns. Finally, we draw

conclusions and mention areas for future work in

Section 5.

2 RELATED WORK

In 2011, human like intelligent system — Watson

developed by IBM in the quiz game ‘Jeopardy!’ beat

the previous two human champion, caused a big stir

in the field of artificial intelligence field. In 2013,

under the premise of manual work in the text

processing of some papers, Todai Robot developed

by National Information Research Institute of Japan

got a good grades among top 16% of examiner. Luke

S. Zettle Moyer and Michael Collins proposed a

semantic analyser based on CCG for the first time in

2005. This method uses syntactic and semantic

information combined to form the basis of the

analysis of the dictionary, analysing the natural

language. But it has none perfect theoretical basis, so

that it’s hard to be applied in open domain. In

particular, Tsinghua University research group

cooperated with Microsoft Asia Research Institute for

the trans-formation of CCG resources, and hold an

international evaluation about the analysis of Chinese

combinatory categorial grammar.

The combination semantic analysis based on

Machine Translation thought has a strong operability.

Relevant research results have won the best paper

award (2007) and best paper nomination (2013) at

Natural Language Processing's top conference ACL.

3 DAG DEEP KNOWLEDGE

REPRESENTATION

We introduce the DAG Deep Knowledge

Representation in this part. We pre-process the

questions according to the templates and translate

long sentences into simple phrases. In the meantime,

trigger words of the templates are defined to reflect

the questions into templates. Also, these trigger words

are expanded by using word2vec toolkit. After

comparing the general knowledge representation

methods, we get the DAG from the pre-processing

result combining with Combinatory Categorial

Grammar. On this basis, templates are transformed

into the structure of DAG, which could finally get the

DAG Deep Knowledge Representation integrating

with DAG of simple phrases.

3.1 Templates Pre-Processing

Due to the question usually consists of many long

sentences which are complex, we apply a pre-

processing method to this issue. Question templates

shown in Table 1 are manually designed and oriented

to problem-solving strategy. And the trigger word is

defined as a word which can transform sentences into

specified templates.

The trigger word is a mark of the problem

domain, and it could reflect the specified templates.

For example,

 Problem domain:

“我国主要入海河流年总输沙量变化可能是由

于水土流失现象加剧” (The variation of annual

sediment transportation volume of Chinese main

rivers may be due to the intensification of soil and

water loss)

 Question templates:

Causality (cause*, result*),

Tendency (entities, #aspects, #cause, changes),

Causality ( Tendency ( 水土流失现象 , # , # , 加

剧 ) , 我国主要入海河流年总输沙量变化 )

Table 1: Question templates.

Location(entities, places)

Distribution( entities, places, feature)

Sort( aspects, sequence, List)

Tendency( entities, #aspects, #cause, change )

Influence( subject*, object, #result*)

Matching( entity 1, entity 2)

Measure( question, solution)

Comparation( entity 1, #entity 2, #aspect 1, #aspect

2, result)

Optimization( entities, #aspects, feature, #range)

Causality( cause*, result*)

Location(entities, places)

# stands for not necessary , * stands for nesting

 Trigger words:

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Causality —— “由于”

Tendency —— “加剧”

In this case, the trigger words “由于 (because)”

and “ 加剧 (exacerbate)” reflect the problem

templates “Causality” and “Tendency” respectively.

Then there are two relatively simple sentences “水土

流失现象 (soil and water loss)” and “我国主要入海

河流年总输沙量变化 (the variation of annual

sediment transportation volume of Chinese main

rivers)”.

3.2 Trigger Word Expansion

It is very important to recognize the trigger words in

the source sentences. As well different trigger word

have the same meaning, so that both of them should

be mapped to the same one template, Such as those

trigger words —“位于”, “处于”, “坐落”, “位置”

(locate) and so on. Hence, it’s necessary to cluster and

expand trigger words to improve the accuracy of pre-

processing.

Table 2: Hyper-parameters’ setting of Word2vec in

training.

Parameter

Value

Meaning

-train

data.txt

corpus file need to train

-output

Vectors.bin

output file of word vector

-cbow

use ‘skip-gram’ framework

-size

200

vector dimension

-window

context window size

-negative

negative cases number

-hs

use hierarchy softmax

-sample

-3

sub-sampling threshold of

high-frequency words

-threads

number of thread

-binary

binary file

The API of word embedding system ICTCLAS2014

developed by Chinese Academy of Sciences (CAS) is

used towards questions of college entrance

examination, which includes word embedding and

POS tagging. Then the corpus is stored in a text file

as the input of word2vec through filtering the

irrelevant POS tagging and Splitting words.

Therefore, when training word vector by

word2vec, we can generate trigger words which have

the same meaning and cluster them. As a result, those

trigger words that hold the same meaning could be

mapped to one template, this could increase the

robustness of the system.

3.3 Deep Knowledge Representation

The traditional Knowledge Representation method

based on first-order predicate logic could represent

the knowledge accurately, at the same time has a

common logical calculus method to ensure the

completeness of the reasoning process. But in

practice, this kind of representation requires high

precision analysis method and a large number of

accurate manual rules. And it is hard for us to expand

to the open field. However, we found that there are

natural graph structures in the ontology knowledge

base, besides the DAG reflects the representation of

knowledge and relevant rules with necessary

constraints. Moreover, as a classical data structure,

graph supports multiple operations, such as

extraction, fusion, reasoning, etc. So, we treat DAG

as the basic unit of deep knowledge representation.

(a) CCG-based knowledge representation.

(b) DAG deep knowledge representation.

Figure 1: Two kinds of knowledge representation. (a) CCG-

based knowledge representation of sentence S using

specific rules. (b) DAG deep knowledge representation, we

delete some redundant nodes in CCG processing.

Figure 1 shows that CCG-based knowledge

representation could be transformed into DAG, which

could be inserted into the ontology knowledge base.

Given this analysis above, we firstly apply CCG

which bases on pruning algorithm and heuristic

search to analyse natural language combinatorial

semantics.

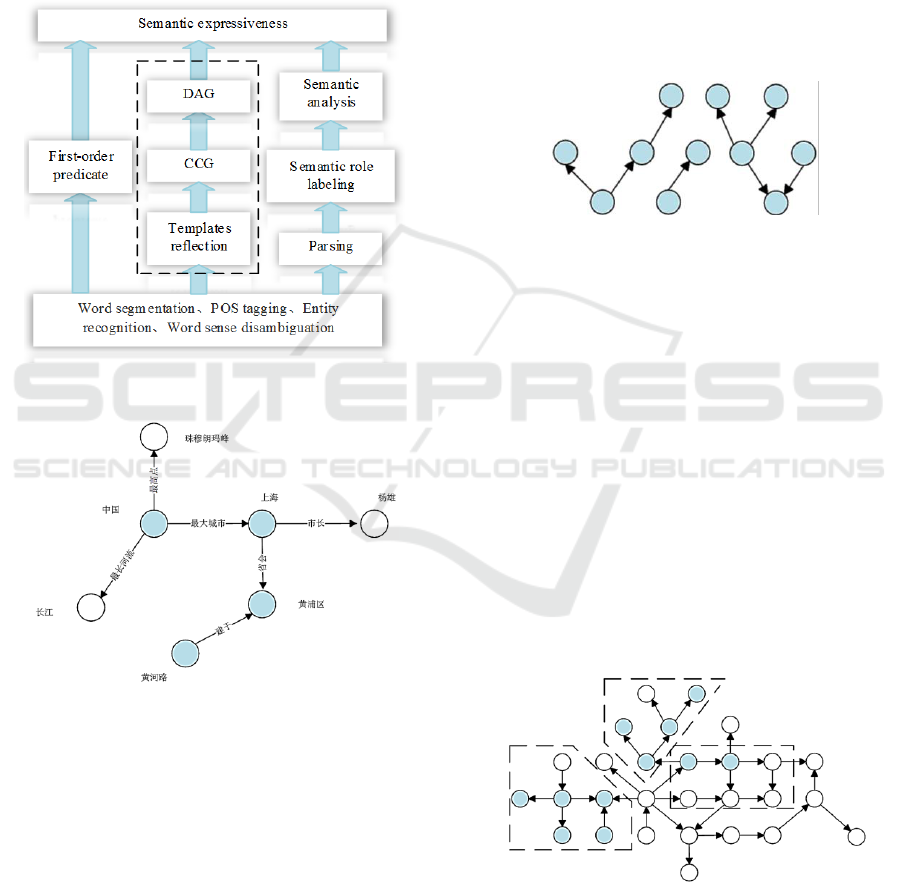

The technology roadmap of this paper as shown

in Figure 2, we focus on the deep knowledge

representation and Q&A for Chinese Geography, and

aim to improve the performance of the DAG Deep

Knowledge Representation in complex fuzzy

condition.

Now we can search corresponding entities in the

ontology knowledge base according to nodes

information, then match predicate with edges

Deep Knowledge Representation based on Compositional Semantics for Chinese Geography

information to detect the semantically similar ones.

Just like what shown in Figure 3, entities — “黄河路

(Huanghe Road)” and “黄浦区 (Huangpu District)”

have predicate relation — “ 所在地 ” or “ 建于”

(locate) in the ontology knowledge base. But, for

entities — “中国 (China)” and “上海 (Shang Hai)”,

there is no specific predicate relation existing in the

base. So we appoint it as the default one. Just for now,

we map the DAG (nodes and edges) into the base.

Figure 2: Technology Roadmap.

Figure 3: DAG in ontology knowledge base.

In this way, we make good use of the structured

knowledge resources, and we could map the entities

and relations to the base. The combination of

semantics and knowledge base improve our ability to

judge the correctness of results, furthermore, to carry

on the more rigorous reasoning in the follow-up

research.

3.4 Fuzzy Semantic Knowledge

Extraction

However, when we extract some knowledge , the

input is composed of incomplete or ambiguous

statements. Thus after using DAG deep knowledge

representation, the results are composed of multiple

independent DAG subgraph. We cannot extract the

corresponding knowledge from discrete structures,

see Figure 4, but also cannot support the extraction,

integration, reasoning and other follow-up operations

towards knowledge.

Therefore, in this paper, we need to use the

method of graph theory to calculate the relationship

between multiple independent DAG sub graphs, and

extract the approximate graph structure in the

ontology knowledge base.

Figure 4: Incomplete questions’ DAG deep knowledge

representation.

In the extraction of the approximation subgraph, like

Figure 5, we will decompose subgraph into multiple

DAG by using the recursive algorithm, until all the

DAG decom-posed into local backbone graph;

Specifically, for connected set of paths between two

DAG subgraphs, we start to match from the shortest

path recursively, looking for the backbone path

connecting two DAG subgraphs, and extract

subgraphs of the problem. Then the DAG set with

matching degree is obtained according to the

comparison between the extracted DAG and the

problems. Select the DAG which has high matching

degree as the final extracted knowledge, at the same

time delete the sub graph in the cycle path, and

generate DAG in Figure 6 that could be transformed

into knowledge.

Figure 5: Sub-graph extraction of the most approximate

input information.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Table 4: Recognition results of trigger words.

Serialization

annotation

Recall

Precision

F-score

Location

0.972222

0.985915

Distribution

0.833333

0.862069

0.847458

Sort

0.722222

0.896552

0.8

Tendency

0.923077

0.972973

0.947368

Influence

0.689655

0.952381

0.8

Matching

0.593750

0.95

0.730769

Measure

0.972222

0.985915

Comparation

0.969697

0.984615

Optimization

0.833333

0.909091

Causality

0.656250

0.954545

0.777778

Average

0.816576

0.958852

0.882013

Table 5: Comparative analysis of knowledge

representation.

knowledge

representation

methods

Accuracy of

expression (%)

Accuracy of

solving (%)

First-order

predicate

representation

93.0

74.5

72.5

50.5

DAG deep

knowledge

representation

91.5

80.5

79.0

72.5

Figure 6: DAG local skeleton extraction.

4 EXPERIMENTAL

EVALUATION

4.1 Data

In the experiment, we choose all of the corpus

NLPCC (2015), which includes some extra related

geography knowledge simulated by ourselves, as the

training set and college entrance examination

questions nearly ten years as the test set, the used test

set is shown in Table 3.

Finally ， there are nearly 600M data in the

ontology knowledge base. Every record contains six

columns (entity1 ID, predication ID, entity2 ID,

entity1, predication, entity2).

Table 3: Experimental data.

Data set

Size

Training set

300,000 entities

Test set

200 groups

4.2 Results and Discussions

The experiment in this paper is based on word

embedding, POS tagging, entity recognition and word

sense disambiguation. And as shown in Table 4, we

have achieved good results by mapping the text to the

corresponding templates.

Given a set of question-answer pairs {Q

, A

rig

} as

the training set, we use the minimum error rate

training to minimize the accumulated errors of the

top-1 answer,





argmin



∑

i=1

Err(A

rig



;

)  (1)

N is the number of questions in the training set,

rig

is the correct answers of the i

question in the

training set, 





is the top-1 answer of the i

question

in the training set.

Through experiment, we found that DAG deep

knowledge representation could cover mostly

geography questions in the last ten years. The

recognition accuracy varies with the trigger words.

What we summarized from the Table is that the DAG

deep knowledge representation achieved a good

performance with the accuracy that reaches 86%.

The main reason for the error is that the same

word may be or not trigger word in different

sentences. According to our statistics in Table 6,

about 31% of the test questions don’t include the

trigger words, their structure is relatively simple. And

applying the combinatory categorial grammar into

DAG deep knowledge representation directly, the

accuracy can reach more than 90%.

In Table 5, "*" is mainly composed of subject-

predicate phrases, has relatively simple phrase

structure and fewer words; "+" said long sentence

structure which is relatively complex, has more

modifiers (attributive and adverbial), parallel com-

positions.

Based on the experimental results in Table 5, we

compare the proposed method with First-order

predicate representation which is mainstream method

in knowledge representation. There are also some

representation methods based on tree-structure, but

they are unsuitable for the experimental KB. The

DAG deep knowledge representation shows its

superiority especially when the question has complex

sentences, it can effectively express complex

Deep Knowledge Representation based on Compositional Semantics for Chinese Geography

knowledge and extract the potential relationships

between them.

Table 6: Knowledge Representation accuracy in different

trigger words.

Serialization

annotation

Accuracy

Location

0.96442

Distribution

0.84866

Sort

0.75123

Tendency

0.92282

Influence

0.82713

Matching

0.73463

Measure

0.94289

Comparation

0.92241

Optimization

0.90102

Causality

0.78452

Average

0.85141

For example, there is a question 14th in 2014 Tianjin

college entrance examination. “山城重庆工业历史悠久，

是大型综合性工业中心和西南地区综合交通枢纽。2014 年作

为“长江经济带”的重要增长级，纳入国家经济发展战略。

为了解决三峡水的环境问题，重庆工、农业内部结构应如何

调整？(Mountain city Chongqing has a long history,

and it’s a large-scale comprehensive industrial center

and southwest integrated transport hub. In 2014 as the

"Yangtze River Economic Zone" Chongqing was

brought into the national economic development

strategy. In order to solve the SanXia’s water

environmental problems, how to adjust the internal

structure of industry and agriculture in Chongqing?)”

From the figure 7 (a), we can know that the results of

the DAG deep knowledge representation is composed

of two independent DAG, the two are not related in

the structure. So they have no direct predicate relation

after being inserted into the ontology knowledge base

in figure 7 (b). Two independent DAG do not have

connectivity. But we apply the algorithm finding the

path between two DAG, and could get the answer to

the question.

We also extract 200 groups of questions which are

incomplete and has vague statements as the inputs

and use the DAG knowledge representation carrying

out the extraction experiment. Table 7 is the results.

In 200 groups of questions, there are 188 groups can

be extracted accurately using the subgraph algorithm

mapped to the ontology knowledge base, while 162

groups can be extracted and find answers, about 20

groups miss because the error of trigger word

recognition and syntax analysis caused by CCG.

Table 7. Accuracy in Fuzzy semantic knowledge extraction.

knowledge

representation

Accuracy of

expression (%)

Accuracy of

solving (%)

DAG Deep

Knowledge

Representation

84.0

71.0

(a) DAG deep knowledge representation of the question.

(b) Insert DAG into the ontology knowledge base.

Figure 7: DAG knowledge representation and reasoning of

the question.

5 CONCLUSIONS

In this paper, we applied the DAG deep knowledge

representation to tackle the Chinese geographical

knowledge entity relation extraction task with NLP

technology. We have shown that under the condition

of complex semantic, our deep knowledge

representation showed a significant improvement in

performance in practice, making this method more

applicable to the fuzzy questions.

For future work, we will develop our method for

constructing the corpus. We will expand CCG

algorithm and refine DAG deep knowledge

representation by carefully designing or automatic

processing, aiming to capture more complex

structures in the target domain. What’s more, we

would try our best to link well with recent literature

on NLP and sentiment analysis using convolutional

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

multiple kernel learning and deep convolutional

neural networks.

ACKNOWLEDGEMENTS

This work was supported in part by the National

High-tech R&D Program of China (863 Program)

under Grant No.2015AA015403, Science &

Technology Pillar Program of Hubei Province under

Grant No.2014BAA146, Nature Science Foundation

of Hubei Province under Grant No.2015CFA059,

Science and Technology Open Cooperation Program

of Henan Province under Grant No.152106000048,

the Fundamental Research Funds for the Central

Universities under Grant No.2016-zy-047 and

CERNET Innovation Project under Grant No.

NGII20150309.

REFERENCES

Zelle J M., Mooney R., 1993. Learning Semantic

Grammars with Constructive Inductive Logic

Programming. In Proceedings of the Eleventh National

Conference on Artificial Intelligence: 817-822.

Liang P., Jordan M. I., Klein D., 2013. Learning

dependency-based compositional semantics.

Computational Linguistics, 39(2): 389-446.

Shizhu H., Kang L., Yuanzhe Z., and et al, 2014 .Question

answering over linked data using first-order logic.

Proceedings of the Conference on Empirical Methods

in Natural Language Processing, ENMLP: 1092~1103.

Bao, J., Duan, N., Zhou, M., & Zhao, T., 2014. Knowledge-

based question answering as machine translation. Cell,

2(6).

Steedman, M., & Baldridge, J., 2011. Combinatory

categorial grammar. Non-transformational syntax, ed.

by Robert D. Borsley and Kersti Börjars, 181–224.

word2vec[EB/OL].https://code.googlexom/p/word2vec.

Word Vectors[EB/OL].http://licstar.net/archives/328.

Mikolov T., Yih W., Zweig G., 2013. Linguistic regularities

in continuous space word representations. Proceedings

of NAACL-HLT: 746-751.

Mikolov T., Sutskever I., Chen K., 2013. Distributed

representations of words and phrases and their

compositionality. Advances in Neural Information

Processing Systems: 3111-3119.

NLPIR/ICTCLAS2014[EB/OL],http://ictclas.nlpir.org/(Ac

cessec on Nov 20,2014).

Clark S., Curran J R., 2004. The importance of supertagging

for wide-coverage CCG parsing. Proceedings of the

20th international conference on Computational

Linguistics. Association for Computational Linguistics:

282-288.

Klein D., Manning C D., 2003. A parsing: Fast exact Viterbi

parse selection. Proceedings of the 2003 Human

Language Technology Conference and the North

American Chapter of the Association for

Computational Linguistics (HCT-NAACL03),

Edmonton: 119-126.

Qiang Z., 2012. Evaluation Report of the third Chinese

Parsing Evaluation: CIPS-SIGHAN-ParsEval-2012. In

Proceedings of the Second CIPS-SIGHAN Joint

Conference on Chinese Language Processing.

Somers H., 1999. Review article: Example-based machine

translation. Machine Translation , 14(2): 113-157.

Wong Y W, Mooney R J., 2007. Learning Synchronous

Grammars for Semantic Parsing with Lambda Calculus.

ACL 2007, Proceedings of the 45th Annual Meeting of

the Association for Computational Linguistics, June 23-

30, Prague, Czech Republic.

Cai Q, Yates A., 2013. Large-scale Semantic Parsing via

Schema Matching and Lexicon Extension. Proceedings

of the 51st Annual Meeting of the Association for

Computational Linguistics (Volume 1: Long Papers):

423-433.

Qiu X, Qian P, Yin L, et al., 2015. Overview of the NLPCC

2015 Shared Task: Chinese Word Segmentation and

POS Tagging for Micro-blog Texts. National CCF

Conference on Natural Language Processing and

Chinese Computing. Springer International Publishing:

541-549.

Deep Knowledge Representation based on Compositional Semantics for Chinese Geography
