Reconstruction of Mitochondrial Genotypes from

Diverse next Generation Sequencing Datasets

Peter Ulz

, Michael R. Speicher

and Gerhard G. Thallinger

Institute of Human Genetics, Medical University Graz, Harrachgasse 21, Graz, Austria

Institute of Molecular Biotechnology, Graz University of Technology, Graz, Austria

Keywords: Mitochondria, Next-generation Sequencing, Sequence Read Archive.

Abstract: The exponential growth of sequence databases in recent years opens up a lot of possibilities for reanalysis of

public datasets. Here, we reanalyzed sequencing data from various experimental procedures to reconstruct

the mitochondrial genome from sequence data of human samples. In a first step eight human cell lines were

used to validate the approach and to ensure consistent genotype information across different library

preparation techniques. Subsequently, 19,337 sequencing datasets were downloaded and checked for single-

nucleotide variants and insertion or deletion events. We show that the mitochondrial genome can be inferred

from many different library preparation techniques. We also generated reference mitochondrial genomes for

eight cell lines. This approach may be used for sample identification as well as a general approach to study

the mitochondrial genome from public sequencing data.

1 INTRODUCTION

Currently, the Sequence Read Archive (SRA)

comprises over 2x10

sequenced nucleotides, which

can be freely accessed (Sequence Read Archive

2015). This makes it an invaluable resource for

many different applications in computational

biology (Sequence Read Archive 2015). Many of

these datasets are based on high-throughput

sequencing protocols which target certain regions in

the genome and enrich those by various methods.

However, since enriching for these sequences is not

100% effective, many non-target regions are

sequenced as well which are usually discarded in

downstream analyses (Mamanova et al. 2010).

Mitochondrial DNA should be especially

represented in various DNA sequencing techniques,

since the mitochondrial genome is much more

abundant in the cell than human nuclear DNA. In

fact, this has already been shown in exome

sequencing data (Diroma et al 2014) and proposed

for RNA-Seq data (Smith et al. 2013). The

mitochondrial genome plays an important role in

genetics and it is estimated that between 1 in 4,500

and 1 in 6,000 individuals are affected by mutations

in the mitochondrial DNA (mtDNA) (Taylor et al.

2005). Furthermore, mtDNA can help in delineating

evolution in human and other species (Cann et al.

1987). However, the SRA contains data of a

multitude of different library preparation methods

and thus might be a useful complementary resource

to analyze the mitochondrial genome. This could be

useful in several ways: Firstly, the mitochondrial

genome constitutes a sample specific "fingerprint"

and may be used to track samples throughout

various experiments and detect sample-mixups in

large-scale databases. Moreover, the analysis of a

large pool of mitochondrial genomes might be the

foundation of a resource to estimate background

variability of variants in mitochondrial DNA, which

may facilitate the analysis of genetic diseases.

Here, we would like to investigate whether it is

possible to infer mitochondrial genotypes from

diverse public sequencing data in a more general

approach. In a first step, the validity is tested on

various enrichment methods from seven cell lines

and subsequently approximately 20,000 human

datasets represented in the SRA are analyzed to

demonstrate wide applicability of the method.

Ulz P., Speicher M. and Thallinger G.

Reconstruction of Mitochondrial Genotypes from Diverse next Generation Sequencing Datasets.

DOI: 10.5220/0006110200290036

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 29-36

ISBN: 978-989-758-214-1

2 METHODS

2.1 Low-coverage Whole-genome

Sequencing

DNA was extracted from cultured cell lines and

libraries were prepared using TruSeq DNA kits.

Single-end reads (150bp) were sequenced on the

Illumina Miseq (Illumina, San Diego, California),

which generated between 2.0 to 5.7 million reads

(mean: 3.73 million reads). This resulted in an

average coverage of the mitochondrial genome

between 60 and 172 (mean: 124.5).

2.2 HeLa Reference Sample

Preparation

The FastA file of a published HeLa mitochondrial

reference sequence was downloaded from Genbank

(Accession: JF682349 1). Then, using wgsim

(provided by the samtools package (Li et al,

2009A)), 20,000 synthetic 100bp paired-end reads

were generated with no InDels or SNPs introduced.

Subsequently, Read1 and Read2 FastQ files are

merged and the mitochondrial reconstruction was

performed as stated below.

2.3 Cell Line SRA Download

Firstly, a list of relevant SRA experiments is created

by searching human datasets in (Sequence Read

Archive, 2015) and selecting only public datasets of

DNA and RNA.

A list (240,748 entries) of experiments and

conditions was downloaded. Experiments from a

specific cell line were extracted from the list by

using grep. Some experiment types were skipped

due to:

 Very specific enrichment or target (Amplicon-

seq, miRNA-Seq)

 Very low read counts (Poolclone)

 Protocols that alter the DNA sequence (Bisulfite

sequencing)

Datasets were retrieved automatically via Aspera

from the SRA and converted to FastQ files.

2.4 Additional Datasets SRA Download

Additional data sets were processed from the initial

dataset list and aforementioned experiment types

were omitted again. 19,337 datasets which passed

filters were processed.

2.5 Mitochondrial Genome

Reconstruction

In a first step, FastQ files were aligned against the

revised Cambridge reference sequence (rCRS; NC

012920.1; (Andrews et al. 1999)) using bwa (version

0.7.9) (Li et al. 2009B) and unaligned reads as well

as alignments with mapping quality lower than 15

were discarded. Subsequently, reads were aligned

against the combined hg19 nuclear DNA and the

rCRS sequence in order to remove nuclear DNA of

mitochondrial origin (numT). Alignments to the

nuclear hg19 genome were discarded and a pileup

file was created which contains every base on every

position of the rCRS sequence using samtools (Li et

al, 2009A). Every base having quality values lower

than 20 was discarded and the reconstruction of a

position was considered successful, if it was covered

by more than 10 reads and at least 80% of all the

reads showed the same nucleotide.

Table 1: Distribution of experiment types in SRA data from cell lines.

Cell line Samples WGS WXS RNA- ChIP- WGA FAIRE- FL- Other

HCT116 18 0 0 10 8 0 0 0 0

SKBr3 109 1 1 8 3 94 0 0 2

VCap 112 0 0 21 91 0 0 0 0

HT29 11 0 1 3 0 0 0 6 1

MCF7 91 0 0 8 64 0 0 0 19

HepG2 58 2 0 22 25 0 0 0 9

HeLa 32 0 1 10 14 0 4 0 3

LNCaP 178 0 0 72 77 0 0 0 29

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

Table 2: Comparison of genotyping calls from cell line experiments of the SRA compared to low-coverage whole-genome

sequencing. For LNCaP, 4 runs from bisulfite-treated ChIP-Seq experiments were excluded. For HeLa, simulated reads

from a published mitochondrial reference sequence were used as a reference. SNPs species the number of concordant

genotype calls which were identified as variant in the low-coverage WGS cell line sample compared to the rCRS reference

sequence.

Cell line Haplogroup Samples # SNPs # concordant calls # discordant calls

HCT116 H 18 151 291,414 0

SKBr3 H 109 634 1,117,652 6

VCap Uk 112 1,004 1,058,712 4

HT29 Uk 11 211 140,503 0

MCF7 H 91 515 865,463 60

HepG2 B 58 1,048 735,901 27

HeLa L3 32 540 382,474 42

LNCaP H 174 942 1,748,613 31

2.6 Principal Component Analysis

In order to check whether the mitochondrial genome

of cell lines are consistently identified we applied

Principal Component Analysis (PCA) in R (R

Development Core Team, 2008) on every sample

where >95% of the genome was reconstructed.

Every base of the rCRS sequence was used and

specified as 0 if the wildtype genotype call was

identified. If a variant genotype was identified, “1”

was specified for that position; however, for

uncalled positions (due to low coverage, low

qualities or inconsistent calls) we assumed that bases

to be wildtype. PCA was done in R using the

prcomp function.

2.7 Haplogroup Identification

Haplogroups were identified by analyzing

haplogroup identifying markers (Lott et al. 2013) in

the genotype calls of the respective samples.

Samples were only analyzed when all defining

variants were successfully reconstructed.

3 RESULTS

3.1 Reconstruction of Cell Line

Mitogenomes

In order to check the validity of mtDNA

reconstruction, we performed low-coverage whole-

genome sequencing of seven cell lines (HT29,

HepG2, HCT116, LNCaP, MCF7, SKBr3 and

VCaP) and performed mitochondrial genome

reconstruction as a reference for comparison of other

experimental procedures. This data should be

especially suited, since the coverage along the

mitochondrial genome should be free of bias and no

nucleotide-altering reagents (e.g. bisulfite) were

used. We also included datasets from the HeLa cell-

line and compared those to a published

mitochondrial genome sequence of this cell line

(Genbank: JF682349 1). Moreover, reference

sequences for the mitochondrial genome sequences

were created. Next, we downloaded additional

datasets from these cell lines from the SRA, which

were analyzed by various library preparation

techniques and again performed the reconstruction

of the mtDNA (see table 1). Principal Component

Analysis (PCA) gives an overview of molecular

distances between the mitochondrial genome of the

cell lines (figure 1).

Exemplarily, we demonstrate mitochondrial

reconstruction from low coverage whole genome

sequencing, RNA-Seq and ChIP-Seq in the prostate

cancer cell line LNCaP (see figure 2).

Reconstruction of Mitochondrial Genotypes from Diverse next Generation Sequencing Datasets

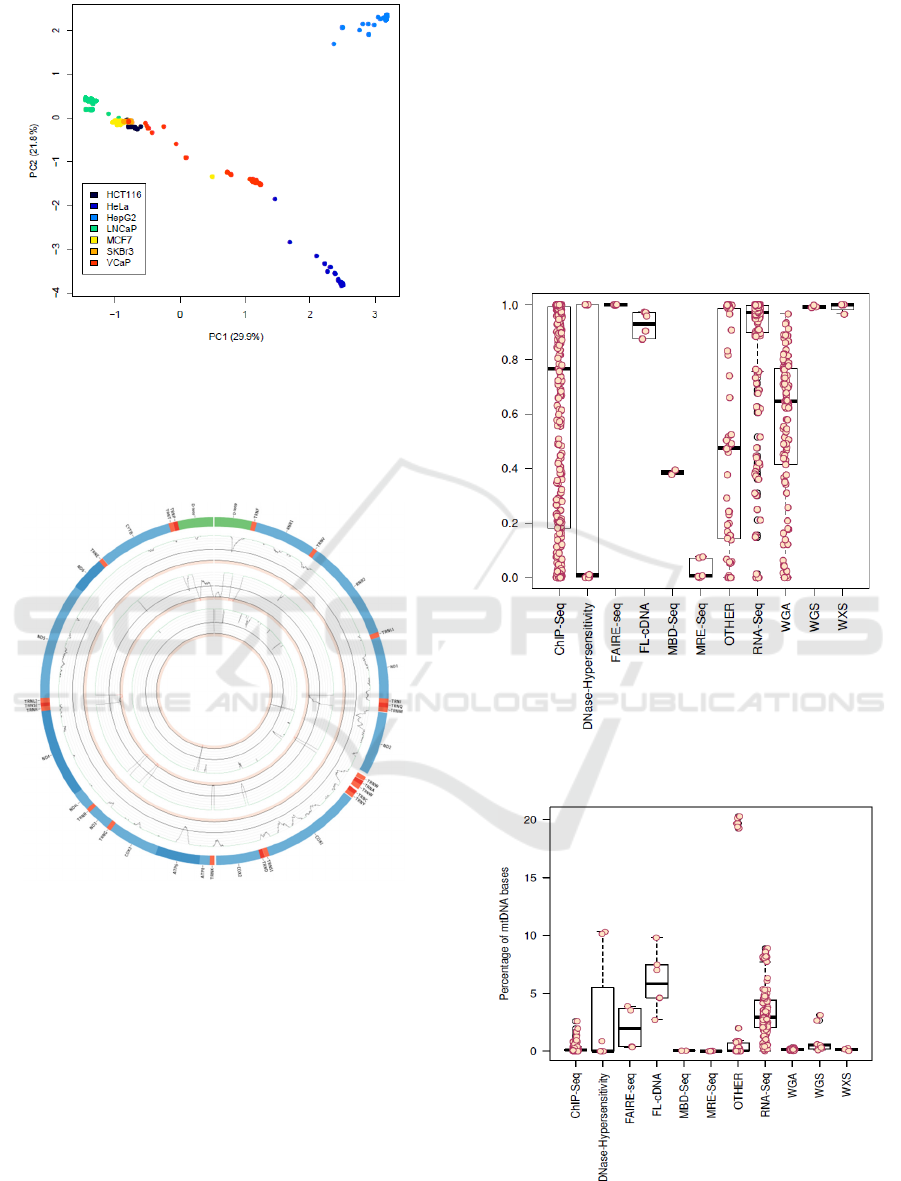

Figure 1: Principal component analysis of the cell lines

HCT116, HeLa, HepG2, LNCaP, MCF7, SKBr3 and

VCaP. While samples from HepG2, HeLa and LNCaP

separate nicely, MCF7, HCT116 and SKBr3 cluster very

close to each other. VCaP samples seem to appear in two

distinct clusters.

Figure 2: Circos plot demonstrating the coverage of the

mitochondrial genome reconstructed from low coverage

whole-genome sequencing (outer circle), RNA-Seq

(central circle) and ChIP-Seq (inner circle). Plots show

ranges from 0 to 100. Positions with coverage >100 are

reduced to 100 and are shown in green. Positions covered

with fewer than 10 reads are shown in red.

3.2 Reconstruction in Different

Experimental Settings

Since different experimental methods may have a

different impact on the presence of mitochondrial

DNA in the final sequencing library, we analyzed

the percentage of reconstructed bases per

experimental type (see figure 3). While RNA-Seq

and whole-exome sequencing (WXS) yield a very

high median reconstruction of the mitochondrial

genome (RNA-Seq 97.1% and WXS: 99.9%),

reconstruction of mtDNA from ChIP-Seq

experiments seems highly variable (median: 76.6%).

The percentage of mitochondrial sequences in a

sample also deviates a lot between different

experimental settings (see figure 4). In whole-

genome sequencing datasets, a median of 0.51 % of

all the bases sequenced aligned to the human

genome, which equals about 2000 mitochondrial

genomes per nuclear genome.

Figure 3: Fraction of reconstructed bases per experimental

type.

Figure 4: Percentage of bases aligning to the

mitochondrial genome of the sample per experimental

type.

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

3.3 Genotype Discordance in Cell Lines

Overall, 609 cell line datasets were analyzed and

produced 6,340,732 concordant wildtype genotype

calls as well as 5,045 concordant variant genotype

calls (see table 2). However, 170 positions are called

discordantly between a sample and a reference. In

the LNCaP cell-line, 4 datasets produced deviations

to the reference samples in 971 genotypes. These

samples were prepared using a ChIP-Seq protocol

including bisulfite treatment and thus were excluded

from further analyses.

3.4 Mitochondrial Reconstruction as a

Tool to Detect Sample Mixups

Interestingly, a single MCF7 dataset showed

deviations to the reference MCF7 sample in 16

positions. Comparing this sample to other cell-line

reference samples showed a very close agreement

(agreement on every mitochondrial genotype but

one) to the HeLa sample. Also, one dataset

designated to be from HeLa deviated in 24

mitochondrial genotypes from the HeLa reference

sample and was predicted to be in haplogroup H

(unlike HeLa, which should be in haplogroup L3

(Herrnstadt et al. 2002)). Both of these samples were

sequenced in the same project (DRP001297) and

thus might have been mixed up during library

preparation. While some of the deviations between

the datasets and the reference samples can be

explained by possible sample mix-ups, others might

represent artifacts. In 39 samples a deviation at the

position 8860 (rCRS:8860A>G) was detected, where

the SRA samples (all were RNA-Seq experiments)

were called wildtype while the reference was called

variant. This might be an artifact due to numTs

contamination in non RNA-Seq experiments.

Another position seems to be frequently called

discordantly (rCRS:15838C>A). 13 samples were

called variant at that position, while the reference

sample was called wildtype. All of these 13 samples

were submitted by the same institution (Yan-Ming

University, Taiwan) under the following accessions:

(ERP004047, ERP004106 and ERP004151) and thus

may constitute a mutation specific to the sublineage

used by this facility.

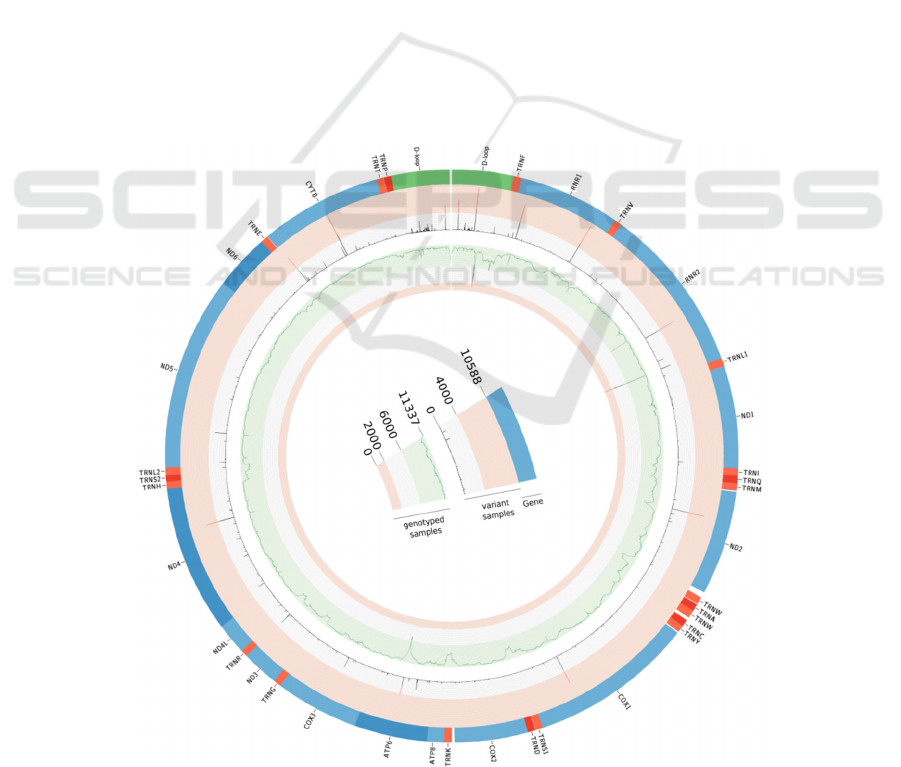

Figure 5: Circos plot of the mitochondrial genome. Genes are depicted in the outer circle. Frequency of variants can be

found in the middle circle and samples analysed per positions are plotted in the inner circle.

Reconstruction of Mitochondrial Genotypes from Diverse next Generation Sequencing Datasets

3.5 Reconstruction on Additional SRA

Datasets

To analyze mitochondrial genotypes from various

next-generation sequencing experiments, we

downloaded additional 19,337 sequencing runs from

the SRA out of 240,748 publicly available datasets

from the human genome. Since some experiment

types might lead to false positive variant detection

due to nucleotide modifications (Bisulfite-

Sequencing), very low coverage due to low-

representation sequencing (Poolclone) or very

specific enrichment of target regions (Amplicon

sequencing and miRNA-Seq), these experiment

types were excluded from further analysis. The most

common types of experimental assays (if occurring

>1,000 times) are displayed in table 3. The

mitochondrial genome could be reconstructed at

>95% in 7,875 samples (40.7%) and a total of

257,820 variants were discovered at 4,427 positions

of the rCRS with 4,653 distinct substitutions. 883 of

these have not been described in the MITOMAP

database (Lott et al. 2013), 30 of which were found

in more than 10 samples. An overview of coverage

along the mitochondrial genome and mutation

frequencies across all the samples can be seen in

figure 5. Haplogroups could be identified in 5,842

samples and the distribution can be seen in figure 6.

Figure 6: Distribution of haplogroups from 5,842 samples

where all haplogroup identifying markers were

successfully reconstructed.

Table 3: Experiment types of available public datasets

from human. Only experimental types occurring >1000

times are displayed.

Experiment type Count Frequency

WGS 67771 28.2%

Poolclone 37309 15.5%

RNA-Seq 35457 14.7%

WXS 31718 13.2%

Other 20126 8.3%

ChIP_Seq 19905 8.3%

Amplicon 12131 5.0%

Bisufite-Seq 5263 2.2%

WGA 2824 1.2%

DNAse

Hypersensitivity

2439 1.0%

miRNA-Seq 1658 0.7%

4 DISCUSSION

Undoubtedly, publicly available sequencing data can

elucidate many areas in biology, even when original

experiments were not intended initially for that field

of research. Especially studying variation of

mitochondrial DNA might be suitable for analysis of

large sequencing databases, since its abundance

makes it accessible in a wide range of experimental

procedures in next-generation sequencing. In this

study, cell line data was analyzed in order to test the

validity of mitochondrial genome reconstruction

from off-target reads in next-generation sequencing

experiments which can be used to establish (cell

line) identity, detect sample inconsistencies and to

study mtDNA variation. By analyzing different

experimental assays from the same cell line, validity

of the approach was tested. It seems that a

mitochondrial genotype can be inferred from that

data, since only few positions were called

discordantly between assays. Some of these may

represent artifacts from the sequencing itself, while

some variant calls may be due to somatic mutations

at the mitochondrial genome. The 13 MCF7 samples

from the Yan-Ming University support this

assumption, since the most likely explanation of

these discrepancies is a somatic mutation in the

initial cell line used by this institution. This method

also may detect sample mix-ups, as seen in the

conflicting variant spectrum of a MCF7 and HeLa

experiment from the same project. Thus, an

automatic method to discover sample-mixups may

be deployed as an additional quality-control check

for large sequencing databases or sequencing

projects before actual uploading data.

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

Furthermore, mitochondrial genotypes of 19,337

datasets from the SRA have been analyzed in this

study. Many substitutions and indels were identified

within these samples, some of which have not been

reported in the Mitomap project and may represent

rare variants. The methods used here are very similar

to the pipeline used to analyze exome sequencing

data of the 1000 genomes project (Diroma et al.

2014, Picardi et al. 2012). While they used a

sophisticated approach to recover putative

mitochondrial reads from hits to known NumT

sequences, this was not done here, to more

effectively analyse a diverse set of samples. Hence,

sequences similar to NumT sequences in the human

genome may be underrepresented in this analysis.

When searching for a mutation in patients with

suspected hereditary diseases, it is often crucial to

discern pathogenic variants from non-pathogenic

variants. Often, allele frequencies of a healthy

population may give a clue, since it is unlikely that a

pathogenic variant is seen in a large proportion of

"random" genomes. Here, we found 4,653

substitutions, 883 of which have not yet been

reported in the largest database of mitochondrial

variation (Lott et al. 2013). Also, 2,008 distinct

indels have been detected. Some of these may be

artifacts due to non-standard library preparation

types or inaccurate sequencing technologies. Using

the large database of sequencing experiments

provided by SRA might provide more clues on rare

allele frequencies on the mitochondrial genome than

have been available to date. However, since a

dedicated description of a sample regarding its

phenotypes is most often missing, this method may

detect rare variants, but probably may be of limited

use in discerning pathogenic variants from non-

pathogenic variants on the mitochondrial genome.

However, many possible difficulties may arise with

the automated approach of assigning mitochondrial

genotypes based on off-target sequencing data from

various experiments. Different library preparation

techniques alter the nucleotide sequence itself and

while the most common one (bisulfite sequencing)

has been excluded from this analyses, other lesser

common preparation techniques might introduce

their own pattern of sequence alteration. Also,

sequencing technology may introduce non-random

biases into the sequencing data if the error profile of

a technology is different depending on the DNA

context (e.g. Illumina's GGC-error (Nakamura et al.

2011)).

Furthermore heteroplasmy may represent a

challenge in correctly identifying mitochondrial

genotypes. Here, identification of heteroplasmy has

not been done, since it is hard to discern from

sequencing artifacts and NumTs.

Finally, it should be noted, that this method only

works well in experiments, where sequencing reads

on the mitochondrial genome can be found as a by-

product of non-specific binding or non-effective

removal of untargeted DNA. Hence, we think, in

order to further enable researchers to test new ideas

on data or reinterpret primary data sources, public

deposition of any kind of data should become

standard not only in biomedical research, but in

research in general.

REFERENCES

Sequence Read Archive (2015) Available from:

http://www.ncbi.nlm.nih.gov/Traces/sra/sra.cgi. [19

July 2015].

Mamanova L, Coffey AJ, Scott CE et al. (2010): "Target-

enrichment strategies for next-generation sequencing".

In: Nature Methods. 7 (2), S. 111-118, DOI:

10.1038/nmeth.1419.

Diroma MA, Calabrese C, Simone D et al. (2014):

"Extraction and annotation of human mitochondrial

genomes from 1000 Genomes Whole Exome

Sequencing data". In: BMC Genomics. 15 (Suppl 3),

S. S2, DOI: 10.1186/1471-2164-15-s3-s2.

Smith DR. (2013): "RNA-Seq data: a goldmine for

organelle research". In: Briefings in Functional

Genomics. 12 (5), S. 454-456, DOI:

10.1093/bfgp/els066.

Taylor RW.Turnbull DM. (2005): "Mitochondrial DNA

mutations in human disease". In: Nature Reviews

Genetics. 6 (5), S. 389-402, DOI: 10.1038/nrg1606.

Cann RL, Stoneking M, Wilson, AC. (1987):

"Mitochondrial DNA and human evolution". In:

Nature. 325 (6099), S. 31-36, DOI:

10.1038/325031a0.

Herrnstadt C, Preston G, Andrews R et al. (2002): "A high

frequency of mtDNA polymorphisms in HeLa cell

sublines". In: Mutation Research/Fundamental and

Molecular Mechanisms of Mutagenesis. 501 (1-2), S.

19-28, DOI: 10.1016/s0027-5107(01)00304-9.

Lott M, Leipzig JN, Derbeneva O et al. (2013): "mtDNA

Variation and Analysis Using MITOMAP and

MITOMASTER". In: Current Proctocols in

Bioinformatics 44, pp. 1.23.1{1.23.26. doi:

10.1002/0471250953.bi0123s44.

Picardi E, Pesole G (2012): "Mitochondrial genomes

gleaned from human whole-exome sequencing". In:

Nature Methods. 9 (6), S. 523-524, DOI:

10.1038/nmeth.2029.

Nakamura K, Oshima T, Morimoto T et al. (2011):

"Sequence-specific error profile of Illumina

sequencers". In: Nucleic Acids Research. 39 (13), S.

e90-e90, DOI: 10.1093/nar/gkr344.

Reconstruction of Mitochondrial Genotypes from Diverse next Generation Sequencing Datasets

Li H, Handsaker B, Wysoker A et al. (2009): "The

Sequence Alignment/Map format and SAMtools". In:

Bioinformatics. 25 (16), S. 2078-2079, DOI:

10.1093/bioinformatics/btp352.

Andrews RM, Kubacka I, Chinnery PF et al. (1999):

"Reanalysis and revision of the Cambridge reference

sequence for human mitochondrial DNA". In: Nature

Genetics 23 p. 147.

Li H, Durbin R. (2009): "Fast and accurate short read

alignment with Burrows-Wheeler transform". In:

Bioinformatics. 25 (14), S. 1754-1760, DOI:

10.1093/bioinformatics/btp324.

R Development Core Team. (2008): "R: A Language and

Environment for Statistical Computing. ISBN 3-

900051-07-0. R Foundation for Statistical

Computing". Vienna, Austria, 2008. url:

http://www.R-project.org.

MitoMap Haplogroup markers.(2015) Available from:

http://www.mitomap.org/bin/view.pl/MITOMAP/Hapl

ogroupMarkers. [19-July-2015].

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms
