Joint Large Displacement Scene Flow and Occlusion Variational

Estimation

Roberto P. Palomares, Gloria Haro and Coloma Ballester

Universitat Pompeu Fabra, Barcelona, Spain

Keywords:

Scene Flow, Variational Methods, Coordinate Descent, Sparse Matches.

Abstract:

This paper presents a novel variational approach for the joint estimation of scene ﬂow and occlusions. Our

method does not assume that a depth sensor is available. Instead, we use a stereo sequence and exploit the

fact that points that are occluded in time, might be visible from the other view and thus the 3D geometry can

be densely reinforced in an appropriate manner through a simultaneous motion occlusion characterization.

Moreover, large displacements are correctly captured thanks to an optimization strategy that uses a set of

sparse image correspondences to guide the minimization process. We include qualitative and quantitative

experimental results on several datasets illustrating that both proposals help to improve the baseline results.

1 INTRODUCTION

The structure and motion of objects in a 3D space is

an important characteristic of dynamic scenes. Mea-

suring the three-dimensional motion vector ﬁelds re-

mains one of the unsolved tasks in computer vi-

sion although progress has been made in recent years

(e.g., (Basha et al., 2013; Jaimez et al., 2015; Quiroga

et al., 2014; Sun et al., 2015; Vogel et al., 2015;

Menze and Geiger, 2015; Wedel et al., 2011)) and is

currently gaining increasing attention. Reliable 3D

motion maps may be used in a wide range of applica-

tions such as autonomous robot navigation, driver as-

sistance, augmented reality, 3D movie and TV gener-

ation, surveillance or tracking, to mention just a few.

The scene ﬂow problem was deﬁned as the estima-

tion of dense 3D geometry and 3D motion ﬁeld from

nonrigid 3D data (Vedula et al., 2005). In the existing

methods, the corresponding vector ﬁeld is computed

either from stereo video sequences taken from differ-

ent points of view or from monocular RGB-Depth

sequences, that is, videos recorded with a camera

equipped with a depth sensor. We propose a scene

ﬂow method for the ﬁrst kind of data: stereo se-

quences.

Our contribution in this paper is twofold: we ﬁrst

propose a novel variational approach for the joint esti-

mation of scene ﬂow and motion occlusion; and sec-

ond, we propose an optimization strategy for varia-

tional scene ﬂow which is able to capture large dis-

placements without a multi-scale methodology and is

applicable to any scene ﬂow variational method. As

for the ﬁrst contribution, our method uses a sequence

of image pairs obtained from two synchronized cam-

eras and simultaneously computes the optical ﬂow be-

tween consecutive frames, the corresponding occlu-

sions due to motion and the disparity change between

the stereo image pairs. Let us notice that this informa-

tion, together with calibration data, is an equivalent

representation of the 3D scene ﬂow. Regarding our

second contribution, we present and show the poten-

tial of our general variational scene ﬂow optimization

strategy on the proposed energy model which, in turn,

has a transparent and generic structure.

The remainder of the paper is organized as fol-

lows. In Section 2 we revise previous works on scene

ﬂow. Section 3 presents our proposed scene ﬂow en-

ergy formulation and the proposed minimization pro-

cedure is explained in Section 4. Section 5 presents

experimental results. Finally, the conclusions are

summarized in Section 6.

2 RELATED WORK

From the seminal work of (Vedula and et al., 1999),

several methods have been proposed for the scene

ﬂow problem in order to improve the initial formu-

lation which decoupled the computation of 2D opti-

cal ﬂow ﬁelds and 3D structure. There are mainly

two different approaches to face the problem. One of

172

P. Palomares R., Haro G. and Ballester C.

Joint Large Displacement Scene Flow and Occlusion Variational Estimation.

DOI: 10.5220/0006110601720180

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 172-180

ISBN: 978-989-758-227-1

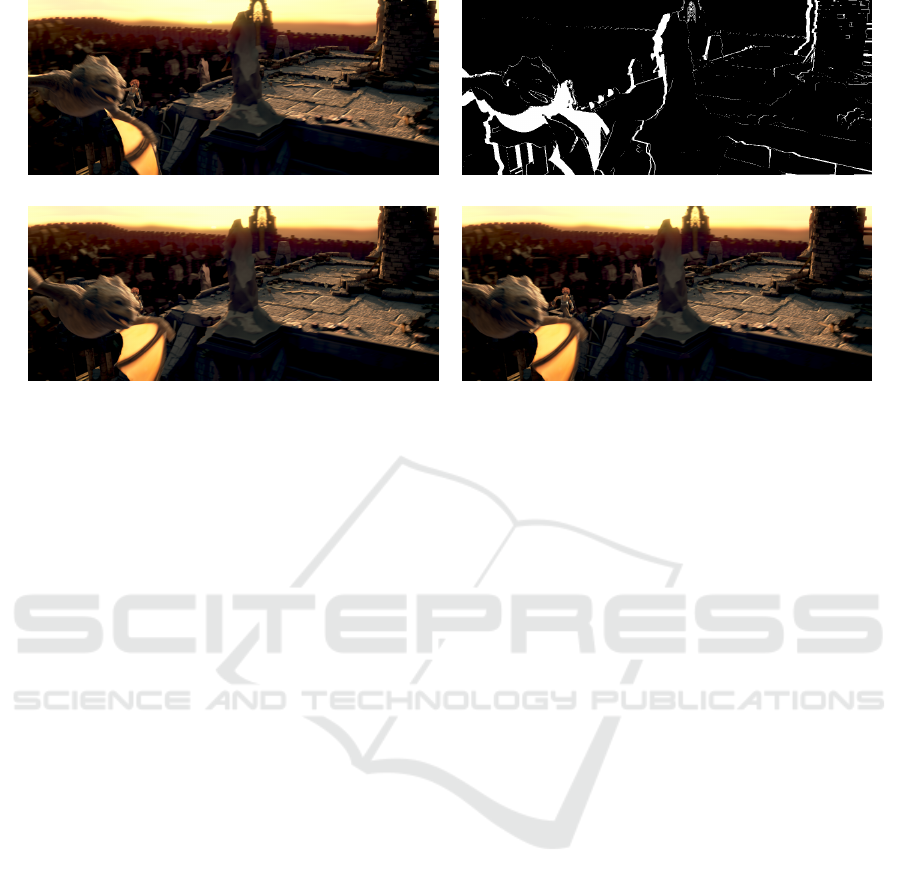

image Occlusion map from I

to I

t+1

image I

t+1


Figure 1: Motivation of the proposed data terms and their dependence on the occlusion map. Notice that most part of the

girl in I

is not visible in I

t+1

while it is visible in I

t+1

. Thus, the deactivation of the data term between images I

and I

t+1

together with the activation of the data term relating I

and I

t+1

will result in a better estimation of the scene ﬂow variables.

them estimates the scene ﬂow from RGB-Depth data

beneﬁting from the availability of depth data provided

by cameras equipped with a depth sensor. The 3D

scene ﬂow is estimated directly from it and regular-

ization of the ﬂow ﬁeld is imposed on the 3D sur-

faces of the observed scene instead of on the image

plane (Pons et al., 2007; Basha et al., 2013; Jaimez

et al., 2015; Quiroga et al., 2014; Sun et al., 2015;

Vogel et al., 2015). For instance, (Basha et al., 2013;

Vogel et al., 2011) jointly estimate depth and a 3D

ﬂow ﬁeld using a variational method which imposes

geometric multi-view consistency and 3D smooth-

ness. Some of these methods also use a local rigid-

ity assumption (Menze and Geiger, 2015; Quiroga

et al., 2014) representing the dynamic scene, e.g., as

a collection of rigidly moving planes (Vogel et al.,

2015). The second kind of methods work on stereo

video sequences and estimate from them disparity

(between the stereo pair) and motion (between con-

secutive frames) using formulations which mutually

constrain the scene ﬂow (Huguet and Devernay, 2007;

Wedel et al., 2011). The authors of (Wedel et al.,

2011) propose to precompute the stereo disparity and

decouple depth and motion estimation by estimat-

ing the optical ﬂow and the disparity change through

time.

In most of the proposals, the problem is frequently

modeled by variational methods where the unknowns

representing the motion of each 3D point in the scene

are estimated as the minimum of an energy functional

(e.g., (Vedula et al., 2005; Pons et al., 2007; Huguet

and Devernay, 2007; Basha et al., 2013; Menze and

Geiger, 2015; Wedel et al., 2011)). The optimiza-

tion usually proceeds in a multi-scale or coarse-to-ﬁne

procedure and thus smooth motions are favoured and

large displacements of small objects are mostly lost.

The variational method we propose does not as-

sume a depth sensor is available nor calibrated cam-

eras. As in (Huguet and Devernay, 2007; Wedel

et al., 2011), we use a two-view setup with a pair

of stereo image frames. Our proposal also estimates

motion occlusions and beneﬁts from the appropriate

comparison among views of the scene. In order to

correctly estimate large displacements of small ob-

jects, our minimization works by incorporating sparse

matches which drive the minimization of the energy

in local patches, providing a fast method that works

at the ﬁnest scale, i.e., the original scale of the image

data.

3 SCENE FLOW MODEL

Let us assume that a stereo video sequence is given,

consisting of different image pairs that have been ob-

tained from two views. For each time instant t, let

, I

t+1

, I

t+1

: Ω → R be two of those consecutive

stereo pair of frames of the stereo video sequence,

where the subscripts l and r stand for left and right,

respectively, and t stands for time. As usual, we as-

sume that the image domain Ω is a rectangle in R

Our starting point will be the model for scene ﬂow in-

troduced in (Wedel et al., 2011), where a decoupled

approach was presented. In a decoupled approach,

Joint Large Displacement Scene Flow and Occlusion Variational Estimation

173

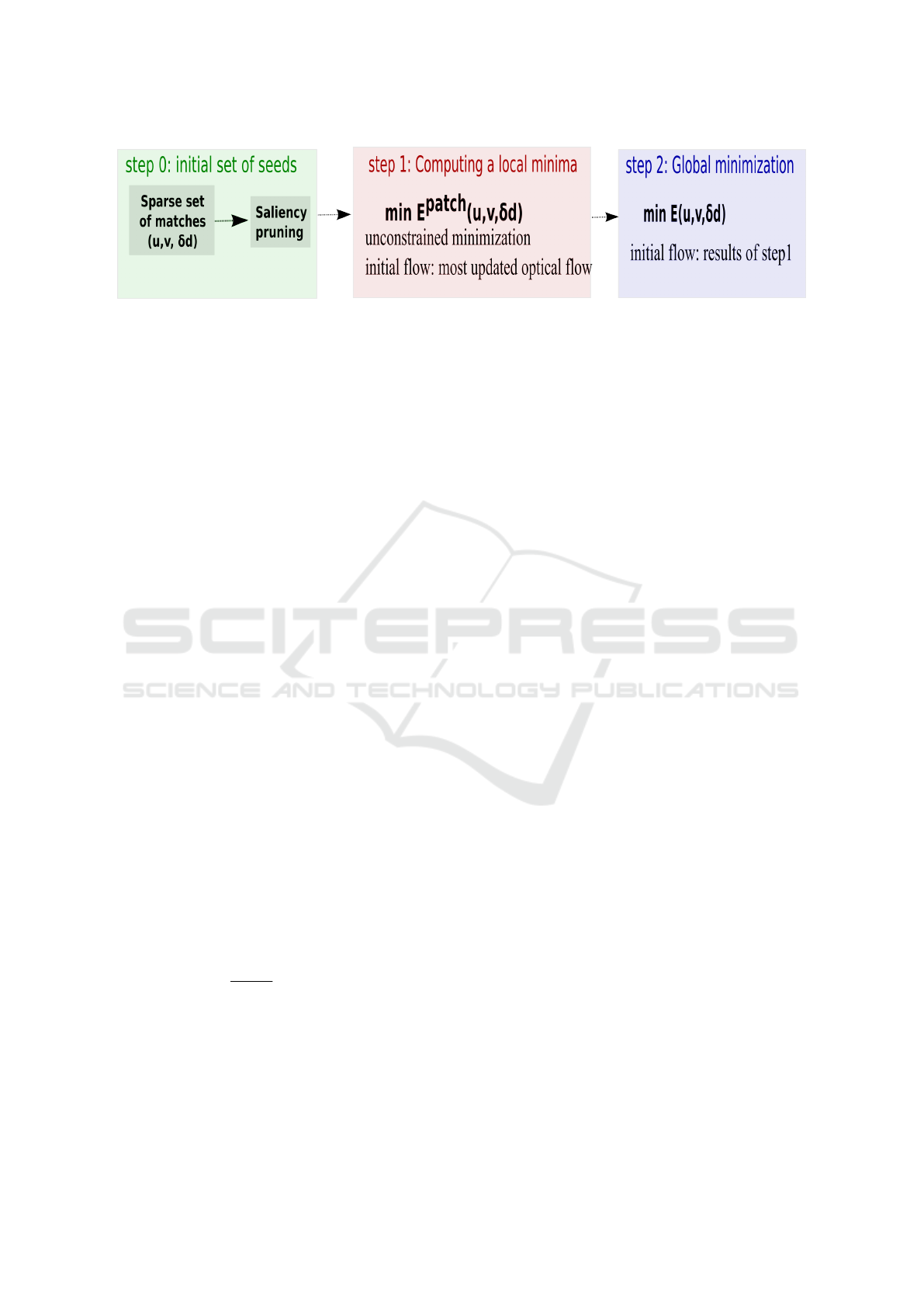

Figure 2: Diagram with the main steps of the proposed method.

the estimation of depth or disparity at ﬁxed time is

done previously to, and independently of, the estima-

tion of the motion (optical ﬂow and disparity change).

This problem separation provides more ﬂexibility and

has some advantages as the disparity may be esti-

mated with an optimal stereo algorithm. The decou-

pled scene ﬂow approach enforces a coupling among

disparity, optical ﬂow, and disparity change.

Let d be a given disparity map between I

and I

Let u = (u, v) denote the optical ﬂow between the left

frames, I

and I

t+1

, and δd denote the change in dis-

parity between the stereo pairs at times t and t + 1.

In order to write the energy model in a more compact

form, let us ﬁrst introduce the following notation:

= I

t+1

(x+u, y+v) −I

(x, y)

= I

t+1

(x+u, y+v) −I

(x+d, y)

= I

t+1

(x+d+u+δd, y+v) −I

t+1

(x+u, y+v)

= I

t+1

(x+d+u +δd, y+v) −I

(x, y)

= I

t+1

(x+d+ u+δd, y+v) −I

(x+d, y)

In order to compute the scene ﬂow ﬁeld (u, v, δd),

Wedel et al. (Wedel et al., 2011) propose to

minimize an energy functional which is made

of two terms, namely,

E(u, v, δd) =

(u, v, δd) +

(u, v, δd), where

(u, v, δd) = α

Ω

Ψ(|∇u|

+|∇v|

+γ|∇δd|

)dxdy

(u, v, δd) =

Ω

Ψ(|D

)dxdy

Ω

oΨ(|D

)dxdy +

Ω

oΨ(|D

)dxdy

where Ψ(s

) =

√

+ ε

, with ε = 0.0001 being a

small constant, and o(x, y, t) is the given stereo visibil-

ity map for the given disparity map d (i.e., o(x, y, t) =

1 if (x, y) is visible both in I

and in I

). We have

omitted in

the dependency of u, v, δd, d, o on

x, y, t for the sake of simplicity. Finally, let us notice

that the regularity term is based on a differentiable ap-

proximation of the Total Variation. Similarly, the data

term is based on the same differentiable approxima-

tion of the L

norm of the constraints favoring con-

stancy in intensity of the same point in the scene, thus

in the four involved images.

This method does not directly take occlusions

into account and relies on data terms that consider

correspondence errors even for the occluded pix-

els where no correspondence can be established.

Hence, erroneous ﬂows are generated at moving oc-

clusion boundaries. Explicitly modeling occlusions

has proved beneﬁcial in optical ﬂow estimation meth-

ods (e.g. (Ayvaci et al., 2012; Ballester et al., 2012;

Ince and Konrad, 2008) among others). Occlusion

reasoning has been considered in scene ﬂow estima-

tion methods that use depth sensors (Wang et al.,

2015; Zanﬁr and Sminchisescu, 2015). On the other

hand, it is traditionally believed that motion vectors

tend to be smaller in magnitude than disparities, espe-

cially if the video sequences have been captured with

a small time delay; but this assumption does not hold

for the current standard databases (Butler et al., 2012;

Geiger et al., 2012) which contain important large dis-

placements. In these situations, handling occlusions

due to motion is as important as handling occlusions

due to disparity.

In this work we extend the previous model to

jointly compute the optical ﬂow, its associated occlu-

sions, and the disparity change. Let χ : Ω → [0, 1] be

the function modeling the motion occlusion map, so

that χ(x , y, t) = 1 identiﬁes the motion occluded pix-

els, i.e. pixels that are visible in I

but not in I

t+1

. Our

model is based on the assumption that the occluded

region due to motion, given by χ(x, y, t) = 1, should

include the region where the divergence of the opti-

cal ﬂow is negative. This was pointed out by Sand

and Teller (Sand and Teller, 2008), who noticed that

the divergence of the motion ﬁeld may be used to

distinguish between different types of motion areas.

Schematically, the divergence of a ﬂow ﬁeld is nega-

tive for occluded areas, positive for disoccluded, and

near zero for the matched areas. Taking this into ac-

count, Ballester et al. (Ballester et al., 2012) proposed

a variational model for the joint estimation of occlu-

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

174

sions and optical ﬂow. In order to consider motion

occlusions and beneﬁt from an appropriate compari-

son among the different views of the scene, we build

up from these ideas and propose to include a new term

in the energy functional that characterizes the occlu-

sion areas as those where the divergence of the ﬂow is

negative. We also propose to include different types

of data terms in the energy functional which are acti-

vated based on the occlusion information provided by

χ. In this way, if there is a motion occlusion in the left

view, χ = 1, the energy will only consider error corre-

spondences in the right views, where the object is still

visible. Figure 1 presents an example motivating our

proposal; by detecting the occlusion regions, the mo-

tion ﬁeld in these regions will be recovered by using

the fact that they are visible in the remaining views

which we use to introduce new data constraints. Thus,

the proposed energy contains three parts, namely,

(1)

E(u, v, δd, χ) = E

(u, v, δd, χ) + E

(u, v, δd, χ)

+ E

occ

(u, v, χ)

where

(u, v, δd, χ) = α

Ω



|∇u|

+|∇v|

+γ|∇δd|



+ η

Ω



|∇χ|



occ

(u, v, χ) = β

Ω

χdiv(u, v)dx dy

(u, v, δd, χ) =

Ω

(1 −χ)Ψ(|D

)dxdy

Ω

(1 −χ)o Ψ(|D

)dxdy

Ω

(1 −χ)o Ψ(|D

)dxdy

Ω

χo Ψ(|D

)dxdy

Ω

χo Ψ(|D

)dxdy

Again, the map χ is evaluated in (x, y, t) in the func-

tional but we omit it for the ease of notation.

4 OPTIMIZATION STRATEGY

In order to make the optimization problem more

tractable, optical ﬂow variational methods include a

linearization of the warped images in the data terms,

which leads to embed the functional into a coarse-to-

ﬁne multi-level approach to better handle large mo-

tion ﬁelds. However, this approach still fails to re-

cover large motions of small objects not present at

coarser scales. Different approaches to overcome

this limitation have been proposed in the past years.

Among the most recent works, several ones share

the trait of being based on a sparse-to-dense estima-

tion that avoids the classical coarse-to-ﬁne scheme.

They start with a set of correspondences (non-dense

feature-based matches), which are used to generate

a dense optical ﬂow ﬁeld and subsequently, the next

step produces a global reﬁnement over the whole im-

age domain. For instance, in the work (Palomares

et al., 2016), an initial set of sparse matches is grown

by a coordinate descent scheme used to minimize the

target energy functional. Our proposal builds upon

these ideas to propose a minimization method for the

scene ﬂow energy. Figure 2 shows a diagram with the

main steps of the proposed algorithm. The optimiza-

tion process works in two stages, with a previous ini-

tialization of the sparse matches (named as zero stage

in the following), both of them operating at the ﬁnest

scale of the image:

0. The zero stage builds the initial set of sparse seeds

(u, v, δd). The algorithm assumes that a set of

sparse correspondences between two pairs of im-

ages are provided; in particular, between I

↔I

t+1

and I

t+1

↔I

t+1

. In order to estimate sparse corre-

spondences between both pairs of images we use

the DeepMatching algorithm (Weinzaepfel et al.,

2013). From the ﬁrst set of matchings, between

↔I

t+1

, we obtain an initial set of candidates for

the variables (u, v). Then, to completely deﬁne the

set of seeds for solving the scene ﬂow problem, it

is necessary to ﬁnd an estimation of δd(x) asso-

ciated to each optical ﬂow candidate (u(x), v(x))

at the different sparse locations x = (x, y) ∈ Ω.

From the second set of sparse matches, between

t+1

↔I

t+1

, we select the discrete value of

t+1

be the disparity associated of the closest keypoint

x in I

t+1

(with a matching in I

t+1

) to the posi-

tion (x + u(x), y + v(x)) within a certain tolerated

distance. If there exists such a keypoint in I

t+1

we add (u(x), v(x), δd(x), χ(x)) as an initial seed,

where δd(x) =

t+1

(

x) −d

(x) and χ(x) = 0.

1. The ﬁrst stage consists in computing a dense

scene ﬂow estimation providing a good local min-

imum of the target energy (the proposed (1) in

this paper); good in the sense that captures large

displacements and controls the error on occlu-

sion areas. Our method proceeds by minimiz-

ing the energy over local neighborhoods (patches)

in a proper order deﬁned by the reliability of

the scene ﬂow estimation at the center of each

patch. This ordering is managed by a priority

queue where the most reliable estimations – the

estimated (u, v, δd, χ) values that have the lowest

energy values – are placed at the top positions of

Joint Large Displacement Scene Flow and Occlusion Variational Estimation

175

the queue. Initially, the queue is formed by the

sparse set of seeds. These seeds have an associ-

ated local energy equal to zero (full reliability).

Then, an iterative process is launched; the follow-

ing procedure is iterated until the priority queue is

emptied:

• The top element of the queue of scene ﬂow

candidates is extracted and its associated scene

ﬂow value is set as visited at its corresponding

position.

• The patch around the visited position is consid-

ered and a scene ﬂow is interpolated within the

patch by propagating the already visited values.

• The scene ﬂow energy is minimized in the

patch, starting with the previous interpolation

as initialization. Notice that this step can be

thought as a minimization of the energy where

all the variables outside the patch under con-

sideration have been ﬁxed, thus bearing simi-

larities with the coordinate descent methods.

• The local energy in the patch is computed and

the four immediate neighbors of the center

pixel are introduced as new candidates in the

queue with a reliability given by the local en-

ergy (the energy of the patch).

2. The result of the ﬁrst step, the data correspond-

ing to (u, v, δd, χ), is a dense scene ﬂow estima-

tion providing a good local minimum of the en-

ergy (1).This result is reﬁned in the second stage

by the minimization of the energy functional over

the whole image domain. In other words, the re-

sult of the ﬁrst step is used as an initialization for

minimizing the energy around it.

Let us remark that the method of Cech et al. (Cech

et al., 2011) also uses an algorithm to estimate both

disparity and optical ﬂow from a stereo sequence by

growing a set of seeds. In contrast to our seed grow-

ing method driven by the energy minimization, the

method in (Cech et al., 2011) constructs heuristics

based on photometric consistency through correla-

tions and constant parameters adjusting the amount of

optical ﬂow regularization and temporal consistency.

Moreover, it provides a semi-dense scene ﬂow while

we get a dense estimation.

In order to minimize our energy formulation (1),

the associated Euler-Lagrange equations are numeri-

cally solved. To simplify the presentation, we intro-

duce the following notations

|∇u|

+|∇v|

+γ|∇δd|

= |∇χ|

) =

√

+ ε

Thereby, the Euler-Lagrange equations are

0 = −α div



) ·∇u



+ (1 −χ) ·Ψ

) ·D

·I

t+1

l,x

(x+u, y+v)

+ o (1 −χ) ·Ψ

) ·D

·I

t+1

l,x

(x+u, y+v)

+ o (1 −χ) ·Ψ

) ·D

·(I

t+1

r,x

(x+d+u+δd, y+v)

−I

t+1

l,x

(x+u, y+v))

+ o χ ·Ψ

) ·D

·I

t+1

r,x

(x+d+u+δd, y+v)

+ o χ ·Ψ

) ·D

·I

t+1

r,x

(x+d+u+δd, y+v)

−βχ

0 = −α div



) ·∇v



+ (1 −χ) ·Ψ

) ·D

·I

t+1

l,y

(x+u, y+v)

+ o (1 −χ) ·Ψ

) ·D

·I

t+1

l,y

(x+u, y+v)

+ o (1 −χ) ·Ψ

) ·D

·(I

t+1

r,x

(y+d+u+δd, y+v)

−I

t+1

l,y

(x+u, y+v))

+ o χ ·Ψ

) ·D

·I

t+1

r,y

(x+d+u+δd, y+v)

+ o χ ·Ψ

) ·D

·I

t+1

r,y

(x+d+u+δd, y+v)

− βχ

0 = −αγ div



) ·∇δd



+ o (1 −χ)Ψ

) ·D

·I

t+1

r,x

(x+d+u+δd, y+v)

+ o χ ·Ψ

) ·D

·I

t+1

r,x

(x+d+u+δd, y+v)

+ o χ ·Ψ

) ·D

·I

t+1

r,x

(x+d+u+δd, y+v) ,

0 = −αη div



) ·∇χ



− Ψ(D

) −Ψ(D

) −o



Ψ(D

) + Ψ(D

)



+ βdiv(u, v) .

where the subindices x and y denote the partial

derivatives with respect to x and y, respectively, and

the point coordinates (x, y) have been omitted in the

gradient expressions.

The Euler-Lagrange equations are non-linear in

the unknowns (u, v, δd, χ) due to the multiple warped

images I

t+1

(x+u, y+v), I

t+1

l,x

(x+u, y+v), etc. To nu-

merically solve them, either over a local patch or over

the whole domain, we follow the optimization method

proposed by Brox et al. (Brox et al., 2004). It is based

on two ﬁxed iterations loops to cope with the non-

linear terms. The external loop is used to handle the

linearization of the data terms in the warped form, and

the internal loop takes into account the non-linearities

of the Ψ

functions. After the linearization, the result-

ing linear system can be efﬁciently solved using the

SOR method (Young, 1971).

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

176

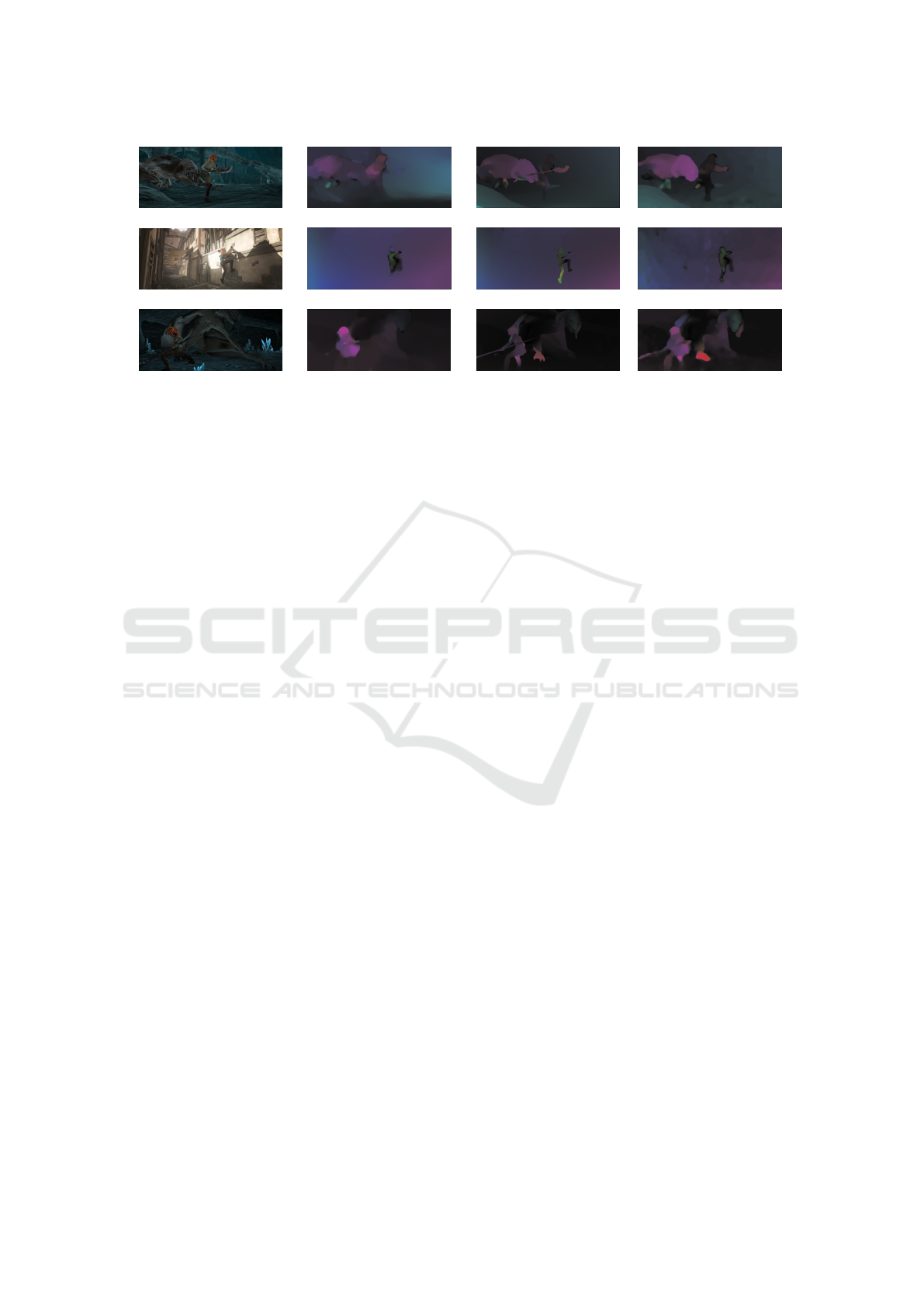

Example 1: First frame Coarse-to-ﬁne minimization Ground truth Proposed minimization

Example 2: First frame Coarse-to-ﬁne minimization Ground truth Proposed minimization

Example 3: First frame Coarse-to-ﬁne minimization Ground truth Proposed minimization

Figure 3: Comparison of two minimization strategies for the same energy proposed in (Wedel et al., 2011). Our minimization

startegy is not based on a coarse-to-ﬁne scheme but on sparse correspondences that allow to capture large displacements.

Results in the MPI Sintel training set.

5 EXPERIMENTS

In this section we provide two sets of experiments.

The ﬁrst one is designed to validate the better be-

haviour of the selected optimization strategy against

the classic coarse-to-ﬁne multi-level approach. The

second one shows the properties of the presented

functional due to the explicitly occlusion handling.

Let us remark that all results have been obtained

by using the grayscale versions of the original color

frames. The color version is only used to compute

the seeds with the Deep Matching algorithm. The ex-

periments use stereo sequences from the MPI Sintel

Flow dataset (Butler et al., 2012) and from the KITTI

2015 dataset (Menze and Geiger, 2015). Sintel has

23 training sequences. For every frame, there are two

different versions of the images, “clean” and “ﬁnal”.

The difference is that the second set adds complexity

to the ﬁrst one by incorporating atmospheric effects,

depth of ﬁeld blur, motion blur, color correction and

other details. It contains several sequences with large

motions of small objects. KITTI contains different

sequences of a city provided by an autonomous driv-

ing platform. It presents large deformations, dynamic

scenes and challenging iluminatons changes.

5.1 Beneﬁts of the New Optimization

Strategy

Our ﬁrst goal is to validate the good performance of

the optimization scheme and show the beneﬁts in the

presence of large displacement motions against the

coarse-to-ﬁne strategy. For this purpose, we use the

energy functional proposed by Wedel et al. (Wedel

et al., 2011) (detailed at the beginning of Section 3),

and we compute the motion ﬁeld using these two dif-

ferent minimization approaches. In Tables 1 and 2,

they are denoted by Classic Wedel (i.e., classic coarse-

to-ﬁne strategy for the Wedel et al. (Wedel et al.,

2011) energy) and Our Wedel. Fig. 3, Tables 1 and 2

show that the chosen minimization approach is able to

recover large motions where the coarse-to-ﬁne strat-

egy fails. For each group of four images in Fig. 3,

from top to bottom and from left to right, the ﬁrst

frame is displayed in (a), the optical ﬂow estimation

from the classic coarse-to-ﬁne Wedel et al. (Wedel

et al., 2011) is displayed in (b), (c) shows the opti-

cal ﬂow ground truth, and (d) the optical ﬂow esti-

mated with our scene ﬂow minimization strategy for

the same energy. Let us notice from this ﬁgure and

also from Tables 1 and 2 that the optimization scheme

is also better for the kind of sequences where the

multi-scale approach does not fail. It is clear that the

integration of sparse matches results with an appropri-

ate minimization strategy directly at the ﬁnest image

scale represents a great improvement in comparison

to the coarse-to-ﬁne optimization strategy.

5.2 Beneﬁts of the New Energy

The second goal is to show the advantages of the

proposed energy functional which includes new data

terms and motion occlusion estimation. Fig. 4 dis-

plays results on three sequences of the MPI Sintel

training set. For each group of six images, from top to

bottom and from left to right, the ﬁrst frame is shown

in (a), the ground truth occlusions are displayed in

(b), (c) shows the optical ﬂow from our scene ﬂow

minimization strategy for the Wedel et al. (Wedel

et al., 2011) energy (our Wedel), (d) the optical ﬂow

ground truth, and (e) and (f) the occlusions and opti-

Joint Large Displacement Scene Flow and Occlusion Variational Estimation

177

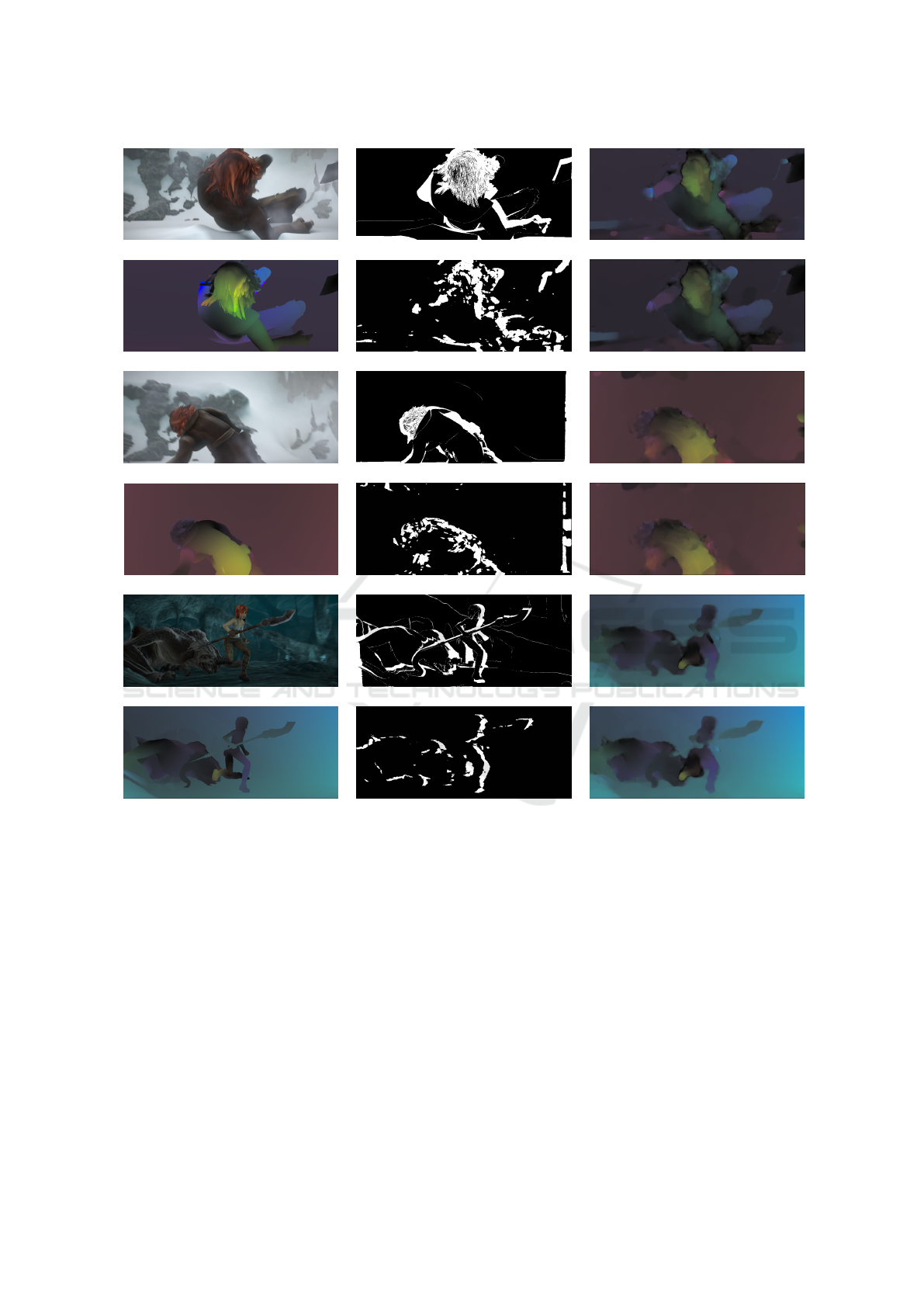

Example 1: First frame Ground truth occlusions OF with energy (Wedel et al., 2011)

OF ground truth Estimated occlusions OF with our energy (1)

Example 2: First frame Ground truth occlusions OF with energy (Wedel et al., 2011)

OF ground truth Estimated occlusions OF with our energy (1)

Example 3: First frame Ground truth occlusions OF with energy (Wedel et al., 2011)

OF ground truth Estimated occlusions OF with our energy (1)

Figure 4: Comparison of the estimated optical ﬂows (OF) estimated with the baseline energy (Wedel et al., 2011) and with

the new proposed energy (1) (in both cases using our proposed minimization strategy). Results in the MPI Sintel training set.

cal ﬂow estimated from our whole proposal with the

energy (1). On the other hand, the second and third

rows of Table 1 and Table 2 show the global accu-

racy over the whole datasets of both proposals. The

results of Table 1 and Fig. 4, show that the proposed

energy keeps better results at the visible areas (sec-

ond column of Table 1) and it specially improves the

accuracy at the occluded areas (third column). The

occlusion mask allows to densely reinforce the 3D ge-

ometry from the fact that points that are occluded in

time in the left view might be visible from the other

(right) view and thus obtain better optical ﬂow bound-

aries especially near occlusion regions. This effect is

noticeable for instance in the boundaries of the nagi-

nata in the experiment of the last rows of Fig. 4.

6 CONCLUSIONS

We have proposed a variational model for the joint

estimation of the scene ﬂow and its associated motion

occlusions. Our work stems from the classical scene

ﬂow model presented in (Wedel et al., 2011) and in-

corporates a characterization of the occlusion areas as

well as new data terms. The estimation of the oc-

clusion map is useful to select a different set of data

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

178

Table 1: Results in MPI-Sintel training set for the optical

ﬂow (u, v) and for the disparity change δd. The ﬁrst and

second set of results correspond, respectively, to the Final

and Clean frames. EPE means endpoint error over the com-

plete frames. EPE-M shows the endpoint error over regions

that remain visible in adjacent frames. EPE-U shows the

endpoint error over regions that are visible only in one of

the two adjacent frames. Notice that the ground truth δd

is not provided in the database. We have set δd(x, y) =

δd

t+1

(x + u, y + v) −d(x, y) using the (u, v, d

, d

t+1

) ground

truth values. Using that information we have obtained the

EPE-δd for all the image.

EPE EPE-M EPE-U EPE-δd

Final

Classic Wedel 9.1461 7.7189 17.7888 1.1234

Our Wedel 7.6287 5.3934 19.8561 0.8121

Our Proposal 7.5095 5.2406 18.9948 0.7997

Clean

Classic Wedel 8.6722 7.2324 17.2608 1.03522

Our Wedel 4.5097 2.2905 15.5042 0.5634

Our Proposal 4.3041 2.1558 15.1603 0.5521

Table 2: Results in KITTI 2015 training dataset for the op-

tical ﬂow (u, v) and for the disparity change δd. Out-noc

(resp. Out-all) refers to the percentage of pixels where the

estimated optical ﬂow presents an error above 3 pixels in

non-occluded areas (resp. all pixels). Out-δd refers to the

percentage of pixels where the estimated disparity change

presents an error above 3 pixels in the pixels where the dis-

parity is available.

Out-noc Out-all Out-δd

Classic Wedel 45.8745 55.4356 42.8971

Our Wedel 24.4237 33.2209 31.8971

Our Proposal 23.5233 32.8576 30.7532

terms for the occluded pixels, i.e., data terms that de-

pend on the views where these pixels might be visible.

We also have extended the optimization method for

optical ﬂow problems presented in (Palomares et al.,

2016) to the scene ﬂow case. Experimental results

show, both quantitative and qualitatively, the beneﬁts

of the proposed energy functional and the minimiza-

tion strategy. As future work we plan to use regular-

ization and data terms that better preserve the image

boundaries and that are more robust to illumination

changes.

ACKNOWLEDGEMENTS

The authors acknowledge partial support by

TIN2015-70410-C2-1-R (MINECO/FEDER, UE)

and by GRC reference 2014 SGR 1301, Generalitat

de Catalunya.

REFERENCES

Ayvaci, A., Raptis, M., and Soatto, S. (2012). Sparse occlu-

sion detection with optical ﬂow. International Journal

of Computer Vision, 97(3):322–338.

Ballester, C., Garrido, L., Lazcano, V., and Caselles, V.

(2012). A tv-l1 optical ﬂow method with occlusion de-

tection. In Pinz, A., Pock, T., Bischof, H., and Leberl,

F., editors, DAGM/OAGM Symposium, volume 7476

of Lecture Notes in Computer Science, pages 31–40.

Springer.

Basha, T., Moses, Y., and Kiryati, N. (2013). Multi-view

scene ﬂow estimation: A view centered variational

approach. International Journal of Computer Vision,

101(1):6–21.

Brox, T., Bruhn, A., Papenberg, N., and Weickert, J. (2004).

High accuracy optical ﬂow estimation based on a the-

ory for warping. In European Conference on Com-

puter Vision (ECCV), volume 3024 of Lecture Notes

in Computer Science, pages 25–36. Springer.

Butler, D. J., Wulff, J., Stanley, G. B., and Black, M. J.

(2012). A naturalistic open source movie for optical

ﬂow evaluation. In European Conference on Com-

puter Vision, pages 611–625.

Cech, J., Sanchez-Riera, J., and Horaud, R. P. (2011). Scene

ﬂow estimation by growing correspondence seeds. In

Proceedings of the IEEE Conference on Computer Vi-

sion and Pattern Recognition, pages 3129–3136.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the kitti vision benchmark

suite. In Conference on Computer Vision and Pattern

Recognition (CVPR).

Huguet, F. and Devernay, F. (2007). A variational method

for scene ﬂow estimation from stereo sequences. In

Computer Vision, 2007. ICCV 2007. IEEE 11th Inter-

national Conference on, pages 1–7.

Ince, S. and Konrad, J. (2008). Occlusion-aware optical

ﬂow estimation. IEEE Transactions on Image Process-

ing, 17(8):1443–1451.

Jaimez, M., Souiai, M., Stueckler, J., Gonzalez-Jimenez,

J., and Cremers, D. (2015). Motion coopera-

tion: Smooth piece-wise rigid scene ﬂow from rgb-

d images. In Proc. of the Int. Conference on

3D Vision (3DV). ¡a href=”https://youtu.be/qjPsKb-

˙kvE”target=”˙blank”¿[video]¡/a¿.

Menze, M. and Geiger, A. (2015). Object scene ﬂow for au-

tonomous vehicles. In The IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR).

Palomares, R. P., Meinhardt-Llopis, E., Ballester, C., and

Haro, G. (2016). Faldoi: A new minimization strategy

for large displacement variational optical ﬂow. Journal

of Mathematical Imaging and Vision, pages 1–20.

Pons, J. P., Keriven, R., and Faugeras, O. (2007). Multi-

view stereo reconstruction and scene ﬂow estimation

Joint Large Displacement Scene Flow and Occlusion Variational Estimation

179

with a global image-based matching score. Interna-

tional Journal on Computer Vision, 72(2):179–193.

Quiroga, J., Brox, T., Devernay, F., and Crowley, J. (2014).

Dense semi-rigid scene ﬂow estimation from rgbd im-

ages. In ECCV 2014, pages 567–582.

Sand, P. and Teller, S. (2008). Particle video: Long-range

motion estimation using point trajectories. Interna-

tional Journal of Computer Vision, 80(1):72–91.

Sun, D., Sudderth, E. B., and Pﬁster, H. (2015). Layered

rgbd scene ﬂow estimation. In Computer Vision and

Pattern Recognition (CVPR), 2015 IEEE Conference

on, pages 548–556.

Vedula, S. and et al. (1999). Three-dimensional scene ﬂow.

In Computer Vision, 1999. The Proceedings of the

Seventh IEEE International Conference on. IEEE, vol-

ume 2, pages 722–729.

Vedula, S., Rander, P., Collins, R., and Kanade, T.

(2005). Three-dimensional scene ﬂow. Pattern Anal-

ysis and Machine Intelligence, IEEE Transactions on,

27(3):475–480.

Vogel, C., Schindler, K., and Roth, S. (2011). 3d scene

ﬂow estimation with a rigid motion prior. In Computer

Vision (ICCV), 2011 IEEE International Conference

on, pages 1291–1298.

Vogel, C., Schindler, K., and Roth, S. (2015). 3d scene

ﬂow estimation with a piecewise rigid scene model.

International Journal of Computer Vision, 115(1):1–

28.

Wang, Y., Zhang, J., Liu, Z., Wu, Q., Chou, P. A., Zhang,

Z., and Jia, Y. (2015). Handling occlusion and large

displacement through improved rgb-d scene ﬂow esti-

mation. IEEE Transactions on Circuits and Systems

for Video Technology, 26(7):1265–1278.

Wedel, A., Brox, T., Vaudrey, T., Rabe, C., Franke, U., and

Cremers, D. (2011). Stereoscopic scene ﬂow com-

putation for 3d motion understanding. International

Journal of Computer Vision, 95(1):29–51.

Weinzaepfel, P., Revaud, J., Harchaoui, Z., and Schmid,

C. (2013). DeepFlow : Large displacement optical

ﬂow with deep matching. International Conference

on Computer Vision.

Young, D. M. (1971). Iterative solution of large linear sys-

tems. Computer science and applied mathematics.

Academic Press, Orlando.

Zanﬁr, A. and Sminchisescu, C. (2015). Large displacement

3d scene ﬂow with occlusion reasoning. In Proceed-

ings of the IEEE International Conference on Com-

puter Vision, pages 4417–4425.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

180
