White-box Implementation of Stream Cipher

Kazuhide Fukushima, Seira Hidano and Shinsaku Kiyomoto

KDDI Research, Inc., 2-1-15 Ohara, 356-8502, Fujimino-shi, Saitama, Japan

{ka-fukushima, se-hidano, kiyomoto}@kddilabs.jp

Keywords:

White-box Cryptography, Software Security, Tamper-resistant Software, Space Hard Cipher, Stream Cipher,

KCipher-2.

Abstract:

White-box cryptography is a software obfuscation technique for cryptography implementation. It can protect

the secret key even if an attacker has full access and control over the cryptosystem implementation and its

execution platform. There have been several proposals for a white-box implementation of cryptography. We

propose a white-box implementation of a stream cipher that can achieve the same asymptotic performance as

the standard implementation. Our black-box implementation of KCipher-2 achieves low storage consumption

of no more than 2 megabytes and is suitable for a PC, tablet, and smartphone. On the other hand, we can

achieve space hard implementation to protect against a code-lifting attack. Furthermore, the implementation

can protect against black-box attacks and a BGE attack.

1 INTRODUCTION

The conventional threats to a secret key cryptosys-

tem are considered in a black-box model. In this

model, an attacker cannot obtain the information on

the cryptosystem implementation. Thus, the attacker

can obtain no information on the cryptographic pro-

cess as long as the secret key is securely managed in

the endpoints. Kocher (Kocher, 1996) has proposed a

side-channel attack against implementation of Difﬁe-

Hellman, RSA, and DSS, and this has led to the con-

cept of a grey-box model. By means of this model, an

attacker can obtain side-channel information on the

execution process of the cryptosystem such as power

consumption, electromagnetic radiation, and execu-

tion time. Chow et al. (Chow et al., 2003a; Chow

et al., 2003b) have proposed white-box implementa-

tions of AES and DES. These implementations as-

sume a white-box model where an attacker has full

access and control over the implementation and its ex-

ecution platform.

Software obfuscation transforms a program into

an obfuscated one, which is hard to analyze while pre-

serving its functionality. Practical software obfusca-

tion techniques can be classiﬁed into two categories:

data obfuscation and control obfuscation. Data obfus-

cation changes the data structures in software. Coll-

berg et al. (Collberg et al., 1997) proposed change en-

coding that encodes variables with a linear function.

The data obfuscation techniques can transform the se-

cret key embedded in software. Control obfuscation

changes the control ﬂow in software. The control ob-

fuscation technique can protect the secret key against

static analysis. For example, we transform data in

software to a function and apply a control obfuscation

technique to protect the function.

However, Barak et al. (Barak et al., 2001) showed

the existence of functions that cannot be obfuscated.

They prove that no obfuscator satisﬁes the virtual

black box property that is, there is no obfuscator O,

such that for any program P, anything that can be ef-

ﬁciently computed from O(P) can be efﬁciently com-

puted given oracle access to P. Subsequently, the

impossibility of software obfuscation have been pub-

lished (Goldwasser and Kalai, 2005; Goldwasser and

Rothblum, 2007; Hofheinz et al., 2007; Hada and

Sakurai, 2007), and it is difﬁcult for software imple-

mentations achieve black-box security.

Security based on the white-box model is, there-

fore, desirable for various services in the real world.

A digital rights management (DRM) system allows

a legitimate user to use content. The media player

for the authorized user embeds the secret key for the

user. However, the DRM system will be broken if

an attacker can extract the secret key from the cryp-

tosystem implementation in the media player. The at-

tacker can use various reverse-engineering tools such

as a network monitoring tool, disassembler, debugger,

emulator and hexadecimal editor.

In this paper, we propose a white-box implemen-

Fukushima, K., Hidano, S. and Kiyomoto, S.

White-box Implementation of Stream Cipher.

DOI: 10.5220/0006115202630269

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 263-269

ISBN: 978-989-758-209-7

263

tation of a stream cipher. Our implementation can

achieve the same performance as keystream output of

a standard implementation while not imposing an un-

reasonable level of overhead on the key initialization

process.

2 RELATED WORK

White-box Cryptography and Attacks. Chow et

al. devised the concept of white-box cryptography,

and they proposed a white-box implementation of

AES (Chow et al., 2003b) and DES (Chow et al.,

2003a). Billet et al. (Billet et al., 2005; Muir, 2013)

proposed a BGE attack against the white-box imple-

mentation of AES by Chow et al. The BGE attack

extracts the entire AES secret key embedded in the

white-box implementation.

Xiao and Lai (Xiao and Lai, 2009) proposed a new

white-box AES implementation which is claimed to

be resistant to a BGE attack. Mulder et al. (Mulder

et al., 2013) showed that a practical cryptanalysis can

be applied to their white-box implementation. Their

attack uses a modiﬁed variant of the linear equiva-

lence algorithm.

Bringer et al. (Bringer et al., 2006a) proposed a

way to conceal the algebraic structure of a traceable

block cipher by adding perturbations to its descrip-

tion. Then, they proposed a white-box implementa-

tion for AEw/oS (Bringer et al., 2006b) that is a vari-

ant of the AES block cipher where the S-boxes are

part of the key and unknown to the adversary. Mul-

der (Mulder et al., 2010) developed a cryptanalysis

of the perturbated white-box AEw/oS implementation

that can be extended to perturbated white-box AES

implementations.

Karroumi (Karroumi, 2010) proposed new white-

box implementation based on dual ciphers of AES.

However, Klinec (Klinec, 2013) showed that this im-

plementation can be broken with the same time com-

plexity as the white-box implementation of AES. Bos

et al. (Bos et al., 2015) demonstrated that publicly

available white-box implementations cannot protect

against the differential computation analysis (DCA)

technique and the attack can extract the secret key

within seconds.

White-box Implementation Towards Probable Se-

curity. Sasdrich et al. (Sasdrich et al., 2016) pro-

posed a white-box implementation of AES on recon-

ﬁgurable hardware assuming a gray-box attacker who

can execute side-channel analysis including a differ-

ential computational analysis attack and differential

power analysis attack. Cho et al. (Cho et al., 2016)

proposes a new class of encryption scheme, hybrid

WBC, that can protect against their threat model and

achieve reasonable performance 1.3 times slower than

AES.

Biryukov et al. (Biryukov et al., 2014) designed

several encryption schemes based on the ASASA

structure ranging based on general afﬁne transforma-

tions combined with specially designed low degree

non-linear layers. Bogdanov and Isobe (Bogdanov

and Isobe, 2015) proposed a family of white-box se-

cure block ciphers SPACE and introduced the notion

of space hardness to protect against a code-lifting at-

tack.

Saxena et al. (Saxena et al., 2009) deﬁned secu-

rity notions for white-box cryptography. Fouque et

al. (Fouque et al., 2016) proposed white-box primi-

tives offering provable security guarantees and con-

crete instantiations for their construction with low

overhead.

3 KCipher-2

KCipher-2 was proposed by Kiyomoto et al. (Kiy-

omoto et al., 2007) and has a similar structure to

SNOW-family stream ciphers. KCipher-2 consists of

two feedback shift registers (FSRs) FSR-A and FSR-

B, and a non-linear function with four internal regis-

ters as shown in Fig. 1. The dotted lines show the

paths of one-bit variables which determine a multipli-

cation.

3.1 Non-linear Function

The non-linear function of KCipher-2 has internal

registers R1, R2, L1, L2. The values of two registers

of FSR-A and four registers of FSR-B are fed into the

non-linear function, and a 64-bit keystream is gener-

ated from a non-linear function every cycle. Figure 1

shows the non-linear function of KCipher-2. The non-

linear function includes four substitution steps that are

indicated by Sub.

The Sub step divides the 32-bit input string into

four 1-byte strings and applies a non-linear permu-

tation to each byte using an 8-to-8 bit substitution,

and then applies a 32-to-32 bit linear permutation.

The 8-to-8 bit substitution is the same as s-boxes of

AES (Daemen and Rijmen, 2002), and the permuta-

tion is the same as the AES MixColumn operation.

3.2 Keystream Output

Let keystream at time t be Z

(t)

= (ZH

(t)

,ZL

(t)

), where

(t)

is a higher 32-bit keystream, and ZL

(t)

is a

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

264

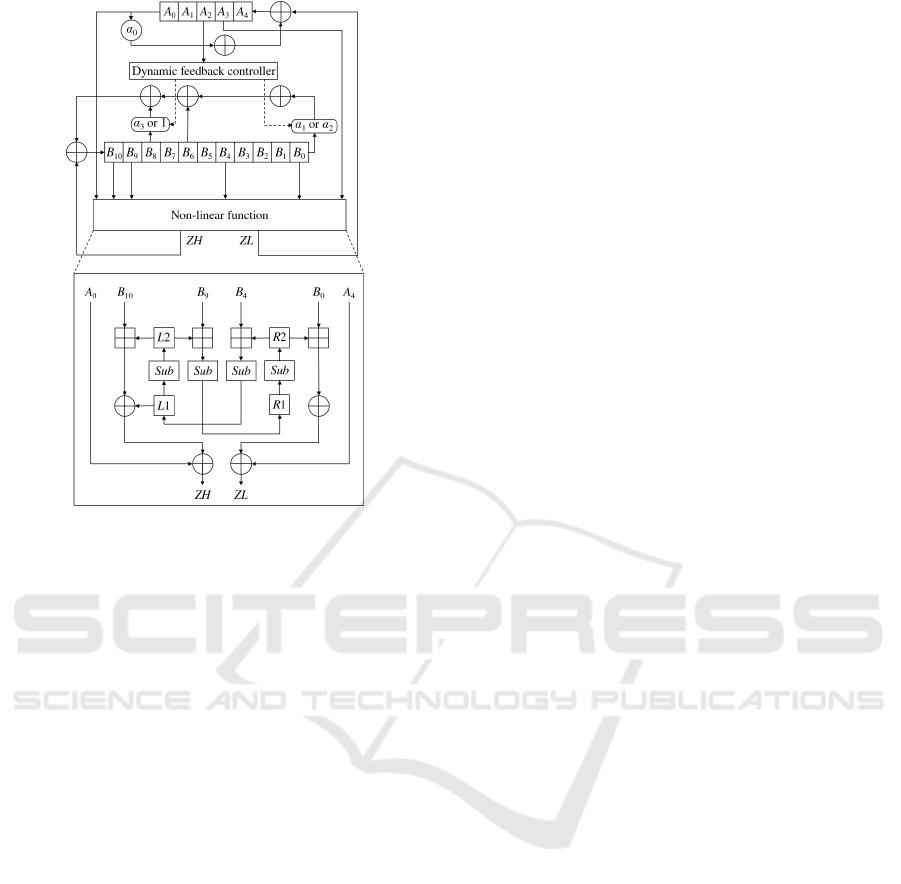

Figure 1: KCipher-2 Stream Cipher.

lower 32-bit keystream. The keystream is calculated

as follows:

(t)

= B

(t)

 R2

(t)

⊕ R1

(t)

⊕ A

(t)

= B

(t)

 L2

(t)

⊕ L1

(t)

⊕ A

(t)

where A

(t)

and B

(t)

denote outputs of FSR-A and

FSR-B at position x and time t and R1

(t)

, R2

(t)

, L1

(t)

and L2

(t)

denote the internal registers at time t. The

symbol ⊕ denotes a 32-bit exclusive-or and  denotes

a 32-bit addition. Finally, the internal registers are up-

dated as follows:

(t+1)

= Sub(L2

(t)

 B

(t)

), R2

(t+1)

= Sub(R1

(t)

(t+1)

= Sub(R2

(t)

 B

(t)

), L2

(t+1)

= Sub(L1

(t)

3.3 Key Initialization Process

The initial internal state is generated from a 128-bit

initial key and a 128-bit initial vector (IV) using the

key scheduling algorithm. The key scheduling algo-

rithm is similar to the round key generation function

of AES, and the algorithm extends the 128-bit initial

key to 384 bits. The key scheduling algorithm is de-

scribed as:











(0 ≤ i ≤ 3)

i−4

⊕ Sub((K

i−1

 8)⊕

i−1

 24)) ⊕ Rcon[i/4 − 1] (i = 4n)

i−4

⊕ K

i−1

(i 6= 4n)

where IK = (IK

,IK

) is the initial key and

0 ≤ i ≤ 11. The function Sub in the key scheduling

algorithm is the same as that in the non-linear func-

tion. This function is different from the round key

generation function of AES, while the other part of

the key scheduling algorithm is the same as the AES

round key generation. Rcon[i] denotes the round con-

stant word array in AES. The internal state is initial-

ized with K

and IV = (IV

,IV

) as follows;

= K

, A

= K

, A

= K

, A

= K

, B

= K

, B

= K

, B

= IV

, B

= K

, B

= K

, B

= IV

, B

= K

, B

= K

, B

= K

The internal registers, R1, R2, L1, and L2 are set to 0.

After the above processes, the cipher clocks 24 times

(1 ≤ t ≤ 24), updating the internal states as follows;

(t+1)

(

(t)

i+1

(0 ≤ i ≤ 3)

· A

(t)

⊕ A

(t)

⊕ ZL

(t)

(i = 4)

(t+1)











(t)

i+1

(0 ≤ i ≤ 9)

f (A

(t)

) · B

(t)

⊕ B

(t)

⊕ B

(t)

⊕g(A

(t)

) · B

(t)

⊕ ZH

(t)

(i = 10)

The f and g are dynamic feedback controller func-

tions deﬁned as;

f (A

(t)

) =

(

(t)

[30] = 1)

(t)

[30] = 0)

g(A

(t)

) =

(

(t)

[31] = 1)

1 (A

(t)

[31] = 0)

and α

, α

are constants in GF(2

4 PROPOSED METHOD

We propose a white-box implementation for stream

ciphers. Figure 2 shows the overview. The white-box

implementation calculates initialized internal states

using look-up tables (LUTs) in which the secret key

is embedded. Once the implementation completes the

key initialization process, it outputs keystream in ex-

actly the same way as the standard implementation.

Thus, our implementation imposes no overhead on the

keystream output process.

An attacker can obtain the initialized internal

states in the white-box implementation. The key ini-

tialization process must be noninvertible so that the

attacker cannot calculate the key and IV from the ini-

tialized internal states.

White-box Implementation of Stream Cipher

265

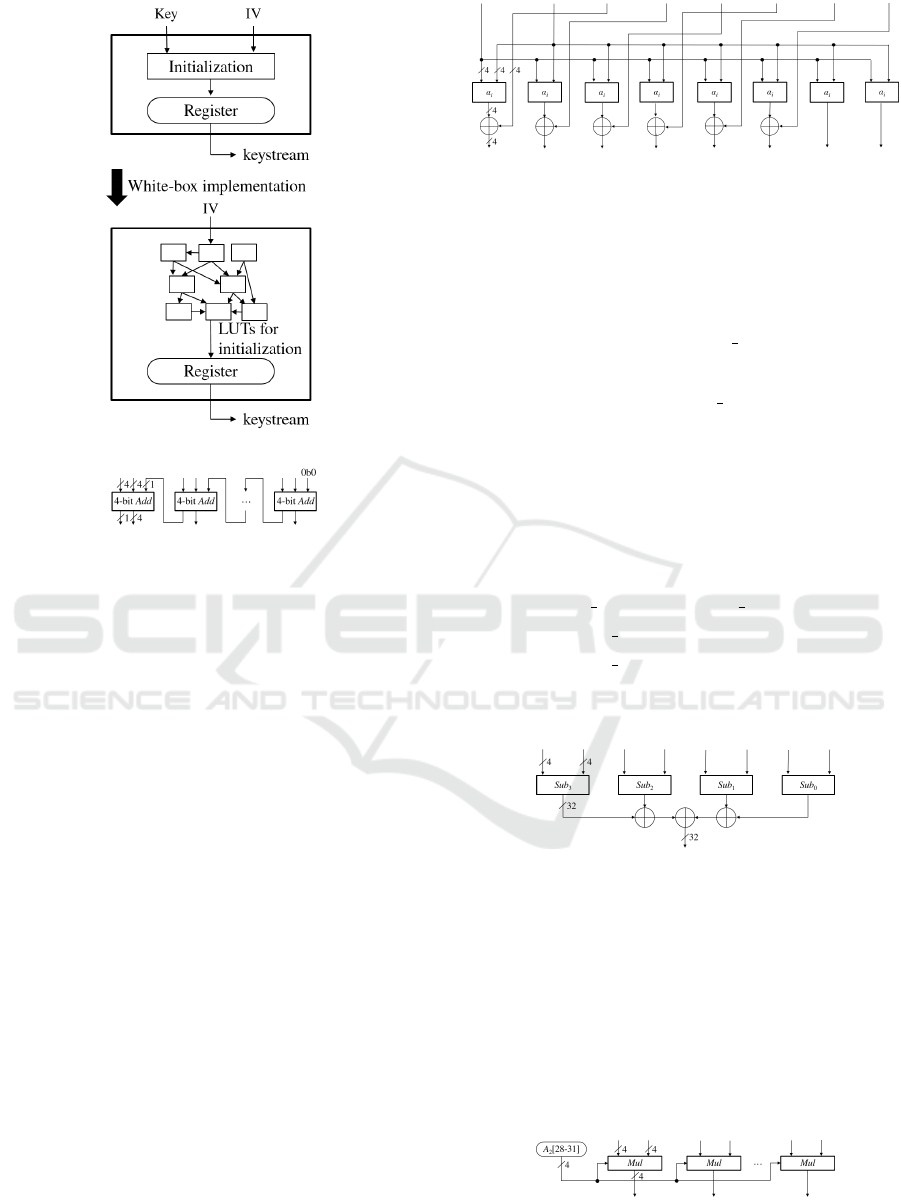

Figure 2: White-Box Implementation of Stream Cipher.

Figure 3: 32-bit Addition.

We show the white-box implementation of

KCipher-2. The key initialization process of

KCipher-2 is proved to be noninvertible. We can

thus apply our proposed implementation to KCipher-

2. Section 4.1 shows that all of the basic operations

in the initialized process in KCipher-2 can be imple-

mented using LUTs. We show the entire white-box

implementation of KCipher-2 in Sect. 4.2.

4.1 Basic Operations

The key initialization process of KCipher-2 uses 32-

bit exclusive-or, 32-bit addition, multiplication over

GF(2

), 32-bit Sub function and dynamic feedback

controller function f and g. We implement these op-

erations using four-bitwise operation based on LUTs.

The dynamic feedback controller functions can be im-

plemented using multiplication over GF(2

) and a

32-bit multiplexer.

32-bit Exclusive-OR. The 32-bit exclusive-or can

be implemented using eight 8-bit to 4-bit LUTs.

32-bit Addition. The 32-bit addition can be imple-

mented using eight LUTs for 4-bit addition. The LUT

has 9-bit input and 5-bit output to handle carries. Fig-

ure 3 shows the structure of the 32-bit addition in de-

tail.

Figure 4: Multiplication over GF(2

Multiplication Over GF(2

). The multiplication

of constant α

∈ GF(2

) and x ∈ GF(2

) can be cal-

culated with table lookup and exclusive-or operations

as;

· x = (x  8)⊕ alpha i[(x  24)],

where  and  is left-shift and right-shift operation

respectively. The table alpha i is a 32-bit to 32-bit

LUT; however, we divide it into eight 4-bit to 4-bit

LUTs. Figure 4 shows the structure of the multiplica-

tion over GF(2

) in detail.

Sub Function. The Sub function can be imple-

mented using four 8-bit to 32-bit LUTs and three 32-

bit exclusive-or operations as;

Sub(x) =sub 0[x&0xFF] ⊕ sub 1[(x  8)&0xFF]

⊕ sub 2[(x  16)&0xFF]

⊕ sub 3[(x  24)&0xFF],

where & is logical AND operation. Figure 5 shows

the detailed structure of the Sub function.

Figure 5: Sub Function.

32-bit Multiplexer. The dynamic feedback con-

troller functions f and g can be implemented using

32-bit multiplexers. The function f outputs one of

· B

and α

· B

according to A

(t)

[30], and g out-

puts one of α

· B

and B

according to A

(t)

[31] and

the multiplexer extracts the appropriate output. The

32-bit multiplexer can be implemented with eight 12-

bit to 4-bit LUTs. Figure 6 shows the structure of the

32-bit multiplexer in detail.

Figure 6: 32-bit Multiplexer.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

266

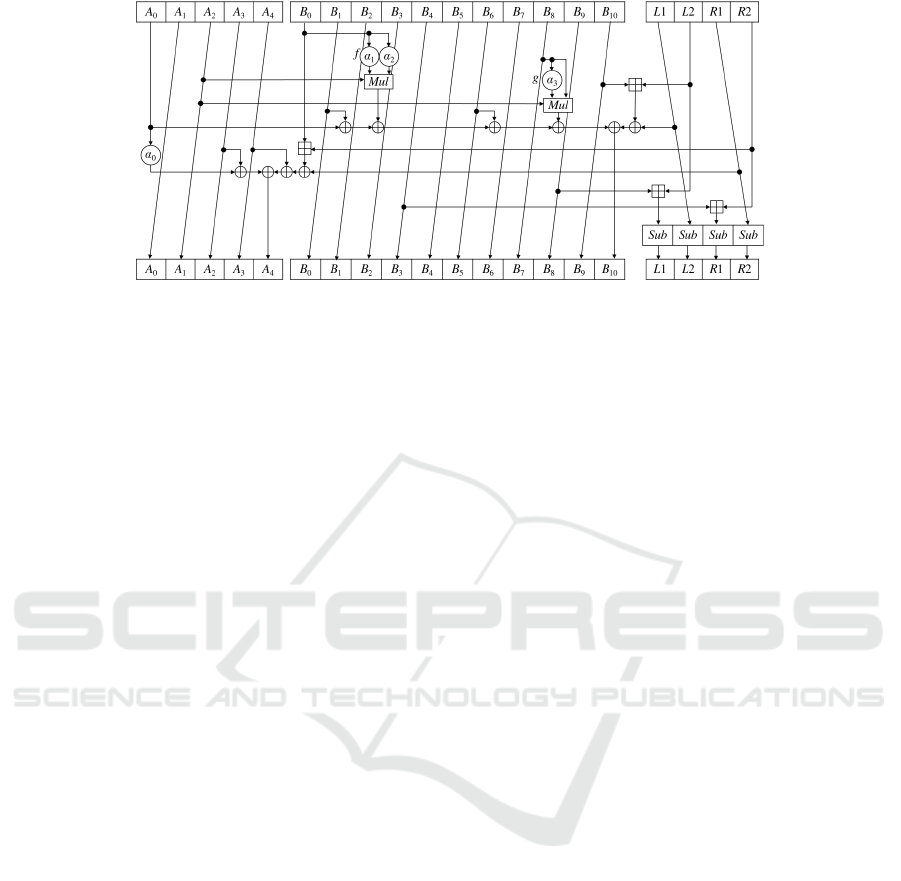

Figure 7: One Cycle of Key Initialization Process of KCipher-2.

4.2 Implementation of KCipher-2

The key initialization process of KCipher-2 based on

LUTs is shown in Fig. 7. The ﬁgure shows one cycle

of the key initialization process. The entire key ini-

tialization process consists of 24 repeats of the cycle.

5 EVALUATION

We evaluate the storage size required for the white-

box implementation of KCipher-2. We then analyze

the security of the implementation.

5.1 Storage Size

We estimate the total size of LUTs used in the white-

box implementation of KCipher-2. First, we show the

size of LUTs for basic operations. Then, we evaluate

the total storage size for the one cycle and the entire

key initialization process.

The size of the LUT is estimated by n

· 2

bits

or n

· 2

−3

bytes where n

is the input bit length

and n

is the output bit length. Table 1 shows the

storage size of LUTs for the basic operations used in

the white-box implementation of KCipher-2. One cy-

cle of the key initialization process contains ten 32-

bit exclusive-or operations, four 32-bit additions, four

multiplications over GF(2

), four Sub functions and

two 32-bit multiplexers. Thus, the storage size re-

quired for one cycle of the key initialization process

is 87 kilobytes. The total storage size for the entire

key initialization process is 87×24 kilobytes or 2,088

kilobytes.

Optimization with Pre-computation. We can re-

duce the storage size of our white-box implemen-

tation. The input of some LUTs is independent of

the IV; that is, it depends only on the embedded se-

cret key. These LUTs can be removed using a pre-

computation technique. This optimization facilitates

a 245-kilobyte reduction, and the total storage size is

1,843 kilobytes.

5.2 Security

We consider the security of our white-box implemen-

tation against a black-box attack and BGE attack.

Black-box Attack. A black-box attack can be pro-

tected against using the input/output encoding tech-

nique proposed by Chow et al. (Chow et al., 2003b).

An attacker tries to extract some parts of the key from

the input/output of LUTs. For example, Sub(K

 0)

is assigned to L1 and Sub(K

 0) is assigned to R1

at the ﬁrst cycle of the key initialization process. The

attacker can extract K

and K

from the input/output

of the LUTs for 32-bit addition.

To protect a LUT T , we choose bijections P and

Q, and generate the new table T

= Q ◦ T ◦ P

−1

. If

the output of T feeds into another table U , we have

to choose the bijections so that output encoding of T

and input encoding U cancel each other. Table T and

U can be protected as follows;

◦ T

= (R ◦U ◦ Q

−1

) ◦ (Q ◦ T ◦ P

−1

)

= R ◦ (U ◦ T ) ◦ P

−1

where T

= Q ◦ T ◦ P

−1

and U

= R ◦U ◦ Q

−1

The carry of 4-bit addition can also be protected

by the input/output encoding technique. Some 4-bit

addition LUTs output ﬂipped carry and the others out-

put unﬂipped carry. The total number of 4-bit addi-

tions is 384 in the white-box implementation and 377

in the optimized implementation. Thus, the computa-

tional complexity to guess the input/output encoding

of the entire key initialization process is 2

384

and 2

377

respectively.

White-box Implementation of Stream Cipher

267

Table 1: Storage Size of LUTs for Basic Operations.

Operation Structure Storage Size

32-bit Exclusive-OR 8-bit to 4-bit LUTs × 8 1 [KB]

32-bit Addition 9-bit to 5-bit LUTs × 8 2.5 [KB]

Multiplication over GF(2

) 8-bit to 4-bit LUTs × 8 1.75[kB]

+ 4-bit Exclusive-OR × 6

Sub Function 8-bit to 32-bit LUTs × 4 7[KB]

+ 32-bit Exclusive-OR × 3

32-bit Multiplexer 12-bit to 4-bit LUTs × 8 16[KB]

BGE Attack. Billet et al. (Billet et al., 2005)

demonstrated that the white-box implementation of

AES is vulnerable to a kind of algebraic attack. The

attack is named after the initials of authors, the BGE

attack. However, the BGE attack strongly relies on

public constants and building blocks used in the AES

and cannot be applied to the white-box implementa-

tion of KCipher-2.

Code-lifting Attack. A code-lifting attack extracts

and copies the entire white-box implementation to

other PCs and devices. The copied program can ac-

cess the secret key as well as the original one since

the key is embedded in the program. We can pro-

tect against this attack by increasing the storage size

according to the concept of the space hardness (Bog-

danov and Isobe, 2015).

Our original method uses four-bitwise operations.

We can use eight-bitwise or 16-bitwise operations

to achieve a higher level of security against a code-

lifting attack. The total storage size is 3.09 gigabytes

with eight-bitwise operations and over 24 petabytes

with 16-bitwise operations. Thus, the implementa-

tion with eight-bitwise operations is feasible for space

hard implementation. There exists an oblivious trade-

off between portability and security against a code-

lifting attack.

6 CONCLUSION

We proposed a white-box implementation of a stream

cipher that can achieve the same asymptotic perfor-

mance as the standard implementation. Our black-

box implementation of KCipher-2 achieves low stor-

age consumption of no more than 2 megabytes and

is suitable for a PC, tablet, and smartphone. On the

other hand, we can achieve space hard implementa-

tion to protect against a code-lifting attack. Further-

more, the implementation can protect against black-

box attacks and a BGE attack. Our future research

includes a performance evaluation of the software im-

plementation and expansion of the proposed method

to other stream ciphers.

REFERENCES

Barak, B., Goldreich, O., Impagliazzo, R., Rudich, S., Sa-

hai, A., Vadhan, S., and Yang, K. (2001). On the

(Im)possibility of Obfuscating Programs. In Proc.

of Advances in Cryptology (CRYPTO 2001), Lecture

Notes in Computer Science 2139, pages 1–18.

Billet, O., Gilbert, H., and Ech-chatbi, C. (2005). Crypt-

analysis of a White Box AES Implementation. In

Proc. of Selected Areas in Cryptography (SAC 2014),

Lecture Notes in Computer Science 3357, pages 227–

240.

Biryukov, A., Bouillaguet, C., and Khovratovich, D. (2014).

Cryptographic schemes based on the ASASA struc-

ture: Black-box, white-box, and public-key. In Ad-

vances in Cryptology (ASIACRYPT 2014), Lecture

Notes in Computer Science 8873, pages 63–84.

Bogdanov, A. and Isobe, T. (2015). White-Box Cryptogra-

phy Revisited: Space-Hard Ciphers. In Proc. of ACM

Conference on Computer and Communications Secu-

rity (ACM CCS 2015), pages 1058–1069.

Bos, J. W., Hubain, C., Michiels, W., and Teuwen,

P. (2015). Differential Computation Analysis:

Hiding your White-Box Designs is Not Enough.

https://eprint.iacr.org/2015/753.

Bringer, J., Chabanne, H., and Dottax, E. (2006a). Per-

turbing and Protecting a Traceable Block Cipher. In

Proc. of IFIP Open Conference on Communications

and Multimedia Security, Lecture Notes in Computer

Science 4237, pages 109–119.

Bringer, J., Chabanne, H., and Dottax, E. (2006b). White

Box Cryptography: Another Attempt.

Cho, J., Choi, K. Y., and Moon, D. (2016). Hy-

brid WBC : Secure and efﬁcient encryption

schemes using the White-Box Cryptography.

https://eprint.iacr.org/2016/679.

Chow, S., Eisen, P., Johnson, H., and Van Oorschot, P. C.

(2003a). A White-Box DES Implementation for DRM

Applications. In Proc. of ACM Workshop on Digi-

tal Rights Management (DRM 2002), Lecture Notes

in Computer Science 2696, pages 1–15.

Chow, S., Eisen, P. a., Johnson, H., Van Oorschot, P. C.,

and Oorschot, P. C. V. (2003b). White-box Cryptogra-

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

268

phy and an AES Implementation. In Proc. of Selected

Areas in Cryptography (SAC 2002), Lecture Notes in

Computer Science 2595, pages 250–270.

Collberg, C., Thomborson, C., and Low, D. (1997). A

Taxonomy of Obfuscating Transformations. Technical

Report 148, Department of Computer Science Univer-

sity of Auckland.

Daemen, J. and Rijmen, V. (2002). The Design of Rijndael:

AES – The Advanced Encryption Standard. Springer.

Fouque, P.-a., Karpman, P., Kirchner, P., and Minaud, B.

(2016). Efﬁcient and Provable White-Box Primitives.

https://eprint.iacr.org/2016/642.

Goldwasser, S. and Kalai, Y. T. (2005). On the Impossi-

bility of Obfuscation with Auxiliary. In Proc. of 46th

Annual IEEE Symposium on Foundations of Computer

Science (FOCS2005), pages 553–562.

Goldwasser, S. and Rothblum, G. N. (2007). On Best-

Possible Obfuscation. In Proc. of Fourth IACR The-

ory of Cryptography Conference (TCC2007), Lecture

Notes in Computer Science 4392, pages 194–213.

Hada, S. and Sakurai, K. (2007). A Note on the

(Im)possibility of Using Obfuscators to Transform

Private-Key Encryption into Public-Key Encryption.

In Proc. of International Workshop on Security

(IWSEC2007), Lecture Notes in Computer Science

4752, pages 1–12.

Hofheinz, D., Malone-Lee, J., and Stam, M. (2007). Ob-

fuscation for Cryptographic Purposes. In Proc. of

Fourth IACR Theory of Cryptography Conference

(TCC2007), Lecture Notes in Computer Science 4392,

pages 214–232.

Karroumi, M. (2010). Protecting White-Box AES with

Dual Ciphers. In Proc. of Information Security and

Cryptology (ICISC 2010), Lecture Notes in Computer

Science 6829, pages 278–291.

Kiyomoto, S., Tanaka, T., and Sakurai, K. (2007). K2: A

Stream Cipher Algorithm Using Dynamic Feedback

Control. In Proc. of Secrypt 2007, pages 204–213.

Klinec, D. (2013). White-box attack resistant cryptography.

PhD thesis, Faculty of Informatics, Masaryk Univer-

sity.

Kocher, P. C. (1996). Timing Attacks on Implementations

of Difﬁe-Hellman, RSA, DSS, and Other Systems.

In Proc. of Advances in Cryptology (CRYPTO 1996),

Lecture Notes in Computer Scicence 1109, pages 104–

113.

Muir, J. a. (2013). A Tutorial on White-box AES. Advances

in Network Analysis and its Applications, Mathemat-

ics in Industry, 18:209–229.

Mulder, Y. D., Roelse, P., and Preneel, B. (2013). Crypt-

analysis of the XiaoLai White-Box AES Implementa-

tion. In Proc. of Selected Areas in Cryptography (SAC

2012), Lecture Notes in Computer Science 7707, vol-

ume Lecture No, pages 34–49.

Mulder, Y. D., Wyseur, B., and Preneel, B. (2010). Crypt-

analysis of a Perturbated White-Box AES Imple-

mentation. In Proc. of Progress in Cryptology (IN-

DOCRYPT 2010), Lecture Notes in Computer Science

6498, pages 292–310.

Sasdrich, P., Moradi, A., and G

uneysu, T. (2016).

White-Box Cryptography in the Gray Box A

Hardware Implementation and its Side Channels .

https://eprint.iacr.org/2016/203.

Saxena, A., Wyseur, B., and Preneel, B. (2009). Towards

Security Notions for White-Box Cryptography. In

Proc. of Information Security Conference (ISC 2009),

Lecture Notes in Computer Science 5735, pages 49–

58.

Xiao, Y. and Lai, X. (2009). A Secure Implementation of

White-Box AES. In Proc. of International Confer-

ence on Computer Science and its Applications (CSA

2009), pages 1–6.

White-box Implementation of Stream Cipher

269
