Development of Real-time HDTV-to-8K TV Upconverter

Seiichi Gohshi

, Shinichiro Nakamura

and Hiroyuki Tabata

Kogakuin University, 1-24-2, Nishi-Shinjuku, Shinjuku-Ku, Tokyo, Japan

Keisoku Giken Co., Ltd. 2-12-2 Chigasaki-minami, Tsuzuki-ku, Yokohama-city, Kanagawa-pref., Japan

Keywords:

8KTV, 4KTV, HDTV, Up-convert, Super Resolution with Non-linear Processing, Super Resolution Image

Reconstruction, Learning based Super Resolution, Non-linear Signal Processing.

Abstract:

Recent reports show that 4K and 8K TV systems are expected to replace HDTV in the near future. 4K TV

broadcasting has begun commercially and the same for 8K TV is projected to begin by 2018. However,

the availability of content for 8K TV is still insufﬁcient, a situation similar to that of HDTV in the 1990s.

Upconverting analogue content to HDTV content was important to supplement the insufﬁcient HDTV content.

This upconverted content was also important for news coverage as HDTV equipment was heavyand bulky. The

current situation for 4K and 8K TV is similar wherein covering news with 8K TV equipment is very difﬁcult

as this equipment is much heavier and bulkier than that required for HDTV in the 1990s. The HDTV content

available currently is sufﬁcient, and the equipment has also evolved to facilitate news coverage; therefore, an

HDTV-to-8K TV upconverter can be a solution to the problems described above . However, upconversion

from interlaced HDTV to 8K TV results in an enlargement of the images by a factor of 32, thus making the

upconverted images very blurry. An upconverter with super resolution has been proposed in this study in order

to ﬁx this issue.

1 INTRODUCTION

Research about HDTV started in the 1960s, and its

practical usage began in the late 1990s. The broad-

casting service began in 2000 for digital satellite

HDTV and in 2003 for terrestrial HDTV, and now

both services are offered in multiple countries. More

than 30 years of research were required for HDTV to

become a practical service, and only 18 years have

passed since these services began. However, 4K TV

services have been made available via satellite broad-

casting and Internet services. The horizontal and ver-

tical resolutions of HDTV are 1,980 pixels and 1,080

pixels, respectively (ITU-R-HDTV, 2015), and that

of 4K TV are 3,860 pixels and 2,160 pixels, respec-

tively (ITU-R-UDTV, 2015). The 4K TV system has

evolved over time and is used for multiple applica-

tions such as sports content, cinema and personal

videos. 8K TV has a horizontal resolution of 7,680

pixels and a vertical resolution of 4,320 pixels (ITU-

R-UDTV, 2015), which is four times greater than that

of 4K TV and 16 times greater than that of full HDTV

(progressive HDTV). Broadcasting HDTV adopts an

interlaced video system which contains half the infor-

mation as that contained by full HDTV. This means

that 8K TV content has a resolution 32 times higher

than that of the broadcasting HDTV content. The

system clock frequencies for broadcasting HDTV, 4K

TV and 8K TV are set at 74.25 MHz, 594 MHz and

2,376 MHz (2.376 GHz), respectively. The HD equip-

ment used currently has evolvedboth in terms of tech-

nology and cost effectiveness, and a majority of the

video content available, including ﬁlms, is made in

HD. Although the use of commercial 4K TV is prac-

tical, its equipment is not commonly available, espe-

cially that used professionally, for example, 4K TV

professional video cameras. Sony began to release its

professional studio cameras in 2014, which are still

expensive. Other 4K TV equipment such as profes-

sional editing systems, transmission systems and out-

side broadcasting cars are both technically immature

and expensive. All types of 8K TV equipment are

currently under development or are being researched;

therefore, its practical use is much more difﬁcult to

begin than that of 4K TV. However, 8K TV broadcast-

ing is projected for 2018 and is expected to be a high-

light of the 2020 Olympic Games. There are a couple

of problems that 8K TV services are faced with. First,

8K TV content for broadcasting is crucial but rather

insufﬁcient. Second, using 8K TV equipment in news

gathering systems such as outside broadcasting cars

and helicopters is not currently practical because of

Gohshi S., Nakamura S. and Tabata H.

Development of Real-time HDTV-to-8K TV Upconverter.

DOI: 10.5220/0006116000520059

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 52-59

ISBN: 978-989-758-225-7

the reasons described earlier. The same situation ex-

isted for HDTV in the late 1990s, wherein creating

HDTV content and gathering news was difﬁcult be-

cause of the expensive and bulky equipment. In con-

trast, analogue TV content was sufﬁcient and the pro-

fessional equipment required was less expensive and

of small size and low weight. Therefore, analogue TV

content was upconverted to HDTV content to resolve

the problems of insufﬁcient HDTV content and ex-

pensive equipment. The HD equipment available cur-

rently is sufﬁciently small to be used for news gather-

ing and outside broadcasting; however, analogue con-

tent is still used for HDTV broadcasting with ana-

logue TV-to-HDTV upconversion as much excellent

analogue content has been stored and accumulated

over time. However, upconvertedcontent is blurry be-

cause the images are interpolated. The highest resolu-

tion of the original image and the interpolated image

remains the same despite using an ideal interpolation

ﬁlter. The upconverted HDTV content can be imme-

diately recognised as it appears blurry. The resolution

ratio of HDTV to analogue TV is 5:1. The same issue

will occur if HDTV content is used for upconversion

to 8K TV. The accumulated HDTV content is inter-

laced as the professional equipment used for it is an

interlaced system; hence, we need to upconvert this

interlaced content to 8K TV content, including that

for news gathering and outside broadcasting.

As discussed earlier, the resolution ratio of HDTV

to 8K TV is 1:32, whereas that for analogue TV-to-

HDTV conversion is 1:5. This shows that HDTV-to-

8K TV conversion produces blurrier content than that

produced by analogue TV-to-HDTV conversion. Cur-

rently the upconversion from the interlaced HDTV to

progressive HDTV (full HD) is not so difﬁcult and

the full HD equipment such as cameras, recorders and

other studio equipment are available. However, the

upconversion from full HD to 8K is still 1:16 and it is

higher magnifying scale than that of analogue TV to

HDTV. Such blurry content does not take advantages

of the high resolution screen, which is the most im-

portant sales point of 8K TV. Enhancers are generally

used to improve the resolution of images and videos

(Schreiber, 1970)(Lee, 1980)(Pratt, 2001). These en-

hancers use a simple algorithm to cope with real-

time signal processing for videos and are provided in

most digital HDTVs and 4K TVs. However, these

enhancers cannot create high frequency elements as

they only amplify the edges in an image. Therefore, it

is necessary to develop a new technology which can

cope with creating such elements that are not avail-

able for the current upconverted images.

2 SUPER RESOLUTION (SR)

Super Resolution (SR) is a technology that creates a

high-resolution image from low-resolution ones (Park

et al., 2003)(Farsiu et al., 2004) (van Eekeren et al.,

2010) (Houa and Liu, 2011) (Protter et al., 2009)

(Panda et al., 2011). The keyword phrase ”Super

resolution” gets about 160 million hits on Google.

Indeed, there are many SR proposals, but most of

them are complex algorithms involving many itera-

tions. If the iterations are conducted for video sig-

nals, frame memories, of the same number as the it-

erations, are required. Such algorithms are almost

impossible to work with real-time hardware for the

upconverted 8K content. Although non-iterative SR

was proposed (Sanchez-Beato and Pajares, 2008), it

only reduces aliasing artifact for a couple of images

with B-Splines. It is not sufﬁcient to improve HDTV-

to-8K upconverted blurry videos because the upcon-

verted videos do not have aliasing at all. SR for TV

should have low delay. Especially in live news broad-

casts, conversations between announcers in the TV

studio and persons at the reporting point tend to be af-

fected by delays. For viewers, the superimposed time

is not accurate on a TV screen if the delay is longer

than 60 seconds. For these reasons, complex SR algo-

rithms with iterations cannot be used in TV systems.

Although a real-time SR technology for HDTV was

proposed (Toshiba, 2016)(Matsumoto and Ida, 2010),

its resolution is worse than that of HDTV without SR

(Gohshi et al., 2014).

SR with non-linear signal processing (NLSP) has

been proposed as an alternative to the conventional

image enhancement methods (Authors related), and

it has several advantages compared with conventional

SR technologies. Since it does not use iterations or

frame memories, it is sufﬁciently lightweight to be

installed in an FPGA (Field Programmable Gate Ar-

ray) for real-time video processing. Furthermore, it

can create frequency elements that are higher than

those of the original image, as has been provenby per-

forming two-dimensional fast Fourier transform (2D-

FFT) results (Gohshi and Echizen, 2013) . However,

it has not been used for 8K content because the sys-

tem clock of 8K is 2.3376 GHz. In this paper, we

present real-time HD/8K upconverter with NLSP to

improve actual resolution of the content upconverted

to 8K from HDTV.

Development of Real-time HDTV-to-8K TV Upconverter

3 SR WITH NON-LINEAR

SIGNAL PROCESSING

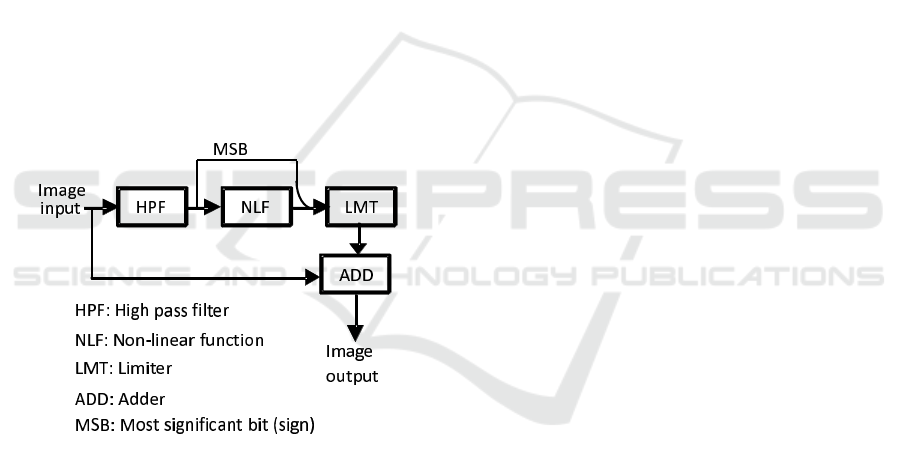

The basic idea of NLSP is like that of the one-

dimensional signal processing shown in Figure 1

(Gohshi and Echizen, 2013). The input is distributed

to two blocks. The upper path creates high-frequency

elements that the original image does not have as fol-

lows. The original image is processed with a high

pass ﬁlter (HPF) to detect edges. The output of the

HPF is edge information that has a sign, i.e., plus

or minus, for each pixel. After the HPF, the edges

are processed with a non-linear function (NLF). If

an even function such as x

is used as the NLF, the

sign information is lost. To stop this from happen-

ing, the most signiﬁcant bit (MSB) is taken from the

edge information before the NLF and restored af-

ter the NLF. Non-linear functions generate harmon-

ics that can create frequency elements that are higher

than those of the original image. NLSP using a num-

ber of non-linear functions should be able to create

high-frequency elements. Here, we propose y = x

for plus edges and y = −x

for minus edges.

Figure 1: NLSP algorithm.

It is well known that images are expanded in a

Fourier series (Mertz and Gray, 1934). Here, we take

a one-dimensional image f(x) to make the explana-

tion simple. f(x) is expanded as follows.

f(x) =

∑

n=−N

cos(nω

) + b

sin(nω

) (1)

is the fundamental frequency and N means a

positive integer. The HPF attenuates low-frequency

elements including the zero frequency element (DC).

We denote the output of the HPF by g(x) and it

becomes as follows.

g(x) =

−M

∑

n=−N

cos(nω

) + b

sin(nω

)

∑

n=M

cos(nω

) + b

sin(nω

) (2)

M is also a positive integer and N > M. The

frequency elements from −M to M are eliminated

with the HPF. DC has the largest energy in the im-

ages, and it sometimes causes saturation whereby the

images become either all white or all black. The

square function does not cause saturation by elimi-

nating DC, and it has the following effect. Edges

are represented with sin(nω

) and cos(nω

) func-

tions. The square function generates sin

(nω

) and

cos

(nω

) from sin(nω

) and cos(nω

). sin

(nω

)

and cos

(nω

) generate sin2(nω

) and cos2(nω

Theoretically it can be explained as follows. Since

the most signiﬁcant bit (MSB) of the g(x) is protected,

the input of the LMT for g(x) > 0 becomes the Equa-

tion 3 and that of the LMT for g(x) < 0 becomes the

Equation 4.

(g(x))

−M

∑

n=−2N

cos(nω

) + d

sin(nω

)

∑

n=M

cos(nω

) + d

sin(nω

) (3)

−(g(x))

= −

−M

∑

n=−2N

cos(nω

) + d

sin(nω

)

−

∑

n=M

cos(nω

) + d

sin(nω

) (4)

Here, c

and d

are coefﬁcients of the expansion of

Equation 2. Although Equations 3 and 4 have the high

frequency elements from (N + 1)ω

) to 2Nω

), they

do not exist in the input image, Equation 1. Since

these high frequency elements are created with the

non-linear function, some of them are too large and

need to be processed with LMT. After LMT process-

ing, the created high frequency elements are added to

the input with ADD. These NLFs create frequency el-

ements that are two times higher than the input, and

they can be used to double the size of the images hor-

izontally and vertically, such as in the upconversion

from HD to 4K.

It is necessary to apply NLSP horizontally

and vertically, since images and videos are two-

dimensional signals. Figure 2 is a block diagram

of the real-time video processing. The input is dis-

tributed to two paths. The output of the upper line,

the delay path, is the same as the input. The signal is

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

2D-LPF

Horizontal

HPF

Delay

Input

Vertical

HPF

Output

NLF

HPF: High pass filter

NLF: Non-linear function

LMT: Limiter

MSB: Most significant bit

LMT

NLF

LMT

MSB

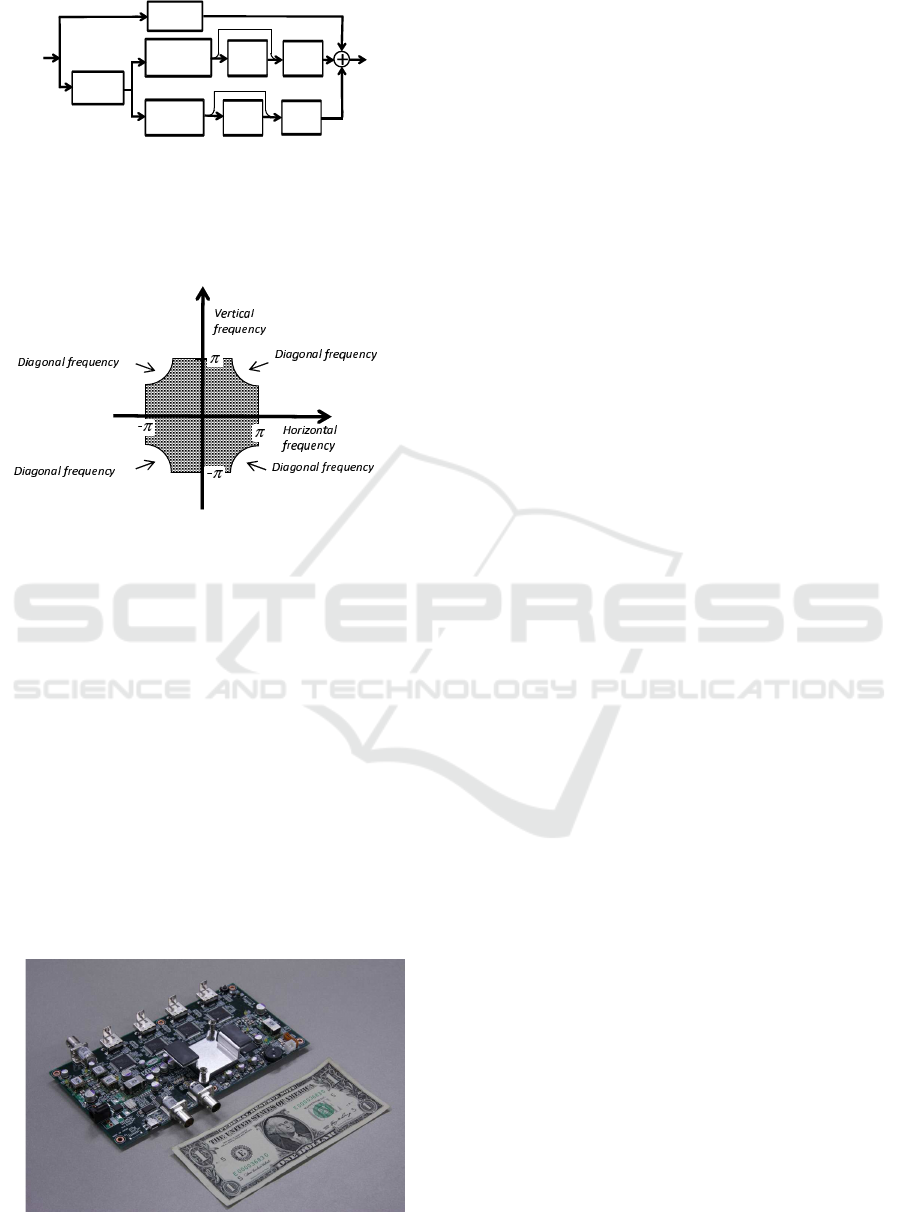

Figure 2: Block diagram of real-time hardware.

Figure 3: Characteristics of 2D-LPF.

delayed until the signal processing on the other paths

ends. The bottom line includes a two-dimensional

low pass ﬁlter (2D-LPF) and a parallel NLSP part.

The 2D-LPF block decreases noise in video because

noise has horizontal and vertical high frequency el-

ements. Figure 3 shows the two-dimensional fre-

quency characteristics of the 2D-LPF. 2D-LPF passes

the checker marked area and eliminates the diagonal

frequency elements, i.e., the four corners shown in

Figure 3. NLSP creates horizontal high frequency el-

ements and vertical high frequency elements. Both

horizontal and vertical high frequency, diagonal, el-

ements are processed with horizontal NLSP and ver-

tical NLSP separately. If these frequency elements

are processed with NLSP, the diagonal frequency ele-

ments are emphasized to excess.

Figure 4: Appearance of real-time hardware.

The human visual system is not so sensitive to the

horizontal and vertical high-frequency elements, i.e.

the four corners shown in Figure 3 (Sakata, 1980).

This means these frequency elements in the NLSP

video do not affect the perceived resolution. Thus,

to maintain the original diagonal resolution, the orig-

inal diagonal frequency elements are sent through the

delay line and added to the output. After the 2D-LPF

the signal is provided into two paths. The upper path

is the horizontal NLSP, and the lower path is the ver-

tical NLSP. The three video paths are added together

at the end to create the NLSP video. This parallel sig-

nal processing is fast. It reduces the delay from input

to output, as discussed in section 1, and it can work

at 60 Hz. Figure 4 shows the NLSP hardware. It up-

converts full to 4K , and it processes the up-converted

4K video with NLSP to increase the resolution at 60

Hz. The NLSP algorithm is installed in the FPGA,

which is located under the heat sink. Although there

are many parts on the circuit board, most of them are

input and output interface devices and electric power

devices.

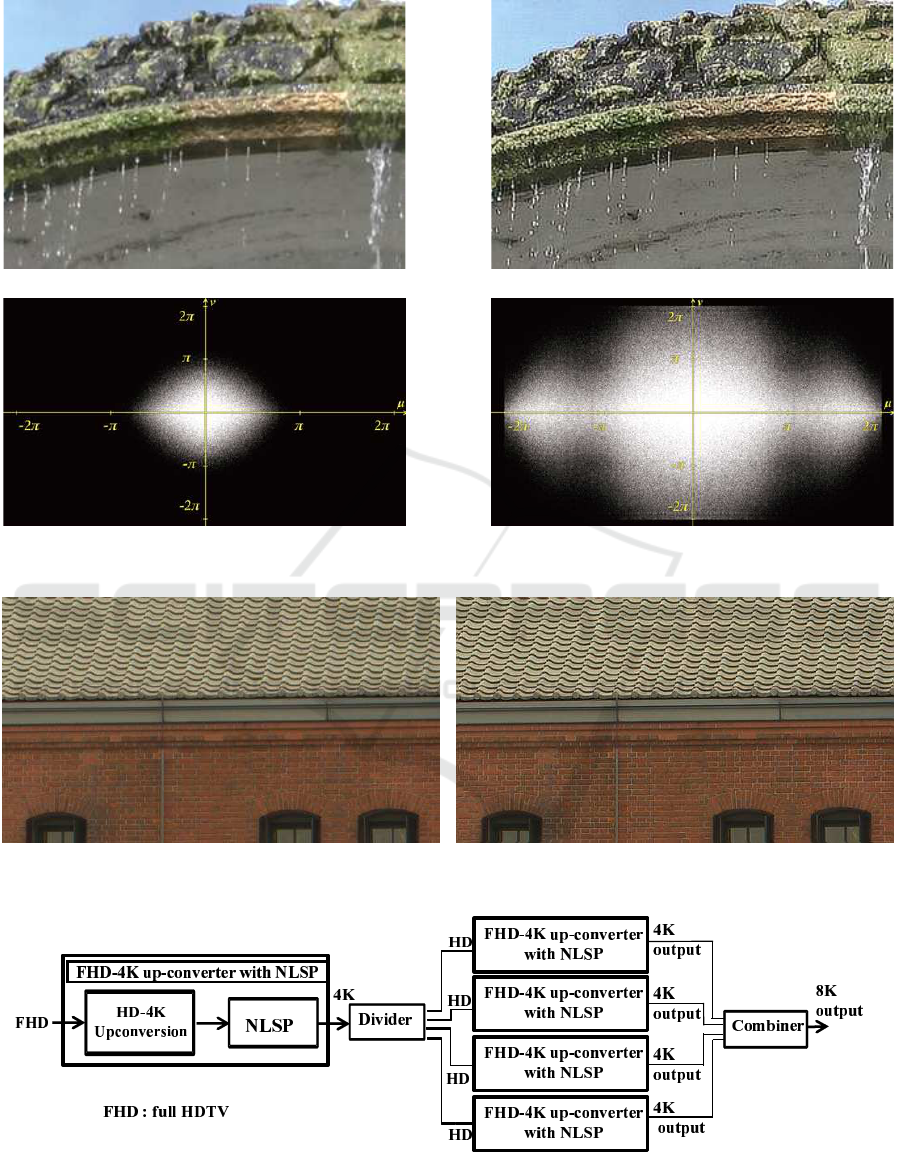

Figure 5 showsan image processed with the NLSP

hardware shown in Figure 4. Figure 5(a) is just an en-

largement from HD to 4K, and it looks blurry. Fig-

ure 5(b) shows the image processed with NLSP af-

ter the enlargement. Its resolution is clearly better

than that of Figure 5(a). Figures 5(c) and 5(d) are the

2D-FFT results of Figures 5(a) and 5(b) respectively.

In Figures 5(c) and 5(d), the horizontal axis the the

horizontal frequency and the vertical axis the vertical

frequency. HD Figure 5(d) has horizontal and verti-

cal high-frequency elements that Figure 5(c) does not

have. This shows that real-time hardware works and

it produced the high frequency elements that the orig-

inal image does not possess.

4 NLSP FOCUSING EFFECT

Focus is an important factor for creating ﬁnely de-

tailed content. Professional cameras do not have auto-

focus functions because professional camera persons

have the ability to adjust the ﬁne focus and use com-

plex focus controls on the HD cameras. It is very dif-

ﬁcult to manually adjust the focus of 8K cameras us-

ing only a small viewﬁnder, and if the focus is off,

the 8K format cannot live up to its full potential. Be-

cause 8K is developed for broadcasting, 8K cameras

are equipped with zoom lenses as well as HD cam-

eras. The focus of zoom lenses is less accurate than

that of single-focus lenses. A zoom lens makes it

more difﬁcult to accurately adjust the focus. HD-to-

8K upconverted videos are blurry and their character-

Development of Real-time HDTV-to-8K TV Upconverter

(a) 4K image enlarged from HD (b) 5(a) with NLSP

Figure 5: Image processed with real-time NLSP.

(a) Blurry image (b) Focused image with NLSP

Figure 6: Focusing effect.

Figure 7: Block diagram of full HD to 8K upconverter with NLSP.

istics are similar to those of out-of-focus videos. It is important to note that NLSP has a focusing effect.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

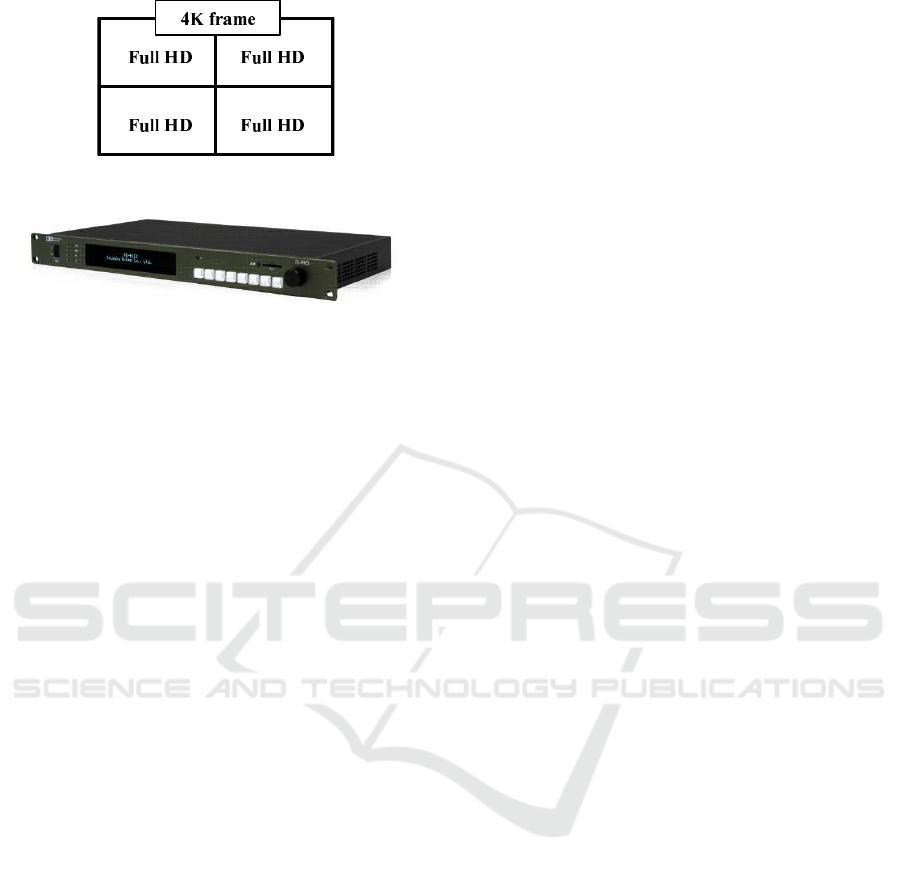

Figure 8: Divided 4K frame with full HD.

Figure 9: Real-time full HD to 4K upconverter with NLSP.

Figure 6(a) shows a blurry image. The original image

is crisp (it is part of a test pattern), and a low pass ﬁl-

ter (LPF) is used to blur the image. Figure 6(b) shows

the result of processing the image in Figure 6(a) with

the NLSP hardware. Comparing these ﬁgures, we ob-

serve that the resolution of the image in Figure 6(b)

is better than that of Figure 6(a) and the focus looks

adjusted. This effect is owing to the characteristics of

NLSP. NLSP can generate high-frequency elements

that the original image does not have, and these high-

frequency elements have a focusing effect. The fo-

cusing effect works for the unconverted blurry 8K to

improve the resolution.

5 REAL-TIME HD-TO-8K

UPCONVERTER

5.1 HD to 8K Upconverter with NLSP

Figure 7 shows a block diagram of the HD-to-8K up-

converter. The input, which is full HD, is shown on

the left side and the 8K output is shown on the right

side of Figure 7. The HD-to-8K upconversion is pro-

cessed in two steps: full HD-to-4K and 4K-to-8K up-

conversion. The left half of Figure 7 shows the block

diagram of the upconverter from full HD to 4K, which

uses two dimensional Lanczos interpolation (Duchon,

1979). The upconverted 4K video from HD is blurry

and is processed with NLSP to improve resolution.

The real-time hardware for full HD to 4K upconver-

sion with NSLP is shown in Figure 9.

The latter signal processing of the image in Fig-

ure 7 achieved via upconversion from 4K to 8K us-

ing NLSP. The upconverted 4K frame comprises four

full HD frames, which are divided as shown in Fig-

ure 8. Each HD frame is processed with the same unit

shown in Figure 9, and the four 4K frames with NLSP

are created.These 4K frames are combined to create

an 8K frame with NLSP. The real-time hardware for

the 4K-to-8K upconversion with NLSP is shown in

Figure 11, which includes four of the full HD-to-4K

upconverter units shown in Figure 9. The other units

are the divider and combiner units shown in Figures

5.2 Resolution of the 8K Upconverted

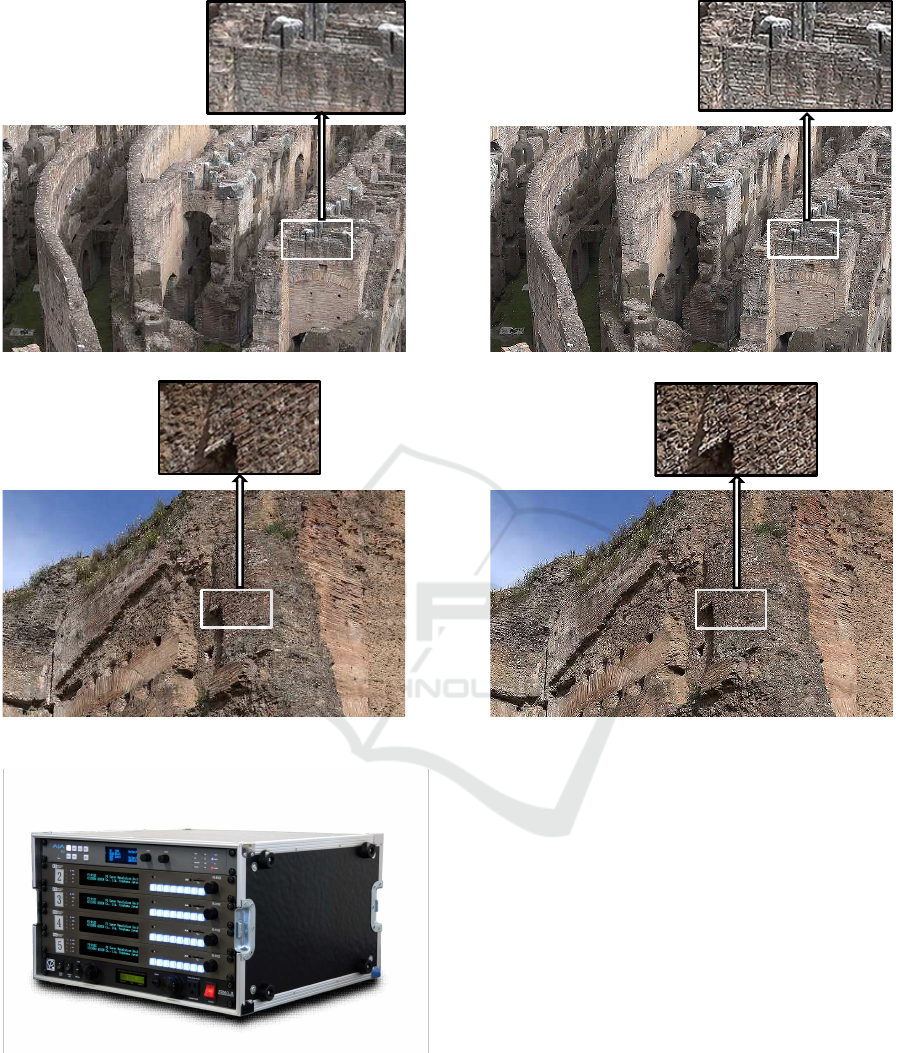

Figure 10 shows parts of example 8K images upcon-

verted using the real-time hardware shown in Figures

9 and 11. The images shown in Figures 10(a) and

10(c) are blurry because the NLSP option is off. The

images in Figures 10(b) and 10(d) are created with

the NLSP option on. The resolution of these images is

better than of the ones in Figures 10(a) and 10(c). The

only difference between them is whether the NLSP

was used or not. Note that NLSP improves the res-

olution of upconverted 8K content. The focus effect

discussed in Section 4 works, and it improves the res-

olution of the blurry image. The discussed hardware

can upconvert images from full HD to 8K in real-time

and will be useful for 8K broadcasting. It can address

the problems of insufﬁcient 8K content and is capable

of upconverting HDTV content of varying quality to

8K.

Currently the square function is applied to create

the high frequency elements and it works. However,

we should continue to try and ﬁnd a better nonlinear

function than the square function to improve image

quality. 8K is a broadcasting system and there are

various kinds of content such as news, drama, variety

shows, sports and others. HDTV-to-8K upconverter

have to process this content. Upconversion tests for

the various content should be done before 8K broad-

asting becomes operational.

5.3 Result

Upconverted videos are blurry, and this is a serious

issue for HD-to-8K conversion. Although SR algo-

rithms have been proposed, they are complex and

cannot cope with real-time videos, particularly high-

speed 8K videos. An algorithm for an HD-to-8K

upconverter with NLSP was proposed and real-time

hardware was developed. The converter creates high-

frequency elements that the upconverted blurry video

does not possess and produces high-resolution 8K

content. This converter will be helpful for ﬁxing the

problems of insufﬁcient 8K content and mobile news

gathering for 8K broadcasting. Searching for a better

Development of Real-time HDTV-to-8K TV Upconverter

(a) HD to 8K upconverted image 1 (b) HD to 8K upconverted image 1 with NLSP

Figure 10: Upconverted images with real-time HD-to-8K upconverter.

Figure 11: Real-time 4K to 8K upconverter with NLSP.

nonlinear function and testing it with various content

should be the primary focus forn the near future.

REFERENCES

Duchon, C. E. (1979). Lanczos ﬁltering in one and two

dimensions. Journal of Applied Meteorology, Vol. 18,

pp. 1016-1022.

Farsiu, S., Robinson, D., Elad, M., and Milanfar, P. (2004).

Fast and robust multi-frame super-resolution. IEEE

Transactions on Image Processing.

Gohshi, S. and Echizen, I. (2013). Limitations of super

resolution image reconstruction and how to overcome

them for a single image. ICETE2013 (SIGMAP),

Reykjavik, Iceland.

Gohshi, S., Hiroi, T., and Echizen, I. (2014). Subjec-

tive assessment of hdtv with super resolution function.

EURASIP Journal on Image and Video Processing.

Houa, X. and Liu, H. (2011). Super-resolution image re-

construction for video sequence. IEEE Transactions

on Image Processing.

ITU-R-HDTV (2015). https://www.itu.int/rec/r-rec-

bt.709/en.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

ITU-R-UDTV (2015). https://www.itu.int/rec/r-rec-

bt.2020/en.

Lee, J. S. (1980). Ieee trans. on pattern analysis and ma-

chine intelligence 2:165-168. Digital Image Enhance-

ment and Noise Filtering by Use of Local Statistics.

Matsumoto, N. and Ida, T. (2010). Reconstruction based

super-resolution using self-congruency around image

edges (in japanese). Journal of IEICE.

Mertz, P. and Gray, F. (1934). A theory of scanning and its

relation to the characteristics of the transmitted signal

in telephotography and television. IEEE Transactions

on Image Processing.

Panda, S., Prasad, R., and Jena, G. (2011). Pocs based

super-resolution image reconstruction using an adap-

tive regularization parameter. IEEE Transactions on

Image Processing.

Park, S. C., Park, M. K., and Kang, M. G. (2003).

Super-resolution image reconstruction: A technical

overview. IEEE Signal Processing Magazine.

Pratt, W. K. (2001). Digital Image Processing (3rd Ed):

New York. John Wiley and Sons.

Protter, M., Elad, M., Takeda, H., and Milanfar, P. (2009).

Generalizing the nonlocal-means to super-resolution

reconstruction. IEEE Transactions on Image Process-

ing.

Sakata, H. (1980). Assessment of tv noise and frequency

characteristics. Journal of ITE.

Sanchez-Beato, A. and Pajares, G. (2008). Nonitera-

tive interpolation-based super-resolution minimizing

aliasing in the reconstructed image. IEEE TRANS-

ACTIONS ON IMAGE PROCESSING, 17(10):1817–

1826.

Schreiber, W. F. (1970). Wirephoto quality improvement by

unsharp masking. J. Pattern Recognition, 2:111-121.

Toshiba (Accessed 12 Sep 2016).

https://www.toshiba.co.jp/regza/function/

10b/function09.html (in japanese).

van Eekeren, A. W. M., Schutte, K., and van Vliet, L. J.

(2010). Multiframe super-resolution reconstruction of

small moving objects. IEEE Transactions on Image

Processing.

Development of Real-time HDTV-to-8K TV Upconverter
