Deterministic Executable Models Veriﬁed Efﬁciently at Runtime

An Architecture for Robotic and Embedded Systems

Vladimir Estivill-Castro and Ren

e Hexel

School of ICT, Grifﬁth University, Nathan Campus, 4111, Brisbane, Australia

Keywords:

Model-based Testing and Validation, Enactment and Execution, Reasoning about Models.

Abstract:

We show an architecture that enables runtime veriﬁcation. Runtime veriﬁcation focusses on the design of for-

mal languages for the speciﬁcation of properties that must hold during runtime. In this paper, we take matters

one step further and describe a uniform modelling and development paradigm for software systems that can

monitor the quality of software systems as they execute, set-up, tear-down and enforce quality behaviour on

the ﬂy. Our paradigm for modelling behaviour enables efﬁcient execution, validation, simulation, and runtime-

veriﬁcation. The models are executable and efﬁcient because they are compiled (not interpreted). Moreover,

they can be developed using test-driven development, where tests are models derived from requirements. We

illustrate the approach with case studies from robotics and embedded systems.

1 INTRODUCTION

Software quality is critical to ensuring systems will

not cause harm or economic loss (Bryce and Kuhn,

2014). The Internet-of-Things (IoT) will demand

more reliable software systems (Kopetz, 2011). Gart-

ner estimates there are 736 million smart devices in

the IoT now across manufacturing, utilities, and trans-

portation. However, insufﬁcient software quality can

cause the severe malfunction in smart embedded sys-

tems (Weiss et al., 2015; Sametinger et al., 2015; Sri-

vastava and Schumann, 2013).

The opportunities for improvements in software

quality are enormous: “risks are becoming salient as

our society comes to rely on autonomous or semi-

autonomous computer systems to make high-stakes

decisions” (Dietterich and Horvitz, 2015). The ﬁrst

and immediate category to deal with are AI software

systems (Dietterich and Horvitz, 2015): automated

vehicles, home robots, and intelligent cloud services

must perform correctly, even in the presence of a sur-

prising or confusing input. Recommendations emerge

for researchers to focus on “self-monitoring architec-

tures in which a meta-level process continually ob-

serves the actions of the system, checks that its be-

haviour is consistent with the core intentions of the

designer, and intervenes or alerts if problems are

identiﬁed” (Dietterich and Horvitz, 2015).

Experts suggest that the software models for the

behaviour of the IoT and smart things are likely to be

based on state machines (Bryce and Kuhn, 2014), as

these make software development faster by specify-

ing the behaviour at a higher level of abstraction than

traditional programming languages. Use-case traces

naturally map to paths through states and transitions.

Behavior Engineering (Dromey and Powell, 2005), a

form of requirements engineering, creates these traces

and then integrates them into Behavior Trees, from

which ﬁnite-state machines, describing the behaviour

of components, can readily be synthesised.

We will show how to use logic-labelled ﬁnite-state

machines (LLFSMs) to model mechanisms that can

monitor the software system built from the model-

driven development (MDSD) paradigm that LLFSMs

offer. The precise semantics of LLFSMs makes them

overcome some of the criticisms that MDSD has re-

ceived (Picek and Strahonja, 2007) while enhancing

its advantages. LLFSMs have been proven very effec-

tive (Estivill-Castro et al., 2012) for describing soft-

ware behaviour and for performing model-checking

and formal veriﬁcation, both in the value and the

time domain. LLFSMs offer a model of controlled

concurrency that scales much better than comparable

event-driven modelling approaches (such as UML-

state charts, Behavior Trees, and teleo-reactive sys-

tems). Consequently, changing, improving, and main-

taining behaviours of embedded systems and robots

using LLFSMs is more cost-effective. This high level

of modelling means that the behaviour is closer to

the original set of human-language requirements and

Estivill-Castro V. and Hexel R.

Deterministic Executable Models Veriﬁed Efﬁciently at Runtime - An Architecture for Robotic and Embedded Systems.

DOI: 10.5220/0006116700290040

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 29-40

ISBN: 978-989-758-210-3

therefore easier to understand. In the systems en-

gineering and robotics communities, state-machines

are ubiquitous. MDSD leads to more uniform qual-

ity; the LLFSM compiler produces efﬁcient executa-

bles as it compiles a general, uniform code that has

been structured to minimise overhead. Because of the

use of visual models of LLFSMs, the resulting be-

haviours are more transparent, and the gap between

business analysts, requirement engineers, and the de-

velopers is reduced. Moreover, to scale to larger

systems, LLFSMs have the capacity to incorporate

Test-Driven-Development (TDD) methods and derive

test suites from use-cases, incorporating such tests as

LLFSMs themselves (Estivill-Castro et al., 2015b).

Such TDD can be managed by Continuous Integra-

tion Servers (Estivill-Castro et al., 2015a).

Runtime veriﬁcation focusses on the design of for-

mal languages for the speciﬁcation of properties that

must hold during runtime (Drusinsky, 2005). In this

paper, we take matters one step further and will create

software systems that can monitor the quality of other

software systems as they execute, set-up, tear-down,

and enforce quality behaviour on the ﬂy. We demon-

strate the progress with two concrete case studies: a

network of trafﬁc lights and a robotic vehicle.

We use the fact that LLFSMs are executable mod-

els analogous to state charts, but with transitions la-

belled by logic. LLFSMs represent deterministic, ex-

ecutable models that enable formal speciﬁcations of

requirements, including observable behaviour. We

generate agents that can observe and monitor be-

haviour. This step enables deploying agent tech-

nology capable of identifying undesired behaviour,

consequentially raising warnings or acting to prevent

software malfunction. We use TDD and MDSD tools

for the automatic construction of runtime monitoring

agents that execute tests, monitor behaviour, and re-

vise software models as they execute. Our monitor-

ing LLFSMs raise the level by which the software is

aware of its operational state, since the monitoring

agents would be able to report on the behaviour of

their underlying software components.

The paper is organized as follows. Section 2 dis-

cusses the three architectural elements than enable our

approach. The ﬁrst is the sequential scheduling of ar-

rangements of LLFSMs and that by labelling transi-

tions with Boolean expressions, and not event, they

are note event-driven. The second is the capability

to communicate between LLFSMs with a data cen-

tric in-memory middleware. The third element is the

use of control/status messages different from a pub-

lish/subscriber pattern and following a writers/readers

pattern. Section 3 discusses these architectural ele-

ments with a concrete example. This example will

be used in Section 4 to describe our approach to run-

time veriﬁcation. While the ﬁrst example (Estivill-

Castro and Hexel, 2014) is a simple embedded sys-

tem, Section 5 reviews what has been achieved with

robotic systems. Section 6 discusses how to automate

the process of generating monitoring LLFSMs while

Section 7 discusses the implications regarding safety

and security by contrasting with ROSRV (Huang et al.,

2014). Section 8 discusses the proposed work here

with the literature and Section 9 summarizes and con-

cludes the paper.

2 ARCHITECTURAL ELEMENTS

We base our architecture on executable models of be-

haviour represented by ﬁnite-state machines. Impor-

tantly, there are three crucial elements in this archi-

tecture.

First, transitions are labelled by Boolean ex-

pressions only (and not events), hence the name

logic-labelled ﬁnite-state machine (LLFSM). LLF-

SMs are Communicating Extended Finite State Ma-

chines (CEFSMs) without events (Li and Wong,

2002). Importantly, the semantics is therefore not that

of a software component waiting for an event trigger-

ing the switch to a new state. Instead, the components

form a single thread of LLFSMs under a predeﬁned

schedule. The machine that executes (has the token)

evaluates the sequence of transitions associated with

its current state. This evaluation could potentially be

quite sophisticated and complex (involving planning

and/or reasoning), making LLFSMs, not plain reac-

tive architectures, but to also blend into deliberative

systems (Estivill-Castro et al., 2016; Estivill-Castro

and Ferrer-Mesters, 2013). Control remains with one

and only one component, resembling a deterministic

polling system (unlike an interrupt handler). If an ex-

pression labelling a transition evaluates to true, the

transition ﬁres, making its target state the current state

of the LLFSM. As with ubiquitous models of state

machines, states have ONENTRY, and ONEXIT, and

INTERNAL sections. Actions (code) in the ONENTRY

section is executed only after a state change. The

ONEXIT section is executed after a transition ﬁres,

while the INTERNAL section is executed only if all

transitions evaluate to false. After either, it becomes

the next machine’s turn in the arrangement. LLFSMs

have a series of mechanisms to handle composition,

and to be suspended, resumed or restarted. In addition

to interpreters for Simple C

and Java, we have ef-

ﬁcient LLFSM compilers for C/C++ and Swift under

Simple C is a subset of C used in some examples of

antlr (Parr, 2013).

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

POSIX systems such as Linux or macOS, for micro-

controllers, and ROS. LLFSMs are akin to UML state

charts where transitions are labelled only by guards.

The second crucial element is the communica-

tion middleware between LLFSMs. A state in an

LLFSM, and even each section (ONENTRY, ONEXIT,

and INTERNAL), can have its own local variables,

not shared with any other scope; or they may have

the scope of the whole LLFSM. However, beyond

one LLFSM, variables reside in an object-oriented

whiteboard, implemented in shared memory (Estivill-

Castro et al., 2014). The whiteboard can be seen as a

data-oriented broker, decoupling readers and writers

of information. However, as opposed to most robotic

middlewares, where the paradigm of the consumer of

information is a Push approach, we use a Pull ap-

proach (Estivill-Castro and Hexel, 2015). With the

LLFSM execution semantics, our gusimplewhite-

board implementation (Estivill-Castro et al., 2014)

offers fast, lock-free, atomic reader/writer semantics

for multiple readers and even multiple writers. This

OO implementation has proven superior in speed and

reliability to other middlewares such as ROS’ sys-

tem (Joukoff et al., 2015; Estivill-Castro et al., 2014).

The third aspect that provides a simpler and

clearer semantics, while retaining modelling power

and Turing-complete expressivity, is data-centric

communication, between components utilising con-

trol and status messages. Thus, the whiteboard im-

plements a blackboard control architecture (Hayes-

Roth, 1988). Control/status messages are an al-

ternative to the scenarios akin to the rendezvous

model (Hoare, 1978; Pnueli et al., 1982) in the mes-

sage passing world, or a synchronous remote pro-

cedure call (RPC). By contrast, control/status mes-

sages follow the readers/writers paradigm as opposed

to producer/consumer or publisher/subscriber. Typi-

cally a single class deﬁnition is assigned two message

slots, Control for control data, and Status for re-

sponses (e.g., from a sensor). Both the actuator and

the controller components use the Pull paradigm to

query their corresponding message slots. This de-

coupling enables AI planning and reasoning agents

who can consume many CPU cycles to be incorpo-

rated without interfering with the control architecture

provided by LLFSMs (Estivill-Castro et al., 2016).

3 ILLUSTRATION OF

ARCHITECTURAL ELEMENTS

Consider now the LLFSMs in Figure 1. These ma-

chines are part of our later example for run-time ver-

iﬁcation and are the two behaviours of trafﬁc lights

for a crossing of roads going East-West and North-

South. The ﬁrst thing to notice is that analogous to

OMT (Rumbaugh et al., 1991) and UML, these ex-

ecutable models are made of states and transitions.

An arrangement of one of more LLFSMs constitutes

a single sequential program. That is, they are exe-

cuted in a single thread. The token of execution ro-

tates in round-robin fashion between the LLFSMs in

the arrangement. States have three sections, and when

the thread of execution arrives to an LLFSM the such

machine resumes execution. It veriﬁes if it has not

been suspended, and whether it has executed a tran-

sition from another state the last time it was its turn.

If its execution derives from another of its states, the

ONENTRY section will be executed, otherwise it is

skipped. The turn of the machine consists of eval-

uating the guard of each transition leaving the cur-

rent state in sequence, and if one becomes true, then

execution of the ONEXIT completes the turn for this

LLFSM. If all transitions are false, the turn completes

by executing the INTERNAL section. Note that this

sequential semantics is due to the fact that labels for

the transitions are not events but Boolean expressions.

Machines are compiled into loadable libraries ensur-

ing efﬁciency over interpretation.

Boolean expressions like after(1) are analogous

to the predicates that were used in augmented ﬁnite-

state machines (AFSM) of the subsumption architec-

ture. In fact, the LISP language for the subsumption

architecture (Brooks, 1990) is a subset of LLFSMs.

Similarly, teleo-reactive programs (Nilsson, 2001) la-

bel all transitions with Boolean expressions. Consider

the code in the state RED ON NS. First the ONENTRY

section

SwitchSubsumptionTrafficLights aConfiguration =

wb handler.get();

aConfiguration.set theConfigurations(LIGHT NS RED,slot);

wb handler.set(aConfiguration);

shallGoGreenNS = red EW status t;

and also the INTERNAL section

shallGoGreenNS = red EW status t;

The statement in the INTERNAL section is also the

last statement of the ONENTRY section and illustrates

the use of a status message. The Boolean variable

shallGoGreenNS is updated by retrieving a status

message. The writer of this message is a compiled

Prolog program that evaluates whether the conditions

to move the North-South trafﬁc light to green have

been meet (Estivill-Castro et al., 2016). Thus, if the

current state of this machine is RED ON NS, this ma-

chine will evaluate the variable shallGoGreenNS and

not carry out the transition while this variable has the

value false. But before relinquishing the token of

execution, it performs ints internal section where it

updates this transition labeling variable with the ad-

Deterministic Executable Models Veriﬁed Efﬁciently at Runtime - An Architecture for Robotic and Embedded Systems

(a) North-South (NS) controlling LLFSM. (b) East-West (EW) controlling LLFSM.

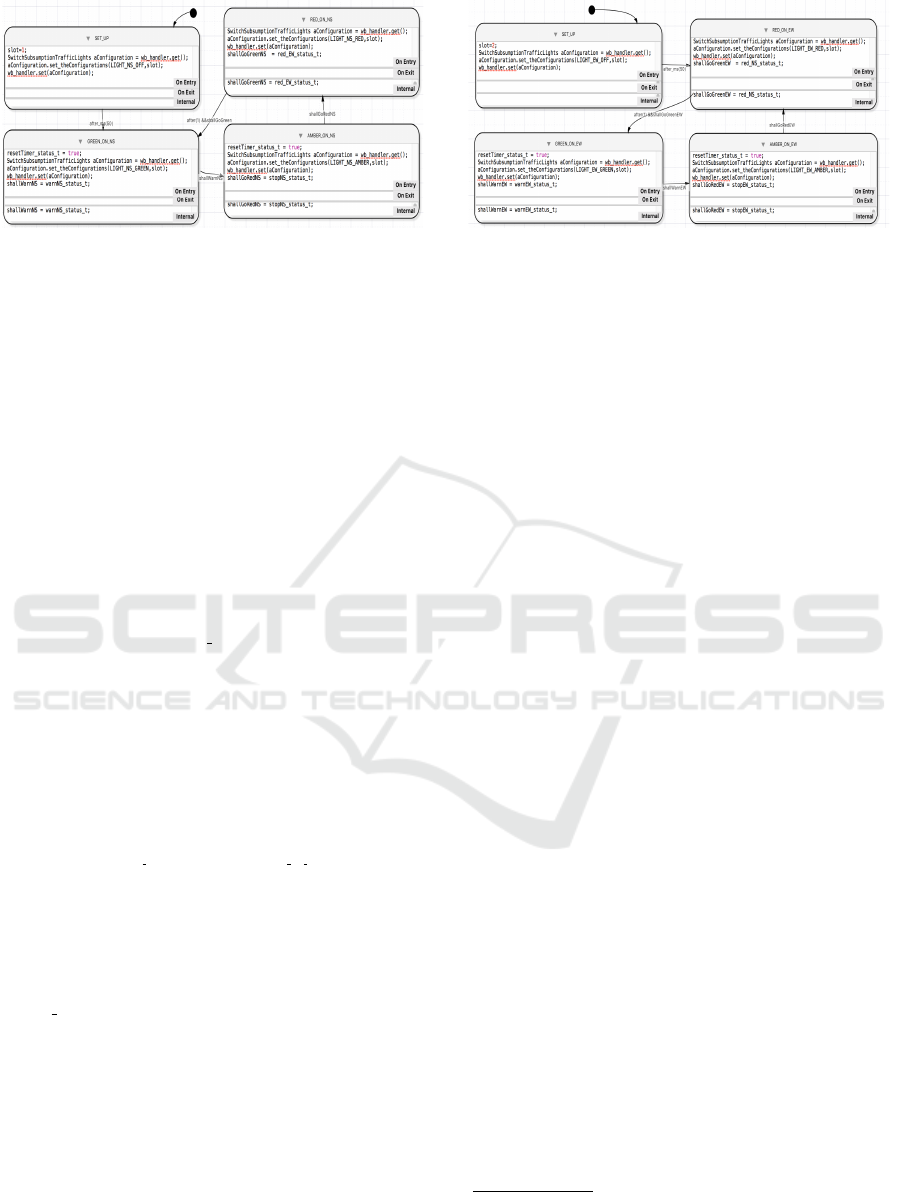

Figure 1: Two LLFSMs for trafﬁc lights at a crossing.

vice from the Prolog program. This shows that the

models execute the reactive actions of moving to an-

other state in their own time, in an analogous fash-

ion to a time-triggered approach (and deﬁnitely dis-

tinctive from the event-driven approach of UML state

charts).

In our middleware, the data structures used to

communicate between LLFSMs (and other modules

like running Prolog programs in their own threads) are

essentially any C++ object with a standard C/C++ foot-

print in memory. This communication middleware is

illustrated also in this fragment of code. The state-

ment

SwitchSubsumptionTrafficLights

aConfiguration = wb handler.get();

uses a previously declared handler to the

middleware to retrieve the instance of

SwitchSubsumptionTrafficLights into the

object aConfiguration. The object-oriented nature

of this middleware follows a data centric white-

board paradigm, and thus, all methods to the class

SwitchSubsumptionTrafficLights are available.

This is what happens with

aConfiguration.set

theConfigurations(LIGHT NS RED,slot);

Here, the corresponding slot for this LLFSM is up-

dated in the data structure that the switch will use

to relay commands for the trafﬁc lights. The next

statement posts this updated data structure back to the

whiteboard

wb handler.set(aConfiguration);

without any need for concurrency synchronisation as

the current LLFSMs in the arrangement knows no

other LLFSMs is accessing this object.

In summary, LLFSMs are models compiled into

loadable modules, not interpreted. They have been

compared to artefacts and modelling languages such

as Behavior Trees (Dromey and Powell, 2005), Event-

B (Abrial, 2010), Teleo-reactive programs (Nilsson,

2001), Executable UML (Mellor and Balcer, 2002),

or SysML (UML tailored for systems engineering).

For formal veriﬁcation and requirements engineer-

ing, they compare favourably with Petri Nets (Billing-

ton et al., 2011) and Timed Automata (Estivill-Castro

et al., 2015b; Estivill-Castro et al., 2015a). Software

construction with LLFSMs can emulate architectures

based on embedded and reactive control as well as

behaviour-based control, while adding feasible, for-

mal veriﬁcation (Estivill-Castro and Hexel, 2015). In

this paper, we take these elements further by enabling

an architecture for runtime veriﬁcation.

4 ILLUSTRATIVE EXAMPLE

We present the principles of this new software archi-

tecture with a classical example (Maier and Warren,

1988) of a system that controls trafﬁc lights on an in-

tersection between roads going North-South (NS) and

East-West (EW). Requirements evolve from an initial

version, with no sensors to a more advanced version

with sensors in the EW-direction that, in the absence

of a car, enable NS-priority (keeping the trafﬁc lights

green in the NS-direction). The declarative require-

ments demonstrate the integration of reasoning and

logic-programming into a reactive system (Estivill-

Castro et al., 2016). The most crucial requirement,

of course, is that the lights are never simultaneously

green in both directions.

The complete system model consists of three

LLFSMs in a single arrangement:

the Timer LLFSM

and two controller LLFSMs. Each controller LLFSM

is in charge of a trafﬁc direction and thus, minimally,

each is in charge of a set of three lights (a read, a

green and an amber light). Two versions of a declara-

tive Prolog program (https://youtu.be/HFm6fbZ6lkg)

specify when to switch lights. The Timer machine can

be signalled to reset the time value, it regularly posts

the time elapsed, and whether that time is greater than

A GUI facade with avatars for effector and sensor

hardware appears in the simulation at https://youtu.be/

HFm6fbZ6lkg.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

Layer 3

Layer 2

Layer 1

ShallGoGreenNS

RedEWon

ShallGoRedNS

AmberNSon

ShallWarnNS

GreenNSon

RedEWon

TimerReset

ShallGoGreenEW

ShallGoRedEW

TimerReset

AmberEWon

ShallWarnEW

GreenEWon

«wrapper»

shallMoveNStoRed (llfsm)

timeGT30

timeGT5

detectEW

«wrapper»

shallMoveNStoAmber (llfsm)

«wrapper»

shallMoveEWtoRed (llfsm)

NS control (llfsm)

Red Light NS (effector)

Red Light EW (effector)

Amber Light NS (effector)

Amber Light EW (effector)

Green Light EW (effector)

Car sensor

Green Light NS (effector)

EW control (llfsm)

«wrapper»

shallMoveEWtoAmber (llfsm)

Timer (llfsm)

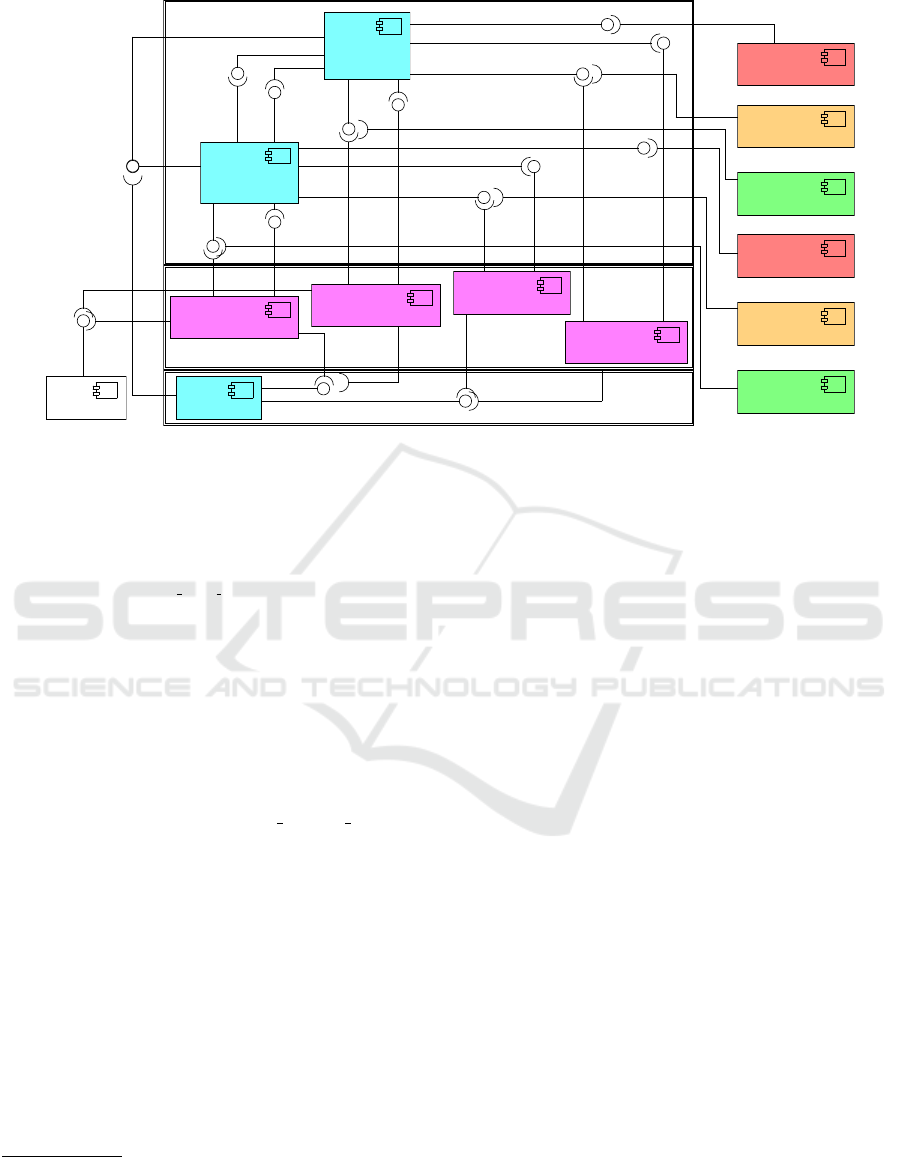

Figure 2: Layered component diagram of the LLFSMs executable software that control the trafﬁc lights.

5 seconds, or greater than 30 seconds.

The LLFSM

for the EW-set of lights controls the green, amber and

red light in the EW-direction, cycling through three

states such that only one light is on in each state.

Thus, in the state On RED EW, in the EW-direction,

only the red light is on. Symmetrically, the sec-

ond controller LLFSM handles the NS-direction, sig-

nalling red, amber, and green in that direction, also

cycling from green via amber to red, and back to

green. All three LLFSMs are scheduled determinis-

tically, and the decisions as to whether to switch state

are inspections of Boolean variables on the white-

board. For example, shallGoRedNS is evaluated by

obtaining the value from the whiteboard with the

statement shallGoRedNS=stopNS status t; that is,

the LLFSM acts as a reader in the Pull architecture of

this status message, while the value is updated by a

writer that periodically executes the Prolog program.

The Prolog program is inside a wrapper LLFSM run-

ning in another thread. Such wrapper is synthesised

from the Prolog program. Details of the Pull vs Push

approach and the control/status approach to constrain-

ing concurrency to the readers/writers model (vs. pub-

lisher/subscribers) appear elsewhere (Estivill-Castro

and Hexel, 2013; Estivill-Castro et al., 2016). Our fo-

cus here is that the system is complete and functional

and constitutes an executable model.

Using the sensor and prioritising the NS-direction

Diagram for the Timer is 40s into the video (https://

youtu.be/HFm6fbZ6lkg).

The EW-controller diagram is displayed and explained

from 1m 18s.

is the result of a simple, localised change, restricted

to only the Prolog program. Changing between soft-

ware versions requires swapping between Prolog pro-

grams. The LLFSMs can be subject to formal ver-

iﬁcation (using standard model-checking tools), as

the corresponding Kripke structure can be derived

directly from the model (and the number of Kripke

states is small). In addition, since sometimes express-

ing properties about system behaviour to perform for-

mal veriﬁcation can be difﬁcult, it is possible to cre-

ate a suite of TDD tests by creating test-LLFSMs

that set-up, watch, and tear-down the operation of the

system (Estivill-Castro et al., 2015a; Estivill-Castro

et al., 2015b). Such testing can validate the system be-

fore investing effort into formal veriﬁcation, and also

can raise the conﬁdence of system correctness where

state explosion makes formal veriﬁcation impossible.

We focus on the situation where replacing one

behaviour component or any of the four wrappers,

at runtime, could result in a faulty system. That is,

one should be able to swap between versions without

faults manifesting themselves. Of course, one way is

to formulate these details as a requirement and build

the software accordingly. However, if the decision-

making process is learnt while running (the Prolog

program is composed by something akin to inductive

logic programming), then no possible test could have

been created originally, as the logic program would

not have existed at the time. Once the logic program is

available, formal veriﬁcation may be infeasible (due

to the complexity of the system), while testing does

not prove the system is correct: it merely shows that

no failures occur in a ﬁnite subset of cases. More-

Deterministic Executable Models Veriﬁed Efﬁciently at Runtime - An Architecture for Robotic and Embedded Systems

over, if big data technologies and stream-data analyt-

ics were to build, online, sophisticated new rules and

software to decide on the settings of the trafﬁc lights,

exhaustive testing would be infeasible. Thus, moni-

toring the system while in execution may actually be

required, to correct the effects of traces that lead to

failure, but were not discovered earlier.

We propose a revolution of the subsumption archi-

tecture (Brooks, 1986) to manage the runtime veriﬁ-

cation of a system composed of LLFSMs. Our pro-

posal, following the subsumption architecture princi-

ples, constructs behaviour from conceptual layers of

timed, ﬁnite-state machines. What we suggest here is

a revolution, because we no longer assume lower lay-

ers are correct. The timed aspect means that we have

Boolean primitives, after(t), that only become true

after t units of time. We, however, go beyond a mech-

anism to just suppress an input, and even beyond the

capacity to inhibit the output from an LLFSM. In-

stead, we extend the mechanism to suspend (Estivill-

Castro et al., 2014) an LLFSM and add a mechanism

that dynamically loads an LLFSM to join and exe-

cute in the arrangement. Correspondingly, we pro-

vide mechanisms to also dynamically unload a faulty

LLFSM and remove it from the schedule of execution.

The subsumption architecture builds levels of pro-

gressively more sophistication, always assuming that

the lower layers were entirely correct. In stark con-

trast, we propose that the lower layers may, in fact,

be faulty. In our proposal, higher levels act as be-

haviour monitors for lower layers. Realisation by a

higher layer that a lower layer is malfunctioning, per-

haps violating some requirement, is sufﬁcient for the

higher layer to take action, including one or several of

the following actions.

1. Inhibit the output of the lower layers and replacing

it with newer, safer output.

2. Provide input to lower-level machines to steer

them, suspend them and/or restart them.

3. Reconﬁgure the arrangement by unloading some

of its LLFSMs and loading non-faulty replace-

ments.

That is, higher layers can rebuild lower layers that

exhibit unstable behaviour. Figure 2 shows a com-

ponent diagram (with the inputs and outputs for the

trafﬁc lights and sensor) in the layered style of the

subsumption architecture (Brooks, 1986). Our ap-

proach is to take such a system (that receives input

from sensors drawn on the left and delivers outputs

to actuators) to an expanded and safer level, where

a monitor (with a subsumption switch) ensures fun-

damental safety properties during runtime. This is

illustrated by the transformation in Figure 3, where

3(a) follows (Brooks, 1986, Page 17, Fig. 3) to Fig-

ure 3(b). Note that the original system can be ab-

stracted and treated as a black box from the perspec-

tive of the two new components. The ﬁrst component

is a monitor LLFSM, while the second one is a sub-

sumption switch (C

e et al., 2006) that can also be

modelled/implemented as a (separate) logic-labelled

ﬁnite-state machine. The added modules can treat the

entire set of output signals of the system as inputs

(“external” signals from their perspective). The added

components (coloured boxes in Figure 3(b)) are small

and thus their formal veriﬁcation becomes feasible.

More importantly, the switch LLFSM is capable of

inhibiting dangerous conﬁguration of output signals

to the actuators, replacing them with safer conﬁgura-

tions. The monitor LLFSM can perform all the ac-

tions suggested earlier that reconﬁgure the running

system.

Our extension creates a more uniform layered ar-

chitecture, whether or not the original system is a sub-

sumption architecture. The LLFSM for the switch

simply buffers conﬁgurations of effector and actuator

commands with a given priority.

If the system is a subsumption architecture, the

switches already are part of the system and do not

need to be replicated. The only requirement is that

conﬁgurations provided by the monitors have a higher

priority level. Moreover, the monitoring LLFSM can

have its own API, as we will discuss later.

The generality of the LLFSM approach facilitates

that the monitor be also a monitoring LLFSM, and

therefore, the monitor is in itself another executable

model

. For the trafﬁc light system, the monitoring

LLFSM checks that the two green lights are never on

simultaneously. The monitor will inhibit this via a

signal to the switch, which will trigger blinking am-

ber lights in both directions (with all red and green

lights turned off). This behaviour signals malfunction

to motorists and to the trafﬁc authorities. When the

monitor discovers a fault, it loads a machine that ex-

presses a new behaviour (both lights blinking amber),

and unloads the current faulty machine, loading de-

fault ones. This construction is the generic machine-

monitoring pattern.

5 ROBOTICS CASE STUDY

Our second case study is inspired by the presentation

of the runtime veriﬁcation framework ROSRV (Huang

et al., 2014). This framework aims at raising the

https://youtu.be/HFm6fbZ6lkg at 3m 32s.

From 3m 40s in the above video.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

SENSORS

ACTUATORS

SYSTEM

LAYER&1

LAYER&2

LAYER&3

LAYER&4

SWITCH

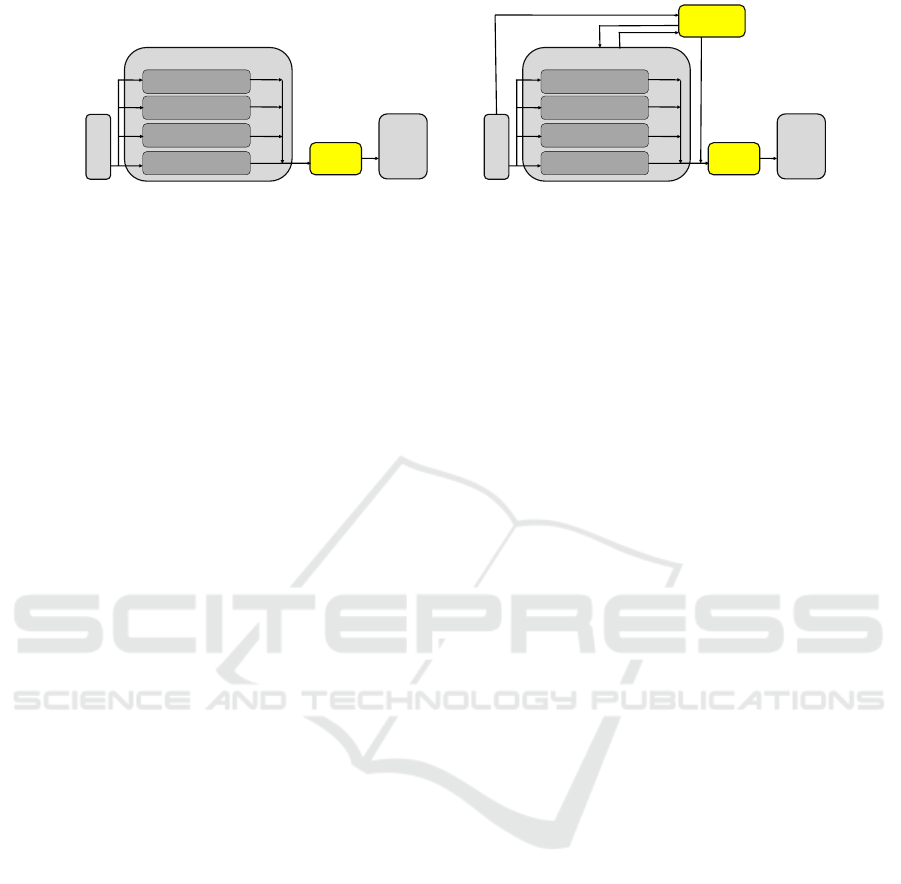

(a) Illustration of the layered subsumption archi-

tecture.

SENSORS

ACTUATORS

SYSTEM

LAYER&1

LAYER&2

LAYER&3

LAYER&4

MONITOR

SWITCH

(b) With a monitor LLFSM and potentially an-

other switch properties of the system can be mon-

itored and actions taken at run time.

Figure 3: Generic architecture of the safety monitor.

level of safety in robotic systems under ROS and

mainly consists of a node named RVMaster. It over-

sees all the peer-to-peer trafﬁc in a ROS environment,

blocking messages, and shielding the actual Master

node (usually named roscore). The ROSRV architec-

ture places a Monitor between every pair of publish-

ers/subscribers, requiring a large number of monitors.

The link between the RVMaster and the ROS Master

is secured with a ﬁrewall.

This framework is illustrated using a simulator

of the LandShark unmanned ground vehicle (UGV)

robot. The examples represent situations where two

modules responsible for two different tasks (although

optimised for their individual responsibilities), when

operating simultaneously, produce an overall deﬁcient

behaviour. One such example is a gun on the tur-

ret having a tracker for a target but when placed on

the LandShark UGV body it may hit itself (Huang

et al., 2014). These scenarios are common in other

robotic software, and another example discussed with

the UGV simulator is combinations of turret positions

and accelerations causing it to tip over (Huang et al.,

2014). Although there is no public access to the Land-

Shark simulator, we can reproduce two of the moni-

toring examples using the ROS Gazebo simulation of

a Komodo, a robot that is also an UGV on wheels with

an articulated arm and gripper. The forbidden runtime

conditions we monitor are actuator commands rather

than conditions about forbidden states.

The ﬁrst scenario is that certain wheel accelera-

tions are not to be set while the arm is extended, as

this causes the robot to tip. Second, certain naviga-

tion commands are not to be performed as they would

take the robot into unsafe terrain. For this last exam-

ple we have a video (https://youtu.be/MVlghB0JZ1g)

that shows one behaviour for exploring a region that

is faulty, becoming more prone to accelerate and run

into barriers. However, with our runtime veriﬁcation

monitor, when the robot is close to the obstacles, two

new behaviours are loaded, one to spin it back and one

to guide it to its origin before the earlier behaviour is

allowed to operate again. The methodology presented

before applies here in a very similar way. We add a

subsumption switch to the original system that wraps

the motor commands. We add monitoring LLFSMs

for the conditions. One simply uses location informa-

tion directly to track the position of the robot and thus

instructing the switch to inhibit motion commands to

motors that would place the robot too close to the ob-

stacles. For the other example, the monitor LLFSM

reads the arm position sensors, to calculate and track

the centre of gravity relative to the base of the robot,

adjusting a threshold value in the subsumption switch

for the maximum allowed wheel acceleration.

6 AUTOMATIC GENERATION

In principle, any runtime veriﬁcation formalism (Alur

and Henzinger, 1992; Thati and Ros¸u, 2005) could

be embedded in a monitoring LLFSM because LLF-

SMs are Turing complete. However, we have cho-

sen a simple mechanism that seems to ﬁt most cases

and, moreover, enables the construction of the mon-

itoring LLFSMs from the visualisation of the system

LLFSMs. The idea is to evolve LLFSMs constructed

for TDD (Estivill-Castro et al., 2015a; Estivill-Castro

et al., 2015b) into monitors.

We explain our aproach using the earlier exam-

ple. The monitored conditions are rather simple. The

LLFSM for TDD veriﬁes that the controller LLFSMs

are not in designated states simultaneously (e.g., turn-

ing all lights to green). This can also be achieved

by monitoring the outputs of writer LLFSMs on the

whiteboard. In the trafﬁc light example, this would

be the message to actuator lights for both green lights

to be on.

Therefore, we suggest here that we can have a

rather strong logic to express conditions to monitor

the runtime validity of LLFSMs that are in the Sys-

tem box of Figure 3. Moreover, the monitor LLFSM

in Figure 3 would be a model constructed completely

Deterministic Executable Models Veriﬁed Efﬁciently at Runtime - An Architecture for Robotic and Embedded Systems

from these logic expressions, signiﬁcantly automat-

ing the implementation of such monitoring LLFSMs.

First, we can describe the basic constructs of the logic

to express forbidden conditions by monitoring LLF-

SMs. The ﬁrst building blocks are formulas.

<formula>) | not(<formula>)

<connective> → ∧ | ∨

An example of the term that expresses that in the

LLFSM arrangement of the trafﬁc lights the two con-

trolling machines cannot both be in their respective

states where they set their respective lights to green is

the following formula.

light ns subsumption @ GREEN ON NS

∧

light ns subsumption @ GREEN ON EW

Similar formulas can be constructed for many

of the safety requirements of the systems discussed

in the literature of formal veriﬁcation and software

safety. For example, in the case of a microwave, a

crucial requirement is the motor/radiation is not to be

on while the door is open:

true == doorOpen ∧ true == motorOn

The microwave is a widely discussed example in the

literature of formal veriﬁcation and model check-

ing (Asarin et al., 2002). We point out here that

from forbidden-condition formulas, the automatic

construction of the LLFSM that monitors whether the

formula evaluates to true (realises the forbidden con-

dition) is rather simple. It consists of a simple loop

where the information for the formula is retrieved

from the whiteboard and then the formula is evalu-

ated. Thus, our LLFSM generator only requires a

parameter that indicates the period of the loop (us-

ing the after() construction mentioned before) and

what LLFSM to activate in case the forbidden formula

is realised. The designer of our runtime veriﬁcation

LLFSMs uses a GUI to choose states from LLFSMs

to build hstate formulai and also to select white-

board variables to build these formulas from. When

whiteboard variables refer to objects, the GUI pro-

vides a drop-down menu to select getters to obtain

an expression that evaluates to a basic type.

It should be clear that our logic for forbidden for-

mulas is structurally and semantically equivalent to

propositional logic. As we already mentioned, an

LLFSM that checks such a formula is built by basi-

cally including the forbidden formula in a transition

from a state that has read the necessary information.

Such monitoring LLFSMs, although synthesised au-

tomatically are quite impenetrable to human design-

ers. Most of the conditions or rules we have found

in case studies on system safety seem to be of this

form. However, we have noted that in some situa-

tions the forbidden scenario more closely corresponds

to a trace of a behaviour. That is, the undesirable be-

haviour is not that, at a certain point in time, a cer-

tain conﬁguration of variable values or states of sub-

LLFSMs is reached in a system.

More elaborate, forbidden situations are se-

quences of formulas. For example, with the traf-

ﬁc lights, control in each direction cycles between

green, amber, and red (then back to green). In

this case, the forbidden behaviour can be speci-

ﬁed by the complement of the regular expression

(green amber red)

. Moreover, the equivalence of

regular expressions and non-deterministic automata

(and thus, deterministic automata) shows that we can

construct monitoring LLFSMs automatically that ver-

ify that the system does not have a trace of basic for-

mulas (about states and whiteboard variables) that be-

longs to a regular language where the alphabet are ba-

sic formulas. These monitoring LLFSMs are not ex-

pected to be drawn or presented for inspection by hu-

man designers, they can be rather large (even if we ap-

ply classical algorithms for DFA minimisation in the

building of the corresponding monitoring LLFSM).

However, the corresponding regular expressions are

quite manageable by system designers. Today, for ex-

ample, many programming languages or (web) search

facilities, offer tools to construct and visualise regu-

lar expressions. Thus for now, we consider this as-

pect less of a priority except that the architecture pro-

posed here integrates the resulting monitoring LLF-

SMs quite naturally for expressing a language of for-

bidden traces in the running system under veriﬁcation.

Our clfsm tool enables the introspection of the run-

ning system to obtain the trace of the system’s state

changes. This is another aspect in which the deter-

ministic scheduling of arrangements of LLFSMs is an

advantage, as the traces are not subject to pre-emptive

scheduling if, for example, each LLFSM were to run

as a separate thread.

The spot package allows the derivation of moni-

tors (option -M for ltl2tgba); and we could use the

spot libraries to automatically synthesise the moni-

tor for our architecture directly as an LLFSM. In sev-

eral robotic systems with planning and manipulation

tasks, the LTL subset named co-safe LTL has been

used (He et al., 2015) because it produces determin-

istic ﬁnite-automata (Kupferman and Vardi, 2001).

Here again, B

uchi automata can be directly modelled

by LLFSMs. Our architecture can conﬁrm co-safe

LTL formulae, but if the formula has the modal op-

erator for “eventually”, the monitoring LLFSM can

not guarantee when such a condition is met (in the

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

case of task planning it enables one to recognise a

plan has found a goal meeting the co-safe LTL con-

dition). However, we are studying a possible form

of these logics or their variations for future bounded

temporal logics. Note that timed regular expressions

are equivalent to timed automata (Asarin et al., 2002).

However, timed automata are non-deterministic in the

sense that their execution/simulation on a computer is

only one of the many execution paths. Thus, at the

moment, these other formalisms to specify undesir-

able behaviours seem to demand a monitoring instru-

ment that would be resource intensive.

7 SAFETY AND SECURITY

ISSUES

Our architecture provides compile-time type safety

because commands between LLFSMs and from the

subsumption switch to effectors and actuators are

OO-messages on the gusimplewhiteboard. The

only LLFSM that has access to these message types

is the subsumption switch. All other LLFSMs only

have access to the abstraction and interface the sub-

sumption switch offers. Other LLFSMs cannot ac-

cess effectors and actuators directly. The subsump-

tion switch only forwards speciﬁc commands (to ef-

fectors and actuators) if such commands are placed

in corresponding slots of the hierarchy by the re-

spective LLFSMs of the system or the monitor. Our

compile-time type safety is signiﬁcantly more se-

cure than RVMaster (Huang et al., 2014) because,

for RVMaster, the underlying middleware is in itself

ROS, lacking any security mechanisms (Huang et al.,

2014): ROS allows any node to read all the available

topics and services at runtime.

In our proposal, we restrict which LLFSMs in an

arrangement can perform operations such as load, un-

load, suspend, and resume. But monitoring LLFSMs

have clearance for such operations on system LLF-

SMs. We are assuming that the software would need

to exist in an environment isolated from penetration of

malicious users who could plant such malicious LLF-

SMs in the paths read by the clfsm instance executing

the arrangement. The runtime veriﬁcation here aims

at safety by protecting from Byzantine faults of well-

intentioned components that have evolved though po-

tentially independent constraints and objectives, and

whose synergies could cause malfunction in the sys-

tem.

Evolving software modules (for learning a walk

on a quadruped robot, or for tracking with a neck

or turret with additional degrees of freedom), opti-

mise their main task and thus they have a restricted

range of messages for certain restricted families of ef-

fectors/actuators. We assume that system security is

such that validated LLFSMs cannot be replaced with

malicious ones. Moreover, the monitoring LLFSM is

able to reset self-modifying modules by unloading the

learnt/evolved, detrimental behaviour causing poor

synergies with other modules and load a validated be-

haviour. In our trafﬁc lights example, the video il-

lustrates rebuilding at execution time the default be-

haviour and unloading the initial faulty behaviour.

Another example is a robot learning to control its

arm as it discovers the environment (see our video

https://www.youtube.com/watch?v= 3VylSPQoEE).

The whiteboard middleware discussed earlier pro-

vides a channel to monitoring LLFSMs (monitors).

Thus, monitors could receive the suspend command.

This enables testing systems without the monitoring

(which could be resumed later) or running the system

under different conﬁgurations of the properties that

are being monitored. This facility to also conﬁgure

monitoring systems during runtime has been used be-

fore (Huang et al., 2014), and in our proposal here

is immediately available through the existing mecha-

nisms of the whiteboard. Thus, it is possible to ex-

tend the subsumption architecture and the hierarchy

of clearance classes by more than one level. Monitor-

ing LLFSMs are also controllable. The suggested ear-

lier transformation (from Figure 3(a) to Figure 3(b))

of adding a subsumption switch and a monitor (both

LLFSMs) can be re-iterated several times as design-

ers see ﬁt, with higher levels being able to suspend,

decommission, reload, and/ or reconﬁgure the com-

ponents of the lower layers underneath.

8 CONTRAST WITH RELATED

WORK

Runtime Veriﬁcation (Kim et al., 1999; Havelund,

2000) focusses on how to monitor, analyse, and

guide the execution of software, using lightweight

formal methods applied during the execution of pro-

grams. Although formal validation of properties

against running systems has been a long-standing

concern in software engineering (for example in-

stance dynamic typing), our suggestion here follows

the current practices in testing (particularly model-

based testing) when used before and during deploy-

ment of fault-tolerant systems. Note that the cur-

rent practice for detecting and possibly reacting to

observed behaviours satisfying or violating certain

properties is to represent such properties with trace-

predicate formalisms, such as ﬁnite state machines,

regular expressions, context-free patterns, and lin-

Deterministic Executable Models Veriﬁed Efﬁciently at Runtime - An Architecture for Robotic and Embedded Systems

ear temporal logics. LLFSMs are extremely suitable

to describe veriﬁcation properties and encompass all

of the earlier mechanisms, as they are Turing com-

plete (Estivill-Castro and Hexel, 2013).

Note that a large number of tools and approaches

have been produced for the runtime monitoring of se-

quential or concurrent programs in traditional coding

languages such as C++, C, and Java (Delgado et al.,

2004); however, essentially no work has appeared for

carrying out runtime veriﬁcation using model-driven

development tools. The reliability of time-triggered

systems is signiﬁcantly easier to determine than that

of event-triggered systems (Kopetz, 1993; Lamport,

1984). Time-triggered systems handle peak-load situ-

ations by design, enable software components to com-

municate using constant bandwidth and regular over-

head even at peak load situations. By contrast, event-

driven systems are inherently unpredictable, they can

collapse during peak loads or event showers, and no

analytical guarantees can be given for their perfor-

mance (Kopetz, 1993; Lamport, 1984). Surprisingly

runtime-veriﬁcation tools have been proposed using a

modeling approach based on events (Barringer et al.,

2012; Colombo et al., 2008) and that their implemen-

tation is made in Java with unrealistic claims regard-

ing real-time veriﬁcation (but an admission of this is-

sue is present (Colombo et al., 2008, Page 141)).

Such monitor-oriented programming (Chen and

Ros¸u, 2003), in the environment of robotics systems,

(in particular the Robotics Operating System ROS)

requires ROSRV as an arbiter (Huang et al., 2014)

of the appropriateness of message passing, introduc-

ing additional message relays and potential critical

delays. Nevertheless, as discussed in the presenta-

tion, ROSRV is perhaps the closest approach related

to our proposal here; but our architecture compares

favourably. In ROSRV, security, scalability, and for-

mal veriﬁcation were identiﬁed as issues for further

work (Huang et al., 2014). With respect to security,

ROSRV solely relies on network routing of trusted IP

addresses. Moreover, ROSRV is centralised and poli-

cies and monitors need to be established for each pub-

lisher/subscriber pair, which does not scale well. The

LLFSMs that act as the switch and the monitor can

be formally veriﬁed in our architecture. We have also

identiﬁed other advantages of our proposal, namely

the speciﬁcation of conditions to monitor are naturally

and automatically derived and expressed from the

LLFSM models in model-driven development style.

We would argue that the subsumption architec-

ture (Brooks, 1986) and teleo-reactive systems are

now classical mechanisms to produce reactive sys-

tems, that, in their inception, have been logic-labelled

(and not event-driven), and in the case of the for-

mer, been signiﬁcantly revolutionising the software

architectures of robotic systems towards behaviour-

based systems. In the case of the latter, several ad-

vances have been made to enable them with formal

veriﬁcation tools (Dongol et al., 2014) or implemen-

tation tools (S

anchez et al., 2012). However, teleo-

reactive programs do have the danger of undeﬁned

behaviour (Hayes, 2008).

Both, the subsumption architecture and teleo-

reactive systems, suffer issues with their semantics of

concurrency analogous to the issues of nested state-

diagrams in UML. Issues such as state nesting (Si-

mons, 2000) or other ambiguities (von der Beeck,

1994; Simons, 2000), have resulted in several prob-

lems with executable UML and its use in Model-

Driven-Development. Most tools and approaches on

formal methods based on UML must restrict them-

selves: for example, restrictions to the consistency

and completeness of the artefact (Pap et al., 2005)

or to Practical Formal Speciﬁcation’s (PFS) where

events are precluded and component communications

happen only through their declared inputs and out-

puts (Iwu et al., 2007). The community seems to

largely follow Harel and Gery’s executable model of

hierarchical statecharts (Harel and Gery, 1996), which

has an execution semantics akin to a remote proce-

dure call (RPC) under the Run-to-Completion Execu-

tion Model (RTC) (Samek, 2008, Page 2.2.8): that is,

the system keeps queueing events, while handling an

earlier event. Such complicated semantics and run-

time uncontrolled concurrency results in much higher

complexity of runtime veriﬁcation.

9 REFLECTION AND

CONCLUSION

Clearly, software should be validated and veriﬁed be-

fore being deployed into production, and the present

work here in runtime veriﬁcation does not intend

to minimise the critical role of validation, veriﬁca-

tion, and testing. However, as we move into soft-

ware that adapts and evolves while in execution, it

becomes much more critical to additionally ensure

correctness at runtime. As the capabilities of artiﬁ-

cial intelligence, such as machine learning, matures,

large systems will increasingly update their parame-

ters, threshold values, or entire components during

their life time. One alternative to runtime veriﬁca-

tion is that the trace of a running system be potentially

logged as data sets for machine learning, from which

to create a veriﬁed and validated system to replace the

system in operation. Such an approach may be worth-

while; however, it would miss the ability of incor-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

porating experiences learnt between validated snap-

shots. Instead, one would like to have a running sys-

tem that is always learning and using the best infer-

ences from its continuous operation.

Moreover, we have demonstrated that we can even

decommission LLFSMs in the arrangement and let

the temporary inconsistent behaviour be managed by

the supervising behaviour. Such a replacement of one

or more LLFSMs in a system could be signiﬁcantly

more organic, depending on particular external fac-

tors that have caused the system to evolve in particular

ways, which cannot be entirely anticipated and veri-

ﬁed. Thus, the need for runtime veriﬁcation. The soft-

ware may very well outlive its designers and develop-

ers as it continues to operate uninterruptedly. In fact,

a key point of software quality is minimal downtime

and continuous operation. Such is our expectation al-

ready of, for example, the web, where there is a large

number of components (servers) that are down, while

the system as a whole continues to operate and renew

itself without global down-time. Here, we transfer

this into the world of robotics and complex, safety-

critical real-time systems. Software re-use should im-

ply that elements and components continue to execute

despite others being down.

REFERENCES

Abrial, J.-R. (2010). Modeling in Event-B — System and

Software Engineering. Cambridge University Press.

Alur, R. and Henzinger, T. A. (1992). Logics and models

of real time: A survey. Real-Time: Theory in Prac-

tice, REX Workshop, p. 74–106, London, UK, UK.

Springer-Verlag.

Asarin, E., Caspi, P., and Maler, O. (2002). Timed regular

expressions. J. ACM, 49(2):172–206.

Barringer, H., Falcone, Y., Havelund, K., Reger, G., and Ry-

deheard, D. E. (2012). Quantiﬁed event automata: To-

wards expressive and efﬁcient runtime monitors. 18th

Int. Sym. FM 2012: Formal Methods, p. 68–84.

Billington, D., Estivill-Castro, V., Hexel, R., and Rock, A.

(2011). Requirements engineering via non-monotonic

logics and state diagrams. Evaluation of Novel Ap-

proaches to Software Engineering, v. 230, p. 121–135,

Berlin. Springer.

Brooks, R. (1986). A robust layered control system for a

mobile robot. Robotics and Automation, IEEE Journal

of, 2(1):14–23.

Brooks, R. (1990). The behavior language; user’s guide.

Tech. Report AIM-1227, Massachusetts Institute of

Technology, Artiﬁcial Intelligence Lab Publications,

Department of Electronics and Computer Science.

Bryce, R. and Kuhn, R. (2014). Software testing [guest

editors’ introduction]. Computer, 47(2):21–22.

Chen, F. and Ros¸u, G. (2003). Towards monitoring-oriented

programming: A paradigm combining speciﬁcation

and implementation. Electr. Notes Theor. Comput.

Sci., 89(2):108–127.

Colombo, C., Pace, G. J., and Schneider, G. (2008). Dy-

namic event-based runtime monitoring of real-time

and contextual properties. Formal Methods for In-

dustrial Critical Systems, 13th Int. Workshop, FMICS

2008, p. 135–149.

e, C., Brosseau, Y., L

etourneau, D., Ra

ıevsky, C., and

Michaud, F. (2006). Robotic software integration us-

ing MARIE. Int. Journal of Advanced Robotic Sys-

tems, 3(1):055–060.

Delgado, N., Gates, A. Q., and Roach, S. (2004). A taxon-

omy and catalog of runtime software-fault monitoring

tools. IEEE Trans. Softw. Eng., 30(12):859–872.

Dietterich, T. G. and Horvitz, E. J. (2015). Rise of concerns

about ai: Reﬂections and directions. Commun. ACM,

58(10):38–40.

Dongol, B., Hayes, I. H., and Robinson, P. J. (2014). Rea-

soning about goal-directed real-time teleo-reactive

programs. Formal Asp. Comput., 26(3):563–589.

Dromey, R. G. and Powell, D. (2005). Early requirements

defect detection. TickIT Journal, 4Q05:3–13.

Drusinsky, D. (2005). Semantics and runtime monitoring

of tlcharts: Statechart automata with temporal logic

conditioned transitions. Electr. Notes Theor. Comput.

Sci., 113:3–21.

Estivill-Castro, V. and Ferrer-Mesters, J. (2013). Path-

ﬁnding in dynamic environments with PDDL-

planners. 16th Int. Conf. on Advanced Robotics

(ICAR), p. 1–7, Montevideo, Uruguay.

Estivill-Castro, V. and Hexel, R. (2013). Arrangements

of ﬁnite-state machines semantics, simulation, and

model checking. Int. Conf. on Model-Driven Engi-

neering and Software Development MODELSWARD,

p. 182–189, Barcelona, Spain. SCITEPRESS Science

and Technology Publications.

Estivill-Castro, V. and Hexel, R. (2014). Run-time veri-

ﬁcation of regularly expressed behavioral properties

in robotic systems with logic-labeled ﬁnite state ma-

chines. 2016 IEEE Int. Conf. on Simulation, Model-

ing, and Programming for Autonomous Robots, SIM-

PAR, San Francisco, CA. to appear.

Estivill-Castro, V. and Hexel, R. (2015). Simple, not

simplistic — the middleware of behaviour models.

ENASE 10 Int. Conf. on Evaluation of Novel Ap-

proaches to Software Engineering, Barcelona, Spain.

INSTCC.

Estivill-Castro, V., Hexel, R., and Lusty, C. (2014). High

performance relaying of C++11 objects across pro-

cesses and logic-labeled ﬁnite-state machines. Sim-

ulation, Modeling, and Programming for Autonomous

Robots - 4th Int. Conf., SIMPAR 2014, v. 8810 LNCS,

p. 182–194, Bergamo, Italy. Springer.

Estivill-Castro, V., Hexel, R., and Ram

ırez Regalado, A.

(2016). Architecture for logic programing with ar-

rangements of ﬁnite-state machines. Cheng, A. M. K.,

editor, First Workshop on Declarative Cyber-Physical

Systems (DCPS) at Cyber-Physical Systems, p. 1–8.

IEEE.

Estivill-Castro, V., Hexel, R., and Rosenblueth, D. A.

(2012). Efﬁcient modelling of embedded software

systems and their formal veriﬁcation. The 19th Asia-

Paciﬁc Software Engineering Conf. (APSEC 2012),

p. 428–433, Hong Kong. IEEE Computer Soc., CPS.

Deterministic Executable Models Veriﬁed Efﬁciently at Runtime - An Architecture for Robotic and Embedded Systems

Estivill-Castro, V., Hexel, R., and Stover, J. (2015a). Mod-

eling, validation, and continuous integration of soft-

ware behaviours for embedded systems. 9th IEEE Eu-

ropean Modelling Symp., p. 89–95, Madrid, Spain.

Estivill-Castro, V., Hexel, R., and Stover, J. (2015b). Mod-

els testing models in continuous integration of model-

driven development. Cheng, A. M. K., editor, IASTED

Int. Symp. Software Engineering and Applications

(SEA 2015), P.2015.829–016, Marina del Rey, USA.

Harel, D. and Gery, E. (1996). Executable object modeling

with statecharts. 18th Int. Conf. on Software Engineer-

ing, ICSE ’96, p. 246–257, Washington, DC, USA.

IEEE Computer Soc.

Havelund, K. (2000). Using runtime analysis to guide

model checking of java programs. 7th Int. SPIN Work-

shop on SPIN Model Checking and Software Veriﬁca-

tion, p. 245–264, London, UK, UK. Springer-Verlag.

Hayes, I. J. (2008). Towards reasoning about teleo-reactive

programs for robust real-time systems. SERENE

2008, RISE/EFTS Joint Int. Workshop on Software En-

gineering for REsilient SystEms, p. 87–94, Newcastle

Upon Tyne, UK. ACM.

Hayes-Roth, B. (1988). A blackboard architecture for con-

trol. Distributed Artiﬁcial Intelligence, p. 505–540,

San Francisco, CA, USA. Morgan Kaufmann.

He, K., Lahijanian, M., Kavraki, L. E., and Vardi, M. Y.

(2015). Towards manipulation planning with temporal

logic speciﬁcations. 2015 IEEE Int. Conf. on Robotics

and Automation (ICRA), p. 346–352.

Hoare, C. A. R. (1978). Communicating sequential pro-

cesses. Communications of the ACM, 21(8):666–677.

Huang, J., Erdogan, C., Zhang, Y., Moore, B. M., Luo, Q.,

Sundaresan, A., and Ros¸u, G. (2014). ROSRV: run-

time veriﬁcation for robots. Runtime Veriﬁcation - 5th

Int. Conf., RV, v. 8734 LNCS, p. 247–254. Springer.

Iwu, F., Galloway, A., McDermid, J., and Toyn, I. (2007).

Integrating safety and formal analyses using UML

and PFS. Reliability Engineering and System Safety,

92:156–170.

Joukoff, D., Estivill-Castro, V., Hexel, R., and Lusty, C.

(2015). Fast MAV control by control/status OO-

messages on shared-memory middleware. 4th Int.

Conf. on Robot Intelligence Technology and Applica-

tions, RiTA 2015, v. 345 of Advances in Intelligent

Systems and Computing, Bucheon, Korea. Springer.

p. 195-211.

Kim, M., Viswanathan, M., Ben-Abdallah, H., Kannan, S.,

Lee, I., and Sokolsky, O. (1999). Formally speciﬁed

monitoring of temporal properties. 11th Euromicro

Conf. on Real-Time Systems, 1999. p. 114–122.

Kopetz, H. (1993). Should responsive systems be event-

triggered or time-triggered? IEICE Transactions on

Information and Systems, 76(11):1325.

Kopetz, H. (2011). Real-Time Systems - Design Principles

for Distributed Embedded Applications. Real-Time

Systems Series. Springer, second edition.

Kupferman, O. and Vardi, Y. M. (2001). Model check-

ing of safety properties. Form. Methods Syst. Des.,

19(3):291–314.

Lamport, L. (1984). Using time instead of timeout for fault-

tolerant distributed systems. ACM Transactions on

Programming Languages and Systems, 6:254–280.

Li, J. J. and Wong, W. E. (2002). Automatic test gener-

ation from communicating extended ﬁnite state ma-

chine (CEFSM)-based models. 5th IEEE Int. Sym.

Object-Oriented Real-Time Distributed Computing,

2002. (ISORC), p. 181–185.

Maier, D. and Warren, D. S. (1988). Computing with

Logic: Logic Programming with Prolog. Benjamin-

Cummings, Redwood City, CA, USA.

Mellor, S. J. and Balcer, M. (2002). Executable UML: A

foundation for model-driven architecture. Addison-

Wesley Publishing Co., Reading, MA.

Nilsson, N. J. (2001). Teleo-reactive programs and the

triple-tower architecture. Electron. Trans. Artif. In-

tell., 5(B):99–110.

Pap, Z., Majzik, I., Pataricza, A., and Szegi, A. (2005).

Methods of checking general safety criteria in UML

statechart speciﬁcations. Reliability Engineering and

System Safety, 87(1):89 – 107.

Parr, T. (2013). The Deﬁnitive ANTLR 4 Reference. Prag-

matic Bookshelf, 2nd edition.

Picek, R. and Strahonja, V. (2007). Model driven

development-future or failure of software develop-

ment. IIS, v. 7, p. 407–413.

Pnueli, A., de Roever, W.-P., et al. (1982). Rendezvous with

ada-a proof theoretical view. Vakgroep informatica,

RUU-CS-82-12.

Rumbaugh, J., Blaha, M. R., Lorensen, W., Eddy, F., and

Premerlani, W. (1991). Object-Oriented Modelling

and Design. Prentice-Hall, Englewood Cliffs, NJ.

Samek, M. (2008). Practical UML Statecharts in C/C++,

Second Edition: Event-Driven Programming for Em-

bedded Systems. Newnes, Newton, MA, USA.

Sametinger, J., Rozenblit, J., Lysecky, R., and Ott, P.

(2015). Security challenges for medical devices. Com-

mun. ACM, 58(4):74–82.

anchez, P., Alonso, D., Morales, J. M., and Navarro, P. J.

(2012). From teleo-reactive speciﬁcations to architec-

tural components: A model-driven approach. Journal

of Systems and Software, 85(11):2504 – 2518.

Simons, A. (2000). On the compositional properties of

UML statechart diagrams. Rigorous Object-Oriented

Methods 2000, York, UK. Electronic Workshops in

Computing (eWiC).

Srivastava, A. N. and Schumann, J. (2013). Software health

management: A necessity for safety critical systems.

Innov. Syst. Softw. Eng., 9(4):219–233.

Thati, P. and Ros¸u, G. (2005). Monitoring algorithms for

metric temporal logic speciﬁcations. Fourth Workshop

on Runtime Veriﬁcation (RV 2004), v. 113, p. 145 –

162.

von der Beeck, M. (1994). A comparison of statecharts

variants. 3rd Int. Symp. Organized Jointly with the

Working Group Provably Correct Systems on Formal

Techniques in Real-Time and Fault-Tolerant Systems,

ProCoS, p. 128–148, London, UK, Springer-Verlag.

Weiss, M., Eidson, J., Barry, C., Broman, D., Goldin, L.,

Iannucci, B., Lee, E. A., and Stanton, K. (2015).

Time-aware applications, computers, and communi-

cation systems (TAACCS). Technical Report Techni-

cal Note 1867, The National Institute of Standards and

Technology (NIST), U.S. Department of Commerce.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development
