Novelty and Objective-based Neuroevolution of a Physical Robot Swarm

Forrest Stonedahl

, Susa H. Stonedahl

, Nelly Cheboi

, Danya Tazyeen

and David Devore

Math and Computer Science Department, Augustana College, Rock Island, Illinois, U.S.A.

Engineering and Physical Science Department, St. Ambrose University, Davenport, Iowa, U.S.A.

Keywords:

Novelty Search, Neuroevolution, Multi-agent Robotics, Exploration.

Abstract:

This paper compares the use of novelty search and objective-based evolution to discover motion controllers

for an exploration task wherein mobile robots search for immobile targets inside a bounded polygonal re-

gion and stop to mark target locations. We evolved the robots’ neural-network controllers in a custom 2-D

simulator, selected the best performing neurocontrollers from both novelty search and objective-based search,

and compared performance relative to an unevolved (baseline) controller and a simple human-designed con-

troller. The controllers were also transferred onto physical robots, and the real-world tests provided good

empirical agreement with simulation results, showing that both novelty search and objective-based search pro-

duced controllers that were comparable or superior to the human-designed controller, and that objective-based

search slightly outperformed novelty search. The best controllers had surprisingly low genotypic complexity,

suggesting that this task may lack the type of deceptive ﬁtness landscape that has previously favored novelty

search over objective-based search.

1 INTRODUCTION

Within evolutionary robotics, there has been growing

enthusiasm surrounding the concept of novelty search

(NS) (Lehman and Stanley, 2011), wherein the evolu-

tionary algorithm focuses solely on generating novel

behaviors, without regard to objective measures that

quantify robot performance on the desired task. This

re-integration of the idea of open-ended evolution into

solving performance-based machine learning tasks is

intriguing, and promising results have been published

for a variety of domains, including 2-D maze naviga-

tion and bipedal walking (Lehman and Stanley, 2011),

tunable deceptive T-mazes (Risi et al., 2009), and sim-

ulated robot swarm aggregation and resource sharing

tasks (Gomes et al., 2013). Extending this general

line of research, our paper documents one of the ﬁrst

uses of NS for evolving neurocontrollers that are em-

ployed in a physical swarm robotics exploration ex-

periment. In the remainder of the paper, we will de-

ﬁne our swarm robotics task, describe the software

simulator, explain the evolutionary search for neuro-

controllers, and discuss the results of simulated and

physical robot experiments with those controllers.

2 TASK SPECIFICATION/

BACKGROUND

While some have deﬁned swarm robotics as involving

the coordination of large numbers of agents, we as-

cribe to the deﬁnition proposed in a recent review pa-

per (Brambilla et al., 2013) wherein the main charac-

teristics of swarm robotics system are that robots are

autonomous, situated in a changeable environment,

possess only local sensing/communication, lack cen-

tralized control and/or global knowledge, and coop-

erate on a given task. Thus, although we only em-

ploy eight robots, we prefer to frame this task within

the genre of swarm robotics because of the manner in

which the robots are allowed to interact.

2.1 Multi-agent Search Task

Disaster recovery has been identiﬁed as an impor-

tant real-world application where collaborative robot

teams could provide a great beneﬁt to society (Davids,

2002), and our experimental task is based on a loose

analogy to the following search/rescue scenario. We

are concerned with the task of collaborative explo-

ration of a region for which the robots will not pos-

sess a map or any a priori knowledge about the shape

of the region. For economic scalability, the individ-

382

Stonedahl F., Stonedahl S., Cheboi N., Tazyeen D. and Devore D.

Novelty and Objective-based Neuroevolution of a Physical Robot Swarm.

DOI: 10.5220/0006118303820389

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 382-389

ISBN: 978-989-758-220-2

ual robots will each be quite simple and endowed

with only limited capacities for sensing, and no form

of direct inter-robot communication. The robots

will possess basic locomotion (change heading/move

forward), distance sensors that can detect obstacles

nearby (which could be walls or other robots), and

some form of specialized local sensors that can detect

“targets” (possibly disaster victims, chemical hazards,

etc.), but only at very close range. Once a robot

encounters a target, it will remain at that location

(e.g. providing aid and/or communication services

to the victim, providing a beacon for rescue workers

to track, etc.) The robot swarm’s goal is to spread

quickly throughout the disaster domain and collec-

tively locate as many targets as possible.

We abstract this speciﬁc real-world task into the

following simpliﬁed version of the problem, which

we will refer to as the Multi-Agent Multi-Target

Search and Stay (MAMTSS) problem. Given a

bounded (ﬂat) 2-D polygonal region, N targets are

placed within the region, and N robot agents are de-

ployed along one boundary of the region. The robots

are launched simultaneously, and after a ﬁxed time

limit, the success of the robot team is measured by

the fraction of the N targets that were located during

that time period. In the present work, we disallow

any explicit communication between robots. How-

ever, a robot’s distance or bump sensor may detect

other robots, even though the sensor cannot distin-

guish whether it has reacted to a wall or another robot.

Thus, robots may still inﬂuence other robots’ behav-

ior without communicating directly, similar to a ﬂock

of “boids” (Reynolds, 1987).

2.2 Related Work

The MAMTSS problem is most closely related to the

team coverage task, where the robots’ collective goal

is that every location has had a robot pass over it, as in

the examples of lawn mowing or vacuuming (Choset,

2001; Rekleitis et al., 2004). Since the targets in

MAMTSS are placed randomly in the region, our task

could almost be described as a stochastic sampling

method for estimating “coverage”; however, it differs

slightly since robots that reach a target remain immo-

bile at that spot thereafter, rather than continuing to

explore. Some approaches to the coverage task use a

priori global map knowledge to guarantee complete

coverage (Rekleitis et al., 2004), while others em-

ploy stigmergy, such as using artiﬁcial pheremones

to mark cells in the environment as explored (Wagner

et al., 2008). It has also been shown that with enough

robots, even local obstacle avoidance behavior can

achieve decent coverage of the space (Ichikawa and

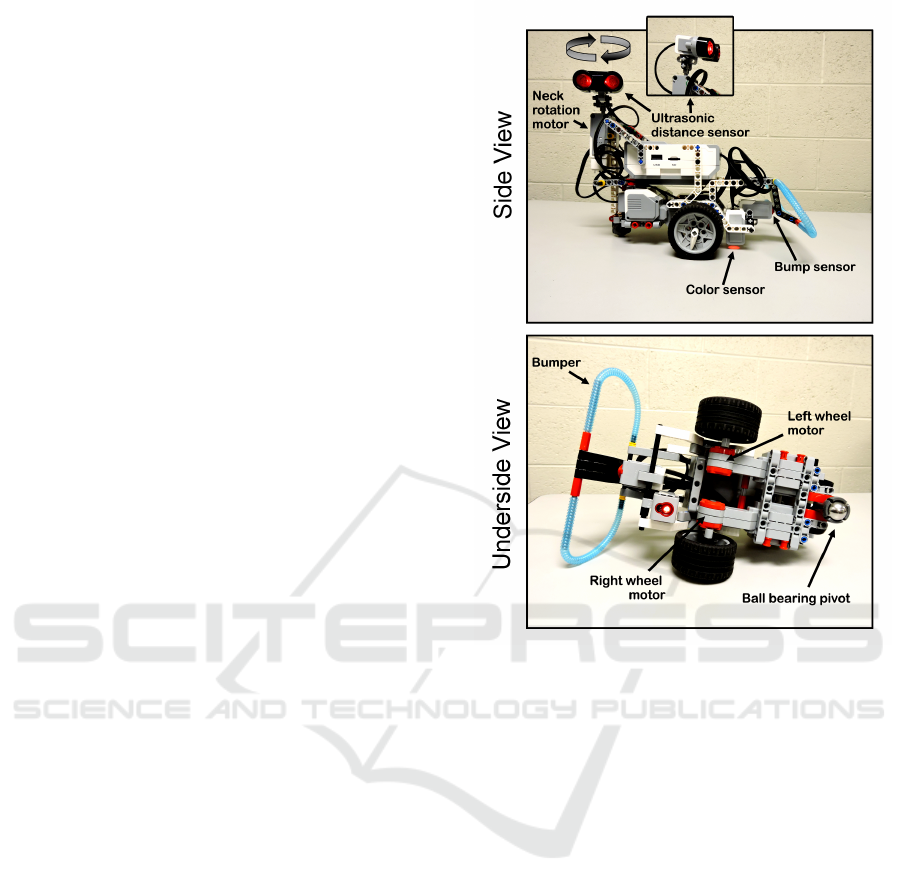

Figure 1: Physical robot design. Two wheel motors provide

differential steering, and a third motor swivels the distance

sensor to take measurements at 30

◦

increments.

Hara, 1999), which is relevant because our MAMTSS

task relies on local sensing/geometry rather than on

global knowledge, direct communication, or even in-

direct communication via stigmergy. In contrast to

their speciﬁc human-coded navigation strategy, we

are evolving robot motion controllers. Another related

task is robot dispersion (McLurkin and Smith, 2007)

although there the robots’ goal is to spread out evenly

throughout the space, rather than to locate as many

targets as possible.

2.3 Physical Setup and Robot

Speciﬁcations

We designed and built 8 identical robots using the

LEGO

Mindstorms EV3 robotics kit, as pictured in

Figure 1. While these consumer-grade robots would

be inadequate for rugged real-world search and res-

cue missions, they are well-suited for our simpli-

ﬁed task. The ease of modiﬁcation and conﬁgura-

tion makes them a versatile research tool, and Mind-

storms robots have been successfully applied in pre-

vious evolutionary robotics research studies (Lund,

Novelty and Objective-based Neuroevolution of a Physical Robot Swarm

383

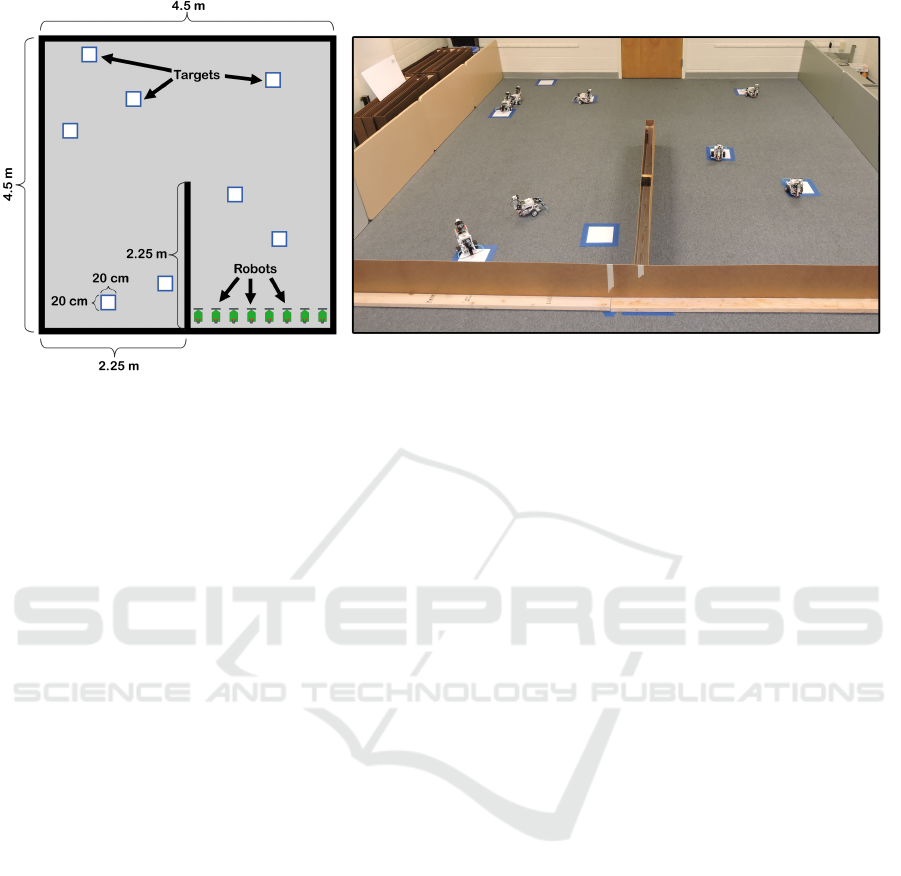

Figure 2: LEFT: Initial top-down layout for the MAMTSS task. The interior wall was 10 cm thick and all walls were at least

30 cm tall. RIGHT: The physical MAMTSS environment, at the end of an 8-minute trial where the team located 6 of 8 targets.

2003; Parker and Georgescu, 2005). The EV3 model

features a 300 Mhz ARM9 processor, 64MB of RAM,

runs embedded Linux, and is programmable in Java

using the open-source LeJOS framework. Each robot

independently repeats three phases: sensing, turning,

and movement. During the sensing phase it takes dis-

tance measurements at 12 regularly-spaced (30

◦

) an-

gles. During the turning phase it chooses an angle to

rotate based on the 12 distance measurements. Dur-

ing the movement phase it moves straight forward 40

cm. If it runs into an obstacle (other robot/wall) that

triggers the “bump sensor” on the front of the robot, it

moves backward 10 cm, and then starts a new sensing

phase. If the robot’s color sensor detects a white tar-

get beneath it at any point, the robot will cease move-

ment and stay at that location for the remainder of the

trial. For our physical implementation of the 8-agent

MAMTSS task, we designed a simple orthogonal U-

shaped environment, as shown in Figure 2. For each

trial, the robots were given 8 minutes to explore the

region and locate as many goals as possible.

3 SIMULATION AND

NEURO-EVOLUTION

3.1 Neural Network Design

We evolved simple feed-forward artiﬁcial neural net-

works (ANNs) with 12 input neurons (corresponding

to the 12 equiangular measurements from the distance

sensor), one output neuron (which controls the angle

for each robot’s turning phase), and a variable num-

ber of hidden-layer neurons (added during neuroevo-

lution). The robot’s ultra-sonic distance sensor has a

maximum range of 2.5 meters, and will report a value

of “Inﬁnity” for “out of range”, which we translated

into 10 m. The distance measurements in meters were

normalized and fed into the neural network. Since a

sigmoidal activation function would bias the output

angle toward sharp turns, the output neurons were as-

signed a linear activation function. However, hidden

layer neurons used a sigmoidal activation function to

permit the construction of nonlinear functions. The

ﬁnal neural output was adjusted/scaled to always be

between −180 and 180 degrees.

3.2 Simulation Software

The time required for running evolutionary algo-

rithms on the physical robots themselves was pro-

hibitive, so we used the NetLogo platform (Wilensky,

1999) to develop a custom 2-D mobile robot simula-

tor for this task. (The diagram shown in Figure 2 is

based on a screenshot from this simulator.) Based on

extensive calibration measurements with the physical

robots, we incorporated realistic levels of Gaussian

noise into the sensor data and actuator error within

the simulator.

3.3 Search Algorithm Experiments

We connected the simulator to the AHNI framework

(Coleman, 2012) for neuro-evolution, and applied the

well-established NEAT search algorithm (Stanley and

Miikkulainen, 2002) for both objective-based search

and novelty search, to evolve neurocontrollers for the

robots. The search parameters, given in Table 1,

were chosen from reasonable ranges based on previ-

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

384

Table 1: Search algorithm parameters.

Parameter Value

Population size 100

Simulation trials per ﬁtness eval. 10

Add neuron mutation rate .03

Add connection mutation rate .30

Remove connection mutation rate .01

Weight mutation rate (& stdev) .80 (1)

Min/max connection weight range [−8, 8]

Number of generations 120

Crossover rate .75

Survival rate .40

Elitism proportion .10

Novelty k (nearest neighbors) 15

Novelty threshold .05

ous work (Stanley and Miikkulainen, 2002; Lehman

and Stanley, 2011). Apart from the use of either

objective or novelty to guide the evolution process,

all other aspects of the two search experiments were

identical. For each generation, 10 new random seeds

were used to determine the random positions of the

8 targets within the environment, and all individuals

within that generation performed trials on those 10

course layouts. An individual’s “performance” score

was calculated as the average (across the 10 trials)

fraction of goals found within the 8 minute trial sim-

ulation. For objective-based search, the ﬁtness score

was the same as the performance score. For novelty

search, the performance scores were calculated for

extrinsic record-keeping, but they did not inﬂuence

the search process in any way. Instead, individuals

were selected for reproduction based on the novelty of

their behavior, with behavior characterized as a high-

dimensional vector of the positions of the robots over

time. Speciﬁcally, normalized robot x and y coordi-

nates (between 0.0 and 1.0) were collected for each

robot every 10 (simulated) seconds. The 10 trials pro-

duced 10 such histories, and these were condensed

by taking the mean and the standard deviation across

trials, thus storing data estimating each robot’s dis-

tribution of possible positions over time. Following

prior research (Lehman and Stanley, 2011), novelty

was calculated using the Euclidean distance between

this behavior vector and the vectors already stored in

the novelty archive

. Extrinsic to the search process,

the best-performing individual in each generation was

recorded, and its performance was re-evaluated using

30 random seeds in order to obtain a more accurate

and unbiased estimate of that individual’s true perfor-

mance level (for plotting and analysis of results).

For an introduction to novelty search and more details

about the method, see (Lehman and Stanley, 2011)

Figure 3: Average performance of the best individuals dur-

ing neuroevolution. Error bars show 95% conﬁdence inter-

vals for the mean.

4 RESULTS AND DISCUSSION

4.1 Search Algorithm Results

The full search algorithm experiments described

above for objective-based and novelty search were

each run 30 times. The average performance over

evolutionary time is shown in Figure 3. In theory, a

perfect solution would have a performance value of 1,

indicating that the robots located every target in all

simulated trials. There are pragmatic reasons why

this theoretical maximum is likely unattainable: a)

the robots were only given 8 minutes, which is prob-

ably insufﬁcient to completely cover the region b) the

robots’ lack of communication makes some duplica-

tion of coverage unavoidable, and c) the targets are

large enough that it is not uncommon for two robots to

ﬁnd and “stay” at the same target (although the hope

is that they will sense the other robot’s presence and

turn away). Given these factors, we judged that both

searches were able to discover fairly good solutions

relatively quickly, suggesting that the algorithms are

working effectively, although the MAMTSS problem

as we have posed it may be a less challenging bench-

mark problem than we had anticipated.

Recall that NS is not guided toward high per-

formance individuals, but is instead guided toward

novel behaviors, and is often able to ﬁnd high perfor-

mance individuals along the way (Lehman and Stan-

ley, 2011). After ﬁnding high-performance individu-

als and adding their behaviors to the novelty archive,

NS’s appetite for novelty may lead it toward less-

ﬁt behaviors, a phenomenon which likely explains

Novelty and Objective-based Neuroevolution of a Physical Robot Swarm

385

0.1

0.2

0.3

0.4

0.5

0.6

0.7

Unevolved

Objec�ve

Novelty

Human

Fraction of

Targets

Found

Simulation, varying layouts (n=1000)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

Unevolved

Objec�ve

Novelty

Human

Fraction of Targets Found

Physical (n=32)

Simulation (n=100)

Figure 4: LEFT: Performance on the 8-agent MAMTSS task based on 1000 trials with different (random) target layouts.

RIGHT: Comparison of physical & simulated trials for one speciﬁc (ﬁxed) target layout. Error bars show 95% conﬁdence on

the mean.

why there is a slight downward slope for novelty

search’s performance in later generations. The aver-

age ﬁnal-generation performance for objective-based

search was statistically higher (t-test, p < 0.01) than

for novelty search, but this was not the case in gener-

ation 35 (p > 0.6).

From the 30 objective-based searches, we selected

the highest-performing individual from any of the 30

ﬁnal populations. From the 30 novelty searches, we

selected the highest-performing individual from any

generation, which happened to be generation 76 of

one of the runs.

Because performance varies considerably based

on the placement of the targets, we ran a more ex-

tensive test of the performance of the best neuro-

controller from objective-based search and novelty

search. To see the progress evolution had made, as

a baseline we also included an “unevolved” neuro-

controller which was the best performing controller

(out of 100 randomly generated individuals) from

the initial population of the same objective-based

search that eventually produced the best performer.

Finally, we included a human-designed controller

in the test, to see how the evolved solutions com-

pared against human ingenuity/intuition. The human-

designed controller was not a neurocontroller, since

hand-designing neural nets is not an area where hu-

mans excel, but rather an algorithm (designed by un-

dergraduate research assistants) that used the same

12 distance measurements as input and produced a

movement angle as output. Speciﬁcally, the human-

designed algorithm was to move forward as long as

there was at least 0.5 meters clear in front of it, and

otherwise it would choose to turn to face the direc-

tion that offered the farthest clear line-of-sight. The

preference for moving forward was based on the intu-

ition that it is beneﬁcial to cover as much ground as

possible (as opposed to a random walk which diffuses

slowly through the space), while also attempting to

ﬁll in open spaces. These four controllers were run in

simulation for 1000 trials with different random target

layouts; the performance results are shown in the left

panel of Figure 4.

The key observations (which are all statistically

signiﬁcant at p < 0.01) are as follows:

1. The evolved and human-designed controllers sub-

stantially outperform the unevolved controller.

2. We conﬁrmed that the neurocontroller from

objective-based search slightly outperforms that

from novelty search on the MAMTSS task.

3. Both the evolved controllers outperform the

human-designed controller.

This last point underscores the effectiveness of neuro-

evolution in this domain. However, in fairness to

the humans, we note that the evolved algorithms are

very likely exploiting the ﬁxed geometry of the course

(e.g. by preferring left turns over right turns), whereas

the human-designed algorithm did not attempt to ex-

ploit this geometric bias. To better visualize the col-

lective motion of the robot swarm, Figure 5 shows

the probability of each location (discretized at 10 cm

resolution) being explored by a robot after 2 and 8

minutes. The slightly lower performance by nov-

elty search may stem from the robots staying a little

further away from the walls than with the objective-

based controller.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

386

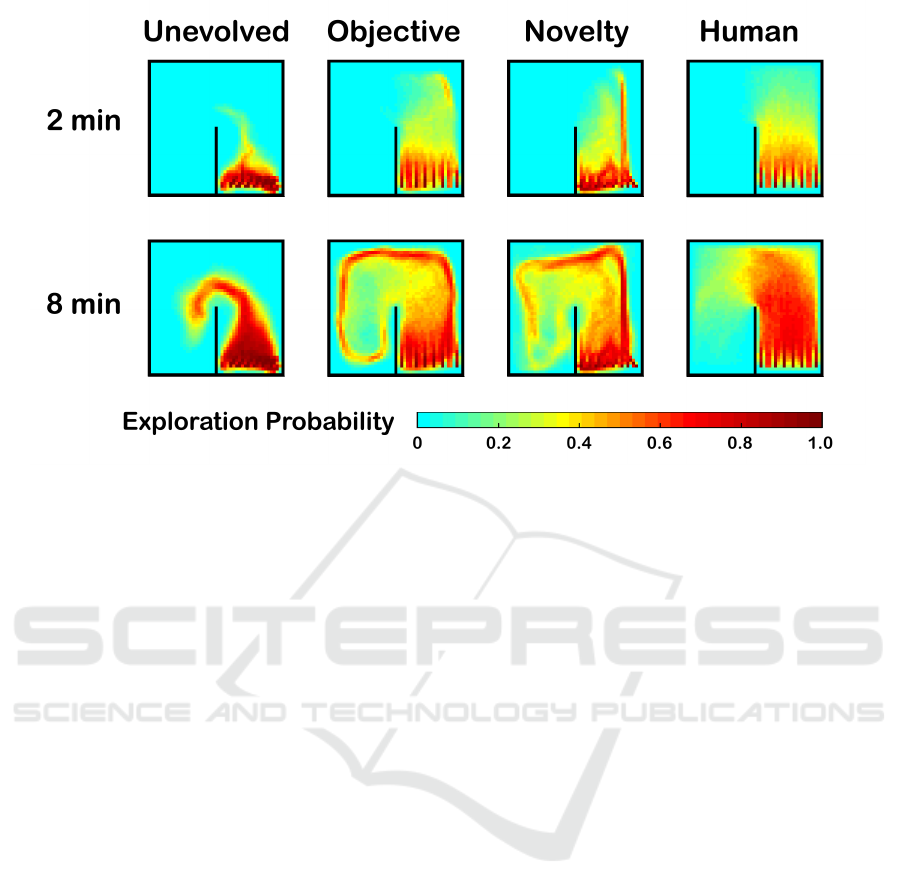

Figure 5: Heat maps of the locations likely to be explored by the various controllers, measured as the empirical probability

of robot traversal during 1000 trials. The evolved neurocontrollers (objective & novelty) reliably explore both halves of the

environment, while the human-designed controller achieves excellent coverage of the starting half, but rarely makes much

progress around the corner.

4.2 Physical Robot Results

The next test was how our evolved controllers would

perform in the real/physical robotics MAMTSS task,

compared with the software simulation. For this ex-

periment, to reduce noisy performance values based

on target placement, we chose just one (ﬁxed) random

target layout (the one shown in Figure 2). We trans-

ferred the same four neurocontrollers discussed above

onto the LEGO EV3 robots, and performed 32 8-

minute trials for each controller on this layout, record-

ing the number of targets located after each trial. We

also ran the software simulation with this speciﬁc lay-

out 100 times. The results of this experiment are

shown in the right panel of Figure 4. The physical re-

sults correlated strongly with the simulated results for

this layout, offering evidence that the software sim-

ulator provides sufﬁcient verisimilitude. The physi-

cal results also matched the same rank order found

in the simulation results across random target lay-

outs. The objective controller outperformed the nov-

elty controller on the physical task (t-test, p < 0.03),

and the novelty controller appeared to outperform the

human-designed controller, but this comparison lacks

statistical signiﬁcance due to the high variance of the

number of targets found across trials. The slightly

lower performance on the physical task vs. the simu-

lated task may be due in part to the fact that occasion-

ally robots would get jammed or ensnared with other

robot chassis, or even knocked over by another robot,

causing it to be disabled for the remainder of the

trial – contingencies not included in our simulation

software.

4.3 Further Observations

We decided to look more closely at the actual neu-

ral networks that were evolved, and were surprised to

discover that the best-performing evolved neurocon-

troller from the objective-based search included just

one synapse, meaning that the robot was computing

an angle to turn based on only one of the 12 dis-

tance sensor readings. The best-performing controller

found by novelty search was also relatively simple,

employing just three synapses. Whereas prior re-

search found that novelty search provided better per-

formance and “the ANN controllers from the maze

domain and the biped walking task discovered by

NEAT with novelty search contain about three times

fewer connections than those discovered by objective-

based NEAT” (Lehman and Stanley, 2011), we found

the opposite. For the MAMTSS task, objective-based

search slightly outperformed novelty search, and the

best performing ANN from novelty search had three

times more connections than the objective-based con-

troller. The multiplicative ratio overstates the case

here, since 3 synapses versus 1 synapse is a small ab-

solute difference, and may not be signiﬁcant.

To determine whether we had allowed NEAT long

enough to evolve more complex neural structures, we

plotted the number of synapses in the best neural nets

Novelty and Objective-based Neuroevolution of a Physical Robot Swarm

387

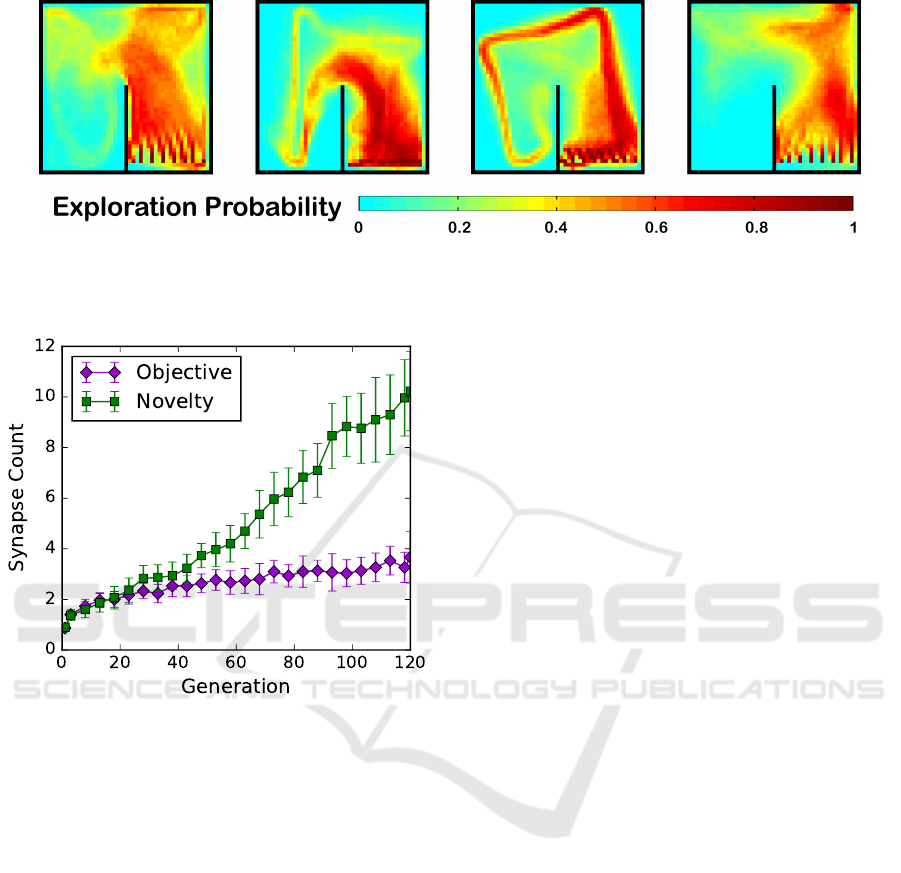

Figure 6: Maps showing empirical probabilities of robot traversal during 1000 trials, for four of the more complex best-

performing neurocontrollers, taken from the ﬁnal generations of the novelty searches.

Figure 7: Neural complexity (measured by number of

synapses) of the best individuals as the searches progressed.

Error bars show 95% conﬁdence intervals for the mean.

from each generation, as shown in Figure 7. This

demonstrated that there was time for more complex

neural networks to evolve, and that novelty search,

in its quest for new behaviors, was evolving them.

However, more complex neural nets did not tend

to lead to better performance on MAMTSS, which

would explain why novelty search’s performance be-

gan to degrade in later generations, as well as why the

objective-based search was avoiding evolving more

complex networks. The collective motion behavior

for a few of the more complex (15-19 synapses) net-

works taken from a ﬁnal generation of novelty search

are displayed in Figure 6. Although these heat maps

collapse robot positions over time, a variety of quali-

tatively different swarm movement behaviors are still

quite evident, in accordance with the modus operandi

for novelty search.

5 CONCLUSIONS AND FUTURE

WORK

Upon reﬂection, novelty search was working quite

well – it was successfully evolving a range of com-

plex/interesting swarm motion behaviors. However,

high performance solutions to the posed MAMTSS

task were possible with simple neurocontrollers. The

speed with which objective-based search was able to

converge on these suggests that the problem was rel-

atively easy (although we had no a priori reason to

suspect this would be the case), and that this ﬁtness

landscape is mostly non-deceptive. Our ﬁnding that

objective-based search (slightly) outperformed nov-

elty search on this task is in accord with an earlier

project (Gomes et al., 2013) that found objective-

based search was superior to novelty search for their

simulated swarm aggregation task, which they also at-

tributed to the ﬁtness function not being particularly

deceptive.

For future work, it would be interesting to

explore more complex boundary geometries, as

well other variants of the MAMTSS, with improved

robot sensing capabilities or some form of limited

communication allowed between robots. Would such

variants offer additional challenge and/or deceptive

search spaces where novelty search would outper-

form objective-based search? Furthermore, narrow

passageways can form bottleneck difﬁculties for

robot swarms, and it would be interesting to compare

evolved solutions against recent approaches such as

fear modeling (Konarski et al., 2016). It would also

be informative to perform a scaling analysis on the

size of the task. Would evolution using a large swarm

of robots in a large environment produce qualitatively

different behaviors than those we evolved for a small

swarm in a small space?

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

388

To summarize, in this paper we have:

1. deﬁned a new swarm robotics task (MAMTSS)

2. solved MAMTSS using neuro-evolution, with

both novelty and objective-based search yielding

better than human-designed performance

3. tested these neurocontrollers and showed

verisimilitude between the simulation and the

physical robots.

4. characterized the resulting swarm behavior for

various neurocontrollers

Even though our formulation of the MAMTSS

robot exploration task turned out to be simpler than

anticipated, this study still provides one more data

point that explores the relative trade-offs between

novelty and objective-based search within the domain

of neuroevolution for swarm robotics.

ACKNOWLEDGEMENTS

We thank Augustana College for its support of this

project through internal research grants.

REFERENCES

Brambilla, M., Ferrante, E., Birattari, M., and Dorigo, M.

(2013). Swarm robotics: a review from the swarm

engineering perspective. Swarm Intelligence, 7(1):1–

41.

Choset, H. (2001). Coverage for robotics – a survey of re-

cent results. Annals of Mathematics and Artiﬁcial In-

telligence, 31(1):113–126.

Coleman, O. (2012). AHNI (Another HyperNEAT Imple-

mentation). [Computer Software].

Davids, A. (2002). Urban search and rescue robots: from

tragedy to technology. IEEE Intelligent Systems,

17(2):81–83.

Gomes, J., Urbano, P., and Christensen, A. L. (2013). Evo-

lution of swarm robotics systems with novelty search.

Swarm Intelligence, 7(2-3):115–144.

Ichikawa, S. and Hara, F. (1999). Characteristics of object-

searching and object-fetching behaviors of multi-

robot system using local communication. In IEEE

International Conference on Systems, Man, and Cy-

bernetics, volume 4, pages 775–781 vol.4.

Konarski, M., Szominski, S., and Turek, W. (2016). Mo-

bile robot coordination using fear modeling algorithm.

International Journal of Mechanical Engineering and

Robotics Research, 5(2):96.

Lehman, J. and Stanley, K. O. (2011). Abandoning objec-

tives: Evolution through the search for novelty alone.

Evolutionary computation, 19(2):189–223.

Lund, H. H. (2003). Co-evolving control and morphology

with LEGO robots. In Morpho-functional Machines:

The New Species, pages 59–79. Springer.

McLurkin, J. and Smith, J. (2007). Distributed Au-

tonomous Robotic Systems 6, chapter Distributed Al-

gorithms for Dispersion in Indoor Environments Us-

ing a Swarm of Autonomous Mobile Robots, pages

399–408. Springer Japan, Tokyo.

Parker, G. B. and Georgescu, R. A. (2005). Using cyclic

genetic algorithms to evolve multi-loop control pro-

grams. In Mechatronics and Automation, 2005 IEEE

International Conference, volume 1, pages 113–118.

IEEE.

Rekleitis, I., Lee-Shue, V., New, A. P., and Choset, H.

(2004). Limited communication, multi-robot team

based coverage. In Proceedings of the 2004 IEEE In-

ternational Conference on Robotics and Automation,

volume 4, pages 3462–3468. IEEE.

Reynolds, C. W. (1987). Flocks, herds and schools: A

distributed behavioral model. In SIGGRAPH ’87:

Proceedings of the 14th annual conference on Com-

puter graphics and interactive techniques, pages 25–

34, New York, NY, USA. ACM.

Risi, S., Vanderbleek, S. D., Hughes, C. E., and Stanley,

K. O. (2009). How novelty search escapes the decep-

tive trap of learning to learn. In Proceedings of the

11th Annual Conference on Genetic and Evolution-

ary Computation, GECCO ’09, pages 153–160, New

York, NY, USA. ACM.

Stanley, K. O. and Miikkulainen, R. (2002). Evolving neu-

ral networks through augmenting topologies. Evolu-

tionary computation, 10(2):99–127.

Wagner, I. A., Altshuler, Y., Yanovski, V., and Bruckstein,

A. M. (2008). Cooperative cleaners: A study in ant

robotics. The International Journal of Robotics Re-

search, 27(1):127–151.

Wilensky, U. (1999). Netlogo. Center for Connected

Learning and Computer-Based Modeling, Northwest-

ern University, Evanston, IL.

Novelty and Objective-based Neuroevolution of a Physical Robot Swarm

389
