SEMF – The Semantic Engineering Modeling Framework

Bringing Semantics into the Eclipse Modeling Framework

for Space Systems Engineering

Tobias Hoppe

1,2

, Harald Eisenmann

, Alexander Viehl

and Oliver Bringmann

2,3

Airbus DS GmbH, 88039 Friedrichshafen, Germany

FZI Research Center for Information Technology, Haid-und-Neu-Str. 10-14, 76131 Karlsruhe, Germany

University of T

ubingen, Sand 13, 72076 T

ubingen, Germany

Keywords:

Model-based Systems Engineering, Conceptual Data Modeling, EMF, OWL, SMOF.

Abstract:

This paper presents an approach to integrate concepts realizing multiple classiﬁcation and dynamic reclassiﬁ-

cation into the Eclipse Modeling Framework (EMF) in order to overcome the restricted number of modeling

concepts of EMF and the strong class-object-relationship of Java. Hereby, the impact of integrating knowledge

modeling approaches – as realized with Prot

e – into EMF without extending Java itself is examined. Conse-

quently, objects are conﬁgurable during the system development life-cycle by retyping. In combination with

reasoning functionality – as known from knowledge management frameworks – several pieces of knowledge

can be inferred and checked automatically as illustrated by examples from aerospace industry. As a result,

inconsistencies can be revealed much easier leading to considerably less potential for failures and a drasti-

cally reduction of follow-on costs. Signiﬁcant improvements in areas like, object classiﬁcation, knowledge

derivation, and guided system development, are highlighted in this paper.

1 INTRODUCTION

Many engineering domains, like mechanical, elec-

trical, optical, thermal, and software engineering,

are involved in nowadays systems engineering pro-

cesses dealing with a considerably large amount of

data and a multitude of data exchanges shaping a big

data environment. Proceeding with model-driven sys-

tems engineering requires a mapping of semantic con-

cepts close to those of the application domain, be-

cause semantics are strongly inﬂuenced by the used

tools rather than the data itself. Therefore, the in-

volved tools have to provide means to allow a com-

putational and human interpretation to form data into

knowledge enabling powerful model-based systems

engineering. Due to this, each domain uses special-

ized Commercial-Off-The-Shelf (COTS) tools com-

ing from different vendors. Consequently, each engi-

neering domain has to handle different technologies,

paradigms, ﬁle-formats, and semantics. This com-

plicates a domain-spanning collaboration. The out-

puts of these COTS tools as well as input documents

are stored in domain-speciﬁc engineering databases.

They are designed with respect to the requirements

of the COTS tools of a certain domain. Nonetheless,

they reﬂect only a speciﬁc section of the whole sys-

tem engineering life-cycle with limited collaboration

facilities which is a central aspect of nowadays sys-

tems engineering.

Model-Based Systems Engineering (MBSE)

(Friedenthal et al., 2007) is an upcoming topic in all

systems engineering areas. A central aspect of MBSE

is the usage of digital models during the whole

system development life-cycle. For the purpose of

providing a holistic system model as needed for

discipline-spanning MBSE, a suitable data structure

has to be kept by a software model to represent

all needed facets, like system abstraction levels,

domain-speciﬁc engineering data, discipline-speciﬁc

analysis, related reports, and project-speciﬁc tailoring

of data structures.

1.1 Necessity of Approach

For the European spacecraft engineering community

the emerging European standard ECSS-E-TM-10-23

is under development (ECSS-E-TM-10-23A, 2011).

It facilitates consistent cross-discipline management

Hoppe T., Eisenmann H., Viehl A. and Bringmann O.

SEMF â

A ¸S The Semantic Engineering Modeling Framework - Bringing Semantics into the Eclipse Modeling Framework for Space Systems Engineering.

DOI: 10.5220/0006118702930301

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 293-301

ISBN: 978-989-758-210-3

293

of data by specifying a Conceptual Data Model

(CDM) reﬂecting fundamental concepts of spacecraft

system design. An implementation of a System Ref-

erence Database (SRDB) based on this emerging stan-

dard is already in use in parts of the space indus-

try (Eisenmann et al., 2015). The CDM is realized

using the Uniﬁed Modeling Language (UML)(UML,

2015) and is transformed into a technology-speciﬁc

Ecore data model to enable code-generation based

on the state-of-the-art Eclipse Modeling Framework

(EMF)(Steinberg et al., 2008). The generated code

forms the core of the resulting SRDB and is extended

by data management functions which in turn are also

developed in a model-driven way.

On the one hand, the aforementioned implemen-

tation of ECSS-E-TM-10-23 offers all advantages of

model-driven software development during develop-

ment time of SRDB implementation as well as a

rather strong relation between CDM’s modeling ele-

ments and their corresponding data items of the im-

plementation. On the other hand, the major strug-

gling point is the weak semantics of EMF’s meta-

model, caused by missing modeling concepts, like

aggregations, and association classes. Additionally,

constraints can only be included into EMF while ex-

tending Ecore by the Object Constraint Language

(OCL) (OCL, 2012). Nonetheless, this is essential

to specify inter-association dependencies being used

for system data analysis, like specifying that each

satellite must have a speciﬁc number of orbit control

thrusters with a certain propulsion depending on its

total mass. Moreover, these constraints will be tai-

lored on each spacecraft development project to cover

mission speciﬁcs, for instance a satellite has two so-

lar arrays as default but for sun exploration missions

one solar array might be sufﬁcient. Furthermore,

an SRDB implementation has to deal with multiple-

typed objects to realize that a system element is of

a certain equipment type which implies that corre-

sponding domain-speciﬁc data is correlated to it and

analysis data has to be woven into this system ele-

ment. For example, a system element can represent a

battery which implies that mechanical and electrical

engineering data has to be provided and this system

element is maintained by a conﬁguration control sys-

tem to track which data version is correlated with each

other. Additionally, these multiple typed objects will

evolve over time by adding or removing parts of it.

The aforementioned needs of a MBSE supporting

framework are not speciﬁc to an ECSS-E-TM-10-23

implementation nor the space industry - instead all

developers of model-based applications dealing with

multiple typed objects, constraining, and tailoring ap-

proaches are faced with these problems. Research on

using ontologies to specify a CDM covering all the

aforementioned facets is already conducted by (Hen-

nig et al., 2015), (Hennig et al., 2016). Nevertheless,

the authors do not provide means to implement the

introduced concepts.

This paper presents an approach to overcome the

aforementioned set of shortcomings based on the Ob-

ject Management Group standard “MOF Support for

Semantic Structures” (SMOF) (SMOF, 2013), in the

following referred to as SMOF-standard. The follow-

ing two main contributions are elaborated in detail:

• Extension of EMF by the concepts of the SMOF

standard

• Elaboration of integrating reasoning into the EMF

environment

The following Section 2 focuses on the weak

points of actually used approaches to realize a

domain-spanning system data repository. Thereby,

the needs of introducing more semantic concepts are

pointed out. In Section 3 the integration of seman-

tic concepts into the Eclipse modeling Framework is

described in detail and the beneﬁts of the approach

presented in this paper are evaluated by a case study

outlined in Section 4. Finally, this paper concludes in

Section 5.

2 MBSE IN EUROPEAN

SPACECRAFT ENGINEERING

An SRDB implementing the ECSS-E-TM-10-23

CDM has to deal with multiple architectural and tech-

nical implications. It prevents redundancy through di-

rect usage of data provided by other domains instead

of working with data from a domain-speciﬁc storage.

It is the foundation for consistent data management

regarding both the consistency within a dataset from

a single domain as well as domain-spanning consis-

tency due to having a single data source to execute

domain-spanning tasks, like simulations, and system

validations.

2.1 Identiﬁed Weak Points of the CDM

Implementation

Implementing the concepts of the ECSS-E-TM-10-23

CDM leads to multiple design decisions concerning

the used technology-speciﬁc data model. This in turn

inﬂuences the resulting SRDB implementation.

An explicit part of the emerging standard ECSS-

E-TM-10-23 is the decomposition of a system ele-

ment into other system elements, different kinds of

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

294

related entities, owned values, as well as its represen-

tation of an equipment type related with discipline-

speciﬁc engineering data. In addition, the equipment

types have to be own objects which shall be reused

in further projects whereby the system elements are

project-speciﬁc. This enforces some kind of multiple-

type object to reﬂect the different facets of a system

element and fulﬁll ECSS-E-TM-10-23 conformity in

all details. Feasibility of implementing these concepts

is enforced by enhancing a CDM by needed items.

This will be called implicit knowledge.

Another category of type change during spacecraft

evolution is introduced by adding data management

functions’ data to system data. Taken the use case

that after creating a system element it shall be added

to a conﬁguration control system, the system element

type has to be enhanced. It has to become a conﬁg-

uration item to store all information needed for con-

ﬁguration control, like revision number, commit mes-

sage, and some more. Additionally, the meta-model

for function-speciﬁc data has to be aligned with the

CDM which implies that the function meta-model

has to be conform to the used technology-speciﬁc

data model. Consequently, function-speciﬁc aspects

are woven into the technology-speciﬁc data model or

even in a CDM to ease up function integration.

During development of a spacecraft the evolution

of system data may lead to an update of a system el-

ement, where its type is adjusted. This is for instance

the case when a battery of a spacecraft is represented

by a single system element in an early version of the

system data. During system data evolution it will

make sense at a certain point to break down the bat-

tery into multiple system elements to properly repre-

sent the individual parts of it, such as energy storage,

controller, and structure. This change leads to a type

change of the system element representing the over-

all battery from equipment to subsystem which inﬂu-

ences the handling of this system element by overall

system data analysis, like system-wide data consis-

tency checking.

Project-speciﬁc tailoring is a central functional-

ity in SRDB implementations to enable inter-project

reuse of knowledge and engineering data. There-

fore, some parts of a CDM have to be adjusted to

reﬂect project speciﬁcs. This enforces some kind

of data container being conﬁgured in SRDB itself

to handle domain-speciﬁc system element properties,

like weights, sizes, temperatures, voltages, and so

on. Data analysis of these dynamic data containers is

challenging especially regarding overall system con-

straints, like total spacecraft mass constraints. Be-

sides, a manually adjustment of SRDB is applied to

face with project-speciﬁc data importer and exporter,

because it is currently not feasible to handle them oth-

erwise.

2.2 Related Work on

ECSS-E-TM-10-23

Implementations

The ECSS-E-TM-10-23 CDM has been implemented

in multiple projects, like Virtual Spacecraft De-

sign (VSD, 2012), Functional System Simulation in

Support of MBSE (Fischer et al., 2014), European

Ground Systems Common Core (Pecchioli et al.,

2012), and RangeDB (Eisenmann et al., 2015), an

Airbus DS in-house development project which sig-

niﬁcantly improved this CDM by evolution and re-

ﬁnement of several areas.

Nevertheless, the concepts speciﬁed by ECSS-E-

TM-10-23 have not been realized in its entirety by

any of its implementations, especially due to miss-

ing multiple classiﬁcation concepts in state-of-the-art

software development frameworks and its ramiﬁca-

tions. Even the usage of interfaces is not sufﬁcient

to realize multiple instantiation, because dynamic ad-

dition and removing of types cannot be realized as all

instances already implement all possible types. Thus

it is not possible to ﬁlter objects by type using inter-

faces. Additionally, project-speciﬁc tailoring requires

handling of types being created during runtime.

In contrast, knowledge representation languages,

like the Web Ontology Language (OWL)(Hitzler

et al., 2012), explicitly support multiple classiﬁca-

tion and other knowledge management concepts. Al-

beit, available frameworks for these languages, like

Prot

e, do not provide data management functions

as needed for MBSE.

2.3 Drawbacks of State-of-the-art

Frameworks

EMF: provides a powerful tool chain from model

deﬁnition, through application generation, to instance

model support. Furthermore, a great number of plug-

ins has been developed to add further functionality to

EMF. As a result, EMF became the de facto-standard

for model-driven software development in many com-

panies

. However, Ecore – EMF’s meta-model – is

not sufﬁcient to fulﬁll the needs of a data model as

required by an implementation of an ECSS-E-TM-10-

23 compliant CDM. The main reason is the absence of

semantically strong modeling constructs which have

been left out intentionally to keep the complexity of

EMF manageable (Merks, 2010).

http://www.eclipse.org/org

SEMF â

A¸S The Semantic Engineering Modeling Framework - Bringing Semantics into the Eclipse Modeling Framework for Space Systems

Engineering

295

Prot

e: is a state-of-the-art knowledge manage-

ment framework (Gennari et al., 2003). It is based

on the OWL meta-model. Prot

e provides functions

to model ontologies as well as it is shipped with inte-

grated reasoners to derive knowledge about instance

models based on user-deﬁned rules. All in all, Prot

provides excellent means to model ECSS-E-TM-10-

23 conform CDMs, due to its semantically strong

knowledge modeling and knowledge derivation ap-

proaches.

Nonetheless, there are only limited possibilities to

generate code from modeled ontologies. Prot

e and

other known knowledge management frameworks are

designed for model development and do not explic-

itly support software development – especially for an

SRDB implementation. This is an essential drawback.

2.4 Related Approaches to Realize

SMOF Concepts

A similar realization of the multiple classiﬁcation ap-

proach than described in the SMOF standard is real-

ized by an Eclipse Java compiler extension provided

by the ObjectTeams group (Herrmann, 2007), (Her-

rmann et al., 2007). They extend Java classes to de-

ﬁne certain so called Roles which can be played by

instances of a class. Using this approach an object

can play multiple roles and an object’s behavior de-

pends on the roles it plays. Furthermore, adding and

removing a role will not change an object’s identity.

In addition, the operations deﬁned by a role can be

applied as known.

All in all, this reﬂects the multiple classiﬁcation

concept as speciﬁed by the SMOF standard. Never-

theless, the ObjectTeams approach is geared to the

ObjectTeams Java compiler for Eclipse which is not

updated as often as the Eclipse built-in compiler and

a dynamic reclassiﬁcation is limited on the number

of roles deﬁned during design time of engineering

framework and cannot be changed afterwards.

Martin Fowler presents several design patterns on

how to realize different variants of multiple classiﬁca-

tion by discussing their individual beneﬁts and draw-

backs (Fowler, 1997) on a conceptual level. Nonethe-

less, implementations of the presented patterns have

to deal with programming language speciﬁc concerns,

like multiple inheritance, which is not supported in

Java but in other languages, like C++, and is a key

feature to realize SMOF’s multiple classiﬁcation.

3 SEMANTIC EMF

Semantic EMF synergistically combines knowledge

modeling concepts and the SMOF concepts in con-

junction with EMF to enable a semantically stronger

modeling of data structures appropriately reﬂecting

constructs of the real world.

3.1 SMOF Concepts

The SMOF standard deﬁnes two major concepts –

multiple classiﬁcation and dynamic reclassiﬁcation –

reﬂecting the semantic extension of the MOF stan-

dard.

Multiple Classiﬁcation: as speciﬁed by the SMOF

standard deﬁnes an object’s type as the union of struc-

tural and behavioral features deﬁned by all of its inde-

pendent meta-classes – which can be more than one.

Dynamic Reclassiﬁcation: is speciﬁed by the

SMOF standard as an ability to modify an object’s

type by adding or removing meta-classes without

changing the object’s identity.

3.2 Impact on CDM Implementations

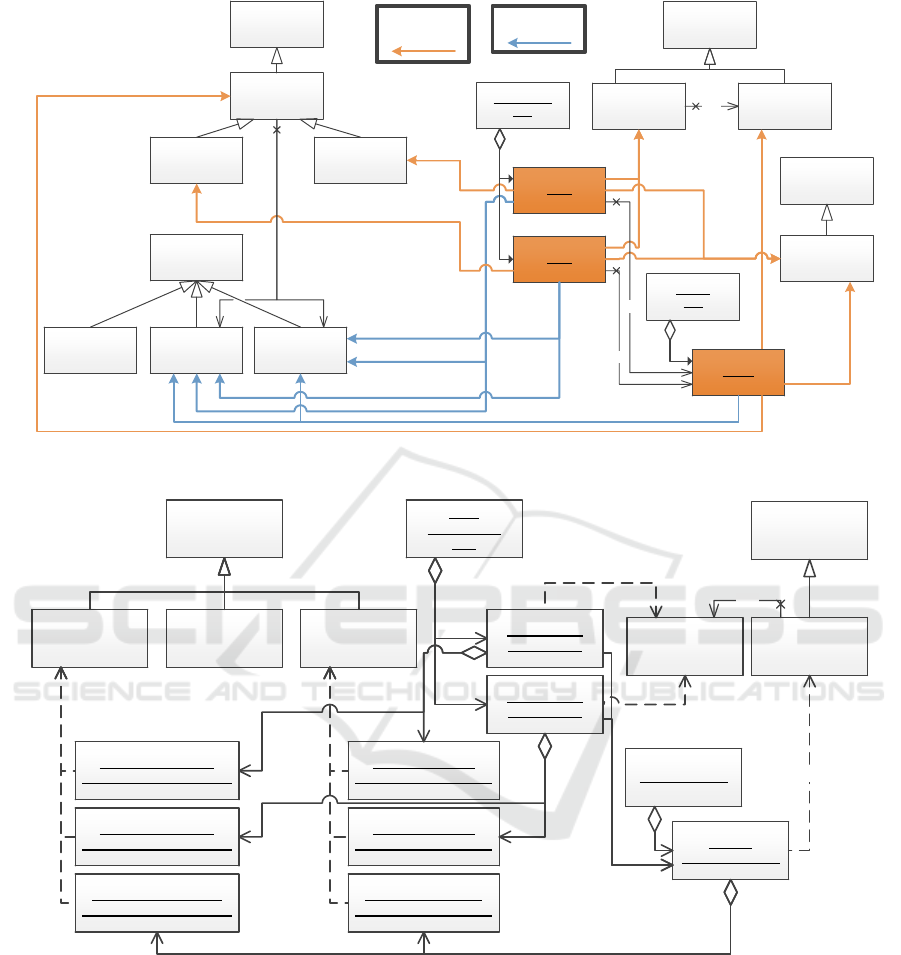

In Figure 1 an excerpt of the ECSS-E-TM-10-23

CDM is illustrated. It focuses on the central concept

of this emerging standard, namely the composition of

a System element of related system engineering data.

Thereby, the correlation between the different System

Element sub-types plays an important role. An Ele-

ment Deﬁnition represents a class of elements being

used in a spacecraft, like an solar array, and an Ele-

ment Conﬁguration represents a concrete instance of

an element deﬁnition type, like left solar array, right

solar array, and so on. This relation is represented by

the type relation. As a result, all data related to an

Element Deﬁnition is also valid in the scope of all El-

ement Conﬁgurations having this Element Deﬁnition

as type until they override it. In the example given

in Figure 1 the Battery instance of Element Deﬁnition

is the type for the two instances of Element Conﬁgu-

ration. Consequently, the two Element Conﬁguration

instances have to be a Battery Equipment Type which

in turn results in having mechanical and electrical en-

gineering properties for each of them. Using reason-

ing functionality as available in Prot

e this might be

derived from the relations between Equipment Types

and Property Containers.

Additionally, data necessary to perform systems

engineering, like conﬁguration control information,

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

296

Equipment

Type

PropertyContainer

Element

Definition

System

Element

Battery

Mechanical

Engineering Data

Electrical

Engineering Data

Configuration

Tree

BAT 1

Must be

Instance of

Battery

Optical

Engineering Data

Battery_S Battery_XL

BAT 2

Must be

Instance of Battery

Function

Meta Data

Configuration

Item

Element

Configuration

type

Product

Tree

Battery

Instance of Relation

Derived by reasoner

Conceptually

Instance of

type

requires

Figure 1: Relations between system elements, equipment types, and domain data as deﬁned by ECSS-E-TM-10-23.

Property

Container

Element

Definition

System

Element

Mechanical

Engineering Data

Electrical

Engineering Data

SC: Product Tree

Battery:

ElementDefinition

Optical

Engineering Data

<<instanciate >><<instanciate>>

<<instanciate>>

ElectricalBatteryData:

ElectricalEngineeringData

MechanicalBatteryData:

MechanicalEngineeringData

SC_1:

Configuration

Tree

Bat1: Element

Configuration

Bat2: Element

Configuration

Element

Configuration

type

<<instanciate>>

Bat1ElectricalData:

ElectricalEngineeringData

Bat2ElectricalData:

ElectricalEngineeringData

Bat2MechanicalData:

MechanicalEngineeringData

Bat1MechanicalData:

MechanicalEngineeringData

type

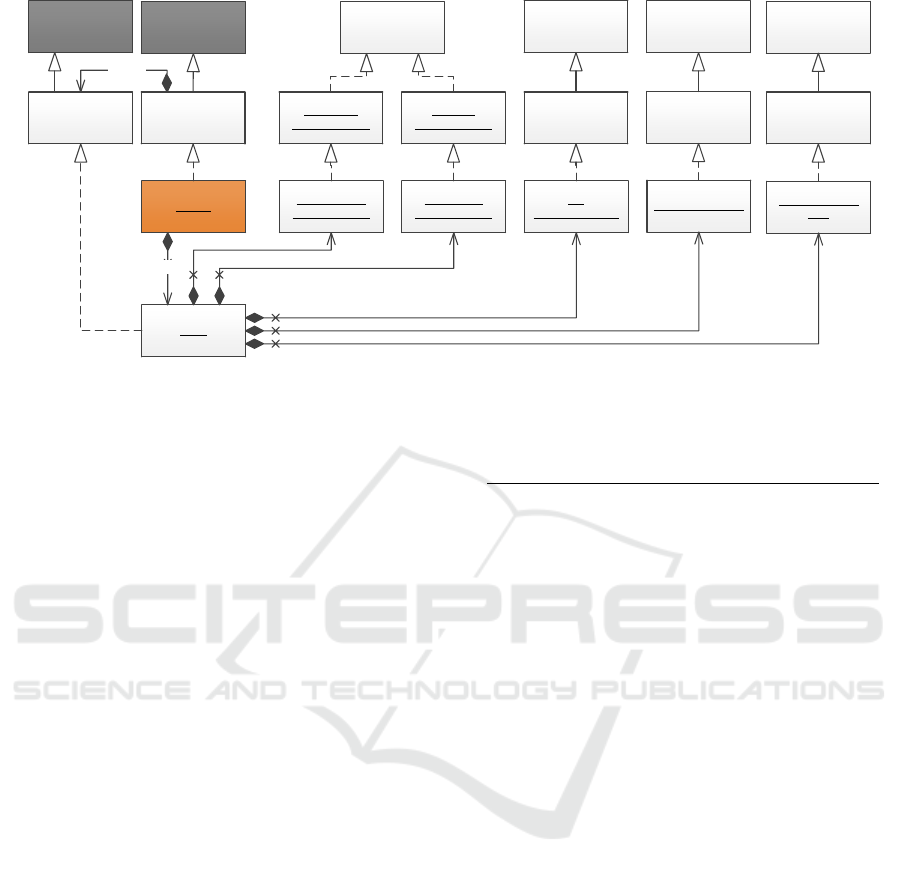

Figure 2: Technology-speciﬁc data model reﬂecting the same relations as shown in Figure 1.

related documents, related simulation data, domain-

speciﬁc data representations, and many more is at-

tached in form of Function Meta Data.

The excerpt of the ECSS-E-TM-10-23 CDM

shown in Figure 1 cannot be implemented using EMF

without changes to emulate the needed multiple clas-

siﬁcation behavior. Current implementations of this

CDM introduce additional relations and special func-

tions to represent the expected behavior as illustrated

in Figure 2. In this case the engineering data in-

stances are explicitly available as own instances and

contained by the corresponding System Elements. The

Equipment Types are implicitly available by the name

of a System Element and the relations between Sys-

tem Elements and domain data are realized by adding

proper dynamic Property Container instances to cor-

responding System Elements.

The Function Meta Data instances have been in-

tentionally left out in this ﬁgure, but they are handled

like Property Containers. The functional dependency

SEMF â

A¸S The Semantic Engineering Modeling Framework - Bringing Semantics into the Eclipse Modeling Framework for Space Systems

Engineering

297

between an Element Deﬁnition and an Element Con-

ﬁguration is handled by internal functions. Neverthe-

less, it is not ensured that an Element Conﬁguration

instance has the same engineering data types as the

corresponding Element Deﬁnition. The introduction

of such implicit semantics in nowadays implementa-

tions leads to different interpretations of data by engi-

neers. Thus, it is an essential drawback.

3.2.1 Multiple Classiﬁcation Impacts

Multiple classiﬁcation is needed to realize a Sys-

tem Element as introduced by ECSS-E-TM-10-23 and

highlighted in Figure 1. In this case the Battery is an

instance of Element Deﬁnition, Conﬁguration Item,

Battery Equipment Type, as well as of the inferred

Property Container – Mechanical Engineering Data

and Electrical Engineering Data. It properly reﬂects

the relations as speciﬁed by ECSS-E-TM-10-23 with-

out introducing implicit knowledge by the implemen-

tation.

A further advantage of the usage of multiple clas-

siﬁcation in this scenario is the reduced maintenance

effort due to CDM changes resulting only in changed

types, although in current implementations the intro-

duced technical adjustments of the CDM have to be

maintained. Moreover, maintenance of engineering

frameworks will be signiﬁcantly reduced due to sepa-

ration of core concept data and function speciﬁc data,

because the usage of multiple classiﬁcation would en-

able a ﬁne-grained providing of function meta-data

without adjustment of the System Element class or any

of its sub-classes. For example, the introduction of a

new Function Meta Data type can be performed with-

out touching the System Element class and on instance

level by putting it into the types list of an existing

System Element instance. This allows detailed track-

ing for dependencies of system engineering functions

and is a basement for a ﬂexible systems engineering

framework architecture.

Additionally, multiple classiﬁcation allows engi-

neers to ﬁlter system elements according to their

equipment type or the domains they provide data for.

The implementation of such ﬁlter functions is signif-

icantly less complex, because objects need to be ﬁl-

tered only according to their type, whereas in nowa-

days implementations the relations introduced only

for the implementation need to be evaluated.

3.2.2 Dynamic Reclassiﬁcation Impacts

Dynamically adding and removing object types dur-

ing an object’s life-cycle comes up with several use

cases in scope of realizing the vision of ECSS-E-TM-

10-23. One of the major beneﬁts is the evolution of an

object by adding further types. Regarding the exam-

ple CDM given in Figure 1 this can be used to build

up a System Element by adding its Equipment Type

and afterwards adding the Property Container. Addi-

tionally, the object can be enhanced by Function Meta

Data types. This step-by-step evolution of an object

– where an existing object is enhanced by additional

data and behavior – enables step-wise forming of an

object without the need to provide classes for all al-

lowed combinations.

Project-speciﬁc tailoring is achieved in current

implementations by introducing conﬁgurable prop-

erty containers which can be conﬁgured by project

managers during runtime of SRDB, like Property

Container in the example illustrated in Figure 1. Af-

terwards, systems engineers instantiate these conﬁg-

ured Property Containers to store their actual data

values. With the help of dynamic reclassiﬁcation

the current project-speciﬁc tailoring approach can be

enhanced by handling the aforementioned Property

Containers like all other classes. This means that

adding a Property Container to a certain System El-

ement will no longer be realized by a certain relation.

Instead, a Property Container will be handled like a

new type of a System Element instance and is simply

added to the already available set of types.

As a result, only simple type checks are needed

to ﬁgure out whether a certain Property Container is

applied to a System Element or not, whereas in current

implementations all property container instances of a

system element must be analyzed to check whether

the searched one is present or not.

Although dynamic reclassiﬁcation simpliﬁes sys-

tem engineering tasks and MBSE framework devel-

opment, it enforces an additional constraining mech-

anism to prevent system engineers from using certain

object type combinations that make no sense from

overall system point of view, such as disjoint types,

like actor and sensor.

3.3 Semantic EMF for MBSE

In Figure 3 an EMF-based implementation for multi-

ple classiﬁcation is introduced. Thereby, an SObject

reﬂects its types by a Type Registry that contains all

mappings from a class type to the corresponding in-

stances. In the given example the SObject instance

Battery is build up by the ﬁve different types being

connected to the contained Type Registry. Addition-

ally, each SObject provides the following functions:

• getting all classes registered in type registry

• check whether this element is an instance of a

given type

• add a new type

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

298

EObject

SObject

Battery

Equipment Type

Configuration Item

Battery

Type Registry

<Class, EObject>

typeReg

Bat

ElementDefinition

BatEquipmentType

BatConfiguration

Item

Types

typeReg

Element Definition

Battery

Configuration Item

Property

Container

Mechanical

EngineeringData

Mechanical Engineering Data

BatMechanical

EngineeringData

Equipment

Type

Element

Definition

System

Element

Function

Meta Data

EMap

Electrical

EngineeringData

BatElectrical

EngineeringData

Electrical Engineering Data

Figure 3: Implementation for multiple classiﬁcation representing the scenario introduced in Figure 1.

• remove an existing type

• provide access to covered instances of registered

types

• check whether a given type can be assigned to the

SObject instance or not based on available set of

rules

The handling of Property Containers differs from

other types, because they are conﬁgurable during run-

time by adding further project-speciﬁc properties or

adjustment of existing ones which is part of ongoing

research.

3.4 New Functions by Semantic EMF

The semantic concepts illuminated in Section 3.1

are the foundation to integrate reasoning – a cen-

tral knowledge management functionality – into an

SRDB. A reasoner can be used to evaluate model va-

lidity by checking logical model coherence and user-

deﬁned rules. In addition, new information can be

derived from existing data using a reasoner’s data in-

ference functionality.

A less obvious scenario for knowledge derivation

than given in Figure 1 is the following: A Sensor is

deﬁned as Magnetic Instrument and the CDM con-

tains a rule that each spacecraft containing a Magnetic

Instrument is a Magnetic Critical Spacecraft. This re-

lation can be inferred by the reasoner. Furthermore,

there is a rule that each Battery being part of a Mag-

netic Critical Spacecraft must be of type Magnetic

Critical Battery. The needed instance-of relation can

be inferred by a reasoner, too. A wide range of such

rules is already available and leads to less error-prone

and more consistent system models.

Table 1: Number of selected data types in the satellite

project used for evaluation of semantic concepts.

# Objects

Element Deﬁnition 50

Element Conﬁguration 150

Domains 11

Equipment Types 40

Dynamic Conﬁguration Classes 20

Dynamic Conﬁguration Instances 1600

4 CASE STUDY

This section illustrates the impact of semantic con-

cepts as proposed in Section 3 on a spacecraft de-

sign project being at the end of Phase B of European

Space Agency’s mission lifetime cycle which reﬂects

the preliminary design deﬁnition phase (ECSS-E-ST-

10C, 2009).

Evaluation Project Setup. The virtual spacecraft

design project data presented in this paper represents

a realistic project in terms of used number of el-

ements, involved domains, and overall complexity.

ECSS-E-TM-10-23 deﬁnes four sub-types of system

elements. In this paper only the Element Deﬁnition

and the Element Conﬁguration are of interest, because

the other two types are only relevant for later phases

of spacecraft design and will not introduce any further

concepts or complexities.

The excerpt of the CDM deﬁned by ECSS-E-TM-

10-23 as shown in Figure 1 is taken as starting point

to show how semantic concepts and data management

functions from knowledge modeling frameworks are

integrated to improve semantics and how they can

SEMF â

A¸S The Semantic Engineering Modeling Framework - Bringing Semantics into the Eclipse Modeling Framework for Space Systems

Engineering

299

help to reduce system development costs.

The introduction of semantic concepts enables the

employment of Equipment Types as self-contained

model elements which can be reused by several sys-

tem elements even in multiple projects whereby in

the current implementation the Equipment Types are

only represented by a System Element’s name (see

Figure 2 Battery), because a System Element can-

not extend multiple classes in Java. From a model-

ing point of view it is possible to inherit from multi-

ple classes in EMF. Due to missing multiple inher-

itance in Java this results in duplicated implemen-

tation code and non-generated parts of classes can-

not be used properly. Consequently, multiple inheri-

tance is avoided in actual implementations of ECSS-

E-TM-10-23 and technology-speciﬁc model adjust-

ments have been realized as pointed out in Sec-

tion 3.2. Introducing multiple classiﬁcation in EMF

opens the door to model and implement the Equip-

ment Types as speciﬁed in ECSS-E-TM-10-23. As

a result, a relation between Property Container and

Equipment Types can be modeled to specify the ex-

pected domain data for an Equipment Type as illus-

trated in Figure 1. As soon as a System Element

instance is related to an Equipment Type the corre-

sponding Property Container types are automatically

inferred by the reasoner and must not manually be

managed by a systems engineer any longer. If mul-

tiple variants of a spacecraft are designed, this can

be used to ensure the same behavior for all variants

by reusing the Equipment Types and their relations to

Property Container. In this scenario 280 relations can

be reused by other projects.

Regarding the model in Figure 1 multiple classiﬁ-

cation is an enabler to realize project-speciﬁc tailoring

of the CDM by dynamic object composition. In this

case, all instances of dynamic conﬁguration classes,

like Property Container, and Equipment Types, can

play a role as part of a System Element. In this sce-

nario 1600 dynamic conﬁguration instances can be

used as concrete parts of System Elements forming

their speciﬁc type set.

Based on the foundation given by multiple clas-

siﬁcation a reasoning functionality as known from

knowledge modeling frameworks can be used to make

implicit available knowledge explicit. As presented

in Figure 1 a reasoner can derive which domain-data

is needed for a system element representing a cer-

tain Equipment Type by evaluating the newly intro-

duced relation between Equipment Type and Property

Container. In the context of the evaluated spacecraft

design project the reasoner derived 350 relations for

Element Deﬁnitions, due to the fact that an Element

Deﬁnition is related to Property Container of seven

domains in a common project. On Element Conﬁgu-

ration level the number of inferred relations is about

1050 based on 150 Element Conﬁgurations having

overall domain data from seven domains.

Dynamic reclassiﬁcation and multiple classiﬁca-

tion go hand in hand while working with system data.

The system data illustrated in Figure 1 will be built-

up step by step still leading to a reclassiﬁcation of a

system element by adding the Equipment Type as ad-

ditional type. Moreover, a System Element can be

extended by Function Meta Data types as soon as

data management functions are applied. In the given

scenario many reclassiﬁcations take place. In gen-

eral, each System Element is reclassiﬁed at least twice.

First, by adding the Equipment Type and second, by

adding the corresponding Property Container. Addi-

tionally, applying Function Meta Data, as shown in

Figure 1, will result in further reclassiﬁcations.

All in all, these concepts are 100 percent back-

ward compatible and can be incrementally applied in

existing software solutions. In addition, they are to-

tally compatible to Eclipse and EMF and follow the

Java principles (Gosling, 2000).

5 CONCLUSION

The integration of semantic and knowledge model-

ing concepts into the Eclipse Modeling Framework

(EMF) leads to a ﬂexible way of working with data

during runtime. Especially, the Semantic Meta-

Object Facility concepts – multiple classiﬁcation and

dynamic reclassiﬁcation – fundamentally change the

way of implementing conceptual models.

Thereby, the composition of objects during run-

time provides the needed freedom for ﬂexible space-

craft design supporting the whole engineering life-

cycle. For data management support data ﬂows can

be easier traced between domain-speciﬁc commercial

of the shelf tools and the system database. Addi-

tionally, new functions supporting data exploitation

in terms of rule-based analysis and automatic type

conclusions using reasoning functionality will signif-

icantly improve the engineering process. Moreover,

domain-speciﬁc views can be deﬁned for domain en-

gineers based on the domain data types of a system

element.

Following an explicit semantic handling, the ab-

sence of domain data as well as the additional non-

expected availability of domain data will lead to in-

consistencies of overall system data that can be re-

ported to the user as soon as the reasoner is running.

The integration of an additional system element

into a current system element tree may inﬂuence the

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

300

type of other system elements, such as a magne-

tometer being added to a satellite’s system element

tree will transform the whole satellite into a mag-

netic critical spacecraft. Once deﬁned, such rules

can be reused in ongoing projects to optimize sys-

tem data consistency checks and build the foundation

for guided systems engineering through the whole

system life-cycle signiﬁcantly reducing data inconsis-

tency potential. An overview on this is already given,

but concrete implementations for guided systems en-

gineering are part of further research.

REFERENCES

ECSS-E-ST-10C (2009). ECSS European Cooperation

for Space Standardization, “ECSS-E-ST-10C - Space

Engineering - System engineering general require-

ments”. ECSS Secretariat ESA-ESTEC Requirements

& Standards Division.

ECSS-E-TM-10-23A (2011). ECSS European Coopera-

tion for Space Standardization, “ECSS-E-TM-10-23A

- Space Engineering - Space System Data Reposi-

tory”. ECSS Secretariat ESA-ESTEC Requirements

& Standards Division.

Eisenmann, H., Cazenave, C., and Noblet, T. (2015).

RangeDB the Product to Meet the Challenges of

Nowadays System Database. 9th ESA Workshop on

Simulation for European Space Programmes.

Fischer, P., Eisenmann, H., and Fuchs, H. (2014). Func-

tional Veriﬁcation by Simulation based on Preliminary

System Design Data. 6th International Workshop on

Systems and Concurrent Engineering for Space Appli-

cations.

Fowler, M. (1997). Dealing with roles. In Proceedings of

PLoP, volume 97.

Friedenthal, S., Griego, R., and Sampson, M. (2007). IN-

COSE Model Based Systems Engineering (MBSE)

Initiative. INCOSE MBSE Track.

Gennari, J. H., Musen, M. A., Fergerson, R. W., Grosso,

W. E., Crub

ezy, M., Eriksson, H., Noy, N. F., and

Tu, S. W. (2003). The evolution of prot

e: an

environment for knowledge-based systems develop-

ment. International Journal of Human-computer stud-

ies, 58(1):89–123.

Gosling, J. (2000). The Java language speciﬁcation.

Addison-Wesley Professional.

Hennig, C., Eisenmann, H., Viehl, A., and Bringmann, O.

(2015). On languages for conceptual data model-

ing in multi-disciplinary space systems engineering.

In Model-Driven Engineering and Software Develop-

ment (MODELSWARD), 2015 3rd International Con-

ference on, pages 384–393. IEEE.

Hennig, C., Viehl, A., K

ampgen, B., and Eisenmann, H.

(2016). Ontology-based design of space systems. In

International Semantic Web Conference, pages 308–

324. Springer.

Herrmann, S. (2007). A precise model for contextual roles:

The programming language objectteams/java. Applied

Ontology, 2(2):181–207.

Herrmann, S., Hundt, C., and Mosconi, M. (2007). Object-

teams/java language deﬁnition.

Hitzler, P., Krotzsch, M., Parsia, B., Patel-Schneider, P. F.,

and Rudolph, S. (2012). Owl 2 web ontology language

primer.

Merks, E. (2010). Eclipse Modeling Framework – Interview

with Ed Merks. http://jaxenter.com/eclipse-modeling-

framework-interview-with-ed-merks-10027.html.

OCL (2012). Object Constraint Language (OCL). Ob-

ject Management Group, http://www.omg.org/spec/

OCL/2.3.1.

Pecchioli, M., Walsh, A., Carranza, J. M., Blommestijn, R.,

Charmeau, M.-C., Geyer, M., Stangl, C., Parmentier,

P., Eisenmann, H., Rueting, J., et al. (2012). Objec-

tives and concepts of the european ground systems

common core (egs-cc). In Simulation & EGSE Fa-

cilities for Space Programmes (SESP) Workshop.

SMOF (2013). MOF Support for Semantic Struc-

tures (SMOF). Object Management Group, http://

www.omg.org/spec/ SMOF/1.0/.

Steinberg, D., Budinsky, F., Merks, E., and Paternostro, M.

(2008). EMF: eclipse modeling framework. Addison-

Wesley Professional.

UML (2015). Uniﬁed Modeling Language (UML). Ob-

ject Management Group, http://www.omg.org/spec/

UML/2.5.

VSD (2012). Virtual Spacecraft Design. European Space

Agency (ESA), http://vsd.esa.int/.

SEMF â

A¸S The Semantic Engineering Modeling Framework - Bringing Semantics into the Eclipse Modeling Framework for Space Systems

Engineering

301
