A General Physical-topological Framework using Rule-based Language

for Physical Simulation

Fatma Ben Salah, Hakim Belhaouari, Agn

es Arnould and Philippe Meseure

University of Poitiers, Xlim Lab, UMR CNRS 7252, Futuroscope, France

Keywords:

Physical Animation, Topologically-based Simulation, Rule-based Language, Prototyping.

Abstract:

This paper presents a robust framework that combines a topological model (a generalized map or G-map) and

a physical one to simulate deformable objects. The framework is general since it allows a general simulation of

deformations (1) in different dimensions (2D or 3D), (2) with different types of meshes (triangular, rectangular,

tetrahedral, hexahedral, and combinations of them...) and (3) physical models (mass/spring, linear FEM,

co-rotational, mass/tensor). Any mechanical information is stored in the topological model and is used in

combination with the neighboring relations to compute the equation of motions. To design this model, we

have used JERBOA, a rule-based language relying on graph transformations to handle G-maps. This tool has

been helpful to build and test different physical models in a little time.

1 INTRODUCTION

Physically-based simulation have a great importance

for various computer graphics applications such as

virtual reality, simulation of natural phenomena and

video games. Since the early approaches of Ter-

zopoulos et al. on simulating deformable objects

(Terzopoulos et al., 1987), several models have fo-

cused on simulating realistic behavior of deformable

objects. These models rely on discrete mechan-

ics (mass/spring systems (Provot, 1995)) or continu-

ous mechanics (Finite Element Method (O’Brien and

Hodgins, 1999)), mass/tensor systems (Cotin et al.,

2000), Finite Differences (Terzopoulos et al., 1987)).

Physical models can undergo topological modi-

ﬁcations whereas they are based on a rudimentary

topological structure. This usually implies heavy pro-

cesses to ensure that the mesh remains manifold (For-

est et al., 2005). Yet, it is possible to preserve the

manifold property of a mesh by using more robust and

appropriate topological models (Damiand and Lien-

hardt, 2014). The consistency is therefore guaranteed

after topological modiﬁcations.

Meseure et al. (Meseure et al., 2010) proposed

to combine a physical model with a topological

one. Their approach is speciﬁc to tetrahedral meshes

and mass/spring systems. Thereafter, Fl

echon et al.

(Fl

echon et al., 2013) extend the use of topological

models to simulate hexahedral (3D) or rectangular

(2D) meshes with mass/spring systems. These ap-

proaches show the effectiveness of using a topologi-

cal model in physically-based animation, particularly

for simulating transformations such as tearing, cut-

tings, etc. However, their solution under-exploit the

capabilities of the topological model to embed any

kind of information. For instance, shear springs are

stored in an additional structure which appears re-

dundant with the topological model (and can poten-

tially result in an inconsistent model association). Re-

cently, Golec et al. (Golec et al., 2015) have proposed

a generic approach to simulate both tetrahedral and

hexahedral meshes using Mass/spring or Mass/tensor

physical models. Their method unfortunately still re-

quires an additional structure to store shear springs

and tensors. This structure includes topological infor-

mation that must be kept consistent with the topolog-

ical model. This is a real issue in case of complex

topological transformations.

This paper proposes several contributions:

• formalization of the physical modeling and ani-

mation of deformable meshed objects using an ap-

propriate topological model (namely generalized

maps or G-maps),

• generalization of the modeling and the behavior

computation with respect to (1) the dimension, (2)

the type of mesh elements and (3) the constitutive

laws,

• fast prototyping using a formal approach based on

rules of graph transformations.

220

Ben Salah F., Belhaouari H., Arnould A. and Meseure P.

A General Physical-topological Framework using Rule-based Language for Physical Simulation.

DOI: 10.5220/0006119802200227

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 220-227

ISBN: 978-989-758-224-0

It is organized as follows. Section 2 presents the

related work. In Section 3, the main basis of proto-

typing with a rule-based language using the JERBOA

software (Belhaouari et al., 2014) is detailed. In Sec-

tion 4, the physical simulation of 2D and 3D objects

with different types of meshes and physical models

using rule-based language are described. Finally, im-

plementation details are given in Section 5.

2 PREVIOUS WORK

Several previous studies have shown the advantages

of using a topological model for simulation. Meseure

et al. (Meseure et al., 2010) use G-maps to simu-

late the deformation and the topological changes of

soft bodies. Their approach is restricted to tetrahe-

dral meshes and mass/spring systems. Moreover, they

have used only stretching springs, associated to edges.

Nevertheless, due to the G-maps engine used, they re-

quired external arrays to allow a fast access to cells

(vertices, edges, volumes...). These arrays must be

updated after any topological change.

echon et al. (Fl

echon et al., 2013) have used a

derivation of combinatorial maps, namely 3D Linear

Cell Complex (LCC) as a topological model to sim-

ulate mass/spring systems based on 2D rectangular

and 3D hexahedral meshes. In this model, stretch-

ing springs are also associated to edges. Unfortu-

nately, shear springs (placed along diagonals of each

element) require an external structure. Golec et al.

(Golec et al., 2015) extend this model to allow the

simulation of 3D tetrahedral and hexahedral meshes

using not only mass/spring but also mass/tensor mod-

els. They claim not to rely on any additional struc-

tures but each face/volume is associated with an array

of darts that allow the numbering of each vertex. Ac-

tually, this array implicitly includes neighboring rela-

tionships so appears as redundant with the LCC.

The real weakness of all these approaches is the

use of external structures to store information re-

quired by the simulation. After a topological mod-

iﬁcation, the external structure can be rebuilt from

scratch or be modiﬁed incrementally. The ﬁrst so-

lution guarantees correctness but is costly, while the

second is a tedious process that can lead to inconsis-

tencies. On the contrary, maps ensure their own con-

sistency using constraints that can easily be veriﬁed.

It seems that the limitation of element types in

(Meseure et al., 2010) and the use of external struc-

tures in (Fl

echon et al., 2013) and (Golec et al.,

2015) is due to an unsuitable modeling of interac-

tions. Indeed, these approaches search for topolog-

ical elements that could support both the origin of

the forces (e.g. a link between two particles) and

the vertices associated with the concerned particles.

Concerning stretching springs, the solution is simple

and immediate, since these topological elements are

edges of the mesh. But the other kinds of springs

do not directly correspond to topological elements

(for instance, diagonals of faces). We therefore pro-

pose a new paradigm to model springs and other me-

chanical components in general, that could be called

“topology-based force ﬁeld”. Force modeling pro-

cess should focus only on the origin of each force and

store the mechanical parameters on related topologi-

cal elements. Thus, if these elements are modiﬁed by

topological modiﬁcations, the resulting forces should

be automatically altered. The (two or more) involved

particles should therefore be identiﬁed from the stor-

age place, while computing interaction forces.

To sum up, our method overcomes the limitation

of the approaches listed above as it proposes:

• a framework with multi-physical, multidimen-

sional and multi-element simulation;

• a new paradigm to model interactions, by both

considering their physical origin and identifying

the (two or more) involved particles;

• a storage for all the mechanical information in the

topological model (no other additional structure is

necessary).

To simulate deformable bodies using a physical

model and a topological one, a rule-based language

is used which exploits graph transformations for pro-

totyping. This language offers the opportunity to test

the capability of our model to simulate different types

of meshes in different dimensions with different phys-

ical models and different properties (homogeneity,

isotropy) in a little time. Note that a lot of languages

are dedicated to physical modeling, such as (Kjolstad

et al., 2016) among others. These languages often

propose to describe the simulated objects, including

their topology, but contrary to our approach, they do

not aim at programming the simulation itself nor do

they allow the design of new interactions.

3 PROTOTYPING USING RULE

BASED-LANGUAGE

The JERBOA rule-based language (Belhaouari et al.,

2014) is dedicated to geometric modeling. It is based

on the topological model of G-maps (Damiand and

Lienhardt, 2014). The representation of an object us-

ing a G-map is deﬁned from its successive subdivi-

sion into topological cells (vertices, edges, faces, vol-

umes, etc.) and appears as a graph (Figure 1b). The

A General Physical-topological Framework using Rule-based Language for Physical Simulation

221

nodes of this graph are called darts. Arcs represent

the adjacency relationships between cells and are la-

beled by their dimension. In the following ﬁgures,

black arcs stand for 0-dimensional, red dotted arcs for

1-dimensional and blue double arcs for 2-dimensional

links.

(a)

(b)

(c)

(d)

(e)

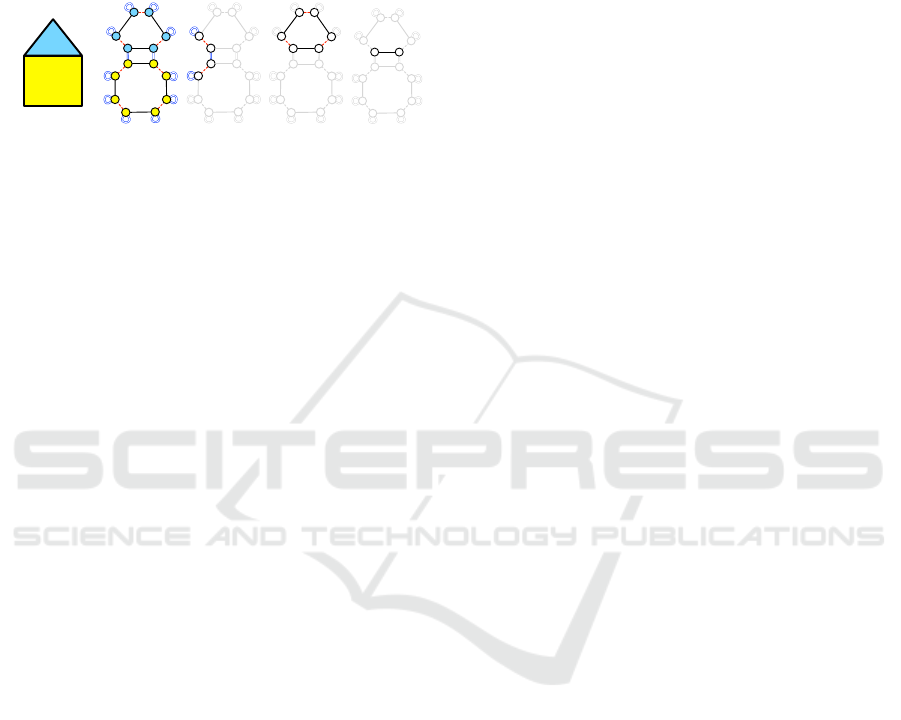

Figure 1: Decomposition of a 2D object and examples of

orbits: (a) Object 2D, (b) G-map(connected component),

Topological cells (i.e. vertices, edges, faces, vol-

umes) of an object are deﬁned by sub-graphs called

orbits. Figure 1 represents some orbits which corre-

spond to cells of the object presented in Figure 1a.

For example, vertex B of Figure 1a is deﬁned by the

sub-graph reachable from dart e using 1- and 2-links

(that is, darts c, e, g, i and the links that connect them),

noted orbit h1, 2i(e) (Figure 1c). Similarly, edge BC

is the orbit h0, 2i(e) and face ABC is the orbit h0, 1i(e)

(see Figure 1d). We should note that the concept of

orbit is not limited to cells and may identify less com-

mon entities, such as half-edges (Figure 1e), or con-

nected components (Figure 1b).

To model an object, the topological structure of G-

maps must be complemented by additional (geomet-

ric, colorimetric, mechanical...) information called

embeddings. These data are attached to darts. For

example, in Figure 1b, darts carry geometrical points

(A, B, C, D and E) and colors (blue and yellow). Each

embedding is characterized by the type of informa-

tion (here a 2D point and a color) and the support or-

bit (here orbit h1, 2i for vertex information and h0, 1i

for face information), but we can also associate infor-

mation to any type of orbits like corner of face h1i.

Besides, as shown in Figure 1b, all darts of a support

orbit should share the same embedding.

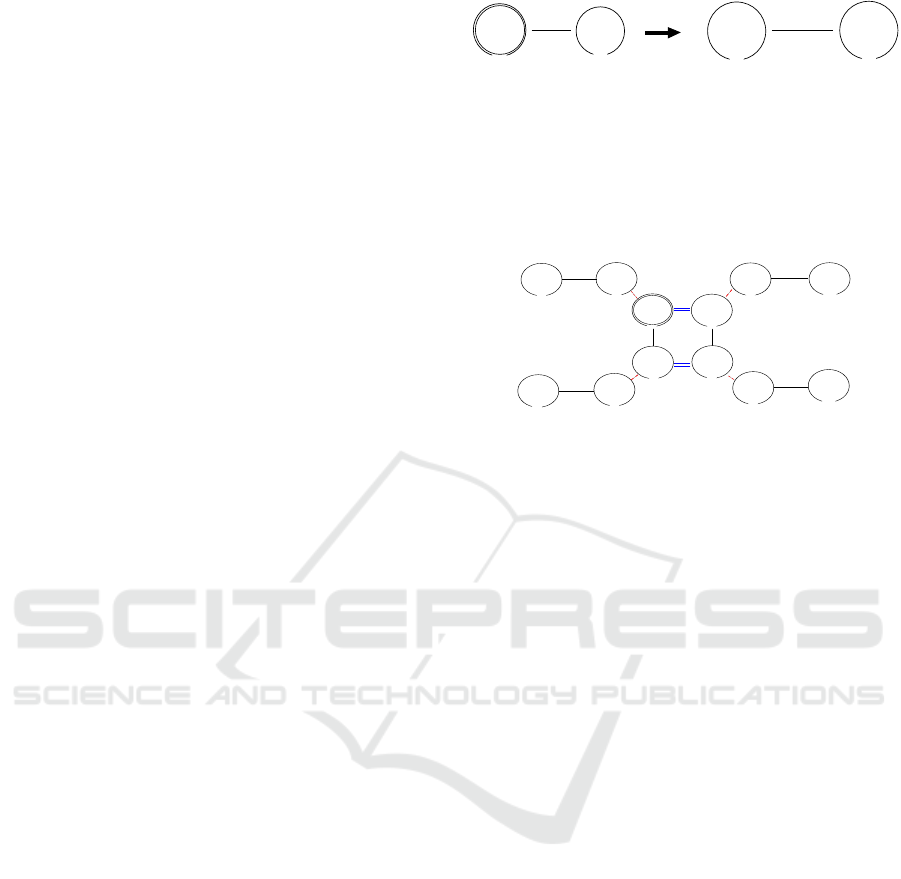

A rule created with JERBOA has the form L → R,

where L (left part) is a sub-graph to be matched for

the rule to apply and R (right part) a modiﬁcation of

this sub-graph, that includes expressions of embed-

ding changes. JERBOA’s rule editor automatically

veriﬁes and ensures the object consistency preserva-

tion. Besides, it allows a fast prototyping of geometric

operations (some examples are given in Section 5).

4 RULE-BASED PHYSICAL

SIMULATION

The modeling process is based on a 2D or 3D mesh

which represents the structure of the object. It is mod-

eled by a G-map, in which mechanical information is

embedded. As stated in previous work, a correct em-

bedding must be selected, that is, the most adapted

topological place with respect to the physical origin

of each property must be found. These properties

include mass, ambient viscosity, etc. that relate to

the physical model (studied in the next subsection) as

well as any interaction model, whether it is discrete or

continuous (studied in the two following subsections).

The same process is always followed: (1) ﬁnd the

most adapted topological place to embed mechanical

information, (2) from this place, deﬁne the adjacency

relations to follow to ﬁnd on which vertices/particles

the force applies and (3) store the computed force in

adapted sub-orbits of these vertices (for instance, cor-

ner orbit h1i or extremity of edge h2, 3i).

Based on this modeling, the simulation loop pro-

ceeds this way: (1) walk through all the orbits

that embed interaction data and compute the applied

forces, (2) walk through all the vertices and for each

one, collect forces stored in its sub-orbits and com-

pute the sum of forces applied to its particle and (3)

integrate the equation of motion to ﬁnd new velocity

and positions of each particle.

4.1 Physical Model

The used simulation loop is the same for all physical

models. This implies that every particle has a mass, as

well as an acceleration, a velocity and a position that

must be computed at each time step. These mechani-

cal properties have to be stored in the most appropri-

ate orbit. When the properties are related to a given

cell, the orbit is found immediately. For instance, ac-

celeration, position and velocity of a particle which

are stored on its corresponding vertex (orbit h1, 2, 3i).

Considering mass, several solutions exist and

ought to be discussed. Considering its physical ori-

gin, mass is supposed uniformly distributed over the

surface or the volume of an homogeneous object. On

the one hand, it seems natural to associate mass to

the faces or volumes of the mesh. On the other hand,

only models where mass is concentrated on particles

each surrounding face/volume contributes provide a

vertex with a mass) are considered so mass is stored

in vertices in previous models (the mass of a parti-

cle is the sum of the contributions of each surround-

ing face/volume). As a compromise, the contribution

of a face or a volume to each of its vertex is explic-

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

222

itly stored in our model. A face distributes its mass

(evenly of not) to all its vertices, that is its sub-orbits

h1i (known as “face corner”). The same way, a vol-

ume distributes mass to its sub-orbits h1, 2i (known

as “volume corner”). In both cases. Now the physi-

cal properties are deﬁned, the interaction model that

is applied to animate is presented in the following sec-

tion.

4.2 Springs Model

Provot proposed three different types of springs,

to control respectively stretching, shear and bend-

ing (Provot, 1995). This approach can be extended

for 3D, where stretch springs correspond to edges of

the mesh, and shear springs appear on diagonal of non

triangular faces and/or non tetrahedral volumes.

As explained earlier, the process consists in ﬁnd-

ing the right orbit to embed spring information (stiff-

ness, rest-length and possibly damping), deﬁning a

sub-graph to ﬁnd the vertices implied in the interac-

tion, computing it, and ﬁnally storing the computed

forces in appropriate sub-orbits of these vertices. The

sub-orbits where forces are stored can be found eas-

ily: The method always chooses the largest orbit in-

cluded in the intersection of the sub-graph used to ﬁnd

concerned vertices (blue graph in following ﬁgures of

this section) and the vertex orbit itself (orbit h1, 2i in

2D and h1, 2, 3i in 3D, shown in red). It must be noted

that it is delicate to ﬁnd the right sub-graph for each

type of springs since it must be chosen as generic as

possible, so that it can be applied, if desired, on all

types of faces (triangles, quads or others). Below,

each type of spring is detailed.

4.2.1 Stretch Springs

Stretch springs connect two particles placed on ver-

tices that are linked by an edge. In 2D, it seems conve-

nient to associate spring information with edge orbits

(h0, 2i) (as proposed in previous approaches). How-

ever, when an edge is adjacent to two faces, each face

provides the edge with strength against stretching that

can be represented as a spring. So, an embedding is

created for any elementary spring (green sub-graph)

associated to orbits h0i (face edges) as shown in Fig-

ure 2 and all these springs are summed for force com-

putation. This gives the sub-graph shown in blue.

In Figure 2, the particles inﬂuenced by a stretch

spring are the extremities of the support edge (shown

in red). Forces are computed and stored in a sub-orbit

of each vertex corresponding to the edge, that is h2i.

Here, faces are represented as a quad, but could in-

clude any number of vertices. This approach can be

directly applied for 3D.

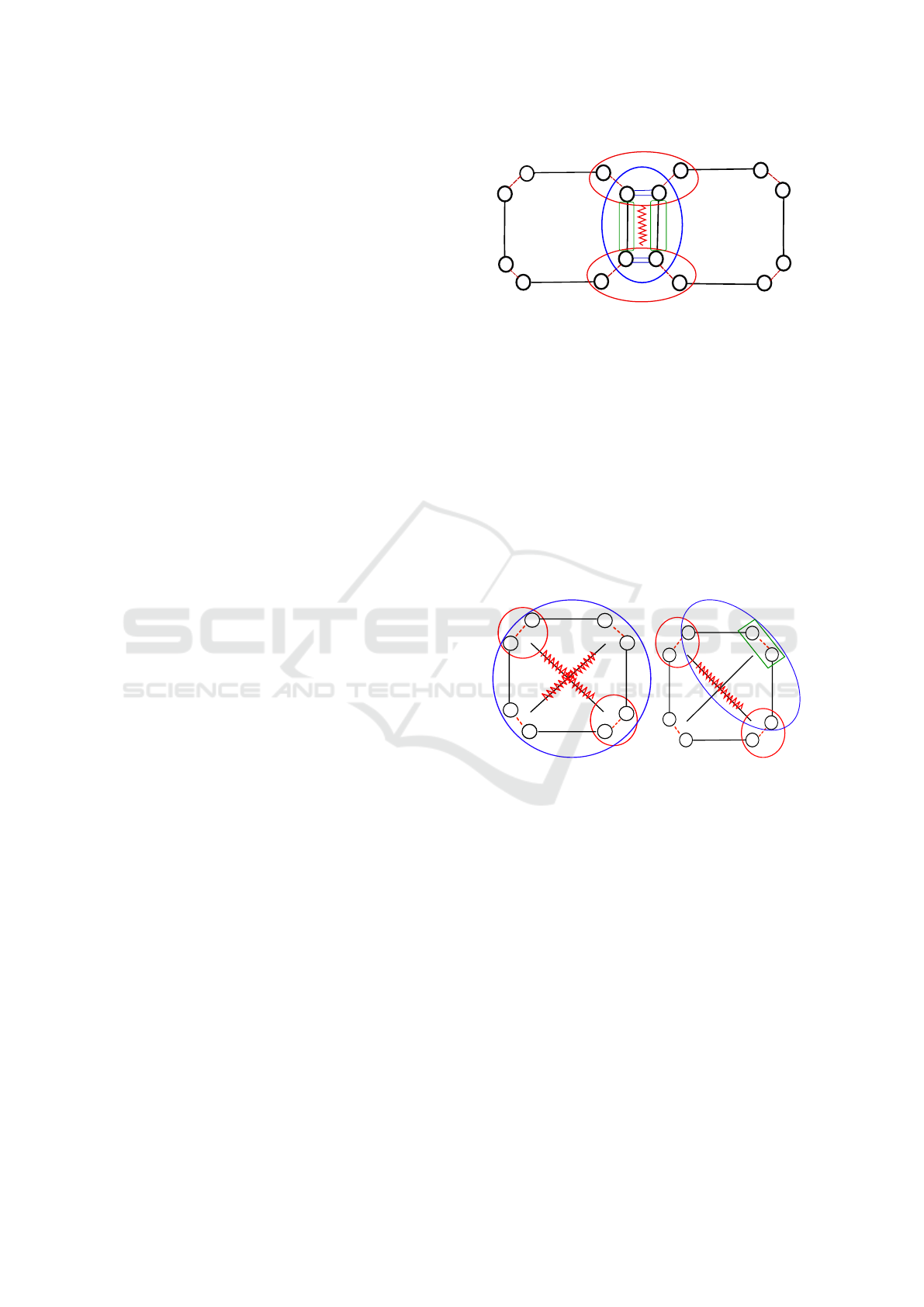

Figure 2: Force applied by stretch springs.

4.2.2 Shear Springs

Shear springs are supported by diagonals of a face,

that is, segments that do not correspond to an orbit.

Two main motivations can be considered to include

shear springs: (1) because the face has to maintain its

shape, so produces forces between each couple of op-

posite vertices or (2) because the angles of each cor-

ner of the face must be preserved, so a force must be

applied to the non-connected extremities of any two

adjacent edges. Since mechanical properties can be

chosen freely for each couple of edges, this last ap-

proach is qualiﬁed as “anisotropic”.

(a) Isotropic case

(b) Anisotropic case

Figure 3: Force applied by shear springs.

In the isotropic model, a rectangular mesh must be

used, since the same stiffness and rest-length is em-

bedded in the face (h0, 1i) for both diagonals. The op-

posite vertices can be found by just walking through

the face, so the face orbit h0, 1i is the sub-graph

needed to ﬁnd vertices. Computed forces are stored

in the intersection between the sub-graph and the ver-

tex orbits, that is corners of the face (h1i).

In the anisotropic model, elements can be of any

shape or even any topology. The mechanical proper-

ties of a shear spring is stored in orbits h1i that corre-

sponds to the articulation (the angle) between the two

connected edges (shown in green). Since the inter-

section between the two articulated edges (blue sub-

graph) and their non-connected extremities (shown in

red) reduces to single darts, forces are stored in dart

orbits hi, as shown in Figure 3b. Note that this solu-

A General Physical-topological Framework using Rule-based Language for Physical Simulation

223

tion is compatible with triangles (although not useful,

as a stretching spring already binds the same vertices).

In 3D, if shear springs are placed on the diagonals

of hexahedra’ faces, the same embeddings as in 2D

still apply. If shear springs are put on the diagonals

of a hexahedron, a new embedding is associated with

its volume orbit (h0, 1, 2i) and controls four similar

springs. Note that, in this case, volumes should be

rectangular cuboids. Here, computed forces are put in

“corners” of volumes, that is orbits h1, 2i.

4.2.3 Bending Springs

Considering that bending must be handled by control-

ling the angle between any two adjacent faces, an-

gular springs have been proposed to control bending

((Grinspun et al., 2003), among others), by constrain-

ing the angle between faces supported by the com-

mon edge of two adjacent faces. This angular spring

can be stored in edge orbits h0, 2i (green sub-graph in

Figure 4).

0 0

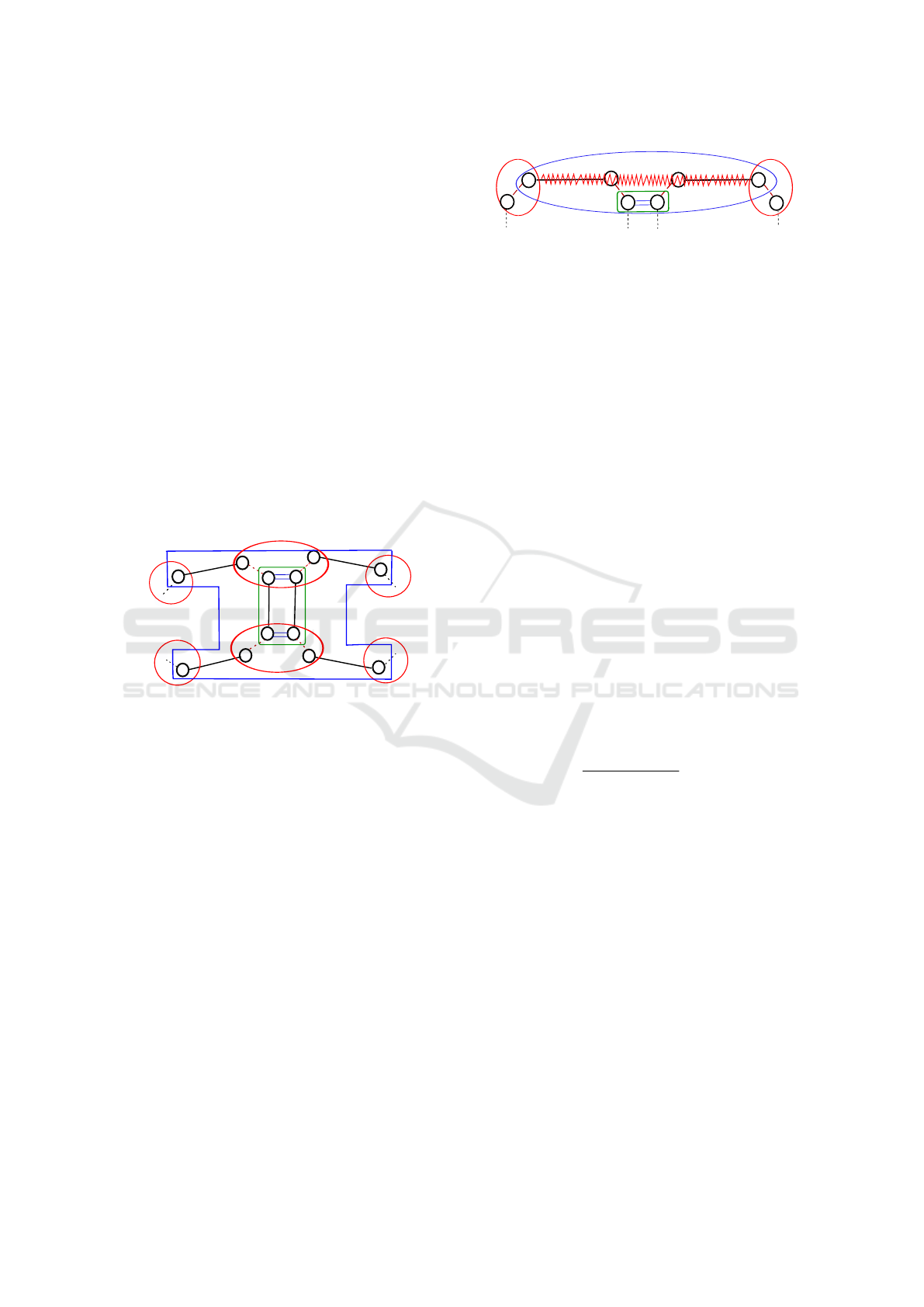

Figure 4: Force applied by an angular spring.

As shown in Figure 4, vertices of faces that are

extremities of edges 1-linked to the articulation edge

must be found (A, B, C, D, E and F) via an appro-

priate sub-graph (in blue), since they must undergo

bending forces. Once calculated, these forces are

stored in orbits dart hi (directly in the dart). Note that

the chosen sub-graph is compatible with any type of

faces, since the links between vertices C and E on

the one hand, and D and F on the other hand, are

not speciﬁed in the sub-graph. These vertices can be

the merged (triangles), linked by an edge (quad), or

linked by several edges (other types). Mixed meshes

with different types of faces can be used as well.

To control bending, Provot introduced springs

that connect second-neighbor vertices (Provot, 1995).

These links control the angle between two edges both

connected, via a vertex, to an edge shared by two

faces. This remark gives the sub-graph, represented

in blue in Figure 5. It seems convenient to embed

such spring into the orbit h2i, corresponding to the

common edge and the articulation vertex at once (in

green).

Figure 5: Force applied by a Provot’s spring.

Computed forces are stored in dart orbit hi. For

the same reason as above, this modeling is compatible

with triangles, even if two orbits h2i link the same

couple of vertices. Mixed meshes can beneﬁt from

these springs as well.

Angular or Provot’s springs aim at simulating the

same effect but their implementations are different.

Thus, both of them are proposed in our model, be-

cause provot’s approach is more efﬁcient in the case

of a rectangular and triangular mesh, while the angu-

lar approach can potentially be generalized to other

types of faces.

4.2.4 Force Computation

Once the vertices linked by a spring are identiﬁed, the

force exerted by particle i on particle j is computed

according to:



−k

i j



− x

k − l

i j



− λ

i j



− v



· u



(1)

where k

i j

is the stiffness, l

i j

the rest length, λ

i j

the

damping coefﬁcient, u

the unitary vector from i to j,

x the position and v the velocity of each particle.

To compute forces applied by angular springs on

edge i, a formula quite similar to Grinspun et al.’s

one (Grinspun et al., 2003) but simpliﬁed and ex-

tended to quads, is used for each involved vertex:

= ±

× θ

2 × ku × AMk

× (u × AM) (2)

with θ is the angle between normals of the two faces

(deﬁned by the edge and the center of the quad), k the

angular stiffness, u the unitary vector of the edge, A

any vertex on the edge and M the vertex where the

force is applied. When a vertex undergoes a force,

the opposite of this force must distributed to vertices

of the edge. Here, we adapt the method to quads by

considering that F

= −F

− F

, (and similarly for

) in ﬁgure 4.

The chosen embeddings in G-maps allow the

modeling of different types of meshes including

mixed ones, in 2D and 3D using the same embed-

dings. However, some constructions, even if cor-

rectly simulated by our system, are not recommended.

For instance, if shear springs are used in triangular

or tetrahedral meshes, they only provide the element

with more stretching so should be omitted. Further-

more, bending springs are, to our knowledge, rarely

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

224

used in 3D (in practice, they control dihedral angles

of volumes which is rather redundant with stretching

springs).

4.3 Continuous Mechanics Approaches

In this section, the modeling of continuous mechan-

ics is discussed. The same strategy already done with

mass/spring system is applied.

4.3.1 Linear FEM

FEM use a tessellation of an object into a ﬁnite num-

ber of elements. In the following, tetrahedra are used.

Each tetrahedron is characterized by a 12x12 stiffness

matrix K (see (O’Brien and Hodgins, 1999)).

Matrix K is computed in a preliminary phase for

each tetrahedron and is embedded into volume or-

bits h0, 1, 2i. Nevertheless, this matrix depends upon

a given order of vertices (positive orientation of the

tetrahedron’s volume) that must be stored in the struc-

ture. Here, we propose to tag only one dart as “ﬁst-

dart” for each volume. As shown in Figure 6, the ver-

tex that owns this dart in its orbit is vertex 1. From

this dart and following the adjacency relations of the

G-maps in a given order, the number of other vertices

is recovered.

α0

First_dart

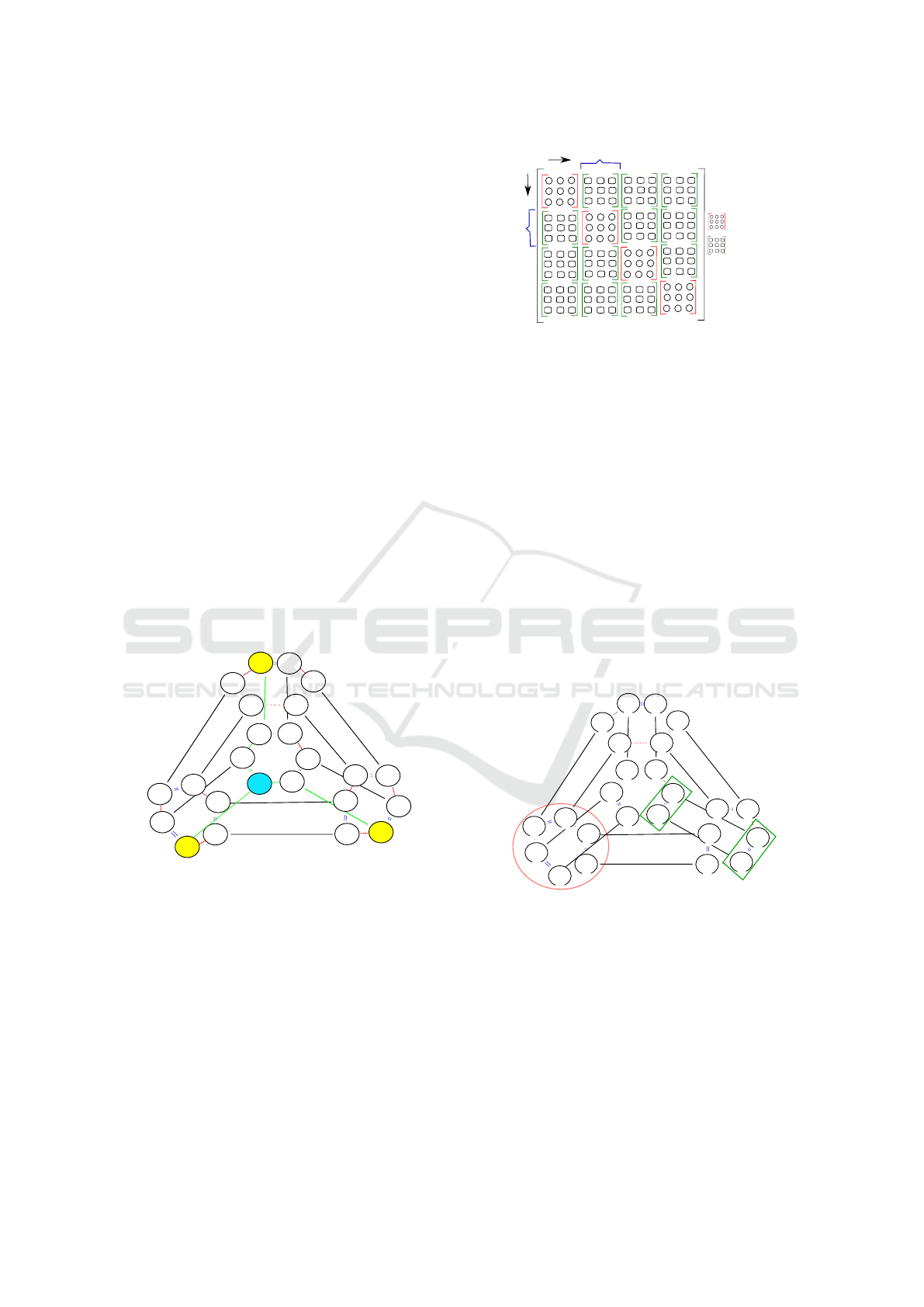

Figure 6: Numbering of vertices.

At each time step and for each tetrahedron, forces

must be computed as:

f = −Ku (3)

where f includes the forces of all vertices of the tetra-

hedron, and u represents their displacements. Forces

computed are stored in the corresponding “corner” of

the tetrahedron (orbit h1, 2i).

For hexahedra, the approach remains the same,

only the information to embed changes. However,

modeling with FEM using linear elasticity can sim-

ulate only small displacements. To allow rotation

Vertex tensor

Edge tensor

K1,2

Kj,i

Ki,j =

K2,1

Figure 7: Decomposition of a stiffness matrix.

of objects, the Co-rotational method has been im-

plemented using a QR decomposition (Nesme et al.,

2005). The embeddings remain the same, only force

computations slightly differ. This method was also

used to implement 2D FEM for triangular meshes (Et-

zmuss et al., 2003).

4.3.2 Linear Mass/Tensor

In this section, it is shown that our model is well

adapted to the mass/tensor approach as proposed by

(Cotin et al., 2000). This method considers the 12x12

stiffness matrix computed using linear FEM, but de-

composes it into sixteen 3x3 matrices K

. Such a de-

composition is shown in Figure 7. Diagonal matri-

ces (red) show the inﬂuence of the displacement of a

vertex on itself. The other matrices (green) show the

inﬂuence of any vertex of a tetrahedron on the others.

α0

n44

n13

n25

n33

n45

n24

n21

n26

n23

n22

n43

n46

n41

n42

n34

n35

n36

n31

n32

n14

n15

n16

n11

n12

Tensor

Vertex

Tensor

Vertex

Tensor

edge

Tensor

edge

Tensor

edge

Tensor

edge

Tensor

Vertex

Tensor

Vertex

Tensor

Vertex

Tensor

Vertex

Figure 8: Embeddings for stiffness tensors.

Embeddings are shown in Figure 8, diagonal ma-

trices K

can be stored in vertex i, for the current vol-

ume (orbits h1, 2i). The other matrices K

cope with

two nodes that are bound by an edge in the volume

(h0, 2i). However, an edge corresponds both to the

inﬂuence of vertex i over j and reciprocally, but not

using the same matrix. As a consequence, any K

stored on orbit h2i of vertex i and K

on orbit h2i of

vertex j. Note that numbering of vertices is no longer

required. On each vertex (h1, 2, 3i), the sum of all the

tensors stored in sub-orbits (h1, 2i) is multiplied by its

A General Physical-topological Framework using Rule-based Language for Physical Simulation

225

displacement and force is stored in orbit h1, 2, 3i. The

same way, on each edge extremity (h2, 3i), the tensors

stored in sub-orbits h2i are summed to compute force,

thereafter stored in orbit h2, 3i.

5 IMPLEMENTATION AND

RESULTS

As cited above, to test our model and its capabilities,

JERBOA , a tool that allows us to implement our rules

using a graphic language has been used. Any addi-

tional process (mostly computation of embeddings)

is written in Java. JERBOA is mainly a prototyping

tool, it is not dedicated to fast computation and does

not generate optimized code to implement rules. It is

used as a proof of concept. Nevertheless, it must be

noted that the time of prototyping using JERBOA is

unmatched with the habitual time that programmers

spend to program the different model deformations.

For example, only two days have been spent to add

and test the speciﬁc rules to extend 2D mass/spring

model to 3D, and this time mainly focused on the con-

struction of the simulated object and not the design of

interactions (rules remained actually the same). The

same design speed up has been observed when gen-

eralizing the rectangular meshes to triangles or mixed

elements.

For each interaction, one rule is deﬁned The match

pattern includes the place where the interaction pa-

rameters are embedded and the sub-graph that gives

the application vertices. Some conditions can be

added: for instance, rules for linear FEM or co-

rotational must be applied after having identiﬁed the

dart tagged as “ﬁrst-dart”. The right part of the rule

is the same pattern as on the left, but shows which

forces have to be computed. Note that, compared to

2D, 3D rules require to take into account 3-links. So

it is advisable, when useful, to write rules directly in

3D, since they can be applied to 2D objects as well.

Only rules that explicitly require 3-link in the match

pattern are 3D speciﬁc. Here, one can understand why

the sub-graph must be chosen as general as possible,

since it determines the place where the match pattern

can be applied. For instance, rules that ﬁlter a quad

automatically put triangles apart Some rules are also

written to build the object or to deﬁne/initialize inter-

actions (for instance, a rule aims at computing stiff-

ness matrix for FEM models).

Figure 9 shows an example of a rule to implement

stretching spring. In the left part, an edge (that rep-

resents the spring) and their two extremities n0 and

n1 (where the force must be applied) were matched.

Here, we can see that a 0-link appears explicitly to

F_stretch:va...

<2,3>

Figure 9: Rule to compute a stretching springs forces.

bring out the two extremities of the edge, and the rest

of the edge orbit is expressed in the nodes. The right

part expresses that the force computed and stored in

the orbit h2, 3i of the vertex n0 and its opposite have

to be stored in the orbit h2, 3i of the vertex n1.

0 0

n13

n10

Figure 10: Matched pattern to compute angular springs

forces.

Another example that implements angular bend-

ing springs is represented in Figure 10. Here, we

present only the matched pattern (left part of the rule).

The edge which supports the spring constants can be

recognized by the four darts n3, n4, n8 and n9. The

sub-graph that allows one to ﬁnd the vertices that

undergo the corresponding forces is also represented

(darts nc, nD, nE and nF). In the right part of the rule

(not presented), the angular spring’s forces are com-

puted for all concerned vertices and stored in the cor-

respond darts. The opposite of every force is applied

to the dart which is 0-linked (n2, n10, n5 and n13).

Figures 11 and 12 shows some results of our proto-

typing using mass/spring system and Figure 13, some

results using FEM.

Finally as described in the simulation loop, rules

are written to (1) collect all forces distributed in each

vertex sub-orbit, (2) ﬁnd the acceleration, the new ve-

locity and the new position of each vertex. Symplec-

tic Euler has been used to integrate the equations of

motion. Combinations of rules can be written if more

complex schemes are used.

6 CONCLUSION AND FUTURE

WORK

The framework presented in this article aims at pro-

viding the existing physical models used in computer

graphics with a topological model. G-maps have been

chosen since they are more atomic and provide more

places to embed information than other models. All

mechanical data are stored directly in the G-map, and

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

226

(a) Rectangular (b) Triangular (c) Mixed

Figure 11: Prototypes of mass/spring models in 2D.

(a) Hexahedral (b) Tetrahedral (c) Mixed

Figure 12: Prototyping of mass/spring models in 3D.

(a) FEM linear (b) Co-rotational (c) Mass/tensor

Figure 13: Prototyping of FEM models

the simulation uses neighboring relationships advan-

tageously.

Our model is completely general and generic.

First, it is independent on the dimension (2D,3D).

Second, it allows discrete or continuous interactions,

using the same general modeling process. Third,

based on sub-graph matching, our framework copes

with different types of elements and allows mixed

meshes.

Finally, a rule-based language has been used for

prototyping and building our simulation models. It

brings a graphical description of interactions and all

the necessary walks through the structure.

In future work, we want to test and enhance our

model with topological modiﬁcations, including mesh

adaptation or reﬁnement. Last, considering that a

long-term evolution of JERBOA is to generate an op-

timized code implementing (in various languages in-

cluding C++) the rules that have been deﬁned, we

hope to design a generator of physical models where

the user would only detail which forces the model

should undergo.

ACKNOWLEDGEMENTS

This work has been partially funded by the European

Erasmus Mundus - Al Idrisi II scholarship program.

It also received fundings from the MIRES federation.

Special thanks to Daniel Meneveaux for proofreading

and comments on this paper.

REFERENCES

Belhaouari, H., Arnould, A., LeGall, P., and Bellet, T.

(2014). Jerboa: A graph transformation library for

topology-based geometric modeling. In ICGT, pages

269–284.

Cotin, S., Delingette, H., and Ayache, N. (2000). A hybrid

elastic model allowing realtime cutting, deformation

and force feedback for surgery training and simula-

tion. Visual Computer, pages 437–452.

Damiand, G. and Lienhardt, P. (2014). Combinatorial

Maps: Efﬁcient Data Structures for Computer Graph-

ics and Image Processing. A K Peter/CRC Press.

Etzmuss, O., Keckeisen, M., and Strasser, W. (2003). A fast

ﬁnite element solution for cloth modelling. In Paciﬁc

Conference on Computer Graphics and Applications,

pages 244–251.

echon, E., Zara, F., Damiand, G., and Jaillet, F. (2013).

A generic topological framework for physical simula-

tion. In WSCG, pages 104–113.

Forest, C., Delingette, H., and Ayache, N. (2005). Remov-

ing tetrahedra from manifold tetrahedralisation: appli-

cation to real-time surgical simulation. Medical Image

Analysis, 9(2):113–122.

Golec, K., Coquet, M., Zara, F., and Damiand, G. (2015).

Improvement of a topological-physical model to man-

age different physical simulation. In WSCG, pages

25–34.

Grinspun, E., Hirani, A. N., Desbrun, M., and Schroder, P.

(2003). Discrete shells. In Symposium on Computer

Animation, pages 62–67.

Kjolstad, F., Kamil, S., Kelley, J. R., Levin, D. I. W., Shin-

jiro Sueda, D. C., Vouga, E., Kaufman, D. M., Kan-

war, G., Matusik, W., and Amarasinghe, S. P. (2016).

Simit: A language for physical simulations. ACM

Transactions on Graphics, 35.

Meseure, P., Darles, E., and Skapin, X. (2010). Topology

based physical simulation. In VRIPHYS, pages 1–10.

Nesme, M., Payan, Y., and Faure, F. (2005). Efﬁcient,

physically plausible ﬁnite elements. In Eurographics,

pages 77–80.

O’Brien, J. F. and Hodgins, J. (1999). Graphical model-

ing and animation of brittle fracture. In SIGGRAPH,

pages 137–146.

Provot, X. (1995). Deformation constraints in a masss/pring

model to describe rigid cloth behaviour. In Graphics

Interface, pages 147–154.

Terzopoulos, D., Platt, J., Barr, A., and Fleischer, K. (1987).

Elastically deformable models. In SIGGRAPH, vol-

ume 21, pages 205–214.

A General Physical-topological Framework using Rule-based Language for Physical Simulation

227
