Towards Enhancing the Visual Analysis of Interdomain Routing

Alex Ulmer

, J

orn Kohlhammer

and Haya Shulman

Fraunhofer Institute for Computer Graphics Research IGD Darmstadt, Darmstadt, Germany

Fraunhofer Institute for Secure Information Technology SIT Darmstadt, Darmstadt, Germany

Keywords:

Interdomain Routing, Border Gateway Protocol, BGP, Problem Characterization, Visual Analysis, Log Data,

Roadmap.

Abstract:

Interdomain routing with Border Gateway Protocol (BGP) plays a critical role in the Internet, determining

paths that packets must traverse from a source to a destination. Due to its importance BGP also has a long

history of preﬁx hijack attacks, whereby attackers cause the trafﬁc to take incorrect routes, enabling trafﬁc

hijack, monitoring and modiﬁcation by the attackers. Proposals for securing the protocol are adopted slowly

or erroneous. Our goal is to create a novel visual analytics approach that facilitates easy and timely detection

of misconﬁgurations and vulnerabilities both in BGP and in the secure proposals for BGP. This work initiates

the analysis of the problem, the target users and state of the art approaches. We provide a comprehensive

overview of the BGP threats and describe incidents that happened over the past years. The paper introduces

two new user groups beside the network administrators, which should also be addressed in future approaches.

It also contributes a survey about visual analysis of interdomain routing with BGP and secure proposals for

BGP. The visualization approaches are rated and we derive seven key challenges that arise when following our

roadmap for an enhanced visual analysis of interdomain routing.

1 INTRODUCTION

Interdomain routing is one of the main components

to make the Internet work. The core protocol that is

used for communication between Autonomous Sys-

tems (ASes) is already more than 20 years old. The

Border Gateway Protocol (BGP) was introduced in

the early 90s and was continuously updated until its

latest version in 2006. At the time the protocol was

developed the assumption was that each AS can trust

its neighbors. No security features were integrated

in the protocol, which poses a serious threat nowa-

days. The severity of this problem is highly under-

estimated by companies and governments. A typical

argument is that there is no need to secure the infras-

tructure of the Internet when the data is already en-

crypted so that even if data is intercepted, it is still

safe. But there are two problems. On the one hand,

the encryption may eventually be decoded. On the

other hand, the data may not reach its destination.

The second aspect is very important as most busi-

nesses are handled online, and a downtime of multi-

ple hours can cause huge ﬁnancial damage. There are

already several incidents happening each year where

big parts of the Internet suffer from disrupted connec-

tions caused by routing problems. Several new proto-

cols have been proposed (Kent et al., 2000; Ganichev

et al., 2010), but none of them was established. The

reason is that all ASes need to switch to the new pro-

tocol at once to gain a beneﬁt. This is not feasible in

practice because many international stakeholders fol-

low different goals. To keep the routing operational,

Internet Service Providers (ISPs) developed custom

rules and ﬁlter mechanisms to prevent incorrect prop-

agation of routing updates. But these are individual

workarounds and not general solutions to the prob-

lem. Because of these facts, we believe that a more

promising way is to enhance the current protocol in a

way that even single adopters gain a beneﬁt. This low-

ers the barrier to use the new features and may lead to

a contagious diffusion of the enhancements. There-

fore, we determined three opening steps that lead to

more practical BGP improvements.

1. Analysis of current activities in interdomain rout-

ing on a global scope

2. Detection of the most frequently exploited weak-

nesses

3. Evaluation and development of security exten-

sions and conﬁgurations for improved routing

The focus of this work is on the ﬁrst step. In the past,

multiple applications were proposed to approach this

Ulmer A., Kohlhammer J. and Shulman H.

Towards Enhancing the Visual Analysis of Interdomain Routing.

DOI: 10.5220/0006126702090216

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 209-216

ISBN: 978-989-758-228-8

209

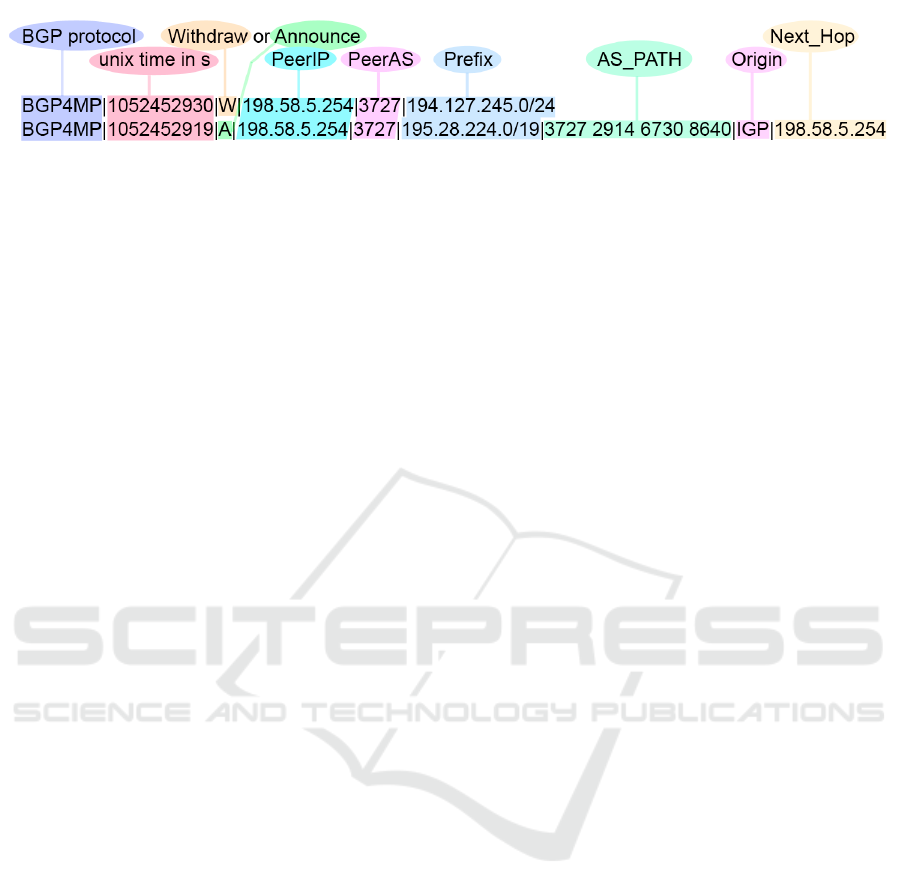

Figure 1: Border Gateway Protocol Update Log Example.

problem (see Section 4), but all of them are limited to

the inspection of a speciﬁc subnet of ASes or an IP

Preﬁx. This sufﬁces to solve immediate routing prob-

lems, but it does not give an overview of the whole

state of the routing infrastructure. We believe that

the overview is necessary to get a profound compre-

hension of the network and its known and unknown

weak spots. Thus, new scalable and interactive visu-

alizations have to be developed to facilitate forensics

and monitoring. Additionally, machine learning algo-

rithms have to support the user by suggesting anoma-

lous behavior with the help of visualizations. Users

can then much faster decide if the suggestion can be

conﬁrmed or denied. Finally, we also take a look at

the target user of those applications. Most of the pro-

posed tools require strong expert knowledge to inter-

pret the visualizations and gain insights. But not all

user groups have the same expertise (see Section 3).

The goal of future applications should be to present

the information as simple as possible with the possi-

bility to dig as deep as possible for details.

The paper is structured as follows. At ﬁrst, we char-

acterize the problem and explain well-known weak

spots in Section 2. Second, in Section 3, we introduce

the target user groups and highlight the signiﬁcance

of user centered design for this problem. In Section

4 we analyze the data sources, which can be used to

reconstruct the routing infrastructure. After that we

summarize our study of the related work by rating the

visualization tools and techniques according to their

strengths and weaknesses. Finally, we formulate a

roadmap for this problem and conclude with upcom-

ing challenges, which have to be tackled. The main

contributions of the paper are:

1. A domain characterization for interdomain rout-

ing with a problem, user and data analysis.

2. Summary of strengths and weaknesses of state of

the art visual analysis tools for interdomain rout-

ing.

3. Deﬁnition of a roadmap for an improved visual

analysis of the global routing infrastructure.

2 PROBLEM

CHARACTERIZATION

The Internet infrastructure was not designed with se-

curity in mind, and it is alarmingly vulnerable. We

consider the security of one of the most central proto-

cols in the Internet’s infrastructure: interdomain rout-

ing i.e. routing between the administrative domains,

or ASes, that deﬁne the Internet

2.1 BGP Events

As highlighted by many high-proﬁle conﬁguration

errors and attacks (e.g., (BGP-Hijack, 2014)), the

Border Gateway Protocol (BGP) is insecure (Ballani

et al., 2007).

IP preﬁx hijacking is one of the central threats, which

allows attackers to divert trafﬁc to traverse an incor-

rect route. This enables attacks such as monitoring

and censorship, injection of malicious software and

spying on sensitive information. One way of hijack-

ing a route is to make use of the fact that more spe-

ciﬁc preﬁx announcements are preferred. If for ex-

ample AS1 announces the preﬁx 192.128.0.0/16 and

AS2 announces 192.128.0.0/24. The /24 indicates

that more bits of the IP address are ﬁxed, resulting in

a smaller and thus more speciﬁc range. Consequently,

all the trafﬁc to the IP space announced by AS2 will

be routed over AS2 instead of AS1. This happened by

mistake when Telekom Pakistan hijacked Youtube in

2008 (BGP-Hijack, 2008).

Route leaks are another problem as they lead to over-

loaded ASes and, thus, to connection failures. A re-

cent event in 2015 showed how a leak by Telekom

Malaysia inﬂuences the entire Internet (BGP-Hijack,

2015). By incorrectly announcing over 150k pre-

ﬁxes, most of the trafﬁc around the world was routed

through a few ASes. This caused high latencies and

packet losses worldwide.

Route ﬂappings have similar consequences, but on a

smaller scale. They occur when an AS is announcing

and withdrawing preﬁxes every other second, for ex-

ample when the system is rebooting because of tech-

nical issues. This causes a high computational load

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

210

for the neighboring ASes, which again leads to higher

latencies and packet loss.

2.2 Security Solutions

Extensive standardization and development efforts are

invested in establishing secure interdomain routing.

However, the adoption of BGP security solutions is

difﬁcult and proceeds slowly (Goldberg, 2014). There

are two complementary approaches to securing the in-

terdomain routing that were put forth by the IETF’s

Secure Inter-Domain Routing (SIDR) group: (1) ori-

gin authentication by deploying the Resource Public

Key Infrastructure (RPKI) (Lepinski and Kent, 2012),

followed by (2) path validation by replacing BGP

with BGPsec (Bellovin et al., 2014), a secure inter-

domain routing protocol that extends BGP. RPKI cer-

tiﬁes records binding an IP-preﬁx with the number

and public key of its originating Autonomous Sys-

tem, i.e., the AS that “owns” that preﬁx. RPKI certiﬁ-

cates allow BGP routers to perform origin authentica-

tion (Mohapatra et al., 2013) i.e. detect and discard

preﬁx hijacks These are BGP route advertisements

with an announced IP preﬁx where the AS is not its

legitimate owner. Preﬁx hijacks happen frequently

(e.g., see (BGP-Hijack, 2014; BGPMon, 2014; An-

dree Toonk, 2015)) and motivate the adoption of

RPKI, which is ﬁnally gaining traction (NIST, 2015).

Origin authentication (via RPKI) provides an impor-

tant ﬁrst step towards securing interdomain routing,

yet it is insufﬁcient to prevent path-manipulation at-

tacks. In particular, even with RPKI fully deployed,

the attacker can still perform the next-AS attack, i.e.,

announce a fake link between the attacker and the vic-

tim AS.

To address this and other path-manipulation attacks,

the IETF is standardizing BGPsec (Bellovin et al.,

2014), which uses digitally-signed BGP announce-

ments. BGPsec prevents a BGP-speaking router from

announcing a path that is not a legitimate extension of

a valid path that it received. To ensure this, BGPsec

requires each AS to sign every path advertisement that

it sends to another AS and validates all the signa-

tures of previous ASes along the path. Unlike RPKI,

integration of BGPsec necessitates changes to BGP

routers and introduces a non-trivial run-time compu-

tational overhead (Goldberg, 2014). Worse yet, recent

work on the adoption of BGP security (Lychev et al.,

2013) shows that in partial deployment, BGPsec is

expected to achieve disappointingly meager security

beneﬁts over RPKI, while potentially even leading to

less security and other undesirable phenomena (e.g.,

routing instabilities). Another problem is erroneous

adoption of RPKI. In particular, many ROAs are in-

correct (Iamartino, 2015; Iamartino et al., 2015), de-

motivating the adoption of Route Origin Validation

(ROV). The phenomenon manifests itself even among

big and important ISPs, such as Swisscom. Further-

more, roughly 9% of ROAs can potentially disconnect

the legitimate organizations from the Internet. One

example for such bad ROAs is issuing a ROA for an

IP preﬁx even though some of its subpreﬁxes belong

to other organizations that do not have ROAs. As a re-

sult, if tomorrow the entire Internet adopted BGP se-

curity with RPKI the immediate consequence would

be thousands of legitimate destination IP preﬁxes go-

ing ofﬂine due to misconﬁgurations.

2.3 Challenges

Given the problems of the BGP events and the effec-

tivity of the security solutions we develop the follow-

ing abstract challenges:

• The mentioned BGP incidents lasted about 2

hours until their cause was determined and coun-

termeasures were taken. The challenge is to re-

duce the time to detect these issues to enable faster

reactions through a combination of automated and

visual means.

• The adoption of the security features is very slow.

The challenge is to gather data for all ASes and

see, which of them have adopted the security fea-

tures correctly.

• It is not certain how effective the security features

are treating the threats. The challenge is to evalu-

ate the security features by analyzing their corre-

lation with the BGP incidents.

The above serious obstacles and pitfalls facing the

adoption of secure BGP in tandem with the multitude

of preﬁx hijacking attacks, show that current systems

fail to detect misconﬁgurations. In particular, they fail

to provide a clear and timely view of the adoption of

security mechanisms to Internet operators and system

administrators.

3 USER CHARACTERIZATION

Several user groups have to tackle the problem of

analyzing and monitoring the routing infrastructure.

User-centered design is very important for our prob-

lem as we have multiple target groups with different

goals, tasks and abilities. Details of this research ﬁeld

are summarized in Endsley’s book Designing for sit-

uation awareness (Endsley, 2016). In the following,

we analyze potential user groups for the analysis of

Towards Enhancing the Visual Analysis of Interdomain Routing

211

interdomain routing. Problems with the routing in-

frastructure concern a huge part of the world popula-

tion, while only a few organizations are actively mon-

itoring the system. Therefore, we determined four

main target user groups, which have an interest in the

analysis of routing at a global scale.

1. Administrators and Security Operation Centers

(SOCs)

2. Business Analysts

3. Internet Regulators and Law Enforcement Agen-

cies (LEAs)

4. Researchers

Each of the user groups has different goals, strategies

to process information, and decisions to make.

Administrators or SOCs have to watch the system and

keep it running. They have to constantly monitor

changes in their area of responsibility and make fast

decisions. Therefore, they need assistance in handling

the huge amounts of data for a smaller part of the

infrastructure in realtime. Their expertise is strong,

which means they need an overview of the system,

but should also be able to access detailed information.

In recent years this user group has been the primary

target in visual cyber security approaches and their

speciﬁc needs were analyzed by (Fink et al., 2009).

Business analysts have to analyze the market so that

their company can make better strategic decisions.

Their business expertise is strong, but they are not

familiar with the technical aspects of routing. This

means they need an overview of the whole routing in-

frastructure to ﬁnd information on how they can im-

prove the situation for their company. This includes

a focused view on their own properties in the system,

but also a view on the status of competing companies.

A detailed drill-down as for the administrators might

lead to information overload and should be avoided.

Internet regulators and LEAs have different goals, but

their way of using a routing analysis tool is similar.

They need to have an overview of the whole system

to spot irregularities, as well as being able to drill

down to detailed information. Regulators need this to

inform owners of misconﬁgured ASes, while LEAs

need the information to track down criminals.

Researchers are interested in the routing infrastruc-

ture for many years as many new protocols where

proposed to replace BGP. Nevertheless, none of them

succeeded because it is not possible to make all stake-

holders in the world switch simultaneously to a new

protocol. One solution is to create enhanced versions

of BGP so that single adopters gain beneﬁts imme-

diately. For such speciﬁc improvements the current

state of the routing infrastructure has to be analyzed

thoroughly. Therefore, the researchers need a global

overview of all anomalies in routing to invent new

solutions. But also detailed information about fre-

quencies, locations and types of anomalies have to

be presented. Besides making an application usable

and useful, user experience (UX) has to be consid-

ered. A detailed overview for UX is given by Hart-

son in The UX Book (Hartson and Pyla, 2012). For

our problem case we have to attract and convince four

different user groups to use a new application. There-

fore, we need to introduce new features to the users

by preserving their mental model of the problem. As

routing is a problem of sending packets from one part

of the world to another, the user usually has a geo-

graphical map in his mind (Golledge, 1999). Using

a geographical visualization as a starting point gen-

erates a faster understanding and thus, convinces the

user to analyze deeper. However, the current work-

ﬂow of the user has to be considered so that existing

procedures can still be followed. Finally, the eval-

uation has to be performed differently for each user

group. Administrators and SOCs are expecting a gain

in efﬁciency, so aspects like interaction speed and re-

sponse times have to be analyzed. The main focus is

monitoring of hijacks, route leaks and ﬂapping. Reg-

ulators and LEAs have to detect anomalies on a global

scale. For them, monitoring and forensics have simi-

lar severity. Regulators have to detect route leaks and

ﬂapping while LEAs need to ﬁnd criminal hijackers.

Business analysts and researchers are more interested

in a higher effectivity for ﬁnding new insights from

the data. Here the main focus is forensics. Business

analysts want to analyze how different peerings in-

ﬂuence the market. Researchers are interested in the

adoption of security features and their inﬂuence on

the stability of the infrastructure. Therefore, it has to

be proven that novel functionalities enable the user to

detect events, which previously were not visible.

4 VISUAL INTERACTIVE

ANALYSIS

In many domains data visualization has been proven

to reveal insights faster and thus accelerating the de-

cision process. However, in the ﬁeld of routing anal-

ysis the integration of advanced visual analytics tech-

niques is still an open challenge. Although multiple

tools have been developed, most of them are not scal-

able to large amounts of data and do not make use

of machine learning methods. Recently, advances in

machine learning improved the automatic detection of

patterns, but these processes are still not ﬂawless. The

human cognitive system can make better decisions

with less knowledge than a computer, but it is not

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

212

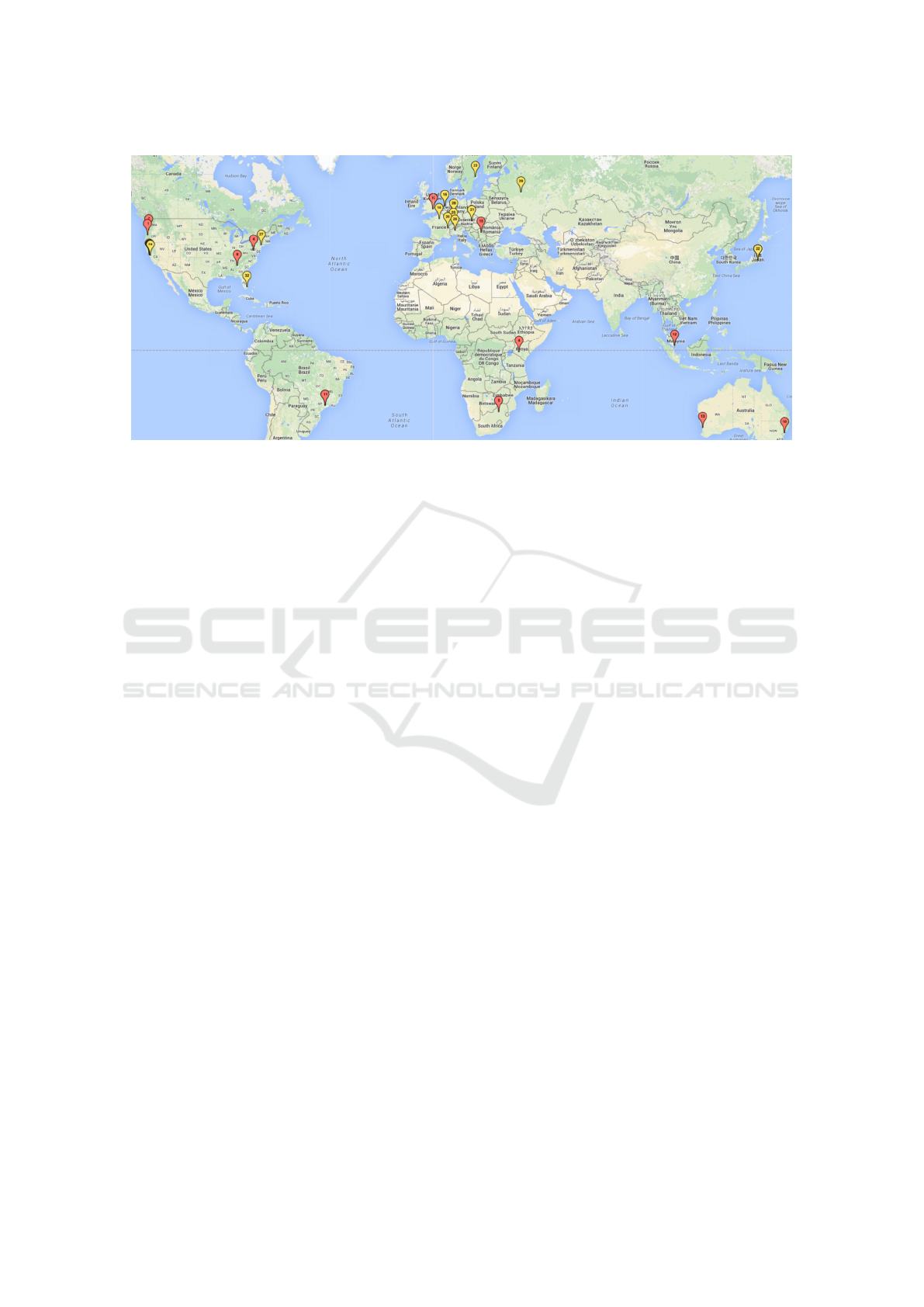

Figure 2: Locations of BGP Monitoring Points: Routeviews (red), RIPE NCC (yellow).

as good in processing huge amounts of data. There-

fore, the solution of visual analytics (Keim et al.,

2010) is to combine automatic ﬁltering and catego-

rization with manual veriﬁcation through interactive

visualizations. This enables the user to monitor huge

amounts of data as well as doing forensic work on

past events.

We determined the following speciﬁc requirements

for the analysis of BGP updates based on the three

steps introduced in Section 1:

• Visualizations that are able to show the AS net-

work and BGP updates of the entire world on dif-

ferent levels of detail.

• Automatic anomaly detection in routing changes

by learning through user feedback.

• Optimized visualizations for all target user

groups.

• Support improvement in interdomain routing for

researchers and ISPs by evaluating current secu-

rity features.

4.1 Data Sources

The basis for the visual analysis are the data sources.

In the case of interdomain routing there are three dif-

ferent types of log data we can extract information

from:

1. BGP Updates

2. Routing Tables

3. Traceroutes

The ﬁrst two represent the control layer. The rules

for data packet routing are stored in the tables, which

are kept up-to-date by the BGP updates. Traceroutes

are the actual routes the data packets take and thus

represent the data layer. In the past 17 years, data

collectors were placed around the world by two orga-

nizations: Routeviews (RouteViews, 2016) and RIPE

NCC (RIPE-NCC, 2016). They record propagated

BGP updates at the locations shown in Figure 2. Ad-

ditionally, Routeviews provides the full routing tables

along with the BGP updates. Routing tables are stored

in each AS and represent a fast lookup of the next AS

for a given destination IP. The data is publicly avail-

able and can be downloaded at the respective web-

sites. Because the routing tables show an aggregation

of the BGP updates, we are going to look at the up-

dates in more detail. First of all, both IPv4 and IPv6

updates are recorded and stored in the same log ﬁles.

After parsing them from the Multi-Threaded Routing

Toolkit (MRT) format to text ﬁles, a single BGP up-

date looks as shown in Figure 1. The amount of up-

dates highly depends on the position of the monitor-

ing node in the router network. If the AS has more

neighbors, more updates will come in. The average

amount of updates in a 15 minute time window are

240k with peaks at up to 7 million updates. To give a

better feeling of the vast amount of data, all updates

in June 2015 in text format amount to approx. 860

gigabytes. Although the control layer gives a good

overview of the routing, the actual path of the data

packets is determined by local preferences of the AS.

Based on the conﬁgurations and the workload of a

router, data packets can take different paths to their

destination. To see the actual path of the packets we

have to look at the data layer, particularly the tracer-

outes.

Traceroutes show the actual path a data packet takes

from a source to its destination. Due to the sheer num-

ber of IP routes, it is not feasible to check all routes

Towards Enhancing the Visual Analysis of Interdomain Routing

213

Table 1: Evaluation of current BGP Analysis tools: + Strength, - Weakness, 0 neutral, ? unknown.

Application

Acces-

sibility

Scalability

Discover

BGP

Incidents

Display

Security

Feature

Adoption

Change

Analysis

State

Compari-

son

Global

Explo-

ration

Local

Monitor-

ing

LinkRank

(Lad et al., 2004)

+ ? - - + - - 0

BGPlay

(Di Battista et al., 2005)

++ - - - + - - 0

Cyclops

(Chi et al., 2008)

++ 0 + - - - - +

BGPeep

(Shearer et al., 2008)

- ? 0 - + + - +

BGPmon / BGP Stream

(Yan et al., 2009)

+ 0 + - - - - +

VisTracer

(Fischer et al., 2012)

- ? + - ++ + + +

BGP Visibility Scanner

(Lutu et al., 2013)

- 0 - - + 0 - 0

BGPViewer

(Papadopoulos et al., 2013a)

- ? 0 - + - + 0

BGPfuse

(Papadopoulos et al., 2013b)

- ? + - + + - -

Netfork

(Di Donato et al., 2016)

- ? - - ++ - 0 -

RoutingWatch

(Ceneda et al., 2016)

- ? 0 - + + - +

ThousandEyes

(ThousandEyes, 2016)

+ 0 + - 0 - - ++

from any IP to another. A traceroute to any desti-

nation IP can only be performed from the source IP.

But there are multiple providers of online services to

trace the route from a small set of locations around

the world (e.g. Level3 LookingGlass, locaping.com).

The biggest collection of traceroutes is provided by

CAIDA (Center for Applied Internet Data Analy-

sis) (CAIDA, 2016). Within their Archipelago (Ark)

Measurement Infrastructure project they installed 160

monitoring nodes around the world. The units send

out probes to over 10 million /24 routed networks in

a period of 2-3 days, logging the route of the probe.

These results provide a rough reconstruction of the

routing infrastructure, but show the real paths the data

packets take after going through the local conﬁgura-

tion of each AS.

4.2 Visual Analysis Tools

After we performed the problem and user characteri-

zation, we analyzed multiple tools from the research

domain and also commercial applications. At ﬁrst we

looked at general aspects, which are important for the

success of a routing analysis tool like accessibility and

scalability. Next we analyzed if the tools cover the

two most speciﬁc tasks of our user groups: discov-

ery of BGP incidents and a relation to the adoption of

security features. These are valuable for administra-

tors, SOCs, regulators, LEAs and researchers. After

that we assessed how well the tools cover the less spe-

ciﬁc goals like change analysis and state comparison,

which are interesting for business analysts. Finally,

we categorized the tools to see if they are more use-

ful for global exploration or local monitoring. Table 1

shows our results of the state of the art analysis with

respect to our criteria.

5 ROADMAP AND CHALLENGES

Our focus was determined by the user groups that

we deﬁned in Section 3, and the goals they want to

achieve. We also looked at which of the common

BGP issues, explained in Section 2, can be detected

by the tools. A special remark is that none of the

applications is covering the adoption of security fea-

tures of ASes. This can give insight in how effective

the security solutions are by analyzing the correlation

of incidents and adoption. Finally, we took a detailed

look at how the different visual analysis methods

are utilized. The scalability of the applications was

difﬁcult to assess due to the overall low accessibility.

To ﬁll the gap in the current approaches, we see the

following challenges to advance the research in this

ﬁeld considerably. Our roadmap for a new approach

speciﬁcally targets the known BGP issues, described

in Section 2, to allow an effective recognition through

visual analytics approaches. Along this line, the

following challenges have to be addressed:

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

214

1. Currently, all approaches rely on the user to ﬁnd

anomalies in the data. If the data is enriched by

other sources, and larger overviews are presented,

this will overwhelm the user. We need techniques,

that identify interesting events automatically, and

techniques that are able to learn ”interesting” pat-

terns based on the users feedback. Thus, ma-

chine learning algorithms and visual analytics ap-

proaches should be integrated.

2. Current approaches also show that the research fo-

cus was laid on local monitoring, while global ex-

ploration tasks where rarely considered. The pri-

mary challenge is to make the application scalable

to provide overviews of all ASes and their connec-

tions in one view.

3. The presented approaches show different tech-

niques for analysis and comparison. It is a chal-

lenge to integrate these techniques in one tool

with multiple-linked views. Animations of sin-

gle changes address the humans preattentive cog-

nition (Fisher, 2010), while static change analysis

allows to explore details, especially when com-

paring different states side by side. A combined

approach could make use of both advantages.

4. An important challenge is the treatment of the

data sources. To make the application as accurate

as possible, information from routing tables, BGP

updates, traceroutes and security features have to

be merged. This creates a difﬁcult challenge for

storing the data and making it accessible with low

response times.

5. Accessibility is a key feature to involve new users,

usually requiring a web application that is eas-

ily accessible without having to download vast

amounts of data.

6. Beside the usability, the user experience has to

be kept in mind. The basic routing problem

can be seen as a path ﬁnding problem. Usu-

ally the human associates this with a cognitive

map (Golledge, 1999). So it is more natural to

introduce the user to a geographic representation

and transfer to a structured layout after the user

knows what to look at.

7. For user studies members of the four user groups

have to be acquired. The groups consist of ad-

ministrators, business analysts, regulators and re-

searches with the goal to improve interdomain

routing. First prototypes should be based on the

users current workﬂows to make the introduction

to a new tool as seamless as possible.

6 CONCLUSION

To create a roadmap towards enhancing the visual

analysis of interdomain routing, we analyzed the cur-

rent problem state and highlighted recent incidents.

We proposed new target user groups which have to be

considered in the future. We described their goals,

tasks and abilities which have to be addressed to

achieve a high acceptance rate for new applications.

After the problem and the users were deﬁned, we

studied current visual analysis solutions for analyzing

interdomain routing. All applications have strengths

in speciﬁc tasks or techniques, but none of them is

able to address all needs of one user group, let alone

of all user groups. Our next steps will follow this

roadmap to develop a suite of visualizations that pro-

vide different views on the BGP data, targeting the

four different user groups and providing a solution to

the introduced unsolved BGP issues. This research

will be in line with current advances towards a more

secure interdomain routing infrastructure and our fu-

ture work on the visual analysis of complex networks.

ACKNOWLEDGEMENTS

This work was supported by the German Federal Min-

istry of Education and Research (BMBF) and the Hes-

sen State Ministry of Higher Education, Research and

the Arts (HMWK) within the Center for Research in

Security and Privacy (CRISP).

REFERENCES

Andree Toonk (2015). BGP Hijack Incident by Syrian

Telecommunications Establishment. BGPMon blog.

Ballani, H., Francis, P., and Zhang, X. (2007). A study of

preﬁx hijacking and interception in the internet. In

ACM SIGCOMM Computer Communication Review,

volume 37, pages 265–276. ACM.

Bellovin, S., Bush, R., and Ward, D. (2014). Security Re-

quirements for BGP Path Validation. RFC 7353 (In-

formational).

BGP-Hijack (2008). Renesys blog pakistan hijacks youtube

2008. http://research.dyn.com/2008/02/pakistan-

hijacks-youtube-1/.

BGP-Hijack (2014). Hijack event today by in-

dosat. http://www.bgpmon.net/hijack-event-today-by-

indosat.

BGP-Hijack (2015). Global collateral damage of tm-

net leak. http://research.dyn.com/2015/06/global-

collateral-damage-of-tmnet-leak/.

BGPMon (2014). Turkey Hijacking IP ad-

dresses for popular Global DNS providers.

Towards Enhancing the Visual Analysis of Interdomain Routing

215

http://www.bgpmon.net/turkey-hijacking-ip-

addresses-for-popular-global-dns-providers/.

CAIDA (2016). Center for applied internet data analysis.

http://www.caida.org/data.

Ceneda, D., Di Bartolomeo, M., Di Donato, V., Patrignani,

M., Pizzonia, M., and Rimondini, M. (2016). Rout-

ingwatch: Visual exploration and analysis of routing

events. In NOMS. IEEE.

Chi, Y.-J., Oliveira, R., and Zhang, L. (2008). Cyclops: the

as-level connectivity observatory. ACM SIGCOMM

Computer Communication Review, 38(5):5–16.

Di Battista, L. C. G., Mariani, F., and Pizzonia, M. P. M.

(2005). Visualizing interdomain routing with bgplay.

Di Donato, V., Patrignani, M., and Squarcella, C. (2016).

Netfork: Mapping time to space in network visual-

ization. In Proceedings of the International Working

Conference on Advanced Visual Interfaces, pages 92–

99. ACM.

Endsley, M. R. (2016). Designing for situation awareness:

An approach to user-centered design. CRC press.

Fink, G. A., North, C. L., Endert, A., and Rose, S. (2009).

Visualizing cyber security: Usable workspaces. In Vi-

sualization for Cyber Security, 2009. VizSec 2009. 6th

International Workshop on, pages 45–56. IEEE.

Fischer, F., Fuchs, J., Vervier, P.-A., Mansmann, F., and

Thonnard, O. (2012). Vistracer: a visual analytics

tool to investigate routing anomalies in traceroutes. In

Proceedings of the ninth international symposium on

visualization for cyber security, pages 80–87. ACM.

Fisher, D. (2010). Animation for visualization: opportuni-

ties and drawbacks. Ch, 19:329–352.

Ganichev, I., Dai, B., Godfrey, P., and Shenker, S.

(2010). Yamr: Yet another multipath routing protocol.

ACM SIGCOMM Computer Communication Review,

40(5):13–19.

Goldberg, S. (2014). Why is it taking so long to secure inter-

net routing? Communications of the ACM, 57(10):56–

63.

Golledge, R. G. (1999). Wayﬁnding behavior: Cognitive

mapping and other spatial processes. JHU press.

Hartson, R. and Pyla, P. S. (2012). The UX Book: Process

and guidelines for ensuring a quality user experience.

Elsevier.

Iamartino, D. (2015). Study and Measurements of the RPKI

Deployment.

Iamartino, D., Pelsser, C., and Bush, R. (2015). Measuring

bgp route origin registration and validation. In Inter-

national Conference on Passive and Active Network

Measurement, pages 28–40. Springer.

Keim, D. A., Kohlhammer, J., Ellis, G., and Mansmann, F.

(2010). Mastering the information age-solving prob-

lems with visual analytics. Florian Mansmann.

Kent, S., Lynn, C., and Seo, K. (2000). Secure border gate-

way protocol (s-bgp). IEEE Journal on Selected areas

in Communications, 18(4):582–592.

Lad, M., Zhang, L., and Massey, D. (2004). Link-rank: A

graphical tool for capturing bgp routing dynamics. In

NOMS, volume 1, pages 627–640. IEEE.

Lepinski, M. and Kent, S. (2012). An infrastructure to

support secure internet routing. RFC 6480 (Informa-

tional).

Lutu, A., Bagnulo, M., and Maennel, O. (2013). The

bgp visibility scanner. In Computer Communications

Workshops (INFOCOM WKSHPS), 2013 IEEE Con-

ference on, pages 115–120. IEEE.

Lychev, R., Goldberg, S., and Schapira, M. (2013). BGP

Security in Partial Deployment: Is the Juice worth the

Squeeze? In SIGCOMM, pages 171–182. ACM.

Mohapatra, P., Scudder, J., Ward, D., Bush, R., and Austein,

R. (2013). BGP Preﬁx Origin Validation. RFC 6811

(Proposed Standard).

NIST (2015). NIST RPKI Monitor. https://rpki-

monitor.antd.nist.gov/.

Papadopoulos, S., Moustakas, K., and Tzovaras, D.

(2013a). Bgpviewer: Using graph representations to

explore bgp routing changes. In Digital Signal Pro-

cessing (DSP), 2013 18th International Conference

on, pages 1–6. IEEE.

Papadopoulos, S., Theodoridis, G., and Tzovaras, D.

(2013b). Bgpfuse: using visual feature fusion for the

detection and attribution of bgp anomalies. In Pro-

ceedings of the Tenth Workshop on Visualization for

Cyber Security, pages 57–64. ACM.

RIPE-NCC (2016). Rseaux ip europens network coordi-

nation centre. https://www.ripe.net/analyse/internet-

measurements/routing-information-service-ris/ris-

raw-data.

RouteViews (2016). Bgp routing database.

http://www.routeviews.org/.

Shearer, J., Ma, K.-L., and Kohlenberg, T. (2008). Bgpeep:

An ip-space centered view for internet routing data.

In Visualization for Computer Security, pages 95–110.

Springer.

ThousandEyes (2016). Bgp route monitoring.

https://www.thousandeyes.com/.

Yan, H., Oliveira, R., Burnett, K., Matthews, D., Zhang, L.,

and Massey, D. (2009). Bgpmon: A real-time, scal-

able, extensible monitoring system. In CATCH’09.

Cybersecurity Applications & Technology.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

216
