Model-to-Model based Approach for Software Component Allocation in

Embedded Systems

Lujain Al-Dakheel and Issam Al-Azzoni

Department of Software Engineering, College of Computer and Information Sciences,

King Saud University, Riyadh, Saudi Arabia

Keywords:

Component Allocation, Coloured Petri Nets, Uniﬁed Modeling Language, Model-Driven Engineering,

Embedded Systems, Heterogeneous Systems, Model-to-Model Transformation.

Abstract:

Due to the popularity and heterogeneity of embedded systems, the problem of software component (SW-

component) allocation in such systems is receiving increasing attention. Addressing this problem using a

graphical modeling language such as Ecore will enable system designers to better and more easily allocate their

components. However, the existing Ecore models do not address the problem of SW-component allocation in

heterogeneous embedded systems. Because of Ecore informal semantics, Ecore models cannot be analyzed

using mathematical tools. On the other hand, an approach based on colored Petri nets (CPNs) was proposed

for the modeling and analysis of the software component allocation problem. The approach was shown to

be applicable in the ﬁeld not only with respect to the cost optimization problem, but also because it takes

nonfunctional requirements into consideration. In this paper, we propose an approach for the automated

transformation of an Ecore model into an equivalent CPN model, which will help the modeler use the power

of a formal modeling language by only modeling the system using a simple Ecore-based modeling language.

1 INTRODUCTION

Model Driven Engineering (MDE) uses models as a

cornerstone throughout the software lifecycle, which

indicates a shift from everything is an object paradigm

to everything is a model paradigm (Wimmer et al.,

2011). In this context, choosing a good model will

lead to a better system. Ecore is a powerful, ex-

pressive and rich language used to deﬁne metamodels

conformed to EMF (Eclipse Modeling Framework)

The semantics of Ecore is not formally expressed.

Thus models deﬁned in Ecore are difﬁcult to analyze.

On the other hand, CPN (Petri and Reisig, 2008) is

a mathematical modeling language offering detailed

view of the modeled system with a graphical repre-

sentation. Also, models by CPN can be analyzed us-

ing powerful tools (such as CPN Tools

). These prop-

erties have made CPN popular in modeling, analyz-

ing, and optimizing complex systems.

SW-component allocation is the process of map-

ping SW-component to the computational units. Re-

cently, many existing research studies focus on the

modeling of these components and verifying these

http://wiki.eclipse.org/EMF

http://cpntools.org/

models in an effective way. The SW-component al-

location has not been modeled neither in Ecore (Bier-

mann et al., 2008) nor in UML (Force, 2010).

As known, model transformation is a key process

in MDE. For that, in this research we aim to introduce

an automated transformation technique to automati-

cally generate a CPN model that addresses the SW-

component allocation problem speciﬁed in a given

Ecore model in order to help the modeler access the

full beneﬁts of the formal modeling language without

necessarily creating the CPN model. The contribu-

tions of the paper are summarized as follows:

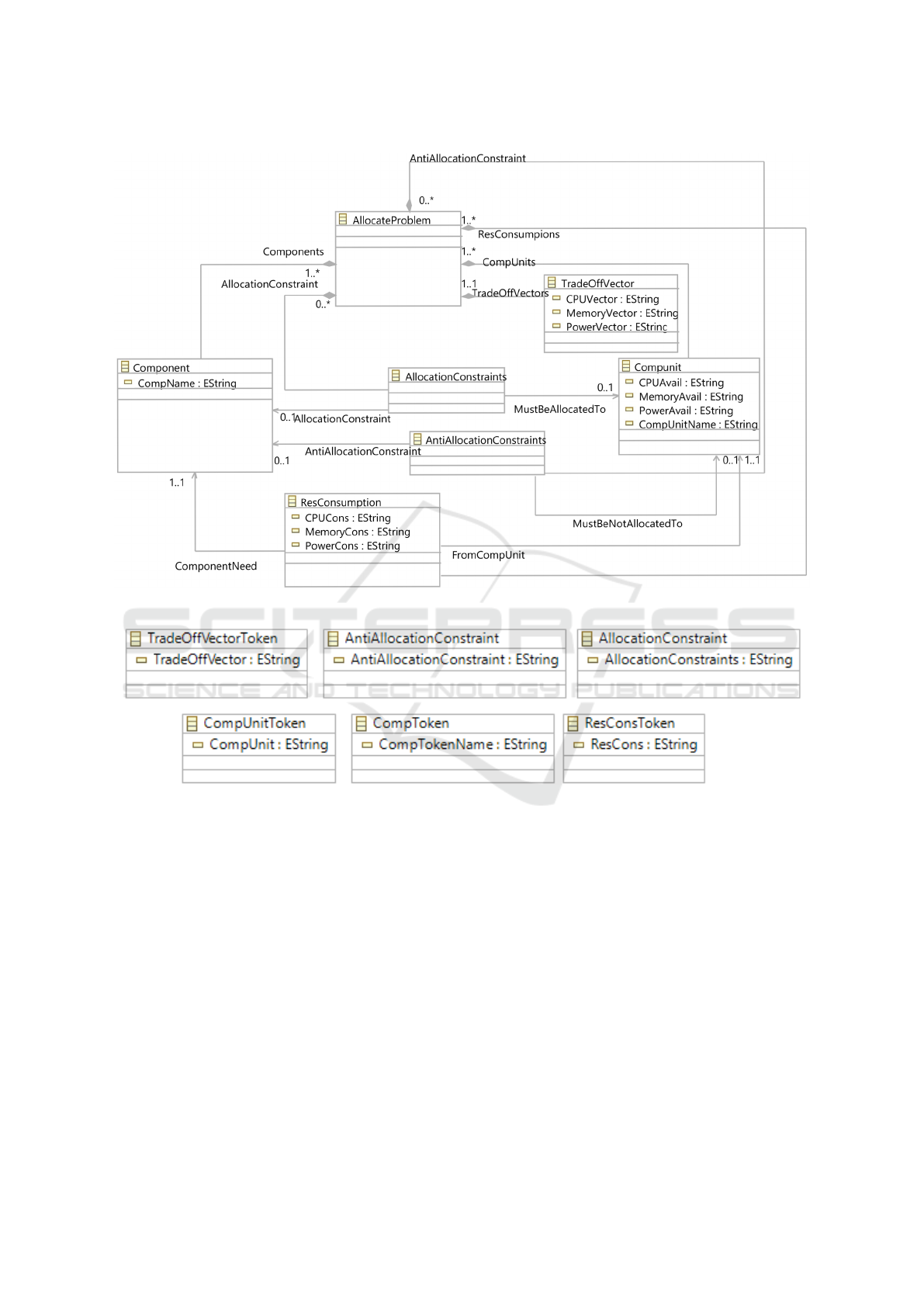

1. We create a new Ecore model for the SW-

component allocation.

2. We automatically transform the Ecore model into

an equivalent CPN’s model

3. We automatically re-write the CPN model us-

ing a Java parser program that obtains the output

from ATL and transforms it into the required CPN

Tools format.

The organization of the paper is as follows. In Section

2, we deﬁne the preliminaries used in our paper. We

illustrate our approach in Section 3 and evaluate it in

Section 4. The related work is discussed in Section

320

Al-Dakheel L. and Al-Azzoni I.

Model-to-Model based Approach for Software Component Allocation in Embedded Systems.

DOI: 10.5220/0006126903200328

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 320-328

ISBN: 978-989-758-210-3

5. Section 6 concludes the paper and outlines future

work.

2 PRELIMINARIES

2.1 CPN

Colored Petri nets (CPN) are an extension of the con-

cept known as Petri nets (Petri and Reisig, 2008).

CPNs sustain the useful properties of Petri nets and

extend them with initial formalism to allow differ-

ences between tokens (Jensen, 2013). CPN is a for-

mal, general-purpose modeling language. In CPNs,

tokens are stored in places that carry data (or colors)

of a given type. CPN is a discrete-event modeling

language combining the capabilities of Petri nets with

those of a high-level programming language. A sys-

tem model in CPN contains both states and action-

oriented behaviors. The CPN model describes the

states of a system and the events (transitions) that can

cause the system to change its state (Jensen and Kris-

tensen, 2009).

2.2 Software Component Allocation for

Embedded Systems

An embedded system is a computer system and its

related software built into a piece of equipment (Carl-

son et al., 2010). Recently, signiﬁcant effort has

been done on developing and maintaining embedded

systems, including SW-component allocation. SW-

component allocation is the process of mapping SW-

component to the computational units. Consider a

software system (

Svogor et al., 2014a) consisting of

n components; each component must be assigned to a

computational unit on a hardware platform consisting

of m computational units. The computational units of-

fer a number of resources l. The component resource

consumption matrix

T = [t

i jk

]

(n×m×l)

deﬁnes the resources required by each component.

The computational unit resource capacity matrix

R = [r

]

(m×l)

deﬁnes the resources that each computational unit can

provide. The component allocation problem seeks to

ﬁnd an allocation (p

, ...., p

), where component i is

allocated to computational unit p

, which is both fea-

sible and optimal. The feasibility condition can be

stated as follows: Given an allocation (p

, ..., p

), for

all computational units j:

∑

i, p

= j

) ≤ r

(1)

for all resources k.

Another set of constraints must be satisﬁed by a

feasible allocation. These constraints are system ar-

chitectural constraints. In a feasible allocation, the

architect may require that a particular component

should (or should not) be allocated to a particular

computational unit.

Given an allocation (p

, ..., p

), its cost can be

computed using the following cost function:

w =

∑

k=1

∑

i=1

(2)

where f

represents a tradeoff factor whose purpose is

to specify the weight of each resource. The alloca-

tion with the smallest w (greater than 0) is an optimal

allocation.

Therefore, to solve the component allocation

problem, we must ﬁnd an allocation that satisﬁes (1)

and achieve the smallest cost (greater than 0) where

cost is deﬁned by (2).

We use the same system in (Al-Azzoni, 2015) to

demonstrate a sample component allocation problem.

The system is taken from (

Svogor et al., 2014b).

The system consists of the following:

• n = 11 components, as follows:

1. UI User Interface

2. CH Communication Han-

dler

3. MP Message Parser

4. MD Manual Drive

5. MM Mission Manager

6. MC Movement Control

7. V Vision

8. AC Actuator Control

9. SI Sensors Layer 1

10. S2 Sensors Layer 2

11. SF Stream Filtering

• m = 4 computational units, as follows:

1. mCPU Mulicore CPU

2. FPGA FPGA I

3. FPGA FPGA II

4. GPU

• l = 3 resources, which are as follows:

1. CPU : average execution

time

2. Memory

3. Power : average energy

consumption

• The resource capacity for each computational unit

is given by the following matrix:

R =







100 256 50

150 640 25

100 256 15







Model-to-Model based Approach for Software Component Allocation in Embedded Systems

321

• The resource consumption for the CPU, memory,

and power resources is given by the following

metrics:

CPU =







10 90 90 55

50 20 20 72

30 20 20 72

10 40 40 72

20 40 40 72

20 50 50 55

90 20 20 15

20 10 10 70

20 15 15 70

90 10 10 33







Memory =







48 256 256 128

128 256 256 148

64 256 256 148

48 168 168 148

64 168 168 148

64 168 168 64

168 128 128 64

148 96 96 148

48 32 32 148

168 64 64 96







Power =







2 18 18 11

10 4 4 14

6 4 4 14

2 8 8 14

4 8 8 14

4 10 10 11

18 4 4 3

4 2 2 14

4 3 3 14

18 2 2 7







• In this allocation problem, two constraints are de-

ﬁned:

Component V should be allocated in the computational unit

GPU

Component MD should not be allocated in computational unit

mCPU

• Finally, the trade-off vector is as follows:

F = [0.1557, 0.0856, 0.7095]

2.3 CPN Model for The Component

Allocation Problem

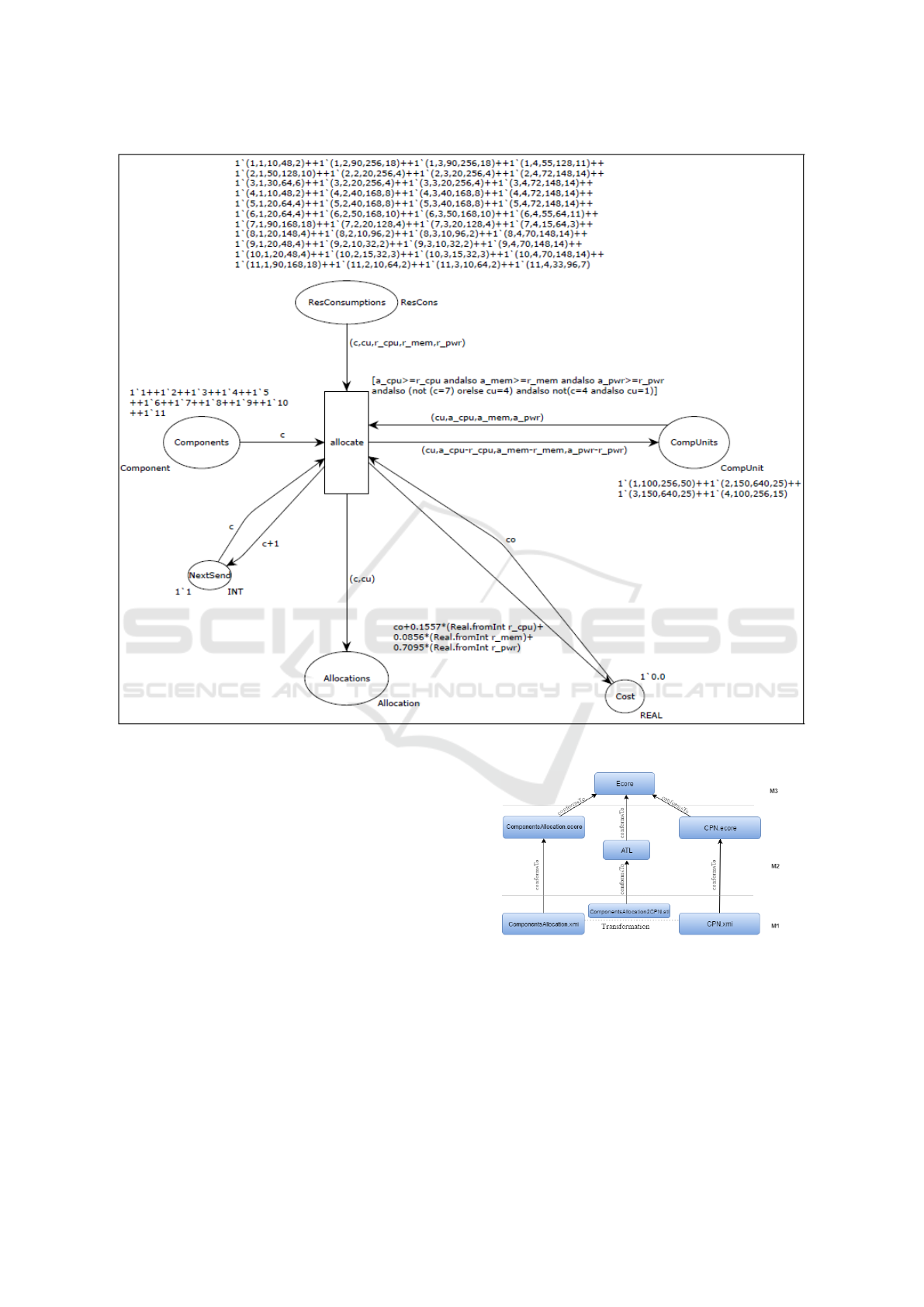

The CPN model of the SW-component allocation

problem presented in Section 2.2 was developed in

(Al-Azzoni, 2015) and is shown in Figure 1. It con-

tains six places. Place Components, carries tokens

for each component; and Place CompUnits, holds to-

kens for each computational unit, and each token in-

cludes the available resources for the computational

unit. The Place ResConsumption holds tokens con-

taining the resource consumption for each component

using the matrix T, which deﬁnes the amount of re-

sources needed by each component based on the com-

ponent resource consumption matrix:

T = [t

i jk

]

(n×m×l)

The element t

ijk

represents the amount of the k-th re-

sources required by the i-th component when allo-

cated to the j-th computational unit.

Another place in the CPN model is the Alloca-

tions place, which also holds tokens that represent

the allocation of the components to the computa-

tional units. The place NextSend is responsible for

controlling which component will be allocated next

and is used to reduce the state space by allocating the

components in order of their numbers. Finally, the

place Cost holds an individual token which records

the total cost of the allocation. A single transition is

proposed in the CPN model, the name of which is

allocate; it corresponds to the authorization of one

component to one computational unit. Furthermore,

color sets are deﬁned in the CPN model as follows:

colset UNIT = unit;

colset INT = int;

colset REAL = real;

colset BOOL = bool;

colset STRING = string;

colset Component = int;

colset CompUnit = product INT * INT * INT

* INT;

colset Allocation = product INT * INT;

colset ResCons = product INT * INT * INT *

INT * INT;

And the variables are declared as:

var c,cu: INT;

var co:REAL;

var a-cpu,a-mem,a-pwr: INT;

var r-cpu, r-mem,r-pwr: INT;

Moreover, the proposed approach addresses the user

allocation constraints by using the guard of transition

allocate.

3 SW-COMPONENT

ALLOCATION PROBLEM TO

CPN TRANSFORMATION

ATL is a transformation language and toolkit that

transforms elements between source and target mod-

els according to deﬁned rules based on their meta-

models. An ATL program includes two metamodels

and composes a set of rules that deﬁne how a source

model element will be matched in the target model.

ATL is applied in the context of the transformation

architecture shown in Figure 2. In this architecture, a

source model ComponentAllocation.xmi conforming

to a metamodel ComponentAllocation.ecore is trans-

formed into a target model CPN.xmi. This target

model conforms to CPN.ecore according to the trans-

formation deﬁnition ComponentAllocation2CPN.atl

written in ATL language. The transformation deﬁ-

nition is a model conforming to the ATL metamodel

with a transformation architecture consisting of three

levels. M3 is the metametamodel level, and in our

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

322

Figure 1: CPN model (extracted from (Al-Azzoni, 2015)).

case, is represented by Ecore, the metametamodel for

the entire transformation engine and is deﬁned by it-

self. M2, the metamodel level is represented here by

ComponentAllocation.eore and CPN.ecore, which is

deﬁned by M3. M1 is the model level and is de-

ﬁned by M2. Figure 3 describes the component al-

location metamodel used in the scope of our transfor-

mation. The Component class contains Component-

Name, while the CompUnit class contains the Com-

pUnitName and the available resources for each one.

The ResConsumption class represents the amount of

resources consumed by component X while it is allo-

cated to CompUnit Y. The user can add the ResCon-

sumption to all components individually with any

CompUnit. If there is any constraint in the allocation,

the user can represent the constraints using Alloca-

tionConstraint or AntiAllocationConstraint classes;

the TradeOffVector class will indicate if there are any

trade-offs in the allocation problem.

Figure 2: ATL model transformation process.

Figure 4 describes the CPN metamodel used in the

scope of our transformation. The CompToken class

contains CompTokenName attribute taken from Com-

ponent class in the ComponentAllocation metamodel,

while the CompUnitToken class contains CompUnit

attribute that holds CompUnitName for each Com-

pUnit in the ComponentAllocation metamodel. The

ResConsToken class contains ResCons attribute for

Model-to-Model based Approach for Software Component Allocation in Embedded Systems

323

Figure 3: ComponentAllocation Ecore metamodel.

Figure 4: CPN metamodel.

the amount of resources consumed by a component

when its allocated to a computational unit. The com-

ponent allocation constraints are stored in Allocation-

Constraint and AntiAllocationConstraint classes. The

TradeoffVectorToken class contains a string deﬁning

the tradeoff vectors of the allocation problem. The

ATL code for the ComponentAllocation2CPN.ATL

transformation consists of six rules.

-- First Rule

rule Component2Token {

from

A: ComponentAllocation!Component

Tokent1: CPN!CompToken

(CompTokenName <- A.CompName)

}

-- Second Rule

rule CompUnit2Token{

from

B: ComponentAllocation!Compunit

Token2: CPN!CompUnitToken

(CompUnit <- B.CompUnitName+’,’+B.CPUAvail+’,’

+B.MemoryAvail+’,’+B.PowerAvail)

}

-- Third Rule

rule TradeOffVector2Token{

from

C: ComponentAllocation!TradeOffVector

Token3: CPN!TradeOffVectorToken

(TradeOffVector <- ’co+’+C.CPUVector+’*

(Real.fromInt r_cpu)+’

+C.MemoryVector+’*(Real.fromInt r_mem)+’+

C.PowerVector+’*(Real.fromInt r_pwr)’)

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

324

}

-- Fourth Rule

rule ResCons2Token {

from

D: ComponentAllocation!ResConsumption

Token4: CPN!ResConsToken

(ResCons <- D.ComponentNeed.CompName+’,’+

D.FromCompUnit.CompUnitName+

’,’+D.CPUCons+’,’+D.MemoryCons+’,’+D.PowerCons)

}

-- Fifth Rule

rule Constraint {

from

E: ComponentAllocation!AllocationConstraints

Token5: CPN!AllocationConstraint

(AllocationConstraints <-

’(not(c=’+E.AllocationConstraint.CompName+

’)orelse cu=’+E.MustBeAllocatedTo.CompUnitName+

’)’)

}

-- Sixth Rule

rule AntiAllocationConstrait

{

from

F :

ComponentAllocation!AntiAllocationConstraints

AntiConstraint: CPN!AntiAllocationConstraint

(AntiAllocationConstraint <-

’c=’+F.AntiAllocationConstraint.CompName+

’andalso cu=’+F.MustBeNotAllocatedTo

.CompUnitName)

The ﬁrst rule generates a token from a compo-

nent input element. The name of the generated token

is copied from CompName in the ComponentAlloca-

tion metamodel. The second rule generates the Com-

pUnit tokens. Each token should have CPU, memory,

and power capacity, which will be copied from the

class CompUnit in the ComponentAllocation meta-

model before collecting all the attributes together as

a single token. The ResConsumption rule will take

input from the component class through the Com-

ponentNeed association and an input from the Com-

pUnit class, the CompUnitName. It then will write

them together in an individual token with ResCon-

sumption attributes from the ComponentAllocation

metamodel. The TradeoffVector rule will write the

component problem tradeoffs in a single token, and

ﬁnally, the AllocationConstraint and AntiAllocation-

Constraint rules are responsible for transforming the

constraints deﬁned in the ComponentAllocation to the

CPN constraint format as text.

One of the main challenges in this research was

how to make this transformation as powerful as pos-

sible while retaining the full beneﬁts of the CPN Tools

in the SW-component allocation problem. All ﬁle for-

mats in the CPN Tools are XML based. For that, the

CPN Tools can not load any ﬁle unless it is XML

based. This issue was a challenge for our transforma-

tion tool because the ATL transformation generates

xmi ﬁles. The format of the XML ﬁles required by

CPN Tools is described in DTD with multiple restric-

tions provided in

. This ﬁle format is different from

the ATL’s generated ﬁle format. We overcame this

obstacle by developing a Java parser program that ob-

tains the output from ATL and writes it in the required

CPN Tools format. The supported tool reads xmi ﬁles

and obtains data from speciﬁc elements to add char-

acters and generate a string that is written into an out-

put XML ﬁle for use by the CPN Tools in creating a

model. In order to achieve this goal, we decided to

use an XML parser, which provided a way to access

and modify data in an XML document. Because xmi

is special form of XML, we can use the XML parser

in Java without any complications.

4 EVALUATION

In order to ensure the correctness of our transforma-

tion approach we evaluated it using static and dy-

namic analysis.

4.1 Static Analysis - anATLyzer

A transformation rule is written based on its source

and target metamodels, speciﬁcally to match between

elements from the source model and generate its cor-

responded elements in the target model. It describes

the structure of models manipulated by the transfor-

mation including the allowed types, relations, features

and its constraints. anATLyzer (Sanchez Cuadrado

et al., 2014) is a tool integrated with ATL as an

Eclipse plug-in which analyzes the transformation

to discover its potential problems and suggest many

ways to ﬁx them. anATLyzer can identify problems

by combining static analysis and constraints solving.

Static analysis detects statements of the transforma-

tion that contain errors or may cause potential prob-

lems when executing the transformation. If the error

can not be detected in the transformation statement,

the constraints solver will ﬁnd an input model that

cause the error occur to be better understood it by the

developer. We integrate anATLyzer with our ATL tool

http://cpntools.org/cpn2000/sgml vs xml

Model-to-Model based Approach for Software Component Allocation in Embedded Systems

325

and use it to analyze our transformation rules. Our

rules passed the rule conﬂict analysis. The only warn-

ing returned by the anATLyzer tool is that our com-

ponents in the target model are not connected. This is

ﬁne since we declared each class to store separate to-

kens in order to reuse these tokens in the XMI parser.

4.2 Dynamic Analysis

The authors of (Selim et al., 2012) formulate the

model transformation testing into four phases. The

ﬁrst phase is test case generation which involves gen-

erating test models conforming to the source meta-

model using some criteria to ensure that each test

model covers the source metamodel. The second

phase is assessing the generated test suite. The third

phase is building the oracle function which is used to

compare the actual transformation output with the ex-

pected output to evaluate the correctness of the trans-

formation. The fourth phase involves running the gen-

erated test models and comparing the output with the

oracle function results.

4.2.1 Test Model Generation - Black-Box Test

Model Generation Based on Metamodel

Coverage

The input scope for each test model is based on the

source metamodel. For that, each parameter in the

source metamodel is an input for the transformation.

The source metamodel used in this transformation is

an Ecore class diagram. For this purpose, we reused

adequacy criteria for UML class diagrams to ensure

the coverage for the test models. We used repre-

sentative values for the Association-End Multiplicity

(AEM) and the Class Attribute (CA) since the pos-

sible values of multiplicities and attributes are inﬁ-

nite. We used default partitioning to extract values for

each attribute taking into consideration the structure

or type of the data. For a string attribute this would be

null, “something”, and for an [0..1] association end it

would be 0, 1. This policy suggests choosing bound-

ary values and in addition values outside the bound-

aries if the goal is to check the robustness of the trans-

formation.

4.2.2 Building the Oracle Function

In this phase, after generating the test models an ora-

cle function is used to compare the actual output with

the expected output to validate the transformation cor-

rectness. The oracle function used to test our ap-

proach was developed and presented in (Al-Dakheel,

L and Al-Azzoni, I, 2016). It is implemented as a Java

program that takes a component allocation problem

and generates an optimal allocation. It implements

full state enumeration that evaluates the cost for all

allocations and chooses an allocation that has the min-

imum cost.

4.2.3 Running the Transformation on the

Generated Test Models

Eight test models were used in our ATL tool. We ﬁrst

created an instance for each model, then we loaded

the output into the XMI parser, which in turn con-

verted the output to an XML format accepted by the

CPN Tools. The goal was to enable the use of CPN

Tools by generating the required XML format.

4.2.4 Results

We achieved the results shown in Table 1 after loading

the XMI parser output to the CPN Tools as a net and

generating the state space to obtain an optimal allo-

cation. The table shows the optimal allocation cost

for using the oracle function and using our model-

based approach. This shows perfect accuracy of our

approach.

5 RELATED WORK

In the ﬁeld of Model-to-Model Transformation

(MMT), the authors of (Andr

e et al., 2014) proposed

and implemented an approach to translate a UML

state machine diagram (SMD), into CPN in order to

use its formalization in analysis and veriﬁcation. The

authors of (Hei et al., 2011) introduced an automated

transformation tool that transforms UML state charts

into Petri nets via extensible markup language (XML)

to analyze and verify the original UML model and

check its correctness in order to ensure safety anal-

ysis for systems using the transformation rules they

deﬁned in an XML ﬁle.

The authors of (Choppy et al., 2011) proposed a

technique for the automated translation of UML state

diagrams into CPNs. The CPN model generated from

their approach was used in a CPN-AMI Petri netbased

case environment to check the correctness of the Petri

net model. Furthermore, the authors of (Guo et al.,

2014) discussed the absence of models in the ﬁeld of

embedded systems and the limitations of semi-formal

models such as UML in addressing this problem. To

address these limitations, they proposed an automated

technique for the transformation of the UML state

machine model into the Simulink Stateﬂow model,

because Simulink is a formal semantic modeling lan-

guage that uses ATL as model-transformation archi-

tecture.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

326

Table 1: Results of the oracle function VS. our approach. TM stands for Test Model.

TM1 TM2 TM3 TM4 TM5 TM6 TM7 TM8

Oracle Function

Results

176.61 159.77

No feasible

allocation

186.16 196.31 208.47 184.77 148.87

Our Approach

Results

176.61 159.77

No feasible

allocation

186.16 196.31 208.47 184.77 148.87

TM = Test Model

In order to identify the optimal SW-component al-

location, the authors of (

Svogor et al., 2014a) applied

a genetic algorithm (GA) to identify optimal solutions

to the component allocation problem; they also ap-

plied an analytical hierarchical process to address the

problem of different measurement units in the calcu-

lation of trade-off factors.

However, although GA usually ﬁnds a good so-

lution, there is no guarantee that these solutions will

be optimal. Another method for solving the compo-

nent allocation problem was presented in (Wang et al.,

2004). The method uses branch-and-bound and for-

ward checking mechanisms. The method was imple-

mented in the Automatic Integration of Reusable Em-

bedded Software (AIRS) toolkit

Obviously, there is still a clear gap on the mod-

eling language that addressed the problem of SW-

component allocation on embedded systems. The au-

thor of (Al-Azzoni, 2015) was the ﬁrst to present a

model-based approach for modeling and solving the

SW-component allocation problem using CPN. He

used CPN as a modeling language and described the

use of CPN Tools in analyzing the CPN model and

solving the component problem. Using CPN to ad-

dress the SW-component allocation problem will not

only optimize the cost function, but will also optimize

allocation for other types of nonfunctional analysis,

including security and dependability analysis.

6 CONCLUSION AND FUTURE

WORK

In this paper, we have described an automated model-

to-model transformation approach for software com-

ponent allocation in embedded systems, which was

developed to beneﬁt from the mathematical power of

CPN. We have demonstrated full accuracy in our re-

sults regarding ﬁnding the optimal cost for the prob-

lem of SW-component allocation in embedded sys-

tems using only a simple Ecore diagram followed by

its transformation into the corresponding CPN model.

We concluded that the MMT tools have deservedly

http://kabru.eecs.umich.edu/bin/view/Main/AIRES

received a great deal of attention from researchers

because they lead to satisfactory results. However,

we investigated the existing work related to identify-

ing the optimal SW-component allocation and deter-

mined there is a clear gab in the modeling languages

and model transformations as they pertain to the SW-

component allocation problem in heterogeneous em-

bedded systems. This study is the ﬁrst to close the gas

in this ﬁeld by identifying a new model that not only

addresses the problem of SW-component allocation

but transforms it into a formal and analyzable CPN

model automatically. We accomplished our transfor-

mation in two primary steps. The ﬁrst was transform-

ing the input model into CPN tokens in an XMI ﬁle

followed by rewriting the tokens as a CPN model in

an XML ﬁle using a supported XMI parser.

As a future work, several research activities open

directly from the contributions of this paper. First, we

plan on combining our ATL transformation technique

and the XMI parser into a stand-alone application. To

do so, we need to ﬁrst run the ATL transformation into

a programming environment and then combine it with

the XMI parser. Second, although we obtained full

accuracy in our test results, more test models need to

be conducted with a variety of problem sizes in order

to further validate our transformation approach.

REFERENCES

Al-Azzoni, I. (2015). Software component allocation

on heterogeneous embedded systems using coloured

petri nets. In Proceeding of SOFTENG,The First In-

ternational Conference on Advances and Trends in

Software Engineering, pages 23–28.

Al-Dakheel, L and Al-Azzoni, I (2016). Model-to-Model

Based Approach for Software Components Allocation

in Embedded Systems. Masters Thesis, King Saud

University, Software Engineering Department.

Andr

e, E., Benmoussa, M. M., and Choppy, C. (2014).

Translating UML state machines to coloured petri

nets using Acceleo: A report. arXiv preprint

arXiv:1405.1112.

Biermann, E., Ehrig, K., Ermel, C., K

ohler, C., and

Taentzer, G. (2008). The EMF model transformation

framework. Applications of Graph Transformations

with Industrial Relevance, pages 566–567.

Model-to-Model based Approach for Software Component Allocation in Embedded Systems

327

Carlson, J., Feljan, J., M

aki-Turja, J., and Sj

odin, M.

(2010). Deployment modelling and synthesis in a

component model for distributed embedded systems.

In Proceeding of Software Engineering and Advanced

Applications (SEAA), 2010, pages 74–82. IEEE.

Choppy, C., Klai, K., and Zidani, H. (2011). Formal veri-

ﬁcation of UML state diagrams: a Petri net based ap-

proach. ACM SIGSOFT Software Engineering Notes,

36(1):1–8.

Force, U. R. T. (2010). OMG Uniﬁed Modeling Language:

Superstructure. Technical report.

Guo, P., Li, Y., Li, P., Liu, S., and Sun, D. (2014). A UML

model to simulink model transformation method in

the design of embedded software. In Proceedings of

the conference on Computational Intelligence and Se-

curity (CIS), pages 583–587.

Hei, X., Chang, L., Ma, W., Gao, J., and Xie, G. (2011). Au-

tomatic transformation from UML statechart to Petri

nets for safety analysis and veriﬁcation. In Proceed-

ings of the Quality, Reliability, Risk, Maintenance,

and Safety Engineering, pages 948–951.

Jensen, K. (2013). Coloured Petri nets: Basic Con-

cepts, Analysis Methods and Practical Use, volume 1.

Springer Science & Business Media.

Jensen, K. and Kristensen, L. M. (2009). Colored petri nets:

Modelling and Validation of Concurrent Systems, vol-

ume 978.

Petri, C. A. and Reisig, W. (2008). Petri nets. Scholarpedia,

3(4):64–77.

Sanchez Cuadrado, J., Guerra, E., and De Lara, J. (2014).

Uncovering errors in atl model transformations using

static analysis and constraint solving. In In proceed-

ings of the IEEE International Symposium on Soft-

ware Reliability Engineering (ISSRE), pages 34–44.

IEEE.

Selim, G. M., Cordy, J. R., and Dingel, J. (2012). Model

transformation testing: the state of the art. In Proceed-

ings of the First Workshop on the Analysis of Model

Transformations, pages 21–26. ACM.

Svogor, I., Crnkovic, I., and Vrcek, N. (2014a). An ex-

tended model for multi-criteria software component

allocation on a heterogeneous embedded platform.

Journal of Computing and Information Technology,

21(4):211–222.

Svogor, I., Crnkovic, I., and Vrcek, N. (2014b). An ex-

tended model for multi-criteria software component

allocation on a heterogeneous embedded platform.

Journal of Computing and Information Technology,

21(4):211–222.

Wang, S., Merrick, J. R., and Shin, K. G. (2004). Com-

ponent allocation with multiple resource constraints

for large embedded real-time software design. In

Real-Time and Embedded Technology and Applica-

tions Symposium, 2004. Proceedings. RTAS 2004.

10th IEEE, pages 219–226. IEEE.

Wimmer, M., Kappel, G., Kusel, A., Retschitzegger, W.,

Sch

onb

ock, J., Schwinger, W., Kolovos, D., Paige, R.,

Lauder, M., Sch

urr, A., et al. (2011). A comparison

of rule inheritance in model-to-model transformation

languages, pages 31–46. Springer.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

328
