Design and Evaluation of a High Throughput Seismic Sensor

Network

Tools for Planning, Deployment and Assessment

Marco Manso

, Mourad Bezzeghoud

and Bento Caldeira

Instituto de Ciências da Terra, Universidade de Évora, Évora, Portugal

Departamento de Física, Escola de Ciências e Tecnologia da Universidade de Évora, Évora, Portugal

Keywords: Seismic Network, Sensor Network, Seismology.

Abstract: The rapid technological evolution in sensors, sensor platforms and networking is enabling the deployment

of large sensor networks for "live" monitoring of seismic activity with high spatial resolution. In this regard,

this paper describes our work in developing an online "High Throughput Seismic Sensor Network". We

present the architecture and implementation comprising seismic sensors and servers (running data collection

services) connected through internet-enabled technologies. We validate and assess the system, as well as

identify bottlenecks, by means of experimentation. Based on the collected empirical data, we were able to

identify methods and tools to support effective planning and implementation of sensor networks based on

two main indicators: Sensor Network Transmission Rate (SNTR), which provides the overall network

sensor data transmission throughput and thus an indication of the required network capacity; and CPU

Sensor Network Performance Index (CSNPI), which provides an indication of a server capability to handle

network sensor data. As we progress in our work to field deploy seismic sensor networks, we will continue

to use these tools to plan and deploy future sensor networks, as well as assess improvements and

modifications along the way.

1 INTRODUCTION

The technology applied to sensors and sensor

platforms has evolved in a strong and fast pace over

the last years, resulting in increased performance,

reduced energy consumption, improved

connectivity, miniaturization and reduced cost.

These innovations bring to scientific communities

and experimenters promising prospects such as the

deployment of large sensor networks for "live"

(online and real-time) monitoring of seismic activity

with high spatial resolution. Simultaneously, when

considering the implementation of such networks

that often require high data throughput, it becomes

critical to address questions such as: What is the

sensor network throughput and expected network

load? What is the system required capacity to

process all sensor data?

In this paper we present our work towards

deploying an online "High Throughput Seismic

Sensor Network" comprising several seismic sensors

(real and simulated) and data collection services, all

of them connected using internet-enabled

technologies. This paper is structured as follows: in

section 2 we present related past and on-going work

in this field; in section 3 we present our design and

implementation (including equipment selection) of

the system; in section 4 we describe experiments

conducted with the aim to assess and validate the

design and gather empirical data allowing to address

the presented key questions and create methods and

tools to support future planning decisions and assess

improvements and modifications along the way;

section 5 concludes the paper.

2 BACKGROUND

The deployment of large scale high density sensor

networks aims to bring to the field of seismology

high resolution geo-referenced measurements: in

2001 and 2002, the California Institute of

Technology (CalTech) deployed more than 5200

low-cost stations with an average spacing close to

Manso M., Bezzeghoud M. and Caldeira B.

Design and Evaluation of a High Throughput Seismic Sensor Network - Tools for Planning, Deployment and Assessment.

DOI: 10.5220/0006127701290134

In Proceedings of the 6th International Conference on Sensor Networks (SENSORNETS 2017), pages 129-134

ISBN: 421065/17

129

100m with the purpose to better define the Long

Beach Oil Field (Lin et al, 2013; Inbal et al, 2015);

in addition, CalTech's established the Community

Seismic Network (CSN), an earthquake monitoring

system based on a dense array of low-cost

acceleration sensors (more than 1000) aiming to

produce block-by-block measurements of strong

shaking during an earthquake

(http://csn.caltech.edu/about/); the University of

Southern California's (USC) Quake-Catcher

Network (QCN) (Clayton et al, 2011) began rolling

out in the San Francisco Bay Area comprising 6000

tiny sensors, being part of the densest networks of

seismic sensors ever devoted to studying

earthquakes (Science 2.0). These networks allowed

measuring seismic activity with high resolution that,

by correlating the signal with time and space,

allowed, for example, producing "shake maps"

directly from observations. High-density sensor

networks can be relevant to other fields as well.

Indeed, studies have taken place to demonstrate the

detection of important geospatial events such as

earthquakes and hazardous radiation, where sensor

data correlation improved data quality and brought

additional insights (Liu, 2013).

Inspired by these efforts, we leverage on recent

technological developments to realise a "High

Throughput Seismic Sensor Network" comprising a

large number of sensors capable of autonomous

operation (i.e., do not require a computer or an

external device to collect and transmit data),

network using Internet-based technologies and be

affordable (sensor cost inferior to €40). Affordability

was proven by our first fully functional sensor

prototype, presented in (Manso et al, 2016), that had

a cost below €25.

3 DESIGN AND

IMPLEMENTATION

In this section we present the system design of the

seismic sensor network, that mainly comprises a

Sensor Platform component (to measure the

variable(s) of interest and transmit data), a Server

component (to collect, store, process and visualise

sensor data) and the Network component (to enable

data exchange between sensors and server(s)). A

large number of sensors is expected to be deployed.

As such, a server cluster implementation is

envisaged to ensure scalability and distribute load

over multiple processors and computers.

Ultimately, system resources (sensors and

servers) will be accessible globally over the World

Wide Web (i.e., Internet) relying on many of the

latter's components (e.g., routers and gateways). It is

not the scope of this work to describe these thus, for

simplicity purposes, the Internet and its components

are treated as means to exchange information and

are depicted as a cloud. It is also assumed that

sensors are able to connect to servers. A general

view of the system is presented in Figure 1. The

sensor and server components are described next.

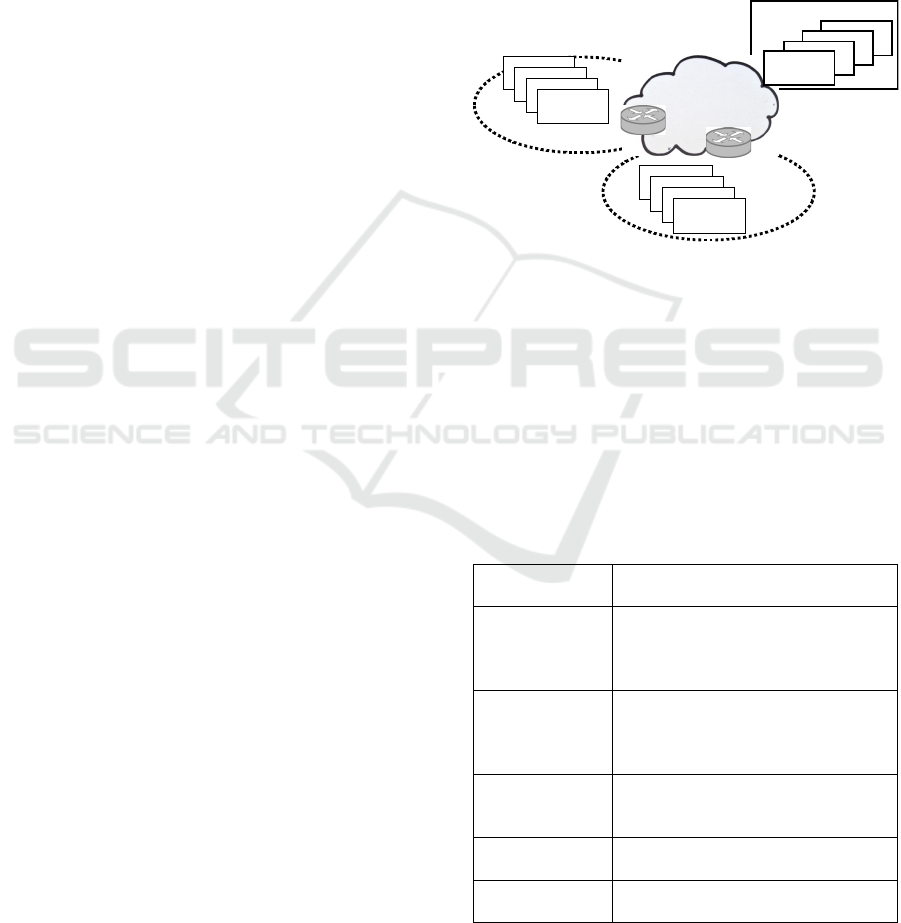

Figure 1: Seismic Monitoring System: General View.

3.1 Sensor Component

The sensor component purpose is to measure a

physical quantity of interest, that, in our case is

ground motion and transmit the output variable

associated to the measure. Following the general

design in (Manso et al, 2016), the selected elements

constituting the sensor component are presented in

Table 1.

Table 1: Sensor Implementation.

Element Architecture Component as in

(Manso et al, 2016)

ESP8266

(ESP-01 model)

Acquisition and Processing Board

(32-bit processor at 80MHz);

Storage (on-chip SRAM);

Networking (Wi-Fi)

MPU-6050 Sensor: 3-axis 16-bit accelerometer

(0.06mg resolution at 2g)

Up to 200Hz measurement

frequency

Internal clock

synchronised

with NTP

Real-Time Clock

3.3v Power

Supply Board

Power Supply

I2C Bus Data Interface (connecting the

ESP8266 to the MPU-6050)

The ESP8266 is selected because it provides a

fast and programmable microcontroller, embedded

Server (Cluster)

Subnet

Network

(Internet)

Sensor

Platform

SUBNET

Sensor

Platform

Sensor

Platform

Sensor

Platform

Sensor

Platform

Sensor

Platform

Sensor

Platform

Sensor

Platform

Router

Server

SUBNET

SENSORNETS 2017 - 6th International Conference on Sensor Networks

130

Wi-Fi capabilities and support of a wide range of

libraries (via the Arduino community).

Time synchronisation is achieved by means of

Network Time Protocol (provided by the server

component running its own NTP server). NTP can

keep time accuracy of all machines within the same

subnet within one millisecond (NTP, 2003), which

suffices for our application scenario.

For sensor measurement purposes, we use a 3-axis

accelerometer. We select the low cost MPU-6050

because it provides a good resolution (16-bit), high

frequency measurements (up to 200Hz) and

incorporates an internal FIFO allowing to store up to

170 measurements. The FIFO also allows

decoupling the sensing cycle (running in the MPU-

6050) from the main processing and networking

cycles (running in the ESP8266) reducing the risk of

missing sensor samples. The MPU-6050 is

categorized as Class-C (resolution from about 12 to

16 bits, typically over 2g ranges) that have found

applications in generating reliable pictures of

regional seismicity and strong shaking (Evans et al,

2014).

3.2 Server Component

The implemented server component collects and

stores data received from sensors. It also runs a NTP

server allowing to synchronize sensors.

The server runs an HTTP server that can be accessed

by sensors over a local network or the Internet and

used to send measured data. The server code is

implemented in node.js since its event-driven and

non-blocking I/O model delivers high performance

and scalability. It is also highly integrated with

Internet-based technologies and supports multi-core

technology.

Two server platforms will be implemented. Their

main characteristics are presented in Table 2.

Table 2: Server Implementations.

Server Main Characteristics

Server PC

(ServerPC)

Intel Core 2 Duo 64-bit (dual core)

2.33GHz

Built-in Ethernet

OS: Ubuntu Server 16.04.1 LTS

(Xenial Xerus, Linux Kernel 4.4)

64-bit

Raspberry Pi 3

(Raspi3)

CPU: ARMv8 64-bit quad-core

1.2GHz

Built-in Ethernet

OS: Raspian (Debian Jessie, Linux

Kernel 4.4) 32-bit

3.3 Server-Sensor Communications

The communications between sensors and server(s)

fully rely on Internet-base technologies. The base

protocol will be the ubiquitous Internet Protocol

(IP). Considering the need to support a high sensor

throughput, which produces measurements with a

frequency up to 200Hz, the websocket protocol

(Fette and Melnikov, 2011) is selected due to its

capability to handle high data throughput and its

easy integration with Internet-based technologies.

4 EXPERIMENT

In this section we describe a set of experiments

conducted to assess the network system based on

collected empirical data. The derived analysis and

observations allow developing methods and tools to

support planning and design of future deployments.

4.1 Setup

We are interested in evaluating the system

comprising sensors exhibiting high data throughput

(up to 200Hz sensor data frequency, i.e., the highest

frequency of the selected accelerometer).

The experiment setup is depicted in Figure 2. In this

setting, all components are part of the same local

network. Multiple sensors are deployed. The server

component is accessible via the websocket protocol.

To collect sensor data, the server runs a node.js

application that is capable to distribute, as needed,

sensor requests across all available CPU cores (i.e.,

load balancing), thus fully exploiting its processing

capabilities.

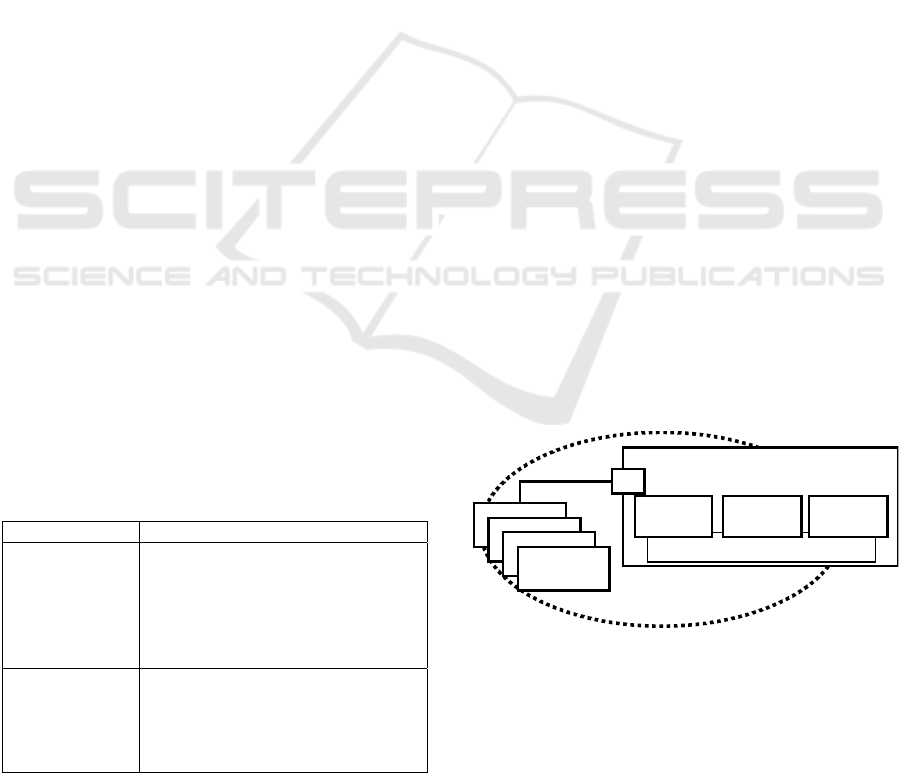

Figure 2: Experiment Setup.

The sensors used in this experiment are simulated

and mimic the actual throughput of the sensor

component described in Table 1.

Subnet

Server (Multi-Core)

Lo cal

Network

(same

subnet)

Sensor

Platform

Sensor

Platform

Sensor

Platform

Sensor

Platform

Websocket

address

and

port

ws://

node.js Server Application

Server

Core 1

Server

Core 2

Server

Core ..

Design and Evaluation of a High Throughput Seismic Sensor Network - Tools for Planning, Deployment and Assessment

131

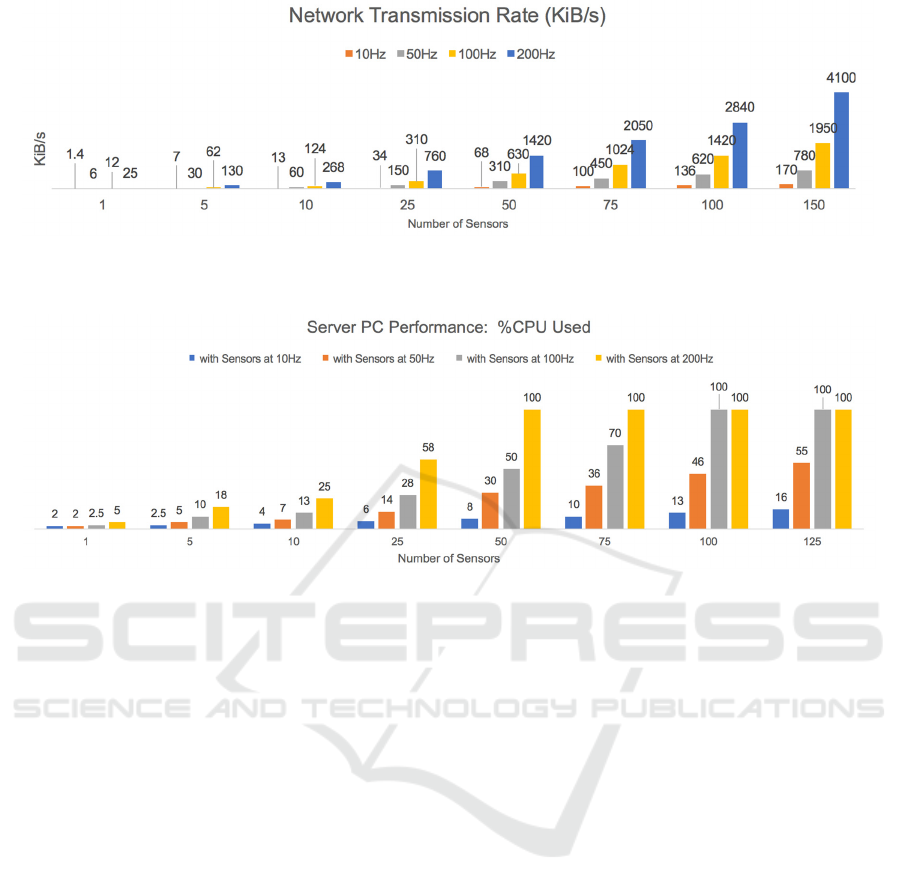

Figure 3: Network Transmission Rate measured per number of sensors per frequency. It is important to note that

measurements pertaining to 100 and 150 sensors at 200Hz and 150 sensors at 100Hz were obtained using formula (1).

Figure 4: ServerPC Performance measured based on the percentage of CPU allocated to process sensors' requests.

4.2 Measurements

4.2.1 Network Transmission Rate

We start by measuring the actual network

transmission rate as a function of the number of

sensors and their measurement frequency. For this

purpose, we used the "System Monitor" tool

provided by Ubuntu, thus these measurements are

only approximate and are presented in Figure 3.

As expected, the transmission rate increases

proportionally with the number of sensors and their

frequency. This relation can be approximately

described and generalised according to formula (1).

SNTR =

෍

SMsgSize x SFreq(sensor)

All sensors

(1)

Where:

• SNTR (Sensor Network Transmission Rate) is

the amount of data (in KiB) transmitted per

second.

• SMsgSize is the size (in KiB) required to

transmit a single sensor measurement. It also

includes protocol overheads (in our case,

0.14KiB per message).

• SFreq(sensor) is the measuring frequency (in

Hz) of the respective sensor.

It can be verified that the formula provides

predictions that are close to the measured values, as

exemplified below:

• 10 sensors at 10Hz produce 13KiB/s against

14KiB/s given by the formula;

• 75 sensors at 200Hz produce 2050KiB/s against

2100KiB/s given by the formula;

• 100 sensors at 200Hz produce 2080KiB/s

against 2800 KiB/s given by the formula;

• 10 sensors at 100Hz produce 124KiB/s against

140 KiB/s given by the formula

• 25 sensors at 200Hz produce 760KBi/s against

700KiB/s given by the formula.

The SNTR is useful to determine the server

workload (as presented next) and the network

capacity requirements.

4.2.2 Server Performance

The server performance is assessed based on the

percentage of CPU (%CPU) allocated to process all

sensors' request, which varies according to the

number of sensors and their sample frequency (both

used to determine the SNTR). The lower the %CPU

the better is the server performance. Average

SENSORNETS 2017 - 6th International Conference on Sensor Networks

132

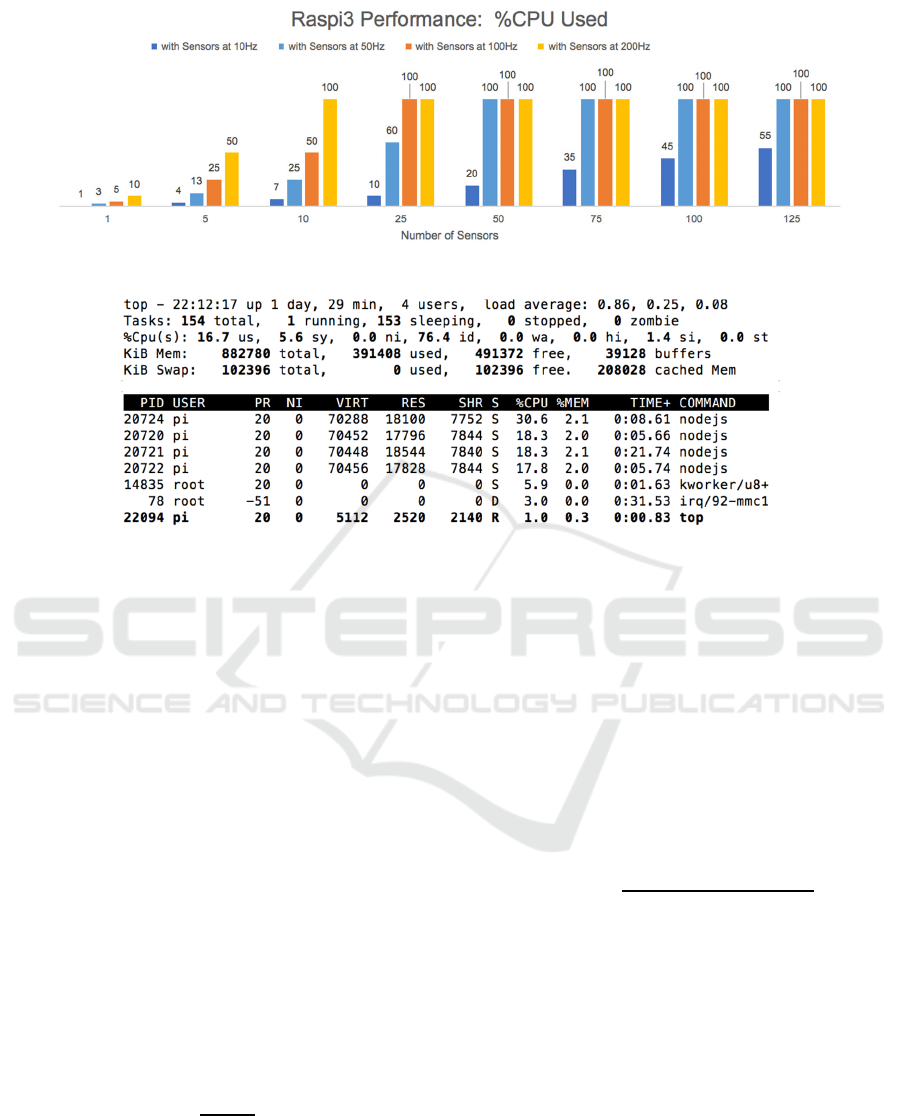

Figure 5: Raspi3 Performance measured based on the percentage of CPU allocated to process sensors' requests.

Figure 6: Example of CPU Usage Provided by Top in Raspberry Pi 3.

allocations above 60% should be avoided to ensure a

healthy server.

We present in Figure 6 an example visualisation of

the %CPU allocation provided by the top application

running on the Raspi3. It is visible the 4 instances of

nodejs handling sensor requests. At the moment the

snapshot was taken, the overall CPU usage was

22.3% CPU. Note that applications not related with

the monitoring system also consume resources (top

included).

Next, we present measurements for the two server

platforms we selected.

(a) ServerPC Performance

The ServerPC performance measurements are

presented in Figure 4. As expected, increasing the

number of sensors and/or sensors' frequency

increases the %CPU. Based on the performance

measurements, we see that the relation is

proportional and can be approximately described

according to the following formula:

CPU_Load =

SNTR

1310

x 100%

(2)

Where:

• CPU_Load is the percentage of CPU (%CPU)

allocated to process all sensors' request.

• SNTR is described in (1).

• 1310 is the value that characterises this server

capability to handle network sensor data (units

are KiB/s). We name this value the "CPU

Sensor Network Performance Index" (CSNPI).

From Figure 4, the recommended maximum number

of connected sensors to a single ServerPC (i.e.,

%CPU less than 60%) are 25, 50 and 125 if,

respectively, a frequency of 200Hz, 100Hz and

50Hz are used. Adapting formula (2) to (2.1), we

can infer that a single ServerPC may support in good

health about 560 homogeneous sensors at 10Hz.

recommended

CPU_Load

recommended

x 1310

SMsgSize x SFreq x 100

(2.1)

Where n

recommended

is the maximum number of

sensors recommended.

(b) Raspi3 Performance

The Raspi3 performance measurements are

presented in Figure 5.

Similar to the ServerPC, a relation can be

established and described according to formula (2),

however with the CSNPI that characterises the

specific platform, obtained from the performance

measurements. The formula for the Raspi3 is

presented in (3).

Design and Evaluation of a High Throughput Seismic Sensor Network - Tools for Planning, Deployment and Assessment

133

CPU_Load =

SNTR

280

x 100%

(3)

The variables in (3) are the same as in (2). Note that

the Raspi3 CSNPI value is almost 5 times smaller

than the ServerPC CSNPI, thus one can conclude

that it copes with 5 times less sensors.

From Figure 5 the recommended maximum number

of connected sensors to a single Raspi3 are 5, 10 and

25 and 125 if, respectively, a frequency of 200Hz,

100Hz, 50Hz and 10Hz are used.

The formula to determine the expected server CPU

load when handling an arbitrary number of sensors

(exhibiting a known SNTR) is presented in (4),

which is a generalisation from (2) and (3).

CPU_Load =

SNTR

CSNPI

x 100%

(4)

The CSNPI value can be determined for any server

platform and, as demonstrated herein, is a useful tool

to assist the design of a network involving a high

number of high-throughput sensors and servers,

providing a method to determine the recommended

(and highest) number of connected sensors a server

(or a cluster of servers) can support, based on a

sensors message size and frequency.

5 CONCLUSIONS

In this paper we presented our work towards

deploying an online "High Throughput Seismic

Sensor Network". An architecture has been

described comprising seismic sensors and servers

(running data collection services) connected through

internet-enabled technologies. Experiments were

conducted that successfully validated the design

across different system configurations, as well as

identify its limitations. The experiments also

gathered important empirical data that allowed us to

create methods and tools to support future planning

decisions towards deploying real sensor networks.

For this purpose, two network-related indicators are

proposed:

• Sensor Network Transmission Rate

(SNTR), which provides the overall network

sensor data transmission throughput and thus an

indication of the required network capacity.

• CPU Sensor Network Performance Index

(CSNPI), which provides an indication of a

server capability to handle network sensor data.

Based on these indicators, we are now able to

determine the recommended number of sensors to

deploy based on network and server capabilities.

Conversely, we can also determine the network and

server requirements based on the number of sensors

we aim to deploy.

Our next steps include the evaluation of the sensor

network capability to respond to seismic events and

their field deployment involving a large number of

components (thus a high network throughput is

expected). Thus we will rely on the above tools for

proper planning and implementation.

Furthermore, we will use these tools and methods to

measure and empirically validate the effects of

system- and component-level improvements (such as

message compression to reduce size, use more

efficient communications protocols, modify network

protocol parameters, incorporation of message

brokers). System- and component-level

improvements will be addressed in future work.

REFERENCES

Clayton, R., Heaton, T., Chandy, M., Krause A., Kohler,

M., Bunn J., Guy, R., Olson, M., Faulkner, M., Cheng,

M., Strand, L., Chandy, R., Obenshain, D., Liu, A.,

Aivazis, M., 2011. Community Seismic Network.

Annals of Geophysics, 54, 6.

Evans, J., Allen, R., Chung, A., Cochran, E., Guy, R.,

Hellweg, M., and Lawrence, J., 2014. Performance of

Several Low-Cost Accelerometers. Seismological

Research Letters, 85(1). pp. 147-158.

Fette, I., Melnikov, A., 2011. RFC 6455 - The WebSocket

Protocol. Internet Engineering Task Force.

Inbal, A., Clayton, R., and Ampuero, J., 2015. Mapping

Active Faults in Long Beach, California Using a

Dense Seismic Array. Geophysical Research Letters,

42, 6314-6323.

Lin, Fan-Chi, Li, D., Clayton, R., Hollis D., 2013. High-

resolution shallow crustal structure in Long Beach,

California: application of ambient noise tomography

on a dense seismic array. Geophysics, 78(4), Q45-

Q56.

Liu, A., 2013. Sensor Networks for Geospatial Event

Detection — Theory and Applications. PhD Thesis.

California Institute of Technology.

Manso M., Bezzeghoud, M., Borges, J. and Caldeira, B.,

2016. Low-Power Low-Cost Sensor Platform for

Seismic and Environmental Monitoring. 9th Spanish-

Portuguese Assembly of Geodesy and Geophysics,

Madrid, Spain, 28th to 30th June.

NTP (2003). The NTP Public Services Project. Available

at: http://www.ntp.org/ntpfaq/NTP-s-algo.htm.

(Accessed: 5 September 2016).

Science 2.0 (2011) Quake Catcher Network - Citizen

Science Tackles Seismology. Available at:

http://www.science20.com/news_articles/quake_catch

er_network_citizen_science_tackles_seismology-

80887. (Accessed: 29 January 2016).

SENSORNETS 2017 - 6th International Conference on Sensor Networks

134
