Outsourcing Scheme of ABE Encryption Secure against Malicious

Adversary

Go Ohtake

, Reihaneh Safavi-Naini

and Liang Feng Zhang

Science & Technology Research Laboratories, Japan Broadcasting Corporation, Tokyo, Japan

Department of Computer Science, University of Calgary, Calgary, Canada

School of Information Science and Technology, ShanghaiTech University, Shanghai, China

ohtake.g-fw@nhk.or.jp, rei@ucalgary.ca, zhanglf@shanghaitech.edu.cn

Keywords:

Outsourcing Scheme, Attribute-based Encryption, Malicious Adversary, Random Oracle Model.

Abstract:

Integrated broadcast-broadband services allow viewers to simultaneously receive broadcast content over the

airwaves and additional information related to the content over the Internet. This integration provides oppor-

tunities for new services to be tailored and offered to individual viewers. Viewing histories provide a rich

variety of data for service providers to learn the preferences of individual viewers and ﬁne-tune their offerings.

Each person’s viewing history, however, is privacy-sensitive data and may reveal information that the viewer

does not want revealed. In this paper, we propose a system that allows viewers to specify a policy that they

would like to be applied to their viewing history, when shared with service providers, by using attribute-based

encryption (ABE). A ciphertext is associated with a policy, and it can be decrypted only by service providers

who conform to the policy. To reduce the computations of the user terminal, we develop a system with prov-

able security that allows the encryption to be outsourced to a cloud server, without the need to trust the cloud

server. Although our solution is described for integrated broadcast-broadband services, the architecture and

results could also be used for sharing viewing histories of services such as Netﬂix. We implemented our

scheme and showed that it signiﬁcantly reduces the computation cost of a user terminal.

1 INTRODUCTION

1.1 Background

Integrated broadcast-broadband services (Baba et al.,

2012; Ohmata et al., 2013; Ohmata et al., 2015;

NHK, ; ETSI, ; BBC, ; KBS, ) allow viewers to

view content through broadcast and, simultaneously,

additional content through the Internet. The addi-

tional content can be used to personalize broadcasts

and provides opportunities for electronic commerce.

For example, in a link navigation service (Ohmata

et al., 2015), a service provider provides program-

related keywords for goods, locations, and shops as

the television program progresses. These keywords

are linked to services that the viewers can access by

clicking on the word shown on the screen on their

mobile devices. To make the personalization of the

broadcast and services effective, viewers must share

their viewing preferences with the service provider.

Viewing histories are a rich source of data for ser-

vice providers to learn about viewers’ interests. Their

data, however, could reveal sensitive personal infor-

mation about a viewer and so must be handled with

care. Ideally, viewers want to share their viewing his-

tories with service providers that pass certain crite-

ria, including being trustworthy or having a high rat-

ing based on customer reviews. This, of course, can

be achieved by encrypting a history using the pub-

lic keys of the desired service providers, or by es-

tablishing a secure connection using a protocol such

as TLS with those providers, and sending the data to

them one-by-one. Although these solutions allow the

viewer to fully control sharing of their viewing his-

tory, they have two major drawbacks. Firstly, they are

not scalable: they are computationally expensive and

require the viewer to encrypt the data, or establish a

secure connection, for each provider independently,

and this must be done at regular intervals in order to

provide an up-to-date viewing history. Secondly, their

use is limited to the service providers that the viewer

knows, and unless the viewer does not make an effort

to identify new service providers, the pool of services

that will receive the data will be limited, meaning

that the viewer may never learn about new services

that emerge. An ideal solution for sharing viewing

Ohtake, G., Safavi-Naini, R. and Zhang, L.

Outsourcing Scheme of ABE Encryption Secure against Malicious Adversary.

DOI: 10.5220/0006129600710082

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 71-82

ISBN: 978-989-758-209-7

history would allow the viewer to produce a single

encrypted copy of their viewing history, and specify

an access policy that will be enforced on the service

providers. It is also important to ensure that the com-

putation of the user terminal is minimized. This is im-

portant not only because user terminals, such as tele-

vision sets, cannot be expected to be equipped with

powerful cryptoprocessors, but also because the com-

putation must be performed at regular intervalsas new

viewing histories are generated. The terminal compu-

tations can be reduced by outsourcing them to cloud

servers. This, however, raises the issue of trust. Out-

sourcing computations on the original data would al-

low a cloud server to learn the viewing history. More-

over, one must ensure that the requested computation

has been performed correctly.

1.2 Our Contributions

In this paper, we propose a secure outsourcing system

of attribute-based encryption (ABE) that (i) allows

sharing of viewer’s data according to a viewer-deﬁned

policy, (ii) reduces the viewer-side computation to a

single encryption using ElGamal encryption, and (iii)

ensures privacy of content and correctness of compu-

tation against a malicious cloud server. We use ABE

to enable viewers to encrypt their own viewing history

and specify the attributes of the service providers who

can access the data. ABE provides an elegant means

of expressing and enforcing access control policies.

In a ciphertext-policy ABE, a service provider has a

set of attributes that is veriﬁed by a trusted author-

ity who issues the corresponding private key to them.

A ciphertext can be generated by any viewer using

the public key of the system. The ciphertext is at-

tached to a policy that is expressed by a Boolean for-

mula. A service provider whose attribute set satisﬁes

this policy can use the decryption algorithm and their

private key to recover the data. Encryption in ABE,

however, is costly, and the computation cost grows

linearly with the number of attributes. We design an

outsourcingscheme that reduces the viewer-sidecom-

putation to a single ElGamal encryption. This encryp-

tion protects the viewer’s data against any attack from

a cloud server. This ciphertext is then converted by

the cloud server into an ABE ciphertext according to

a policy that is provided by the viewer. We do not as-

sume a trusted cloud server and design the outsourc-

ing system that protects viewers against its potential

misbehavior. We consider colluding attacks where the

cloud server and service providers whose attributes do

not satisfy the viewer’s policy would like to make the

viewing history readable to themselves.

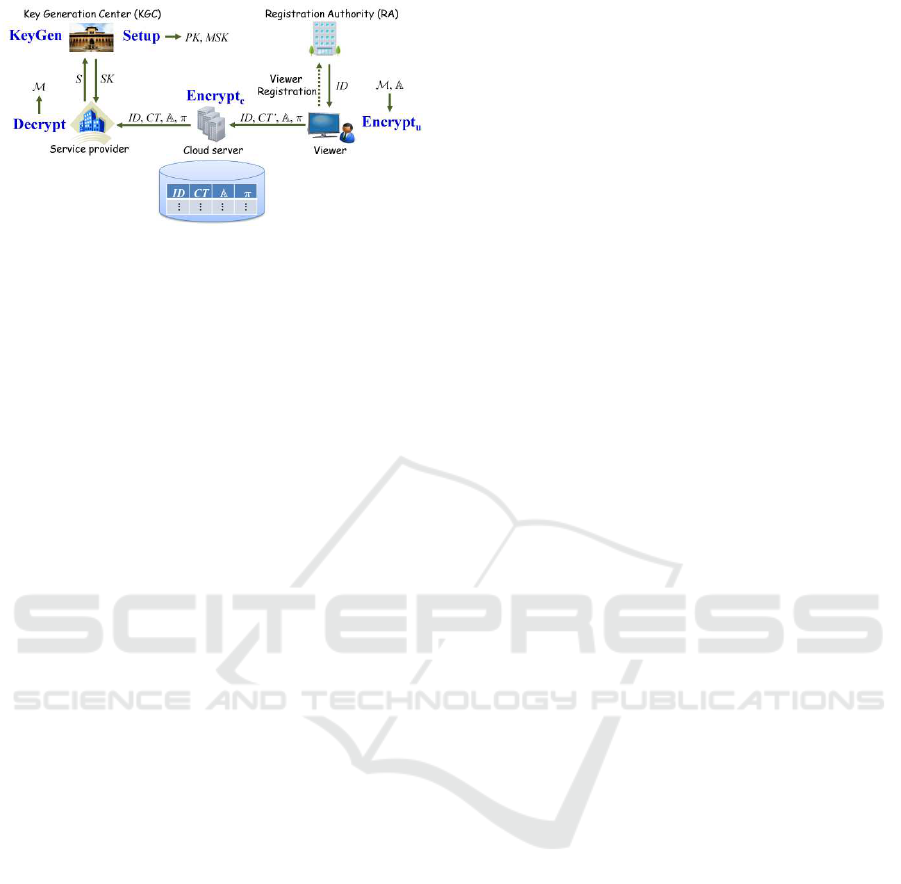

We consider ﬁve different entities: a registration

authority (RA), a key generation center (KGC), view-

ers, a cloud server, and service providers (See Fig-

ure 1). Viewers are registered with the RA and re-

ceive an ID (identiﬁcation) and credentials that they

can use when contacting the cloud server. This is to

ensure that the data provided to the cloud server are

valid and the system is not abused. Service providers

are registered with the KGC and receive private keys

associated with their veriﬁed attributes. The cloud

server is not assumed to be honest. Each viewer’s

data must be protected for the sake of privacy. Also,

the computation delegated to the cloud server must

be veriﬁable. These requirements are captured in se-

curity and unforgeability, ensuring that (i) the view-

ers’ personal information remains private in the sys-

tem and only accessible to the service providers who

have the required attributes, and (ii) the computation

of the cloud server is veriﬁable by the viewers and the

service providers. We use game-based deﬁnitions to

model these requirements and devise an outsourcing

scheme of ABE encryption that ensures these proper-

ties. We give formal proofs of security for these prop-

erties, assuming access to a random oracle by the par-

ticipants. Our scheme is based on the “large universe”

ABE scheme of Waters (See Appendix A in (Waters,

2008)) that supports an unlimited number of attributes

and has constant-size public parameters for any pol-

icy that can be described by a Linear Secret Sharing

Scheme (LSSS) matrix. We implement the encryp-

tion algorithms of our scheme and the ABE scheme of

Waters (Waters, 2008) on a user terminal and measure

the processing times. The experimental results show

that our scheme reduces the encryption cost of a user

terminal to about one third that of the ABE scheme of

Waters (Waters, 2008), without assuming a trustwor-

thy server.

Outsourcing Encryption. The encryption algo-

rithm of an ABE scheme has a substantially higher

computation cost than that of conventional public key

encryption schemes such as RSA or ElGamal en-

cryption. Therefore, a user terminal with a low-

performance CPU, such as a television set or a mobile

device, must bear a comparatively large computation

cost when encrypting a viewing history. This prob-

lem has motivated a number of recent studies on out-

sourcing schemes for the computation (Hohenberger

and Waters, 2014; Li et al., 2012; Zhou and Huang,

2011). In all these schemes, a large part of encryption

process is outsourced to a cloud server. The schemes,

however, assume that the cloud server is either hon-

est and, while following the protocol, there is no col-

lusion with other entities, or it is honest-but-curious

and, while following the protocol, may collude with

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

other entities to learn the private information of the

users. Our work is the ﬁrst to consider security against

a malicious cloud server who does not follow the pro-

tocol and may collude with other entities. This is a re-

alistic model for outsourcing the viewing history en-

cryption when viewers cannot rely on a trustworthy

cloud server.

Towards Attribute-based Sharing of Viewing His-

tories. Outsourcing the ABE ciphertext computa-

tion to a cloud server is an attractive solution in

many application scenarios. Our scenario considers

the resource-limited clients of integrated broadcast-

broadband services, and content distribution services

such as Netﬂix or Spotify have similar requirements.

Here, the users’ viewing histories are known by the

service provider: in fact, they would be the basis of

any recommendation system run by it. Moreover,

users may be willing to share this data with third-party

service providers for the purpose of receiving differ-

ent services. For example, having a lot of movies for

children in one’s viewing history would suggest the

viewer has an interest in toys, and in such case, rel-

evant information can be provided directly by a third

party or through the service provider. This sharing

of information must meet the terms and conditions

speciﬁed by the user that are encoded as a set of at-

tributes that the third party must satisfy. The incentive

for the service provider (e.g. Netﬂix) to outsource the

encryption is the number of subscribers and the re-

quired update frequency of the viewing history. Once

the service provider receives the user’s consent and

conditions, it uses the system proposed in this paper

to minimize their computation.

1.3 Related Work

Sahai and Waters (Sahai and Waters, 2005) proposed

the ﬁrst ABE scheme as an extension of identity-

based encryption (IBE). ABE schemes are attractive

because they allow access control of content in real-

istic situations. ABE schemes can be classiﬁed into

(i) key-policy ABE (KP-ABE) (e.g. (Goyal et al.,

2006; Ostrovsky et al., 2007; Rouselakis and Waters,

2013; Attrapadung, 2014; Gay et al., 2015; Attra-

padung et al., 2016)), and (ii) ciphertext-policy ABE

(CP-ABE) (e.g. (Bethencourt et al., 2007; Cheung

and Newport, 2007; Katz et al., 2008; Nishide et al.,

2008; Waters, 2008; Emura et al., 2009; Lewko et al.,

2010; Okamoto and Takashima, 2010; Ohtake et al.,

2013; Rouselakis and Waters, 2013; Attrapadung and

Yamada, 2015; Attrapadung et al., 2016)). In KP-

ABE, a ciphertext is associated with a set of attributes,

and a private key is associated with a policy. In CP-

ABE, a private key is associated with a set of at-

tributes, and a ciphertext is associated with a policy.

A ciphertext can be decrypted by a user whose at-

tributes satisfy the policy that is attached to the ci-

phertext. In this paper, we consider CP-ABE. Out-

sourcing of ABE was ﬁrst considered in (Green et al.,

2011), which proposed ABE decryption outsourcing

with the goal of minimizing the users’ decryption

cost and assumed honest-but-curious cloud servers.

In (Zhou and Huang, 2011), an outsourcing scheme

for ABE encryption and decryption was proposed,

also assuming honest-but-curious cloud servers. An

outsourcing scheme for ABE encryption based on

the scheme of (Zhou and Huang, 2011) and using a

MapReduce cloud was proposed in (Li et al., 2012).

In this scheme, distributed processing is performed

by a number of cloud servers wherein at least one of

them is assumed to be honest. The scheme in (Ho-

henberger and Waters, 2014) is an online/ofﬂine ABE

scheme in which the encryption algorithm is divided

into two parts: online encryption, which is performed

by a user terminal, and ofﬂine encryption, which is

performed by an honest cloud server. An outsourc-

ing scheme for ABE key generation and decryption in

which the outsourced computation results are check-

able was proposed in (Li et al., 2014); this scheme as-

sumes honest-but-curious cloud servers. To the best

of our knowledge, ours is the ﬁrst outsourcing scheme

of ABE encryption for when the cloud server is poten-

tially malicious.

2 PRELIMINARIES

Secret sharing schemes are proposed independently

by (Shamir, 1979) and (Blakley,1979). A more recent

survey of the area can be found in (Beimel, 1996).

2.1 Access Structures

Deﬁnition 1 (Access Structure). Let P =

,...,P

} be a set of parties. A collection of

subsets of P , A ⊆ 2

,...,P

}

, is a monotone access

structure if ∀B,C: if B ∈ A and B ⊆ C then C ∈ A. A

set A in A is called an authorized set, and a set A not

in A is called an unauthorized set.

In ABE, the role of the parties is taken by the at-

tributes: the private key is a secret that is divided into

shares, with each share assigned to an attribute. The

access structure A includes the subset of attributes

that can reconstruct the key and decrypt the cipher-

text. We only consider monotone access structures.

Outsourcing Scheme of ABE Encryption Secure against Malicious Adversary

2.2 Linear Secret Sharing Schemes

Deﬁnition 2 (Linear Secret Sharing Schemes

(LSSS)). A secret-sharing scheme Π over a set of par-

ties P is called linear (over Z

) if,

1. The shares of the parties form a vector over Z

2. There exists a matrix M with ℓ rows and n columns

called the share-generating matrix for Π and a

function ρ which maps each row of the matrix to

an associated party. That is, for i = 1, ...,ℓ, the

value ρ(i) is the party associated with row i. Sup-

pose we have a column vector ~v = (s, r

,..., r

where s ∈ Z

is the secret to be shared, and

,..., r

∈ Z

are randomly chosen, then M~v is

the vector of ℓ shares of the secret s according to

Π. The share (M~v)

belongs to party ρ(i).

It is shown in (Beimel, 1996) that every LSSS

having the above deﬁnition enjoys the linear recon-

struction property, deﬁned as follows: Suppose that

Π is a LSSS for the access structure A. Let S ∈ A

be any authorized set, and let I ⊂ {1, 2,...,ℓ} be de-

ﬁned as I = {i : ρ(i) ∈ S}. Then, there exist constants

∈ Z

}

i∈I

such that, if {λ

} are valid shares of any

secret s according to Π, then

∑

i∈I

= s. Further-

more, it is shown in (Beimel, 1996) that these con-

stants {w

} can be found in time polynomial in the

size of the share-generating matrix M. Like any se-

cret sharing scheme, it has the property that for any

unauthorized set S /∈ A, the secret s should be infor-

mation theoretically hidden from the parties in S.

2.3 Bilinear Maps

Let G and G

be two multiplicative cyclic groups

of prime order p. Let g be a generator of G and

e : G × G → G

be a bilinear map that has the fol-

lowing properties:

1. Bilinearity: e(u

) = e(u, v)

for all u,v ∈ G

and a,b ∈ Z

2. Non-degeneracy: e(g,g) 6= 1.

We say that G is a bilinear group if the group oper-

ation in G and the bilinear map e : G × G → G

are

both efﬁciently computable. Notice that the map e is

symmetric, since e(g

) = e(g,g)

= e(g

2.4 Decisional Parallel Bilinear

Difﬁe-Hellman Exponent

Assumption

The decisional q-parallel Bilinear Difﬁe-Hellman Ex-

ponent (BDHE) problem (Waters, 2008) is deﬁned as

follows. Choose a group G of prime order p accord-

ing to the security parameter. Let a,s, b

,..., b

∈ Z

be chosen at random and g be a generator of G. If an

adversary is given~y =

g,g

,..., g

)

q+2

)

,..., g

)

∀

1≤ j≤q

s·b

a/b

,..., g

)

q+2

)

,..., g

)

∀

1≤ j,k≤q,k6= j

a·s·b

,..., g

·s·b

)

it must remain hard to distinguish e(g,g)

q+1

∈ G

from a random element in G

An algorithm B that outputs z ∈ {0,1}

has advantage ε in solving the deci-

sional q-parallel BDHE problem in G if



B(~y,T = e(g,g)

q+1

) = 0

− Pr[B(~y,T = R) = 0]



≥ ε.

Deﬁnition 3. We say that the decisional q-parallel

BDHE assumption holds if no polynomial time algo-

rithm has a non-negligible advantage in solving the

decisional q-parallel BDHE problem.

3 DEFINITIONS

3.1 Model

The model of outsourcing ABE encryption is deﬁned

as follows.

Deﬁnition 4. The outsourcing scheme of ABE encryp-

tion is a tuple consisting of the following algorithms:

Setup(λ) → (PK, MSK). This algorithm takes as in-

put a security parameter λ. It outputs the public

parameter PK and the master key MSK.

KeyGen(PK,MSK,S) → SK. This algorithm takes

as input PK, MSK, and a set of attributes S. It

outputs a private key SK associated with S.

Encrypt

(PK, A, M ) → (CT

′

, π). This algorithm

takes as input PK, an access structure A, and a

message M . It outputs an intermediate ciphertext

′

and a proof π.

Encrypt

(PK, A, CT

′

) → CT. This algorithm takes

as input PK, A, and CT

′

. It outputs a ciphertext

CT.

Decrypt(CT,π,SK,PK) → M / ⊥. This algorithm

takes as input CT, π, SK, and PK. It outputs M if

π is a valid proof of CT and S satisﬁes A. Other-

wise, it outputs the error message ⊥.

Figure 1 shows a model of an outsourcing

scheme of ABE encryption for integrated broadcast-

broadband services. There are ﬁve different entities:

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

Figure 1: Model outsourcing scheme of ABE encryption for

integrated broadcast-broadband service.

a registration authority (RA), a key generation center

(KGC), viewers, a cloud server, and service providers.

The RA registers viewers of broadcast services. A

registered viewer is given identity information ID that

allows a third party to verify their identity, possibly

through interacting with the RA. The KGC sets up the

access control system by running the Setup and Key-

Gen algorithms for the ABE system, and after verify-

ing the service providers’ attributes S, provides them

with private keys SK associated with S. A registered

viewer uses Encrypt

to encrypt their viewing his-

tory M that will be an ElGamal ciphertext sent to the

cloud server. This ﬁrst level of encryption ensures the

privacy of the viewer information in the cloud server.

The viewer provides to the cloud server a policy that

they would like to enforce. The cloud server uses

Encrypt

to convert the received ElGamal ciphertext

into an ABE ciphertext that enforces the viewer’s pol-

icy for the service providers, making it accessible

to all service providers who possess the required at-

tributes. Service providers who have received their

private keys of the ABE system and whose attributes

satisfy the viewer’s policy can use Decrypt to access

the viewing history of the viewer.

In the following, we focus on the access control

part of the system and assume that the cloud server

veriﬁes the identity of the viewers who provide their

viewing history, by using ID and an identity service

that uses the RA registration process. This ensures

that the viewing history is provided by valid view-

ers. Otherwise, viewing histories may be provided

by fake viewers, resulting in unreliable data for ser-

vice providers (resulting in, e.g., incorrect viewing

statistics). Note that this does not pose a threat to

the privacy of the viewer, as their viewing history is

stored in encrypted form. The system works as fol-

lows: First, a viewer creates an intermediate cipher-

text CT

′

of M with an access structure A to specify

a condition for a service provider who can decrypt

the viewing history. The viewer transmits ID, CT

′

A, and a proof π to the cloud server. The cloud server

transformsCT

′

into a ciphertextCT, and then it stores

(ID,CT, A,π) for each viewer in a public database. A

service provider downloads the tuple of (ID,CT, A,π)

for a speciﬁed viewer and veriﬁes its correctness by

using π. Note that the viewer can verify the correct-

ness of (ID,CT,A,π) stored in the public database.

The service provider can decrypt CT and obtain a

viewing history M iff the tuple is correct and the ser-

vice provider has a set of attributes S satisfying A.

3.2 Security Model

The following is our trust assumptions and secu-

rity requirements for the outsourcing ABE encryp-

tion system. We assume that the viewers are honest

and follow the protocol. (We exclude malicious view-

ers by using identity veriﬁcation at the cloud server.)

The cloud server is not trusted and may deviate from

the protocol. This assumption accounts for the pos-

sibility that a cloud server may collude with service

providers who do not satisfy the viewer’s policy and

enable them to bypass the viewer’s access policy. Ser-

vice providers follow the protocol, but may collude

together, and possibly with the cloud server, to by-

pass the viewer’s access policy and access his or her

viewing history. Our basic security requirements are

as follows:

1. A collusion of service providers,who individually

do not satisfy the access policy of a viewer, and a

cloud server cannot obtain any information about

the viewing history of the viewer.

2. A cloud server cannot modify a ciphertext that is

decrypted into a differentviewing history from the

original one.

Note that the cloud server in Requirement 2 would

have no incentive for making an attack. In this case,

the attack would interfere with a service, though it

might be performed by the cloud server.

Fulﬁlling the above requirements would realize

a secure integrated broadcast-broadband service. In

Figure 1, a viewer transmits an intermediate cipher-

text CT

′

to the cloud server for outsourcing part of

the encryption process. CT

′

includes the viewing his-

tory of the viewer, so the cloud server might try to get

it (Requirement 1). Then, a cloud server convertsCT

′

into a ciphertext CT, but it might be “incorrect” (Re-

quirement 2). Also, as is the case with conventional

ABE schemes, the viewing history might be obtained

from CT as a result of the service providers colluding

(Requirement 1). In light of the above requirements,

we deﬁne two kinds of security for an outsourcing

scheme of ABE encryption: security and unforgeabil-

ity.

Let Π = (Setup, KeyGen, Encrypt

, Encrypt

Decrypt) be an outsourcing scheme of ABE encryp-

Outsourcing Scheme of ABE Encryption Secure against Malicious Adversary

tion. The deﬁnition of security includes attacks made

by a cloud server that colludes with service providers.

The goal of the attacker is to learn the plaintext that

they are not supposed to learn. Formally, we use the

following experiment to deﬁne security against an ad-

versary A.

Outsourcing of ABE Encryption Experiment

O-ABE-Exp

ind

A,Π

(λ):

Init. The adversary gives a challenge access struc-

ture A

∗

to the challenger.

Setup. The challenger runs the Setup algorithm and

gives the public parameter PK to the adversary.

Phase 1. The challenger initializes an empty table

T, an empty set D, and an integer counter j = 0.

Proceeding adaptively, the adversary can repeat-

edly make any of the following queries:

• Create(S): The challenger sets j := j + 1. It

runs the KeyGen algorithm on S to obtain the

private key SK and stores in table T the entry

(j, S, SK). Then it returns SK to the adversary.

• Corrupt(i): If the i

entry in table T exists, the

challenger obtains the entry (i, S, SK) and sets

D := D∪ {S}. Then it returns SK to the adver-

sary. If no such entry exists, it returns ⊥.

Challenge. The adversary submits two messages

and M

. The challenger ﬂips a random coin

b ∈ {0,1}. It runs the algorithm Encrypt

(PK,

∗

, M

) to obtain (CT

′

, π

∗

). The challenger re-

turns (CT

′

, π

∗

) to the adversary.

Phase 2. Phase 1 is repeated with the restrictions

that the adversary cannot trivially obtain a private

key for the challenge ciphertext (CT

∗

, π

∗

) derived

from (CT

′

, π

∗

). That is, the adversary cannot

make a Corrupt query that would result in a set

of attributes S such that f(S,A

∗

) = 1 being added

to D.

Guess. The adversary outputs a guess b

′

of b. The

output of the experiment is 1 iff b = b

′

Deﬁnition 5 (Security). An outsourcing scheme of

ABE encryption Π is secure if for all probabilistic

polynomial-time adversaries A , there exists a negli-

gible function negl such that:

Pr[O−ABE−Exp

ind

A,Π

(λ) = 1] ≤

+ negl(λ).

The above deﬁnition includes an attack in which

the cloud server receives an intermediate-ciphertext

(CT

′

, π) from a viewer and creates a ciphertext (CT

∗

), where π

∗

6= π and CT

∗

can be decrypted into the

original message by colluding with service providers

whose attributes do not satisfy the policy.

Remark 1. The above security implies the security of

conventional ABE schemes. This is because an adver-

sary can obtain a challenge ciphertext CT

∗

from CT

′

in the Challenge phase of the security game by using

the Encrypt

algorithm.

Next, we deﬁne the unforgeability of our outsourc-

ing scheme. This security deﬁnition includes attacks

made by a cloud server. The goal of the attacker is to

modify a ciphertext so that it is decrypted to a differ-

ent plaintext from the original one. We use the follow-

ing experiment to deﬁne unforgeability with respect

to an adversary A.

Outsourcing of ABE Encryption Experiment

O-ABE-Exp

unf

A,Π

(λ):

Init. The adversary gives a challenge access struc-

ture A

∗

to the challenger.

Setup. The challenger runs the Setup algorithm and

gives the public parameter PK to the adversary.

Query. The challenger initializes an empty table T,

an empty set D, and an integer counter j = 0. Pro-

ceeding adaptively, the adversary can repeatedly

make any of the following queries:

• Create(S): The challenger sets j := j + 1. It

runs the KeyGen algorithm on S to obtain the

private key SK and stores in table T the entry

(j, S, SK). Then it returns SK to the adversary.

• Corrupt(i): If the i

entry exists in table T, the

challenger obtains the entry (i, S, SK) and sets

D := D ∪ {S}. It then returns SK to the adver-

sary. If no such entry exists, it returns ⊥.

Challenge. The adversary submits a challenge mes-

sage M

∗

. The challenger runs the algorithm

Encrypt

(PK, A

∗

, M

∗

) to obtain (CT

′

, π

∗

). The

challenger returns (CT

′

, π

∗

) to the adversary.

Output. The adversary outputs (CT

∗

, π

∗

). The out-

put of the experiment is 1 if Decrypt(CT

∗

, π

∗

, SK,

PK) /∈ {⊥, M

∗

Deﬁnition 6 (Unforgeability). An outsourcing

scheme of ABE encryption Π is unforgeable if for all

probabilistic polynomial-time adversaries A, there

exists a negligible function negl such that:

Pr[O−ABE−Exp

unf

A,Π

(λ) = 1] ≤ negl(λ).

Remark 2. In the Output phase, we assume that the

adversary outputs a proof π

∗

which is the same as

the proof received in the Challenge phase. This is

because the adversary can easily create (CT

∗

, π

∗∗

)

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

satisfying π

∗∗

6= π

∗

and Decrypt(CT

∗

, π

∗∗

, SK, PK)

/∈ {⊥, M

∗

} by choosing M

∗∗

6= M

∗

and running the

Encrypt

and Encrypt

algorithms.

4 PROPOSED SCHEME

We propose an outsourcing scheme for Waters’ “large

universe” ABE scheme (See Appendix A in (Waters,

2008)), where the number of attributes is unlimited,

while the public parameter size is constant. Waters’

scheme provides ﬂexibility for the service provider to

add new attributes and efﬁciency for storage of the

public key. A policy is expressed as a monotonic

Boolean formula that can be mapped into the share-

generating matrix of a LSSS that is used in the ABE

system.

4.1 Outsourcing Scheme of ABE

Encryption

As described in Section 3.2, we assume that the cloud

server is malicious and may not follow the protocol.

Our scheme masks the secret in a column vector of a

LSSS using random numbers. This prevents the cloud

server from learning about the secret from the masked

vector, given the intermediate ciphertext. It also uses

the hash of randomness technique to verify the cor-

rectness of the ciphertext.

Our scheme has the following ﬁve algorithms:

Setup(). The setup algorithm chooses a bilinear

group G of prime order p, a bilinear map e : G ×

G → G

, a generator g of G , and hash functions

H : {0,1}

∗

→ G, H

′

: { 0,1}

∗

× G

× {0, 1}

∗

→

{0,1}

∗

and H

′′

: {0,1}

∗

→ {0,1}

∗

. In addition, it

chooses random numbers α,a ∈ Z

. The algorithm

outputs the public parameter,

PK = {g,e(g,g)

,H(·),H

′

(·,·, ·,·), H

′′

(·)},

and the master key MSK = g

KeyGen(MSK, S). The key generation algorithm

takes as input MSK and a set of attributes S. The algo-

rithm ﬁrst chooses a random value t ∈ Z

. It creates

K = g

, L = g

, K

= H(x)

(∀x ∈ S).

The algorithm outputs a private key,

SK = {K,L,K

(∀x ∈ S)}.

Encrypt

(PK,ID, (M,ρ),M ). The algorithm takes

as input PK, a viewer’s identity ID, a LSSS access

structure (M, ρ), and a message M . We assume that

each element of the access matrix M is either 0 or 1.

The function ρ associates rows of M with attributes.

In this construction, we limit ρ to be an injective func-

tion; i.e., an attribute is associated with at most one

row of M.

Let M be an ℓ × n access matrix. The algorithm

randomly chooses s, y

, ..., y

, β

, ..., β

∈ Z

and

sets a column vector~v = (s+β

+β

,..., y

+β

) ∈

. It then calculates

C = M · e(g,g)

αs

, C

′

= g

π = H

′

(ID,C, e(g,g)

αs

′′

(pos

)).

Here, po s

is a string showing all of the elements in

the access matrix M that are 1. For example, if the

matrix M is

M =





0 1

1 1

1 0





then pos

is as follows:

p os

= {(1,2),(2,1),(2, 2),(3,1)}.

For 1 ≤ i ≤ ℓ, let J

be a set J

= { j : M

= 1(1 ≤ j ≤

n)}. The algorithm calculates

= g

∑

j∈J

and outputs an intermediate ciphertext,

′

= {C,C

′

,(E

)

1≤i≤ℓ

,~v,(M,ρ)},

and a proof π.

The algorithm takes as input PK and CT

′

. For

1 ≤ i ≤ ℓ, the algorithm calculates λ

= M

~v, where

is the row vector corresponding to the ith row

of M. The algorithm also chooses random numbers

,..., r

ℓ

∈ Z

, and calculates

aλ

H(ρ(i))

−r

, D

= g

(1 ≤ i ≤ ℓ)

and outputs a ciphertext,

CT = {C,C

′

,(C

)

1≤i≤ℓ

,(M,ρ)}.

Decrypt(CT,π,SK,PK, ID). The decryption algo-

rithm takes as input CT, π, SK, PK, and ID. Sup-

pose that S satisﬁes the access structure, and let I ⊂

{1,2,..., ℓ} be deﬁned as I = {i : ρ(i) ∈ S}. Moreover,

let {w

∈ Z

}

i∈I

be a set of constants such that if {λ

}

are valid shares of any secret s according to M, then

∑

i∈I

= s. The algorithm computes

e(C

′

,K)/(

∏

i∈I

(e(C

,L)e(D

ρ(i)

))

) = e(g,g)

αs

If π 6= H

′

(ID,C, e(g,g)

αs

′′

(pos

)), the algorithm

outputs ⊥. This will happen in two cases: (1) CT was

Outsourcing Scheme of ABE Encryption Secure against Malicious Adversary

modiﬁed; (2) SK does not satisfy the policy in CT.

Hence, ⊥ will appear whenever (1) or (2) happens.

Otherwise, it outputs the message,

M = C/e(g,g)

αs

Remark 3 . Our scheme is secure even if the

cloud server is malicious because (i) the vector ~v =

(s,y

,..., y

) that is used to create the shares of s is

masked from an adversary by using random numbers

(β

,β

,..., β

), and (ii) to verify the correctness of

the Encrypt

algorithm, a proof π is added to the ci-

phertext. The formal security proof is shown in Sec-

tion 4.2.

Remark 4. The proof π is like a message authenti-

cation code (MAC), since it uses a hash function H

′

and a shared key e(g,g)

αs

. A viewer can verify the

correctness of a tuple of (ID, CT, A, π) stored in the

cloud server if the viewer keeps the random number s

that is generated in the Encrypt

algorithm. Namely,

even if a malicious cloud server creates another tuple

of (ID, CT

∗

, A

∗

, π

∗

) from scratch and stores it in a

public database, the viewer can detect the attack (al-

though this requires the viewer to check the status of

the database periodically).

Another solution to prevent the above attack is

using a digital signature scheme, but it might put a

heavy load on a user terminal equipped with only

a low-performance CPU. That’s why we use a hash

function to verify the correctness of the ciphertext.

Remark 5. The hash function H

′

with four in-

put values can be implemented by a secure hash

function, and using the concatenation of all inputs:

′

(ID||C||e(g,g)

αs

||H

′′

(pos

)).

4.2 Security Proof

Here, we prove that our scheme has the security and

unforgeability properties deﬁned in Section 3.2. The

proof of security are based on (Waters, 2008).

Theorem 1. Our scheme is selectively secure un-

der the decisional q-parallel BDHE assumption in the

random oracle model.

Proof. Suppose we have an adversary A with non-

negligible advantage ε = Adv

in the selective secu-

rity game against our construction. Moreover, sup-

pose it chooses a challenge matrix M

∗

where both di-

mensions are at most q. Below, we show how to build

a simulator B that solves the decisional q-parallel

BDHE problem.

Init. The simulator B takes as input a q-parallel

BDHE challenge (~y,T). B runs the adversary

A, which gives B the challenge access structure

∗

,ρ

∗

). Here, M

∗

is ℓ

∗

× n

∗

matrix and ℓ

∗

≤ q.

Setup. B chooses a random value α

′

∈ Z

and

implicitly sets α = α

′

+ a

q+1

by letting e(g,g)

e(g

)e(g,g)

′

. B sends hg,e(g,g)

i to A.

Phase 1. B initializes empty tables T

, T

an empty set D, and an integer j = 0. It answers the

adversary’s queries as follows:

• Random Oracle Hash H(x): If there is an entry

(x,h) in T

, return h. Otherwise, begin by choos-

ing a random value z

. If there is some index i

such that ρ

∗

(i) = x, calculate

h = g

∗

i,1

· g

∗

i,2

·· ·g

∗

i,n

∗

Record (x,h) in T

and return h. Note that if there

is no index i such that ρ

∗

(i) = x, then H(x) = g

Note that the responses from the oracle are dis-

tributed randomly because of the value of g

• Random Oracle Hash H

′

(ID,

V): If there is

an entry (ID,

V,h

′

) in T

, return h

′

. Other-

wise, choose a random value h

′

∈ {0,1}

∗

, record

(ID,

V, h

′

) in T

and return h

′

• Random Oracle Hash H

′′

(P): If there is an entry

(P,h

′′

) in T

, return h

′′

. Otherwise, choose a ran-

dom value h

′′

∈ {0,1}

∗

, record (P,h

′′

) in T

and

return h

′′

• Create(S): Set j := j+1. Suppose S does not sat-

isfy (M

∗

, ρ

∗

). Choose a random value r ∈ Z

Find a column vector ~w = (w

,..., w

∗

) ∈ Z

∗

such

that w

= −1 and M

∗

~w = 0 for all i where ρ

∗

(i) ∈

S. Set

L = g

∗

∏

i=1

q+1−i

)

= g

by implicitly deﬁning t = r + w

+ w

q−1

·· · + w

∗

q+1−n

∗

. Compute K as

K = g

′

∗

∏

i=2

q+2−i

)

Next, we calculate K

(∀x ∈ S). If x ∈ S for which

there is no i such that ρ

∗

(i) = x, simply let K

. Otherwise, create

= L

∗

∏

j=1

∗

∏

k=1,k6= j

q+1+ j− k

)

∗

i, j

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

Finally, set SK = hK, L,K

(∀x ∈ S)i, store

( j,S,SK) in T

, and return SK to A .

• Corrupt(i): A cannot ask to corrupt any key cor-

responding to the challenge structure (M

∗

,ρ

∗

). If

the ith entry exists in table T

, B obtains the entry

(i,S,SK) and sets D := D ∪ {S} . It returns SK to

A. It returns ⊥ if no such entry exists.

Challenge. A submits a message pair (M

) to

B. B ﬂips a random coin β ∈ {0,1} and sets

C = M

T · e(g

′

), C

′

= g

It then chooses random values β

,..., β

∗

,β

′

,..., β

′

∗

∈

. B sets

= g

a(β

i,1

+···+β

∗

i,n

∗

)

for i = 1,..., ℓ

∗

and

~v = (β

′

,..., β

′

∗

B sets CT

′

= hC,C

′

,(E

)

1≤i≤ℓ

∗

,~v,(M

∗

,ρ

∗

)i. It also

sets

C = C,

K =

C/M

, and

V = H

′′

(pos

∗

) by us-

ing the random oracle hash H

′′

. Then, if the entry

(

V,h

′

) exists in T

, B sets π

∗

= h

′

. Otherwise, B

chooses a random value h

′

∈ {0,1}

∗

and sets π

∗

= h

′

Finally, B returns CT

′

and π

∗

to A.

Phase 2. B continues to answer queries as in Phase

Guess. A outputs a guess β

′

of β. If β

′

= β, B out-

puts 0 to indicate that T = e(g,g)

q+1

. Otherwise, it

outputs 1 to indicate that T is a random group element

in G

When T = e(g,g)

q+1

, B gives a perfect simula-

tion, and we have

B(~y,T = e(g,g)

q+1

) = 0

+ Adv

On the other hand, when T is a random group element

in G

, the message M

is completely hidden from A,

and we have

Pr[B (~y,T = R) = 0] =

Therefore, B can solve the decisional q-parallel

BDHE problem with non-negligible advantage.

Theorem 2. Our scheme is selectively unforgeable if

the hash function H

′

is collision-resistant in the ran-

dom oracle model.

Proof. Let A be an adversary who breaks our scheme

in the selective unforgeability game and B be a simu-

lator that solves the decisional q-parallel DBHE prob-

lem. As described in Section 3.2, A wins if their out-

put (CT

∗

, π

∗

) satisﬁes Decrypt(CT

∗

,π

∗

,SK,PK) /∈

{⊥,M

∗

Init. Same as Init in the proof of Theorem 1.

Setup. Same as Setup in the proof of Theorem 1.

Query. Same as Phase 1 in the proof of Theorem 1.

Challenge. A gives a challenge message M

∗

to the

simulator B. B then calculates an intermediate ci-

phertext,

′

= {C,C

′

,(E

)

1≤i≤ℓ

∗

,~v,(M

∗

,ρ

∗

)},

and a proof π

∗

by using the Encrypt

algorithm. B

returns (CT

′

,π

∗

) to A.

Output. A outputs (CT

∗

,π

∗

). B outputs 1 if

(CT

∗

,π

∗

) satisﬁes Decrypt(CT

∗

,π

∗

,SK,PK) /∈ {⊥

∗

}. Otherwise, it outputs 0.

Let CT = {C, C

′

, (C

)

1≤i≤ℓ

∗

, (M

∗

,ρ

∗

)} be a

well-formed ciphertext that is obtained from CT

′

and

can be decrypted into M

∗

. Also, let CT

∗

= {

′

(

)

1≤i≤ℓ

∗

, (

∗

)} be the ciphertext forged by

A. Remember that C = M

∗

K (

K = e(g,g)

αs

) and

K depends on C

′

, C

, and D

. Therefore, there are

only two cases in which A wins: one case is that the

hash function H

′

has a collision and

C is not well-

formed, and the other case is that H

′

has a collision

and either

′

, or

is not well-formed . That is,

the probability that A wins is as follows:

Pr[O−ABE−Exp

unf

A,Π

(λ) = 1]

= Pr



(π

∗

= H

′

(ID,

K,H

′′

(pos

∗

))) ∧ (

C 6= C)



+Pr



(π

∗

= H

′

(ID,C,

K,H

′′

(pos

∗

))) ∧ ((

′

6= C

′

)

∨ (

6= C

)

1≤∃i≤ℓ

∗

∨ (

6= D

)

1≤∃i≤ℓ

∗

)



If H

′

is collision-resistant, the above probability is

negligible. Therefore, our scheme is selectively un-

forgeable.

5 PERFORMANCE

5.1 Comparison with Conventional

Schemes

Table 1 compares the encryption costs of our scheme

and the ABE scheme of Waters (Waters, 2008). In

this table, M

and M

denote the cost of one mod-

ular exponentiation in G and G

, respectively, and ℓ

denotes the number of attributes in the policy and also

the number of rows of the LSSS matrix. Our scheme

outsources 2ℓ modular exponentiations in G from the

Outsourcing Scheme of ABE Encryption Secure against Malicious Adversary

Table 1: Comparison of our scheme and conventional ABE scheme.

[Waters08] Our scheme

Enc. cost for user (3ℓ + 1)M

+ M

(ℓ + 1)M

+ M

Enc. cost for cloud - (3ℓ)M

Table 2: Comparison of our scheme and conventional outsourcing schemes of ABE.

[ZH11] [LJLC12] [HW14] Our scheme

Enc. cost for user 3M

+ M

+ P

(ℓ +1)M

+ M

Enc. cost for cloud (2m)M

(2m)M

(5ℓ +1)M

+ M

(3ℓ)M

Cloud server honest-but-curious honest-but-curious honest malicious

Security assumption - - q−1 decisional q-parallel BDHE

Security model generic group generic group standard random oracle

Distributed processing no yes no no

original Waters’ scheme to a cloud server, resulting

in a smaller cost for a user terminal. This will be a

particularly signiﬁcant saving when the number of at-

tributes in the policy, ℓ, is large.

Table 2 compares the encryption cost of our

scheme with that of the ABE outsourcing schemes in

(Zhou and Huang, 2011; Li et al., 2012; Hohenberger

and Waters, 2014). In this table, S

and P

denote

the cost of one subtraction and one multiplication in

, respectively, and m denotes the number of leaf

nodes in a tree representation of the policy statement.

Note that the schemes in (Zhou and Huang, 2011; Li

et al., 2012; Hohenberger and Waters, 2014) have a

lower cost for a user terminal (for ℓ > 2) but their se-

curity is against an honest or honest-but-curious cloud

server, while our scheme provides security against a

malicious cloud server. We may consider multiple

cloud servers and distributed processing in a setting

such as (Li et al., 2012). The security model however

needs to consider malicious cloud servers.

5.2 Implementation Evaluation

We implemented the encryption algorithm of our

scheme and that of Waters’ scheme (Waters, 2008) on

a PC and a tablet computer, representing a user termi-

nal (See Table 3 for details).

We considered a viewing history consisting of 64

records and ﬁve possible attributes for the service

provider. The viewing history is encrypted using AES

and a temporary key. This key is then encrypted with

the ABE. We measured the processing time of the en-

cryption algorithm run on a user terminal as the aver-

age of 100 trials. In Figure 2 and 3, the horizontal axis

denotes the number of attributes in the policy and the

vertical axis denotes the processing time (seconds).

For simplicity, we used a ciphertext policy consist-

ing of only AND-gates, or only OR-gates. The cost

of our scheme and Waters’ scheme is labeled accord-

Figure 2: Experimental results (using PC).

Figure 3: Experimental results (using tablet).

ingly for each case. It can be seen that our scheme

costs much less than Waters’ scheme. In particular,

for ﬁve attributes, our scheme on a tablet computer

takes 0.4 seconds, while Waters’ scheme takes 1.2

seconds. Note that the processing time only depends

on the number of attributes in the policy and is inde-

pendent of the actual policy statement.

Remark 6. We only measured the client-side encryp-

tion time. However, the measurements of the decryp-

tion time for a service provider, the encryption time

for a cloud server, and the communication cost be-

tween a sender and a receiver do not make sense be-

cause a service provider and a cloud server would

normally have a high-performance CPU and the pro-

tocol is not interactive.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

Table 3: Speciﬁcations of user terminal.

PC tablet

CPU Intel Core i7-4790 (3.60GHz) Apple A8X

Memory 8GB -

OS CentOS 7.2 iOS 9.2

Browser Firefox 38.3.0 Firefox 1.4

Programming language JavaScript JavaScript

5.3 Discussion

Our experimental results in Section 5.2 show that our

scheme signiﬁcantly reduces the encryption cost of a

user terminal. The CPUs in television sets are less

powerful than those in PCs or tablet computers, and

reducing costs is a very important consideration. We

considered an attribute set size of ﬁve. A larger set

of attributes would allow for a more ﬂexible access

control policy. The number of attributes in a policy

can easily grow. For example, in a “5-level user rat-

ing” for an attribute of a service provider, “user rating

≥ 3” is represented as

“user rating= 3” OR “user rating= 4”

OR “user rating= 5”

As noted earlier, our scheme has 2ℓ fewer modular ex-

ponentiations compared with Waters’ scheme. Hence,

it can signiﬁcantly reduce the encryption cost of the

user terminal.

6 CONCLUSIONS

We considered outsourcing of ABE encryption to a

malicious cloud server. We examined the security re-

quirements, formalized the security model, and con-

structed a scheme with provable security based on

Waters’ ABE scheme. We comparedimplementations

of our scheme and Waters’ original scheme. Our se-

curity proof is in the random oracle model. Construct-

ing an outsourcing scheme of ABE encryption that is

secure without a random oracle remains an open prob-

lem. Our approach can be further reﬁned by breaking

the viewing history into smaller portions and labeling

them according to the type of program. Encryption

can be selectively performed on each portion, each

with possibly a different policy, for relevant groups of

service providers, thereby giving viewers ﬁner con-

trol over their viewing history. For example, the user

could allow his or her viewing history of food pro-

grams to be shared with service providers that have

the label “food”. Constructing an outsourcing scheme

for ABE encryption that allows a viewer to specify

more than one policy for accessing their viewing his-

tory is another open problem.

ACKNOWLEDGEMENTS

Reihaneh Safavi-Naini’s research is supported in

part by Albetra Innovates Technology Futures in

the Province of Alberta, Canada. Liang Feng

Zhang’s research is supported by National Nat-

ural Science Foundation of China (Grant No.

61602304) and Shanghai Pujiang Talent Program

(No. 16PJ1406500).

REFERENCES

Attrapadung, N. (2014). Dual system encryption via doubly

selective security: Framework, fully-secure functional

encryption for regular languages, and more. In Proc.

of Eurocrypt’14, pages 557–577.

Attrapadung, N., Hanaoka, G., Ogawa, K., Ohtake, G.,

Watanabe, H., and Yamada, S. (2016). Attribute-based

encryption for range attributes. In Proc. of SCN’16,

pages 42–61.

Attrapadung, N. and Yamada, S. (2015). Duality in abe:

Converting attribute based encryption for dual predi-

cate and dual policy via computational encodings. In

Proc. of CT-RSA’15, pages 87–105.

Baba, A., Matsumura, K., Mitsuya, S., Takechi, M., Fuji-

sawa, H., Hamada, H., Sunasaki, S., and Katoh, H.

(2012). Seamless, synchronous, and supportive: Wel-

come to hybridcast: An advanced hybrid broadcast

and broadband system. IEEE Consumer Electronics

Magazine, 1(2):43–52.

BBC. YouView: Extraordinary TV for everyone. http://

www.youview.com/.

Beimel, A. (1996). Secure Schemes for Secret Sharing and

Key Distribution. PhD thesis, Israel Institute of Tech-

nology.

Bethencourt, J., Sahai, A., and Waters, B. (2007).

Ciphertext-policy attribute-based encryption. In Proc.

of IEEE Symposium on Security and Privacy 2007,

pages 321–334.

Blakley, G. R. (1979). Safeguarding cryptographic keys. In

Proc. of AFIPS National Computer Conference, vol-

ume 48, pages 313–317.

Outsourcing Scheme of ABE Encryption Secure against Malicious Adversary

Cheung, L. and Newport, C. (2007). Provably secure ci-

phertext policy abe. In Proc. of ACM Conference on

Computer and Communications Security 2007, pages

456–465.

Emura, K., Miyaji, A., Nomura, A., Omote, K., and Soshi,

M. (2009). A ciphertext-policy attribute-based en-

cryption scheme with constant ciphertext length. In

Proc. of ISPEC’09, pages 13–23.

ETSI. TS 102 796: Hybrid Broadcast Broadband TV;

V1.3.1.

Gay, R., Meaux, P., and Wee, H. (2015). Predicate encryp-

tion for multi-dimensional range queries from lattices.

In Proc. of PKC’15, pages 752–776.

Goyal, V., Pandey, O., Sahai, A., and Waters, B. (2006).

Attribute-based encryption for ﬁne-grained access

control of encrypted data. In Proc. of ACM Con-

ference on Computer and Communications Security

2006, pages 89–98.

Green, M., Hohenberger, S., and Waters, B. (2011). Out-

sourcing the decryption of abe ciphertexts. In Proc. of

USENIX Security Symposium 2011.

Hohenberger, S. and Waters, B. (2014). Online/ofﬂine

attribute-based encryption. In Proc. of PKC’14, pages

293–310.

Katz, J., Sahai, A., and Waters, B. (2008). Predicate encryp-

tion supporting disjunctions, polynomial equations,

and inner products. In Proc. of Eurocrypt’08, pages

146–162.

KBS. icon (in Korean). http://icon.kbs.co.kr/site/main/

main.php.

Lewko, A., Okamoto, T., Sahai, A., Takashima, K., and

Waters, B. (2010). Fully secure functional encryp-

tion: Attribute-based encryption and (hierarchical) in-

ner product encryption. In Proc. of Eurocrypt’10,

pages 62–91.

Li, J., Huang, X., Li, J., Chen, X., and Xiang, Y. (2014).

Securely outsourcing attribute-based encryption with

checkability. IEEE Trans. Parallel and Distributed

Systems, 25(8):2201–2210.

Li, J., Jia, C., Li, J., and Chen, X. (2012). Outsourcing

encryption of attribute-based encryption with mapre-

duce. In Proc. of ICICS’12, pages 191–201.

NHK. Hybridcast (in Japanese). http://www.nhk.or.jp/

hybridcast/online/.

Nishide, T., Yoneyama, K., and Ohta, K. (2008). Attribute-

based encryption with partially hidden encryptor-

speciﬁed access structures. In Proc. of ACNS’08,

pages 111–129.

Ohmata, H., Endo, H., Baba, A., Matsumura, K., Sunasaki,

S., and Kai, K. (2015). System architecture for cross-

channel application services on hybridcast. In Proc.

of IEEE International Conference on Consumer Elec-

tronics 2015 (ICCE 2015), pages 108–109.

Ohmata, H., Takechi, M., Mitsuya, S., Otsuki, K., Baba, A.,

Matsumura, K., Majima, K., and Sunasaki, S. (2013).

Hybridcast: A new media experience by integration

of broadcasting and broadband. In Proc. of the ITU

Kaleidoscope Academic Conference 2013.

Ohtake, G., Hironaka, Y., Kai, K., Endo, Y., Hanaoka,

G., Watanabe, H., Yamada, S., Kasamatsu, K., Ya-

makawa, T., and Imai, H. (2013). Partially wildcarded

attribute-based encryption and its efﬁcient construc-

tion. In Proc. of SECRYPT’13, pages 339–346.

Okamoto, T. and Takashima, K. (2010). Fully secure func-

tional encryption with general relations from the deci-

sional linear assumption. In Proc. of Crypto’10, pages

191–208.

Ostrovsky, R., Sahai, A., and Waters, B. (2007). Attribute-

based encryption with non-monotonic access struc-

tures. In Proc. of ACM Conference on Computer and

Communications Security 2007, pages 195–203.

Rouselakis, Y. and Waters, B. (2013). Practical con-

structions and new proof methods for large universe

attribute-based encryption. In Proc. of ACMCCS’13,

pages 463–474.

Sahai, A. and Waters, B. (2005). Fuzzy identity-based en-

cryption. In Proc. of Eurocrypt’05, pages 457–473.

Shamir, A. (1979). How to share a secret. Communications

of the ACM, 22:612–613.

Waters, B. (2008). Ciphertext-policy attribute-based en-

cryption: An expressive, efﬁcient, and provably se-

cure realization. In eprint 2008/290.

Zhou, Z. and Huang, D. (2011). Efﬁcient and secure data

storage operations for mobile cloud computing. In

eprint 2011/185.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy
