Automating the Customization of Model-Driven Software

Engineering Environments

César Cuevas Cuesta, Patricia López Martínez and José M. Drake

Group of Software Engineering and Real-Time, University of Cantabria, Santander, Spain

Keywords: MDE, Meta-modelling, Development Environments, Process Engineering.

Abstract: This paper presents a strategy to facilitate the customization of MDSE software development environments,

which aims at providing the software engineers who design, implement and maintain those environments

with capacity to automate the generation of tools supporting new development processes. A generic

conception for the design of software development environments based on the MDSE paradigm, called

MDDE (Model-Driven Development Environment), has been defined as basis of the proposed strategy. In

MDDE, the definition of the processes that determine the functionality of an environment as well as their

options regarding interaction, supervision and control by the users are completely formulated as models. To

support this capability, the MDDE reference model includes a meta-model that formalizes such models. A

sample implementation called MDDE-MinMAST2 is presented for illustrative purposes.

1 INTRODUCTION

Model-Driven Software Engineering (MDSE)

(Schmidt, 2006) is nowadays considered one of the

most appropriate paradigms for coping with the

increasing complexity inherent to software

development. MDSE environments deal with a wide

variety of aspects of the software being developed,

providing uniform support for the basic management

processes (creation, verification, transformation,

persistence, etc.) involved in software development.

However, their usability is sometimes far from

efficient, because they can also include more

sophisticated tools. Software development processes

are typically complex, repetitive, and most of all,

dependent on the customs of the companies. Hence,

the domain-specific engineers who use the

environments may not find them friendly because

the processes they require are not easily supported.

Adapting the environments to the specific needs of a

company or domain is not an easy task, since the

engineers responsible for their development usually

experience a conflict that represents an important

drawback for the adoption of any new software

discipline (not only MDSE): If they do not want to

frequently ask for assistance to those experts in the

infrastructure of the platform on which the

environment is built atop (e.g. in an MDSE context,

experts in EMF), they must become experts on it

themselves. This necessity clashes with their

common reluctance to work outside their fields or to

use new technologies, such as MDSE. Indeed, they

would prefer to make use of well-known tools that

allow them to work in their fields in an isolated

manner. Therefore, the adequate strategy to

encourage the acceptance of a software discipline

cannot be to expect that the environment designers

will become experts in its associated technologies.

Instead, from our viewpoint, the efforts must target

the development of strategies and facilities for the

environment designers to become autonomous, by

means of a light adoption of the new discipline,

MDSE in this case.

Thus, under this philosophy, we present MDDE

(Model-Driven Development Environment), a

generic conception for the design of MDSE

environments. Its purpose is to foster the adoption

and consolidation of MDSE by those engineers

responsible for the design/customization of new

environments for their corresponding domain-

specific methodologies. This is achieved by

simplifying the way in which the designer adds to

the environment support for new development

processes or tools. Being an MDSE approach,

adding a new development process will consist on

its formulation as a model. This model will be later

interpreted by an internal tool provided by the

environment, which will generate all the resources

Cuevas Cuesta C., LÃ¸spez MartÃ nez P. and M. Drake J.

Automating the Customization of Model-Driven Software Engineering Environments.

DOI: 10.5220/0006130903370344

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 337-344

ISBN: 978-989-758-210-3

337

required for the execution and control of the process.

The main component of MDDE is its reference

model. It defines the basic functional and

interactional capabilities that are common to any

MDDE environment. It provides the developer of

software systems with the information he needs for

working with any MDDE environment and the

designer of environments with the base architecture

that rules the design of new environments or the

customization of existing ones.

The rest of the paper is structured as follows.

Section 2 presents an overview of the MDDE

conception and reference model. Section 3 analyses

the possibilities that MDDE provides for designing

environments while Section 4 presents a sample

MDDE environment. Finally, Section 5 and 6 expose

some related work and conclusions, respectively.

2 MDDE OVERVIEW AND

REFERENCE MODEL

2.1 MDDE Operational Foundations

The operational approach on which MDDE is based

considers that the end users utilize the environments

by means of the supervised execution of processes.

These processes consist of the sequential or iterative

execution of more basic operations, called tasks,

which are primitive operations implemented by code

in the environment. According to MDSE, the

processes are defined as models that describe,

among other things, the sequence of constituent

tasks. The tasks are also defined as models, which

describe their nature, the models on which they

operate, their involved model transformations and

the information provided to the user to take

decisions and to control, supervise, validate or

orchestrate their execution.

Hence, the design and specification of processes

in an MDDE environment basically means to

formulate models and not to write code. In order to

support this capability, the reference model includes

a meta-model (presented in subsection 2.2) that

formalizes the models of processes and types of

tasks. Any MDDE environment includes a native

tool that interprets these models, allowing the

supervised execution of the processes.

2.2 MDDE Reference Model

The reference model can be seen from three

different viewpoints:

 The structural view addresses the constituent

conceptual elements, the relations among them

and their formulation as a meta-model.

 The functional view defines the elements that

form the internal engine of the environment and

the interfaces that it uses.

 The implementation view. Although the reference

model is agnostic from the underlying MDSE

platform, a specific implementation is required to

validate it. This is orthogonal to the domain or

methodology to which the environment is

oriented. For instance, we may have a sample

MDDE environment implemented on

Eclipse/EMF and oriented to the design of RTS

using a given methodology such as MAST

(González Harbour et al. 2001). This

environment would be called MDDE-

Eclipse/EMF-MAST.

This paper focuses on the structural aspects, which

are explained in the rest of the section, although a

proof of concept MDDE environment

implementation is presented in section 4. Due to

space limitations, the exposition of the functional

view is omitted, but a deep study about it can be

found in (Cuevas, 2016), including a study of the

suitability of Eclipse as supporting platform.

2.2.1 Conceptual Elements

Models. The information managed in an MDDE

environment is formulated as models compliant to

meta-models that are part of the environment. Three

types of models can be distinguished according to

their function:

 Tool Models, which describe the operability,

configuration and status of the tools (processes)

provided by the environment.

 Domain Models, which contain information

about some aspect of the system under

development (SUD).

 Interaction Models, which formulate information

exchanged between the user and the

environment.

An orthogonal classification can be done according

to the model lifecycle:

 Native Models, included in the environment

since its creation and hence, delivered with it.

They are typically tool models.

 Project Models, with information relevant to the

specific SUD. They are typically domain models.

 Temporal Models, created to manage internal

information during a development process.

The set of native models together with the rest of

native elements (e.g. model transformations, sets of

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

338

constraints, etc.) constitute the basis of the

functional and evolutional capabilities of an MDDE

environment. Due to their nature, these models

cannot be modified or eliminated. In contrast,

project models can be produced manually by the

user or generated by the invocation of an

environment process. In any case, they are always

persisted in the environment data space.

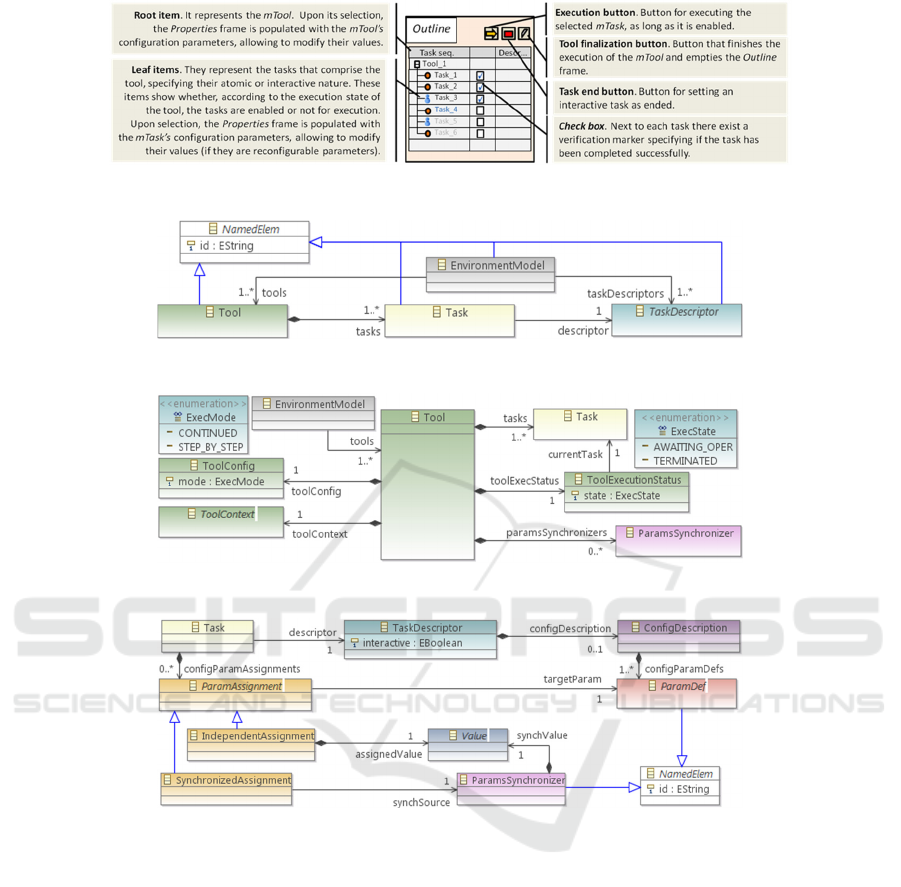

MDDE Tools (mTool). An mTool is a high-level

process provided by an MDDE environment to assist

the user in incorporating information about the SUD

into the environment or presenting the SUD

information according to its own viewpoint.

Moreover, the user can process the information by

applying transformation, integration or analysis

techniques provided by the mTools. An mTool is

invoked explicitly by the user and it is composed of

a sequence of lower level, elementary activities

(tasks), defined individually to allow reutilization in

different mTools.

Each mTool is formulated as a model, so that

incorporating the tool to the environment only

requires to register such model. Some mTools are

native, i.e. their models are registered in the

environment during its creation and stay unaffected

during the whole environment lifecycle. On the

other hand, the environment designer can define new

mTools, either by providing their descriptive models

or by modifying the models of already existing ones.

The model of an mTool describes its:

 Functionality, i.e. the set of tasks it includes.

 Invocation context, i.e. the environment element

on which the mTool can be invoked, either

directly (menu or button) or by contextual

selection.

 Configuration options, defined as a sub-model

that specifies the identifiers, types and default

values of the configuration parameters.

 Status information, which will be generated

during the tool execution. This execution status

is also described as a sub-model which is

fulfilled according to the results obtained during

the execution. This sub-model provides

information about the success/failure of the

execution of each internal task and the models

generated during the execution of the mTool.

The execution of an mTool is always controlled and

supervised by the user. After invocation, there are at

least three points in which the user intervention is

required: 1) setting or accepting the launch

configuration; 2) launching the execution; and 3)

setting the execution as finished, which involves

eliminating all the status information and temporal

models. When these are the only interaction points

between the user and the mTool, the execution is

said to be performed in the continuous mode,

whereas in the step-by-step mode the execution

requires the user to take part in the launch of every

individual internal task. As will be explained later in

this section, to facilitate the management of an

mTool execution, upon tool invocation the

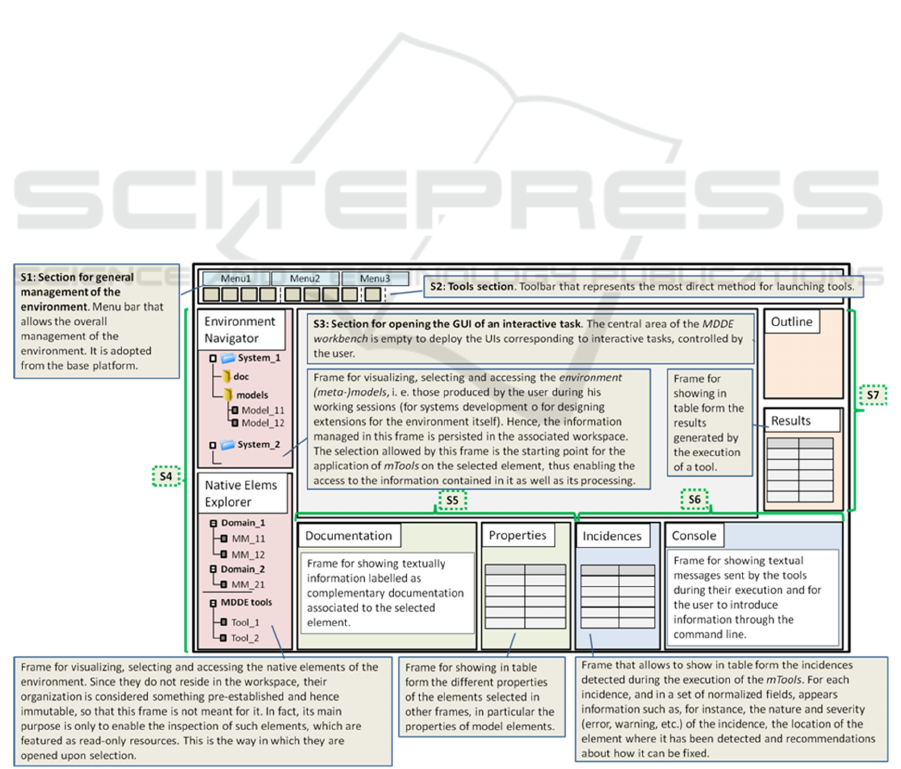

environment deploys an interaction frame

with all

the required controls. This frame is automatically

populated according to the mTool descriptive model,

showing the sequence of constituent tasks along with

their corresponding configuration parameters.

MDDE Tasks (mTask). The basic operative element

of the MDDE reference model is the mTask. An

mTask represents any useful operation in the

management of the SUD or the environment itself.

The mTasks are the elementary activities that form

the mTools included in the environment. This

element is introduced due to different reasons:

 To enable the reutilization of operations shared

among different mTools.

 To enable the execution of artefacts developed

outside the environment.

 To provide an homogeneous management

interface that eases the composition of activities

in the processes and the interaction with the

environment resources.

An mTask can be atomic or interactive. An atomic

mTask is executed without user intervention, since

the data required for the execution comes from the

initial configuration of its container mTool. On the

other hand, an interactive mTask requires user

intervention either for managing the information

used by the task or for deciding among different

control flow options. According to how the mTasks

implement their functionality, an orthogonal

categorization distinguishes between mTasks that

implement conventional MDSE operations and

mTasks that adapt artefacts (see next paragraph).

MDDE Artefacts (mGadgets). They are software

resources (code) used by the mTools during their

execution but that have been developed outside the

environment, independently of the MDDE reference

model. Their usage by an mTool as well as their

interaction with the environment resources are not

performed directly, but an adapter is required for

their invocation, configuration and interaction.

An mGadget can be internal (executed in the

environment memory space, where it is invoked) or

external (executed in other memory space, either in

same processor or in a different one – external or

remote mGadget). The management of the external

mGadgets and their interaction with the environment

are supported by a set of communication

Automating the Customization of Model-Driven Software Engineering Environments

339

mechanisms defined in the framework and provided

by the platform on which the environment executes.

Likewise, the invocation requires an application

aimed at launching mGadgets (called

mGadgetLauncher) to be run on the same memory

space as the mGadget.

The distinction between internal/external gadgets

implies a parallel distinction between their

corresponding adapter mTasks. The ones that adapt

an internal mGadget provide the input models

required by the mGadget, properly formatted, store

the output models created by the mGadget and

transmit the control and status messages between the

gadget and the environment. However, the

adaptation of an external gadget requires the

intervention of the underlying communication

service of the platform and the serialization of the

input/output models and the messages interchanged

among the adapter task and the mGadget.

Information not Formulated as Models. The

external scope of an MDDE environment is typically

heterogeneous, which sometimes makes impossible

to keep all the information formulated as models

compliant to meta-models known by the

environment. Therefore, MDDE has been designed

to support information formulated by means of

textual languages, which facilitates the interchange

of information with other environments/systems that

have their own specific language. It is also useful for

granting persistence when the information lifecycle

is longer than the environment`s. As an example, an

MDDE environment can provide capability for

importing or exporting XML textual information,

formalized by means of W3C-Schema templates, or

specific textual languages formalized with Xtext

(Eysholdt and Behrens, 2016).

MDDE Workbench. This is the reference GUI that

must be implemented by any MDDE environment.

Figure 1 sketches the basic workbench design,

formed by a set of interaction frames, graphical

zones with viewers and controls that implement the

interaction mechanism with the user. The Elements

Management section (S4) includes two explorer-like

frames which allow the access to all the information

(model, meta-models, etc.) of the environment. The

Elements Information section (S5) exposes the

information relative to the selected individual

elements. The Processes Execution section (S6)

exposes information about the execution of the

mTools. Finally, the Processes Management section

(S7) lets the user control the execution of an invoked

mTool, set values for the configuration parameters,

supervise the execution status and finish or abort the

execution. Figure 2 details the Tool Outline frame,

which shows the constitution of an mTool (sequence

of mTasks) and allows to control its execution.

Figure 1: MDDE workbench outline.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

340

Figure 2: Interaction elements within the Tool outline frame.

Figure 3: Core of the MDDE meta-model.

Figure 4: Class Tool.

Figure 5: Definition and assignment of parameters.

2.2.2 MDDE Meta-Model

The MDDE meta-model formalizes the structural

aspects of the MDDE reference model. An MDDE

environment can be specified as a set of models

compliant to it. These models are the ones that

formulate the mTools available in the environment

(which in turn encapsulate the models of their

mTasks), the models of the mTaskTypes included in

the environment and the models that represent the

environments themselves, although the latter only

plays a role of container of the rest of models. An

mTaskType is a parameterized entity (and hence,

configurable) whose specific realization (assignment

of values to the configuration parameters) leads to a

specific mTask. Hence, the mTasks contained in the

model of an mTool are just realizations of the

mTaskTypes defined in the environment.

Figure 3 shows the core of the MDDE meta-

model.

TaskDescriptor

represents the concept of

mTaskType.

Task

represents the concept of mTask,

as specific realization of an mTaskType instance,

referenced through the

descriptor

reference.

Tool

represents the concept of mTool. The set of mTasks

that form the mTool are defined through the

tasks

association, all of them instances of

Task

. Finally,

EnvironmnentModel

represents the concept of

environment. Its instances reference the set of

mTools and mTaskTypes that form the specification

of the MDDE environment through its

tools

and

taskDescriptors

associations. Figure 4 and Figure

5 extend the exposition of the meta-model. The

Automating the Customization of Model-Driven Software Engineering Environments

341

detailed definition of each class is omitted here due

to space reasons. The complete meta-model

specification, along with its Ecore formulation, can

be found in http://www.istr.unican.es/members/

cesarcuevas/phd/es/mdde.html.

3 MDDE ENVIRONMENTS

DESIGN

When oriented to an environment designer, the

layout of the MDDE workbench simplifies the

general version exposed in Section 2.2.1. It gets rid

of the Outline, Results and Console frames and the

contents of the Environment Navigator and Native

Elements Explorer are modified (see Figure 6). The

designer is now interested in the mTaskTypes

defined in the environment, which he can use to

define new mTools. Moreover, he can also design

new mTaskTypes. Now, the Environment Navigator

shows only a simple structure of containers in which

the designer can store his new defined mTools and

mTaskTypes, whereas the Native Elements Explorer

shows the MDDE meta-model and the native

mTaskTypes defined within the environment.

Furthermore, this last frame provides now controls

for adding new mTools or new mTaskTypes.

Creation of New mTools and mTaskTypes. An

MDDE environment provides the NewTool/

NewTaskType wizards which can be invoked from

the Add mTool/mTaskType buttons, respectively.

Upon invocation the corresponding mTool/

mTaskType model is created, with its

Tool/

TaskDescriptor

root container element properly

initialized. In the case of an mTool, the

Tool

instance contains two

Task

instances. The first one,

mTask_1, serves as template so it is not assigned to

any descriptor (it must be completed later); whereas

the second one, called Termination, corresponds to

the Process Finish type. Then, the generated model

is persisted in the

MDDE_UnderConstr

directory and

it is opened in the edition area for the user to

complete its construction.

Registration of New mTools and mTaskTypes.

Completing the model of a new mTool or

mTaskType may take several work sessions, so these

temporal models are persisted in the workspace but

they are not considered available MDDE assets.

When the new element is completely defined, it

must be explicitly added to the environment. With

that aim, two functionalities (Register mTool/

mTaskType) have been defined. The registration

process implies a preliminary phase of verification

(compliance to the MDDE meta-model and

constraints fulfilment). Once verified, the model

moves from its provisional location in the workspace

to the location established for the MDDE assets,

disappearing from the Environment Navigator frame

and appearing in the Native Elements Explorer one.

From that moment, the asset is available to be used

either in the design of systems (in the case of

mTools) or new mTools (in the case of mTaskTypes).

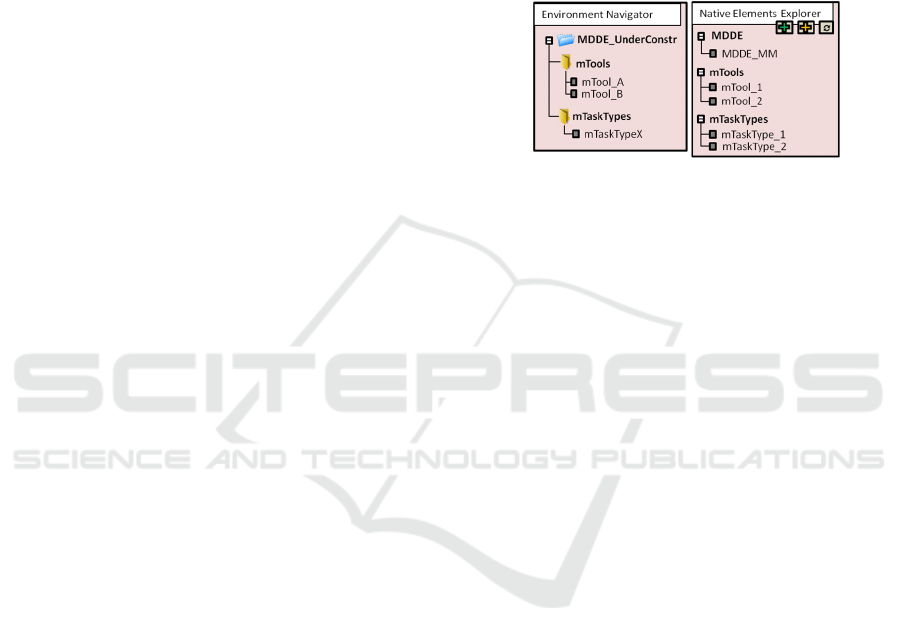

Figure 6: The frames Environment Navigator and

Explorer of native elements for environments design.

4 MDDE-MinMAST2

This section introduces MDDE-MinMAST2 as an

example of an MDDE environment. Its purpose is to

support the analysis and design of RTS according to

the MAST methodology. Again, due to space

reasons, the example is not completely exposed here.

Its complete specification, along with the Ecore

models that constitute its implementation on

Eclipse/EMF (MDDE-Eclipse/EMF-MinMAST2)

can be found in http://www.istr.unican.es/members/

cesarcuevas/phd/es/mdde.html.

4.1 MAST Overview

MAST (Modelling and Analysis Suite for Real-Time

Applications) (González Harbour et al., 2016) is a

suite for the design and analysis of RTS, developed

by the ISTR Group of the University of Cantabria. It

comprises both a methodology for modelling the

temporal behaviour of RTS and a set of tools that

operate on those models by applying different kinds

of analyses (schedulability analysis, scheduling

parameters assignment, simulation, etc.).

The modelling methodology is formulated by

means of three meta-models. The main one is the

MAST meta-model – currently in its evolution to

MAST-2 (Cuevas et al., 2012) –, used for modelling

real-time behaviour. The MASTResults meta-model

for modelling the results obtained by the analysis

tools and the MASTTraces meta-model for

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

342

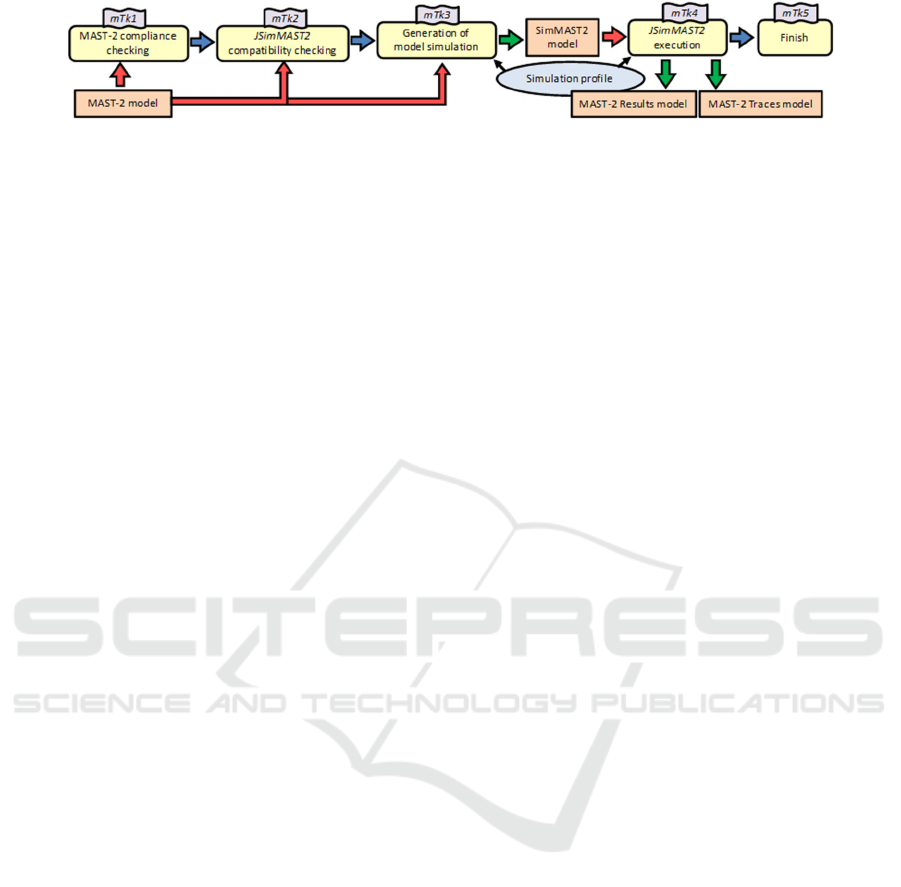

Figure 7: mTasks constituting the Simulation mTool.

modelling the traces generated by the simulation tool

complete the MAST modelling core.

In the current available version of the suite, the

analysis tools are implemented using Ada and Java

and are launched from primitive Ada/Java GUIs or

even from command line, using input models based

on plain text or XML. The MDDE approach is really

suitable in order to develop an MDSE environment

for MAST, since it does not require for the authors

of MAST, experts in the real-time analysis domain,

a deep knowledge of the MDSE technologies.

4.2 Processes in MDDE-MinMAST2

The environment currently provides three processes

or mTools: i) Creation of the MAST-2 model of an

RTS; ii) Schedulability analysis; iii) Simulation of

temporal behaviour. Given a MAST-2 model of a

RTS created by means of the first process, the

second one allows the application of schedulability

analysis based on different techniques implemented

in the MAST-1.x tools (Ada), whereas the third one

allows to simulate the temporal evolution of the

system using the JSimMAST tool (Cuevas and

Drake, 2010) (Java). Both processes generate a

MAST-2 Results model, and the simulation may

also produce a MAST-2 Traces model. The rest of

this section details the simulation mTool.

Figure 7 shows the internal composition of the

tool as a sequence of mTasks. Before applying the

simulation itself, the process verifies the correction

of the MAST-2 input model (mTk1) by checking the

satisfaction of the integrity constraints imposed on

the MAST-2 meta-model, and also its compatibility

with the JSimMAST tool (mTk2) by checking the

constraints imposed by this specific tool. Once we

have checked the model is correct, a simulation

execution profile must be chosen, and based on that

selection, the input model is transformed (mTk3)

into a simulation model (compliant to the

SimMAST2 meta-model). After that, the process

means the proper execution of the simulation (mTk4)

according to the established profile.

In its current status, the environment defines five

mTaskTypes that can be reused to formalize different

mTools:

 M2M constraints verification (Cuevas et al.

2016). This first one is exposed in detail below.

 MAST-2  SimMAST2 transformation.

 Simulation execution (JSimMAST launch). This

is an example of task that adapts an internal

gadget (a Java application).

 Schedulability analysis execution (MAST-1.x

external tools launch). This is an example of task

that adapts an external gadget (an Ada

application).

 Process finish.

M2M Verification. It consists of an M2M

transformation that checks if a model verifies a set

of constraints imposed on its meta-model, generating

a diagnosis model as result (Cuevas et al. 2016).

This mTask is atomic and defines the following

configuration parameters: location of the model to

be verified, location of the generated diagnosis

model and the constraints package against the

checking is performed. This mTaskType represents a

paradigmatic example of reutilization, since mTasks

of this type can take part in multiple mTools of

different nature that, prior to model processing,

require the models to be checked against a certain

set of constraints. This is what happens specifically

in our example environment, since two tasks of this

type are used in the simulation tool (mTk1 and

mTk2), as shown in Figure 7, but also the

schedulability analysis tool (not included in the

paper) uses this mTaskType.

5 RELATED WORK

The methodology introduced in (Gamboa and

Syriani, 2016) presents some parallelisms with the

work presented here, both regarding the goal of

easing the usage of MDSE and the methodology

itself, based on the semi-automatic execution of

workflows (Russell et al., 2006). However, it is

mainly focused on the final users of MDSE

environments, both language engineers and domain-

specific modellers, trying to speed up their daily

activities. In contrast, our work is more oriented to

the adoption of MDSE by those software engineers,

typically not experts in MDSE, that are responsible

for the design and implementation of new

Automating the Customization of Model-Driven Software Engineering Environments

343

development environments to support the domain-

specific methodologies proposed by themselves;

environments that will later be used by the final

users aforementioned.

The proposed methodology has been

implemented in its own tool (Syriani et al., 2013),

although it can be implemented on top of different

base frameworks, supporting both meta-modelling in

two levels and deep meta-modelling (De Lara and

Guerra, 2010); (Rossini et al., 2014).

6 CONCLUSIONS

The design of an MDSE environment not only

requires to design meta-models for information

formalization and tools that perform its

transformations, but also to design processes that

encompass sets of models generated by the

concatenated and/or iterative application of tools

under the user supervision. Although the conception

of these processes is responsibility of the designer of

environments, their implementation based on the

MDSE infrastructure may be, due to its complexity,

beyond his expertise and knowledge. MDDE is

proposed to alleviate this task. It constitutes a

generic conception for MDSE environments that

includes the definition of a reference model for the

design of environments and a set of supporting

resources that facilitate the specification and

implementation of environments. By using the

MDDE reference model, the processes are

formulated as models. Such models describe in turn

the models and tools that take part in the process as

well as the interactions required to the user. These

descriptive models are interpreted by an internal tool

provided by the environment, allowing its automatic

(but assisted) execution. Automating the generation

of complex tools based on simpler primitive tools

available in the environment facilitates the

customization of the environments and its adaptation

to the particular aspects of each domain-specific

field. Besides, with this approach, the primitive tools

of the environments can be simpler and hence, easier

to maintain, design and reuse.

The validation of the MDDE approach is in its

initial phase, since only one implementation has

been developed as a proof of concept. It has been

built on top of Eclipse and its target domain is the

analysis and design of RTS using the MAST

methodology. Different domains must be addressed

for identifying possible extension points for MDDE,

extending it as a consequence and building new

corresponding implementations.

ACKNOWLEDGEMENTS

This work has been funded in part by the Spanish

Government under grant number TIN2014-56158-

C4-2-P (M2C2).

REFERENCES

Cuevas, C., 2016. Metaherramientas MDE para el diseño

de entornos de desarrollo de sistemas distribuidos de

tiempo real. PhD Thesis. Universidad de Cantabria.

Cuevas, C. et al., 2012. MAST 2 Metamodel. Internal

Report. Available at http://www.istr.unican.es/

members/cesarcuevas/phd/artifactsMAST2.html.

Cuevas C., Drake J.M., 2010. JSIMMAST: Java Simulator

for MAST Models. Available from:

http:istr.unican.es/jsimmast [September 2016].

Cuevas, C., López Martínez, P., Drake, J.M., 2016.

Model-driven approach for verifying conformity of

models in the presence of constraints. 4th

International Conference on Model-Driven

Engineering and Software Development, pp. 455-466.

De Lara, J., Guerra, E., 2010. Deep meta-modelling with

MetaDepth. In Objects, Models, Components,

Patterns, Anonymous. Springer, pp. 1-20.

Eysholdt, M., Behrens, H., 2010. Xtext: Implement your

language faster than the quick and dirty way. ACM

International Conference Companion on Object

Oriented Programming Systems Languages and

Applications Companion, pp. 307-309.

Gamboa, M.A., Syriani, E., 2016. Automating activities in

MDE tools. 4th International Conference on Model-

Driven Engineering and Software Development, pp.

123-133.

González Harbour, M., Gutiérrez García, J.J., Palencia

Gutiérrez, J.C., Drake Moyano, J.M., 2001. MAST:

Modelling and Analysis Suite for Real-Time

Applications. 13th Euromicro Conference on Real-

Time Systems, IEEE, pp. 125-134.

González Harbour, M. et al, 2016. MAST: Modelling and

Analysis Suite for Real-Time Applications. Available

from: http://istr.unican.es/mast [September 2016].

Rossini, A., de Lara, J., Guerra, E., Rutle, A., Wolter, U.,

2014. A Formalisation of Deep Metamodelling.

Formal Aspects of Computing, vol. 26, pp. 1115-1152.

Russell, N., Ter Hofstede, A. H., Mulyar, N., 2006.

Workflow Controlflow Patterns: A revised view. BPM

Center Report BPM-06-22.

Schmidt, D. C., 2006. Guest editor's introduction: Model-

Driven Engineering. Computer, vol. 39, pp. 25-31.

Syriani, E., Vangheluwe, H., Mannadiar, R., Hansen, C.,

Van Mierlo, S., Ergin, H., 2013. AToMPM: A web-

based modeling environment. In Demos/Posters/

StudentResearch@ MoDELS, 2013, pp. 21-25.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

344
