Dehazing using Non-local Regularization

with Iso-depth Neighbor-Fields

Incheol Kim and Min H. Kim

School of Computing, KAIST, 291 Daehak-ro, Yuseong-gu, 34141, Daejeon, Korea, Republic of

ickim@vclab.kaist.ac.kr, minhkim@kaist.ac.kr

Keywords:

Dehazing, Non-local Regularization, Image Restoration.

Abstract:

Removing haze from a single image is a severely ill-posed problem due to the lack of the scene information.

General dehazing algorithms estimate airlight initially using natural image statistics and then propagate the

incompletely estimated airlight to build a dense transmission map, yielding a haze-free image. Propagating

haze is different from other regularization problems, as haze is strongly correlated with depth according to the

physics of light transport in participating media. However, since there is no depth information available in

single-image dehazing, traditional regularization methods with a common grid random ﬁeld often suffer from

haze isolation artifacts caused by abrupt changes in scene depths. In this paper, to overcome the haze isolation

problem, we propose a non-local regularization method by combining Markov random ﬁelds (MRFs) with

nearest-neighbor ﬁelds (NNFs), based on our insightful observation that the NNFs searched in a hazy image

associate patches at the similar depth, as local haze in the atmosphere is proportional to its depth. We validate

that the proposed method can regularize haze effectively to restore a variety of natural landscape images,

as demonstrated in the results. This proposed regularization method can be used separately with any other

dehazing algorithms to enhance haze regularization.

1 INTRODUCTION

The atmosphere in a landscape includes several types

of aerosols such as haze, dust, or fog. When we cap-

ture a landscape photograph of a scene, often thick

aerosols scatter light transport from the scene to the

camera, resulting in a hazy photograph. A haze-free

image could be restored if we could estimate and

compensate the amount of scattered energy properly.

However, estimating haze from a single photograph

is a severely ill-posed problem due to the lack of the

scene information such as depth.

An image processing technique that removes a

layer of haze and compensates the attenuated energy

is known as dehazing. It can be applied to many out-

door imaging applications such as self-driving vehi-

cles, surveillance, and satellite imaging. The general

dehazing algorithm consists of two main processes.

We ﬁrst need to approximate haze initially by utiliz-

ing available haze clues based on a certain assump-

tion on natural image statistics, such as a dark channel

prior (He et al., 2009). In this stage, most of dehaz-

ing algorithms tend to produce an incomplete trans-

mission map from the hazy image. Once we obtain

rough approximation of haze, we need to propagate

(a) traditional MRF

(b) ours

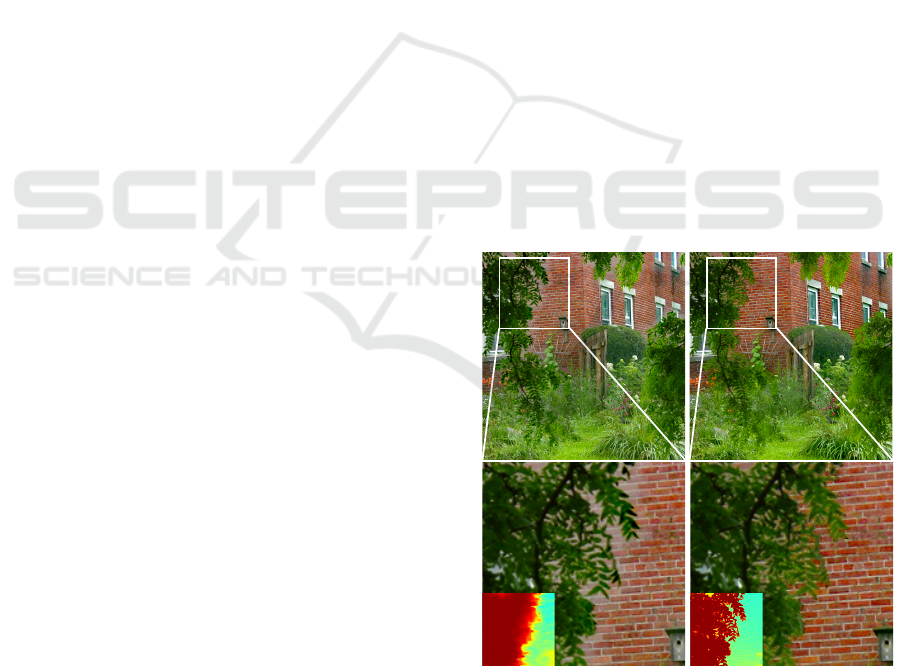

Figure 1: Comparison of dehazing results using (a) regu-

larization of haze using traditional MRFs commonly used

in most of dehazing algorithms and (b) our regularization

using MRFs with iso-depth NNFs (Insets: corresponding

transmission maps). Our proposed method for single-image

dehazing can propagate haze more effectively than tradi-

tional regularization methods by inferring depth from NNFs

in a hazy image.

Kim I. and H. Kim M.

Dehazing using Non-local Regularization with Iso-depth Neighbor-Fields.

DOI: 10.5220/0006132400770088

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 77-88

ISBN: 978-989-758-225-7

the sparse information to the entire scene to recon-

struct a dense transmittance map, which yields a haze-

free image.

Difﬁculty of dehazing arises from the existence

of ambiguity due to the lack of the scene informa-

tion. First, the initial assumption on image statis-

tics on natural colors in particular is insufﬁcient to

cover the wide diversity of natural scenes in the real

world, resulting in incomplete haze estimation. No

universal image statistics on natural colors can handle

the dehazing problem. Moreover, as shown in Fig-

ure 1, most of propagation algorithms with a common

grid random ﬁeld often suffer from haze-isolation ar-

tifacts. The amount of haze in the atmosphere at each

pixel is determined by its depth. In order to handle

abrupt changes of haze density, we need a scene depth

information, even though it is unavailable in single-

image dehazing.

In this paper, we propose a non-local regulariza-

tion for dehazing that can propagate sparse airlight

estimates to yield a dense transmission map with-

out suffering from the typical isolation problem (Fig-

ure 1). Our regularization approach is developed

by combining Markov random ﬁelds (MRFs) with

nearest-neighbor ﬁelds (NNFs) searched by Patch-

Match (Barnes et al., 2009). Our main insight is

that the NNFs searched in a hazy image associate

patches at the similar depth. Since no depth informa-

tion is available in single-image dehazing, we utilize

the NNFs information to infer depth cues for propa-

gating hidden states of scattered light, which is expo-

nentially proportional to depth (Narasimhan and Na-

yar, 2002). To the best of our knowledge, this ap-

proach is the ﬁrst work that combines MRF regular-

ization with NNFs for dehazing. This proposed regu-

larization method can be used with any other dehazing

algorithms to enhance haze regularization.

2 RELATED WORK

Previous works on dehazing can be grouped into three

categories: multiple image-based, learning-based,

and single image-based approaches.

Multiple Image-based Dehazing. Since removing

haze in the atmosphere is an ill-posed problem, sev-

eral works have attempted to solve the problem

using multiple input images, often requiring addi-

tional hardware. Schechner et al. capture a set

of linearly polarized images. They utilize the in-

tensity changes of the polarized lights to infer the

airlight layer (Schechner et al., 2001). Narasimhan

et al. employ multiple images with different weather

conditions to restore the degraded image using an

irradiance model (Narasimhan and Nayar, 2002;

Narasimhan and Nayar, 2003). Kopf et al. remove

haze from an image with additionally known scene

geometry, instead of capturing multiple images (Kopf

et al., 2008). These haze formation models stand on

the physics of light transport to provide sound accu-

racy. However, these applications could be limited at

the cost to acquiring multiple input images.

Learning-based Dehazing. Learning-based meth-

ods have been proposed to mitigate the ill-posed

dehazing problem using a trained prior knowledge.

From training datasets, they attempt to earn a prior

on natural image statistics to factorize the haze layer

and the scene radiance from the hazy image. Tang et

al. deﬁne haze-relevant features that are related to the

properties of hazy images, and train them using the

random forest regression (Tang et al., 2014). Zhu et

al. obtain the color attenuation prior using supervised

learning (Zhu et al., 2015). They found that the con-

centration of haze is positively correlated with the dif-

ference between brightness and saturation, and they

train a linear model via linear regression. However, no

general statistical model can predict the diverse distri-

butions of natural light environments; hence, they of-

ten fail to restore hazy-free images that are not similar

to the trained dataset.

Single Image-based Dehazing. Owing to the ill-

posedness of the dehazing problem, single image-

based methods commonly rely on a certain assump-

tion on statistics of natural images. Most prior works

have made an assumption on the statistics of natu-

ral scene radiance (Tan, 2008; Tarel and Hauti

ere,

2009; He et al., 2009; Nishino et al., 2012; Ancuti

and Ancuti, 2013; Fattal, 2014). Tan and Tarel re-

store visibility by maximizing local contrast, assum-

ing that clean color images have a high contrast, but

this causes overly saturated results (Tan, 2008; Tarel

and Hauti

ere, 2009). He et al. exploit image statis-

tics where a natural image in the sRGB color space

should include a very low intensity within a local

region (He et al., 2009). However, it often overes-

timates the amount of haze if there is a large area

having bright pixels. Nishino et al. employ scene-

speciﬁc priors, a heavy-tailed distribution on chro-

maticity gradients of colors of natural scenes, to infer

the surface albedo, but they also often produce over-

saturated results (Nishino et al., 2012).

Developing the natural image prior further, Fattal

assumes that in the sRGB space, the color-line of a lo-

cal patch within a clear image should pass through the

origin of the color space (Fattal, 2014). This can yield

a clear and naturally-looking result, but it requires

per-image tweaking parameters such as the gamma

value and the manual estimation of the atmospheric

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

light vector. Li et al. suggest a nighttime dehazing

method that removes a glow layer made by the com-

bination of participating media and light source such

as lamps (Li et al., 2015). Recently, a non-local trans-

mission estimation method was proposed by Berman

et al., which is based on the assumption that colors of

a haze-free image can be approximated by a few hun-

dred distinct colors forming tight clusters in the RGB

space (Berman et al., 2016).

In addition, an assumption on light transport in

natural scenes is also used. Fattal assumes that

shading and transmission are statistically indepen-

dent (Fattal, 2008), and Meng et al. impose boundary

conditions on light transmission (Meng et al., 2013).

In particular, our airlight estimation follows the tra-

ditional approach based on dimension-minimization

approach (Fattal, 2008), which allows for robust per-

formance in estimating airlight.

Haze Regularization. Most single-image dehazing

methods estimate per-pixel haze using a patch-wise

operator. Since the operator often fails in a large por-

tion of patches in practice, regularizing sparse haze

estimates is crucial to obtain a dense transmission

map for restoring a haze-free image. Grid Markov

random ﬁelds (MRFs) are most commonly used in

many dehazing algorithms (Tan, 2008; Fattal, 2008;

Carr and Hartley, 2009; Nishino et al., 2012; Berman

et al., 2016), and ﬁltering methods are also used, for

instance, matting Laplacian (He et al., 2009), guided

ﬁltering (He et al., 2013), and a total variation-based

approach (Tarel and Hauti

ere, 2009; Meng et al.,

2013). These regularization methods only account

for local information, they often fail to obtain sharp

depth-discontinuity along edges if there is an abrupt

change in scene depth.

Recently, Fattal attempts to mitigate this isola-

tion problem by utilizing augmented Markov ran-

dom ﬁelds, which extend connection boundaries of

MRFs (Fattal, 2014). However, this method does

not search neighbors in every region in an image

since only pixels within a local window are aug-

mented. For this reason, the augmented MRFs cannot

reﬂect all non-local information in the image, and in

some cases, isolation artifacts still remain. Berman

et al. non-locally extend the boundary in estimating

haze (Berman et al., 2016); however, they still regu-

larize an initial transmission map by using Gaussian

MRFs (GMRFs) with only local neighbors. As a re-

sult, severe isolation problems occur in a region where

there is an abrupt change of scene depth. In regular-

ization of our method, we extend neighbors in MRFs

with iso-depth NNFs for using additional non-local

information to infer depth cues based on the physics

of light transport.

3 INITIAL ESTIMATION OF

HAZE

We ﬁrst estimate initial density of haze following a

traditional dimension-reduction approach using lin-

ear subspaces (Narasimhan and Nayar, 2002; Fattal,

2008). To help readers understand the formulation of

the dehazing problem, we brieﬂy provide foundations

of the traditional haze formation model.

Haze Formation Model. Haze is an aerosol that

consists of ashes, dust, and smoke. Haze tends to

present a gray or bluish hue (Narasimhan and Na-

yar, 2002), which leads to decrease of contrast and

color ﬁdelity of the original scene radiance. As the

amount of scattering increases, the amount of degra-

dation also increases. This phenomenon is mathemat-

ically deﬁned as a transmission that represents the

portion of light from the scene radiance that is not

scattered by participating media.

The relationship between the scattered light

and the attenuated scene radiance has been ex-

pressed as a linear interpolation via a transmis-

sion term commonly used in many dehazing algo-

rithms (Narasimhan and Nayar, 2002; Narasimhan

and Nayar, 2003; Fattal, 2008; Fattal, 2014):

I (x) = t (x)J (x) + (1 −t (x))A, (1)

where I(x) is a linearized image intensity

at a pixel x,

J(x) is an unknown scene radiance, t(x) is a trans-

mission value, describing the portion of remaining

light when the reﬂected light from a scene surface

goes to the observer through the medium, and A is

a global atmospheric vector that is unknown as well.

The atmospheric vector A represents the color vector

orientation and intensity of airlight in the linearized

sRGB color space, and along with the interpolation

term (1 −t (x)), the right additive term in Equation (1)

deﬁnes the intensity of airlight at the pixel x. Ad-

ditionally, the atmospheric vector is independent of

scene locations, i.e., the atmospheric light is globally

constant.

The number of scattering is closely related to the

distance that light travels, i.e., the longer light trav-

els, the more scattering occurs. Therefore, the trans-

mission decays as light travels. Suppose that haze is

homogeneous; this phenomenon then can be written

as follows: t (x) = e

−βd(x)

, where β is a scattering co-

efﬁcient of the atmosphere (Narasimhan and Nayar,

I(x) is linearized by applying a power function with an

exponent of the display gamma to an sRGB value: I(x) =

(x)}

, where I

(x) is a non-linear RGB value, and γ is

a display gamma (e.g., γ = 2.2 for the standard sRGB dis-

play).

Dehazing using Non-local Regularization with Iso-depth Neighbor-Fields

2003) that controls the amount of scattering, and d(x)

is the scene depth at the pixel x.

The goal of haze removal is to estimate transmis-

sion t and an atmospheric vector A so that scene radi-

ance J can be recovered from the transmission t and

the atmospheric vector A by the following:

J (x) =

I (x) − (1 − t (x))A

max(t (x) , ε)

where ε is a small value to prevent division by zero.

Haze Estimation. Since airlight is energy scattered

in air, airlight tends to be locally smooth in a scene,

i.e., local airlight remains constant in a similar depth.

In contrast, the original radiance in a scene tend to

vary signiﬁcantly, naturally showing a variety of col-

ors. When we isolate the scene radiance into a small

patch in an image, the variation of scene radiances

within a patch tends to decrease signiﬁcantly to form

a cluster with a similar color vector, assuming that

the real world scene is a set of small planar surfaces

of different colors. Then, one can estimate a transmis-

sion value with certain natural image statistics within

a patch based on the local smoothness assumption on

scene depths.

Following this perspective of the traditional ap-

proach (Fattal, 2008), we also deﬁne a linear sub-

space that presents local color pixels in the color

space. A linear subspace in each patch comprises

two bases: a scene radiance vector J(x) at the cen-

ter pixel x and a global atmospheric vector A. In this

space, a scene depth is piecewise smooth, and the lo-

cal pixels share the same atmospheric vector. Now

we can formulate dehazing as ﬁnding these two un-

known basis vectors, approximating the transmission

value t(x) that is piecewise smooth due to the local

smoothness of a scene depth. Figure 2 depicts the es-

timation process for an overview.

Atmospheric Vector Estimation. Airlight is a

phenomenon that acts like a light source, which is

caused by scattering of participating media in the at-

mosphere (Narasimhan and Nayar, 2002). The atmo-

spheric vector represents the airlight radiance at the

inﬁnite distance in a scene, i.e., the color information

of airlight itself. Therefore, the atmospheric vector

does not include any scene radiance information, and

it only contains the airlight component. The region

full of airlight is the most opaque area in a hazy im-

age. We follow a seminal method of airlight estima-

tion (He et al., 2009). The atmospheric vector A is

estimated by picking up the pixels that have the top

0.1% brightest dark channel pixels and then choosing

the pixel among them that has the highest intensity in

the input image. However, if there are saturated re-

gions such as sunlight or headlights, maximum ﬁlter-

(a)

J (x)

()Ix

()I W

(Ω)

(b)

Transmission estimation

by marginalization

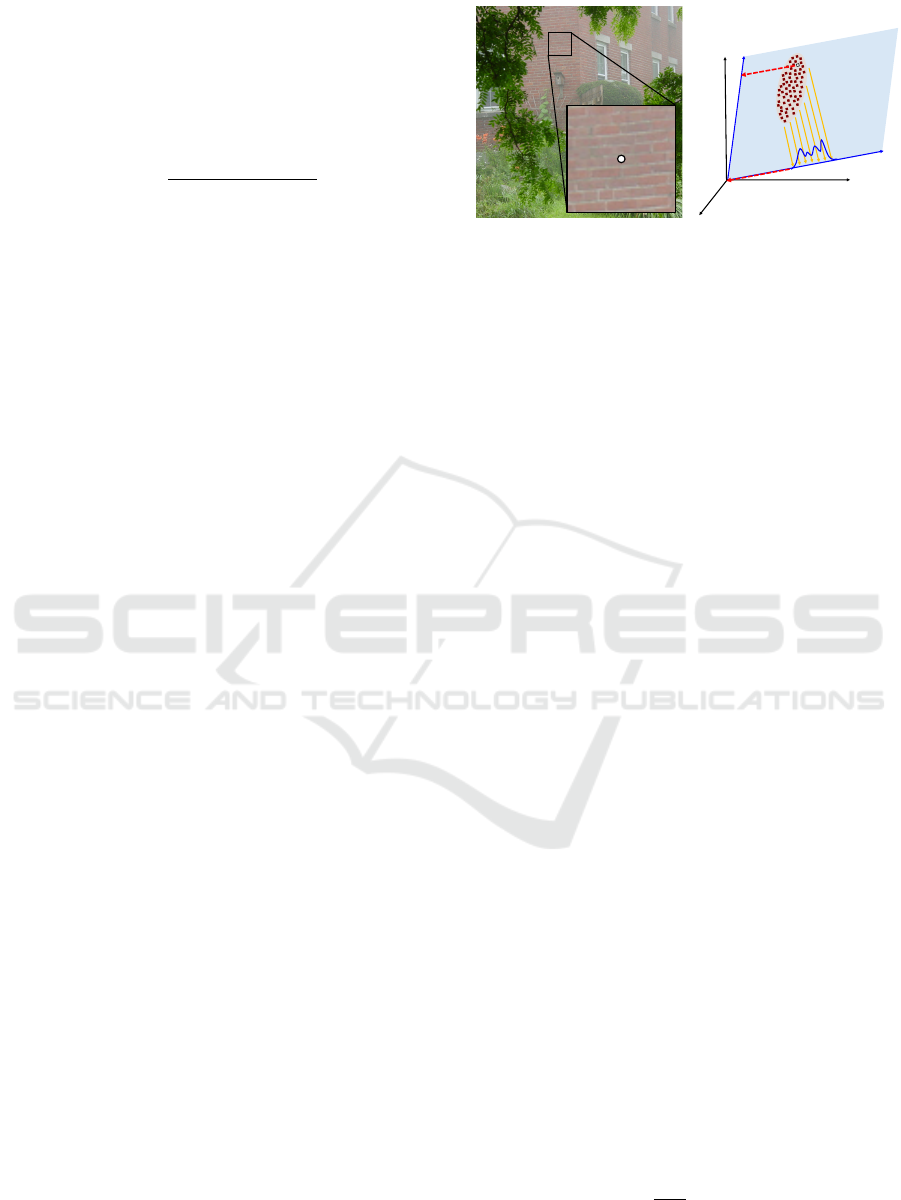

Figure 2: (a) Extracting a patch from a hazy image. I(Ω)

is a set of linearized color pixels in the patch Ω that has a

center pixel of x. The white dot indicates a center pixel x.

(b) We initially estimate the amount of haze using linear

subspaces (Narasimhan and Nayar, 2002; Fattal, 2008). A is

an atmospheric vector of the image (a), I (x) is the linearized

center pixel x depicted as the white dot, and J (x) is the

scene radiance vector of the pixel I (x). The pixel I (x) is

a linear interpolation of the vector A and J (x), and hence

lies on the linear subspace [the blue plane in (b)] spanned

by those two vectors. The red dots describe pixels extracted

from I (Ω). The pixels are projected onto vector A to obtain

a marginal distribution with respect to A. The red arrow

from the cluster denotes the amount of airlight that is deter-

mined from the minimum value of the marginal distribution.

ing of the dark channel could be incorrect since those

regions might have the highest (saturated) dark chan-

nel. Also, we assume that the most opaque region is

the most brightest within an image, and we therefore

discard the pixels that are within aforementioned sat-

urated regions. We then select the 0.1% pixels among

the rest as He et al.’s method does, so that we can

estimate the atmospheric vector consistently. We sub-

sequently average the chosen pixels to reject noise.

Transmission Estimation. We ﬁrst assume that

transmission is piecewise smooth. In Equation (1),

the portion of haze at a pixel x is determined by the

term (1 − t (x)) that indicates the amount of haze to

be removed. We determine the amount of a haze sig-

nal from given color signals within a patch. Suppose

the given color signals in each patch are linear com-

binations of two unknown bases, J and A, that form

a linear subspace. If we project the given pixels onto

the atmospheric vector A, we can estimate the contri-

bution of the haze signal mixed into the input signals

in the patch.

Supposing I

(Ω) is a set of scalar projections of

color vectors I(Ω) onto an atmospheric vector A in

a patch Ω (Figure 2), where the pixel x is located at

the center, then it can be written as following (Fattal,

2008):

(Ω) = I (Ω) ·

, I

(Ω) ∈ R

1×

Ω

We assume the airlight within a patch to be constant

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

while the scene radiance might vary. In order to focus

only on the airlight component, it is necessary to ob-

tain a marginal distribution of the surrounding pixels

with respect to the basis vector A, as shown in Fig-

ure 2(b).

The marginal distribution I

(Ω) describes the his-

togram of airlight components within a patch. This

distribution would have had a very low minimum

value if it had not been inﬂuenced by piecewise con-

stant airlight. However, if we take the minimum pro-

jected value, there could be a large chance to take

an outlying value as the minimum. We use the i-th

percentile value from the projected pixel distribution

to reject outliers effectively to achieve robust perfor-

mance:

min

(Ω) = P

k∈Ω

(k)) , I

min

(Ω) ∈ R

where P

represents an i-th percentile value (i = 2).

The minimum percentile scalar projection onto an

atmospheric vector corresponds to the amount of haze

of a pixel from its patch, and thus the minimum pro-

jection corresponds to the haze component part in

Equation (1), which is (1 − t (x)) ← I

min

(Ω).

Additionally, projection onto the atmospheric vec-

tor requires two bases (a pixel and an atmospheric

vectors) to be orthogonal. However, pixels within

a patch are not necessarily orthogonal to the atmo-

spheric vector, so projection needs to be compensated

for non-orthogonality. If a color vector has a small

angle with its atmospheric vector, then its projection

will have a larger value due to the correlation between

the two vectors. We attenuate I

min

by a function with

respect to the angle between a pixel vector and an at-

mospheric vector that is given by

t (x) = 1 − f





· I

min

(Ω),

where θ is a normalized angle between a pixel vector

and an atmospheric vector within [0,1]. The attenua-

tion function f () is given by





−k

− e

−k

1 − e

−k

, (2)

where the function has a value of [0,1] in the range

θ. In this work, we set k = 1.5 for all cases. This

function compensates transmission values by atten-

uating the value I

min

since the function has a value

close to 1 if

θ has a small value. See Figure 3(c).

The size of a patch is crucial in our method. If

the size is too small, then the marginal distribution

does not contain rich data from the patch, resulting in

unreliable estimation such as clamping. On the con-

trary, an excessively large patch might include pix-

els in different scene depth and our estimation stage

( )

0.0

0.5

1.0

0.5

1.0

(a) Hazy input (b) Linear subspaces (c) Attenuation function

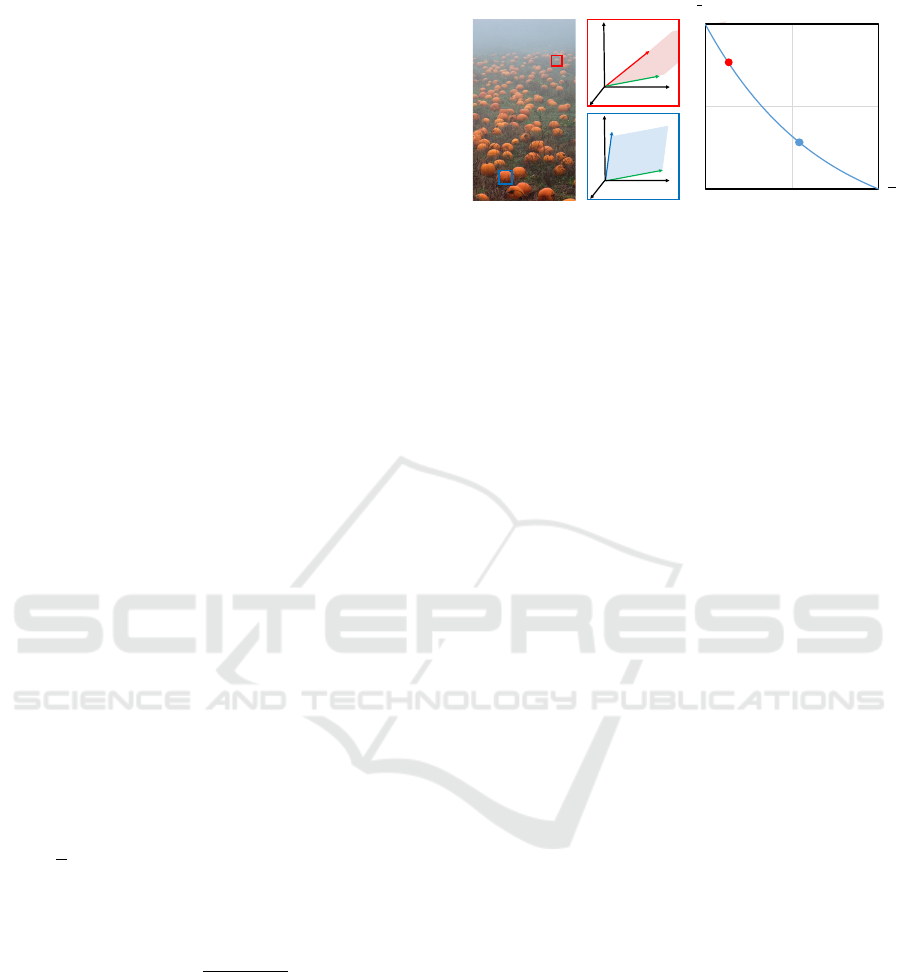

Figure 3: (a) A hazy input image. (b) Each single pixel

from the red and blue boxes is plotted in the RGB space

along with the atmospheric vector A. J

and J

in each plot

correspond to the two pixels extracted. (c) The attenuation

function deﬁned as Equation (2) is plotted as above. The

red and blue dots indicate the amount of attenuations of the

red and blue patches. This plot shows that the amount of

attenuation increases as an angle between a color vector and

an atmospheric vector decreases.

takes the minimum value in the marginal distribution,

and hence the transmission estimate will be overes-

timated. In our implementation, we use patches of

15-by-15 pixels and it showed consistent results re-

gardless of the size of an image.

Removing Outliers. While our transmission esti-

mation yields reliable transmission estimates in most

cases, however, there are a small number of cases that

does not obey our assumption. We take them as out-

liers and mark them as invalid transmission values,

and then interpolate them in the regularization stage

(see Section 4).

Distant regions in an image such as sky, and ob-

jects whose color is grayish have a similar color of

haze. In the RGB color space, the angle between an

atmospheric vector and the color vector of a pixel in

those regions is very narrow and the image pixel’s lu-

minance is quite high. In this case, unreliable esti-

mation is inevitable since there is a large ambiguity

between the color of haze and scene radiance. As

a result, unless we do not reject those regions, the

transmission estimate will be so small that those re-

gions will become very dim in turn. For this rea-

son, we discard the transmission estimates, where the

angle between an image pixel and an atmospheric

vector is less than 0.2 radian, the pixel’s luminance

∗

) is larger than 60 in the CIELAB space, and the

estimated transmission value is lower than a certain

threshold: 0.4 for scenes having a large portion of dis-

tant regions and 0.1 for others.

When estimating an atmospheric light, we as-

sumed that the most opaque region in an image is the

brightest area of the whole scene. However, pixels

brighter than the atmospheric light can exist due to

very bright objects such as direct sunlight, white ob-

jects, and lamps in a scene. Those pixels do not obey

our assumption above, and hence this leads to wrong

Dehazing using Non-local Regularization with Iso-depth Neighbor-Fields

transmission estimation. Therefore, we discard pixels

whose luminance is larger than the luminance of the

atmospheric light.

4 NON-LOCAL

REGULARIZATION USING

ISO-DEPTH NEIGHBOR

FIELDS

Once we calculate the initial estimates of transmission

for every pixel, we ﬁlter out invalid transmission val-

ues obtained from extreme conditions. The transmis-

sion estimation and outlier detection stages might of-

ten yield incomplete results with blocky artifacts. We

therefore need to regularize valid transmission values

in the image.

MRF Model. As we mentioned above, the transmis-

sion is locally smooth. Therefore, in order to obtain

a complete transmission map having sharp-edge dis-

continuities, we need to regularize the incompletely

estimated transmission map using Markov random

ﬁelds (MRFs). The probability distribution of one

node in an MRF is given by

p(t (x)

t (x)) = φ (t (x) ,

t (x))ψ(t (x),t (y)), (3)

where t (x) is a latent transmission variable at a

pixel x,

t (x) is an initially estimated transmission

value (see Section 3), φ() is a data term of the like-

lihood between t(x) and

t(x), and ψ is a smoothness

prior of latent transmission t(x) against neighboring

transmission t(y) within a patch Ω, y ∈ Ω. While the

data term φ() describes the ﬁdelity of observations by

imposing a penalty function between the latent vari-

able and the observed value, the smoothness term ψ()

enforces smoothness by penalizing the errors between

one latent variable and its neighboring variables.

The data term φ() is given by

φ(t (x),

t (x)) = exp

−

(t (x) −

t (x))

(Ω)

where σ

(Ω) is the variance of observation values

within a patch Ω that has the center at a pixel x. See

Figure 4. The data term models error between a vari-

able and observation with in-patch observation vari-

ance noise via a Gaussian distribution. The in-patch

variance of observation values implies that the greater

the variance of in-patch observation is, the more un-

certain the observation values are, resulting in giving

less inﬂuence from the data term on the distribution.

The smoothness term Ψ() is written as

ψ(t (x),t (y)) =

∏

y∈N

exp

−

(t (x) − t (y))

I (x) − I (y)

where I () is a linearized pixel intensity of an image,

and pixel y is in a set of neighbors N

of pixel x. The

smoothness term encourages smoothness among one

variable and its neighboring variables by penalizing

pairwise distances between them, where the distribu-

tion of the distances follows a Gaussian distribution.

If (t (x) −t (y))

is large, then it indicates that the dis-

tance between t (x) and its neighbor t (y) is large, and

hence the cost from the regularization term will also

become large, which enforces strong smoothness be-

tween them.

I (x) − I (y)

in the denominator of the

prior term controls the amount of smoothness by ex-

ploiting information from an input image. This prop-

erty implies that if two image pixels are similar, then

their transmission values are likely to be similar as

well. On the contrary, it gives sharp-edge discontinu-

ity in transmission values along edges since the value

of the denominator becomes large when the difference

between two pixels is large.

In fact, the probability distribution of an MRF

over the latent variable t is modeled via a Gaus-

sian distribution. In this case, the MRF is formal-

ized by using a Gauss-Markov random ﬁeld (GMRF),

which can be solved by not only using computation-

ally costly solvers, but also by a fast linear system

solver (Marroqu

ın et al., 2001; Fattal, 2008).

Finally, we formulate a cost function by taking

the negative log of the posterior distribution [Equa-

tion (3)] following (Fattal, 2008; Fattal, 2014), which

is written by

E (t) =

∑

(

(t (x) −

t (x))

(Ω)

∑

y∈N

(t (x) −t (y))

I (x) − I (y)

)

The regularization process is done by minimizing

the cost function, which is solved by differentiating

the function with respect to t and setting it to be zero.

Iso-depth Neighbor Fields. In conventional grid

MRFs, a prior term (smoothness term in this text) as-

sociates adjacent four pixels as neighbors for regular-

ization. However, pixels in a patch lying on an edge

may be isolated when the scene surface has a com-

plicated shape. In Figure 4(a), the leaves in the left

side of the image have a complicated pattern of edges,

and the bricks lie behind the leaves. If we model a

grid MRF on the image, then pixels on the tip of the

leaves will be isolated by the surrounding brick pix-

els. In this case, smoothness of the leaf pixels will

be imposed mostly by the brick pixels, where there

is a large depth discontinuity between them. In other

words, a large scene depth discrepancy exists in the

patch, and thus if some pixels lying on the edge are

only connected to their adjacent neighbors, the prior

term will enforce wrong smoothness due to the large

depth discrepancy. As a result, those regions will be

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

(a) (b)

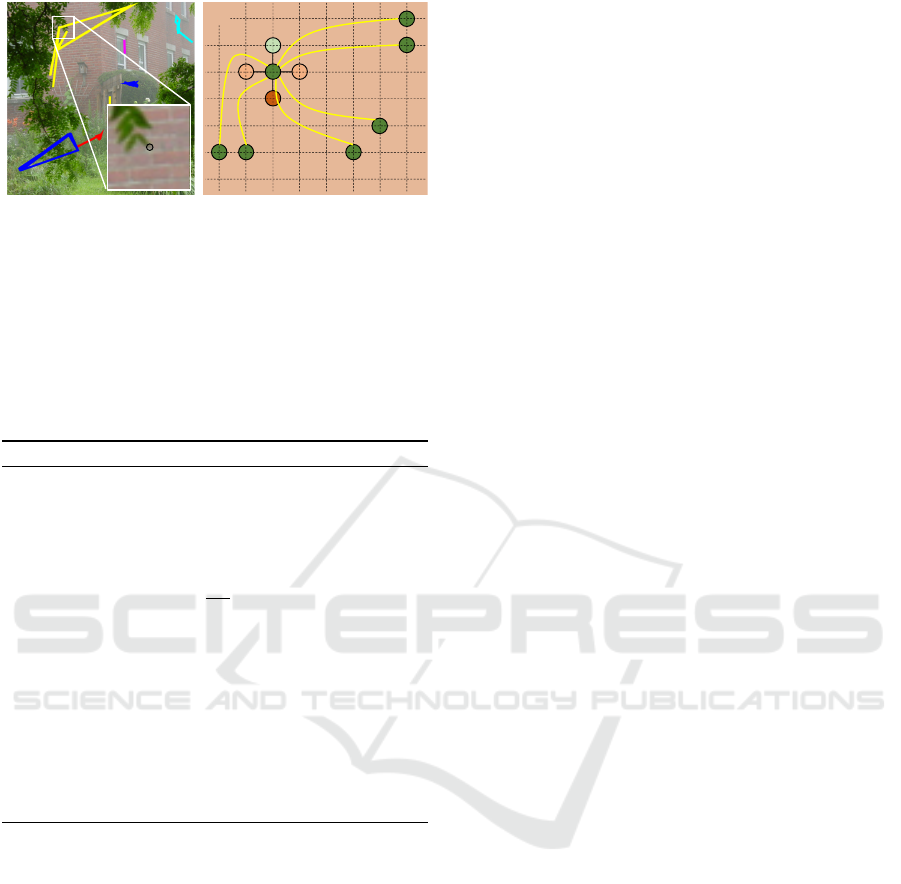

Figure 4: (a) The picture shows some sampled NNFs that

associate pixels having similar scene depths. The line with

the same color denotes association of pixels in the same

NNF. (b) An MRF model of the node x from the patch in (a)

associated with adjacent four neighbors and distant neigh-

bors in the NNF. Since the node x is located in the end point

of the leaf, its adjacent pixels have very different transmis-

sion values due to a large depth discontinuity. As (a) shows,

the neighbors connected with the same NNF have very sim-

ilar scene depths, and hence they give a more accurate reg-

ularization cue than the adjacent neighbors do.

Algorithm 1: Dehazing via Non-Local Regularization.

Require: an image I

Ensure: a result image J and a transmission map t

A ← ATMOSPHERICVECTORESTIMATE(I)

{

}

← INVERSEGAMMACORRECT(





)

3: for pixels x = 1 to n do

4: I

(Ω) ← I

(Ω) ·

5: I

min

(Ω) ← P

k∈Ω

(k))

6: t

(x) ← 1 − f





· I

min

(Ω)

t (x) ← OUTLIERREJECT(t

(x), A, I

(x))

8: end for

9: NNF ← PATCHMATCH(I)

10: t ← REGULARIZE(NNF,

t,I)

11: J

← (I − (1 −t)A)/t

12: J ← GAMMACORRECT(J

)

overly smoothed out due to the wrong connection of

neighbors.

While Besse et al. use the PatchMatch algo-

rithm (Barnes et al., 2009) to rapidly solve non-

parametric belief propagation (Besse et al., 2014),

we investigate neighbors extracted from a nearest-

neighbor ﬁeld (NNF) using the PatchMatch algorithm

and found that the NNF associates pixels at simi-

lar scene depths. This insightful information gives a

more reliable regularization penalty since the neigh-

boring nodes in the NNF are likely to have similar

transmission estimates. Thus, we add more neighbors

belonging to the same NNF to the smoothness term

and perform statistical inference on the MRF along

with them. We note that these long-range connections

in regularization are desirable in many image process-

ing applications, addressed by other works (Fattal,

2014; Li and Huttenlocher, 2008). After regulariza-

tion, we use the weighted median ﬁlter (Zhang et al.,

2014) to reﬁne the transmission map. Algorithm 1

summarizes our dehazing algorithm as an overview.

5 RESULTS

We implemented our algorithm in a non-optimized

MATLAB environment except the external Patch-

Match algorithm (Barnes et al., 2009), and processed

it on a desktop computer with Intel 4.0 GHz i7-

4790K CPU and 32 GB memory. For the case of the

house image of resolution 450 × 440 shown in Fig-

ure 1(b), our algorithm took 6.44 seconds for running

the PatchMatch algorithm to seek 17 neighbors, 8.32

seconds to estimate an atmospheric vector, transmis-

sion values and rejecting outliers, 43.43 seconds for

our regularization stage, and 0.65 seconds for running

the weighted median ﬁlter and recovering the scene

radiance, taking approximately 58.84 seconds in to-

tal. We evaluated our algorithm with a large number

of outdoor hazy images obtained from (Fattal, 2014)

to prove robustness, and we also present comparisons

with state-of-the-art dehazing methods. Refer to the

supplemental materials for more results.

Regularization. We compare results of our method

with those of state-of-the-art methods in terms of reg-

ularization. Berman et al. regularize initial transmis-

sion estimates with a grid GMRF as shown in third

and fourth columns in Figure 5 (Berman et al., 2016).

Due to the lack of non-local information in regular-

ization, certain regions suffer from the haze isolation

problem as mentioned above. Other than using a grid

MRF, Fattal takes an augmented GMRF model for

regularization, which extends neighbor ﬁelds within

a local window (Fattal, 2014). However, it does not

connect more neighbors for all pixels due to time

complexity. As a result, certain regions are not fully

recovered from the haze isolation problem. Figure 5

validates that our method successfully removes haze

even from a scene having abrupt depth changes with

complicated patterns.

Figure 6 shows the intermediate stages in our reg-

ularization process of transmission (d) – (g), along

with our result of the house scene (c). We start our

regularization from Figure 6(d) that has outliers [rep-

resented as black pixels in Figure 6(d)]. In par-

ticular, Figures 6(e) and (f) compare the impact of

NNFs in the MRF regularization. When we reg-

ularize the initial estimate with only GMRFs, cer-

tain regions with complex scene structures are over-

smoothed due to the wrong smoothness penalty as

Figure 6(e) shows. We account for additional neigh-

Dehazing using Non-local Regularization with Iso-depth Neighbor-Fields

Fattal14 ours

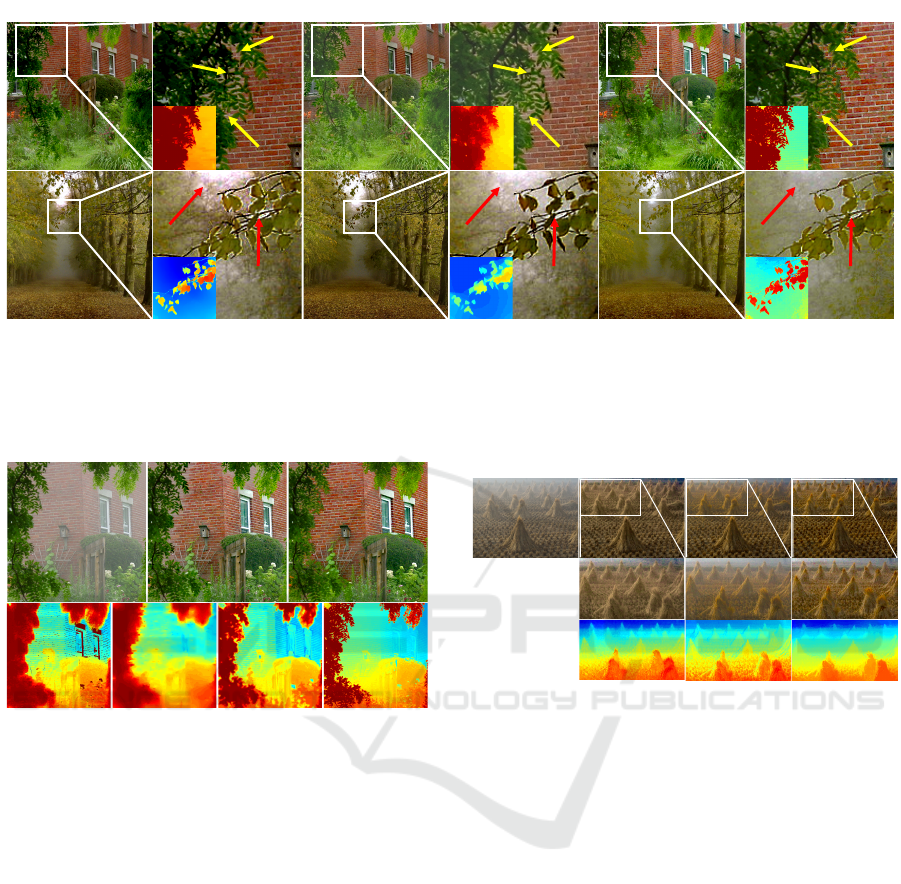

Berman et al.close-up

close-up

Figure 5: Comparisons of dehazing in terms of regularization. The four columns from left are results from other two meth-

ods: (Fattal, 2014) using augmented GMRFs and (Berman et al., 2016) using traditional GMRFs, and the last ﬁfth and sixth

columns are our results (Insets: corresponding transmission maps). While other methods often fail to obtain sharp edge-

discontinuities in the images, our method yields clear recovered scene radiance maps as shown above. Notable regions are

pointed with arrows.

(a) (b)

(c)

(d) (e) (f) (g)

Figure 6: We present an example before and after applying

our dehazing and regularization method. (a) The hazy in-

put image. (b) The recovered scene radiance map with the

transmission map regularized by grid MRFs (e). (c) The

recovered scene radiance map with the ﬁnal transmission

map (g). Images (d) – (g) compare transmission maps to

show the inﬂuence of using iso-depth NNFs. All regular-

izations are done using GMRFs. (d) The initial transmis-

sion estimates including discarded pixels (the black pix-

els). (e) The regularized transmission map without NNFs.

(f) The regularized transmission map with NNFs. (g) The

ﬁnal reﬁned map of (f) using the weighted median ﬁlter.

bors from NNFs to obtain a clearer transmission map

shown in Figure 6(f). Figure 6(g) shows the ﬁnal

transmission map that we reﬁne with a weighted me-

dian ﬁlter (Zhang et al., 2014).

We also compare our regularization method with

representative matting methods: the matting Lapla-

cian method (Levin et al., 2008) and the guided ﬁl-

ter method (He et al., 2013) in Figure 7. While we

use the guide image as just a guide to smooth and en-

force sharp gradient along edges on transmission es-

timates, both methods are based on the assumption

that an output and an input guidance form a linear

original guided filter

matting Laplacian

ours

dehazed

(close-up)

transmission

(close-up)

Figure 7: We compare our regularization with other meth-

ods. The leftmost one is the original image of cones. The

ﬁrst row shows dehazed results with our transmission esti-

mation step and each regularization method written at the

lower right. We cropped the dehazed images in the ﬁrst row

to highlight the inﬂuence of regularization methods in the

second row. The third row presents a sequence of cropped

transmission maps in the same manner as the second row.

relationship. As described in Section 3, scene radi-

ance varies largely while transmission does the oppo-

site. Consequently, the two methods follow the be-

havior of the scene radiance, which results in distort-

ing the given estimates. As a result, our regulariza-

tion method yields an accurate transmission map with

clear-edge discontinuities while the others overesti-

mate the transmission estimates in turn.

Qualitative Comparison. Figure 8 qualitatively

validates the robust performance in dehazing the com-

mon reference dataset of hazy scenes (Fattal, 2014).

We compare the performance of our dehazing algo-

rithm with three state-of-the-art methods (He et al.,

2009; Fattal, 2014; Berman et al., 2016). We were

motivated to achieve consistent performance of de-

hazing with less parameter controls like other im-

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

He et al.

Fat t al14

ours

Berman et al.

houseforestny17train

cones

snow

castle

input

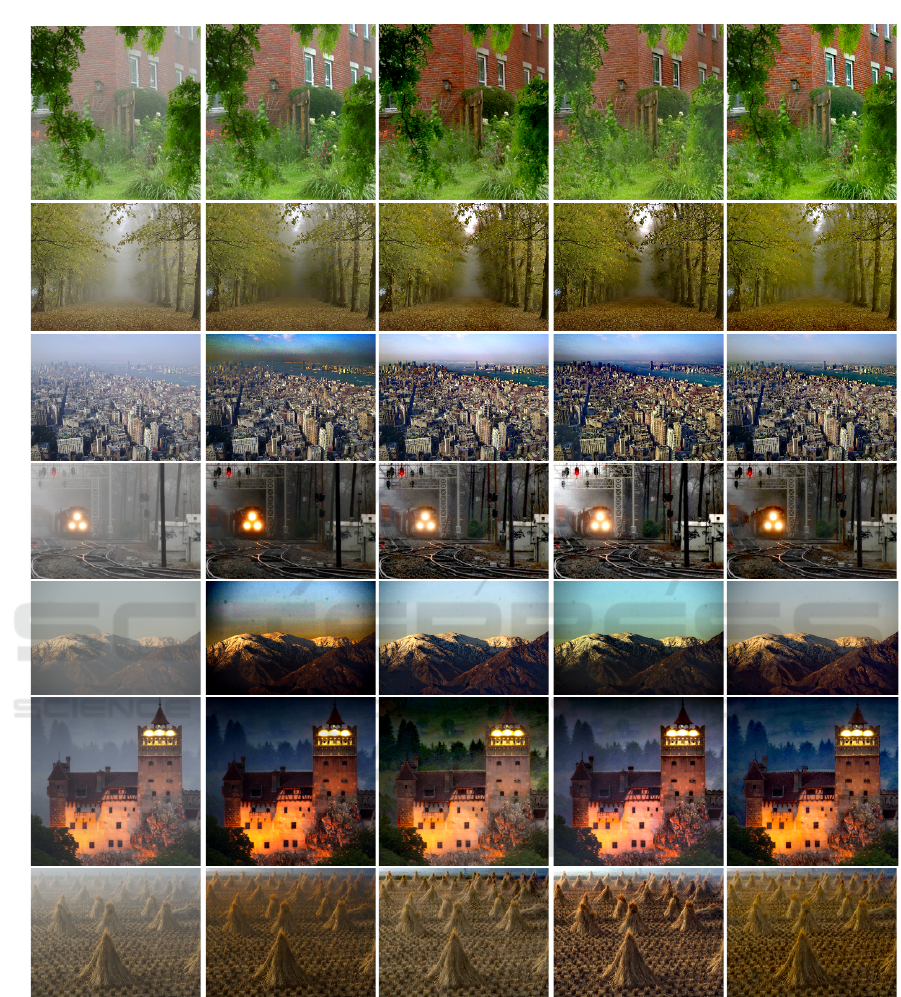

Figure 8: Validation of consistency of dehazing. The ﬁrst column shows input images. The second, third, and fourth columns

are results from (He et al., 2009; Fattal, 2014; Berman et al., 2016), respectively. The ﬁfth column presents our method’s

results. We use the set of parameters as described in Section 3. For the images in the third and ﬁfth rows, we only set

the threshold of lower bound transmission to 0.4 and the others to 0.1 for removing narrow angle outliers. Our method is

competitive to other method (Fattal, 2014) that requires with manual tweaking parameters to achieve plausible results. Refer

to the supplemental material for more results.

age processing algorithms (Kim and Kautz, 2008;

Kim and Kautz, 2009). Figure 8 shows results us-

ing the single set of parameters as described in Sec-

tion 3. Our method shows competitive results to other

method (Fattal, 2014) that requires manual tweaking

parameters per scene to achieve plausible results. For

close-up images of the results, refer to the supplemen-

tal material.

Time Performance. Table 1 compare the compu-

tational performance of our method with traditional

Dehazing using Non-local Regularization with Iso-depth Neighbor-Fields

Table 1: Comparison of time performance of dehazing with the traditional grid GMRFs and our GMRFs with iso-depth NNFs

(unit: second). Refer to Figure 8 for processed images. The third row shows computational costs of only seeking NNFs with

17 neighbors using PatchMatch (Barnes et al., 2009) in our method.

Dehazing house forest ny17 train snow castle cones average

with grid GMRFs 6.43 26.55 27.51 7.74 18.88 12.84 6.41 15.19

with NNF-GMRFs 58.84 305.48 305.06 73.06 191.76 129.18 61.12 160.64

(for computing NNFs only) (6.44) (31.82) (28.48) (7.15) (18.54) (11.01) (7.31) (15.82)

Table 2: Quantitative comparisons of our method with other methods (He et al., 2009; Fattal, 2014; Berman et al., 2016).

The error values are computed from the entire synthetic hazy image dataset provided by (Fattal, 2014). All ﬁgures represent

mean L

error of the estimated transmission t (left value) and output image J (right value). Red ﬁgures indicate the best

results, and blue for the second best. For a fair comparison, parameters for each method, such as display gamma for sRGB

linearization and the airlight vector, were optimized for the highest performance.

(He et al., 2009) (Fattal, 2014) (Berman et al., 2016) ours

church 0.0711/0.1765 0.1144/0.1726 0.1152/0.2100 0.1901/0.1854

couch 0.0631/0.1146 0.0895/0.1596 0.0512/0.1249 0.0942/0.1463

ﬂower1 0.1639/0.2334 0.0472/0.0562 0.0607/0.1309 0.0626/0.0967

ﬂower2 0.1808/0.2387 0.0418/0.0452 0.1154/0.1413 0.0570/0.0839

lawn1 0.1003/0.1636 0.0803/0.1189 0.0340/0.1289 0.0604/0.1052

lawn2 0.1111/0.1715 0.0851/0.1168 0.0431/0.1378 0.0618/0.1054

mansion 0.0616/0.1005 0.0457/0.0719 0.0825/0.1234 0.0614/0.0693

moebius 0.2079/0.3636 0.1460/0.2270 0.1525/0.2005 0.0823/0.1138

reindeer 0.1152/0.1821 0.0662/0.1005 0.0887/0.2549 0.1038/0.1459

road1 0.1127/0.1422 0.1028/0.0980 0.0582/0.1107 0.0676/0.0945

road2 0.1110/0.1615 0.1034/0.1317 0.0602/0.1602 0.0781/0.1206

average 0.1181/0.1862 0.0839/0.1180 0.0783/0.1567 0.0836/0.1152

lawn1

He et al. Fattal14 Berman et al. oursground truth

mansionmoebius

road1 lawn2

road2

hazy input

Figure 9: Dehazed results for the quantitative comparison shown in Table 2. The ﬁrst column shows synthetic hazy images

generated from the ground truth dataset (Fattal, 2014) in the second column with their corresponding depth maps. The

remaining columns are recovered scene radiance maps by each method. Our method yields consistent results compared with

other methods. Parameters for each method were optimized for the highest performance for a fair comparison.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

original

29×29

3×3

15×15

(a) (b)

(c)

(d)

Figure 10: Comparisons to show the inﬂuence of a patch

size in estimating transmission. (a) The original canon im-

age. (b) The dehazed image with a patch size of 3×3 where

severe color clamping happens. (c) The dehazed image with

a patch size of 15×15, which is our choice for all results. (d)

The dehazed image with a patch size of 29×29 in which the

airlight in distant regions is underestimated.

grid GMRFs and our iso-depth GMRFs using images

shown in Figure 8. We also shows computational

costs of obtaining only NNFs with 17 neighbors using

PatchMatch (Barnes et al., 2009) in the third row. De-

hazing with iso-depth NNF-GMRFs takes 10.58 times

more time; however, iso-depth NNFs give richer in-

formation in regularization, resulting in more exact

scene radiance recovery.

Quantitative Comparison. We compare our

method with the entire synthetic hazy image dataset

provided by (Fattal, 2014). The synthetic hazy images

were generated by datasets that contain clear indoor

and outdoor scenes, and their corresponding depth

maps. Table 2 reports the quantitative comparison of

our method with other methods (He et al., 2009; Fat-

tal, 2014; Berman et al., 2016). We also show the

dehazed images used for the quantitative comparison

in Figure 9. Our method shows competitive and con-

sistent results particularly in dehazed images.

Impact of Patch Size. Figure 10 shows the results

of dehazing under varying patch sizes. Image (a) is an

input image of canon, the size of which is 600 × 524.

Image (b) is severely over-saturated since the size of

patches is so small that each patch cannot contain

rich information of scene structures, i.e., the patch

failed to reject the inﬂuence of highly-varying nature

of scene radiance. On the other hand, as shown in

image (d), its airlight is underestimated since patches

are too large to hold the assumption that transmis-

sion is piecewise constant. This underestimation is

input

without rejection

with rejection

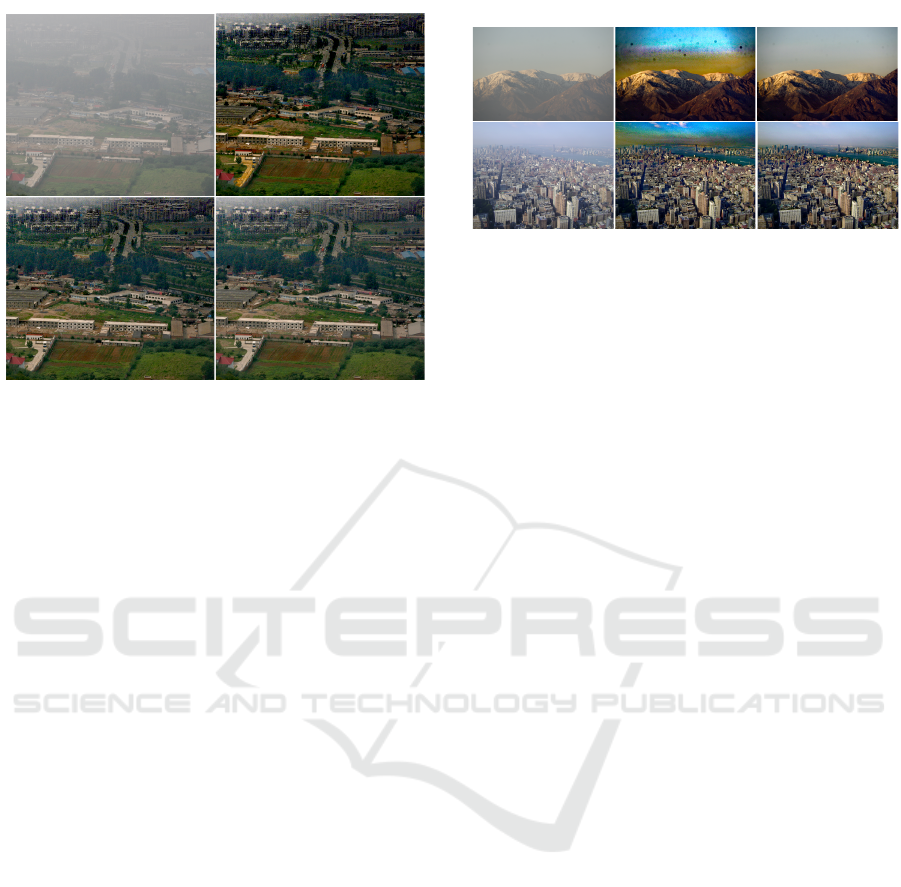

Figure 11: Validation of our narrow angle outlier rejection

method described in Section 3. In the second column, the

distant region represented as sky has an inﬁnite depth, and

hence our transmission estimation stage estimates its trans-

mission as being close to zero, which yields overly saturated

results. We obtained consistent results by our outlier rejec-

tion stage, as shown in the third column.

exacerbated in distant regions where their scene depth

changes rapidly. In our experiment, we found that the

patch size of 15×15 works properly for most scenes,

and therefore we take the same patch size for all re-

sults in this paper.

Outlier Removal. We validate our outlier-rejection

process. Figure 11 shows the regions in inﬁnite scene

depths occupy a large portion of the image that is full

of airlight in the two input images. In these regions,

there is a large ambiguity between airlight and scene

radiance, and hence our method fails to produce a nat-

urally looking result as the second column shows. Af-

ter we discard outliers having a narrow angle between

the atmospheric vector and the input color pixel, we

could obtain high-quality scene radiance maps in the

third column.

6 CONCLUSION

We have presented a dehazing algorithm using non-

local regularization with iso-depth neighbor ﬁelds.

Even though regularization is an essential process

in dehazing, traditional GMRF-based regularization

methods often fail with isolation artifacts when there

is an abrupt change in depth, of which information

is missing in single-image dehazing. We propose

a novel non-local regularization method that utilizes

NNFs searched in a hazy image to infer depth cues

to obtain more reliable smoothness penalty for han-

dling the isolation problem in dehazing. We validated

the robust performance of our method with extensive

test images and compared it with the state-of-the-art

single image-based methods. This proposed regular-

ization method can be used separately with any other

dehazing algorithms to enhance haze regularization.

Dehazing using Non-local Regularization with Iso-depth Neighbor-Fields

ACKNOWLEDGMENTS

Min H. Kim, the corresponding author, gratefully ac-

knowledges Korea NRF grants (2016R1A2B2013031

and 2013M3A6A6073718) and additional support by

an ICT R&D program of MSIP/IITP (B0101-16-

1280). We also would like to appreciate Seung-Hwan

Baek’s helpful comments.

REFERENCES

Ancuti, C. O. and Ancuti, C. (2013). Single image dehazing

by multi-scale fusion. IEEE Trans. Image Processing,

22(8):3271–3282.

Barnes, C., Shechtman, E., Finkelstein, A., and Goldman,

D. B. (2009). Patchmatch: a randomized correspon-

dence algorithm for structural image editing. ACM

Trans. Graph, 28(3):24:1–24:11.

Berman, D., Treibitz, T., and Avidan, S. (2016). Non-local

image dehazing. In IEEE CVPR, pages 1674–1682.

Besse, F., Rother, C., Fitzgibbon, A. W., and Kautz, J.

(2014). PMBP: Patchmatch belief propagation for

correspondence ﬁeld estimation. International Jour-

nal of Computer Vision, 110(1):2–13.

Carr, P. and Hartley, R. I. (2009). Improved single image

dehazing using geometry. In DICTA 2009, pages 103–

110.

Fattal, R. (2008). Single image dehazing. ACM Trans.

Graph., 27(3):72:1–72:9.

Fattal, R. (2014). Dehazing using color-lines. ACM Trans.

Graph., 34(1):13:1–13:14.

He, K., Sun, J., and Tang, X. (2013). Guided image ﬁltering.

IEEE Trans. Pattern Anal. Mach. Intell., 35(6):1397–

1409.

He, K. M., Sun, J., and Tang, X. (2009). Single image

haze removal using dark channel prior. In Proc. IEEE

CVPR, pages 1956–1963.

Kim, M. H. and Kautz, J. (2008). Consistent tone reproduc-

tion. In Proc. the IASTED International Conference

on Computer Graphics and Imaging (CGIM 2008),

pages 152–159, Innsbruck, Austria. IASTED/ACTA

Press.

Kim, M. H. and Kautz, J. (2009). Consistent scene illumi-

nation using a chromatic ﬂash. In Proc. Eurographics

Workshop on Computational Aesthetics (CAe2009),

pages 83–89, British Columbia, Canada. Eurograph-

ics.

Kopf, J., Neubert, B., Chen, B., Cohen, M. F., Cohen-

Or, D., Deussen, O., Uyttendaele, M., and Lischin-

ski, D. (2008). Deep photo: model-based photo-

graph enhancement and viewing. ACM Trans. Graph.,

27(5):116:1–116:10.

Levin, A., Lischinski, D., and Weiss, Y. (2008). A closed-

form solution to natural image matting. IEEE Trans.

Pattern Anal. Mach. Intell., 30(2):228–242.

Li, Y., Tan, R. T., and Brown, M. S. (2015). Nighttime haze

removal with glow and multiple light colors. In 2015

IEEE ICCV 2015, Santiago, Chile, December 7-13,

2015, pages 226–234.

Li, Y. P. and Huttenlocher, D. P. (2008). Sparse long-range

random ﬁeld and its application to image denoising.

In ECCV, pages III: 344–357.

Marroqu

ın, J. L., Velasco, F. A., Rivera, M., and Nakamura,

M. (2001). Gauss-markov measure ﬁeld models for

low-level vision. IEEE Trans. Pattern Anal. Mach.

Intell., 23(4):337–348.

Meng, G., Wang, Y., Duan, J., Xiang, S., and Pan, C.

(2013). Efﬁcient image dehazing with boundary con-

straint and contextual regularization. In Proc. IEEE

ICCV, pages 617–624.

Narasimhan, S. G. and Nayar, S. K. (2002). Vision and

the atmosphere. Int. Journal of Computer Vision,

48(3):233–254.

Narasimhan, S. G. and Nayar, S. K. (2003). Contrast

restoration of weather degraded images. IEEE Trans.

Pattern Anal. Mach. Intell, 25(6):713–724.

Nishino, K., Kratz, L., and Lombardi, S. (2012).

Bayesian defogging. Int. Journal of Computer Vision,

98(3):263–278.

Schechner, Y. Y., Narasimhan, S. G., and Nayar, S. K.

(2001). Instant dehazing of images using polarization.

In Proc. IEEE CVPR, pages I:325–332.

Tan, R. T. (2008). Visibility in bad weather from a single

image. In Proc. IEEE CVPR, pages 1–8.

Tang, K., Yang, J., and Wang, J. (2014). Investigating haze-

relevant features in a learning framework for image

dehazing. In Proc. IEEE CVPR, pages 2995–3002.

Tarel, J. and Hauti

ere, N. (2009). Fast visibility restoration

from a single color or gray level image. In Proc. IEEE

ICCV, pages 2201–2208.

Zhang, Q., Xu, L., and Jia, J. (2014). 100+ times faster

weighted median ﬁlter (WMF). In CVPR, pages

2830–2837. IEEE.

Zhu, Q., Mai, J., and Shao, L. (2015). A fast single image

haze removal algorithm using color attenuation prior.

IEEE Trans. Image Processing, 24(11):3522–3533.

VISAPP 2017 - International Conference on Computer Vision Theory and Applications
