Real-world Pill Segmentation based on Superpixel Merge

using Region Adjacency Graph

Sudhir Sornapudi

, R. Joe Stanley

, Jason Hagerty

1,2

and William V. Stoecker

Missouri University of Science and Technology, Department of Electrical and Computer Engineering, Rolla, MO, U.S.A.

Stoecker & Associates, Rolla, MO, U.S.A.

{ssbw5, stanleyj, jrh55c, wvs}@mst.edu

Keywords:

Segmentation, Clustering, Superpixels, Graph Theory, Region Adjacency Graph, Threshold Cut.

Abstract:

Misidentiﬁed or unidentiﬁed prescription pills are an increasing challenge for all caregivers, both families

and professionals. Errors in pill identiﬁcation may lead to serious or fatal adverse events. To respond to this

challenge, a fast and reliable automated pill identiﬁcation technique is needed. The ﬁrst and most critical

step in pill identiﬁcation is segmentation of the pill from the background. The goals of segmentation are to

eliminate both false detection of background area and false omission of pill area. Introduction of either type

of error can cause errors in color or shape analysis and can lead to pill misidentiﬁcation. The real-world

consumer images used in this research provide signiﬁcant segmentation challenges due to varied backgrounds

and lighting conditions. This paper proposes a color image segmentation algorithm by generating superpixels

using the Simple Linear Iterative Clustering (SLIC) algorithm and merging the superpixels by thresholding

the region adjacency graphs. Post-processing steps are given to result in accurate pill segmentation. The

segmentation accuracy is evaluated by comparing the consumer-quality pill image segmentation masks to the

high quality reference pill image masks.

1 INTRODUCTION

According to National Library of Medicine (NLM,

2016), unidentiﬁed and misidentiﬁed pills present a

challenge to patients, family members and health pro-

fessionals. Misidentiﬁed pills constitute a safety haz-

ard. In the US, nine out of 10 people over age 65 take

more than one prescription pill which may increase

the chance of pill misidentiﬁcation. This can lead to

adverse drug events (ADE). This situation calls for

automatic pill identiﬁcation, enabling anyone to eas-

ily verify whether a pill with different shape, imprint

or color is a generic equivalent to the drug he or she

was already taking. In an era of increasing polyphar-

macy and widespread use of 7-day pill dispensers,

rapid and accurate automatic pill identiﬁcation has

lifesaving potential.

During the last decade, the improvement in

computational power and digital camera technol-

ogy has facilitated advances in machine vision re-

search, yielding signiﬁcant progress in automa-

tion of medical and industrial computer vision sys-

tems. Automatic identiﬁcation of prescription drugs

is now an increasingly important biomedical re-

search topic. Large prescription drug databases are

now available to researchers. These databases in-

clude the National Library of Medicine (NLM) Pill-

box database (Pillbox, 2016), DailyMedPlus (Dai-

lymedplus, 2016), WebMD (WebMD, 2016), and

Drugs.com (Drugs.com, 2016). These resources pro-

vide various features of a pill, where users can man-

ually access information on pill size, color, shape,

and imprint, to allow pill identiﬁcation (Caban et al.,

2012). However, identiﬁcation by manual website ac-

cess is error prone and time-consuming. There is a

need for an automatic pill identiﬁcation system that is

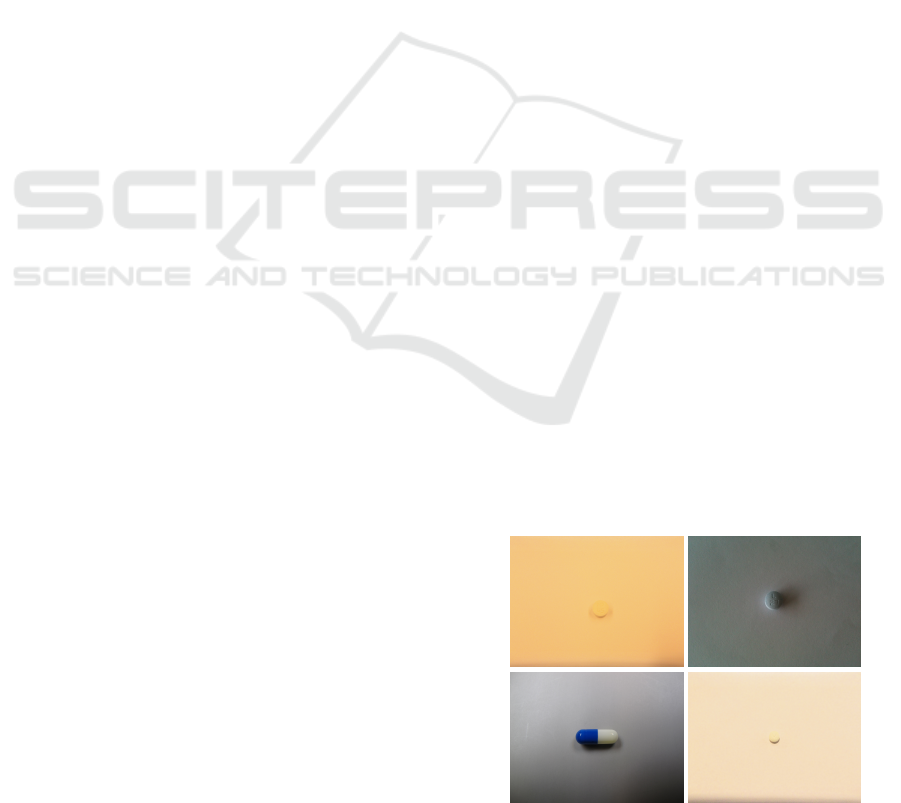

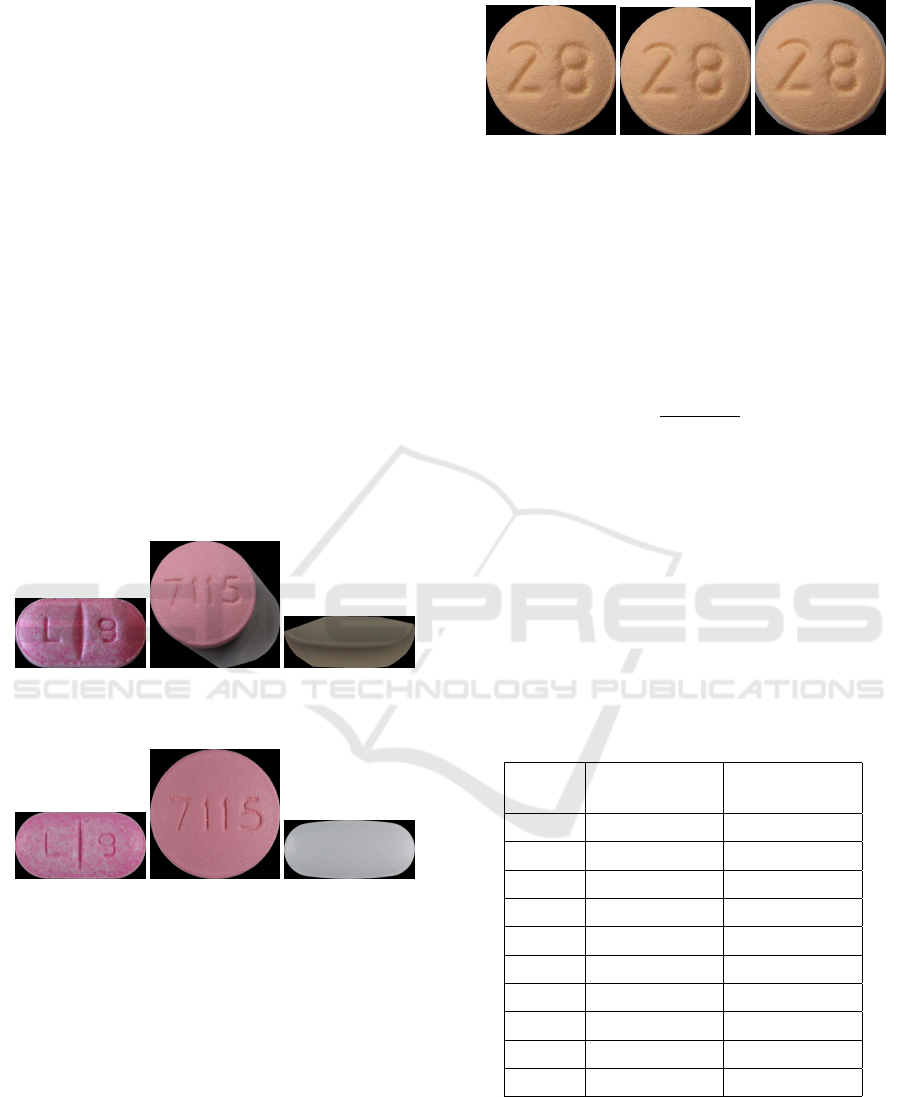

Figure 1: Consumer-quality pill images.

182

Sornapudi S., Joe Stanley R., Hagerty J. and V. Stoecker W.

Real-world Pill Segmentation based on Superpixel Merge using Region Adjacency Graph.

DOI: 10.5220/0006135801820187

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 182-187

ISBN: 978-989-758-225-7

fast, reliable and easy to use.

Segmentation is the ﬁrst and most critical step in

the pill identiﬁcation process. Segmentation isolates

the pill from background, enabling accurate analysis

of the pill features. The images in Figure 1 are typi-

cal of pill images used in this project. These are ex-

amples of consumer-quality images provided by the

NLM Pill Image Recognition Challenge 2016. Sim-

ple thresholding on the images in Figure 1 leads to

signiﬁcant segmentation errors, due to shadows and

uneven lighting. These challenges are not present in

the reference pill images shown in Figure 2.

The main objective of the NLM Pill Image Recog-

nition Challenge was to use computer vision algo-

rithms to rank lower-quality consumer images of pre-

scription pills after training with high quality refer-

ence images as shown in Figure 2. These freely avail-

able high quality digital images and associated data

(C3PI, 2016) were generated by NLM as part of the

Computational Photography Project for Pill Identiﬁ-

cation. Although this challenge provided progress to-

ward automatic pill identiﬁcation, there is as yet (Fall

2016) no reliable and accurate automatic pill identiﬁ-

cation technology available.

The Consumer-quality images as shown in Figure

1 have issues such as low illumination, noisy back-

ground and pill shadows, all of which pose great chal-

lenges in pill segmentation. When pill images include

noisy background, feature extraction algorithms can

determine false features. Hence, there is a need to de-

velop a segmentation algorithm to reduce these prob-

lems.

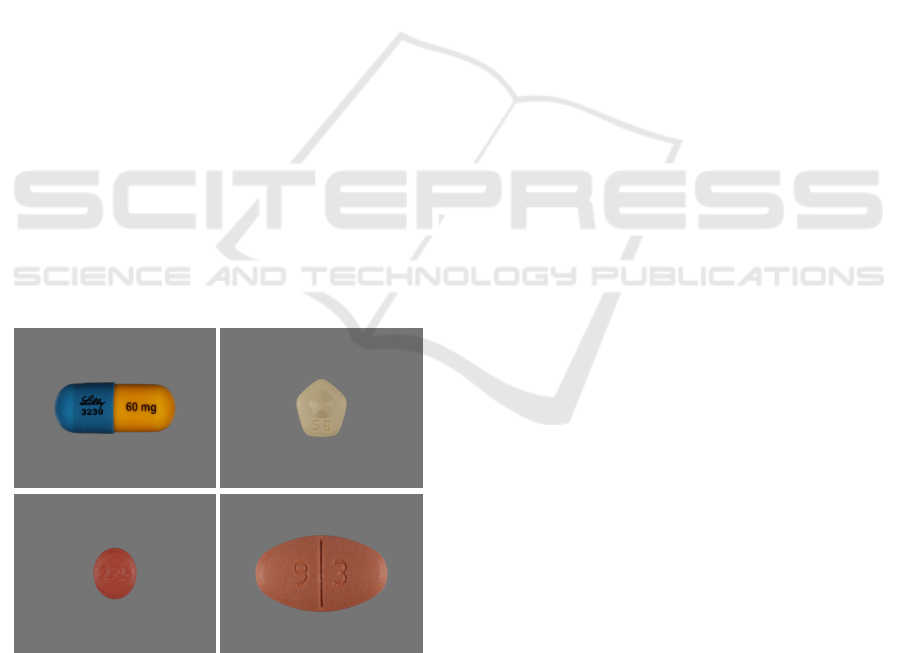

Figure 2: Reference pill images.

The proposed clustering segmentation algorithm

includes three important steps (Xu and Wunsch,

2005). Initially, pre-processing is done to over-

segment the pill images by obtaining superpixels

based on the modiﬁed k-means clustering algorithm.

Secondly, a region adjacency graph is obtained from

the over-segmented pill image to merge the regions

within a certain threshold. Finally, various post-

processing steps are applied to obtain the desired

mask.

The goal of this paper is to accurately segment

consumer-quality pill images captured using com-

monly available digital cameras and smartphones. Af-

ter successful segmentation of the pill, in future work,

features like shape, imp- print and color will be ex-

tracted. These features help is comparing, correlating

and ranking the consumer- quality images using the

high-quality reference images.

2 METHODS

The main objective of the paper is to segment

consumer-quality pill images which are affected by

background noise and shadows. Once the pill is iso-

lated, feature extraction is more reliable.

The proposed algorithm initially smoothes the im-

age to reduce noise using a Gaussian smoothing ﬁl-

ter. The simple linear iterative clustering (SLIC) al-

gorithm (Achanta et al., 2012) algorithm is then ap-

plied to generate superpixels. The resultant image is

con- verted into a region adjacency graph and thresh-

olded to merge the superpixels. A ﬁnal binary mask

is obtained by thresholding color planes, applying an

opening operation, ﬁlling holes, and applying a con-

vex hull. A bounding box is applied to obtain only the

segmented pill region.

2.1 SLIC Superpixels

The pre-segmentation of an image is a crucial step

before applying region adjacency graphs. This step

includes the generation of superpixels. Superpixels

are a group of pixels which share similar character-

istics with their neighboring pixels. They capture

the image redundancy and subsequently reduce com-

plexity in performing further image processing tasks.

There are various approaches to generate superpixels

(Boykov and Jolly, 2001)(Shi and Malik, 2000)(Co-

maniciu and Meer, 2002)(Felzenszwalb and Hutten-

locher, 2004)(Achanta et al., 2012). This paper uses

the SLIC algorithm to generate superpixels because

it is faster, more memory efﬁcient, and has better

boundary adherence than its predecessors. A detailed

step-by-step procedure of the SLIC algorithm is pro-

vided in Achanta et al (Achanta et al., 2012).

The pill image is initially pre-processed using

a Gaussian smoothing ﬁlter with standard deviation

2. The SLIC algorithm, which generates superpixels

based on k-means clustering (Kanungo et al., 2002),

Real-world Pill Segmentation based on Superpixel Merge using Region Adjacency Graph

183

is applied. The search space in the SLIC algorithm

is limited to a speciﬁc region around a cluster cen-

troid. This reduces the number of distance calcula-

tions which in turn reduces the complexity and run

time. Also it considers a weighted distance approach

by combining both color and spatial proximity. These

features allow the algorithm to outperform existing

state-of-the-art superpixel methods. The search is

done for 10 iterations after initializing the cluster cen-

troids. This generation of superpixels may be re-

garded as an over-segmentation process.

The output is a labelled image, as the algorithm

assigns a unique label for each superpixel. An average

color value of all pixels in a superpixel is calculated

and assigned to the respective superpixel as shown in

Figure 3.

Formally let, µ

denote the mean of a set of colors

, p

,..., p

in region R, as given by equation (1):

∑

i=0

(1)

where N is the total number of pixels in that re-

gion.

2.2 Region Adjacency Graph

A region adjacency graph (Tremeau and Colantoni,

2000) is created as a step towards merging of super-

pixels. The initial pre-segmentation, that is, initial

generation of superpixels is crucial to create an as-

sociated adjacency graph. There is no loss of visual

information in the pre-segmentation process. Pixels

are only merged if they belong to same superpixel re-

gion.

The over-segmented image is now considered as a

graph. The centroid of each superpixel in the image

is a node in the graph. All nodes in the adjacent re-

gions are joined to form an edge as shown in Figure 4.

Figure 3: Pill segmented with superpixels with compactness

factor = 12.

This collection of edges is called the region adjacency

graph.

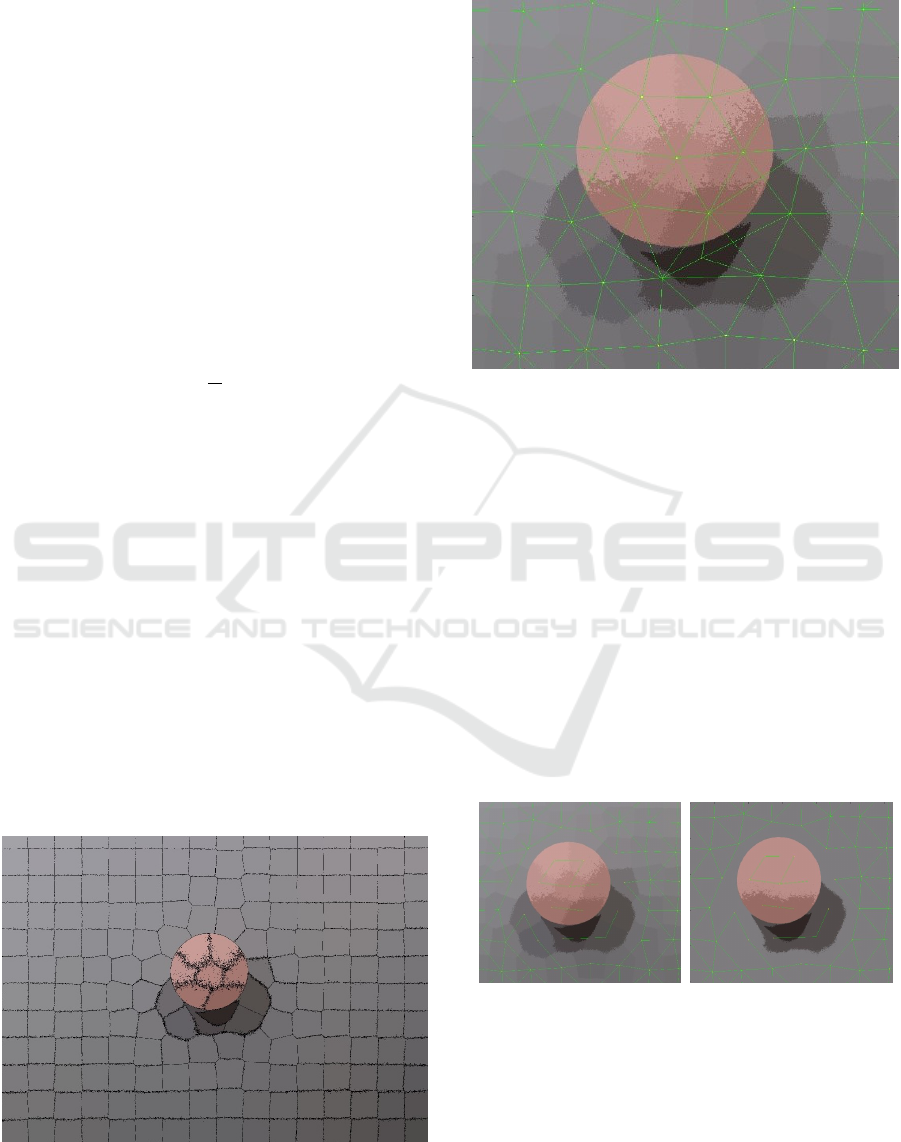

Figure 4: Labelled image (zoomed) with region adjacency

graph, showing edges as lines.

The weight for the edge between two adjacent

nodes (van der Walt et al., 2014) can be deﬁned in var-

ious ways. The superpixels can be merged using these

edge weights. As each superpixel is of uniform aver-

age color, the edge weights are deﬁned by the differ-

ence of average color between the adjacent superpixel

regions. The regions connected with a lower edge

weight have similar color features and were merged

using a threshold value of 29, empirically determined

from a dataset of 30 random images from the provided

consumer quality images. The adjacent superpixel re-

gions are merged if the edge weight is lower than the

pre-determined threshold value; if the edge weight is

higher than the threshold value, the graph is cut as

shown in Figure 5.

Figure 5: (a) Superpixels with graph cut (zoomed).

(b) Merged regions with graph cut (zoomed).

As a result, a fully connected region adjacency

graph (RAG) is divided into disconnected regions

with threshold-cuts as shown in Figure 6. The pixels

of newly generated regions are assigned to the aver-

age color value of the merged regions. This reduces

segmentation complexity substantially and results in

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

184

easier generation of the pill mask.

2.3 Post-processing

The image resulting from merging superpixel regions

by RAG thresholding is still affected by the shadows

of the pill. The outer shadow needs to be merged with

the background and the inner shadow shall be merged

with the object (pill).

When background color intensity is close to the

Pill color intensity, segmentation errors occur upon

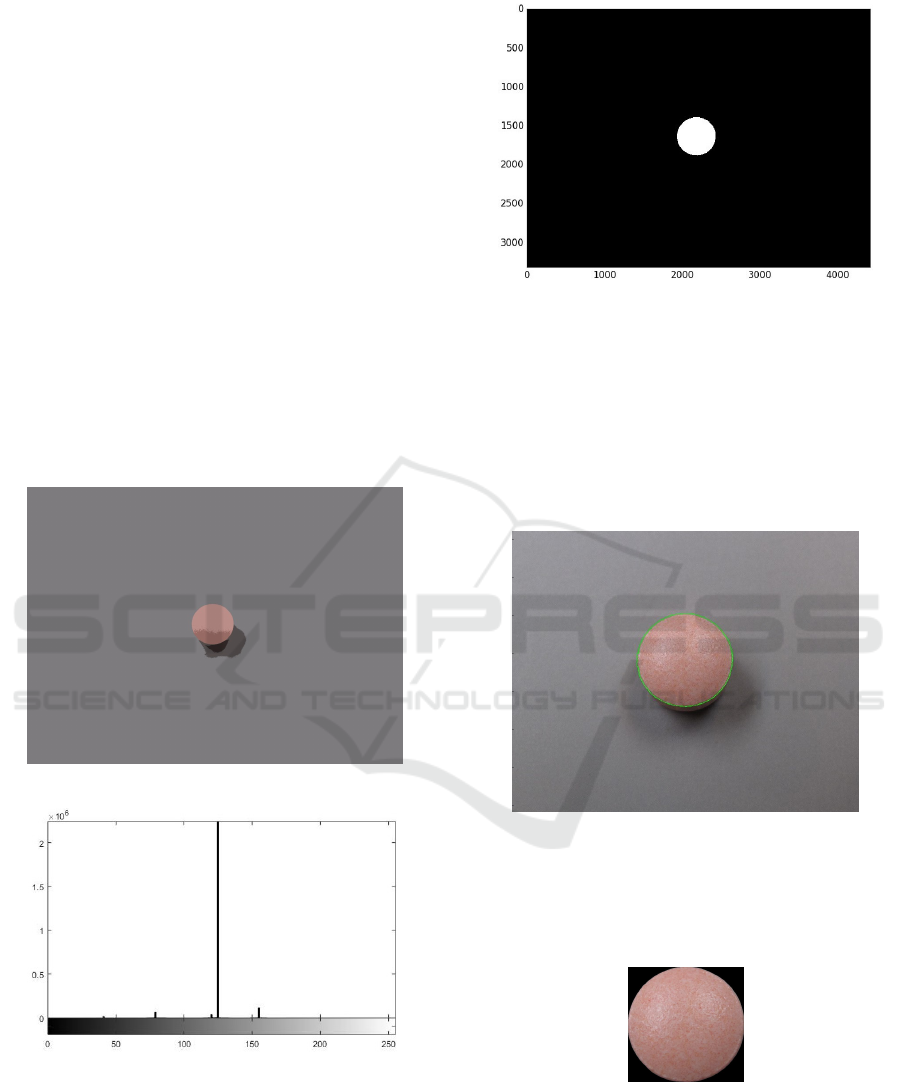

merging. To overcome this problem, a histogram of

the image resulting after RAG thresholding is plotted

as shown in Figure 7. Since, the background occu-

pies most of the area in the image, the majority of the

pixels share the same intensity level as observed in

Figure 7. The bin of the histogram with background

pixels has the highest probability. All pixels sharing

this most probable bin value are assigned to zero in-

tensity. This eliminates the problem stated above.

Figure 6: Superpixels merge using RAG.

Figure 7: Histogram of image from ﬁgure 6.

On analyzing the color intensity values of vari-

ous pill images, the red and blue planes contribute the

majority of intensity changes from pill to its shadow.

After reviewing 30 random consumer-quality images

(previously used to determine the threshold for region

connecting), threshold cutoff values of 105 and 83

were chosen for red and blue planes respectively. An

Figure 8: Binary Mask of the Pill.

OR operation is applied to masks from both planes to

generate a single binary mask.

A morphological opening (erosion followed by di-

lation) is then done to remove blobs of radius less than

9 pixels with a circular structuring element. Any holes

in the mask are ﬁlled with a ﬂood ﬁll operation. A

ﬁnal mask is generated by applying the convex hull

operation on the ﬁlled mask as shown in Figure 8.

Figure 9: Boundary marked on the pill (zoomed).

A distinct boundary along the edges of the pill is

shown in the overlay image for this mask, Figure 9. A

bounding box is applied to this mask to obtain the pill

region as shown in Figure 10.

Figure 10: Result of bounding-box.

3 EXPERIMENTAL RESULTS

The proposed pill segmentation algorithm showed

favorable accuracy results for the 5000 consumer-

Real-world Pill Segmentation based on Superpixel Merge using Region Adjacency Graph

185

quality pill images provided by the NLM system.

Since the algorithm uses a color segmentation ap-

proach, some of the pills with color similar to back-

ground color were completely merged with the back-

ground, resulting in a complete black mask. This is

the primary limitation of the proposed algorithm.

The algorithm produced accurate segmentation re-

sults on the 2000 high-quality reference pill images as

shown in Figure 12. These images are chosen as the

benchmark for comparing the segmentation results of

consumer-quality pill images.

The 5000 consumer-quality masked pill images

were scored manually to analyze the accuracy of the

segmentation with respect to segmentation of refer-

ence pill images. Results show accurate segmentation

for 2243 pills, as shown in ﬁgure 11(left). For 1862

pills, some shadow is included along with the pill

in the mask (Figure 11, center). The remaining pill

images (17.9%) have false segmentation (Figure 11,

right) due to the challenges mentioned above. In sum-

mary, the proposed algorithm produces acceptable

segmentation accuracy for 82.1% of 5000 consumer-

quality pills.

Figure 11: Bounding-box of segmented Consumer Pill Im-

ages.

Figure 12: Bounding-box of segmented Reference Pill Im-

ages.

The time taken to run the algorithm (written in

python v2.7) on each pill image (of varying size with

largest being 2400 x 1600) on Intel Core i5 2400

processor, 8 GBytes DDR3 RAM and 512 MBytes

AMD RADEON HD 6350 graphics card is on aver-

age 683.95 seconds. In order to make the segmenta-

tion proceed faster, a scaling factor is introduced and

applied to reduce and resize the input image. Also the

number of superpixels, and the disk size for morpho-

logical operation are reduced as input image is scaled-

down. But there is a trade-off with the quality of the

mask generated as lower scaling factors are consid-

ered as shown in Figure 13. This is shown in Table

Figure 13: Segmentation results with scale factor 1(left),

0.4(center), 0.1(right).

1. The quality of generated binary masks on aver-

age is provided in Table 1 corresponding to 82.1% of

consumer-quality images with acceptable segmenta-

tion accuracy. The quality of the binary mask pro-

duced from each of those images for varying scale

factor (i = 1.0, 0.9, 0.8, ..., 0.1) are computed by equa-

tion 2.



1 −

− p

1.0



∗ 100 (2)

Where Q

is the segmentation quality of the bi-

nary mask, p

is number of pixels in the object region

of binary mask and p

.0 is the number of pixels in

the object region of binary mask for a scale factor of

1.0. The speed factor, calculated as the ratio of the

average run-time to process each image at a particular

scale factor to that of the run-time to process the pill

image with scale factor 1.0. To provide best segmen-

tation results at a faster rate, a scaling factor of 0.4 is

considered to be the optimum value upon reviewing

all the image masks from the dataset.

Table 1: Effect of scaling factor on segmentation accuracy

and speed factor for individual pills.

Scaling

Factor

Speed Factor Average Q

value

1.0 1.00x 100%

0.9 1.11x 97.82%

0.8 1.66x 97.76%

0.7 1.95x 97.43%

0.6 2.93x 97.10%

0.5 4.12x 96.67%

0.4 6.19x 98.46%

0.3 10.30x 94.07%

0.2 19.08x 89.80%

0.1 40.30x 83.19%

4 CONCLUSIONS

The proposed method of merging superpixel re-

gions using a region adjacency graph threshold-cut

VISAPP 2017 - International Conference on Computer Vision Theory and Applications

186

approach to successfully segment consumer-quality

pills with few limitations. Application of a resiz-

ing factor gave some promising results for algorithm

speed, with a trade-off in quality of mask.

Although the process has eliminated the back-

ground noise and produced excellent results for most

of the pills and capsules, the shadows caused by pill

illumination is still a challenge for some pills. Pills

with similar background color also pose a great chal-

lenge in boundary determination. Finding an adapt-

able solution that works for all 5000 pills is challeng-

ing. Further analysis needs to be done to get accurate

segmentation for all the consumer-quality pills.

This project was originally developed as an en-

try to the Pill Image Recognition Challenge con-

ducted by the National Library of Medicine. The

5000 consumer-quality image data- sets were ac-

cessed from the NLM database. Future work corre-

sponds to extraction of various features that are cru-

cial to match the given consumer-quality pill images

to their reference images using rank scoring.

REFERENCES

Achanta, R., Shaji, A., and Smith, K. (2012). SLIC

Superpixels Compared to State-of-the-Art Superpixel

Methods. Pattern Analysis and Machine Intelligence,

34(11):2274–2281.

Boykov, Y. Y. and Jolly, M. P. (2001). Interactive graph

cuts for optimal boundary amp; region segmentation

of objects in n-d images. In Computer Vision, 2001.

ICCV 2001. Proceedings. Eighth IEEE International

Conference on, volume 1, pages 105–112 vol.1.

C3PI (2016). Computational photogra-

phy project for pill identiﬁcation.

https://lhncbc.nlm.nih.gov/project/c3pi-

computational-photography-project-pill-

identiﬁcation. Last accessed on Aug 28, 2016.

Caban, J. J., Rosebrock, A., and Yoo, T. S. (2012). Auto-

matic identiﬁcation of prescription drugs using shape

distribution models. In 2012 19th IEEE International

Conference on Image Processing, pages 1005–1008.

Comaniciu, D. and Meer, P. (2002). Mean shift: a robust

approach toward feature space analysis. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

24(5):603–619.

Dailymedplus (2016). Medicos consultants.

http://www.dailymedplus.com. Last accessed on

Aug 28, 2016.

Drugs.com (2016). Pill identiﬁer.

https://www.drugs.com/imprints.php. Last accessed

on Aug 28, 2016.

Felzenszwalb, P. F. and Huttenlocher, D. P. (2004). Efﬁ-

cient graph-based image segmentation. International

Journal of Computer Vision, 59(2):167–181.

Kanungo, T., Mount, D. M., Netanyahu, N. S., Piatko,

C. D., Silverman, R., and Wu, A. Y. (2002). An ef-

ﬁcient k-means clustering algorithm: analysis and im-

plementation. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 24(7):881–892.

NLM (2016). National library of medicine

: Pill image recognition challenge.

http://pir.nlm.nih.gov/challenge/. Last accessed

on May 31, 2016.

Pillbox (2016). Prototype pill identiﬁcation system.

http://pillbox.nlm.nih.gov/. Last accessed on Aug 28,

2016.

Shi, J. and Malik, J. (2000). Normalized cuts and image

segmentation. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 22(8):888–905.

Tremeau, A. and Colantoni, P. (2000). Regions adjacency

graph applied to color image segmentation. IEEE

Transactions on Image Processing, 9(4):735–744.

van der Walt, S., Sch

onberger, J. L., Nunez-Iglesias, J.,

Boulogne, F., Warner, J. D., Yager, N., Gouillart,

E., Yu, T., and the scikit-image contributors (2014).

scikit-image: image processing in Python. PeerJ,

2:e453.

WebMD (2016). Pill identiﬁca-

tion. http://www.webmd.com/pill-

identiﬁcation/default.html. Last accessed on Aug

28, 2016.

Xu, R. and Wunsch, D. (2005). Survey of clustering al-

gorithms. IEEE Transactions on Neural Networks,

16(3):645–678.

Real-world Pill Segmentation based on Superpixel Merge using Region Adjacency Graph

187
