Investigating Graph Similarity Perception: A Preliminary Study and

Methodological Challenges

Tatiana von Landesberger

, Margit Pohl

, G

unter Wallner

, Martin Distler

and Kathrin Ballweg

Interactive Graphics Systems Group (GRIS), Technische Universit

at Darmstadt, Fraunhoferstrasse 5, Darmstadt, Germany

Institute for Design & Assessment of Technology, Vienna University of Technology, Argentinierstrasse 8, Vienna, Austria

Keywords:

Graph Comparison, Evaluation Methodology, Stimulus Development, Perception, Node-link Diagrams.

Abstract:

Graphs have become an indispensable model for representing data in a multitude of domains, including bi-

ology, business, ﬁnancing, and social network analysis. In many of these domains humans are repeatedly

confronted with the need to visually compare node-link representations of graphs in order to identify their

commonalities or differences. Yet, despite its importance little is known about how much visual differences

affect users’ perception of graph similarity. As a result, more systematic investigations addressing this issue

are necessary. However, from a methodological point of view there are still many open questions regarding the

investigation of graph comparisons. To this end, this paper provides an overview of methodological challenges,

presents results of an explorative study conducted to identify individual factors inﬂuencing the recognition of

graph differences, and discusses lessons learned from this study. Our considerations and results can serve as

foundation for further studies in this area and can contribute to the comparability of these investigations.

1 INTRODUCTION

Humans often use graph visualizations to assess how

(dis)similar graphs are (Gleicher et al., 2011; von

Landesberger et al., 2009; Von Landesberger et al.,

2011). Graphs play an important role in many areas,

for example, in biology, in business, ﬁnancing, or in

the analysis of social networks. In all these areas net-

work visualizations have to be compared, either dif-

ferent but similar diagrams or dynamic diagrams at

different points in time. It is, therefore, an impor-

tant question how network visualizations should be

designed to support easy and efﬁcient comparison, so

that essential differences are not overlooked.

By now, various visualization techniques sup-

porting visual graph comparison have been devel-

oped (Gleicher et al., 2011; Von Landesberger et al.,

2011). Among the many different types of visual-

izations for representing graph structures we will fo-

cus on node-link diagrams in this paper due to their

widespread use and their appropriateness for small

graphs (see also Ghoniem et al., 2005). Graph min-

ing has proposed dedicated graph similarity func-

tions (Gao et al., 2010). User studies have revealed

factors for good readability of individual graphs (Ar-

chambault and Purchase, 2012; Dwyer et al., 2009;

Kieffer et al., 2016; Purchase, 2002). The latter inves-

tigations have shown the need to study cognitive as-

pects for creating effective individual graph visualiza-

tions. However, there exist only a few guidelines for

designing good comparative visualizations (Gleicher

et al., 2011). Little is known about how much visual

differences affect users’ graph similarity notion.

Therefore, systematic investigations addressing

this issue are necessary. These investigations have to

clarify, on the one hand, how graphs have to be de-

signed to support comparison processes. On the other

hand, methodological issues have to be addressed.

From a methodological point of view, there are still

many open questions regarding the investigation of

graph comparisons. To this end, we conducted an ex-

plorative study to identify inﬂuencing factors for the

assessment of differences of graphs by human users.

In the context of this study we realized that there

are still many unresolved methodological problems.

There are methodologies of data collection and anal-

ysis from Cognitive Psychology and HCI which can

be used (e.g., thinking aloud, observation, etc.), but

there are still issues speciﬁc to the area of graph com-

prehension which need to be addressed. These issues

are especially related to the development of a dataset

and a set of appropriate stimuli (visualizations) for

von Landesberger T., Pohl M., Wallner G., Distler M. and Ballweg K.

Investigating Graph Similarity Perception: A Preliminary Study and Methodological Challenges.

DOI: 10.5220/0006137202410250

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 241-250

ISBN: 978-989-758-228-8

241

the investigation to ensure that the investigations are

valid and yield results which are useful for designers.

Based on the research questions, the dataset, the graph

layout and structure, and the variations of elements of

the graphs have to be planned carefully to cover the

relevant issues in this context. This is a non-trivial

question which is rarely discussed in the visualization

community. A clariﬁcation of these issues can also

aid further research in other areas of information vi-

sualization. In Section 2 we will provide an overview

of these problems.

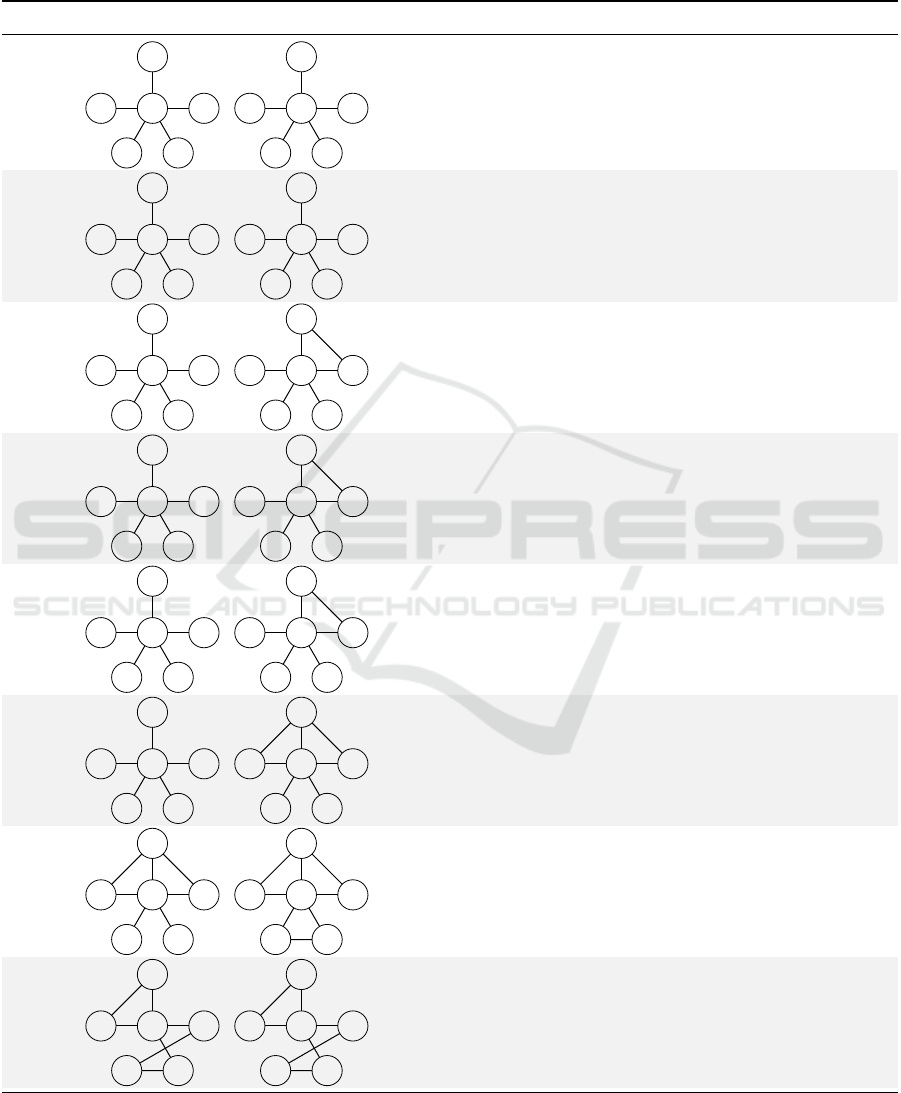

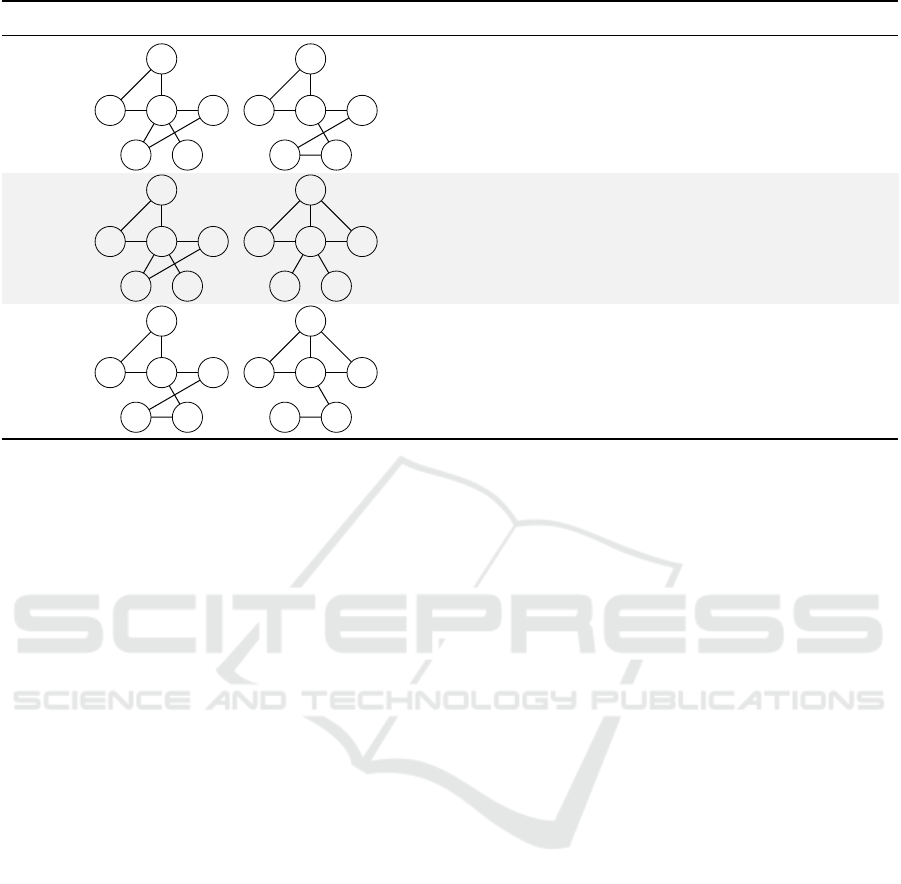

To address these issues we conducted a study of

perceived similarities between pairs of small labeled

networks shown as juxtaposed node-link diagrams

(see Section 4). We analyzed users’ ratings and state-

ments during visual graph comparison. To avoid con-

founding effects, we constrained the study to small

static comparisons. We present lessons learned from

this study (see Section 6). The presented considera-

tions for methodological issues can serve as a basis

for further studies, enabling comparability among fu-

ture investigations.

2 CHALLENGES

1. Deﬁnition of an appropriate dataset: The devel-

opment of an appropriate dataset is a challenging en-

deavor. In research on perceived graph similarity, re-

searchers have to decide between realistic and syn-

thetic datasets. Realistic datasets have the advantage

of supporting ecological validity. On the other hand,

the analysis of the perception of similarity of graphs

has to be based on a systematic variation of elements

of the graph. Realistic datasets often do not con-

tain or allow for all these variations. Therefore, in

many cases a synthetic dataset is better suited to sup-

port such research. Such a dataset has to be devel-

oped according to the research questions of the study.

Another important issue is also the content (e.g., the

node labels) of the dataset. Previous knowledge of

participants of a study about the dataset might vary

considerably and produce unintended effects.

2. Development of appropriate visualizations (stim-

uli): When studying the utility and usability of a vi-

sualization the design of the study material is of huge

importance. Researchers have to explain their as-

sumptions about the inﬂuence of the features of the

visualizations on the behavior of the users. In the con-

text of graphs and especially graph comparison, there

are three main inﬂuencing factors:

• Graph layout and structure: The inﬂuence of the

graph layout and structure is obvious. On the one

hand, the graph layout should reﬂect the nature of

the tasks potential users of these graphs would want

to solve. On the other hand, the appearance of the

graph should enable the researchers to clearly iden-

tify inﬂuencing elements. Researchers have to con-

sider the trade-off between these two. Sometimes,

a less realistic visualization is a better way to iden-

tify which factors inﬂuence the users’ behavior.

• Complexity of the graphs: Graphs which are

too complex might be difﬁcult to investigate be-

cause not all inﬂuencing factors can be isolated.

Graphs can have different substructures. Even

in simple graphs, there are central and peripheral

nodes. Changes in these nodes have different con-

sequences on the perception of graph similarity.

More complex graphs can contain subgroups which

are clustered together. Adding meaningful labels

to graphs increases their complexity and also inﬂu-

ences the perception of differences in certain ways.

• Size of the graphs: The size of the graphs to be

compared is highly relevant. Basic research in

psychology indicates that simple graphs should be

used to be able to easily identify inﬂuencing factors

and avoid confounding effects. On the other hand,

larger graphs are more realistic and help to under-

stand how graph comparison works in real life. We

decided to use small graphs for the initial investi-

gation presented in this paper to avoid confound-

ing variables. The research process in psychol-

ogy, and more generally, in social sciences is based

on the idea that clear causal relationships between

independent and dependent variables can only be

identiﬁed when all additional inﬂuencing factors

can be determined by the researcher and kept con-

stant (Bortz and D

oring, 2007; Zimbardo and Ger-

rig, 2008). When investigating large graphs, a

considerable number of additional inﬂuencing vari-

ables has to be taken into consideration, because of

the amount of information available and also be-

cause occlusion makes perception of nodes, links,

and labels difﬁcult (Huang et al., 2006b; McGee

and Dingliana, 2012). We think that it is necessary

to start with very simple graphs to identify basic

mechanisms of perception. When this is achieved

it is possible to add additional complexity in the

future.

3. Systematic variation of elements of the visualiza-

tion: An important issue is the question which ele-

ments of a visualization should be considered for the

investigation. It is often not possible to consider all

kinds of features of a visualization in a study, there-

fore, researchers have to restrict their research to spe-

ciﬁc elements. In graphs, such elements might be the

structure or layout of the graph, the design of edges,

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

242

edge crossings, usage of color, design of nodes, con-

tent (e.g., labels) of nodes etc. If a researcher, for

example, investigates the inﬂuence of edge crossings,

the number of edges between nodes, or the node la-

bels on the perception of graph similarity, these el-

ements have to be varied according to a systematic

plan. If these features are varied in combination,

the number of possible combinations will quickly be-

come huge. Therefore, not all variations can usually

be taken into account because participants of exper-

iments will get tired after a fairly limited number of

trials. Thus, researchers have to choose which vari-

ations to include in their experiment. This decision

will depend on the research question.

4. Interaction possibilities: Interaction possibilities

are also elements of a visualization which inﬂuence

the users’ behavior, but they have a speciﬁc charac-

ter. Sometimes, it makes sense to provide only a few

interaction possibilities to be able to identify the in-

ﬂuence of these possibilities on the sensemaking ac-

tivities of the users more clearly. If there are too many

interaction possibilities in a user test, then it becomes

difﬁcult to analyze the individual inﬂuence of each of

these possibilities because they might inﬂuence each

other. Interaction possibilities which are especially

relevant for graph comparison are, for example, high-

lighting speciﬁc areas of the graph, the possibility for

users to draw on top of the graph to annotate certain

areas, or moving parts of the graph around.

5. Measurement of graph similarity: Beside the is-

sues discussed above, the question on how to mea-

sure the responses from study participants deserves

speciﬁc mention as it is an often underestimated yet

essential factor in study design. Quantitative meth-

ods may be more economical when dealing with large

sample sizes but may miss contextual detail such as

why humans perceive graphs as more or less simi-

lar. However, the why may be especially important in

such kind of investigations. Qualitative methods may

shed light on this issue but are more time-consuming

and may thus limit the number of participants. Thus, a

mixed-methods approach, merging quantitative mea-

surements with qualitative methods (e.g., thinking

aloud, video capture, or annotations) seems promis-

ing. In terms of quantitative measurements, the type

of response scale (e.g., dichotomous, nominal, ordi-

nal, continuous) should also be selected with care as

it affects how nuanced the characterization of similar-

ity will be. Lastly, it also remains largely unclear how

many scales are appropriate for measuring graph sim-

ilarity, that is, should a single scale or multiple scales

focusing on different aspects of similarity (e.g., struc-

ture, content) be used.

6. Task: Lastly, the types of tasks users should per-

form need to be considered when designing and eval-

uating visualizations (for a general discussion see,

e.g., Schulz et al. (2013) while Lee et al. (2006) pro-

vide an overview of common tasks related to graph

data analysis). Consequently and ideally, the types

of tasks should thus also be taken into account when

studying the perception of graph similarities. For ex-

ample, if users are performing exploratory tasks their

notion of similarity may be inﬂuenced by other fac-

tors than when users engage in speciﬁc goal directed

tasks such as, for instance, assessing differences re-

garding the number of adjacent nodes.

3 RELATED WORK

In the following we brieﬂy review visual network

comparison techniques and work concerned with per-

ception and cognition factors in graph readability.

3.1 Graph Comparison Visualization

Recent papers survey network visualization and vi-

sual comparison (Beck et al., 2014; Gleicher et al.,

2011; Hadlak et al., 2015; Vehlow et al., 2015;

Von Landesberger et al., 2011). Visual network com-

parison techniques deal with two or with many net-

works (Bremm et al., 2011; Graham and Kennedy,

2010). Gleicher et al. (2011) present three main cat-

egories of visual comparison techniques, including

juxtaposition which is easy to create and understand.

Juxtaposed views are sometimes extended by linking

the corresponding nodes between the graphs (Collins

and Carpendale, 2007; Holten and Van Wijk, 2008).

However, this can be misleading if links do not rep-

resent the inner graph structure well (Bremm et al.,

2011). Highlighting of similar parts shows common-

alities (Bach et al., 2014; Bremm et al., 2011; Holten

and Van Wijk, 2008), and collapsing the identical

parts emphasizes differences (Archambault, 2009).

Both, however, need a graph matching or similarity

function. While juxtaposition relies on user’s mem-

ory, superposition makes use of perception for com-

parison but can, in turn, lead to clutter and does not

scale well. Explicit encoding shows the computer-

determined comparison directly, but encounters prob-

lems with decontextualization and encoding under-

standability. In contrast, juxtaposition gives the user

full freedom to determine his/her comparison inter-

pretation – which is essential for our study. Thus, we

aim to clarify, which factors inﬂuence human’s no-

tion of graph similarity eventually leading to design

guidelines.

Investigating Graph Similarity Perception: A Preliminary Study and Methodological Challenges

243

3.2 Perception and Cognition Aspects in

Graph Visualization

Several works focus on the readability of single

graphs. Research has identiﬁed the following graph

readability factors: graph design, graph aesthetics and

layout, graph size, graph semantics as well as users’

background. Huang et al. (2006a) advise how to de-

sign node-link diagrams. They suggest, for example,

to highlight important nodes, to put the most impor-

tant nodes on the top or in the center, or to clus-

ter nodes which belong to the same group. Holten

and van Wijk (2009) recommend designs for directed

edges and Tennekes and de Jonge (2014) suggest node

coloring in hierarchies. McGrath et al. (1997) state

that layout can inﬂuence the interpretation of graphs.

Graph aesthetics, such as edge crossing minimiza-

tion, edge length homogeneity, edge angle speciﬁcs,

or edge bends play a role for creating readable lay-

outs (see Kobourov et al., 2014; Purchase, 2002; Pur-

chase et al., 2007). Several studies analyzing hu-

man views on graph layouts showed that humans pre-

fer force-directed-like layouts for small undirected

graphs, (e.g., Dwyer et al., 2009; Kieffer et al., 2016;

McGee and Dingliana, 2012).

It is generally accepted that larger networks are

more difﬁcult to process because of the amount of in-

formation available and also because occlusions make

the perception of nodes, links, and labels more dif-

ﬁcult (Huang et al., 2006b; McGee and Dingliana,

2012). Semantic aspects also inﬂuence graph percep-

tion (Purchase et al., 2001). Novick (2006) indicates

that performance in the interpretation of node-link di-

agrams depends on the layout of the graph as well as

on the content knowledge of the users. K

orner (2005)

also argues that graph comprehension is a process in-

tegrating visual and conceptual knowledge. The lay-

out of the graph has to reﬂect the speciﬁc nature of

the content, otherwise comprehension may fail.

Only a limited number of studies on perception

and cognitive aspects in comparison of node-link dia-

grams exists. Some interesting insights can be gained

from user studies dealing with dynamic graph visu-

alization (e.g., Archambault et al., 2011). Dynamic

graphs are often presented as several time slices one

after the other (Bach et al., 2014; Beck et al., 2014)

and users have to compare these time slices. Archam-

bault and Purchase (2012) argue that memorability

plays an important role. For example, Diehl and G

org

(2002) proposed a layout for dynamic graphs preserv-

ing the users’ mental model. Memorability also plays

an important role for juxtaposed graph comparison,

especially for larger graphs (Tominski et al., 2012).

4 STUDY DESIGN

The goal of this preliminary study is to identify fac-

tors which possibly inﬂuence the perceived similarity

of small star-shaped networks (see Section 4.1). To

streamline our study we focused on a subset of factors

inspired both by literature and our experience with vi-

sual network comparisons. This initial subset is, of

course, by no means complete but it covers a variety

of frequently occurring changes in graphs.

– The number of visually apparent edge changes.

– Changes in edge crossings as edge crossings are

a factor in graph aesthetics known to inﬂuence graph

readability (Purchase, 2002).

– Altering the label of the central node.

– Exchanging labels between peripheral nodes

while keeping the graph structure the same (cf. GP1

in Table 1).

– Familiarity with the theme of the graph as famil-

iarity may inﬂuence graph interpretability (cf. K

orner,

2005; Novick, 2006).

– Professional background since people with

graph theory knowledge may focus more on structural

changes rather than on visual differences (McGrath

and Blythe, 2004).

4.1 Data Set

As pointed out above we focused on differences be-

tween pairs of juxtaposed labeled node-link diagrams

for our ﬁrst preliminary study. Because of the multi-

tude of factors which may affect the perceived simi-

larity of graphs we conﬁned the experiment to small

graphs. While this admittedly may limit the general-

izability of our results to graphs of varying sizes this

setting allowed for more control over confounding

factors. Speciﬁcally, we used a star-shape-like graph

structure with one central node and ﬁve nodes on the

periphery which can also have edges between them.

In these pairs we encoded various differences which

– according to our hypotheses stated above – may in-

ﬂuence the perceived similarity of two graphs. The

dataset was composed of 11 graph pairs (GPs), each

consisting of a reference graph and an altered graph

(see Table 1).

Changes in Edge Structure. We included visual

edge additions (see GP3, GP4, GP7) and edge dele-

tions. Edge deletions were combined with additions

(i.e., edge moves, see GP9, GP10, GP11). These

changes occurred at various locations in the graph

(compare, e.g., GP3 and GP7).

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

244

Table 1: Overview of the experiment graphs (Hollywood theme) with their encoded change factors (F1 = number of edge

changes, F2 = edge crossing change, F3 = label change altering the meaning, F4 = label change without changing the

meaning). Node labels were shortened for illustration purposes. A = Actor, M = Musician, BP = Brad Pitt, AJ = Angelina

Jolie, JL = Jennifer Lopez, WS = Will Smith, and BW = Bruce Willis.

Graph Pair

Description

GP1

JLAJ

0 NO NO YES

Label switch between AJ and

WS.

GP2

0 NO YES NO Label of central node changed.

GP3

1 NO NO NO

Added edge between AJ and

BP. Note, AJ and BP are a cou-

ple.

GP4

1 NO NO YES

Added edge between BP and

BW, AJ and BW switched la-

bels.

GP5

1 NO YES NO

A and BP switched labels and

thus central node has changed;

added edge between A and AJ.

GP6

2 NO YES NO

Same changes as in GP5, but

with a second added edge (be-

tween A and BW).

GP7

1 NO NO NO

Added edge between WS and

JL.

GP8

0 NO YES NO

A and AJ switched labels thus

altering the central node.

... continued on next page

Investigating Graph Similarity Perception: A Preliminary Study and Methodological Challenges

245

Graph Pair

Description

GP9

2 NO NO NO

Removed edge between A and

WS; added edge between WS

and JL.

GP10

2 YES NO NO

Added edge between AJ and

BP; removed edge between

AJ and WS. This also removes

the edge crossing.

GP11

2 YES NO NO

Same changes as in GP10 (add

and remove edge – removing

edge crossing) but the refer-

ence graph is different.

Changes in Edge Crossings. Edge crossings were

present in four reference graphs (GP8 – GP11) of

which two pairs also encoded a change in edge cross-

ing (GP10 and GP11).

Change of Center Node. The central node of the

star-like graph has a label which attributes meaning

to the graph. Peripheral nodes support this meaning.

Consequently, this allowed us to test if changing the

label of the central node has semantic implications.

Label Exchange between Peripheral Nodes.

Switching labels on the periphery does not inﬂuence

the graph structure but can be considered as a kind

of node reordering. This allowed us to test how

much inﬂuence the order of nodes has on the graph

similarity.

Graph pairs GP4, GP5, and GP6 encoded multiple of

the above described differences. Each graph pair ex-

isted twice, once labeled with names of Hollywood

actors and once with psychology personalities, result-

ing in a total of 22 graph pairs (2 × 11). This allowed

us to assess the factor of familiarity (F

4.2 Procedure

The study was conducted in a controlled environment

(room, table, etc.) on a laptop with touchscreen and a

touch-enabled pen. At the beginning the participants

were informed about the goal and the procedure of the

study. Next, they were instructed on how to use the

tool after which a training phase with a set of three to

ﬁve graph pairs followed. Participants were asked to

consider content aspects as well as structural aspects.

Once the participants felt conﬁdent with the tool the

main study – consisting of two parts in random order

– was conducted: comparing graph pairs with Hol-

lywood actors and with the psychology theme. For

that purpose the reference graph and the altered graph

were shown side-by-side. Within each part all studied

graph pairs were shown in random order. For each

pair participants had to rate its similarity on an 8-point

scale (0 = very different to 7 = identical). During the

study thinking aloud protocols were recorded which

were then transcribed and analyzed for reoccurring

themes. Participants could also make drawings using

the user interface. The study lasted between 30 and

60 minutes.

4.3 Participants

We recruited 24 volunteers – master students and re-

search assistants – from the [anonymous] university.

12 subjects had a major in computer science and 12

subjects had a background in psychology (F

). Sub-

jects were between 18 and 35 years of age with equal

proportion of females and males. Psychology sub-

jects, in contrast to computer science subjects, had no

background in graph theory or in network visualiza-

tion. All participants but one stated to be familiar with

Hollywood actors and only two participants stated to

be familiar with psychological personalities. Thus,

we assumed that participants were familiar with the

Hollywood topic and the opposite was the case for

the psychology topic (F

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

246

5 RESULTS

Table 2 lists the distribution of the ratings for the in-

dividual graphs of the Hollywood set. Ratings of the

psychology graph pairs did not differ substantially

from the Hollywood graph pairs (as also conﬁrmed by

statistical analysis which showed no inﬂuence of the

graph topic on the ratings, see below) and are thus not

listed due to space restrictions. Informal inspection of

these distributions revealed three patterns which will

be described in detail in the following. We will also

amend the discussion with insights gained from the

analysis of the thinking aloud protocols (see Table 3).

+ Dominant similarity ratings correspond to graph

pairs with small structural differences which do not

alter the meaning of the graph (GP1, GP3, GP4, and

GP7). Analysis of the think aloud protocols revealed

that participants realized that structure and content of

GP1 did not change despite switching the labels of

two nodes. Graph pairs GP3, GP4, and GP7 have

structural differences in the sense that one edge has

been added. Contrary to GP1 they have no label

changes. As expected, the participants focused on

edge related aspects (19, 16, and 20 statements, re-

spectively). An interesting observation could be made

for GP3 where participants speciﬁcally stressed the

newly added connection between Angelina Jolie and

Brad Pitt which is also meaningful in a real-life con-

text where both are in a relationship with each other.

−

− Graph pairs where the label of the central node

(i.e., context node) changed (GP2, GP5, GP6, and

GP8) received predominant dissimilar ratings with

the majority of participants noting a change in con-

text. More speciﬁcally, with respect to GP2, 22

statements of the thinking aloud protocols were con-

cerned with a context change (actor → musician) and

16 statements were related to different content. The

statements regarding GP5, GP6, and GP8 were very

similar. In all three instances, the respondents men-

tioned that the location of the context node changed

(that is, it has been moved to the periphery) (19x, 14x,

21x), highlighted the change in the focus of the rela-

tionships (13x, 14x, 11x), and noted the deleted edge

which formerly connected the persons to their profes-

sion (10x, 11x, 7x).

± Bipolar similar/dissimilar ratings correspond to

graph pairs with both structural and content changes

(GP9, GP10, and GP11). Interestingly, all these

graph pairs together with GP8 (also having a partly

bipolar rating) have a reference graph with an edge

crossing. The bipolar rating distribution is also re-

ﬂected in the participants’ statements. About half of

the respondents mentioned edge changes (13x, 12x,

15x). Others, in turn, primarily focused on content

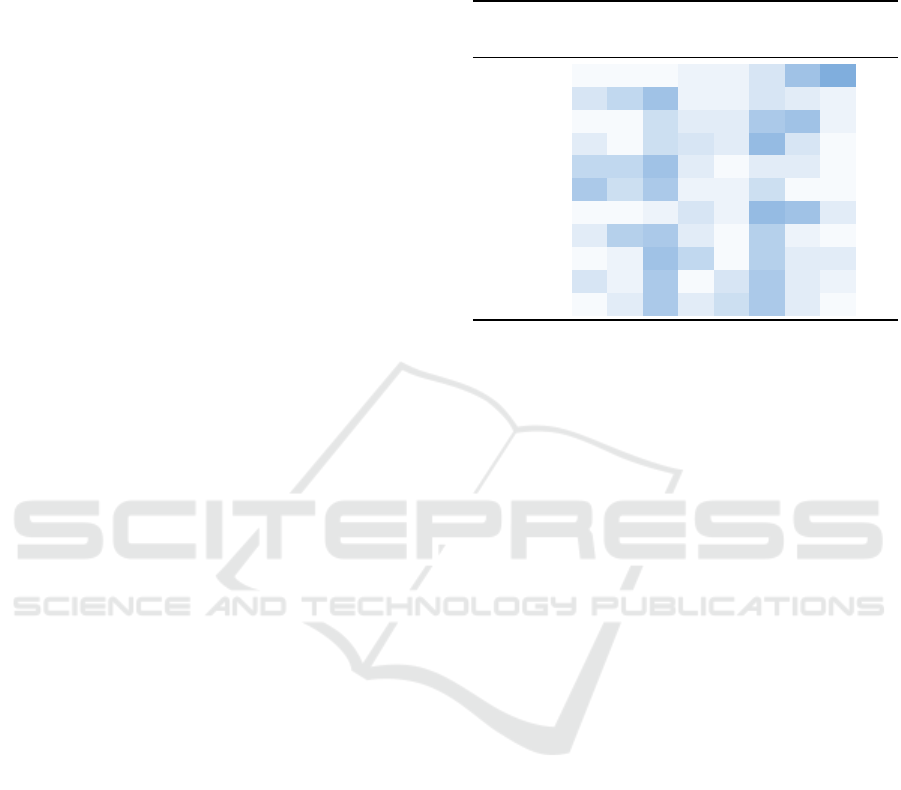

Table 2: Rating distribution for the Hollywood graph pairs

and rating modes(s). Ratings: very different (0) to identical

(7). Background color reﬂects the number of ratings from

white (0) to blue (max), D = distribution type, M = median.

GP D Ratings M

0 1 2 3 4 5 6 7

GP1 + 0 0 0 1 1 3 8 11 6

GP2 - 3 5 8 1 1 3 2 1 2

GP3 + 0 0 4 2 2 7 8 1 5

GP4 + 2 0 4 3 2 9 3 0 5

GP5 - 5 5 8 2 0 2 2 0 2

GP6 - 7 4 7 1 1 4 0 0 2

GP7 + 0 0 1 3 1 9 8 2 5

GP8 ± 2 6 7 2 0 6 1 0 2

GP9 ± 0 1 8 5 0 6 2 2 3

GP10 ± 3 1 7 0 3 7 2 1 4

GP11 ± 0 2 7 2 4 7 2 0 4

aspects, noting, for example, the formation of groups

(5x), the unclear meaning of edges (5x), or the focus

on relationships (11x). It seems that several different

factors inﬂuenced the participants’ ratings.

Next, we tested the inﬂuence of the above de-

scribed factors (F1-F6) on the perceived graph sim-

ilarity rating using a regression. Due to the ordinal

response scale and the within-subject design we used

general estimating equations (GEE) with an ordinal

logistic regression model and the factors F1 − F6 as

predictors (for an introduction to GEE models see,

e.g., Hardin and Hilbe, 2012). Missing responses (3

out of 24 × 22) were excluded from the analysis. All

factors relating to changes were compared by select-

ing the no change condition as reference category.

GEE model estimates are shown in Table 4, signif-

icant factors are written in italics. To complement

the evaluation, we also assessed differences in the

ratings between speciﬁc graph pairs in order to de-

velop a better understanding of the signiﬁcant pre-

dictors. For that purpose we used pairwise Wilcoxon

signed-rank tests with a signiﬁcance level of .05. For

reasons of comparability, however, we will restrict

pair-wise comparisons to graph pairs which only have

one difference in graph changes (e.g., one vs. two

added edges) or have the same changes in the refer-

ence graphs. In the following, we discuss the GEE

results in more detail.

- Number of Visually Apparent Edge Changes:

The number of added and removed edges showed to

be a signiﬁcant factor lowering the similarity rating

both for one edge (B = −1.510, OR = 0.22) and

two edge differences (B = −1.897, OR = 0.15).

This result was expected, as it seems natural that

larger changes lead to lower similarity. This was

Investigating Graph Similarity Perception: A Preliminary Study and Methodological Challenges

247

Table 3: Three most frequent statements for each graph pair.

# Most frequent statements

GP1 20 12 7

arrangement

different

arrangement

not important

content

identical

GP2 22 16 7

context

changed

content

different

graph does

not make

sense

GP3 19 15 6

extra edge relationship

BP & AJ

graph does

not make

sense

GP4 16 10 10

extra edge arrangement

different

relationship

BP & BW

GP5 19 14 10

location of

category

changed

focus is on

relationships

deleted edge

to profession

GP9 13 13 5

edge changed deleted edge

to profession

content

identical

GP10 12 6 5

edge changed edge crossing formation of

groups

GP11 15 7 5

edge changed edge crossing meaning of

edges unclear

also conﬁrmed by a pairwise Wilcoxon signed-

rank test comparing GP5 with GP6 which differ

only in one edge (changing one vs. two edges,

Z = −3.471, p = .001).

- Changes in Edge Crossings lower the rating

signiﬁcantly (B = −0.771, OR = 0.46). The signif-

icance of this factor could be conﬁrmed by compar-

ing ratings of GP9 and GP10, both having two edge

changes, but only one graph pair has an edge crossing

change (Z = −3.801, p < .001).

- Change of Center Node is the factor which

lowers the rating by the largest extent (B = −3.221,

OR = 0.04). This is also supported by a Wilcoxon

pairwise test of GP1 and GP2 which both have a la-

bel change – once on the periphery and once in the

center (Z = −4.120, p < .001). The central node

change seems to dominate over the size of visual edge

changes. As an example, graph pairs GP5 and GP6

have the same central node change. Both graph pairs

have also a visual edge change, but of a different size

(one or two). Interestingly, the subjects rated both

graph pairs similarly (Z = −0.403, p = .687).

- Label Switch Leading to Visual Rearrange-

ment does not have a signiﬁcant impact on the rating

(B = −0.121, OR = 0.89). Analysis of the think

aloud protocols showed that most users recognized

the irrelevance of these label changes on the graph

structure. Thus, they did not consider them in their

ratings.

- Familiarity with the Graph Topic does not in-

ﬂuence the rating signiﬁcantly in our case (B = 0.102,

OR = 1.11). Thinking aloud indicates that the partic-

ipants paid attention to the same visual and structural

factors in both cases. The users could infer meaning

changes even for the psychology graphs despite their

unfamiliarity. This result should, however, be inter-

preted with caution as not all graphs may be easily in-

terpreted when users are unfamiliar with the topic. In

our case, both conditions included names of person-

alities and consisted of a very small number of nodes.

This could have eased their interpretation.

- Users’ Professional Background was not a

signiﬁcant factor (B = 0.092, OR = 1.1). This sug-

gests that the readability of changes in small labeled

graphs with a star-shaped structure is irrespective

from graph theory knowledge and visualization

background.

6 DISCUSSION – LESSONS

LEARNED

Apart from the results gained by the study described

in this paper we could also identify methodological

challenges for the investigation of the perception of

graph similarity.

In general, it may seem preferable to use realistic

datasets for the investigation of visualizations. For the

investigation of the perception of similarity of graphs,

however, in most cases only synthetic datasets are ad-

visable because a signiﬁcant subset of variations of

features has to be analyzed. These variations are usu-

ally not available in a realistic dataset and have to be

constructed according to the research questions. In

addition, the previous knowledge of the participants

of the study, which has some relationship to the con-

tent of a dataset, has also to be taken into account. In

our investigation, this knowledge did not have much

inﬂuence on the results. Nevertheless, there is some

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

248

Table 4: GEE predicting the effect of the tested factors on the perceived graph similarity rating. Odds ratios (OR) are

calculated by exponentiation of the B coefﬁcient. Reference categories for the individual predictors are given in brackets and

signiﬁcant predictors are highlighted in italics.

Predictor (reference) B OR 95% CI

– Nr. of edge changes (0)

1 edge change -1.510 0.22

∗∗

-2.08 to -0.94

2 edge changes -1.897 0.15

∗∗

-2.59 to -1.20

– Edge crossing change (no) -0.771 0.46

∗

-1.41 to -0.13

– Label Change with meaning (no) -3.221 0.04

∗∗

-3.90 to -2.54

– Label change without meaning (no) -0.121 0.89 -0.56 to 0.32

– Graph topic (Hollywood) 0.102 1.11 -0.18 to 0.38

– Profession (Computer Science) 0.092 1.10 -0.64 to 0.83

∗

p < .05;

∗∗

p < .001

indication that in other studies this inﬂuence was sig-

niﬁcant (e.g., Shah and Hoeffner, 2002). Further re-

search has to identify the reasons for the presence or

absence of this inﬂuence.

The different features of the graphs have to be in-

vestigated systematically. There is a large amount of

features which can inﬂuence the perception of simi-

larities of graphs. In our investigation we only used

the number of edges, edge crossings, and content

(speciﬁcally, node labels) as features inﬂuencing the

behavior of the participants. Our ﬁrst results suggest

that content plays an important role and changing the

label of the central node is more relevant than chang-

ing the label of peripheral nodes. Changes in the num-

ber of edges and edge crossings also have some inﬂu-

ence. It depends on the preference of the participants

which aspects are more important to them. If both

types of changes (content and structure) are present, a

bipolar distribution of the similarity ratings can occur,

indicating that there are two distinct groups of partic-

ipants, one taking content more into account, and the

other for whom structure is more important. How-

ever, there are still many open issues in this context

(e.g., are semantic changes distinguished from visual-

only changes, that is, changes where the data stays

the same but the layout changes), and many other fea-

tures of graphs have to be investigated. The system-

atic variation is essential for the investigation, espe-

cially the combination of various features. In our case

it was combining number of edges, number of edge

crossings, and labels of graphs. Even developing an

investigation plan for the variation of such a limited

amount of features was challenging. We had espe-

cially to take into account that the cognitive load on

the participants was manageable. Experience shows

that participants are only able to rate a limited num-

ber of graph pairs in one experiment. Therefore, we

think that a number of investigations following each

other has to be conducted to study a relevant part of

all possible variations.

We did not provide the participants with interac-

tion possibilities to avoid confounding effects. It can

be argued that, for example, the number of edges or

the change of node labels can be detected more eas-

ily when the possibility of highlighting is provided.

Therefore, the inﬂuence which edges or edge cross-

ings play have to be studied in isolation without tak-

ing the confounding factors of interaction into ac-

count. This also indicates that a number of consecu-

tive studies with an increasing amount of complexity

and interactivity should be conducted.

7 CONCLUSIONS

We think that the challenge of developing an appropri-

ate dataset and appropriate stimuli (i.e., variations of

visualizations) for evaluation purposes is sometimes

underestimated. For systematic basic research in this

area which can uncover the inﬂuence of individual

features of a visualization, this activity is neverthe-

less necessary. In this paper, we try to demonstrate

issues related to this question using the example of

graph comparison. We also provided a ﬁrst overview

of contributing factors which are relevant in this area.

This is by no means a comprehensive list of such fac-

tors. We intend to investigate this issue in more detail

in future work. Based on this work, we want to con-

duct several studies with graphs of increasing com-

plexity and interactivity to identify inﬂuencing factors

for graph comparison. We already presented ﬁrst ten-

tative results of such a study. The goal of this work is

to develop guiding principles for the design of graphs

which can support graph comparison efﬁciently.

REFERENCES

Archambault, D. (2009). Structural differences between

two graphs through hierarchies. In GI, pages 87–94.

Archambault, D. and Purchase, H. (2012). The mental map

Investigating Graph Similarity Perception: A Preliminary Study and Methodological Challenges

249

and memorability in dynamic graphs. In IEEE Paci-

ﬁcVis, pages 89–96.

Archambault, D., Purchase, H. C., and Pinaud, B. (2011).

Animation, small multiples, and the effect of mental

map preservation in dynamic graphs. IEEE TVCG,

17(4):539–552.

Bach, B., Pietriga, E., and Fekete, J.-D. (2014). Graph-

diaries: animated transitions and temporal navigation

for dynamic networks. IEEE TVCG, 20(5):740–754.

Beck, F., Burch, M., Diehl, S., and Weiskopf, D. (2014).

The state of the art in visualizing dynamic graphs. Eu-

roVis STAR.

Bortz, J. and D

oring, N. (2007). Forschungsmethoden

und Evaluation f

ur Human-und Sozialwissenschaftler.

Springer.

Bremm, S., Von Landesberger, T., Heß, M., Schreck, T.,

Weil, P., and Hamacher, K. (2011). Interactive visual

comparison of multiple trees. In IEEE VAST, pages

31–40. IEEE.

Collins, C. M. and Carpendale, S. (2007). VisLink: Reveal-

ing relationships amongst visualizations. IEEE TVCG,

13(6):1192–1199.

Diehl, S. and G

org, C. (2002). Graphs, they are changing.

In Graph drawing, pages 23–31. Springer.

Dwyer, T., Lee, B., Fisher, D., Quinn, K. I., Isenberg, P.,

Robertson, G., and North, C. (2009). A comparison

of user-generated and automatic graph layouts. IEEE

TVCG, 15(6):961–968.

Gao, X., Xiao, B., Tao, D., and Li, X. (2010). A survey of

graph edit distance. Pattern Analysis and applications,

13(1):113–129.

Ghoniem, M., Fekete, J.-D., and Castagliola, P. (2005). On

the readability of graphs using node-link and matrix-

based representations: A controlled experiment and

statistical analysis. Inf Vis, 4(2):114–135.

Gleicher, M., Albers, D., Walker, R., Jusuﬁ, I., Hansen,

C. D., and Roberts, J. C. (2011). Visual comparison

for information visualization. Inf Vis, 10(4):289–309.

Graham, M. and Kennedy, J. (2010). A survey of multiple

tree visualisation. Inf Vis, 9(4):235–252.

Hadlak, S., Schumann, H., and Schulz, H.-J. (2015). A

survey of multi-faceted graph visualization. EuroVis

STAR.

Hardin, J. W. and Hilbe, J. M. (2012). Generalized Estimat-

ing Equations. Chapman and Hall/CRC, 2 edition.

Holten, D. and Van Wijk, J. J. (2008). Visual comparison of

hierarchically organized data. CGF, 27(3):759–766.

Holten, D. and van Wijk, J. J. (2009). A user study on visu-

alizing directed edges in graphs. In CHI ’09, CHI ’09,

pages 2299–2308.

Huang, W., Hong, S.-H., and Eades, P. (2006a). How peo-

ple read sociograms: a questionnaire study. In IEEE

PaciﬁcVis, pages 199–206.

Huang, W., Hong, S.-H., and Eades, P. (2006b). Predicting

graph reading performance: a cognitive approach. In

IEEE PaciﬁcVis, pages 207–216.

Kieffer, S., Dwyer, T., Marriott, K., and Wybrow, M.

(2016). Hola: Human-like orthogonal network layout.

IEEE TVCG, 22(1):349–358.

Kobourov, S. G., Pupyrev, S., and Saket, B. (2014). Are

crossings important for drawing large graphs? In

Graph Drawing, pages 234–245. Springer.

orner, C. (2005). Concepts and misconceptions in com-

prehension of hierarchical graphs. Learning and In-

struction, 15(4):281–296.

Lee, B., Plaisant, C., Parr, C. S., Fekete, J.-D., and Henry,

N. (2006). Task taxonomy for graph visualization. In

BELIV, pages 1–5, New York, NY, USA. ACM.

McGee, F. and Dingliana, J. (2012). An empirical study on

the impact of edge bundling on user comprehension of

graphs. In AVI, pages 620–627.

McGrath, C. and Blythe, J. (2004). Do you see what I want

you to see? the effects of motion and spatial layout

on viewers’ perceptions of graph structure. J. Soc.

Structure, 5(2):2.

McGrath, C., Blythe, J., and Krackhardt, D. (1997). The

effect of spatial arrangement on judgments and errors

in interpreting graphs. Social Networks, 19(3):223–

242.

Novick, L. R. (2006). The importance of both diagram-

matic conventions and domain-speciﬁc knowledge for

diagram literacy in science: The hierarchy as an il-

lustrative case. In Diagrammatic representation and

inference, pages 1–11. Springer.

Purchase, H. C. (2002). Metrics for graph drawing aesthet-

ics. J. Vis. Languages & Computing, 13(5):501–516.

Purchase, H. C., Hoggan, E., and G

org, C. (2007). How

important is the mental map: an empirical investiga-

tion of a dynamic graph layout algorithm. In Graph

drawing, pages 184–195. Springer.

Purchase, H. C., McGill, M., Colpoys, L., and Carrington,

D. (2001). Graph drawing aesthetics and the compre-

hension of uml class diagrams: an empirical study. In

IEEE PaciﬁcVis, volume 9, pages 129–137.

Schulz, H.-J., Nocke, T., Heitzler, M., and Schumann, H.

(2013). A design space of visualization tasks. IEEE

TVCG, 19(12):2366–2375.

Shah, P. and Hoeffner, J. (2002). Review of graph compre-

hension research: Implications for instruction. Edu-

cational Psychology Review, 14(1):47–69.

Tennekes, M. and de Jonge, E. (2014). Tree colors:

color schemes for tree-structured data. IEEE TVCG,

20(12):2072–2081.

Tominski, C., Forsell, C., and Johansson, J. (2012). Interac-

tion Support for Visual Comparison Inspired by Natu-

ral Behavior. IEEE TVCG, 18(12):2719–2728.

Vehlow, C., Beck, F., and Weiskopf, D. (2015). The state

of the art in visualizing group structures in graphs. In

EuroVis STAR.

von Landesberger, T., Gorner, M., and Schreck, T. (2009).

Visual analysis of graphs with multiple connected

components. In IEEE VAST, pages 155–162.

Von Landesberger, T., Kuijper, A., Schreck, T., Kohlham-

mer, J., van Wijk, J. J., Fekete, J.-D., and Fellner,

D. W. (2011). Visual analysis of large graphs: state-

of-the-art and future research challenges. In CGF, vol-

ume 30, pages 1719–1749. Wiley.

Zimbardo, P. G. and Gerrig, R. J. (2008). Psychologie. Pear-

son Studium.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

250
