Realizing Multi-variant Model Transformations

on Top of Reused ATL Speciﬁcations

Sandra Greiner, Felix Schw

agerl and Bernhard Westfechtel

Applied Computer Science I, University of Bayreuth, Universit

atsstr. 30, 95440 Bayreuth, Germany

Keywords:

Model-Driven Software Engineering, Software Product Line Engineering, Model Transformations, Variabil-

ity, Organized Reuse.

Abstract:

Model transformations are crucial in model-driven software engineering (MDSE). While combining MDSE

and software product line engineering (SPLE) techniques, summarized as model-driven product line engineer-

ing (MDPLE), promises increased productivity by relying on organized reuse, the beneﬁts are impeded by

transformation speciﬁcations designed exclusively for single-variant models. Applying single-variant model

transformations to multi-variant input models results in output models lacking the variability information.

Multi-variant model transformations (MVMT), which preserve variability information, have only recently

been understood as an explicit research problem. In this paper, we propose an a posteriori approach towards

MVMT. Following the paradigm of organized reuse, we propose to employ single-variant model transfor-

mations without modiﬁcations in a ﬁrst step, and to transfer variability information afterwards based on the

artifacts provided by the single-variant transformation speciﬁcation. In particular, we implemented this ap-

proach for the well-known model-to-model transformation language ATL. To deduce variability information,

the execution artifacts (trace and execution model) are analyzed. Then, variability annotations are transfered

to the target model automatically. The implementation is evaluated based on a practically example of a Graph

product line. Results exhibit that our approach outperforms the conventional solution with respect to user

effort, accuracy and performance.

1 INTRODUCTION

In model-driven software engineering (MDSE), mod-

els are abstractions of systems to be transformed into

executable code eventually (V

olter et al., 2006). A

metamodel, the model conforms to, deﬁnes the ab-

stract syntax of the used modeling language.

Model transformations (Mellor et al., 2004) con-

vert one or multiple source models (input) into target

models (output). In case the metamodels of source

and target model are the same, the transformation

is called endogenous, otherwise exogenous. With

in-place transformations the source model serves as

target model whereas in out-place transformations a

separate target model is instantiated. In a model-to-

model (M2M) transformation models are the in- and

output whereas model-to-text (M2T) transformations

produce text as output. The Atlas Transformation

Language (ATL) (Jouault and Kurtev, 2006) is a wide-

spread M2M language enabling both endogenous and

exogenous as well as in-place and out-place transfor-

mations.

Moreover, software product line engineering

(SPLE) is a paradigm to develop software applica-

tions based on the principles of organized reuse and

variability. The process of developing an SPL con-

sists of two phases: domain engineering, where a

platform, deﬁning the common structure and behav-

ior from which products are developed, is established,

and application engineering, where products are de-

rived in a preferable automated way from domain en-

gineering artifacts (Pohl et al., 2005). The combina-

tion of MDSE and SPLE, model-driven product line

engineering (MDPLE), promises to increase produc-

tivity in two ways (Gomaa, 2004). A mapping, de-

noted as annotation below, deﬁnes the set of variants

in which some model element is included.

Problem Statement. In MDSE commonly model

transformations are applied to models without con-

cerning variability information. However, for realiz-

ing MDPLE models are augmented with variability

information, represented by annotations. When ap-

plying a single-variant model transformation (SVMT)

362

Greiner S., SchwÃd’gerl F. and Westfechtel B.

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations.

DOI: 10.5220/0006137803620373

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 362-373

ISBN: 978-989-758-210-3

Source Multi-

Variant

Domain Model

Domain

Model

Multi-Variant

Model Transformation

Source-To-Target

Model Transformation

Transformation

Specification

Target Multi-

Variant

Domain Model

Domain

Model

f.a.

input

output

artifacts

Variability Information

Transfer

f.a.

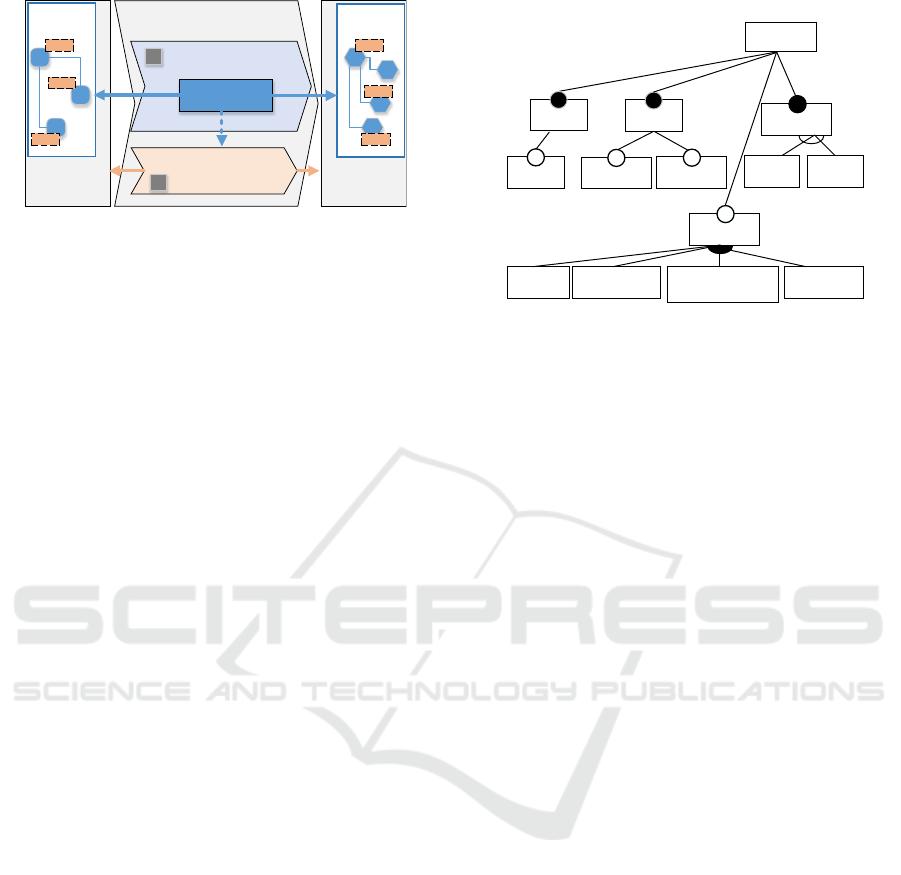

Figure 1: An overview on the contributed solution for

MVMTs. Abbreviation “f.a.” is for “feature annotation”.

so far, these annotations are rather lost than trans-

ferred to the target model. Hence, in order to recover

annotations, workarounds, e.g., copying the annota-

tions manually, are applied. These workarounds are

normally laborious and error-prone, calling for an au-

tomated mechanism to transfer annotations.

Approach. As sate-of-the art SVMT, e.g., ATL,

neglect variability information, multi-variant model

transformations (MVMT) are required for transfer-

ring annotations. Due to the fact that SPLE is based

on the principle of organized reuse, we propose an a

posteriori approach that reuses as many existing tech-

nology as possible without altering it. Thus, at ﬁrst

the SVMT is reused without modiﬁcations to gener-

ate target domain models. As depicted in Figure 1,

annotations are attached to the target model in a sec-

ond step. For automating this task, the artifacts of the

SVMT are analyzed to ﬁnd corresponding source and

target elements and to propagate annotations corre-

spondingly. The second step is aimed to support dif-

ferent metamodels for source and and target model.

Technical Contribution. While the contributed so-

lution is applicable to MVMT in general, as techni-

cal realization, we decided to use ATL as M2M lan-

guage as well as the MDPLE tool FAMILE (Buch-

mann and Schw

agerl, 2012) to provide source and tar-

get models with product line functionality. In order to

propagate annotations the procedure in Figure 1 is re-

ﬁned. The artifacts are a persisted trace (made avail-

able by the ATL EMFTVM (Wagelaar et al., 2012)

execution engine) and its execution model. After a

non-trivial analysis of these artifacts it is possible to

determine which structural feature of the target was

created from which source element(s). A concrete ex-

ample, in which an Ecore model for a Graph library

is converted into a semantically equivalent UML class

model, serves for motivating and illustrating our ap-

proach as well as for a preliminary evaluation of the

automated propagation.

Nodes

Graph

Edges

Colored

Directed

Weighted

DFS BFS

Algorithm

Minimum

SpanningTree

Transpose

WeightedthShortestPa 

DirectedCycle

DirectedTranspose 

Cycle ShortestPath

Figure 2: The feature model for the Graph product line,

represented as feature diagram.

Related Work. So far, the ﬁeld of MVMT is

populated rather sparsely (see Section 6). Sev-

eral approaches support variability in the transforma-

tion speciﬁcation, e.g., (Sijtema, 2010; Str

uber and

Schulz, 2016). Contrastingly, we address (propagat-

ing) variability of models rather than of transforma-

tion rules. Comparably, in (Salay et al., 2014) an-

notations of model elements are propagated. How-

ever, an MVMT, which is generated from the SVMT,

is executed rather than the SVMT itself. Not only

has it been performed for in-place transformations, in

(Famelis et al., 2015) the lifting algorithm was im-

plemented for a DSL to support a speciﬁc out-place

transformation. While the authors require a DSL to

be adapted for the MVMT, we reuse a well-known

SVMT without any modiﬁcation.

Outline. The next section introduces an example to

illustrate the problem and to detail the key concepts

of our solution. The technical foundations and the re-

alization are described in the following two sections

and will be evaluated in Section 5. Next, we delimit

our approach from related work and draw a conclu-

sion in the last section.

2 MOTIVATING EXAMPLE

This section introduces an example demonstrating the

necessity of a MVMT in a standard SPLE scenario.

2.1 Example Scenario

In the example, we consider a M2M transformation

between an Ecore (Steinberg et al., 2009) and a UML

(Object Management Group, 2015) class model. On

instance level, we use the well-known example of a

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations

363

SPL for Graph libraries (Lopez-Herrejon and Batory,

2001).

A feature model describing the commonalities

and differences of members of the Graph SPL is

shown in Figure 2. It contains the mandatory features

Graph, Nodes, and Edges; a mandatory Search func-

tion, containing the mutually exclusive features DFS

(depth-ﬁrst) and BFS (breadth-ﬁrst search), as well as

different Algorithms, any subset of which can be se-

lected, are provided. The class Cycle keeps track of

its edges and Adajcency lists can be used in the al-

gorithms. Edges may be Weighted and/or Directed.

In addition, there are requires relationships between

different algorithms and other features: Shortest Path

requires the selection of feature Weighted; Cycle and

Transpose both require a Directed graph.

The Ecore-based domain model in its multi-

variant representation, referred to as the source multi-

variant domain model (MVDM), is depicted in Fig-

ure 3. The connection to the feature model is realized

by feature expressions (FE) attached to domain ele-

ments; these annotations determine which (combina-

tion of) features an element realizes.

Table 1 lists a relevant excerpt of the mapping

which attaches annotations to the MVDM elements.

E.g., class Node references a simple list of edges if

not Directed; if feature Directed is selected, this ref-

erence is replaced by two separate lists of incoming

and outgoing edges. One additional mapping for at-

tributes is given for the property weight of the class

Edge (not shown in Table 1, which holds mappings

Table 1: Excerpt of mapping FEs to MVDM elements.

Domain Element Identiﬁer Feature Expression

graph (root package) GraphProductLine

Node

• edges

• inEdges, outEdges

Nodes

• not Directed

• Directed

Color Color

Edge

• weight

• source, target

• nodes

Edges

• Weighted

• Directed

• not Directed

Adjacency, buildAdjList() Search

Cycle Cycle

• bfs()

• dfs()

• BFS

• DFS

Algorithm

• shortestPath(Node, Node)

• minSpanningTree()

• transpose()

Algorithm

• Shortest Path

• Min. Sp. Tree

• Transpose

for domain model elements). Its value for the meta-

attribute derived is true in case the not Weighted vari-

ant is selected; this way, unweighted graphs are in-

ternally mapped to graphs the edges of which have a

weight of 1.

The power of SPLE lies in its ability to gener-

ate customized products (i.e., variants of the domain

model) by conﬁguring the artifacts deﬁned in the plat-

form. The characteristics of a speciﬁc product are de-

scribed by a so called feature conﬁguration, which

binds each feature deﬁned in the feature model to

a boolean selection state. For consistency, a fea-

ture conﬁguration is required to comply with all con-

straints (parent/child consistency, mutual exclusion,

requires dependencies) deﬁned in the feature model.

According to the principle of negative variability

(Pohl et al., 2005), a product is derived by ﬁltering

the MVDM using a feature conﬁguration. For this

purpose, the FEs attached to each domain model ele-

ment are evaluated with respect to the boolean bind-

ings speciﬁed by the respective feature conﬁguration;

if this yields false, the element is removed from the

product. MDPLE tools such as FAMILE perform this

ﬁlter operation automatically.

2.2 The Filter/Transform Dilemma

Returning to the concrete SPLE scenario, during later

development it is required that Ecore models derived

from the product line should be represented as UML

models as UML provides additional modeling con-

structs, e.g., for deﬁning behavior. Assuming that

there exists an (single-variant) M2M transformation

speciﬁcation which converts a regular Ecore model

to a corresponding UML instance, an initial approach

would apply the transformation repeatedly to all cur-

rently available products of the product line. This cor-

responds with the path ﬁlterÑtransform seen in Fig-

ure 4, which comes with major disadvantages. Not

only is it tedious and time-consuming to transform

every product separately, it also contradicts the key

idea of SPLE: organized reuse. In particular, it is de-

sirable to apply the ﬁlter operation as late as possible

in order to move as many as possible development ac-

tivities to domain engineering, removing the need to

maintain the products individually and to afterwards

propagate changes back to the platform.

Obviously, the caused effort can be reduced sig-

niﬁcantly by ﬁrst transforming the MVDM into a

UML-compliant instance and deriving speciﬁc UML-

based products thereafter. When considering Fig-

ure 4, the path multi-variant transformÑﬁlter is

preferable over ﬁlterÑtransform. Still, we cannot

simply reuse the existing Ecore to UML transforma-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

364

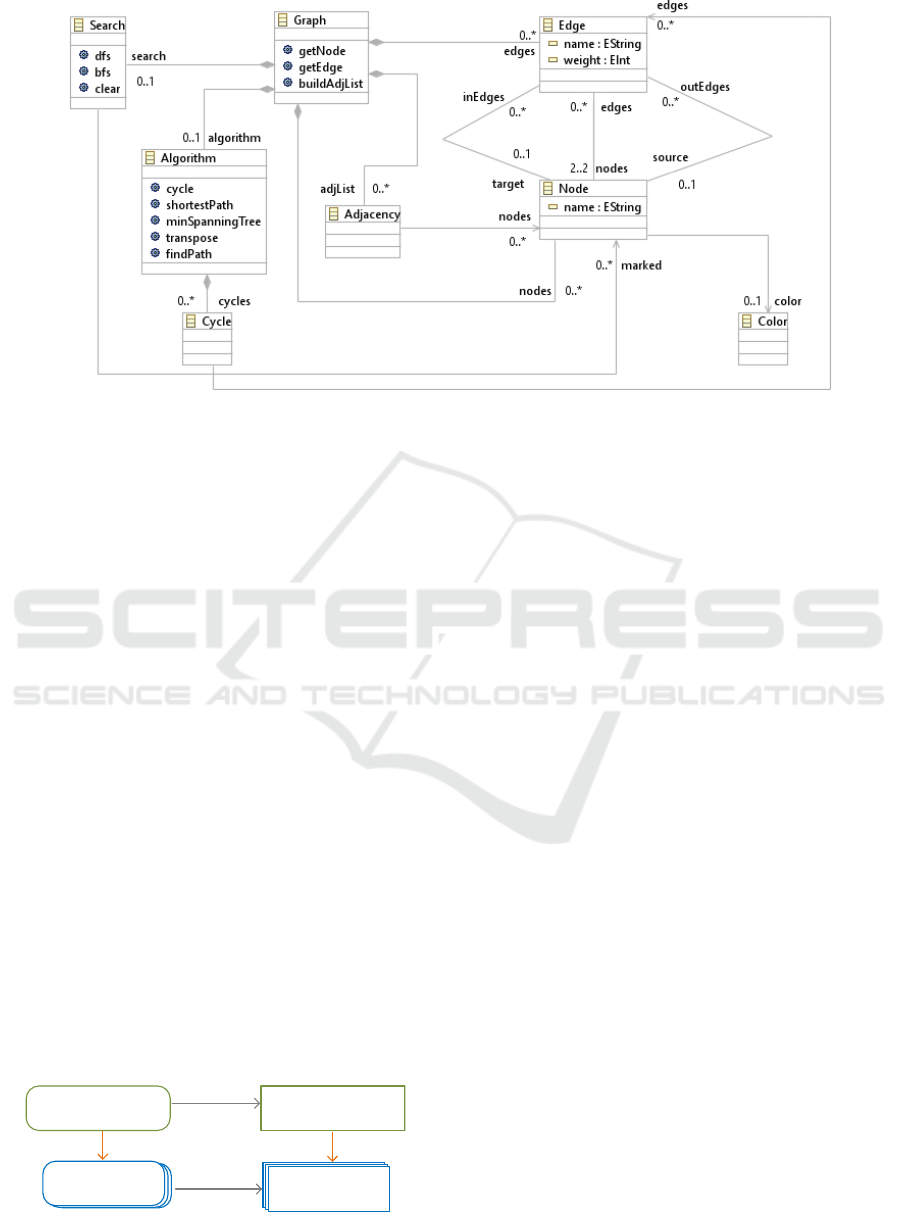

Figure 3: The multi-variant domain model for the graph product line in Ecore class diagram syntax.

tion speciﬁcation on the source MVDM since anno-

tations (technically, the mapping model) would be ig-

nored. In order to perform the subsequent derivation

step, we would have to (manually) create a mapping

model for the UML instance and to copy the equiva-

lent FE of source elements to their corresponding tar-

get elements. This in turn is even more tedious and

error-prone; after all, the goal of MDSE is to automate

such tasks to the greatest possible extent. It is exactly

this automation that is performed by our MVMT.

2.3 Consequences

To conclude, the example demonstrates three essen-

tial properties an MVMT is supposed to expose: In

order to reduce the manual and error-prone effort

of solving the ﬁlter/transformation dilemma, missing

information should be processed (1) automatically

and should (2) reuse an existing single-variant model

transformation speciﬁcation. In addition, the transfor-

mation should (3) preserve variability.

3 TECHNICAL FOUNDATIONS

To keep this paper self-contained, this section brieﬂy

discusses key technologies employed in our MVMT

Source Multi-Variant

Domain Model

Target Multi-Variant

Domain Model

Source

Products

Single-variant

target models

transform

filter(conf) filter(conf)

Single-variant

target models

Target

Products

multi-variant

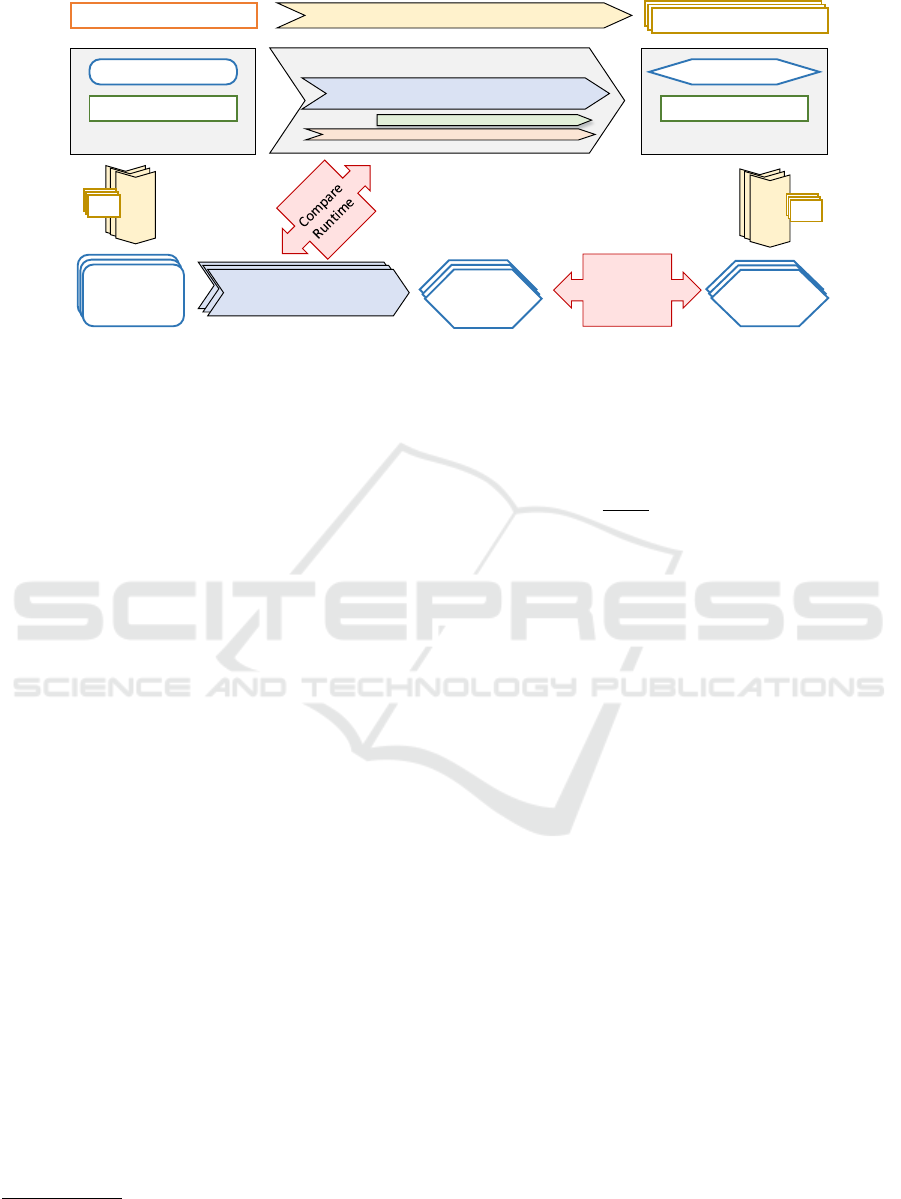

Figure 4: Relationship between the two operations ﬁlter and

transform in MVMT.

implementation. It introduces the MDPLE environ-

ment FAMILE and an enhanced transformation engine

for ATL that persists trace information.

3.1 FAMILE

The MVMT examined in this paper is situated in the

domain engineering phase of a classical SPLE pro-

cess. The MDPLE tool FAMILE (Buchmann and

Schw

agerl, 2012) is used for SPL management; an-

notations are stored in a separate model, the F2DMM

(feature to domain mapping model), in form of FEs,

boolean expressions that control to which feature a

domain model element belongs.

Due to a distinction between object mappings, at-

tribute mappings, and reference mappings, it is pos-

sible to annotate every EObject as well as each in-

dividual value of its EReferences and its EAttributes

(summarized below as EStructuralFeatures). For in-

stance, the name of an EClass instance may only be

visible for a certain feature otherwise it may remains

empty. Another example has been shown in Sec-

tion 2.1: the value true of the boolean meta-attribute

derived of the Ecore attribute weight of class Edge

is assigned an individual FE. If an explicit value is

missing, the boolean standard value false is assigned

automatically. Elements without FEs are universally

included.

3.2 ATL/EMFTVM

The speciﬁcation of the domain-level model trans-

formation included in the MVMT problem statement

is written in the well-established unidirectional lan-

guage ATL (Jouault and Kurtev, 2006).

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations

365

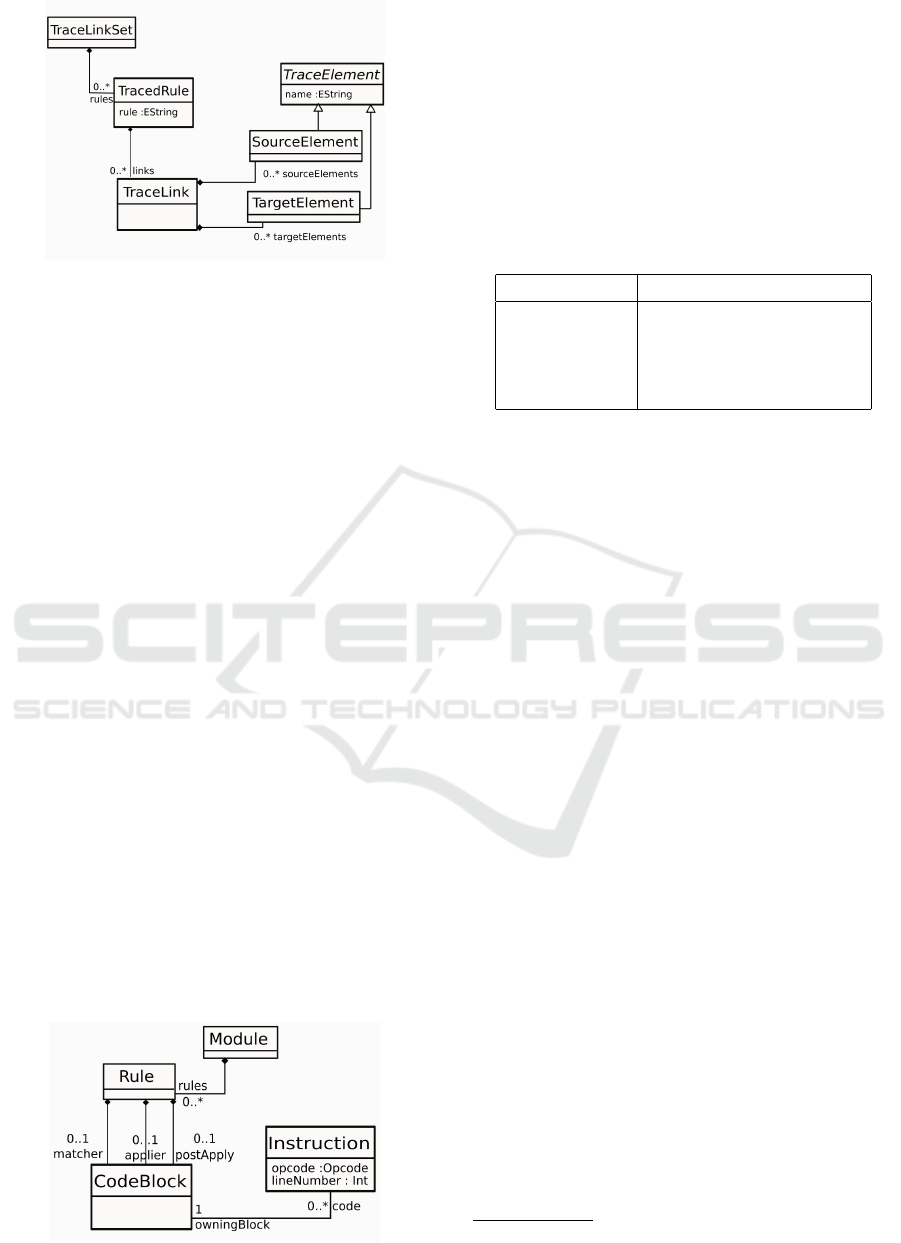

Figure 5: Simpliﬁed metamodel of the created trace.

An ATL transformation provides rules where

helpers (either operations or global variables) can be

used. A rule consists of a source pattern (from), a tar-

get pattern (to), where one or more target elements

can be declared, and an optional do-block where fur-

ther assignments or rules may be executed after estab-

lishing the target pattern objects. Three kinds of rules

exist: matched, lazy or called rules. Matched rules

are executed automatically whereas the latter must be

invoked. Matched and lazy rules are accessible in a

volatile trace during execution under certain restric-

tions.

Normally, ATL does not persist traces and the run-

time model of the executed transformation speciﬁca-

tion is removed after compilation. However, in or-

der to reuse the single-variant ATL transformation, we

need to evaluate the ATL rules and the trace a poste-

riori. For that reason, we have employed an extension

to ATL, EMFTVM (EMF transformation virtual ma-

chine) (Wagelaar et al., 2012), that does persist traces.

A trace, schematically depicted in Figure 5, con-

sists of a set of TracedRules which are identiﬁed by

the names speciﬁed in the transformation speciﬁca-

tion. For every rule application, a TraceLink is cre-

ated that references the source objects and the created

target objects. For instance, the trace of our exam-

ple, applied to the Ecore model (Figure 3), contains

a TraceRule containing eight instances of TraceLinks

each referencing one of the EClasses of the Graph ex-

ample as source and a UML class as target object.

Figure 6: Excerpt from the ATL execution metamodel.

Listing 1: Simple Example for ATL rule.

1 rule Model {

2 from

3 src: Ecore!EPackage (

src.eSuperPackage.oclIsUndefined() )

4 to

5 tar: UML!Model (

6 name <- src.name

7 )

8 }

Table 2: Instructions of applier block for Listing 1.

Instruction Kind Argument

0 LOAD tar:UML!Model

1 LOAD src:Ecore!EPackage

2 GET ﬁeldname: name

3 INVOKE argcount: 0, opname: resolve

4 SET ﬁeldname: name

EMFTVM executes low-level byte code that is

generated during the compilation of the transforma-

tion speciﬁcation. After compiling the ATL transfor-

mation, this byte code is accessible as EMF model

which we refer to as execution model below. In-

stances of the metaclass Module aggregate rules, oper-

ations and ﬁelds, the latter two of which (representing

ATL helpers) are neglected here. A Rule consists of

a matcher, applier, and post-apply code block which

correspond with source and target pattern and the do-

block, respectively. Figure 6 depicts relevant excerpts

of the metamodel. A CodeBlock aggregates a list of

Instructions. These vary by their opcode. In total, 47

different instruction types are deﬁned

The ATL rule shown in Listing 1, for instance, is

mapped to ﬁve instructions in the applier block which

are depicted with their corresponding stack position in

Table 2. First, it LOADs the target UML model (tar),

and second, the source Ecore package (src). Then,

a GET instruction is pushed onto the stack with the

ﬁeldname name, which corresponds with the source

attribute. Next, an INVOKE instruction, which re-

solves the name, is pushed. Finally, the SET instruc-

tion is placed with the ﬁeldname name that corre-

sponds to the target attribute. Further assignments in

the target pattern would each be introduced by at least

one additional LOAD instruction for the target object,

followed by several GET, and terminated by another

SET instruction.

In contrast, since it allows for arbitrary statements,

the do-block might be lacking SET instructions. E.g.,

when only a called rule or a helper is invoked, such

statement is ﬁnalized by a POP instruction.

http://soft.vub.ac.be/viewvc/*checkout*/EMFTVM/

trunk/emftvm/EMFTVM.html

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

366

Source Multi-Variant

Domain Model

Mapping Model

Domain Model

Multi-Variant Model Transformation

Source-To-Target Model Transformation

Transformation

Specification

Target Multi-Variant

Domain Model

Mapping Model

Domain Model

input

output

trace + execution model

Variability Information Transfer

Mapping Model

Construction

Feature Expression Transformation

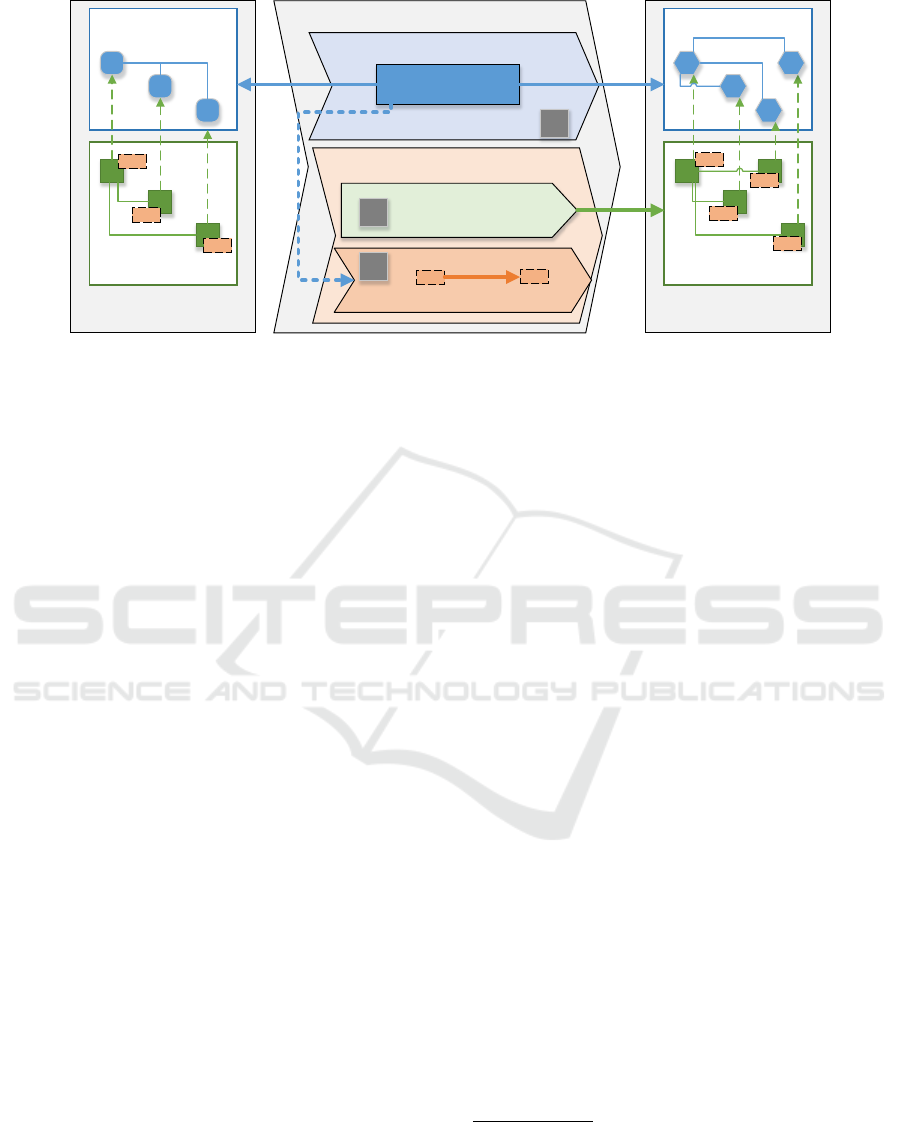

Figure 7: An overview on the contributed solution for MVMTs.

4 REALIZATION

As mentioned before, the realized MVMT, sketched

in Figure 7, involves three consecutive steps reﬁning

our general a posteriori approach (Figure 1). First,

the reused ATL transformation is applied to the source

MVDM. Second, the skeleton of the target F2DMM is

built (Step 2a). Third, annotations, in form of FEs, are

transferred from source to target model (Step 2b) by

evaluating the trace and the execution model. Subse-

quently, we describe these steps in greater detail and

reﬂect on the limitations of the solution. Note that we

do not include the F2DMM transformation in the ATL

speciﬁcation, as it would contradict the principle of

reuse and would make the MVMT speciﬁcation tool

and metamodel dependent.

Source-To-Target Model Transformation. First,

the reused M2M transformation is executed. The

source Ecore model is transformed to the target UML

model based on an ATL speciﬁcation executed with

ATL/EMFTVM. The engine persists a trace and pro-

vides access to the execution model.

Mapping Model Construction. Next, the skeleton

of the mapping model is established for the UML

model by reusing a FAMILE routine that constructs

an F2DMM reﬂecting the target MVDM and refer-

encing the same feature model as the input F2DMM.

The routine creates an object mapping for every EOb-

ject, an attribute mapping for each EAttribute value

of an object, and a reference mapping for each link

instantiated from an EReference. This way, each ES-

tructuralFeature value of an object in the target do-

main model, may carry an individual FE.

Transfer of Feature Expressions. Still, the target

F2DMM lacks FEs. They are now determined from

the source mapping model (the F2DMM for the Ecore

model). The procedure is composed of two subse-

quent steps. First, expressions of object mappings are

transferred, which is a simple task given that the trace

is available for analysis

. Second, expressions for

EStructuralFeatures are considered, which involves a

non-trivial analysis of the opcode of all applied rules.

This is necessary because the trace is maintained on

the level of objects rather than on the (more ﬁne-

grained) level of EStructuralFeature values. Further-

more, the execution model of ATL/EMFTVM is ana-

lyzed rather than the source code, which not accessi-

ble as an EMF model

4.1 Trace Analysis for Object Mappings

At ﬁrst, for every object mapping in the target

F2DMM, the corresponding source object is deter-

mined. The realized strategy iterates over the target

F2DMM and searches in the trace a TraceLink which

links the mapped object of the target mapping as one

of its target objects. Then, the source element of the

link is taken to ﬁnd the corresponding mapping object

in the source F2DMM. If the source mapping contains

an FE, the same expression is attached to the target

mapping. In general, if an FE is missing, the element

is visible in all products. In case of multiple source

elements, their FEs are AND conjuncted as detailed

While a rule might reference multiple source objects,

we assume one source object without loss of generality.

Having multiple source objects would result in the same

transfer of annotations as described in Section 4.4.

When using the default build, plug-in projects delivered

to the customer only provide the byte code.

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations

367

in Section 4.4.

Analyzing the trace instead of the execution model

to ﬁnd corresponding objects offers the beneﬁt that

an evaluation of rule guards in the execution model is

unnecessary. Only objects that match the rule guard

will be persisted in a TraceLink. This information is

exploited in later steps of the transformation.

4.2 Rule Analysis for Detail Mappings

In the next step, mappings for EStructuralFeatures are

processed. Here, the information of the trace is not

sufﬁcient, hence, the execution model must be ex-

ploited. Since it represents compiled byte code, this

model is situated on a quite low level of abstraction.

In order to deduce relevant parts of the originating

ATL rule, we analyze its code blocks and determine

some basic binding and statement patterns that can be

clearly identiﬁed . Table 3 lists all currently supported

patterns with corresponding ATL examples and their

EMFTVM opcodes. In the following, the identiﬁed

patterns are shortly characterized.

SimpleBindings are the easiest pattern to iden-

tify. One source element is assigned to one target ele-

ment in the output pattern. Details of its opcodes were

shown in the Listing 1 (cf. Table 2).

Another simple instruction block are “hard-

coded” DirectAssignments, in which one or more

constant values which do not refer to features of the

source element(s) are assigned to a target feature.

These instructions always end with a SET command,

mentioning the target element. However, instead of a

GET instruction, a PUSH is placed on the stack.

Furthermore, the procedure identiﬁes Chained-

Gets representing assignments which consist of a path

of values. Such patterns initially LOAD target and

source element. Then, a chain of GET instructions

follows that terminates with a SET instruction. These

instructions always reﬂect a path of references where

the concluding GET invocation refers to an arbitrary

EStructuralFeature value of the last EObject on the

path. An example is depicted in Table 3, line 3.

In contrast, a CombinedGet involves GET in-

structions that are interrupted by other instructions

before being assigned (SET). For instance, a String

concatenation made up of different attributes is rec-

ognized as such statement. However, if a GET in-

struction is interrupted by an if or for statement or

a method invocation, it will be recognized as an Oth-

erStatement, as is any other statement that cannot be

clearly identiﬁed.

Do-blocks. For the instructions in the do-block of

ATL rules, the analysis is more complicated. Here, a

statement does not have to end with a SET instruction.

For instance, if simply a called rule is invoked, no

assignment will take place. Instead of a SET, such

statements are ﬁnalized by a POP instruction as seen

in the last line of Table 3.

The procedure that recognizes the code block pat-

terns checks whether a block ends with a SET or a

POP/SET command. Those ending with a POP com-

mand are automatically categorized as OtherState-

ment and, thus, discarded from the feature analysis.

If and for statements are omitted as well since they

might be combined almost arbitrarily in do-blocks.

Memorizing Recognized Patterns. During rule

analysis, recognized patterns are recorded in analyzed

rules, i.e., data structures organizing lists of the afore-

mentioned statement categories. Our procedure splits

up the whole instruction set of the to-pattern (applier)

and the do-block (post-apply) in blocks of the sin-

gle statement kinds and adds the blocks to a respec-

tive list. For instance, the analyzed rule of the ATL

rule shown in Listing 2 holds three SimpleBindings

for line 6-8 and one for line 16. Lines 11-12 repre-

sent a CombinedGet whereas line 13 and 15 are each

evaluated as ChainedGet. The remaining bindings are

recognized as DirectAssignments.

Listing 2: ATL rule that creates a unidirectional association.

1 rule Reference2UniAssoc {

2 from src: Ecore!EReference

3 ( src.eOpposite.oclIsUndefined() )

4 to

5 tar: UML!Property (

6 name <- src.name,

7 type <- src.eType,

8 upper <- src.upperBound,

9 association <- tar1 ),

10 tar1: UML!Association (

11 name <- src.name + ’To’ +

12 src.eContainingClass.name,

13 package <-

src.eContainingClass.ePackage),

14 tar2: UML!Property (

15 name <- src.eContainingClass.name,

16 type <- src.eContainingClass,

17 upper <- 1,

18 association <- tar1,

19 owningAssociation <- tar1

20 )

21 }

4.3 Extracting Relevant Mappings

After having analyzed the statements inside the trans-

formation rules, the identiﬁed patterns are used to

determine matching EStructuralFeature values from

transformed EObjects. Their FEs are supposed to be

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

368

Table 3: Identiﬁed code block patterns and corresponding lists of opcode-level instructions.

Identiﬁed Pattern ATL Example Corresponding Opcodes

SimpleBinding name Ð src.name LOAD(tar), LOAD(src), GET, INVOKE, SET

DirectAssignment name Ð ’Hardcoded Name’ LOAD, PUSH, INVOKE, SET

ChainedGet name Ð src.ePackage.name LOAD, LOAD, GET, GET, INVOKE, SET

CombinedGet name Ð src.name + ” ” +

src.ePackage.name

LOAD, LOAD, GET, PUSH, LOAD, GET, GET, INVOKE, SET

OtherStatement if (ref.eOpposite) LOAD, GET, INVOKE, IFN

thisModule.createAssoc(ref) GETENVTYPE, LOAD, INVOKE STATIC, POP

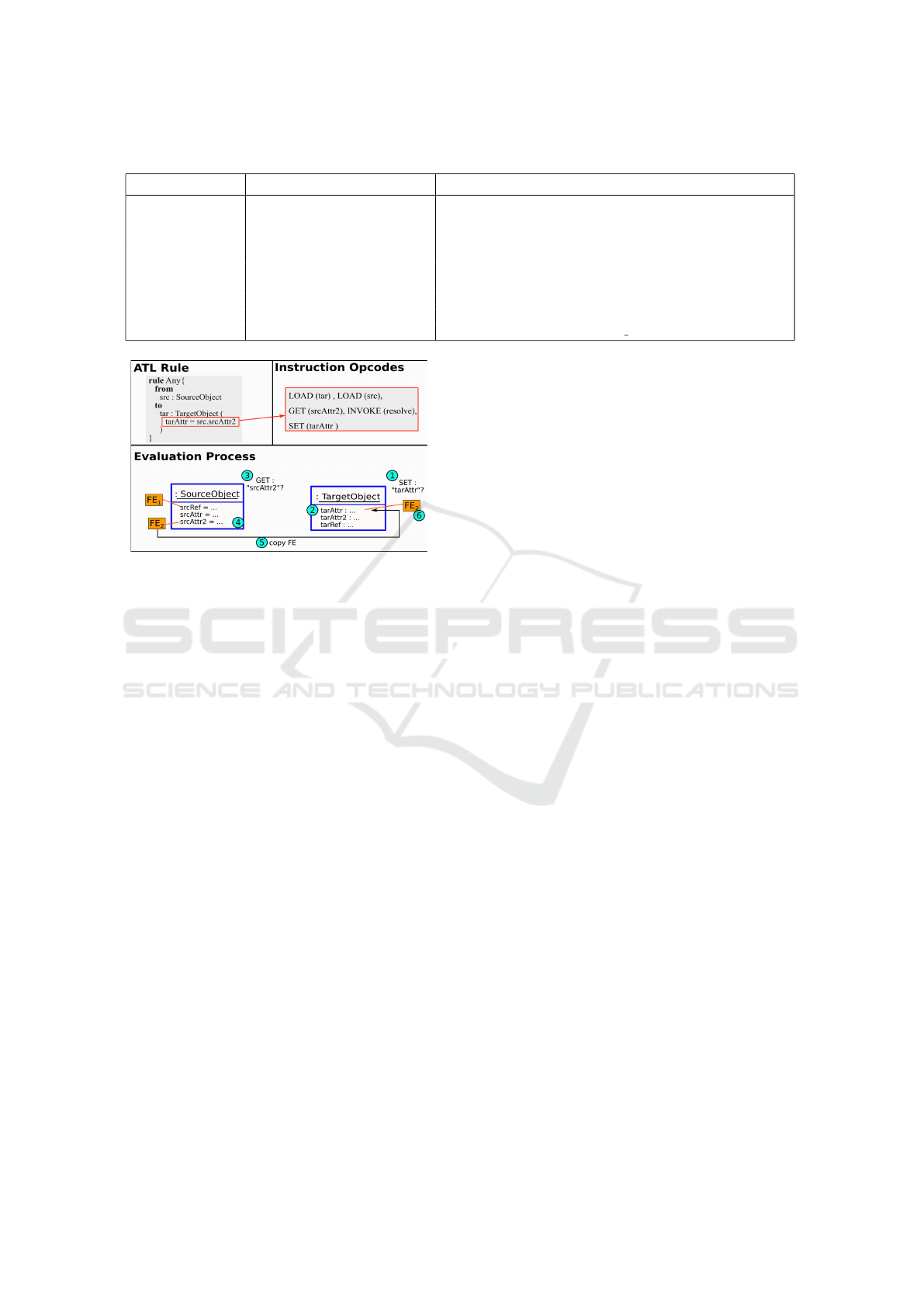

Figure 8: Example procedure to transfer an FE.

propagated from source to target F2DMM. For this

purpose, the source objects are examined for a syntac-

tical match of their EStructuralFeatures with the name

speciﬁed in the GET instructions.

First, the procedure searches matches of the E-

StructuralFeature names of all target objects in the

statements of the analyzed rule: The name declared

in the SET instruction must match the name of the

target EStructuralFeature. If so, the GET ﬁelds of this

statement come into play. The corresponding source

object is analyzed whether the name of one of its ES-

tructuralFeatures matches the name of the GET ﬁeld.

Only then an FE attached to the corresponding source

EStructuralFeature is transferred from source to target

mapping.

Figure 8 sketches the procedure of ﬁnding corre-

sponding FEs. On top, a simple rule and its opcodes

are shown. The rule is classiﬁed as SimpleBinding in

our pattern matching strategy. Note that the F2DMMs

and their mappings are omitted from the ﬁgure: FEs

are attached to their attributes directly in order to re-

duce complexity. In this example, the attribute tarAttr

is identiﬁed to match with the name speciﬁed in the

SET instruction (Steps 1 and 2). As a match is found,

the EStructuralFeatures of the source object are ex-

amined for a match with the GET ﬁeld (Steps 3 and

4), srcAttr2 in the example. Since the corresponding

mapping has an FE attached, the FE is copied to the

target attribute and attached there (Steps 5 and 6).

Identifying the GET ﬁeld in question is trivial for

SimpleBindings (as there is only one) but more com-

plex for Chained or CombinedGets. Both resemble a

path of references that must be followed before deter-

mining the FE; e.g., in Table 3, an FE attached to the

ePackage and an FE of the package’s name are both

copied to the target attribute. This leads to the ques-

tion how to proceed with target mappings to which

multiple FEs need to be assigned.

4.4 Combining Feature Expressions

Considering the transfer of FEs, the procedure is the

same for object and attribute or reference mappings.

With 1:1 and 1:n creations the source FE can be

copied to the target element(s). If one element is cre-

ated from many source elements (n:1), determining

the adequate FE for the target appears more complex.

To the best of our knowledge, we assume that a single

target element will only exist if all its source elements

are present. Accordingly, all source FEs must evalu-

ate positively for the target element to be present. This

is why our procedure attaches the AND conjunction of

all source FEs.

4.5 Limitations

We conclude the presentation of the MVMT solu-

tion by a reﬂection on its currently implied limitations

resulting from difﬁculties determining matching fea-

tures automatically.

As it can be seen in Table 3, only some syntactical

constructs can be identiﬁed during byte code analy-

sis. Everything categorized as OtherStatement signi-

ﬁes parts in the transformation which can hardly be

evaluated automatically and involve complex strate-

gies for their analysis. Accordingly, the success and

runtime of the overall management of FEs depends

on the complexity of the ATL transformation. If only

SimpleBindings were allowed, the analysis would be

rather simplistic. On the contrary, helpers, called

rules and if or for statements make it hard to guaran-

tee that the values of corresponding EStructuralFea-

tures are correctly matched. As a consequence, the

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations

369

base ATL transformation should be kept as simple as

possible to allow a fast and correct execution.

Altogether, the automatic propagation of FEs con-

stitutes a heuristic which is not guaranteed to always

deliver the expected result. Nevertheless, the evalua-

tion given in the next section indicates a high accuracy

of the propagation in practice.

5 EVALUATION

The added value of our MVMT solution is obvi-

ous: It allows to transfer variability information

alongside with domain models when being applied

to ATL model transformations, obviating the need

for repeated application of the reused (single-variant)

model transformation (SVMT). In order to be pur-

poseful, three criteria remain to be evaluated:

1. The user effort required for the invocation of the

MVMT should be less when compared to the

straightforward approach of manually transferring

annotations from the source to the target MVDM.

2. The runtime needed for the execution of the

MVMT should be at least in the same magnitude

as the SVMT repeatedly applied to each product.

3. Products derived after the application of the

MVMT should resemble the state-of-the-art ap-

proach of transforming each product individually

with the highest possible accuracy. Thus, the dia-

gram depicted in Figure 4 must commute.

We conducted a quantitative evaluation referring

to the Graph example introduced in Section 2.1. Here,

we describe the methodology used and present the re-

sults that, taken together, state that all three evaluation

criteria are fulﬁlled.

5.1 Methodology

The employed methodology is outlined in Figure 9;

the entire procedure has been implemented in a

single-threaded evaluation program written in Java.

First, ensuing from the feature model, a brute-force

procedure is applied to generate all valid feature con-

ﬁgurations, the number of which is referred to as n

subsequently. After that, both the contributed MVMT

and the state-of-the-art solution, the repeated applica-

tion of a SVMT, run in competition on the two fol-

lowing execution branches:

MVMT. The source MVDM, consisting of the Ecore-

based domain model (cf. Figure 3) and the map-

ping model (cf. excerpt in Table 1) are passed to

the MVMT solution described in Section 4. The

result is a target MVDM, consisting of a UML-

based domain model and a corresponding map-

ping model. Notice that the realized MVMT in-

cludes a single run of the reused SVMT (cf. Fig-

ure 7). Next, the procedure iterates over all n

valid feature conﬁgurations calculated before and

derives a speciﬁc UML-based target product for

each. The results are aggregated in a collection of

size n of MVMT target products.

Repeated SVMT. From the source MVDM, all pos-

sible source products are derived by ﬁltering by

all n valid feature conﬁgurations in a loop. The in-

termediate result is a collection of n Ecore-based

source products. Thereafter, the procedure iter-

ates over all source products and applies the same

Ecore to UML model transformation that has been

reused by the MVMT. The result is a collection of

n SVMT target products, which all conform to the

UML metamodel.

The quantities referred to above are then extracted

from a comparison of the two competing solutions,

MVMT versus repeated SVMT.

The user effort saved can be estimated from the

number of automatically generated FEs in the target

MVDM.

The runtime of the single MVMT run performed

in the ﬁrst branch is compared to the aggregated run-

time of all SVMT runs in the second branch. For bet-

ter accuracy, the MVMT is repeated 20 times; the best

ﬁve and the worst ﬁve results are omitted when calcu-

lating the average runtime of the remaining ten runs.

For quantifying accuracy, each MVMT tar-

get product is differentiated with its corresponding

SVMT target product generated for the same feature

conﬁguration. For the comparison, we use the match-

ing engine EMF Compare

(Brun and Pierantonio,

2008) in version 3.1.1. The number of differences

(i.e., element insertions, modiﬁcations or removals)

detected by EMF Compare is recorded for each of the

n product variants. The corresponding edit similarity

may then be calculated as the quotient of the numbers

of non-modiﬁed and overall model elements.

5.2 Key Figures and Results

The results of the evaluation run claim a reduced user

effort. Furthermore, they indicate a runtime improve-

ment of approximately factor 9 and an accuracy of

EMF Compare offers several comparison strategies, in-

cluding object comparison by properties or by UUID (a

universally unique identiﬁer assigned to each object af-

ter creation). Since the transformations produce equiva-

lent elements carrying different UUIDs, we chose a purely

property-based matching strategy.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

370

Source MVDM

Mapping Model

Domain Model

Multi-Variant Model Transformation

Source-To-Target Model Transformation

Target MVDM

Mapping Model

Domain Model

Feature Model

Feature Configurations

Generate all valid configurations

Feature Configurations

Source-To-Target Model

Transformation

Source-To-Target Model

Transformation

Source-To-Target Model

Transformation

Derive

Filter

Derive

Filter

Source

Products

Source

Products

SVMT

Source

Products

Source

Products

Source

Products

SVMT

Target

Products

Source

Products

Source

Products

MVMT

Target

Products

Differentiate

(EMF

Compare)

Figure 9: Applied evaluation methodology for measuring the runtime and the accuracy of the MVMT.

100% for MVMT when compared to repeated SVMT.

Detailed quantities are given below.

Input. The Ecore-based source MVDM comprises

49 model objects (packages, classes, attributes, refer-

ences, operations, and parameters; see Figure 3).

The feature model contains 14 features, eleven of

which are optional (cf. Figure 2). Out of 2

“ 2048

possible variants, n :“ 180 accord to the constraints

of the feature model (parent/child and group con-

straints, requires/excludes relationships). The map-

ping model assigns 34 feature expressions to elements

of the source MVDM (cf. excerpt in Table 1).

User Effort. By the reused transformation, a target

multi-variant UML model was generated that consists

of 130 objects (classes, properties, associations, oper-

ations, parameters, and values).

In the course of the MVMT, a target F2DMM was

created referencing the same feature model as the in-

put F2DMM. The number of FEs transferred was 62.

Taken together, the user effort (cf. evaluation cri-

terion (1)) is signiﬁcantly reduced when compared to

a manual transfer of variability information.

Runtime. All runtime measurements have been

performed on a machine with 2.60GHz Intel Core i7

CPU

and 8GB memory.

We averaged the MVMT runtime using 20 (and ef-

ﬁciently measuring ten) iterations as described above,

resulting in a runtime of 482 milliseconds. The run-

time of individual iterations (after omitting the best

and worst 25%) was in between 415ms and 574ms,

respectively.

Since the evaluation program is single-threaded, the

number of cores (8) is irrelevant.

The repeated SVMT branch took a total computa-

tion time of 4230 milliseconds for all 180 variants.

Individual transformation runs consumed between

13.6 and 73.9 milliseconds; average was 23.5ms.

In total, these ﬁgures result in a runtime improve-

ment of factor

4230ms

482ms

“ 8.776. This indicates that

evaluation criterion (2) is overfulﬁlled.

Accuracy. Each comparison between the target

products derived by the SVMT and the MVMT

branch yielded an accuracy of 100%, meaning that not

a single difference was identiﬁed by EMF Compare.

Thus, we fulﬁll evaluation criterion (3) to our full sat-

isfaction. When referring to Figure 4, this reveals

that the operations (multi-variant) transform and ﬁl-

ter commute in this speciﬁc evaluation scenario.

5.3 Threats to Validity

The investigated scenario is based on speciﬁc input

on metamodel level (Ecore and UML) as well as on

model instance level (Graph example). Results, may

vary for other inputs. Although the presented exam-

ple provides an accuracy of 100%, we cannot provide

a general proof for commutativity of transform and

ﬁlter.

Furthermore, the case study is rather simplistic.

The metamodels of Ecore und UML share a large

amount of similarities. The instance-level example is

an “academic” product line having only eleven fea-

tures and allowing 180 variants.

Last, the here considered ATL transformation has

been speciﬁed in consciousness of the limitations re-

ferred to in Section 4.5. In real-world applications,

more advanced ATL syntax, which is currently not

supported in our MVMT, may be necessary.

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations

371

6 RELATED WORK

For a general literature review concerning the prob-

lem statement of MVMT, we refer to (Schw

agerl

et al., 2016). In this section, we ﬁrst outline solutions

to similar versions of the here considered MVMT

problem. Then, we discuss similar technical solutions

where the problem statement, however, differs from

the case considered here, since variability lies in the

transformation itself rather than in the input/output.

Multi-variant Model Transformations. In (Salay

et al., 2014), a lifting algorithm is presented which

applies existing graph transformation rules to a model

that contains variability. In contrast to our solution,

which has been designed for exogenous out-place

transformations, the rules considered by the lifting

algorithm describe endogenous in-place transforma-

tions. As another difference, rather than actually ex-

ecuting the reused single-variant transformation and

analyzing its artifacts, the lifting algorithm produces

a multi-variant transformation where, e.g., application

conditions (which correspond to guards in ATL) are

interpreted with multi-variant semantics.

The implementation is based on the graph trans-

formation engine Henshin (Arendt et al., 2010). Ex-

ternally, variability is deﬁned by means of a feature

model; the connection to the domain model is created

in the form of presence conditions physically attached

to the model objects; this is opposed to the mapping

model approach used here, which also allows to map

individual values of EStructuralFeatures. Thus, our

approach supports a higher granularity of variability.

Likewise, the lifting algorithm has been applied to

an exogenous out-place transformation based on the

graph-rewriting language DSLTrans (Famelis et al.,

2015). To lift the transformation, the DSLTrans en-

gine has to be adapted for the speciﬁc input and output

metamodels. Contrastingly, our approach does not re-

quire any scenario-speciﬁc modiﬁcations towards the

ATL engine, since it supports arbitrary metamodels as

in- and output of exogenous out-place MVMTs.

Variability in Rules. Our approach aims to reuse

single-variant transformation speciﬁcations. A larger

body of related work focuses on reusing model

transformation languages by extending them for

variability-aware rules.

In (Sijtema, 2010), a compositional approach to

ATL speciﬁcations is described. The authors intro-

duce new syntactical constructs which are maintained

in a higher-order transformation. Feature annotations

may be included in the source model. With our ap-

proach, however, no special ATL syntax must be used;

rather, a single-variant transformation can be reused.

Moreover, the variability information is conceptually

and physically separated from the domain model.

An approach that explicitly uses variability-aware

rules is proposed in (Str

uber and Schulz, 2016) as an-

other tool extension to Henshin (Arendt et al., 2010)

allowing ﬁltered editing on the rules. It reduces

the cognitive complexity when developing variational

graph transformation rules. Nonetheless, variability

must be expressed explicitly whereas our approach

reuses existing single-variant M2M transformations.

Bent

o (Cuadrado et al., 2014) is another approach

to the reuse of model transformations. It employs

generic rules for similar ATL transformations to make

them executable based on different metamodels. The

user needs to provide a concept, describing the source

metamodel, and a binding from which the generic

ATL template is automatically adapted to perform the

speciﬁc model transformation. The approach involves

a static analysis of the ATL rules for binding the types.

However, variability in the input is not foreseen.

7 CONCLUSION

This paper has presented an approach to realize a

multi-variant model transformation by reusing ex-

isting single-variant model transformation speciﬁca-

tions. Due to an a posteriori analysis of the transfor-

mation artifacts, it is possible to transfer variability

annotations in an automated way independent of the

input. While comparable approaches are applicable

to graph-rewriting formalisms only – even requiring

to adapt the underlying SVMT engines –, we do not

infer in the SVMT. To the best of our knowledge, this

approach supports the most general scenarios of ex-

ogenous out-place MVMT.

An evaluation based on the example scenario in-

dicates considerable reduction of the required user

effort as transformations are already applied at the

stage of domain engineering rather than during ap-

plication engineering. Furthermore, the evaluation

showed considerable runtime savings and the high-

est possible accuracy of 100% when compared to ar-

tifacts obtained from repeated SVMT execution.

Future work involves a general examination of ap-

plying annotations to target elements and research on

generalizing the approach.

REFERENCES

Arendt, T., Biermann, E., Jurack, S., Krause, C., and

Taentzer, G. (2010). Henshin: advanced concepts and

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

372

tools for in-place emf model transformations. In In-

ternational Conference on Model Driven Engineering

Languages and Systems, pages 121–135. Springer.

Brun, C. and Pierantonio, A. (2008). Model differences

in the eclipse modelling framework. UPGRADE,

IX(2):29–34.

Buchmann, T. and Schw

agerl, F. (2012). FAMILE: tool

support for evolving model-driven product lines. In

orrle, H., Botterweck, G., Bourdells, M., Kolovos,

D., Paige, R., Roubtsova, E., Rubin, J., and Tolvanen,

J.-P., editors, Joint Proceedings of co-located Events

at the 8th ECMFA, CEUR WS, pages 59–62, Building

321, DK-2800 Kongens Lyngby. Technical University

of Denmark (DTU).

Cuadrado, J. S., Guerra, E., and de Lara, J. (2014). A com-

ponent model for model transformations. IEEE Trans-

actions on Software Engineering, 40(11):1042–1060.

Famelis, M., L

ucio, L., Selim, G., Di Sandro, A., Salay, R.,

Chechik, M., Cordy, J. R., Dingel, J., Vangheluwe, H.,

and Ramesh, S. (2015). Migrating automotive product

lines: a case study. In International Conference on

Theory and Practice of Model Transformations, pages

82–97. Springer.

Gomaa, H. (2004). Designing Software Product Lines with

UML: From Use Cases to Pattern-Based Software Ar-

chitectures. Addison-Wesley, Boston, MA.

Jouault, F. and Kurtev, I. (2006). Transforming mod-

els with atl. In Proceedings of the 2005 Interna-

tional Conference on Satellite Events at the MoD-

ELS, MoDELS’05, pages 128–138, Berlin, Heidel-

berg. Springer-Verlag.

Lopez-Herrejon, R. E. and Batory, D. S. (2001). A stan-

dard problem for evaluating product-line methodolo-

gies. In Proceedings of the Third International Con-

ference on Generative and Component-Based Soft-

ware Engineering, GCSE ’01, pages 10–24, London,

UK. Springer.

Mellor, S. J., Kendall, S., Uhl, A., and Weise, D. (2004).

MDA Distilled. Addison Wesley Longman Publishing

Co., Inc., Redwood City, CA, USA.

Object Management Group (2015). Documents Associated

With Uniﬁed Modeling Language (UML), Version 2.5.

Needham, MA.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Springer, Berlin, Germany.

Salay, R., Famelis, M., Rubin, J., Sandro, A. D., and

Chechik, M. (2014). Lifting model transformations

to product lines. In 36th International Conference on

Software Engineering, ICSE ’14, Hyderabad, India -

May 31 - June 07, 2014, pages 117–128.

Schw

agerl, F., Buchmann, T., and Westfechtel, B. (2016).

Multi-variant model transformations — a problem

statement. In Maciaszek, L. and Filipe, J., editors,

Proceedings of the 11th International Conference on

the Evaluation of Novel Approaches to Software Engi-

neering (ENASE 2016), Rome, Italy. SCITEPRESS.

Sijtema, M. (2010). Introducing variability rules in atl

for managing variability in mde-based product lines.

Proc. of MtATL, 10:39–49.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Boston, MA, 2nd edition.

Str

uber, D. and Schulz, S. (2016). A Tool Environment for

Managing Families of Model Transformation Rules,

pages 89–101. Springer International Publishing,

Cham.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

Wagelaar, D., Iovino, L., Di Ruscio, D., and Pierantonio,

A. (2012). Translational semantics of a co-evolution

speciﬁc language with the emf transformation virtual

machine. In International Conference on Theory and

Practice of Model Transformations, pages 192–207.

Springer.

Realizing Multi-variant Model Transformations on Top of Reused ATL Speciﬁcations

373
