A Domain-speciﬁc Language for Conﬁgurable Traceability Analysis

Hendrik B

under

, Christoph Rieger

and Herbert Kuchen

itemis AG, Bonn, Germany

ERCIS, University of M

unster, M

unster, Germany

Keywords:

Traceability, Domain-speciﬁc Language, Software Metrics.

Abstract:

In safety-critical industries such as the aviation industry or the medical industry traceability is required by

law and speciﬁc regulations. In addition, process models such as CMMI require traceability information for

documentation purposes. Although creating and maintaing so-called traceability information models (TIM)

takes a lot of effort, its potential for reporting development progress, supporting project management, and

measuring software quality often remains untapped. The domain-speciﬁc language presented in this paper

builds on an existing traceability solution and allows to deﬁne queries, metrics, and rules for company- or

project-speciﬁc usage. The basis for such an analysis is a query expression to retrieve information from a TIM.

Customizable metrics are then deﬁned to compute aggregated values, which are evaluated against company-

or project-speciﬁc thresholds using the rules part of the domain-speciﬁc language. The focus of this paper is to

show how the combination of query, metric, and rule expressions is used to deﬁne and compute customizable

analyses based on individual requirements.

1 INTRODUCTION

Traceability is the ability to describe and follow an ar-

tifact and all its linked artifacts through its whole life

in forward and backward direction (Gotel and Finkel-

stein, 1994). Many companies create traceability in-

formation models for their software development ac-

tivities either because they are obligated by regula-

tions (Cleland-Huang et al., 2014) or because it is pre-

scribed by process maturity models. However, there

is a lack of support for the analysis of these models

(Bouillon et al., 2013).

Recent research describes how to deﬁne and query

traceability information models, (Maletic and Col-

lard, 2009; M

ader and Cleland-Huang, 2013). This is

an essential prerequisite for retrieving speciﬁc trace

information from a TIM. However, far too little at-

tention has been paid to taking advantage of further

processing of the gathered trace information. In par-

ticular, information retrieved from a TIM can be ag-

gregated in order to support software development

and project management activities with a “real-time”

overview of the current state of development.

On the other hand, research has been done on

deﬁning relevant metrics for TIMs (Rempel and

ader, 2015), but the data collection process is non-

conﬁgurable. As a result, potential analyses are lim-

ited to predeﬁned questions and cannot provide com-

prehensive answers to ad hoc or recurring informa-

tion demands. For example, projects using an iterative

software development approach might be interested in

the accomplishments of objectives within each devel-

opment phase, whereas other projects might focus on

a comprehensive documentation during the process of

creating and modifying software artifacts.

The approach presented in this paper ﬁlls the gap

between those two areas by introducing a sophisti-

cated analysis language. As a foundation, query ex-

pressions can be used to retrieve information from

TIMs and subsequent metric statements aggregate the

results of an executed query. In addition, rule expres-

sions can be speciﬁed so that metric values can be

checked against individually conﬁgured thresholds.

All three parts come with an interpreter implemen-

tation so that they cannot only be deﬁned but also ex-

ecuted against a traceability information model. The

analysis language builds on a traceability meta model

that is an instance of the Eclipse Ecore model (Stein-

berg et al., 2008).

This paper contributes a domain-speciﬁc trace-

ability analysis language to deﬁne queries, metrics

and rules in a fully conﬁgurable and integrated way.

Further, the feasibility of the elaborated analysis lan-

guage will be demonstrated by a prototypical in-

374

BÃijnder H., Rieger C. and Kuchen H.

A Domain-speciﬁc Language for Conﬁgurable Traceability Analysis.

DOI: 10.5220/0006138503740381

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 374-381

ISBN: 978-989-758-210-3

terpreter implementation for real-time evaluation of

those trace analyses.

Having discussed related work in Section 2, Sec-

tion 3 introduces the query and metric expressions

that are used to retrieve information from TIMs. Af-

terwards, the deﬁnition of rules is presented, which

completes the approach with a mechanism to com-

pare metric values with predeﬁned thresholds. In Sec-

tion 4, DSL and our prototypical implementation are

discussed before the paper concludes in Section 5.

2 RELATED WORK

Requirement traceability is essential for verifying the

progress and completeness of a software implementa-

tion (V

olter, 2013). While in the aviation or medical

industry traceability is prescribed by law (Cleland-

Huang et al., 2014), there are also process matu-

rity models requesting a certain level of traceability

(Cleland-Huang et al., 2012b). Traceable artifacts

such as requirement, unit of code, or test case, and the

links between those - such as speciﬁes, implements,

and veriﬁes - constitute the TIM (Mader et al., 2013).

In contrast to the efforts made to create and main-

tain a TIM, only a fraction of practitioners takes ad-

vantage of the inherent information according to re-

cent research (Cleland-Huang et al., 2014). How-

ever, Rempel and M

ader (Rempel and M

ader, 2015)

showed that the number of related requirements or the

average distance between related requirements have a

positive correlation with the number of defects asso-

ciated with these requirements. In addition, empiri-

cal data shows that traceability models also facilitate

maintenance tasks and the evolution of software sys-

tems (M

ader and Egyed, 2015).

Due to the lack of sophisticated tool support,

the opportunities discussed above are often missed

(Bouillon et al., 2013). In contrast to the highly con-

ﬁgurable traceability information models, traceabil-

ity tools such as IBM Rational DOORS (IBM, 2016)

just offer a predeﬁned set of evaluations, often with

simple tree or matrix views (Schwarz, 2012). As a

consequence, especially company- or project-speciﬁc

information regarding software quality and project

progress cannot be retrieved and thus remains unused.

This paper introduces a textual domain-speciﬁc

language (Mernik et al., 2005) that is focused on de-

scribing customized query, metric, and rule expres-

sions in the domain of software traceability. The lan-

guage is implemented using the Xtext framework that

is part of the Eclipse ecosystem. Based on a grammar

in EBNF-like format, a parser and an Eclipse Ecore

Model, representing the meta model of the language,

are generated (Bettini, 2013; V

olter, 2013).

The IDE generated by the Xtext language work-

bench provides extensible features such as syn-

tax highlighting, live validation, code completion,

and automatic formatting (The Eclipse Foundation,

2016c). Additionally, Xtext validates references be-

tween concrete model elements that are available in

the so-called scope of the current language element.

The syntactically and semantically valid elements are

determined by the conﬁgurable scope provider as part

of the Xtext framework and may contain elements

of different Ecore models (The Eclipse Foundation,

2016c).

3 DEFINING AND INTEGRATING

THE DOMAIN-SPECIFIC

LANGUAGE

3.1 Composition of Modeling Layers

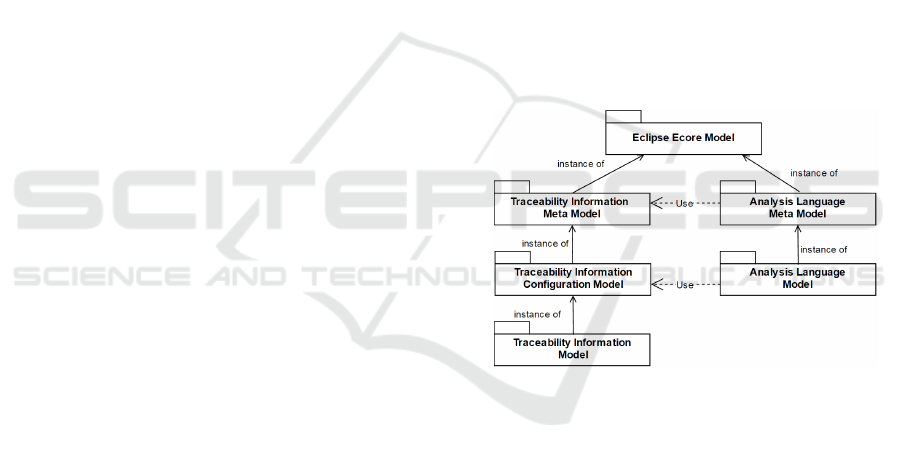

Figure 1: Conceptual Integration of Model Layers.

Figure 1 shows the integration between the dif-

ferent model layers referred to in this paper, starting

with the Eclipse Ecore Model as a shared meta meta

model. The Xtext framework used to deﬁne the analy-

sis language generates an instance of this model (The

Eclipse Foundation, 2016c), representing the Analysis

Language Meta Model (ALMM). Individual queries,

metrics, and rules are speciﬁed within a concrete in-

stance, the Analysis Language Model (ALM), by us-

ing the developed syntax.

Likewise, the Traceability Information Model

used in this paper contains the actual traceability

information, for example the concrete Requirement

“RQ1”. It is again an instance of a formal abstract de-

scription, the so called Traceability Information Con-

ﬁguration Model (TICM). The TICM describes trace-

able artifact types, e.g. Requirement or Java ﬁle, and

the available link types, e.g. implements. This model

A Domain-speciﬁc Language for Conﬁgurable Traceability Analysis

375

itself is based on a proprietary Traceability Informa-

tion Meta Model (TIMM) that deﬁnes the basic con-

structs such as a traceable artifact type and a trace-

able link type by inheriting basic EClass and ERefer-

ence elements of the Eclipse Ecore Model (Gronback,

2009).

Since the analysis language is related to the

Eclipse Ecore Model, concepts such as EClass def-

initions can be referenced. Further references be-

tween concepts on the meta model layer (ALMM us-

ing TIMM) are the prerequisite for subsequently ref-

erencing instances on the concrete model layer. For

instance, a query deﬁnition of the ALM could at some

point reference the traceable artifact type “Require-

ment” in the TICM. On the model layer this reference

is established by referring to a concrete instance of

the traceable type, e.g. the result of the speciﬁc query

“JavaClassesForRequirement” references “RQ1”.

To structure the DSL, the analysis language itself

is hierarchically subdivided into three components,

namely the query, metric, and rule expressions. In

order to establish clear interfaces, only query expres-

sions may reference elements of the traceability infor-

mation conﬁguration model. Metric and rule expres-

sions are built on top of query expressions and are

thus independent from TICM and TIM. Live evalua-

tion is performed by the query interpreter accessing

the query expression’s AST and applying the respec-

tive computation to the concrete TIM. The result of

such a query execution (as elaborated in the following

subsections) is then used by the interpreter to evaluate

the metric and rule expressions.

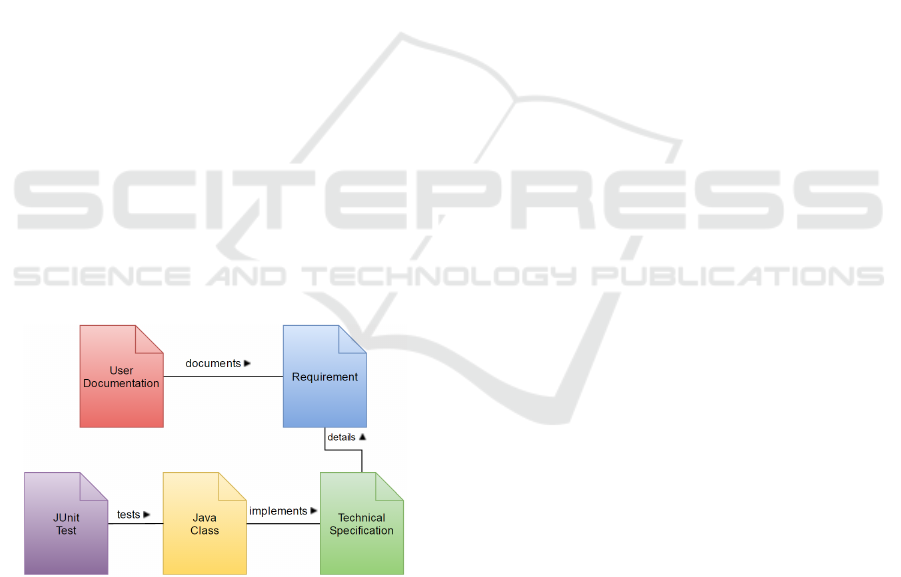

Figure 2: Traceability Information Conﬁguration Model.

Figure 2 shows an example traceability informa-

tion conﬁguration model that deﬁnes the traceable ar-

tifacts and link types. The arrowheads in Figure 2 rep-

resent the primary trace link direction. However, trace

links can be traversed in both directions (Cleland-

Huang et al., 2012a). Besides being the abstract

description for the TIM instances, the conﬁguration

model artifacts can be referenced within query lan-

guage expressions.

3.2 Querying the Traceability

Information Model

The query expressions are part of the analysis lan-

guage which is deﬁned as a textual domain-speciﬁc

language using the Xtext framework.

qu er y " t r ac e s Fr o m Re q u ir e m en t T oJ U n it T e st "

tr a ce F ro m To ( Requi re me nt , J U ni tTe st ) as p at hs

. c ol lec t ( pat hs . get St art . ge tNa me as name ,

co un t (1) as t es tCa se s )

. g ro upB y ( pat hs . get St art . ge tNa me )

Listing 1: Sample query deﬁnition.

Listing 1 shows an example query that retrieves

the shortest path between each instance of Require-

ment and JUnitTest artifacts from a given TIM. The

query deﬁnition starts with the keyword query that is

followed by the actual name as string literal. The cen-

ter of the query is the function traceFromTo that takes

a source and a target traceable artifact as parameters.

The available traceable artifacts are determined by the

evaluation of the traceability information conﬁgura-

tion model of the TIM. The function itself encapsu-

lates an algorithm to ﬁnd the shortest path between all

instances of the two speciﬁed conﬁguration model ar-

tifacts in the TIM. All resulting paths are assigned to

the variable paths that is subsequently used to access

these within the query. Each path object in the list of-

fers several convenience functions such as getStart

that returns the start element of the trace or getEnd

that returns the last artifact of the trace.

The result of an executed query expression as well

as the result of a metric or rule expression is returned

as a tabular structure. For computing the query ex-

pression’s result, the query interpreter iterates through

all list entries in the variable paths that contain the re-

sults of the traceFromTo function called before. For

every entry in the variable paths a new row in the

tabular structure is created. The column deﬁnition

is introduced by the keyword collect. For example

in Listing 1, two column headings are deﬁned called

name and testCases, each introduced by the keyword

as. The ﬁrst part of the column deﬁnition is the ref-

erence to the variable paths that represent a list. The

next part is introduced by “.” which is followed by the

functions available on a single entry of the path list.

After entering “.”, the Xtext proposal provider (The

Eclipse Foundation, 2016c) will propose all functions

available on each list element. Introduced by another

“.”, further method calls will be proposed based on the

return type of the former function call. The second

column speciﬁes an aggregation function that counts

all entries in a given column per row. Based on the

column index passed as a parameter to the count func-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

376

tion, the number of entries in each row of that column

is counted. In general, the result of this function will

be 1 per row since there is only one value per row and

column but in combination with the groupBy function

the number of aggregated values per cell is computed.

The groupBy function of Listing 1 aggregates all start

artifacts (“Requirement”) with the same name.

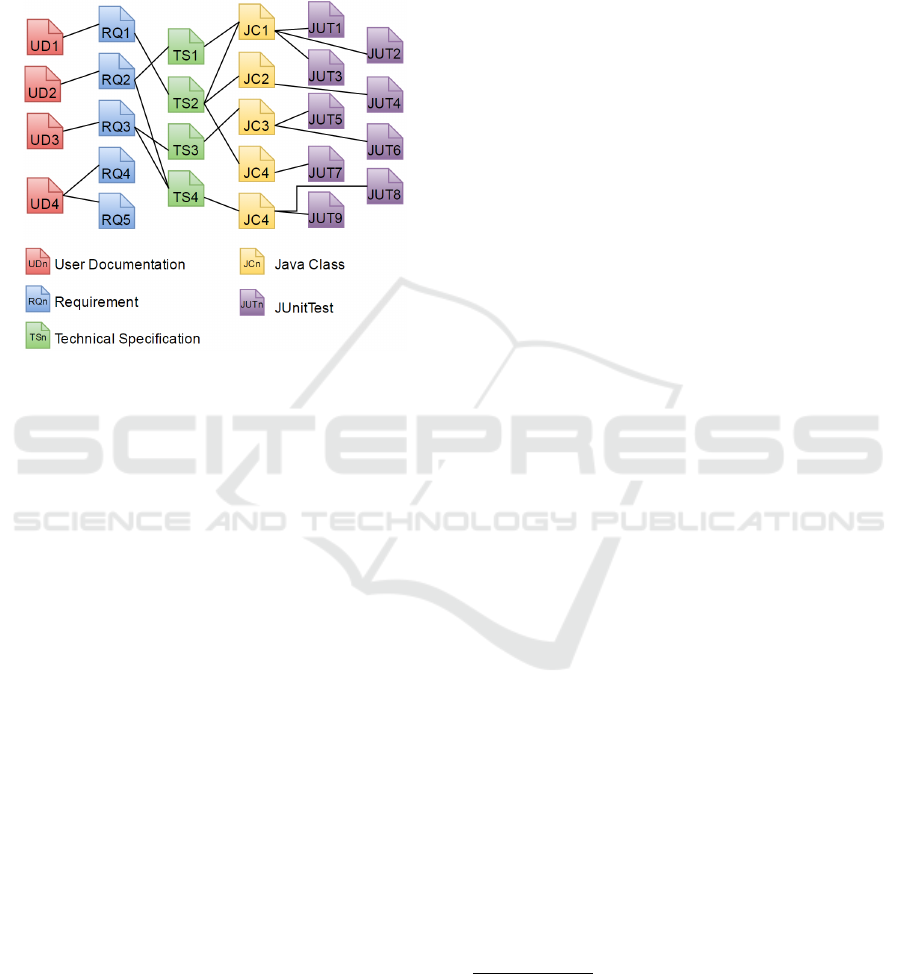

Figure 3: Traceability Information Model.

While queries can be expressed without an in-

stance of the conﬁguration model, the execution is

done in a traceability information model. The query

expression of Listing 1 is applied to the example TIM

shown in Figure 3 by the query interpreter. The result

is a tabular structure with three rows and two columns

where the ﬁrst row contains the name “RQ1” in col-

umn one and the number “5” as count of the available

traces in column two, for example. Even though there

are ﬁve Requirement artifacts in the given TIM, only

three of them are linked to a JUnitTest artifact so that

there are three rows in the tabular result description.

The query expressions offer a powerful and well-

integrated mechanism to retrieve information from a

given TIM. At this point the data retrieved from the

TIM can be understood as raw data that needs to be

further processed to make use of it. In the following,

it is explained how query expression results can be

aggregated to metrics that represent information on

the quality and progress of a project.

3.3 Deﬁning Individual Metrics

A software quality metric can be deﬁned as a “func-

tion whose inputs are software data and whose out-

put is a single numerical value that can be interpreted

as the degree to which software possesses a given

attribute that affects its quality” (Society, 2004). A

well-known and simple software metric is lines of

code (Riguzzi, 1996), but there are also speciﬁc met-

rics for traceability models. These include, e.g., the

average distance between requirements, the coverage

between two levels of speciﬁcation or full-depth from

requirement to the lowest level, and linkage statis-

tics concerning the count of related higher/lower level

trace artifacts (Rita J. Costello and Dar-Biau Liu,

1995; Rosenberg et al., 1998). Complimentary to re-

cent research that focuses on speciﬁc traceability met-

rics and their relevance (Rempel and M

ader, 2015),

the approach described in this paper introduces an

analysis language to deﬁne individual metrics. By

utilizing this approach, a project team or a quality

department can establish and evolve custom metrics

until they meet their speciﬁc requirements.

An Xtext grammar in EBNF-like format deﬁnes

the available features including referencing queries,

arithmetic operations, and operator precedence using

parentheses. The metrics grammar of the analysis lan-

guage itself has two main components. One is the re-

sult declaration that encapsulates the result of a previ-

ously speciﬁed query

. The other is an arbitrary num-

ber of metrics deﬁnitions that may aggregate query

results or other metrics recursively.

Me t ric D ef i ni t ion :

' m et ri c' n ame = ID ' =' e x pr ess io n =

Me t ric s Ex p res s io n ;

Pl u sO r Mi n us r et ur ns M et r i cs E xp r ess i on :

Mu lOr Di v (({ Pl us . lef t = cur r en t } ' +' |

{ M in us . lef t = cu rr en t } ' -' ) ri gh t = Mu lO rDi v ) * ;

Mu lOr Di v r etu rn s M e tri c sE x pre s si o n :

Me t ri c At o mi c (({ M ul OrD iv . le ft = cu rr e nt } op =(' *'|' /

' )) r ig ht = Me t ri c At o mi c )* ;

Me t ri c At o mi c re tur ns M etr i cs E xp r ess i on :

' (' M e tr i cs E x pr e ss i on' )' |

{ M e tr ics Re f } m et ri c =[ M et r ics D ef i nit i on ]|

{ C o lu m nSe l ec t io n } co l = Colu m nS e le c ti o n

{ D o ub l eC o nst a nt } v al ue = DO UB LE |

{ S u mF u nc t io n } su m = Su m Fu n ct i on |

{ C o un t Fu n ct i on } c ou nt = C oun tFu nct i on ;

Listing 2: Grammar rules for metric expressions.

Listing 2 shows the most important rules that

describe the possible arithmetic expressions used in

metrics. Since the corresponding parser generated

by ANTLR works top-down, the grammar must not

be left recursive (Bettini, 2013). Listing 2 shows

the grammar to support the four basic arithmetic op-

The formal description of the syntax of a query is quite

lengthy and extends beyond the scope of this paper, in

which we focus on the metrics and rules language. From

the example in subsection 3.2, the reader gets an impres-

sion of what a query looks like.

A Domain-speciﬁc Language for Conﬁgurable Traceability Analysis

377

erations as well as the correct use of parentheses.

While the PlusOrMinus and MulOrDiv rules to en-

able ANTLR to handle a left recursive grammar are

well described by Bettini (2013), the MetricAtomic

rule contains the essential computations of the metrics

grammar. First, the rule allows for the usage of con-

stant double values. Second, metric expressions can

contain pre-deﬁned functions to sum up or count the

results of a query. Third, columns from the result of a

query can be referenced so that metric expressions per

query expression result row can be computed. Finally,

metric expressions can refer to other metric expres-

sions to further aggregate already accumulated values

as shown in the last line of Listing 6.

Su m Fu n ct i on :

' su m' ' (' co lu m ns += Co lum nSe l ec t io n

(' ,' c olu mn s += C ol u mnS e le c ti o n ) * ' )' ;

Listing 3: Rule for sum aggregation.

Exemplary for the predeﬁned aggregation func-

tions, the SumFunction rule shown in Listing 3 de-

scribes the syntax for summing up the results of

a query. After the keyword sum, any number of

ColumnSelections can be stated as parameters. To

compute the result, the interpreter will iterate over all

the rows of the query expression’s result and sum up

the values of the referenced columns. Listing 4 shows

the actual ColumnSelection that is also used by the

CountFunction and refers to the query expression’s

result columns. While a concrete metric is speciﬁed,

the available columns are proposed in the editor based

on the result declarations in the current scope. In ad-

dition, there is a live validation of the metric expres-

sions that displays error markers as soon as a refer-

enced result declaration or a column within the query

expression result is no longer in scope.

Co l umn S el e ct i on :

re s ult D ec l ara t io n =[ Re sul t De c la r a ti o n | I D ] ' .'

co lu mn = [ a na l ys is :: Co lu mn ];

Listing 4: Rule for column selection.

Using the given grammar, reusable metric expres-

sions can be deﬁned to compute the number of re-

lated requirements (NRR) as described by Rempel

and M

ader (2015), i.e., the number of directly and

indirectly referenced requirements from one require-

ment to another for all requirement artifacts in the

TIM. The basis for this metric are all trace links from

the TICM shown in Figure 2 that could be instantiated

to describe a trace between two requirements.

re su lt r e la t edR e qu i rem e nt s fr om

tr a ce F ro m To ( Requi re me nt , Re q ui r em ent ) as paths

. c ol lec t ( pat hs . get St art . ge tNa me as sr cR e qu ir eme nt ,

pa th s . get En d . ge tN ame as t r gtR e qu i re m ent )

me tr ic NRR = cn t ( re lat e dR e qui r em e nts . s rcR e qu i re m en t )

Listing 5: Metric: number of related requirements.

The inlined query expression in Listing 5 returns

a tabular result that contains the shortest path be-

tween every pair of requirement artifacts from the

given TIM. The path between each Requirement ar-

tifact can contain multiple other artifacts since the

traceable links are bidirectionally navigable. In the

example TIM from Figure 3, the trace from “RQ1”

to “RQ2” contains the following artifacts “RQ1” to

“TS2” to “JC1” to “TS2” to “RQ2”. The problem

of circular dependencies causing inﬁnite loops in the

computation of the available paths is solved by the

depth-ﬁrst algorithm implementation.

The ﬁrst column of the tabular result structure

contains the name of the source requirement in the

path while the second column holds the name of the

target requirement. The following NRR metric ex-

pression uses the cnt function to compute the number

of related requirements.

Table 1: NRR Metric: Tabular Result Structure.

Requirement NRR

RQ1 2

RQ2 2

RQ3 2

RQ4 1

RQ5 1

Table 1 shows the tabular result structure of the

metric expression executed against the sample TIM

from Figure 3. The tabular result structure is made of

two columns derived from the query and metric ex-

pression as described above.

re su lt p a th L e ng t h Pe r Req u ire m en t fr om

tr a ce F ro m To ( Requi re me nt , Re q ui r em ent ) as paths

. c ol lec t ( pat hs . get St art . ge tNa me as sr cR e qu ir eme nt ,

sum ( pa th s . ge tL eng th ) as p a th Len gt h )

. g ro upB y ( pat hs . get St art . ge tNa me )

me tr ic AD RR = p a th L e ng t h Pe r Req u ire m en t . p at h Le ngt h /

NRR

Listing 6: Composition of metric expressions.

Listing 6 shows the reuse of an existing metric to

compute the average distance between two require-

ments as explained by Rempel and M

ader (2015).

The query expression shown in the example returns

the shortest path between two requirements already

aggregated per source requirement. The subsequent

metric takes the pathLength column from the query

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

378

expression result and divides every entry by the al-

ready computed metric NRR shown in Listing 5.

The combination of conﬁgurable query expres-

sions with conﬁgurable metric deﬁnitions allows

users to deﬁne their individual metrics. The analy-

sis language is complemented by the rules grammar,

which is described in the following section.

3.4 Evaluating Metrics

A metric value itself delivers few insights to the qual-

ity or the progress of a project. However, compar-

ing a metric value to a pre-deﬁned threshold or an-

other metric value exposes information. The gram-

mar contains rules for standard comparison opera-

tions which are equal, not equal, greater than, smaller

than, greater or equals, and smaller or equals. A rule

expression can either return a warning or an error re-

sult that may both be detailed by an individual mes-

sage. Since query and metrics result descriptions im-

plement the same tabular result interface as described

above, rules can be applied to both. Finally, the result

of an evaluated rule expression is also stored using the

same tabular interface.

Wa rn If r et ur ns R ule S pe c if i c at i on :

' r ule' name = ID ' =' ' wa rnI f (' rul eB ody = Ru l eB od y ' ) ' ;

Ru leB od y :

(' m:' m et ri c =[ me t ri cs :: Me t ri c sDe f in i ti o n ]|

' c:' c ol um n =[ R e s ul t De c lar a ti o n | ID ] ' .' co lu mn =

[ a na l ys is :: C ol umn ]) com p ar e Op e ra t or = Oper at or

co m pa reT o = Ru le A to m ic ' ,' msg = ST RI NG ;

Listing 7: Syntax for rule expressions.

The RuleBody rule shown in Listing 6 is the cen-

tral part of the rules grammar. On the left side of

the compareOperator, a metric expression or a col-

umn from a query expression result can be referenced.

During deﬁnition of the rule, the metric expressions

and query result columns available in the current

scope are proposed. The next part of the rule is the

comparisonOperator followed by a RuleAtomic value

to compare the expression to. The RuleAtomic value

is either a constant number or a reference to another

metric expression. The evaluation of rule, metric and

query expressions during run-time is implemented us-

ing Xtend, a Java extension developed as part of the

Xtext framework and especially designed to navigate

and interact with the analysis languages Eclipse Ecore

models (The Eclipse Foundation, 2016b).

ru le c h ec kAD RR = w ar nI f ( m : ADR R >4.0 , " Hig h a ve ra ge

di sta nc e b etw ee n r el a te d r e qu i re m en t s " )

Listing 8: Sample rule deﬁnition.

The metric speciﬁed in Listing 6 is referenced by

an instance of the warning grammar rule shown in

Listing 8 and it is compared to the value 4.0. In case

that the metric contains a greater value, a warning

message is produced and stored in the result object

created by the rule interpreter. In other cases there

will be an automatically produced message stating

that the metric value is as expected. To create a stag-

gered analysis, a warning and an error message for the

same metric expression can be deﬁned, thus classify-

ing the result in two categories with varying severity.

For example, an ADRR value greater than 4.0 causes a

warning while an ADRR value higher than 6.0 causes

an error message. The rule interpreter will recognize

that there are two rule expressions based on the same

metric and will only return one result.

The result of an interpreted rule expression con-

tains not only information about the compared met-

ric values but can also provide a meaningful warning

or error message. All in all, the rule grammar ﬁnal-

izes the analysis language capabilities by providing

mechanisms to compare aggregated information from

a TIM against custom thresholds.

4 DISCUSSION

To demonstrate the feasibility of the designed anal-

ysis language and perform ﬂexible evaluations of

traceability information models, a prototype was de-

veloped. The analysis language is based on the

aforementioned Xtext framework and integrated into

Eclipse using its plug-in infrastructure (The Eclipse

Foundation, 2016a). In addition, an interpreter was

implemented that evaluates query, metric, and rule ex-

pressions ad hoc whenever the respective expression

is modiﬁed and saved. Currently, both components

are tentatively integrated in a software solution that

envisages a commercial application. Therefore, the

analysis language is conﬁgured to utilize a proprietary

TIMM from which traceability information conﬁgu-

ration models and concrete TIMs are deﬁned.

Within our implementation, traceable artifacts

from custom traceability information conﬁguration

models as shown in Figure 2 can be used for query,

metric, and rule deﬁnitions. Due to an efﬁcient im-

plementation of the depth-ﬁrst algorithm used by the

traceFromTo function, queries are (re-)executed im-

mediately when a query is saved. The efﬁciency of

the depth-ﬁrst algorithm implementation was veriﬁed

by interpreting expressions using TIMs ranging from

1,000 to 50,000 traceable artifacts.

Table 2 shows the duration for interpreting the

analysis expression from Listing 1 against generated

A Domain-speciﬁc Language for Conﬁgurable Traceability Analysis

379

Table 2: Duration of Analysis.

Total Artifacts Start Artifacts Duration (in s)

1,000 300 0.012

8,000 1,500 0.1

50,000 8,500 2.2

TIMs of different sizes. The ﬁrst column shows the

overall number of traceable artifacts and links in the

TIM. The second column displays the number of start

artifacts for the depth-ﬁrst algorithm implementation,

i.e. the number of “Requirement” artifacts for the ex-

emplary analysis expression. The third column con-

tains the execution time on a computer with Intel Core

i7-4700MQ processor at 2.4 GHz and 16 GB RAM.

As shown, executing expressions can be done efﬁ-

ciently even for large size models.

Deﬁning and evaluating analysis statements with

the prototypical implementation has shown that the

approach is feasible to collect metrics for differ-

ent kinds of traceability projects. The analysis lan-

guage can for example be utilized to create company-

speciﬁc metrics. Within the same industry sector

some companies use a model-driven approach, others

apply test-driven development, or directly start coding

from a textual requirement. When a company uses an

entity DSL to describe the data model of the appli-

cation, it could be valuable to compute the average

number of attributes per entity, assuming that a high

number indicates bad design. In case of a company

deciding to directly code from a textual requirement,

a metric to calculate the number of classes per re-

quirement in relation to the number of words in the

requirement deﬁnition might be reasonable to assess

its speciﬁcity. If there is meaningful information in

such company-speciﬁc metrics, the company initially

needs to discover them. However, the more impor-

tant ﬁnding is that company-speciﬁc metrics can be

created, prototyped, and evolved easily by employing

the analysis language.

Since the analysis language is based on a highly

conﬁgurable TIMM, it allows for a large variety of

traceable artifacts, including formerly unused doc-

uments such as documentation, test results or even

tickets from collaboration tools (Delater and Paech,

2013). Including artifacts from different systems,

metrics can also be used to indicate the quality or

the progress of a certain software product. A met-

ric to measure the quality of a software component

could compute the number of defects related to a spe-

ciﬁc unit of code by traversing the TIM to ﬁnd all

links between those two artifacts. Using a project-

speciﬁc rule to highlight code units causing a high

number of defects gives an indication on where to per-

form quality measures, e.g. code reviews. The current

progress of a software development project can be ex-

posed by deﬁning a staggered analysis. Taking the

exemplary TICM from Figure 2, a ﬁrst query could

ﬁnd all Requirement artifacts that are not linked to a

Technical Speciﬁcation artifact. From a project man-

agement perspective the design of these requirements

could be understood as not started. The next part of

the staggered analysis could retrieve the Requirement

artifacts that are linked to a Technical Speciﬁcation

artifact, but have no trace to a Java Class artifact,

therefore indicating that the implementation has not

yet begun. Relating the described query expression

results to the overall number of Requirement artifacts

measures the project’s progress with regard to differ-

ent phases of development.

The approach presented in this paper is bound

to limitations. In particular, an investigation of real

world projects is pending in order to assess the im-

pact of the developed DSL on software quality man-

agement practices.

In addition, any analysis is only as good as the un-

derlying traceability information model, thus requir-

ing wary treatment of metrics results. For example,

we discovered missing trace links through our queries

in a preliminary analysis of a real world TIM, as those

were conﬁgured in the TICM but never instantiated in

the TIM. On the positive side, analysis statements are

usually deﬁned and executed by domain experts, so

that problems with the underlying data can often be

identiﬁed and resolved quickly.

These are, however, no inherent limitations of the

approach but rather constitute future work in deploy-

ing the DSL in real-world scenarios that beneﬁt from

traceability metrics.

5 CONCLUSION

The DSL described in this paper offers functions and

expressions to analyse existing TIMs, structured in

query, metric, and rule component. For retrieving

traceable artifacts and trace links, query expressions

can be deﬁned. In a subsequent metric expression,

the results of an interpreted query are condensed to

a comparable value using arithmetic operations and

aggregate functions. In order to assess this value in

context, rule expressions are deﬁned to compare met-

rics’ values among each other or against a threshold

value.

The introduced approach closes the gap between

information retrieval, metrics deﬁnition, and re-

sult evaluation, thus forming a solid foundation for

project- or company-speciﬁc metrics. Regarding ﬂex-

ibility, a conﬁguration model makes it completely in-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

380

dependent from the speciﬁc type of traced artifacts.

Further, it is well integrated into an established work-

bench and development environment using Xtext and

the Eclipse Modeling Framework. Features such as

live validation and error markers detect broken or out-

dated expressions early and ensure a rich user experi-

ence.

The focus of future work should be on identi-

fying new industry-relevant metrics by applying the

proposed approach to real-world projects. Also, the

data mining ﬁeld offers statistical methods through

association rules or regression algorithms to ﬁnd pat-

terns and gain insights from large data sources such

as traceability models.

To sum up, the analysis language proposed in

this paper offers an integrated approach to close the

gap between querying traceability information mod-

els and deﬁning conﬁgurable metric expressions. The

concept of ad hoc evaluation of expressions was

demonstrated in a prototypical implementation.

REFERENCES

Bettini, L. (2013). Implementing domain-speciﬁc languages

with Xtext and Xtend. Community experience dis-

tilled. Packt Pub, Birmingham, UK.

Bouillon, E., M

ader, P., and Philippow, I. (2013). A sur-

vey on usage scenarios for requirements traceability

in practice. Lecture Notes in Computer Science, 7830

LNCS:158–173.

Cleland-Huang, J., Gotel, O., Huffman Hayes, J., M

ader, P.,

and Zisman, A. (2014). Software traceability: Trends

and future directions. In Proceedings of the on Future

of Software Engineering, FOSE 2014, pages 55–69,

New York, NY, USA. ACM.

Cleland-Huang, J., Gotel, O., and Zisman, A., editors

(2012a). Software and Systems Traceability. Springer

London, London.

Cleland-Huang, J., Heimdahl, M., Huffman Hayes, J., Lutz,

R., and Maeder, P. (2012b). Trace queries for safety

requirements in high assurance systems. Lecture

Notes in Computer Science, 7195 LNCS:179–193.

Delater, A. and Paech, B. (2013). Analyzing the tracing of

requirements and source code during software devel-

opment. In Requirements Engineering: Foundation

for Software Quality, pages 308–314. Springer Berlin

Heidelberg.

Gotel, O. and Finkelstein, A. (1994). Analysis of the re-

quirements traceability problem. International Con-

ference on Requirements Engineering.

Gronback, R. C. (2009). Eclipse Modeling Project: A

Domain-Speciﬁc Language (DSL) Toolkit. Addison-

Wesley Professional, 1st edition.

IBM (2016). Rational doors. www.ibm.com/software/

products/en/ratidoor.

ader, P. and Cleland-Huang, J. (2013). A visual language

for modeling and executing traceability queries. Soft-

ware and Systems Modeling, 12(3):537–553.

ader, P. and Egyed, A. (2015). Do developers beneﬁt from

requirements traceability when evolving and main-

taining a software system? Empirical Softw. Eng.,

20(2):413–441.

Mader, P., Gotel, O., and Philippow, I. (2013). Getting back

to basics: Promoting the use of a traceability informa-

tion model in practice. 7th International Workshop on

Traceability in Emerging Forms of Software Engineer-

ing (TEFSE), pages 21–25.

Maletic, J. I. and Collard, M. L. (2009). Tql: A query lan-

guage to support traceability. Proceedings of the 2009

ICSE Workshop on Traceability in Emerging Forms of

Software Engineering, TEFSE 2009.

Mernik, M., Heering, J., and Sloane, A. M. (2005). When

and how to develop domain-speciﬁc languages. ACM

Comput. Surv., 37(4):316–344.

Rempel, P. and M

ader, P. (2015). Estimating the implemen-

tation risk of requirements in agile software develop-

ment projects with traceability metrics. In Require-

ments Engineering: Foundation for Software Quality,

pages 81–97. Springer International Publishing.

Riguzzi, F. (1996). A survey of software metrics.

Rita J. Costello and Dar-Biau Liu (1995). Metrics for re-

quirements engineering. Journal of Systems and Soft-

ware, 29(1):39–63.

Rosenberg, L., Hammer, T. F., and Huffman, L. L. (1998).

Requirements, testing and metrics. In 15th Annual

Paciﬁc Northwest Software Quality Conference.

Schwarz, H. (2012). Universal traceability. Logos Verlag

Berlin, [Place of publication not identiﬁed].

Society, I. C. (2004). IEEE standard for a software quality

metrics methodology: IEEE std 1061-1998 (r2004).

Technical report, IEEE Computer Society.

Steinberg, D., Budinsky, F., Merks, E., and Paternostro, M.

(2008). EMF: Eclipse Modeling Framework. Pearson

Education.

The Eclipse Foundation (2016a). PDE/user guide.

http://wiki.eclipse.org/PDE/User Guide.

The Eclipse Foundation (2016b). Xtend modernized java.

http://www.eclipse.org/xtend/.

The Eclipse Foundation (2016c). Xtext documentation.

https://eclipse.org/Xtext/documentation/.

olter, M. (2013). DSL engineering: Designing, imple-

menting and using domain-speciﬁc languages. Cre-

ateSpace Independent Publishing Platform.

A Domain-speciﬁc Language for Conﬁgurable Traceability Analysis

381
