Model-driven Approach for Privacy Management in Business

Ecosystem

Christophe Feltus

, Eric Grandry

, Thomas Kupper

1,2

and Jean-Noël Colin

Luxembourg Institute of Science and Technology (LIST), IT for Innovative Services (ITIS),

Esch-sur-Alzette, Luxembourg

Faculty of Computer Science (PReCISE), University of Namur, Namur, Belgium

Keywords: Privacy Metamodel, Privacy Management, GDPR, General Data Protection Regulation, Business Ecosystem,

Interconnected Society, Model, Service System, Model-driven Approach, Model Design.

Abstract: Protection of individuals with regard to the processing of personal data and the free movement of such data

constitutes new challenges in terms of privacy management. Although this privacy management ought to be

conducted in compliance with national and international regulation, for now we observe that no solution,

model or method, fully consider and integrate these new regulations yet. Therefore, in this paper, we propose

to tackle this problem through the definition of an expressive privacy metamodel which aims to represent and

aggregate the concepts that are relevant to define and to deal with privacy issues, at an organizational level.

Secondly, we discuss how this privacy metamodel may support and may help understanding the management

of the privacy in enterprises involve in interconnected societies, by integrating the privacy metamodel with

the systemic business ecosystem.

1 INTRODUCTION

Among the many challenges related to the privacy

management is the protection of individuals with

regard to the processing of personal data and the free

movement of such data. This privacy management

should be conducted by considering the arising

dedicated national and international regulation and

more especially, in Europe, the General Data

Protection Regulation (GDPR) that is puts forward by

the Regulation of the European Parliament and of the

European Council. At the business level, the Ipswitch

survey (Ipswitch, 2015) on 316 European companies

reveals that 52 percent of the respondents estimate

that they are not ready for applying the GDPR, and

that 56 percent did not even know exactly what

GDPR is. Only 12 percent feel ready to be compliant

with it. A reason for this is that, at the present day, no

solution (i.e. model, method, or tool) fully considers

and integrates this new regulation yet. Simple and

adapted approaches are by the way required to

support information system designers to apprehend

the GDPR and its impact on the whole business

organization and business ecosystem. In that regard,

we propose, in this paper, to set forth preliminary

theoretic researches to define an expressive privacy

metamodel (PMM) which allows representing and

aggregating in an extended metamodel all the

concepts necessary to define and to deal with privacy

issues, at an organizational level. This metamodel is

designed in compliance with Service System

Theories (SST, Alter, 2011) and in the frame of a

design (Hevner et al., 2004, Peffers et al., 2008)

science approaches, including iterative cycles of

literature review/model design/validation.

Afterwards, to analyse and to depict the privacy

management in the frame of interconnected societies

(Cholez et al, 2014), we integrate the PMM with the

business service ecosystem model and we discuss

how the comprehension of the systemic privacy

management may be improved on the basis of a

model-driven approach. Finally, we illustrate the

advantage of this integration into a case study from

the Luxembourgish financial sector.

At a methodological level, the research that we

tackle through this paper concerns the improvement

of the alignment between the information processed

by the information system and the management of the

privacy, as required by the literature and by specific

legal requirements, such as, mainly the GDPR.

Through this research, we aim to strengthen the

organizational capability to manage the access to

392

Feltus C., Grandry E., Kupper T. and Colin J.

Model-driven Approach for Privacy Management in Business Ecosystem.

DOI: 10.5220/0006142203920400

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 392-400

ISBN: 978-989-758-210-3

sensitive and private information by enhancing the

latter’s ability to apprehend privacy and to comply

with privacy requirements. At the methodological

level, Hevner et al. (2004) explains that the Design

Science Research (DSR) paradigm seeks to extend

the boundaries of human and organization capability

by creating new and innovative artefacts. Practically,

provided that we aim to design a new artefact to

support the alignment between private information

and the management of the latter with the objective to

grant the appropriate access rights to the users of this

information, we acknowledge that the research may

plainly be considered in the scope of DSR, as

expressed in Peffers et al. (2008). As advocated by

the DSR theory, the metamodel is built following an

iterative approach. The latter allows refining a

consistent privacy metamodel based on the review of

the scientific literature and on the analysis of the

privacy regulation.

The paper first proposes a review of the literature

related to the privacy and depicts the related

regulation Section 3 explains the design of the PMM

and integrates it with systemic approach. Section 5

presents a case study from the financial sector.

Finally, Section 6 discusses how it contributes in

sustaining systemic privacy management, and

Section 7 concludes the paper and proposes some

future works.

2 LITTERATURE REVIEW

This section reviews the scientific literature related to

privacy and the legal requirement from the GDPR.

2.1 Scientific Contribution

As explained in De Capitani di Vimercati et al.

(2012), several definitions of privacy have been

proposed over the years, from traditional syntactic

privacy definitions to more recent semantic privacy

definitions. In this paper, we consider privacy as

sensitive information that is individually owned

(Nuseibeh, 2010). The privacy management includes

many aspects like the definition of privacy policy, the

expression of the policy with a dedicated language or

the execution of the latter with dedicated

mechanisms. At a modelling point of view, privacy

has often been addressed in parallel and as an

extension of the access rights models (Park et al.,

2000, Ni et al., 2007). For instance, Ardagna et al.

(2008) analysed the concepts and features that should

be investigated to fulfil the development of powerful

and flexible privacy-aware models and languages.

Privacy has been considered through the lens of the

purpose associated to the usage of personal

information. In that regards, a first model proposed

by Antón et al. (2007) was UCON (Usage Control)

which gathered in a single model the traditional

access control models, the trust management and the

digital rights management. In contrast to traditional

access control models that control the access to an

information in a unique direction (for instance, from

the eCommerce site to the customer), UCON allows

controlling the access at both sides and, hence, allows

a user to control the information provided to the

eCommerce website, which as a result guarantees the

privacy to this information.

Park et al. (2002) explains that individual policies

for each user’s activity and for the use of each

resource are similar to subject and object attributes

and that the mutability of these attributes allows the

continuity of decision (e.g. if a usage is no longer

necessary, the access right is removed). In Martinez-

Balleste et al. (2013), a framework is proposed to

exploit the notion of privacy awareness requirements

in order to detect runtime privacy properties to be

satisfied. The latter are exploited to support

disclosure decisions made by the applications. In Park

et al. (2000), the Role Based Access Control (RBAC)

model has been extended to provide support for

expressing privacy policies (PRBAC) by considering

at the same time users’ purposes and obligations.

Providing the system to protect customer privacy in

mobile applications is a challenging task (Mahmoud

et al., 2005). In Domingo-Ferrer et al. (2007), the

author expresses that new development methods are

necessary to enable the engineering of privacy

specific requirements and proposes to extend the

PRBAC model to reason about scenarios that

potentially exploit mobile systems weaknesses

(Martinez-Balleste et al., 2013). More recently,

OrBAC has been semantically enriched to model

privacy policies. The enhancement consists in

considering the concepts of consent, accuracy,

purposes of the access and provisional obligation (Ni

et al., 2007). Ajam et al. (2013) analyse how OrBAC

and PRBAC are adapted to address security issues in

the healthcare sector and observes, amongst others,

(1) that OrBAC is not adapted for managing the

privacy regarding some roles (like the legal

representative and the trusted person) given that a

user must be strictly attached to an organization, and

(2) that PRBAC fits well with the requirements of the

information system from the healthcare regarding the

patient’s records (Ajam et al., 2013).

Rath et al. (2012) addresses privacy through the

purpose of the access and proposes a model for

Model-driven Approach for Privacy Management in Business Ecosystem

393

purpose enforcement. Accordingly, the authors also

propose a system architecture that contributes to the

enforcement of access purpose. In the field of privacy

in social network circles, Rath et al. (2013) observe

that existing privacy approaches are still not able to

deal with the user’s changing information sharing

privacy requirements. This motivates the design of a

utility-based trade-off framework which models and

quantifies users’ requirements and, based on it,

appraises the potential privacy risks, on one hand, and

the incentive social benefit, on the other. Regarding

the organization more closely, Merriam (2016) has

proposed a framework to address the database privacy

according to three independent privacy dimensions:

the respondent privacy (the entity to which the data

collected corresponds), the user privacy (the entity

that uses the data or makes queries in the database),

and the owner privacy (the entity that owns the data).

Using this framework, Merriam (2016) assesses the

existing privacy enabling technology and observes

that none of them allow fulfilling the three privacy

dimensions at the same time.

The risk in revealing a user identity via location

information has been formally introduced by Bettini

et al. (2005) who present preliminary ideas about

algorithms to prevent this to happen. More recently,

Yang et al. (2014) propose a W3-privacy method to

address the Location-Based Services (LBS – Service

required by mobile devices with self-location

capabilities). This method concerns the user privacy,

according to the model from Merriam (2016), and is

based on density maps (where the user identification

is made uncertain due to the great number of users).

Three elements of a service request are considered by

W3-privacy: Where the request is done?, What is

requested?, and Who makes the request?. Using the

database privacy framework [4] and the LBS privacy

method from Yang et al. (2014), Pérez-Martinez et al.

(2011) propose a 5D citizens’ privacy model for

smart cities. The five privacy dimensions concerned

by the model are the identity privacy (identity of the

user of a service), the query privacy (query made by

the user), the location privacy (the place where the

query is done), the footprint privacy (information

retrieved from sensors), and the owner privacy

(equivalent to the definition of Merriam (2016).

2.2 GDPR

The General Data Protection Regulation (GDPR) is a

Regulation which has for objective to strengthen and

to unify, within the European Union, personal data

protection and the export of such data outside the EU

borders. The GDPR aims to replace the data

protection directive 95/46/EC (DP, 1995) from 1995.

Based on the deployment of the GDPR, it is expected

to pass back the control on the usage of their personal

data to European citizens. According to the European

Commission, personal data is “any information

relating to an individual, whether it relates to his or

her private, professional or public life. It can be

anything from a name, a photo, an email address,

bank details, posts on social networking websites,

medical information, or a computer’s IP address".

The GDPR lays down a set of rules with regard to

the processing and related to the free movement of

personal data. Hence, GDPR is to be read more as a

regulation for the management of the privacy than for

its definition. Accordingly, GDPR is more related to

the concepts of privacy management (in light grey in

Figure 5). The review of the articles of the GDPR

which are relevant for the definition of the PMM has

allowed capturing the following set of requirements

necessary to be considered, in Table 1.

Table 1: GDPR principles and requirements about personal

data.

Art. Description

Processed lawfully, fairly and in a transparent

manner in relation to the data subject

Collected for specified, explicit and legitimate

purpose

Adequate, relevant and limited to the minimum

necessary

5d Inaccurate must be erased or rectified

Data subject to be identifiable for no longer

than necessary

Controller must ensure the compliance with the

regulation

6.1a

Data subject gives consent to the processing

and has the right to withdraw his/her consent

6.1b

6.1d

Data processing is necessary for performance of

a contract, legal obligation, vital or public

interest, legitimate interests pursued by a

controller

3 PRIVACY METAMODEL

The privacy metamodel (1) is structured according to

three of the core concepts that compose the SST

(Alter, 2011), i.e., the Resource, the Role, and the

Activity and (2), based on the review of the state of

the art summarized in Section 2, the metamodel is

extended to the Privacy management. Concretely,

during the elaboration of this first iteration of the

metamodel, each relevant element from the review of

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

394

the state of the art (scientific contributions and

GDPR) is introduced in the metamodel. In order to

give an exhaustive view on the latter, and to allow

traceability during the design step, a reference to the

source of the relevant argument is introduced directly

in the model, aside the concept’s class name or the

relation name between concepts, in brackets.

Concerning the GDPR, for accuracy reasons, a

reference is directly done to the specific article which

provides the requirement. E.g. the reference (GDPR

A6.1b) is to be read: Article 6, point 1, sub-item (b).

It is worth to mention that not all the components of

the privacy are represented in this version of the

metamodel. Some concepts and some relations have

been omitted for preserving the readability. This

metamodel has been modelled in UML 2.0

(Rumbaugh et al., 2004) and cardinalities have been

removed.

3.1 Resource Related Concepts

The resource domain (Figure 1) represents the set of

elements which are used by activities (Alter, 2011),

e.g., participant, technology or information. The

privacy of the information relates, as a result, to the

privacy of a type of resources. This information

supports the representation of knowledge, what

signifies understanding of real things or abstract

concepts (OPL). It may be of a sensitive type when it

concerns personal data (Nuseibeh, 2010) such as a

picture, a mail address, a physical characteristic of an

individual, etc. In turn, a subset of this sensitive

information may be an information which is relevant

for a specific business and in that regard, limited to

the minimum necessary to be collected and exploited

by the information system (Zhu et al., 2007, GDPR

A5c).

The concept of sensitive information is introduced

and represented as a class in the privacy metamodel.

It is of the type “resource” on Figure 1.

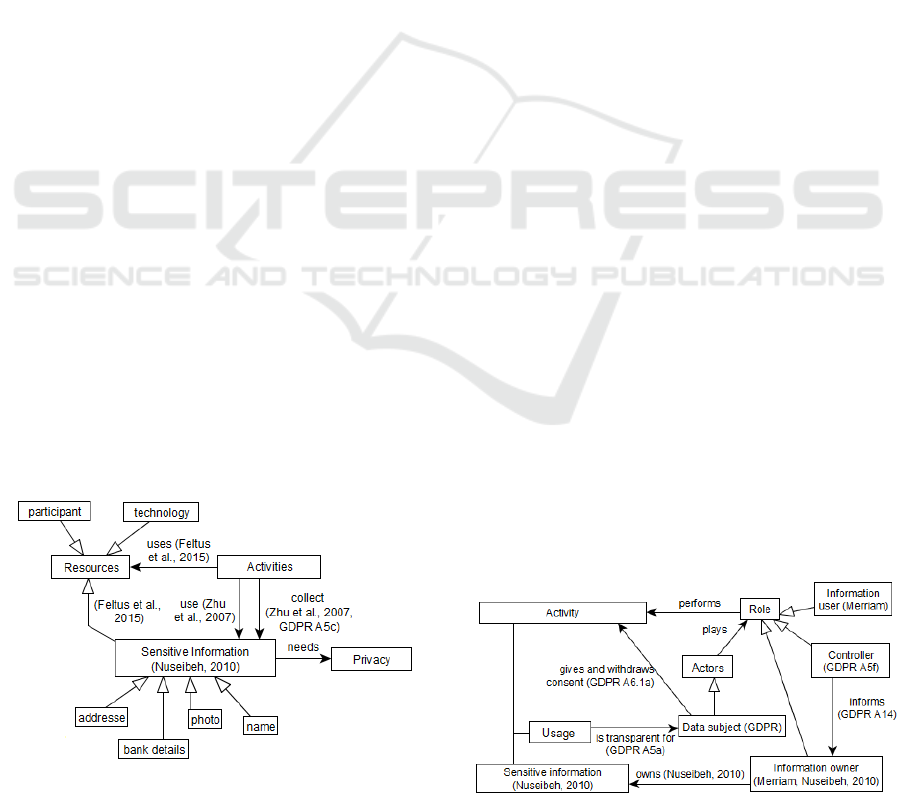

Figure 1: Resource sub-model concepts.

3.2 Role Related Concepts

The role domain gathers a set of roles having

responsibilities in the management of the privacy, i.e.,

the information owner, the controller, the information

user. The information owner is the actor who is

legally accountable for the protection of the

information collected. Hence, it is his responsibility

to decide when and how information may be released

or made available for processing. He is also called the

data collector (Merriam, 2016) and corresponds to the

individual or institution with which there exists a trust

relationship with the information respondent. It may

correspond to a person or to an institution, like for

instance, a hospital, a bank, or a book-keeper. The

controller must guarantee transparent and easily

accessible information on the protection of personal

data and privacy as well as the procedures for the data

subject to fulfil its rights (GDPR). The controller

must keep the information owner informed about the

data manipulation (GDPR A14). The information

user corresponds to an entity being able to compute

queries across the databases in such a way that only

the results of the query are revealed (Merriam, 2016).

The information user corresponds to the “processor"

in the GDPR. Moreover, Art. 26 of the GDPR stresses

the fact that in case of a processor that processes data

upon request of the controller, the processor must be

associated to a joint controller.

This statement has not been modelled in the

privacy metamodel for the sake of clarity. According

to the GDPR, both the controller and the information

user are responsible to set up the appropriate

protection of the data. Moreover, roles are played by

actors. A specific one of them is the data subject.

The data subject (GDPR) is the entity to which the

information records correspond (Merriam, 2016). It is

for instance the patient in a hospital or the customer

of a bank. The data subject is allowed to give or

withdraw his consent on the usage of personal

information (GDPR A6.1a) and this usage must be

transparent for him (GDPR A5a). Finally, Yang et al.

(2014) also claims that the location where the actors

Figure 2: Role sub-model concepts.

Model-driven Approach for Privacy Management in Business Ecosystem

395

operate is also a privacy parameter to be considered.

At the modelling level (figure 2), we have

represented the concept of Role and Actor as classes.

The first is played by the second. The concepts of

information owner, controller, and information user

are specializations of the class role, and the data

subject is a specialization of the class actor.

3.3 Activity Related Concepts

In the frame of the Service System Theories (Alter,

2011), the activity is an element contains by the

organization that produces services using resources.

The privacy management is a type of activity which

aims to support the information owner in performing

the activities related to the administration of private

data. The privacy management domain consists

mainly in three activities: the definition of the privacy

policy, the enforcement of the policy, and the audit of

the policy (Ashley et al., 2003). The management of

the privacy is performed in compliance with the

the way of how the privacy of personal data must be

preserved and managed, in a company, while

remaining in turn compliant with the appropriate

legislation. This privacy policy determines the

minimum needed and relevant information (Zhu et

al., 2007, GDPR A5c) necessary to achieve a task and

is applicable at all stages of the privacy management,

to know: the collecting, the usage, the update, the

disclosure and the erasure of the information. The

three most important activities of the privacy

management, according to Ashley et al. (2003), are

the specification of privacy policies, their

enforcement and the audit of their deployment.

The specification of the privacy policy aims at

establishing the general and specific goals, as well as

the procedures necessary to fulfil these goals. These

privacy policies are adopted by the controller (GDPR

A5f). The activity related to the enforcement of the

policies corresponds to the achievement of

procedures for the privacy management, either

manually or with the support of the information

system. The access rights, to the information system,

represent hence a huge part of the means necessary

for granting, or not, access to the information [8], and

more especially, the minimum necessary and relevant

information (Zhu et al., 2007, GDPR A5c). In that

regard, the audit of the privacy policy concerns both:

(1) that access rights/authorization are/is deployed in

compliance with the privacy policy (Antón et al.,

2007) and (2) that the latter is provided in accordance

with the usage of the private data (Antón et al., 2007).

At a modelling point of view, the privacy policy

and the privacy management concepts have been

introduced as classes in the metamodel. The latter is

a type of activity in the SST, it supports the

information owner in fulfilling its responsibilities and

is composed of the three explained activities here

above, i.e. the definition of the privacy policy, the

enforcement of the policy, and the audit of the policy.

Figure 3: Activity sub-model concepts.

These concepts are also modelled as classes and

the latter compose the privacy management class

(actors and activity domains are represented in light

grey in Figure 5).

3.4 Privacy Related Concepts

The Privacy extension domain supports the definition

of privacy in function of the usage (Antón et al.,

2007) made with the information and in function of

the actors who manipulate the latter (Yang et al.,

2014, Pérez-Martínez et al., 2011). As reviewed in

literature and more especially in the GDPR, the usage

concerns the information which is relevant for the

business, to which access rights must be restricted to

the minimum necessary (Zhu et al., 2007, GDPR

A5c), and for which a purpose is clearly defined

(Antón et al., 2007, GDPR A5b, A6.1b to d).

This purpose must be included in a list of well-

defined purposes, expressed in the GDPR, e.g., for the

performance of a contract of which the information

respondent is part, for compliance with some legal

obligations, in order to protect the vital interests of the

information respondent, to carry out a task of public

interest or in exercise of an official authority, or for a

legitimate interest pursued by the controller. At a

modelling point of view, the class privacy and the

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

396

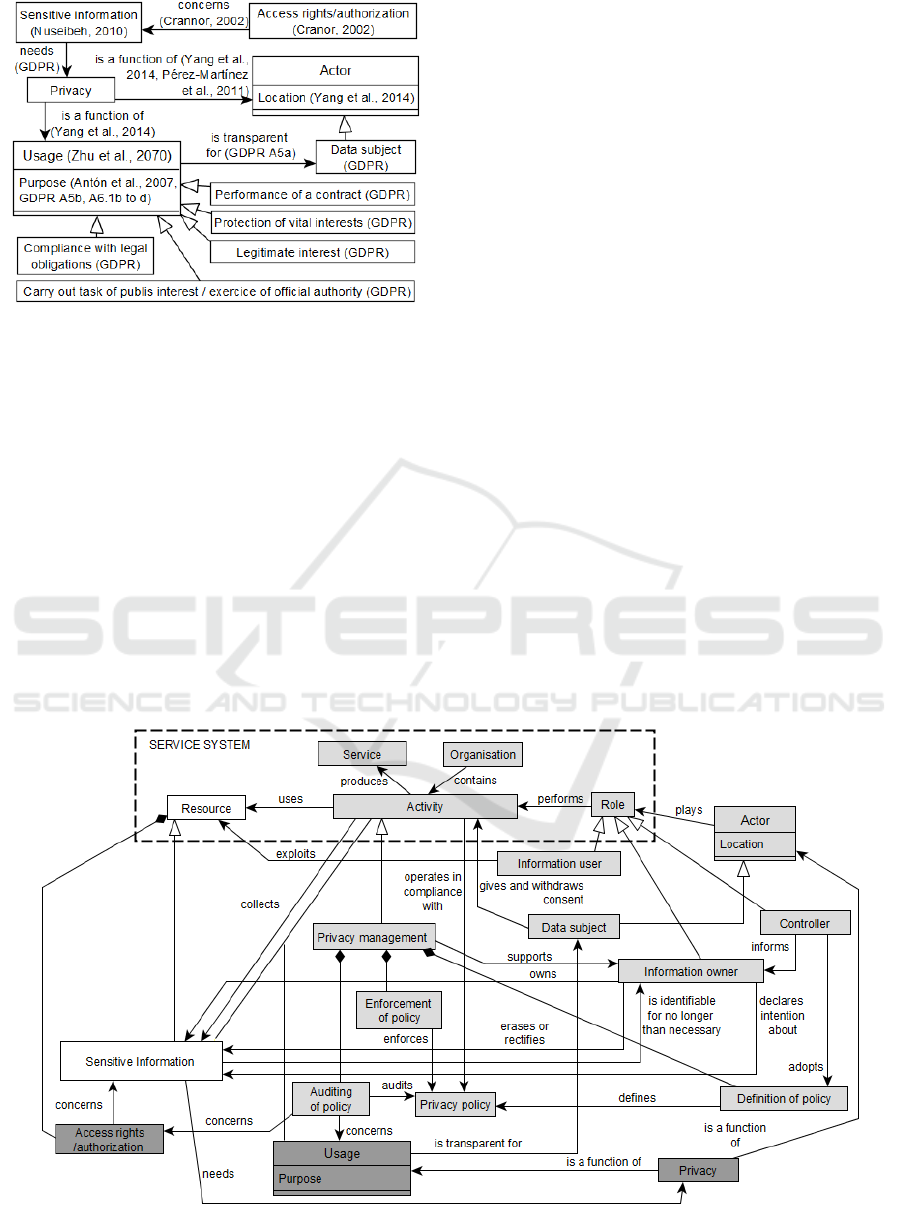

Figure 4: Privacy sub-model concepts.

relation class usage, that influences the need of

privacy, have been modelled. In order to model this

usage depending on the purpose, in the metamodel,

we consider that this purpose is a type of attribute of

the usage class (Figure 4).

3.5 Integrated Privacy Metamodel

Figure 5 presents the integrated PMM gathering the

concepts from the resources, role, activity and privacy

sub-domains. This integration allows establishing

hyphens between concepts from all sub-domains,

amongst which, e.g. the tasks and the actors/roles.

The most important one is that the activity of a type

Privacy management main objective is to support

(Zhu et al., 2007) the information owner which has to

declare the (usage) intention (Zhu et al., 2007) related

to the sensitive information and to keep the latter up

to date (GDPR A5.5e) (to know: erase or rectify).

Aside the information owner, Controller defines

(GDPR A5f) and audits (Antón et al., 2007) privacy

policies, and Information user exploits resources in

compliance with access rights and authorizations.

4 SYSTEMIC PRIVACY

This section give insights into the management of

privacy at systemic level based on a model driven

approach. Business ecosystems gather enterprises

which collaborate to achieve a common systemic goal

like guaranteeing national healthcare (Feltus et al.,

2014), telecommunication (

Wang et al., 1998), or

financial stability (Naudet et al., 2016). A metamodel,

named Business Service Ecosystem (BSE), was

proposed (Feltus et al., 2016) to model these business

ecosystems based on capabilities and resources

(Figure 6). The BSE purpose is to represent how the

resources of the business ecosystem are derived from

the business ecosystem enterprises capability. We

observe that two mappings exist between the PMM

and the BSE. First, the resource from the BSE, at the

business ecosystem or at the enterprise level, which is

defined as an asset that an organization has or can

call upon, is mapped with the resource from the

privacy metamodel that refers to the SST (Alter,

Figure 5: PMM. White concepts relates to resource, light grey to role and activity, and dark grey to the privacy extension.

Model-driven Approach for Privacy Management in Business Ecosystem

397

2011) and which is defined as participants,

technological entities, informational entities, and

other resources used by activities. Second, there is an

exact equivalence between the service definition from

PMM (SST definition) and the service definition from

BSE: “acts performed for others, including the

provision of resources that others will use”.

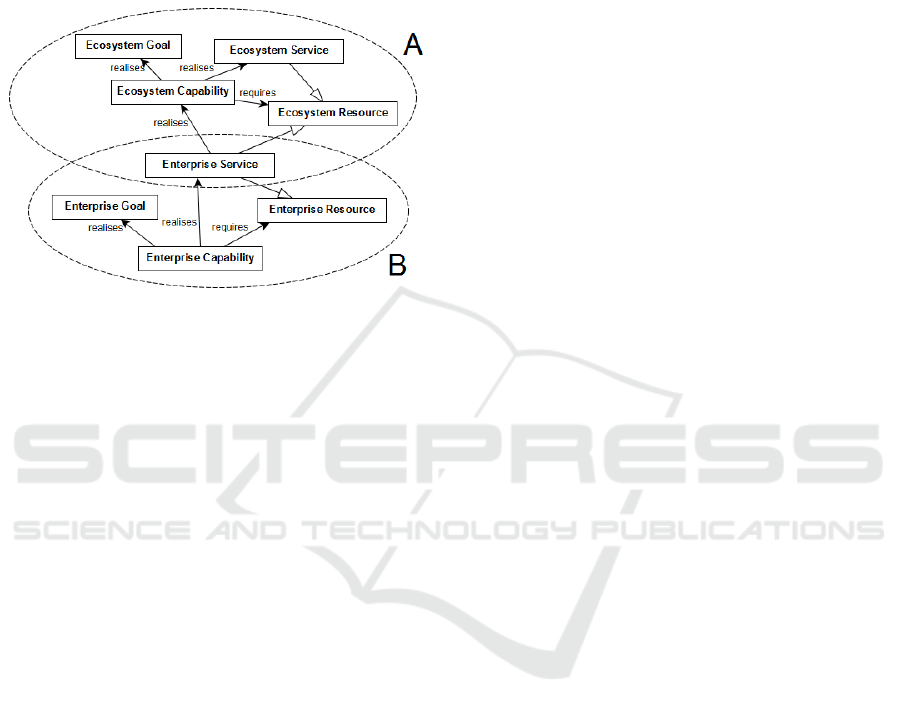

Figure 6: BSE metamodel, extracted from [28]. Pattern A

corresponds to the business ecosystem and B to the

enterprise.

At the systemic level, we have demonstrated in [28]

that (1) an enterprise service (pattern B) is a type of

business ecosystem resource (pattern A) and (2) the

capability, which is defined as “the ability and

capacity that enable an enterprise to achieve a

business goal in a certain context” [26] is necessary

to realize an enterprise/systemic service.

8 DISCUSSION AND

CONCLUSION

In this paper, we have elaborated a PMM from a

review of scientific privacy literature and from

requirements from the GDPR. This metamodel is

structured following the SST and allows structuring

the management of the privacy at the enterprise level

by defining privacy management services, supported

by dedicated capabilities and specific roles.

Afterwards, the privacy metamodel has been

integrated with the BSE to extend the usage of the

PMM to the context of enterprise working in the

frame of interconnected societies.

Many approaches have been proposed to tackles

privacy issues at the enterprise level (Section 2).

However, as far as our knowledge goes, none of them

has ever proposed an integrated metamodel for

representing the many dimensions of the privacy,

especially in compliance with the GDPR. In that

regard, the first part of the paper has proposed the

privacy metamodel built on existing theories and

legal requirements. Aside our developments, we have

also observed that in an interconnected societies and

sharing economy context, managing the privacy at the

enterprise level is far to be sufficient, and that new

approaches are required to raise the privacy

management from the enterprise boundaries up to the

business ecosystem level. To answer this arising

business requirement, we have proposed in Section

4.2 to integrate the PMM with the business service

ecosystem. Afterwards, to assess the relevance and

accuracy of the privacy metamodel in interconnected

societies, we have evaluated the deployment of this

artefact in the frame of substantive instances through

a real financial case study. The latter has

demonstrated that if we consider that the PMM

structures the requirements for a compliant

management of the privacy at the enterprise layer, it

is also relevant to instantiate the concepts of this

metamodel in order to apprehend and thus to manage

privacy issues at the business ecosystem level. Based

on the mapping with the BSE, we observe first that in

order to manage the privacy (which may be perceived

as a new type of service), the enterprise is required to

develop new capabilities, respectively: to define

enforcement. These capabilities also requires specific

resources, e.g., some employees need to be affected

to new privacy management roles like the information

user, the controller or the information owner. New

tools also need to be acquired to support the

performance of Privacy Impact Assessment and

access rights management. At the business ecosystem

level, our analysis reveals that the same instantiation

is necessary, although it sounds to be much trickier.

Indeed, in this case, privacy management needs to be

handled by a business ecosystem authority like, for

instance in the case of the CSSF. The latter needs to

analyse the systemic capabilities and resources

required to realize systemic privacy services

(business ecosystem service) in a service system

environment. This context, justifies the need for the

model-driven approach that we propose and which

sustain the abstraction of the information system at

the right level to support systemic privacy

management. In regard to this evolution, we also

observe the arising of new type of specific businesses

to manage the systemic privacy (other type of

business ecosystem services). These arising services

in turn necessitate business ecosystem capabilities

and resources such as dedicated systemic privacy

management role, tools, and policies. A particular

resource in this context concerns the Privacy Impact

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

398

Assessment methods. Various initiatives emerges to

extend the use of risk assessment to the privacy

domain. E.g., the Commission nationale de

l'informatique et des libertés (CNIL - In English:

National Commission on Informatics and Liberty)

proposes a privacy risks assessment method, which

can be integrated in a privacy impact assessment

(Netha, 2016). The National Institute of Standards

and Technology (NIST) is also developing a specific

privacy risk management model and framework and

attempting to integrate it with its security risk

management framework. These initiatives can be

seen as an extension to the Australian National

eHealth Security and Access Framework approach

(Netha, 2016), as they do not only address the CIA

triad, but additional objectives associated with

privacy. As the privacy objectives of the individuals

are translated into objectives of the organization, they

however remain focalized on fully assessing the risks

(the combination of both threat and impact) on the

organization. The PMM, as an extension of the SST,

is an artefact that could sustain the PIA management.

Therefore, the preliminary work related to the

mapping between the risk and the BSE could serve as

a good basis considering that risk of enterprise

privacy breach is a function of the tuple privacy

threat, privacy impact, privacy vulnerability. Based

on the integration of BSE - PMM, and given the

alignment between the risk concepts and the BSE, it

is possible to extrapolate the enterprise PIA to the

sectorial level as well.

REFERENCES

Ajam, N., Cuppens-Boulahia, N., Cuppens, F., 2013.

Contextual privacy management in extended role based

access control model. DPM'13. Springer.

Alter, S., 2011. Metamodel for service design and service

innovation: Integrating service activities, service

systems, and value constellations.

Antón, A.I., Bertino, E., Li, N., Yu, T. 2007. A roadmap for

comprehensive online privacy policy management.

Commun. ACM 50(7), pp. 109-116.

Ardagna, C. A., Cremonini, M., De Capitani di Vimercati,

S., Samarati, P. 2008. A privacy-aware access control

system. Journal of Computer Security, 16(4), 369-397.

Ashley, P., Hada, S., Karjoth, G., Powers, C., Schunte, M.

2003. Enterprise privacy authorization language, 1.2.

Bettini, C., Wang, X. S., Jajodia, S. 2005. Protecting

privacy against location-based personal identification.

SDM 2005. p. 185-199.

Cholez, H., Feltus, C., 2014. Towards an innovative

systemic approach of risk management. In 7

ACM SIN

conference.

CNIL, http://www.cnil.fr/fileadmin/documents/ en/ CNIL-

PIA-1-Methodol ogy.pdf.

Cranor L., 2002. Web privacy with P3P. O'Reilly Media.

CSSF, 2012. Circulaire CSSF 12/544, Optimisation of the

supervision exercised on the "support PFS" by a risk-

based approach.

De Capitani di Vimercati, S., Foresti, S., Livraga, G., et al.

2012. Data privacy: definitions and techniques.

IJUFKS, vol. 20, no 06, p. 793-817.

Domingo-Ferrer, J., 2007. A three-dimensional conceptual

framework for database privacy. 4th VLDB, SDM'07.

DP, 1995. data-protection/document/review2012/com_20

12_11_en.pdf.

Feltus, C., Nicolas, D., Poupart, C., 2014. Towards a HL7

based Metamodeling Integration Approach for

Embracing the Privacy of Healthcare Patient Records

Administration. 7

ACM SIN conference.

Feltus, F., Fontaine, F.-X., Grandry, E., 2015. Towards

Systemic Risk Management in the frame of Business

Service Ecosystem, ASDENCA 2015.

GDPR, Council of European Union. 269/2014. http://ec.eu

ropa.eu/justice/

Hevner, R., March, S. T., Park, J. 2004. Design science in

information systems research. MIS 28(1).

Ipswitch, 2015, http://www.ipswitch.com/blog/european-

teams-woefully-underprepared-gdpr/

Mahmoud, Y., Atluri, V., Adam, N. R., 2005. Preserving

mobile customer privacy: an access control system for

moving objects and customer profiles. Mobisys, ACM.

Martinez-Balleste, A.; Perez-Martinez, P.A.; Solanas, A.

2013. The pursuit of citizens' privacy: a privacy-aware

smart city is possible, IEEE, 51(6), pp.136-141.

Merriam, 2016. http://www.merriam-webster.com/ diction

ary/information.

Naudet, Y., Mayer, N., Feltus, C., 2016. Towards a

Systemic Approach for Information Security Risk

Management, ARES 2016. IEEE, Austria.

Nehta, https://www.nehta.gov.au/implementation-resource

s/ehealth-foundations/ national- ehealth- security -and-

acc ess-framework.

Ni, Q., Trombetta, A., Bertino, E., Lobo, J. 2007. Privacy-

aware role based access control. SACMAT '07, ACM.

NIST, http://csrc.nist.gov/publications/drafts/nistir-8062/

nistir_8062_dra ft.pdf.

Nuseibeh, B., 2010. Mobile privacy requirements on

demand. In PROFES 2010. Springer.

OPL, Online Privacy Law: European Union, http://www

.loc.gov/law/

Park, J., Sandhu, R. 2002. Towards usage control models:

beyond traditional access control. SACMAT '02. ACM.

Park, J., Sandhu, R. 2000. A position paper: a usage control

(UCON) model for social networks privacy.

Peffers, K., Tuunanen, T., Rothenberger, M. A., and

Chatterjee, S. 2008. A design science research

methodology for information systems research. JMIS

24(3):45-77.

Pérez-Martínez, P.A., Solanas, A. 2011. W3-privacy: the

three dimensions of user privacy in LBS, Int'l. Symp.

Rath, T.M.A., Colin, J.-N., 2012. Patient privacy

preservation: P-RBAC vs OrBAC in patient controlled

records type of centralized healthcare information

Model-driven Approach for Privacy Management in Business Ecosystem

399

system. Case study of walloon healthcare network.

eTELEMED.

Rath, T.M.A., Colin, J.-N., 2013. Towards enforcement of

purpose for privacy policy in distributed healthcare.

CCNC. IEEE.

Rumbaugh, J., Jacobson, I., Booch, G. 2004. Unified

Modeling Language Reference Manual, The. Pearson

Higher Education.

Wang, H., Lee, M. K., & Wang, C. 1998. Consumer privacy

concerns about Internet marketing. Communications of

the ACM, 41(3), 63-70.

Yang, M., Yu, Y., Bandara, A., Nuseibeh, B. 2014.

Adaptive sharing for online social networks: a trade-off

between privacy risk and social benefit. TrustCom-14.

Zhu, Y., Peng, L. 2007. Study on K-Anonymity Models of

Sharing Medical Information. ICSSSM 2007. IEEE.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

400
