Analysis and Assessment of Situational Awareness Models for National

Cyber Security Centers

Timea Pahi, Maria Leitner and Florian Skopik

AIT Austrian Institute of Technology, Vienna, Austria

ﬁrstname.lastname@ait.ac.at

Keywords:

Situational Awareness, National Cyber Security Center, Information Sharing, Survey, Cyber Security.

Abstract:

National cyber security centers (NCSCs) are gaining more and more importance to ensure the security and

proper operations of critical infrastructures (CIs). As a prerequisite, NCSCs need to collect, analyze, process,

assess and share security-relevant information from infrastructure operators. A vital capability of mentioned

NCSCs is to establish Cyber Situational Awareness (CSA) as a precondition for understanding the security

situation of critical infrastructures. This is important for proper risk assessment and subsequent reduction

of potential attack surfaces at national level. In this paper, we therefore survey theoretical models relevant

for Situational Awareness (SA) and present a collaborative CSA model for NCSCs in order to enhance the

protection of CIs at national level. Additionally, we provide an application scenario to illustrate a hands-

on case of utilizing a CSA model in a NCSC, especially focusing on information sharing. We foresee this

illustrative scenario to aid decision makers and practitioners who are involved in establishing NCSCs and cyber

security processes on national level to better understand the speciﬁc implications regarding the application of

the CSA model for NCSCs.

1 INTRODUCTION

More and more private organizations own critical in-

frastructures and run essential services in our modern

states, such as electricity and water supply, transporta-

tion, banking and health care – just to name a few.

However it’s in the responsibility of the national gov-

ernments to maintain public order and safety of citi-

zens and therefore, to guarantee the security of these

infrastructures.

Thus, a formal arrangement to foster the collab-

oration of the public and private sector has to be es-

tablished. The vision is that national cyber security

centers (NCSCs) collect and assess cyber security-

relevant information from single organizations (i.e.,

critical infrastructure operators). Due to the expected

large amount of information available, they must be

able to derive important knowledge about emerging

threats, ongoing incidents and their potential impact

on national security earlier than any single organi-

zation could ever do. At national level, the iso-

lated views of single organizations can be merged and

the dots connected. Only this way, large-scale at-

tacks, long-running campaigns, and especially threats

against vertical markets and distributed supply chains

can be identiﬁed and eventually mitigated.

Recently, this vision has made a huge leap for-

ward. With the political agreement on the European

directive on security of network and information sys-

tems (NIS Directive) (European Parliament, 2015) in

July 2016, the European Union has put legal and reg-

ulatory frameworks in place that require operators of

essential services and digital service providers to re-

port high-impact cyber security incidents to authori-

ties, e.g., to a NCSC. It is further foreseen that men-

tioned authorities take and process information about

security incidents to increase the network security

level of all organizations by issuing early warnings,

assisting with mitigation actions, or distributing rec-

ommendations and best practices.

However, while most of the essential technical

building blocks already exist today, there is a major

lack of understanding on how to eventually adopt and

present collected information to strategic levels in or-

der to create situational awareness (SA) – and provide

a sound basis for justiﬁed and effective decision mak-

ing by competent authorities.

Thus, the contributions of this paper are as fol-

lows:

• Survey of Models for SA: We collect and ana-

lyze the applicability of data processing models

required to create a complete process for gaining

334

Pahi, T., Leitner, M. and Skopik, F.

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers.

DOI: 10.5220/0006149703340345

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 334-345

ISBN: 978-989-758-209-7

and apply the gained cyber situation awareness

(CSA).

• Deﬁnition of CSA Model for NCSCs: We de-

ﬁne an own CSA model and suggest extensions of

surveyed models to make them ﬁt for CSA, which

requires extended capabilities compared to classic

SA.

• Information Sharing Scenario: We demonstrate

an application scenario of our CSA model focus-

ing on information sharing in NCSCs.

The remainder of this paper is organized as fol-

lows. Sect. 2 outlines the methodology of the sur-

vey. Sect. 3 presents the results of the survey describ-

ing the applicability of the most prominent models

for CSA. Sect. 4 elaborates on the implementation of

CSA in NCSCs. An application scenario for CSA and

its implications is summarized in Sect. 4.2. Finally

Sect. 5 concludes the paper.

2 METHODOLOGY

In this paper, we use two methods to investigate the

current state of the art in SA: (1) literature review and

(2) classiﬁcation. Based on these two steps, we identi-

ﬁed shortcomings and propose a CSA model for NC-

SCs and validate it with a hands-on application sce-

nario.

In the Literature Review, we used Snowball sam-

pling in order to identify relevant and contemporary

literature and ﬁnd a golden standard within the topic

of SA. Snowball sampling is focusing on sampling

techniques that are based on the judgment of the re-

searcher (Biernacki and Waldorf, 1981). The tech-

nique is used to deﬁne feasible issues in complex re-

search areas, where subjects are hard to identify. This

non-probability approach enables researchers to lo-

cate most of the relevant literature through checking

references in the bibliography as a primary source for

further research. After identifying relevant sources

and focal points, the next phase contains further itera-

tion of the literature research in order to gain a holistic

picture about the particular research area.

Furthermore, a Classiﬁcation was used to analyze

and assess the deﬁnitions and models for SA. The

widely-known and applicable general deﬁnition and

theoretical model for SA by Endsley (see Sect. 3.1)

was used as a basis for the collection and analysis of

the applicability of the selected models. The cogni-

tive SA model of Endsley can be divided in six com-

ponents or levels, in Perception, Comprehension, Pro-

jection, Decision, Performance of Actions and Feed-

back. These levels are required for SA gaining and ap-

plication in the national cyber security centers. These

levels give the framework and serve as a basis for the

analysis of the different models in Section 3.7. The

model of Endsley demonstrates how SA provides a

primary basis for decision making in dynamic sys-

tems. Although alone this model can not guarantee

the success of the decision making (Artman, 2000),

the created CSA model needs to integrate other exist-

ing models for providing the suitable input processes

upon which decision are based in the NCSCs.

The selected models, based on their high cita-

tion rate, cover at least partially one or more com-

ponents needed for gaining or applying SA. Most

of the models use different names for the same lev-

els instead of the original model. The contextu-

ally appropriate theoretical models are the follow-

ing: Situation Awareness Model by Endsley (Endsley,

1995), the OODA Loop (Boyd, 1996), the JDL Data

Fusion Model (White, 1987), the Cyber Situational

Awareness Model (Okolica et al., 2009), the Situa-

tion Awareness Reference Model (Tadda and Salerno,

2010) and the Effective Cyber Situational Awareness

Model (Evancich et al., 2014).

3 SURVEY OF SA MODELS

Cyber security has become one of the important is-

sues for our highly networked society. Within the

ﬁeld of cyber defense, situational awareness is partic-

ularly prominent. It is related to science, technology

and practice to understand events and entities in the

cyber space. There are several deﬁnitions for situation

awareness. The ﬁrst deﬁnition was in the mid-1980s

recorded, but the use of the term situational awareness

can be traced back to World War I. (Onwubiko, 2012)

Until 1995 nearly all the existing SA deﬁnition have

military approach, because of the growing interest in

understanding how pilots maintain awareness during

the ﬂight. The widely applicable general deﬁnition

for SA is proposed by Endsley (Endsley, 1995). Ta-

ble 1 outlines the selected models for the survey. In

the following, we will brieﬂy describe each model.

3.1 Situation Awareness Model by

Endsley (1995)

SA is speciﬁed in (Endsley, 1988) as: “Situation

awareness is the perception of the element in the envi-

ronment within a volume of time and space, the com-

prehension of their meaning, and the projection of

their status in the near future“. SA presents a level

of focus that goes beyond traditional information-

processing approaches in attempting to explain hu-

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers

335

Table 1: Overview of SA models.

Abbrv. Model Focus References

SAM Situation Awareness Model Cognitive decision making (Endsley, 1995)

OODA OODA Loop Cognitive decision making (Boyd, 1996)

JDL DFM JDL Data Fusion Model Processing and fusion of data and SA (Steinberg et al., 1998)

CSAM Cyber Situational Awareness Model Business continuity planning and CSA (Okolica et al., 2009)

SARM Situation Awareness Reference Model Situational awareness (Tadda and Salerno, 2010)

ECSA Effective Cyber Situational Awareness CSA in computer networks (Evancich et al., 2014)

man behavior in operating complex systems, e.g. pi-

lots. Based on the deﬁnition of SA provided by Ends-

ley, the SA forming consists of three levels (see (End-

sley, 1995)):

• Level 1 - Perception of the Elements in the En-

vironment is the ﬁrst step in achieving SA. This

level covers the perception of status, attributes,

and dynamics of relevant elements in the environ-

ment.

• Level 2 - Comprehension of the Current Situation

is based on outputs of the Level 1. Level 2 in-

cludes the understanding of the signiﬁcance of the

relevant elements.

• Level 3 - Projection of Future Status covers the

ability to predict the future actions of the elements

in the environment. This is achieved through

knowledge of the status and dynamics of the el-

ements and comprehension of the situation.

Endsley’s model of SA (SAM) illustrates also the

component Decision, Performance of Action, Feed-

back and the variables that can inﬂuence the devel-

opment and maintenance, such as environmental and

individual factors.

• Decisions are strongly inﬂuenced by SA, because

it forms the major input to decision making. The

decision can be affected by various factors, such

as individual factors (e.g. goals, experience or

abilities) or by task and environmental factors

(e.g. workload, stressors or complexity).

• The relationship between the SA and Performance

of Actions can also be predicted (Endsley, 1995).

Appropriate SA increases the the probability of

good performance and course of actions, but can-

not guarantee it. The actions are also inﬂuenced

by the same factors as the decisions.

• Feedback covers state of the environment or the

system affected by the decision and by the perfor-

mance of the selected actions.

In the SA model play time an important role. As

SA is a dynamic construct affected by the surrounding

environment and various factors, therefore it serves

also as input in the model. These factors and aspects

need to be considered also in the CSA model for NC-

SCs in order to timely react to the detected threats in

the dynamically changing cyber space.

3.2 OODA Loop (1976)

The OODA loop was originally developed in an at-

tempt to explain why American ﬁghter pilots were

more successful than their adversaries in the Korean

War (Boyd, 1996). Compared to the SAM, the OODA

Loop is made originally for supporting decision mak-

ing processes. Many decisions are required in dy-

namic environments, especially in the ever-changing

cyberspace. Therefore one of the main requirements

is the obtaining and maintaining of an accurate SA.

Kaempf et al (Kaempf et al., 1993) conﬁrm also the

relevance of the SA in the decision making processes.

They claim that the recognition of the situation is

a challenge for the decision makers. The following

four major stages belong to the OODA Loop (see

(Brehmer, 2005)):

• Observe involves the perception of some features

of the environment.

• Orient refers to orienting within a speciﬁc envi-

ronment.

• Decide involves deciding what are the next steps.

• Act involves implementing what has been de-

cided.

The SAM and the OODA Loop describe the cog-

nitive processes of decision making in complex envi-

ronments. These models can serve as a solid base for

SA gaining and decision making in NCSCs facing the

evolving threat environment.

3.3 JDL Data Fusion Model (1980)

Contrary to the focus on the cognitive processes in the

SAM and the OODA Loop, the next model describes

the technical information processes of the SA gain-

ing. The Joint Director’s of Laboratories (JDL) Sub-

group developed the Data Fusion Model (JDL DFM)

(White, 1987) as an approach to reﬁne data collected

from various systems. The JDL DFM was designed

to take data from any aspect of the world, e.g., ﬂight

information or network trafﬁc, and process it in a way

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

336

that the output is more useful. The output is supposed

to better estimate, predict, or assess the environment

under observation (Raulerson, 2013). The JDL model

has ﬁve different levels of data processing, from level

0 to 4. The levels of the JDL DFM are described as

follows in (Steinberg et al., 1998):

• Level 0 - The Sub-Object Data Assignment is re-

sponsible for the sensor-based data collection.

• Level 1 - The Object Reﬁnement level combines

the data from Level 0 with sensors data to detect

security events. The main objective of the level is

to identify, detect and characterize entities, such

as computers, adversaries, data ﬂows or network

connections. The output of Level 1 is a list of en-

tities and their properties.

• Level 2 - The Situation Reﬁnement level combines

various entities to provide an overview of the cur-

rent state of the system or environment.

• Level 3 - The Threat Reﬁnement level predicts

future states of the system or possible attacks

against the system.

• Level 4 - The Process Reﬁnement level man-

ages the system’s capability for sensors and their

health.

• Level 5 - The Cognitive Reﬁnement represents the

link between the security analysts and the JDL

DFM. In this process the analyst (performing the

human cognitive processes) receives the techno-

logical support from the JDL system.

The result of these data processing levels serve as

basis for the gaining accurate and present SA such

as in NCSCs. Inaccurately designed data processing

steps could lead to incorrect situational awareness and

possibly to wrong decisions.

3.4 Cyber Situational Awareness Model

(2009)

The Cyber Situational Awareness Model (CSAM)

(Okolica et al., 2009) proposes a methodology for

building an automated discovery engine for CSA.

They further argue that any SA system must perform

the three functions (perception, comprehension and

projection) as described in (Endsley, 1988). These

three functions match to the levels Sense, Evaluate

and Assess in the CSAM. The system senses its en-

vironment, it takes its raw sense data and assemble it

into a meaningful understanding of its environment,

and uses its current understanding to predict future

developments.

• Sense - The function includes data gathering

through sensors.

• Evaluate - The system complies these information

into a concept which matches to already existing

threat concepts.

• Assess - The system predicts possible future activ-

ities and attacks.

All these functions are essential in NCSCs to fore-

seen emerging threats and to be able to prevent future

attacks.

3.5 Situation Awareness Reference

Model (2010)

The SA Reference Model (SARM) in (Tadda and

Salerno, 2010) is a combination of the JDL DFM and

the SAM. The SARM provides a set of deﬁnitions of

the necessary elements of the model, such as entity,

group and events.

• Level 0 is the data and sensor management.

• Level 1 is about Object Recognition & Tracking

covers the perception level from SAM.

• Level 2 (Comprehension) and Level 3 (Projection)

cover the Situation Assessment. According to the

authors, Level 3 in the JDL Data Fusion as well as

Level 2 on Endsleys model address the current sit-

uation, while the Level 3 in the JDL Data Fusion

Model is associated with the future

• Level 4 covers the feedback feature in the system.

This process includes reﬁnement for internal and

external processes.

This model enables ﬂexible reactions to the

changing threat landscape.

3.6 Effective Cyber Situational

Awareness (2014)

The Effective Cyber Situational Awareness model

(ECSA) by (Evancich et al., 2014) focuses on a par-

ticular type of CSA: a holistic view of SA within a

computer network applying network monitoring. The

ECSA model includes three main phases:

• Network Awareness includes the analysis and enu-

meration of assets and of defense capabilities.

• Threat or Attack Awareness establishes a current

situation picture of possible attacks and vectors

against the network in question.

• Operational or Mission Awareness establishes SA

of the operation e.g., how decreased or degraded

network operations will affect the mission of the

network.

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers

337

ECSA aims at providing better intelligence about the

status of the network than regular CSA. The ECSA

is CSA that improves decision making, collaboration,

and resource management (Evancich et al., 2014).

Moving from CSA to ECSA requires that the CSA

created by the system provides the analysts to have

a better intelligence about the status of the network.

Therefore ECSA tries to provide actionable intelli-

gence about the network.

3.7 Survey Summary

The interpretation of the SA changes according to the

application area. SA gaining processes need different

information depending on the scope, ECSA requires

for instance particularly network information, while

SA in the NCSCs use a wide range of information

type. Despite the broad application range most of the

models for SA gaining share one similarity: they are

based on the general deﬁnition and most cited model

of SA by Endsley (Endsley, 1988) (for more details

see Section 3.1). Therefore the described components

by Endsley serve as a basis for creating a novel pro-

cess for SA gaining and applying by combining al-

ready existing, suitable models.

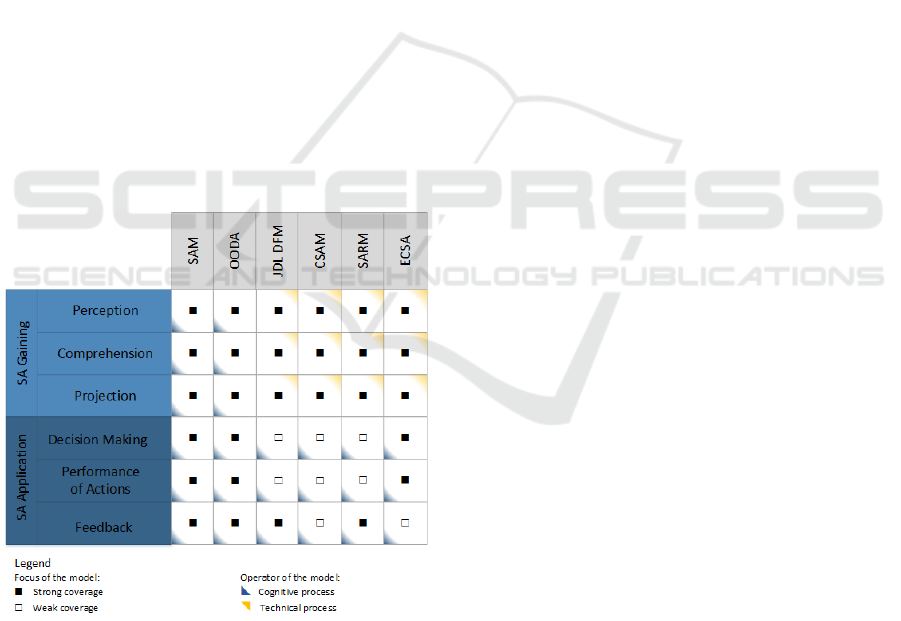

Figure 1 summarizes the analysis of the presented

models.

Figure 1: Applicability of Different Models for SA.

Based on the six components of the SAM (see

Section 3.1) are the models analyzed and assessed re-

garding their applicability in NCSCs. The processes

of the models are divided into two main categories,

in SA Gaining (with Perception, Comprehension and

Projection) and in SA Application Processes (with

Decision, Performance of Action and Feedback). The

signiﬁcant processes within the models are repre-

sented by ﬁlled black squares, while the processes

with weak coverage by blank squares. The analysis of

the models is based on two main aspects: on the focus

of the models and on the operator (i.e. a person or a

machine/program that establishes SA). Both aspects

are displayed in Figure 1.The processes performed by

machines are marked with the blue edge below, while

processes using cognitive skills of human operators

are marked with the yellow edge above.

3.7.1 Focus of the Models for SA

To deﬁne the focus and the scope of each relevant

model for gaining and applying SA, the models are

compared to the components of the SAM (see Sec-

tion 3.1). Establishing SA is a major and complex

task. Therefore, two main processes, SA Gaining

and SA Application, are required. Figure 1 illustrates

the phases of SA gaining (Perception, Comprehension

and Projection) and SA application (Decision, Perfor-

mance of Actions and Feedback).

The SA Gaining phase contains the three levels

based on SAM (Endsley, 1995): Perception, Compre-

hension and Projection (see Figure 1). Based on the

SAM SA is a useful present knowledge about, and un-

derstanding of the environment. This process is cov-

ered in all models (see e.g., the Perception and Com-

prehension Level in the SAM or the Observe and Ori-

ent Stage in the OODA loop). In the remaining mod-

els are sensors and algorithms responsible for the per-

ception and comprehension of the environment. The

component Projection is essential in models, because

SA is typically forward looking, projecting what is

likely to happen in order to inform effective decision

processes (Kaber and Endsley, 2004).

SA Application contains the Decision, Perfor-

mance of Actions and Feedback phase. SA is essen-

tial in dynamic environments where the information

ﬂow is high and wrong decisions can lead to serious

consequences, such as in the defense of the critical

infrastructures. Figure 1 shows the models that de-

scribe the decision making more comprehensive, such

as the SAM, OODA and ECSA, and the models that

improve the decision making by providing better in-

telligence, such as JDL DFM, CSAM and SARM.

The OODA Loop describes for instance the steps for

decision making in detail, while the ECSA provides

technical features for decision making by predicting

possible scenarios. The models provide an assistance

by creating SA or additionally by providing options

for actions for the decision makers. Ideally, the SA

gaining process contains a feedback cycle between

the environment and the decision maker.The Feed-

back component by the SAM is complemented with a

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

338

process reﬁnement functions. The operator can have

for instance the possibility to verify or modify the SA

gaining processes or even their results. The feedback

loops could vary enormously depending on the appli-

cation area. Therefore this component is not a focus

in most of the models.

3.7.2 Operators in SA Models

With the operator aspect, the analysis aims to assess

how SA is established by humans or machines (e.g.,

programs) in the SA models. Figure 1 marks the tech-

nical processes with blue edges and the cognitive pro-

cesses with yellow edges.

The ﬁrst models, such as the SAM and the OODA

Loop, focus on the human aspect in a crisis situation.

They describe SA as a cognitive knowledge, what can

be enriched by experience. In these model, the oper-

ator is a human, e.g. a pilot or a soldier. As of the

1980s technical sensors and their data complement

the human perception, see for instance the JDL DFM.

This approach deﬁnes the need for human and ma-

chine information processes in SA gaining and appli-

cation. Each presented CSA model, such as CSAM,

SARM and ECSA, tries to reproduce and improve the

cognitive SA gaining processes with the integration

of technical solutions. The CSAM proposed to be

an automated data processing system sense the envi-

ronment. The other models, such as the SARM and

ECSA, have a different approach. They integrate the

human operator in the SA creating processes with a

veriﬁer and improver role, while the SA gaining pro-

cesses are totally automated. All approaches need to

be integrated in the CSA model to combine the ad-

vantages of the different models in order to enhance

the cyber defense capability at the national level.

In summary, based on this understanding, the

modern CSA models combine the technical processes

with the required human aspect. The automatized

processes are usually the SA gaining processes, while

the human capabilities play a signiﬁcant role in the

application of the gained SA. Nowadays only the SA

gaining processes could be reproduced by technical

processes, perhaps fully automated systems will re-

sponse to the changing threat landscape in the future.

4 SITUATIONAL AWARENESS IN

NATIONAL CYBER SECURITY

CENTERS

In the previous section, the analysis shown that the

presented models focus on certain phases of the SA

gaining and application processes. The combination

of the models can provide more comprehensive sup-

port for creating CSA in the NCSCs. The proposed

CSA model presents the requirements and the neces-

sary SA gaining and application components in the

NCSCs. Finally an illustrative application scenario

demonstrates the validity of the CSA model.

4.1 CSA Model for NCSCs

Governments worldwide are adopting their security

strategies and capabilities (Franke and Brynielsson,

2014) or national incident response plans in order to

protect the critical information infrastructures (CII)

within the new threat landscape in the cyber age.

Most of the initiatives are based on the National Cy-

ber Security Strategies (NCSS). Relating to the NCSS

(Luiijf et al., 2013), the governments identify es-

sential national cyber capabilities, and clearly assign

ownership of these capabilities and responsibility to a

centralized NCSC. These approaches to the national

cyber security are reactive and focus on the recov-

ery processes and not necessarily on prevention. The

model illustrated in Figure 2 proposes a preventive

CSA model for NCSCs that addresses several require-

ments:

• CSA for NCSCs is a versatile, dynamic and com-

plex process that should consider different stake-

holders (national and international). The CSA

model should have a collaborative approach based

on data correlation and information sharing by

providing suitable interfaces, i.e. Reporting In-

terface.

• The complete CSA model should focus on pre-

vention, i.e. implementing an early-warning sys-

tem that can prevent and detect national incidents.

• The CSA model should be ﬂexible and open to

future threats and threat actors.

• The CSA model should provide capabilities for

cognitive and technical SA Gaining and Applica-

tion.

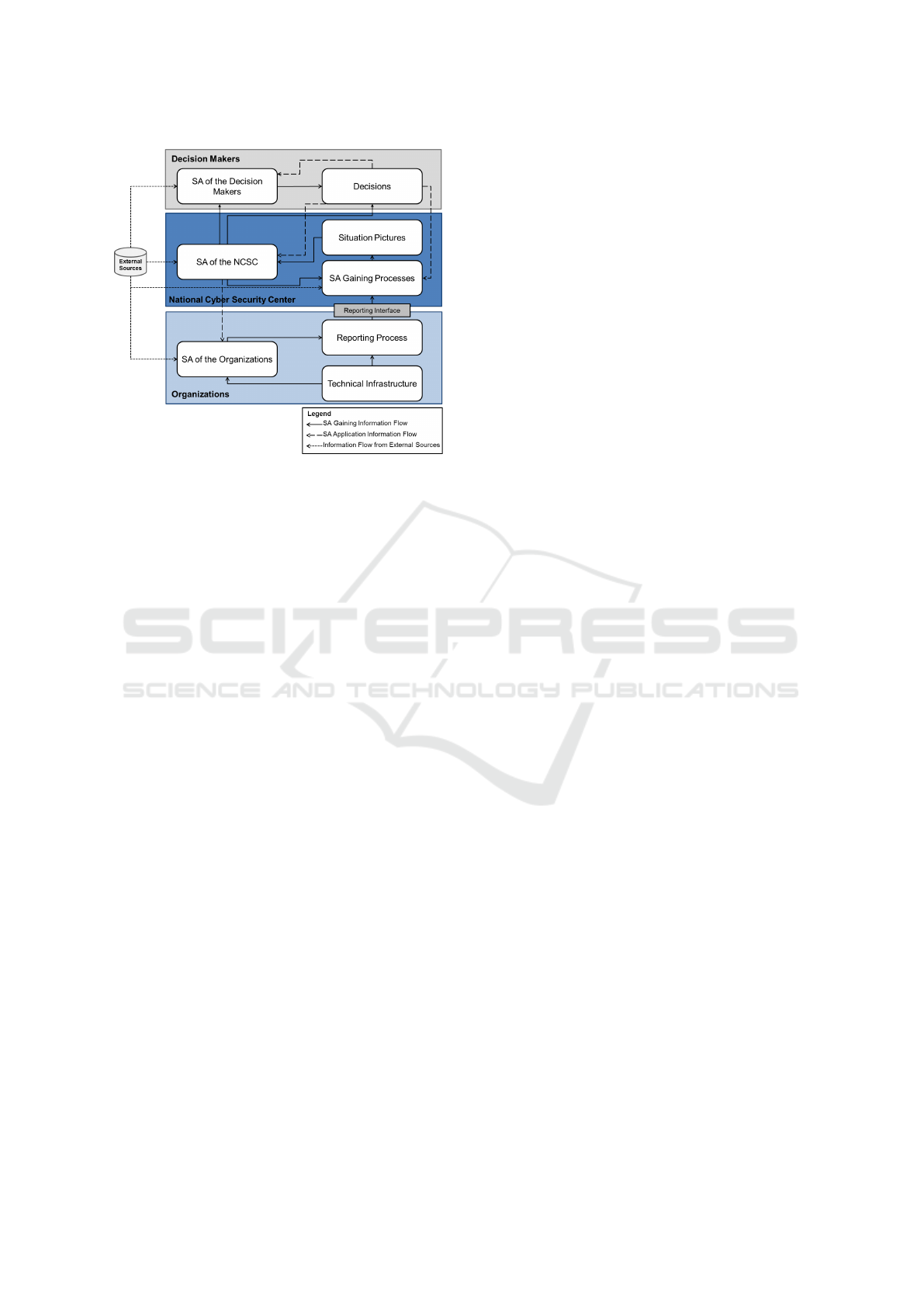

Figure 2 shows the necessary SA gaining and

application processes general for decision-makers

in the NCSCs. The model contains CSA in

three different levels with different information

sources:Organizations, National Cyber Security Cen-

ter and the level of the Decision Makers. The gained

CSA oat the Organization level serve as a basis for

creating an accurate and holistic picture about the sta-

tus of critical infrastructures in the national scope (see

the SA Gaining Information Flow in Figure 2). The

participating organizations and their reporting activ-

ity through the Reporting Interface are primary in-

formation sources for the SA gaining processes, such

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers

339

Figure 2: CSA model for NCSCs.

as Perception, Comprehension and Projection, in the

NCSC. Application of the CSA is present in every

level, it is presented in the Figure only on the Decision

Makers level because of the high relevance for the na-

tional cyber security level. The organizations and the

NCSC take also decisions and perform actions on a

daily basis, for the national security relevant actions

are for instance the reporting of the noticed cyber inci-

dent and the undertaken measures to protect their own

system. The information ﬂow downwards, the deci-

sions and the actions of the political decision maker

have an inﬂuence on the underlying levels (see SA

Application Information Flow). One decision from

the political level could have serious consequences in

case of the large-scale espionage campaign, such as

releasing documents containing sensitive information

(for instance the analysis of the espionage at RUAG

(GovCERT.ch, 2016)). One legislative could entirely

shape the cyber capability of the state, such as intro-

ducing mandatory reporting of cyber incidents, for in-

stance in the USA or in Estonia.

Figure 2 shows also the stakeholders and enti-

ties that are involved in the SA gaining and appli-

cation processes in the NSCS. As the government

and their NCSS play an essential role in establish-

ing and maintaining cyber security at national level,

the model must also include the private sector, es-

pecially the providers of the critical infrastructures

(CI). The governments and the private sectors need

to establish formal partnerships, because the techni-

cal information from the CI domains serve as pri-

mary information source for the NCSCs. These cen-

ters are often formed as Computer Emergency Re-

sponse Teams (CERTs) or Computer Security Inci-

dent Response Teams (CSIRTs). The stakeholders

are the following in our simpliﬁed model: high-level

decision makers, the NCSC and participating public

and private organizations. The Decision Makers in-

clude the government and other relevant private or

public stakeholders. The NCSC is focusing on col-

lecting, interpreting and evaluating cyber security rel-

evant information at national level. This is required

for translating the cyber incidents within the CI do-

mains into strategic and tactical actions at national

level. The NCSC can consist of National Incident Re-

sponse Teams (NIRTs); i.e. the expert team of the

NCSC. The NCSC supports the decision making by

creating various situation pictures and gaining SA at

their level. SA is current and predictive knowledge

of the environment, as well as all factors, activities

and events (Conti et al., 2013). Therefore, CSA in-

cludes the holistic and current knowledge about the CI

at national level. The situational pictures, also known

as Common Operating Pictures (COPs), support the

stakeholders and decision makers to have an appropri-

ate CSA about the current situation. The main tasks

of these centers are the information gathering from

the CI domains, and from external sources (see Exter-

nal Sources in Figure 2), such as national CERTs and

open source information, information processing and

sharing among the participating organizations about

cyber incidents. The experts of the NCSCs gener-

ate situation pictures with various focal point. These

situation pictures establish the decision maker’s CSA

about the status of the national CI.

The Organizations include all participating pub-

lic or private CI (or CII) service providers. The key

approach to CI protection is the identiﬁcation and

modeling of the relevant activities, resources and ser-

vices in each organization. These activities form the

basis for the analysis and assessment to determine

current impacts of assets and missions and to de-

rive plausible future trends and their future impacts

or effects on assets and missions (Tadda and Salerno,

2010). The organizations are usually divided into CI

domains. We use the following categorizations with

following domains: Electric Power, Oil and Gas Dis-

tribution, Transportation Systems, Information Tech-

nology and Communication, Banking and Finance,

Public Health and Healthcare, Emergency Services,

Water, Agriculture and Food, Government Facilities

and Military Installations.

The presented CSA model for NCSCs includes

proactive cyber capabilities in order to prevent cy-

ber attacks through information sharing and multi-

level monitoring related to cyber attacks. This mod-

ern CSA model helps to close the gap between the

capabilities of the public and private sector related to

cyber security. The following ﬁctional scenario de-

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

340

tails further the application of the presented theoreti-

cal CSA model for NCSCs.

4.2 Illustrative Application Scenario

4.2.1 Scenaio Design and Background

The following application scenario focusing on in-

formation sharing takes different attacker models and

motivations into account, in order to present the ben-

eﬁts and possible challenges of cyber attacks against

critical infrastructures from various perspectives. It

can be presumed, that the attackers in the follow-

ing scenarios have a strong background and techni-

cal know-how, including in-depth expert knowledge

regarding electrical engineering, electronics, cryptog-

raphy, network security, embedded security, hardware

security, and reverse engineering. Further, the attack-

ers have solid knowledge of all latest attack vectors

in those areas and have the power to put those attacks

into practice. The attackers can be e.g. criminal or-

ganizations focusing on monetary return, e.g. groups

of political activists, or also the cyber-divisions of ad-

versarial governments. The scenario is designed ba-

sically with two objectives in mind. First, it must

be complex enough to provide a basis for the com-

plete functionality of the public-private-partnership in

a modern CSA framework. Second, they must be re-

alistic in the sense that the described scenario is pos-

sible within the next years. Even if the scenario is

ﬁctional, it indicates realistic future threats to the na-

tional CIs and provides a characteristic framework for

the theoretical CSA model.

The following scenario is concerned with a part of

a large-scale cyber espionage and how to identify and

connect relevant information where big data volumes

need to be handled. This is based on the Ukrainian cy-

ber incident in December 2015. The cyber attacks in

Ukraine are the ﬁrst publicly acknowledged incidents

to result in power outages (SANS-ICS, 3 18). Power

companies experienced unscheduled power outages

impacting a large number of customers in Ukraine.

In addition, there have also been reports of malware

found in Ukrainian companies in a variety of critical

infrastructure sectors (ICS-CERT, 2 25). Based on

the DHS report, three Ukrainian oblenergos experi-

enced coordinated cyber attacks that were executed

within 30 minutes of each other. The attack impacted

225,000 customers and required the electric distribu-

tion companies to move to manual operations in re-

sponse to the attack (SANS-ICS, 3 18). The threat

actors are professionals with in-depth knowledge and

actually sponsored by nation states. The Advanced

Persistent Threats (APTs) are a cyber crime category

directed at business or political targets. These at-

tacks require complex resources and a high degree of

stealthiness over a prolonged duration of operation in

order to be successful. The drivers may cover addi-

tionally political and ideological motivations for the

threat actors of a long-term cyber campaign. The fol-

lowing illustrative scenario covers a cyber attack on

a power grid system and provides recommended ac-

tions for the relevant stakeholders in the modern CSA

model.

The presented CSA model (see Section 4.1) of-

fers concepts and methodologies for a multi-level

data collection, swift cross-organizational informa-

tion sharing processes, proper cross-domain incident

communication, an early warning system and en-

hanced CSA through customizable big data visual-

ization for superior decision making in both strategic

and organizational scopes. The gained SA facilitates

identifying and responding to cyber threats, enhances

the security of essential infrastructures, increases the

resistance of critical services for the society and sup-

ports decision makers to deal with cyber crises. The

illustrative scenario has the following characteristics:

• Scope of the cyber incident: National scope (large-

scale)

• Possible threat actors: Foreign intelligences, Hackers,

Insiders, Phishers

• Quality of the threat actors: Professionals

• Attack complexity: High

• Level of authentication needed to exploit: Multiple in-

stances

• Impact on Conﬁdentiality/Integrity/Availability:

Medium / Medium / High

• Motivation: Political, Ideological, National security

• Likelihood: Medium

• Target domains: Electric Power

With this use illustrative application scenario (see

Figure 3), we aim to demonstrate the following for the

CSA model:

• describe the incident detection at CI providers (see Sec-

tion 4.2.2)

• demonstrate information sharing capabilities between

the NCSC and the CI (see Section 4.2.3)

• describe how SA is provided at the level of the organi-

zations (see Section 4.2.4), NCSC (see Section 4.2.5)

and decision makers (see Section 4.2.6).

4.2.2 Incident Detection in the Energy Domain

In the ﬁctional European country, Norland, three main

energy suppliers are responsible for the electricity

generation, distribution and transmission and for serv-

ing customers within the country. In Norland are two

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers

341

Risk Report

Information Sharing

CI Providers – Electric Power Domain

National Decision Makers

National Cyber Security Center

(NCSC)

CityEnergy Ltd.

National Incident Response Teams

(NIRTs)

Decision Makers

 Discussion &

Decision Making

NORBENergy

Company

DG&E Company

Incident Reporting to NCSC

Incident

Identification

Internal Reporting

Crisis Meeting

Incident

Identification

CSIRT Recovery

Activity &

Internal Reporting

Incident Reporting to NCSC

Incident

Identification

Incoming Complaints

Incident Reporting to NCSC

Standard Operations

Authorize the NCSC to

Eliminate Potential Cyber

Threats

Urges Cooperation

NIRT Assisstance

Information Gathering

Service Recovery

Normal Operation

Collection of

Forensic Evidence

Reports with Situation Pictures

 Analysis based on

the Ongoing

Investigation Results

 Impact Analysis

Standard Operations

Summary of the Incidents

 Discussion &

Decision Making

Establishing

Policies and Guidelines

Modernization of the

Existing Power Plants

 Lessons learned

 Good Practices

 Mitigation Concepts

for CI Providers

Long-term Impact on CI Security

Collection of

Forensic Evidence

Information Sharing

Cooperation with

the NCSC

Service Recovery

Normal Operation

Service Recovery

Normal Operation

 Establishing the

NIRTs

 Preliminary

Information

Gathering concerning

the Incidents

 Situation Analysis

 Risk Assessment

 Identification of

Possible Actions

 Recommendations

for Mitigation

Measures

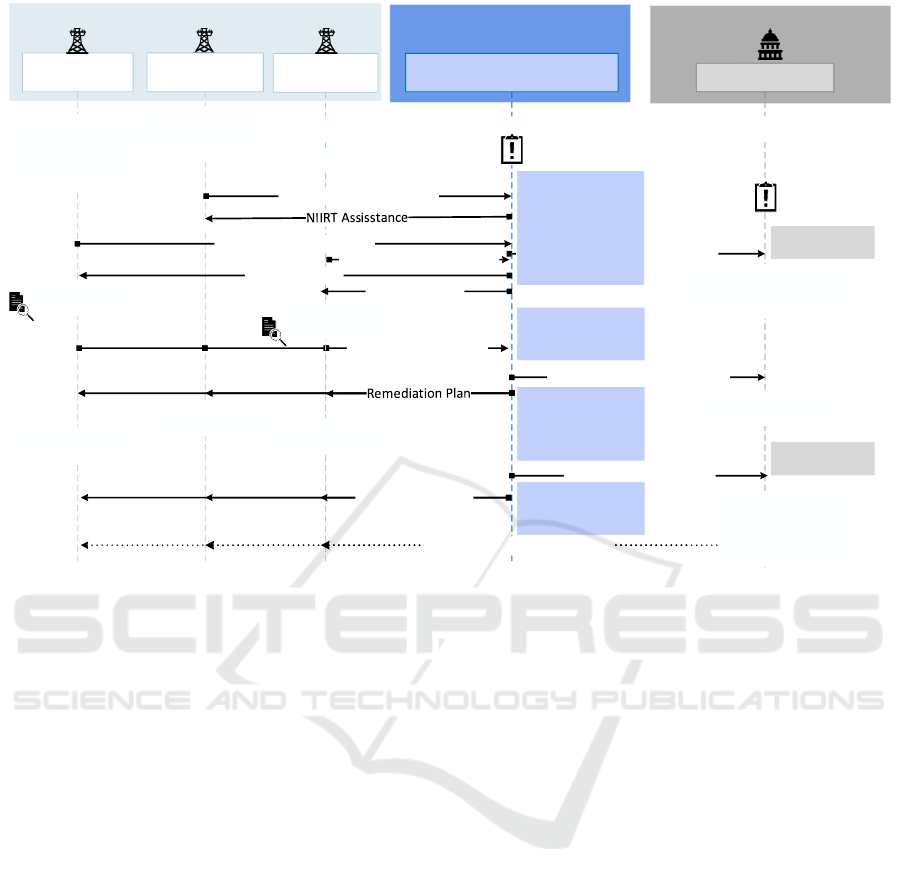

Figure 3: Information Sharing Scenario.

thermal power plants (DG&E Company) and three

hydro power plants on the Norben River (CityEnergy

Ltd and NORBENergy Company. 80% the electricity

is produced by the three hydro power stations, and the

remaining 20% is generated by dilapidated infrastruc-

ture of the thermal power plants. The demand of elec-

tricity is increasingly higher than the domestic gener-

ation. Therefore Norland needs to import energy from

the neighbor states.

One of the three main energy service provider,the

NORBENergy Company, realizes at 10 a.m. that two

of their substations are not in service. The responsi-

ble technicians check the substations and make neces-

sary temporary solutions in order to supply energy to

several important facilities from the remaining sub-

stations. In the meantime, the company‘s IT team

reports the incident to the CISO and tries to recover

the system according to the incident response plan.

Two hours after the service outage, the organization

summons an adhoc meeting and more IT employees

because of the crisis situation. Before the emergency

meeting with the management, the IT team assess the

situation of the services and technical infrastructure,

conducts an analysis related to the possible energy

supply level. Based on the impact analysis, the mem-

bers of the meeting decide to report the incident to

the NCSC at 1 p.m. in order to quickly ﬁx the sup-

ply problem. In the meantime, the IT team tries to

ﬁnd a solution and solve the problem and the call

center deals with the incoming complaints from the

customer-side.

The largest energy service provider, the CityEn-

ergy Ltd, notice also major failures and substation

outages in their systems at the same time. The com-

pany observes the service outage due to the 7/24 ser-

vice monitoring system of the company, namely that

four of their substations were disconnected from the

power supply system. The CSIRT of CityEnergy

starts immediately the necessary actions with respect

to the disaster recovery plan. The company activates

their own incident response team and begins with

the data gathering about the incident, business im-

pact and risk analysis. Parallel the initial actions of

the CSIRT, they report the incident internally to the

executive level. 2 hours after the incident detection,

the CSIRT attempts to recover the missing services

without any success. Furthermore, the call center ap-

pears to be paralyzed but the actual causes are still

unknown. Therefore, the company alerts the NCSC

at 2 p.m.

The owner of the thermo power plant, DG&E

Company, receives numerous complaints, that cus-

tomers noticed problems concerning the energy sup-

ply. The employee of the call center alerts internally

the technicians. Based on the system analysis, the

technician realizes that both of their substations are

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

342

disconnected and not working. The DG&E Company

has an obsolete and technically outmoded infrastruc-

ture and no disaster recovery plan, business continuity

plan or incident response team. The IT team covers

only 2 employees, who try to identify the cause of the

failure unsuccessfully. After one hour, the ﬁrst inter-

nal report is provided to the management. The exec-

utive director of the company realizes that they have

not the necessary expertise to solve the service out-

age. But the company is a participating organization

of the NCSC, therefore the DG&E Company reports

the NCSC about the service outage at 2 p.m.

4.2.3 Information Sharing and Reporting

The NCSC receives an incident report from the NOR-

BENergy Company through the NCSC Reporting In-

terface. The company has a small customer base

with 50,000 customers, but belongs to the important

CI providers in the country. Shortly after the inci-

dent report, the NCSC composes a group of experts,

called NIRT, concerning the energy domain in order

to collect open source information about the possi-

ble causes and to clarify important details about the

service outage. The NCSC contacts NORBENergy

and sends the NIRT in order to assist at the service

recovery. One hour after the ﬁrst report comes an-

other report from the energy domain. The largest en-

ergy distribution company, CityEnergy Ltd, notiﬁes

that their substations are not under their control and

disconnected from the system. As is in the ﬁrst case

establishes the NCSC a new NIRT in order to offer

assistance to the energy provider (depicted with NIRT

Assistance in the Figure 3).

Based on the preliminary information gathering of

the NCSC, there have been reports of malware found

in the neighbor countries compromising systems in

the energy domain. These ﬁndings presents a poten-

tial risk at the national level, that the systems (actually

ICS or SCADA systems) are infected and/or compro-

mised in the energy sector. The NCSC informs the

competent national authorities about the potential cy-

ber attacks against the energy service providers. The

reporting activity is presented as Risk Report in the

Figure 3. The detailed impact analysis and recom-

mendations could be delivered only after further in-

vestigations in the victim organizations. The decision

makers authorize the NCSC to use all available means

to eliminate the potential cyber threats endangering

the national energy infrastructure and urges uncondi-

tional cooperation from the victim organizations with

the incident response teams of the NCSC. The Report-

ing Interface receives a new notiﬁcation, but this time

from the thermal power plant company, the DG&E

Company. The NCSC sends immediately a response

team to the energy provider in order to collect forensic

evidence on the incident.

4.2.4 SA for Organizations

The primary aim of the NIRT assistance in crisis situ-

ations is to support the company to recover the essen-

tial services and business processes of the victim or-

ganizations. The ﬁrst phase of the assistance process

is carried out in progressive stages and covers usually

the SA Gaining Processes of the modern CSA mod-

els, mainly the Perception and the Comprehension.

The Projection belongs partly to the second phase of

the assistance process. The ﬁrst levels of the mod-

ern CSA models, namely the perception of status, at-

tributes of the relevant services within the victim com-

panies. The next stage is the understanding of the cur-

rent situation in the compromised system. The NIRTs

are gathering and sharing more and more information.

In that way they could reconstruct the attack tactics,

techniques and procedures at the end of the assistance.

After the incident reports, the NIRTs are collecting

evidence locally in the compromised systems, seeking

for vulnerabilities, patching insecure systems, inves-

tigate concerning potential attack vectors and point of

failures.

4.2.5 SA for NCSCs

In the second phase of the assistance includes the Pro-

jection. This sub-process is running partly parallel

to ﬁrst phase using existing knowledge concerning

the national energy domain and external information

sources, and partly after the completion of the ﬁrst

phase using their ﬁndings as a basis. In our scenario,

the experts in the NCSC headquarter are assessing the

current situation within the energy domains and the

potential effects and future impact of the cyber attack

at various levels. The analysis is based on the ongo-

ing investigation results (see Information Sharing in

Figure 3 to the NCSC)and on various external infor-

mation sources. These reports will serve as a basis

for the decision makers in order to gain an adequate

CSA.

On the one hand the NIRTs are building remedi-

ation plans for the victim organizations and option-

ally provide assistance in the full recovery processes.

This activity (depicted as Remediation Plan in Fig-

ure 3) complies with the Resolution sub-process in

the modern CSA models for the participating organi-

zations. On the other hand, the NCSC is summariz-

ing the ﬁndings out of the Projection and Resolution

sub-processes. These reports contains situation pic-

tures about the current and the possible cyber situa-

tion in the energy domain, demonstrates fundamental

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers

343

dependencies among the essential services and offers

demonstrations of potential cascading effects. All of

these situation pictures could be sum up as the SA of

the NCSC. The NCSC sends and presents the required

sections to the national decision makers. The CSA

gained by the NCSC serve as a basis for the high-level

decision makers to gain their own SA concerning the

cyber attack against the national CI.

One of the essential tasks of the NCSC is to iden-

tify possible actions and make recommendation for

mitigation measures at the organizational level in or-

der to prevent conﬂicts or for avoiding escalation

at the national level. The recommendations of the

NCSC covers the resolution in the modern CSA mod-

els and serve as a basis for the decision making. Ac-

cording to the recommendations of the NCSC, the

victim organizations are able to recover the essential

service within 4 hours with the help of the NIRTs.

4.2.6 SA for Decision Makers

The report about the cyber incident and the situation

assessment of the NCSC enhance the CSA of the de-

cision makers in the relevant (special political) insti-

tutions. The summary of the incidents reconstructs

the history and the attacker‘s tactics, techniques and

procedures (TTPs). According to the report, the ser-

vice outage in the three electricity distribution com-

panies were caused by remote cyber intrusion arriv-

ing presumably from the neighboring state. The cy-

ber attack compromised company internal computers

and SCADA systems at 10 in the morning. The cyber

attack was coordinated and synchronized beginning

with an extensive reconnaissance of the victim net-

works. The advanced campaign covered the following

techniques: long-term reconnaissance with malware

infection via spear phishing, weaponization by em-

bedding BlackEnergy malware within Microsoft Of-

ﬁce documents, using stolen credentials to the busi-

ness networks, use authorized VPN connections to

enter ICS network, SCADA hijack with malicious op-

eration, DDoS attack against the companies‘ call cen-

ter. Each company had been infected with BlackEn-

ergy malware delivered with spear phishing mails and

selected ﬁles were deleted by executing KillDisk mal-

ware at the end of an advanced campaign.

According to the fact that there may also be po-

litical motivation behind the cyber attack, the deci-

sion makers need to reconsider the country’s energy

policy concerning the energy dependency, and the na-

tional energy supply infrastructure. Due to the ex-

cellent potential and feasibility of hydro resources in

Norland, the government plans the increase the gen-

eration capacity in the existing power plants and to

construct new electricity generating capabilities. The

deﬁned strategic goals cover the reduction the depen-

dence on energy import (including natural gas imports

and other fossil energy sources) thorough the capac-

ity increase of the domestic power plants. The mod-

ernization and construction covers the enhancing of

the security capabilities of the power plants, includ-

ing cyber security aspects. Consequently, the long-

term strategy of the national decision makers has a

major impact on the cyber security of the national CI

providers and their security architecture (see Long-

term Impact in CI Security in Figure 3). Furthermore,

the relevant governments institutions establish poli-

cies and set down guidelines. These documents pro-

vide speciﬁc mitigation concepts, best practices and

checklists for ICS and Supervisory Control and Data

Acquisition defense in the energy domain. The sec-

ondary goal is to enhance the safety and security in

the CI domains focusing on the Energy domain.

The last phase covers the Feedback phase (cmp.

Figure 1). The NCSC provides summaries of the pub-

lic information concerning the cyber attack and the

technical analysis by the NIRTs. These documents are

available for all participating company (see Informa-

tion Sharing to companies in Figure 3) and they cover

the identiﬁed lessons learned, good practices, and

speciﬁc mitigation concepts for CI providers focusing

on the defense of SCADA and ICS systems. These

documents created by the NCSC‘s experts could be

considered as guidelines or the political decision mak-

ers could raise the content of the document to direc-

tive or to national legislation concerning CI providers

and raise the CSA on the organizational level.

5 CONCLUSION

Due to the increasing attack surfaces on ICT and

CII systems and limited, national cyber capabilities,

the number of service disruptions and cyber attacks

against essential systems and networks is constantly

rising. Hence, CSA is a required capability of na-

tional stakeholders in order to be able to ensure the

safety and security of the national critical infrastruc-

tures. Despite the international guidelines and recom-

mendations, there is still no holistic model for gaining

and applying CSA of the national CI. Furthermore,

our survey of the existing models for SA gaining and

application argues on the strengths and limits of the

models concerning new requirements (see Section 3),

i.e. a holistic approach is missing.

A key success factor to establish CSA is the pro-

motion of cooperation between the public and private

sector. Depending on the scope, CSA on national

level can only be aggregated by information sharing

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

344

and collection in cooperation with organizations. Or-

ganizations establish SA on a technical and organi-

zational level. At national level, this information is

processed and analyzed in order to support national

decision makers. In this paper, we proposed a CSA

model for NCSCs for SA gaining and decision mak-

ing in the event of large-scale cyber incidents with

various escalation levels. This modern CSA model

can manage cyber security incidents with prevention:

using a common information-sharing environment al-

lows the early detection of sophisticated attacks, or

even large-scale cyber campaigns against the national

critical infrastructures. To demonstrate our approach,

we illustrated an information sharing scenario based

on a past nation-state attack against the CIs.

For future work, we aim to further develop and in-

vestigate the CSA model for NCSCs focusing on legal

aspects and examining the impact of international co-

operations.

ACKNOWLEDGEMENTS

This study was partly funded by the Austrian FFG re-

search program KIRAS in course of the project CISA

(850199).

REFERENCES

Artman, H. (2000). Team situation assessment and infor-

mation distribution. Ergonomics, 43(8):1111–1128.

Biernacki, P. and Waldorf, D. (1981). Snowball sampling:

Problems and techniques of chain referral sampling.

Sociological methods & research, 10(2):141–163.

Boyd, J. R. (1996). The essence of winning and losing.

Unpublished lecture notes.

Brehmer, B. (2005). The dynamic ooda loop: Amalgamat-

ing boyds ooda loop and the cybernetic approach to

command and control. In International command and

control research technology symposium, pages 365–

368.

Conti, G., Nelson, J., and Raymond, D. (2013). Towards

a cyber common operating picture. In Cyber Con-

ﬂict (CyCon), 2013 5th International Conference on,

pages 1–17. IEEE.

Endsley, M. R. (1988). Situation awareness global assess-

ment technique (sagat). In Aerospace and Electronics

Conference, pages 789–795. IEEE.

Endsley, M. R. (1995). Toward a theory of situation aware-

ness in dynamic systems. Human Factors: The Jour-

nal of the Human Factors and Ergonomics Society,

37(1):32–64.

European Parliament (2015). The directive on security of

network and information systems (nis directive).

Evancich, N., Lu, Z., Li, J., Cheng, Y., Tuttle, J., and Xie, P.

(2014). Network-wide awareness. In Cyber Defense

and Situational Awareness, pages 63–91. Springer.

Franke, U. and Brynielsson, J. (2014). Cyber situational

awareness A systematic review of the literature. Com-

puters & Security, 46:18–31.

GovCERT.ch (2016). APT Case RUAG.

https://www.melani.admin.ch/dam/melani/en/

dokumente/2016/technical [Online; accessed 16-

July-2016].

ICS-CERT (2016-02-25). Cyber-attack against ukrainian

critical infrastructure (dhs). https://ics-cert.us-

cert.gov/alerts/IR-ALERT-H-16-056-01. Accessed:

2016-04-25.

Kaber, D. B. and Endsley, M. R. (2004). The effects of level

of automation and adaptive automation on human per-

formance, situation awareness and workload in a dy-

namic control task. Theoretical Issues in Ergonomics

Science, 5(2):113–153.

Kaempf, G. L., Wolf, S., and Miller, T. E. (1993). De-

cision making in the aegis combat information cen-

ter. In Proceedings of the Human Factors and Er-

gonomics Society Annual Meeting, volume 37, pages

1107–1111. SAGE Publications.

Luiijf, E., Besseling, K., and De Graaf, P. (2013). Nine-

teen national cyber security strategies. Int’l Journal of

Critical Infrastructures 6, 9(1-2):3–31.

Okolica, J., McDonald, J. T., Peterson, G. L., Mills, R. F.,

and Haas, M. W. (2009). Developing systems for

cyber situational awareness. In 2nd Cyberspace Re-

search Workshop, page 46.

Onwubiko, C. (2012). Situational Awareness in Computer

Network Defense: Principles, Methods and Applica-

tions: Principles, Methods and Applications. IGI

Global.

Raulerson, E. L. (2013). Modeling cyber situational aware-

ness through data fusion. Technical report, DTIC Doc-

ument.

SANS-ICS (2016-03-18). Analysis of the

cyber attack on the ukrainian power

grid. https://ics.sans.org/media/E-

ISAC SANS Ukraine DUC 5.pdf. Accessed:

2016-04-25.

Steinberg, A., Bowman, C., and White, F. (1998). Revisions

to the JDL Model. In Joint NATO/IRIS Conference

Proceedings, Quebec, October.

Tadda, G. P. and Salerno, J. S. (2010). Overview of cyber

situation awareness. In Cyber Situational Awareness,

number 46 in Advances in Information Security, pages

15–35. Springer US.

White, A. (1987). Data fusion lexicon, joint directors of

laboratories, technical panel for c3. Naval Ocean Sys-

tems Center, San Diego, Tech. Rep.

Analysis and Assessment of Situational Awareness Models for National Cyber Security Centers

345
