SKraken: Fast and Sensitive Classiﬁcation of Short Metagenomic Reads

based on Filtering Uninformative k-mers

Davide Marchiori and Matteo Comin

∗

Department of Information Engineering, University of Padova, Padova, Italy

Keywords:

Metagenomic Reads Classiﬁcation, Representative k-mers.

Abstract:

The study of microbial communities is an emerging ﬁeld that is revolutionizing many disciplines from ecology

to medicine. The major problem when analyzing a metagenomic sample is to taxonomic annotate its reads in

order to identify the species in the sample and their relative abundance. Many tools have been developed in

the recent years, however the performance in terms of precision and speed are not always adequate for these

very large datasets. In this work we present SKraken an efﬁcient approach to accurately classify metagenomic

reads against a set of reference genomes, e.g. the NCBI/RefSeq database. SKraken is based on k-mers

statistics combined with the taxonomic tree. Given a set of target genomes SKraken is able to detect the most

representative k-mers for each species, ﬁltering out uninformative k-mers. The classiﬁcation performance

on several synthetic and real metagenomics datasets shows that SKraken achieves in most cases the best

performances in terms of precision and recall w.r.t. Kraken. In particular, at species level classiﬁcation, the

estimation of the abundance ratios improves by 6% and the precision by 8%. This behavior is conﬁrmed also

on a real stool metagenomic sample where SKraken is able to detect species with high precision. Because of

the efﬁcient ﬁltering of uninformative k-mers, SKraken requires less RAM and it is faster than Kraken, one of

the fastest tool.

Availability: https://bitbucket.org/marchiori dev/skraken

1 INTRODUCTION

Metagenomics is the study of genomic sequences in a

heterogeneous microbial sample (e.g. soil, water, hu-

man microbiome) (Mande et al., 2012; Felczykowska

et al., 2012). One of the primary goals of metage-

nomic studies is to determine the taxonomical identity

of the microorganisms that are present in a sample.

Several research areas, investigating various mi-

crobiomes, have been revolutionized by this emerging

ﬁeld like ecology, medicine, microbiology, and other

(Consortium, 2012; Qin et al., 2010; Zeller et al.,

2014; Said et al., 2014). For the ﬁrst time researchers

are now able to study the genomic material in envi-

ronmental samples without the need to separate and

culture bacteria or of biased preprocessing steps. This

analysis can reveal the presence of unexpected bac-

teria and viruses in a microbial sample, and it also

allows the identiﬁcation and characterization of bac-

terial and viral genomes at a level of detail not pre-

viously possible. For example, in the case of the hu-

∗

Corresponding Author

man body, imbalances in the microbiome are related

with many diseases, e.g. inﬂammatory bowel disease

(IBD) (Qin et al., 2010) and colorectal cancer (Zeller

et al., 2014).

The taxonomic classiﬁcation of metagenomics

reads is in general performed with two techniques:

(1) sequencing phylogenetic marker genes, e.g. 16S

rRNA; (2) NGS sequencing of all the genomic mate-

rial in the sample. The use of marker genes requires

ampliﬁcation steps that can introduce bias in the tax-

onomic analysis. Moreover, not all bacteria can be

identiﬁed by traditional 16S sequencing, because of

its divergent gene sequences (Brown et al., 2015).

The most effective and unbiased method to study

microbial samples is via high-throughput sequencing.

However, the short length of NGS reads poses a num-

ber challenges for the correct taxonomical classiﬁca-

tion of each read. Several methods and software tools

are available, but with the increasing throughput of

modern sequencing technologies faster and more ac-

curate algorithms are needed. These methods can be

broadly divided into three categories: (1) sequence

Marchiori D. and Comin M.

SKraken: Fast and Sensitive Classiﬁcation of Short Metagenomic Reads based on Filtering Uninformative k-mers.

DOI: 10.5220/0006150500590067

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 59-67

ISBN: 978-989-758-214-1

similarity based methods, (2) marker-based methods

where certain speciﬁc marker sequences are used to

identify the species. (3) sequence composition meth-

ods, which are based on the nucleotide composition

(e.g. k-mers usage).

The sequence similarity based methods search

reads in reference databases through sequence simi-

larity, popular example are MegaBlast (Zhang et al.,

2004) and Megan (Huson et al., 2007). They are very

precise at identifying reads from genomes within the

reference database, but they are generally very slow,

especially compared with composition based meth-

ods. Marker-based methods try to mimic the taxo-

nomic classiﬁcation of marker genes (Liu et al., 2011;

Caporaso et al., 2010; Segata et al., 2012). For ex-

ample, MetaPhlAn (Segata et al., 2012) is based on

marker genes that are clade speciﬁc.

The fastest and most promising approaches are

based on sequence composition. In these methods,

ﬁrst the genomes of reference organisms are mod-

eled based on k-mers counts, then reads are searched

into this reduced database and classiﬁed based on the

origin of the hit sequences. On this category the

most representative methods are Kraken (Wood and

Salzberg, 2014), Clark (Ounit et al., 2015) and Lmat

(Ames et al., 2013). The performance of these meth-

ods in terms of precision are as good as MegaBlast

(Zhang et al., 2004), but they are much faster. Thus,

only these methods are really capable to keep pace

with the increasing throughput of modern sequencing

instruments.

A recent comparison of different metagenomic

classiﬁcation methods has shown that Kraken (Wood

and Salzberg, 2014) is one of the most promising tool

in terms of both similarity to the correct answer and

classiﬁcation speed (Lindgreen et al., 2016). The key

idea behind the success of Kraken is the construction

of a database of all reference genomes based on the

k-mers of each genome combined with a taxonomic

tree. More precisely, Kraken constructs a data struc-

ture that is an augmented taxonomic tree in which a

list of signiﬁcant k-mers is associated to each node,

leafs as well as internal nodes. Given a node on this

taxonomic tree, its list of k-mers is considered repre-

sentative for the taxonomic label of the node and used

for the classiﬁcation of metagenomic reads.

Inspired by this paradigm, in this paper we pro-

pose SKraken a tool for metagenomics reads classiﬁ-

cation that selects the most representative k-mers for

each node in the taxonomic tree, ﬁltering out unin-

formative k-mers. The main properties of SKraken

can be summarized as follows: i) an efﬁcient detec-

tion of representative k-mers over the taxonomic tree;

ii) SKraken improve the precision of Kraken on sim-

ulated and real metagenomic datasets without com-

promising the recall. iii) The database of reference

genomes constructed by SKraken is 8% smaller than

the one computed by Kraken. As a consequence,

SKraken requires less memory RAM and the clas-

siﬁcation speed increases w.r.t. Kraken, one of the

fastest tool. In the next section we give an overview

of Kraken and analyze how to improve the classiﬁca-

tion. SKraken is presented in section 2.1. Both tools

are tested on simulated and real metagenomic datasets

in section 3 and the conclusions are drawn in section

2 METHODS

In order to better understand our contribution here

we brieﬂy describe Kraken. One the major novel-

ties of Kraken is the ability to efﬁciently index a large

database of target genomes, e.g. all the genomes in

RefSeq. Instead to use the complete genome as ref-

erence Kraken, as well as many other tools (Ounit

et al., 2015; Ames et al., 2013), considers only its k-

mers, thus a genome is represented by its constituent

k-mers.

This relatively simple idea has profound implica-

tions, and it is at the base of alignment-free meth-

ods (Vinga and Almeida, 2003). Researchers have

shown that the use of k-mers frequencies for compar-

ing sequences has proved useful in different applica-

tions. The construction of phylogenetic trees, tradi-

tionally based on a multiple-sequence alignment, can

be carried out on whole genomes (Sims et al., 2009;

Comin and Verzotto, 2012). Several k-mers based

methods have been devised for the detection of en-

hancers in ChIP-Seq data (Goke et al., 2012; Kan-

torovitz et al., 2007; Comin and Verzotto, 2014; An-

tonello and Comin, 2015) and also of entropic proﬁles

(Antonello and Comin, 2013; Antonello and Comin,

2014). The assembly-free comparison of genomes

and metagenomes based on NGS reads and k-mers

counts has been investigated only recently (Comin

and Schimd, 2014; Comin et al., 2015; Schimd and

Comin, 2016; Ondov et al., 2016). For a compre-

hensive review of alignment-free measures and appli-

cations we refer the reader to (Vinga and Almeida,

2003).

The basic idea of Kraken is to consider the taxo-

nomic tree, taken from the complete NCBI taxonomic

information, and extend this data structure by anno-

tating each node, leafs as well as internal nodes, with

k-mers. At every node is associated a list of k-mers

that are considered important for that node and that

will be used for classiﬁcation. Given a dataset of tar-

get genomes, the construction of this annotated tax-

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

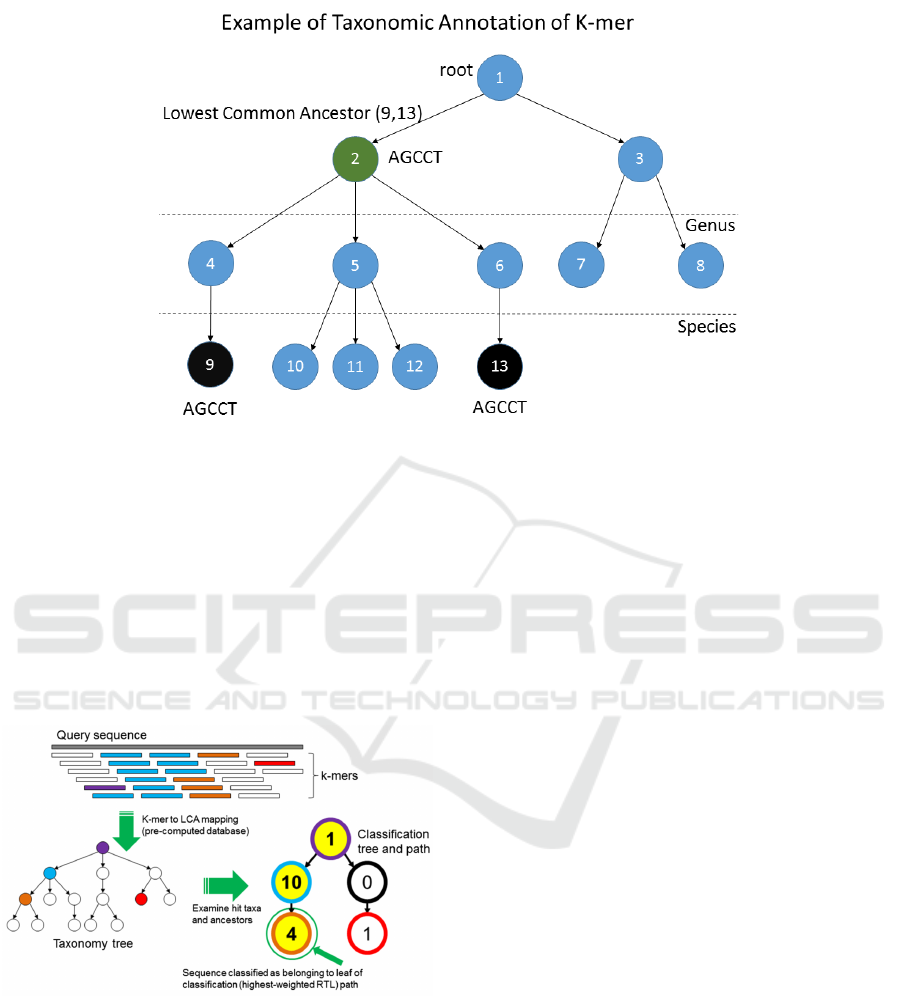

Figure 1: In this example the k-mer AGCCT , that is contained in the species 9 and 13, is moved to the lowest common

ancestor, the family node 2.

onomic tree is carried out by scanning the k-mers of

each genome in the dataset. If the k-mer appears only

in a given genome, than it is associated to the leaf

representing the species of that genome and the list of

k-mers of the node is updated. If the k-mer appears

in more than one species then its moved to the lowest

common ancestor of these nodes, see Figure 1 for an

example. At the end of this step each k-mer is associ-

ated with only one node in the taxonomic tree.

Figure 2: An overview of the metagenomic reads classiﬁca-

tion of Kraken (Wood and Salzberg, 2014).

Once this database of annotated k-mers has been

constructed, Kraken can classify reads in a very ef-

ﬁcient manner. Figure 2 reports an overview of the

classiﬁcation process. Given a read Kraken decom-

poses the read into a list of its k-mers. Then each k-

mer is searched in the augmented taxonomic tree, and

in the corresponding node a counter is incremented

for every hit. Once all k-mers have been analyzed

the node’s counters and the taxonomic tree are used

to classify the read by searching the highest weighted

path, from the root to a leaf, in the tree.

2.1 SKraken: Selecting Informative

k-mers

The most important step of Kraken is the construc-

tion of the augmented taxonomic tree. In this data

structure k-mers are associated with nodes and then

used for the taxonomic classiﬁcation of reads. In

this paper we propose SKraken that follows a sim-

ilar paradigm for the classiﬁcation step. The major

differences are in the construction of the augmented

taxonomic tree, where uninformative k-mers are care-

fully selected and ﬁltered.

One of the problem with the augmented taxo-

nomic tree of Kraken is that it is enough that two

species share a k-mer to insert this k-mer is the list

of important features of an internal node. If we con-

sider the example in Figure 1, we can note that the

k-mer AGCCT is moved from the leaf nodes 9 and

13, representing two species, to the node 2 represent-

ing a taxonomic family. Since this k-mer will be used

in the classiﬁcation step, we would like to be infor-

mative for the family node 2. However, the majority

of species in this family, nodes 10, 11 and 12, do not

contain this k-mer.

To address this issue, for each k-mer, we deﬁne

a scoring function that captures its representativeness

with respect to a taxonomic node. We recall that a

k-mer is associated with only one node in the tree.

SKraken: Fast and Sensitive Classiﬁcation of Short Metagenomic Reads based on Filtering Uninformative k-mers

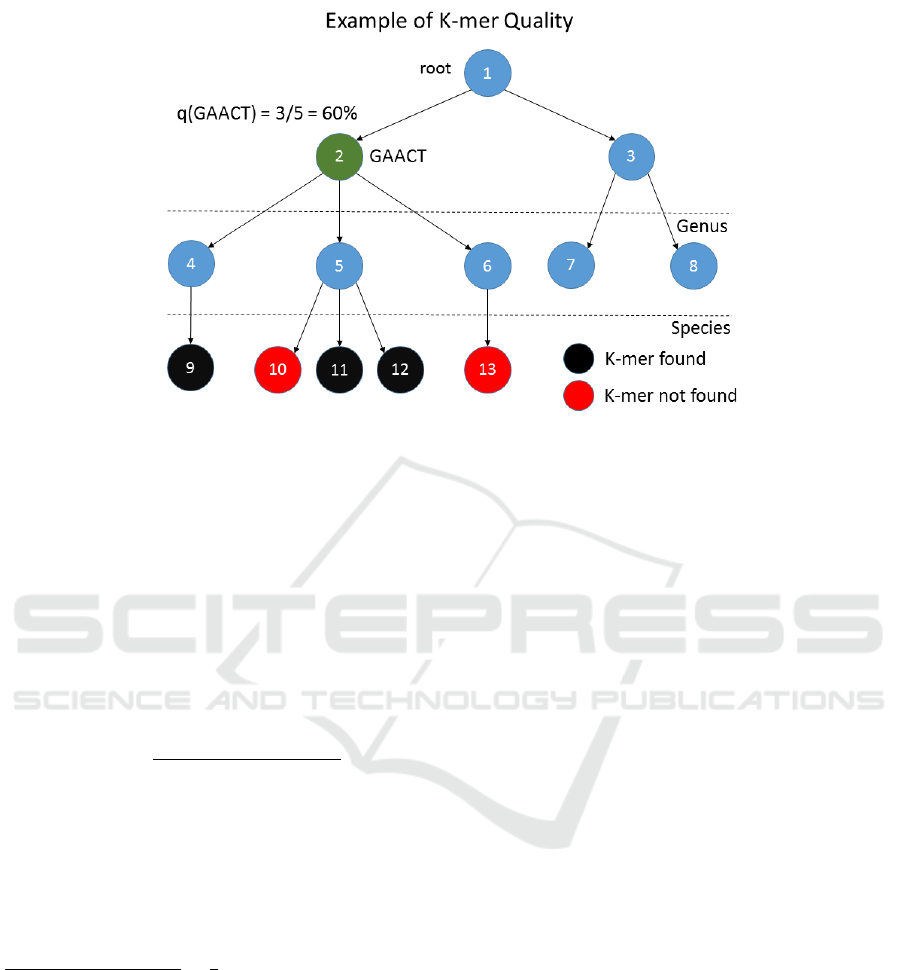

Figure 3: An example of quality score q(GAACT ).

Let’s deﬁne TaxID(m) as the taxonomic node associ-

ated with the k-mer m. However, the k-mer m can

occur in many difference species, leaf nodes. We

deﬁne NumSpecies(m) as the the number of species

that contains m. By construction TaxID(m) is the

lowest common ancestor of all these species. Thus

the species in which m appears, they are all leafs

node of the subtree rooted in TaxID(m). We deﬁne

TotSpecies(n) as the total number of species in the

subtree routed in the node n. With these values we

deﬁne q(m) the quality of a k-mer m as :

q(m) =

NumSpecies(m)

TotSpecies(TaxID(m))

Figure 3 shows an example of the quality

q(GAACT ). The quality of GAACT can also be in-

terpreted as the percentage of species nodes that con-

tains GAACT , i.e. NumSpecies(GAACT ), with re-

spect to the family node 2, i.e. TaxID(GAACT ),

in this case 60%. Similarly, if we consider the

example in Figure 1, the quality of q(AGCCT ) =

NumSpecies(AGCCT )

TotSpecies(TaxID(AGCCT ))

= 0.4, that is 40%. Thus,

if a k-mer has an high quality can be considered repre-

sentative for a given taxonomic node, and the related

subtree, and more likely will be informative for the

classiﬁcation. Based on these observations SKraken

selects uninformative k-mers, by means of their qual-

ity, and it prunes the augmented taxonomic tree by

removing the k-mers with a quality below a given

threshold Q.

In order to compute the quality scores q(m) for

all k-mers we need to be able to evaluate efﬁciently

NumSpecies(m) and TotSpecies(n). The construc-

tion of the augmented taxonomic tree of SKraken is

divided into two steps. In the ﬁrst step, given a set of

target genomes, we scan the k-mers of each genome

and build the augmented taxonomic tree, similarly to

Kraken. In addition, in this phase, for each k-mer

m we keep a variable to compute NumSpecies(m).

Every time m is found in a new species we incre-

ment this variable. However, there can be genomes

that are further classiﬁed as sub-species of a given

species node. In order to compute the correct value

of NumSpecies(m), we need to make sure that all

genomes of a given species are processed before mov-

ing to next species. This can be obtained by scan-

ning the input genomes in a particular order so that

all genomes of a species, and eventually sub-species,

are processed at once. Another problem is the fact

a k-mer can appears in many sub-species of a given

species node. When computing NumSpecies(m) we

need to make sure not to overcount these occurrences,

and thus the corresponding variable is incremented

only when m is found for the ﬁrst time in a given

species. All other occurrences of m within the same

species will be discarded. At the end of the ﬁrst

phase we have computed the augmented taxonomic

tree, with all k-mers, and the corresponding values

NumSpecies(m).

In the second phase SKraken computes the

quality values q(m) and ﬁlters uninformative k-

mers. The number of leaf nodes descendants of n,

TotSpecies(n), can be obtained for all nodes in the

tree with a post-order traversal of the taxonomic tree.

Then all k-mers are processed and the corresponding

qualities q(m) are computed. If q(m) is below a given

input parameter Q, m is removed from the database.

Note that the size of the taxonomic tree is con-

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

Table 1: A summary of simulated and real metagenomics datasets.

Type Dataset Reads Species Reads Length

Single-end HiSeq 10000 10 92

Single-end MiSeq 10000 10 100

Single-end simBA5 10000 1216 100

Paired-end Mix1 1000000 10 100

Paired-end Mix2 1000000 10 100

Paired-end SRR1804065 1053741 775 100

stant and much smaller with respect to the number of

k-mers. The overall process depends only on the total

number of k-mers and it is linear in size of the input

reference genomes. Once the augmented taxonomic

tree is build reads can be classiﬁed with the same pro-

cedure of Kraken.

3 RESULTS

The comparison of different metagenomic classiﬁca-

tion methods is a non-trivial task (Lindgreen et al.,

2016). Since our algorithm is inspired by Kraken,

one of the best performing methods (Lindgreen et al.,

2016), we compare SKraken with it as reference tool.

These tools require to build a reference database, we

use as input for both all bacterial and archaeal com-

plete genomes in NCBI RefSeq. In order to test

the performance of SKraken we used several metage-

nomic datasets representing simulated and real com-

munities. The simulated and real datasets are ob-

tained from the original paper of Kraken (Wood and

Salzberg, 2014) as well as from other related studies

(Girotto et al., 2016; Ounit et al., 2015)). The simu-

lated datasets represent ﬁve mock communities that

are constructed from real sequencing data: MiSeq,

HiSeq, Mix1, Mix2, simBA5. The MiSeq and HiSeq

metagenomes were built using 10 sets of bacterial

whole-genome shotgun reads. Mix1 and Mix2 are

based on the same species of HiSeq, but with two dif-

ferent abundance proﬁles.

The MiSeq dataset is particularly difﬁcult to ana-

lyze because it contains ﬁve genomes from the En-

terobacteriaceae family (Citrobacter, Enterobacter,

Klebsiella, Proteus and Salmonella). The high se-

quence similarity of this family can make the clas-

siﬁcation of the MiSeq dataset more difﬁcult. The

metagenome simBA5 was created by simulating reads

from the complete set of bacterial and archaeal

genomes in RefSeq, for a total of 1216 species. It

contains reads with an high error rate and it was cre-

ated with the purpose to evaluate the performance on

datasets with many errors and many species.

We also evaluated the performance of SKraken on

a real stool metagenomic sample (SRR1804065) from

the Human Microbiome Project. Because there is no

ground truth for this dataset, we use BLAST to ﬁnd

the reads that uniquely map, with a sequence identity

of 95%, to a genome and ﬁlter out all other reads. If

two paired-end reads do not map on the same genome

we discard them. As a result the real metagenomic

sample contains 775 distinct species and 1053741

reads. A summary of the main characteristics of

all simulated and real metagenomics datasets can be

found in Table 1.

In order to compare the results we used the stan-

dard metrics of precision and recall. Given N the

number of reads, Y the number of reads classiﬁed and

X the number of reads correctly classiﬁed, we deﬁne

precision as the fraction of correct assignments over

the total number of assignments (X /Y ), and recall as

the ratio between the number of correct assignments

and the number of reads to be classiﬁed (X/N). If

one is interested in the number of reads that remains

unclassiﬁed, it can be indirectly estimated from the

recall. In fact the percentage of reads unclassiﬁed

is bounded above by 1 − recall. When analyzing a

metagenomic sample one need to verify that the abun-

dance ratios of species estimated by the tools is sim-

ilar to the known proﬁle. To test also this important

aspect we compute the Pearson correlation between

the estimated abundance proﬁle and the known ratios.

A Pearson correlation of 0 means that the distribu-

tion of abundance ratios are very different, whereas a

correlation of 1 that they match perfectly the correct

abundance proﬁle.

For Kraken we use the default parameter k =

31 because, as suggest by the authors (Wood and

Salzberg, 2014), it is the best balance between pre-

cision and recall. For SKraken we use the same value

of k = 31 and we test the performance varying the ﬁl-

tering parameter Q.

To assess the performance of SKraken we devised

a series of tests varying the parameter Q and the tax-

onomic level at which the classiﬁcation is evaluated.

In the ﬁrst set of experiments we want to test how

the ﬁltering parameter Q impact the performance met-

rics. We run Kraken and SKraken on the dataset Mix1

and evaluate the classiﬁcation accuracy at the species-

SKraken: Fast and Sensitive Classiﬁcation of Short Metagenomic Reads based on Filtering Uninformative k-mers

Figure 4: Results on dataset Mix1 varying the ﬁltering parameter Q.

level. The results are reported in Figure 4. If the pa-

rameter Q = 0 all k-mers are kept and there is not ﬁl-

tering, thus the performance of Kraken and SKraken

are identical. As Q grows we can see that the preci-

sion improves from 63% to 75%, whereas the recall

remains constant. However, it is not obvious that by

classifying more reads correctly also the distribution

of species is consistent with the correct proﬁle. For

this reason, another important observation is that also

the Pearson correlation with the known abundance ra-

tios also increases. This behavior is observed also for

the other datasets (data not shown).

Thus, we use the most stringent ﬁltering (Q =

100%) to classify all dataset at the species-level. Fig-

ure 5 shows a summary of precision and recall for

all simulated and real metagenomic datasets. This

test conﬁrms that SKraken is able to improve the pre-

cision on all datasets without compromising the re-

call. On simulated metagenomes the average preci-

sion increases on from 73% of Kraken to 81% of

SKraken. Also on the real metagenome, where the

performance of Kraken are excellent with a precision

of 91%, SKraken achieves 96%.

Figure 5: Precision and Recall of Species-level classiﬁca-

tion of Kraken and SKraken (Q = 100%) for all datasets.

In general the study of metagenomic sample re-

quires an analysis in depth of the genomic content,

and for this reason researchers focus at the lowest tax-

onomic level, species. However metagenomic reads

can be mapped at a higher level, thus the classiﬁcation

at the genus-level is also of interest. We performed a

set of experiments similar to the ones above, consid-

ering the genus taxonomic level for classiﬁcation. At

ﬁrst we try to use as ﬁltering parameter Q = 100%,

and the results are in Figure 6. If we observe the per-

formance of Kraken at genus level we can see that are

better than those at species level, as expected. In fact,

in the taxonomy tree, when the classiﬁcation level is

more speciﬁc, the label assignment is more difﬁcult.

Moreover, it is possible that, although at species level

a read is assigned a wrong label, at genus level the

same label is indeed correct, thus making genus level

classiﬁcation relatively less difﬁcult. In fact the av-

erage precision of Kraken is 96% at genus-level and

73% at species-level.

Figure 6: Precision and Recall of Genus-level classiﬁcation

of Kraken and SKraken (Q = 100%) for all datasets.

With ﬁltering parameter Q = 100% the precision

improves in almost all datasets, however the recall of

SKraken decreases. If we consider a less stringent

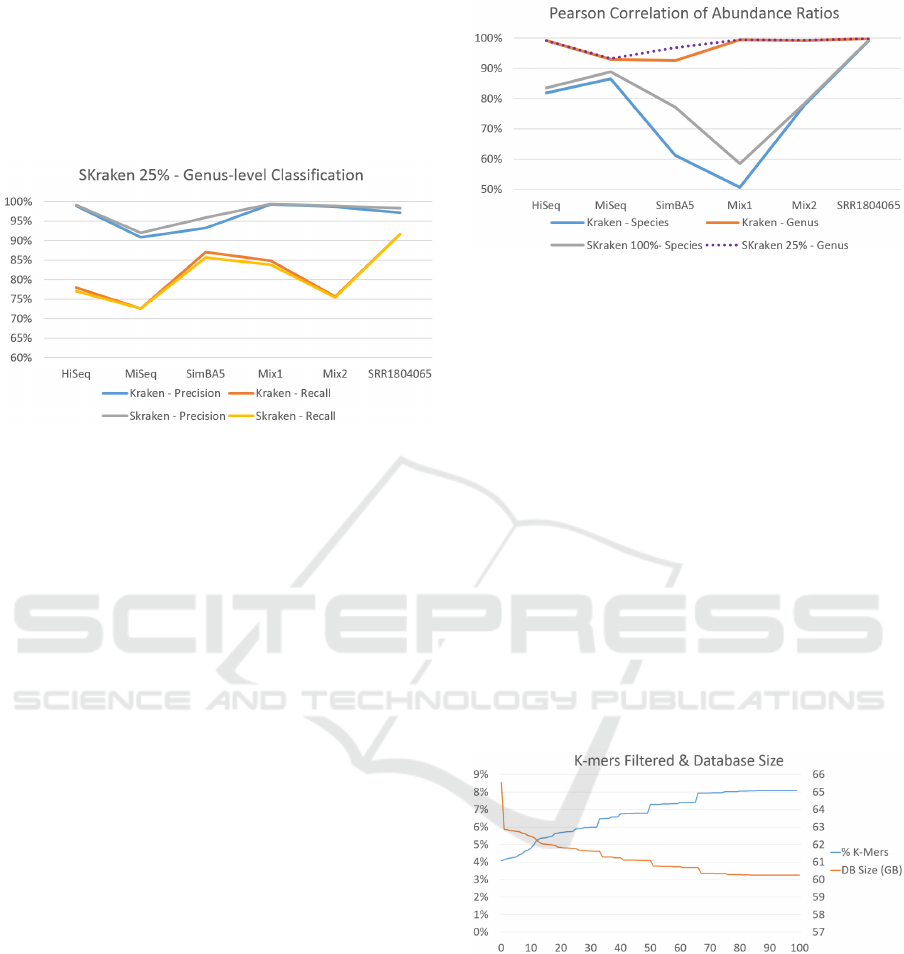

threshold Q = 25% (see Figure 7), we can obtain re-

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

sults that are in line with the previous experiments,

with a moderate improvement in the precision and re-

call almost unchanged. A possible explanation of the

small gain in terms of precision is the fact that the

classiﬁcation at the genus level is relatively easier, and

Kraken has already very good performance.

Figure 7: Precision and Recall of Genus-level classiﬁcation

of Kraken and SKraken (Q = 25%) for all datasets.

In the last series of experiments we test the abil-

ity to detect the correct abundance ratios in a metage-

nomic sample. The Pearson correlation is used to

compare the estimated abundances with the known

ones. Figure 8 reports the correlations for various

level of classiﬁcation. The correlations of Kraken

at the genus level are very high and difﬁcult to im-

prove, however SKraken obtains similar results on al-

most all metagenomes with the exception of simBA5

where the correlation increases from 0.92 to 0.97.

This dataset, simBA5, is also one of the most com-

plex and realistic metagenomes with 1216 species. If

we compare these Pearson correlations with those of

species level classiﬁcation in general the values de-

crease conﬁrming that it is more difﬁcult to detect the

correct species, rather than the genus. This is the case

where the classiﬁcation accuracy can beneﬁt from a

careful selection of discriminative k-mers. In fact for

all dataset the correlation of SKraken is better the

original algorithm. The average Pearson correlation

of Kraken is 0.71 and of SKraken is 0.77. Again, in

one of the most difﬁcult metagenome, simBA5, the

improvement is substantial from 0.61 to 0.77.

To summarize the results of these experiments on

different simulated and real datasets have shown that

SKraken is able to improve the precision in the tax-

onomic classiﬁcation of metagenomic reads without

compromising the recall. Not only more reads are

classiﬁed to the correct taxa, but also the estimated

abundance ratios is better than the one computed by

Kraken. An important property of SKraken is that

the impact on these metrics improves as the taxo-

nomic level evaluated in the classiﬁcation becomes

Figure 8: The Pearson correlation of the estimated abun-

dances with the correct ratios for various level of classiﬁca-

tion and parameters.

lower and thus more difﬁcult. Moreover, as the num-

ber of newly sequenced species grows the probability

that two non-related species share a given k-mer will

grows. For this reason we conjecture that SKraken

will be able to remove more uninformative k-mers as

the number of sequenced genomes increases.

3.1 Filtered k-mers and Memory

Another effect of SKraken is that, since k-mers are

ﬁltered, the size of the augmented taxonomic tree de-

creases. This database needs to be loaded in memory

in full during the classiﬁcation step. The size of the

database produced by Kraken, when using all bacte-

rial and archaeal complete genomes in NCBI RefSeq,

is about 65GB and it contains 5.8 billion k-mers.

Figure 9: Percentage of k-mers ﬁltered and Database size as

a function of the quality threshold Q.

In Figure 9 we evaluate the percentage of k-mers

ﬁltered and the impact in memory for different values

of threshold Q. As expected, the percentage of k-mers

ﬁltered grows with the threshold Q and it reaches the

maximum of 8.1% with Q = 100. By construction,

the impact in memory depends linearly by the number

of k-mers to be indexed. When using the most strin-

gent ﬁltering, Q = 100, SKraken requires to index 5.3

billion k-mers in 60GB of space. This reduction de-

creases the amount of RAM required for classiﬁca-

SKraken: Fast and Sensitive Classiﬁcation of Short Metagenomic Reads based on Filtering Uninformative k-mers

tion, but also it increases correspondingly the classiﬁ-

cation speed.

4 CONCLUSIONS

The taxonomic classiﬁcation of metagenomics reads

remains a crucial step in many metagenomics anal-

ysis. In this work we presented SKraken an ap-

proach based on ﬁltering uninformative k-mers. We

compared the classiﬁcation performances of SKraken

on several synthetic and real metagenomics datasets,

showing that SKraken achieves in most cases the

best performances in terms of precision and recall

w.r.t. Kraken. In particular the precision at species

level classiﬁcation improves by 8%. In the estima-

tion of the abundance ratios in a metagenomic sample

SKraken obtains good results on all datasets. This be-

havior is conﬁrmed also on a real stool metagenomic

sample where SKraken is able to detect species with

high precision. Another desirable property is that

SKraken requires less amount of RAM w.r.t. Kraken.

As future direction of investigation it would be inter-

esting to explore alternative deﬁnitions of k-mer qual-

ity incorporating other topological information of the

tree of life.

ACKNOWLEDGEMENTS

The authors would like to thank the anonymous re-

viewers for their valuable comments and suggestions.

This work was supported by the Italian MIUR project

PRIN20122F87B2.

REFERENCES

Ames, S. K., Hysom, D. A., Gardner, S. N., Lloyd, G. S.,

Gokhale, M. B., and Allen, J. E. (2013). Scalable

metagenomic taxonomy classiﬁcation using a refer-

ence genome database. Bioinformatics, 29.

Antonello, M. and Comin, M. (2013). Fast Computation

of Entropic Proﬁles for the Detection of Conservation

in Genomes, pages 277–288. Springer Berlin Heidel-

berg, Berlin, Heidelberg.

Antonello, M. and Comin, M. (2014). Fast entropic pro-

ﬁler: An information theoretic approach for the dis-

covery of patterns in genomes. IEEE/ACM Transac-

tions on Computational Biology and Bioinformatics,

11(3):500–509.

Antonello, M. and Comin, M. (2015). Fast alignment-

free comparison for regulatory sequences using mul-

tiple resolution entropic proﬁles. In Proceedings of

the International Conference on Bioinformatics Mod-

els, Methods and Algorithms (BIOSTEC 2015), pages

171–177.

Brown, C., Hug, L., Thomas, B., Sharon, I., Castelle, C.,

and Singh, A. e. a. (2015). Unusual biology across a

group comprising more than 15% of domain bacteria.

Nature, 523(7559):208–11.

Caporaso, J. G., Kuczynski, J., Stombaugh, J., Bittinger,

K., Bushman, F. D., Costello, E. K., Fierer, N., Pea,

A. G., Goodrich, J. K., Gordon, J. I., Huttley, G. A.,

Kelley, S. T., Knights, D., Koenig, J. E., Ley, R. E.,

Lozupone, C. A., McDonald, D., Muegge, B. D., Pir-

rung, M., Reeder, J., Sevinsky, J. R., Turnbaugh, P. J.,

Walters, W. A., Widmann, J., Yatsunenko, T., Zan-

eveld, J., and Knight, R. (2010). Qiime allows anal-

ysis of high-throughput community sequencing data.

Nature methods, 7(5):335336.

Comin, M., Leoni, A., and Schimd, M. (2015). Clustering

of reads with alignment-free measures and quality val-

ues. Algorithms for Molecular Biology, 10(1):1–10.

Comin, M. and Schimd, M. (2014). Assembly-free

genome comparison based on next-generation se-

quencing reads and variable length patterns. BMC

Bioinformatics, 15(9):1–10.

Comin, M. and Verzotto, D. (2012). Whole-genome phy-

logeny by virtue of unic subwords. In Database and

Expert Systems Applications (DEXA), 2012 23rd In-

ternational Workshop on, pages 190–194.

Comin, M. and Verzotto, D. (2014). Beyond ﬁxed-

resolution alignment-free measures for mammalian

enhancers sequence comparison. IEEE/ACM Trans-

actions on Computational Biology and Bioinformat-

ics, 11(4):628–637.

Consortium, H. M. P. (2012). Structure, function and di-

versity of the healthy human microbiome. Nature,

486(7402):207–214.

Felczykowska, A., Bloch, S. K., Nejman-Faleczyk, B.,

and Baraska, S. (2012). Metagenomic approach

in the investigation of new bioactive compounds in

the marine environment. Acta Biochimica Polonica,

59(4):501505.

Girotto, S., Pizzi, C., and Comin, M. (2016). Metaprob:

accurate metagenomic reads binning based on

probabilistic sequence signatures. Bioinformatics,

32(17):i567–i575.

Goke, J., Schulz, M. H., Lasserre, J., and Vingron, M.

(2012). Estimation of pairwise sequence similarity

of mammalian enhancers with word neighbourhood

counts. Bioinformatics, 28(5):656–663.

Huson, D. H., Auch, A. F., Qi, J., and Schuster, S. C. (2007).

Megan analysis of metagenomic data. Genome Res.,

17.

Kantorovitz, M. R., Robinson, G. E., and Sinha, S. (2007).

A statistical method for alignment-free comparison of

regulatory sequences. Bioinformatics., 23.

Lindgreen, S., Adair, K. L., and Gardner, P. (2016). An

evaluation of the accuracy and speed of metagenome

analysis tools. Scientiﬁc Reports, 6:19233.

Liu, B., Gibbons, T., Ghodsi, M., Treangen, T., and Pop,

M. (2011). Accurate and fast estimation of taxonomic

BIOINFORMATICS 2017 - 8th International Conference on Bioinformatics Models, Methods and Algorithms

proﬁles from metagenomic shotgun sequences. BMC

Genomics, 12.

Mande, S. S., Mohammed, M. H., and Ghosh, T. S.

(2012). Classiﬁcation of metagenomic sequences:

methods and challenges. Brieﬁngs in Bioinformatics,

13(6):669–681.

Ondov, B. D., Treangen, T. J., Melsted, P., Mallonee, A. B.,

Bergman, N. H., Koren, S., and Phillippy, A. M.

(2016). Mash: fast genome and metagenome distance

estimation using minhash. bioRxiv.

Ounit, R., Wanamaker, S., Close, T. J., and Lonardi, S.

(2015). Clark: fast and accurate classiﬁcation of

metagenomic and genomic sequences using discrim-

inative k-mers. BMC Genomics, 16(1):1–13.

Qin, J., Li, R., Raes, J., and et al. (2010). A human gut

microbial gene catalogue established by metagenomic

sequencing. Nature, (464):5965.

Said, H. S., Suda, W., Nakagome, S., Chinen, H., Oshima,

K., Kim, S., Kimura, R., Iraha, A., Ishida, H., Fujita,

J., Mano, S., Morita, H., Dohi, T., Oota, H., and Hat-

tori, M. (2014). Dysbiosis of Salivary Microbiota in

Inﬂammatory Bowel Disease and Its Association With

Oral Immunological Biomarkers. DNA Research: An

International Journal for Rapid Publication of Re-

ports on Genes and Genomes, 21(1):15–25.

Schimd, M. and Comin, M. (2016). Fast comparison of

genomic and meta-genomic reads with alignment-free

measures based on quality values. BMC Medical Ge-

nomics, 9(1):41–50.

Segata, N., Waldron, L., Ballarini, A., Narasimhan, V.,

Jousson, O., and Huttenhower, C. (2012). Metage-

nomic microbial community proﬁling using unique

clade-speciﬁc marker genes. Nat Methods, 9.

Sims, G. E., Jun, S. . R., Wu, G. A., and Kim, S. . H. (2009).

Alignment-free genome comparison with feature fre-

quency proﬁles (ffp) and optimal resolutions. Proc

Nat Acad Sci., 106.

Vinga, S. and Almeida, J. (2003). Alignment-free sequence

comparison–a review. Bioinformatics., 19.

Wood, D. and Salzberg, S. (2014). Kraken: ultra-

fast metagenomic sequence classiﬁcation using exact

alignments. Genome Biol., 15.

Zeller, G., Tap, J., Voigt, A. Y., Sunagawa, S., Kultima,

J. R., Costea, P. I., Amiot, A., B

ohm, J., Brunetti,

F., Habermann, N., Hercog, R., Koch, M., Luciani,

A., Mende, D. R., Schneider, M. A., Schrotz-King,

P., Tournigand, C., Tran Van Nhieu, J., Yamada, T.,

Zimmermann, J., Benes, V., Kloor, M., Ulrich, C. M.,

von Knebel Doeberitz, M., Sobhani, I., and Bork, P.

(2014). Potential of fecal microbiota for early-stage

detection of colorectal cancer. Molecular Systems Bi-

ology, 10(11).

Zhang, Z., Schwartz, S., Wagner, L., and Miller, W. (2004).

A greedy algorithm for aligning dna sequences. Jour-

nal of Computational Biology, 7(1-2):203–214.

SKraken: Fast and Sensitive Classiﬁcation of Short Metagenomic Reads based on Filtering Uninformative k-mers
