Acquisition of Conﬁdential Patient Data Over Shared Mobile Device

Petr Vcelak

1,2

, Martin Kryl

, Ladislav Racak

and Jana Kleckova

1,2

NTIS – New Technologies for the Information Society, University of West Bohemia, Univerzitni 8, Plzen, Czech Republic

Department of Computer Science and Engineering, University of West Bohemia, Univerzitni 8, Plzen, Czech Republic

Keywords:

Client-server, Data Acquisition, Mobile Application, Patient Data, Security, Shared Mobile Device, Smart-

phones, Tablets.

Abstract:

Mobile devices have already been designed for many applications. Smartphones and tablet computers are

modern, widespread and affordable solutions used for various purposes. Nowadays mobile devices are widely

used in telemedicine. It is usually assumed, that the device is owned and used by a single person. We focus

on security concerns and constraints from a different point of view – when the device is shared. In this paper,

we are proposing a novel approach to prevent leakage of patient’s conﬁdential data when the device is used by

multiple patients at the hospital’s clinic or department. We present a prototype application and discuss its use

case and designed workﬂow.

1 INTRODUCTION

Our goal is to enable gathering of patient’s data via

shared mobile device. Hospital would lend the con-

ﬁgured device to patients and they would be able to

ﬁll out pre-deﬁned medical questionnaires and per-

sonal information forms while waiting for their medi-

cal examination in situation, when medical personnel

is busy examining another patient. Some types of data

can be conveniently collected at this time. The doc-

tor would then pass and verify data, possibly com-

plementing deﬁciencies. It is not just about gathering

general information like address, contact or health in-

surance situation. Forms could be used to gather more

information about patient’s perceived discomfort dur-

ing the last period. Patient can also provide data for

surveys, data for conducting studies or use mobile

devices to measure additional data such as weight,

blood pressure or pulse through wearable electronics.

At this time, we do not expect the use of additional

equipment like wearable electronics and sensors.

2 STATE OF THE ART

The main target in this paper are mobile phones

such as smartphones and electronic tablets. Nowa-

days mobile phones are used in all healthcare areas

including diagnostics, telemedicine, research, refer-

ence libraries and interventions. (Bastawrous and

Armstrong, 2013) Currently, these devices are easily

available, inexpensive, small, have enough comput-

ing power and provide sufﬁcient space for the devel-

opment of various types of new applications. An ad-

vantage is a user-friendly interface and availability of

installed applications.

Different mobile applications are widely used in

medicine with the aim to provide personalised ap-

proach or just for gathering health data. As Hayes

et al. (2014) said, there were areas where patient-

tailored risk prediction and treatment had been ap-

plied routinely in the clinic over mobile applica-

tions. Nevertheless, authors said, more work would

be required to translate scientiﬁc advances into in-

dividualised treatment in other ﬁelds. (Hayes et al.,

2014) There were publications regarding that, eg. a

smartphone-centric platform for remote health moni-

toring of health failure (Bisio et al., 2015) or cloud-

based smart health monitoring system for automatic

cardiovascular and fall risk assessment in hyperten-

sive patients (Melillo et al., 2015).

Android is the best selling operation system on

tablets since 2013, and on smartphones it is dominant

by any metric. (Manjoo, 2015) We can cite many arti-

cles and examples describing data acquisition via mo-

bile devices on the Android platform, eg. a portable

physical health monitoring system were proposed in

(Tang et al., 2015) and continuous wireless monitor-

ing of endogenous and exogenous bio-molecules on

an android interface in (Stradolini et al., 2015).

334

Vcelak P., Kryl M., Racak L. and Kleckova J.

Acquisition of Conﬁdential Patient Data Over Shared Mobile Device.

DOI: 10.5220/0006155303340339

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 334-339

ISBN: 978-989-758-213-4

On the other side, security and privacy issues are

serious topics. Authors Baig et al. discussed mobile

healthcare applications and its critical issues and chal-

lenges. As they said in (Baig et al., 2015), mobile

phones were becoming important in monitoring and

even in delivering of healthcare interventions. Re-

sults of testing mobile health applications on Android

platform was discussed in (Knorr and Aspinall, 2015)

where a number of serious vulnerabilities were dis-

covered in the most popular applications. Dehling et

al. (2015) did an overview of security and privacy

infringements in mobile health applications on An-

droid and iOS. They discovered that the majority of

apps (95.63%, 17,193/17,979; of apps) had posed at

least some potential damage through information se-

curity and privacy infringements. There were 11.67%

(2,098/17,979) of apps that scored the highest assess-

ments of potential damages. (Dehling et al., 2015)

These results lead to belief that private or conﬁdential

information stored in a mobile device/application are

at a risk.

3 SHARED DEVICE APPROACH

3.1 General Information

An obtaining data at own mobile device is an usual

approach. Unfortunately, this may not be a safe way.

Unlike the usual situation where everyone has their

own mobile phone, we start from the opposite as-

sumption. We consider the use of device that is not

owned by the patient. It is only borrowed at a given

moment. We refer to this as a shared device (SD).

The patient has to ﬁll new information or update ex-

isting data (delivered to/from the information system

of the hospital or medical doctor) by the shared de-

vice.

An advantage of the SD approach is the ability to

fully control its system and customise it. We can set

up the environment and install all necessary tools, in-

cluding our own custom applications. Through our

custom application we can provide personalising. It

can be determined in advance what information or

questionnaire needs to be ﬁlled by particular patient.

Different type and extent of data might be desired for

different departments, patients, diagnosis or type of

visit.

After the registration at the desk/ofﬁce/nurse, pa-

tient can get pre-conﬁgured shared device, and can

immediately begin checking and ﬁlling the form. Op-

tionally, patient may be allowed to switch to other ap-

plications, eg. read news or play some simple games,

while still waiting for examination.

Disadvantages of shared devices are especially the

need to solve the issue of patient’s privacy. Is it really

a disadvantage though? Sensitive or protected data

must not be available to the next patient/personnel us-

ing the device. We have to prevent data leaks when

someone steals the shared device. Of course, data

transfer have to be secured. What about other health

mobile applications? Any kind of health application

has to secure its data as a prevention to data leak, oth-

erwise it leads to security and privacy infringements.

Well, the data privacy have to be solved with any kind

of application that works with patient health infor-

mation. The difference for shared device approach

is, that we are absolutely sure the application will be

used by multiple users, therefore it has to be secured

better.

3.2 Architecture

We have chosen client-server architecture where

client will be responsible for a user interaction. The

business logic will be on the server side only, eg.

form deﬁnition and description, form source/input

data and produced output. Client-server communica-

tion is based on REST API with public and private

key-pairs encrypted messages. The HTTPS protocol

is recommended.

3.2.1 Client

Client, as a mobile application, will provide direct in-

teraction with users. User can be a staff member or a

patient itself. We prefer to make client application as

simple as possible. In the ﬁgure 1 youcan see use case

diagram. We expect no local conﬁguration stored in

a shared device with the exception of the URL server

address. Security details are described in a separate

section 3.4. Basically, the client application is pre-

pared when URL address of the server is set. The

shared device can operate in two modes:

user have to authenticate by username and password

knowledge,

delegated no user authentication; server sends avail-

able forms and identiﬁes retrieved data by device

ID.

In user mode, there is no list of available users on

SD for a user authentication. Instead an encrypted re-

quest (with username and password) is sent to server

for authentication. After a user is authenticated, forms

(only available to the user) are downloaded , and the

user can choose either to be ﬁlled. At the same time

the user can also choose to continue ﬁlling up an un-

ﬁnished form, that has not been uploaded yet. Client

Acquisition of Conﬁdential Patient Data Over Shared Mobile Device

335

Staff Patient B

(user, pass)

(device ID)

Set server URL Logout

Get list of incomplete

forms (per device)

Form filling

Temporarily store

form data

Send filled form data

to server

Store filled form data

locally in the device

Get list of availaible

forms (per user)

Get list of availaible

forms (per device)

Get list of incomplete

forms (per user)

Patient A

Client

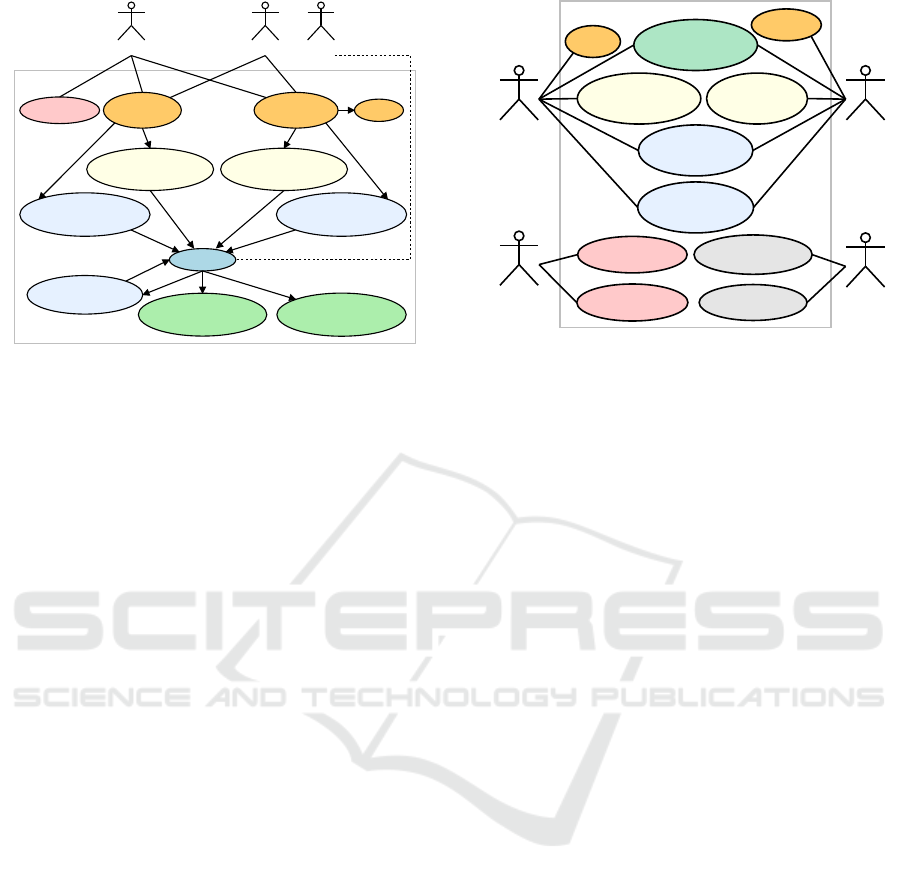

Figure 1: Use case of client.

requests list of available forms for the device directly

when delegated mode is used.

List of available forms is user-dependent and

device-dependent to allow for possible customisation.

This is a quite simple solution for delivering different

forms to the same patient on different clinics.

In the ﬁgure 1 you can see use case of delegated

mode by Patient B actor. Shared device is prepared by

Staff (actor) by using Login (device ID) method and

the patient just ﬁlls out the form.

The Temporarily store form data use case can re-

solve any distraction (eg. the need to go to the toilet).

Later, a patient can use Get list of incomplete forms

use case (stored per device or per user).

Finally, user can ﬁnish completing form by two

methods: (1) send data to the server or (2) store re-

sults data locally in the device. It is preferred to di-

rectly send data to the server. The second method is

a backup solution, eg. when Wi-Fi signal is lost. Lo-

cally stored data is encrypted.

3.2.2 Server

REST API provided by server is the most important

from the perspective of the client. There in the ﬁgure

2 you can see all of our actors. A client application

represents both the top use cases, User (logged) and

User (not logged) in the delegated mode. Both ac-

tors can get/download server’s public key S

pub

, list of

available forms and upload/store ﬁlled form data. The

form content can be uploaded online over Wi-Fi net-

work or ofﬂine by connecting device by a cable.

Server must be properly secured on an operation

system level. All retrieved data from the client appli-

cations will be stored there in an unencrypted form.

For simplicity’s sake, we do not describe details of

server conﬁguration, which may be implementation-

dependent and include all activities related to the ad-

Administrator

User

(logged)

User

(not logger)

Other

System

Logout

Get server’s

public key

Get forms

(per device)

Get forms

(per user)

Store filled

data online

Store filled

data offline

Manage users

Manage forms

Get stored data

Put form data

Server

Figure 2: Use case of server.

ministration of users, forms and a description of their

assignment to users or devices. In this context, Ad-

ministrator and Other System actors use cases are out

of scope of this paper.

3.3 Form Description

There are several ways to describe the form elements,

their labels, groups, description and all the essen-

tials including, eg. validation or enumeration values.

There exist different forms description languages like

XForms 1.1 (2009) and different libraries that helps

building forms. In addition, there are number of dif-

ferences across mobile platforms. We have made our

own way of simpliﬁed deﬁnition and description of

forms. The same form will need to be viewed and

ﬁlled-in on different platforms. Our simpliﬁed deﬁni-

tion and description of forms contains:

• form description – ID, name and description

• section – group of form elements has title,

• element – ID, label, data type, validation, default

value, enumeration values,

All text labels may occur multiple times with dif-

ferent language attribute. Supported element data

types are label, text, multi-line text, email, password,

integer, number, currency, phone, boolean check or

switch, date, time, selector box, selector list and URL.

The form deﬁnition (description and content) have to

be rendered by client application per mobile platform.

3.4 User Authentication Model

Deﬁnition

The most important part of the shared device ap-

proach is communication protocol between client and

HEALTHINF 2017 - 10th International Conference on Health Informatics

336

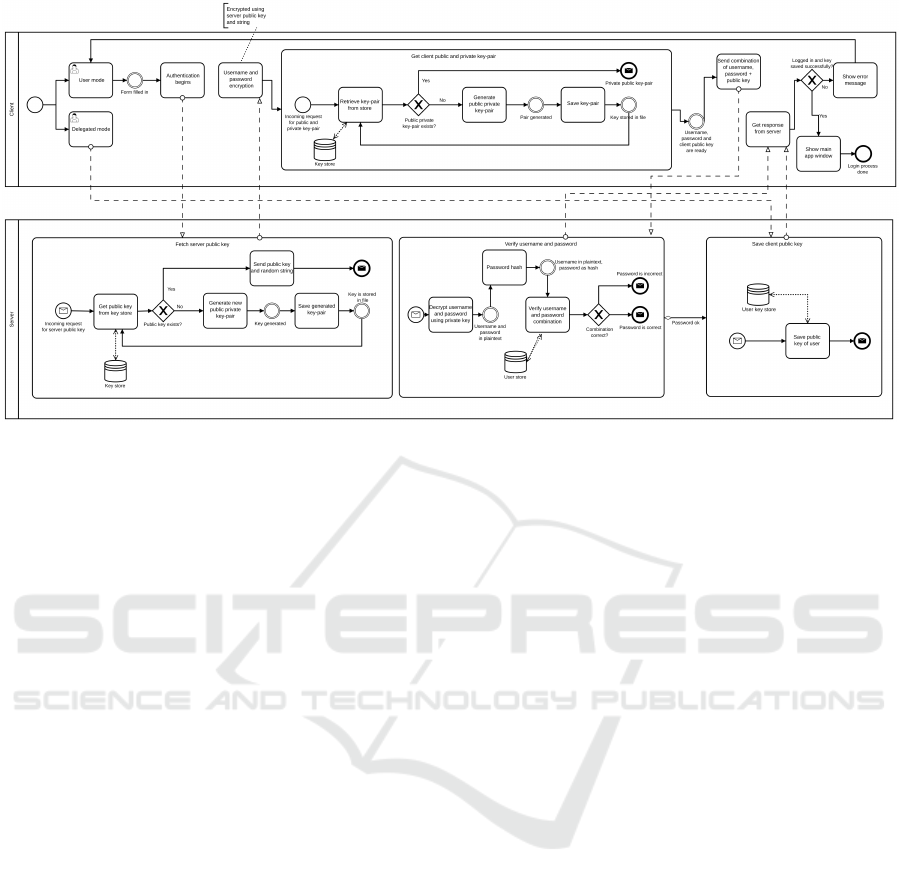

Figure 3: Diagram of the login process – BPMN v2.0 notation.

server. We need to ensure that data in the client appli-

cation is protected against unauthorised access (read)

or modiﬁcation at the device or during transmission to

the server. For this reason, we describe how user lo-

gin process works on mobile devices. You can see the

cryption is enabled for stored data on client and com-

munications between client and server.

As we mentioned in 3.2.1 and 3.2.2 sections,

client application can login in two ways.

User does not need any username or password

in the delegated mode, unique device ID is used in-

stead. Private and public keys are required on the

device. New key-pair (C

priv

and C

pub

) is generated

and stored in an internal memory of mobile device

when no key-pair exist. Both, device ID D and public

key C

pub

are sent to the server. The client may see

a list of currently-ﬁll forms if the server successfully

processes the request, so device identiﬁcation and its

public key are stored on a server. If communication

with server fails, the client is informed of the error

message and remains on the login screen.

A user login using username U and password P

method need to have a public key of the server S

pub

Client application asks for server’s public key S

pub

Server immediately sends an existing key or generates

a new key pair by a conﬁgured algorithm. A crypto-

graphic salt (CS) is sent together with the public key

pub

. Client stores both in an internal memory. Au-

thentication then follows. Client application encrypts

username U and password P by server’s public key

pub

and salt (CS) added. Server receives data and de-

crypts them by its own S

priv

key. Server checks that

the received salt matches the salt sent to the device.

Request is denied if the salt differs or the user does

not exist on the server. A password hash stored on

the server is compared with the one received from the

client. The client’s public key C

pub

is stored in case

of the same password hashes. Client is notiﬁed that

the user has logged in successfully and shows list of

possible forms. Otherwise, client is informed of the

error and remains on the login screen.

The salt (CS) is device-dependent. User’s key-pair

priv

, C

pub

) depends on a username U and device ID

D. Each pair of user (as username U) and device ID

D has its own key-pair because of the same key reuse.

4 IMPLEMENTATION AND

RESULTS

As the proof of concept we have created software

corresponding to designed client-server architecture

(3.2) and supporting the user authentication model

(3.4). Server is a service-oriented Java web applica-

tion with REST API and running over HTTPS pro-

tocol. The server needs Java Cryptography Extension

(JCE) Unlimited Strength Jurisdiction Policy Files in-

stalled. We chose the Android platform, the world’s

most popular mobile operating system, for the client

application. The implementation is based on Android

version 7.0 with code name Nougat (API level 24).

The ﬁve screenshots are shown on the ﬁgure 4.

The client application running on a shared device

does not have any complicated setting, and provides

only a few basic functions. The only conﬁguration

attribute is the server URL address. Mobile applica-

Acquisition of Conﬁdential Patient Data Over Shared Mobile Device

337

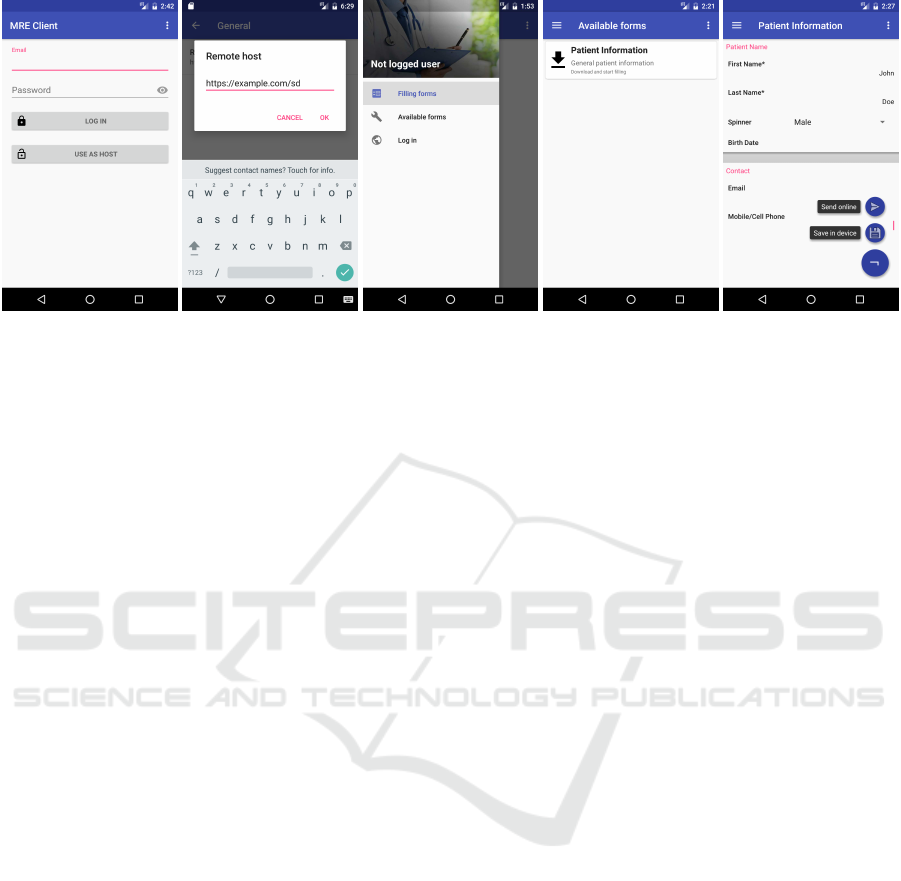

Figure 4: Mobile application (client) screenshots: (1) login screen, (2) conﬁguration – set server URL address, (3) menu of

actions in the delegated mode, user can ﬁll-in per device forms or not ﬁnished ones, (4) list of available forms and (5) simple

form/questionnaire generated and menu how to submit a result is shown.

tion has to download corresponding deﬁnitions of the

forms that the user can ﬁll in on the shared device.

User cannot directly access data of any hospital infor-

mation systems. Shared device is managed indirectly

by the staff through the server. Staff member can as-

sign a form type to the speciﬁc device or patient on the

server. Client application downloads these form deﬁ-

nitions and present an automatically generated forms

to its user.

Retrieved, transmitted and permanently stored

data on the shared device are encrypted. Only the pa-

tient himself can see his own data in a readable way.

Form content is encrypted immediately, when form

is validated and submitted. Online transmission is

the preferred way of data transmission, but encrypted

data can be stored locally when no network access is

available. Data encryption is based on an asymmet-

ric method using private and public key-pairs that are

generated on the server or on the shared device.

5 DISCUSSION

We discuss the results and especially the security of

the proposed shared device approach in this chapter.

The most common and possible attacks include eaves-

dropping or modiﬁcation of data and identity theft.

Client-server communication is designed to en-

crypt the whole communication, including form def-

initions, because it can contain personal information.

The only unencrypted content is server’s public key,

client’s public key and device ID. An attacker can

get access to communication content on an unsecured

network (eg. public Wi-Fi, HTTP protocol), but it is

not possible to abuse this, because of the way asym-

metric cryptography works (private key is needed for

decryption). Eavesdropping is therefore not possible.

An another attack is by modifying request to ob-

tain data access. It can happen on an unsecured net-

work or when a shared device is infected by malware.

Attacker can spoof the device ID via malware and re-

quest forms available for spoofed ID. Server sends

forms belonging to someone else, however, they are

not accessible, because the private key on attacker’s

device cannot de-crypt them. Attacker would need to

possess private key of the device that is being imitated

by spoofed device ID.

An entire request could be alternated by attacker,

not only the device ID. Server process every request

if its format is valid. Attack would be discovered, be-

cause server attempts to verify the electronic signa-

ture using the sender’s public key. This veriﬁcation

would fail. Either electronic signature and request

content or public and private key-pair will differ.

We also consider the case of identity theft. At-

tacker can monitor requests and reuse the message to

repeat sending of that request with own fake public

key. This situation is prevented by changing cryp-

tographic salt, which is always used to encrypt user

name and password. Accordingly, the resulting ci-

pher names and passwords vary because of the differ-

ent cryptographic salt.

Our, originally naive, solution of form deﬁni-

tion/description proved to be very ﬂexible. The

form is dynamically generated on the mobile device

(client), according to these deﬁnition. It is possi-

ble to dynamically create personalised form deﬁnition

on the server which contain patient-oriented data (eg.

different options per age groups or genders).

Mobile devices also have drawbacks. The client

application needs to be online when loading the form

deﬁnition. There are also issues with battery life, net-

work availability, breakage or damage of borrowed

device by patients. Network availability is important

HEALTHINF 2017 - 10th International Conference on Health Informatics

338

when submitting form data to the server, but we can

use ofﬂine data storage to temporarily alleviate con-

nection problems.

At the testing phase, we identiﬁed an issue (oc-

curred only once) with locally stored encrypted form

content. There is a possibility of data loss, when user

logs out of application and logs in again, because key-

pair has to change and server does not store history of

previously used keys. Our approach, originally de-

vised to prevent attacks, may therefore lead to data

loss on this occasion.

The mobile application has fully satisfactory and

ﬂuent response when connected via Wi-Fi. Only

when using large forms (e.g. 1 000 items in select

box) the response time worsened – increased time

needed to download form deﬁnition and to render the

form.

6 CONCLUSIONS

In this article we proposed an approach for secure

health data acquisition using shared mobile devices.

The data are conﬁdential in general. The primary

goal was gathering personal data and updating health

status using form-oriented application. The security

problems were discussed. We evaluated risk of data

leak and designed data workﬂow for mobile devices

that are shared across patients.

We designed a prototype and evaluated it as the

real application on Android device. We identiﬁed that

this workﬂow is properly secured. The discovered

disadvantage is a possible data loss in special case

when data were encrypted and key-pair changed be-

fore data was delivered to the server.

Obtaining data via electronic forms is easily cus-

tomisable and extensible. There is a potential dis-

advantage of impersonal approach. Though, patients

waiting for medical examination are usually feeling

bored, and this interactiveform might be therefore ap-

preciated by them.

In the future we plan to expand the types of data

that can be sent via secure forms and the presented ap-

proach. The logical extension is to support wearable

electronics, sensors and other accessories connectable

with a mobile device that will also acquire more data

types in this way.

ACKNOWLEDGEMENTS

This work was supported by the project PUNTIS (No.

LO1506) of the Ministry of Education, Youth and

Sports of the Czech Republic and by University of

West Bohemia, project Data and Software Engineer-

ing for Advanced Applications (No. SGS-2016-018).

REFERENCES

Baig, M. M., GholamHosseini, H., and Connolly, M. J.

(2015). Mobile healthcare applications: sys-

tem design review, critical issues and challenges.

Australasian Physical & Engineering Sciences in

Medicine, 38(1):23–38.

Bastawrous, A. and Armstrong, M. J. (2013). Mobile health

use in low-and high-income countries: an overview

of the peer-reviewed literature. Journal of the royal

society of medicine, 106(4):130–142.

Bisio, I., Lavagetto, F., Marchese, M., and Sciarrone, A.

(2015). A smartphone-centric platform for remote

health monitoring of heart failure. International Jour-

nal of Communication Systems, 28(11):1753–1771.

Dehling, T., Gao, F., Schneider, S., and Sunyaev, A. (2015).

Exploring the far side of mobile health: information

security and privacy of mobile health apps on ios and

android. JMIR mHealth and uHealth, 3(1):e8.

Hayes, D. F., Markus, H. S., Leslie, R. D., and Topol, E. J.

(2014). Personalized medicine: risk prediction, tar-

geted therapies and mobile health technology. BMC

medicine, 12(1):37.

Knorr, K. and Aspinall, D. (2015). Security testing for

android mhealth apps. In Software Testing, Veriﬁca-

tion and Validation Workshops (ICSTW), 2015 IEEE

Eighth International Conference on, pages 1–8. IEEE.

Manjoo, F. (2015). A murky road ahead for android, despite

market dominance. ISSN 0362-4331. (May 27, 2015)

Retrieved Oct 17, 2016.

Melillo, P., Orrico, A., Scala, P., Crispino, F., and Pecchia,

L. (2015). Cloud-based smart health monitoring sys-

tem for automatic cardiovascular and fall risk assess-

ment in hypertensive patients. Journal of medical sys-

tems, 39(10):1–7.

Stradolini, F., Riario, S., Boero, C., Baj-Rossi, C., Tau-

rino, I., Surrel, G., De Micheli, G., and Carrara, S.

(2015). Wireless monitoring of endogenous and ex-

ogenous biomolecules on an android interface. IEEE

Sensors Journal, 16(9):3163–3170.

Tang, X., Hu, C., and Lin, W. (2015). Android bluetooth

multi-source signal acquisition for multi-parameter

health monitoring devices. In Information and Au-

tomation, 2015 IEEE International Conference on,

pages 1790–1794. IEEE.

Acquisition of Conﬁdential Patient Data Over Shared Mobile Device

339
