Regularized Nonlinear Discriminant Analysis

An Approach to Robust Dimensionality Reduction for Data Visualization

Martin Becker

1,2,3

, Jens Lippel

1

and Andr

´

e Stuhlsatz

1

Faculty of Mechanical and Process Engineering, University of Applied Sciences D

¨

usseldorf, M

¨

unsterstr. 156, 40476,

D

¨

usseldorf, Germany

2

Faculty of Electrical Engineering and Information Technology, University of Applied Sciences D

¨

usseldorf, D

¨

usseldorf,

Germany

3

Faculty of Media, University of Applied Sciences D

¨

usseldorf, D

¨

usseldorf, Germany

Keywords:

High-dimensional Data, Dimensionality Reduction, Data Visualization, Discriminant Analysis, GerDA, Deep

Autoencoder, Deep Neural Networks, Regularization, Machine Learning.

Abstract:

We present a novel approach to dimensionality reduction for data visualization that is a combination of two

deep neural networks (DNNs) with different objectives. One is a nonlinear generalization of Fisher’s linear

discriminant analysis (LDA). It seeks to improve the class separability in the desired feature space, which is

a natural strategy to obtain well-clustered visualizations. The other DNN is a deep autoencoder. Here, an

encoding and a decoding DNN are optimized simultaneously with respect to the decodability of the features

obtained by encoding the data. The idea behind the combined DNN is to use the generalized discriminant

analysis as an encoding DNN and to equip it with a regularizing decoding DNN. Regarding data visualization,

a well-regularized DNN guarantees to learn sufﬁciently similar data visualizations for different sets of samples

that represent the data approximately equally good. Clearly, such a robustness against ﬂuctuations in the

data is essential for real-world applications. We therefore designed two extensive experiments that involve

simulated ﬂuctuations in the data. Our results show that the combined DNN is considerably more robust

than the generalized discriminant analysis alone. Moreover, we present reconstructions that reveal how the

visualizable features look like back in the original data space.

1 INTRODUCTION

Mapping high-dimensional data – usually containing

many redundant observations – onto 1, 2 or 3 features

that are more informative, often is a useful ﬁrst step

in data analysis, as it allows to generate straightfor-

ward data visualizations such as histograms or scatter

plots. A fundamental problem arising in this context

is that there is no general answer to the question of

how one is supposed to choose or even design a map-

ping that yields these informative features. Finding a

suitable mapping typically requires prior knowledge

about the given data. At the same time, knowledge is

what we hope to be able to derive after mapping the

data onto informative features. Frequently, one might

know nothing or only very little about the given data.

In any case, one needs to be very careful not to mis-

take crude assumptions for knowledge, as this may

lead to a rather biased view on the data. So in sum-

mary, it appears as a closed loop “knowledge ⇒ map-

ping ⇒ informative features ⇒ knowledge”, where

each part ultimately depends on the given data and

the only safe entry point is true knowledge.

Deep neural networks (DNNs) have been proven

capable of tackling such problems. A DNN is a model

that covers an inﬁnite number of mappings, which

is realized through millions of adjustable real-valued

network parameters. Rather than directly choosing a

particular DNN mapping, the network parameters are

gradually optimized (DNN learning) with respect to

a criterion that indicates whether or not a mapping of

a given dataset is informative. Two DNNs that have

been shown to be able to successfully learn useful

data visualizations are the Generalized Discriminant

Analysis (GerDA) and Deep AutoEncoders (DAEs)

as suggested by (Stuhlsatz et al., 2012) and (Hinton

and Salakhutdinov, 2006), respectively. A closer look

at these two DNNs reveals that the ideas of what the

term “informative” means can be very different.

GerDA is a nonlinear generalization of Fisher’s

Linear Discriminant Analysis (LDA) (Fisher, 1936)

116

Becker M., Lippel J. and Stuhlsatz A.

Regularized Nonlinear Discriminant Analysis - An Approach to Robust Dimensionality Reduction for Data Visualization.

DOI: 10.5220/0006167501160127

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 116-127

ISBN: 978-989-758-228-8

Copyright

c

and thus considers discriminative features to be most

informative, which appears as a very natural strategy

to generate well-clustered visualizations of labeled

data sets. DAEs, on the other hand, seek to improve

an encoder/decoder mapping

f

DAE

:= f

dec

◦ f

enc

, (1)

where f

enc

is a dimensionality reducing encoder (the

desired feature mapping) and f

dec

is the associated

decoder. Practically, this is achieved by deﬁning a

criterion that measures the dissimilarity between the

data and the reconstructions obtained by encoding and

subsequent decoding. DAEs can therefore be learned

without the use of class labels. Here, reconstructable

features are considered to be most informative.

The novel Regularized Nonlinear Discriminant

Analysis (ReNDA) proposed in this paper uses the

combined criterion

J

ReNDA

:= (1 − λ)J

GerDA

+ λ J

DAE

(λ ∈ [0|1]), (2)

where the two subcriteria J

GerDA

and J

DAE

are based

on GerDA and a DAE, respectively. As the name

suggests, we expect the associated ReNDA DNN to

be better regularized. Regularization is a well-known

technique to improve the generalization capability of

a DNN. Regarding dimensionality reduction for data

visualization, a good generalization performance is

indicated by a reliably reproducible 1D, 2D or 3D

feature mapping. In other words, a well-regularized

DNN guarantees to learn sufﬁciently similar feature

mappings for different sets of samples that represent

the data approximately equally good. Clearly, such a

robustness against ﬂuctuations in the data is essential

for real-world applications.

Indeed, based on the belief that a feature mapping

learned by a DNN should be as complex as necessary

and as simple as possible, regularization of DNNs is

traditionally imposed in the form

J

effective

:= J

obj

+ λJ

reg

(λ ∈ [0|∞)), (3)

which looks very similar to the combined criterion

(2). Here, λ is a hyperparameter that is adjusted to

control the impact of a regularization term J

reg

on the

DNN’s true objective J

obj

. Well-known approaches

following (3) are weight decay (encouraging feature

mappings that are more nearly linear) and weight

pruning (elimination of network parameters that are

least needed) (cf. (Duda et al., 2000)). Both these

measures are intended to avoid the learning of overly

complex mappings. The advantage of (2) over these

two approaches is that both subcriteria are themselves

informative as regards the given data, whereas in most

cases, weight decay or pruning can only tell us what

we already know: The present DNN covers overly

complex feature mappings.

X

0

:= X

W

1

,b

b

1

X

1

W

2

,b

b

2

X

2

.

X

L−1

W

L

,b

b

L

X

L

:= Z

(W

L

)

tr

,b

b

L−1

X

L+1

.

X

2L−2

(W

2

)

tr

,b

b

1

X

2L−1

(W

1

)

tr

,b

b

2L

X

2L

:=

b

X

R

(0|1)

.

(0|1)

R

(0|1)

.

(0|1)

R

RBM

1

RBM

2

RBM

L

W,b

b

h

W,b

b

h

W,b

b

h

b

v

J

DAE

(decodability)

J

GerDA

(discriminability)

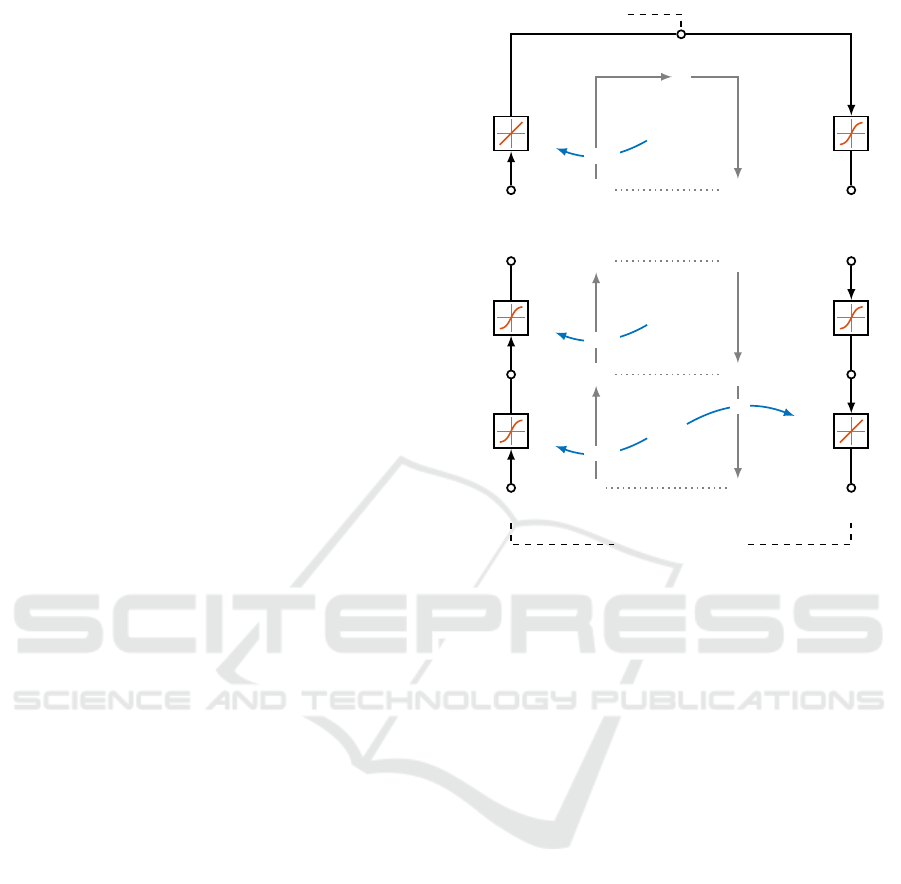

Figure 1: A data ﬂow graph of the overall 2L-layered

ReNDA DNN. Each layer is depicted as a box containing

a symbolic plot of its activation function. The L layers on

the lefhand side form the encoding and the L layers on the

righthand side form the decoding DNN (cf. Sections 2.1 and

2.2). The inner “spaces ﬂow graph” along with the RBMs

and the curved arrows concern the RBM-pretraining (cf.

Section 2.3). The GerDA criteron J

GerDA

is connected to

feature space node by a dashed line, where it takes direct

inﬂuence during ﬁne-tuning (cf. Section 2.4). Accordingly,

J

DAE

takes direct inﬂuence at original space node and the

reconstruction space node.

2 ReNDA

As explained above, ReNDA is a combination of two

different DNNs, GerDA and a DAE. As a matter of

fact, both these DNNs learn feature mappings in a

very similar way, which is another reason why we

considered this particular combination: They both use

a Restricted Boltzmann Machine (RBM) pretraining

to determine good initial network parameters, which

are then used for subsequent gradient descent-based

ﬁne-tuning. The big difference between them is that

a DAE involves an encoding ( f

enc

) and a decoding

( f

dec

) DNN, whereas GerDA involves an encoding

DNN only. So contrary to a DAE, GerDA is unable to

decode previously learned informative features.

The idea behind ReNDA is to equip GerDA with

a suitable decoding DNN and, additionally, introduce

it in such a way that it has a regularizing effect on

Regularized Nonlinear Discriminant Analysis - An Approach to Robust Dimensionality Reduction for Data Visualization

117

the encoding GerDA DNN. However, in this paper we

focus on presenting the developed ReNDA DNN as

a well-regularized and therefore robust approach to

data visualization. Figure 1 shows a detailed data ﬂow

graph of the overall ReNDA DNN. In the following

four subsections we give a detailed explanation of all

elements depicted in this ﬁgure.

2.1 The Encoding DNN

Suppose that the columns of X := (x

x

1

,.. .,x

x

N

) ∈

R

d

X

×N

are d

X

-dimensional samples and that y

y

y :=

(y

1

,.. .,y

N

)

tr

∈ {1, ...,C}

N

is a vector of class labels

associated with these samples. ReNDA’s objective is

to ﬁnd a DNN-based nonlinear encoding

X 7→ Z := f

enc

(X) ∈ R

d

Z

×N

(4)

with d

X

> d

Z

∈ {1,2,3} that is optimal in the sense

of an LDA for data visualization, i.e. that the features

Z = (z

z

1

,.. .,z

z

N

) ∈ R

d

Z

×N

are both well-clustered with

respect to y

y

y and visualizable. The layerwise encoding

shown on the lefthand side of Figure 1 is obtained by

setting X

0

:= X, d

0

:= d

X

, X

L

:= Z, d

L

:= d

Z

and

deﬁning

X

`

:= f

`

(W

`

X

`−1

+ B

`

| {z }

=:A

`

(X

`−1

)

) ∈ R

d

`

×N

(5)

for ` ∈ {1, ... ,L} and intermediate dimensions

d

1

,.. .,d

L−1

∈ N. We refer to d

0

-d

1

-d

2

-·· ·-d

L

as

the DNN topology. Further, A

`

(X

`−1

) ∈ R

d

`

×N

is

the `th layer’s net activation matrix and it depends

on the layer’s adjustable network parameters: the

weight matrix W

`

∈ R

d

`

×d

`−1

and the bias matrix

B

`

:= (b

b

`

,.. .,b

b

`

) ∈ R

d

`

×N

. The function f

`

: R → R

is called the `th layer’s activation function and it is

applied entrywise, i.e.

x

`

k,n

= f

`

(a

`

k,n

(X

`−1

)) (6)

for the entries of X

`

. The encoding DNN’s activation

functions are set to f

`

:= sigm with sigm : R → (0|1)

given by

sigm(x) :=

1

1 + exp(−x)

(x ∈ R) (7)

for ` ∈ {1,...,L − 1} and to f

L

:= id with id : R → R

given by

id(x) := x (x ∈ R), (8)

respectively. In Figure 1 the activation functions are

depicted as symbolic plots.

Altogether

f

enc

= f

L

◦ A

L

◦ ··· ◦ f

2

◦ A

2

◦ f

1

◦ A

1

| {z }

layerwise forward propagation

(9)

and optimizing it with respect to J

GerDA

(cf. Section

2.4.1) corresponds to the originally proposed GerDA

ﬁne-tuning (Stuhlsatz et al., 2012). The dashed link

between J

GerDA

and the Z node of the data ﬂow graph

shown in Figure 1 is a reminder that Z is the GerDA

feature space. With the decoding DNN presented in

the next section, Z will become the feature space of

the overall ReNDA DNN.

2.2 The Decoding DNN

As can be seen on the righthand side of Figure 1, the

adjustable network parameters of ReNDA’s encoding

DNN are reused for decoding

Z 7→

b

X := f

dec

(Z) ∈ R

d

b

X

×N

(10)

with d

b

X

:= d

X

. The ﬁnal biases b

b

2L

∈ R

d

2L

represent

the only additional network parameters of ReNDA

compared to GerDA. We summarize by

θ

θ := (W

1

,b

b

1

,.. .,W

L

,b

b

L

|

{z }

network parameters of

the encoding DNN

,b

b

2L

) (11)

the network parameters of the ReNDA DNN. One of

the main reasons for this kind of parameter sharing is

that it connects f

enc

and f

dec

at a much deeper level

than (2) alone. Observe that J

GerDA

and J

DAE

only

take direct inﬂuence at three points of the ReNDA

DNN. We stated in the introduction that a DNN has

typically millions of adjustable real-valued network

parameters. So between the two criteria there also lie

millions of degrees of freedom. Here, it is very likely

that f

dec

compensates for a rather poor f

enc

or vice

versa. In this case, the two mappings would not be

working together. Considering this, we can specify

what we mean by a connection of f

enc

and f

dec

at a

deeper level: The parameter sharing ensures that the

two DNNs work on the very same model. It makes

the decoding DNN a supportive and complementing

coworker that helps to tackle the existing task rather

than causing new, independent problems.

We conclude this section with the mathematical

formulation of the weight sharing as it is depicted in

Figure 1. To provide a better overview, we arranged

the layers as horizontally aligned encoder/decoder

pairs that share a single weight matrix: Layer ` = 2L

uses the transposed weight matrix (W

1

)

tr

of the ﬁrst

layer. Layer ` = 2L − 1 uses the transposed weight

matrix (W

2

)

tr

of the second layer. So in general,

W

`

=



W

2L−`+1



tr

(12)

and d

`

= d

2L−`

for ` ∈ {L + 1, ... ,2L}, which implies

d

2L

= d

0

= d

X

= d

b

X

. Note that the decoding DNN

has the inverse encoding DNN topology d

L

-.. .-d

0

.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

118

We can therefore still write d

0

-.. .-d

L

for the DNN

topology of the overall ReNDA DNN. In the case of

the biases, we see that

b

`

= b

b

2L−`

(13)

for ` ∈ {L + 1,.. .,2L − 1}. Observe that (13) does

not include the additional ﬁnal decoder bias vector

b

2L

because there is no d

0

-dimensional encoder bias

vector that can be reused at this point. The symbolic

activation function plots indicate that

f

`

=

(

sigm L + 1 ≤ ` ≤ 2L − 1

id ` = 2L .

(14)

Finally, we have that

f

dec

= f

2L

◦ A

2L

◦ ··· ◦ f

L+1

◦ A

L+1

(15)

with A

2L

,.. .,A

L+1

according to (5). It is

X 7→

b

X = ( f

dec

◦ f

enc

)(X) = f

DAE

(X) (16)

and optimizing f

DAE

with respect to J

DAE

(cf. Section

2.4.2) corresponds to the originally proposed DAE

ﬁne-tuning (Hinton and Salakhutdinov, 2006). Here,

J

DAE

measures the dissimilarity between the samples

X and its reconstructions

b

X. In the data ﬂow graph

shown in Figure 1 this is symbolized by a dashed line

from the X node to J

DAE

to the

b

X node.

2.3 RBM-Pretraining

As mentioned earlier, both GerDA and DAEs use an

RBM-pretraining in order to determine good initial

network parameters. In this context, “good” means

that a subsequent gradient descent-based ﬁne-tuning

has a better chance to approach a globally optimal

mapping. Randomly picking a set of initial network

parameters, on the other hand, almost certainly leads

to mappings that are rather poor and only locally op-

timal (Erhan et al., 2010). As an in-depth explanation

of the RBM-pretraining would go beyond the scope

of this paper, we will only give a brief description of

the according RBM elements shown in the data ﬂow

graph (cf. Figure 1).

Here, we see that there exists an RBM for each

horizontally aligned encoder/decoder layer pair. Each

RBM

`

for ` ∈ {1, ... ,L} is equipped with a weight

matrix W ∈ R

d

`−1

×d

`

, a vector b

b

v

∈ R

d

`−1

of visible

biases and a vector b

b

h

∈ R

d

`

of hidden biases. Once

pretrained the weights and biases are passed to the

DNN as indicated by the curved arrows. This is the

exact same way in which the network parameters of

the original GerDA DNN are initialized. Again, the

only exception is the ﬁnal bias vector b

b

2L

. Here, the

bias b

b

v

of RBM

1

is used. The initialization of the

remaining network parameters of the decoding DNN

follows directly from the parameter sharing (12) and

(13) introduced in Section 2.2.

2.4 Fine-tuning

Now, for the gradient descent-based ﬁne-tuning we

need to specify the two criteria J

GerDA

and J

DAE

. It

turned out that when combining the two criteria one

has to pay attention to their orders of magnitude. We

determined the following normalized criteria to be

best working.

2.4.1 Normalized GerDA Criterion

Before we present our normalization of the GerDA

criterion, we shall review the original criterion

Q

δ

z

:= trace



(S

δ

T

)

−1

S

δ

B



(17)

as suggested by (Stuhlsatz et al., 2012). Here, it has

been shown that maximizing Q

δ

z

yields well-clustered,

visualizable features. The two matrices appearing in

(21) are: The weighted total scatter matrix

S

δ

T

:= S

W

+ S

δ

B

(18)

with the common (unweighted) within-class scatter

matrix S

W

:= (1/N)

∑

C

i=1

N

i

Σ

i

of the class covariance

matrices Σ

Σ

i

:= (1/N

i

)

∑

n: y

n

=i

(z

z

n

−m

m

i

)(z

z

n

−m

m

i

)

tr

with

the class sizes N

i

:=

∑

n: y

n

=i

1 and the class means

m

i

:= (1/N

i

)

∑

n: y

n

=i

z

n

. The weighted between-class

scatter matrix

S

δ

B

:=

C

∑

i, j=1

N

i

N

j

2N

2

· δ

i j

· (m

m

i

− m

m

j

)(m

m

i

− m

m

j

)

tr

(19)

with the global symmetric weighting

δ

i j

:=

(

1/km

m

i

− m

m

j

k

2

i 6= j

0 i = j.

(20)

Clearly, δ

i j

is inversely proportional to the distance

between the class means m

m

i

and m

m

j

. The idea behind

this is to make GerDA focus on classes i and j that are

close together or even overlapping, rather than ones

that are already far apart from each other.

For ReNDA, we modiﬁed Q

δ

z

as follows:

J

GerDA

:= 1 −

Q

δ

z

d

Z

∈ (0|1) (21)

The division through d

Z

is the actual normalization

(cf. Appendix A). Subtracting this result from one

makes J

GerDA

a criterion that has to be minimized,

which is a necessary in order to be able to perform

gradient descent for optimization. See Appendix B

for the partial derivatives of J

GerDA

.

Regularized Nonlinear Discriminant Analysis - An Approach to Robust Dimensionality Reduction for Data Visualization

119

2.4.2 Normalized DAE Criterion

During our ﬁrst experiments, we used the classical

mean squared error

MSE :=

1

N

k

b

X − Xk

2

F

∈ [0|∞) (22)

with Frobenius norm

kUk

F

:=

s

m

∑

i=1

n

∑

j=1

|u

i, j

|

2

(U ∈ R

m×n

) (23)

as the DAE criterion. Here, the problem is that the

MSE is typically considerably greater than Q

δ

z

. Note

that (21) implies Q

δ

z

∈ (0|d

Z

). So in the context of

dimensionality reduction for data visualization where

d

Z

∈ {1,2,3} this difference in order of magnitude

is especially large. We therefore modiﬁed the DAE

criterion in the following way:

J

DAE

:=

MSE/d

X

1 + MSE /d

X

∈ [0|1) (24)

The division through d

X

was arbitrarily introduced.

Together with N it kind of prenormalizes k·k

2

F

before

the ﬁnal normalization (·)/[1 + (·)]. It is part of our

future work to ﬁnd whether or not there exists a better

denominator than d

X

, or even if there is a better way

of deﬁning a normalized DAE criterion.

However, with J

GerDA

(cf. (21)) and J

DAE

having

the same bounded codomain, their combination is less

problematic. The partial derivatives of J

DAE

can be

found in Appendix C.

3 EXPERIMENTS

In the introduction we claimed that DNNs are able to

successfully learn dimensionality reducing mappings

that yield informative, visualizable features. For both

GerDA and DAEs this claim has been experimentally

proven: In (Stuhlsatz et al., 2012) and (Hinton and

Salakhutdinov, 2006), respectively, the widely used

MNIST database of handwritten digits (LeCun et al.,

1998) has been mapped into a 2D feature space. In an-

other example, GerDA has been used for an emotion

detection task. Here, 6552 acoustic features extracted

from speech recordings were reduced to 2D features

that allow to detect and visualize levels of valence and

arousal (Stuhlsatz et al., 2011).

In the following two sections, we experimentally

show that our expectations concerning ReNDA are

true, i.e. that ReNDA is also able to successfully learn

feature mappings for data visualization and that these

mappings are robust against ﬂuctuations in the data,

which is due to improved regularization. In order to

-1 0 1

-1

0

1

-0.03 0 0.03

-0.03

0

0.03

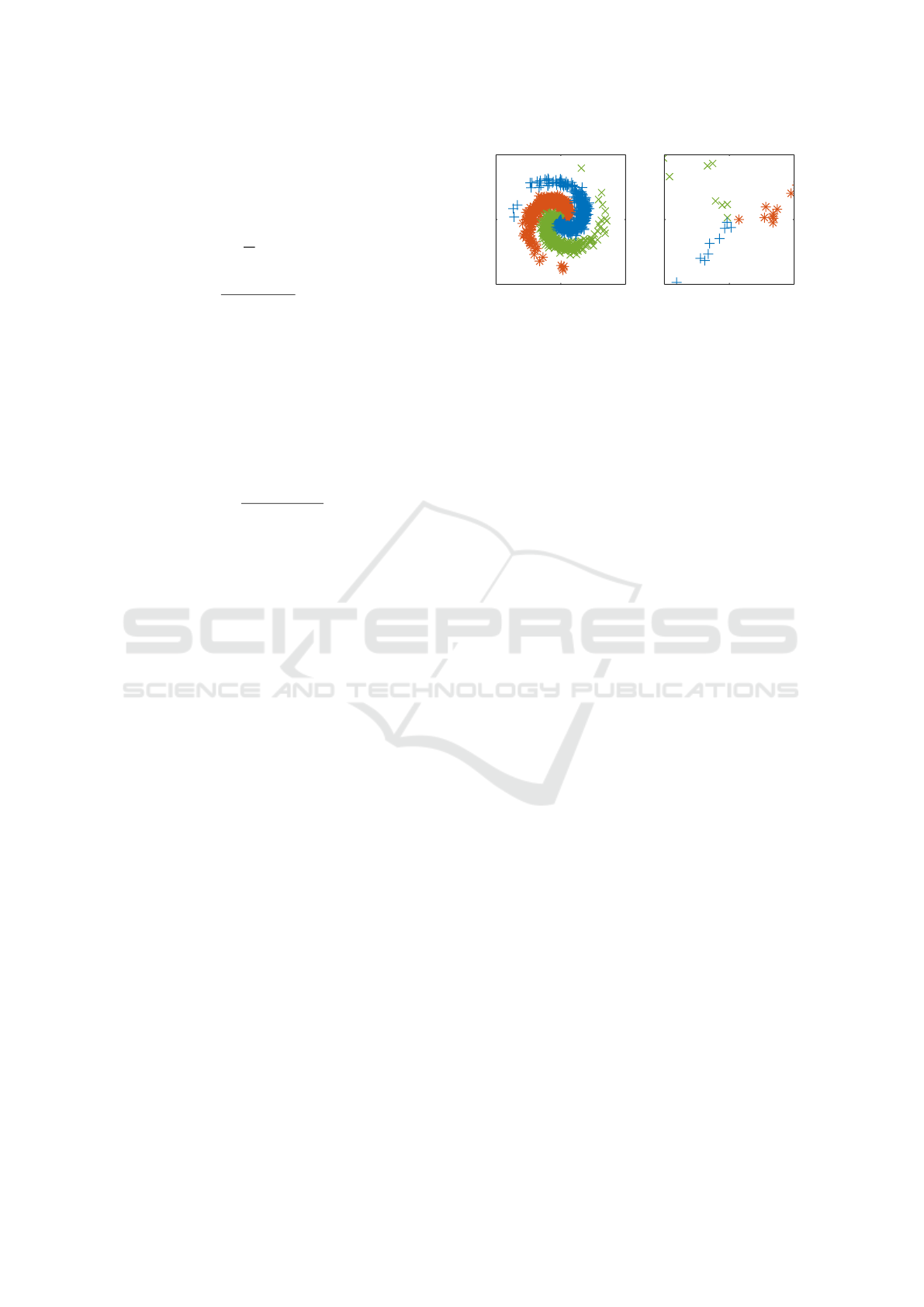

Figure 2: A scatter plot of the artiﬁcial galaxy data set. The

plot on the righthand side shows a zoom of the center point

of the galaxy. Here, we see that the 3 classes are in fact

non-overlapping but very difﬁcult to separate.

be able to see this improvement in regularization, we

ran all experiments for both ReNDA and GerDA and

compared their results.

Throughout all of the ReNDA experiments we set

λ = 0.5, mainly because it avoids prioritization of any

of the two criteria J

GerDA

and J

DAE

(cf. (2)), i.e. we

did not validate λ beforehand. It simply would have

been too computationally expensive.

3.1 Artiﬁcial Galaxy Data Set

To initially verify the expectations stated above, we

used the artiﬁcially generated galaxy-shaped data set

shown in Figure 2. Although it is already very easy

to visualize, DNN learning of optimal 1D features is

still challenging. The reason why we chose to use

an artiﬁcial rather than a real-world data set is that

most of the interesting real-world data sets are often

far too complex to obtain fast results. In the case of

the galaxy data set, the associated DNN parameters

are relatively fast to compute, which made it possible

to run very extensive experiments but with reasonable

computational effort.

3.1.1 Experimental Setup

The main goal of this experiment is to investigate the

inﬂuence of ﬂuctuations in the data on the learned

ReNDA and GerDA visualizations. The results will

allow us to compare these two approaches as regards

their robustness.

We simulated ﬂuctuations in the data by taking

10 distinct sets of samples from the galaxy data set,

which were then used for 10 ReNDA and 10 GerDA

runs. In detail, each of the 10 galaxy sets contains

1440 samples (480 per class) that were presented for

DNN learning, and additional 5118 samples (1706 per

class) that were used for validation. Further details on

how the samples are presented for DNN learning can

be found in the Appendix D.

For both ReNDA and GerDA we chose the DNN

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

120

topology 2-20-10-1. This choice is based on the very

similar 3-40-20-10-1 DNN topology that (Stuhlsatz

et al., 2012) used to learn informative 1D features

from a 3-class artiﬁcial Swiss roll data set. Removing

the intermediate dimension 40 made DNN learning

more challenging while reducing the computational

effort. In other words, it yielded a less ﬂexible DNN

mapping but with fewer parameters to optimize.

One very important aspect to consider is that the

algorithmic implementations of both ReNDA’s and

GerDA’s DNN learning, involve the use of a random

number stream. In this experiment we ensured that

this stream is the same for all 10 ReNDA and all 10

GerDA runs. The initial network parameters of the

RBM-pretraining are also based on this stream, which

implies that we do not include any potentially biased

parameter initializations. Moreover, any ﬂuctuations

in both the ReNDA and the GerDA results are due to

the simulated ﬂuctuations in the data only.

3.1.2 1D Visualization

We now compare the 1D mappings obtained from the

10 ReNDA and the 10 GerDA runs. To that end, we

use class-conditional histograms as a straightforward

method for 1D visualization. This is best explained

by directly discussing the results. In order to not get

things mixed up, we begin with the ReNDA results

shown in Figure 3(a) and discuss the GerDA results

(cf. Figure 3(b)) afterwards.

The top row of small plots in Figure 3(a) shows the

results of the individual ReNDA runs. Each of these

plots includes 3 distinct relative histograms that are

based on standardized 1D features associated with the

validation samples: One that considers the samples in

the red or asterisk (×+) class, a second for the green

or cross mark (×) class, and a third for the blue or

plus mark (+) class. The large plot in Figure 3(a)

represents an overlay of all small plots. Note that the

axis limits of all 11 plots are identical. Therefore, the

overlay plot indicates a high similarity between the

learned 1D mappings. Only the order of the 3 classes

changes throughout the different ReNDA runs, which

is due to the symmetry of the galaxy data set.

The corresponding GerDA histograms shown in

Figure 3(b) are organized in the very same way as in

Figure 3(a). Especially, two small histograms with the

same position in 3(b) and 3(a), respectively, are based

on the same 1440 samples for DNN learning and the

same 5118 samples for validation. However, here we

used differently scaled vertical axes depending on the

maximum bar height of each histogram. Observe that

only the two bold-framed histograms are similar to

the ReNDA histograms. Finally, the GerDA overlay

plot shows that the 1D mappings learned by GerDA

-2 -1 0 1 2

0

0.25

0.5

(a) ReNDA

-2 -1 0 1 2

0

0.5

1

(b) GerDA

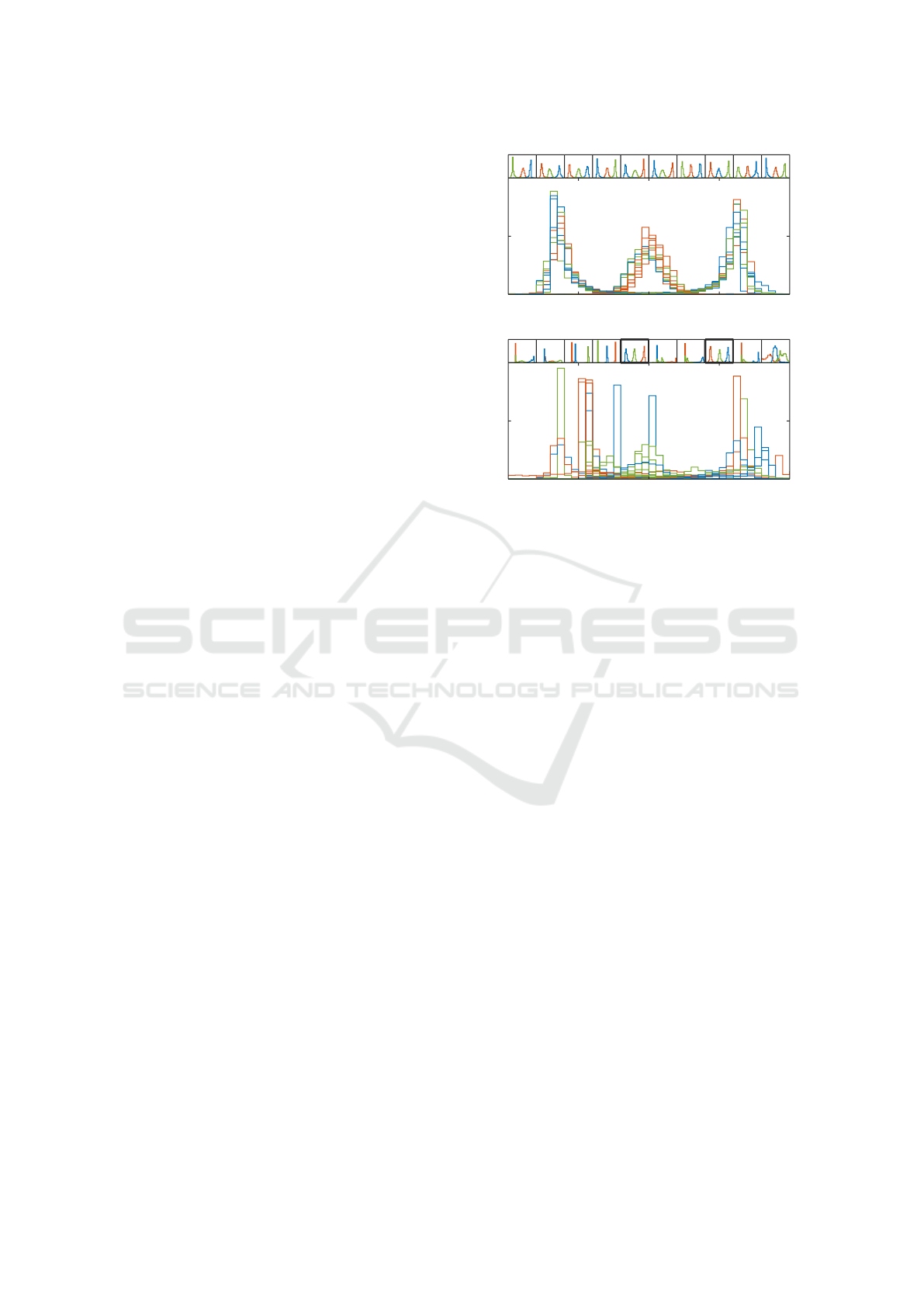

Figure 3: A comparison of the 1D mappings learned by

ReNDA (a) and GerDA (b). The top row of small subplots

in (a) and (b), respectively, shows the histograms of the 1D

features associated with the validation samples of each of

the 10 galaxy data sets. The large plots represent overlays

of these 10 subplots.

are signiﬁcantly less similar to each other than those

learned by ReNDA. In the case of GerDA, the three

classes are hardly to detect, whereas for ReNDA we

obtained 3 bump-shaped and easy to separate clusters.

The latter point, clearly shows that ReNDA is more

robust and thus better regularized than GerDA.

3.2 Handwritten Digits

Of course, the artiﬁcial galaxy data set used above is

neither high-dimensional nor an interesting example

from a practical point of view. We therefore decided

to run further experiments with the MNIST database

of handwritten digits (LeCun et al., 1998), a widely

used real-world and benchmark data set for the testing

of DNN learning approaches.

MNIST contains a large number of samples of

handwritten digits 0 to 9 stored as grayscale images

of 28×28 pixels. These samples are organized as two

subsets: a training set containing 60k samples and a

test set of 10k samples. Some examples taken from

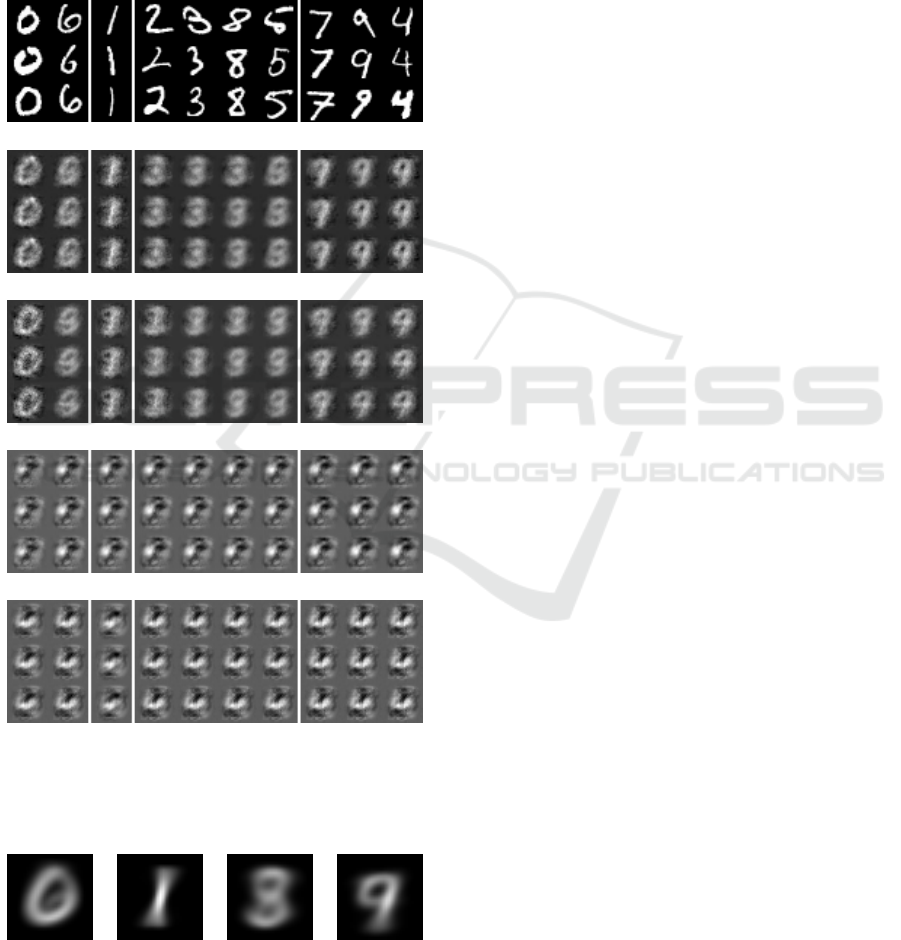

the test set are show in Figure 6(a). With its 28 × 28

pixel images and variations in the handwriting it falls

into the category of big dimensionality data sets as

discussed in (Zhai et al., 2014). Nevertheless there are

no visible non-understood ﬂuctuations present, which

is important for our experimental setup. As before,

Regularized Nonlinear Discriminant Analysis - An Approach to Robust Dimensionality Reduction for Data Visualization

121

we want to simulate the ﬂuctuations in order to see

their effect on the feature mappings.

3.2.1 Experimental Setup

The setup of this experiment slightly differs from that

of the previous one. We again considered ﬂuctuations

in data but also ﬂuctuations in the random number

stream that both ReNDA and GerDA depend on (c.f.

Section 3.1.1). In practice, the latter ﬂuctuations are

especially present when DNN learning is performed

on different computer architectures: Here, very much

simpliﬁed, different rounding procedures may lead

to signiﬁcantly dissimilar mappings even if the same

samples are presented for DNN learning.

In this experiment we simulated these ﬂuctuations

in the random number stream simply by generating 3

distinct random number streams with a single random

number generator. The ﬂuctuations in the data were

simulated via 3 distinct random partitions of the 60k

training samples into 50k samples presented for DNN

learning, and 10k samples for validation. Finally, we

combined each of these 3 partitions with each of the

3 random number streams, which then allowed us to

realize 9 ReNDA and 9 GerDA runs. Further details

on how the samples are presented for DNN learning

can be found in Appendix D.

For both ReNDA and GerDA we chose the DNN

topology 784-1500-375-750-2 that was also used in

(Stuhlsatz et al., 2012) in order to be able to compare

our results in a meaningful way.

3.2.2 2D Visualization

In the following we demonstrate ReNDA’s improved

robustness compared to GerDA by two means: We

use 2D scatter plots for data visualization and the

class consistency measure DSC suggested by (Sips

et al., 2009) to assess the quality and the robustness

of the underlying 2D mappings.

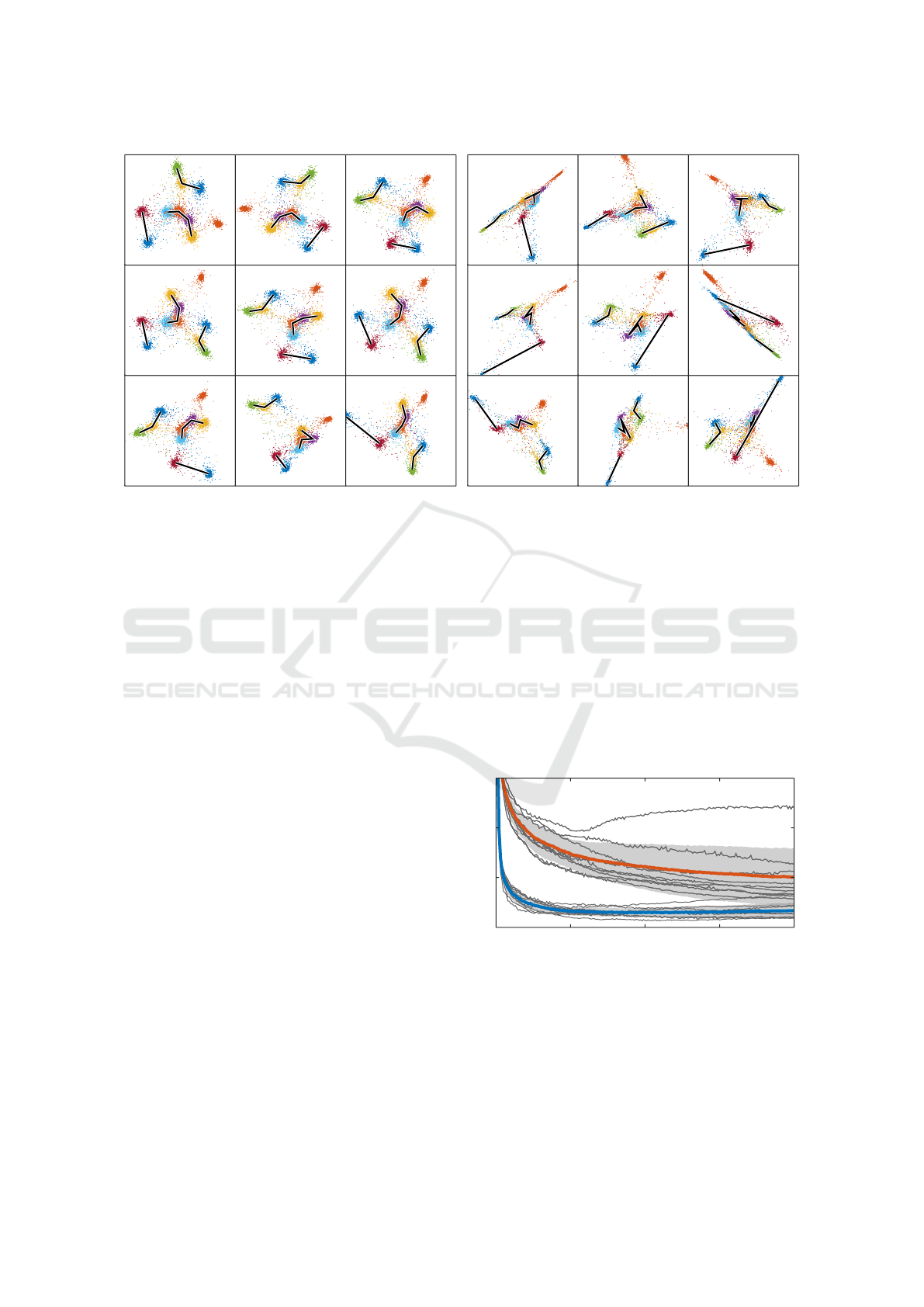

The scatter plots in Figure 4(a) show the results of

the 9 ReNDA runs. Each column corresponds to 1 of

the 3 partitions of the 60k training samples and each

row corresponds to 1 of the 3 random number streams

as described in the previous section. The 2D features

depicted are based on the 10k validation samples of

the respective run. Figure 4(b) shows the associated

GerDA scatter plots and it is organized in the very

same way. This includes that two scatter plots with

same position in 4(a) and 4(b) are based on the same

combination of a training set partition and a random

number stream.

The value given in the bottom left corner of each

scatter plot is the associated DSC score. DSC = 100

means that all data points have a smaller Euclidean

Table 1: A comparison of the DSC scores of several DNN

approaches to 2D feature extraction from the MNIST data

set. The validation results (average ± standard deviation)

for ReNDA and GerDA are based on the 9 DSCs shown

in Figure 4(a) and 4(b), respectively. For both ReNDA

and GerDA, the test results were obtained by applying the

f

enc

associated with the best validation DSC score on the

10k test samples. In order not only to compare ReNDA

and GerDA, we ran all 9 experiments with a deep belief

net DNN (DBN-DNN) approach suggested by (Tanaka and

Okutomi, 2014) (cf. Section 3.2.5). Additionally, the lower

table shows the comparison presented by (Stuhlsatz et al.,

2012). Here, no validation results were stated.

Our new results

Learned model Validation Test

ReNDA 94.94 ± 0.39 95.03

GerDA 91.47 ± 3.03 93.49

DBN-DNN

∗

96.62 ± 0.22 96.67

DBN-DNN + LDA

∗

93.78 ± 4.66 97.00

∗

) cf. Section 3.2.5

Formerly published results

Learned model Validation Test

t-SNE n/a 88.99

NNCA n/a 95.03

GerDA n/a 96.83

distance their own class centroid than to any other. It

is a good measure of visual class separability that can

be directly applied to any low-dimensional features

even if the underlying original sets of samples are not

available. Table 1 presents a comparison of the DSC

scores of ReNDA, GerDA and three other approaches

to dimensionality reduction for data visualization. Of

course, the fact that (Stuhlsatz et al., 2012) achieved

a higher DSC score is a less positive result. However,

considering the rather high standard deviation within

our 9 GerDA runs, this DSC score appears to be a

bit misleading, i.e. signiﬁcantly lower DSC scores are

very likely to occur. It is easy to see that ReNDA is

much more reliable as regards the DSC score.

Less evident is the fact that ReNDA again yields

reliably reproducible feature mappings. To illustrate

that this is nevertheless the case, we suggest a ﬁctive

walk through each of ReNDA’s scatter plots:

We start at 1 in any scatter plot and walk through

the corridor formed by the two clusters 2-3-8-5 and

7-9-4. Note that [except in the column 2, row 3 plot]

both these clusters are arc-shaped or, more precisely,

curved towards the path that we are walking on. We

stop midway between 4 and 5 and then turn in the

direction of the 2-3-8-5 cluster. From here, [except in

the column 1, row 2 plot] we ﬁrst see 6 and then 0.

Here, standing at 0 we would be able to see the other

side of the 2-3-8-5 arc.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

122

95.24

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

94.99

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

94.52

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

95.21

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

95.44

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

94.97

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

95.01

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

94.89

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

94.16

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

(a) 2D mappings learned by ReNDA

89.57

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

92.45

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

92.59

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

93.2

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

92.8

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

84.06

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

93.72

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

93.11

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

91.73

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

(b) 2D mappings learned by GerDA

Figure 4: A comparison of the 2D mappings learned by ReNDA (a) and GerDA (b). In both (a) and (b) the class centroids

are marked with the associated digits. Furthermore, clusters of digit classes are indicated by solid black lines. Each column

corresponds to 1 of the 3 partitions of the training samples and each row corresponds to 1 of the 3 random number streams.

The DSC score of each experiment is placed in the lower left corner.

This walk example shows that relative positions

of the classes to each other are very similar from plot

to plot. So in conclusion, the simulated ﬂuctuations

merely result in rotations and mirrorings of otherwise

very similar scatter plots. In the the corresponding

GerDA scatter plots (cf. Figure 4(b)), we were unable

to visually detect such a high degree of similarity. It

again follows that ReNDA is better regularized than

GerDA.

3.2.3 Robust Learning Behavior

It is natural to assume that the above ﬁnal results are

due to a more robust, more efﬁcient and more targeted

learning behavior. To test this, we compare the two

learning curves depicted in Figure 5. The curves show

the validation classiﬁcation error (error for short) as

a function of learning epochs, the iterative steps of

DNN learning. Clearly, like the DSC score, the error

is a measure of class separability. The reason why we

use it here is to show ReNDA also performs well on

classiﬁcation tasks.

In detail, we see the average ReNDA error (lower

emphasized, blue curve) and the average GerDA error

(upper emphasized, red curve). Both are surrounded

by a light gray ribbon indicating the corresponding

standard deviation per epoch. The thinner dark gray

curves represent the errors of the 9 ReNDA and the 9

GerDA runs, respectively.

Here, the assumed more robust learning behavior

of ReNDA is evident because throughout all learning

epochs its standard deviation is signiﬁcantly smaller

than that of GerDA. Also its average learning curve

is almost constant after epoch 50 whereas GerDA’s

average learning curve is still falling at epoch 200,

which surely can be interpreted as a more efﬁcient and

more targeted learning behavior.

0 50 100 150 200

4

8

12

16

Figure 5: A comparison of the learning curves associated

with ReNDA and GerDA. Each learning curve shows the

validation classiﬁcation error (error for short) as a function

of the learning epoch. The lower blue and the upper red

curve represent the average errors. The light gray ribbon

surrounding each of the two indicates the corresponding

standard deviations per epoch. The thinner dark gray curves

show the actual errors per epoch of the 9 ReNDA runs and

the 9 GerDA runs.

Regularized Nonlinear Discriminant Analysis - An Approach to Robust Dimensionality Reduction for Data Visualization

123

3.2.4 DAE Reconstruction

In the previous two subsections, we only compared

ReNDA and GerDA concerning their robustness. To

that end, we looked at 2D scatter plots, DSC scores

and learning curves, i.e. views and measures directly

associated with the extracted features Z. We will now

have a look at the data reconstructions

b

X that can be

(a) Original MNIST test samples.

(b) ReNDA, best DSC score

(c) ReNDA, worst DSC score

(d) GerDA, best DSC score

(e) GerDA, worst DSC score

Figure 6: Reconstructions of the MNIST test images, where

(a) shows the original samples. The digits are grouped as in

Figure 4: 0-6, 1, 2-3-8-5 and 7-9-4. The details on (b) to (e)

are given in Section 3.2.4.

(a) 0-6 (b) 1 (c) 2-3-8-5 (d) 7-9-4

Figure 7: Average images of all test samples associated with

the four clusters 0-6 (a), 1 (b), 2-3-8-5 (c) and 7-9-4 (d) as

depicted in Figure 4.

obtained from this features.

For the reconstructions in Figure 6(b) ReNDA’s

encoder mapping f

enc

with the best validation DSC

score and its associated decoder mapping f

dec

were

applied on the MNIST test images. For Figure 6(c)

we did the same but with ReNDA’s worst f

enc

and its

associated f

dec

. Observe that digits lying in the 7-9-4

cluster have a reconstruction that looks like a blurry

9. In the case of the 2-3-8-5 cluster, it is very similar

but with a blurry 3. Clearly, this shows that f

dec

is

able to decode features in a meaningful way, which

can be further supported by looking at the means of

these clusters (cf. Figure 7). As a matter of fact, the

mean images of the 7-9-4 and the 2-3-8-5 cluster are

a blurry 9 and a blurry 3, respectively. Another aspect

is that these blurry 9s and 3s do not vary much from

Figure 6(b) to Figure 6(c). It follows that the decoder

mappings are also very robust, which is certainly due

to the parameter sharing introduced via (12) and (13)

(cf. Section 2.2).

The “reconstructions” shown in Figure 6(d) and

Figure 6(e) are based on the GerDA runs with the

best and the worst validation DSC score. In order to

be able to decode the features, a decoding DNN has

been constructed from the learned encoding GerDA

DNN via (12) and (13), ReNDA’s parameter sharing

relations. Further, we have set b

b

2L

= 0

0

0. The result

clearly shows that DNN learning of a GerDA DNN

generally does not yield suitable network parameters

for decoding. At the same time, we have proven that

the quality of ReNDA’s reconstructions are in fact due

to DNN learning of the decoder DNN with respect to

the combined criterion J

ReNDA

(cf. (2)).

A closer investigation reveals that the images in

Figure 6(d) are different to those in Figure 6(e) which

again indicates that GerDA is not as well-regularized

as ReNDA. A very fascinating result is that all digit

reconstructions of each of the two GerDA runs appear

to be identical, i.e. a learned GerDA DNN assigns the

same reconstruction to all digits when constructing a

decoder via (12) and (13). The investigation of this

phenomenon is a part of our future work.

3.2.5 Comparison with Another DNN

So far, we have only compared ReNDA to its direct

predecessor GerDA. In order to be able to provide

further comparisons, we ran our 9 experiments with

the deep belief net DNN (DBN-DNN) approach that

has been suggested by (Tanaka and Okutomi, 2014).

Though originally designed to infer a binary target

vector scheme y 7→ t

t

t ∈ {0,1}

C

given by

t

i

(y) =

(

1 i = y

0 i 6= y

y ∈ {1,...,C}, (25)

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

124

96.72

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

96.64

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

96.77

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

96.57

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

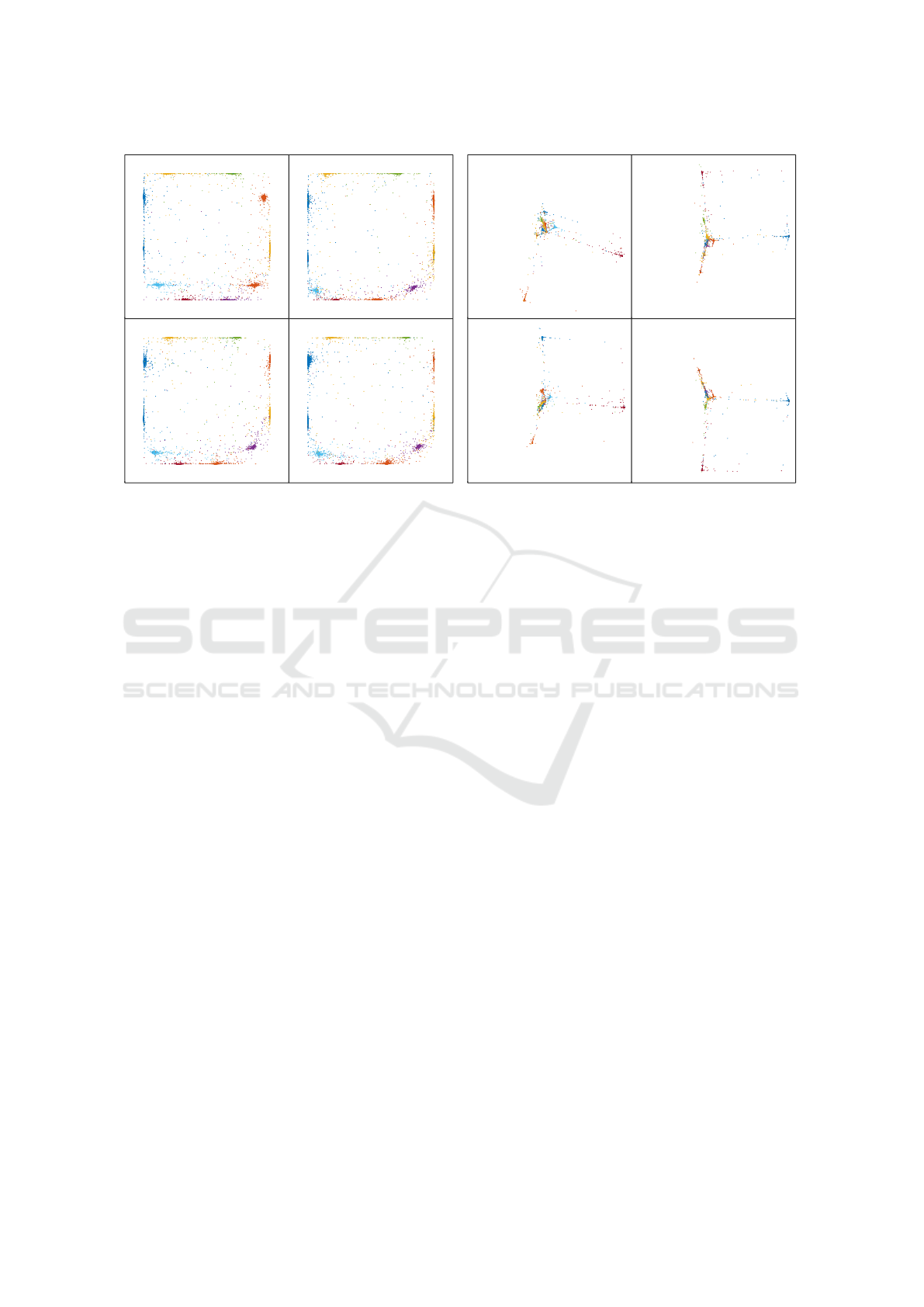

(a) 2D mappings learned by DBN-DNN

96.62

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

97.12

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

97.10

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

87.86

0

00

0

1

11

1

2

22

2

3

33

3

4

44

4

5

55

5

6

66

6

7

77

7

8

88

8

9

99

9

(b) 2D mappings learned by DBN-DNN + LDA

Figure 8: A comparison of the 2D mappings learned by the DBN-DNN (a) and the DBN-DNN + LDA (b). As in Figure 4

the class centroids are marked with the associated digits. Each column corresponds to ﬁrst 2 of 3 partitions of the training

samples and each row corresponds to ﬁrst 2 of 3 random number streams. DSC scores are placed in the lower right corner.

we expected it to yield informative, visualizable 2D

features. We designed two DBN-DNN experiments,

each of which involves the same 9 runs that we used

for our ReNDA and GerDA experiments, i.e. we again

considered each combination of the 3 partitions of the

training samples with the 3 random number streams.

Figures 8(a) and 8(b) show the obtained 2D features

associated with the 10k validation samples. Because

the within class scatter is very small compared to

the between class scatter, we decided to show only

the four plots corresponding to the ﬁrst 2 partitions

and the ﬁrst 2 random number streams, respectively.

However, the validation results given in Table 1 are

based on all 9 runs. The details on the experimental

setup can be found in Appendix D.

In our ﬁrst experiment, we changed the original

topology 784-1200-1200-10 (Tanaka and Okutomi,

2014) into 784-1200-1200-2-10, i.e. the intermediate

dimension 2 was added in order to obtain visualizable

features. As can be seen, the 2D mappings are highly

reproducible and the corresponding DSC scores are

slightly higher than those of ReNDA. A surprising

fact is that the visually separable 2D features tend

to lie close to the rim of product set (0|1) × (0|1).

Surely, these particular feature bounds are due to our

choice of activation functions: We used sigm : R →

(0|1) for all DBN-DNN layers. But the concentration

of the features at the rim of the feature space remains

an open question.

In our second experiment, we used the original

topology 784-1200-1200-10 for DNN learning and

applied a classical LDA : R

10

→ R

2

dimensionality

reduction, afterwards. We refer to this approach as

DBN-DNN + LDA (cf. Table 1). Although the DSC

scores of the obtained 2D mappings are even higher

than those of the above DBN-DNN experiment, the

corresponding scatter plots are quiet different to each

other. We can therefore conclude that this approach

is not as well-regularized as the DBN-DNN and the

ReNDA approach. The details on the experimental

setup of the DBN-DNN + LDA experiment are given

in Appendix D.

4 CONCLUSION

In this paper, we presented and investigated a novel

approach to robust dimensionality reduction for data

visualization that is a combination of two DNNs: One

is a nonlinear generalization of Fisher’s LDA called

GerDA (Stuhlsatz et al., 2012). The other DNN is a

deep autoencoder (DAE) (Hinton and Salakhutdinov,

2006). We refer to the combined DNN as ReNDA

(Regularized Nonlinear Discriminant Analysis). In

the context of data visualization, a well-regularized

DNN guarantees to learn a reliably reproducible 1D,

2D or 3D feature representation.

In order to test ReNDAs reliability, we designed

extensive experiments with simulated ﬂuctuations in

the data. We presented various data visualizations to

Regularized Nonlinear Discriminant Analysis - An Approach to Robust Dimensionality Reduction for Data Visualization

125

show that the learned dimensionality reductions are

very useful for information visualization and visual

data mining. Here, ReNDA has shown to be more

robust against the simulated data ﬂuctuations than

GerDA. As far as we know, this paper is the ﬁrst to

present such extensive experiments on the robustness

of DNNs. Therefore, we were forced to run all the

experiments on our own. Our experiments with the

DBN-DNN provide a ﬁrst glance at the capability of

another approach to dimensionality reduction for data

visualization (cf. Section 3.2.5). Of course, there are

other DNN approaches that are capable of learning

informative, visualizable features but here, one must

have in mind that extensive experiments are essential

to the process of ﬁnding suitable DNNs.

In this context, an important task is to ﬁgure out

what we can learn from other suitable DNNs, e.g. the

DBN-DNN (Tanaka and Okutomi, 2014). One of our

future task will be to include the recently proposed

drop out regularization (Srivastava et al., 2014). In

addition to the investigation and integration of other

promising approaches, there are of course some open

questions within the ReNDA approach itself: The

most important is if there is a better value for λ than

0.5 and if there is a way to automatically determine

an optimal λ-value. The next question points out a

chance that comes with ReNDA: Can we exploit the

unsupervised learning that the DAE part of ReNDA

performs, so that semi-supervised learning tasks can

be handled?

In summary, ReNDA has been shown to provide

a good way of learning dimensionality reductions for

data visualization. Moreover, questions like the two

above clearly show that the ReNDA approach can be

further advanced and adapted to suit a wide range of

real-world applications. Providing the possibility to

use ReNDA for semi-supervised learning will be an

essential advancement in this context.

ACKNOWLEDGEMENTS

We would like to thank the OVGU Magdeburg, the

Faculty of Media (HS D

¨

usseldorf) and the Faculty of

Mechanical and Process Engineering (HS D

¨

usseldorf)

for providing us with the computational power for our

extensive experiments.

REFERENCES

Duda, R. O., Hart, P. E., and Stork, D. G. (2000). Pattern

Classiﬁcation. John Wiley & Sons, Inc.

Erhan, D., Bengio, Y., Courville, A., Manzagol, P.-A.,

and Vincent, P. (2010). Why does unsupervised pre-

training help deep learning? Journal of Machine

Learning Research, 11:625–660.

Fisher, R. A. (1936). The use of multiple measurements in

taxonomic problems. Annals of Eugenics, 7:179–188.

Hinton, G. E. and Salakhutdinov, R. R. (2006). Reducing

the dimensionality of data with neural networks. SCI-

ENCE, 313:504–507.

LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proc. of the IEEE, pages 1–46.

Sips, M., Neubert, B., Lewis, J. P., and Hanrahan, P. (2009).

Selecting good views of high-dimensional data us-

ing class consistency. Computer Graphics Forum,

28(3):831–838.

Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: A simple way

to prevent neural networks from overﬁtting. Journal

of Machine Learning Research, 15:1929–1958.

Stuhlsatz, A., Lippel, J., and Zielke, T. (2012). Feature ex-

traction with deep neural networks by a generalized

discriminant analysis. IEEE Transactions on Neural

Networks, 666:1–666.

Stuhlsatz, A., Meyer, C., Eyben, F., ZieIke, T., Meier,

G., and Schuller, B. (2011). Deep neural networks

for acoustic emotion recognition: Raising the bench-

marks. In Proc. IEEE Intern. Conf. on Acoustics,

Speech and Signal Processing (ICASSP).

Tanaka, M. (2016). Deep neural network. MATLAB Central

File Exchange (# 42853). Retrieved Dec 2016.

Tanaka, M. and Okutomi, M. (2014). A novel inference

of a restricted boltzmann machine. In 22nd Inter-

national Conference on Pattern Recognition, ICPR

2014, Stockholm, Sweden, August 24-28, 2014, pages

1526–1531.

Zhai, Y., Ong, Y. S., and Tsang, I. W. (2014). The emerg-

ing ”big dimensionality”. IEEE Computational Intel-

ligence Magazine, 9(3):14–26.

APPENDIX

A. On the Normalized GerDA Criterion

In Section 2.4.1, we stated that the GerDA criterion

(21) is normalized, i.e. that J

GerDA

∈ (0|1). As this

is not straightforward to see, we give a proof in this

appendix section.

Let λ

k

for k ∈ {1,...,d

Z

} denote the eigenvalues

of (S

δ

T

)

−1

S

δ

B

. Then trace



(S

δ

T

)

−1

S

δ

B



=

∑

n

k=1

λ

k

and

we need to show that 0 < λ

k

< 1 for all k.

Therefore, let µ

k

for k ∈ {1,...,d

Z

} denote the

eigenvalues of S

−1

W

S

δ

B

and let x

x

k

∈ R

d

Z

denote an

eigenvector to the eigenvalue µ

k

. Then

S

−1

W

S

δ

B

x

k

= µ

k

x

k

⇔ x

x

tr

k

S

δ

B

x

k

= µ

k

· x

x

tr

k

S

W

x

k

.

(26)

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

126

Since both S

δ

B

and S

W

(cf. (19) and (20)) are positive

deﬁnite, we have that µ

k

> 0 for all k. We use (18) to

rewrite the characteristic eigenvalue equation associ-

ated with (26) as follows:



S

−1

W

S

δ

B

− µ

k

I

d

Z



x

k

= 0

0

⇔



S

−1

W

(S

δ

T

− S

W

) − µ

k

I

d

Z



x

k

= 0

0

⇔



S

−1

W

S

δ

T

− (µ

k

+ 1)

| {z }

=:κ

k

I

d

Z



x

k

= 0

0

0 (27)

Clearly, κ

k

for k ∈ {1,...,d

Z

} denote the eigenvalues

of S

−1

W

S

δ

T

and it is κ

k

> 1 for all k. The eigenvalues

of (S

−1

W

S

δ

T

)

−1

are simply 0 < κ

−1

k

< 1 for all k. We

ﬁnally use that (S

−1

W

S

δ

T

)

−1

= I

d

Z

−(S

δ

T

)

−1

S

δ

B

which is

equivalent to (18). With these last two statements we

further convert (27) to

⇔



(S

−1

W

S

δ

T

)

−1

− κ

−1

k

I

d

Z



x

k

= 0

0

⇔



(S

δ

T

)

−1

S

δ

B

−



1 − κ

−1

k



| {z }

=λ

k

I

d

Z



x

k

= 0

0

0. (28)

Here, it is easy to see that 0 < λ

k

< 1 for all k, which

is what we intended to show.

B. Partial Derivatives of J

GerDA

Let ` ∈ {1,.. .,L}. The partial derivatives of J

GerDA

(cf. (21)) are given by

∂J

GerDA

∂W

`

= ∆

∆

`

(X

`−1

)

tr

(29)

∂J

GerDA

∂b

b

`

= ∆

∆

`

· 1

1

N

(30)

with 1

1

N

:= (1,1,. .., 1)

tr

∈ R

N

and

∆

`

:= f

0

`

(A

`

) 

(

∂J

GerDA

/∂Z ` = L

(W

`+1

)

tr

∆

`+1

1 ≤ ` < L .

(31)

It is

∂J

GerDA

∂Z

= −

1

d

Z

·

∂Q

δ

z

∂Z

. (32)

A computable expression for ∂Q

δ

z

/∂Z along with its

derivation is given in (Stuhlsatz et al., 2012).

C. Partial Derivatives of J

DAE

In the case of J

DAE

(cf. (24)), the partial derivatives

with respect to the weight matrices are given by

∂J

DAE

∂W

`

= Λ

Λ

`

(X

`−1

)

tr

+



Λ

2L−`+1

(X

2L−`

)

tr



tr

(33)

for ` ∈ {1,...L}. The partial derivatives with respect

to the bias vectors are given by

∂J

DAE

∂b

`

=

(

Λ

2L

· 1

1

N

` = 2L

(Λ

Λ

`

+ Λ

Λ

2L−`

) · 1

1

N

1 ≤ ` < L .

(34)

with 1

1

N

:= (1,...,1)

tr

∈ R

N

. For ` ∈ {1,...2L} the

matrices Λ

Λ

`

are deﬁned by

Λ

`

:= f

0

`

(A

`

) 

(

∂J

DAE

/∂

b

X ` = 2L

(W

`+1

)

tr

Λ

`+1

1 ≤ ` < 2L .

(35)

with

∂J

DAE

∂

b

X

=

2



b

X − X



d

X

· N · (1 + MSE/d

X

)

, (36)

which is straightforward to prove.

D. Data Presentation for DNN Learning

The following table contains the details for our exper-

iments with the galaxy data sets and the MNIST data

set.

Table 2: Summary of our experiments details: In the case

of ReNDA and GerDA, batchsizes and number of epochs

were chosen as in (Stuhlsatz et al., 2012). In the case of the

DBN-DNN approach, we simply used the default settings

from the code provided by (Tanaka, 2016).

ReNDA and GerDA

Setup / Property Galaxy MNIST

Data dimensionality 2 784

Feature dimensionality 1 2

Number of classes 3 10

Number of data samples

used for DNN learning 1440 50000

used for validation 5118 10000

total, distinct 65580 60000

Pretraining

Batchsize 144 2000

Number of Epochs 10 50

Fine-tuning

Batchsize 288 5000

Number of Epochs 1000 200

DBN-DNN and DBN-DNN + LDA

∗

Pretraining

Batchsize 100

Number of Epochs 1000

Fine-tuning

Batchsize 100

Number of Epochs 1000

(

∗

) only the differences to the ReNDA / GerDA experiments
