Comparing Usability of User Interfaces for Robotic Telepresence

Federica Bazzano

, Fabrizio Lamberti

, Andrea Sanna

, Gianluca Paravati

and Marco Gaspardone

Politecnico di Torino, Dip. di Automatica e Informatica, Corso Duca degli Abruzzi, 24, 10129 Torino, Italy

TIM JOL Connected Robotics Applications LaB, Corso Montevecchio 71, 10129 Torino, Italy

Keywords:

Telepresence, Human-Robot Interaction (HRI), Augmented Reality, Robot Operating System (ROS).

Abstract:

In the last years, robotic telepresence solutions have received a signiﬁcant attention from both the commercial

and academic worlds, due to their ability to allow people to feel physically present at a remote place and

move in it. Operating a mobile robot with some autonomous capabilities from distance can enable a wide

range of mass-market applications, encompassing teleconferencing, virtual tourism, etc. In these scenarios,

the possibility to interact with the robot in a natural way becomes of crucial importance. The aim of this

paper is to investigate, through a comparative analysis, the usability of two major approaches used today

for controlling telepresence robots, i.e., keyboard and point-and-click video navigation. A control system

featuring the above interfaces plus a combination of the two has been developed, and applied to the operation

of a prototype telepresence robot in an ofﬁce scenario. The system additionally includes functionalities found

in many research and industry solutions, like map-based localization and “augmented” navigation. Then,

a user study has been performed to assess the usability of the various control modalities for the execution

of some navigation tasks in the considered context. The study provided precious indications to be possibly

exploited for guiding next developments in the ﬁeld.

1 INTRODUCTION

In the scientiﬁc world, the term “telepresence” was

coined in 1980 by Marvin Minsky, an American cog-

nitive scientist working in the area of artiﬁcial intelli-

gence (AI) and co-founder of the AI laboratory of the

Massachusetts Institute of Technology.

In an article published in 1980 (Minsky, 1980),

he wrote: “[...] to convey the idea of remote con-

trol tools, scientists often use the words ‘teleopera-

tor’ or ‘telefactor’. I prefer to call this ‘telepresence’

[...]. It emphasizes the importance of high-quality

sensory feedback and suggests future instruments that

will feel and work so much like our own hands that we

won’t notice any signiﬁcant difference”.

By leveraging the above deﬁnition, it is possible

to introduce the so-called “robotic telepresence”, i.e.,

the area of robotics where the telepresence concept

is applied to the control of a robot from a distance

(Sheridan, 1995).

When dealing with the robotic telepresence area,

two aspects are to be taken into particular account: the

remote robot operation and the sensory feedback.

The former aspect refers to the fact that the robot

and the operator do not share a common physical en-

vironment. The robot performs a given task in the

environment based on instructions received from the

remote human operator. The operator’s mental strain

resulting from performing this task in possibly com-

plex operational conditions, coupled with his or her

capability to respond to related demands, is generally

termed mental or cognitive workload (Cain, 2007).

The latter aspect indicates that the human opera-

tor, while supervising the robot, receives information

regarding its status and the surrounding environment,

which has to be displayed in a way that lets he or she

feel physically present at the remote site (Sheridan,

1992). The human’s perception and understanding of

this information is generally termed Situation Aware-

ness (SA) (Endsley, 1988).

An effective design of teleoperation interfaces re-

quires to identify the key elements to improve the op-

erator’s SA and lower his or her mental workload dur-

ing the execution of the remote tasks, while keeping

the interaction with the robot as simple as possible

(De Barros and Linderman, 2009). The number and

type of these elements directly translate into guide-

lines for designing effective techniques for human-

robot interaction (HRI).

Examples of key elements regarding SA include

Bazzano F., Lamberti F., Sanna A., Paravati G. and Gaspardone M.

Comparing Usability of User Interfaces for Robotic Telepresence.

DOI: 10.5220/0006170300460054

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 46-54

ISBN: 978-989-758-229-5

video and range information, as well as robot’s po-

sition and orientation (Nielsen and Goodrich, 2006).

Each element has its own advantages and drawbacks.

As a matter of example, video and range information

is useful, e.g., to inform the operator about the pres-

ence of obstacles in the environment, but it is usually

limited to the ﬁeld of view of the sensors used to cap-

ture the video or to measure the distance from an ob-

ject. Position and orientation are helpful to provide

navigation reference to the human operator, but band-

width limitations and communication delays could in-

troduce critical mismatches in the frames of reference

(Goodrich and Schultz, 2007).

Based on key elements mentioned above, telep-

resence interfaces are often broken down in two main

categories: map-centric and video-centric (Keyes,

2007). In a map-centric interface, the map represents

the most important input for the operator to supervise

the navigation. In general, the map covers a wide

region of the operator’s display and all the relevant

information is shown on it. In a video-centric inter-

face, it is the video information that plays the domi-

nant role.

Another key element that can signiﬁcantly impact

on the operator’s mental workload is represented by

the teleoperation paradigm used for remote robot nav-

igation.

The main teleoperation paradigms have been

historically classiﬁed into four categories, namely,

direct, multimodal/multisensor, supervisory, and

“novel” (Fong and Thorpe, 2001). Direct inter-

faces include all the “traditional” hand-controlled de-

vices, like mouse, keyboard, joystick, etc. Multi-

modal/multisensor interfaces offer multiple control

modes combined according to temporal and contex-

tual constraints in order to allow their interpretation.

Examples are voice and gesture commands combined

with traditional inputs (Stiefelhagen et al., 2007). Su-

pervisory control interfaces are designed for robots

with some level of autonomy. These interfaces pro-

vide methods for reviewing results, so that the op-

erator can monitor and identify execution anomalies.

Novel interfaces use unconventional input methods,

e.g., based on brainwave and muscle movement mon-

itoring (hence the name, basically meaning not in-

cluded in the previous categories).

In the last years, researchers from both academy

and industry proposed a number of interfaces for

robots’ teleoperation, often obtained by merging more

than one of the approaches reported above. Thus,

none of these solutions has emerged yet as the ulti-

mate approach to robotic telepresence.

By leveraging the above observations, this paper

reports on the activities that have been carried out

at Politecnico di Torino and at TIM JOL Connected

Robotics Applications LaB (CRAB) to investigate,

through a comparative analysis, the usability of two

major approaches that are used today in the industry.

The analysis has been performed by working with a

telepresence robot that has been exploited so far in

cultural heritage scenarios (Giuliano et al., 2015).

A user study was carried out with several volun-

teers, who were asked to carry out some navigation

tasks in a ofﬁce environment by working with a tele-

operation solution integrating both map and live video

“augmented” with navigation cues. Volunteers were

invited to control the robot by using a direct and a su-

pervisory approach (as well as a combination of the

two) and to judge the various control modalities from

the point of view of usability. Data about time and

number of interactions required to complete the tasks

were additionally recorded in order to measure the ef-

fectiveness of the various modalities.

The rest of the paper is organized as follows. In

Section 2, relevant works in the area of telepresence

robots are reviewed. In Section 3, the robot consid-

ered in the study is described. Section 4 provides an

overview of the overall control system, and reports the

details of the navigation modalities that have studied.

Section 5 introduces the methodology that has been

adopted to perform the experimental tests and dis-

cusses results obtained. Lastly, Section 6 concludes

the paper by providing possible directions for future

research activities in this ﬁeld.

2 RELATED WORK

Many works in the HRI domain investigated the de-

sign of interfaces for remote robotics applications.

Examples are reported in the academic literature and

are provided by commercial solutions as well.

For instance, in (Lewis et al., 2014) the map-

centric interface designed by the iRobot Corpora-

tion for the Ava 500 is presented. The interface al-

lows the operator to deﬁne the target location for the

robot by clicking on a 2D map. Similarly, in (Drury

et al., 2007), the map-centric system developed by

the MITRE Corporation is illustrated. In this system,

multiple robots are used to build up a map of the envi-

ronment. The devised interface allows the operator to

switch the navigation commands among the various

robots, by deﬁning their target location as 2D coor-

dinates. Small windows containing the video stream

received from the robots appear under the map. In

(Nielsen et al., 2004), the activities of the Idaho Na-

tional Laboratory aimed to the creation of a semantic

map-centric interface that combines information from

Comparing Usability of User Interfaces for Robotic Telepresence

the environment with a 3D virtual map are presented.

The map is augmented by icons or symbols deﬁned

by the operator during a preliminary exploration of

the environment, which are meant to provide a mean-

ing for given places and objects.

A limitation of this kind of interfaces could be rep-

resented by the map itself. In fact, faulty sensors or

dynamic objects in the environment could lead to the

creation of incorrect maps, which would reduce the

operator’s SA.

While the above solutions were experimented,

other works focused on the design of video-centric in-

terfaces. As a matter of example, in (Zalud, 2006), a

video-centric interface with 3D-display capabilities is

illustrated. The remote operator wears virtual real-

ity googles that show information about the robot and

the environment overlapped to the video stream. The

operator can change the point of view of the robot’s

camera based on where he or she is looking at, and

can guide the robot throughout the environment by

means of a two-hand joystick. Two severe drawbacks

of this interface are the immersion sickness due to the

use of a wearable display and the requirement about

the orientation of the operator’s head (that needs to be

enforced in order to maintain the robot’s camera prop-

erly centred). A different video-centric interface has

been developed by the Swarthmore College (Maxwell

et al., 2003). In this case, researchers used augmented

reality information overlapped to the video stream in

order to show the distance of the robot from an ob-

stacle and the pan-tilt-zoom indicators. Others infor-

mation, such as the infrared and sonar distance data,

location on the map and camera orientation are po-

sitioned around the screen area. Navigation inputs

are passed to the robot by using the keyboard or by

clicking on control buttons in the interface. The main

limitation of this interface is the way sensor data are

displayed. Visualization could be improved by merg-

ing them with the map information, in order to allow

the operator to better understand where the robot is

actually located (Keyes, 2007).

Works reviewed above have been selected as rep-

resentative examples of the developments made by

the academy. From a commercial perspective, it can

be observed that telepresence robots often rely on

video-centric interfaces. They mostly include also a

map, and generally exploit direct or supervisory tele-

operation. Some examples are the Beam Smart Pres-

ence Robot (Neustaedter et al., 2016), the VGo Robot

(Tsui et al., 2011), the Padbot Robot (Lee et al., 2015)

and the Ra.Ro Robot

. Their interfaces use traditional

technologies to let the operator deﬁne the coordinates

of the target destination on a map, while supervising

http://www.nuzoo.it/en/

the robot through a live video stream. The latter robot

recently integrated a further navigation method called

“smart drive”, which allows the operator to guide the

robot by pointing and clicking a speciﬁc location di-

rectly on the video stream, thus obtaining the 3D co-

ordinates to be passed on to the robot.

Based on the short review above, it can be ob-

served that the panorama of interfaces available for

remotely operating telepresence robots is quite het-

erogeneous, and data about suitability of a particular

implementation for a speciﬁc scenario are actually re-

quired in order to properly support next advancements

in the ﬁeld. Some activities in this direction have

been already carried out. For instance, in (Nielsen and

Goodrich, 2006), map-centric and video-centric inter-

faces are compared, by studying three conﬁgurations,

i.e., map-only, video-only, and map plus video. The

authors concluded their study by stating that, when

video and map information are integrated, they tend

to complement each other and to improve overall per-

formances.

The goal of the present paper is to build on results

reported in (Nielsen and Goodrich, 2006) to study a

richer scenario in which a mixed map & video-based

control system is considered, and two major robot’s

navigation interfaces used in recent telepresence so-

lutions available on the market as well as their com-

bination are compared from a usability perspective.

3 ROBOTIC PLATFORM

This section brieﬂy describes the robotic platform that

has considered in this study, named Virgil, by illus-

trating its hardware and software features.

Virgil is a telepresence robot developed in the

frame of the collaboration between TIM JOL Con-

nected Robotics Applications LaB and Politecnico di

Torino. It was originally designed to be used in cul-

tural heritage scenarios and allow museum visitors to

explore areas generally closed to the public (Fig.1).

The tour guide could take control of the robot re-

motely and teleoperate it in restricted areas by dis-

playing a live video stream to the visitors at the same

time.

The robot is based on a wheeled mobile platform

equipped with a pan-tilt camera and a laser sensor.

The former device allows the tour guide to remotely

move the focus on the area of interest without mov-

ing the robot, whereas the latter device allows the

robot to avoid possible obstacles present in the en-

vironment. It weights about 14 Kg and is 120 cm tall.

It is equipped with a Li-Fe 12V battery, which pro-

vides it with an autonomy of approximately 4 hours

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications

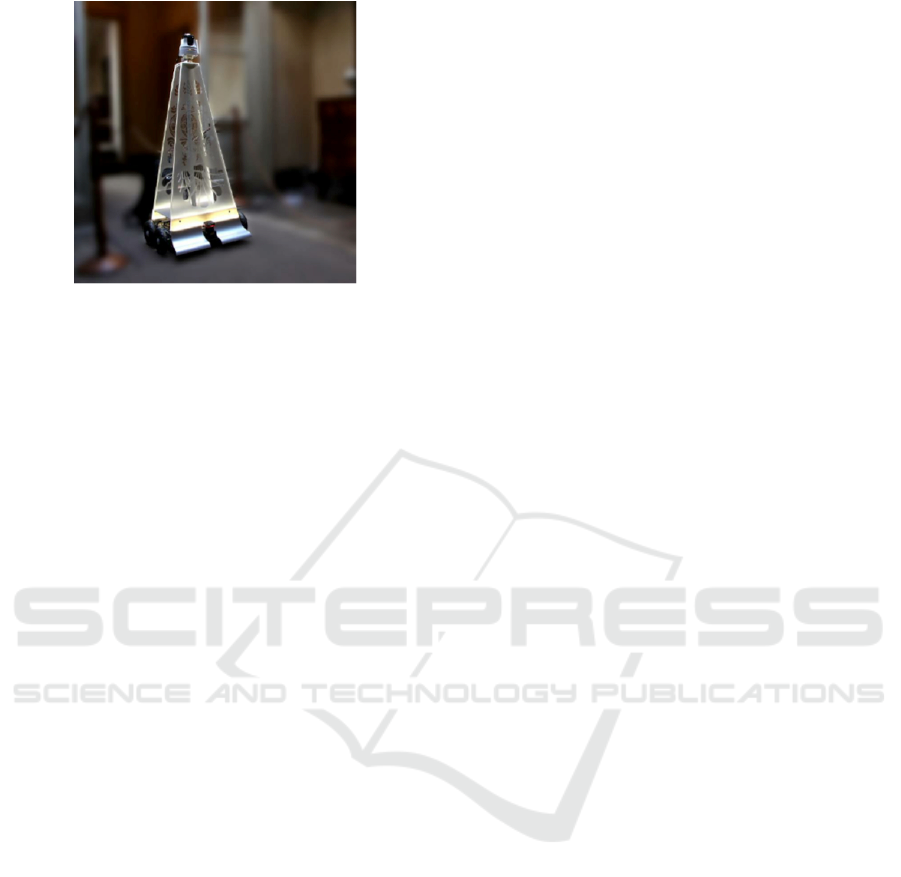

Figure 1: Virgil.

and a maximum velocity of 1 m/s. Virgil is capable

to navigate throughout a given environment in an au-

tonomous way by using its local and global path plan-

ning functionalities, which rely on a map of the envi-

ronment created in a preliminary exploration phase.

Algorithms are executed on the Robot Operating Sys-

tem (ROS)-based platform for cloud robotics created

by TIM.

With respect to the original setup, in this study

the robot has been modiﬁed by adding a tablet de-

vice, whose camera replaces the original sensor. The

screen is used to display at the remote site the face of

the operator, thus enhancing the sense of presence.

4 NAVIGATION MODALITIES

In this work, two navigation modalities have been

studied, which differ in the way the operator can con-

trol the robot and in the type of feedback returned.

In both the modalities, the interface displays a

large video window, in which the live stream from the

robot’s camera is shown (a smaller window shows the

video captured by a local webcam, which is displayed

on the remote tablet mounted on the robot).

In the ﬁrst modality, later referred to as keyboard

teleoperation, the operator manually guides the robot

throughout the environment by means of directions

keys. In the second interface, named point-and-click

video navigation, the operator either issues step-by-

step direction commands or speciﬁes a target destina-

tion by clicking it on the video stream received by the

robot’s camera; depending of the command issued,

the robot executes the particular commands or man-

ages to reach the destination in an autonomous way.

In the second modality, the path that is being fol-

lowed by the robot to reach the clicked target is addi-

tionally shown, overlapped to the video stream. Right

below the video window there is a colored bar, which

is used to display the distance from obstacles. The bar

is split in three regions, that depict obstacles in front,

to the left or the right of the robot. Bar color changes

from green to red based on the actual measurements

of the laser sensor.

The interface also includes a map, where the posi-

tion and orientation of the robot is shown in real time.

In particular, a yellow triangle is used to indicate the

robot’s location and orientation. In the second modal-

ity, a green marker is used to represent the clicked

destination and the orientation the robot will assume

once it will reach it. It is worth noting that navi-

gation algorithms actually work on a different map,

which was created by using the robot’s laser sensor

and applying a Simultaneous Localization and Map-

ping (SLAM) strategy.

In the present study, the focus has been kept on

robot’s navigation. Hence, the possibility to pan-tilt

the camera has not been considered.

The two modalities have been implemented in a

Web application, which communicates with the robot

and the cloud robotics platform that hosts the navi-

gation algorithms via roslibjs, a JavaScript-based

library for using ROS on the Web (Toris et al., 2015).

Details of two modalities and screenshot of the cor-

responding interfaces are reported in the next sub-

sections.

4.1 Keyboard Teleoperation

As said, this conﬁguration allows the user to move

the robot into the remote environment with the key-

board keys. The up and down arrow keys are associ-

ated with a ROS command that changes robot’s linear

velocity, making the robot move forward or backward

in the environment. The left and right keys change an-

gular velocity, twisting the robot accordingly. When

pressed together, the above keys can be used to make

the robot move in the given direction while turning

left or right. Command issued and current robot’s di-

rection are displayed on the video stream using aug-

mented reality arrows.

The same commands can be issued by clicking the

corresponding icons. In this case, two icons are used

to control the simultaneous use of direction and ori-

entation commands. The operator could also change

the robot’s speed by using the sliders in the bottom

part of the interface shown in Fig. 2 (not used in the

present study to enable comparability of results, since

arbitrary speed values are not supported by the path

planning algorithms adopted).

In this modality the feedback provided to the oper-

ator is represented by the live video stream and by the

map. The robot exploits a local path planning algo-

rithm to navigate the environment. Hence, informa-

Comparing Usability of User Interfaces for Robotic Telepresence

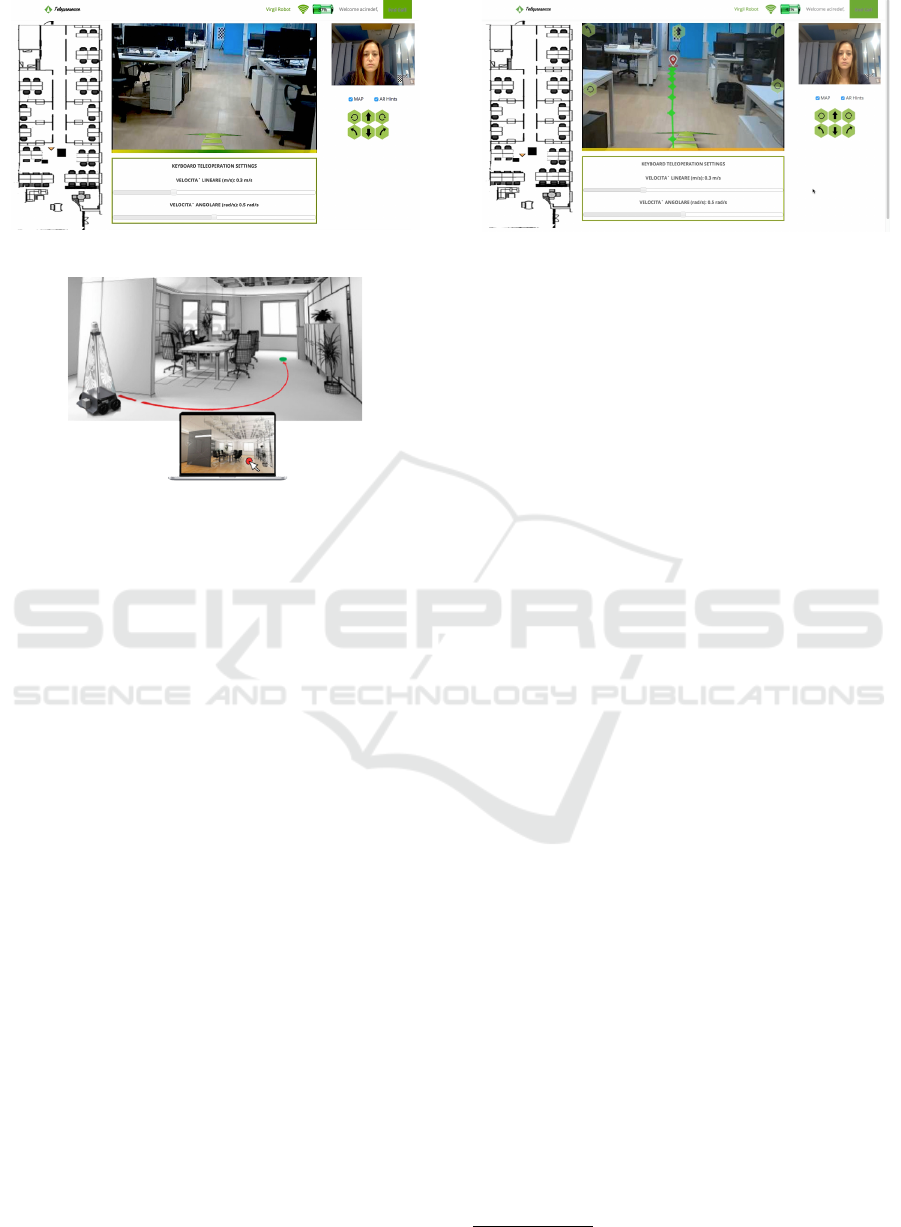

Figure 2: Keyboard teleoperation interface.

Figure 3: Point-and-click video navigation.

tion regarding the distance from obstacles is shown in

the colored bar below the video stream.

4.2 Point-and-click Video Navigation

This conﬁguration assumes that the operator deﬁnes

a target destination for the robot by simply clicking it

in the live video stream window, as shown in Fig. 3.

Since the intrinsic parameters of the camera and

(ﬁxed) pan-tilt conﬁguration are known, the coordi-

nates of the pixel clicked by the operator can be con-

verted to a point on the map by using ray-tracing. This

latter point is passed as a goal to the global path plan-

ning algorithm, which is designed to move the robot

towards the target destination at a constant speed by

avoiding both ﬁxed and moving obstacles.

With respect to previous modality, at any point in

time the robot knows the path elaborated by the plan-

ning algorithm to reach the goal. This path is over-

lapped to the video stream in augmented reality, as

shown in Fig. 4. This way, operator’s SA is further

increased with respect to previous modality.

It is worth observing that, when the robot is close

to an obstacle that occupies the whole ﬁeld of view

of the onboard camera, the operator is not able to

ﬁnd any point to click. Hence, in order to make this

modality comparable to the keyboard-based one, a

direct control method still based on clicking on the

video stream has also been implemented. With this

method, the operator can click on several active areas

on the edges and corners of the video window (like in

Figure 4: Point-and-click video navigation interface.

Google Street View

) to directly control robot’s linear

or angular velocity. When such commands are issued,

goals that might have been set for autonomous navi-

gation are cleared. A new goal could then be speciﬁed

once the target destination or an intermediate location

are visible again in the camera’s ﬁeld of view.

5 EXPERIMENTAL RESULTS

As anticipated, the goal of this paper is to perform an

evaluation of the keyboard teleoperation (later abbre-

viated, keyboard, or K) and point-and-click video nav-

igation (abbreviated point-and-click, or P) interfaces

and the combination of the two (combined, or C) from

the perspectives of usability and effectiveness.

Evaluation was carried out based on objective

and subjective observations collected through a user

study. The study involved 12 participants (9 males

and 3 females, aged between 24 to 27), selected

from the students of Politecnico di Torino. Accord-

ing to declarations collected, 80% of them had al-

ready used keyboard-based interfaces to issue direc-

tion commands (e.g., in video-games), and 50% had

previous experience with interfaces based on point-

and-click.

Each participants was invited to control the robot

by using all the above interfaces in order to carry out

three navigation tasks, referred to as as T1 - Reach the

column, T2 - Reach the room, and T3 - Enter/exit the

room. Such tasks have been speciﬁcally designed to

test the suitability of the various interfaces in the pos-

sible scenarios the robot could be involved into when

used in an ofﬁce scenario.

In particular, T1 was meant to test the interfaces

when guiding the robot to a destination that is outside

the camera’s ﬁeld of view. T2 was meant to test the

interfaces when obstacles are to be avoided. Lastly,

T3 was designed to test the interfaces when guiding

the robot in constrained spaces.

https://www.google.com/streetview/

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications

Figure 5: Map of the environment considered in the ex-

periments, initial location of the robot, destinations to be

reached in the tasks and possible paths.

Experiments were performed in the Graphics and

Intelligent Systems (GRAINS) Research Laboratory

in Turin on a laptop computer equipped with Ubuntu

14.04 LTS (Trusty Tahr) operating system, a monitor

with resolution 1920 × 1080 and an optical mouse as

input device.

After a brief training, participants were invited to

perform the three tasks in a sequence by using all the

interfaces. The interface to be used was chosen in a

random order so that to limit the effect of learning.

The robot is initially standing in the open space

of JOL laboratories in Turin. Its position is indicated

by the yellow triangle marker in the map shown in

Fig. 5. This choice has been made to ensure that the

camera cannot frame the destination to be reached in

the ﬁrst task. The participant ﬁrstly has to guide the

robot close to a column identiﬁed by label T1 in the

map. The path to be possibly followed is shown by the

blue arrow. Afterwards, the robot needs to be moved

to a second checkpoint (identiﬁed by label T2) located

in front of a particular meeting room by avoiding the

column. Possible path is shown in green. Finally, the

participant has to guide the robot into the room, bring

it close to a desk (indicated by label T3), turn around

and exit the room. Path is marked in red in the map.

During each experiment, quantitative data about

time required to complete the tasks and number of in-

teractions (key presses and/or mouse clicks, depend-

ing on the interface considered) were recorded. At the

end, each participant was asked to ﬁll in a usability

questionnaire

split in three parts.

The ﬁrst part was created by considering the

Nielsen Attributes of Usability (NAU) (Nielsen,

1994). NAU requested participants to evaluate ﬁve

statements referring to as many usability factors,

namely, Learnability, Efﬁciency, Memorability, Er-

rors and Satisfaction by expressing their agreement

on a 4-point Likert scale.

http://goo.gl/NzANxb

The second part was created by considering the

Subjective Assessment of Speech System Interfaces

(SASSI) methodology (Hone and Graham, 2000) and

adapting it to let participants judge the user experi-

ence with the given interaction means. The (adapted)

SASSI questionnaire requested participants to evalu-

ate 6 statements referring to as many usability factors,

i.e., System Response Accuracy (SRA), Likeability

(LIKE), Cognitive Demand (CD), Annoyance (AN),

Habitability (HAB) and Speed (SPE) by expressing

their agreement on a 4-point Likert scale. It is worth

observing that other tools speciﬁcally tailored to the

evaluation of mental workload could be exploited as

well (Rubio et al., 2004), (Kiselev and Loutﬁ, 2012).

The third part asked participants to rank, for each

task, the experience made with the three interfaces by

providing their judgment both for the three individual

tasks as well as for the whole experiment.

Results obtained in terms of completion time as

well as number of interactions required to complete

the tasks are reported in Fig. 6. At ﬁrst sight, it ap-

pears that, in T1 and T3, completion times obtained

with the keyboard and the combined interfaces were

largely lower than those experimented with the point-

and-click one (Fig. 6(a)). Statistical signiﬁcance was

conﬁrmed by running paired samples t-test (P largely

lower than 0.05). Results for T2 were not statistically

signiﬁcant. Average values for the number of inter-

actions (Fig. 6(b)) indicate that, for all the tasks, the

point-and-click and the combined interfaces required

a lower number of interactions compared to the key-

board one (this number was much lower in the case

of T2).

Lower completion time and reduced number of in-

teractions for the keyboard and the combined inter-

faces are observed also when summing up results ob-

tained for the three tasks, i.e., considering them alto-

gether as a single experiment.

Results obtained with the subjective evaluation

based on the NAU methodology (Fig. 8) appear to de-

scribe an almost comparable situation overall, since

participants judged the keyboard and combined in-

terfaces more usable than the point-and-click one for

what it concerns the ﬁve factors considered.

Similar considerations can be made for ﬁve out

of the six usability factors of the (adapted) SASSI

methodology. In fact, as shown in Fig. 9, the point-

and-click interface performed better than the other

ones only in terms of Annoyance, i.e., in terms of how

much the interface was judged repetitive and boring.

Results regarding users’ preferences in using the

three interfaces to carry out individual tasks as well

as the whole experiment are shown in Fig. 7. Con-

sidering overall rankings, it appears that the favorite

Comparing Usability of User Interfaces for Robotic Telepresence

(a)

(b)

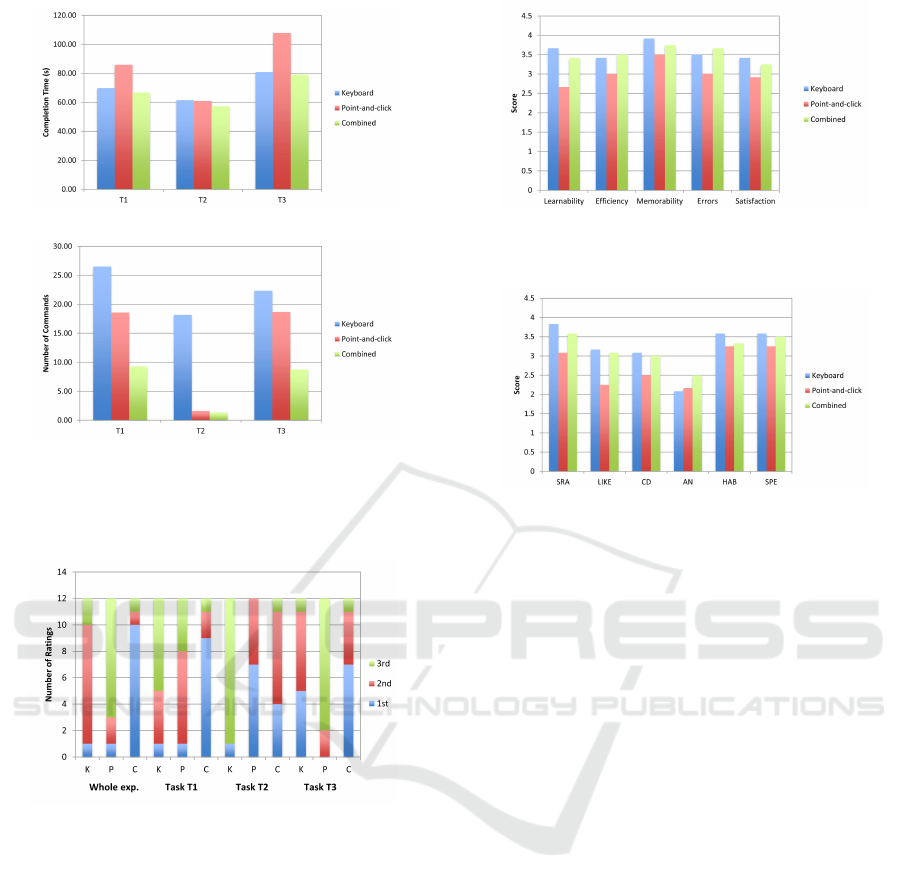

Figure 6: Results in terms of (a) completion time and (b)

number of interactions required to complete the tasks with

the considered interfaces. Bar heights report average values

(lower is better).

Figure 7: Number of times the keyboard teleoperation (K),

point-and-click video navigation (P) and combined (C) in-

terfaces have been ranked 1

, 2

and 3

for the execution

of the whole experiment and individual tasks.

interface is the combined one. When individual tasks

are considered, it could be observed that the combined

interface is the one that was preferred for performing

T1 and T3 (see in particular blue and red columns in

Fig. 7, where the number of times a given interface

has been ranked 1

or 2

is showed).

Concerning the users’ gender classes, statisti-

cally signiﬁcant differences in terms of completion

time were found using Anova tests (0.05 signiﬁcance

level). Females were faster than males in executing

T3 with the point-and-click interface and T1 with the

combined one. As for users’ previous experience with

keyboard-based interfaces, the task completion time

of those who indicated an everyday usage frequency

was lower than those who stated to be used to work

with such kind of interfaces once a week. A simi-

Figure 8: Results concerning the usability of the three inter-

faces for the whole experiment based on NAU factors. Bar

heights report average values (higher is better).

Figure 9: Results concerning the usability of the three inter-

faces for the whole experiment based on (adapted) SASSI

methodology. Bar heights report average values (higher is

better).

lar consideration holds also for the number of interac-

tions required to complete the tasks. Results for prior

knowledge about point-and-click interfaces and sub-

jective observations were not statistically signiﬁcant.

Based on the feedback gathered in the tests, pref-

erence seems to be mainly motivated by to fact that,

as it could be largely expected, participants were al-

lowed to switch between the two interfaces when

needed, thus beneﬁting from the advantages of both

of them. This behavior can be appreciated also con-

sidering results discussed above. However, by com-

bining these results with those regarding users’ in-

teraction, it is evident that, in the execution of the

above tasks, participants mainly used the keyboard in-

terface. The point-and-click interface was largely pre-

ferred in the execution of T2 and slightly preferred in

the execution of T1. This is reasonably due to the fact

that, in these tasks, robot was requested to move over

long distances. In these situations, autonomous nav-

igation capabilities could effectively limit the partici-

pants’ workload, who simply need to click on the des-

tination to reach (by possibly specifying intermediate

waypoints or adjusting the path by issuing directional

commands using the active regions on the borders and

corners of the video window). It is also worth adding

that most of the concerns regarding the use of the

point-and-click interface were related to speciﬁc ﬁeld

of view of the camera, which often limited the pos-

sibility for the operator to immediately spot the des-

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications

tination to click. This limitation could be addressed

by adding the possibility for the various interfaces to

control also the pan-tilt of the camera.

6 CONCLUSIONS

In this work, a comparative analysis of user interfaces

for robotic telepresence applications was presented.

The evaluation focused on two main control modali-

ties used today in most research and commercial solu-

tions, i.e., keyboard and point-and-click video naviga-

tion. The combination of the two was also considered.

Experimental results obtained through a user

study provided precious indications about user ex-

perience with the three interfaces, both in objective

and subjective terms. In particular, results obtained

with the objective evaluation showed that, through the

combined interface, time required to perform a com-

plex task and commands to be issued can be signif-

icantly reduced. Similarly, results obtained with the

subjective evaluation suggested that the favorite inter-

face was the combined one. However, based on the

feedback gathered in the tests, it could be observed

that users’ preference for the combined interface was

due to fact that they were allowed to switch between

the two interfaces when needed, thus beneﬁting from

the advantages of both of them. By digging more

in details in performances obtained and preferences

expressed in the execution of speciﬁc navigation op-

erations, it was found that the keyboard-based inter-

face actually provided signiﬁcant advantages when

accurate control was needed, whereas point-and-click

video navigation was more effective when robots au-

tonomous navigation capabilities could be exploited.

Future works will be aimed to address concerns

regarding the possibility to control the pan-tilt of the

robot’s camera in the point-and-click video naviga-

tion interface, which should translate into even bet-

ter performances for the combination of the two in-

terfaces and for next-generation robotic teleoperation

solutions.

REFERENCES

Cain, B. (2007). A review of the mental workload literature.

Technical report, DTIC Document.

De Barros, P. G. and Linderman, R. W. (2009). A survey

of user interfaces for robot teleoperation. Tech. Rep.

Series, WPI-CS-TR-09-12.

Drury, J. L., Keyes, B., and Yanco, H. A. (2007). Lassoing

hri: analyzing situation awareness in map-centric and

video-centric interfaces. In Human-Robot Interaction

(HRI), 2nd ACM/IEEE Int. Conf. on, pages 279–286.

IEEE.

Endsley, M. R. (1988). Design and evaluation for situa-

tion awareness enhancement. In Proc. of the Human

Factors and Ergonomics Society Annual Meeting, vol-

ume 32, pages 97–101. SAGE Publications.

Fong, T. and Thorpe, C. (2001). Vehicle teleoperation inter-

faces. Autonomous robots, 11(1):9–18.

Giuliano, L., Ng, M. E. K., Lupetti, M. L., and Germak, C.

(2015). Virgil, robot for museum experience: study

on the opportunity given by robot capability to inte-

grate the actual museum visit. In Intelligent Tech-

nologies for Interactive Entertainment (INTETAIN),

7th Int. Conf. on, pages 222–223. IEEE.

Goodrich, M. A. and Schultz, A. C. (2007). Human-

robot interaction: a survey. Foundations and trends

in human-computer interaction, 1(3):203–275.

Hone, K. S. and Graham, R. (2000). Towards a tool for

the subjective assessment of speech system interfaces

(sassi). Natural Language Eng., 6(3&4):287–303.

Keyes, B. (2007). Evolution of a telepresence robot inter-

face. Unpublished master’s thesis. University of Mas-

sachusetts, Lowell, 7.

Kiselev, A. and Loutﬁ, A. (2012). Using a mental workload

index as a measure of usability of a user interface for

social robotic telepresence. In 2nd Workshop of Social

Robotic Telepresence in Conjunction with IEEE Inter-

national Symposium on Robot and Human Interactive

Communication 2012.

Lee, H., Choi, J. J., and Kwak, S. S. (2015). A social agent,

or a medium?: The impact of anthropomorphism of

telepresence robot’s sound interface on perceived co-

presence, telepresence and social presence. In Proc.

of the 7th Int. workshops on the convergent Research

Society among Humanities, Sociology, Science, and

Technology, pages 19–22.

Lewis, T., Drury, J., and Beltz, B. (2014). Evaluating mobile

remote presence (mrp) robots. In Proc. 18th Int. Conf.

on Supporting Group Work, pages 302–305. ACM.

Maxwell, B. A., Ward, N., and Heckel, F. (2003). A human-

robot interface for urban search and rescue. AAAI Mo-

bile Robot Competition, 3(1).

Minsky, M. (1980). Telepresence. Omni, pages 45–51.

Neustaedter, C., Venolia, G., Procyk, J., and Hawkins, D.

(2016). To beam or not to beam: A study of remote

telepresence attendance at an academic conference. In

Proc. of the 19th ACM Conf. on Computer-Supported

Cooperative Work & Social Computing, pages 418–

431. ACM.

Nielsen, C. W. and Goodrich, M. A. (2006). Comparing the

usefulness of video and map information in navigation

tasks. In Proc. of the 1st ACM SIGCHI/SIGART conf.

on Human-robot interaction, pages 95–101. ACM.

Nielsen, C. W., Ricks, B., Goodrich, M. A., Bruemmer, D.,

Few, D., and Few, M. (2004). Snapshots for semantic

maps. In Systems, Man and Cybernetics, IEEE Int.

Conf. on, volume 3, pages 2853–2858. IEEE.

Nielsen, J. (1994). Usability engineering. Elsevier.

Rubio, S., D

ıaz, E., Mart

ın, J., and Puente, J. M. (2004).

Evaluation of subjective mental workload: A compar-

ison of swat, nasa-tlx, and workload proﬁle methods.

Applied Psychology, 53(1):61–86.

Comparing Usability of User Interfaces for Robotic Telepresence

Sheridan, T. B. (1992). Telerobotics, automation, and hu-

man supervisory control. MIT press.

Sheridan, T. B. (1995). Teleoperation, telerobotics and

telepresence: A progress report. Control Engineering

Practice, 3(2):205–214.

Stiefelhagen, R., Ekenel, H. K., Fugen, C., Gieselmann,

P., Holzapfel, H., Kraft, F., Nickel, K., Voit, M., and

Waibel, A. (2007). Enabling multimodal human–

robot interaction for the karlsruhe humanoid robot.

IEEE Transactions on Robotics, 23(5):840–851.

Toris, R., Kammerl, J., Lu, D. V., Lee, J., Jenkins, O. C., Os-

entoski, S., Wills, M., and Chernova, S. (2015). Robot

web tools: Efﬁcient messaging for cloud robotics. In

Intelligent Robots and Systems (IROS), IEEE/RSJ Int.

Conf. on, pages 4530–4537. IEEE.

Tsui, K. M., Desai, M., Yanco, H. A., and Uhlik, C. (2011).

Exploring use cases for telepresence robots. In 6th

ACM/IEEE Int. Conf. on Human-Robot Interaction

(HRI), pages 11–18. IEEE.

Zalud, L. (2006). Argos-system for heterogeneous mobile

robot teleoperation. In IEEE/RSJ Int. Conf. on Intelli-

gent Robots and Systems, pages 211–216. IEEE.

HUCAPP 2017 - International Conference on Human Computer Interaction Theory and Applications
