Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

Janosch Maier

, Arne Padmos

, Mortaza S. Bargh

and Wolfgang W

orndl

Technical University of Munich, Munich, Germany

Creating 010, Rotterdam University of Applied Sciences, Rotterdam, The Netherlands

Research and Documentation Centre, Ministry of Security and Justice, The Hague, The Netherlands

Keywords:

Cyber Security, Dashboard Design, Mental Models, Policymaking.

Abstract:

Governments make cyber security related policies to protect citizens’ interests and national infrastructures

against cyber attacks. Cyber security related data can enable evidence based policymaking. Data visualisation

via dashboards can help understanding of these cyber security data. Designing such dashboards, however,

is not straightforward due to difﬁculty for potential dashboard users to correctly interpret the displayed in-

formation. In this contribution we investigate the use of mental models for correct interpretation of displayed

information. Our research question is: How useful are mental models for designing cyber security dashboards?

We qualitatively investigate the mental models of seven cyber security experts from a typical governmental

organisation. This research shows how operators, analysts and managers have different cyber security mental

models. Based on the insight gained on these mental models, we develop a cyber security dashboard to assess

the impact of mental models on dashboard design. An experience evaluation shows that the realised dashboard

is easy to understand and does not obstruct users. We, however, do not see any meaningful difference in how

the experts perceive the dashboard, despite their different cyber security mental models. We propose some

directions for future research on using mental models for cyber security dashboard design.

1 INTRODUCTION

Governments are not autotelic organisations. Indeed,

they are supposed to give security to their citizens

by laws and law enforcement. An important area

where governments’ increasing involvement, supervi-

sion and intervention are needed is the cyber security

and safety domain. Laws and policy decisions that

are based on wrong assumptions may have unforesee-

able effects. Governments can use the data available

on cyber security attacks and threats for making cy-

ber security related policies so that citizens’ interests

and vital infrastructures can be protected against pos-

sible cyber attacks (National Cyber Security Center,

2014), (Trend Micro Incorporated, 2015). Analysing

cyber security related data can help elucidating reli-

able evidence-based assumptions for policy develop-

ment. Visualising of this data is an important step of

data understanding and analysis. If nobody can see or

understand the data, they cannot be used as a sound

basis for decision-making and policymaking.

One way of displaying this kind of data can be to

use a cyber security dashboard. Originally, a dash-

board is a piece of wood on a carriage or other horse-

pulled vehicles that should protect the driver’s feet

from mud thrown up by horse feet (Hinckley et al.,

2005). Later, within cars, they were developed from

design elements to plain and functional parts contain-

ing the instruments for measuring the state of the car.

This includes showing the measurements of speed,

fuel level or motor rotation. With this information,

one can operate a car easily. He can, for example,

make sure that he is not over-speeding and ﬁll the tank

before running out of fuel. Dashboards in IT world

try to mimic these characteristics. Stephen Few (Few,

2006, p. 26) deﬁned a dashboard as follows:

A dashboard is a visual display of the most

important information needed to achieve one

or more objectives; consolidated and arranged

on a single screen so the information can be

monitored at a glance.

We will use this deﬁnition for dashboards in this

work. The main reason for a dashboard is monitor-

ing. Data visualisation via dashboards enables a user

to easily notice what is most important. For exam-

ple, a trafﬁc light coded system can show whether a

certain part of the monitored system needs a special

focus. Dashboards cannot provide deep analyses that

rely on the comparison of many different kinds of data

128

Maier J., Padmos A., S. Bargh M. and WÃ˝urndl W.

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards.

DOI: 10.5220/0006170901280139

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 128-139

ISBN: 978-989-758-228-8

or the possibility to have speciﬁc data query displays.

For those tasks, one needs a fully-ﬂedged analytical

tool. In (Few, 2007) some hints are given on how such

tools – so-called faceted analytical displays – provide

insight using proper visualisation techniques.

Our objective is to design cyber security dash-

boards that provide a suitable way of data visuali-

sation in the domain of cyber security policymaking.

If cyber security policymakers have the most impor-

tant information visible on one screen, they can easily

monitor the cyber security status and make informed

decisions. In addition to guiding cyber security pol-

icymakers, cyber security dashboards can help other

user groups, such as system operators or data analysts,

in the ﬁeld of cyber security in their daily practices.

Designing cyber security dashboards for policy-

making purposes is not straightforward. A major

challenge hereto is to correctly interpret the infor-

mation provided in the dashboard, i.e., the users of

the dashboard need to fully understand the displayed

data. Our approach for enabling this understanding

is based on mental models (Craig, 1943)(Doyle and

Ford, 1998). Mental models are basically the inter-

nal representations of external processes. As the main

contribution of the paper, therefore, we pose this re-

search question: How useful are mental models for

the design of cyber security dashboards for policy-

making purposes? To this end, we investigate the cy-

ber security mental models of cyber security experts

within a typical governmental organisation. Based on

the insight gained on these mental models, we de-

velop a dashboard prototype and assess the results.

For our research ﬁrst we did a literature study

on mental models and (the design of) cyber security

dashboards. Subsequently, we carried out a number

of expert interviews in a semi-structured way (D

oring

and Bortz, 2015), where each interviewee carried out

also a drawing exercise. The objective of this quali-

tative study was to understand the cyber security re-

lated mental models of the users – who will poten-

tially use the cyber security dashboard – and to learn

about the data relevant for these users. We grouped

the experts into operators, analysts and managers to

see how mental models differ per function/role. For

the analysis of the interviews we used the qualitative

content analysis (Mayring, 2010)(Mayring, 2015). In

order to examine the impact of mental models on cy-

ber security dashboards we carried out a follow up

study through design, realisation and evaluation of a

prototype. The realised prototype was evaluated for

user experience as well as for functionality. To as-

sess the user experience, we used the User Experience

Questionnaire (Laugwitz et al., 2008). Both studies

were carried out in a typical governmental organisa-

tion involved in cyber security policymaking.

The rest of the paper is organised as follows. In

Section 2 we present the background information on

mental models and the related work. Then in Section

3 we describe in detail how we conducted our initial

study to elucidate the mental models of the potential

users and present the results obtained. Subsequently

in Section 4 we describe how we developed and eval-

uated the prototype to examine the impact of men-

tal models on designing a cyber security dashboard.

In Section 5 we draw some conclusions and sketch a

number of directions for future work.

2 BACKGROUND

2.1 Mental Models

The term mental model was ﬁrst used by Craig in

his book ”The Nature of Explanation” (Craig, 1943).

There he discusses that humans translate external pro-

cesses into internal representations. Subsequently,

they reason based on this representation. The results

of the reasoning can be retranslated by applying them

to the external world. The internal representation is

the person’s mental model. This term was picked up

later by other scholars and it is now a widely used

term in cognitive psychology. However, different re-

searchers have used different terms to describe the

same concept, or have used the same term with differ-

ent meanings. For this work, the mental model refers

to the cognitive model that a person has in mind on a

certain domain. We will use the following deﬁnition:

A mental model of a dynamic system is a

relatively enduring and accessible but limited

internal conceptual representation of an ex-

ternal system whose structure maintains the

perceived structure of that system (Doyle and

Ford, 1998, p. 17ff.).

Even though this deﬁnition describes a mental

model as a relatively enduring representation of an

external system, this does not mean that there are

no changes possible. McNeil shows how the mental

models of industrial design students change whilst do-

ing a collaborative project (McNeil, 2015). A learn-

ing experience might also be the use of software in a

certain domain. Based on the constructivists’ view,

learning leads to building a mental model (Knorr-

Cetina, 1981). This is also the case in learning of

computer science related topics (Ben-Ari, 1998).

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

129

2.2 Related Work

Recently, several companies have started creating in-

teractive cyber attack maps that visualise cyber at-

tacks in real-time (CTF365 Blog, 2014). Media com-

panies are also trying to visualise such attacks (Wired

UK, 2015). These maps mainly show attacks on hon-

eypots. All trafﬁc going there is treated as an attack,

as honeypots do not host any real services. Some of

these visualisation pages use a community approach

to distribute the data collection process (Deutsche

Telekom AG Honeypot Project, 2015). Some of these

maps show, for example, the number of attacks orig-

inating from certain countries, which might be a use-

ful indicator in a cyber security dashboard. However,

these cyber attack maps do not aggregate the data suf-

ﬁciently to monitor (the trends of cyber attacks on) a

system properly. It may be nice to watch attacks in

real-time on such a map, but it is difﬁcult to base any

strategic cyber security related decisions (i.e., cyber

security related policymaking) solely on such maps.

Asgharpour, Liu and Camp (Asgharpour et al.,

2007) compared the mental models of computer se-

curity risks between novices and experts. The au-

thors use two card sorting experiments in which 71

respectively 38 participants were asked to choose the

category that a certain word belonged to. The cate-

gories were Medical Infection, Physical Safety, Crim-

inal, Economical, Warfare or Can’t Decide. These

categories represent those domains where the analo-

gies for computer science incidents are taken from.

Such an analogy is the one of a computer virus. The

words to be ordered were words of the single domains

(e.g. Fever, Fence, Theft) as well as IT security re-

lated words (e.g. Phishing, Trojan, Exploit). Their

experiments showed that novices and experts chose

different domains for some of the words. For exam-

ple, experts were the only ones who attached any of

the computer security words to the category warfare.

The authors argue that talking about computer secu-

rity risks, one should align its statements or recom-

mendations to the mental models of the novice users.

Using metaphors from the areas of criminal and phys-

ical safety are most promising to be understood by

large parts of computer users.

Wash and Rader studied mental models of com-

puter owners in order to identify how and why they

secure their computer in a certain way (Wash and

Rader, 2011). Depending on users’ mental model

about hackers, they secured their computers differ-

ently. People who perceived hackers as teenagers try-

ing to show off, were more likely to install ﬁrewalls

than people who perceived hackers as criminals try-

ing to make money. The authors argue that ”[e]ven

if the mental models are wrong, they can still lead

to good security behaviours and more secure comput-

ers” (Wash and Rader, 2011, p. 58). Therefore, secu-

rity specialists should not try to enforce correct men-

tal models, but try to support mental models, even if

they are wrong, as long as they lead to good security

decisions. This matches with the view of Don Nor-

man (Norman, 2013) that designers should adapt the

system to the user’s mental model and not the other

way around.

Dashboard research is currently isolated from the

mental models that the potentials users of dashboards

possess. Our study shall show whether mental models

are a good basis for dashboard design for supporting

policy-making in the area of cyber security.

3 MENTAL MODEL STUDY

3.1 Research Design

Initially we interviewed a number of potential users

of the cyber security dashboard in order to derive the

mental models on the cyber security domain. Seven

people (six male, one female) from two Dutch gov-

ernmental organisations took part in the expert inter-

views. The interviewees were M = 42 (SD = 6.3)

years old. Two participants belonged to each of ’op-

erational’, ’analytical’ and ’managerial’ roles. One

person stated that his job included both analytical and

managerial roles. All participants work in the cyber

security domain. In order to ensure the anonymity of

our participants and for better readability, we refer to

all our participants with the male pronouns.

The interview consisted of a number of questions

that were grouped into a number of blocks concern-

ing the participants’ jobs, their understanding of cyber

security, and their demographic data. The interview

followed a semi-structured way (D

oring and Bortz,

2015). Each block contained several questions that

were asked after each other. If a participant did not

answer a question fully on his own, the interviewer

tried to ﬁnd some follow up questions.

The interview started with some questions con-

cerning the participant’s job. One of the questions

was: ”Can you please explain your job to me?” These

questions mainly tried to check whether the classiﬁ-

cation of the participants in one of the three groups

was appropriate. The second question block focused

on mental models. Think aloud (Fonteyn et al., 1993)

and drawing exercises can help to understand a user’s

mental models by elaborating and externalising what

the user thinks. Our method was a mixture of both

think aloud and drawing exercise, where we asked the

participants to draw the message ﬂow of two cyber

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

130

attacks into a drawing template shown in Figure 1,

while explaining their thoughts.

The setting was: Alice (A) works for a bank. Her

regular work relies on accessing data from an Appli-

cation System (AS) on a bank application server. She

can access this server via the Internet. Look at this

example: Alice makes a request to the AS. There her

request is processed and the answer is sent back to her.

The arrows describe where messages are sent. In this

case this is the request and the response. Mallory (M)

is a hacker that does not like the bank. He possesses

a Malicious System (MS) for carrying out attacks.

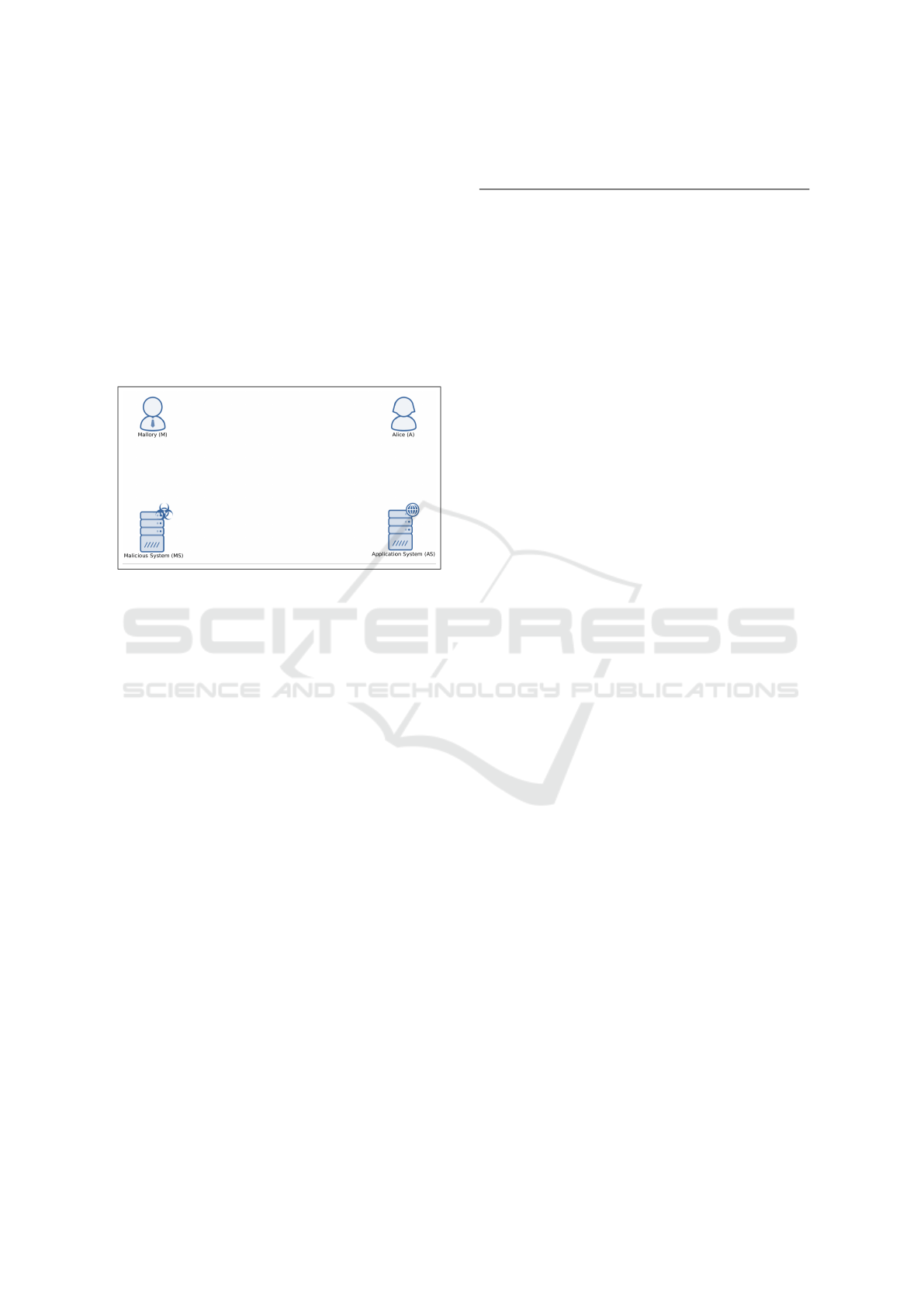

Figure 1: Interview drawing template.

The interview participants ﬁrst drew their

thoughts on the attacks in blue colour in the tem-

plates. Afterwards, we asked them to draw security

measures in red colour while explaining them. Via

a questionnaire the interviewees provided their

demographic information (such as age or gender)

and assign themselves to one of the operational,

analytical or managerial groups.

3.2 Data Analysis

To analyse the interview results, we used the quali-

tative content analysis according to (Mayring, 2010)

and (Mayring, 2015). We structured the data into

different analysis units. These units usually corre-

sponded to one question. Few units spanned more

than one question. Some questions were covered by

more than one analysis unit. For each analysis unit,

we looked at the ﬁrst interview and speciﬁed cate-

gories that the answer ﬁtted in. Then, we tried to place

the answers from the other interviews into those cat-

egories. When the categories were insufﬁcient, we

added a new category. For new categories, we went

back to previous interviews to see whether any an-

swer also ﬁtted into this category. For most cases the

categories were non-exclusive. So an answer could

belong to one or more categories. If a person did not

answer a question, no category might be attached to

the analysis unit for this person. Table 1 shows the

Table 1: Categories of the questions on participants’ work.

Analysis Unit Categories

job title research, management, cert,

development

typical day read, write, meeting, partners,

analysis, development, coordi-

nation

typical data incidents, netﬂow, honeypots,

vulnerabilities, malware, to-

pography, actors, exploits, in-

fections, dns, whois

recommendation no, colleagues, partners, pub-

lic, policymakers, government

possible categories for the ﬁrst questions exemplar-

ily. The differences in the interviews were sufﬁciently

large to have highly distinct categories.

3.3 Results

3.3.1 Identiﬁed Roles

The results of the job related questions show whether

the categorisation of the experts into the operational,

analytical and managerial groups ﬁts. To investigate

whether different user groups might need different

dashboards, we ﬁrst veriﬁed the user groups by their

job description. This is a prerequisite to talk about

user groups and not only about single users.

One operational person (person 6) handles inci-

dents and the other one (person 5) said that his role is

researcher but he is mainly doing development. The

typical days of the operational people includes soft-

ware development. The two participants, who identi-

ﬁed themselves as analytical people, described their

roles as researcher. All participants that ticked the

management ﬁeld on the questionnaire also described

their role as managerial during the interview. One

person (number 7) also mentioned his role is partly

researcher. Person 3 ticked both the analytical and

the managerial ﬁelds on the questionnaire, but only

described his role as managerial. All these suggest

that the classiﬁcation of the participants into the three

groups is appropriate. The members of a group de-

scribed their roles similarly. Several tasks are mainly

or solely used in one of the groups. Therefore, it

seems reasonable to compare the cyber security men-

tal models of these groups and their data needs.

3.3.2 Mental Models over Cyber Attacks

The results of the mental model questions describe

how the participants of our study understand cyber

security attacks. Phishing attacks were the ﬁrst cy-

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

131

ber attack described by the operational and analyti-

cal persons. The person who described himself as

analytical-management and another management per-

son described social engineering attacks that were not

phishing attacks. The other management person de-

scribed a Distributed Denial of Service (DDOS) at-

tack. Except the DDOS attack, all attacks were suit-

able to steal data from the application system. Com-

pared to the managers, the operational and analytical

persons were able to describe the attacks in more de-

tailed way and more ﬂuently. Most participants used

technical terms in a correct way.

The description of a phishing attack by analytical

person 2 as follows. (Note that from this point on we

shall use use abbreviations [P] and [I] to mark the be-

ginning of the quotation made by the participant and

the interviewer, respectively.)

[P] Mallory sends an e-mail to Alice. This e-

mail looks identical to the one from the bank.

It has the bank’s logo. Has the bank’s every-

thing, house colour, etc. Everything looks just

like the bank. And it says: Mallory [sic!], your

account has been attacked, but, you know, we

have taken measures to secure it, but you need

to log in and make sure, everything is secure.

So click on this link and you login. When

she clicks on the link, she doesn’t go to the

bank, she actually goes to his, Mallory’s ma-

licious system, which looks identical to the

bank. Maybe, there is one letter difference.

I mean, it’s also shocking, how easy that is

to spoof. [...] And there is a place to ﬁll in

your password and username. At that point,

as soon, as she ﬁlls in her password and user-

name, two things happen. The password and

username is send back to Mallory. And Alice

is send to the real bank. Then she is on the

real bank. Everything looks normal. [...] Ok,

she can go back to bed. But now, Mallory has

the username and password, so he sends that

to, he uses that to log in to the actual bank and

transfers all the money to his own account or

does whatever.

This description is very detailed. Each described

step corresponds to a line in the person’s drawing (see

Figure 2). The participant’s explanation guided us

through the process of how an attacker could create

a phishing e-mail to trick Alice into clicking a mali-

cious link, which in turn could give Mallory access to

her login data. In contrast to the previous case, the

description of the analytical/management person 3 is

not only less detailed, but also lacks important infor-

mation about the attack (see his drawing in Figure 3).

It describes a social engineering attack via telephone,

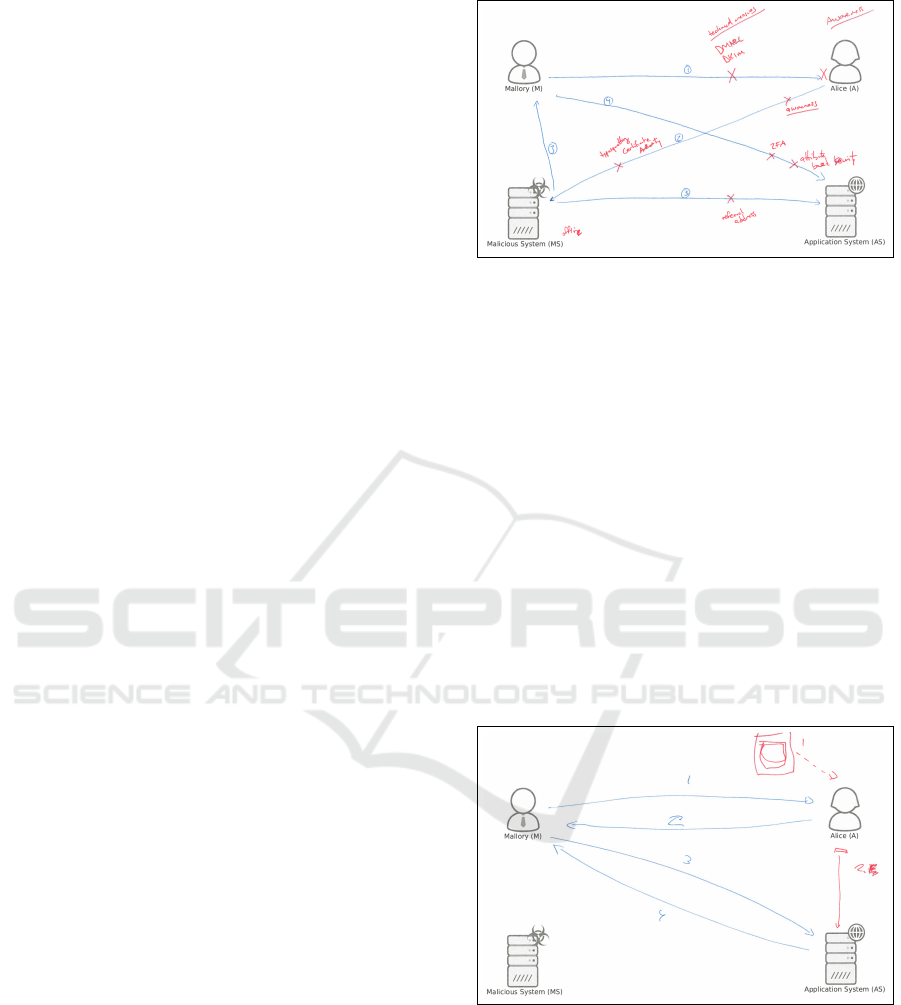

Figure 2: Drawing of attack 1 for analyst 2 describing a

phishing attack.

but does not say why Alice would be inclined to give

Mallory her password.

[P] Oh. The easiest one is to call Alice and

say: ”Hi, I am the helpdesk of Microsoft”. [I]

Ok. Then just make a line and number it one.

[P] One. Two. This is her password. Now

he is Alice. And he can do whatever Alice

does. [I] Ok. Can you describe it a bit more

in detail? When he says, he is the helpdesk

from Microsoft. [P] He can social engineer

into giving her credentials to him. And then

he can just, as the server has no clue and he

can I suppose remotely log on. And being,

pretend to be her and just has her user rights

and do whatever he wants.

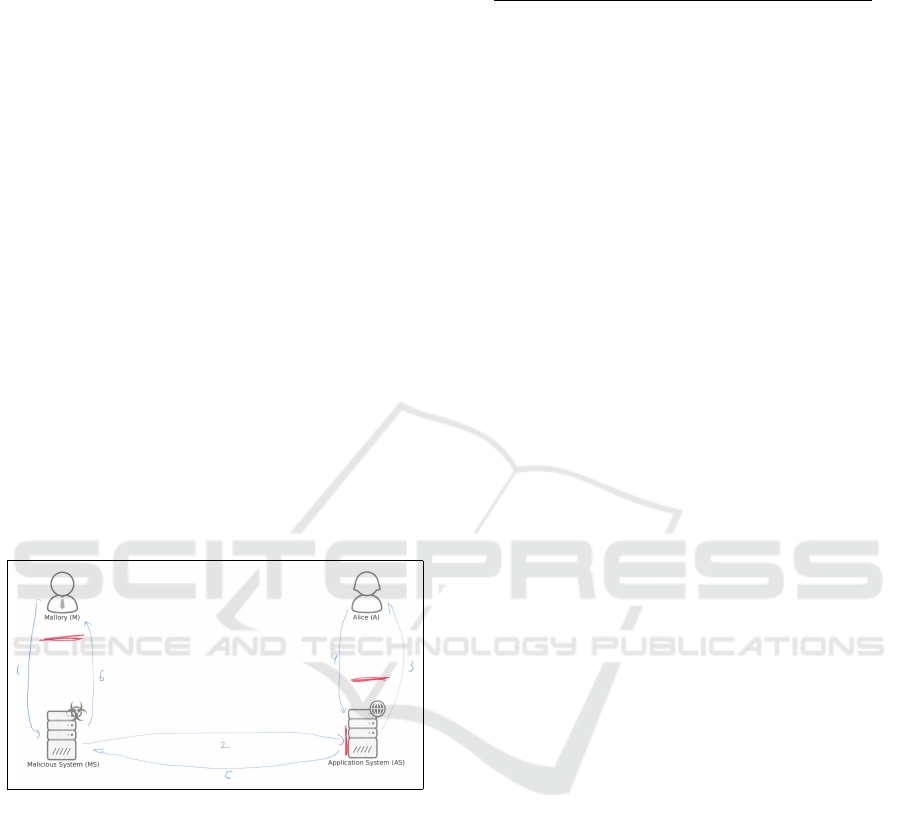

Figure 3: Drawing of attack 1 for the analytical / manage-

ment person (3) describing a social engineering attack.

The description of a DDOS attack is an interest-

ing one to look at, as it is totally different from what

the other interviewees described. It is also the only at-

tack that does not allow Mallory to steal data from the

server. The description leads to the impression that

person 7 does not fully understand the ’effects’ of a

DDOS attack. The drawing suggests that the person

also tried to include features of a social engineering

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

132

attack, as the AS should be used to trick Alice to en-

ter sensitive data (see Figure 4).

[P] Well, there would be a line of course, Mal-

lory to the malicious system. [I] Number it

with one, if it’s the ﬁrst message. [P] I think,

this would be number two. Well, probably, Al-

ice would get that information and give some

feedback to that, which would lead for in-

stance. [I] Can you elaborate that a bit more?

So, what kind of attack is it? How do these

messages inﬂuence what Alice sees, or...? [P]

Well, Mallory would give some input for the

malicious system to start the attack. Then the

system would try to hack or break into the ap-

plication system. Of course, disguised. So Al-

ice sees something, but does not realise, that

it’s malicious attack, or it’s a malicious ques-

tion or a malicious query. She then gives some

input to the application system to send out in-

formation, which would get back to the mali-

cious system, which would get back to Mal-

lory. [I] And can you tell. You said the MS

would hack the application system, which is

request two. What kind of attack could this

be? [P] For instance a DDOS attack. Or?

Figure 4: Drawing of attack 1 for management person 7

describing a DDOS attack.

For the second attack, the ﬁeld of attacks is a bit

more widespread. The participants mentioned two in-

jection attacks, two men-in-the-middle attacks, two

social engineering attacks and one malware attack.

Table 2 summarises the types of cyber-attacks de-

scribed by the participants (14 descriptions in total).

Also for the second attack the descriptive quality of

the managers was lower than that of the others.

3.3.3 Mental Models over Countermeasures

The countermeasures that the participants proposed to

prevent the attacks were mainly technical (e.g. two-

factor authentication, ﬁrewalls or attribute based de-

tection systems) and awareness related (e.g. aware-

ness campaign). Few measures were also related to

Table 2: Experts’ attack drawings categorised by attack.

Attack Number Percentage

Phishing 4 29%

Social Engineering 4 29%

Injection 2 14%

Man-in-the-Middle 2 14%

DDOS 1 7%

Malware 1 7%

law enforcement (e.g. detention of Mallory or take-

down of the system). The law enforcement related

measures were mainly described by two operational

persons as well as one analytical person.

A comparison of the groups show that the man-

agers described fewer countermeasures and the qual-

ity of their description was lower. As an example of

the quality of countermeasure descriptions for two in-

jection attacks, one operator (person 6) said:

[P] If this [MS] is one machine. You can just

block this machine after you see that machine

is scanning for vulnerabilities, of course. You

can harden the machine. Harden the machine

via ﬁrewall or something like that. Software

update policy. So that you don’t have the out-

dated plugins for Wordpress. And do regular

vulnerability scans, pentests yourself.

Whereas the management person 4 described:

[P] And the second one is a bit harder. Be-

cause, what you could do is, what you could

do is, something, here. To say well, the system

should recognise malware code. So what the

systems could do is check, whether an, what

the system could do is to check whether the

things that are brought in, into the system, are

they allowed. Is it allowed to store something

in your system. So that’s a solution direction

for this one. And for this one, Mallory, what

you could do, and what is done actually, is that

we keep track about the queries. Keep track

about what Mallory is asking. What you do is,

you keep track, well maybe Mallory is asking

a lot that she is not allowed to.

In summary, the managers described cyber attacks

and the corresponding countermeasures worse than

the other groups. During their attack descriptions the

managers mixed the order of steps, were less ﬂuent

with the language, and missed important details of at-

tacks. Their pictures were less detailed and it was

more complicated to follow their explanations.

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

133

3.4 Discussion

In this study we found out that operators and analysts

understand what cyber attacks are and how they work.

They are aware of the different steps needed to per-

form a certain attack successfully. For each attack

step, they understand how it works in general and how

it contributes to the whole attack. If an attack contains

several different sub-attacks, they understand the con-

nection between them. Figure5 illustrates how an op-

erator or analyst might see the different steps in an

attack building up on each other. They are able to

elaborate different attacks. They understand what the

effect of a successful attack is. Therefore they can

think of those countermeasures that target one speciﬁc

step of the attack. They know countermeasures from

different areas such as technical measures, awareness

campaigns, or legal actions.

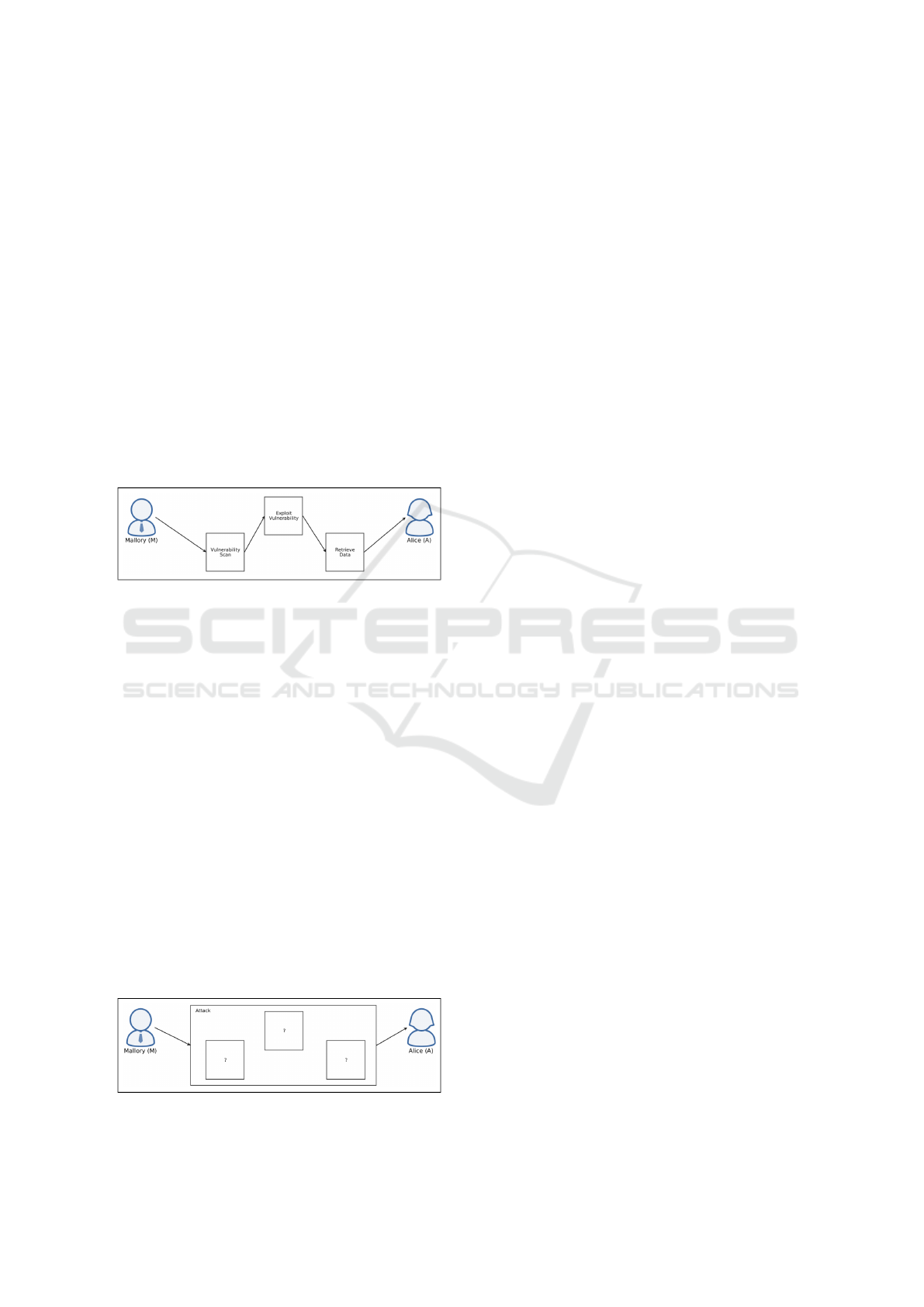

Figure 5: Visualisation how operators and analysts see cy-

ber attacks.

The managers in our study, on the other hand, un-

derstand that there are cyber attacks which need dif-

ferent steps to be carried out. They do not completely

understand which steps there are and how they con-

tribute to a successful attack. When describing an

attack, they do not elaborate on the speciﬁcs of the

steps and how they relate. The actual attack is more

like a black box with some single steps in it as illus-

trated in Figure 6. The managers know security mea-

sures to prevent attacks. Each countermeasure tries to

prevent one of the steps that make out the attack de-

spite the step being vague. The known measures are

mainly technical. The managers are not aware of law

enforcement measures such as detaining cyber crimi-

nals to prevent attacks. This might be due to the do-

main of attacks. As the attacks are technical, man-

agers might focus on technical countermeasures, and

think that technical solutions are the only ones feasi-

ble to deny such attacks. Using our data, we cannot

state why they did not think of any legal measure.

Figure 6: Visualisation how managers see cyber attacks.

4 DASHBOARD PROTOTYPE

In order to examine the impact of mental models on

cyber security dashboards we carried out a follow up

study through design, realisation and evaluation of a

prototype. Our initial study showed that managers

have a less detailed mental model over cyber security

than that of operators or analysts. As the operators

and analysts are the main people working with cyber

security data in our organisations, and considering our

available resources, we decided to design a cyber se-

curity dashboard for policymaking purposes, aimed

at the target group of the analysts and operators in the

initial study. Realising a single, on the other hand,

was enough to see whether the outcome is perceived

differently by the other group than it is perceived by

the target group.

4.1 Development

In order to match the design of the cyber security

dashboard to the target group we adapted a user cen-

tric approach whereby in 3 iterations the prototype

is evolved based on the feedback and requirements

of the target group users. Involving the target group

users in the design and development process in iter-

ative steps enabled us to elicit user requirements and

ﬁne-tune the design to their needs. Designing a cyber-

security dashboard for policymaking purposes, on the

other hand, determined which data to use as input and

to display as output. The input data originate from the

Dutch National Cyber Security Centre (NCSC) (Min-

isterie van Veiligheid en Justitie, ) which at a strategic

level coordinates the countermeasures taken against

cyber attacks on Dutch governmental organisations

and Dutch critical infrastructures.

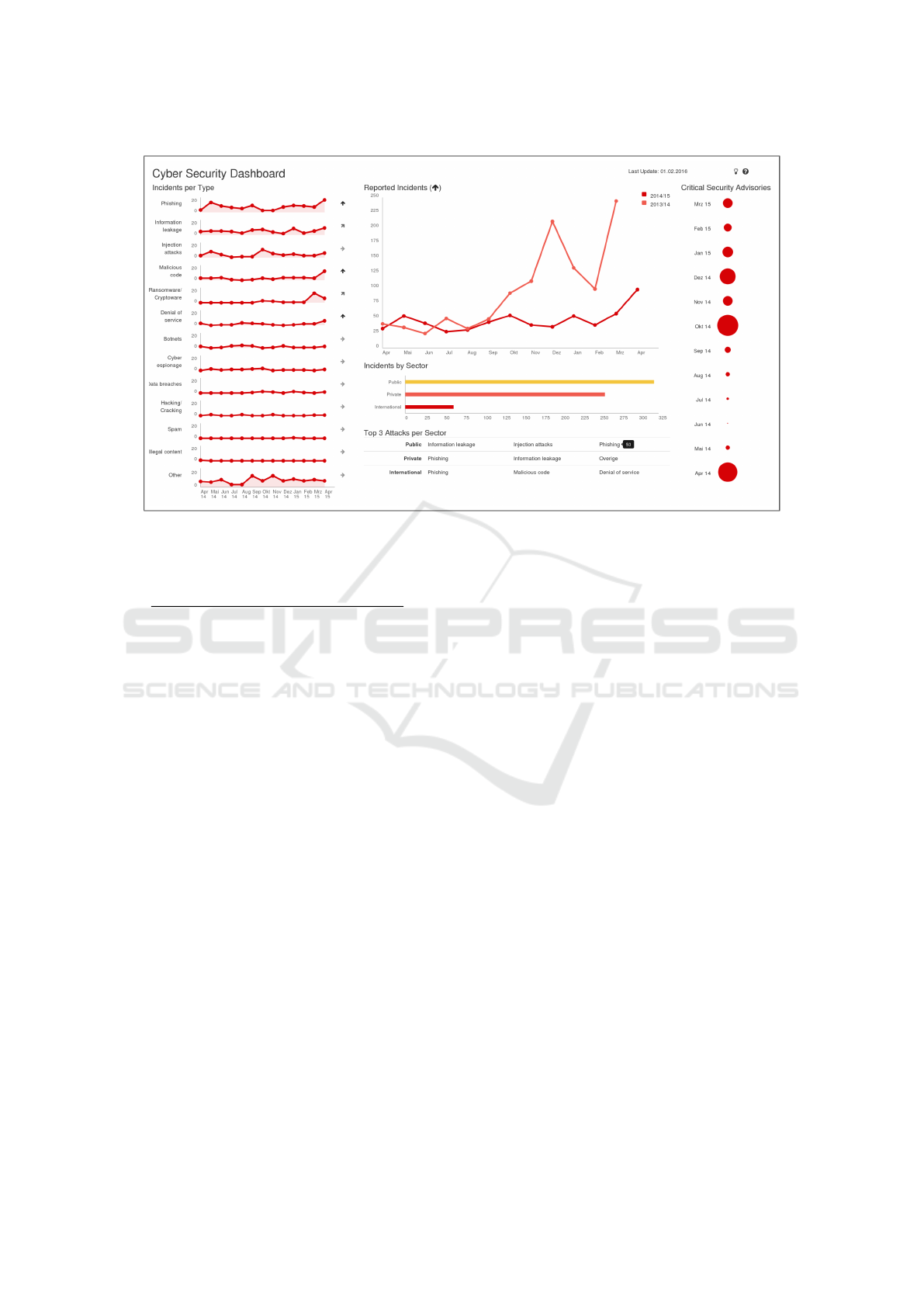

The ﬁnal prototype is shown in Figure 7. This

ﬁgure shows a number of graphs, each of which we

are going to explain and refer to in the following.

The design of the dashboard followed an iterative pro-

cess (Nielsen, 1993). Each iteration included several

changes on the dashboard. After each iteration the re-

sulting dashboard prototype was discussed with some

of the original interview participants from the target

group for additional ﬁne-tuning and further develop-

ment. Important aspects in the design process were

the simplicity of the dashboard to foster the under-

standing of the visualised data. The colours were cho-

sen to provide good readability. The arrangement of

dashboard elements tried to group the data and guide

the users’ view.

The ﬁrst prototype showed how the total recorded

cyber security incidents develop over time. For the

period of twelve months, it showed in line graphs how

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

134

many total incidents happened in general (similarly

to the graph on the centre-top side of Figure 7). Sev-

eral smaller graphs showed how different attack types,

such as phishing or injection attacks, were developed

(similarly to the graphs on the left side of Figure 7).

For prototype two, we changed the order of the

graphs for a better understanding of the connection

between the graphs of attack types, which sum up to

the numbers in the graph of total recorded incidents.

In the latter graph, we used another line to show the

total incidents that were reported in the previous year.

We added trend indicators to the graphs which – for

each of the graphs – compare the last month’s val-

ues with the mean of the previous eleven months. We

added a bar graph that displayed the incidents by the

sector (i.e., public, private, and international) from

which the incident report originated (similarly to the

graph on the centre-middle side of Figure 7).

In the ﬁnal design we added further information

on the incidents per sector (see the graph on the

centre-bottom side of Figure 7) and included the num-

ber of security advisories produced per month for the

last 12 months (see the graph on the right side of Fig-

ure 7). These ﬁgures indicate the workload of NCSC

with regard to newly discovered vulnerabilities.

We chose a JavaScript implementation using the

Chartist (Kunz, ) framework for development. For

the website that embeds the charts, we used Boot-

strap (Getbootstrap.com, ) to create the base template.

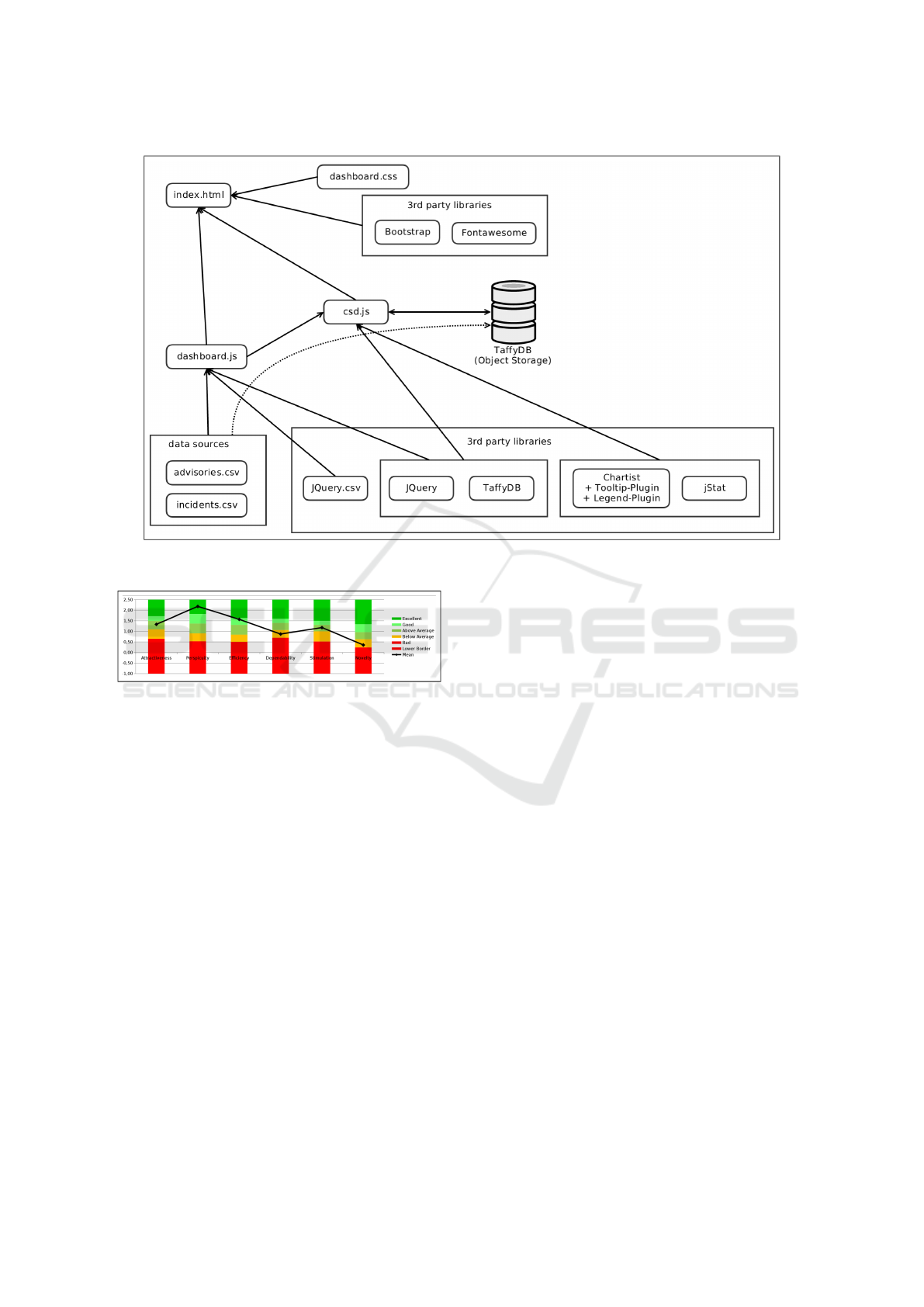

Figure 8 shows how the software is structured. The

main components are the index.html, csd.js and dash-

board.js. The dashboard.js ﬁle uses the csd.js library

to modify the DOM-elements in HTML template.

The data is loaded from two .csv ﬁles into a TaffyDB

(Typicaljoe, ) object storage database. The csd.js

module provides functions to ﬁlter and group data

within the database and draw graphs using Chartist.

The full source code is available online (Maier, 2016).

4.2 Evaluation Mehtod

Evaluation of the realised cyber security dashboard,

which was designed for policymaking purposes, was

done by all members of the three user groups of man-

agers, analysts and operators (unlike the dashboard

development process where we involved only analysts

and operators). To this end, we showed the ﬁnal dash-

board to all interviewees in the study (see Section 3)

and asked them to evaluate the dashboard. This led to

a user experience evaluation as well as an assessment

of the functionality. Due to the sensitive nature of the

real data, randomly generated dummy data was used

in evaluating the dashboard.

For a user experience assessment, we used the

User Experience Questionnaire (Laugwitz et al.,

2008). This questionnaire is a standardised measure

to gain insight in the user experience of software. It

asks participants to rate the software with the help of

word pairs. Every participant states which of the pair

words describes the software better on a scale of one

to seven. A one means that the ﬁrst word totally de-

scribes the software. A seven means that the second

word ﬁts completely. A four shows indifference and

the other numbers show further graduations. Example

word pairs are ’easy to learn’ vs. ’difﬁcult to learn’ or

’valuable’ vs. ’inferior’. The answers are grouped

to provide measures for the scales of attractiveness,

perspicuity, efﬁciency, dependability, stimulation and

novelty (Laugwitz et al., 2008). We used a slider in

the online questionnaire tool LimeSurvey to simplify

the rating of the words.

There were also open questions to see how the par-

ticipants understood the dashboard. To answer these

questions properly, the participants needed to appro-

priately interpret the dashboard. One question was:

Recently, hackers managed to encrypt the data

of several German hospitals and demanded

Millions of Euros ransom in exchange for the

data. A Dutch member of parliament is scared

that something similar happens in the Nether-

lands. He asks you if this could be a problem

for the Dutch healthcare system as well. If

you look at the data of the dashboard. What

can you tell him?

Additional open questions looked at the usefulness

and the future perspective of the dashboard.

4.3 Evaluation Results

Due to the small number of participants, we do not

use the measures from the User Experience Question-

naire for any statistical test. When looking at Cron-

bach’s alpha for the scales in Table 3, one can already

see that the users did not rate very consistently es-

pecially on the efﬁciency and the dependability scale

(α  .50, see (George and Mallery, 2007)). A gen-

eralisation to a larger population is not possible even

for such alpha values (Yurdugul, 2008). We did not

try to compare the values for the different user groups

either, as this would even shrink each sample size to

just two or 3 users. Nevertheless, we think that the de-

scriptive values might give some insight on how our

experts see the cyber security dashboard.

Table 3 also shows the mean and standard devi-

ation of the scales for all participants. The data is

transformed from the initially described scale from

1 to 7 to a scale from -3 to 3. A three denotes the

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

135

Figure 7: Final prototype design.

Table 3: Descriptive values of the User Experience Ques-

tionnaire evaluation.

Scale α Mean SD

Attractiveness .57 1.333 0.500

Perspicuity .68 2.179 0.535

Efﬁciency .25 1.571 0.607

Dependability .31 0.869 0.721

Stimulation .46 1.179 0.572

Novelty .83 0.357 0.911

best possible value on this scale. Due to the avoid-

ance of extreme values, extremely high or low values

are unlikely. Social desirability makes very low val-

ues even more unlikely (Bertram, 2013). For a rea-

sonable interpretation of these numbers, one needs a

point of comparison. Luckily, the creators of the User

Experience Questionnaire provide a benchmark set to

compare our dashboard data to ratings of 4818 peo-

ple from 163 different studies such as business soft-

ware or webshops. Even if no single software product

in the benchmark dataset may be directly comparable

to our dashboard, we argue that a comparison with

the mean values of more than 150 different software

products is reasonable. Figure 9 shows how the cy-

ber security dashboard compares to the data from the

benchmark dataset. The scales are ordered: Attrac-

tiveness, Perspicuity, Efﬁciency, Dependability, Stim-

ulation, Novelty. Table 4 shows what the ratings in

comparison to the benchmark mean.

The comparison with the benchmark shows that

our experts see the cyber security dashboard as out-

standing clear, respectively understandable and very

Table 4: Meaning of ratings in comparison to benchmark

dataset.

Excellent In the range of the 10% best results

Good 10% are better, and 75% are worse

Above Av. 25% are better, and 50% are worse

Below Av. 50% are better, and 25% are worse

efﬁcient. It is quite attractive and stimulating. How-

ever, it seems they cannot depend too much on the

dashboard and do not see the design as innovative.

Several open questions related to speciﬁc parts of

the dashboard tried to assess how the participants un-

derstood the dashboard. Four questions asked for a

speciﬁc answer regarding data of the dashboard and

an explanation of that answer. Five participants pro-

vided reasonable explanations, backed up by the data

of the dashboard, for all those questions. Two partici-

pants only provided a reasonable explanation for three

questions. One of these wrong explanations is simi-

lar to the other experts’ explanations. According to

this answer, however, the question before should have

been answered differently. This might be a mistake

in reading the dashboard labels. The other wrong an-

swer uses background information on the frequency

of attacks that is not displayed in the dashboard.

As an example, we present some answers for the

question concerning ransomware in hospitals. Ana-

lyst 2 says:

[P] Yes, this can be a problem for the Dutch

healthcare system. According to the dash-

board this trend is increasing and it is now the

top attack in both public and private sectors.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

136

Figure 8: The architecture of the dashboard.

Figure 9: Comparison of dashboard rating with benchmark

data by (Laugwitz et al., 2008).

Manager 7 has a similar reasoning:

[P] While the healthcare system as such is not

speciﬁed in the dashboard, ransomware [sic]

makes out a high number of attacks in the pub-

lic sector, so it could be a problem.

Both these answers show how the participants read

the data from the dashboard and use them for their

answer. Although the second answer is completely

reasonable, it shows that some of the nomenclature of

the dashboard is not completely clear without back-

ground knowledge. The public sector data does not

include hospitals. Those belong to the private sector.

4.4 Discussion and Limitations

In this section we discuss ﬁrst the results of the evalu-

ation of the prototype realised and subsequently the

inﬂuence of mental models on the design of cyber

security dashboards. We already argued that the de-

scriptive scales of the User Experience Questionnaire

should not be used for generalisation and can only

give some hints on how our experts see the dashboard.

The high rating on the perspicuity scale suggests

that the visualisation focuses on the relevant data. The

low rating on the novelty scale might also result from

this focus. There are no visual gadgets that are ob-

structive for the user. All the graphs are known to

the users and the users feel comfortable with them.

There is nothing surprisingly new in the design, which

could lead to a high novelty rating. The good rating

on the efﬁciency scale suggests that the users can use

the dashboard efﬁciently, e.g., see the numbers they

like to see very easily, do interesting comparisons and

get all needed information at a glance. The stimula-

tion and attractiveness give hints that the users like the

dashboard in terms of how it is designed.

The below average rating on the dependability

scale is difﬁcult to interpret. On three of the four items

measuring this scale, at least one participant did not

give any rating. One of the items in this scale (unpre-

dictable vs. predictable) has no correlation with one

of the items of this scale and a negative correlation

with the two of the other items of this scale. The cyber

security dashboard is seen as unpredictable. An ex-

planation might be the use of randomly generated data

in the evaluation setting (see Subsection 4.2). This

data did not match what some of the experts might

expect from their prior knowledge.

Each user was able to interpret the dashboard rea-

sonably. There were only a few mistakes in the inter-

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

137

pretation of the dashboard ﬁgures. This indicates that

there were minor mismatches due to unﬁtting men-

tal models. One example is the wrong classiﬁcation

of hospitals into the public sector. Based on these

results, further explanation of the used terms in the

dashboard seems useful to foster even a better under-

standing of dashboard information. Also, a more de-

tailed view on the data might improve the dashboard

experience. Nevertheless, the participants describe

the dashboard as a clean view, easy to read, and a

useful decision support means to prioritise their work.

The cleanliness described while answering the open

questions matches the good rating on the perspicuity

scale of the User Experience Questionnaire. In short,

we were unable to see any difference in how the dif-

ferent groups understood the dashboard, despite the

fact that we geared the design to the target group.

Two participants had interesting comments on ex-

tending and improving the dashboard. An analyst

(person 2) said that additional zooming functionality

would be good for a nice analytic dashboard. An op-

erator (person 6) stated that the cyber security dash-

board’s usefulness for operators is limited due to its

high abstraction level visualisation which tries to ”ap-

peal to both management and operations”. Therefore,

the development of a dashboard for analysts and oper-

ators based on their mental model has not been com-

pletely and exclusively appealing for this target group.

Due to the small sample size of the qualitative

method adopted, we cannot reliably assess the im-

pact of mental models on the design of cyber security

dashboard for policymaking purposes (for example to

claim that there were convincing indications that the

focus on mental models improved the dashboard de-

sign for or in favour of the targeted user group). Not

seeing meaningful difference in the way that the tar-

get group and the manager group perceived the cyber

security dashboard, despite their different cyber secu-

rity mental models, suggests that: (a) One needs to

examine the mental models of cyber security that is

speciﬁcally targeted for policymaking purposes (i.e.,

not at the deep level that we investigated) to see if

they differ per user group. (b) The study conﬁrms the

claim of (Wash and Rader, 2011) in that the wrong

metal model of managers at the detail level that we

investigated does not hinder managers to correctly un-

derstand cyber security attacks for policymaking pur-

poses. (c) One should involve more participants in

elucidating the cyber security mental models. (d) Per-

haps our realisation of cyber security mental mod-

els did not catch the important differences leading

to a different cyber security understanding. E.g.,

we should have included the features additionally re-

quested by the operators and analysts (e.g., provid-

ing detailed information and zooming in smaller time

frames). This might have changed the perception also

for the managers.

Therefore, the mental model of cyber security

(i.e., the way that we examined based on how cyber

attacks take place) is not determinant of understand-

ing cyber security issues at the policymaking level

and for policymaking purposes. This research, nev-

ertheless, provides insight in the cyber security men-

tal models as presented in Section 3 and results in the

above mentioned preliminary insights for future re-

search on how mental models can further be investi-

gated for the design of (cyber security) dashboards.

5 CONCLUSION

The theory on dashboard design suggests the con-

struction of different types of dashboards for different

people. Different mental models dominating in differ-

ent user groups might be one reason for that. Mental

models describe how people understand a certain do-

main and provide a base for the creation of a cyber se-

curity dashboard. This work described the design, im-

plementation and evaluation of a cyber security dash-

board for policymaking purposes based on the mental

models of potential users.

Based on expert interviews, we showed that there

exists a difference in the perceptions (i.e., mental

models) of cyber attacks by the potential users of

the cyber security dashboard (i.e., among managers,

analysts and operators). We did not attempt to for-

malise the models and just showed the difference in

the depth of cyber attacks understanding. Managers

have a more superﬁcial understanding of such attacks

than operators or analysts. Therefore managers might

need a different cyber security dashboard than the op-

erators and analysts. Based on those ﬁndings, we fo-

cused on the operators and analysts for the design of

the cyber security dashboard by using their feedback

during the development process of the prototype.

The evaluation of the cyber security dashboard

showed that it is usable and provides meaningful in-

sight. It visualises data in a comprehensive way and

can be used to prioritise the focus of governmental

institutions for cyber security. The evaluation fur-

ther showed that the dashboard is clearly arranged and

easy to use. Despite the focus on operators and ana-

lysts, an analyst and an operator pointed out limita-

tions (i.e., need for detailed information and zoom-

ing into smaller time frames). The evaluation showed

that there was no meaningful difference between all

three groups concerning the understanding of the cy-

ber security dashboard, designed for policymaking

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

138

purposes. We enumerated a number of reasons for

this lack of meaningful difference in Subsection 4.4.

We expect similar results if mental models are applied

to the design of dashboards in other domains than the

cyber security domain.

Further research should investigate cyber security

mental models in more detailed ways. This can be

done ﬁrst without considering the dashboard design

aspects. A combination of these subjects may seem

more useful after further exploring them on their own.

Some relevant questions to then explore include: (a)

Can the dashboard be used to nurture the right men-

tal model of security attacks in non-experts (like the

mental models of the managers in our study)? From

an educational perspective the important aspect is to

discover misconceptions (since practice makes it not

only perfect but also permanent). The question is to

what extent a dashboard can allow for this nurturing.

In our setting, for example, the additional interactiv-

ity requested by the analyst and the operator could add

more depth/detail, allowing users to verify their own

hypotheses and misconceptions. (b) Identiﬁcation of

the utility of dashboard for different user groups. Do

analytical people actually need a dashboard? In what

context are dashboards relevant for managers? Here

it might be useful to couple a mental model approach

with task analysis, to identify if and where users with

mistaken mental models need support.

REFERENCES

Asgharpour, F., Liu, D., and Camp, L. J. (2007). Men-

tal Models of Computer Security Risks. In Workshop

on the Economics of Information Security, pages 1–9,

Pittsburgh.

Ben-Ari, M. (1998). Constructivism in computer science

education. ACM SIGCSE Bulletin, 30(1):257–261.

Bertram, D. (2013). Likert scales are the meaning of life.

Technical report.

Craig, K. J. W. (1943). The Nature of Explanation. Cam-

bridge University Press, Cambridge.

CTF365 Blog (2014). Interactive Cyber Attack Map.

Deutsche Telekom AG Honeypot Project (2015). T-Pot: A

Multi-Honeypot Platform.

oring, N. and Bortz, J. (2015). Forschungsmethoden und

Evaluation in den Sozial- und Humanwissenschaften.

Springer, Berlin, Heidelberg, 5 edition.

Doyle, J. K. and Ford, D. N. (1998). Mental models con-

cepts for system dynamics research. System Dynamics

Review, 14(1):3–29.

Few, S. (2006). Information Dashboard Design. O’Reilly

Media, North Sebastopol, 1 edition.

Few, S. (2007). Dashboard Confusion Revisited. Perceptual

Edge, pages 1–6.

Fonteyn, M. E., Kuispers, B., and Grobe, S. J. (1993). A De-

scription of Think Aloud Method and Protocol Anal-

ysis. Qualitative Health Research, 3(4):430–441.

George, D. and Mallery, P. (2007). SPSS for Windows Step-

By-Step: A Simple Guide and Reference. Allyn & Ba-

con, 14 edition.

Getbootstrap.com. Bootstrap · The world’s most popular

mobile-ﬁrst and responsive front-end framework.

Hinckley, J., Hinckley, J., and Robinson, J. G. (2005). The

Big Book of Car Culture: The Armchair Guide to Au-

tomotive Americana. Motorbooks, St. Paul.

Knorr-Cetina, K. (1981). The Manufacture of Knowledge:

An Essay on the Constructivist and Contextual Nature

of Science. Pergamont Press Ltd., Oxford, 1 edition.

Kunz, G. Chartist - Simple responsive charts.

Laugwitz, B., Held, T., and Schrepp, M. (2008). Con-

struction and Evaluation of a User Experience Ques-

tionnaire. In Holzinger, A., editor, 4th Symposium of

the Workgroup Human-Computer Interaction and Us-

ability Engineering of the Austrian Computer Society,

pages 63–76, Graz. Springer Berlin Heidelberg.

Maier, J. (2016). csd: v1.0.

Mayring, P. (2010). Qualitative Inhaltsanalyse. In Mey,

G. and Mruck, K., editors, Handbuch Qualitative

Forschung in der Psychologie, pages 601–613. VS

Verlag f

ur Sozialwissenschaften, Wiesbaden, 1 edi-

tion.

Mayring, P. (2015). Qualitative Inhaltsanalyse Grundlagen

und Techniken. Beltz, Weinheim und Basel, 12 edi-

tion.

McNeil, S. (2015). Visualizing mental models: Understand-

ing cognitive change to suppor teaching and learning

of multimedia design and development. Educational

Technology Research and Development, 63(1):73–96.

Ministerie van Veiligheid en Justitie. What is the NCSC?

— NCSC.

National Cyber Security Center (2014). Cyber Security As-

sessment Netherlands 2014.

Nielsen, J. (1993). Iterative Design of User Interfaces. IEEE

Computer, 26(11):32–41.

Norman, D. A. (2013). The design of everyday things: Re-

vised and expanded edition. Basic books.

Trend Micro Incorporated (2015). Report on Cybersecurity

and Critical Infrastructure in the Americas.

Typicaljoe. TaffyDB - The JavaScript Database.

Wash, R. and Rader, E. (2011). Inﬂuencing Mental Models

of Security: A Research Agenda. Proc. of the 2011

workshop on New security paradigms, pages 57–66.

Wired UK (2015). Infoporn: Cyberattacks have created an

invisible but vast war zone.

Yurdugul, H. (2008). Minimum Sample Size for Cronbach’s

Coefﬁcient Alpha: A Monte-Carlo Study. Hacettepe

University Journal of Education, 35:397–405.

Inﬂuence of Mental Models on the Design of Cyber Security Dashboards

139
