Fast Capture of Spectral Image Series

Sebastian Merzbach

, Michael Weinmann

, Martin Rump

and Reinhard Klein

Institute of Computer Science II, University of Bonn, Friedrich-Ebert-Allee 144, Bonn, Germany

X-Rite, Inc., 4300 44th St. SE, Grand Rapids, U.S.A.

Keywords:

Spectral, Reﬂectance, Noise, Spectral Reconstruction.

Abstract:

In recent years there has been an increasing interest in multispectral imaging hardware. Among many other ap-

plications is the color-correct reproduction of materials. In this paper, we aim at circumventing the limitations

of most devices, namely extensive acquisition times for acceptable signal-to-noise-ratios. For this purpose we

propose a novel approach to spectral imaging that combines high-quality RGB data and spatial ﬁltering of

extremely noisy and sparsely measured spectral information. The capability of handling noisy spectral data

allows a dramatic reduction of overall exposure times. The speed-up we achieve allows for spectral imaging at

practical acquisition times. We use the RGB images for constraining the reconstruction of dense spectral infor-

mation from the ﬁltered noisy spectral data. A further important contribution is the extension of a commonly

used radiometric calibration method for determining the camera response in the lowest, noise-dominated range

of pixel values. We apply our approach both to capturing single high-quality spectral images, as well as to

the acquisition of image-based multispectral surface reﬂectance. Our results demonstrate that we are able to

lower the acquisition times for such multispectral reﬂectance from several days to the few hours necessary for

an RGB-based measurement.

1 INTRODUCTION

The generation of photo-realistic images is a cen-

tral requirement for many applications in computer

graphics. Especially visual prototyping relies on the

the correctness of the generated images as design de-

cisions are usually based on computer-generated im-

ages. But also applications in the entertainment and

advertisement industry beneﬁt from color-correct de-

pictions of 3D content. For this reason, it is not sur-

prising that measuring real light and reﬂectance has

become a standard approach in many industrial ap-

plications. While the traditionally used RGB cap-

turing devices suffer from a bad color reproduction

due to metamerism effects, a color-correct rendering

can only be achieved using light and reﬂectance spec-

tra with a higher resolution than the three broad-band

channels in RGB-based devices.

The main limitation that prevents spectral mea-

surements from a widespread use in graphics are the

still very high costs of multispectral snapshot cam-

eras. An alternative would be the use of conven-

tional, cheaper spectral cameras, which distribute the

acquisition effort for the separate spectral bands into

the temporal domain using e.g. ﬁlter wheels or tun-

able ﬁlters. However, the acquisition effort does not

scale linearly with the number of spectral bands, as

some of these bands require much higher exposure

times due to variations in the illumination spectrum

and the quantum efﬁciency of the sensor. This ren-

ders these devices unsuitable for many time-critical

applications. One such application is multispectral re-

ﬂectance capturing, where tens of thousands of pho-

tos have to be taken of a surface under varying illu-

mination and viewing directions. For RGB-based re-

ﬂectance acquisition, a signiﬁcant reduction of the to-

tal measurement times in comparison to the sequen-

tial gonioreﬂectometer-based acquisition is usually

achieved by a parallelized acquisition using camera

arrays (Schwartz et al., 2014). Unfortunately, this

strategy is impractical when using snapshot multi-

spectral cameras as the costs of a single spectral cam-

era often exceed those of ten RGB cameras.

To reduce the acquisition times of non-snapshot

spectral cameras to practicality, it is therefore desir-

able to reach the highest possible efﬁciency for ex-

isting hardware, which ultimately requires raising the

signal-to-noise-ratio (SNR) for all of the spectral band

images. An obvious approach would be simply in-

creasing the light intensity. However, this cannot be

148

Merzbach S., Weinmann M., Rump M. and Klein R.

Fast Capture of Spectral Image Series.

DOI: 10.5220/0006175901480159

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 148-159

ISBN: 978-989-758-224-0

fast, simultaneous

capture

exposure

series

short exposure

spectral capture

high quality RGB images

noisy spectral images

spectralization

ﬁltering

energy

function

E(S)

spectral images

(e.g. reﬂectance)

410 440 470 500 530 560

590 620 650 680 710 nm

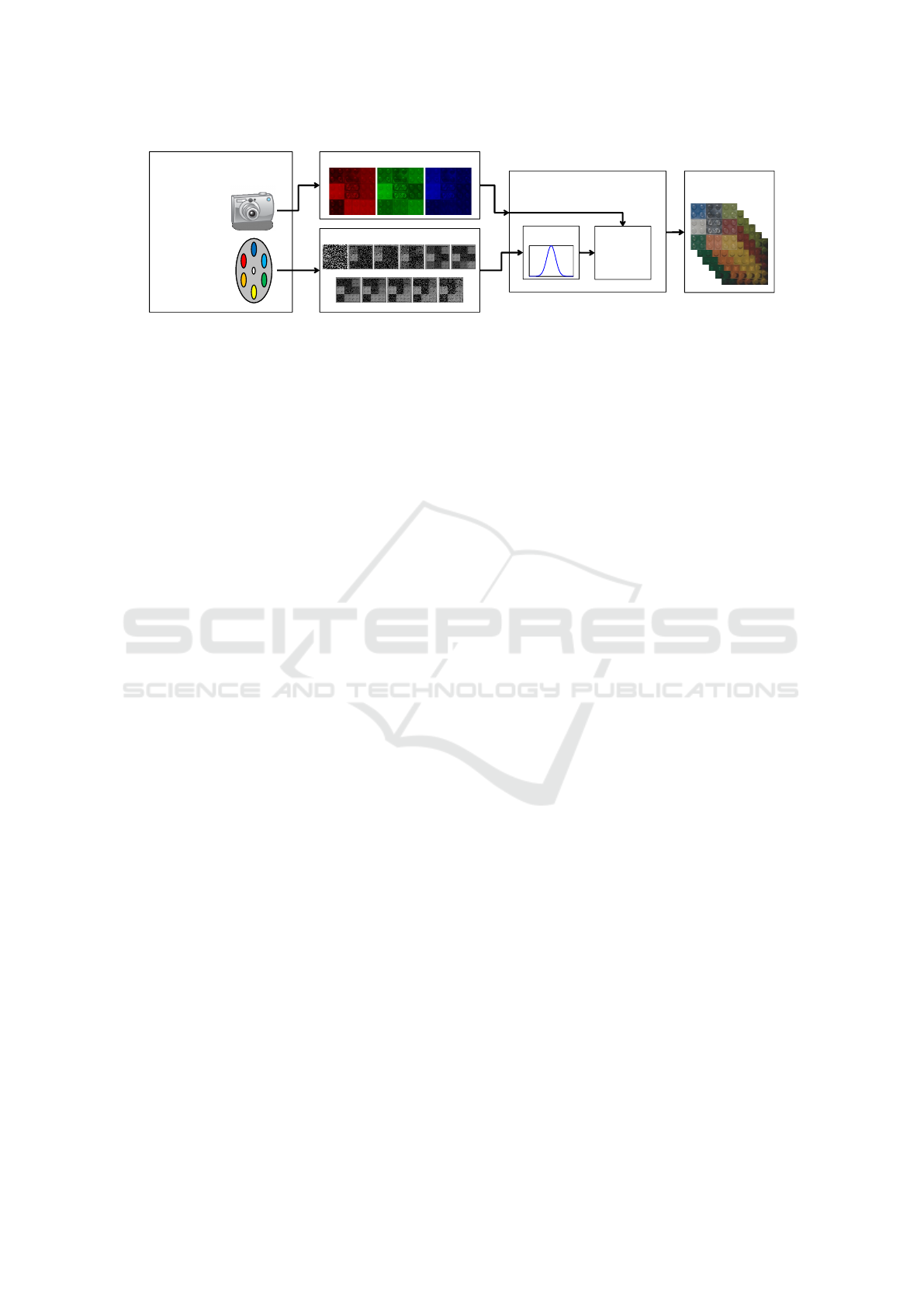

Figure 1: Method overview: We present a spectral reconstruction technique that is able to deal with extremely noisy input data

by incorporating high-quality RGB data and ﬁltering on the noisy data in the reconstruction process. Our method is especially

well suited for capturing a huge number of similar spectral images which is for example required for reﬂectance capture.

Accepting a high noise level allows to use spectral cameras at much lower exposure times, enabling for a vast speed-up

compared to traditional techniques.

easily achieved in all scenarios or acquisition setups.

A class of approaches for multispectral image ac-

quisition relies on reconstructing the full spectral data

cubes from a combination of high-quality broadband

and sparse narrowband data (Imai and Berns, 1998;

Hardeberg et al., 1999; Rump and Klein, 2010). Here,

the image is captured using several broadband ﬁlters

(e.g. RGB) and additional sparse knowledge about

spectra in the image is added to guide the reconstruc-

tion of dense spectral information. While being con-

ceptually elegant, the spectralization method has only

been demonstrated on synthetic examples. One rea-

son for this is the need for low noise spectral mea-

surements that result in impractical exposure times.

Taking the images with narrow bandpass ﬁlters would

require long exposure times to have a good signal-to-

noise ratio even for high-quality cameras. Further-

more, a pixel-accurate alignment between RGB and

sparse spectral data obtained from a line camera is re-

quired, which is difﬁcult to achieve.

The approach presented in this paper makes the

spectralization method applicable for image-based

multi-spectral reﬂectance acquisition and enables the

reconstruction of the full spectral data from high-

quality RGB and noisy spectral data. To keep the

acquisition times low, we allow high noise levels in

the spectral data and counteract the noise by spatial

ﬁltering. We use a monochrome CCD camera to-

gether with a tunable bandpass ﬁlter (see (Hardeberg

et al., 2002)) for imaging distinct spectral bands. An

overview of our approach is illustrated in Figure 1.

Using our method, spatially varying, bi-angular, spec-

tral reﬂectance can be captured roughly at the speed

of RGB reﬂectance. In addition, our technique can

easily be integrated into existing RGB measurement

setups without the need of integrating stronger light

sources or other dedicated hardware except for one

spectral camera. We realized a respective measure-

ment setup and used it to evaluate the reconstruction

quality and performance of our method.

Moreover, we show how to obtain an exact radio-

metric and spectral calibration of cameras when oper-

ated at a bad SNR. Due to the narrow band ﬁlters and

the enforced short exposure times, our spectral cam-

era operates at intensity ranges which are very close to

the noise level. To be able to extract radiometrically

calibrated data from the captured images, we need to

extend the camera response curve with high accuracy

even at those low intensities. This is usually a range

which is completely excluded by weighting schemes

from reconstruction methods. We show how to pre-

process the data close to the camera’s noise level, so

that we can obtain meaningful calibration data from

one such method (Robertson et al., 2003), enabling us

to use these corrupted images as input to our spectral

reconstruction method.

The key contributions of our novel approach can

be summarized as follows:

• the practical spectral reﬂectance capture: the ex-

tension of the spectralization method allows for

low exposure times for single spectral bands, and

thus, for a speed-up of spectral BTF acquisition

to measurement times comparable to the ones of

RGB setups,

• the possibility to re-use existing RGB setups by

simple addition of one or a few spectral cam-

eras, no need to increase power of illumination or

change the device geometry,

• the radiometric calibration of cameras operating

at low pixel values.

2 RELATED WORK

Almost all conventional approaches for capturing

multispectral images involve scanning either through

the spectral domain using tunable ﬁlters or ﬁlter

Fast Capture of Spectral Image Series

149

wheels, or scanning in the spatial dimension. This

scanning dramatically increases the acquisition times,

which becomes particularly noticeable in applications

such as bi-angular reﬂectance capture where tens of

thousands of photos have to be taken. Other meth-

ods rely on reconstruction algorithms, which are of-

ten sensitive to noise and therefore produce unreli-

able results in scenarios where the illumination can-

not be increased but short acquisition times are nec-

essary. Shrestha and Hardeberg compared and evalu-

ated several such multispectral cameras (Shrestha and

Hardeberg, 2014). This comparison shows that there

is no camera hardware that combines a high spectral

and spatial resolution with short acquisition times.

Though there are spectral cameras which allow for a

snapshot acquisition like RGB cameras, these devices

suffer from limited spatial resolution and light sensi-

tivity because the spectral information is spread over

the spatial domain by optical elements. An exhaustive

survey of spectral snapshot cameras has recently been

performed (Hagen and Kudenov, 2013). In summary,

snapshot spectral cameras are not only extremely ex-

pensive, but they also rely on bright light sources to

account for their limited light sensitivity.

Multispectral Reﬂectance Acquisition. Convert-

ing gonioreﬂectometers from RGB to multispectral is

straightforward. However, due to the serial nature of

the capture process, ﬁlter switching and long expo-

sure times necessary for high-quality spectral images,

the measurement times are impractically high. Never-

theless, such brute-force measurements have already

been conducted. Tsuchida et al. (Tsuchida et al.,

2005) used a monochrome camera and placed a wheel

with 16 different bandpass-ﬁlters in front of the light

source. Rump et al. (Rump et al., 2010) placed a

liquid crystal tunable ﬁlter in front of a monochrome

camera, achieving a spectral resolution of 32 bands.

Unfortunately, both setups are impractically slow, as

the measurement times are on the order of days.

Hybrid Methods. The following techniques are

based on the combination of high-quality RGB mea-

surements and sparse spectral measurements (Imai

and Berns, 1998; Hardeberg et al., 1999; Rump and

Klein, 2010). The great advantages of hybrid meth-

ods are the high spatial resolution and the re-use of

existing RGB technology. Sparse spectral informa-

tion of images can e.g. be acquired by using a line-

scanning spectral camera (Rump and Klein, 2010).

Unfortunately, it is a serious problem to spatially reg-

ister 2D RGB images and the 1D spectral line for ar-

bitrary scene geometry. When no additional knowl-

edge about the imaged spectra is present, the pseu-

doinverse of the RGB ﬁlter matrix can be applied

(Imai and Berns, 1999), typically resulting in a bad

reconstruction. A much better inverse matrix can be

set up (Hardeberg et al., 1999) as soon as additional

knowledge about spectra is present. Unfortunately,

the methods based on inverse matrices map all mea-

sured values to a three-dimensional hyperplane in the

spectral space. This leads to errors as soon as multi-

ple materials are present in the scene. This limitation

can be removed by casting the spectral reconstruction

as an optimization problem (Rump and Klein, 2010).

While this technique has proven to give excellent re-

sults when applied to complex images, several prob-

lems render it impractical: It requires low noise spec-

tral data, resulting in impractical exposure times, and

with their setup the authors rely on a pixel-accurate

alignment of 2D RGB images and a 1D spectral scan-

line. We also propose the use of a hybrid method. In-

stead of a spectral line camera, we use a monochrome

CCD camera together with a tunable bandpass ﬁlter

(see (Hardeberg et al., 2002)) for imaging distinct

spectral bands. This 2D spectral data can be accu-

rately aligned with the 2D RGB data. An additional

spatial ﬁltering makes our method capable of hand-

ling high noise levels in the spectral data. As demon-

strated by our results, we can reconstruct the full spec-

tra from high-quality RGB and noisy spectral data.

Image Denoising. There are several methods that

try to denoise photographs taken under poor light-

ing conditions. These approaches are similar to the

one proposed in this paper as they all use additional

imaging modalities to guide the denoising. Where our

method uses high quality RGB images to improve low

quality spectral images, these methods all make use

of high quality ﬂash images to improve noisy images

taken under low light conditions. Petschnigg et al.

(Petschnigg et al., 2004) combine a sequence of ﬂash

and no-ﬂash images to transfer detail from the well-

exposed ﬂash- to the noisy image. To do so, they

apply a joint bilateral ﬁlter on the two images. Ad-

ditionally, they have to deal with shadows and high-

lights caused by the ﬂash to avoid artifacts in the de-

noised image. Matsui et al. (Matsui et al., 2009) allow

to capture both images at the same time by using a

near infrared (NIR) ﬂash that does not interfere with

the no-ﬂash image. After applying a joint bilateral

ﬁlter, they additionally extract a “detail image” that

contains noise and ﬁne detail that was lost due to the

ﬁltering. They remove the noise by applying a joint

non-local mean to the detail image and can use it to

restore the ﬁne scale structures in the ﬁltered photo-

graph. By computing a blur kernel via optical ﬂow on

a sequence of NIR-ﬂash images, they are even able to

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

150

remove motion blur from a noisy image via deconvo-

lution. In 2009, Krishnan and Fergus (Krishnan and

Fergus, 2009) approached the problem in a different

manner: They also improve a low light ambient im-

age by a “dark” ﬂash image, which they realize by

blocking the visible part of the ﬂash spectrum. In

contrast to previous methods they minimize an en-

ergy function that rewards a reconstruction close to

the colors observed under ambient light while having

similar gradients as the dark ﬂash image. Takeuchi

et al. (Takeuchi et al., 2013) again use an NIR-ﬂash,

but instead perform a decorrelation of luminance and

chroma information. The chroma information is taken

from a denoised no-ﬂash image, whereas the lumi-

nance is estimated from the ﬂash image by predicting

the spectral response in RGB. These methods are cer-

tainly applicable for denoising multispectral images

by using high quality RGB instead of the ﬂash im-

ages. However, they all lack the ﬂexibility that we

can exploit with our energy function formulation with

regard to sparsely and incompletely measured spec-

tral band images. The existing work requires dense

correspondences for all image modalities (ﬂash / no-

ﬂash), whereas our method allows for “missing” spec-

tral bands for some of the RGB images. These miss-

ing correspondences are compensated for by our reg-

ularization over an appearance neighborhood.

3 SPECTRAL

RECONSTRUCTION

In this section, we introduce our novel method that

is able to reconstruct full spectral images from high-

quality RGB data and noisy spectral data.

We suggest to utilize a monochrome camera with

tunable bandpass ﬁlter at low exposure times. This

produces images with high spatial resolution but a

very low SNR. However, this conﬁguration has the

fundamental advantage that a pixel-accurate align-

ment between RGB and band-ﬁltered images is pos-

sible. One way to register the images would be to use

a common optical path and a beam splitter. Another,

much simpler option would be to register both cam-

eras in beforehand, if a series of spectral bands have

to be imaged with non-changing geometry. In the lat-

ter case, the spectral camera system can be registered

by taking one image with long exposure time in be-

forehand which then allows for registration against

the RGB images using markers or standard methods

like optical ﬂow. This second technique is especially

useful for reﬂectance measurements because, in this

case, huge image series have to be captured where

only changes in lighting occur.

Of course, the noisy band-ﬁltered images cannot

be used directly. To get rid of the noise in the sin-

gle band-ﬁltered images, ﬁltering is necessary which

leads to a loss of high frequent spatial details. For-

tunately, the low-noise and high-resolution RGB im-

ages should provide enough information to recover

those details. Imai and Berns (Imai and Berns, 1998)

also proposed to capture with different spatial resolu-

tions, and to reconstruct the high-resolution spectral

image afterwards. However, they also stick to a low

dimensional subspace of the spectral space and only

aim at reconstructing L

∗

images. In contrast, we

would like to reconstruct a full spectral image and do

not want to accept limitations on the dimensionality

of the imaged spectra. Our energy function is inspired

by the one used by Rump and Klein (Rump and Klein,

2010). We incorporate the ﬁltering directly into the

energy function by ensuring that the ﬁlter response to

the unknown target image matches the ﬁlter response

on the noisy input images. Then, the optimizer is re-

sponsible for ﬁnding a solution which respects both

high frequent details and low frequent spectral infor-

mation.

The new principle leads to the following energy

function:

E(S) = α

∑

i=1



∑

p=1

(p)(S

(p) − D

(p))



+ β

∑

p=1

CS(p) − R(p)

(1)

+ γ

∑

p=1

∑

n∈N

S(p) − S(n)

Here, p denotes a pixel position, P the total number

of all pixels, K is the number of spatial ﬁlters applied

to the data and α, β and γ represent weights for the

individual terms. The ﬁrst term ensures that applying

a spatial ﬁlter F

to the unknown band-ﬁltered image

matches the ﬁlter response on the noisy, measured

image D

of the same waveband. The b

select the

respective wavelength band corresponding to the i-th

ﬁlter kernel. The second and third term are similar to

the ones in the work of Rump and Klein (Rump and

Klein, 2010). The matrix C contains the RGB cam-

era’s spectral sensitivity curves in its rows. It is used

to convert the unknown spectra S to RGB to enforce

a similarity to the measured RGB data R. To make

the problem tractable, we further regularize over a

similarity in an appearance neighborhood N

. The

neighborhood N

for pixel p is determined as a ﬁxed

number of closest pixels in a user-selected appearance

space. As it is straight forward and provides good re-

sults, we compute N

as the k nearest neighbors in the

camera’s RGB space with k = 3.

Fast Capture of Spectral Image Series

151

Filtering. To reduce the noise level in the spectral

data, Gaussian ﬁlters are used. We chose Gaussian

ﬁlters to make the method more robust w.r.t. small

misalignments in the registration of the spectral and

RGB images. If in contrast the noise was removed

by averaging the pixel values in a ﬁxed neighbor-

hood, i.e. if we had applied simple box ﬁlters, only

small misalignments in the registration would intro-

duce a strong bias in the reconstruction. The size of

the individual ﬁlters is adapted to the noise level in

the different wavebands. These noise levels depend

on the quantum efﬁciencies and on the chosen expo-

sure times of the single spectral bands. The exposure

times were chosen as



· L



, (2)

where t

is a constant, Q

is the camera’s quantum ef-

ﬁciency at the wavelengths corresponding to the i-th

band and L

is the spectral radiance of the illumina-

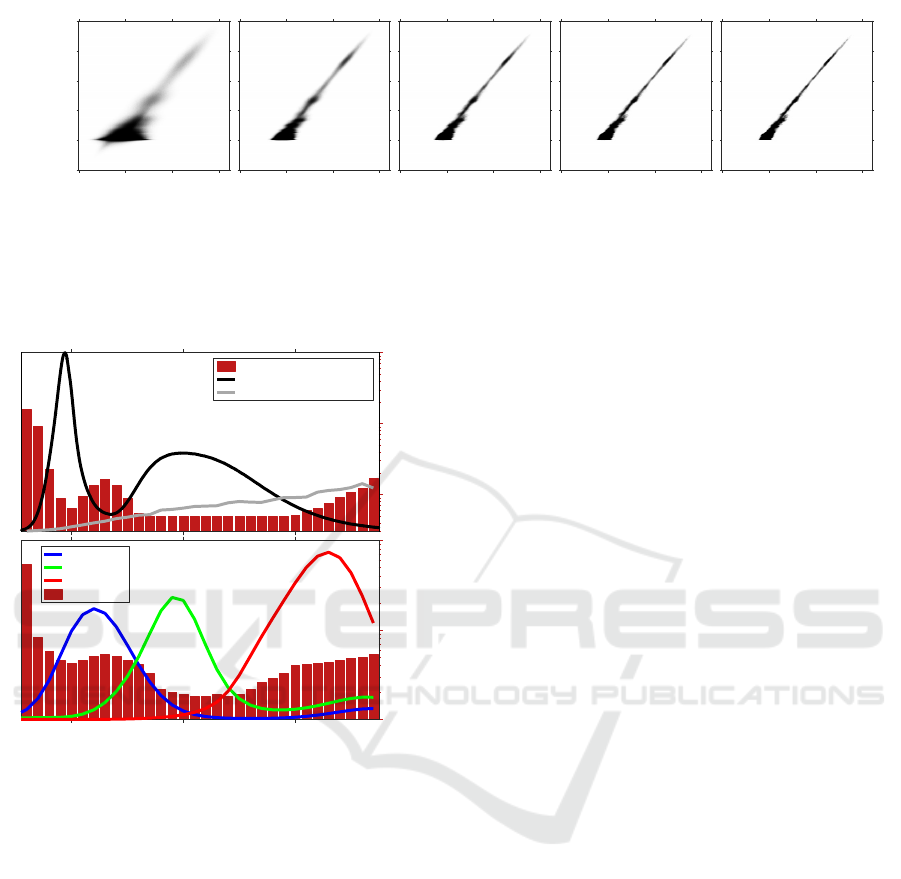

tion in spectral band i (see Figure 3). The exponent ω

can be used as a weight between accepted noise level

and time spent for the exposure. In our experiments,

we chose ω = 0.8. Thus, spectral bands with high

noise levels caused by bad camera sensitivity or weak

illumination receive longer exposure times. The ﬁlter

sizes are then calculated as

· L

·t

, (3)

where s

again is a constant. Both t

and s

solely de-

pend on the hardware and are chosen manually. The

exposure times t

and ﬁlter sizes s

resulting for our

camera hardware and light sources can be seen in Fig-

ure 3. The standard deviation σ

of the Gaussian ﬁlters

is set to s

/5.

Filter Placement. During ﬁltering, only regions in-

side the image boundaries are considered, i.e. the ﬁl-

ter centers are positioned with a distance of s

to the

image boundaries. The centers are then placed at least

every d pixels, independent of their size. To limit the

size of the resulting system of equations and since a

pixel-wise convolution would result in many redun-

dant ﬁlter responses, we chose d = 2.5 in our exper-

iments. This placement still causes heavy overlap of

the kernels in image space. However, we let the op-

timizer deal with the resulting ambiguities. A con-

servation of high frequency features is guaranteed via

constraints provided by the RGB images.

Optimization. As the energy function described

in equation (1) contains only least squares distance

terms, its derivative is linear with regard to the un-

known variables. For this reason, it can be trans-

formed into a set of linear equations AS = b with a

very sparse matrix A. We use an iterative conjugate-

gradient method to solve the normal equation A

AS =

b. The advantage of this solver is, that neither A

nor A

needs to be stored explicitly and we just have

to provide two functions that compute a multiplica-

tion of the respective matrix with a vector.

The reconstruction quality is directly dependent

on a viable choice of the three weights in equation (1).

First of all, it is important to note that the three

terms of the energy function have signiﬁcantly differ-

ent numbers of distance terms. We therefore propose

to weight the three terms equally using the total num-

ber of equations M = K + 3P +

∑

p=1

α =

, β =

, γ =

∑

p=1

. (4)

For the reconstruction of a single image it is sufﬁcient

to choose

α,

β and

γ to be one. When multiple images

have to be reconstructed and there is less spectral in-

formation per image, the regularization needs to be

weighted higher to allow for faster convergence. Dur-

ing our experiments, we found that a value of

γ = 20

is a good choice. It should be clariﬁed that this just

helps to converge faster and is not necessary for good

reconstruction results.

Application for Reﬂectance Acquisition. For a lot

of applications multiple spectral images of very sim-

ilar scenes need to be taken. This includes measure-

ments of materials’ reﬂectance. In this case, it is not

necessary to capture a noisy image for each spectral

band and every RGB image. The regularization term

will “transport” the spectral information between the

images and lead to a reconstruction of the full spec-

trum for each image even if there is only one noisy

spectral image per RGB image. In many cases, it

is even possible to reconstruct spectra for RGB im-

ages without any corresponding spectral information

at all, as long as the RGB-image content is sufﬁciently

similar to that of the RGB images with corresponding

spectral information.

The applicability of our method for reconstructing

spectral images for multiple, possibly different RGB

images can be seen in the Section 5. For many hard-

ware conﬁgurations an exposure time for the spectral

camera sufﬁces that is comparable to that of the RGB

camera. Effectively, this speeds up spectral imaging

to standard RGB imaging.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

152

In the following, we will ﬁrst describe the hard-

ware and its calibration used throughout our experi-

ments and we will then discuss the results achieved

by our method.

4 SETUP AND CALIBRATION

In this section, we describe the hardware setup used

for our experiments. We start with some explanations

on the original RGB setup and on the additional ded-

icated hardware required for the spectral data, with

supplemental information on the general applicability

of our method. Afterwards the calibration of the setup

is explained with greater detail.

RGB Measurement Setup. For our experiments

both with single images as well as with full re-

ﬂectance capture, we utilized an existing setup that

was custom-built for RGB-based BTF acquisition

(Schwartz et al., 2014). The setup has a hemispher-

ical gantry covered with 198 2.5W Barthelme LEDs

which can be switched on and off individually. 11

RGB industry video cameras (SVS Vistek 4022) with

a resolution of 2048x2048 pixels are integrated into

the gantry, forming an arc on one side from the top

position down to an elevation angle of 75

◦

measured

from the normal. To measure anisotropic materials as

well, the sample holder is mounted onto a precision

rotation stage which can orient the samples to arbi-

trary azimuth angles.

Spectral Integration. To capture spectral data, an

additional camera has been mounted into the setup.

Here, we use a monochrome CCD camera (Photomet-

rics Coolsnap K4) also with 2048x2048 pixels resolu-

tion. In the optical path a liquid crystal tunable ﬁlter

(CRi Varispec VS10) is mounted. This ﬁlter allows

for extremely fast change of the spectral bandpass.

The average bandwidth is about 10nm and the peak

wavelength can be tuned from 400 to 720nm covering

the visible spectrum. This camera system is mounted

at 45

◦

elevation and with 15

◦

azimuthal distance to

the RGB camera at the same elevation. This is impor-

tant since the LEDs are mounted at the gantry with

the same distance. After the sample is rotated by

◦

the spectral camera captures the same content as

the RGB camera before. Using this arrangement, a

nearly pixel-correct alignment between spectral and

RGB data is possible.

The measurement process works as follows: the

sample is rotated to 24 different positions in 15

◦

steps.

For every rotation angle, an image is taken by the

RGB cameras and the spectral camera using multi-

ple LEDs switched on to have a high quality image

in which the sample holder can be detected with sub-

pixel accuracy to have a perfect alignment between

the images of the single cameras. Afterwards the

LEDs are serially switched on, images are captured,

and the respective LED is switched off again. Since

the RGB and the spectral camera system are operated

simultaneously, and since the spectral camera system

is driven at short exposure times, the measurement

process is as fast as a traditional RGB measurement

using the same setup. Our measurement setup is able

to acquire the necessary 32 noisy band-ﬁltered images

within the time needed for 10 high quality, high dy-

namic range RGB images.

For the reconstruction of spatially varying and bi-

angular reﬂectance the multi-image reconstruction is

utilized as described in Section 3. From the set of all

RGB images of a measurement run, 20 images are it-

eratively selected of which 10 are from the camera at

◦

elevation and the other 10 should cover other el-

evation angles but similar light directions. This set of

20 images is then reconstructed using our method. To

speed up reconstruction, the recovered spectra from

the ﬁrst image set can be used to get a much better ini-

tialization for the following image sets. For this pur-

pose, appearance neighborhoods based on the RGB

data of the two image sets are calculated and the spec-

tra are transported from the ﬁrst set to the second set.

Calibration. We performed a careful calibration of

the setup. Here, cameras and light sources have to

be calibrated geometrically and radiometrically. The

reader is referred to the work of Schwartz et al. for an

in-depth description of all calibration steps (Schwartz

et al., 2014). We focus on the radiometric calibra-

tion only, since the geometric calibration is out of the

scope of this work.

First of all, we measured the spectrum of our LED

light sources using an Ocean Optics USB4000 spec-

trophotometer. The spectrum is shown in Figure 3.

For the cameras two different kinds of calibrations

are required: on the one hand a recovery of the opto-

electronic conversion function (OECF) to correct for

non-linearities in the sensor’s response to light and

on the other hand a spectral calibration which aims at

ﬁnding the response efﬁciency of the optics-camera

combinations depending on the wavelength.

Linearizing the response of the RGB cameras is

straightforward and was performed using the algo-

rithm of Robertson et al. (Robertson et al., 2003). To

obtain the spectral ﬁlter matrix C of the RGB cameras,

standard methods can be applied as well (Rump et al.,

2011). The spectral sensitivity of the RGB cameras is

Fast Capture of Spectral Image Series

153

filter size 5

-5 0 5 10

-0.1

0.1

0.2

0.3

0.4

Rel. Irradiance

filter size 13

-5 0 5 10

filter size 22

-5 0 5 10

Pixel value

filter size 31

-5 0 5 10

filter size 40

-5 0 5 10

Figure 2: Checking the stability in the bad-SNR range of the monochrome camera: Response histograms on ﬁltered, dark-

subtracted (offset by 30) input images after applying Gaussian ﬁlters of increasing size. As one can see, negative values after

dark-subtraction need to be taken into account since a clipping would bias the result largely. The camera’s output in this range

is statistically stable despite the fact that the output of the single pixels is shot-noise limited. Due to the stability, data in this

pixel value range can be used as an input for our method.

exposure time [s]

[relative]

exposure time (s)

LED normalized intensity

CCD quantum efficiency

filter size (pixels)

450 550 650

[relative]

blue sens.

green sens.

red sens.

filter sizes

Figure 3: Calibration of the measurement setup. The bar

plots show the resulting exposure times (top) and ﬁlter sizes

(bottom).

shown in Figure 3.

For the spectral camera, much more care has to be

taken since here measurements with a very low SNR

will be used. Therefore, the calibration of the cam-

era must also hold for low pixels values - a range that

is typically excluded using weighting functions. We,

however, want to use this range as well because we

use largely underexposed band-ﬁltered images as in-

put data. We therefore require a calibration which is

exact for the low pixel values, too.

The ﬁrst step is to obtain exact knowledge about

the camera’s dark current in all pixels. For this we

took 200 photographs with closed shutter and re-

peated this process for different exposure times. The

average over the dark frames is computed with ﬂoat-

ing point accuracy.

To recover the OECF in the low-pixel-value range,

we propose to apply the Robertson algorithm to im-

ages modiﬁed by dark-subtraction, ﬁltering and a re-

scaling to the full range of integers corresponding to

the camera’s bit depth. The ﬁltering is done using a

Gaussian kernel as in the spectral recovery method.

As the original algorithm works on discrete inte-

ger pixel values, a mapping from the real-valued ﬁl-

tered data has to be applied to obtain integers again.

As we take the images with short exposure times, the

ﬁltered pixel values all lie in the lower range of the en-

tire interval of valid pixel values. We therefore stretch

this small interval to the full length and round these

new values to their respective nearest integers. These

new integer values can then directly be used in the

standard Robertson algorithm.

To show the effect of ﬁltering on response recov-

ery, we computed response histograms for an expo-

sure series having extremely low pixel values. Fig-

ure 2 shows the histograms for different ﬁlter sizes.

The response of the camera is stable under ﬁltering

even for pixel values with an SNR of 1 or smaller.

Notice, that the dark-current-noise of the camera is

Gaussian with standard deviation 3. The discrete na-

ture of the photo and electron shot-noise completely

cancels out when multiple pixels are combined by ﬁl-

tering. The spectral calibration of our system means

straightforwardly taking images of a white diffuse ref-

erence surface under the known LED illumination and

dividing the response by the LED spectrum. The re-

sulting sensitivity for each wavelength band can be

taken from Figure 3. Finally, we checked the com-

plete calibration of both types of cameras by a cross-

validation experiment. This is done by simulating

the RGB response to an X-Rite colorchecker passport

from a spectral image taken with the spectral cam-

era system. This way all calibration results are com-

bined. The simulated RGB response matches the real

response extremely well which is shown in Figure 4.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

154

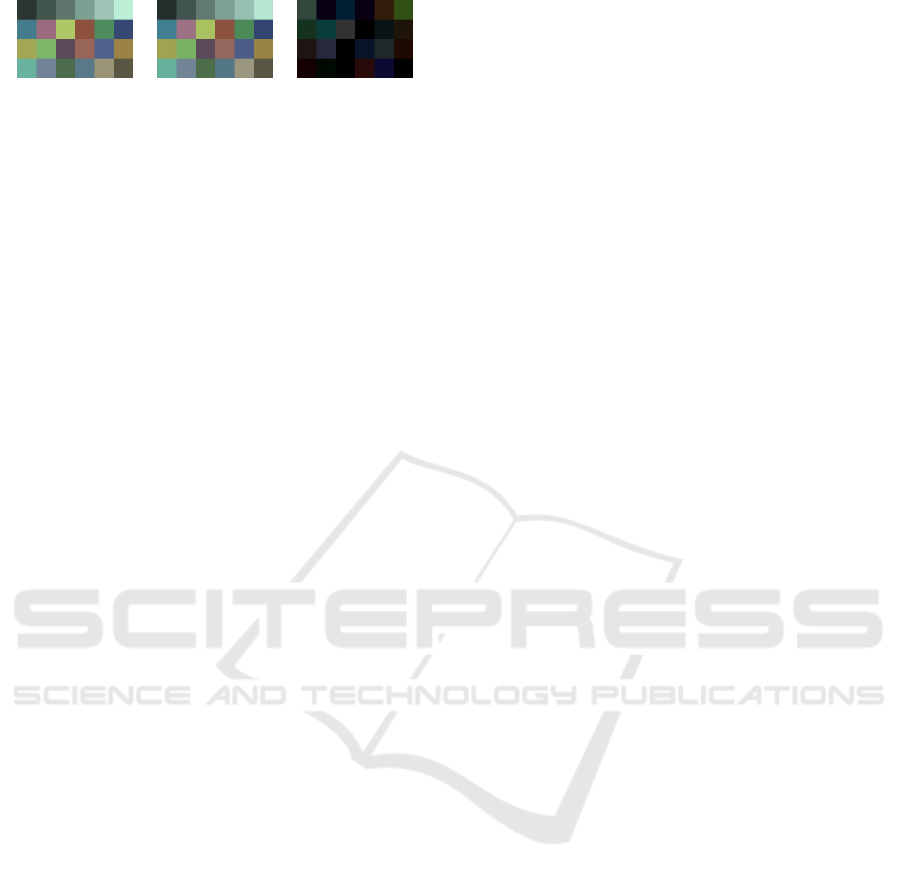

(a) Real RGB data (b) Simulated RGB data (c) Difference ×10

Figure 4: Cross validation of the spectral calibration: (a)

real response of RGB cameras to color checker ﬁelds, (b)

simulation of responses by applying the RGB ﬁlter matrix

C to a spectral image captured using the spectral camera

system, (c) 10× scaled difference image showing that our

calibration used to generate the image in (b) is very exact.

5 EVALUATION

Prerequisites. For the evaluation of our method, we

used four challenging datasets: a red fabric made

of four different yarns, a collection of colorful Lego

bricks, a hand-made color checker with diffuse and

specular ﬁelds and a wallpaper having an embossed

structure. For all of these samples, complete spectral

ground truth data is available that was captured with

a gonioreﬂectometer setup (Rump et al., 2010).

Simulated Data. To evaluate the reconstruction

quality achievable by our method, we ﬁrst performed

simulations based on spectral ground truth data. This

is extremely helpful because a pixel-wise comparison

between reference and reconstruction can be made.

This is not easily possible when using real data since

the geometries and resolutions of the setup used for

the ground truth measurements and the setup de-

scribed in Section 4 are quite different. Furthermore,

a basic understanding about the method and its prop-

erties can be gained without having too much bias by

real-world data.

To have a scenario as realistic as possible, we per-

formed a detailed simulation of the capture process.

For the image capture in the CCD cameras the cali-

bration results from Section 4 are used. The below

equation describes how a pixel value I is generated

from an incident irradiance x and exposure time t by

means of the camera mapping g : R → N:

I = g(x,t) :=



−1

(x ·t · Q

) + ∆

ADC

+ N



(5)

The I still has to be clamped to the valid range of

pixel values, in the case of our cameras to 10 bit un-

signed integers. Q

denotes the combined quantum

efﬁciency of optical system and sensor at wavelength

λ and f

−1

is the OECF i.e. the inverse of the response

function. ∆

ADC

is the ADC offset of the camera and

a random value drawn from a normal distribu-

tion with standard deviation σ mimicking the various

noise sources inside of the capture process. It is a

simplifying assumption to model the effect of the dif-

ferent capturing noise sources as Gaussian noise N

However, this simpliﬁcation is to some extend justi-

ﬁed by the varying nature of the different noise com-

ponents. The values for f , Q, ∆

ADC

and σ are taken

from the calibration described in Section 4. We there-

fore end up with a detailed simulation of our mea-

surement setup that helps us to evaluate the quality of

spectral reconstruction in dependence on the different

parameters.

Starting with a spectral reference image S

re f

and

the spectral power distribution L of the illumination,

we ﬁrst simulate an exposure series for the RGB im-

ages by computing I

RGB

(p) = g(CS

re f

(p)diag(L),t

)

for all pixels p of the reference image S

re f

and

for different exposure times t

. The RGB-LDR im-

ages are recombined to form HDR images using

Robertson’s algorithm (Robertson et al., 2003). For

the spectral images, one single exposure per wave-

length band is simulated by computing I

spectral

(p) =

g(S

re f

(p)diag(L),t

During our experiments, it turned out to be the

best solution to use 4 different exposures t

for the

RGB cameras. For the spectral camera, we calculated

the exposure time according to equation 2. That is,

we accept more noise in those spectral bands having

bad support from light source and quantum efﬁciency.

The size of the Gaussian ﬁlters in the reconstruction

has to be adjusted accordingly.

Our simulation helps to choose good values for the

capture and reconstruction parameters in beforehand.

In Figure 3, we show the exposure times t

for the

spectral camera system and the ﬁlter sizes of the gaus-

sian ﬁlters in the reconstruction process. The standard

deviation σ for the Gaussians was then set to 1/5 of

the ﬁlter size.

Full Correspondences. In many simple use cases,

just one spectral image needs to be taken. In this

case, the input to the reconstruction algorithm is a

high quality RGB image and all the band-ﬁltered im-

ages corresponding to the wavebands of the spectral

camera (in our case 32, ranging from 410 to 720nm

in 10nm steps). We used one image (texture) per ex-

ample material as reference image. After running our

new algorithm, the result S is compared to the refer-

ence image S

re f

Figure 5 shows that our method successfully re-

covers spectral images that are very close to the

ground truth. We selected representative spectra by

picking both points with low and high RMSE in the

color mapped (Green, 2011) error maps. The highest

errors for the wallpaper material can be found in spec-

tra (4 – 6). The deviations occur mostly in the very

Fast Capture of Spectral Image Series

155

ground truth

normalized RMSE

0.005

0.025

0.05

0.075

0.095

450 550 650

(a) Wallpaper

ground truth

normalized RMSE

0.005

0.025

0.05

0.075

0.095

450 550 650

(b) Lego

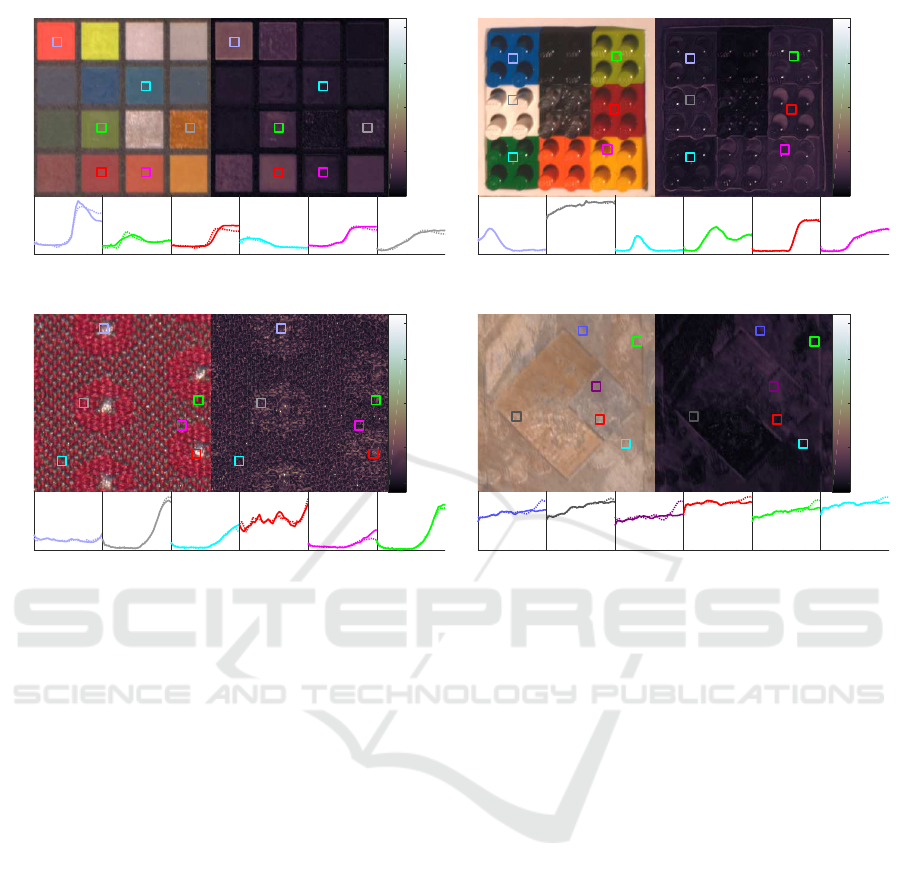

Figure 5: Normalized RMSE map of reconstructions of single images selected from two materials: shown respectively on the

left is the ground truth image (converted to RGB for display), whereas the right hand side shows an error map of the RMSE

of the reconstruction obtained from our simulated, artiﬁcially corrupted data. The pixel-wise RMSE is normalized by the

mean over all pixel intensities of the ground truth spectral image. Inset below are some representative ground truth (solid) and

reconstruction (dotted) spectra. Due to limited space, we omitted the reconstructed images as there is no noticable difference

in comparison with the ground truth when converted to RGB.

blue and red bands, which are the ones with the high-

est noise levels. For the vast majority of the pixels,

the two spectra are virtually indistinguishable. For

the Lego material, only spectrum (6) shows signiﬁ-

cant deviations from the ground truth. This error oc-

curred in a highlight, which has a dramatically differ-

ent spectrum than the surrounding. We discuss these

errors in more detail in Section 6.

Sparsely Measured Spectral Bands. Reconstruct-

ing multiple images at once is the much more chal-

lenging case. Here, we aim at providing only

one noisy monochrome image per spectral band and

spread this information over several RGB images.

Even though there is no RGB image having complete

spectral information, the regularization helps to share

the information between the images. In this way, the

exposure time for the spectral camera system is kept

minimal and the spectral information can be acquired

simultaneously with the RGB data. Using this ap-

proach, spectral imaging can be accelerated to the

speed of RGB imaging and – in our use case – the

capture of spectral reﬂectance can be performed at the

speed of established RGB devices.

For our tests we capture 10 HDR RGB images

while acquiring all of the 32 noisy, band-ﬁltered im-

ages, as we are able to achieve exactly these numbers

with our setup. Since the spectral camera is mounted

at 45

◦

elevation angle, we use only RGB images and

the corresponding noisy spectral data from this eleva-

tion. Additionally, we added 10 RGB images without

any spectral information and with different elevation

angles. This way, complete bi-angular reﬂectance can

be reconstructed using our method.

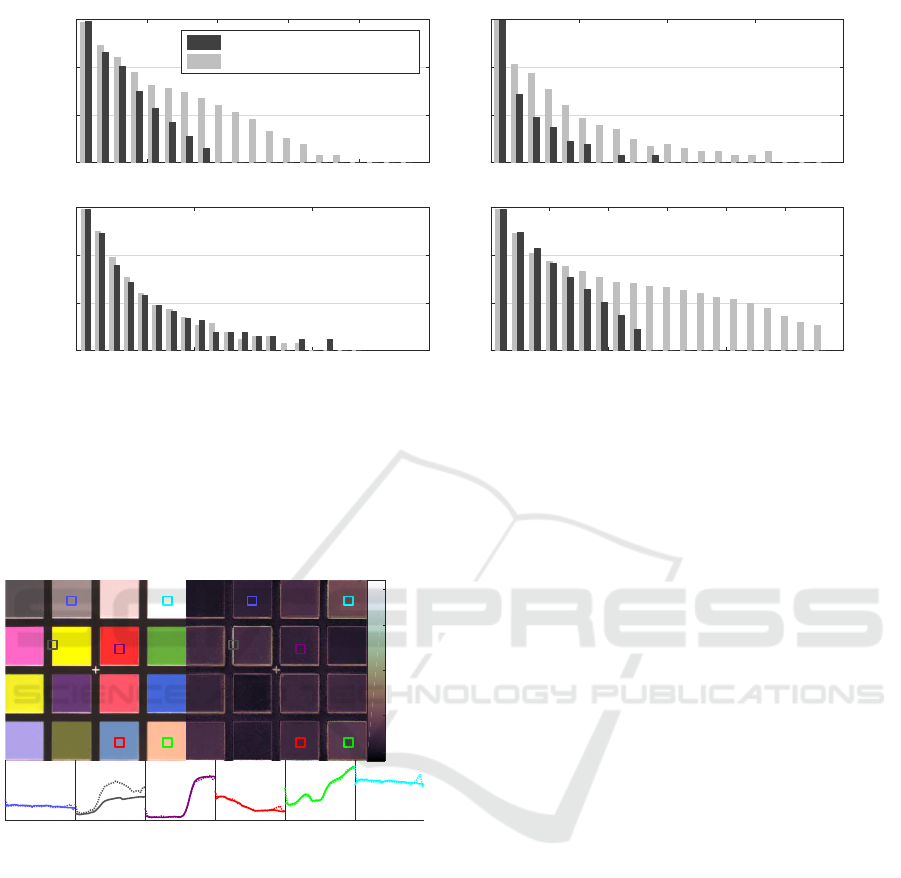

In Figure 6, error maps of the normalized RMSE

are shown. Figure 7 displays histograms that show

the cumulative behaviour over the entire experiments,

i.e. over all pixels of all the twenty images per mate-

rial. Both ﬁgures indicate that – just as in the single

image case – the errors are concentrated at low val-

ues, showing the high quality of the reconstruction.

The bin counts in the histograms of Figure 7 slightly

increase for the images captured at different elevation

angles than the one where the spectral camera was

placed. However, these increased errors are negligi-

ble considering the logarithmic scaling of the y-axis.

In the textures of Figures 5 and 6 there is no notica-

ble increase of the errors from the “known” images to

the “unknown” ones, which indicates that parallax ef-

fects have no large impact on the reconstruction qual-

ity. Therefore, high-quality spectral reﬂectance can

be captured at high speed using our method.

Real Data. To test our algorithm on real data, we

captured reference data for an X-Rite colorchecker

passport with our spectral camera system using a total

exposure time of 226212ms. Subsequently, we cap-

tured RGB and noisy band-ﬁltered images with a total

exposure time of 7463ms and performed a reconstruc-

tion using our novel algorithm. Figure 8 shows a com-

parison between reference and reconstructed spectra

for some of the color ﬁelds. The ﬁgure shows that

our algorithm achieves nearly the same results as the

reference capture while requiring exposure times that

are about 1.5 orders of magnitude smaller. There

are again some more erroneous reconstructions at the

boundaries of the checker ﬁelds, which result from

gloss in these pixels and potentially a slight misalign-

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

156

Ω

= (30

, 150

), Ω

= (75

, 345

)

ground truth

normalized RMSE

0.01

0.05

0.1

0.15

0.19

450 550 650

(a) Color Checker

Ω

= (30

, 150

), Ω

= (60

, 36

)

ground truth

normalized RMSE

0.005

0.025

0.05

0.075

0.095

450 550 650

(b) Lego

Ω

= (0

, 0

), Ω

= (30

, 90

)

ground truth

normalized RMSE

0.01

0.05

0.1

0.15

0.19

450 550 650

Ω

= (30

, 150

), Ω

= (75

, 165

)

ground truth

normalized RMSE

0.01

0.05

0.1

0.15

0.19

450 550 650

(d) Wallpaper

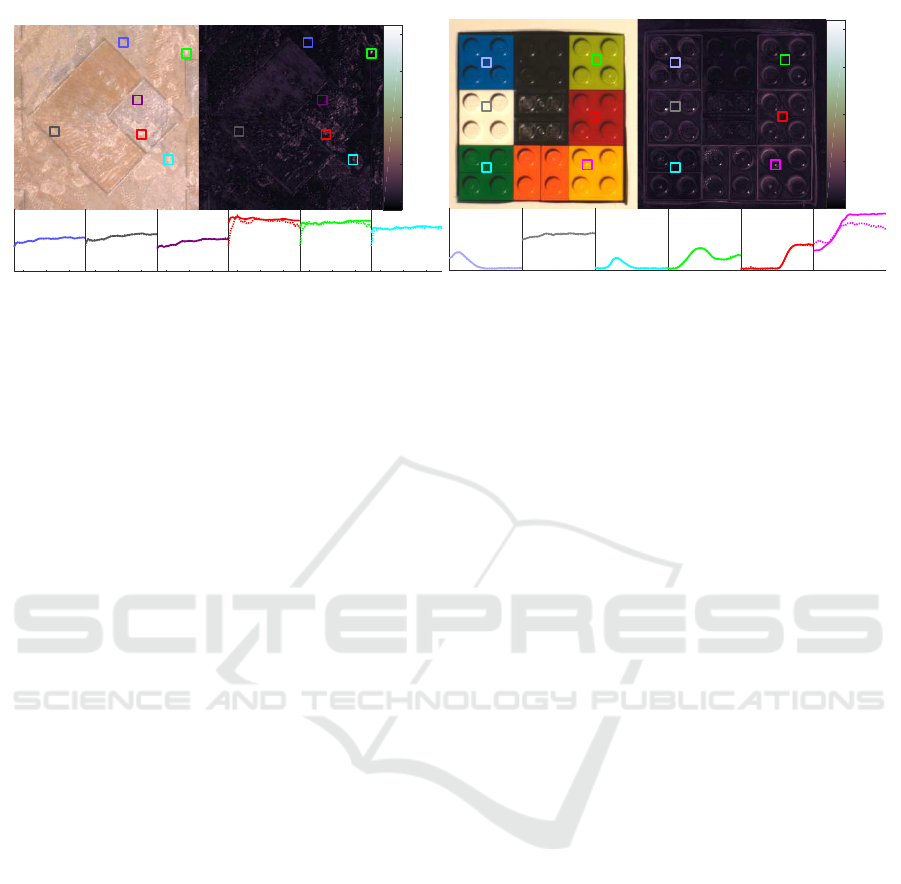

Figure 6: Normalized RMSE maps for all of the four tested materials: We selected representative textures from elevations

(indicated respectively on the left as the ﬁrst of the two angles of Ω

) different than the 45

◦

where we captured the band-

ﬁltered images. Shown respectively on the left is the ground truth image (converted to RGB for display), whereas the right

hand side shows an error map of the RMSE of the reconstruction obtained from our simulated, artiﬁcially corrupted data. The

pixel-wise RMSE is normalized by the mean over all pixel intensities of the ground truth spectral image (notice the different

scaling of the colormap of the Lego material). Inset below are some representative ground truth (solid) and reconstruction

(dotted) spectra. Due to limited space, we omitted the reconstructed images as there is no noticable difference in comparison

with the ground truth when converted to RGB.

ment of the spectral bands and the RGB images.

6 LIMITATIONS

The reconstruction quality of our method depends

directly on how much the regularization biases the

result. Since it is assumed that similar RGB val-

ues have similar spectra, scenes containing two or

more metamers may pose problems. Especially for

reﬂectance capture, metamers may only occur for

certain azimuth angles, if anisotropic materials are

present. However, we consider the metamerism prob-

lem to be an extremely rare case and in our tests

this problem did not occur. Moreover, the problem

can be circumvented in many cases by adding spatial

proximity information to the appearance space pro-

jection to distinguish between metamers that are not

spatially adjacent. Another limitation is the occur-

rence of Fresnel reﬂections at certain elevation angles.

These reﬂections show both spectral and angular de-

pendence, as the refractive indices of material layers

vary with the wavelength. The assumption that spec-

tral data from only one elevation can be propagated

to the entire hemisphere can thus be violated by some

material classes. This limitation can, however, easily

be handled by addition of one or more spectral cam-

eras at different elevations.

Furthermore, the convergence speed of the spec-

tral recovery directly depends on the size of the Gaus-

sian ﬁlters used to get rid of the noise in the band-

ﬁltered images. In effect, this limits the size of the ﬁl-

ters and this way the acceptable noise level resulting

in a lower bound on the acceptable exposure times for

the spectral camera system. Of course, this problem

can be circumvented if a better optimization scheme

is used.

The last limitation arises from the proposed setup

only. Since we integrated only one spectral camera at

Fast Capture of Spectral Image Series

157

0 0.05 0.1 0.15 0.2 0.25

Color Checker - RMSE

with spectral corresp.

without spectral corresp.

0 0.1 0.2 0.3 0.4

Lego - RMSE

0 0.05 0.1 0.15

Red Fabric - RMSE

0 0.05 0.1 0.15 0.2 0.25 0.3

Wallpaper - RMSE

Figure 7: RMSE histograms for all of the four tested materials: For each of the four materials we compute a pixel-wise RMSE

over all the 32 channels. We separated the ﬁrst ten images, which were measured at the 45

◦

elevation of the spectral camera,

from the remaining ten images where no spectral bands with pixel correspondences where acquired. In total, most of the

errors are close to zero with only a very small fraction of the pixels above an RMSE of ∼ 0.03 (notice the logarithmic scale of

the y-axis). As expected there is a noticable increase of the histogram counts for higher RMSEs for the images without direct

spectral correspondences. However, this increase occurs for a very small fraction of the pixels and is therefore perceptually

virtually unnoticeable, as can be seen in the other ﬁgures.

ground truth

4 5

normalized RMSE

4 5

0.01

0.05

0.1

0.15

0.19

450 550 650

Figure 8: Spectral reconstruction using real data: the left

part shows the RGB-converted ground truth data, the right

part the normalized RMSE between the reference and our

reconstruction. The reference data (solid plots) was ob-

tained using long exposure times and required a total ex-

posure time of 226212ms. The reconstruction by our al-

gorithm was based on shots with a total exposure time of

7463ms. The result indicates the robustness of our recon-

struction against high noise levels. Spectral imaging is ac-

celerated by about 1.5 orders of magnitude.

◦

elevation angle, materials showing dependence of

spectra on angle – like materials having interference

effects – cannot be reconstructed well. This, how-

ever, could be easily ﬁxed by adding additional spec-

tral cameras.

7 CONCLUSIONS

In this paper, we presented a novel method for spec-

tral imaging, especially suited for the capture of mul-

tiple spectral images at once. Our method recon-

structs spectral images from high-quality RGB and

noisy band-ﬁltered images using a novel variant of the

spectralization method. We have proven the stability

and quality of the method using both simulated and

real data. Due to the stability of our reconstruction

against noise in the band-ﬁltered data, taking spec-

tral images can be vastly sped up. This way, spectral

imaging at the speed of RGB imaging is possible.

In general, our method is not limited to specialized

hardware like the RGB measurement device we used

to generate the data for our experiments. As long as a

reasonably good registration of RGB and spectral im-

ages is available, e.g. by using a beam splitter, our ap-

proach can be applied to reconstruct the spectral data

cube for one or multiple RGB images. Another po-

tential application would be the capturing of spectral

video. Here the only constraint is to capture enough

spectral band frames before the scene changes con-

siderably. The alignment between RGB and spectral

bands could be achieved with optical ﬂow.

It should be noted that in the context of material

measurements there are certain constraints on the po-

sitioning of RGB and spectral cameras. To avoid par-

allax effects that arise as soon as materials are im-

aged that are not perfectly ﬂat, the optical paths for

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

158

RGB and spectral cameras should match as closely

as possible. This can either be achieved by using a

beam splitter or by a similar setup like ours, where the

separation of the cameras matches exactly the angular

sampling of the material. Our approach should also be

applicable to image-based reﬂectance measurement

like the one developed by Hullin et al. (Hullin et al.,

2010). For the acquisition of HDR images, the au-

thors’ setup requires long measurement times with

exposures of up to 16s. Here, our method could pro-

vide a signiﬁcant speed-up by decoupling spectral and

HDR acquisition using beam splitter optics, the exist-

ing combination of LCTF and monochrome camera,

and an additional monochrome or RGB camera to ac-

quire the HDR data.

In the future, it should be investigated whether the

applied principle is applicable using even more lev-

els of spectral resolution (e.g. monochrome, RGB,

and band-ﬁltered), accepting different SNRs at the

different levels. Perhaps the presented method could

even help to get faster RGB imagery in certain use

cases since it can be straightforwardly applied to

monochrome and noisy RGB images. Other snapshot

spectral imaging techniques like CTIS could also be

used to provide the low-resolution spectral input data

as soon as the problem of spatially registering RGB

and spectral data is solved. Furthermore, it would be

helpful to have a better optimization scheme to allow

for a faster reconstruction.

ACKNOWLEDGEMENTS

This work was funded by the German Science Foun-

dation (DFG) under research grant KL 1142/7-1.

REFERENCES

Green, D. (2011). A colour scheme for the display

of astronomical intensity images. arXiv preprint

arXiv:1108.5083.

Hagen, N. and Kudenov, M. W. (2013). Review of snapshot

spectral imaging technologies. Optical Engineering,

52(9):090901–090901.

Hardeberg, J. Y., Schmitt, F., and Brettel, H. (2002). Multi-

spectral color image capture using a liquid crystal tun-

able ﬁlter. Optical Engineering, 40(10):2532–2548.

Hardeberg, J. Y., Schmitt, F., Brettel, H., Crettez, J.-P.,

and Maitre, H. (1999). Multispectral image acquisi-

tion and simulation of illuminant changes. In Colour

Imaging - Vision and Technology, pages 145–164. Wi-

ley.

Hullin, M. B., Hanika, J., Ajdin, B., Seidel, H.-P., Kautz, J.,

and Lensch, H. P. A. (2010). Acquisition and analy-

sis of bispectral bidirectional reﬂectance and reradia-

tion distribution functions. ACM Trans. Graph. (Proc.

SIGGRAPH 2010), 29(4):97:1–97:7.

Imai, F. H. and Berns, R. (1999). Spectral estimation using

trichromatic digital cameras. In Proceedings of the In-

ternational Symposium on Multispectral Imaging and

Color Reproduction, pages 42–49.

Imai, F. H. and Berns, R. S. (1998). High-resolution multi-

spectral image archives: A hybrid approach. Proc. of

the IS&T/SID Sixth Color Imaging Conference, pages

224–227.

Krishnan, D. and Fergus, R. (2009). Dark ﬂash photogra-

phy. In ACM Transactions on Graphics, SIGGRAPH

2009 Conference Proceedings, volume 28.

Matsui, S., Okabe, T., Shimano, M., and Sato, Y. (2009).

Image enhancement of low-light scenes with near-

infrared ﬂash images. In Asian Conference on Com-

puter Vision, pages 213–223. Springer.

Petschnigg, G., Szeliski, R., Agrawala, M., Cohen, M.,

Hoppe, H., and Toyama, K. (2004). Digital photogra-

phy with ﬂash and no-ﬂash image pairs. ACM trans-

actions on graphics (TOG), 23(3):664–672.

Robertson, M. A., Borman, S., and Stevenson, R. L. (2003).

Estimation-theoretic approach to dynamic range en-

hancement using multiple exposures. Journal of Elec-

tronic Imaging, 12(2):219–228.

Rump, M. and Klein, R. (2010). Spectralization: Recon-

structing spectra from sparse data. In SR ’10 Ren-

dering Techniques, pages 1347–1354, Saarbruecken,

Germany. Eurographics Association.

Rump, M., Sarlette, R., and Klein, R. (2010). Groundtruth

data for multispectral bidirectional texture functions.

In CGIV 2010, pages 326–330. Society for Imaging

Science and Technology.

Rump, M., Zinke, A., and Klein, R. (2011). Practical spec-

tral characterization of trichromatic cameras. ACM

Trans. Graph., 30(6).

Schwartz, C., Sarlette, R., Weinmann, M., Rump, M., and

Klein, R. (2014). Design and implementation of prac-

tical bidirectional texture function measurement de-

vices focusing on the developments at the university

of bonn. Sensors, 14(5).

Shrestha, R. and Hardeberg, J. Y. (2014). Evaluation and

comparison of multispectral imaging systems. In

Color and Imaging Conference, volume 2014, pages

107–112. Society for Imaging Science and Technol-

ogy.

Takeuchi, K., Tanaka, M., and Okutomi, M. (2013). Low-

light scene color imaging based on luminance es-

timation from near-infrared ﬂash image. In Pro-

ceedings of IEEE International Workshop on Com-

putational Cameras and Displays (formerly PRO-

CAMS)(CCD/PROCAMS2013), pages 1–8.

Tsuchida, M., Arai, H., Nishiko, M., Sakaguchi, Y.,

Uchiyama, T., Yamaguchi, M., Haneishi, H., and

Ohyama, N. (2005). Development of BRDF and

BTF measurement and computer-aided design sys-

tems based on multispectral imaging. In Proc. AIC

Colour 05 – 10th congress of the international colour

association, pages 129–132.

Fast Capture of Spectral Image Series

159
