DM-UAV: Dexterous Manipulation Unmanned Aerial Vehicle

Alberto Torres

, Francisco Candelas

, Damian Mira

and Fernando Torres

Computer Science Research Institute, University of Alicante, Alicante, Spain

Physics, Systems Engineering and Signal Theory Department, University of Alicante, Alicante, Spain

Keywords: Dexterous Robotic Manipulation, Aerial Grasping, UAV.

Abstract: This paper describes a novel aerial manipulation system, a DM-UAV which is composed of a drone with a

robotic hand. The main objective is to grasp a target object with the robotic hand. We assume that the object

position is known so the drone flies to this position and lands, then the robotic hand can grasp the target

object. After of that, the drone can take off in order to transport the object to other location. This system can

be very useful for different field applications, f.e. agriculture, to clean the trash on the field, to eliminate

contaminating objects, etc.

1 INTRODUCTION

The aerial manipulation traditionally has been

focused in drones with a simple gripper in the end of

a 2-DOF manipulator. Most of the time this system

is used to grasp cylinder objects or to hang the

drone. In (Courtney, 2011; Thomas, 2013), an avian-

inspired robotic system is presented in order to perch

or to grasp a cylinder.

We don’t know any experience with a robotic

hand in a drone. In contrast with other robotic tools,

a robotic hand has the main advantage of providing

much more DOF, which enables it to make more

complex manipulation tasks, such as catching

complex shapes, grasping from different

orientations, etc.

For more complex manipulation tasks,

manipulators with more DOF’s are used linked to a

drone (Korpela, 2012; Orsag, 2012).

In some cases, a vision system is used to detect

cylindrical structures in order to hang the drone

(Thomas, 2016).

The system proposed in this paper is more

complex: in the future, we plan to have a vision

system in the drone for detecting a target object in

order to grasp it with a complex robotic hand. Now,

in this paper we assume that the object position is

known.

The remainder of the paper is organized as

follows. The next section describes the design of the

system, and explains each individual part in detail.

Section 3 describes the grasp planner proposed. This

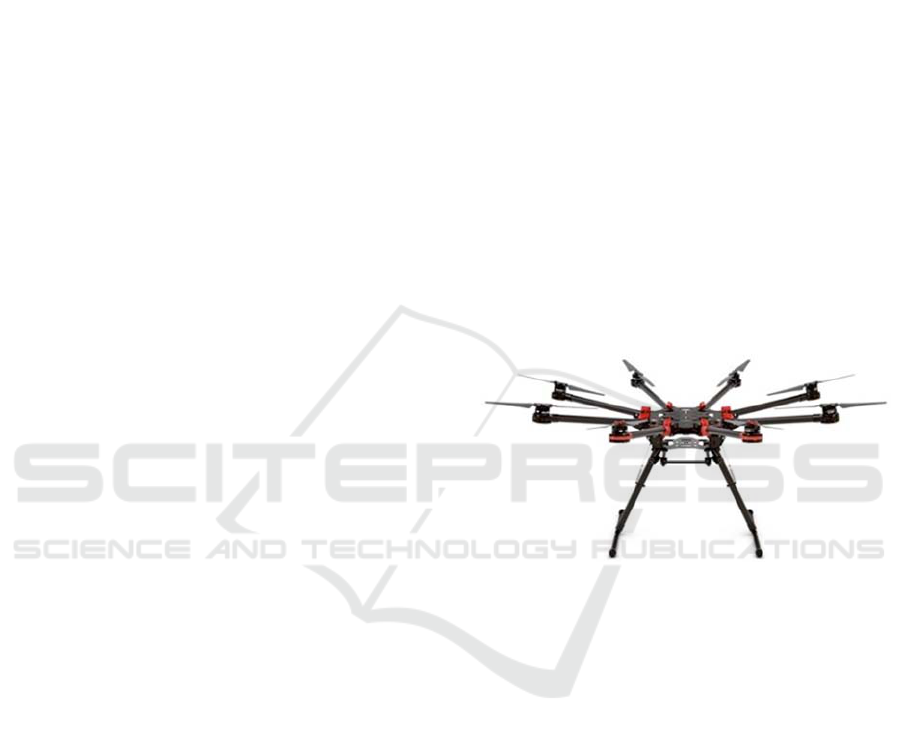

Figure 1: DJI Spreading Wings S1000+ drone.

planner has been tested for the authors in others

complex tasks too. Section 4 contains the results and

the future works. Finally, the last section is

dedicated to the conclusions.

2 SYSTEM DESIGN

This section describes the robot, including the

physical platform and the hardware architecture. The

robot is based on a Spreading Wings S1000+ drone,

and an Allegro hand.

2.1 The Spreading Wings S1000+

Drone

The Spreading Wings S1000+ (DJI, Shenzhen,

China), which is shown in Figure 1, has a total

weight without charge of 4.2 kg, but it is able to fly

with a total weight of 11 kg. Thus, there are 6.8 kg

Torres A., Candelas F., Mira D. and Torres F.

DM-UAV: Dexterous Manipulation Unmanned Aerial Vehicle.

DOI: 10.5220/0006186701530158

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 153-158

ISBN: 978-989-758-219-6

153

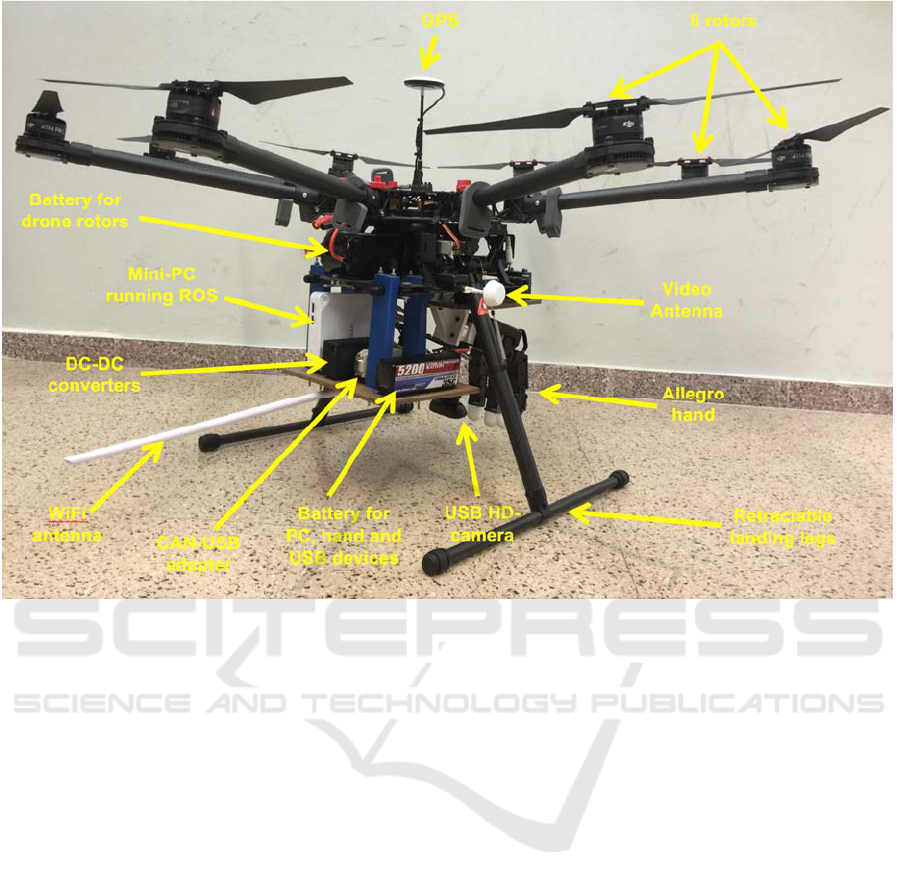

Figure 2: Main additional equipment added to the drone.

free for the Allegro hand, the rest of the necessary

equipment, and the target object. Figure 2 details the

additional equipment included in the drone in order

to command the robotic hand, apart from its own

hand.

Among this equipment, a mini-PC (MSI Cubi-

007XEU with Intel Pentium 380SU 1,9GHz) works

as the hand controller, and, for that, it executes ROS

Indigo on Ubuntu 14.04 LTS. As the Allegro hand

has a CAN serial interface, a CAN-USB adapter

(Peak PCAN-USB) is required to connect the mini-

PC to the hand. Also, the tactile sensors of the hand

are connected to the mini-PC, in this case directly by

USB. Moreover, the mini-PC communicates with a

ground station through a wireless link. Currently this

radio link is based on a WiFi WLAN, which is

enough for a first prototype and testing, although we

are working on replacing it by a dedicated long

distance radio-link. Thus, the system includes a high

power WiFi-USB interface with a high-gain antenna

(Approx APPUSB150H3).

The system also has two cameras as follows: a

frontal camera used mainly for manual piloting, and

an USB HD-camera oriented vertically to the

ground. The field of view of the last camera includes

also the workspace of the hand. These cameras

presently is used only for manual piloting, in the

future will be used not only for recognition of

structures on the ground, but also for grasping tasks.

In addition to the original GNSS receiver of the

drone, we have connected other low-cost high-

precision GNSS with compass (Ublox M8N) to the

mini-PC by means of a serial-USB converter. This is

necessary, because the closed architecture of the

drone makes very difficult to access to flight data

from its original hardware. Finally, the equipment

also includes a dedicated battery and two DC-DC

converters to power the hand, the PC and the USB

devices.

As commented before, the original hardware of the

drone has a closed architecture, and, thus, it is

difficult to access to data from the flight controller

or to send commands directly to it. Thus, in order to

get the automatic flight of the drone, we use

currently a ground station which receives real-time

information from the drone such as flying and

positioning data, and commands the drone by means

of a RC (remote controller) according to the

received information and previously-planned general

paths. More specifically, the ground station is a PC

which is communicated with, on the one hand, the

computer aboard the drone thought the wireless link

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

154

described previously, and, on the other hand, the

training port available on a 14SG RC from Futaba

which enables the PC to manage all the drone

controls. The connection with RC is not direct, and it

is based on an Arduino board which works as a

bridge translating commands from USB to PWM

signals required by the training port of the RC. The

ground station also provides real-time information to

the human operator about the trajectories and tasks

that the drone is performing, while allows operator

to define paths and tasks, or even take the control of

the drone for a manual piloting.

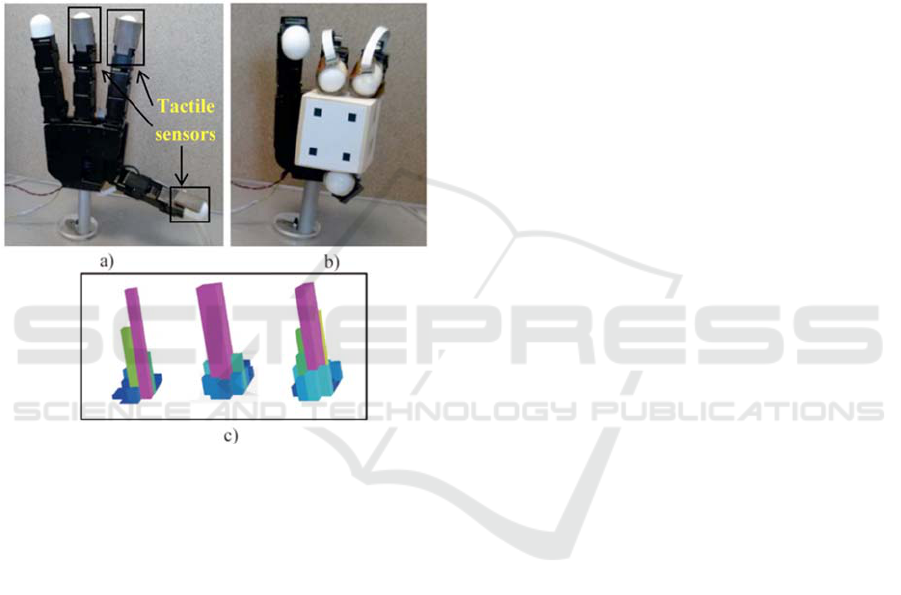

Figure 3: (a) Allegro hand with the tactile sensors installed

in the fingertips’ surface. (b) Allegro hand grasping the

object to be manipulated. (c) Different 3D representation

of the pressure measurements registered by the arrays of

tactile sensors.

2.2 The Allegro Robotic Hand

The robotic manipulation system is based on the

Allegro robotic hand (Wonik Robotics Seoul, Korea)

(see Figure 3). This hand has four fingers and

sixteen independent torque-controlled joints (four

dof per each finger). This robotic hand has a

lightweight and portable anthropomorphic design

very suitable for low-cost dexterous manipulation in

research. The hand weight is 1.09 kg. It is capable of

holding up to 5 kg and it has support for real-time

control and online simulation. In addition, a set of

tactile sensors is employed as additional tool in the

manipulation system (see Figure 3a). These sensors

are installed in an extrinsic configuration (Tegin,

2005) on the Allegro hand. The sensors are located

at the three hand fingertips that will be used during

the manipulation (furthermore, only the three last

degrees of freedom of each finger will be controlled,

resulting in a non-redundant system). The tactile

sensors are pressure sensing arrays, type PPS

RoboTouch (Pressure Profile Systems, Inc., Los

Angeles, CA, USA), which can register pressure

values in the range 0–140 kPa with a frequency of

30 Hz and a sensitivity of 0.7 kPa. Figure 3c shows a

3D representation of the pressure measurements

registered by these sensors during a manipulation

task. The force exerted by the fingertip is computed

using the pressure measurements of the tactile

sensors. These measurements are multiplied by the

area of each sensor, 25 mm

, so the forces are

obtained. The mean of these forces is considered as

the force applied by the fingertip. Moreover, the

contact points are supposed to be in the sensor of

maximum pressure exerted.

3 GRASP PLANNER

This section presents the general structure of the

manipulation planner. This manipulation planner

uses the geometric model of the object and the

fingers in order to determinate the contacts between

the fingers of the robotic hand and the manipulated

object.

3.1 Kinematics Formulation

We consider the robotic hand as a set of k fingers

with three degrees of freedom. Each finger holds an

object considering contact points with friction and

without slippage. In order to firmly grasp and

manipulate the object, the grasp is considered to be

an active form closure. Thus, each fingertip i is

exerting a fingertip force f

∈ 3 within the friction

cone at the contact point. The grasping constrain

between the robot and the object is done by the

grasp matrix J

=[J

…J

]

∈R

3k×6

(Murray, 1994)

which relates the contact forces f

= [f

… f

]

at the fingertips to the resultant force and moment τ

∈ 

on the object:

⋅f

(1)

where f

and τ

are both expressed in the object

coordinate frame S

fixed to the object mass center.

This equation derives the kinematics relation

between velocity of the object ẋ

∈ 

and velocity

of the contact point v

∈ 

⋅ ẋ

(2)

DM-UAV: Dexterous Manipulation Unmanned Aerial Vehicle

155

where x

denotes the position and orientation of the

object in the contact point from S

. Extending

Equation (2) for all the contact points and

considering the object velocity with respect the

camera coordinate frame, the resulting expression is:

⋅ ẋ

(3)

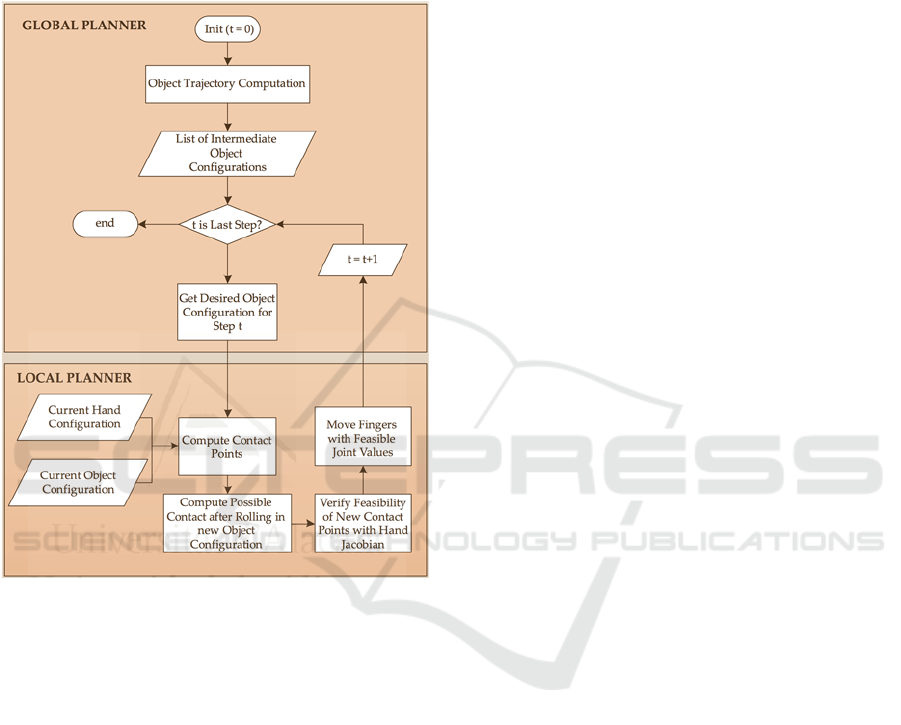

Figure 4: Diagram of the geometric manipulation planner.

where v

= [v

… v

]

is the vector which

contains all the contact points velocities.

Also, a camera is fixed at the workspace in an

eye-to-hand configuration in order to observe a set

of features located at the surface of the manipulated

object. The kinematics formulation has been studied

in (Jara, 2014).

3.2 The Geometric Manipulation

Planner

The planner receives as input a given grasp and a

desired final configuration of the object. From these

input parameters, the planner has to compute the

changes of the fingers joint angles that drive the

object from the initial grasp towards the final desired

configuration. During this process, the planner

should take into account not only the maintenance of

the contacts of all the fingers which are touching the

object in the initial grasp configuration but also the

kinematic restrictions of the fingers caused by the

limits of their workspaces. The planner has been

organized in two main levels: a global planner and a

local planner shown in the Figure 4.

The main goal of the global planner is to obtain a

group of intermediate object configurations which

are able to join the initial state of the object with its

final state by applying affine transformations.

The local planner is responsible for computing

the movements of the fingers which have to be

applied in order to move the object from the current

configuration to the desired intermediate

configuration. Firstly, it determines the current

contact points between the object and the fingers and

the corresponding pair of contacting primitives.

Secondly, it supposes that the object is in the desired

intermediate configuration and it computes all the

possible variations of the contact points. Thirdly, it

uses the pseudo-inverse of the Jacobian of each

finger in order to verify which contact

configurations are kinematically feasible. Finally,

the local planner moves the fingers towards the

feasible configuration which involves a smaller joint

rate so that the movements of the fingers are

minimized. When these movements are executed,

the global planner will recover the control of the

planner in order to process the next intermediate

object configuration (Corrales, 2011).

4 RESULTS AND FUTURE

WORKS

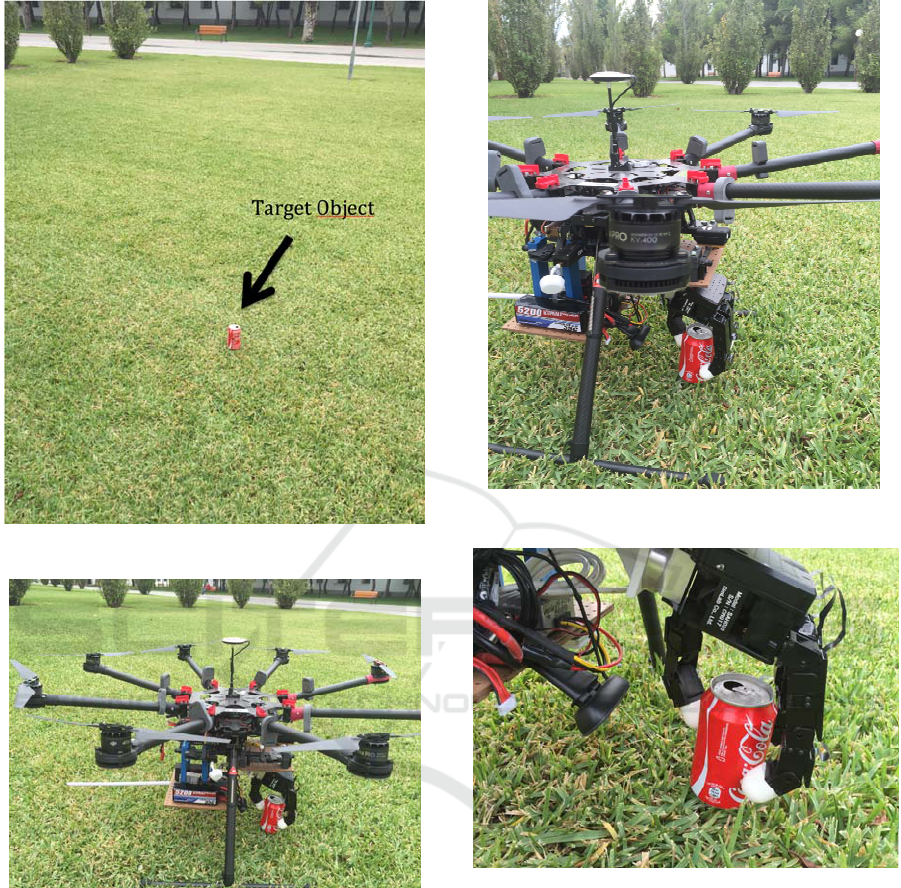

Figure 5 shows the target used for testing the

prototype: a soda can. We are currently working on

automatic detection of the target by computer vision

using the images obtained by the drone during a

planned flight. Our research group have some

experience in detecting objects from aerial images

(Alacid, 2016). In this paper, we assume that the

location of the object has already known.

The drone lands in this location and then the

robotic hand can grasp de target object. For grasping

we use the planner presented in section 3. Figure 6

shows how the drone is landed and then the allegro

hand grasps the object. Next, the drone can take off

in order to transport the object to the destination.

More detailed pictures of the grasping task can

be seen in Figure 7 and Figure 8.

We are now working on more complex tasks, when

a dexterous manipulation is necessary and it would

be impossible to do with a simple gripper. In these

cases it is essential to use a robotic hand.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

156

Figure 5: The target object.

Figure 6: The drone with the Allegro hand grasps the

object.

In the future we will also study the grasp stability

during takeoff and flight, when there would be

external forces that must be countered, for example

(Backus, 2014; Korpela 2011).

5 CONCLUSIONS

In this paper we describe a novel aerial manipulation

system (DM-UAV) composed of a drone with an

robotic hand. For this contribution, it is assumed that

the object position is known so the drone flights to

Figure 7: Grasping detail.

Figure 8: Grasping detail.

this position and lands, then the robotic hand can

grasp the target object. After of that, the drone can

take off in order to transport the object to other

location. The structure of a first prototype, the

configuration of the robotic hand and its tactile

sensors, and the grasping planner has been described

in the manuscript with more detail.

The proposed system can be used for different

applications, f.e. agriculture, to clean the trash on the

field, to eliminate contaminate objects, etc.

In the literature, there is not any similar

experience, considering a drone with a complex

robotic hand in order to make dexterous aerial

manipulation (DM-UAV). This paper describes the

DM-UAV: Dexterous Manipulation Unmanned Aerial Vehicle

157

first step of our research, but we continue working to

make more complex manipulation tasks.

ACKNOWLEDGEMENTS

Research supported by the Valencia Regional

Government, PROMETEO/2013/085.

REFERENCES

Alacid, B.; Gil, P. An approach for SLAR images

denoising based on removing regions with low visual

quality for oil spill detection SPIE Remote Sensing

2016. Edinburgh. 2016.

Backus, Spencer B., Lael U. Odhner, and Aaron M.

Dollar. "Design of hands for aerial manipulation:

actuator number and routing for grasping and

perching." 2014 IEEE/RSJ International Conference

on Intelligent Robots and Systems. IEEE, 2014.

Corrales Ramón, J. A. PhD. Safe Human-Robot

Interaction Based on Multi-sensor Fusion and

Dexterous Manipulation Planning. 2011.

Courtney E. Doley, Justin J. Bird, Taylor A. Isom, C. J.

Johson, J. C. Kallman, J. A. Simpson, R. J. King, J.

Abbott, M. A. Minor. Avian-inspired passive perching

mechanism form robotic rotorcraft. IEEE/RSJ

International Conference on Intelligent Robots and

Systems, pp. 4975-4980, 2011.

Jara, C. A.; Pomares, J.;Candelas, F. A.; Torres, F. Control

Framework for Dexterous Manipulation Using

Dynamic Visual Servoing and Tactile Sensors’

Feedback. Sensors Vol. 14 (1). pp.1787-1804. 2014.

Korpela, Christopher M., Todd W. Danko, and Paul Y.

Oh. "Designing a system for mobile manipulation

from an unmanned aerial vehicle." 2011 IEEE

Conference on Technologies for Practical Robot

Applications. IEEE, 2011.

Korpela, C. M.; Danko, T. W.; Oh, P. Y. MM-UAV:

Mobile manipulating unmanned aerial vehicle. Journal

of Intelligent & Robotic Systmes, Vol. 65, 1, 93-101.

2012.

Murray, R.; Li, Z.; Sastry, S. A Mathematical Introduction

to Robotic Manipulation; CRC Press: Boca Raton, FL,

USA, 1994; pp. 211–265.

Orsag, M. Mobile Manipulating Unmanned Aerial vevicle

(MM-UAV): Towards Aerial Manipulators. Faculty of

Electrical Engineering and Computing, University of

Zagreb-Croatia. 2012.

Tegin, J.; Wikander, J. Tactile sensing in intelligent

robotic manipulation—A review. Ind. Robot 2005, 32,

64–70.

Thomas, J.; Polin, J.; Sreenath K.; Kumar, V. Avian-

inspired grasping for quadrotor micro uavs.

Proceedings of ASME International Design

Engineering Technical Conferences & Computers and

Information in Engineering Conference. 2013.

Thomas, J.; Loianno, G.; Daniilidis, K.; Kumar, V. Visual

Servoing of Quadrotors for Perching by Hanging from

Cylindrical Objets. IEEE Robotics and Automation

letters, Vol. 1, 1, 57-64. 2016.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

158
