Rules for Validation of Models of Enterprise Architecture

Rules of Checking and Correction of Temporal Inconsistencies among

Elements of the Enterprise Architecture

Amiraldes Xavier, André Vasconcelos and Pedro Sousa

INESC-ID, IST, Universidade de Lisboa, Portugal

Keywords: Enterprise Transformation, Enterprise Architecture, Rules, Inconsistencies, As-Is, To-Be.

Abstract: The organizational structure of the elements in an enterprise architecture model is key for decision-making

and business transformation. Over time, it is possible that the relationships among the elements of the EA

(Enterprise Architecture) become inconsistent in the EA model. To address this problem in this research we

specify a set of temporal rules divided into two categories: rules for verification and rules for

inconsistencies correction. The specification of these rules is based on the states of the elements of the EA

and the concepts presented by the ArchiMate metamodel. The Rules are translated into logical expressions

in order to make them easier to implement. This research was developed on the basis of a concrete study of

an enterprise architecture management tool, but the solution proposed can be adapted to any EA

management tool.

1 INTRODUCTION

The enterprise architecture (EA) provides a holistic

view of organizations, including several viewpoints,

such as business, information, systems and

technology (Ylimäki et al, 2007). In general, these

viewpoints are represented through modelling. The

process of modelling consists in the representation,

through an appropriate language, of the elements

and relationships among EA elements.

EA is an approach to control and manage the

complex and constant transformations in the

organization and its business environment, assisting

organizations in conducting a multitude of positive

impacts at various organizational levels. Such

impacts can be verified at administrative level, in

decision-making, as well as the economic level

because it allows better management and control of

resources (Ylimäki. et al., 2007).

In many cases, these transformations are

influenced by temporal factors that are associated

with the elements that constitute the model of the

EA.

These temporal factors are responsible for

defining the states of the elements within the model

as "alive" for the elements that are functional and

"dead" when they stop working. As time passes, the

state of the EA elements can be changed, influencing

right way the operation of other elements linked by

certain relationships, influencing the operation

(performance) of the architecture as a whole.

It is essential that, during the transformation process

to check the completeness of the models, to assess

the compliance to a set of (recommended) rules, in

order to avoid problems in managing and controlling

the EA.

1.1 Problem

It is important for organizations to follow the EA

evolution over time. For this purpose, organizations

use EA management tools that allows to have a

perspective of temporal evolution of the

organization through the ability they have to define

states for the elements that make up an organization

and the moment that they join these states. Time is

an important attribute to assess defines when an

element enters to a state, in order to ensure the

validity of relationships among the elements taking

account to the sort of functional dependence among

these elements.

For example, if an application is abandoned at

one time, and this occurs before it is possible, the

service that may depended on that Application will

stop working.

These problem occur because the EA

Xavier, A., Vasconcelos, A. and Sousa, P.

Rules for Validation of Models of Enterprise Architecture - Rules of Checking and Correction of Temporal Inconsistencies among Elements of the Enterprise Architecture.

DOI: 10.5220/0006187503370344

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 337-344

ISBN: 978-989-758-249-3

337

management tool don’t have the temporal evaluation

mechanism of the models. And these problems

affect the quality of the decision-making related to

the enterprise transformation process.

In order to solve this problem, the following

issue is raised: how to ensure the consistency of the

relationship among elements in the EA modes

serving its evolution?

1.2 Goals

Look upon to the problem introduced in the previous

section, the main goal of this research is to define a

set of rules that allows the verification and

correction of inconsistencies in the relationship

among EA elements to the extent that they will

evolve over time (change of State). To have this

purpose achieved it is fundamental the achievement

of the following specific goals: (1) specify temporal

rules considering the relationship among elements,

(2) formalize the rules in an appropriate language to

facilitate the implementation in EA management

tools.

In section 2 we present the theoretical

background that focusses on three main concepts,

which are

ArchiMate, Enterprise Transformation and

Enterprise Cartography. In the following section (3)

we present the solution proposal including the

general definition of the temporal rules, the

definition and formalization of the inconsistencies

verification and correction rules. In the section 4 we

present this research evaluation. Finally, in section

5, we synthesize the conclusions and future work to

be developed.

2 RELATED WORK

2.1 ArchiMate

ArchiMate is an open and independent modelling

language of EA which is supported by different

software vendor’s tools and consulting firms.

ArchiMate provides a notation that allows enterprise

architects to describe, analyse and visualize the

relationships among domains (Braun and Winter,

2005). It is currently a framework of EA that is part

of the technical standards of the Open Group.

ArchiMate offers a common language for

describing the construction and operation of

business processes, organizational structures,

information flows, IT systems, and technical

infrastructure. This insight helps stakeholders to

design, evaluate and communicate the consequences

of decisions and changes within and among these

business domains.

ArchiMate uses the concept of layered views to

present the service-oriented model, where the layers

above make use of services that are provided by the

lower layers (Lankhorst, 2004).

The concepts (types of elements and

relationships) defined in the specification of the

ArchiMate (Iacob et al, 2012), serve as a basis for

the development of the proposed solution presented

in this article.

2.2 Enterprise Transformation

The transformation is seen as a set of initiatives that

change the domain of the organization from its

current state (As-Is) for a desired state (To-Be).

These states consist of a representation of

organizational elements in different periods of time.

The As-Is corresponds to the state whose elements

have changed due to past events. The To-Be

corresponds to the expected state of the

organizational elements. And among these two

states, the company reacts to other events that are

triggered by the transformation processes (Tribolet

et al, 2014).

So to control and coordinate this process of

enterprise transformation several authors propose the

Enterprise Architecture Management (EAM)

(Ahlemann et al, 2012; Aier and Gleichauf, 2010;

Harmsen et al, 2009). The main purpose of EAM is

to provide a high-level overview of a company,

involving aspects such as business and information

technology (IT) and especially the dependence

among them. EAM provides solid bases of models

and methods to support the analysis, planning and

design of organizations from a "business-to-IT"

perspective (Abraham and Aier, 2012).

Three modelling techniques of enterprise

transformation are covered: activity modeling,

modeling and life cycle modeling (that is the focus

of this paper) (Buckl et al., 2011).

A life cycle indicates that a single element of the

EA evolves over the time going through different

stages (states) where we can highlight the

"conception", "alive" and "retired/dead".

According to Buckl et al (Buckl et al., 2011) the

most basic way to modelling temporal aspects of EA

elements is to assign validity periods for each

element individually. In projects carried out through

the EAMS tool this approach is also applied to the

metamodel of the ArchiMate by assignment of

attributes such as "Begin Date" (BD) and "End

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

338

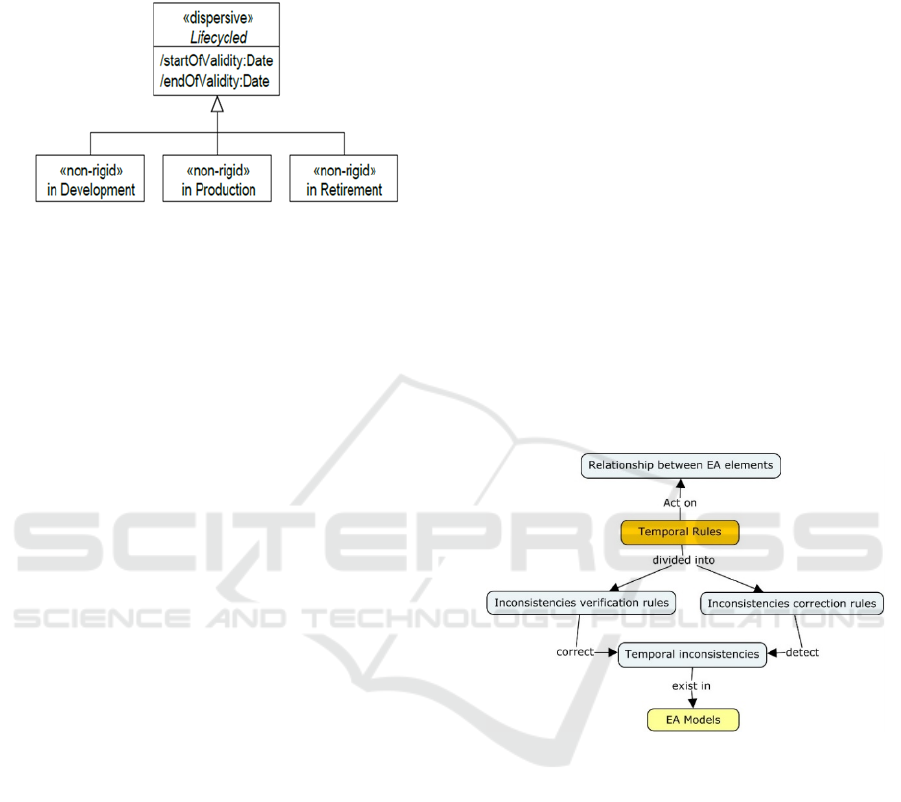

Date" (ED) in its elements. Figure 1 presents an

approach to modelling the temporal aspects of

temporal elements defined by Buckl.

Figure 1: temporal aspects of modelling elements of EA

(Buckl et al., 2011).

With the attributes defined above it is possible to

determine a set of restrictions on the terms of

validity of any phase/state is valid only in a limited

period of time by the corresponding start and end

activities. These restrictions can influence right on

the relationship among the EA elements.

For Buckl et al (Buckl et al., 2011), these

restrictions are not necessary for all types of

relationships. Therefore, the same authors make the

distinction into two types of relationships for their

temporal qualities:

 Synchronic Relationship: consists of the

relationships that are valid only among elements

whose validity periods intersect.

 Diachronic Relationship: are relationships that

are valid regardless of the validity periods of the

elements, here the issue of intersection of the

periods is not taken into account.

2.3 Enterprise Cartography

Cartography is the practice of design and creation of

maps. Having regard to this assumption, Tribolet et

al., define enterprise cartography as the design,

production and dissemination of business maps to

support their analysis and collective compression

(Tribolet et al., 2014).

Of the eight principles of enterprise cartography

presented in (Tribolet et al., 2014) the sixth sets that

all organizational articles can be categorized as

being in one of four States invariants:

 Gestating: the state describes an artefact after

designed, that is, once you start being planned or

produced;

 Alive: is the state in which an artefact enters

after the birth. This means that the designed

product is now able to produce a behavior as part

of transactions and organizational processes;

 Dead: it’s when an artefact in gestation or alive

is disabled in the sense that it is no longer able to

play a role in transactions and organizational

processes;

 Retired: is the after-death state, where the

artefact is unable to interact with other artefacts.

3 SOLUTION PROPOSAL

3.1 Solution Overview

Considering the related work presented in the

previous sections, we argue that the elements that

form the basis for the specification of rules are:

states of elements, temporal attributes and the level

of dependency among the EA elements that is

defined by the relationship type among these

elements.

The proposal to solve the problem presented in

the section 2 of this paper can be summarized on the

conceptual map presented in Figure 2.

Figure 2 Proposed solution overview.

In the figure 2, we can see that the solution is

implemented by creating rules that act on EA

models (properly the relationship among the

elements).

The temporal rules are divided into two

categories: (i) Inconsistencies Verification Rules

(IVR), which serves to verify temporal

inconsistencies, and (ii) Inconsistency Correction

Rules (ICR), that serve to correct temporal

inconsistencies in models through the transformation

of those models (temporal adjustment process). The

temporal rules are created from the combination of

the states of the elements and EA relationships.

Temporal rules for its specifications can only be

applied to elements.

Rules for Validation of Models of Enterprise Architecture - Rules of Checking and Correction of Temporal Inconsistencies among Elements

of the Enterprise Architecture

339

3.2 General Definition of Temporal

Rules

We call temporal rules the rules that define, in terms

of the EA elements, states through its temporal

attributes and can be used to verify or correct

inconsistencies in the relationship among EA

elements. To define these rules, we consider the

characteristics of each relationship. Table 1 present

the general definitions of the temporal rules.

The discontinuation rule is derived from the

insertion in the EA model of “discontinuation” state.

This state appears as proposed in the scope of this

article and serves to identify the moment

(Discontinuation Begin Date – DBD) in which an

EA element enters the state of discontinuation.

3.3 Inconsistencies Verification Rules

The IVR are rules that, as presented before, have the

role of verifying the existence or not of

inconsistencies in the relationship among elements

on the basis of the time evaluation.

The inconsistencies verification is accomplished

by applying in the model the mathematical logic

expressions that make the combination of the

elements used to assess inconsistencies; the result

"true" implies the non-existence of inconsistency

which means relations among the elements analysed

are correct. The result "false" implies the existence

of inconsistency in the relationship.

Depending on the relationship reading mode, two

versions of formalization and definition for each rule

are presented. To distinguish them, we use A → B

Table 1: General definition of the temporal rules.

Rule Name Rule Definition

Composition Rule

The composition relationship is valid only if the elements in them are involved ("whole" and

the "parts") are in the "alive" state in the same time period.

Aggregation Rule

In aggregation relationship the “whole” element enters to the state "alive" when all the

elements "parts" are ins "alive" state.

Create Rule

The create relationship, the created element should only go to the “alive” state as creative

element is in “alive” state.

Synchronic rule for

Relationship

In the relationship amongA and B where the A acts on B and B depends on A so B should only

go to the "alive" state and keep in this state while A is "alive"

Discontinuation Rule The new elements added to EA cannot relate to elements in a state of discontinuation.

Table 2: Definition and formalization of Composition IVR.

C-IVR1 – Definition

If A is composed of B, for this relationship to be valid the A "Begin Date" must be equal to

B "Begin Date” and the A "End Date” must be equal to the B "End Date".

Formalization A→B = {BD

= BD

˄ ED

= ED

}

C-IVR2 - Definition

If B composes A, for this relationship to be valid the B "Begin Date" must be equal to A

"Begin Date" and B "End Date" must be equal to the A "End Date".

Formalization B→A = {BD

= BD

˄ ED

= ED

}

Table 3: Definition and formalization of the Aggregation IVR.

A-IVR1 - Definition

If A Aggregates B elements, this relationship is only valid if the A "Begin Date" is greater

or equal than to the greater "Begin Date" among B elements and the A "End Date" must be

less or equal than the less "End Date" among the B elements.

Formalization A→B = {BD

>= max (BD

(B1, B2…Bn)

) ˄ ED

<= min (ED

(B1, B2…Bn)

)}

A-IVR2 - Definition

If B is Aggregated by A, this relationship is valid if the B "Begin Date" is less or equal than

A "Begin Date" and the B "End Date" is greater or equal than to the A "End Date".

Formalization B→A = BD

<= BD

˄ ED

>=ED

Table 4: Definition and formalization of the Create IVR.

Cr-IVR1- Definition

If A creates B, this relationship is valid only if the A "End Date" is greater or equal than B

"Begin Date".

Formalization A → B = ED

> = BD

Cr-IVR2- Definition

If B is created by B, this relationship is valid only if the B "Begin Date" is less or equal than

A "End Date".

Formalization B → A = BD

< = ED

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

340

Table 5: Definition and formalization of Synchronic Relationship IVR.

SR-IVR1- Definition

If A acts on B, this relationship is valid if A "Begin Date" is less or equal than B "Begin

Date" and A "End Date" must be equal or greater than B "End Date".

Formalization A→B = BD

<= BD

˄ ED

>=BD

SR-IVR2- Definition

If B is actuated by A, this relationship is valid if B "Begin Date" greater or equal than A

"Begin Date" and B "End Date" is less or equal than B "End Date".

Formalization B→A = BD

>= BD

˄ ED

<=BD

Table 6: Definition and formalization of Discontinuation IVR.

D-IVR1 - Definition

On the right relationship among new element (B) and an existing one (A), is only valid if A

" Discontinuation Begin Date" is less than the B "Begin Date".

Formalization A→B = DBD

<BD

D-IVR1 - Definition

On the inverse relationship among new element (B) and an existing one (A), is only valid if

B "Begin Date” is greater than A "Discontinuation Begin Date”

Formalization B→A = BD

>DBD

Table 7: Definition and formalization of Composition ICR.

First case A → B B → A

Inconsistencies: C - INC1 = BD

≠ BD

C – INC2 = BD

≠ BD

C-ICR1- Definition To correct these inconsistencies, the B "Begin Date" should receive the value of the B

"Begin Date".

Formalization C- ICR1 = BD

← BD

Second Case: A → B B → A

Inconsistency: C-INC3 = ED

≠ ED

C-INC4 = ED

≠ ED

Translate C-ICR2 To correct these inconsistencies, the B "End Date" must receive the value of B "End Date".

Formalization C- ICR2 = BD

← BD

Table 8: Definition and formalization of the Aggregation ICR.

First case: A → B B → A

Inconsistency: A-INC1 = BD

< max (BD

(B1, B2…Bn))

A-INC2 = max(BD

(B1, B2…Bn)

) > BD

A-ICR1 - Definition To correct these inconsistencies, the A "Begin Date" should receive the value of the largest

"Begin Date" amongthe B elements

Formalization The-RIC1 = BDA ← max (BD

(B1, B2 ... Bn))

Second case: A → B B → A

Inconsistency: A-INC3 = ED

> min (ED

(B1, B2…Bn)

) A-INC4 = min (ED

(B1, B2…Bn)

) < ED

A-ICR2 - Definition To correct these inconsistencies, the A "End Date" must receive the lowest "End Date"

amongthe B elements

Formalization A-ICR2 = ED

← min (ED

(B1, B2…Bn)

)

Table 9: Definition and formalization of Synchronic Relationship IRC.

First case A → B B → A

Inconsistency: Sr-INC1 = BD

> BD

Sr-INC2 = BD

< BD

SR-ICR1 - Definition To correct these inconsistencies, the B “Begin Date” must receive the A "Begin Date".

Formalization SR- ICR 2 = BD

← BD

Second case: A → B B → A

Inconsistency: SR-INC3 = ED

< ED

SR-INC4 = ED

> ED

SR- Definition To correct these inconsistencies, the B “End Date” must receive the A “End Date”

Formalization SR- ICR 2 = ED

← ED

representation to designate the right relations and B

→ A to designate inverse relations. Tables 2, 3, 4, 5

and 6 present the definition and formalization of the

IVR.

3.4 Inconsistency Correction Rules

If there is an inconsistency there must be a way to

correct it. Therefore, we propose next a set of

Inconsistency Correction Rules.

Rules for Validation of Models of Enterprise Architecture - Rules of Checking and Correction of Temporal Inconsistencies among Elements

of the Enterprise Architecture

341

In this paper we consider inconsistency when the

relationship among two elements does not comply

with the specifications outlined in IVR. Otherwise

we can say that there is inconsistency when applying

the IVR results in false. The ICR consist of temporal

adjustment procedures among the elements involved

in an inconsistent relationship. According to the

establishment of formal expression, each rule can

result in one or two inconsistencies (INC) and

correction rules respectively. The 7 to 11 tables

present the definition and formalization of ICR.

The temporal adjustment is always done in

function of dependency exists among related

elements is defined by the relationship. In general,

the dependent element will always receive the value

(temporal attribute value that is inconsistent) of the

element from which it depends.

3.5 Mapping among the Relationships

and the Rules

Thus, it is possible to make a match among the types

of relationships, IVR, INC and ICR as well as the

types of relationships defined in ArchiMate

metamodel, as shown in table 12. For each

relationship are presented their respective rights

relations (top) and the inverse relations (down).

3.6 Temporal Analysis of EA Elements

based on ArchiMate Metamodel

Considering the characteristics of the EA elements,

it is possible to regroup them into two categories. (1)

Temporal Elements: are those which it is possible to

determine through temporal attributes when they

come into a certain State. (2) Timeless Elements: we

consider the element that due to the specifications it

is difficult to determine when they will enter to a

specific State. Due to their nature, temporal rules

are used only for the temporal elements.

4 EVALUATION

To test the rules, we develop a prototype software:

EAMS-RulesTime. The development process of this

Table 10: Definition and formalization of Create ICR.

A → B B → A

Inconsistency: Cr-INC1 = ED

<BD

Cr-INC2 = BD

>ED

Cr-ICR To correct these inconsistencies, the A "End Date" of the should receive the value of B

"Begin Date".

Formalization Cr-ICR= ED

 BD

Table 11: Formalization of Discontinuation Inconsistency.

A → B B → A

Inconsistency: D-INC1 = EDB

> ED

D-INC2 = EB

< EDB

Correction rule Not applied. Only a warning should be issued.

Table 12: Mapping among the rules, relationship, IVR, INC and ICR.

Rules Relationships IVR INC ICR

Composition Rule

Composed of C-IVR1 C-INC1, C-INC2 C- ICR1

Composes C- IVR2 C-INC3, C-INC4 C- ICR2

Aggregation Rule

Aggregated by A- IVR1 A-INC1, A-INC2 A- ICR1

aggregates A- IVR2 A-INC3, A-INC4 A- ICR2

Create Rule

creates Cr- IVR1 Cr-INC1 Cr- ICR

Created by Cr- IVR2 Cr-INC2 Cr- ICR

Synchronic Relationship

rule for

Used by, Assigned from, Realizes,

Read by, Deletes, Updates, Influences,

Specializes, Accessed by, Flow to,

Associated to, triggers, Owns,

SR-IVR1

SR-INC1,

SR-INC1

SR- ICR1

use, assigned to, realized by, reads,

deleted by, updated by, influenced by,

specialized by, accesses, flow from,

associated with, triggered by, Owned

SR-IVR2 SR-INC3, SR-INC4 SR-ICR2

Discontinuation Rule All, except (create) D- IVR1 D-INC1, D-INC2 -

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

342

Table 13: Classification of elements of and when the time.

Temporal Elements

Timeless Elements

Product, Representation, Contract, Business

Object, Business Service, Business Process,

Application Service, Infrastructure Service,

Application Component, Node, Communication

Path, System Software, Location, Goal,

Representation, Work Package

Value, Date Object, Artifact, Business Function,

Business Event, Function, Function, Business Infrastructure Player,

Business Role, Business Collaboration, Business Interface, Device,

Network, Assessment, Deliverable, Driver, Principle, Requirement,

Stakeholder, Meaning, application Collaboration, Business

Interaction, application Interaction, application interface,

infrastructure, interface Constraint, Gap, Plateau

Table 14: Result of the evaluation of the solution (C = Composition, A= Aggregation, SR= Synchronic Relationship,

Cr=Create).

Rule type C-Rule A-Rule SR-Rule Cr-Rule Total

Nº of inconsistencies founded 18 20 48 40 126

Nº of inconsistencies corrected 12 15 31 36 92

prototype complied with all requirement defined in

the mapping presented in table 12 and also the

classification of the elements shown in table 13, to

check the operation of EAMS-RulesTime we did

two experiences.

First we created an xml file with some projects

where we simulate some business architecture

scenarios based on the ArchiMate metamodel and

checked the inconsistencies and later corrected them

through EAMS-RulesTime.

To test the rules in a real environment, we use an

xml file containing several projects from various

organizations in Portugal including AMA

(Agência

para a Modernização Administrativa), extracted

from the EAMS tool developed and marketed by

Link Consulting. The file had a total of 3742

elements of which 1434 timeless elements and 2308

temporal elements. The result of this test is

presented in table 14.

The result obtained in the tests reveal the

importance of using this tool (heance the rules)

within organizations. The set of modifications

allowed the model EA were updated which improves

the quality of decision-making on the enterprise

transformation.

5 CONCLUSIONS

In this research we propose a set of rules to validate

the temporal relationship of the EA elements. These

rules are divided into two categories: The

Inconsistencies Verification Rules and

Inconsistencies Correction Rules.

For specification of the rules we consider the

following aspects: the type of dependency that each

relationship represents, the States of elements and

element types, fulfilling this way the goal: set

logging rules specifications on the basis of the ratio

among elements.

We proceeded with the classification and

subsequently and the validation criteria formalized

through mathematical logic expressions.

The logical expressions proposed are a simple

way to represent the verification rules and

inconsistencies correction.

The rules, even though they are based on

operation of the EAMS, they were specified in a

generic way; therefore, it is possible that other

similar systems to EAMS can use them in the

implementation of features based in the application

of the rules.

We verify that the impact of using the rules

through the development of a prototype called

EAMS-RulesTime. In this prototype we applied to

all proposed specifications in section 5. Despite the

limitations, the results of the tests are satisfactory

which allows us to conclude that the proposed rules

are functional so we recommend the implementation

of the same management tools and in order to

minimize the amount of problems of existing

inconsistencies.

The contributions of this work open doors to

define new rules for the validation of models and

can be applied on EA management tools used by

companies.

5.1 Limitations

During the research process some work-related

limitations were observed.

The first limitation is that the proposed rules be

specified taking into account only three of the

possible States that can be assigned to an element of

and.

The proposed solution is focused only on

Rules for Validation of Models of Enterprise Architecture - Rules of Checking and Correction of Temporal Inconsistencies among Elements

of the Enterprise Architecture

343

temporal elements and which limits the validation of

models to this area. But we believe that other types

of inconsistencies such as a passive element be

responsible for creating an element of active

structure.

The last limitation is the fact that the rules were

developed according to the specifications of the

ArchimMate metamodel, thus limiting its use to

other EA metamodels.

5.2 Future Work

We think that, despite the satisfactory results, the

proposed solution opens important perspectives for

the future work, derived from the limitations

presented in section 5.1.

We think that it is crucial to develop other

temporal rules in order to cover other States and

temporal elements that have not been treated at

work, since the elements of and may be in States

such as pregnancy, test, or removed in a way that

may affect the operation or even the transformation

of EA.

Given other types of existing inconsistencies and

models, we found important to create new types of

rules (which are temporary only) in order to resolve

these inconsistencies.

Improve the rules in order to make possible its

use by other types of EA metamodels that not only

the ArchiMate metamodel.

ACKNOWLEDGEMENTS

This work has been partially supported by the

Fundação da Ciência e Tecnologia through funding

of INESC-ID, ref. UID/CEC/50021/2013.

REFERENCES

Abraham, R., & Aier, S. (2012). Extending Enterprise

Architecture Management into an Enterprise-Wide

Coordination Service. 74. Wissenschaftliche

Jahrestagung Des Verbandes Der Hochschullehrer

Für Betriebswirtschaft E. V., (1). Retrieved from

http://www.alexandria.unisg.ch/export/DL/219228.pdf.

Ahlemann, F., Steiner, E., & Messerschmidt, M. (2012).

Strategic Enterprise Architecture Management.

http://doi.org/10.1007/978-3-642-24223-6.

Aier, S., & Gleichauf, B. (2010). Application of Enterprise

Models for Engineering Enterprise Transformation.

Enterprise Modelling And Information Systems

Architectures, 1(5), 58–75.

Braun, C., & Winter, R. (2005). A comprehensive

enterprise architecture metamodel and its

implementation using a metamodeling platform.

Desel, Jörg; Frank, Ulrich, 1215. http://doi.org/

10.1145/1244002.1244267.

Buckl, S., Matthes, F., Monahov, I., & Schweda, C.

(2011). Modeling Enterprise Architecture

Transformations. Weblogs.in.Tum.De. Retrieved from

https://weblogs.in.tum.de/file/attachments/Tmp/1f9x8r

3yxcbm8/Bu11c.pdf.

Harmsen, F., Proper, H. A. E., & Kok, N. (2009).

Informed governance of enterprise transformations. In

Lecture Notes in Business Information Processing

(Vol. 28 LNBIP, pp. 155–180). http://doi.org/10.1007/

978-3-642-01859-6_9.

Iacob, M.-E., Jonkers, H., Lankhorst, M. M., Proper, H.

A., & Quartel, D. A. C. (2012). ArchiMate 2.0

Specification. ArchiMate 2.0 Specification.

Lankhorst, M. (2004). ArchiMate Language Primer. Work.

Retrieved from http://www.uio.no/studier/emner/

matnat/ifi/INF5120/v07/undervisningsmateriale/Archi

mate.pdf.

Tribolet, J., Sousa, P., & Caetano, A. (2014). The Role of

Enterprise Governance and Cartography in Enterprise

Engineering. Emisa, 0(0), 1–13.

Ylimäki., T., Niemi., E., & Hämäläinen., N. (2007).

Enterprise architecture compliance: The viewpoint of

evaluation. ECIME 2007: European Conference on

Information Management and Evaluation, (Ecime),

409–418. Retrieved from http://www.scopus.com/

inward/record.url?eid=2-s2.0-84896534690&partnerID

=40&md5=4b8dd9934fc902d4a1c7f2a2428e81ec.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

344
