Comparison of Agents’ Performance in Learning to Cross a Highway

for Two Decisions Formulas

Anna T. Lawniczak and Fei Yu

Department of Mathematics and Statistics, University of Guelph, Guelph, Ontario N1G 2W1, Canada

Keywords: Agents, Cognitive Agents, Autonomous Robots, Cellular Automaton, Decision Making, Learning,

Knowledge Base, Computational Intelligence.

Abstract: We compare the performance of simple cognitive agents, learning to cross a Cellular Automaton (CA) based

highway, for two decision formulas used by the agents’ in their decision-making process. We describe the

main features of the simulation model: CA based highway traffic environment, agents and their decision and

learning mechanisms. The agents use a type of “observational social learning” strategy, i.e. they observe the

performance of other agents and they try to mimic what worked for other agents and they try to avoid what

did not work for the other agents. In the decision-making process of deciding whether to cross the highway

or to wait, depending on the simulation setup, the agents use one of the two decisions formulas: the first one

based only on the assessment of the agents crossing decisions (cDF), or the second one based on the

assessment of the agents crossing and waiting decisions (cwDF). Our simulations show that the performance

of agents using cwDF is much better than the performance of the agents using cDF in their decision making

process. We measure the agents’ performance by the numbers of agents: who crossed successfully, who were

killed and those who are still queuing to cross at simulation end.

1 INTRODUCTION

In recent years, we have witnessed the rapid

development of autonomous robots of various levels

of complexity and scale, from Google driverless cars

and drones to swarm robots, microrobots or kilobots.

Each robot is a complex dynamical systems

performance of which very often depends on many

parameters. In some cases, robots must learn to adapt

to dynamically changing conditions of environment

in which they operate, e.g. Google driverless car.

Thus, it is important to study how robots’ learning

performance and their outcomes may be affected by

various parameters. Such investigations could be

carried out through modelling and simulation, where

autonomous robots are identified with autonomous

cognitive agents, which are abstractions of

autonomous entities capable of interacting with each

other and their environment (Russell and Norvig,

2014; Poole and MacKworth, 2010; Ferber, 1999;

Uhrmacher and Weyns, 2009).

In this work, we investigate the performance of a

simple learning algorithm based on an observational

social learning mechanism (Nehavin and

Dautenhahn, 2007; Bandura 1977; Bandura et al.,

(1961; Hoppitt and Laland, 2013), in which each

cognitive agent learns from observing the outcomes

of the actions of cognitive agents that have already

attempted to carry out a task and imitating the

successful ones. The principles of the observational

social learning mechanism have been applied in the

context of multi-agent learning and to develop new

optimization algorithms (Montes de Oca and Stutzle,

2008; Gong et al. 2014; Cheng and Jin, 2015; Liu et

al., 2016), among others for finding more effective

optimizers than swarm intelligence algorithms.

In the presented work, we consider the model of

cognitive agents learning to cross a Cellular

Automaton (CA) based highway introduced and

described in (Lawniczak et al., 2012; Lawniczak et

al., 2013; Lawniczak et al., 2014). This model is an

abstraction of the situation in which an autonomous

agent must learn to decide instantaneously if it is safe

or not to cross a highway when it encounters an

incoming vehicle and when the agent can perceive

only fuzzy categories of the vehicle’s speed and its

proximity. In the model the agents are born as tabula

rasa; i.e. a “blank slate” and they do not have a built-

in knowledge base of the environmental conditions

under which it is safe or not to cross the highway. The

208

Lawniczak A. and Yu F.

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas.

DOI: 10.5220/0006193102080219

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 208-219

ISBN: 978-989-758-219-6

agents have a built-in template to classify the

environmental conditions and they have a reasoning

method to use this classification in deciding whether

or not to cross the highway. They are capable of

evaluating if a strategy of crossing the highway has

been applied successfully or not and they are capable

of applying this strategy again with small changes to

a similar but new situation. Thus, they are capable of

the adoption or rejection of the strategy through their

observational social learning mechanism. The agents

build their knowledge base representing the evolution

of the model dynamics as the simulation progresses.

In the presented work, we compare agents’

performance in learning to cross the highway for two

decision-making formulas, the original one used in

(Lawniczak et al., 2012; Lawniczak et al., 2013;

Lawniczak et al., 2014), which is based only on the

outcomes of the agents’ crossing decisions, which we

call cDF, with the new decision-making formula

introduced in this paper. The new decision-making

formula considers the assessment of the agents’

crossing and waiting decisions and we call it cwDF.

Our simulations show that the performance of agents

using cwDF is much better than the performance of

the agents using cDF in their decision-making

process. We measure the agents’ performance by the

numbers of agents: who crossed successfully, who

were killed and those who are still queuing to cross at

simulation end.

The paper is organized as follows: Section 2

describes the model, introduces the new decision-

making formula and provides mathematical

formulation of both decision-making formulas;

Section 3 describes simulation setup and resulting

data; Section 4 compares the performance of the

agents using cDF with the performance when they use

cwDF instead; Section 5 reports our conclusions.

2 MODEL DESCRIPTION OF

AGENTS LEARNING TO

CROSS A CA BASED HIGHWAY

For completeness of the paper, we review the main

features of the model introduced in (Lawniczak et al.,

2012; Lawniczak et al., 2014). For the software

implementation of the model we refer the reader to

(Lawniczak and Di Stefano, 2014) for details. The

model was developed under several assumptions

about the agents that are called “creatures” in papers

(Lawniczak et al., 2012; Lawniczak et al., 2014;

Lawniczak and Di Stefano, 2014), their process of

learning and their environment.

We assume that the environment is a single lane

unidirectional highway without any intersection. A

creature is an autonomous cognitive agent having a

strong instinct to survive. All creatures/agents are

initially located on one side of the highway and they

want to cross the highway without being struck by the

oncoming vehicles to get to the opposite side of the

highway.

We assume that each creature is capable of: (1)

matching simple patterns; (2) evaluating distances in

an approximate way; (3) evaluating the velocity of

moving vehicles in an approximate way; (4) assigning

a discrete number (i.e., class identifiers) to an

approximate class; (5) understanding when another

agent has been successful in crossing the highway; (6)

repeating the action that has previously resulted in

success. Each creature is equipped with a simple

mechanism to evaluate an outcome of crossing of

each creature that crossed previously. Each creature

will try to imitate the successful crossings. If

unsuccessful crossings outnumber the successful

ones, then under similar circumstances the creature

may not cross and will wait for better conditions, or

will try to find a better location for crossing.

We assume that all creatures, attempting to cross

the highway at the same crossing point, except the

first one, have witnessed what have happened to the

creatures that have previously crossed the highway at

this crossing point. This allows each crossing point to

build its own knowledge base during the experiment

that is available to all creatures at that crossing point.

In what follows we introduce agents’ new

decision-making formula, called cwDF, and compare

the performance of the agents using this decision

formula with their performance when they use the

decision-making formula of the works (Lawniczak et

al., 2012; Lawniczak et al., 2014; Lawniczak and Di

Stefano, 2014). Additionally, we provide

mathematical description of both formulas.

2.1 Highway Model and Agents

We model the highway traffic by adapting the Nagel-

Schreckenberg Cellular Automaton model and refer

the reader to (Nagel and Schreckenberg, 1992;

Lawniczak and Di Stefano, 2008; Lawniczak and Di

Stefano 2010a; Lawniczak and Di Stefano, 2010b) for

details. The model consists of four steps that are

applied simultaneously to all cars: acceleration, safety

distance adjustment, randomization, and change of

position. The implementation of the Nagel-

Schreckenberg model for this research requires a

modification of the Cellular Automata (CA)

paradigm to make the evolution of the CA not only

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas

209

dependent on the state of the neighbourhood but also

on the current velocity of each vehicle, (Lawniczak

and Di Stefano, 2008; Lawniczak and Di Stefano

2010a; Lawniczak and Di Stefano 2010b).

As customary in the traffic modelling literature, a

highway is modelled by large number of adjacent

cells, where each cell represents a segment of the

highway of 7.5m in length, (Nagel and

Schreckenberg, 1992). The cars are generated at the

starting cell of the highway independently of each

other with car creation probability (CCP), p, which

determines car traffic density. When cars are created,

they are assigned a random speed between zero and

the maximum allowed speed for cars that is set in the

configuration file. As some cars may start faster than

others, to avoid potential collisions, a queue is used

to hold each newly generated car until it is able to

actually move into the highway without colliding

with another car. After a car enters the highway, it

speeds up until it reaches the allowed maximum

velocity or until it encounters another car in front of

itself. To simulate erratic drivers, the model allows a

random deceleration of cars; i.e. it allows decreasing

by one, randomly with probability 0.5, the speed of

each car.

Agents/creatures are generated in a similar way as

the cars. They are generated only at the crossing

points set at the initialization step, and at these

crossing points, they are generated with the same

creature creation probability. In the presented

simulation results we consider only one Crossing

Point (CP), selected at cell 60 at the initialization

setup, i.e. we consider the CP located 450m away

from the beginning of the highway. The location of

this CP was selected sufficiently far away from the

beginning of the highway to allow emergence of the

car traffic profiles for the considered CCP values.

These profiles may not exit at the beginning of the

highway due to the potential cars build up in the

queue when they are entering the highway.

We assume that creature creation probability is 1,

i.e. at each time step a creature is generated at the

crossing point. As creatures are generated, they are

placed into the queue at the crossing point. When a

creature is generated two attributes, one of Fear and

another one of Desire, are assigned independently to

each creature, each with probability 0.5. Thus, there

are actually four types of creatures being generated

each with equal probability of 0.25, a creature with

(1) Fear & Desire; or (2) no Fear & Desire; or (3) Fear

& no Desire; or (4) no Fear & no Desire. The

attributes of Fear and Desire may be interpreted as a

pair of parameters describing each agent propensity

to risk taking (Desire) and its aversion to risk taking

(Fear). The values of these parameters are set in the

configuration file. We assume that these values are

between 0.00 and 1.00.

All the agents have the same goal of trying to

cross the highway successfully, i.e. without being hit

by a vehicle. If an agent is hit, it is killed and it will

be removed from the simulation immediately. In the

described model with the single lane highway, each

creature crosses the highway in two time steps. The

creature takes one-time step to move onto the

highway and it takes the next time step to move out

of the highway onto the other side of the highway.

Agents attempt to cross the highway having a

limited information about the environment around

them. They have a limited horizon of vision and they

can perceive only fuzzy levels of speed (e.g., slow,

medium, fast, very fast) and of distance (e.g., close,

medium, far) of cars within this horizon. The

distances and speeds that each creature is able to

perceive are set in the configuration file. If a creature

at some instance of time does not cross the highway,

because it has become afraid, creatures will build up

in the queue until the creature at the top of the queue

decides to finally cross, or move to a different

location to attempt to cross from. If the simulation

setup permits, a creature may move randomly up or

down along the car traffic stream, i.e. right or left

along the highway, in each case with probability 1/3,

to search for a new crossing point to cross from, or it

may stay at the crossing point with probability 1/3. If

a creature at the top of a queue moves up or down

along the car traffic stream to a new location, the

creature that was behind it moves to the top of the

queue.

2.2 Agents’ Knowledge Base

We call an agent at the top of its queue an active

creature. Each active creature must decide whether it

is safe to cross the highway or it is not safe to do so.

In this case the active creature must decide whether to

wait at its crossing point for better traffic conditions

or to move to another crossing point, if the simulation

setup permits. Thus, each active creature must make

one of the following two decisions: Crossing

Decision (CD) or Waiting Decision (WD). If the

active creature decides to cross, it may either succeed

or it may be hit. Thus, if the active creature’s decision

results in successful crossing, we call such decision

Correct Crossing Decision (CCD), if the crossing

decision results in hitting/killing the creature, we call

such decision Incorrect Crossing Decision (ICD).

Similarly, each waiting decision of the active creature

can be assessed as: Correct Waiting Decision (CWD),

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

210

or Incorrect Waiting Decision (IWD). The active

creature makes CWD in the case when, if it did not

wait and chose to cross, it would had been hit. The

active creature makes IWD in the case when, it chose

to wait but it would had crossed the highway

successfully. The assessment of each active creature

decision, i.e. if the decision was CCD, ICD, CWD, or

IWD, is recorded as a count into the Knowledge-

Based (KB) table of all the creatures waiting at the

crossing point of the active creature.

The columns of the Knowledge-Based table,

organized as a matrix with extra entry, store

information about qualitative descriptions of velocity

(e.g., such as slow, medium, fast and very fast) and the

rows of the KB table store information about

qualitative descriptions of the distance (e.g., such as

close, medium, far and out of range). The numerical

values corresponding to the qualitative descriptions

of distance and velocity that the creatures may

perceive are set in the configuration file. Since the

creatures have limited horizon of vision, the last row

of the KB table corresponds to creatures’ out of range

vision, i.e. the situation in which an active creature

cannot perceive if outside its horizon of vision there

is a vehicle and if it is, what is its velocity. Thus, in

the last row of KB table the cells corresponding to

potentially perceived velocities are all merge

together. Because of this we call this row the extra

entry of the matrix associated with the KB table.

For each time t each entry (including the extra

entry) of the KB table contains the number of CCDs,

ICDs, CWDs and IWDs made by the active creatures

up to time t-1. For example, if the active creature

successfully crossed the highway at time t, i.e. it made

the CCD for the perceived (distance, velocity) pair at

time t, then the score of CCDs for this (distance,

velocity) pair recorded up to time t-1 is increased by

one point in the Knowledge-Based table. If the

creature was struck/killed, then the score of ICDs for

this (distance, velocity) pair recorded up to time t-1 is

increased by one point in the Knowledge-Based table.

The Knowledge-Based table is initialized as

tabula rasa; i.e. a “blank slate”, represented by

“(0,0,0,0)” at each table entry for the assumption that

the creatures can cross for all possible (distance,

velocity) combinations. At the start of each

simulation, creatures cross the highway regardless of

the observed (distance, velocity) combinations until

the first successful crossing of a creature, or five

(selected for the presented simulation results)

consecutive unsuccessful crossings of the creatures,

whichever comes first.

After the initialization of the simulation, when a

new creature arrives at the top of the queue, the

creature consults the Knowledge-Based table to

decide if it is safe or not to cross. Its decision is based

on the implemented intelligence/decision-making

algorithm, which for a given (distance, velocity) pair

combines the success ratio

of crossing the highway

for this (distance, velocity) pair with the creature’s

Fear and/or Desire parameters’ values.

2.3 Agents’ Decision-Making

Algorithm

This section describes the creatures two types of

decision formulas, which an active creature may use

in its decision-making process/algorithm, when it is

deciding whether to cross the highway or to wait. The

first decision formula is used in the works

(Lawniczak et al., 2012; Lawniczak at al. 2013;

Lawniczak et al., 2014). This formula considers only

the outcomes of creatures crossing decisions, i.e. the

number of successful creatures and the number of

killed creatures for each (distance, velocity) pair at

time t. Since the number of successful creatures is

equal to the number of correct crossing decisions, and

the number of killed creatures is equal the number of

incorrect crossing decisions, we call this formula

Crossing Based Decision Formula (cDF) and provide

its mathematical formulation in this paper.

The works (Lawniczak et al., 2012; Lawniczak at

al. 2013; Lawniczak et al., 2014; Lawniczak et al.,

2015; Lawniczak, Di Stefano et al. 2016; Lawniczak,

Ly et al., 2016) show that each population of

generated creatures at each simulation end is divided

into three types of creatures: the successful ones, the

killed ones, and the creatures still queuing to cross the

highway, with over all very small numbers of killed

creatures. Thus, at each simulation end there are

mostly successful and queued creatures, and for some

values of the model parameters the queued creatures

outnumber significantly the successful ones. The

works (Lawniczak et al., 2012; Lawniczak at al. 2013;

Lawniczak et al., 2014; Lawniczak et al., 2015;

Lawniczak, Di Stefano et al. 2016; Lawniczak, Ly et

al., 2016) focus on demonstrating that the creatures’

performance could be improved (i.e., the numbers of

successful creatures could be increased) by passing,

at the end of a simulation run, the knowledge base

built by a generation of creatures to the next one

within the same highway traffic environment, and/or

by passing the knowledge base built in one traffic

environment to the creatures in another traffic

environment, i.e. the creatures would not start tabula

rasa their process of learning to cross the highway but

they would start with some pre-existing knowledge

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas

211

built during previous simulations, except for the first

generation of creatures.

In this paper, we investigate if the improvement in

creatures’ performance could be also achieved by

incorporating the assessment of creatures’ waiting

decisions into their decision-making formula, which

they use to decide whether to cross the highway or to

wait. In what follow we introduce a new decision-

making formula, called Crossing-and-Waiting Based

Decision Formula (cwDF), provide its mathematical

description and compare creatures’ performance

when they use cwDF with their performance when

they use cDF instead.

2.3.1 Crossing based Decision Formula

(cDF)

After the initialization phase, at each time step , each

active creature (i.e., the one at the top of its queue),

when deciding whether to cross or to wait carries

several tasks, namely: (1) it determines if there is a

car in its horizon of vision. If it is, then it determines

the (



distance, 



velocity) pair of qualitative

values of the current closest car; (2) it consults the KB

table associated with its crossing point to get

information about the number of CCD(t-1) and the

number of ICD(t-1) for the observed (



distance, 



velocity) pair of qualitative values, or for the

observed out of range situation, which is denoted by

(0,0) pair of indexes; (3) for the observed values it

calculates the value of the cDF, i.e. the value











, corresponding to the observed (



distance,





velocity) pair of qualitative values, or for the

observed out of range situation (0,0). The expression











is defined below and from now on we assume

that a pair of ,  indexes may take also the value

(0,0) reserved for the extra entry in the KB table.

The active creature decides to cross or to wait

based on the outcome of its calculation of cDF

respective value. If 









0, then the active

creature will cross. If 









0, then the active

creature will wait and additionally it may move to

another crossing point, if simulation setup permits.

If the active creature observed ,  situation,

which could be the 



distance type and the 



velocity type, or out of range situation (0,0), then the











for the ,  entry of KB table is calculated

as follows:





































(1)

where  and  are the values of the

active creature Fear and Desire attributes/parameters,

and 



 is the Crossing Based Success Ratio

(cSR) corresponding to the 



entry of the KB table,

including the out of range entry (0,0). The 





is defined as follows:



















1









1



 





1



⁄

(2)

The terms 



  1 and 



  1 are,

respectively, the numbers of CCDs and ICDs

recorded in the 



entry of the KB table at time .

The term 



  1 is the sum of CCDs over

all the entries of the KB table, i.e. it is the total

number of all CCDs made by active creatures up to

time 1, which corresponds to the total number of

successful creatures up to time 1. Recall, that the

KB table at each time  stores information about

assessment of various decisions made by creatures up

to time step 1. Since the decision formula (2)

considers only the assessment of Crossing Decisions,

i.e. it considers only the CCDs and ICDs, we call this

decision formula Crossing Based Decision Formula

(cDF) to distinguish it from the decision formula

cwDF introduced in this paper that is based

additionally on the assessment of the active creatures

waiting decisions. Recall that each CCD corresponds

to creature being successful and each ICD

corresponds to creature being killed. Through this

identification we recognize that the cDF formula

defined in (1) has been used in the works (Lawniczak

et al., 2012; Lawniczak at al. 2013; Lawniczak et al.,

2014; Lawniczak et al., 2015; Lawniczak, Di Stefano

et al. 2016; Lawniczak, Ly et al., 2016).

Recall that each creature can be classified per its

 and  attributes/parameters. Depending

on these attributes we can express cDF explicitly for

each creature type as Table 1 shows. Thus, an active

creature, depending what is its type, decides to cross

only when the outcome of the corresponding 



is greater or equal to 0. Otherwise, the active creature

will wait, and additionally it may move to another

crossing point, if the simulation setup allows this.

Table 1: Expression of cDF depending on an active creature

attributes of Fear and Desire and their values.

Type of Creature

Decision Formula

(





)

no Desire & no Fea







no Desire & Fea















Desire & no Fea









Desire & Fear









ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

212

2.3.2 Crossing-and-Waiting based Decision

Formula (cwDF)

The Crossing-and-Waiting Based Decision Formula

(cwDF) introduced here incorporates not only the

assessment of the crossing decisions of the active

creatures, but also the assessment of their waiting

decisions. The formula cwDF is obtained from cDF

formula by replacing the term 









by the term











in the cDF formula, i.e. by replacing the

term (2) by the term 









in the formula (1).

The term 









, called Crossing-and-Waiting

Based Success Ratio (cwSR), is defined for each 

entry of the KB table at time t as follows:











 





1









1











1







  1/



1



,

(3)

where 





1



is the number of CCDs,





  1 is the number of ICDs, 





1



is the number of CWDs and 



  1 is the

number of IWDs in the KB table entry , where each

of these numbers is being recorded up to time 1.

The term 



1



is the sum of the numbers of CDs

and WDs, regardless of their assessments, recorded in

all the entries of the KB table up to time 1,i.e.





1



∑









1









1











1









1



.

(4)

Thus, the new formula cwDF can be written as

follows







































,  .

(5)

where the term 









is defined in (3), and as

before  and  are the values of an

active creature Desire and Fear attributes/parameters.

An active creature decides to cross the highway

only when the outcome of 



is greater or equal

to 0. Otherwise, the active creature will wait and

additionally it may move to another crossing point, if

the simulation setup allows this. Recall that the

Desire and Fear attributes are distributed uniformly

and independently with probability 0.5 each among

all the generated creatures. Thus, each active creature

makes its decision to cross the highway or to wait

based on both, the Crossing-and-Waiting Based

Success Ratio formula 



 and its own values

of Desire and Fear attribute/parameters as shown in

Table 2.

Table 2: Expression of cwDF depending on an active

creature attributes of Fear and Desire and their values.

Type of Creature

Decision Formula

(





)

o Desire & No Fea







o Desire & Fea















Desire & No Fea















Desire & Fear















At each time , an active creature decision-making

process incorporates the assessments of all previous

active creatures’ decisions, through the cwSR part in

cwDF formula (5), in such a way, that it encourages

the active creature to cross the highway, if it is safe to

do so, and it encourages it to wait, if it is not safe to

cross. Additionally, to this self-feedback mechanism,

i.e. incorporating the results of the assessment of

crossing decisions and which was also considered in

cDF formula (1), the cwDF formula (5) incorporates

the self-feedback mechanism of the assessment of the

waiting decisions of active creatures, i.e. it

encourages each active creature to wait if it is not safe

to cross and it discourages the creature to wait if it is

safe to cross.

Our simulations show that the incorporation of

these two self-feedback mechanisms into creatures’

decision-making process contributes to the creatures’

better performance, i.e. more creatures cross the

highway successfully, the numbers of kills creatures

stay almost the same and the numbers of queued

creatures are smaller at the simulation ends. Thus,

when the creatures use cwDF instead of cDF in their

decision-making process some queued creatures are

converted into the successful ones during simulation

runs with almost no change in the numbers of killed

creatures.

2.4 Model Simulation Loop

After the program reads in the configuration and

knowledge base files described above, it executes the

main simulation loop of the model once for every

time step in the simulation. The main simulation loop

of the model consists of: (1) generating cars at the

beginning of the highway using the car creation

probability CCP; (2) generating creatures at each

crossing point CP with their attributes of Fear and

Desire; (3) updating the car speeds according the

Nagel-Schreckenberg model; (4) moving the

creatures from their CP queues into the highway (if

the decision algorithm indicates this should occur);

(5) updating locations of the cars on the highway and

checking if any creature has been killed; (6)

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas

213

advancing the current time step. After the simulation

has been completed, the results are written to output

files using output functions.

3 MODEL PARAMETERS SETUP

AND SIMULATION DATA

This research focuses on the comparison of the

performance of creatures using cDF with their

performance when they use cwDF instead in their

decision-making process. Thus, two types of data sets

were generated, one when cDF was used and another

one when cwDF was used instead. This was the only

difference between these two generated data sets, and

both data sets were generated using the same software

implementation, the same values of the parameters

and the same number of repeats.

We consider the model parameters as factors with

various levels in the sense of the experimental design

paradigm (Dean and Voss, 1999). The

parameters/factors that remain constant through our

simulations are: (1) the single lane highway of a

length of 120 cells (i.e., a stretch of a highway of the

length of 900 meters); (2) the single Crossing Point

(CP) set at the initialization step at cell 60; (3) each

simulation run of duration of 1511 time steps; (4) 30

repetitions for each simulation set up; (5) at each CP

representation of the KB table by 3 by 4 matrix with

the extra entry. Each KB table has 3 groupings of

distance and 4 groupings of speed. A car is perceived

as: close, if it is 0 to 5 cells away, medium far if it is

6 to 10 cells away, far if it is 11 to 15 cells away and

out of range if it is 16 or more cells away, regardless

of the velocity of a car, and this is encoded in the extra

entry of the KB table. A car is perceived as: slow if

its perceived velocity is 0 to 3 cells per time step;

medium speed if its perceived velocity is 4 or 5 cells

per time step, fast if its perceived velocity is 6 or 7

cells per time step and very fast if its perceived

velocity is 8 to 11 cells per time step. A car’s max

speed can be 11 cells per time step.

There are 6 parameters/factors values which vary

through the main simulation loop. These parameters

are: (1) car creation probability, i.e. CCP; (2) Fear

parameter; (3) Desire parameter; (4) the KB transfer

direction parameter KBT; (5) random deceleration

RD and (5) horizontal movement HM of an active

creature.

The car creation probability, i.e. CCP, determines

the density of the cars traffic and it varies between the

values: 0.1, 0.3, 0.5, 0.7, and 0.9.

The values of Fear and Desire parameters both

vary between the values: 0.00, 0.25, 0.5, 0.75, and

1.00. Being a part of the decision-making formula,

these values influence the creatures’ decision-making

process of whether to cross or not the highway. The

creature’s Fear may be interpreted as its aversion to

risk taking and the creature’s Desire may be

interpreted as its propensity to risk taking.

The KB transfer direction parameter KBT can be

set as: “none” (KBT=0), or “forward” (KBT=1). The

parameter KBT determines if the KB table of the

initial CP can be transferred or not at the end of a

simulation run with lower CCP value to the beginning

of the simulation run with immediately higher value

of CCP. When KBT=0, the KB tables are never

transferred from a traffic environment with a lower

CCP value to the one with immediately higher CCP

value, or any other value. When KBT=1, the KB table

is always transferred at the end of a simulation run

from a traffic environment with lower CCP value to

the beginning of the simulation run in the traffic

environment with immediately higher CCP value. In

this case, each simulation in the traffic environment

with CCP= 0.1 starts with the KB table tabula rasa,

i.e. with the KB table containing all the entries of

(0,0,0,0). The KB table built in this simulation is

transferred next to the simulation in the traffic

environment with CCP=0.3 at its beginning. This

process continues until the simulation in the traffic

environment with CCP=0.9 starts. Thus, the

simulations with CCP=0.9 start with the KB table

accumulated over the other four less dense traffic

environments. This process of transferring KB tables

is carried out for each simulation repeat.

To simulate erratic drivers, the model allows a

random deceleration of cars; i.e. if RD=1 it allows

decreasing by one the speed of each car, randomly

with probability 0.5; if RD=0 this is not allowed.

The horizontal movement (HM) of an active

creature takes value 0 or 1. This parameter is used to

determine whether the active creatures can move

along the highway away from their original crossing

point in either direction when they decide not to cross

the highway, i.e. if they decide to wait. The creatures

are only allowed to move along the highway when

HM equals 1. For this paper, we set the number of

horizontal cells a creature may move in one-time step

to 1 and the maximum distance a creature may deviate

from its original crossing point in both directions to

5. When HM equals to 0 the active creatures are not

allowed to move, i.e. to change their original crossing

point.

Notice, that the parameter HM determines the

upper bound on a potential number of successful

creatures. According to the model design, it takes 2

time steps for an active creature to cross the highway

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

214

successfully: in the first time step the creature moves

onto the highway from its queue, in the second time

step it moves away from the highway when it is not

hit by a vehicle, or it is being hit/killed. When HM

equals 0, the creatures are not allowed to leave the

original crossing point. Thus, at most only one

creature can cross the highway per each two time

steps. Since a creature is generated at each time step

this implies that the maximum number of possible

successful creatures at each simulation end can be

only half of all the generated creatures, i.e.

1511/2≈755. In other words, when the movement of

the creatures is not allowed, i.e. when HM=0, at each

simulation end at most 50% of all generated creatures

can cross the highway successfully and 50% of all

generated creatures are always in the queue waiting

to cross. While setting HM=1 allows creatures

simultaneously to cross the highway at potentially 11

crossing points, as they are allowed to move 5 cells

away from the CP=60 in each direction. Thus, setting

HM=1 removes the 50% bound on the maximum

number of all possible successful creatures. This

observation of the role of the parameter HM is

important one for the discussion of the simulation

results.

The full simulation means the simulation carried

out for all the described values of all the discussed

parameters.

4 DECISION FORMULAS

PERFORMANCE ANALYSIS

In this section, we compare the creatures’

performance in learning to cross the highway for cDF

in their decision-making process with those when

they use cwDF instead. Because of the upper bound,

imposed by the model design on the maximal number

of potentially successful creatures, which is at most

50% of all generated creatures when HM=0 and the

fact that such bound does not exist when HM=1 we

split the full simulation data into two subsets, one for

HM=0 and another one for HM=1. For each of these

subsets we analyse the average number of each

creature type, i.e., successful, killed, and queued type,

at simulation end, and examine how the selection of

the decision formula affects these averaged numbers.

4.1 Performance of Creatures using

cDF

Average of numbers, respectively, of successful,

killed and queued creatures at simulation ends,

expressed as percentage, and calculated from the

simulation data set with HM=0 is displayed in Figure

1, and calculated from the simulation data set with

HM=1 is displayed in Figure 2. In these simulations

creatures used cDF in their decision-making process.

When HM=0, Figure 1 shows that on average only

14.80% of all generated creatures cross the highway

successfully, which is quite low even when one takes

under consideration the imposed upper bound of

50%. Furthermore, the sum of the average of numbers

of successful creatures and the average of numbers of

killed creatures is only 15.17%. This implies that

overall only few creatures tried to cross the highway

during the simulations. However, when HM=1,

Figure 2 shows that on average 62.36% of all the

creatures crossed the highway successfully. Thus, the

parameter HM has a significant influence on the

performance of the model.

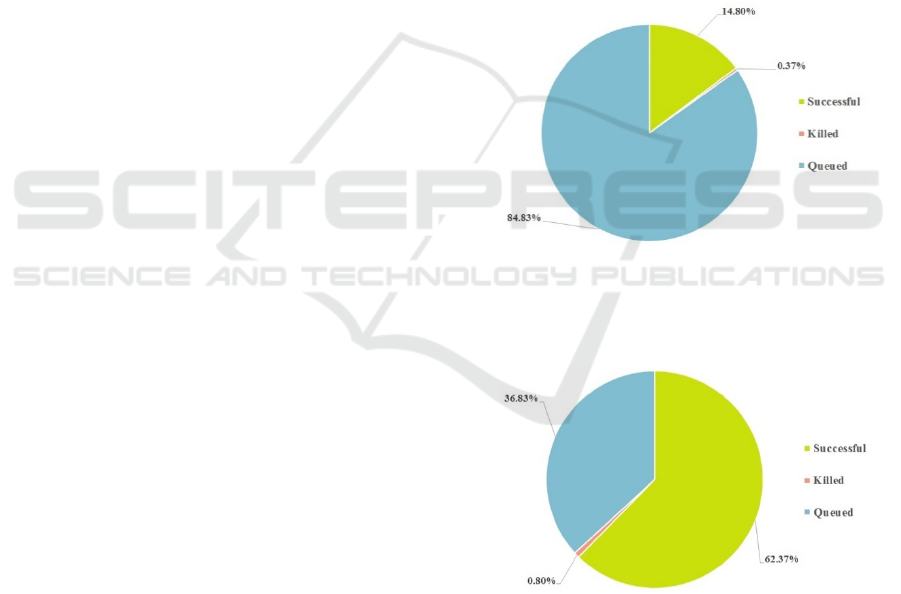

Figure 1: Average of numbers, respectively, of successful,

killed and queued creatures at simulation ends, expressed in

percentage, and calculated from the subset of simulation

data with HM=0, when creatures used cDF.

Figure 2: Average of numbers, respectively, of successful,

killed and queued creatures at simulation ends, expressed in

percentage, and calculated from the subset of simulation

data with HM=1, when creatures used cDF.

When HM=1 more creatures simultaneously try to

cross a highway, hence more of them may succeed.

Though the result of 62.36% is much better than

14.80%, still there are on average 36.83% of queued

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas

215

creatures at simulation end when HM=1. Even though

there is an improvement in the model performance

when HM=1, the above results show that the

creatures’ performance is not the best one, regardless

whether HM=0 or HM=1.

To better understand the model performance with

cDF we split each of these two simulation data sets

further into subsets depending on the values of the

parameters KBT (Knowledge Base Transfer), RD

(Random Deceleration, i.e. presence or absence of

erratic drivers). For each of these new subsets

characterized by the values of the parameters KBT,

RD, HM, we calculate the average of numbers of each

type of creatures (i.e., successful, killed and queued,

respectively) at simulation ends.

Table 3 displays the average of numbers of each

creature type at simulation ends, expressed as

percentage, for each subset of the simulation data

depending on the values of the model parameters

KBT, RD and HM. The values of these parameters

are listed in the rows in the first three columns of the

table. For each selection of the values of the

parameters KBT, RD and HM the average of numbers

of successful, killed and queued creatures at

simulation ends, expressed as percentage, is listed in

the corresponding row in the last three columns of the

table, respectively. Observe that for each creature

type each entry of the last row of Table 3 is the

average of the numbers listed above in the

corresponding column. Thus, these averages give on

average the percentage of the successful, killed and

queued creatures at simulation ends in the full

simulation data set.

Table 3: Average of numbers, respectively, of successful,

killed, queued creatures at simulation ends, expressed in

percentage, and calculated from the simulation data sets

characterized by different values of the parameters KBT,

RD and HM, when the cDF was used in these simulations.

The value “0” means “without” and the value “1” means

“with” KB transfer (KBT), random deceleration (RD), and

creatures movement (HM), respectively.

KBT RD HM Succe-

ssful

Killed Queued

0 0 0 13.22% 0.37% 86.41%

0 0 1 51.18% 0.82% 48.00%

0 1 0 13.81% 0.50% 85.69%

0 1 1 50.39% 1.03% 48.58%

1 0 0 16.80% 0.20% 83.00%

1 0 1 73.98% 0.48% 25.54%

1 1 0 15.36% 0.42% 84.22%

1 1 1 73.94% 0.90% 25.16%

Avera

e 38.59% 0.59% 60.82%

Looking at Table 3 we can draw the following

conclusions. The transfer of KB, i.e. when KBT=1

instead of KBT=0, always increases the percentage of

successful creatures and decreases the percentage of

queued and killed creatures. The magnitudes of these

changes vary and they depend on the values of RD

and HM parameters. In general, the effect of transfer

of KB on the decrease in the percentage of killed

creatures is very small. However, the transfer of KB

has much bigger effect on the increase of the

percentage of successful creatures and the decrease of

the percentage of queued creatures. In some cases,

this effect is quite noticeable. For example, when

RD=1 and HM=1 the percentage of successful

creatures increases from 50.39% to 73.94% and the

percentage of queued creatures decreases from

48.58% to 25.16% when KBT takes place.

Overall the effects of erratic drivers on the

changes in the percentage values of creatures’ types

are rather small in comparison with the effects of the

other parameters. The presence of erratic drivers, i.e.

when RD=1, always decreases the percentage of

successful creatures, and increases the percentage of

killed creatures. It also increases the percentage of

queued creatures, except for the case when KBT=1

and HM=1.

Table 3 confirms that the HM parameter has the

most influence on the changes in the percentage

values of successful and queued creatures. Allowing

creatures to move to different crossing points, i.e.

when HM=1, significantly increases the percentage

of successful creatures and decreases the percentage

of queued creatures, because many more creatures

may attempt to cross the highway at each time step.

Also, Table 3 shows that the parameter HM has small

effect on the changes in the percentage values of

killed creatures, which is not surprising, as the

numbers of killed creatures have been always very

small in comparison with the numbers of the two

other types of creatures.

From Table 3 we notice that the percentage of

queued creatures is always high, regardless of the

values of the parameters. It reaches its maximum of

86.41% when KBT=0, RD=0 and HM=0, and it

reaches its minimum of 25.16% when KBT=1, RD=1

and HM=1. However, even in this case still almost a

quarter of the creatures is queuing. Thus, the queuing

creatures are always a significant part of all the

creatures at each simulation end and if one wants to

improve the model performance one needs to

decrease their number. Table 3 shows that the transfer

of KB always decreases on average percentage of

queuing creatures at simulation ends. However, given

the fact that these numbers are still relatively high one

needs to look for some other mechanisms than KB

transfer to improve creatures’ performance.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

216

4.2 Performance of Creatures using

cwDF and Its Comparison with

Performance When They Use cDF

In this section, we discuss the performance of

creatures when they use cwDF instead of cDF in their

decision-making process. The average of numbers,

respectively, of successful, killed and queued

creatures at simulation ends, expressed in percentage,

and calculated from the simulation data set with

HM=0 are displayed in Figure 3, and calculated from

the simulation data set with HM=1 are displayed in

Figure 4.

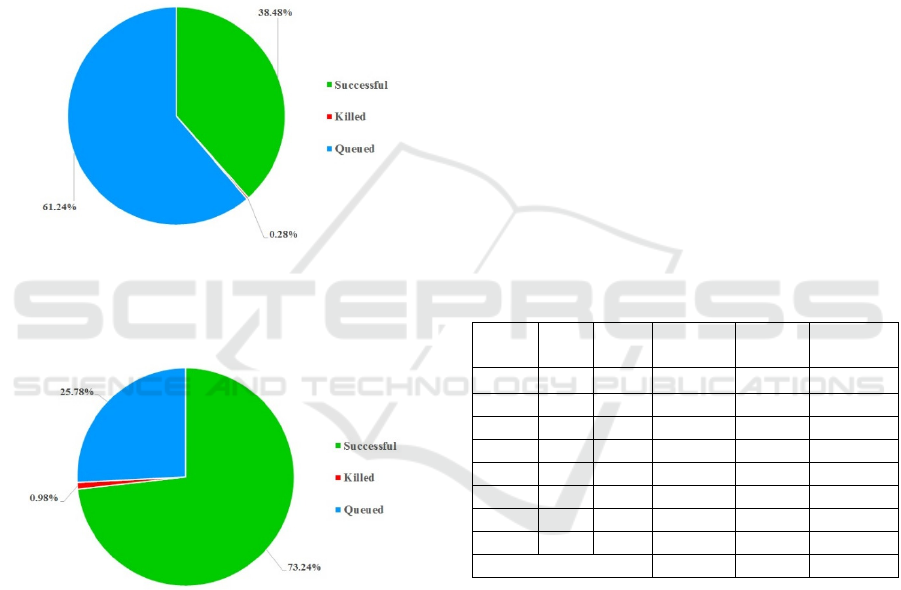

Figure 3: Average of numbers, respectively, of successful,

killed and queued creatures at simulation ends, expressed in

percentage, and calculated from the subset of simulation

data with HM=0, when creatures used cwDF.

Figure 4: Average of numbers, respectively, of successful,

killed and queued creatures at simulation ends, expressed in

percentage, and calculated from the subset of simulation

data with HM=1, when creatures used cwDF.

Comparing Figure 3 with Figure 1 and Figure 4

with Figure 2 we notice that cwDF has significant

effect on the values of percentages of each creature

type at simulation ends. We notice that the use of

cwDF instead of cDF: (1) considerably decreases the

percentages of queued creatures; (2) significantly

increases the percentages of successful creatures; (3)

and causes only a very small change in the

percentages of killed creatures. More precisely, we

notice that when HM=0 (i.e. from comparing Figure

3 with Figure 1), the percentage of queued creatures

decreases by 23.59%, the percentage of successful

creatures increases by 23.68%, and the percentage of

killed creatures decreases by 0.09%. When HM=1,

from comparing Figure 4 with Figure 2, we notice

that the percentage of queued creatures decreases by

11.05% and the percentage of successful creatures

increases by 10.97%. The observed changes in the

percentages of queued creatures and successful ones

confirm our intuition that by incorporating the

assessment of WDs into DF a significant number of

queued creatures would be converted on average into

the successful ones. This is because the built in

additional feed-back mechanism into cwDF, about

the “correctness” of creatures’ waiting decisions,

increases their chances of making more often correct

crossing decisions in every time step, i.e. of choosing

more often to cross the highway instead of to wait

when the traffic conditions allow to do so.

Table 4: Average of numbers, respectively, of successful,

killed, queued creatures at simulation ends, expressed in

percentage, and calculated from the simulation data sets

characterized by different values of the parameters KBT,

RD and HM, when cwDF was used in these simulations.

The value “0” means “without” and the value “1” means

“with” KB transfer (KBT), random deceleration (RD), and

creatures movement (HM), respectively.

KBT RD HM Succe-

ssful

Killed Queued

0 0 0 32.95% 0.26% 66.79%

0 0 1 68.88% 1.03% 30.09%

0 1 0 32.32% 0.39% 67.29%

0 1 1 68.29% 1.17% 30.54%

1 0 0 44.27% 0.12% 55.61%

1 0 1 77.98% 0.56% 21.46%

1 1 0 44.39% 0.34% 55.27%

1 1 1 77.80% 1.17% 21.03%

Avera

e 55.61% 0.63% 43.76%

The average of numbers of each creature type at

simulations ends, expressed in percentage, and

calculated from the subsets of the date obtained by

partitioning the full simulation data set in to the

subsets depending on the values of the parameters

KBT, RD and HM is presented in Table 4. The

organization of the results displayed in Table 4 is the

same one as of Table 3.

By comparing Table 4 with Table 3 one observes

the increases in the percentage of successful creatures

as the result of the decrease in the percentage of

queued creatures and a very small change in the

percentage of killed creatures for all the considered

combinations of the parameters’ values. These

changes can be seen better from Table 5, which

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas

217

displays the values of differences between the values

of respective entries of Table 4 and Table 3.

Table 5: Difference in averages of numbers, respectively,

of successful, killed, queued creatures at simulation ends,

expressed in percentages, and calculated by taking the

difference between the values of respective entries of Table

4 and Table 3. The value “0” means “without” and the value

“1” means “with” KB transfer (KBT), random deceleration

(RD), and creatures movement (HM), respectively.

KBT RD HM Succe-

ssful

Killed Queued

0 0 0 +19.73% -0.10% -19.62%

0 0 1 +17.70% +0.21% -17.91%

0 1 0 +18.51% -0.11% -18.40%

0 1 1 +17.89% +0.15% -18.04%

1 0 0 +27.47% -0.08% -27.39%

1 0 1 +4.00% +0.09% -4.08%

1 1 0 +29.03% -0.08% -28.94%

1 1 1 +3.86% +0.27% -4.13%

Avera

e +17.27% +0.05% -17.32%

From Table 5 one can see easily that the use of

cwDF in creatures’ decision-making process reduces

the percentages of queued creatures and allocates

these gains mostly into the percentages of the

successful ones, i.e. the use of cwDF converts on

average some previously waiting creatures into the

successful ones.

Additionally, Table 5 shows how cwDF improves

the creature’s performance for all the considered

combinations of the parameters’ values. For instance,

the best improvement in the creatures’ performance is

achieved in simulations with KBT=1, RD=1 and

HM=0. However, when KBT=1, RD=1 and HM=1,

the use of cwDF does not enhance the creatures’

performance too much, most likely, because the

results were already quite good when the creatures

used cDF in their decision-making process.

As about killed creatures, when cwDF is used

instead of cDF, Table 5 shows that their percentages

always increase when HM=0 (i.e., the differences are

positive) and they always decrease when HM=1 (i.e.,

the differences are negative), regardless of the values

of the other two parameters, KBT and RD. This is

because when HM=0 the creatures have only two

options to choose from: to cross or to wait. Thus,

when the numbers of waiting creatures decrease the

numbers of crossing creatures increase automatically.

This increases their chances of making incorrect

crossing decisions, and results in more creatures

being killed. This is not the case when HM=1,

because when HM=1, the creatures have 3 options to

choose from: to cross, to wait or to change the

crossing point. Thus, when the creatures decide not to

wait they are not forced automatically to cross and

they may move to another crossing point. This

increase their chances of avoiding making incorrect

crossing decisions that would cause an increase in the

numbers of creatures being killed.

5 CONCLUSIONS

We have investigated performance of simple

cognitive agents learning to cross a CA based

highway for two decision formulas used by the

agents’ in their decision-making process. We

measured the agents’ performance by the numbers of

agents who crossed successfully, who were killed and

those who were still queuing to cross at simulation

ends. We described the main features of the

simulation model and the agents observational social

learning strategy. In the decision-making process,

depending on the simulation setup, the agents used

one of the two decisions formulas: cDF, which was

based only on the assessment of the outcomes of the

agents crossing decisions, or cwDF, which was based

on the assessment of the outcomes of the agents

crossing and waiting decisions.

Our simulations showed that the performance of

agents using cwDF in their decision-making process

was much better than the performance of the agents

using cDF instead. This is because in cwDF is built in

the additional feed-back information about the

“correctness” of the agents waiting decisions. This

feed-back mechanism of cwDF increases agents’

chances of making more often correct decisions in

every time step. Since in cDF this feed-back

mechanism is missing the agents may choose to wait

even when the traffic conditions allow them to safely

cross the highway.

Furthermore, our simulations showed, that

transfer of accumulated knowledge base from traffic

environment with lower car creation probability to the

one with immediately higher car creation probability

improves agents’ performance, regardless what

decision formula they used. Thus, accumulation of

knowledge base helps the agents to be more

successful. Additionally, our simulations showed: (1)

that noise in the traffic environment, i.e. the presence

of erratic drivers, decreases, but not so much, the

agents’ performance; (2) allowing agents to move to

other crossing points improves noticeably their

performance. Again, in both cases the agents’

performance was improved when transfer of

accumulated knowledge base was allowed.

Since autonomous robots may be identified with

cognitive agents, thus their process of learning in

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

218

dynamically changing environments can be studied

through modelling and simulation of cognitive agents

in such environments. The presented work

contributes to this area of research and investigates

how various model parameters affects the agents’

performance.

ACKNOWLEDGEMENTS

The authors acknowledge helpful discussions with

Bruno Di Stefano, Leslie Ly and Hao Wu. A.T.L.

acknowledges partial financial support from NSERC

of Canada.

REFERENCES

Russell, S., Norvig, P., 2014. Artificial Intelligence, A

Modern Approach, Pearson Education Limited.

Poole, D.L., MacKworth, A.K., 2010. Artificial

Intelligence, Foundations of Computational Agents,

Cambridge University Press, Cambridge, US.

Ferber, J., 1999. Multi-Agent Systems, An Introduction to

Distributed Artificial Intelligence, Addison-Wesley,

Longman.

Uhrmacher, A.M., Weyns, D., 2009. Multi-Agent Systems

Simulation and Applications, CRC Press, Taylor &

Francis Group, Boca Raton, Fl.

Nehavin, Ch. L., Dautenhahn, K., 2007. Imitation and

Social Learning in Robots, Humans and Animals”,

Cambridge University Press, Cambridge, UK.

Bandura, A., 1977. Social Learning Theory, Prentice Hall,

Englewood Cliffs, NJ.

Bandura, A., Ross, D., Ross, S.A., 1961. Transmission of

aggression through the imitation of aggressive models,

Journal of Abnormal and Social Psychology, 63, pp.

575-582.

Hoppitt, W., Laland, K.N., 2013. Social Learning, An

Introduction to Mechanisms, Methods, and Models,

Princeton University Press, Princeton.

Montes de Oca, M.A., Stutzle, T., 2008. Towards

incremental social learning in optimization and

multiagent systems, Proceedings of GECCO’08, The

Annual Conference Comparison on Genetic and

Evolutionary Computation, pp. 1939-1944.

Gong, Y.J., Zhang, J., Li, Y., 2014. From the social learning

theory to a social learning algorithm for global

optimization, Proceedings of 2014 IEEE International

Conference on Systems, Man and Cybernetics (SMC),

San Diego, CA, pp. 222 – 227.

Cheng, R., Jin, Y. 2015. A social learning particle swarm

optimization algorithm for scalable optimization”,

Information Sciences, Vol. 291, pp. 43-60.

Liu, Z.-Z, Chu, D.-H., Song, Ch., Xue, X., Lu, B.-Y., 2016.

Social learning optimization (SLO) algorithm paradigm

and its application in QoS-aware cloud service

composition, Information Sciences, Vol. 326, pp. 315-

333.

Lawniczak, A.T., Ernst, J.B., Di Stefano, B.N., 2012.

Creature Learning to Cross A CA Simulated Road”, in:

G.C. Sirakoulis, S. Bandini (Eds.) Proc. of ACRI 2012,

Springer-Verlag LNCS, Vol.7495, 2012, pp. 425-433.

Lawniczak, A.T., Ernst, J.B., Di Stefano, B.N., 2013.

Simulated Naïve Creature Crossing a Highway,

Proceedia Computer Science 18, 2013, pp. 2611-2614.

Lawniczak, A.T., Di Stefano, B.N., Ernst, J.B., 2014.

Software Implementation of Population of Cognitive

Agents Learning to Cross a Highway, J. Was, G.C.

Sirakoulis, S. Bandini (Eds.) Proc. of ACRI 2014,

Springer-Verlag LNCS, Vol. 8751, pp. 688-697.

Nagel, K., Schreckenberg, M., 1992. A cellular automaton

model for freeway traffic”, J. Physique I, 2, pp. 2221 –

2229.

Lawniczak, A.T., Di Stefano, B.N., 2008. Development of

CA model of highway traffic”, in Adamatzky, A.,

Alonso-Sanz, R., Lawniczak, A., Martinez, G. J.,

Morita, K., Worsch, T., eds., Automata-2008, Theory

and Applications of Cellular Automata, Luniver Press,

U.K.

Lawniczak, A.T., Di Stefano, B.N., 2010a. Multilane Single

GCA-w Based Expressway Traffic Model, in: S.

Bandini et al. (Eds.): Prof. of ACRI 2010, Springer-

Verlag LNCS Vol. 6350, pp. 600-612.

Lawniczak, A.T., Di Stefano, B.N., 2010b. Digital

Laboratory of Agent-Based Highway Traffic Model,

Acta Physica Polonica B Proc. Supplement, Vol. 3, No.

2, pp. 479-493.

Lawniczak, A.T., Di Stefano, B.N., Ernst, J.B., 2015.

Stochastic Model of Cognitive Agents Learning to

Cross a Highway. In A. Steland, E. Rafajlowicz, K.

Szajnowski (Ed.) The 12

Workshop on Stochastic

Models, Statistics and their Applications, Springer

Proceedings in Mathematics and Statistics, Vol.122, pp.

319-326.

Lawniczak, A.T., Di Stefano, B. N., Ly, L., Xie, S., 2016.

Performance of Population of Naïve Creatures with

Fear and Desire Capable of Observational Social

Learning. Acta Physica Polonica Series B, Proceedings

Supplement, 9 (1), pp. 95-107.

Lawniczak, A.T., Ly, L., Yu, F., Xie, S., 2016. Effects of

Model Parameter Interactions on Naïve Creatures’

Success of Learning to Cross a Highway, The 2016

IEEE Congress on Evolutionary Computation (IEEE

CEC 2016) at IEEE WCCI 2016, 10 pages.

Dean, A., Voss, D., 1999. Design and Analysis of

Experiments, Springer Science+Bussines Media, Inc.

Comparison of Agentsâ

Z Performance in Learning to Cross a Highway for Two Decisions Formulas

219
