Testing Environment Emulation - A Model-based Approach

Jian Liu

, John Grundy

, Mohamed Abdelrazek

and Iman Avazpour

School of Software and Electrical Engineering,

Swinburne University of Technology, Hawthorn, VIC 3122, Australia

School of Information Technology, Deakin University, Burwood, VIC 3125, Australia

Keywords: Model-driven Engineering, Domain-specific Visual Modeling Language, Testing Environment Emulation.

Abstract: Modern enterprise software systems often need to interact with a large number of distributed and

heterogeneous systems. As a result, integration testing has become a critical step in their software

development lifecycle. Service virtualization is an emerging technique for creating testing environments

with realistic executable models of server side production-like behaviours. However, building models in

existing service virtualization approaches is very challenging, requiring either significant human effort or

the availability of interactive tracing records. In this paper, we present a domain-specific modeling approach

to generate complex, virtualized testing environments. Our approach allows domain experts to use a suite of

domain-specific visual modeling languages to model key interface layers of applications at a high level of

abstraction. These layered models are then transformed into a testing runtime environment for application

integration testing. We have conducted a technical comparison with two other existing approaches and also

carried out a user study. The user study demonstrated the acceptance of our new testing environment

emulation approach from software testing experts and developers.

1 INTRODUCTION

Testing environment emulation provides integration

testing to an enterprise System Under Test (SUT) that

interacts with many external systems. Currently, there

are two kinds of approaches to develop such

integration testing environments. Specification-based

approaches are used by IT professionals to develop

simplified versions of applications with external

behaviour only (often called “endpoints”) manually

(Hine et al., 2009, Yu et al., 2012). They perform this

using available knowledge of the underlying message

syntax, interaction protocol and system behaviour.

Interactive tracing data record-and-replay based

approaches (called “interactive tracing” hereafter)

create endpoint models from recorded request-

response pairs between the endpoint system and an

earlier version of a SUT automatically (Du et al.,

2013). Each endpoint’s simulated response is

generated by finding a close-match request in the

previously recorded trace database.

Both approaches have their strengths but also

shortcomings. Specification-based approaches have

high development and set-up cost and require access

to a detailed system specification and/or

implementations, if available. Interactive tracing

approaches depend on the availability of trace records

for all integration testing cases between a SUT and its

operational environment. In recent years, the

interactive tracing approaches are getting more

popular, and many major players have released their

commercial products (Giudice, 2014). However,

these products need to have a complementary

specification-based development tool for modeling

those endpoints, which do not have all interactive

tracing data available.

Aiming to achieve high development productivity

and ease of use for domain experts, we have

developed a novel specification-based Domain-

Specific Modeling (DSM) approach for testing

environment emulation. Our approach is based on

model-driven engineering, where users build high

level abstract service models and executable code will

be generated automatically by transforming these

models using code generators. Our DSM approach

divides software interfaces into different abstraction

layers, where each layer represents a modeling

problem domain – e.g. endpoint signature, protocol or

behaviour. The approach introduces a suite of

Domain-Specific Visual Languages (DSVLs) for

Testing Environment Emulation (TeeVML) (Liu et

al., 2016), each is dedicated to a specific interface

layer. Users use TeeVML to model testing endpoints

112

Liu J., Grundy J., Abdelrazek M. and Avazpour I.

Testing Environment Emulation - A Model-based Approach.

DOI: 10.5220/0006194601120124

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 112-124

ISBN: 978-989-758-210-3

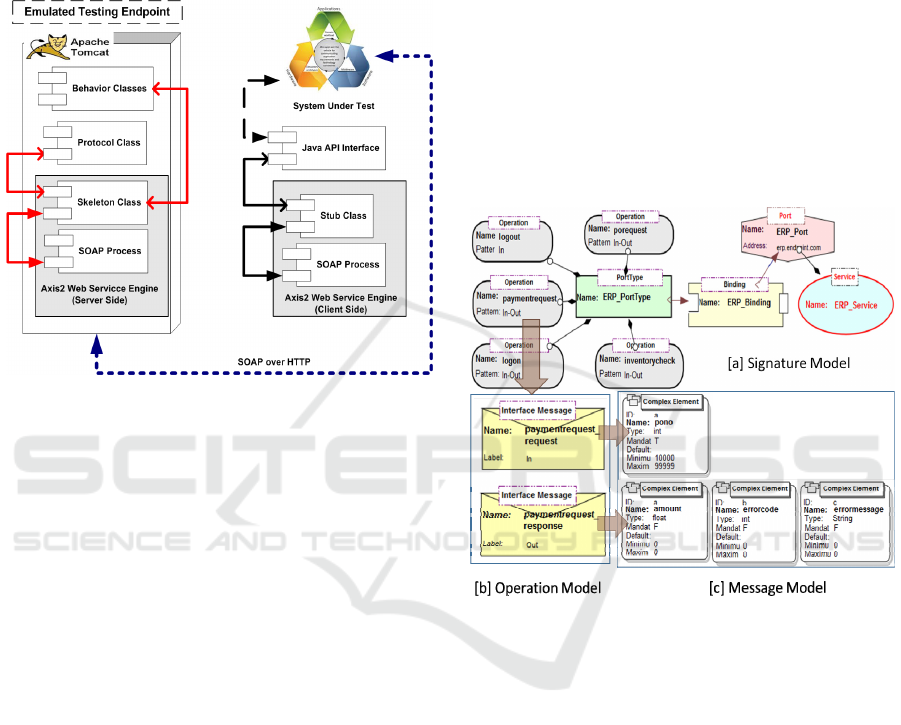

in layers. A testing runtime environment is then

provided by Axis2 Web Service platform

(Jayasinghe, 2008), together with the Java code

generated automatically from endpoint models.

The key contributions of this paper include: (1) a

solution to model endpoint external behaviours for

enterprise application integration testing, (2) a

software interface description framework to abstract

testing endpoints into multiple logic layers, (3) and a

model-driven, domain-specific approach to generate

emulated testing endpoints using our TeeVML

toolset. The scope of our approach is for emulating

complex interactions between a SUT and an endpoint.

Thus other interactions behind the endpoint for

providing composite services are not considered in

this study. The applications include those using

Remote Procedure Call (RPC) communication style

and with stateful session management as a typical

business scenario. However our approach can be

generalized to real-world examples.

The remainder of this paper is organized as

follows: Section 2 motivates our work with an

example case study, followed by an introduction of

our approach in Section 3. In Section 4, we show how

an endpoint is modeled and then describe the steps to

convert endpoint models into testing runtime

environment. In Section 5, we evaluate our approach

and discuss the key findings from the results of a

technical comparison and a user survey. This is

followed by a review of related work in section 6.

Finally, we conclude this paper and identify some key

future works in Section 7.

2 MOTIVATION

Assume a company has an in-house Enterprise

Resource Planning (ERP) system to support its daily

operations. For the purpose of streamlining its sales

process and improving internal efficiency, the

company plans to introduce a public cloud-hosted

Customer Relationship Management (CRM)

application. To ensure the interconnectivity and

mutual operability between the ERP system and

CRM application, integration testing must be

conducted before putting the CRM in production. For

this study, we treat the cloud CRM as the SUT, and

the ERP as the testing endpoint to be emulated.

The sequence diagram in Figure 1 illustrates a

typical purchase process, where a sales representative

uses the CRM application to place a Purchase Order

(PO) for his/her client. Our main interest is on the

interactions between the testing endpoint and the SUT,

which represent the endpoint protocol behaviours. We

describe the interactive behaviour between the CRM

and ERP below.



Figure 1: A CRM and an ERP sales process flow diagram.

Whenever the endpoint receives a logon request

(#1) from its SUT, it transits from Idle state to Home

state and an interactive session starts. The next valid

operation is a PO request (#2), and followed by an

inventory check (#3). The returned value of the

inventory check will determine whether or not

supplier chain related steps will be executed. If the

purchase item has enough stock for the PO, the

process flow will jump over those supplier purchasing

steps and directly go to a payment request (#8) state.

Otherwise, we have to go through all supplier

purchase steps (#4, #5, #6 and #7) to buy the missing

quantity of the PO item. Supplier PO approval (#5)

and approval notification (#6) are iteration operations,

informing all approvers one-by-one to give his/her

approval. If all required approvals for the supplier PO

have been obtained, the rest of purchasing steps will

be executed in the order as in Figure 1. Otherwise, the

purchase process will be aborted without success.

In addition, there are some other important

protocol behaviours: (1) Timeouts – a timeout event

will automatically terminate an interactive session and

the endpoint state will be changed from Home to Idle,

if no valid operation request is received within a

defined period of time; (2) Synchronous operation

simulation – if an endpoint operation is in

synchronous mode, all further operation requests will

be rejected when it is processing the operation; and (3)

Unsafe operation simulation -- i.e. not an idempotent

operation that will produce the same result if

executed once or multiple times. The payment request

Testing Environment Emulation - A Model-based Approach

113

(#8) is considered to be an unsafe operation, and

multiple requests for a same operation are not

allowed.

It is infeasible to test the CRM with the

production ERP system, and there is large cost

involved in duplicating the ERP. Conventional

interactive tracing and specification-based approaches

are similarly infeasible or difficult to use, as the

former relies on existing interactive tracing data and

the latter requires development of detailed endpoint

model implementations.

Just as any other software development tools,

users’ primary concerns about our endpoint modeling

approach will be: what can it do for their service

emulation modeling and generation, will it improve

endpoint development productivity, how easily can it

be used.

Therefore, we have defined the following three

research questions to be addressed by our approach

described in this paper:

1) RQ1 – Can we emulate an integration testing

environment capable of detecting interface defects

of an existing or a non-existing system under test

from a high level service model?

2) RQ2 – Would such a model-based approach

improve testing environment development

productivity, compared to using third generation

languages or specification-based manual coding

approaches?

3) RQ3 – Can we develop a user centric approach,

easy enough to learn and use for specifying testing

endpoints by domain experts?

3 OUR APPROACH

A testing endpoint is a server-side application,

receiving, validating and processing operation

requests from a SUT. Our goal is to make the

emulated testing environment rich enough to “fool”

the SUT that it is talking to the real system.

Specifically, an endpoint is a simplified version of its

real system with three assumptions: (1) only external

behaviours of the real system are considered and all

internal implementations will be ignored; (2) only the

operations of the real system to be invoked by the

SUT are provided; and (3) all SUT interface defects,

together with their types and origin information,

should be able to be detected and reported.

3.1 Domain Analysis

To identify endpoint common entities and find out

their relationships, we conducted our testing

environment emulation domain analysis by

investigating three applications interacting with their

clients. These applications included the ERP system

introduced in Section 2, a LDAP server and an e-

commerce application. These applications represent a

variety of application domains in a typical enterprise

environment. The domain analysis focused on two

areas: the interaction abstraction between a service

provider and a service consumer, and the requirement

on integration testing environment. From the domain

analysis, we proposed a layered software interface

description framework for testing environment

emulation, and defined interface defect types to be

detected by endpoints. Consecutively, we designed

our modeling approach for each interface layer. The

detailed design of the TeeVML visual notations are

out of scope for this paper. Interested readers can refer

to our previous publication (Liu et al., 2016).



3.2 Software Interface Description

Framework

Our new layered software interface description

framework builds on top of Han’s comprehensive

interface definition framework for software

components (Han, 2000). Our framework logically

separates software interfaces into three horizontal and

two vertical layers. Horizontal layers include

signature, protocol and behaviour. Vertical layers

include data store (data persistence) and Quality-of-

Service (QoS) (or call non-functional requirement). A

SUT operation request is processed horizontally by an

endpoint step by step from signature, protocol, down

to interactive behaviour layer. Whenever an error

occurs at any layer, the request process will be

terminated.

The signature and protocol layers act as message

pre-processors for checking the correctness of an

operation request syntax and temporal sequence,

before handing it over to the behaviour layer for

generating response. Vertical layers are not directly

involved in request processing, but provide support to

horizontal layers. We use a modular development

approach to model an endpoint – i.e. each module

represents a particular interface layer.

In this paper, we focus on modeling endpoint

functional layers. The data store layer is integrated in

the behaviour layer. The Quality of Service

requirements is part of our future work.

3.3 Interface Defects

Corresponding to endpoint horizontal and vertical

layers, there are also two types of interface defects:

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

114

functional defects, which are directly related to

operation request processing, such as incorrect

message signature and invalid operations; and non-

functional defects, such as non-compliance with

endpoint security policy. Table 1 lists all the

functional defect types a SUT operation request may

contain.

Table 1: Operation request defect types.

No Defect Type Description

Signature

An operation request is not an operation provided

by endpoint.

The parameters in an operation request are not

matched with the parameters of the corresponding

operation provided by endpoint, in terms of

parameters’ name, data type and order in the

operation request.

One or more operation request mandatory

parameter(s) is (are) missing.

One or more parameter(s) in an operation request is

(are) beyond the defined value range of the

corresponding endpoint operation.

Protocol

An operation request is invalid for the current

endpoint state.

An operation request is invalid for the current

endpoint state, as one or more parameter(s)

violate(s) the defined constraint condition(s).

An operation request is invalid for the current

endpoint state, as one or more returned value(s)

from a previous operation request violate(s) the

defined constraint condition(s).

An operation request is invalid, due to endpoint

state transition driven by some internal event, such

as time out.

An operation request is invalid, as endpoint is in

processing a synchronous operation request.

An operation request is invalid, as one such request

for an unsafe operation has been received by

endpoint.

Table 1 does not include any behaviour defect

types. This is because a SUT’s obligation is to send

correct operation requests to endpoint and the way

these requests are to be processed is defined in the

endpoint’s internal implementation. The reason why

we still model endpoint behaviour is that the validity

of alternative requests may depend on what values are

returned in a response message it has received for a

previous operation request (refer to P3 defect type of

Table 1). Below we discuss how these request defect

types can be detected.

3.4 Signature Modeling Approach

Endpoint signature is modeled by a signature DSVL.

We used Web Service Definition Language (WSDL)

1.1 as its model and adopted a three-level architecture

design (refer to Figure 2). The top-level WSDL DSVL

(refer to Figure 2a) is used to define the five WSDL

entity types: Service, Port, Binding, PortType and

Operation. To link these entities together, we added

two relationships: Composition and Association. The

middle-level operation DSVL (refer to Figure 2b) is

used to define request and/or response message(s)

contained in an operation. The bottom-level message

DSVL (refer to Figure 2c) is based on the W3C XML

Schema 1.1 for defining complex elements in a

message. By using the multi-level modeling approach,

lower level models can be reused by upper level

models.



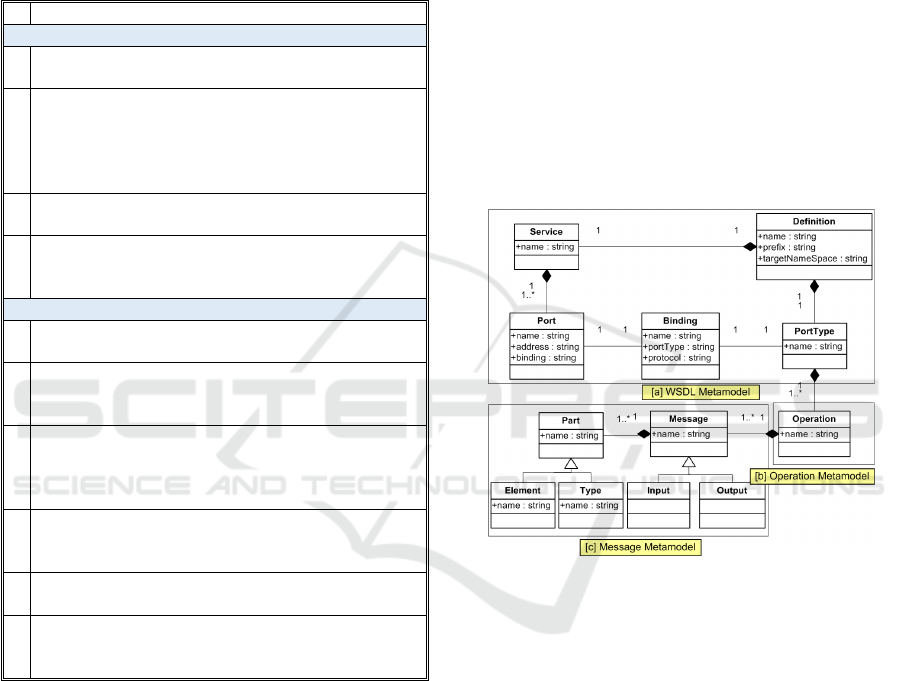

Figure 2: Signature metamodel.

The benefits from using WSDL specification as

our signature DSVL metamodel include: (1) WSDL

supports RPC communication style, covering a wide

range of endpoint signature types; (2) we can use

Axis2 wsdl2java utility to generate Axis2 Web

Service engine as our domain framework

automatically; and (3) Axis2 engine provides a

signature defect detection mechanism from a WSDL

file definition. There are some open-source or

commercial WSDL tools available, such as Eclipse

WTP Plugin and XMLSpy. The motivation for

developing our own WSDL tool is to increase the

consistency among different parts of TeeVML.

Behaviour model imports operations and their

parameters from the corresponding signature model;

and message DSVL is reused to define data store

model.

Testing Environment Emulation - A Model-based Approach

115

The signature defects S1 to S3 in Table 1 can be

detected by the Axis2 Web Service engine. For S4

defect debugging, two fields are added to the element

type of message DSVL for specifying the minimum

and maximum values of a request parameter.

3.5 Protocol Modeling Approach

A standard operation-driven Finite State Machine

(FSM) is often used to represent endpoint protocol

behaviour (Hine et al., 2009). To deal with incomplete

protocol specification problems and capture runtime

constraints, we used an Extended Finite State

Machine (EFSM) to enrich our protocol modeling

capability with dynamic protocol aspects. Our EFSM

adds one entity type and two entity properties (marked

yellow in Figure 3). The entity type is the

InternalEvent, which is used to define state transitions

triggered by a time event. One of the entity properties

is the StateTransitionConstraint of transition entity,

and it is for specifying either static or dynamic

constraints on state transition function. Another one is

the StateTimeProperty of state entity, which allows

users to simulate synchronous and unsafe operations.

As endpoint protocol modeling is relatively simpler

than the other two layers, we use a flat view

presentation structure.

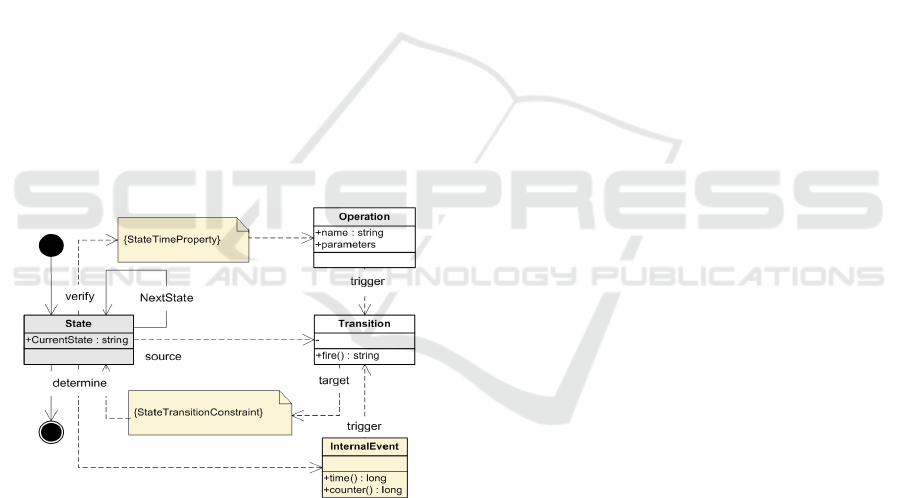

Figure 3: Protocol metamodel.

All the protocol defect types listed in Table 1 can

be detected by a testing endpoint, developed by a

modeling tool based on the EFSM model: (1) P1 – the

operation-driven state transition FSM; (2) P2 and P3 –

the StateTransitionConstraint property of transition

entity; (3) P4 – the InternalEvent entity; and (4) P5

and P6 – the StateTimeProperty of state entity.

3.6 Behaviour Modeling Approach

Endpoint behaviour DSVL was designed based on the

dataflow programming paradigm (Sousa, 2012). We

chose this metaphor as it allows complex specification

of behaviour models but is understandable by a wide

range of software stakeholders. The dataflow

programming execution model is represented by a

directed graph; the nodes of the graph are data

processing units, and the directed arcs between the

nodes represent data dependencies. Data flow in each

node from its input connector; and the node starts to

process and convert the data whenever it has the

minimum required parameters available. The node

then places its execution results onto its output

connector for the next nodes in the chain. Data store

operators are used to access and manipulate persistent

data.

To handle complicated business logics, we

designed our behaviour DSVL using hierarchical

structure. The benefits from using the hierarchical

structure are two-fold: First, we can reuse some of the

nodes, if they perform exactly the same task but are

located at different components. Second, it can help us

to manage diagrammatic complexity problem. At the

bottom level, a node consists of some primitive visual

constructs for performing operations on data and flow

controls. At the top level, there are discrete service

nodes to represent all operations provided by an

endpoint. To prevent the data inconsistence between

behaviour model and signature model, each of the

service nodes imports its request and response

parameters from the same endpoint signature model.

3.7 Testing Runtime Environment

Our testing runtime environment is generated by

transforming the endpoint models using a set of code

generators. There are four code generators: (1) a

signature code generator to transform an endpoint

signature model to a WSDL file, (2) a protocol code

generator to transform an endpoint protocol model to a

protocol processing class, (3) a behaviour code

generator to transform an endpoint behaviour model to

several behaviour model classes for handling all

operation requests from a SUT, and (4) a data store

code generator to transform data store and operation

models to JDBC classes.

An Axis2 Web Service engine, generated by Axis2

wsdl2java utility, binds both server side and client side

implementations to a service contract defined by a

signature WSDL file. On the server side, Axis2

provides a skeleton class as interface for integrating

business logic processing Java classes. On the client

side, Axis2 also has a stub class for allowing client to

access the server operations. We developed Java API

classes for facilitating the integration with SUTs. To

provide the integration testing service to a SUT, Axis2

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

116

service must be placed into a servlet container. We use

Tomcat 7.0 as our Web application server. Figure 4

illustrates our integration testing runtime environment,

where a SUT is on the right-hand side and a testing

endpoint is on the left-hand side. They interact with

each other by SOAP over HTTP protocol.

Figure 4: Testing runtime environment deployment view.

4 USAGE EXAMPLE

We use the ERP system from Section 2 as an example

to show how a testing endpoint is modeled by use of

TeeVML and how an integration testing runtime

environment is built.

4.1 Signature Modeling

We start signature modeling by specifying the five

WSDL entity types using WSDL DSVL: Service,

Port, Binding, PortType and Operation. Then, we link

them together by using either a composition or an

association relationship. All the entity types are

instantiated by providing their names. In addition, the

operation has a pattern property with a value of

“in/out”, “in-only” or “out-only”; and the port must

specify the endpoint service address.

We use an operation named paymentrequest as an

example to show how operations can be modeled. The

operation contains paymentrequest_request and

paymentrequest_response messages, and they are

defined by operation DSVL. The message label is “in”

for the request message and “out” for the response

message. The elements in the request and response

messages are defined by using message DSVL. The

request message contains only one element pono

(purchase order number), and it is defined as integer

and mandatory. Since a valid pono is a five-digit

integer, the element’s minimum field is specified as

10000 and maximum field as 99999. The response

message consists of three elements: amount,

errorcode and errormessage. They are placed in the

message in alphabetic order. The amount is a float

data type, errorcode integer and errormessage string.

Figure 5 illustrates the

hierarchical signature

model of the ERP system endpoint. It contains the top-

level WSDL model (refer to Figure 5a; for a better

view representation, we only show five operations),

the middle-level paymentrequest operation model

(Figure 5b), and the bottom-level request and response

message models (Figure 5c).

Figure 5: Example signature model.

4.2 Protocol Modeling

We use protocol DSVL to model the testing endpoint

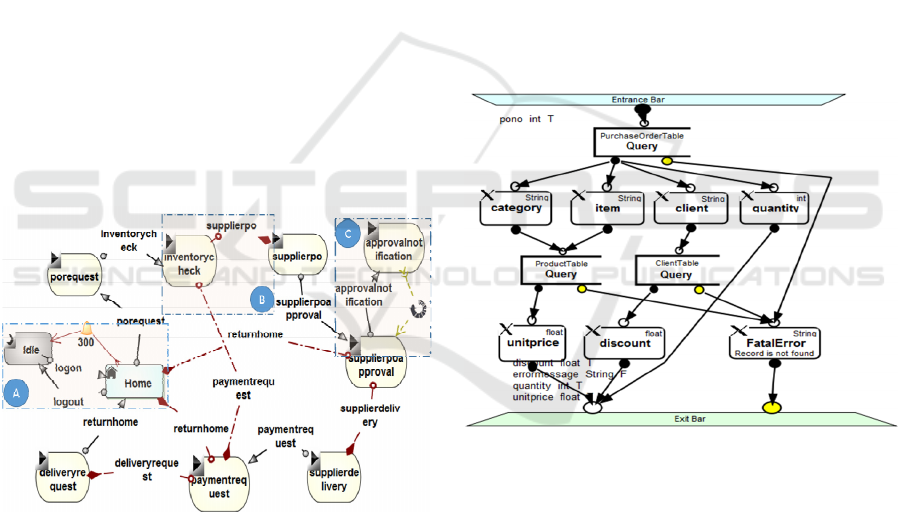

protocol layer. Figure 6 illustrates the endpoint

protocol model, where the emulated enterprise

purchase process flows in clockwise direction. To

explain how the endpoint protocol is modeled, we

select three typical protocol behaviours of interactive

session management, constraint state transition and

transition iteration. They are marked as A, B and C in

the diagram, respectively.

A -- Session management: Endpoint protocol

modeling starts from specifying an interactive session

by using a logon transition relationship from Idle state

to Home state. On the opposite direction, a logout

transition relationship terminates a session. A session

can also be terminated by a timeout event, which is

Testing Environment Emulation - A Model-based Approach

117

defined by using a timeout relationship linking a from

state to a to state.

B – Constraint transition relationship: When the

endpoint is at inventorycheck state, there are

alternative flows either to supplierpo or to

paymentrequest. The choice of the flows is subject to

whether the purchase item stock can meet the PO

requirement. We use a constraint transition

relationship to link the inventorycheck state to the

supplierpo state. Its constraint condition is specified in

the relationship dialog box by comparing the quantity

parameter of porequest request with the inventory

parameter of inventorycheck response. If the former is

greater than the latter, the state transition will happen.

Similarly, we specify another constraint transition

from the inventorycheck state to the paymentrequest

state, and the constraint condition is the item stock

less than or equal to the PO quantity.

C – Transition iteration: A loop relationship is used

to specify that all the operations between the from

state and the to state of the loop relationship will be

repeatedly executed. We use a loop relationship to

specify the approval process of a supplier PO, which

includes an approvalnotification and a

supplierpoapproval operations. The approval process

starts from the immediate manager of the purchaser

until the manager with authority for the PO amount.

Figure 6: Example protocol model.

4.3 Behaviour Modeling

We use one operation paymentrequest as example to

explain how endpoint behaviour is modeled by our

behaviour DSVL. We model an operation behaviour

by using a service node construct and instantiate it by

providing the operation name. The operation request

and response parameters are imported from the

corresponding signature operation model

automatically. The paymentrequest operation node

consists of two sub nodes: poinformationretrieve to

retrieve PO, product and client information, and

poamountcalculation to calculate the total PO amount.

These two nodes are placed between a pair of input

and output bars.

The poinformationretrieve node is used to show

how behaviour DSVL visual constructs are used to

implement business logics. Figure 7 illustrates the

operations and dataflows within the

poinformationretrieve node. The node has one input

parameter pono, and four output parameters: quantity,

unitprice, discount and errormessage. The node

includes three data query operations: (1) to retrieve

PO category, item, quantity and clientname from

PurchaseOrderTable by the pono; (2) to retrieve

unitprice from ProductTable by the category and

item; and (3) to retrieve discount from ClientTable by

the clientname. If searching records are found,

searching results will be placed on the normal output

port (black circle) of data store operator. Otherwise, a

FatalError variable will be assigned by following the

exceptional output port (yellow circle).

Figure 7: Example behaviour model.

4.4 Testing Environment Creation

We build our testing runtime environment by

converting the above models into executable codes to

be run inside Axis2. We use Eclipse as our Java IDE;

and two Java projects purchaseserver and

purchaseclient are created for hosting server and

client side codes. The testing environment creation

process is described as followings:

Testing environment platform creation: The

signature model is transformed to a WSDL file, and

the file is copied to both the client and server project

folders. Then, the WSDL files in both project folders

are converted to Axis2 Web Service platform by

using Axis2 wsdl2java utility.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

118

Protoc

ol and behaviour models transformation and

integration: The endpoint protocol and behaviour

models are transformed to Java classes; and the Java

classes are copied to the purchaseserver folder. Then,

these Java classes are integrated into an Axis2

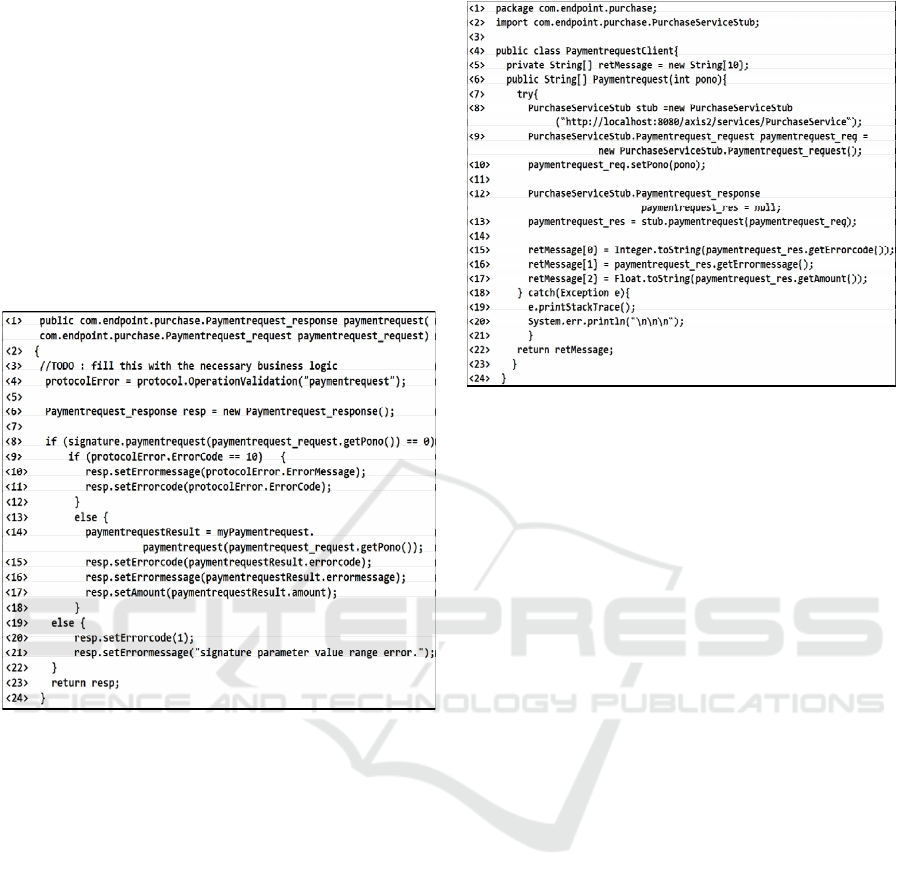

skeleton class. Figure 8 shows a code snippet of the

skeleton class for paymentrequest operation. Signature

parameters are verified against defined value ranges

first at Line 8. Then, the protocol validity of the

paymentrequest operation is tested at Line 9. If both

the signature and protocol are verified correctly, the

operation response message will be generated from

Line 14 to 17.

Figure 8: A code snippet of Axis2 skeleton class.

Axis2 Web Service generation and deployment:

We developed an Apache Ant build XML file to

build the endpoint Axis2 Web Service automatically,

and the built service purchaseservice.aar file is

loaded to Tomcat webapps folder for providing the

endpoint testing service.

SUT integration: A Java API file is provided for

integrating a SUT with Axis2 stub file in the

purchaseclient folder. Figure 9 shows the

paymentrequest API file. A SUT accesses the

endpoint testing service through a Tomcat application

server URI at Line 8. The paymentrequest_request is

sent by providing input parameter pono at Line 10.

The Paymentrequest _response method is defined and

assigned the response parameters from the testing

endpoint at Line 12 and 13. Finally, these response

parameters are assigned to the API return string array

“retMessage” from Line 15 to 17.

Figure 9: An Axis2 stub class API.

5 EVALUATION

To assess how well the three research questions are

addressed by our new endpoint modeling approach,

we define three corresponding evaluation criteria: (1)

testing endpoint functionality (addressing RQ1) – the

approach should be able to develop various types of

testing endpoints, which could be used to detect all

sorts of interface defects; (2) development

productivity (addressing RQ2) – the approach should

ideally have high endpoint development productivity

with less development effort and time; and (3) ease of

use (addressing RQ3) – the approach should be easy

to learn and adapt.

These criteria were assessed by a technical

comparison of the two currently available testing

endpoint emulation approaches: specification-based

manual coding and interactive tracing approaches.

This comparison motivated our new specification-

based DSM approach. Thus, we provide details of

how our approach compares with these two other

approaches as well. After our approach was ready to

use, we conducted a user study to evaluate to what

extent our approach is accepted by IT professionals in

respect to each of these criteria. It is also good to

mention that we have made some improvements on

our early versions of TeeVML based on the feedbacks

from the user study.

5.1 Technical Comparison

We conducted the technical comparison by looking

into what key techniques these approaches adopt to

address the issues related to the evaluation criteria

Testing Environment Emulation - A Model-based Approach

119

Table 2: Approaches’ techniques.

Manual coding Interactive tracing Domain-specific modeling

Functionality

The key motivation of these

approaches is to provide SUT

performance testing by emulating

large number of endpoints of the

same type. To achieve this

objective, these approaches adopt a

light-weight architecture design

(Hine et al., 2009) and some testing

features are deliberately neglected.

Dynamic protocol behaviour cannot

be modeled, as state transition is

triggered only by an operation.

Unless great effort is made,

behaviour layer modeling will be

limited.

To provide integration testing, these

approaches search for the right

request matching on data byte level

without any knowledge about upper-

level message syntax. They can only

tell whether a test is passed or

failed, but cannot provide any defect

information. These approaches are

not usable for testing a new

application, as its trace data are not

available.

Our testing endpoint provides

integration testing from signature,

protocol and behaviour abstraction

layers. The signature layer model

supports all RPC style

communications; the protocol layer

can model both static and dynamic

protocol behaviours; and the

behaviour layer uses a hierarchical

structure dataflow programming for

modeling complicated logic

implementation.

Productivity

The approaches adopt a modular

architecture design, where an

endpoint type dependent message

engine module is separated from an

endpoint type independent network

infrastructure and a system

configuration module (Hine et al.,

2009). However, as the message

engine is coded manually,

significant amount of development

effort is needed for each new

endpoint type.

Testing endpoint is created by

recording the interactive tracing

data between an endpoint and an

earlier version of the SUT

application. These approaches do

not need any endpoint development

work, but some effort on trace data

recording.

An endpoint is modeled by layers,

and layer models are transformed to

executable source codes. The key

solution to productivity

improvement is to maximize

components reusability. We have

adopted multi-level design for the

signature DSVL and node

hierarchical structure for the

behaviour DSVL.

Ease of Use

To develop an endpoint, developers

must have both business domain

knowledge and programming skills.

Neither business domain knowledge

nor programming skills are

required. However, during the trace

recording, developers must have a

certain level of understanding of the

endpoint application. Also, users

must be trained to use the tool.

Developers must have business

domain knowledge, and some

modeling skill is preferred. To

achieve ease of use, we applied the

principles of Physics of Notations

(Moody, 2009) to optimize our

visual nation designs.

(refer to Table 2). We have added some attributes to

these evaluation criteria. We then gave a four-point

ranking subject to the level of support (N – n/a, L -

low, M - medium or H - high) the approaches provide

for each attribute and each evaluation criterion (refer to

Table 3). The overall ranking of each evaluation

criterion summarizes individual attribute’s ranking and

takes their importance into consideration.

The interactive tracing approaches have the H

ranking for both the productivity and ease of use, as

they create testing endpoints from interactive tracing

data automatically. However, these approaches have

two key shortcomings in terms of testing functionality.

One is their usability, which is subject to the

availability of interactive tracing data; another one is

that they cannot report defect type and cause

information. So, we give these approaches the L

ranking for the testing functionality.

In contrast, both specification-based types of

approaches need to develop endpoint by using

different techniques. As our DSM approach uses

higher level of abstraction models than code to express

design intent, we have given our approach the M

ranking and manual coding the L ranking for both the

productivity and ease of use. Both types of approaches

can report static defects, but our DSM approach can

report dynamic defects as well. So, DSM approach

ranks H for the testing functionality, while manual

coding is given the M ranking.

5.2 User Study

Our user study was conducted in two phases to

measure the perceived usefulness and perceived ease

of use (Davis, 1989) of our endpoint modeling tool,

respectively. Phase One study was conducted through

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

120

interviews, including an introduction to the toolset

and a Q&A session. We invited 16 testing experts,

who had two or more years industry testing

experience and were knowledgeable about integration

testing, to take part in the survey. For Phase Two, we

asked participants to model the deposit operation of a

banking system endpoint. We then collected their

opinions based on their experience with our TeeVML

toolset. Total of 19 software developers and IT

research students took part in the survey. Most of

them had five or more years software development

experience and were familiar with at least one third

generation language.

Table 3: Approaches comparison.

(MC: Manual coding, IT: Interactive tracing,

DM: Domain-specific modeling).

Attribute Description

MC IT DM

Functionality

The approach detects all interface defects.

MH H

The approach reports signature defects.

H N H

The approach reports static protocol

defects.

H N H

The approach reports dynamic protocol

defects.

L N H

Business scenario can be simulated (time

event, synchronous and unsafe operations).

L N H

Overall ranking of functionality

ML H

Productivity

Endpoint is generated automatically.

N H N

The approach supports high-level

abstraction.

L N H

The approach supports components reuse.

MN H

The approach has built-in error prevention

mechanisms.

H N M

Network interface is generated

automatically.

L N H

Overall ranking of productivity

L H M

Ease of Use

Special training is needed.

N L M

Endpoint application knowledge is needed.

L N L

Programming skills are needed.

L N N

Visual notations are used.

N N H

Overall ranking of ease of use

L H M

The questionnaires included 5-point Likert Scale,

single-choice and multi-choice questions. We counted

the frequency of participant responses to measure the

degree of acceptance to a question statement. We had

total 58 questions and selected some of them for this

paper results presentation. The full result reports can

be accessed at:

https://sites.google.com/site/teevmlapsec/

5.2.1 Phase One Results

The main objective of Phase One survey is to

evaluate the first criterion -- testing endpoint

functionality. We selected four questions from Phase

One questionnaire (refer to Table 4) to analyse this

criterion from two different angles. The first one is

about participants’ acceptance of emulated testing

endpoint in general and by each interface layer. The

second one is to find out possible reasons why the

participants would consider using (or not using) our

emulated testing endpoints in their future projects.

Table 4: Phase One user study results.

No Statement

Fre

uenc

5 4 3 2 1

In your opinion, an emulated

testing environment is useful

for an application inter-

connectivity and inter-

operability test.

8 6 0 1 1

What kinds of testing features do you want to see

an emulated testing environment provides to

system under test for interconnectivity and inter-

operability test?

Correctness of message signature

Correctness of interactive protocol

Correctness of interactive behaviou

Correctness of non-

unctional requirement

Othe

What are the main motivations for you to use

emulated testing environment?

Cost saving on application hardware and

oftware investment

Effort saving on application installation and

maintenance

Lack of application knowledge

Early detection of interface defects

What are your main concerns, which could prevent

you from using emulated testing environment?

Extra development effort on testing endpoints

earning a new technology

Inadequate testing functionality

Emulation accuracy

Result reliability

Q8 on usefulness of emulated testing

environments received 14 out of 16 in favour

response rate (scoring 4 or 5). This is a good

indication of participants’ acceptance of the overall

usefulness of testing endpoints. From Q9 we see that

protocol layer received in favour responses from all

participants. The reason could be that most

applications do not have a well-documented protocol

specification. SUT protocol related defects can only

be found by conducting integration testing.

Testing Environment Emulation - A Model-based Approach

121

Responses to Q13 indicate that the top reason for

using endpoints is early detection of interface defects.

Integration testing is normally conducted during the

later stages of software development lifecycle. This is

partly because integration testing environment is not

available before then. If a rapid and cheap solution

for testing environment deployment was available,

developers may have preferred to conduct at least part

of integration testing earlier. Responses to Q14

indicates that most participants’ concerns are on the

reliability of testing endpoint results. We believe the

main reason behind is that software developers are

used to using real applications for their integration

testing. However, an endpoint is actually a simplified

version of its real application. This might have some

impacts on SUT testing results.

5.2.2 Phase Two Result

In Phase Two, we evaluated the ease of use and

development productivity criteria. The former used

the ten questions from Software Usability Scale

(SUS) (Brooke, 1996) (refer to Q12 to Q21 of Table

5), and the latter was captured by the three questions

specifically related to performing the assigned task

(refer to Q9, Q10, Q22 of Table 5).

The responses to the SUS questions were quite

positive with average 85% in favour. Particularly, all

participants did not agree (scoring 1 or 2) with Q17

negative statement on tool’s inconsistency. Q15

received 8 out of 19 in favour responses and 9

participants voted neutral. This result is confirmed by

Q10, where only 4 participants did not ask for support

for finishing their tasks. We believe this is due to the

fact that our introduction video was targeted toward

introduction of the tool and the approach in general

rather than stepwise instruction of using the tool for

similar examples. As a result, more participants felt

they needed to ask for instructor’s support. We

believe this will be rectified overtime with more

usage of the approach and tool support.

Q22 captures participants’ opinions on how much

of their time and effort will be reduced through using

our approach. 12 out of 19 respondents chose “50% -

80%” and “80%+” and no participant voted “almost

the same”. As a result, we can conclude that most

participants believed that our approach could increase

endpoint development productivity. Confirming this

is the fact that 15 out of 19 participants finished their

task in less than 30 minutes (see responses to Q9).

Based on this result, we can generalize that it is

possible to model a relatively complex endpoint with

more than ten operations within a day through using

our tool support for testing environment emulation.

Table 5: Phase Two user study results.

No Statement

Fre

uenc

5 4 3 2 1

How long did it take you to complete the task?

–

15 minutes

16 – 20 minutes

–

25 minutes

–

30 minutes

30+ minutes

How many times have you asked for support?

one

One time

Two times

Three times

Four times or more

You would like to use the tool

in your future project.

7 11 1 0 0

You found the tool

unnecessarily complex.

0 1 2 12 4

You found the tool was easy to

use.

8 10 1 0 0

You would need support to be

able to use the tool.

0 2 9 8 0

You found the various features

of the tool were well integrated.

8 10 0 1 0

You found there was too much

inconsistency in the tool.

0 0 0 11 8

You would image that most

people would learn to use the

tool very quickly.

5 12 1 1 0

You foun

the tool very

cumbersome to use.

0 0 2 10 7

You felt very confident using

the tool.

4 13 2 0 0

You needed to learn a lot of

things before you could get

going with the tool.

0 1 3 8 7

In your opinion, comparing to a third generation

language (e.g. Java) you are familiar with, how

much would a typical endpoint development effort

be reduced by using the tool?

lmost the same

10 – 25%

–

50%

–

80%

81%+

6 RELATED WORK

Testing distributed systems is a complex problem.

Ghosh and Mathur raised nine issues to be addressed

in testing distributed systems (Ghosh and Mathur,

1999). Method stubs, mock objects, and existing

emulation approaches have been used to emulate the

behaviour of endpoint systems (Gibbons, 1987,

Freeman et al., 2004, Hine et al., 2009, Du et al.,

2013, Yu et al., 2012, Giudice, 2014). However,

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

122

some of these approaches introduce a large

implementation overhead; while the others depend on

the availability and accessibility of existing SUT

applications.

Pact is an open-source tool, enabling consumer

contract driven testing (Pact, 2016). It provides a

DSL for users to specify operation requests and

expected responses from service provider. However,

each interaction in Pact is verified in isolation without

context maintained from previous interactions.

Therefore, Pack is not suitable for performing

protocol testing.

Model-driven engineering is an avenue to raise the

level of abstraction beyond programming by

specifying solution directly using problem domain

concepts (Poole, 2001). UML is a general purpose

modeling language, its visual presentation makes it

understandable by a wide range of software

stakeholders. UML Testing Profile (UTP) provides a

generic extension mechanism for the automation of

test generation processes (Schieferdecker et al., 2003);

state chart simulates finite-state automaton (Zhang and

Liu, 2010); and activity diagram graphically

represents workflows of stepwise activities and

actions (Dumas and Terhofstede, 2001). However,

there are two main problems with using UML to

define new modeling languages (Abouzahra et al.,

2005): one is usually hard to remove parts of UML

that are not relevant in a specialized language; another

one is that all diagram types have restrictions based on

UML semantics.

DSLs are a model-driven development approach,

where the first class entities are the models and the

model transformations (Selic, 2003). DSLs often

support higher-level abstraction than general purpose

modeling languages (e.g. UML), so they require less

programming effort and low-level details to specify a

given system. DSLs have been widely used in various

of business and technical domains, such as, WebDSL

for web applications (Visser, 2008), MaramaEML for

business process modeling (Li et al., 2014) and SDL

(Kim et al., 2015) for supporting statistical survey

process. In contrast, we use a suite of DSVLs tailored

to modeling signature, protocol and behaviour aspects

of endpoints.

7 SUMMARY

Modern software development needs quick yet cost

effective solutions to develop and deploy integration

testing environment. Due to their unique advantage on

endpoint development productivity over others,

interactive tracing based service virtualization

approaches are gaining momentum in recent years.

But they still need a specification-based tool to specify

testing endpoint, as application trace data may be

neither available nor usable.

Our model-driven approach divides a software

interface into three abstraction functional layers, and

a suite of domain-specific visual languages have been

developed for modeling these layers. By this layered

modeling, we have achieved high development

productivity and rich testing functionality. In

addition, our approach supports partial endpoint

development, where a testing endpoint may have only

one or two of these layers to meet SUT testing

requirement.

Existing specification-based testing environment

emulation approaches cannot validate SUT’s runtime

protocol behavior, as they check the validity of an

incoming service request based on endpoint state

only. On the other hand, our protocol model is based

on an EFSM that allows our behavior models to

capture dynamic protocol aspects. Furthermore, our

testing environment provides a rich set of functions

for simulating typical business scenarios, such as

time-driven state transition, synchronous and unsafe

services.

In a realistic enterprise environment, application

security requirements may put extra constraints on the

validity of operation requests. Some of the constraints

are role-based, so that some operations are accessible

only to a certain group of users. Other constraints are

security policy related, such as restriction on available

time or specific pattern required for some operation

parameters. Also, there are some performance

limitations such as response time, and robustness

requirements such as handling endpoint malfunctions.

These and other QoS requirements are part of our

future works.

ACKNOWLEDGMENTS

The authors gratefully acknowledge support for this

research by an Australian Post-graduate Award and

an Australian Research Council Discovery Project

DP140102185 grant.

REFERENCES

Abouzahra, A., Bézivin, J., Del Fabro, M. D., Jouault, F.,

2005. A Practical Approach to Bridging Domain

Specific Languages with UML Profiles. Proceedings of

The Best Practices For Model Driven Software

Development At Oopsla, Citeseer.

Testing Environment Emulation - A Model-based Approach

123

Brooke, J., 1996. Sus-A Quick and Dirty Usability Scale.

Usability Evaluation in Industry, 189, 4-7.

Davis, F. D., 1989. Perceived Usefulness, Perceived Ease

Of Use, And User Acceptance Of Information

Technology. Mis Quarterly, 319-340.

Du, M., Schneider, J.-G., Hine, C., Grundy, J. & Versteeg,

S., 2013. Generating Service Models by Trace

Subsequence Substitution. Proceedings of the 9th

International Acm Sigsoft Conference on Quality of

Software Architectures. Canada: Acm.

Dumas, M., Terhofstede, A., 2001. Uml Activity Diagrams

as a Workflow Specification Language. ≪ Uml≫

2001—The Unified Modeling Language. Modeling

Languages, Concepts, and Tools. Springer.

Freeman, S., Mackinnon, T., Pryce, N., Walnes, J., 2004.

Mock Roles, Objects. In Companion to the 19th Annual

Acm Sigplan Conference on Object-Oriented

Programming Systems, Languages, and Applications.

Canada: Acm.

Ghosh, S., Mathur, A. P., 1999. Issues in Testing

Distributed Component-Based Systems. First Icse

Workshop on Testing Distributed Component-Based

Systems, Citeseer.

Gibbons, P. B., 1987. A Stub Generator for Multilanguage

Rpc in Heterogeneous Environments. Ieee Transactions

On Software Engineering, 13, 77-87.

Giudice, D. L., 2014. The Forrester Wave™: Service

Virtualization and Testing Solutions. In: Forrester

(Ed.).

Han, J., 2000. Rich Interface Specification for Software

Components. Peninsula School of Computing and

Information Technology Monash University,

Mcmahons Road Frankston, Australia.

Hine, C., Schneider, J.-G., Han, J., Versteeg, S., 2009.

Scalable Emulation Of Enterprise Systems. Software

Engineering Conference, Australian, Ieee, 142-151.

Jayasinghe, D., 2008. Quickstart Apache Axis2, Packt

Publishing Ltd.

Kim, C. H., Grundy, J., Hosking, J., 2015. A Suite of

Visual Languages for Model-Driven Development of

Statistical Surveys and Services. Journal of Visual

Languages & Computing, 26, 99-125.

Li, L., Grundy, J., Hosking, J., 2014. A Visual Language

and Environment for Enterprise System Modelling and

Automation. Journal of Visual Languages &

Computing, 25, 253-277.

Liu, J., Grundy, J., Avazpour, I., Abdelrazek, M., 2016. A

Domain-Specific Visual Modeling Language for

Testing Environment Emulation. Ieee Symposium on

Visual Languages and Human-Centric Computing.

Cambridge, Uk.

Moody, D. L., 2009. The “Physics” Of Notations: Towards

A Scientific Basis For Constructing Visual Notations In

Software Engineering. Software Engineering, Ieee

Transactions On, 35, 756-779.

Pact., 2016. Enables Consumer Driven Contract Testing

[Online]. Available: Https://Github.Com/Realestate-

Com-Au/Pact [Accessed].

Poole, J. D., 2001. Model-Driven Architecture: Vision,

Standards and Emerging Technologies. Workshop on

Metamodeling and Adaptive Object Models, Ecoop.

Schieferdecker, I., Dai, Z. R., Grabowski, J., Rennoch, A.,

2003. The Uml 2.0 Testing Profile and Its Relation to

Ttcn-3. Testing Of Communicating Systems. Springer.

Selic, B., 2003. The Pragmatics of Model-Driven

Development. Ieee Software, 20, 19.

Sousa, T. B., 2012. Dataflow Programming Concept,

Languages and Applications. Doctoral Symposium on

Informatics Engineering.

Visser, E., 2008. Webdsl: A Case Study in Domain-

Specific Language Engineering. Generative and

Transformational Techniques in Software Engineering

Ii. Springer Berlin Heidelberg.

Yu, J., Han, J., Schneider, J.-G., Hine, C., Versteeg, S.,

2012. A Virtual Deployment Testing Environment for

Enterprise Software Systems. Proceedings of the 8th

International Acm Sigsoft Conference on Quality of

Software Architectures. Italy: Acm.

Zhang, S. J., Liu, Y., 2010. An Automatic Approach to

Model Checking Uml State Machines. Fourth

International Conference on Secure Software

Integration and Reliability Improvement Companion

(Ssiri-C), 1-6.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

124
