SMART REIFIER: Model-Driven Development of Service-Oriented

SCADA Applications from Models of Sensor and Actuator Networks

Margaux Bosshardt, Cl

ementine Geslin and J

ome Rocheteau

Institut Catholique d’Arts et M

etiers, 35 avenue du Champ de Manœuvres, Carquefou, France

Keywords:

Model-Driven Development, Domain-Speciﬁc Language, Service-Oriented Application, Supervisory Control

and Data Acquisition, Sensor and Actuator Network.

Abstract:

This paper aims at presenting SMART REIFIER a tool for designing networks of sensors and actuators and

for generating a set of web services for supervisory control and data acquisition. Such a code generation is

achieved by the means of model-driven engineering: a speciﬁc meta-model for sensor and actuator networks

is designed as well as a model-to-model mapping into a web service meta-model that enables source code

generation of JEE applications.

1 INTRODUCTION

The FUSE-IT project aims to design and implement

smart and secured building management systems for

safety-critical sites. Smart as electricity can be sup-

plied either from inside the building thanks to dif-

ferent types of generators or from the outside by the

grid. Secured as management systems should not

be misused in safety-critical contexts. During this

project, ICAM designs and implements a smart light-

ing demonstrator on its own site, a university of en-

gineering, with solar panels, batteries, light-emitting

diodes, presence and luminosity sensors, remote-

controlled switches and dimmers. Hence, such a

smart lighting system requires a management system

that fulﬁlls the following features:

• operational for data acquisition and supervisory

control (SCADA),

• compatible with other SCADA applications e.g.

from project partners,

• available for third-party applications for visual-

ization, regulation, optimization, etc.

Moreover, this smart lighting implementation en-

countered some delays for selecting available com-

ponents according to their cost and features, for ﬁx-

ing areas where they should be located, for stating the

accurate number of each type of component, for de-

signing a safe and independent electric network, for

determining communication networks and technolo-

gies, etc.

This leads us to adopt a model-driven approach

with distinct models from their implementations and

automatic code generation. In fact, model-driven

engineering of such a sensor and actuator network

(SAN) makes it possible to update the smart lighting

design as often as it is mandatory with the less mod-

iﬁcations possible regardless of its implementation.

The speciﬁc component implementations of gener-

ated SCADA applications only corresponds to com-

munication modules of each type of sensors and ac-

tuators that compose such a network. Such a model-

driven engineering then allows us to focus more on

SAN design than on SCADA development. The most

important added-value consists in enabling SCADA

application development according to a top-down ap-

proach alongside a co-design of its sensor and actu-

ator network instead of a bottom-up approach that

is posterior its network and actuator network design

which is mostly and currently the case; with a better

support for design checking, component reuse, etc.

This paper is organized as follows: Section 2

presents the smart lighting demonstrator design at

ICAM. Section 3 deﬁnes a domain-speciﬁc language

for sensor and actuator networks and formalizes the

previous study case. Such models will be embedded

into web services which meta-model is presented by

section 4 thanks to a model-to-model transformation

detailed in section 5. This meta-model of web ser-

vices makes possible to generate SCADA application

source code as section 6 explains. Related work is

then investigated in section 7 in order to prove the

novelty and the relevance of our approach.

Rocheteau J., Geslin C. and Bosshardt M.

SMART REIFIER: Model-Driven Development of Service-Oriented SCADA Applications from Models of Sensor and Actuator Networks.

DOI: 10.5220/0006198201250136

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 125-136

ISBN: 978-989-758-210-3

125

2 SMART LIGHTING

DEMONSTRATOR

This section aims at introducing speciﬁcations of the

smart lighting demonstrator at ICAM: a network com-

posed of sensors and actuators set up to regulate the

light level in ofﬁces and to monitor its energy con-

sumption. It requested a long time to implement this

design and, moreover, the latter could change accord-

ing to different parameters such as component costs,

component availability, etc. This design variability

has motivated the model-driven approach described

in section 3. The entire system, including power

sources, will not be described. However, a speciﬁc fo-

cus will be made on the lighting system as a running

example. This system should comply to the European

norm EN 12464-1 that requires a minimum light level

for working zones and their surrounding area. 500

LUX are needed in working areas, but in other areas

of the room a minimum of 300 LUX need to be main-

tain.

Figure 1: Smart Lighting Supervisory Demonstrator.

As stated above, ICAM designs and implements a

smart lighting demonstrator in its own building based

in Nantes. Solar panels and batteries are used to light

up a 22.84 square meters room, composed of 4 work-

ing islets. Thus, the demonstrator is composed of

three main parts which are (a) the photovoltaic panels

located on the roof, (b) an energy part equipped with

electric storage batteries, electric inverters, power-

meters, computers hosting SCADA applications (c)

and the lighting system itself located in the IT labora-

tory. This lighting system is illustrated by ﬁgure 1. It

is composed of these physical or logical items:

• 2 zones Z

and Z

composing an upper zone.

• 2 motion sensors M

and M

associated to their

corresponding zone which report at a ﬁxed rate

whether somebody is detected.

• 2 light sensors L

and L

that provide the lumi-

nosity value when they are requested to.

• 6 light-emitting diodes (LED), each one equipped

with a remote-controlled dimmer D

, D

and D

that settle the light level of their corre-

sponding LED.

• 4 islets or working zones I

, I

and I

that are

dispatched between the 2 zones Z

and Z

• 1 switched S that allows users to to switch on or

to switch off lights.

Light level of each islet can automatically be com-

puted according to the luminosity values of the light

sensors L

and L

In addition, the lighting system should perform as

follows: It has to adjust to every islet light levels ac-

cording to the luminosity values retrieved from the

light sensors when somebody is detected in one of the

two zones or the switch S is on. It has to switch off

LED when nobody is detected in any zone and the

switch S is off. It has to toggle the switch S if nobody

is detected in any zone after a certain time.

3 SENSOR AND ACTUATOR

NETWORK METAMODEL

These previous speciﬁcations of the smart lighting

demonstrator leads us to identify required features

of the SAN meta-model. In fact, such a meta-model

should make it possible to:

Locate Sensors and Actuators in a Zone. For ex-

ample, the motion sensor M

belonging to the zone

Locate a Zone Inside another Zone. The zone Z

belonging to the zone that corresponds to the entire

ofﬁce.

Distinguish Models and Devices. In fact, the two

motion sensor devices will probably be the same

model but located in different zones.

Deﬁne Computations. Simple ones like “receive the

motion sensor M

message” or more complex ones

like “adjust light levels”.

Deﬁne Parametric Computations. In fact, the two

computations “receive the motion sensor M

mes-

sage” and “receive the motion sensor M

message”

corresponding to a single computation “receive the

motion sensor X message” applied to different param-

eters M

and M

Trigger Computations on Events. For instance, it

corresponds to adjust the light levels when somebody

is detected in a zone.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

126

network = (name:name,instruments:instrument*,places:place*,processes:process*)

instrument = (name:name,mode:mode,component:component,attribute:variable*)

mode ::= sensor | actuator

place = (name:name,place:place?,instances:instance*)

instance = (name:name,instrument:instrument,parameters:parameter*)

process = (component:component,triggers:trigger+)

trigger ::= event | loop | task | user

event = (instance:instance)

loop = (delay:long)

task = (resource:resource)

user = (path:name)

Figure 2: Meta-Model of Sensor and Actuator Networks.

Trigger Computations at Fixed-rate. For instance,

it corresponds to toggle the switch S if nobody is de-

tected after a while.

These SAN requirements leads us to design the

ﬁgure 2 meta-model by the means of a formal gram-

mar. The main syntactic category network enables

to specify SAN models as a list of instruments (sen-

sor and actuator models), places (zones) and pro-

cesses (triggered computations). Syntactic categories:

name, resource, component, variable and param-

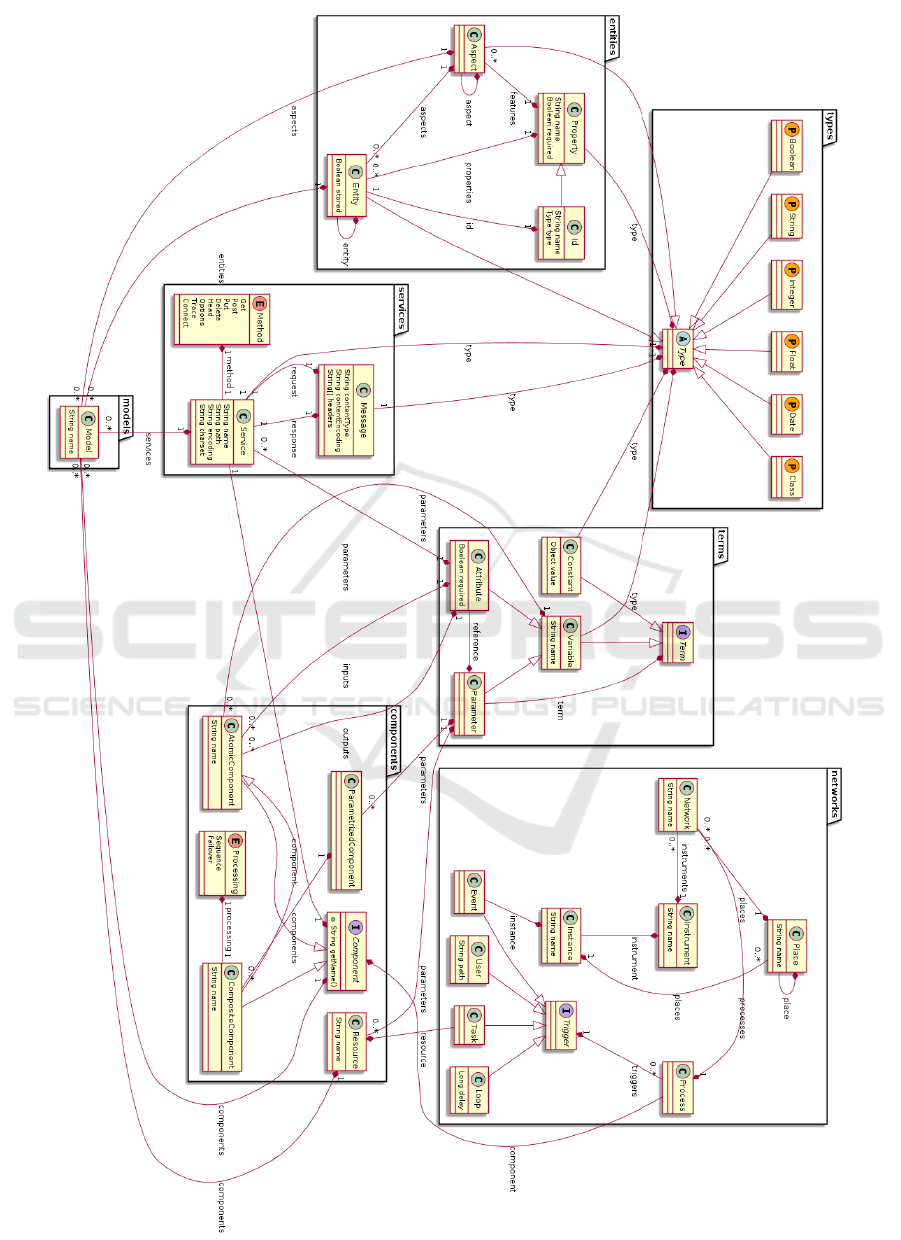

eter are drawn out from ﬁgure 3 meta-model of

component-based web services and will fully be ex-

plained in section 4. Components are parametric

ones: they can be deﬁned either as abstract com-

ponents that are implemented by a Java class or as

compound components that are composed of con-

crete components. Concrete components correspond

to components specialized by some parameter values.

Instruments are deﬁned by the means of the so-

called category instrument. They are deﬁned by their

mode i.e. sensor or actuator. They are also deﬁned by

their component which corresponds to the communi-

cating unit implementation that retrieves or receives

data from this instrument. Moreover, instrument data

structure is deﬁned by a list of attributes; the latter

made of a name and a data type.

Areas or zones are deﬁned by the means of the

category place. They can be linked to an upper place

by the feature called place and they are deﬁned by

a list of instances. Instances correspond to sensor or

actuator devices. In fact, instances are related to an

instrument and can be applied to a list of parameters.

The latter should exactly match the instrument com-

ponent parameters.

Finally, processes are deﬁned by the means of the

category process which extends the category of com-

ponent with a feature trigger at least. This feature

refers to the so-called category trigger and is deﬁned

either (1) as an event on interactions with a speciﬁed

instance or (2) as a loop at a ﬁxed-rate speciﬁed by a

feature delay or (3) as a background task speciﬁed by

a REIFIER’s resource that is launched at the SCADA

application deployment or (4) as a speciﬁc service

launched by SCADA application users given a path.

The meta-model of SAN is an extension of that of

web services. As the model-to-model transformation

maps SAN models to web service ones (see section 5),

the SAN meta-model then consists of an extension of

that of web services. It can be seen as syntactic sugar.

However, it allows to focus on business modelling

mainly and to hide technical implementations. It then

provides a ﬂexible abstraction layer with full sup-

port. Full support as a compliant SCADA application

is generated from SAN models. Flexibility is ensure

because this framework allows designers to focus on

describing networks of sensors and actuators only and

it allows developers to focus on customized comput-

ing units only. For instance, ﬁgure 1 shows the smart

lighting demonstrator model at ICAM in XML format.

This model is composed of three parts. The ﬁrst part

consists of listing the instruments i.e. the sensor or

actuator models. Every instruments specify one at-

tribute only which correspond to the data structure re-

quired or emitted by sensors or actuators. Every in-

struments specify one component as required which

is related to the Java qualiﬁed name of the component

that has to retrieve or provide data respectively from

or to sensors and actuators. In addition, some instru-

ments specify abstract parameters that will be useful

in order to specialize their instances. The second part

of the model consists of listing the places with their

associated instances. i.e. the physical devices whose

models are declared within the instrument part of the

model. Some instances deﬁne values to parameters

declared by their instruments. The third part of the

model consists of listing the processes that have to be

launched either while interacting with instances or at

ﬁxed-rate as speciﬁed by their inner trigger tag. Com-

ponent attributes of these process tags corresponds to

the Java qualiﬁed names of components formalized

by an underlying model of web services as section 6

explains whose meta-model is described in section 4.

SMART REIFIER: Model-Driven Development of Service-Oriented SCADA Applications from Models of Sensor and Actuator Networks

127

Listing 1: Smart Lighting Demonstrator Model.

1 <san:network name=” f r . icam . f u s e i t ”>

<san:instrument name= ” m otion ” mode= ” sensor ” component= ” f r . icam . f u s e i t . d r i v e r s . MotionSensor ”>

3 <s a n: a t t ri bu t e name= ” presence ” typ e = ” boolean ” />

</ san:instrument>

5 <san:instrument name= ” l u m i n o s i t y ” mode= ” sensor ” component= ” f r . icam . f u s e i t . d r i v e r s . LuxSensor ”>

<san:parameter name= ” u r i ” type = ” u r i ” />

7 <s a n: a t t ri bu t e name= ” lu x ” type= ” i n t e g e r ” />

</ san:instrument>

9 <san:instrument name= ” dimmer ” mode= ” a c t u a t o r ” component= ” f r . icam . f u s e i t . d r i v e r s . Dimmer ”>

<san:parameter name= ” u r i ” type = ” u r i ” />

11 <s a n: a t t ri bu t e name= ” l e v e l ” ty p e= ” f l o a t ” />

</ san:instrument>

13 <san:instrument name= ” swi tch ” mode= ” sensor ” component= ” f r . icam . f u s e i t . d r i v e r s . Switch ”>

15 </ san:instrument>

<san:place name= ” c115 ”>

17 <san: inst ance name= ” dimmer−1” in s tr um e nt = ” dimmer ”>

<san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 .2 1. 22 0. 12 ” />

19 </ sa n:instance>

<san: inst ance name= ” dimmer−2” in s tr um e nt = ” dimmer ”>

21 <san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 .2 1. 22 0. 13 ” />

</ sa n:instance>

23 <san: inst ance name= ” dimmer−3” in s tr um e nt = ” dimmer ”>

<san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 .2 1. 22 0. 14 ” />

25 </ sa n:instance>

<san: inst ance name= ” dimmer−4” in s tr um e nt = ” dimmer ”>

27 <san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 . 2 1. 22 0. 15 ” />

</ sa n:instance>

29 <san: inst ance name= ” dimmer−5” in s tr um e nt = ” dimmer ”>

<san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 .2 1. 22 0. 16 ” />

31 </ sa n:instance>

<san: instance name= ” dimmer−6” in s tr um e nt = ” dimmer ”>

33 <san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 . 2 1. 22 0. 17 ” />

</ sa n:instance>

35 <san: inst ance name= ” switch −1” in s tr ume nt = ” sw i tch ”></ sa n:instance>

</ san:place>

37 <san:place name= ” c115a ” place= ” c115 ”>

<san: instance name= ” motion−a ” in s tr um e nt = ” motion ”></ san:instance>

39 <san: inst ance name= ” l um in os it y−a ” i ns t ru m en t = ” l u m i n o s i t y ”>

<san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 .2 1. 22 0. 10 ” />

41 </ sa n:instance>

</ san:place>

43 <san:place name= ” c115b ” place= ” c115 ”>

<san: instance name= ” motion−b ” in s tr um e nt = ” motion ”></ san:instance>

45 <san: inst ance name= ” l um in os it y−b ” i ns t ru m en t = ” l u m i n o s i t y ”>

<san:parameter name= ” u r i ” type = ” u r i ” value = ” h t t p : / / 1 7 2 .2 1. 22 0. 11 ” />

47 </ sa n:instance>

</ san:place>

49 <san:process component= ” f r . icam . f u s e i t . components . DimmerAdjust ”>

<san:event ins t an c e= ” motion−a ” />

51 </ san:process>

<san:process component= ” f r . icam . f u s e i t . components . DimmerAdjust ”>

53 <san:event ins t an c e= ” motion−b ” />

</ san:process>

55 <san:process component= ” f r . icam . f u s e i t . components . SwitchWatch ”>

<san:loop d e l a y = ” 30 ” />

57 </ san:process>

</ san:network>

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

128

4 WEB SERVICE METAMODEL

The meta-model of component-based and service-

oriented applications has been presented in (Ro-

cheteau and Sferruzza, 2016). It is powered by

a tool called REIFIER that generates JEE appli-

cations from compliant models of web services.

Hence the name of this prototype built on top of

REIFIER generates services-oriented SCADA applica-

tions: SMART REIFIER.

The complete meta-model of web services is de-

ﬁned by the grammar in ﬁgure 3 and by the claass

diagram in ﬁgure 6. Only its relevant features with

respect to the SAN meta-model are presented. A

model of web service is deﬁned by three main sub-

models: data model, component model and service

model. Data model encompasses type, aspect and en-

tity categories. Types correspond to basic data types

in Java, aspects are abstract data types that will be

mapped to Java interfaces whereas entities correspond

to data structures and will be mapped to Java classes.

Component model corresponds to parametric compo-

nents. And service model enumerates entry points of

applications where services can be seen as specializa-

tions of components to data types. In fact, parametric

components can be instantiated and applied to param-

eter values and those values can be data types like en-

tities. Moreover, web service meta-model allows to

specify application resources that can be available to

components. These resources can be used to sched-

ule background tasks at ﬁxed rate and will be used for

mapping the last kind of processes in the SAN meta-

model.

5 MODEL TRANSFORMATION

As JEE applications can be automatically generated

from models of web services thanks to the REIFIER

tool, the code generation of SCADA applications from

SAN models will then consists of a model-to-model

transformation by the means of the SMART REIFIER

tool. Generated SCADA applications will therefore be

service-oriented ones.

The model transformation is twofold: On the one

hand, it consists of a ﬁxed model of entities, resources

and components that are used to embed elements of

the SAN meta-model such as instruments and places

as well as resources required for data persistence

management. On the other hand, it consists of a vari-

able model of aspects, entities, instances, components

and services drawn out from the content of SAN mod-

els.

Fixed Transformation. The ﬁxed part of target

models is composed of two entities. The ﬁrst en-

tity Place owns two properties that correspond to its

name and its upper place. The second entity Instru-

ment owns three properties: its name, its place and

its type i.e. sensor or actuator. These two entities will

be stored into a database and instances of such enti-

ties will be introduced from SAN models. Another en-

tity TimeSpan is added into the target model with two

properties started and stopped which types are time-

stamps. This entity represents a span of time that will

be used as the data structure of request messages that

aims at retrieving data of instrument instances. How-

ever, this entity TimeSpan will not be stored into a

database. In addition, the ﬁxed part of target models

is composed of several abstract components which are

provided by Java libraries. The ﬁrst two components

concern data acquisition by the SCADA application

from instrument instances: the ﬁrst one called TimeS-

tamper sets the time-stamp of object data, the sec-

ond one called HibernateCreator inserts object data

into a database. The last six components concern

data retrieving by the users from the SCADA appli-

cation: Two components called JsonDeserializer and

JsonSerializer in charge of, respectively, decoding or

coding messages in JSON format are introduced into

target models. A component called FeatureGrabber

able to extract data features is introduced into target

models in order to extract started and stopped val-

ues from TimeSpan objects. Three components pro-

vided by a REIFIER component library for Hibernate

are also introduced into target models. The ﬁrst one

called HibernateCriteriaProvider prepares SQL state-

ments from a given entity. The second one called Hi-

bernateTimeSpanFilter inserts SQL restrictions from

the grabbed started and stopped features from TimeS-

pan objects. The third one called HibernateListRe-

triever executes SQL statements and provides data

lists. Finally, the ﬁxed part of target models is com-

posed of several services that consists of SCADA ap-

plication main functionalities:

• a GET method service retrieving the list of places,

• a POST method service retrieving the sub-places

of a given place,

• a POST method service retrieving the instrument

instances of a given place.

These services allows to navigate through out sensor

and actuator networks in order to access their data ob-

tained by the means of services

Variable Transformation. As for the variable part

of target models, transformation is driven either by

instrument, or by place, or by instance, or by process.

SMART REIFIER: Model-Driven Development of Service-Oriented SCADA Applications from Models of Sensor and Actuator Networks

129

model = (name:string, entities:entity*,instances:instance*, . . .

. . ., resources:resource*,components:component*,services:service*)

service  component[name:string,path:name,method:method,request:message,response:message]

message = (content-type:string,content-encoding:string,headers:string*,type:type)

component ::= atomic | composite

atomic = (name:string,inputs:variable*,outputs:variable*,parameters:variable*)

composite  abstract[components:parametrized*,processing:processing]

processing ::= sequence | failover

parametrized = (component:component,parameters:parameter*)

resource = (name:string,parameters:parameter*)

parameter  variable[term:term]

attribute  variable[required:boolean,reference:parameter]

term ::= variable | constant

variable = (name:string,type:type)

constant = (type:type,value:object)

entity  type[name:string,stored:boolean,entity:entity?,aspects:aspect*,properties:property*]

aspect  type[name:string,features:property*]

property = (name:string,type:type,required:boolean)

Figure 3: Meta-Model of Web Services.

Instrument transformation consist of introducing

an aspect deﬁned by the name of this instrument and

which features are provided by the instrument at-

tributes. An additional feature issued is added to

this aspect in order to time-stamp any received data.

This aspect corresponds to the common data structure

among every instances of this instrument. Finally, it

consists of introducing a component whose signature

is composed of the speciﬁed instrument parameters

and three other parameters: type, input and output.

The ﬁrst one type corresponds to the data type this

component handles. The last two correspond to the

name of, respectively, the component input and the

component output. These inputs and outputs should

verify the type provided by the value of the type pa-

rameter. Moreover, this type should also comply to

the aspect generated from this instrument transforma-

tion.

Whereas, place transformation merely consist of

introducing instances of the entity Place with the ap-

propriate features, instance transformation consist of

introducing:

• an instance of the entity Instrument with the ap-

propriate properties i.e. its type, name and place;

• an entity that complies the instrument aspect i.e.

with properties that correspond to the instrument

aspect features which instances are stored into a

dedicated table of a database;

• a compound component composed of the instru-

ment component that provides instrument data,

the TimeStamper component, the HibernateCre-

ator component;

• a service that wraps the previous compound com-

ponent;

• a service that receives a message that corresponds

to a TimeSpan object data and that provides the

list of instances from the dedicated database table

of the instrument entity for the requested span of

time.

Finally, process transformation consists either of in-

troducing the process component at the end of the

compound component transformed from the instance

if this process is triggered on an event, or of introduc-

ing a resource that wraps the same compound compo-

nent within a Java thread if this process is triggered at

ﬁxed-rate.

6 CODE GENERATION

Code generation of SCADA applications is ensured by

the SMART REIFIER tool. The latter is a set of mod-

ules for the REIFIER tool which is a Maven plugin that

generates JEE applications from models of web ser-

vices. The SMART REIFIER code generation behaves

as follows:

1. it compiles a web service model from a XML ﬁle

src/main/reifier/model.xml;

2. it compiles a SAN model from a XML ﬁle

src/main/reifier/network.xml;

3. it tranforms the previous SAN model into a web

service model according to the rules explained in

section 5 and merges with the ﬁrst web service

model;

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

130

REIFIER Core Functionalities

SMART REIFIER Modules

REIFIER Libraries

REIFIER other Modules

WS Checkers

model.xml

network.xml

SAN

WS XML Reader

SAN XML Reader

M2M Transformer

JEE Application Generator

Hibernate Mapping Generator

JEE SCADA Application

Commons Library Hibernate Library

Party Libraries

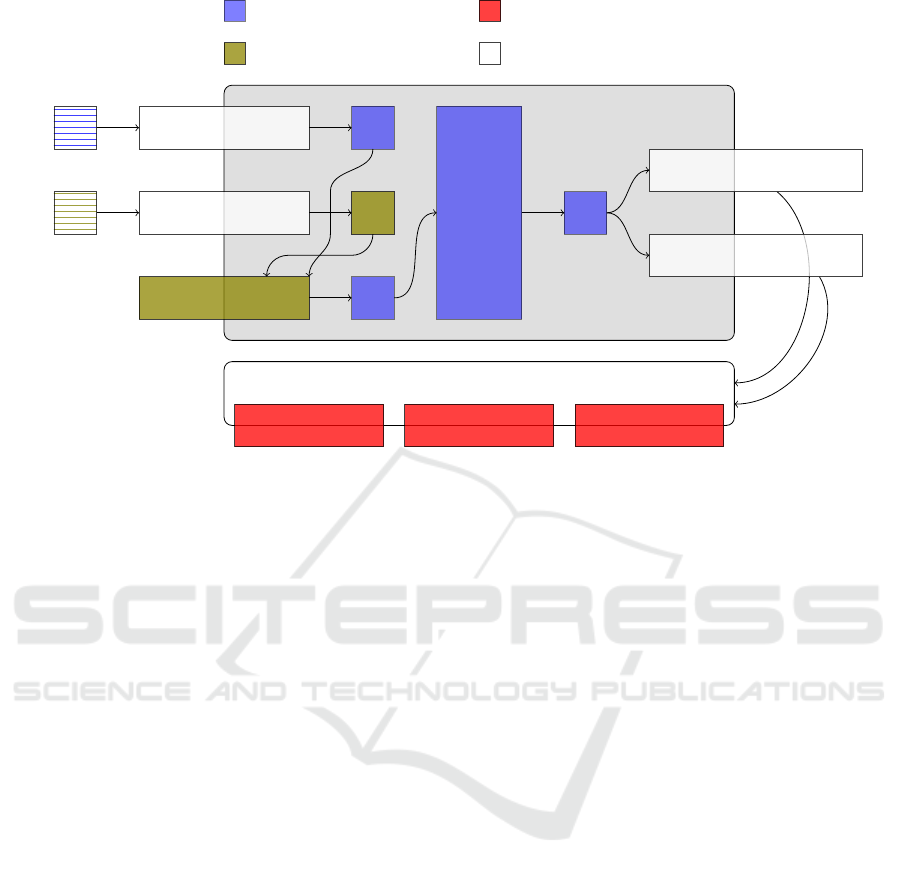

Figure 4: Architecture of the REIFIER tool and the SMART REIFIER modules.

4. it then applies REIFIER for model veriﬁcation and

code generation on the merged web service model

in order to obtain the service-oriented SCADA ap-

plication.

This code generation is illustrated by ﬁgure 4 where

SMART REIFIER elements correspond to REIFIER

modules. Firslty, ﬁgure 4 points out that the code

generation relies on other modules that can be used

in other contexts. Secondly, it points out that the gen-

erated SCADA application depends on Java libraries.

Finally, it illustrates that the REIFIER tool merely ver-

iﬁes the consistency of web service models.

The code generation also provides a client-side

application based on HTML, Bootstrap CSS and An-

gularJS technologies as ﬁgure 5 shows. This client-

side application is unique as the code generation com-

plies to the rules explained in section 5 and offers

the three services of the ﬁxed transformation that help

to navigate through out sensor and actuator networks

uniformly.

SCADA Application. The generated JEE applica-

tion is a basic SCADA application. In fact, data ac-

quisition is ensured as the generated JEE application

is able to store sensor and actuator data into a database

by the means of the transformed instance compound

component and the transformed service that wraps the

previous component. Moreover, it is able to provide

these data by chunks of time intervals by the means of

the other transformed service. Such a service enables

supervisory control as SCADA applications users then

can visualize data and, if needed, then launch some

operations by the means of processes whose trigger

is a user one. Such controls can be automatized by

processes either triggered on instance communication

or at ﬁxed-rate. The code generation powered by the

REIFIER tool also provides trendy SCADA application

features such as service-oriented application, generic

client-side application interfaces as ﬁgure 5, relational

database persistence as well as NOSQL management

for big data processing. Nevertheless, it doesn’t al-

low to manage SQL and NOSQL databases alongside.

However, the generated JEE application is not a com-

plete SCADA application in the sense that it lacks of

auxiliary functionalities. Users, roles and grants are

not taken into account. Indeed, this approach is de-

voted to one sort of users: administrators of sensor

and actuator networks. That should be required in or-

der to adapt SAN views according to user roles.

SCADA Engineering. The code generation carries

out most of the SCADA application components. It

carries out application architecture and logic as well.

This makes then possible to focus more on model

design than application development. Development

merely consists either in communication modules

with sensors or actuators or in control operations for

speciﬁc application behaviour. For example, listing 2

illustrates the Java implementation of a HTTP-based

sensor communication component that retrieves data

from a luminosity sensors. It’s a pull communication

component. In fact, this sensor component implemen-

tation rely on a underlying data type, here hidden,

called LuxSensorMeasurement. It consists of an in-

SMART REIFIER: Model-Driven Development of Service-Oriented SCADA Applications from Models of Sensor and Actuator Networks

131

Listing 2: The atomic component LuxSensor.

@Parameter (name= ” u r i ” , typ e = ” u r i ” ) p r iva t e URI u r i ;

2 @Parameter (name= ” typ e ” , t y p e = ” type ” ) p r i va t e St r i n g type ;

@Parameter (name= ” data ” , type= ” s t r i n g ” ) pri v ate S t r i n g data ;

publi c void doProcess ( Ht t pSer v let R eque s t request , HttpServletResponse response ) throws S e rv le t Ex ce p ti on {

6 I n t e g e r l u x = t h i s . getLux ( t h i s . u r i ) ;

@Output (name= ” ${data}” , ty p e =” ${type} ” )

8 LuxSensorMeasurement measurement = new LuxSensorMeasurement ( ) ;

measurement . set L ux ( l u x ) ;

10 re quest . s e t A t t r i b u t e ( t hi s . data , measurement ) ;

}

pr i va t e I n te g e r getLux ( URI u r i ) throws E x c ep ti o n {

14 Cl os ea bl eH tt p C l i e n t c l i e n t = H t t p C l i e n t s . c r e a t eD ef a u l t ( ) ;

t r y {

16 HttpG e t re quest = new Ht t pGet ( u r i ) ;

CloseableHttpResponse response = c l i e n t . execute ( req u e st ) ;

18 t r y {

InputStr e a m i np u t = response . g e t E n t i t y ( ) . getContent ( ) ;

20 S tr i n g s t r i n g = I O U t i l s . t o S t r i n g ( i n put , UTF8 ) ;

return I n t eg e r . valueOf ( s t r i n g ) ;

22 } f i n a l l y {

response . cl ose ( ) ;

24 }

} f i n a l l y {

26 c l i e n t . c l ose ( ) ;

}

28 }

teger feature called lux that is directly drawn out from

the sensor speciﬁcation of the ﬁgure 1. Moreover, this

data type is enriched by another feature called issued

that corresponds to the time at which such data are

retrieved. The latter will be provided by the TimeS-

tamper component which is inserted just after such

a communication component. This component im-

plementation LuxSensor deﬁne two common param-

eters: a ﬁrst type parameter called type – useful for

the component formal veriﬁcation from the REIFIER

tool – and a second string parameter called data that

corresponds to that attribute name of measurements

Moreover, the LuxSensor component owns a third pa-

rameter called uri that is deﬁned within its different

instances in the model of the ﬁgure 1 and that stands

for sensor instance IP addresses. This atomic com-

ponent complies the Component interface and can be

embedded into a composite component. In fact, the

SCADA application code geneartion of ICAM smart

lighting demonstrator provides a composite compo-

nent called LuminosityAComponent that corresponds

to the model instance luminosity-a of the place c115-

a and that embeds the atomic component LuxSensor.

Listing 3 illustrates how such atomic components are

compound into a composite component.

Other types of communication can be handled:

the pull and pooling communications. Pull commu-

nication component merely consists in retrieving data

from sensors and in populating an instance of the data

structure associated to the sensor. Pooling communi-

cation consists, on the one hand, in a push-like com-

munication component and, on the other hand, in a

resource that initializes the connection with the sen-

sor. Such resources are launched as background tasks

when SCADA applications are deployed.

The model-driven engineering of SCADA applica-

tions from SAN models then makes possible to fo-

cus more on design as it provides a strong support

by the means of the JEE application code generation.

Moreover, it provides a support for formal veriﬁca-

tion thanks to the REIFIER tool. However, integration

of heterogeneous components still remains ﬂexible as

different communication protocols can be managed.

7 RELATED WORK

Applications of model-driven engineering to SCADA

applications or sensor and actuators networks are

twofold: Firstly, it has been used for SAN modelling.

Secondly, model-driven engineering has been used

for testing SCADA applications. These two domains

are investigated before the relevance of our approach

is discussed.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

132

Listing 3: The composite component LuxSensor.

@Parameter (name= ” u r i ” , typ e = ” u r i ” ) p r iva t e URI u r i ;

2 @Parameter (name= ” typ e ” , t y p e = ” type ” ) p r i va t e St r i n g type ;

@Parameter (name= ” data ” , type= ” s t r i n g ” ) pri v ate S t r i n g data ;

pr i va t e LuxSensor aLuxSensor1 ;

6 pr iv a t e TimeStamper aTimeStamper2 ;

pr i va t e Hi b ern a teC r eat o r a H i bernat e C reator 3 ;

publi c void setUp ( S e rv le t Co nt e xt cont e x t , S er vl et Co nf ig c on f i g ) throws S e r v le t E x ce p t i on {

10 aLuxSensor1 = new LuxSensor ( ) ;

aLuxSensor1 . s e t U r i ( th i s . u r i ) ;

12 aLuxSensor1 . setType ( t hi s . type ) ;

aLuxSensor1 . se t Data ( t hi s . data ) ;

14 aTimeStamper2 = new TimeStamper ( ) ;

aTimeStamper2 . setType ( t h is . type ) ;

16 aTimeStamper2 . setName ( ” iss u e d ” ) ;

aHib e r nateCr e a tor3 = new Hib e rnat eCre a tor ( ) ;

18 aH iberna t e Creator 3 . s etH i be r na t e ( ” h i be r n a te ” ) ;

aHib e r nateCr e a tor3 . setType ( t hi s . ty p e ) ;

20 aLuxSensor1 . setUp ( cont e xt , c o n f ig ) ;

aTimeStamper2 . setUp ( co ntext , c on fi g ) ;

22 aH iberna t e Creator 2 . setUp ( cont e x t , c o n f i g ) ;

}

publi c void doProcess ( Ht t pSer v let R eque s t request , HttpServletResponse response ) throws S e rv le t Ex ce p ti on {

26 aLuxSensor1 . doProcess ( r e quest , response ) ;

aTimeStamper2 . doProcess ( r e q uest , response ) ;

28 aH iberna t e Creator 3 . doProcess ( re q u est , response ) ;

}

publi c void tearDown ( ) {

32 aLuxSensor1 . tearDown ( ) ;

aTimeStamper2 . tearDown ( ) ;

34 aH iberna t e Creator 3 . tearDown ( ) ;

}

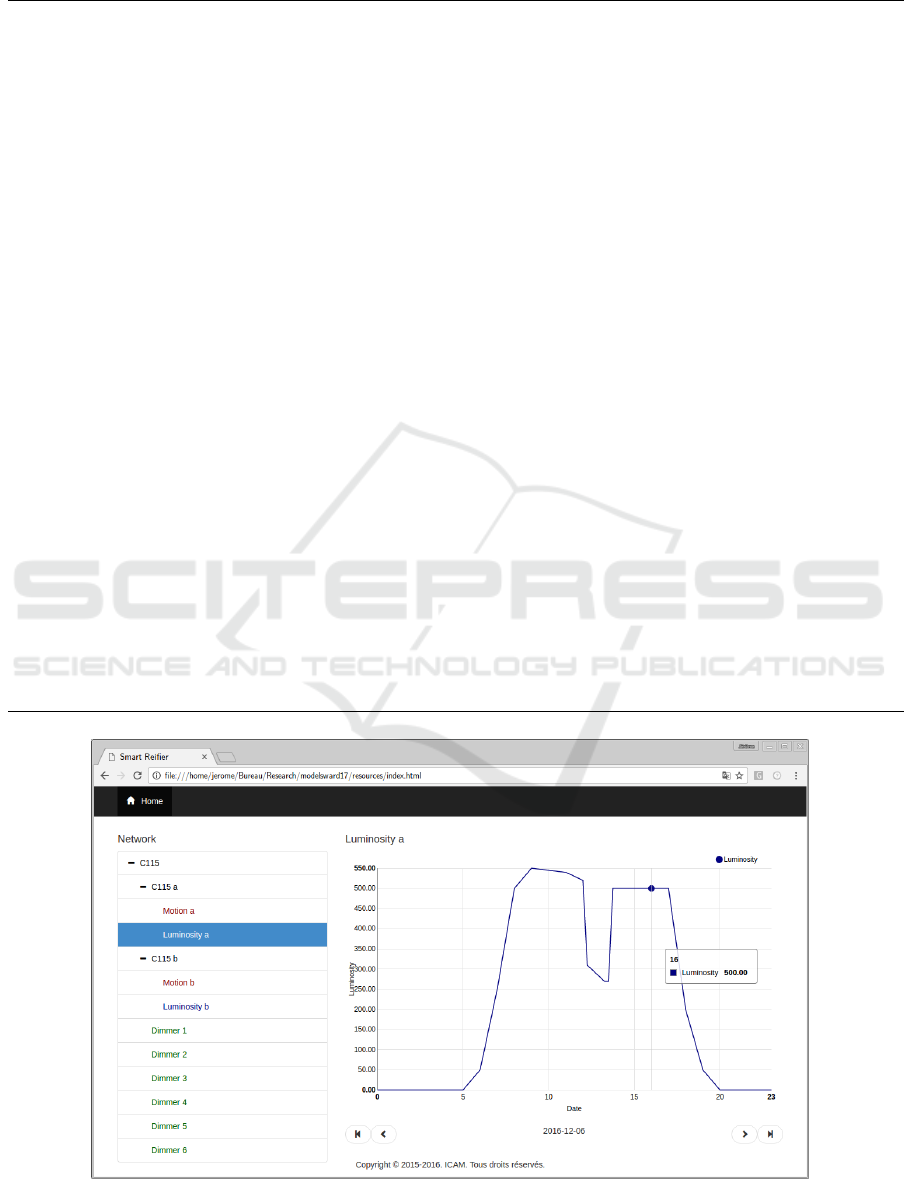

Figure 5: Screenshot of the Smart Lighting Demonstrator SCADA Application.

SMART REIFIER: Model-Driven Development of Service-Oriented SCADA Applications from Models of Sensor and Actuator Networks

133

Design. The application of model-driven engineer-

ing to sensor and actuator networks has already been

investigated and this approach share several features

with those found in the scientiﬁc literature (Rodrigues

et al., 2011; Priego et al., 2016). In fact, most of the

experiments about SAN modelling present different

solutions for assisting their design and development

as noticed in (Rowe et al., 2010; Kowal et al., 2014).

In (Vidal et al., 2015), MindCPS solution is a solution

that aims at facilitating SAN development. To do so,

the idea is to provide modelling primitives for explic-

itly specifying the autonomic behaviour of the system

and to model transformations for automatically gen-

erating part of the code. The main advantages of this

automated code generation is to allow a rapid conﬁg-

uration and development, even for a newcomer user.

Adopting a model-driven development approach fa-

cilitate the developing of SAN applications and pro-

mote a clear and synergetic separation between the

speciﬁcation of the requirements at the application

level and such speciﬁcation in a given sensor plat-

form (Rodrigues et al., 2013). Models — statistical

or otherwise -– are used for describing, simplifying

or abstracting various components of sensor data ac-

quisition and management (Sathe et al., 2013). The

best way to ease developer job seems to model sepa-

rately the software architecture of sensor and actuator

networks, the low-level hardware speciﬁcation of the

SAN nodes and the physical environment where nodes

are deployed in (Doddapaneni et al., 2012). This

separation of concerns is needed since hardware and

software aspects are locked and tied down to speciﬁc

types of nodes, hampering the possibility of reuse

across projects and organizations.

Several articles tackle the use of domain-speciﬁc

languages for the development of sensor and actua-

tor networks. LWiSSy (Dantas et al., 2013) has been

promoted as a domain language that considers three

levels of programming granularity which may have

distinct characteristics regarding the used platform or

data processing. The idea is to divide the responsibil-

ity in dividing the expert skills by requiring from them

only their speciﬁc knowledge. Thus, one large model

is difﬁcult to visualize, maintain, and analyze taking

into account evolution. Different views onto the fea-

ture model or the combination of two or more features

models, one for each domain, may solve some of the

existing problems.

Testing. The step of veriﬁcation and validation of

distributed systems is another considerable challenge

(Yang et al., 2014). In (S

uß et al., 2008) approach

to the problem of testing a SCADA thanks to Mod-

elica, an object-oriented mathematical modelling lan-

guage for component-oriented modelling of complex

physical systems. It is an open standard and imple-

mentation, and provides a rendering of its input lan-

guage in Ecore, the metalanguage of the Eclipse Mod-

eling Framework (EMF). This tooling allows a test

engineer to model all aspects of a SCADA test within

one workbench and enjoy full traceability between the

proprietary test model, and its surrounding environ-

ment simulation.

ITEA 2 projects IMPONET and NEMO & CODED,

focused on supporting complex and advanced re-

quirements of smart grids, speciﬁcally supporting en-

hanced efﬁciency through sensing and metering tech-

nologies, as well as automated control and manage-

ment techniques based on energy availability and the

optimization of power demand (Vidal et al., 2015).

Discussion. The starting point of this work was to

provide a scalable modelling approach covering vari-

ability and evolution of the smart lighting system at

ICAM. Indeed, the model-driven development allows

us to apply this approach to every other networks

of sensors and actuators that could be modelled ac-

cording to the SAN meta-model of ﬁgure 2. How-

ever, it has not been investigated to which extend

this approach can be applied to: internet of things,

edge computing, etc. In addition, several works have

pointed out the close relationship between applica-

tion requirements and SAN performance, and demon-

strated that application-speciﬁc optimization can in-

crease overall system performance, mainly regarding

the energy consumption. (Yang et al., 2014) points

out an inherent intertwining between modelling in the

control sense and model-driven software engineering.

The major drawback of this approach lies in re-

sources or components that are embedded in pro-

cesses of sensor and actuator models. In fact, they

mainly refer to compound components as the Dimmer-

Adjust and SwitchWatch ones from the smart lighting

demonstrator model in the ﬁgure 1. The latter should

be deﬁned in underlying models of web services (i.e.

in the ﬁle model.xml) aside of those of sensor and ac-

tuator networks (i.e. in the ﬁle network.xml). This

forces SCADA developers to deﬁne the most complex

system elements within technical models of web ser-

vices instead of business ones of sensor and actuator

networks whereas such components should belong to

the latter.

Moreover, some common patterns of SCADA

applications are encoded For instance, a pooling

communication sensor or actuator implementation,

such as serial port communication, is implemented

twofold. The ﬁrst part, corresponds to a push com-

munication component. The second part corresponds

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

134

Figure 6: Meta-Models of Web Services and Sensor & Actuator Networks.

SMART REIFIER: Model-Driven Development of Service-Oriented SCADA Applications from Models of Sensor and Actuator Networks

135

to a task process whose resource launches a thread

for reading on the serial port and that processes the

speciﬁed component that each time a data is read. In-

deed, some components whose implementations have

to be provided by developers should refer to generated

components. This is a shortcoming of this approach.

8 CONCLUSION

The current work presents a model-driven develop-

ment for automatically generating source code of

service-oriented JEE applications that corresponds to

SCADA applications from a model of sensor and actu-

ator networks. This approach consists of a model-to-

model transformation from a domain-speciﬁc meta-

model of sensor and actuator networks to a meta-

model of component-based web services; the code

generation is delegated to the REIFIER tool that pro-

vide JEE application source code from web service

models. It makes possible to develop customized

SCADA applications for given sensor and actuator

networks and to reverse SCADA application engineer-

ing. In fact, the traditional approach consists in cus-

tomizing an existing SCADA application.

Prospects are threefold. Firstly, it aims at ensuring

smart network security and modelling roles and grants

of users in order to generate industrial-like SCADA

applications and ﬁne-grained user management. Sec-

ondly, it aims at designing a top-down engineering of

sensor and actuator networks by incremental reﬁne-

ment steps from sensor and actuator speciﬁcations to

implementations. Thirdly, it aims at integrating com-

mon patterns of data analysis directly as artifacts of

the model transformation instead of embedding into

SCADA applications them as user triggered processes

of sensor and actuator network models.

ACKNOWLEDGMENTS

The research leading to these results was partially

funded by the ITEA 2 project  FUSE-IT.

REFERENCES

Dantas, P., Rodrigues, T., Batista, T., Delicato, F. C., Pires,

P. F., Li, W., and Zomaya, A. Y. (2013). Lwissy: A do-

main speciﬁc language to model wireless sensor and

actuators network systems. In 4th International Work-

shop on Software Engineering for Sensor Network Ap-

plications, pages 7–12. IEEE.

Doddapaneni, K., Ever, E., Gemikonakli, O., Malavolta,

I., Mostarda, L., and Muccini, H. (2012). A model-

driven engineering framework for architecting and

analysing wireless sensor networks. In Proceedings

of the 3rd International Workshop on Software Engi-

neering for Sensor Network Applications, pages 1–7.

IEEE Press.

Kowal, M., Prehofer, C., Schaefer, I., and Tribastone, M.

(2014). Model-based development and performance

analysis for evolving manufacturing systems. at-

Automatisierungstechnik, 62(11):794–802.

Priego, R., Armentia, A., Est

evez, E., and Marcos, M.

(2016). Modeling techniques as applied to gen-

erating tool-independent automation projects. at-

Automatisierungstechnik, 64(4):325–340.

Rocheteau, J. and Sferruzza, D. (2016). REI-

FIER: Model-Driven Development of Component-

Based and Service-Oriented JEE Applications. In

ACM/IEEE 19th International Conference on Model

Driven Engineering Languages and Systems, Saint

Malo, France.

Rodrigues, T., Batista, T., Delicato, F., Pires, P., and

Zomaya, A. (2013). Model-driven approach for build-

ing efﬁcient wireless sensor and actuator network ap-

plications. In 4th International Workshop on Software

Engineering for Sensor Network Applications, pages

43–48. IEEE.

Rodrigues, T., Dantas, P., Pires, P. F., Pirmez, L., Batista, T.,

Miceli, C., and Zomaya, A. (2011). Model-driven de-

velopment of wireless sensor network applications. In

IFIP 9th International Conference on Embedded and

Ubiquitous Computing, pages 11–18. IEEE.

Rowe, A., Bhatia, G., and Rajkumar, R. (2010). A model-

based design approach for wireless sensor-actuator

networks. AVICPS, page 1.

Sathe, S., Papaioannou, T. G., Jeung, H., and Aberer, K.

(2013). A survey of model-based sensor data acquisi-

tion and management. In Managing and Mining Sen-

sor Data, pages 9–50. Springer.

uß, J. G., Pop, A., Fritzson, P., and Wildman, L. (2008).

Towards integrated model-driven testing of scada sys-

tems using the eclipse modeling framework and mod-

elica. In 19th Australian Conference on Software En-

gineering, pages 149–159. IEEE.

Vidal, C., Fern

andez-S

anchez, C., D

ıaz, J., and P

erez, J.

(2015). A model-driven engineering process for auto-

nomic sensor-actuator networks. International Jour-

nal of Distributed Sensor Networks, 2015:18.

Yang, C.-H., Vyatkin, V., and Pang, C. (2014). Model-

driven development of control software for distributed

automation: a survey and an approach. In IEEE Trans-

actions on Systems, Man, and Cybernetics: Systems,

volume 44, pages 292–305. IEEE.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

136
