SACAM

A Model for Describing and Classifying Sentiment Analysis Methods

Aleksander Waloszek and Wojciech Waloszek

Faculty of Electronics, Telecommunications and Informatics, Gdansk University of Technology, Gdansk, Poland,

Keywords: Sentiment Analysis, Opinion Mining, Knowledge Management, Ontologies.

Abstract: In this paper we introduce SACAM — a model for describing and classifying sentiment analysis (SA)

methods. The model focuses on the knowledge used during processing textual opinions. SACAM was

designed to create informative descriptions of SA methods (or classes of SA methods) and is strongly

integrated with its accompanying graphical notation suited for presenting the descriptions in diagrammatical

form. The paper discusses applications of SACAM and shows directions of its further development.

1 INTRODUCTION

This paper presents a novel model of describing

methods of sentiment analysis. Sentiment analysis is

a very quickly evolving field of research, and focuses

on assessing emotional attitudes expressed in textual

opinions contained in various documents.

The model has been developed within a research

project conducted by academia in cooperation with

industry and placed in the field of sentiment analysis

and knowledge management, representation and

reasoning. The main goal of the project was to bring

closer those two fields of research and to use formal

ontologies in sentiment analysis.

Planning of project tasks and designing new

methods of sentiment analysis involve frequent

references to existing methods. To facilitate the task

and to make its result easier to present and examine,

we developed a novel model of describing and

classifying sentiment analysis methods. The method

is called SACAM, Sentiment Analysis Content

Awareness Model.

The purpose of the model is to provide means for

concise graphical description of sentiment analysis

methods. The model is well-suited for describing both

particular methods and classes of them. Graphical

notation provided with the model is designed to

underline the crucial aspects from the point of view

of the managing knowledge during analysis:

knowledge repositories used within the method, the

methods of building or augmenting such repositories,

stages and means of the processing.

Use of the model allowed us for easier navigation

in the hard field of sentiment analysis, whose rapid

evolvement results with at least several hundreds of

notable papers appearing every year. It also permitted

us to precisely pinpoint the area in which we place

our future efforts, and to plan further actions within

the project.

The paper is focused on presenting SACAM

model, and while the next Section provides some

essential information about sentiment analysis, the

paper should not be treated as a survey in the field.

This role is fulfilled by some excellent existing papers

and books like (Pang and Lee, 2008), (Cambria et al.,

2013) and (Liu, 2012).

The rest of the paper introduces the model, shows

examples of its use, and discusses its potential

applications and directions of development.

2 SENTIMENT ANALYSIS

This Section provides a short introduction to

sentiment analysis field (Section 2.1) and the existing

approaches to classifying sentiment analysis methods

(Section 2.2). It draws a background for introducing

the SACAM model.

2.1 Introduction to SA

Sentiment analysis (SA) evolved and separated itself

from the fields of Natural Language Processing and

Affective Computing in early 2000. The term itself

196

Waloszek A. and Waloszek W.

SACAM - A Model for Describing and Classifying Sentiment Analysis Methods.

DOI: 10.5220/0006199901960206

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 196-206

ISBN: 978-989-758-220-2

appeared in 2003 in (Nasukawa and Yi, 2003), in the

same year another prominent name for the domain

opinion mining was proposed in (Dave et al., 2003).

Both the terms sentiment analysis and opinion mining

are used in the literature, along with many related,

though a bit more specific, terms like review mining,

opinion affect analysis, sentiment mining or emotion

analysis (Liu, 2012).

Sentiment analysis from its beginning focuses on

extracting information about users’ emotional

attitudes from large corpora of documents, especially

from social media. In comparison with its ancestor

fields (NLP and affective computing) the problems

here are approached more directly and specifically.

The researchers do not focus on creating methods for

perfect understanding of texts being analyzed. The

texts are very often being treated as bags-of-words

exposing some features based on presence or absence

of specific words (or their co-presence expressed as

n-grams—pairs, triples, etc. of words). Also the

emotions exposed in the texts are typically not

identified very comprehensively. The usual outcome

of the analysis is bipolar: emotions are identified as

positive or negative (sometimes neutral).

The range of phenomena being analyzed is quite

broad, and includes sentiments, emotions,

evaluations, and attitudes towards products, services,

organizations, persons, events, news etc. However,

there exists no tool suitable for handling all those

phenomena universally, and most of algorithms

developed in the field focus on a single problem:

specific type of text, like microblog entry, and

specific object being evaluated, like a tablet or a

mobile phone.

The strength of methods of sentiment analysis

most frequently stems from their statistical character.

For instance, presence of the word “excellent” in a

text may be treated as a sign of the text bearing

positive opinion. This rule, while in some (perhaps

many) cases not true, when applied to a large corpora

of texts may turn out to be feasible enough to

positively contribute to extracted information about

expressed opinions.

Attention drawn by the subject of sentiment

analysis increased rapidly, from purely scientific

interest, towards many applied methods. Currently

most of the companies involved in business

intelligence (like Microsoft or SAS) offer their own

solutions for opinion mining. One of the reasons is

very broad range of potential applications: sentiment

analysis has been used for assessing sales volume

(Liu et al., 2007), ranking sellers and products

(McGlohon et al., 2010), prognosis of movie box

office (Asur and Hubeman, 2010) or assessing

attitudes of stock exchange investors ((Bollen et al.,

2011) on the basis of tweets, (Bar-Haim et al. 2011)

using posts in expert microblogs). Semantic analysis

found its applications also in political debate

(Tumasjan et al. 2010, Chen et al. 2010) to predict the

results of presidential vote in the USA.

2.2 Classifying SA Methods

The field of sentiment analysis is very rich and many

papers in the domain contain proposals of

classification schemes for SA methods. Such

proposals are most frequently presented in survey

papers and books reviewing the field, and can be used

to underpin some of the most important

characteristics of methods being classified.

One of the most classic decompositions of the

methods in the field was presented in (Feldman,

2013). The methods are classified along two

dimensions. The first dimension is about granularity,

i.e. the degree into which a method investigates the

contents of a document. While not precisely

distinguished in (Feldman, 2013), one can order those

degrees into the following hierarchy:

 Document-level analysis,

 Sentence-level analysis,

 Aspect-level analysis.

Analysis at a document level is the most

straightforward way of assessing sentiment. Methods

at this level assign sentiment orientation to whole

documents, most frequently in the bipolar form of

positive/negative score. Sentence-level analysis

consists in assigning orientation to subsequent

sentences. Working at this level might be helpful in

detecting mixed opinions about the object of

sentiment, and is also useful when some special kinds

of sentences should be treated in a special way (like,

simply, filtering out some sentences, say sarcastic

ones). Aspect-level analysis allows for assigning

sentiment not only directly to the object being

assessed but also to its “parts”, known as aspects.

Aspects need not to be necessarily physical parts of

the object, they may also refer to its features (like

“display quality”). Assessing at aspect level allows

for assigning sentiment score to parts and features of

the object and, consequently, allows to extract

interesting information also from mixed opinions. At

the end of such analysis user may be presented with

more detailed report with score for each of the

aspects.

Analysis-level dimension is augmented by the

division of methods by the learning technique

applied. We distinguish here supervised and

unsupervised methods. In supervised learning we

SACAM - A Model for Describing and Classifying Sentiment Analysis Methods

197

assume that we have at our disposal a training set that

has been already labeled (e.g. by a human expert). For

instance in the training set we may have examples,

each representing a single review, with features like

n-grams and labels in the form of positive/negative.

From this set, a machine learning algorithm derives

rules of assigning each example (and new examples)

to the distinguished classes. Many data mining

methods are suitable for this purpose, like Decision

Trees, Naïve Bayes Classifiers, Support Vector

Machines etc.

In unsupervised methods we do not have any

labeling ready. Instead the algorithm, according to

some rules, has to extract some features or parts of the

document. An example may be syntactic rules for

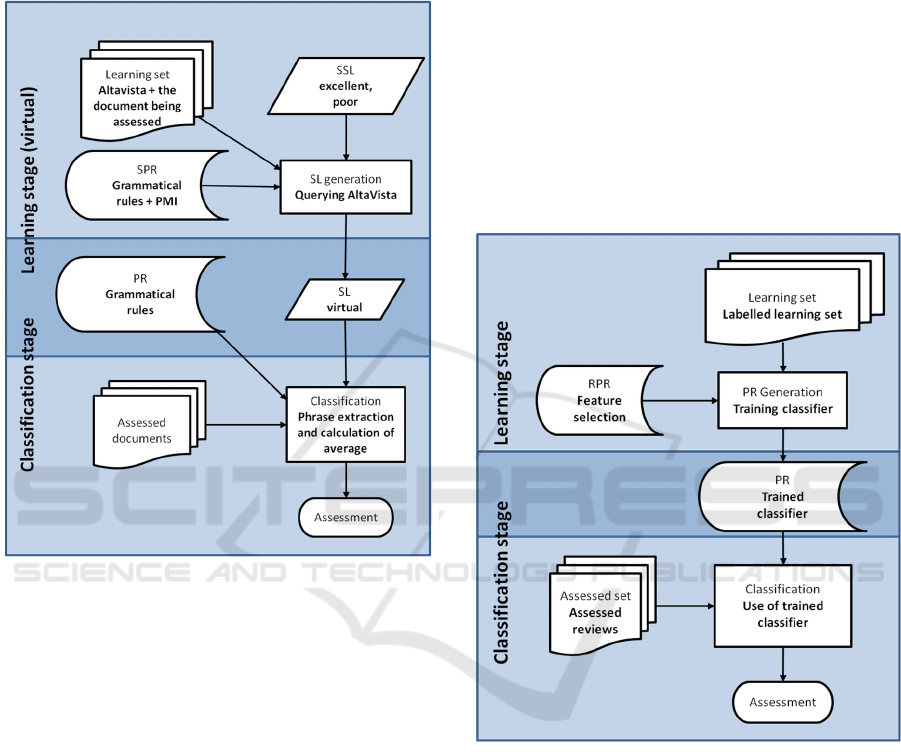

finding phrases in Turney’s method (see Section 3.2).

This kind of learning usually requires the existence of

some kind of sentiment lexicon, i.e. a set of reference

words with assigned information about strength and

polarization of the sentiment expressed by them.

The two mentioned dimensions are most

frequently used in classification. Many other methods

of classification are based on those dimensions and

extend them by new ones. An example is (Cambria et

al., 2013) whose authors (apart from adapting

granularity dimension) propose two new dimensions:

discourse, and conceptual.

Discourse dimension refers to the level of

awareness of the structure of discourse presented

throughout the document. Most of the methods ignore

this structure, e.g. by treating all the phrases equally

regardless of the context of their appearance and their

position in the document. Simple mechanisms that

exhibit some discourse awareness may, for instance,

detect summaries presented at the beginning and at

the end of the document, and treat phrases in these

sections differently (e.g. with higher weight). Most

advanced mechanisms should be able to detect

citations, quoted opinions, sarcastic answers or

examples, in order to properly interpret the sentiment

of specific phrases of sentences, or maybe even just

to exclude some kinds of them from further analysis.

Conceptual dimension refers to mechanisms used

for extract sentiment, and order them in accordance to

the ability of extracting the meaning of word and

phrases. This conceptual dimension is also very much

connected to the ability of interpreting context of the

words and phrases being examined. While simple

methods rely on a keyword list with sentiment

explicitly assigned, more advanced methods may

treat sentiment carried by a word or a phrase more

cautiously, for example by assigning them

probabilities of expressing positive and negative

opinion. Even more advanced mechanisms may take

into consideration co-occurrence of the terms and

their position in the sentence (e.g. by considering also

punctuation). Most advanced methods along this

dimension can be equipped with a knowledge base

about concepts in the domain of interest (like the

knowledge about the construction of a mobile phone)

and may be able to use this knowledge for in-depth

analysis of the sentences. Quoting (Cambria et al.,

2013): “Concept-based approaches can analyze

multi-word expressions that don’t explicitly convey

emotion, but are related to concepts that do”.

Classification schemes very often refer also to the

particular mechanisms included in the method (Liu,

2012, Cambria et al., 2013, Feldman, 2013). The list

of the mechanisms is more or less predetermined and

often includes features like presence or absence of

sentiment lexicon (set of word with assigned

information about sentiment carried), aspect lexicon

(expressions about feature of parts of object being

assessed), ability to identify special sentences (like

sarcastic ones, or objective sentences telling us about

facts), ability to identify special entities (like proper

names) etc.

Apart from dimensions and mechanisms

(Feldman, 2013) also describes the general

architecture of a sentiment analysis method, and

treats this as a useful resource during classification.

The architectural schema proposed by (Feldman,

2013; with minor changes mostly due to other

graphical layout of the paper) is presented in Figure

Figure 1: A general architecture of a sentiment analysis

method on the basis of (Feldman, 2013).

Input for a method is a corpus of documents,

which can be pre-processed in order to create or refine

the contents of additional resources (e.g. lexicons).

The resources are then used for proper document

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

198

analysis and to produce sentiment score. Important

thing worth noting in the picture is the recurrent

character of the flow, which may consist of stages

whose execution might be repeated during the course

of the method.

3 SACAM

This Section describes the SACAM model (Section

3.1) and gives an example of its use, based on one of

the very widely known Turney’s method (Turney,

2002) for sentiment analysis (Section 3.2).

3.1 General Rules of SACAM

The classification schemes described in Section 2.2

certainly underpin some of their interesting of SA

methods being classified, and can be treated as base

for creating their formal and abstract descriptions.

Considering, however, the discrepancies between

various classification schemes, and the fact that no

survey or book proposed a detailed method of such

formal description, we decided to build a new model,

SACAM, on the top of the selected existing

classification schemes.

Driven by the requirements of the project,

mentioned in the Introduction, we strived for a model

for describing sentiment analysis methods

particularly focusing on processing knowledge

during the analysis of textual opinions. All the

methods of sentiment analysis base on knowledge

about the content being processed. This knowledge

can be subdivided into several areas: knowledge

about grammatical structure of the texts being

analyzed, knowledge about meaning of specific

words, and knowledge about the domain of interest,

i.e. the object being assessed. In our classification we

wanted to focus on how the knowledge in these (and

perhaps additional) areas is used, stored and

processed. This is the reason why we called the new

method Sentiment Analysis Content Awareness

Model (SACAM).

What we wanted to achieve was the model for

describing methods of sentiment analysis. The

descriptions prepared in accordance to the model

should give clear and immediate clues about the way

of processing knowledge during the analysis,

especially should answer the questions like: whether

the knowledge in aforementioned areas is taken into

consideration at all, is it statically programmed into

method, or maybe prepared in some preliminary

stages, is it expressed explicitly or is implicitly

contained in some components. As it can be seen

from this description, the structure of the process

itself was also very important to us. Apart from these

properties, we also expected the method to expose

such characteristics as how much human expert work

is needed.

Another very important requirement for the model

was the ability to describe not only single specific

methods of sentiment analysis, but also whole

families of methods. In this way we could also obtain

the tools for classifying methods and to compare them

on the more aggregated basis.

Taking these requirements into consideration we

developed a graphical notation being the core of the

SACAM model. Using this notation one can prepare

a diagram being a description for a method or a family

of methods of sentiment analysis. The notation is

based on standard block diagrams being used to

depict business processes in an organization.

Each diagram consists of standard elements depicted

in Figure 2. We drew inspiration here from the work

(Feldman, 2013) which also borrowed such elements

to describe the general process of sentiment analysis

(see Figure 1). The meaning of each of the elements

was slightly changed in order to express specifics of

sentiment analysis.

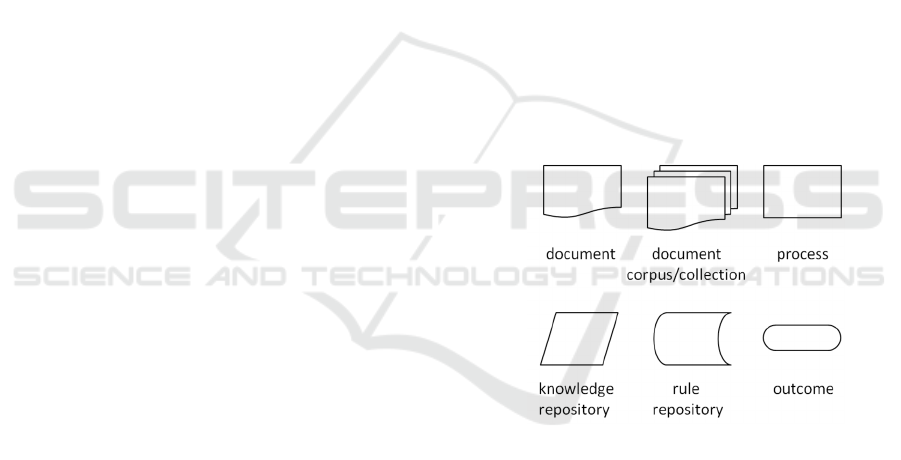

Figure 2: Basic elements of a SACAM diagram.

The elements from Figure 2 can be combined into

a description of a flow. This flow depicts the main

steps taken in the described method. The flow may be

divided into several stages, differentiated by (not

necessarily disjoint) frames. It should end with the

terminal symbol, representing the final outcome of

the algorithm.

The SACAM diagrams come in two flavors. A

diagram may depict a single method (particular

diagram), or a family of methods (generic diagram).

In the first case, the elements of the diagram refer to

repositories used and algorithms executed by the

particular method. In the second case the elements

represent more generic repositories and steps, and are

a placeholder for filling by a more specific family (or

SACAM - A Model for Describing and Classifying Sentiment Analysis Methods

199

a specific method). An assumption is made here, that

this is not necessary (for the more specific family or

method) to fill all the placeholders.

Such an approach allows us to create a diagram

that captures the broadest family of almost all typical

methods of sentiment analysis. This general diagram

(called a root diagram) is shown in Figure 3.

The root diagram shows the three kinds of

knowledge repositories used by typical methods of

sentiment analysis: repository of processing rules

(including use of grammar, e.g. mechanisms like

POS-taggers), repository of knowledge about

sentiment words (sentiment lexicons) and repository

of knowledge about the object of assessment (aspect

lexicons). The three repositories are depicted by three

vertical flows (diagram “columns”).

Sentiment lexicons and aspect lexicons (SL, AL)

are traditionally understood repositories, depicted by

an appropriate symbol. For such repositories there

often might be a special process of their building

(learning stage). Most commonly some preliminary

form of a lexicon is given (called seed lexicon; SSL,

SAL). Seed lexicon is being iteratively extended

during the process. The seed forms of lexicons are

depicted in the first row of the diagram, and the

iterative process of building the final form of the

repositories is illustrated by the upper frame. The

frame is “plural”, which is indicated by additional

incomplete rectangles extending beyond the main

frame. The plural form of the frame indicates that the

stage may be repeated a number of times.

The knowledge about processing is represented in

the form of repository of rules (PR). It plays the major

role in forming the main loop of an algorithm being

described. This kind of knowledge is “operational”,

as it constitutes the flow in the process of generating

the outcome (final assessment). However, this does

not necessarily mean that the exact form of rules

needs to be known in advance: the processing rules

may be also generated or made more specific during

the learning stages. As those rules form the low-level

knowledge about processing documents in general,

they might be also used (sometimes in a modified

form) to generate sentiment and aspect lexicons

(SPR, APR) and sometimes to refine the processing

rules themselves (RPR; PR generally consists of

RPR, SPR and RPR which is represented in the

diagram with a dotted line). Processing rule very

often embrace basic or more advanced knowledge

about grammar, as many of the sentiment analysis

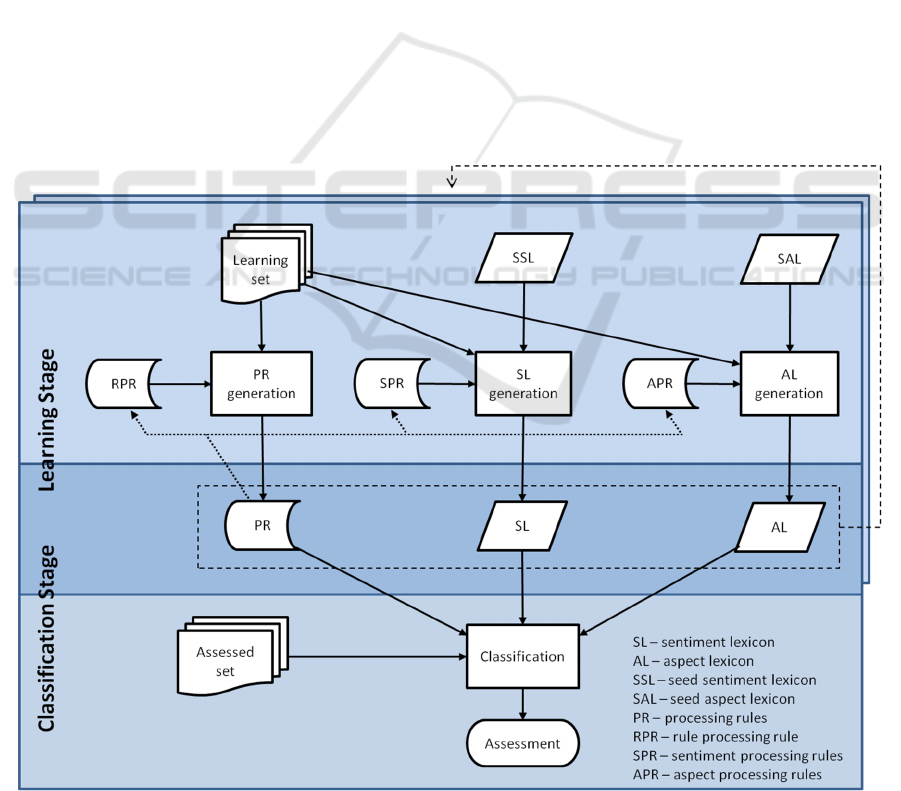

Figure 3: The root diagram of SACAM model, with the legend for abbreviations in the bottom right corner.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

200

methods perform various actions on the basis of

grammatical properties of encountered words or

sequences of words (like Part-of-Speech, PoS).

Solid arrows show flow of knowledge in the

method. Arrows directed towards processes show that

a process uses a repository (documents), arrows

directed outside processes show its outcome (final

outcome or contribution to a repository). Dashed line

show a feedback loop within a plural stage. As

mentioned above, dotted line show that some

repository may consists of other repositories.

Root diagram is a general SACAM diagram,

which means it can be specialized to show a specific

method, or a narrower family of methods. When

specializing a general diagram, the more specific

diagram reuses the subset of the elements from the

more general one, and augments them with

comments. The comments are placed within the

elements and for the processes they should normally

concern:

 If the process involves human work;

 If the process requires external applications and/or

services;

 What algorithms are used.

While for repositories they should indicate:

 What does the repository contain;

 How the contents are represented.

A person creating the diagram naturally has some

freedom in selecting the most important features to be

described, but they should generally follow the main

principle of SACAM: to depict the flow of

knowledge. Therefore, all the information concerning

knowledge acquisition, representation and processing

should be a priority.

3.2 Creating a Particular SACAM

Diagram for Turney’s Method

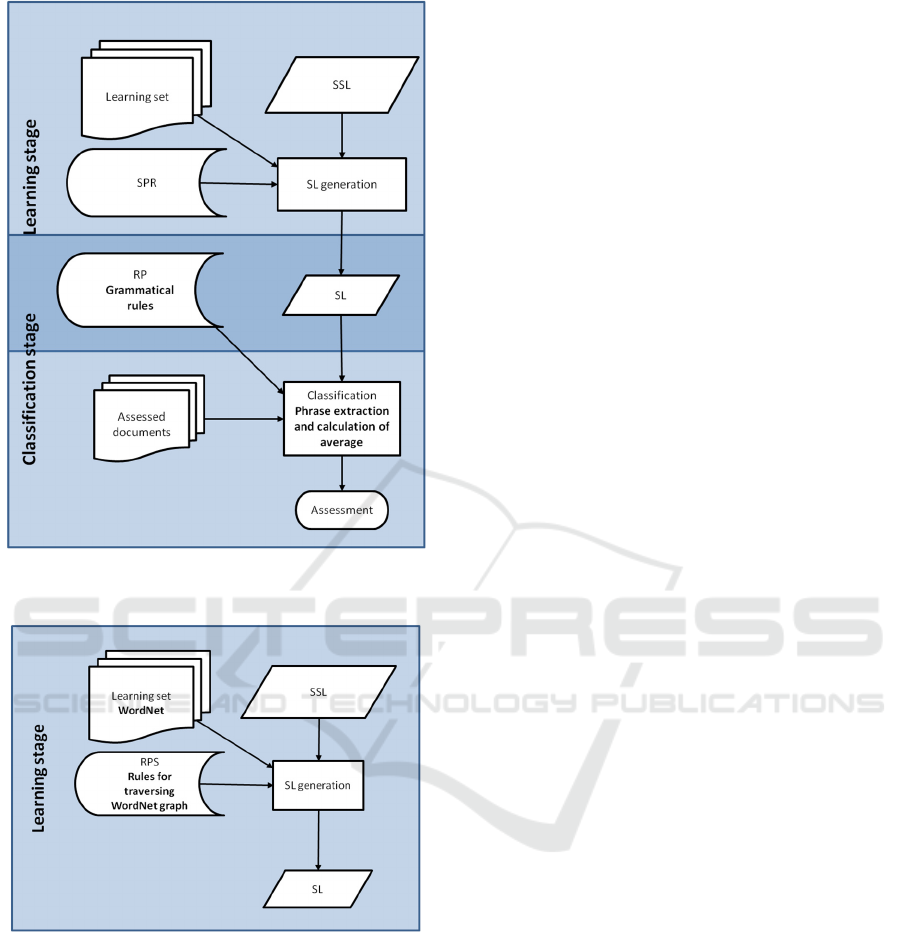

In this Section we show how to construct a particular

SACAM diagram, taking as an example one of the

most widely known SA methods, Turney’s method,

described in (Turney, 2002). In general the method

uses unsupervised learning for analyzing texts on the

basis of syntactical patterns for expressing opinions.

The syntactical patterns used in the algorithm

reflect the observation that different parts of speech

have different influence on expressed opinions. The

most important (i.e. those whose sentiment is mostly

correlated with the overall sentiment) are adjectives

and adverbs.

The syntactical patterns are used in Turney’s

method to find phrases of interest. The patterns (and

phrases) consist of two consecutive words

(sometimes with a third following word not included

into the phrase) of appropriate part-of-speech. An

example of a pattern expressed with tags (Penn

Treebank Project, 2016) is: JJ NN/NNS, which means

that it matches adjectives followed by nouns in plural

or singular form.

The main algorithm accepts a set of reviews S and

consists of three stages. In the first stage the algorithm

looks for matching phrases from S. In the second

stage sentiment orientation of each phrase is

determined. For this task a measure called pointwise

mutual information (PMI) is used, which, for two

different phrases, is calculated with the equation:

PMI(phrase

, phrase

) = log

p(phrase

 phrase

)

(1)

p(phrase

)  (phrase

)

where p(phrase

 phrase

) is the probability of co-

occurrence of the two phrases, where p(phrase

) 

(phrase

) is the product of probabilities of occurrence

of the two phrases (or also co-occurrence, if they are

independent).

The algorithm uses this equation to determine “the

distance” between the matched phrase (phrase

) and

the two predetermined phrases “poor” and

“excellent”. The sentiment orientation (SO) of the

phrase is then calculated as:

SO(phrase

)=PMI(phrase

,excellent)–

PMI(phrase

,poor)

(2)

which can be transformed into:

SO(phrase

) = log

p(phrase

 excellent)  p(poor)

(3)

p(phrase

 poor)  p(excellent)

The probabilities of occurrence and co-occurrence of

phrases are unknown. But in Turney’s method they

are estimated with clever use of Internet search

engine (Turney used AltaVista): p(phrase) is

estimated as proportional to number of hits for the

phrase, while p(phrase

 phrase

) as proportional to

number of hits for the query phrase

NEAR phrase

This allows for further transformation of the equation

(3):

SO(phrase

) = log

hits(phrase

NEAR excellent) 

hits(poor)

(4)

hits(phrase

NEAR poor) 

hits(excellent)

where hits denotes the number of hits returned by the

search engine.

In the third and final stage SO of each review from

the set S is determined as the average of SO of all

phrases extracted from this review. Positive number

indicates a positive sentiment orientation.

Fig. 4 contains the description of Turney’s method

in the form of a particular SACAM diagram (as a

SACAM - A Model for Describing and Classifying Sentiment Analysis Methods

201

specialization of the root diagram). The primary

features of the diagram are expressed with its shape.

Along the horizontal axis we can see that the Turney’s

method exploits two repositories: of grammatical

(processing) rules and a sentiment lexicon.

Figure 4: Turney’s method described with a SACAM

diagram.

Along the vertical axis we can see that the

sentiment lexicon needs to be prepared, and is used

for the proper assessment. The process of creation the

sentiment lexicon is virtual, which means that the

lexicon is not materialized, and the learning stage is

in fact intertwined with the process of classification.

Nevertheless, the knowledge about sentiment of

specific words is very strongly present in Turney’s

method. In addition, it is based on large corpora of

documents indexed by AltaVista, which is shown by

the secondary features, i.e. features that are described

in the comments.

4 APPLICATIONS OF SACAM

In this Section we present applications of SACAM,

including already performed by us (Sections 4.1, 4.2,

and 4.3) and further possible applications (Section

4.4).

4.1 Roadmap of SA Methods

One of the most straightforward uses of SACAM is

to depict classes of existing SA methods. Within our

project we undertook such a task and created general

diagrams for top-level classes of methods, basing

mainly on the division presented in (Liu, 2012).

Created diagrams, among others, depicted:

 Supervised and unsupervised SA methods;

 Methods involving detection of subjective

sentences;

 Methods involving creation or use of sentiment

lexicon,

 Methods involving creation or use of aspect

lexicon.

Figure 5: SACAM diagram for supervised SA methods.

Due to constrained space for the paper we only

reproduce here diagrams for supervised methods

(Figure 5) and for methods involving creation of

sentiment lexicon (Figure 6).

As diagrams like those presented in the

aforementioned figures tend to increase in size, we

also introduced the notion of a partial SACAM

diagram, which highlights some of the fragments of

the flow within a method or a class of methods. An

example of such diagram is shown in Figure 7, where

a mechanism for creation of sentiment lexicon with

use of WordNet (Miller, 1995) is highlighted.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

202

Figure 6: General SACAM diagram for unsupervised

methods.

Figure 7: Partial SACAM diagram showing sentiment

lexicon creation with use of WordNet.

Diagrams like this can be useful to create a

general map of the field, depicting main classes of

methods and pointing out similarities and differences

between them. Individual methods can be matched

against general diagrams. For instance, Turney’s

method (traditionally counted in unsupervised

methods) fits almost perfectly into the schema for

methods involving sentiment lexicon, obviously with

the (very) notable exception that the lexicon in

Turney’s method is of purely virtual character.

Such a collection of general SACAM diagrams

can easily be maintained and augmented with the

appearance of new classes of SA methods.

4.2 Designing New SA Methods and

Comparing SA Methods

Particular SACAM diagrams are also a very efficient

tool of designing new SA methods and to compare

(newly designed or existing) methods to each other.

Consider an exemplary new method with the

following characteristics. The method consists of

three preliminary stages and two main steps. During

the preliminary stages the data for proper

classifications of reviews is prepared. We assume that

a given set of reviews of a product (any product, but

we may think of a mobile phone here) is available.

In the first preliminary stage, the topics of the

assessed reviews are automatically predetermined.

Latent Dirichlet Allocation (LDA; Blei et al. 2003),

revealing words most characteristic for each topic,

and in this way, indirectly, determine the set of

relevant topics. In the second preliminary stage the

collection of topics extracted during the first stage is

reviewed by experts. The experts identify phrases

which refer to qualitative aspects of a product (like

“display quality”, “memory size”, “energy

consumption”) and identify the aspects as “positive”

(like “display quality”), which means that larger

amount of this quality is desirable, or “negative” (like

“energy consumption”), which means that larger

amount of this quality is undesirable. In the third

preliminary stage the experts identify the words

(intensity words) that indicate higher amount or

intensity for each of aspects (like “high” for both

“display quality” and “energy consumption” and

“unacceptable” only for “energy consumption”)

along with words for lower intensity for each of

aspects.

In the first main step, phrases that are

combinations of intensity words and aspects are

identified, and the sentiment orientation of each

phrase is determined on the basis of whether the

qualitative aspect itself is positive of negative and

whether the intensity word indicates high or low

intensity/amount of this aspect. In the second main

step the assessment of a single document is calculated

as a difference between the number of “positive”

phrases and “negative” phrases.

These assumptions are sufficient to allow us to

easily create a SACAM diagram for the method (see

Figure 8). The method can be easily compared to

other methods, like Turney’s, by checking the

primary and secondary features of the diagrams.

SACAM - A Model for Describing and Classifying Sentiment Analysis Methods

203

The differences can immediately be seen in

primary features: the new method uses an aspect

lexicon. The secondary features reveal more

distinctions: primarily the amount of experts’ work

needed in the alternative method, and concrete (non-

virtual) character of lexicons prepared there.

Naturally, there are also similarities between the

two methods. Both of them use knowledge about

sentiment carried by specific words (sentiment

lexicons), both need the lexicons to be prepared, and

both calculate the final score for the documents as an

aggregated score of extracted phrases.

4.3 Assessing SA Methods

SACAM diagrams may be used as a basis for creating

formal or semi-formal measures of fitness of

particular methods or classes of methods for a

specific task.

Within our project we used this approach to

estimate the best directions for integrating ontological

knowledge management with traditional sentiment

analysis. To this end we created a semi-formal

measure of semantic potential, whose value was

determined on the basis of presence or absence of

specific constructs in the SACAM diagrams.

While the detailed description of the measure is

outside of the scope of this paper, the basic factors

influencing the measure (positively) were the number

of knowledge repositories, presence of procedures for

building or augmenting the repositories, and

interactions between repositories, i.e. using the

contents of one of the repositories to refine the

contents of another repository. The last effect is

present, for instance, in the methods which build their

aspects lexicon on the basis of identification of

sentiment words (like e.g. (Blair-Goldensohn, 2008)

or (Somasundaran and Wiebe, 2009)), which

mechanism is depicted in SACAM in Figure 9.

Use of the aforementioned measure allowed us to

direct our interest towards methods of this level of

interaction between repositories. Ultimately, we

chose a bit different course of actions and decided to

use modular ontological knowledge bases to support

the process of creating customized sentiment lexicons

for each of the identified aspects. The measure,

developed using SACAM, allowed us to make a more

informed decision in this subject.

Figure 8: The root diagram of SACAM model, with the legend for abbreviations in the bottom right corner.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

204

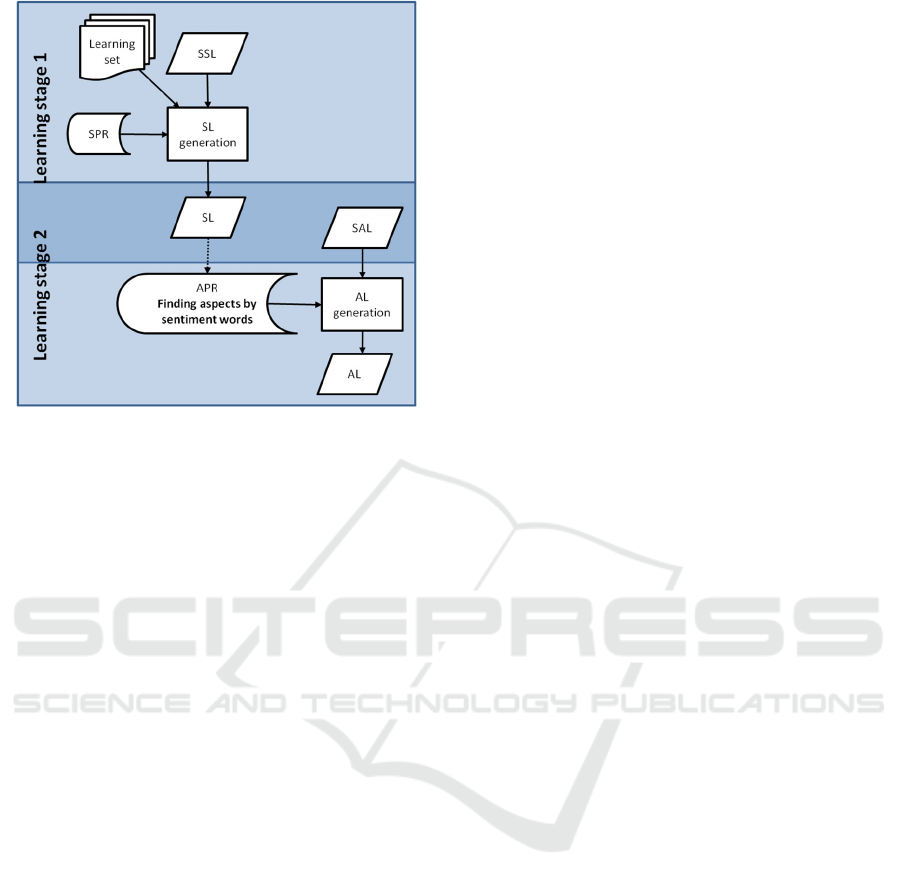

Figure 9: Partial SACAM diagram showing use of

sentiment lexicon in building aspect lexicon.

4.4 Further Applications of SACAM

Another direction for development of SACAM

consists in laying more solid foundations for its

formalization. One of possible approaches here is to

create an ontology for the model. Ontologies are

formal specifications of conceptualizations in various

fields (Gruber, 1993). As such, they constitute a very

good instrument for formalizing all kinds of

descriptions. The state-of-the art language for

creating ontologies is OWL 2 (OWL 2, 2012).

Creation of a formal OWL ontology for SACAM

would create numerous possibilities. Firstly, it would

allow for automated verification and comparison of

SACAM descriptions. Secondly, it would be possible

to express in the ontology not only the descriptions of

methods and classes of methods but, for example, the

requirements for a method for a specific project. This

would allow for developing measures for fitness of

specific methods for specific tasks and, possibly,

automated search of methods.

5 SUMMARY

In this paper we presented the SACAM model for

describing methods and families of methods of

sentiment analysis. The core of the model is a

graphical notation used to depict the flow of

knowledge during such analysis.

The graphical notation adopts the elements of

block diagrams used for describing business process.

Shape of each SACAM diagram expresses primary

features of a method (or family of methods), which

are the knowledge repositories used and the required

stages of processing. The secondary features, like

involvement of experts, way of knowledge

representation, and use of specific tools for

knowledge processing are revealed in the comments

present in each block.

The applications of SACAM are numerous.

Within our project SACAM proved itself a helpful

tool. It has been successfully used to describe both

various classes of methods and particular methods

and to compare them to each other. Practitioners in

the field may also find it a useful tool for designing

new methods. On the basis of the presence or absence

of some specific construct in the diagram one can

derive measures of choice for more detailed

assessment of SA methods and algorithms.

One of the most promising directions of use and

development of the model is to formalize it with use

of ontologies. It might lead to new uses of SACAM,

like automated verification and assessment of

sentiment analysis methods.

ACKNOWLEDGEMENTS

This work described in the paper was partially

supported by the Polish National Centre for Research

and Development (NCBiR) under Grant No.

PBS3/B3/35/2015, project “Structuring and

classification of Internet contents with prediction of

its dynamics” (Polish title: “Strukturyzacja

i klasyfikacja treści internetowych wraz z predykcją

ich dynamiki”).

REFERENCES

Pang, B., Lee, L., 2008. Opinion mining and sentiment

analysis. In Foundations and Trends in Information

Retrieval, vol. 2, no. 1-2, pp. 1–135, 2008.

Cambria, E., Schuller, B., Xia, Y., Havasi, C., 2013. New

Avenues in Opinion Mining and Sentiment Analysis, in

IEEE Intelligent Systems 28 (2), pp. 15–21, 2013.

Liu, B., 2012. Sentiment Analysis and Opinion Mining,

Morgan & Claypool.

Nasukawa, T., Yi, J., 2003. Sentiment analysis: Capturing

favorability using natural language processing. In

Proceedings of the KCAP-03.

Dave, K., Lawrence, S., Pennock, D. M., 2003. Mining the

peanut gallery: Opinion extraction and semantic

classification of product reviews. In Proceedings of

International Conference on World Wide Web (WWW-

2003).

Liu, J., Cao, Y., Lin, C.-Y., Huang, Y., Zhou, M., 2007.

SACAM - A Model for Describing and Classifying Sentiment Analysis Methods

205

Low-quality product review detection in opinion

summarization. In Proceedings of the Joint Conference

on Empirical Methods in Natural Language Processing

and Computational Natural Language Learning

(EMNLP-CoNLL-2007).

McGlohon, M., Glance, N., Reiter, Z., 2010. Star quality:

Aggregating reviews to rank products and merchants.

In Proceedings of the International Conference on

Weblogs and Social Media (ICWSM-2010).

Asur, S., Huberman, B. A., 2010. Predicting the future with

social media. In Proceedings of the 2010

IEEE/WIC/ACM International Conference on Web

Intelligence and Intelligent Agent Technology.

Bollen, J., Mao, H., Zeng, X-J., 2011. Twitter mood

predicts the stock market. In Journal of Computational

Science.

Bar-Haim, R., Dinur, E., Feldman, R., Fresko, M.,

Goldstein, G., 2011. Identifying and Following Expert

Investors in Stock Microblogs. In Proceedings of the

Conference on Empirical Methods in Natural

Language Processing (EMNLP-2011).

Tumasjan, A., Sprenger, T. O., Sandner, P. G., Welpe, I.

M., 2010. Predicting elections with twitter: What 140

characters reveal about political sentiment. Im

Proceedings of the International Conference on

Weblogs and Social Media (ICWSM-2010).

Chen, B., Zhu, L., Kifer, D., Lee, D., 2010. What is an

opinion about? Exploring political standpoints using

opinion scoring model. In Proceeedings of AAAI

Conference on Artificial Intelligence (AAAI-2010).

Feldman, R., 2013. Techniques and Applications for

Sentiment Analysis. In Communications of the ACM,

vol. 56(4).

Turney, P. D., 2002. Thumbs up or thumbs down?:

semantic orientation applied to unsupervised

classification of reviews. In Proceedings of Annual

Meeting of the Association for Computational

Linguistics (ACL-2002).

Penn Treebank Project, 2016. Alphabetical list of part-

of-speech tags, https://www.ling.upenn.edu/, Accessed

May 2016.

Miller, G. A., 1995: WordNet: A Lexical Database for

English. In Communications of the ACM Vol. 38, No.

11: 39-41.

Blei, D. M., Ng, A. Y., Jordan, M. I., 2003. Latent dirichlet

allocation. In The Journal of Machine Learning

Research.

Blair-Goldensohn, S., Hannan, K., McDonald, R., Neylon,

T., Reis, G. A., Reynar, J., 2008. Building a sentiment

summarizer for local service reviews. In Proceedings of

WWW-2008 workshop on NLP in the Information

Explosion Era.

Somasundaran, S., Wiebe, J., 2009. Recognizing stances in

online debates. In Proceedings of the 47th Annual

Meeting of the ACL and the 4th IJCNLP of the AFNLP.

Gruber, T. R., 1993. A Translation Approach to Portable

Ontologies. In Knowledge Acquisition, 5(2):199–220.

OWL 2, 2012. OWL 2 Web Ontology Language Primer,

2nd Edition, W3C Recommendation.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

206
